Cables and Connectors(Non-accredited measurements)
Captive Cables
Description
Cable Count
Connector Count (Total)
Gauge
ATX connector 20+4 pin (620mm)
1
1
16-22AWG
4+4 pin EPS12V (660mm)
1
1
18AWG
Modular Cables
6+2 pin PCIe (600mm+150mm)
2
4
16-18AWG
SATA (450mm+115mm+115mm+115mm)
2
8
18AWG
4 pin Molex (450mm+100mm+100mm)+FDD (+100mm)
2
6 / 2
18-22AWG
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
Performance Summary
Efficiency Rating
SILVER
Noise Rating
Standard+
Average Efficiency (>1450 load combinations)
85.710%
Average Noise Output (>1450 Load Combinations)
39.16dBA
Average PF (>1450 Load Combinations)
0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0513W
12V Ripple (Full Load)
30.88mV
5V Ripple (Full Load)
25.80mV
3.3V Ripple (Full Load)
20.64mV
5VSB Ripple (Full Load)
15.64mV
12V Load Regulation
1.71%
5V Load Regulation
2.39%
3.3V Load Regulation
2.52%
5VSB Load Regulation
4.22%
Inrush Current
49.264A
Efficiency Rating
SILVER
Noise Rating
Standard+
Average Efficiency (>1450 load combinations)
88.415%
Average Noise Output (>1450 Load Combinations)
38.77dBA
Average PF (>1450 Load Combinations)
0.959
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.0695W
12V Ripple (Full Load)
29.93mV
5V Ripple (Full Load)
35.66mV
3.3V Ripple (Full Load)
24.46mV
5VSB Ripple (Full Load)
15.26mV
12V Load Regulation
1.87%
5V Load Regulation
2.41%
3.3V Load Regulation
2.79%
5VSB Load Regulation
4.40%
Inrush Current
57.706A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
Hold-Up Time & Power Ok Signal
9.00ms
AC Loss to PWR_OK Hold Up Time
6.30ms
PWR_OK Inactive to DC Loss Delay
2.70ms
PSU Timings: T1 (20% / 100%)
0.0ms
0.0ms
PSU Timings: T3 (20% / 100%)
0.0ms
0.0ms
OPP (0.00°C / 0.00°C)
0.00%
0.00%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
9
AC Loss to PWR_OK Hold Up Time (ms)
6.3
PWR_OK Inactive to DC Loss Delay (ms)
2.7
Vampire Power
Tables
Graphs
INFO

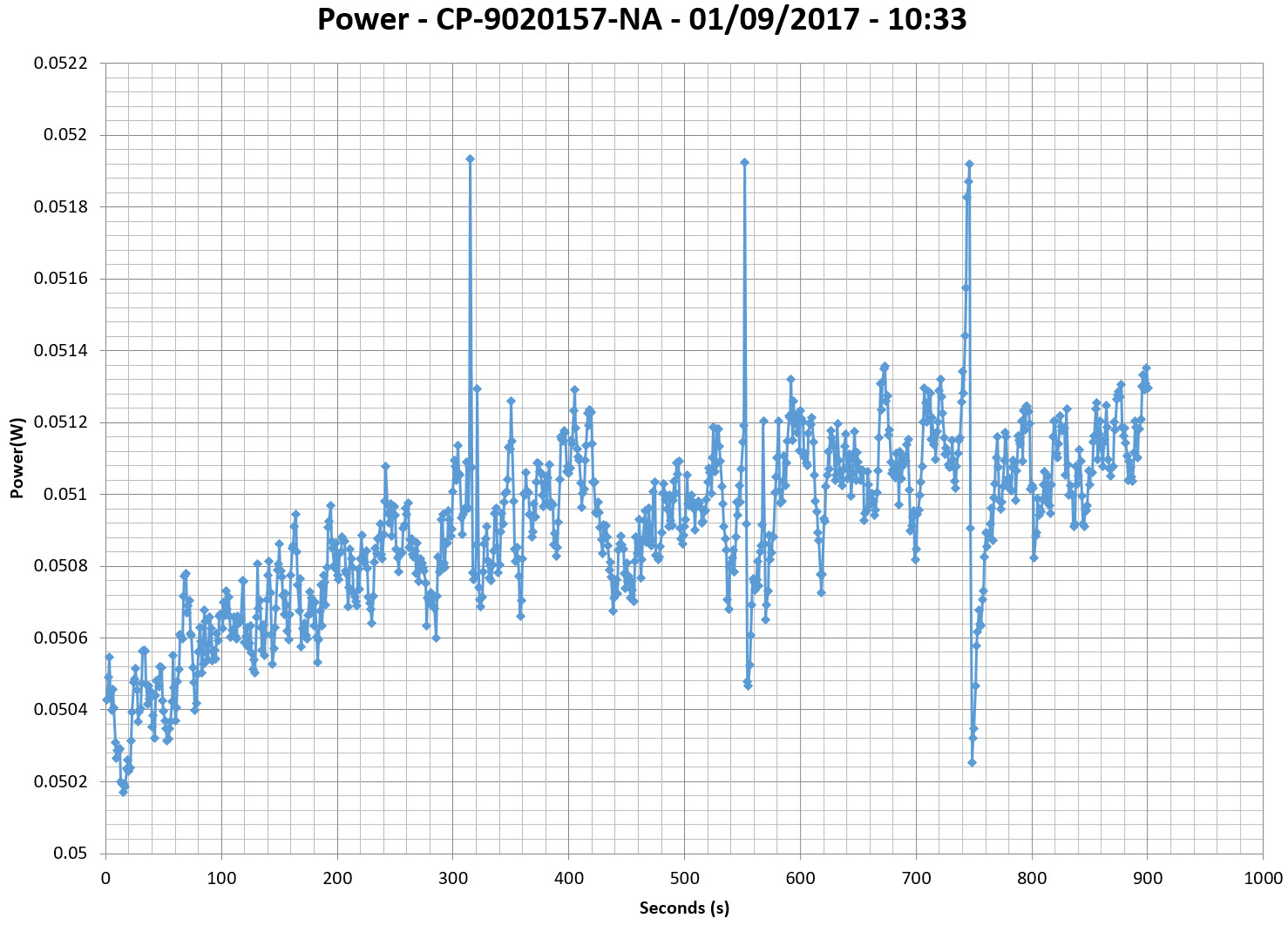

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO

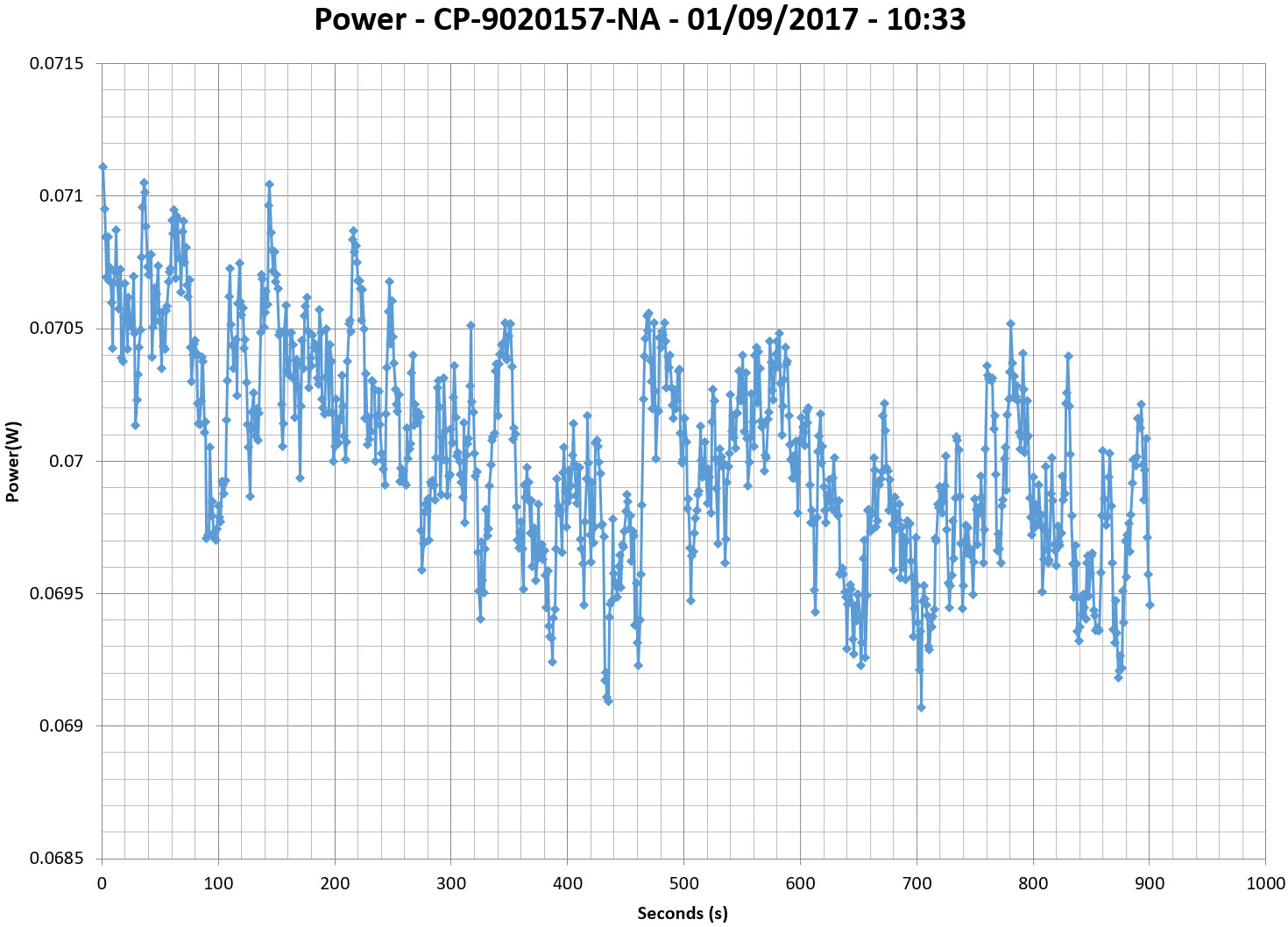

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

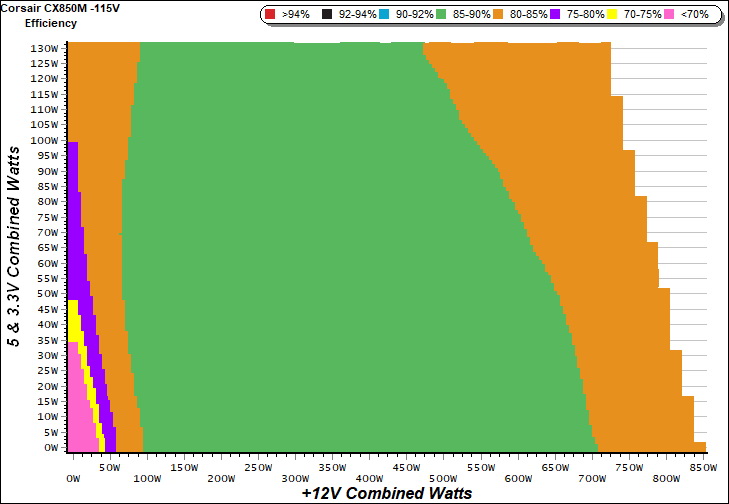

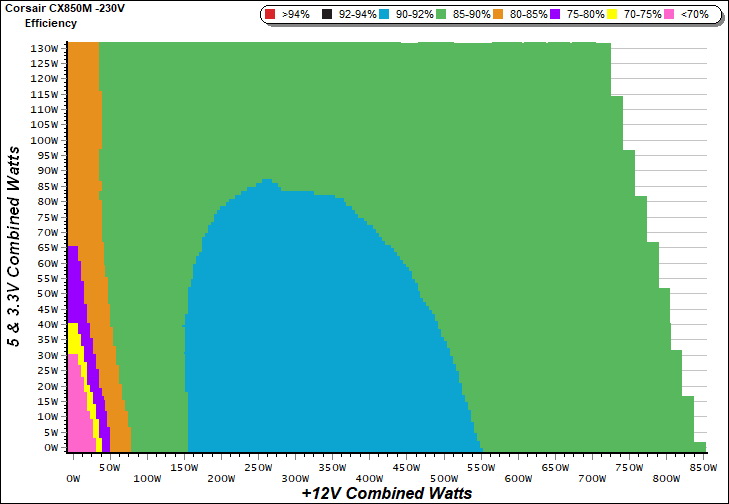

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

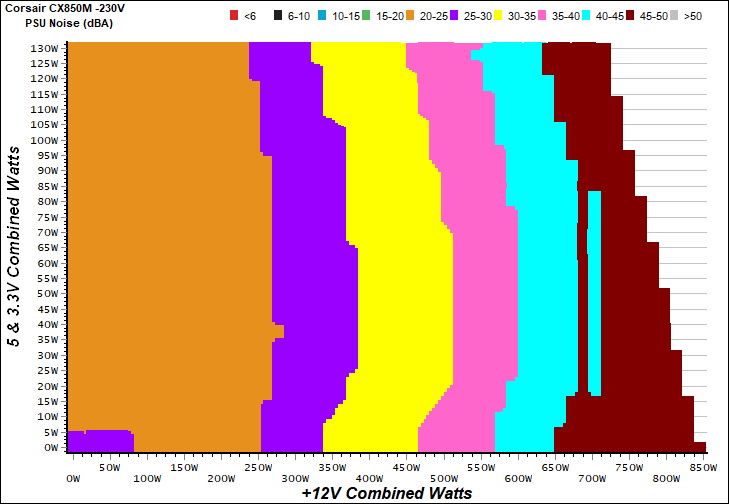

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Conducted Emissions EN55032 & CISPR 32
Indicative Performance

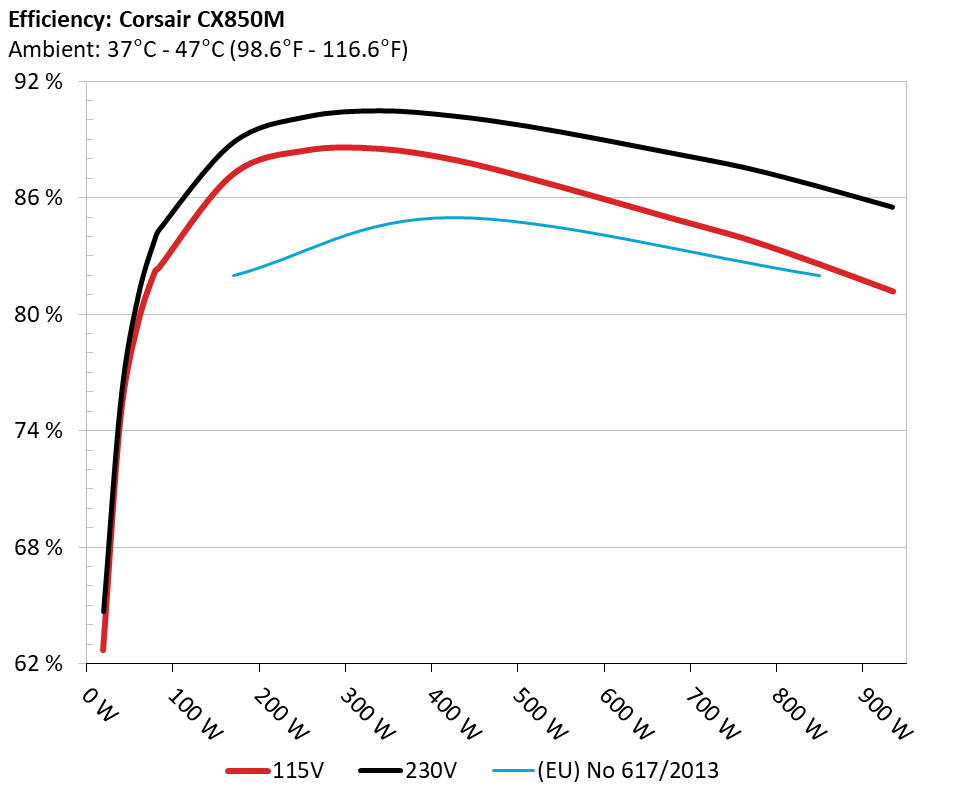

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

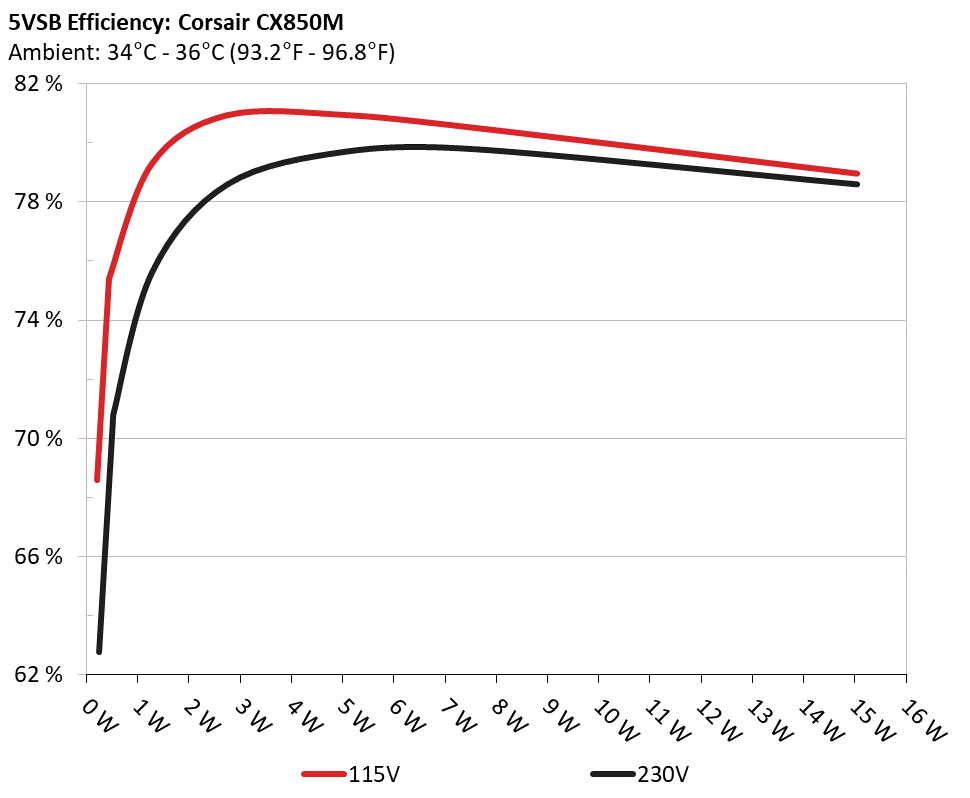

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.214
68.590%
0.031
5.087V
0.312
115.13V
2
0.088A
0.446
75.338%
0.058
5.086V
0.592
115.13V
3
0.542A
2.753
80.923%
0.246
5.075V
3.402
115.12V
4
1.002A
5.076
80.931%
0.329
5.064V
6.272
115.12V
5
1.502A
7.586
80.497%
0.373
5.051V
9.424
115.12V
6
3.002A
15.048
78.951%
0.433
5.013V
19.060
115.12V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.214
62.757%
0.010
5.086V
0.341
230.34V
2
0.088A
0.446
70.794%
0.019
5.086V
0.630
230.34V
3
0.543A
2.753
78.590%
0.099
5.074V
3.503
230.33V
4
1.002A
5.075
79.695%
0.164
5.063V
6.368
230.33V
5
1.502A
7.584
79.773%
0.218
5.050V
9.507
230.33V
6
3.001A
15.039
78.586%
0.310
5.011V
19.137
230.33V
Protection Features
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.188A
1.985A
2.003A
0.991A
84.809
82.421%
995
27.1
38.25°C
0.963
12.184V
5.042V
3.290V
5.046V
102.897
44.03°C
115.15V
2
11.413A
2.981A
3.015A
1.191A
169.705
87.187%
1168
30.6
38.77°C
0.980
12.164V
5.030V
3.282V
5.028V
194.644
44.79°C
115.15V
3
18.017A
3.488A
3.537A
1.396A
254.883
88.424%
1353
34.2
39.26°C
0.989
12.144V
5.020V
3.275V
5.008V
288.252
45.86°C
115.14V
4
24.624A
3.996A
4.036A
1.601A
339.762
88.508%
1520
38.2
39.84°C
0.992
12.125V
5.010V
3.268V
4.989V
383.879
47.20°C
115.15V
5
30.917A
5.000A
5.063A
1.810A
424.660
87.954%
1749
42.2
40.45°C
0.994
12.103V
4.996V
3.258V
4.970V
482.822
48.98°C
115.14V
6
37.244A
6.025A
6.089A
2.018A
509.657
87.030%
1939
45.4
41.38°C
0.996
12.079V
4.982V
3.249V
4.949V
585.612
51.01°C
115.14V
7
43.591A
7.041A
7.128A
2.230A
594.606
85.987%
2030
45.8
42.83°C
0.996
12.056V
4.968V
3.240V
4.932V
691.506
54.40°C
115.17V
8
49.941A
8.080A
8.172A
2.442A
679.590
84.912%
2030
45.8
44.39°C
0.997
12.038V
4.953V
3.230V
4.908V
800.347
58.10°C
115.14V
9
56.789A
8.600A
8.721A
2.450A
764.621
83.857%
2030
45.8
44.87°C
0.997
12.010V
4.943V
3.221V
4.892V
911.817
60.42°C
115.14V
10
63.377A
9.128A
9.243A
3.081A
849.397
82.561%
2030
45.8
45.88°C
0.998
11.987V
4.932V
3.213V
4.862V
1028.812
62.97°C
115.15V
11
70.609A
9.139A
9.258A
3.091A
934.386
81.169%
2030
45.8
46.86°C
0.998
11.963V
4.926V
3.207V
4.847V
1151.168
66.32°C
115.14V
CL1
0.100A
16.028A
16.002A
0.004A
132.005
79.629%
1775
42.5
45.10°C
0.975
12.159V
4.928V
3.236V
5.044V
165.775
54.26°C
115.16V
CL2
70.786A
1.004A
1.002A
1.002A
861.427
82.802%
2030
45.8
47.11°C
0.998
11.983V
4.994V
3.244V
4.925V
1040.340
64.39°C
115.14V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.197A
1.984A
2.004A
0.991A
84.826
84.238%
995
27.1
40.20°C
0.870
12.167V
5.042V
3.290V
5.044V
100.698
42.53°C
230.27V
2
11.431A
2.980A
3.015A
1.191A
169.688
88.925%
1180
30.7
40.85°C
0.931
12.145V
5.029V
3.279V
5.026V
190.822
43.42°C
230.27V
3
18.051A
3.488A
3.544A
1.396A
254.895
90.201%
1353
34.2
41.05°C
0.952
12.122V
5.019V
3.270V
5.004V
282.584
43.84°C
230.27V
4
24.677A
3.995A
4.043A
1.603A
339.785
90.445%
1550
38.5
41.88°C
0.965
12.100V
5.009V
3.263V
4.984V
375.681
45.20°C
230.26V
5
30.988A
5.003A
5.071A
1.810A
424.669
90.150%
1775
42.5
42.19°C
0.971
12.076V
4.994V
3.251V
4.965V
471.067
45.88°C
230.29V
6
37.323A
6.027A
6.106A
2.020A
509.691
89.697%
1920
45.0
42.81°C
0.976
12.054V
4.980V
3.242V
4.945V
568.239
47.03°C
230.28V
7
43.689A
7.044A
7.147A
2.231A
594.593
89.019%
2030
45.8
43.21°C
0.980
12.029V
4.966V
3.231V
4.924V
667.936
47.79°C
230.31V
8
50.087A
8.079A
8.196A
2.446A
679.594
88.276%
2030
45.8
43.95°C
0.983
12.003V
4.953V
3.221V
4.900V
769.852
48.93°C
230.29V
9
56.946A
8.602A
8.750A
2.455A
764.640
87.468%
2030
45.8
44.81°C
0.986
11.977V
4.942V
3.211V
4.884V
874.195
50.50°C
230.28V
10
63.577A
9.131A
9.273A
3.091A
849.445
86.353%
2030
45.8
45.26°C
0.987
11.950V
4.930V
3.202V
4.850V
983.689
51.22°C
230.53V
11
70.856A
9.147A
9.295A
3.101A
934.382
85.274%
2030
45.8
46.25°C
0.989
11.921V
4.922V
3.195V
4.833V
1095.736
52.66°C
230.35V
CL1
0.100A
16.029A
16.004A
0.005A
132.308
80.983%
1460
36.9
41.63°C
0.924
12.150V
4.942V
3.240V
5.046V
163.377
45.83°C
230.43V
CL2
70.791A
1.004A
1.002A
1.002A
859.262
86.934%
2030
45.8
45.74°C
0.987
11.952V
4.986V
3.231V
4.914V
988.404
51.82°C
230.29V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.195A
0.493A
0.479A
0.196A
19.653
62.713%
960
26.2
0.915
12.202V
5.062V
3.302V
5.076V
31.338
115.15V
2
2.418A
0.981A
1.000A
0.391A
39.724
74.644%
960
26.2
0.968
12.196V
5.053V
3.296V
5.068V
53.218
115.15V
3
3.645A
1.478A
1.514A
0.591A
59.876
79.508%
960
26.2
0.966
12.191V
5.049V
3.294V
5.060V
75.308
115.15V
4
4.861A
1.986A
2.002A
0.791A
79.832
82.209%
960
26.2
0.963
12.185V
5.043V
3.291V
5.052V
97.108
115.15V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.201A
0.490A
0.482A
0.196A
19.702
65.047%
960
26.2
0.621
12.186V
5.061V
3.302V
5.076V
30.289
230.27V
2
2.423A
0.980A
0.998A
0.391A
39.731
76.132%
960
26.2
0.772
12.179V
5.053V
3.295V
5.068V
52.187
230.26V
3
3.651A
1.476A
1.514A
0.591A
59.874
81.409%
960
26.2
0.829
12.174V
5.048V
3.293V
5.059V
73.547
230.26V
4
4.865A
1.985A
2.005A
0.791A
79.803
84.312%
960
26.2
0.861
12.169V
5.043V
3.290V
5.050V
94.652
230.26V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
13.1 mV
22.2 mV
14.5 mV
9.4 mV
Pass
20% Load
14.5 mV
27.1 mV
14.9 mV
10.1 mV
Pass
30% Load
13.8 mV
27.8 mV
15.6 mV
10.1 mV
Pass
40% Load
14.7 mV
28.5 mV
16.3 mV
12.0 mV
Pass
50% Load
17.8 mV
22.8 mV
18.1 mV
10.9 mV
Pass
60% Load
21.1 mV
23.0 mV
16.3 mV
11.9 mV
Pass
70% Load
20.5 mV
24.2 mV
17.8 mV
13.8 mV
Pass
80% Load
21.4 mV
25.0 mV
18.7 mV
13.3 mV
Pass
90% Load
25.7 mV
22.5 mV
17.8 mV
13.3 mV
Pass
100% Load
30.9 mV
25.8 mV
20.6 mV
15.6 mV
Pass
110% Load
35.3 mV
28.0 mV
20.9 mV
15.6 mV
Pass
Crossload 1
22.2 mV
27.3 mV
17.9 mV
13.0 mV
Pass
Crossload 2
28.9 mV
26.3 mV
16.8 mV
14.1 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.6 mV
17.5 mV
12.6 mV
7.4 mV
Pass
20% Load
12.5 mV
17.9 mV
13.6 mV
7.8 mV
Pass
30% Load
10.1 mV
20.6 mV
14.2 mV
8.2 mV
Pass
40% Load
14.4 mV
23.1 mV
14.7 mV
12.6 mV
Pass
50% Load
19.4 mV
21.8 mV
14.4 mV
8.9 mV
Pass
60% Load
20.4 mV
24.4 mV
16.1 mV
10.0 mV
Pass
70% Load
20.3 mV
26.8 mV
17.3 mV
11.1 mV
Pass
80% Load
20.6 mV
29.3 mV
18.8 mV
12.3 mV
Pass
90% Load
25.1 mV
31.7 mV
21.1 mV
14.2 mV
Pass
100% Load
29.9 mV
35.7 mV
24.5 mV
15.3 mV
Pass
110% Load
34.8 mV
37.4 mV
24.6 mV
17.7 mV
Pass
Crossload 1
23.0 mV
28.8 mV
20.8 mV
13.1 mV
Pass
Crossload 2
27.5 mV
32.0 mV
19.7 mV
14.6 mV
Pass
The results above are not used in the certification process
Corsair CX850M

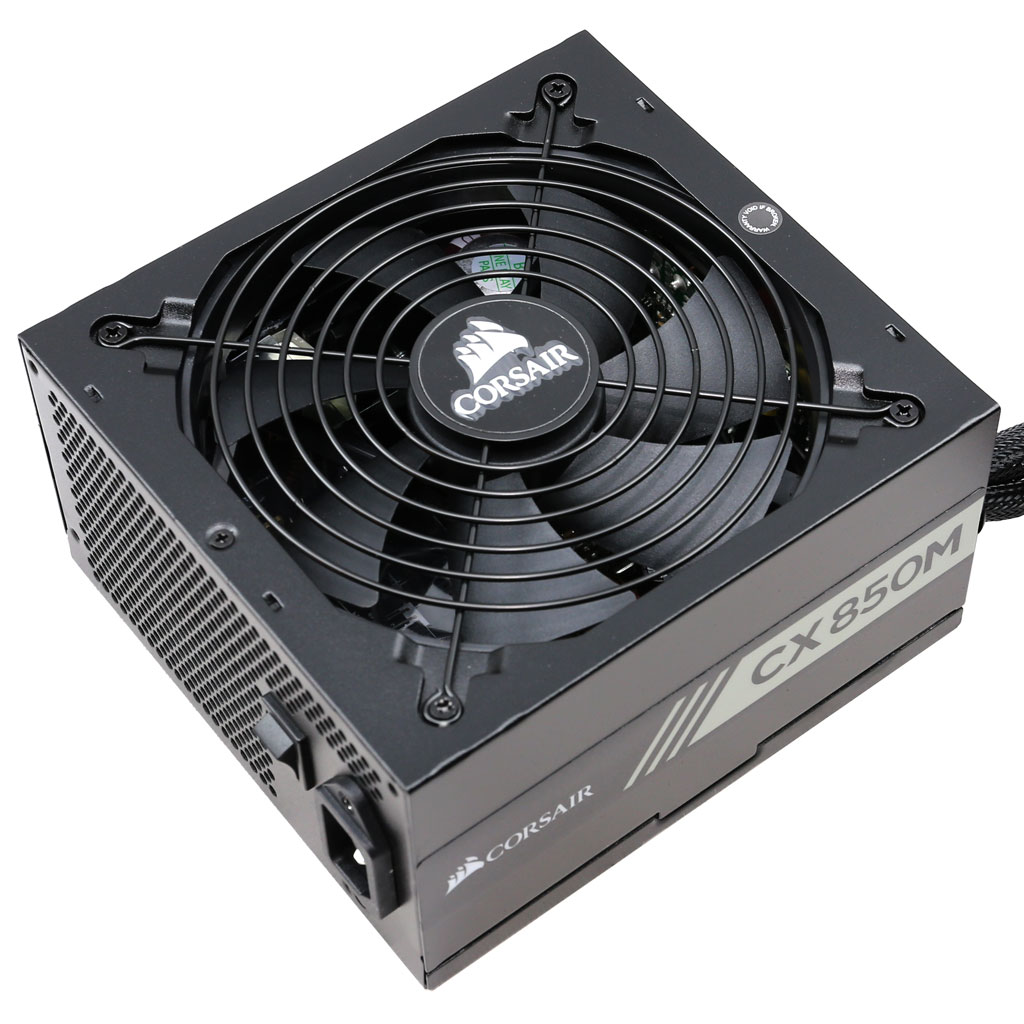

Top side

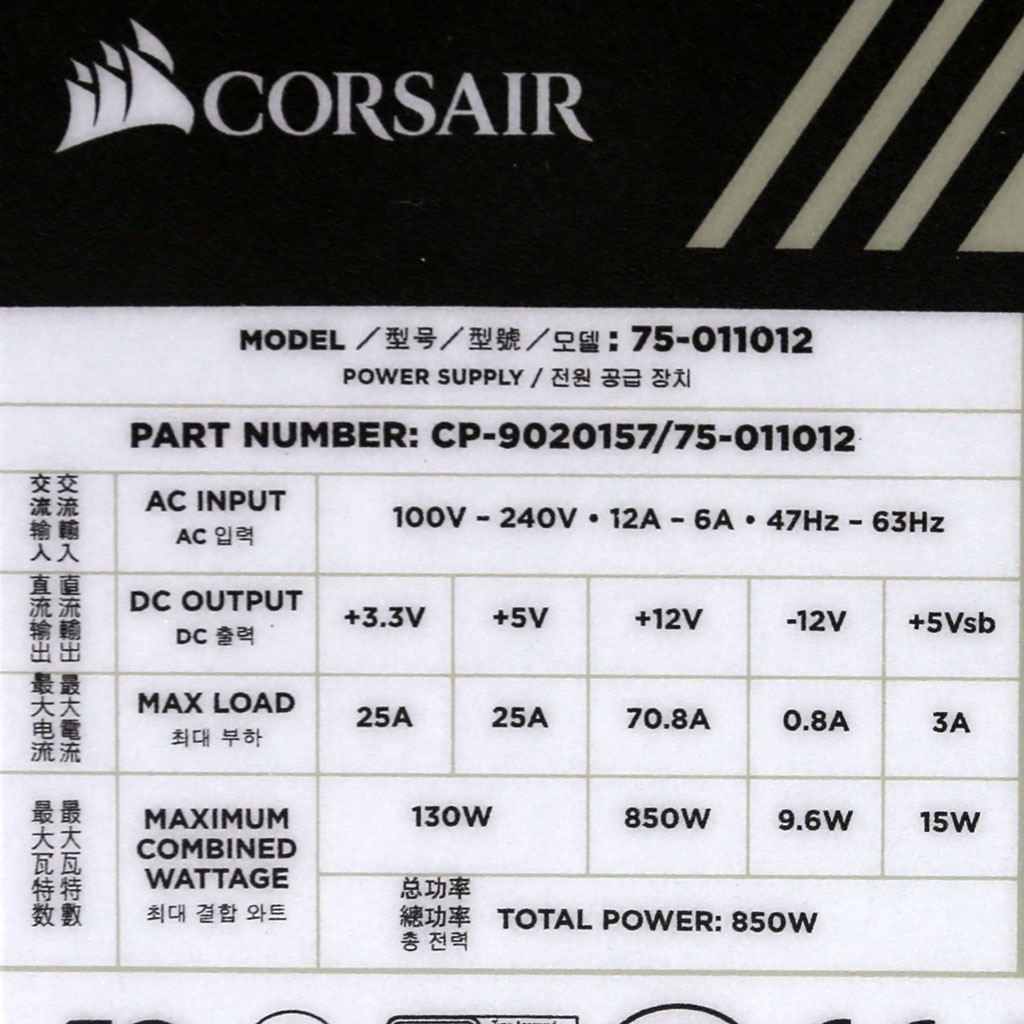

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
