Cooler Master G600 Gold
Serial Number
Lab IDCM60001882
Certification ID251882
  • Test Result Report ID: 21PS1882A
  • Certificate Issue Date: Jul 30, 2021
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCooler Master
Hersteller (OEM)Xin Hui Yuan Tech (Fusion Power)
SeriesG Gold
Model NumberMPW-6001-ACAAG
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Rifle Bearing Fan
(EFS-12E12M)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205030.3
Watts100600153.6
Total Max. Power (W)600

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (560mm) 1 1 18-22AWG No
8 pin EPS12V (620mm)/ 4+4 pin EPS12V (+120mm) 1 1 / 1 18AWG No
6+2 pin PCIe (590mm+120mm) 2 4 18AWG No
SATA (540mm+120mm+120mm) 2 6 18AWG No
4-pin Molex (520mm+120mm+120mm) 1 3 18AWG No
Modular Cables
AC Power Cord (1400mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data
Manufacturer (OEM) Xin Hui Yuan Tech (Fusion Power)
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72-5D15 (5 Ohm) & Relay
Bridge Rectifier(s) 1x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs 2x Jilin Sing Microelectronics JCS18N50FH (500V, 11A @ 100°C, Rds(on): 0.27Ohm)
APFC Boost Diode 1x Dongguan Hoen Semiconductor CH3D08065I (650V, 8A @ 150°C)
Bulk Cap(s) 1x Elite (400V, 390uF, 2,000h @ 105°C, PL)
Main Switchers 4x Great Power GPT10N50AD (500V, 9.7A @ 100°C, Rds(on): 0.7Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side:APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 2x Excelliance MOS EMP16N04HS (40V, 100A @ 100°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance MOS EMB04N03A (30V, 55A @ 100°C, Rds(on): 4mOhm)
PWM Controller(s): 2x Excelliance MOS EM5301F
Filtering Capacitors Electrolytic: 5x Chengx (2-4,000h @ 105°C, GR), 2x Elite (4-10,000h @ 105°C, EY), 5x (105°C, WE)
Polymer: 8x FPCAP
Supervisor IC IN1S313I-SAG
Fan Model Ever Cool EFS-12E12M (120mm, 12V, 0.25A, Rifle Bearing Fan)
5VSB Circuit
Rectifier 1x 45R10C
Standby PWM Controller Excelliance MOS Corp EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)87.645%
Average Noise Output (>1450 Load Combinations)38.61dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load56.662%
Standby Power Consumption0.0457W
12V Ripple (Full Load)48.43mV
5V Ripple (Full Load)25.72mV
3.3V Ripple (Full Load)34.71mV
5VSB Ripple (Full Load)19.78mV
12V Load Regulation0.59%
5V Load Regulation2.38%
3.3V Load Regulation3.14%
5VSB Load Regulation3.40%
Inrush Current81.440A
WirkungsgradGOLD
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)89.658%
Average Noise Output (>1450 Load Combinations)38.53dBA
Average PF (>1450 Load Combinations)0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0851W
12V Ripple (Full Load)50.12mV
5V Ripple (Full Load)26.66mV
3.3V Ripple (Full Load)34.14mV
5VSB Ripple (Full Load)19.48mV
12V Load Regulation0.59%
5V Load Regulation2.40%
3.3V Load Regulation3.17%
5VSB Load Regulation3.42%
Inrush Current78.670A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal21.70ms
AC Loss to PWR_OK Hold Up Time18.50ms
PWR_OK Inactive to DC Loss Delay3.20ms
PSU Timings: T1 (20% / 100%)54.5ms62.0ms
PSU Timings: T3 (20% / 100%)121.5ms121.0ms
OPP (25.83°C / 43.11°C)115.13%110.54%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.7
AC Loss to PWR_OK Hold Up Time (ms)18.5
PWR_OK Inactive to DC Loss Delay (ms)3.2

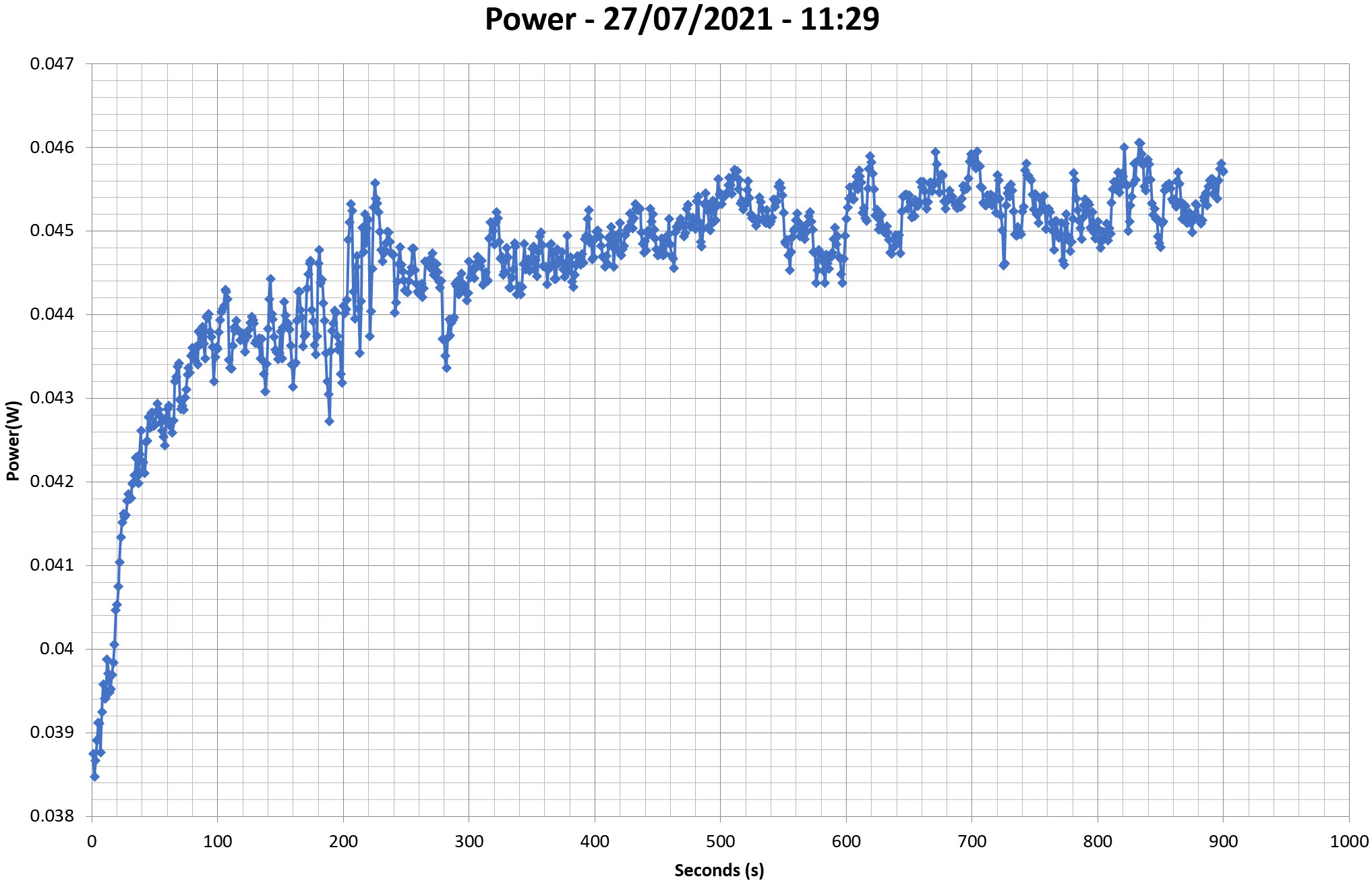

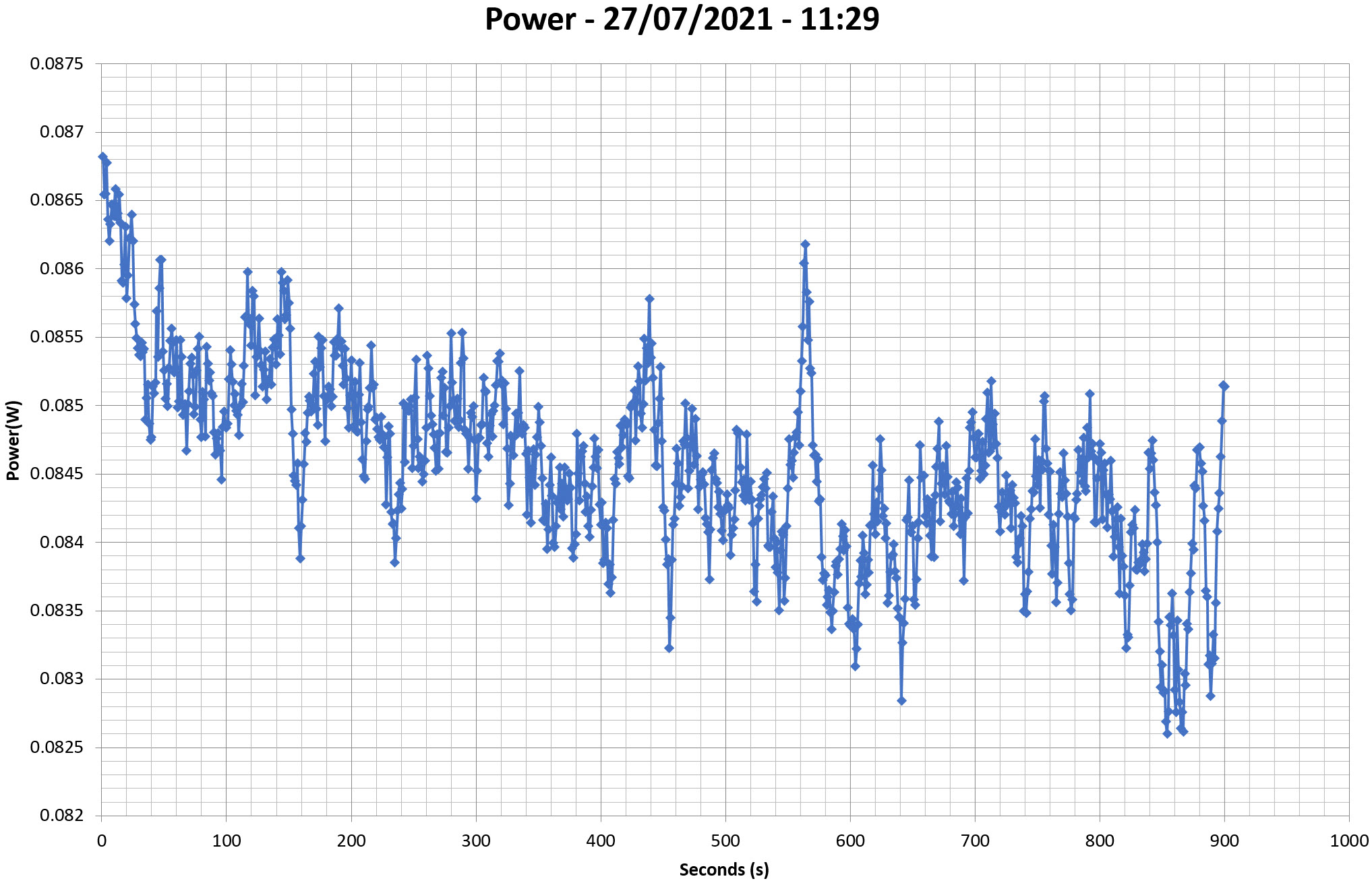

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

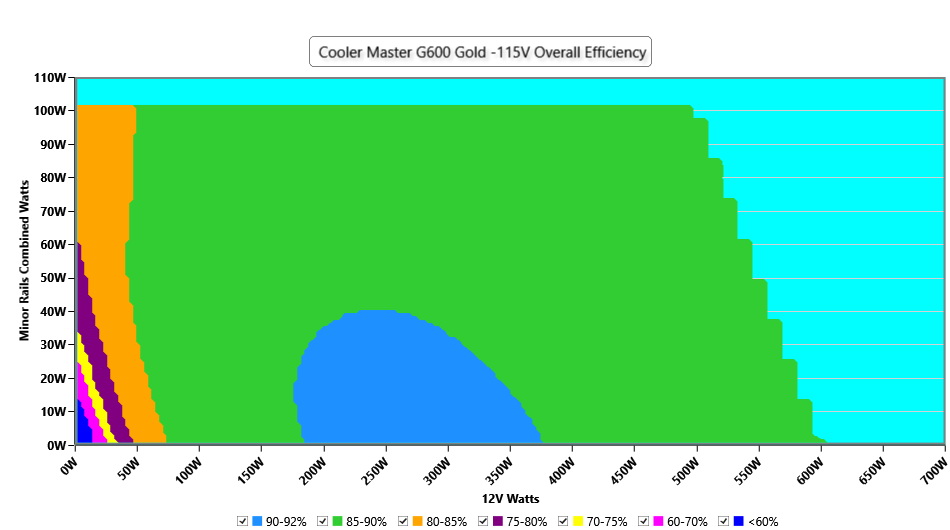

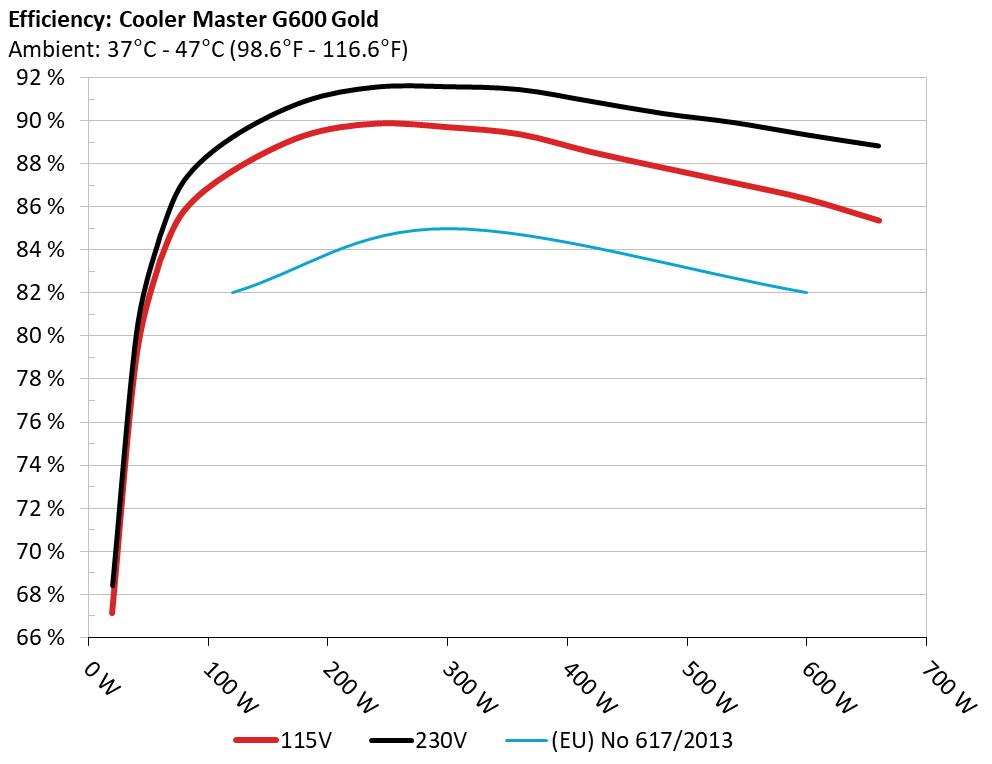

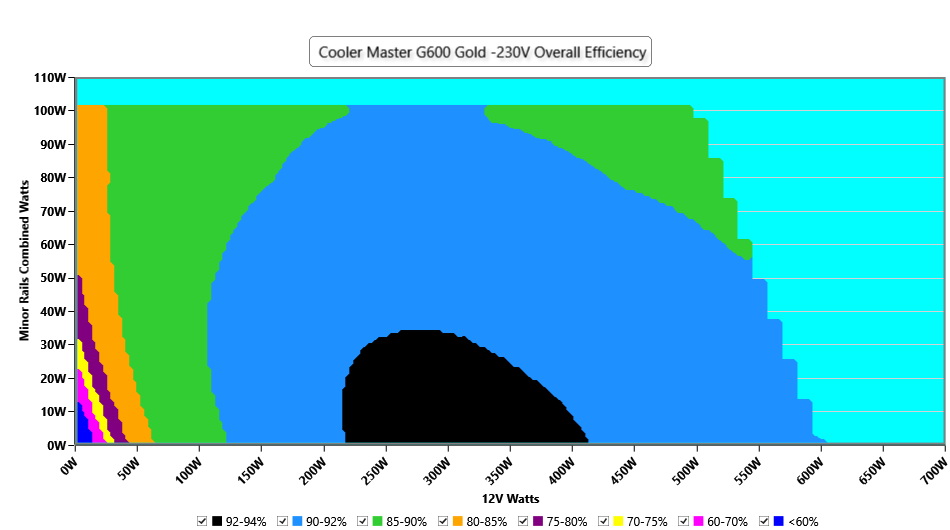

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

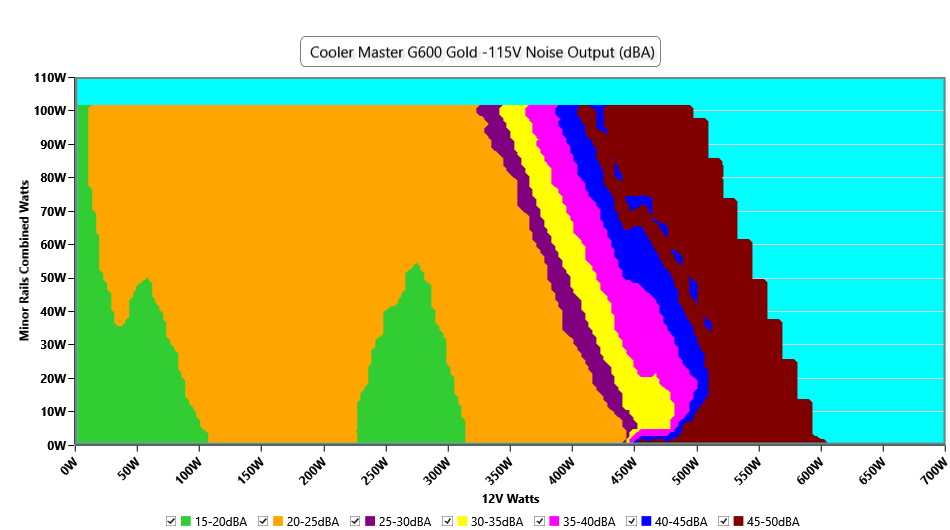

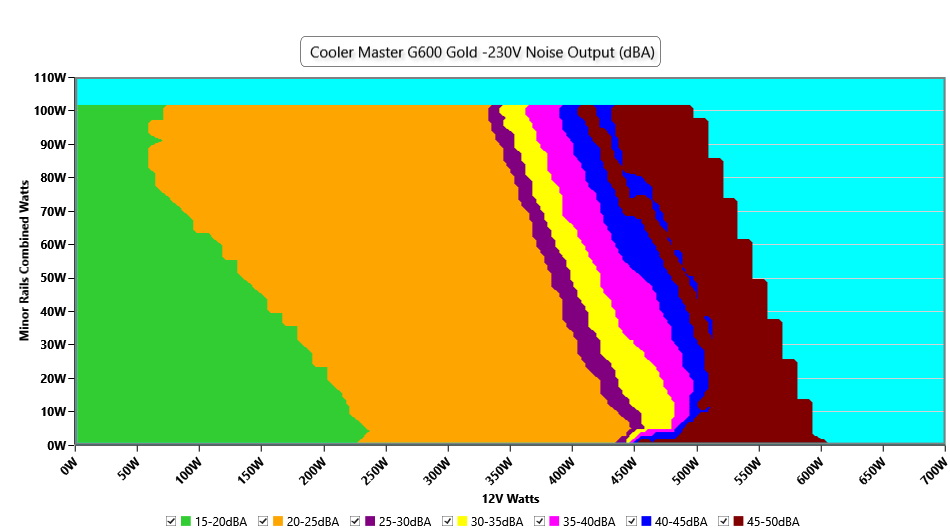

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

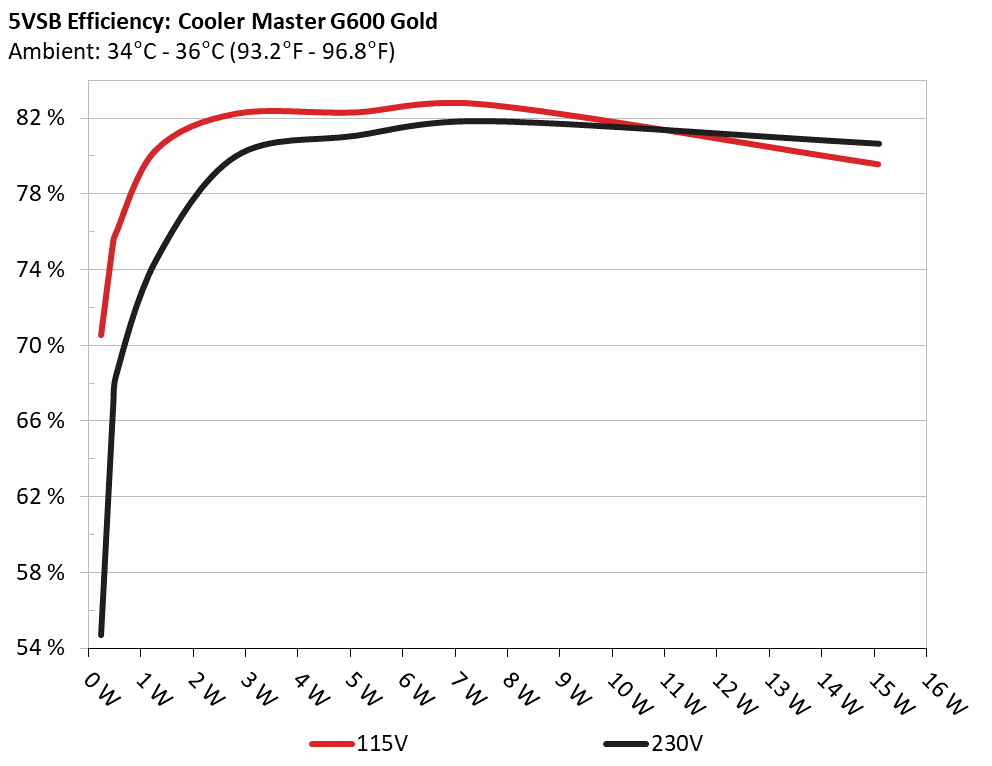

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 70.539% 0.056
5.111V 0.326W 115.17V
2 0.09A 0.46W 75.442% 0.101
5.11V 0.61W 115.17V
3 0.55A 2.804W 82.227% 0.339
5.097V 3.41W 115.17V
4 1A 5.085W 82.294% 0.422
5.084V 6.179W 115.15V
5 1.5A 7.607W 82.707% 0.463
5.07V 9.197W 115.14V
6 3.001A 15.082W 79.558% 0.505
5.027V 18.957W 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 54.669% 0.022
5.112V 0.421W 230.39V
2 0.09A 0.46W 66.712% 0.036
5.11V 0.69W 230.38V
3 0.55A 2.804W 79.983% 0.161
5.097V 3.506W 230.38V
4 1A 5.085W 81.065% 0.247
5.084V 6.273W 230.37V
5 1.5A 7.607W 81.838% 0.31
5.07V 9.295W 230.36V
6 3.001A 15.085W 80.644% 0.392
5.028V 18.706W 230.35V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.174A 1.974A 1.975A 0.985A 60.009 82.659% 658 20.2 40.33°C 0.968
12.102V 5.066V 3.343V 5.076V 72.598 44.71°C 115.09V
20% 7.364A 2.969A 2.971A 1.186A 119.958 87.631% 663 21.7 40.43°C 0.979
12.095V 5.054V 3.332V 5.061V 136.889 45.09°C 115.12V
30% 11.908A 3.471A 3.475A 1.387A 180.002 89.282% 666 21.8 41.04°C 0.977
12.088V 5.043V 3.324V 5.048V 201.611 46.23°C 115.13V
40% 16.458A 3.975A 3.982A 1.59A 240.05 89.85% 669 21.2 41.95°C 0.977
12.081V 5.033V 3.315V 5.034V 267.167 47.71°C 115.1V
50% 20.664A 4.98A 4.994A 1.794A 300.005 89.684% 673 20.0 42.36°C 0.98
12.074V 5.021V 3.304V 5.019V 334.514 48.8°C 115.11V
60% 24.884A 5.993A 6.014A 1.999A 360.048 89.357% 679 20.6 42.65°C 0.983
12.065V 5.008V 3.293V 5.004V 402.931 49.66°C 115.1V
70% 29.082A 7.01A 7.041A 2.206A 419.777 88.531% 1228 36.6 43.67°C 0.985
12.058V 4.995V 3.281V 4.988V 474.159 51.46°C 115.11V
80% 33.340A 8.003A 8.072A 2.312A 479.653 87.803% 1741 45.9 43.99°C 0.987
12.054V 4.983V 3.271V 4.975V 546.282 52.43°C 115.1V
90% 37.944A 8.551A 8.586A 2.418A 539.619 87.093% 1777 47.8 44.05°C 0.988
12.047V 4.972V 3.261V 4.963V 619.592 53.01°C 115.11V
100% 42.349A 9.074A 9.135A 3.039A 599.579 86.353% 1788 47.3 46.02°C 0.989
12.040V 4.96V 3.251V 4.937V 694.333 55.73°C 115.11V
110% 46.706A 10.109A 10.278A 3.046A 660.219 85.344% 1792 47.0 46.74°C 0.99
12.031V 4.947V 3.24V 4.926V 773.603 57.66°C 115.12V
CL1 0.116A 12.01A 12.03A 0A 101.312 81.816% 701 22.5 42.29°C 0.978
12.077V 5.013V 3.3V 5.076V 123.829 48.7°C 115.14V
CL2 0.116A 19.974A 0A 0A 101.4 79.5% 676 20.0 43.19°C 0.978
12.081V 5.007V 3.314V 5.089V 127.548 50.77°C 115.14V
CL3 0.116A 0A 19.98A 0A 67.397 72.699% 695 22.3 44.77°C 0.971
12.073V 5.039V 3.303V 5.077V 92.707 52.99°C 115.15V
CL4 49.803A 0.001A 0.002A 0.001A 600.242 87.293% 1785 47.6 45.8°C 0.989
12.052V 5.005V 3.288V 5.044V 687.619 55.16°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.174A 1.975A 1.975A 0.985A 60.008 83.91% 655 20.3 40.27°C 0.824
12.100V 5.065V 3.342V 5.076V 71.515 44.56°C 230.32V
20% 7.364A 2.969A 2.972A 1.186A 119.954 89.218% 659 20.3 40.68°C 0.913
12.093V 5.053V 3.332V 5.061V 134.45 45.49°C 230.33V
30% 11.910A 3.471A 3.476A 1.387A 179.995 90.889% 662 21.1 41.32°C 0.938
12.086V 5.043V 3.323V 5.047V 198.039 46.53°C 230.35V
40% 16.461A 3.975A 3.984A 1.59A 240.042 91.561% 668 21.7 41.88°C 0.954
12.079V 5.032V 3.314V 5.033V 262.167 47.73°C 230.37V
50% 20.671A 4.982A 4.996A 1.794A 299.999 91.579% 673 20.0 42.31°C 0.96
12.070V 5.019V 3.303V 5.018V 327.586 48.66°C 230.38V
60% 24.890A 5.995A 6.016A 1.999A 360.039 91.447% 677 20.1 43.38°C 0.965
12.062V 5.006V 3.292V 5.003V 393.716 50.42°C 230.38V
70% 29.085A 7.011A 7.042A 2.206A 419.744 90.901% 1021 33.5 43.83°C 0.97
12.056V 4.993V 3.281V 4.987V 461.759 51.58°C 230.38V
80% 33.342A 8.003A 8.074A 2.312A 479.609 90.34% 1752 46.3 44.7°C 0.972
12.052V 4.981V 3.27V 4.974V 530.893 52.89°C 230.37V
90% 37.949A 8.553A 8.589A 2.419A 539.584 89.913% 1777 47.8 45.11°C 0.973
12.045V 4.97V 3.26V 4.962V 600.12 53.81°C 230.35V
100% 42.356A 9.077A 9.138A 3.04A 599.594 89.348% 1787 47.6 45.68°C 0.975
12.038V 4.959V 3.25V 4.936V 671.08 55.16°C 230.34V
110% 46.707A 10.112A 10.28A 3.046A 660.223 88.83% 1792 47.0 46.81°C 0.977
12.030V 4.945V 3.239V 4.926V 743.249 57.68°C 230.41V
CL1 0.116A 12.011A 12.03A 0A 101.307 83.38% 694 22.3 42.05°C 0.901
12.077V 5.012V 3.3V 5.076V 121.5 48.65°C 230.36V
CL2 0.116A 19.986A 0A 0A 101.396 80.75% 667 21.7 43.65°C 0.905
12.082V 5.004V 3.314V 5.088V 125.568 50.87°C 230.34V
CL3 0.116A 0A 19.978A 0A 67.395 74.264% 690 22.0 44.55°C 0.863
12.074V 5.038V 3.304V 5.076V 90.751 53.08°C 230.35V
CL4 49.794A 0.001A 0.002A 0.001A 600.229 90.374% 1777 47.8 45.44°C 0.975
12.054V 5.004V 3.287V 5.043V 664.159 55.5°C 230.36V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.492A 0.492A 0.196A 20.005 67.12% 639 18.8 36.74°C 0.915
12.111V 5.078V 3.353V 5.105V 29.805 38.87°C 115.14V
40W 2.700A 0.69A 0.689A 0.294A 40.004 78.911% 643 19.3 37.85°C 0.955
12.109V 5.075V 3.35V 5.1V 50.695 40.64°C 115.12V
60W 4.174A 0.888A 0.887A 0.393A 60.004 83.498% 647 20.3 38.19°C 0.967
12.106V 5.071V 3.347V 5.095V 71.862 41.23°C 115.05V
80W 5.646A 1.086A 1.086A 0.491A 79.966 85.796% 653 20.2 39.8°C 0.971
12.103V 5.068V 3.344V 5.09V 93.205 43.58°C 115.07V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.5A 0.5A 0.2A 20.261 68.407% 635 19.4 36.81°C 0.636
12.110V 5.078V 3.353V 5.105V 29.618 39.15°C 230.34V
40W 2.720A 0.7A 0.7A 0.3A 40.363 80.176% 641 19.3 37.04°C 0.755
12.106V 5.075V 3.35V 5.1V 50.343 39.88°C 230.32V
60W 4.175A 0.888A 0.887A 0.393A 60.002 84.671% 645 20.0 38.47°C 0.822
12.104V 5.071V 3.347V 5.094V 70.865 41.83°C 230.32V
80W 5.648A 1.086A 1.086A 0.491A 79.963 87.22% 650 20.3 39.48°C 0.865
12.100V 5.067V 3.344V 5.089V 91.68 43.28°C 230.31V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.38mV10.99mV8.09mV8.05mVPass
20% Load13.45mV11.76mV9.52mV8.87mVPass
30% Load17.54mV12.58mV11.21mV9.49mVPass
40% Load19.73mV13.50mV13.46mV10.40mVPass
50% Load22.39mV15.34mV15.87mV11.47mVPass
60% Load21.26mV17.13mV20.06mV12.44mVPass
70% Load23.19mV18.61mV21.65mV14.33mVPass
80% Load27.12mV20.15mV28.15mV16.26mVPass
90% Load30.80mV23.32mV30.09mV17.59mVPass
100% Load48.43mV25.72mV34.71mV19.78mVPass
110% Load54.40mV27.78mV39.01mV22.75mVPass
Crossload118.05mV19.01mV25.22mV9.89mVPass
Crossload212.94mV14.11mV33.01mV8.62mVPass
Crossload310.43mV20.66mV20.88mV9.59mVPass
Crossload454.17mV22.58mV23.59mV18.58mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.11mV10.89mV7.83mV7.80mVPass
20% Load13.91mV11.76mV9.52mV8.36mVPass
30% Load18.45mV12.63mV11.87mV9.63mVPass
40% Load21.27mV13.91mV13.87mV9.79mVPass
50% Load23.11mV15.44mV15.45mV10.76mVPass
60% Load22.75mV17.23mV18.07mV11.93mVPass
70% Load23.85mV18.97mV21.19mV13.46mVPass
80% Load26.30mV20.30mV28.40mV14.78mVPass
90% Load29.88mV23.22mV30.55mV16.31mVPass
100% Load50.12mV26.66mV34.14mV19.48mVPass
110% Load56.32mV27.16mV36.90mV20.22mVPass
Crossload118.64mV20.88mV24.51mV9.04mVPass
Crossload213.04mV12.68mV29.63mV6.53mVPass
Crossload310.94mV21.99mV21.75mV9.33mVPass
Crossload455.85mV22.54mV23.08mV15.99mVPass

The results above are not used in the certification process

Cooler Master G600 Gold

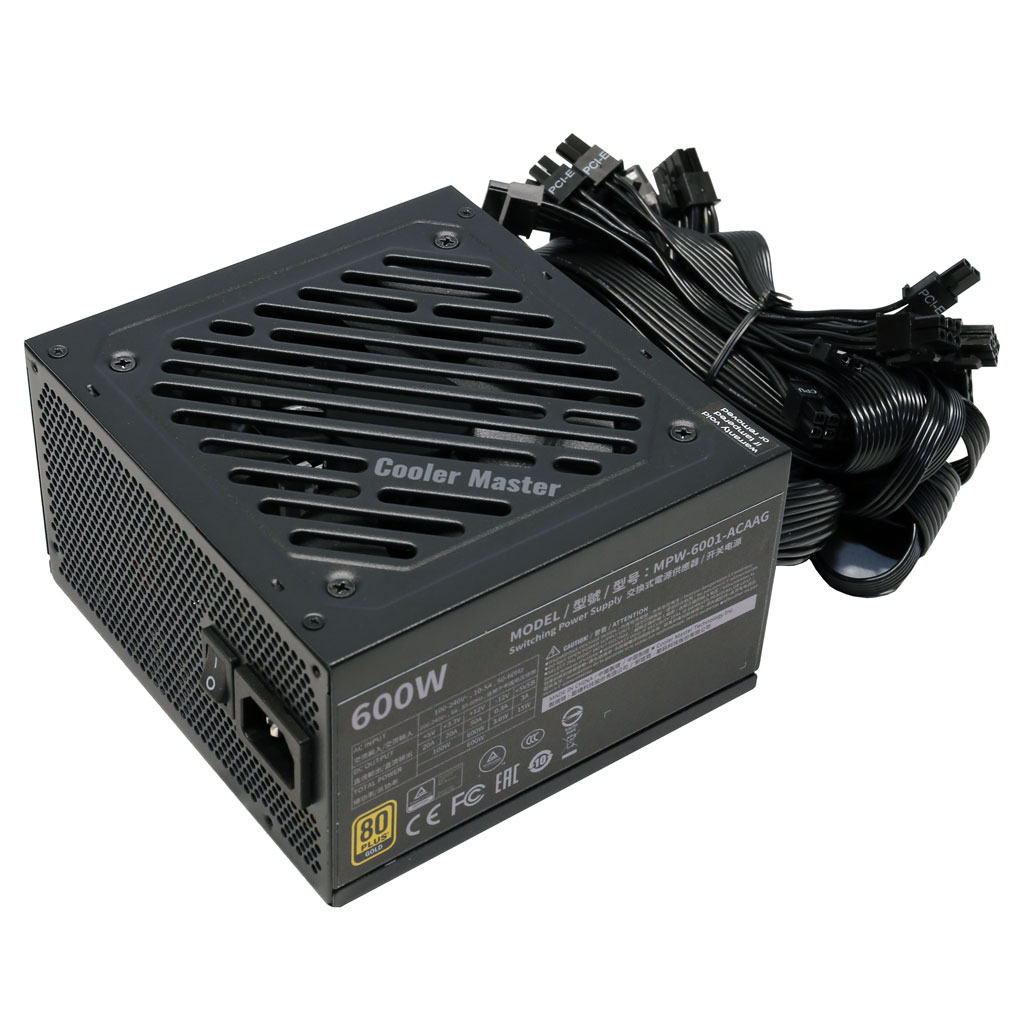

Top side

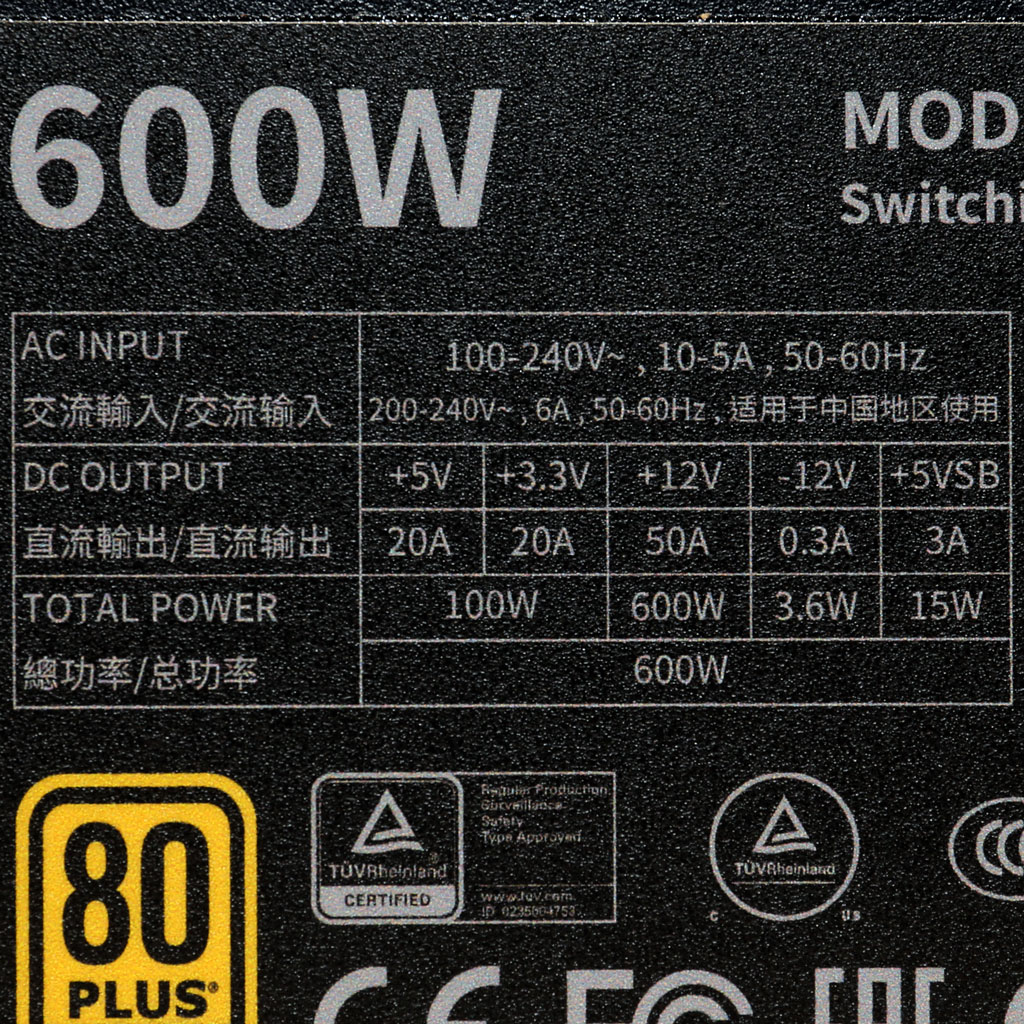

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
