CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

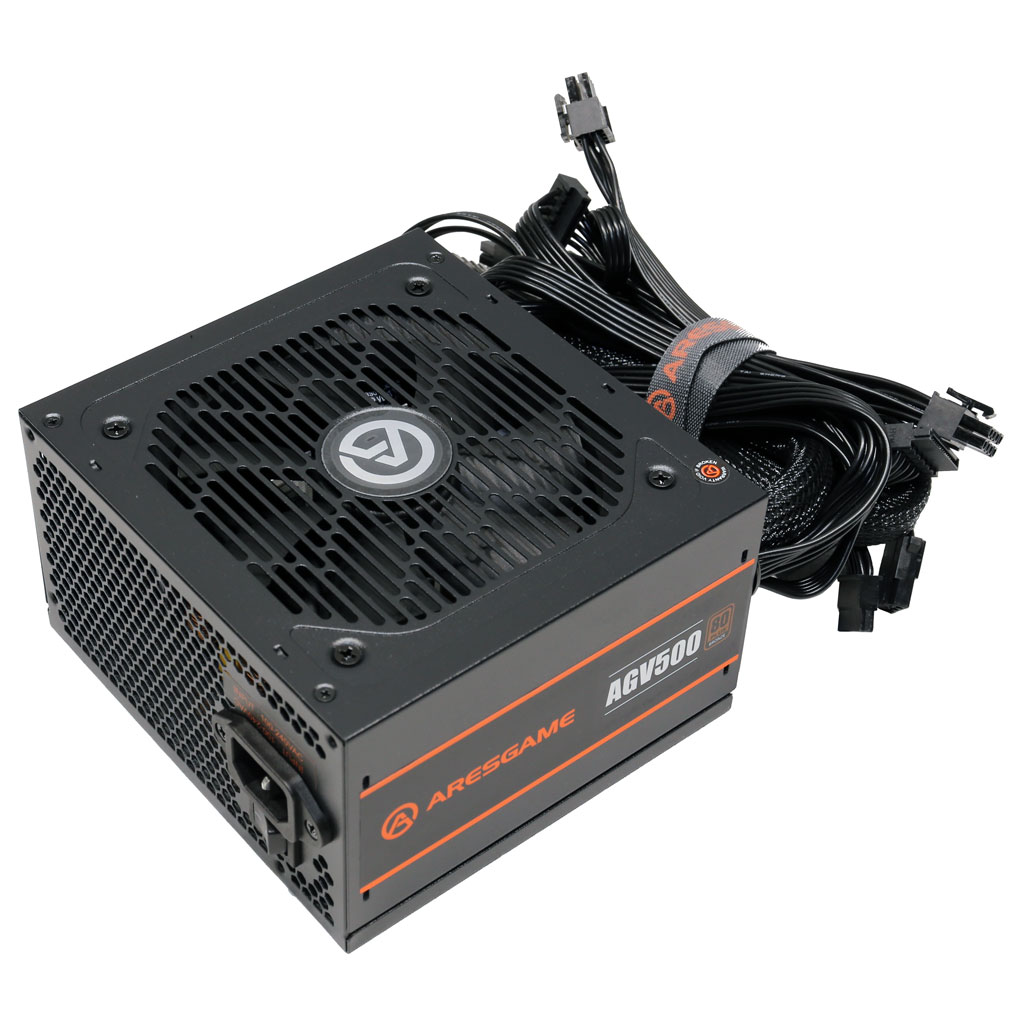

Aresgame AGV500
Serial NumberB08CXVKP3M
Lab IDAR50001908
Certification ID251908
  • Test Result Report ID: 21PS1908A
  • Certificate Issue Date: Sep 22, 2021
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandAresgame
ModelAGV500
OEM/ODMAresgame
Serial NumberB08CXVKP3M
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)500
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Sleeve Bearing Fan
(PY-1225M12S)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDAR50001908
Date of receiptSep 6, 2021
Testing DateSep 21, 2021
Report Issued DateSep 22, 2021
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (530mm) 1 1 18-22AWG No
8 pin EPS12V (630mm) / 4+4 pin EPS12V (+130mm) 1 1 / 1 18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 18AWG No
SATA (430mm+150mm+150mm) 2 6 18AWG No
SATA (420mm) / 4-pin Molex (+150mm+150mm) / FDD (+150mm) 1 1 / 2 / 1 18-22AWG No
Modular Cables
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Protection Features(Manufacturer)

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181837.52.50.3
Watts9545012.53.6
Total Max. Power (W)500

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: Partially
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)80.654%
Average Noise Output (>1450 Load Combinations)37.18dBA
Average PF (>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load61.128%
Standby Power Consumption0.1624W
Non-Accredited
12V Ripple (Full Load)56.65mV
5V Ripple (Full Load)23.95mV
3.3V Ripple (Full Load)27.31mV
5VSB Ripple (Full Load)21.29mV
12V Load Regulation2.30%
5V Load Regulation5.24%
3.3V Load Regulation4.39%
5VSB Load Regulation5.47%
Inrush Current81.710A
Accredited
Average Efficiency (>1450 load combinations)82.934%
Average Noise Output (>1450 Load Combinations)37.61dBA
Average PF (>1450 Load Combinations)0.959
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.3777W
Non-Accredited
12V Ripple (Full Load)61.12mV
5V Ripple (Full Load)26.34mV
3.3V Ripple (Full Load)27.85mV
5VSB Ripple (Full Load)19.37mV
12V Load Regulation2.32%
5V Load Regulation5.26%
3.3V Load Regulation4.52%
5VSB Load Regulation5.38%
Inrush Current86.820A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & PWR_OK Signal16.70ms
AC Loss to PWR_OK Hold Up Time11.90ms
PWR_OK Inactive to DC Loss Delay4.80ms
PSU Timings: T1 (20% / 100%)50.0ms50.0ms
PSU Timings: T3 (20% / 100%)301.0ms297.0ms
OPP (23.29°C / 43.30°C)111.52%111.54%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)16.7
AC Loss to PWR_OK Hold Up Time (ms)11.9
PWR_OK Inactive to DC Loss Delay (ms)4.8

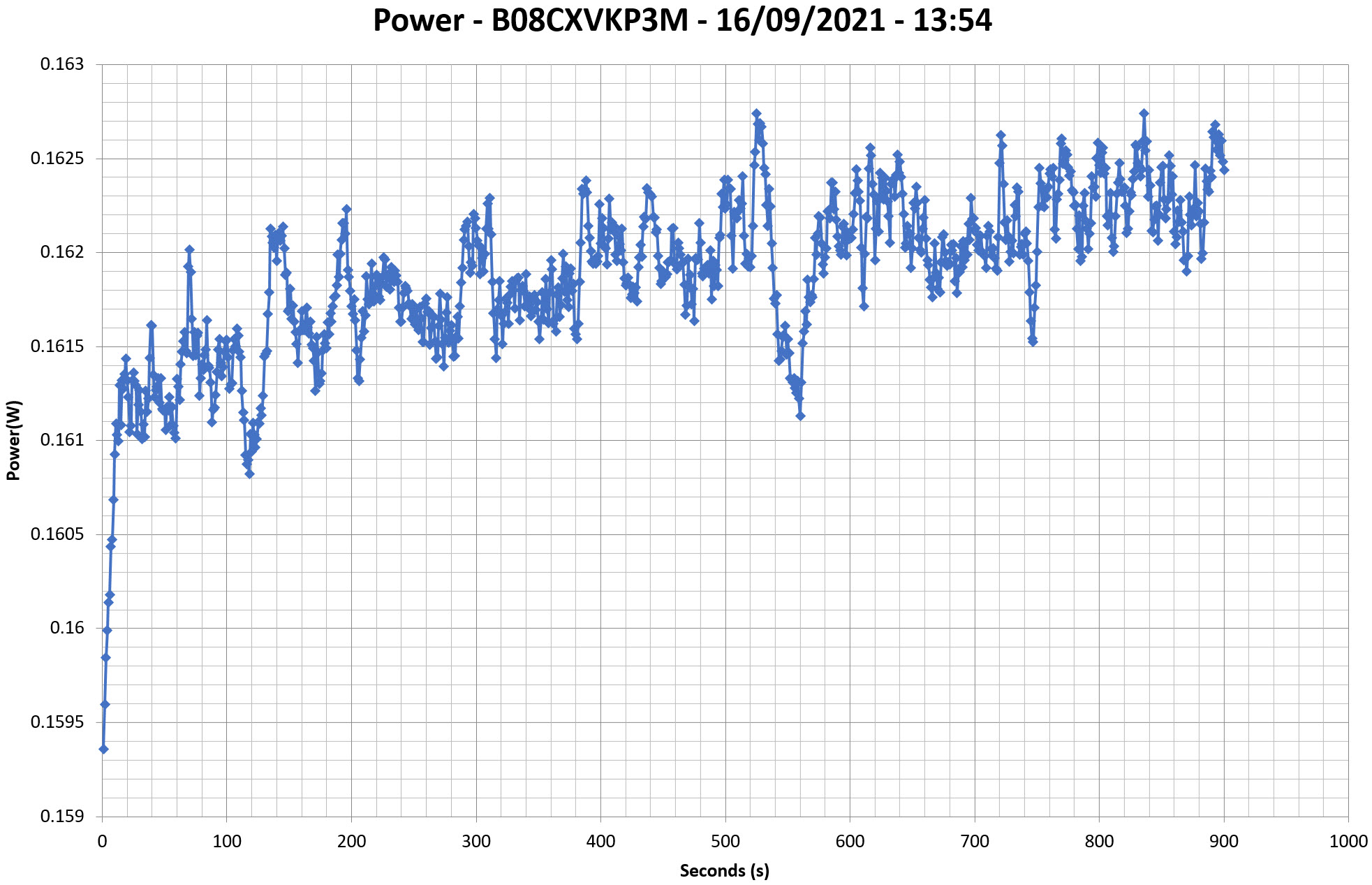

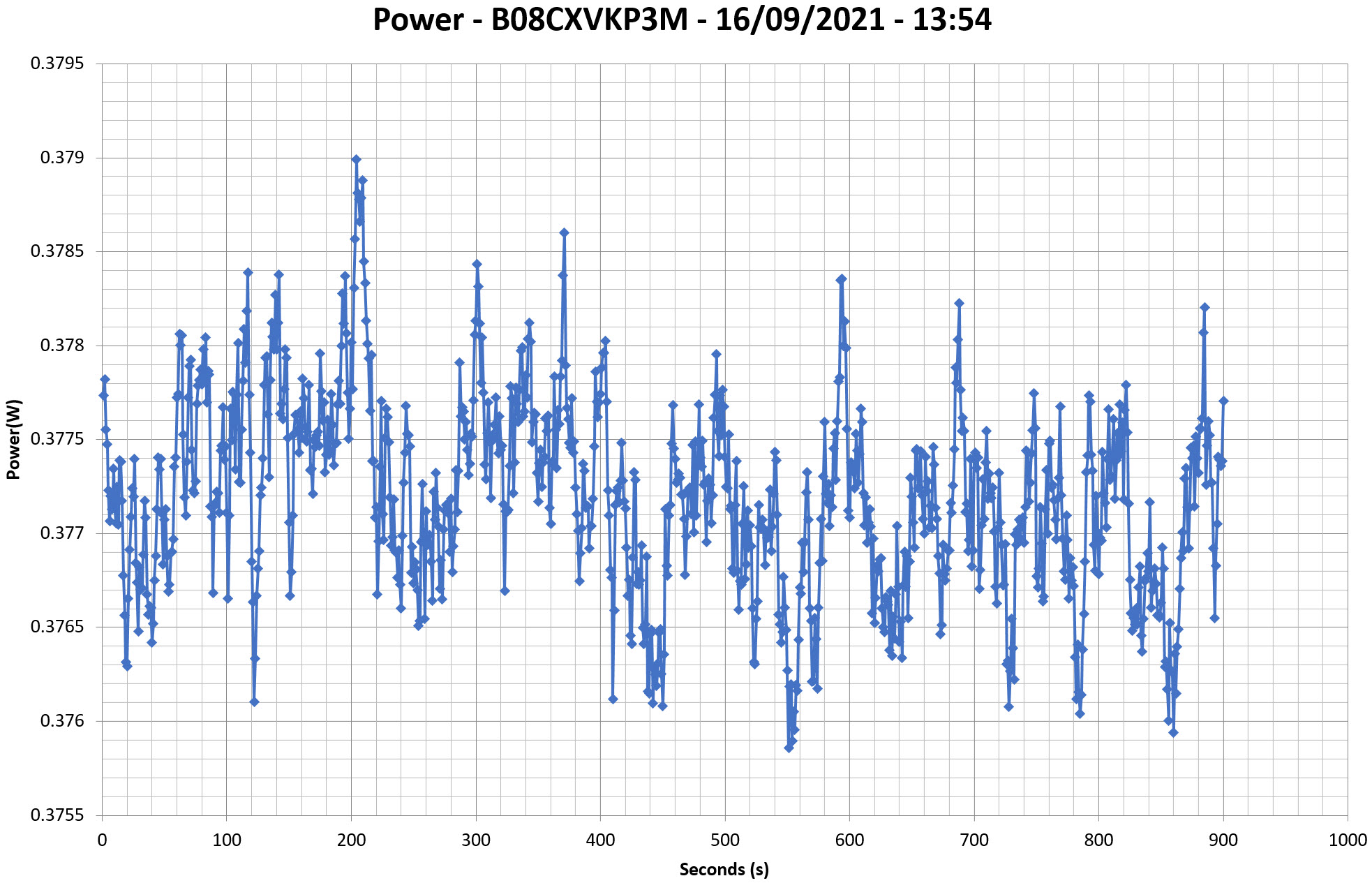

Vampire Power

Tables

Graphs

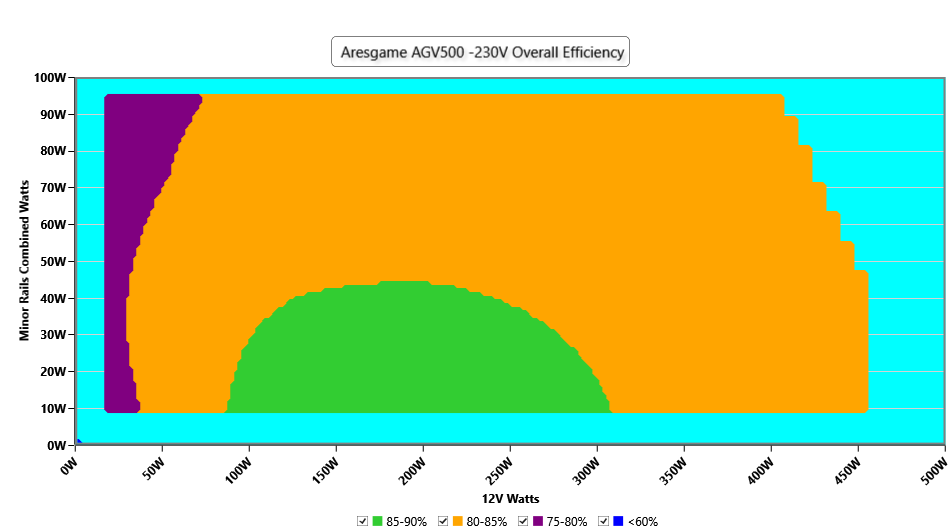

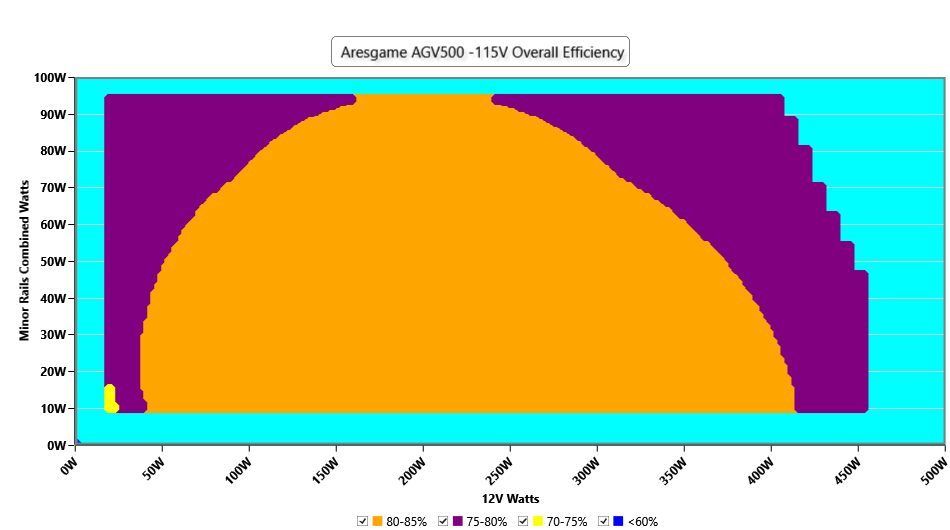

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

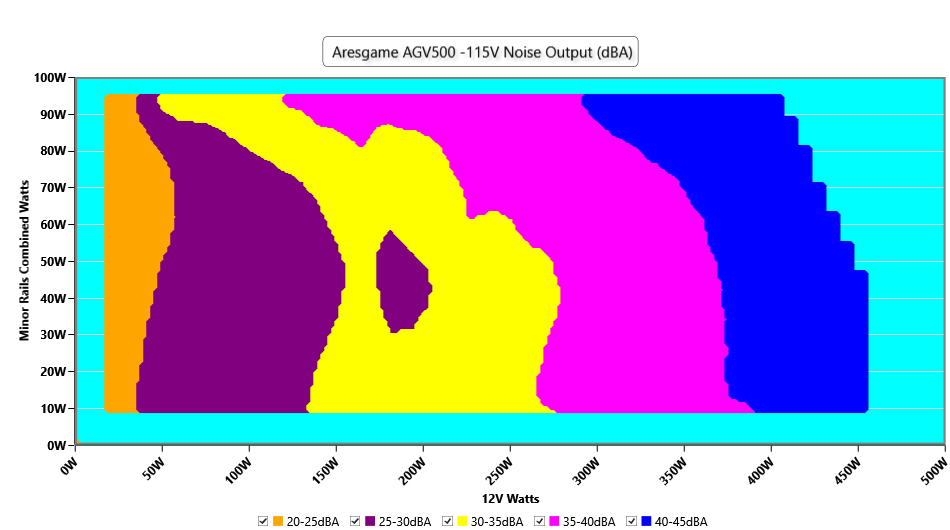

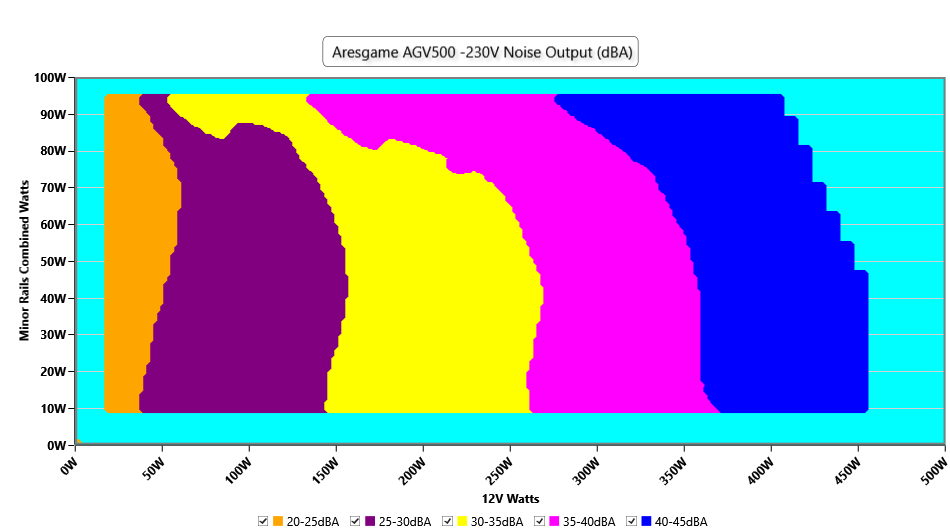

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

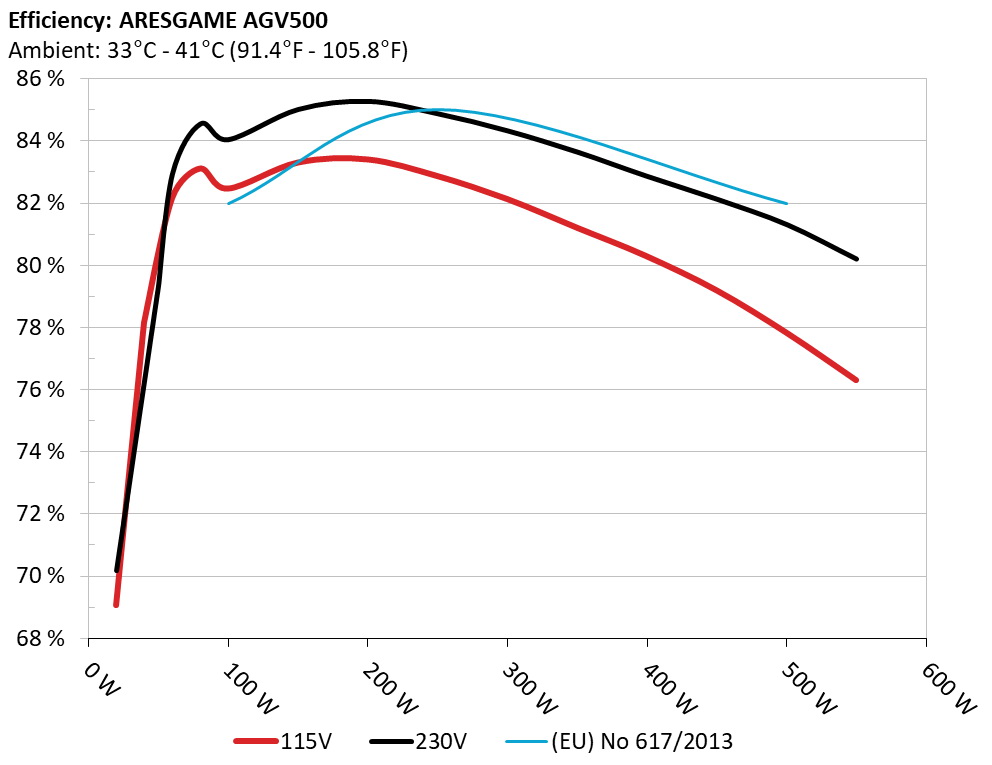

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

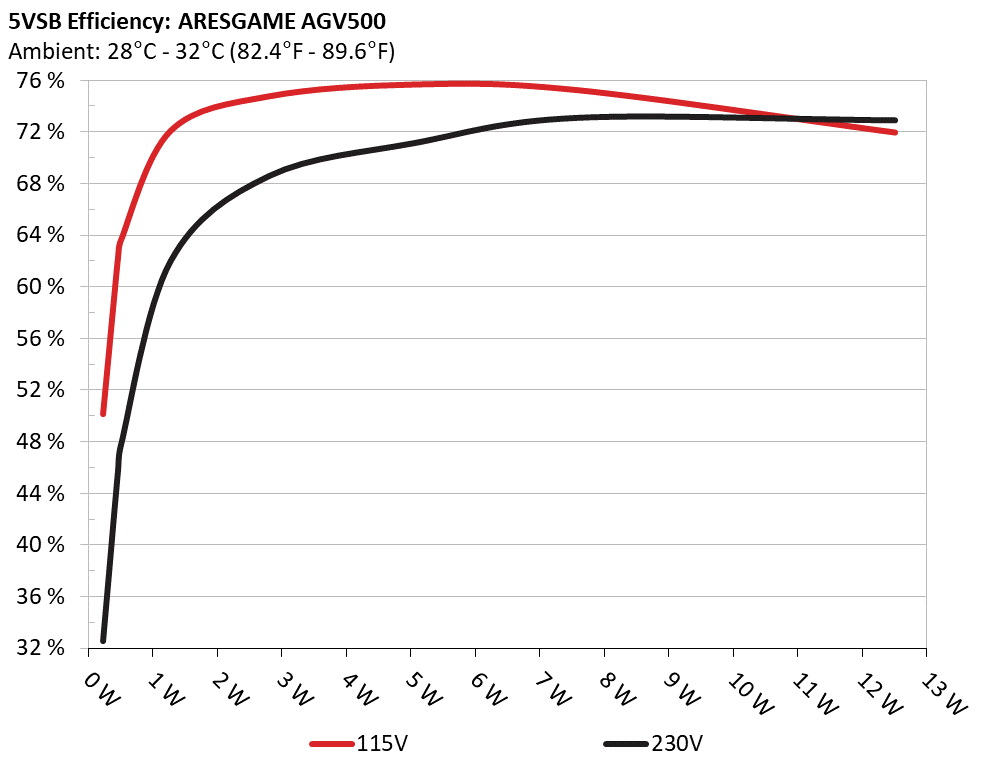

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 50.152% 0.053
5.126V 0.461W 115.16V
2 0.09A 0.461W 62.245% 0.084
5.124V 0.741W 115.17V
3 0.55A 2.806W 74.796% 0.292
5.101V 3.752W 115.16V
4 1A 5.079W 75.712% 0.366
5.078V 6.708W 115.16V
5 1.5A 7.581W 75.274% 0.406
5.053V 10.072W 115.16V
6 2.501A 12.508W 71.992% 0.446
5.002V 17.374W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 32.526% 0.025
5.126V 0.71W 230.36V
2 0.09A 0.461W 45.671% 0.035
5.124V 1.009W 230.36V
3 0.55A 2.806W 68.587% 0.132
5.101V 4.091W 230.36V
4 1A 5.079W 71.16% 0.204
5.078V 7.138W 230.36V
5 1.5A 7.581W 73.095% 0.256
5.053V 10.371W 230.36V
6 2.501A 12.518W 72.905% 0.321
5.006V 17.171W 230.36V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 2.305A 1.979A 1.989A 0.988A 50.008 78.151% 877 25.7 35.47°C 0.955
12.324V 5.053V 3.318V 5.061V 63.989 39.24°C 115.18V
20% 5.620A 2.982A 2.996A 1.192A 99.952 82.46% 882 25.8 35.91°C 0.969
12.288V 5.031V 3.304V 5.036V 121.212 40.26°C 115.17V
30% 9.322A 3.483A 3.509A 1.397A 149.989 83.296% 1023 30.3 36.04°C 0.983
12.222V 5.025V 3.292V 5.013V 180.068 40.86°C 115.17V
40% 13.052A 3.989A 4.025A 1.604A 200.031 83.397% 1244 35.7 36.61°C 0.989
12.169V 5.015V 3.279V 4.99V 239.853 42.07°C 115.17V
50% 16.414A 5.016A 5.054A 1.813A 249.986 82.861% 1429 39.1 37.18°C 0.993
12.153V 4.985V 3.265V 4.964V 301.693 43.35°C 115.17V
60% 19.787A 6.058A 6.092A 2A 299.903 82.123% 1472 39.8 37.45°C 0.995
12.140V 4.954V 3.25V 4.939V 365.188 44.39°C 115.18V
70% 23.161A 7.115A 7.141A 2.24A 350.058 81.197% 1659 42.8 37.79°C 0.996
12.130V 4.921V 3.235V 4.912V 431.123 45.59°C 115.18V
80% 26.559A 8.002A 8.197A 2.351A 398.852 80.299% 1742 43.9 38.27°C 0.997
12.117V 4.892V 3.221V 4.891V 496.712 46.55°C 115.19V
90% 30.399A 8.731A 8.732A 2.464A 449.931 79.182% 1846 45.2 39.7°C 0.997
12.087V 4.868V 3.207V 4.87V 568.228 48.67°C 115.18V
100% 34.285A 9.282A 9.304A 2.579A 500.271 77.809% 1882 45.6 40.04°C 0.997
12.048V 4.849V 3.192V 4.847V 642.95 49.26°C 115.19V
110% 37.684A 10.397A 10.484A 2.588A 549.69 76.297% 1895 45.8 40.55°C 0.997
12.044V 4.81V 3.176V 4.831V 720.467 50.47°C 115.19V
CL1 3.778A 12.074A 11.553A 0.498A 145.417 76.473% 1521 40.9 36.89°C 0.984
12.706V 4.738V 3.263V 5.026V 190.153 43.29°C 115.19V
CL2 3.710A 18.82A 1.009A 0.496A 140.514 76.502% 1455 39.6 37.73°C 0.983
12.939V 4.607V 3.272V 5.042V 183.673 45.19°C 115.19V
CL3 3.928A 0.992A 16.581A 0.496A 109.909 73.603% 1309 37 38.56°C 0.977
12.222V 5.044V 3.281V 5.038V 149.325 46.94°C 115.19V
CL4 42.745A 0.969A 1.023A 0.502A 499.83 77.993% 1713 43.8 40.25°C 0.997
11.440V 5.163V 3.225V 4.982V 640.87 50.13°C 115.19V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 2.304A 1.98A 1.989A 0.988A 50.004 79.086% 873 25.4 34.16°C 0.794
12.324V 5.052V 3.318V 5.06V 63.227 37.83°C 230.39V
20% 5.620A 2.983A 2.997A 1.192A 99.944 84.053% 879 25.7 34.84°C 0.899
12.286V 5.029V 3.303V 5.035V 118.906 38.97°C 230.39V
30% 9.323A 3.485A 3.51A 1.397A 149.979 85.027% 1013 30.3 35.63°C 0.939
12.220V 5.023V 3.291V 5.011V 176.39 40.52°C 230.39V
40% 13.053A 3.991A 4.028A 1.604A 200.017 85.288% 1195 34.5 36.09°C 0.952
12.167V 5.012V 3.278V 4.988V 234.519 41.52°C 230.39V
50% 16.418A 5.019A 5.058A 1.814A 249.971 84.888% 1430 39.1 36.61°C 0.965
12.149V 4.982V 3.262V 4.961V 294.472 42.55°C 230.39V
60% 19.791A 6.062A 6.098A 2A 299.882 84.338% 1536 40.8 36.87°C 0.973
12.136V 4.95V 3.247V 4.939V 355.571 43.25°C 230.4V
70% 23.165A 7.12A 7.148A 2.24A 350.034 83.65% 1661 42.9 37.52°C 0.976
12.127V 4.917V 3.232V 4.912V 418.448 44.62°C 230.4V
80% 26.566A 8.002A 8.206A 2.35A 398.726 82.886% 1761 44.2 37.79°C 0.979
12.110V 4.887V 3.217V 4.894V 481.053 45.77°C 230.4V
90% 30.405A 8.739A 8.742A 2.463A 449.826 82.131% 1849 45.3 38.71°C 0.981
12.081V 4.864V 3.202V 4.874V 547.69 46.97°C 230.41V
100% 34.288A 9.289A 9.314A 2.576A 500.152 81.307% 1888 45.7 39.31°C 0.983
12.044V 4.845V 3.188V 4.852V 615.142 48.53°C 230.41V
110% 37.693A 10.403A 10.498A 2.587A 549.572 80.205% 1897 45.8 40.53°C 0.985
12.039V 4.806V 3.171V 4.832V 685.206 50.46°C 230.41V
CL1 3.778A 12.071A 11.559A 0.498A 145.407 78.079% 1538 41 36.4°C 0.944
12.706V 4.739V 3.261V 5.024V 186.231 41.84°C 230.4V
CL2 3.709A 18.905A 1.009A 0.496A 140.505 77.914% 1507 40.4 37.49°C 0.941
12.942V 4.586V 3.271V 5.041V 180.334 43.83°C 230.4V
CL3 3.928A 0.992A 16.588A 0.496A 109.9 75.062% 1317 37.1 38.91°C 0.923
12.221V 5.043V 3.279V 5.037V 146.413 46.35°C 230.39V
CL4 42.669A 0.97A 1.024A 0.502A 499.682 81.788% 1718 43.8 40.14°C 0.983
11.458V 5.155V 3.223V 4.983V 610.955 48.48°C 230.4V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.49A 0.495A 0.196A 20.005 69.057% 874 25.5 33.29°C 0.904
12.271V 5.103V 3.332V 5.112V 28.969 34.59°C 115.18V
40W 2.670A 0.686A 0.694A 0.294A 40.003 78.025% 876 25.5 33.56°C 0.957
12.244V 5.102V 3.327V 5.102V 51.269 35.56°C 115.18V
60W 4.135A 0.883A 0.894A 0.393A 60.002 82.147% 878 25.7 34.65°C 0.968
12.221V 5.099V 3.322V 5.092V 73.042 37.18°C 115.18V
80W 5.602A 1.08A 1.094A 0.492A 79.962 83.103% 879 25.7 35.31°C 0.965
12.196V 5.096V 3.317V 5.082V 96.22 38.27°C 115.17V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.49A 0.495A 0.196A 20 70.164% 868 25.2 31.15°C 0.569
12.277V 5.1V 3.332V 5.113V 28.505 32.34°C 230.39V
40W 2.669A 0.686A 0.694A 0.294A 39.999 79.331% 871 25.4 31.43°C 0.73
12.248V 5.099V 3.327V 5.103V 50.42 33.39°C 230.39V
60W 4.134A 0.883A 0.894A 0.393A 59.998 82.951% 876 25.5 32.88°C 0.827
12.222V 5.097V 3.322V 5.092V 72.329 35.38°C 230.39V
80W 5.602A 1.08A 1.094A 0.492A 79.954 84.559% 878 25.7 33.54°C 0.872
12.196V 5.095V 3.316V 5.082V 94.555 36.58°C 230.39V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load26.81mV16.57mV11.00mV9.79mVPass
20% Load20.51mV12.94mV11.16mV9.38mVPass
30% Load21.82mV12.73mV11.41mV10.40mVPass
40% Load22.03mV13.45mV12.85mV10.20mVPass
50% Load21.01mV12.84mV13.05mV10.40mVPass
60% Load20.65mV12.22mV13.77mV11.47mVPass
70% Load24.46mV14.01mV15.35mV13.05mVPass
80% Load32.38mV14.22mV23.39mV15.04mVPass
90% Load38.87mV16.57mV25.13mV17.28mVPass
100% Load56.65mV23.95mV27.31mV21.29mVPass
110% Load54.12mV22.09mV30.18mV22.99mVPass
Crossload127.91mV23.65mV26.85mV14.41mVPass
Crossload219.19mV17.95mV10.70mV9.33mVPass
Crossload318.93mV12.53mV29.33mV14.43mVPass
Crossload460.65mV18.81mV21.75mV20.37mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load25.03mV16.62mV11.05mV9.33mVPass
20% Load33.10mV20.81mV14.07mV10.20mVPass
30% Load27.84mV17.28mV12.95mV10.40mVPass
40% Load34.12mV20.87mV13.51mV9.79mVPass
50% Load41.42mV23.27mV14.89mV10.91mVPass
60% Load39.64mV22.09mV15.20mV11.22mVPass
70% Load43.16mV22.60mV14.89mV12.69mVPass
80% Load50.26mV22.40mV24.51mV13.46mVPass
90% Load51.28mV22.81mV25.43mV14.73mVPass
100% Load61.12mV26.34mV27.85mV19.37mVPass
110% Load66.31mV28.24mV28.56mV19.37mVPass
Crossload148.13mV35.30mV23.65mV13.91mVPass
Crossload229.52mV26.54mV12.18mV8.97mVPass
Crossload328.76mV17.69mV31.68mV15.45mVPass
Crossload470.63mV21.04mV21.09mV17.12mVPass

The results above are not used in the certification process

Aresgame AGV500

Top side

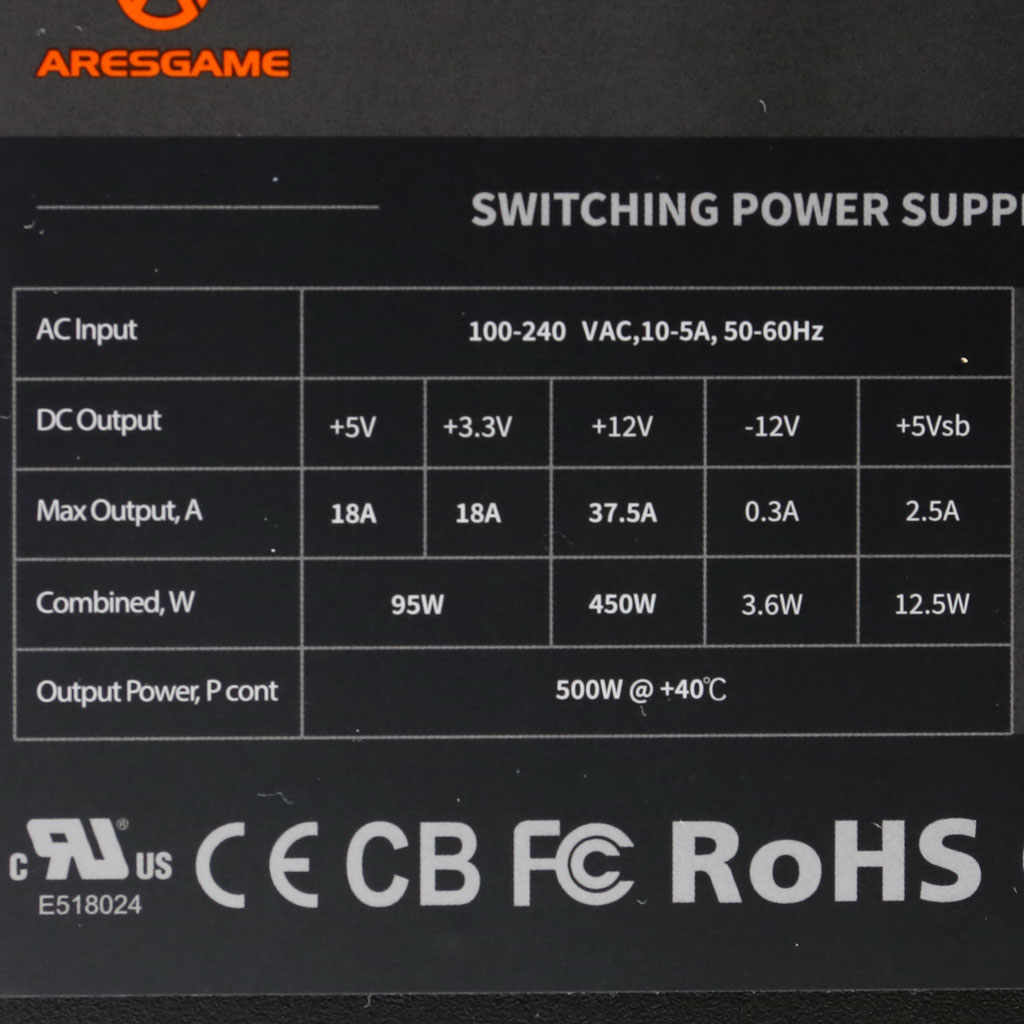

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
