CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

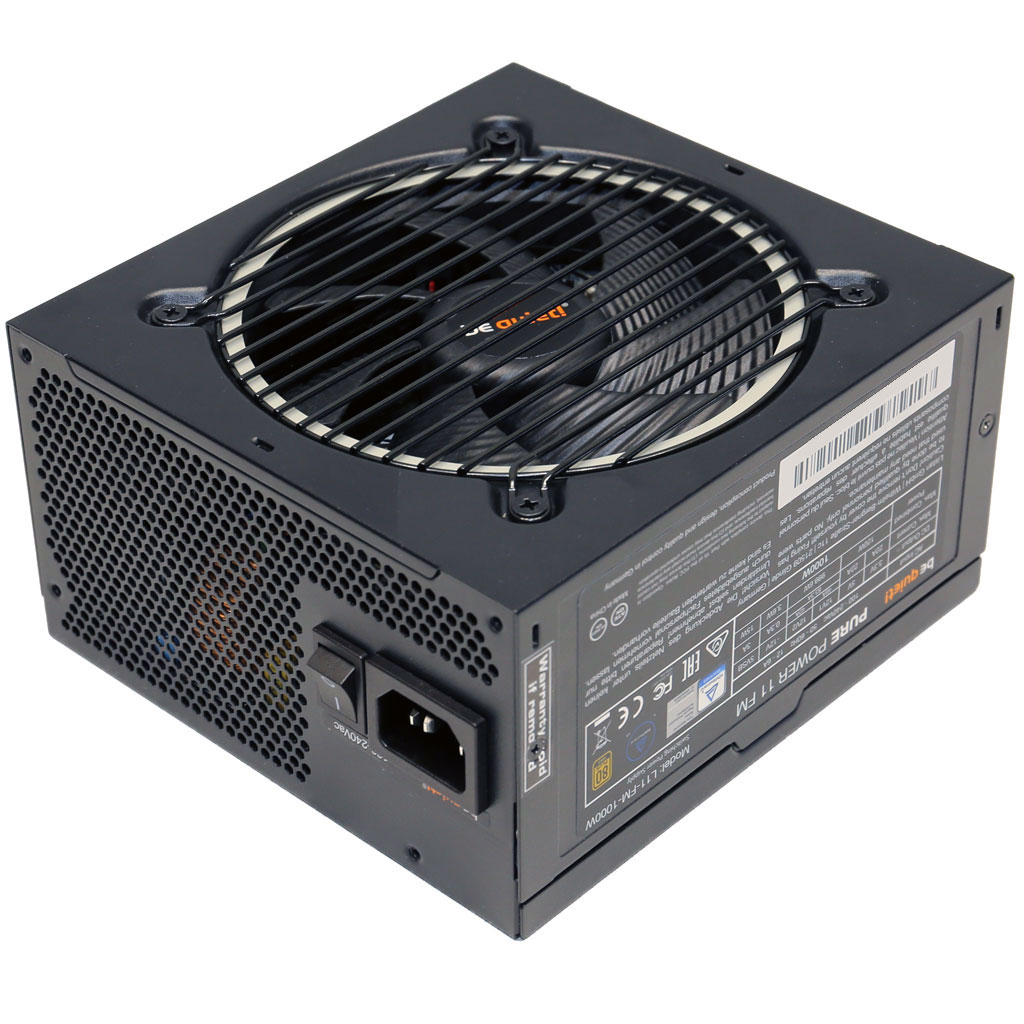

be quiet! Pure Power 11 FM 1000W
Serial Number325H1480009912
Lab IDBQ10001987
Certification ID251987
  • Test Result Report ID: 22PS1987A
  • Certificate Issue Date: Mar 9, 2022
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brandbe quiet!
Manufacturer (OEM)HEC
SeriesPure Power 11 FM
Model NumberL11-FM-1000W
Serial Number325H1480009912
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)50-60
Rated Frequency (Hz)12-6
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Rifle Bearing Fan
(BQ QF2-12025-HS)
Semi-Passive Operation✗
Cable DesignFully Modular

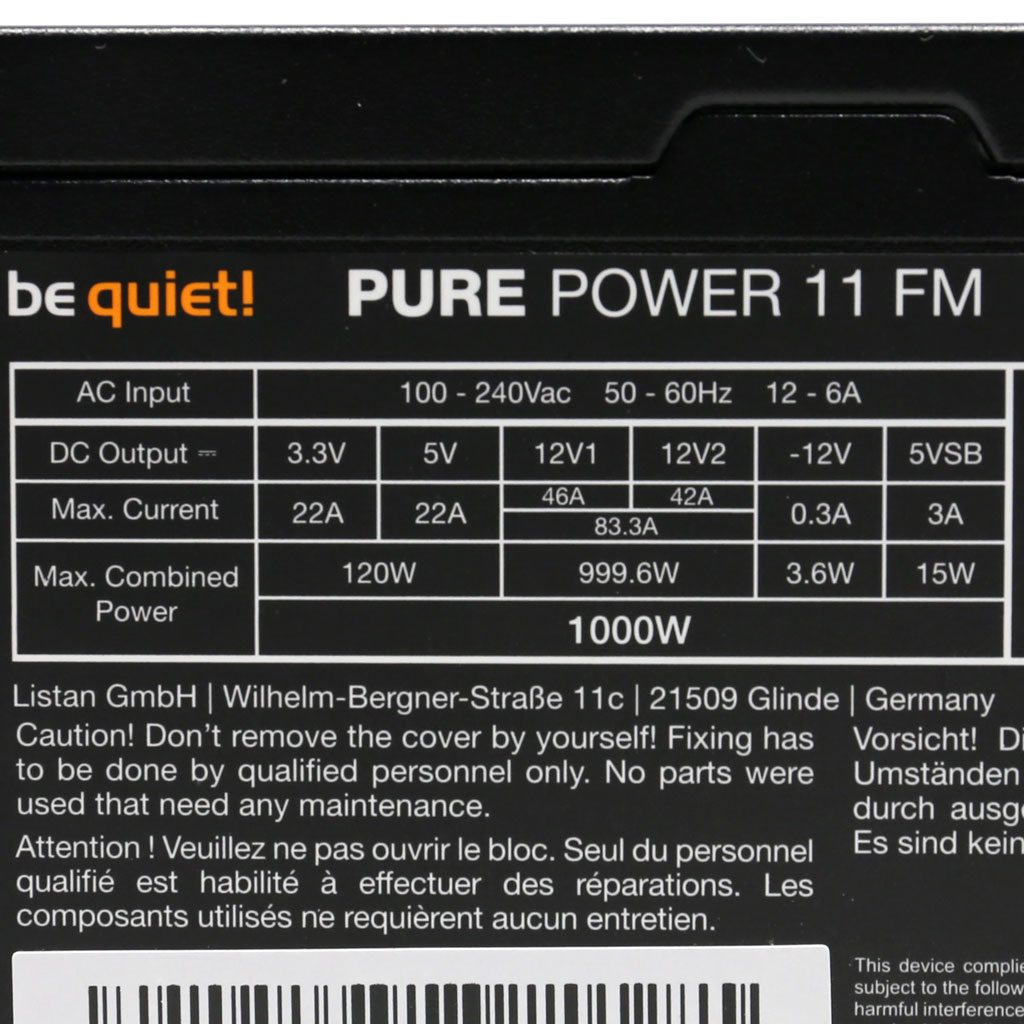

Power Specifications

Rail3.3V5V12V(1)12V(2)5VSB-12V
Max. PowerAmps2222464230.3
Watts120999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 16-22AWG No
4+4 pin EPS12V (600mm) 1 1 18AWG No
8 pin EPS12V (600mm) 1 1 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
2x 6+2 pin PCIe (500mm) 1 2 16AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) / FDD (+150mm) 1 2 / 2 / 1 18-20AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HEC
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200G (Discharge IC)
Inrush Protection NTC Thermistor SCK-056 (5 Ohm) & Relay
Bridge Rectifier(s) 2x GBU15JL (600V, 15A @ 115°C)
APFC MOSFETs 3x Infineon IPA60R120P7 (600V, 16A @ 100°C, Rds(on): 0.12Ohm)
APFC Boost Diode 1x CREE C6D10065A (650V, 10A @ 155°C)
Bulk Cap(s) 2x Teapo (400V, 470uF each or 940uF, 2,000h @ 105°C, LG)
Main Switchers 2x On Semiconductor NTPF110N65S3HF (650V, 19.5A @ 100°C, Rds(on): 0.11Ohm)
APFC Controller Champion CM6500UNX & CM03AX
Resonant Controller Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 6x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.1mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 14x Teapo (1-3,000 @ 105°C, SC), 1x Elite (105°C, EM)
Polymer: 6x Teapo, 6x Elite, 16x no info
Supervisor IC Weltrend WT7527RT (OCP, OVP, UVP, SCP, PG)
Fan Model be quiet! BQ QF2-12025-HS (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit -
Rectifier 1x SECOS SMPD1060L SBR (60V, 10A)
Standby PWM Controller Excelliance MOS EM8569D

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.846%
Average Noise Output (>1450 Load Combinations)30.99dBA
Average PF (>1450 Load Combinations)0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load74.828%
Standby Power Consumption0.0633W
12V Ripple (Full Load)24.19mV
5V Ripple (Full Load)10.05mV
3.3V Ripple (Full Load)11.12mV
5VSB Ripple (Full Load)13.04mV
12V Load Regulation1.27%
5V Load Regulation0.70%
3.3V Load Regulation0.61%
5VSB Load Regulation2.51%
Inrush Current27.740A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.050%
Average Noise Output (>1450 Load Combinations)30.90dBA
Average PF (>1450 Load Combinations)0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1171W
12V Ripple (Full Load)25.98mV
5V Ripple (Full Load)7.19mV
3.3V Ripple (Full Load)9.59mV
5VSB Ripple (Full Load)10.78mV
12V Load Regulation1.34%
5V Load Regulation0.72%
3.3V Load Regulation0.61%
5VSB Load Regulation2.55%
Inrush Current97.160A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal18.90ms
AC Loss to PWR_OK Hold Up Time15.90ms
PWR_OK Inactive to DC Loss Delay3.00ms
PSU Timings: T1 (20% / 100%)44.0ms44.0ms
PSU Timings: T3 (20% / 100%)129.0ms129.0ms
OPP (29.31°C / 41.56°C)124.32%117.92%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.9
AC Loss to PWR_OK Hold Up Time (ms)15.9
PWR_OK Inactive to DC Loss Delay (ms)3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.14 V 115.14 V 113.85 V 115.17 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.063 W 0.057 W N/A 0.068 W N/A N/A
Apparent Power: 12.150 W 12.148 W N/A 12.154 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.35 V 227.70 V 230.38 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.117 W 0.102 W N/A 0.131 W N/A N/A
Apparent Power: 40.602 W 40.596 W N/A 40.612 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

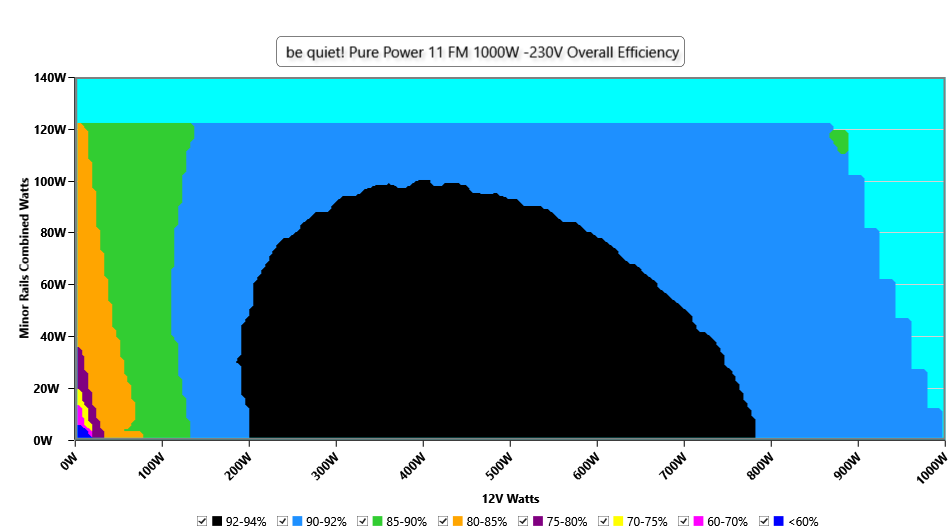

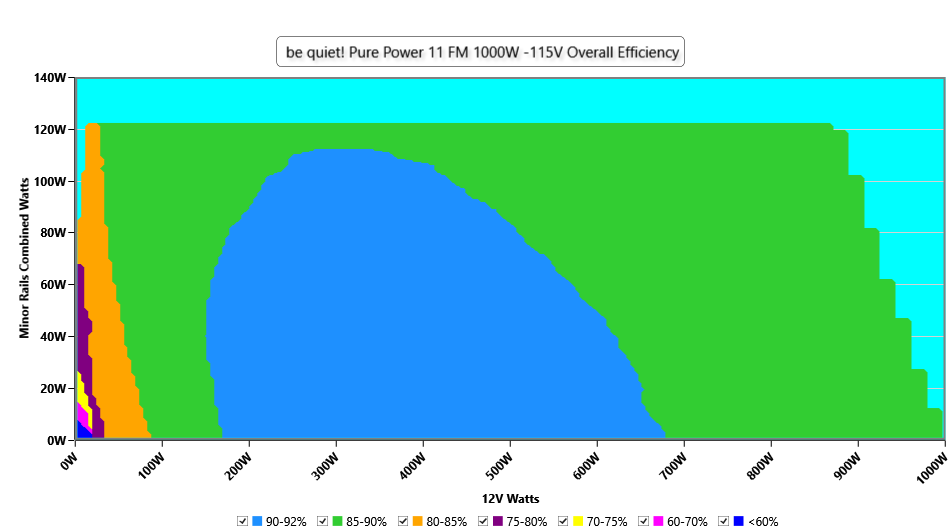

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

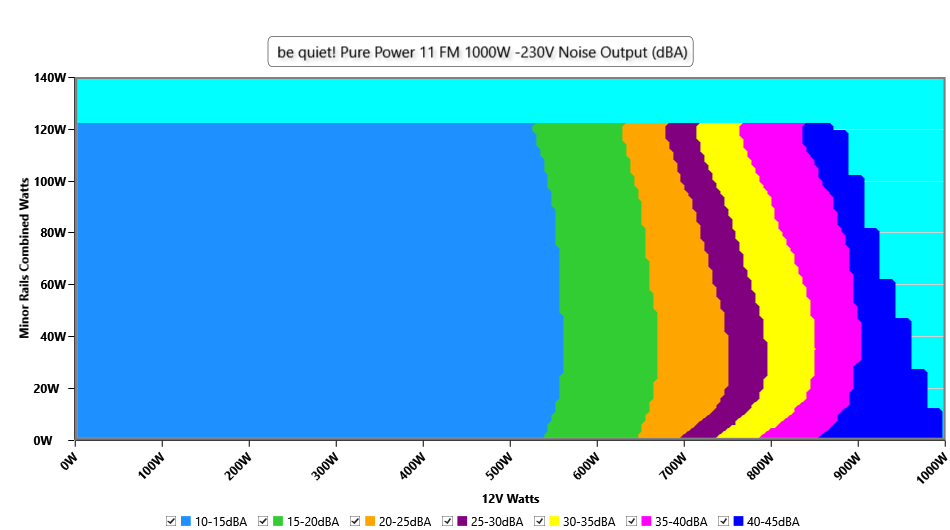

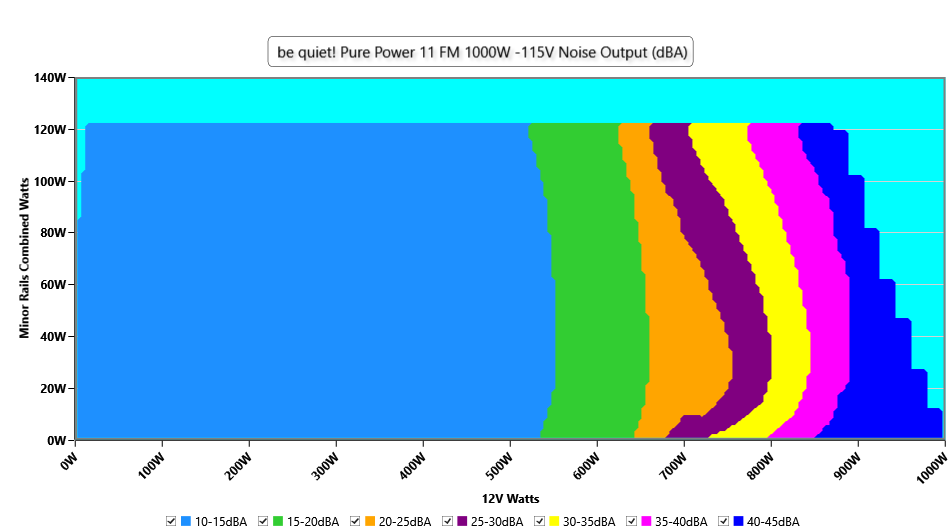

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

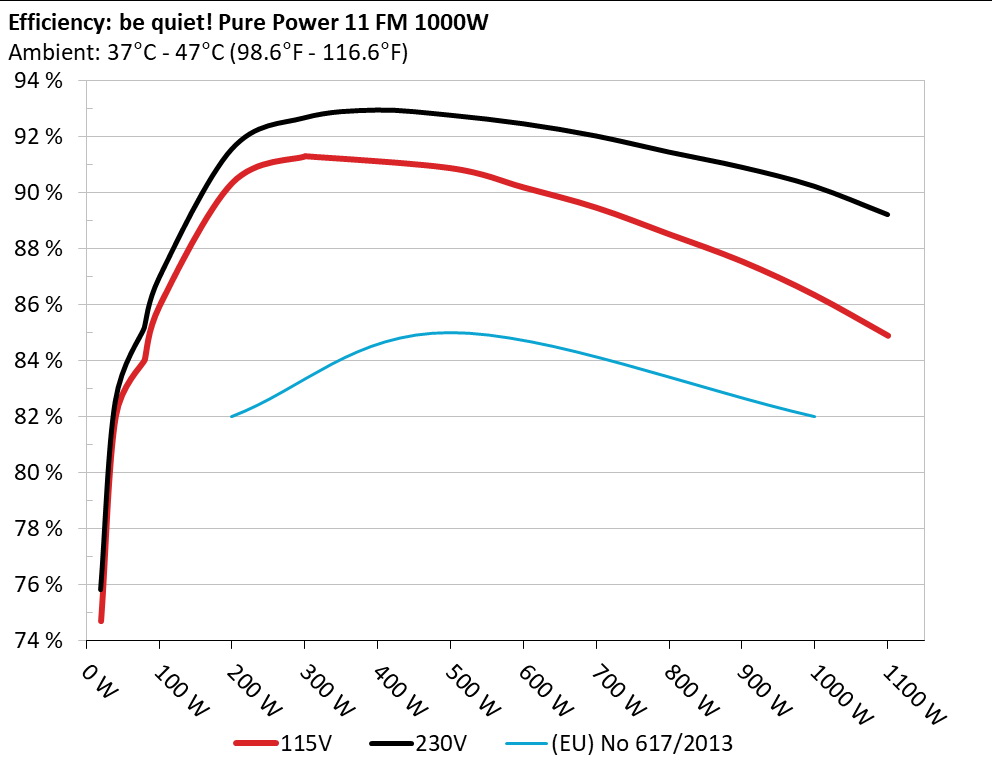

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

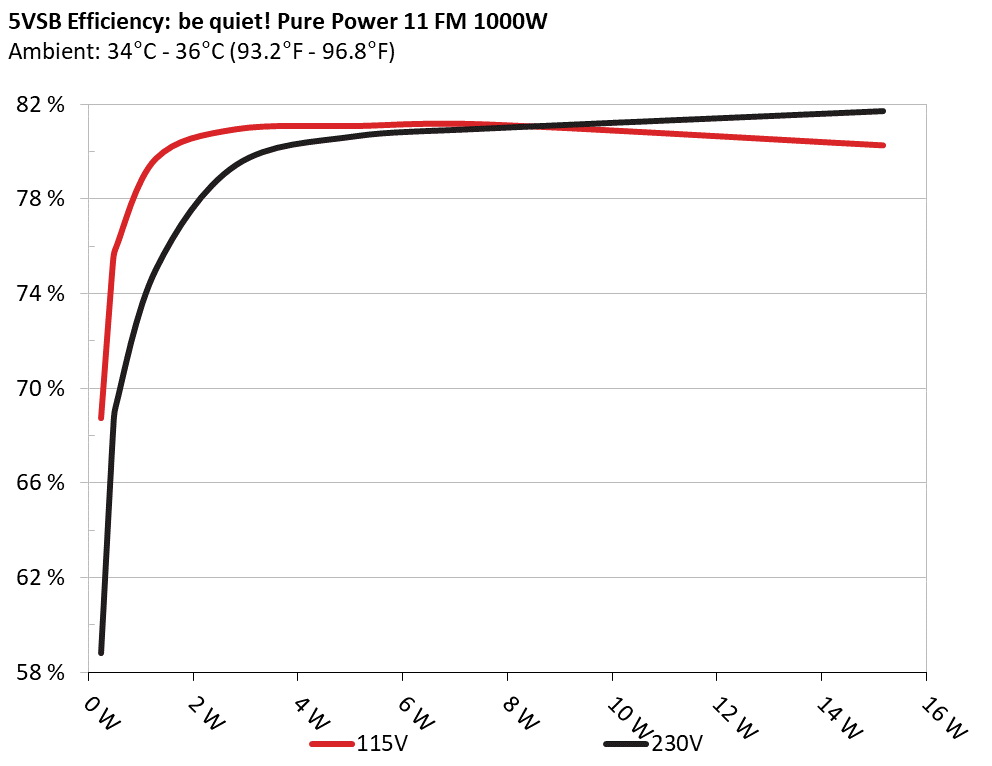

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 68.72% 0.027
5.112V 0.335W 115.14V
2 0.09A 0.46W 75.412% 0.05
5.11V 0.61W 115.14V
3 0.55A 2.806W 80.954% 0.233
5.101V 3.464W 115.13V
4 1A 5.093W 81.09% 0.335
5.092V 6.28W 115.12V
5 1.5A 7.625W 81.153% 0.391
5.083V 9.397W 115.12V
6 3A 15.163W 80.273% 0.465
5.054V 18.889W 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 58.824% 0.01
5.111V 0.392W 230.37V
2 0.09A 0.46W 68.244% 0.017
5.11V 0.675W 230.37V
3 0.55A 2.806W 79.42% 0.084
5.101V 3.533W 230.36V
4 1A 5.093W 80.64% 0.143
5.092V 6.314W 230.36V
5 1.5A 7.625W 80.968% 0.197
5.082V 9.417W 230.36V
6 3A 15.162W 81.698% 0.301
5.053V 18.556W 230.36V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.488A 2A 2.008A 0.982A 100.01 85.933% 707 11.1 40.75°C 0.952
12.084V 5V 3.287V 5.095V 116.38 44.77°C 115.11V
20% 14.032A 3.003A 3.014A 1.181A 199.965 90.34% 706 11.1 40.85°C 0.969
12.048V 4.997V 3.285V 5.082V 221.353 45.24°C 115.09V
30% 21.932A 3.505A 3.517A 1.381A 300.018 91.291% 707 11.1 41.68°C 0.97
12.036V 4.994V 3.284V 5.07V 328.639 46.47°C 115.06V
40% 29.819A 4.008A 4.022A 1.582A 399.719 91.298% 708 11.2 42.13°C 0.975
12.023V 4.991V 3.282V 5.059V 437.815 47.14°C 115.03V
50% 37.379A 5.014A 5.031A 1.784A 499.381 90.87% 708 11.2 42.26°C 0.98
12.009V 4.987V 3.28V 5.047V 549.557 47.82°C 115V
60% 45.025A 6.021A 6.041A 1.986A 599.921 90.182% 763 13.6 43.31°C 0.984
11.996V 4.984V 3.278V 5.036V 665.233 49.65°C 114.97V
70% 52.622A 7.029A 7.051A 2.19A 699.66 89.459% 951 21.1 43.71°C 0.988
11.983V 4.981V 3.276V 5.024V 782.099 50.81°C 114.94V
80% 60.307A 8.002A 8.061A 2.294A 799.527 88.511% 1589 36.1 43.94°C 0.99
11.968V 4.978V 3.275V 5.014V 903.313 51.98°C 114.92V
90% 68.349A 8.544A 8.555A 2.398A 899.519 87.542% 1854 40.4 44.81°C 0.992
11.954V 4.974V 3.273V 5.004V 1027.525 54.11°C 114.89V
100% 76.209A 9.052A 9.078A 3.01A 999.533 86.337% 1847 40.3 45.25°C 0.993
11.939V 4.972V 3.271V 4.985V 1157.718 55.53°C 114.86V
110% 84.039A 10.063A 10.183A 3.015A 1100.151 84.887% 1845 40.3 46.73°C 0.994
11.921V 4.968V 3.27V 4.976V 1296.045 58.1°C 114.82V
CL1 0.116A 14.459A 14.539A 0A 121.29 83.001% 794 14.9 41.11°C 0.962
12.082V 4.993V 3.28V 5.094V 146.132 46.35°C 115.1V
CL2 0.115A 22.005A 0A 0A 111.391 81.608% 724 11.7 40.92°C 0.955
12.086V 4.999V 3.284V 5.105V 136.496 47.94°C 115.1V
CL3 0.115A 0A 22.084A 0A 73.985 75.621% 713 11.4 41.25°C 0.959
12.083V 5.001V 3.287V 5.094V 97.838 50.39°C 115.12V
CL4 83.715A 0A 0A 0A 1000.175 86.993% 1860 40.6 45.67°C 0.993
11.947V 4.984V 3.281V 5.059V 1149.72 57.05°C 114.86V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.490A 2.001A 2.008A 0.982A 100.009 86.948% 707 11.1 41.01°C 0.837
12.081V 4.999V 3.286V 5.094V 115.022 45.22°C 230.35V
20% 14.036A 3.003A 3.015A 1.181A 199.963 91.562% 704 11.0 41.53°C 0.914
12.045V 4.996V 3.284V 5.081V 218.388 45.94°C 230.34V
30% 21.938A 3.507A 3.52A 1.381A 300.004 92.679% 703 10.9 42.6°C 0.935
12.032V 4.991V 3.282V 5.069V 323.709 47.32°C 230.33V
40% 29.827A 4.009A 4.023A 1.582A 399.72 92.953% 709 11.2 42.66°C 0.948
12.020V 4.99V 3.281V 5.058V 430.022 47.7°C 230.32V
50% 37.389A 5.014A 5.03A 1.784A 499.461 92.77% 760 13.4 43.3°C 0.956
12.007V 4.988V 3.28V 5.046V 538.384 48.97°C 230.3V
60% 45.039A 6.02A 6.04A 1.987A 600.008 92.465% 881 18.1 43.81°C 0.963
11.994V 4.984V 3.279V 5.034V 648.893 49.84°C 230.29V
70% 52.640A 7.029A 7.051A 2.191A 699.727 92.029% 1109 25.4 43.95°C 0.966
11.980V 4.981V 3.276V 5.022V 760.34 50.97°C 230.27V
80% 60.331A 8.003A 8.063A 2.295A 799.585 91.454% 1642 37.4 44.32°C 0.969
11.965V 4.977V 3.274V 5.012V 874.311 52.45°C 230.26V
90% 68.374A 8.547A 8.557A 2.399A 899.564 90.914% 1852 40.4 44.79°C 0.972
11.950V 4.973V 3.272V 5.003V 989.468 54.07°C 230.24V
100% 76.237A 9.056A 9.081A 3.011A 999.563 90.231% 1853 40.4 45.21°C 0.975
11.935V 4.969V 3.27V 4.983V 1107.793 55.66°C 230.23V
110% 84.058A 10.065A 10.184A 3.016A 1100.081 89.222% 1851 40.3 47.18°C 0.977
11.918V 4.967V 3.269V 4.974V 1232.976 57.96°C 230.22V
CL1 0.116A 14.464A 14.544A 0A 121.297 83.658% 845 17.0 42.86°C 0.872
12.080V 4.992V 3.279V 5.093V 144.994 48.95°C 230.35V
CL2 0.115A 22.01A 0A 0A 111.394 82.364% 750 13.0 43.16°C 0.862
12.087V 4.998V 3.283V 5.108V 135.247 50.21°C 230.34V
CL3 0.115A 0A 22.084A 0A 73.987 76.386% 715 11.5 44.57°C 0.807
12.083V 5.001V 3.287V 5.094V 96.852 52.63°C 230.35V
CL4 83.714A 0A 0A 0A 1000.04 90.717% 1860 40.6 45.69°C 0.975
11.946V 4.986V 3.283V 5.059V 1102.377 55.84°C 230.23V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.501A 0.196A 20.003 74.695% 705 11.0 37.25°C 0.851
12.077V 5.007V 3.291V 5.11V 26.777 39.53°C 115.14V
40W 2.708A 0.699A 0.702A 0.294A 40.002 81.994% 704 11.0 37.53°C 0.913
12.073V 5.004V 3.29V 5.108V 48.784 40.24°C 115.13V
60W 4.186A 0.9A 0.903A 0.392A 60 84.021% 704 11.0 38.51°C 0.933
12.072V 5.003V 3.288V 5.106V 71.415 41.61°C 115.13V
80W 5.655A 1.1A 1.104A 0.49A 79.959 84.239% 708 11.2 39.2°C 0.957
12.083V 5.002V 3.288V 5.107V 94.919 42.65°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.5A 0.501A 0.196A 20 75.832% 693 10.5 37.41°C 0.45
12.073V 5.005V 3.29V 5.11V 26.372 39.6°C 230.36V
40W 2.708A 0.7A 0.702A 0.294A 39.999 82.542% 699 10.8 38.12°C 0.636
12.069V 5.003V 3.289V 5.107V 48.46 40.87°C 230.35V
60W 4.186A 0.9A 0.903A 0.392A 59.997 85.175% 697 10.7 38.84°C 0.738
12.069V 5.001V 3.288V 5.105V 70.447 41.96°C 230.35V
80W 5.655A 1.1A 1.104A 0.49A 79.955 85.279% 705 11.0 40.07°C 0.801
12.082V 5.001V 3.287V 5.106V 93.755 43.93°C 230.35V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.27mV5.11mV3.89mV8.11mVPass
20% Load15.49mV5.37mV4.10mV8.31mVPass
30% Load12.00mV4.61mV3.89mV8.51mVPass
40% Load12.26mV4.96mV4.15mV8.92mVPass
50% Load13.89mV4.91mV4.45mV8.51mVPass
60% Load14.25mV5.42mV5.01mV8.87mVPass
70% Load16.29mV5.93mV5.01mV10.86mVPass
80% Load17.77mV6.65mV9.11mV11.22mVPass
90% Load20.28mV7.67mV9.52mV9.84mVPass
100% Load24.19mV10.05mV11.12mV13.04mVPass
110% Load35.40mV18.09mV16.95mV23.64mVPass
Crossload112.38mV7.19mV11.20mV9.48mVPass
Crossload211.49mV7.31mV6.14mV7.19mVPass
Crossload326.30mV7.36mV11.41mV7.85mVPass
Crossload423.39mV18.72mV6.48mV18.94mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.20mV5.17mV4.14mV7.85mVPass
20% Load15.95mV5.27mV4.20mV8.56mVPass
30% Load12.05mV5.06mV4.15mV8.87mVPass
40% Load12.31mV4.81mV4.30mV8.62mVPass
50% Load13.89mV5.11mV4.50mV8.66mVPass
60% Load15.17mV5.47mV4.40mV8.21mVPass
70% Load16.80mV5.98mV5.12mV11.16mVPass
80% Load17.26mV6.44mV8.44mV10.25mVPass
90% Load19.26mV6.70mV8.91mV9.49mVPass
100% Load25.98mV7.19mV9.59mV10.78mVPass
110% Load27.87mV7.48mV10.16mV12.28mVPass
Crossload112.06mV7.75mV10.73mV10.39mVPass
Crossload211.24mV7.21mV6.19mV7.44mVPass
Crossload363.13mV8.18mV11.46mV12.69mVPass
Crossload426.26mV7.07mV5.13mV11.40mVPass

The results above are not used in the certification process

be quiet! Pure Power 11 FM 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
