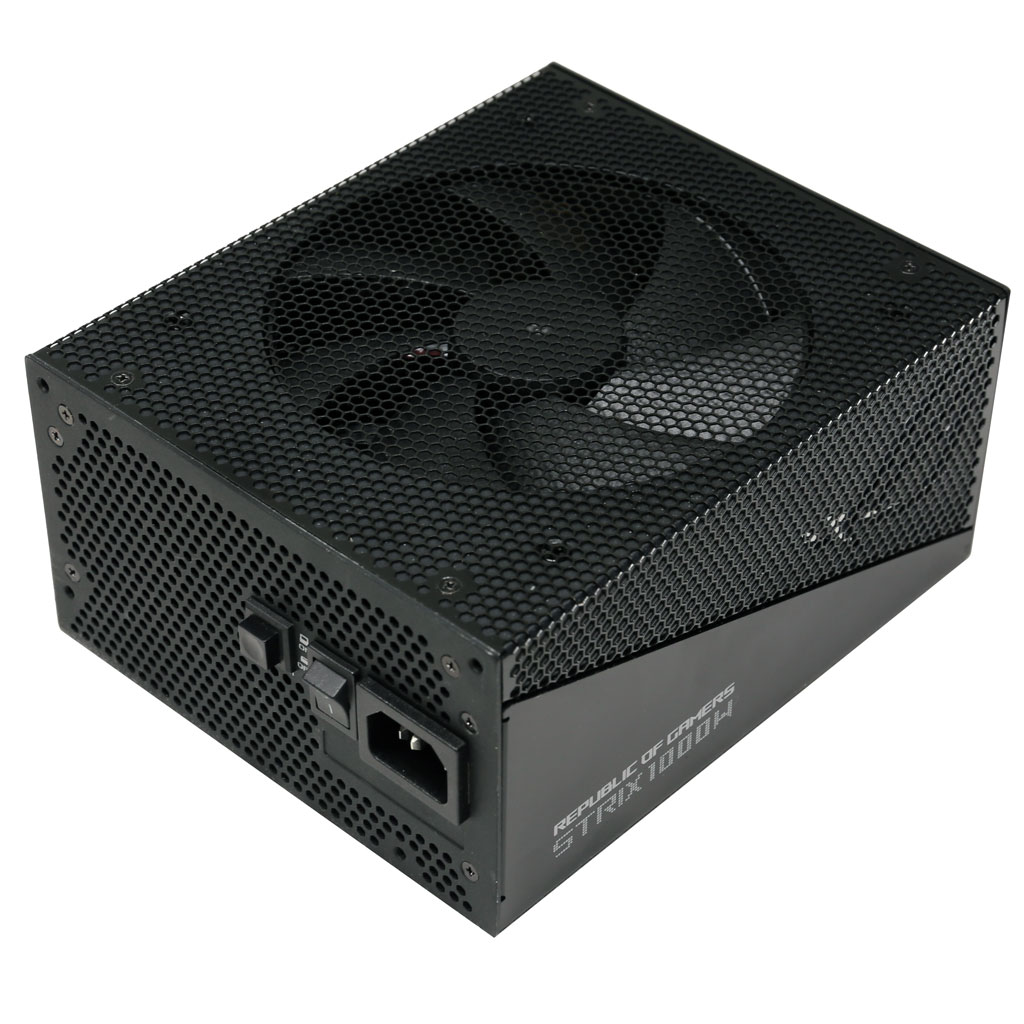

Asus ROG-STRIX-1000G-AURA-GAMING
Serial Number
Lab IDAS10002042
Certification ID252042
  • Test Result Report ID: 22PS2042A
  • Certificate Issue Date: Jul 18, 2022
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)CWT
SeriesRog Strix
Model NumberROG-STRIX-1000G-AURA-GAMING
Serial Number
DUT Notes

DUT Specifications

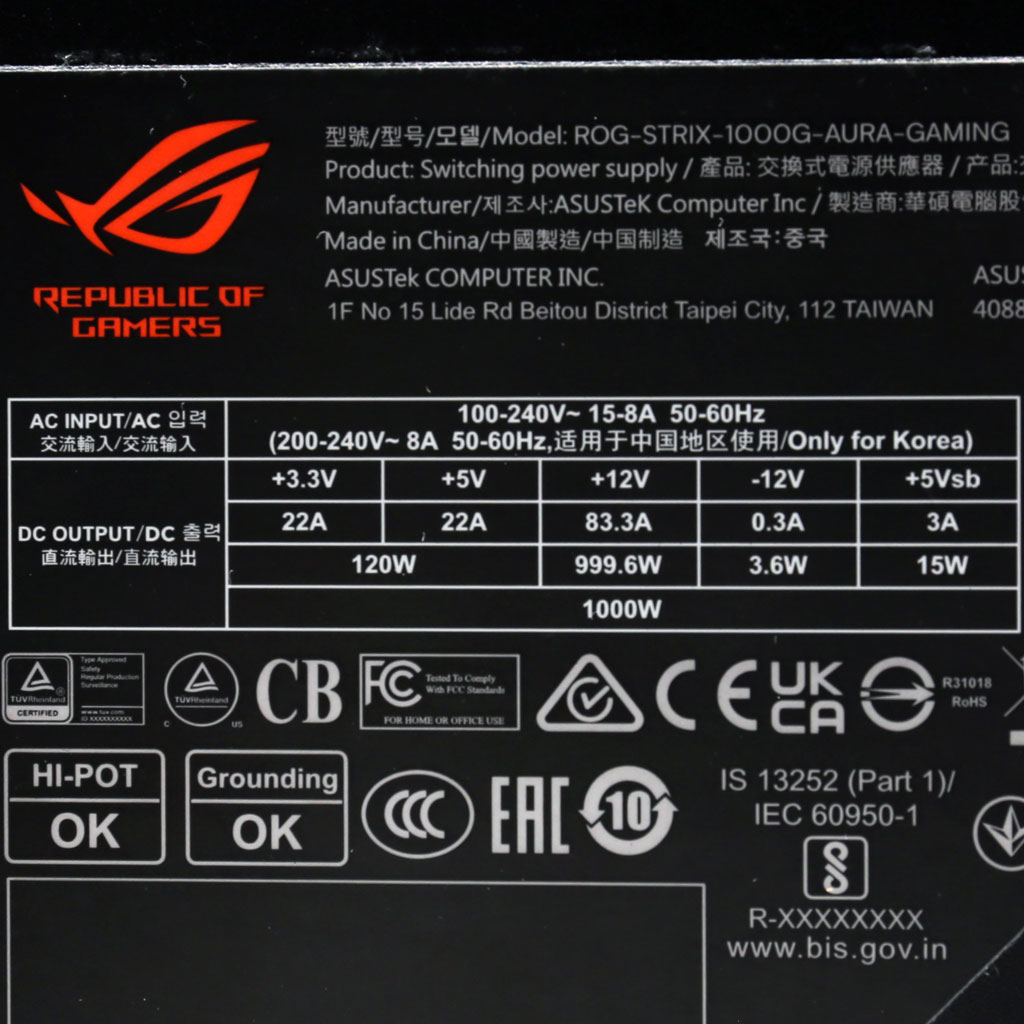

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Double Ball Bearing Fan
(CF1325H12D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.330.3
Watts120999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (610mm) 2 2 16AWG No
2x 6+2 pin PCIe (610mm) 1 2 16AWG No
12+4 pin PCIe (610mm) 1 1 16-24AWG No
SATA (400mm+120mm) 1 2 18AWG No
SATA (400mm+120mm120mm) 1 3 18AWG No
4 pin Molex (400mm+150mm+150mm+150mm) 1 4 18AWG No
ARGB Cable (790mm) 1 1 22AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK203R0 (3 Ohm) & Relay
Bridge Rectifier(s) 2x no info
APFC MOSFETs 2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm) &
Sync Power SPN5003 (reduce the no load consumption)
APFC Boost Diode 1x On Semiconductor FFSP1065B (650V, 10A @ 139°C)
Bulk Cap(s) 1x Nippon Chemi-Con (450V, 680uF, 2000h @ 105°C, KMZ) &
1x Nippon Chemi-Con (420V, 470uF, 2000h @ 105°C, KMZ)
Main Switchers 4x Infineon IPA60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VAC
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon BSC014N06NS (60V, 100A @ 100°C, Rds(on): 1.45mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 1.4mOhm)
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors Electrolytic: 3x Nichicon (2-4,000h @ 105°C, HD), 3x Nippon Chemi-Con (2-5,000 @ 105°C, KZE), 1x Nippon Chemi-Con (4-10,000 @ 105°C, KY), 1x Nippon Chemi-Con (4-10,000 @ 105°C, KYA), 2x Nichicon (2-4,000h @ 105°C, HE)
Polymer: 11x FPCAP, 4x Nippon Chemi-Con, 19x NIC
Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Controller Microchip PIC16F1503
Fan Model Champion CF1325H12D (120mm, 12V, 0.6A, Double Ball Bearing Fan)
5VSB Circuit -
Standby PWM Controller On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA+
Average Efficiency (>1450 load combinations)88.528%
Average Noise Output (>1450 Load Combinations)16.95dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load74.077%
Standby Power Consumption0.0173W
12V Ripple (Full Load)10.90mV
5V Ripple (Full Load)7.79mV
3.3V Ripple (Full Load)9.92mV
5VSB Ripple (Full Load)16.51mV
12V Load Regulation0.43%
5V Load Regulation0.53%
3.3V Load Regulation1.13%
5VSB Load Regulation2.19%
Inrush Current53.034A
Efficiency RatingGOLD
Noise RatingA+
Average Efficiency (>1450 load combinations)90.236%
Average Noise Output (>1450 Load Combinations)16.05dBA
Average PF (>1450 Load Combinations)0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load68.791%
Standby Power Consumption0.0819W
12V Ripple (Full Load)11.58mV
5V Ripple (Full Load)7.43mV
3.3V Ripple (Full Load)10.48mV
5VSB Ripple (Full Load)16.03mV
12V Load Regulation0.73%
5V Load Regulation0.55%
3.3V Load Regulation1.19%
5VSB Load Regulation2.21%
Inrush Current107.540A
12V Transient Response (200%)11.29V
5V Transient Response (200%)4.961V
3.3V Transient Response (200%)3.188V
5VSB Transient Response (200%)4.921V
Hold-Up Time & Power Ok Signal26.20ms
AC Loss to PWR_OK Hold Up Time22.40ms
PWR_OK Inactive to DC Loss Delay3.80ms
PSU Timings: T1 (20% / 100%)56.0ms55.0ms
PSU Timings: T3 (20% / 100%)138.0ms138.0ms
OPP (31.49°C / 43.37°C)138.75%138.74%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.2
AC Loss to PWR_OK Hold Up Time (ms)22.4
PWR_OK Inactive to DC Loss Delay (ms)3.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.94 V 114.90 V 113.85 V 114.98 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.21 % 2.00 % PASS
Real Power: 0.017 W 0.015 W N/A 0.019 W N/A N/A
Apparent Power: 10.501 W 10.482 W N/A 10.526 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.84 V 227.70 V 229.97 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.18 % 2.00 % PASS
Real Power: 0.082 W 0.070 W N/A 0.102 W N/A N/A
Apparent Power: 35.438 W 35.403 W N/A 35.463 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

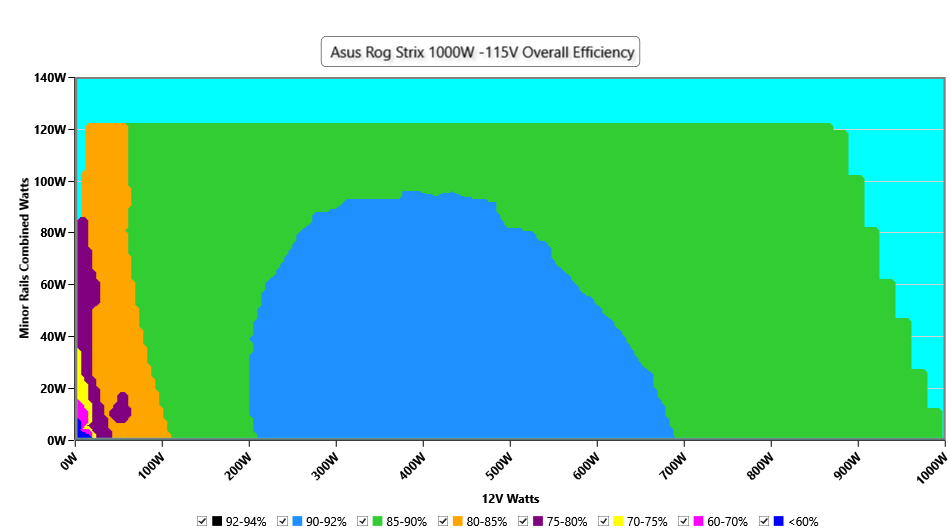

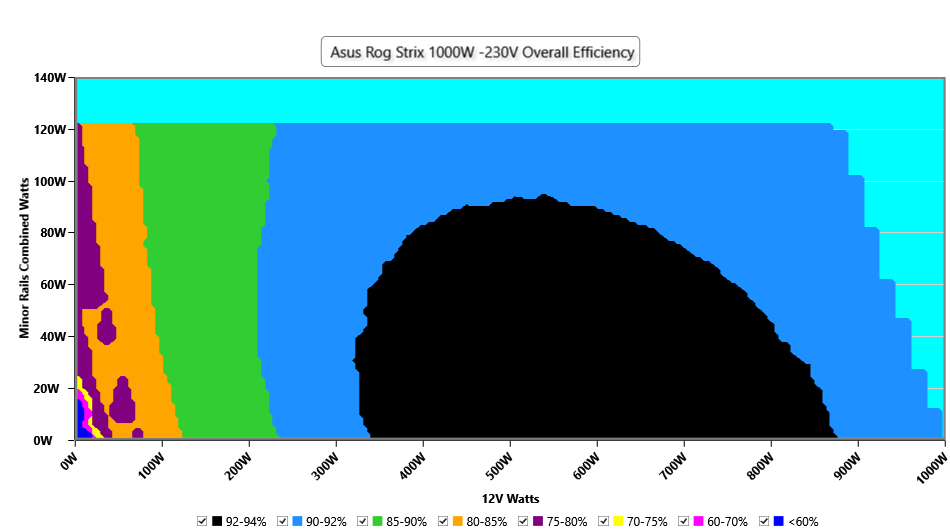

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

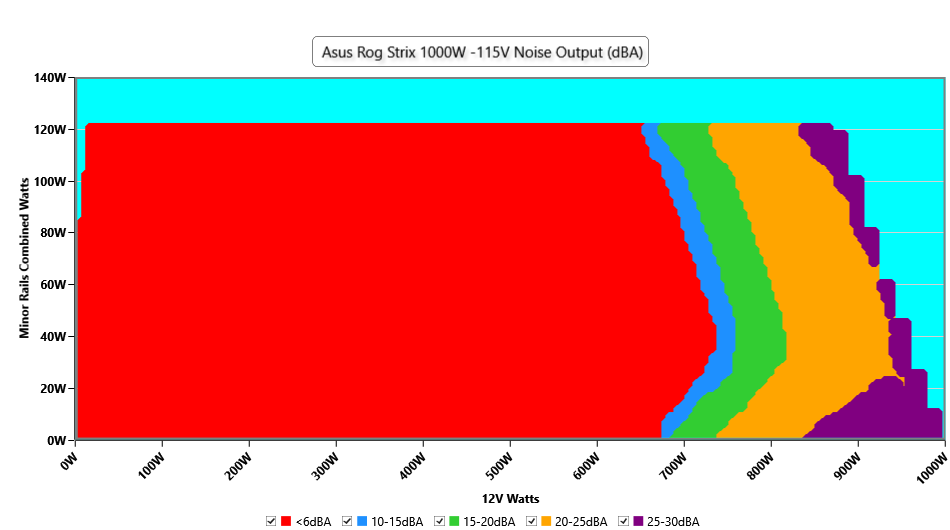

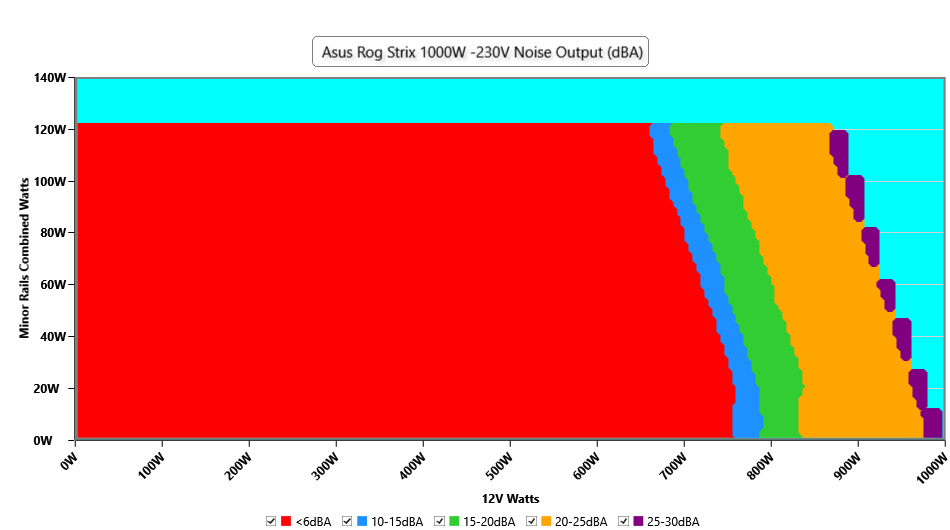

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

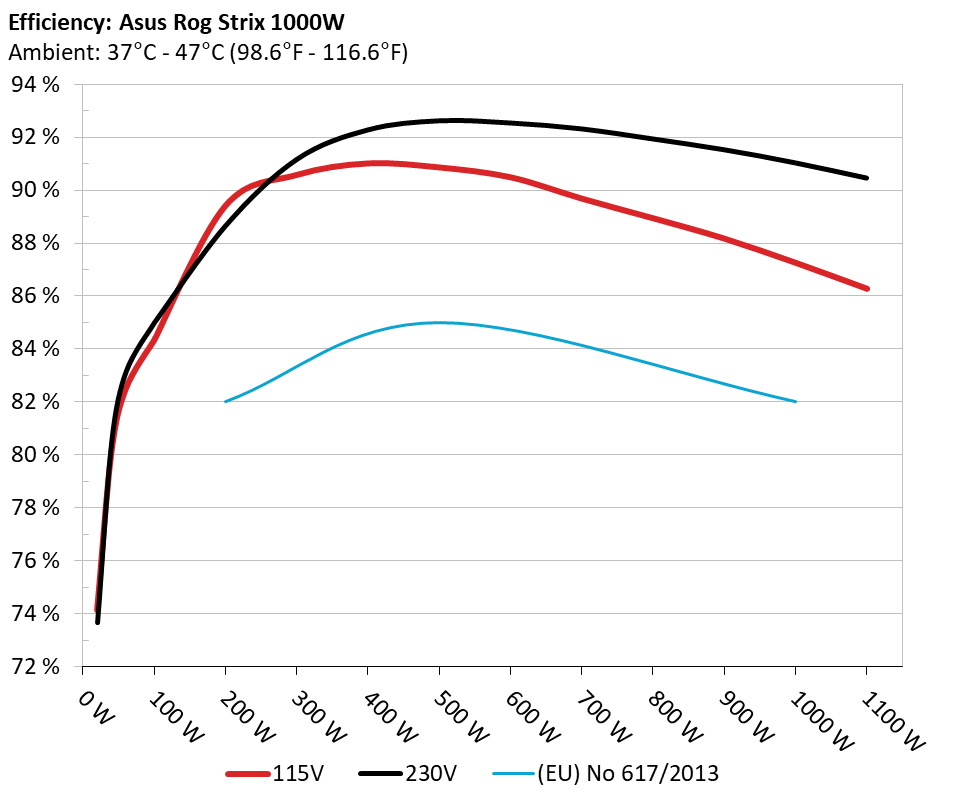

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

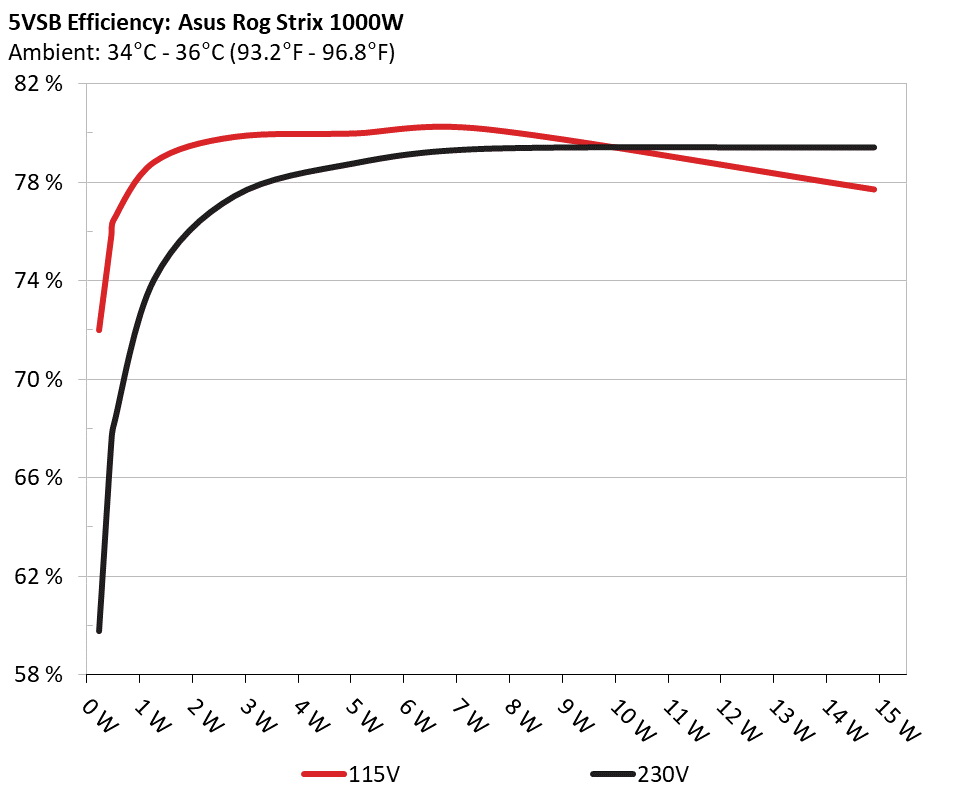

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 71.991% 0.03
5.089V 0.318W 114.92V
2 0.09A 0.458W 75.782% 0.057
5.086V 0.605W 114.93V
3 0.55A 2.787W 79.845% 0.253
5.065V 3.49W 114.93V
4 1A 5.047W 79.983% 0.332
5.046V 6.311W 114.92V
5 1.5A 7.54W 80.16% 0.386
5.026V 9.406W 114.93V
6 3.001A 14.89W 77.71% 0.458
4.962V 19.161W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 59.796% 0.011
5.09V 0.384W 229.9V
2 0.09A 0.458W 67.398% 0.019
5.087V 0.68W 229.9V
3 0.55A 2.787W 77.452% 0.097
5.067V 3.598W 229.89V
4 1A 5.048W 78.785% 0.161
5.048V 6.407W 229.89V
5 1.5A 7.542W 79.378% 0.201
5.027V 9.5W 229.89V
6 3.001A 14.891W 79.434% 0.305
4.963V 18.748W 229.89V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.510A 1.964A 1.998A 0.993A 100.02 83.927% 0 <6.0 45.21°C 0.98
12.045V 5.092V 3.303V 5.038V 119.175 40.81°C 114.91V
20% 14.045A 2.948A 3A 1.195A 199.978 89.415% 0 <6.0 45.86°C 0.991
12.038V 5.089V 3.299V 5.022V 223.651 41.06°C 114.9V
30% 21.941A 3.44A 3.504A 1.398A 300.041 90.581% 0 <6.0 46.79°C 0.994
12.032V 5.087V 3.296V 5.006V 331.242 41.44°C 114.87V
40% 29.822A 3.934A 4.009A 1.603A 399.802 91.017% 0 <6.0 47.52°C 0.993
12.025V 5.085V 3.293V 4.991V 439.259 41.81°C 114.84V
50% 37.362A 4.92A 5.017A 1.809A 499.51 90.867% 0 <6.0 48.56°C 0.992
12.018V 5.082V 3.289V 4.975V 549.721 42.23°C 114.83V
60% 44.980A 5.908A 6.029A 2A 599.983 90.494% 314 <6.0 42.92°C 0.993
12.011V 5.079V 3.285V 4.972V 663.009 49.85°C 114.79V
70% 52.428A 6.897A 7.043A 2.189A 699.789 89.688% 411 <6.0 43.36°C 0.994
12.029V 5.076V 3.28V 5.026V 780.244 50.81°C 114.77V
80% 60.103A 7.888A 8.059A 2.292A 799.827 88.947% 723 23.0 43.89°C 0.995
12.011V 5.073V 3.276V 5.02V 899.216 51.95°C 114.73V
90% 68.079A 8.385A 8.557A 2.397A 899.606 88.179% 926 27.7 44°C 0.996
12.002V 5.071V 3.272V 5.008V 1020.207 53.09°C 114.71V
100% 75.868A 8.883A 9.087A 3.018A 999.62 87.266% 1205 32.9 46.11°C 0.996
11.994V 5.068V 3.269V 4.971V 1145.476 56.21°C 114.68V
110% 83.592A 9.875A 10.201A 3.024A 1100.239 86.28% 1475 37.1 46.53°C 0.996
11.986V 5.065V 3.264V 4.962V 1275.195 57.44°C 114.64V
CL1 0.116A 14.199A 14.497A 0A 121.327 82.471% 314 <6.0 48.48°C 0.984
12.048V 5.086V 3.29V 5.068V 147.115 42.97°C 114.89V
CL2 0.116A 21.724A 0A 0A 111.432 80.451% 314 <6.0 50.24°C 0.983
12.054V 5.065V 3.304V 5.077V 138.508 43.51°C 114.89V
CL3 0.116A 0A 22.11A 0A 73.99 72.667% 314 <6.0 52.31°C 0.974
12.066V 5.116V 3.283V 5.07V 101.818 44.39°C 114.91V
CL4 83.369A 0A 0A 0A 1000.081 88.047% 965 28.5 46.23°C 0.996
11.996V 5.071V 3.278V 5.121V 1135.862 56.25°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.492A 1.964A 1.998A 0.993A 100.032 82.738% 0 <6.0 44.93°C 0.877
12.082V 5.091V 3.303V 5.038V 120.898 40.54°C 229.88V
20% 13.998A 2.948A 3.001A 1.195A 199.995 88.659% 0 <6.0 45.84°C 0.951
12.079V 5.089V 3.299V 5.021V 225.581 40.95°C 229.87V
30% 21.905A 3.441A 3.505A 1.399A 300.064 91.166% 0 <6.0 46.73°C 0.971
12.053V 5.086V 3.296V 5.005V 329.142 41.49°C 229.85V
40% 29.777A 3.935A 4.01A 1.604A 399.855 92.279% 0 <6.0 47.46°C 0.98
12.045V 5.083V 3.292V 4.99V 433.311 41.73°C 229.85V
50% 37.304A 4.922A 5.019A 1.809A 499.575 92.621% 0 <6.0 48.77°C 0.984
12.038V 5.08V 3.288V 4.975V 539.371 42.5°C 229.83V
60% 44.923A 5.91A 6.03A 2A 600.064 92.539% 315 <6.0 42.99°C 0.986
12.027V 5.078V 3.284V 4.977V 648.443 49.52°C 229.82V
70% 52.413A 6.899A 7.044A 2.189A 699.857 92.315% 463 <6.0 43.09°C 0.988
12.034V 5.075V 3.28V 5.028V 758.121 50.17°C 229.81V
80% 60.108A 7.889A 8.061A 2.292A 799.887 91.935% 713 22.8 43.7°C 0.989
12.011V 5.072V 3.275V 5.018V 870.061 51.75°C 229.8V
90% 68.083A 8.387A 8.558A 2.398A 899.665 91.53% 973 28.7 44.88°C 0.99
12.002V 5.07V 3.272V 5.006V 982.913 54.04°C 229.79V
100% 75.870A 8.885A 9.088A 3.019A 999.684 91.034% 1219 33.2 46.26°C 0.991
11.994V 5.067V 3.268V 4.97V 1098.152 56.36°C 229.78V
110% 83.593A 9.877A 10.202A 3.025A 1100.307 90.458% 1480 37.2 46.63°C 0.991
11.986V 5.065V 3.264V 4.961V 1216.376 57.45°C 229.76V
CL1 0.116A 14.205A 14.502A 0A 121.341 80.811% 323 <6.0 48.48°C 0.91
12.084V 5.085V 3.289V 5.068V 150.155 42.69°C 229.88V
CL2 0.116A 21.72A 0A 0A 111.438 79.144% 319 <6.0 50.9°C 0.901
12.088V 5.066V 3.304V 5.076V 140.805 43.17°C 229.88V
CL3 0.116A 0A 22.117A 0A 73.997 71.91% 316 <6.0 53.76°C 0.844
12.084V 5.115V 3.282V 5.07V 102.9 44.86°C 229.88V
CL4 83.340A 0A 0A 0A 1000.267 91.583% 1174 32.3 46.28°C 0.991
12.002V 5.07V 3.277V 5.121V 1092.201 56.22°C 229.78V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.491A 0.499A 0.197A 20.014 74.136% 0 <6.0 40.49°C 0.793
11.999V 5.095V 3.306V 5.08V 26.995 37.43°C 114.93V
40W 2.724A 0.687A 0.699A 0.296A 40.014 80.1% 0 <6.0 40.95°C 0.919
12.008V 5.095V 3.306V 5.074V 49.961 37.67°C 114.92V
60W 4.214A 0.884A 0.899A 0.395A 60.015 82.489% 0 <6.0 42.25°C 0.958
11.996V 5.094V 3.305V 5.068V 72.755 38.54°C 114.92V
80W 5.698A 1.08A 1.099A 0.494A 79.983 84.336% 0 <6.0 43.15°C 0.97
11.996V 5.093V 3.304V 5.062V 94.842 39.2°C 114.91V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.491A 0.499A 0.197A 20.016 73.66% 0 <6.0 40.07°C 0.422
12.008V 5.095V 3.307V 5.08V 27.169 36.97°C 229.89V
40W 2.722A 0.687A 0.699A 0.296A 40.014 80.519% 0 <6.0 40.75°C 0.626
12.015V 5.094V 3.306V 5.074V 49.697 37.38°C 229.89V
60W 4.212A 0.884A 0.899A 0.395A 60.014 83.133% 0 <6.0 41.78°C 0.752
12.001V 5.094V 3.305V 5.068V 72.191 38.22°C 229.88V
80W 5.694A 1.08A 1.099A 0.494A 79.98 85.001% 0 <6.0 43.37°C 0.822
12.002V 5.093V 3.304V 5.063V 94.096 39.67°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.47mV8.27mV5.98mV7.16mVPass
20% Load7.75mV9.09mV5.68mV7.27mVPass
30% Load7.50mV8.22mV5.78mV7.63mVPass
40% Load7.27mV7.41mV6.19mV8.19mVPass
50% Load7.16mV7.25mV6.34mV8.91mVPass
60% Load7.37mV7.66mV6.75mV10.49mVPass
70% Load7.78mV7.35mV8.23mV14.28mVPass
80% Load7.52mV7.25mV8.80mV15.66mVPass
90% Load8.34mV6.90mV8.85mV17.09mVPass
100% Load10.90mV7.79mV9.92mV16.51mVPass
110% Load11.64mV7.75mV11.44mV17.19mVPass
Crossload114.13mV6.82mV11.98mV5.95mVPass
Crossload210.75mV8.22mV6.55mV5.53mVPass
Crossload315.22mV8.43mV14.62mV6.14mVPass
Crossload410.52mV8.36mV7.01mV7.43mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.63mV7.61mV5.88mV6.86mVPass
20% Load5.88mV7.82mV5.93mV8.19mVPass
30% Load9.34mV7.71mV6.03mV8.49mVPass
40% Load7.60mV7.56mV6.34mV8.49mVPass
50% Load6.96mV10.98mV13.29mV9.67mVPass
60% Load7.42mV6.84mV6.60mV9.98mVPass
70% Load7.21mV7.20mV7.46mV13.41mVPass
80% Load7.68mV6.44mV8.95mV15.15mVPass
90% Load7.73mV7.15mV8.69mV17.55mVPass
100% Load11.58mV7.43mV10.48mV16.03mVPass
110% Load12.41mV7.72mV11.01mV15.59mVPass
Crossload17.37mV6.86mV11.86mV5.05mVPass
Crossload28.08mV8.43mV6.65mV4.91mVPass
Crossload36.86mV8.73mV15.44mV5.27mVPass
Crossload410.67mV7.94mV6.66mV7.56mVPass

The results above are not used in the certification process

Asus ROG-STRIX-1000G-AURA-GAMING

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
