Cybenetics Test - XPG Cybercore II 1300 Platinum

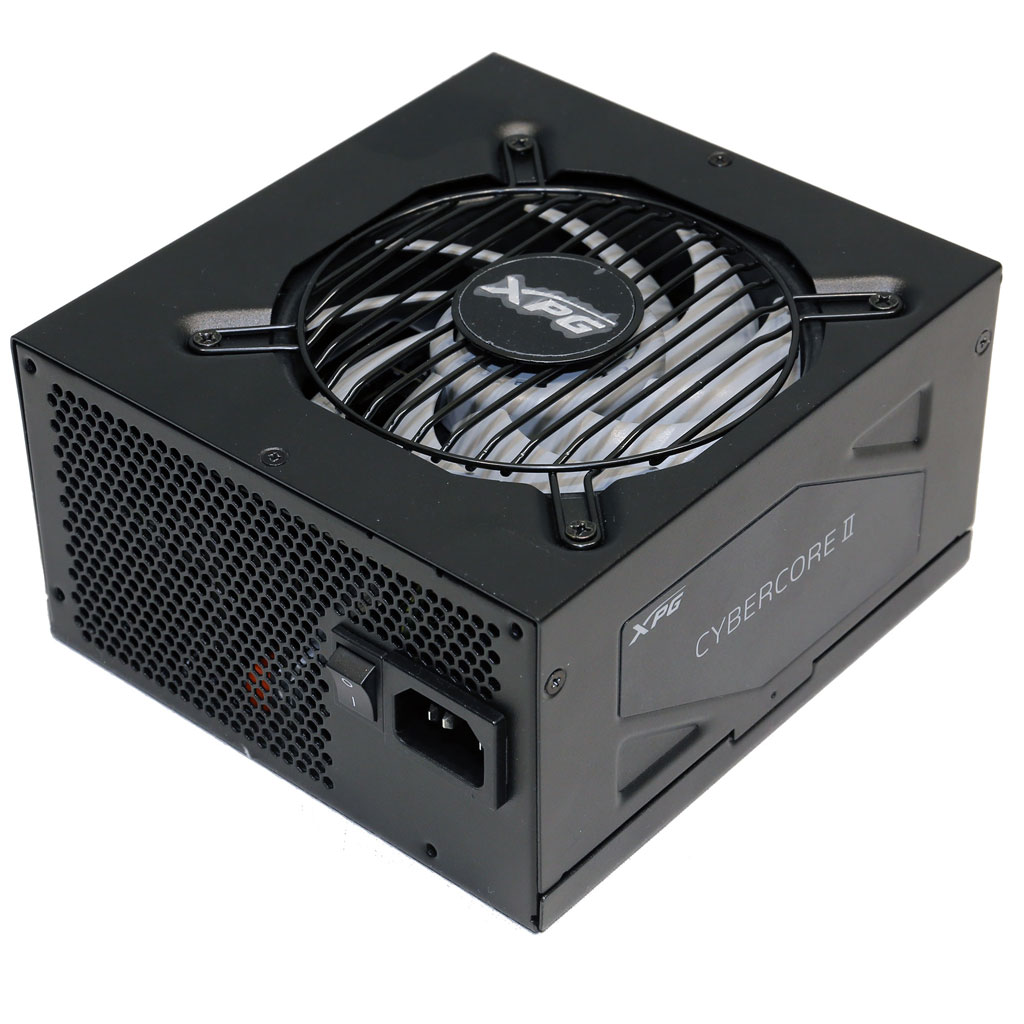

XPG Cybercore II 1300 Platinum

Serial Number

Lab IDAD13002075

Certification ID252075

Test Result Report ID: 22PS2075A
Certificate Issue Date: Oct 11, 2022

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	XPG
製造商 (OEM)	CWT
Series	Cybercore II
Model Number	CYBERCOREII1300PLATINUM
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15
Rated Frequency (Hz)	50-60
Rated Power (W)	1300
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Double Ball Bearing Fan (D1225C12B6ZPAC7)
Semi-Passive Operation	✓
Cable Design	Fully Modular

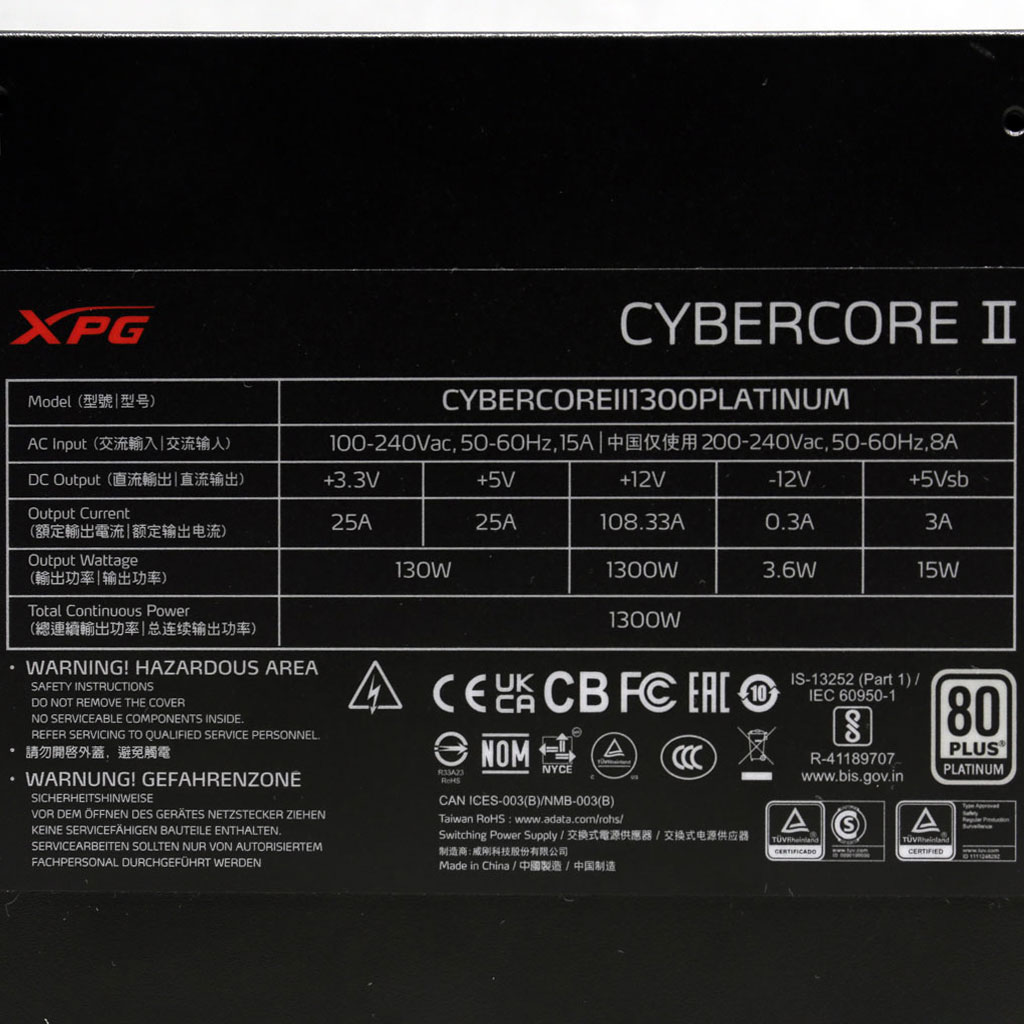

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	108.33	3	0.3
Max. Power	Watts	130		1300	15	3.6
Total Max. Power (W)		1300

Test Equipment

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (750mm)	1	1	16-18AWG	No
4+4 pin EPS12V (750mm)	2	2	16AWG	No
6+2 pin PCIe (750mm)	6	6	16AWG	No
6+2 pin PCIe (750mm+150mm)	2	4	16-18AWG	No
12+4 pin PCIe (650mm) (600W)	1	1	16-24AWG	No
SATA (600mm+150mm+150mm+150mm)	1	4	18AWG	No
4-pin Molex (600mm+150mm+150mm+150mm)	1	4	18AWG	No

Parts Description

General Data	-
Manufacturer (OEM)	CWT
PCB Type	Double Sided
Primary Side	-
Transient Filter	6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK0510 & Relay HF32FV-G
Bridge Rectifier(s)	2x HY GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETs	2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm) 1x Sync Power SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode	2x CREE C3D10060 (600V, 10A @ 153°C)
Bulk Cap(s)	2x Rubycon (420V, 680uF, 2000h @ 105°C, ) MXE
Main Switchers	4x Kynix TF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)
IC Driver	2x Novosense NSi6602
APFC MCU	1x Texas Instrument UCD3138A
LLC Resonant MCU	1x Texas Instrument UCD3138A
Topology	Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	8x On Semiconductor NTMFS5C612N (60V, 160A @ 100°C, Rds(on): 1.6mOhm)
5V & 3.3V	DC-DC Converters: 3x QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm) 2x QM3054M6 (30V, 61A @ 100°C, Rds(on): 7.2mOhm) PWM Controller(s): uPI uP3861P
Filtering Capacitors	Electrolytic: 2x Nippon Chemi-Con (4-10,000 @ 105°C, KY) 6x Nippon Chemi-Con (105°C, W) 2x Rubycon (2-10,000 @ 105°C, YXF) Polymer: 34x FPCAP, 2x Chemi-Con
Supervisor IC	Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Model	XPG Nidec D1225C12B6ZPAC7 (120mm, 12V, 0.13A, Double Ball Bearing Fan)
5VSB Circuit	-
Rectifier	1x PS1045L (45V, 10A) SBR & 1x Excelliance B04N03 (30V, 45A @ 100°C, Rds(on): 4mOhm)
Standby PWM Controller	On-Bright 0B2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.0 Compliance	✓

Performance Summary

效率評比	PLATINUM
噪音評比	A-
Average Efficiency (>1450 load combinations)	89.428%
Average Noise Output (>1450 Load Combinations)	29.69dBA
Average PF (>1450 Load Combinations)	0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.042%
Standby Power Consumption	0.0222W
12V Ripple (Full Load)	28.37mV
5V Ripple (Full Load)	10.84mV
3.3V Ripple (Full Load)	11.89mV
5VSB Ripple (Full Load)	11.99mV
12V Load Regulation	0.80%
5V Load Regulation	0.62%
3.3V Load Regulation	1.38%
5VSB Load Regulation	1.76%
Inrush Current	27.290A

效率評比	PLATINUM
噪音評比	A-
Average Efficiency (>1450 load combinations)	91.667%
Average Noise Output (>1450 Load Combinations)	29.65dBA
Average PF (>1450 Load Combinations)	0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load	69.929%
Standby Power Consumption	0.0947W
12V Ripple (Full Load)	29.32mV
5V Ripple (Full Load)	11.02mV
3.3V Ripple (Full Load)	11.56mV
5VSB Ripple (Full Load)	11.06mV
12V Load Regulation	0.79%
5V Load Regulation	0.64%
3.3V Load Regulation	1.47%
5VSB Load Regulation	1.78%
Inrush Current	Too low to detect
12V Transient Response (200%)	11.45V
5V Transient Response (200%)	4.939V
3.3V Transient Response (200%)	3.152V
5VSB Transient Response (200%)	4.900V
Hold-Up Time & Power Ok Signal	20.80ms
AC Loss to PWR_OK Hold Up Time	17.40ms
PWR_OK Inactive to DC Loss Delay	3.40ms
PSU Timings: T1 (20% / 100%)	93.0ms	64.0ms
PSU Timings: T3 (20% / 100%)	130.0ms	128.0ms
OPP (28.64°C / 45.34°C)	124.95%	113.02%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	20.8
AC Loss to PWR_OK Hold Up Time (ms)	17.4
PWR_OK Inactive to DC Loss Delay (ms)	3.4

待機電源消耗

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.94 V	114.90 V	113.85 V	114.97 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.98 Hz	59.40 Hz	60.05 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.15 %	0.11 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.022 W	0.020 W	N/A	0.024 W	N/A	N/A
Apparent Power:	12.707 W	12.686 W	N/A	12.729 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.88 V	229.84 V	227.70 V	229.94 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.17 %	0.15 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.095 W	0.087 W	N/A	0.106 W	N/A	N/A
Apparent Power:	42.789 W	42.767 W	N/A	42.817 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

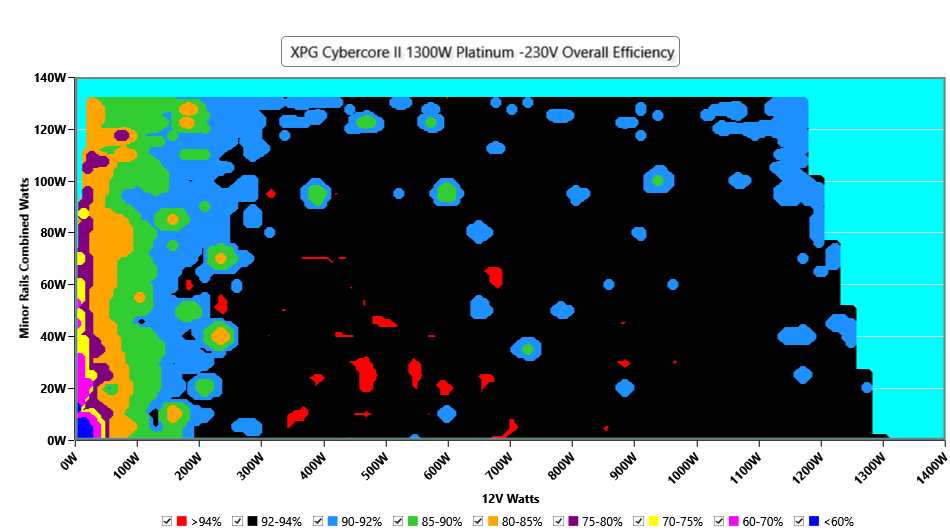

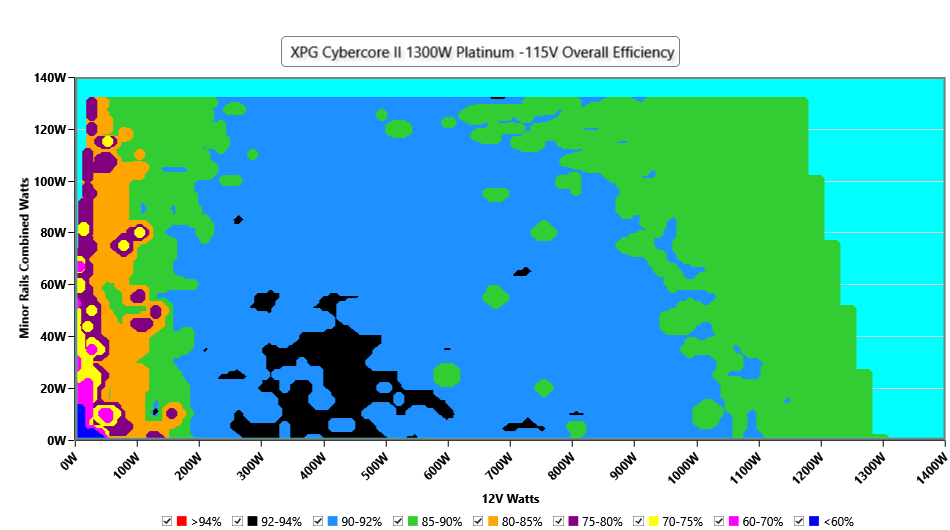

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

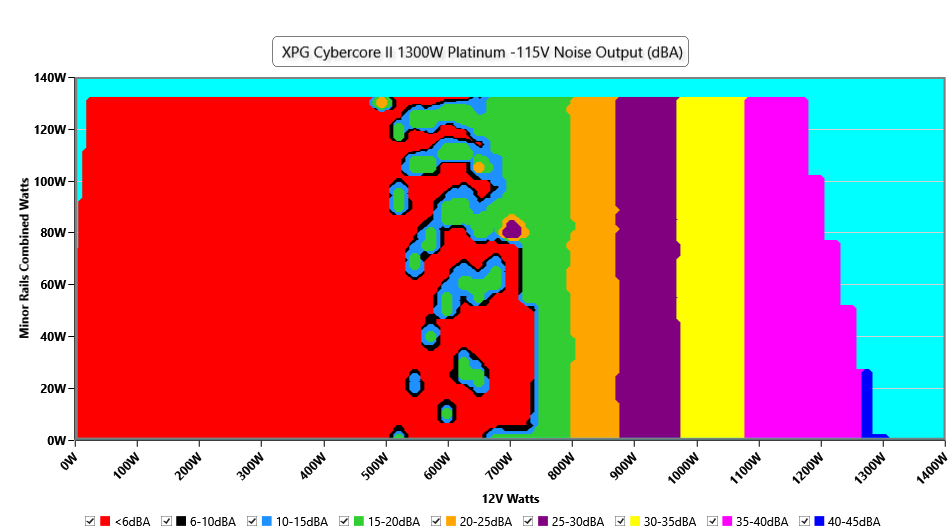

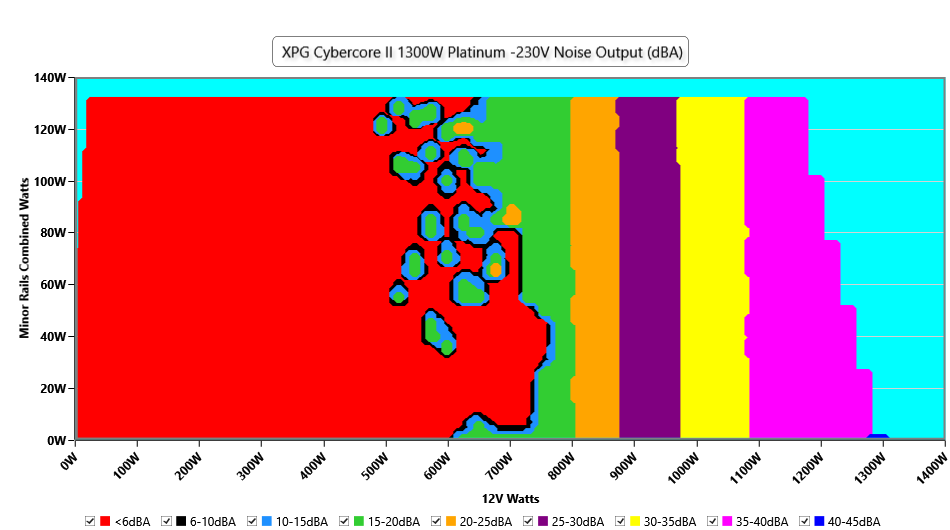

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

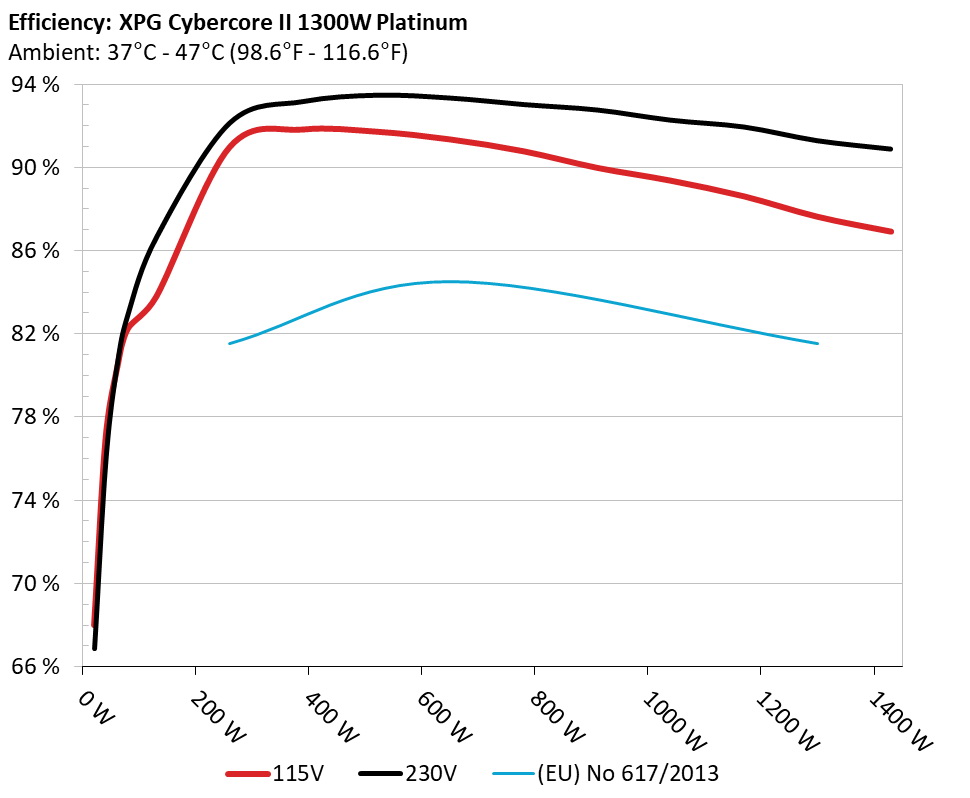

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

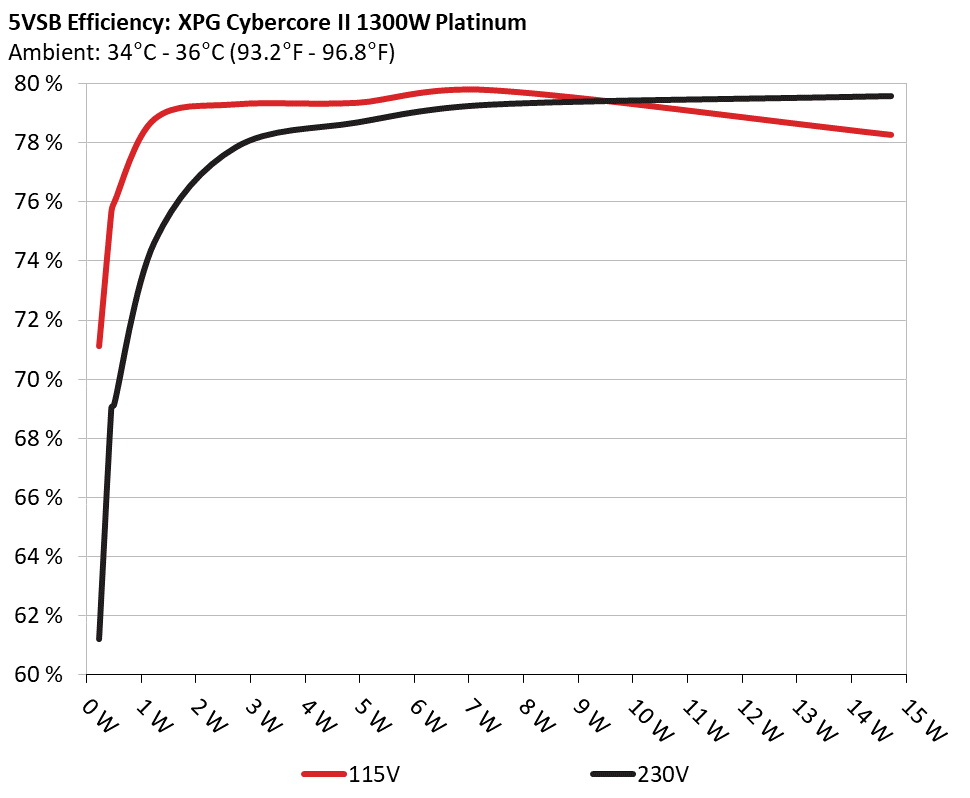

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.223W	71.114%	0.025
1	4.963V	0.314W	71.114%	114.94V
2	0.09A	0.447W	75.65%	0.046
2	4.962V	0.591W	75.65%	114.93V
3	0.55A	2.725W	79.31%	0.226
3	4.953V	3.435W	79.31%	114.92V
4	1A	4.945W	79.361%	0.331
4	4.944V	6.231W	79.361%	114.93V
5	1.5A	7.402W	79.789%	0.388
5	4.934V	9.277W	79.789%	114.93V
6	3A	14.717W	78.275%	0.475
6	4.905V	18.802W	78.275%	114.93V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.223W	61.223%	0.008
1	4.962V	0.365W	61.223%	229.9V
2	0.09A	0.447W	69.132%	0.014
2	4.961V	0.647W	69.132%	229.9V
3	0.55A	2.725W	77.839%	0.076
3	4.953V	3.5W	77.839%	229.9V
4	1A	4.945W	78.676%	0.13
4	4.944V	6.286W	78.676%	229.89V
5	1.5A	7.402W	79.28%	0.182
5	4.934V	9.337W	79.28%	229.9V
6	3A	14.717W	79.567%	0.294
6	4.905V	18.496W	79.567%	229.89V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.955A	1.988A	2.004A	0.998A	130.025	84.275%	0	<6.0	44.87°C	0.882
10%	12.108V	5.03V	3.294V	5.011V	154.376	84.275%	0	<6.0	40.6°C	114.37V
20%	18.937A	2.983A	3.009A	1.199A	259.987	91.464%	0	<6.0	45.52°C	0.992
20%	12.097V	5.028V	3.291V	5.006V	284.246	91.464%	0	<6.0	40.87°C	114.86V
30%	29.261A	3.481A	3.514A	1.4A	389.782	92.304%	0	<6.0	46.71°C	0.995
30%	12.089V	5.027V	3.287V	5.001V	422.309	92.304%	0	<6.0	41.45°C	114.84V
40%	39.614A	3.98A	4.02A	1.602A	519.746	92.199%	0	<6.0	47.55°C	0.997
40%	12.080V	5.026V	3.284V	4.995V	563.64	92.199%	0	<6.0	41.82°C	114.82V
50%	49.657A	4.977A	5.031A	1.804A	649.887	91.829%	0	<6.0	48.51°C	0.997
50%	12.070V	5.024V	3.28V	4.99V	707.909	91.829%	0	<6.0	42.38°C	114.78V
60%	59.719A	5.975A	6.045A	2A	779.961	91.256%	691	10.1	42.71°C	0.997
60%	12.060V	5.022V	3.276V	4.984V	854.802	91.256%	691	10.1	49.32°C	114.75V
70%	69.795A	6.975A	7.063A	2.211A	910.092	90.461%	1197	24.1	43.14°C	0.997
70%	12.050V	5.019V	3.271V	4.977V	1006.707	90.461%	1197	24.1	50.2°C	114.7V
80%	79.876A	7.977A	8.082A	2.313A	1039.702	89.85%	1515	30.1	43.61°C	0.998
80%	12.041V	5.016V	3.266V	4.973V	1157.221	89.85%	1515	30.1	51.82°C	114.68V
90%	90.393A	8.479A	8.582A	2.416A	1169.964	89.091%	1803	35.6	44.97°C	0.997
90%	12.030V	5.014V	3.262V	4.968V	1313.233	89.091%	1803	35.6	53.99°C	114.64V
100%	100.669A	8.981A	9.115A	3.03A	1299.58	88.114%	2308	42.0	45.53°C	0.998
100%	12.018V	5.012V	3.258V	4.952V	1474.794	88.114%	2308	42.0	55.57°C	114.61V
110%	110.866A	9.985A	10.234A	3.031A	1429.795	87.397%	2307	42.0	46.55°C	0.998
110%	12.010V	5.009V	3.254V	4.95V	1636.215	87.397%	2307	42.0	57.49°C	114.55V
CL1	0.116A	15.615A	15.683A	0A	131.331	80.412%	0	<6.0	42.72°C	0.941
CL1	12.101V	5.016V	3.29V	5.052V	162.771	80.412%	0	<6.0	48.18°C	114.33V
CL2	0.116A	24.952A	0A	0A	126.439	78.195%	0	<6.0	43.86°C	0.932
CL2	12.105V	5.011V	3.301V	5.076V	161.349	78.195%	0	<6.0	50.87°C	114.35V
CL3	0.116A	0A	25.131A	0A	83.889	73.391%	0	<6.0	44.7°C	0.928
CL3	12.096V	5.027V	3.282V	5.019V	114.329	73.391%	0	<6.0	52.76°C	114.93V
CL4	108.119A	0A	0A	0A	1300.022	88.559%	2292	42.0	45.22°C	0.998
CL4	12.024V	5.032V	3.27V	5.014V	1468.176	88.559%	2292	42.0	55.13°C	114.6V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.958A	1.987A	2.004A	0.997A	130.056	87.139%	0	<6.0	45.17°C	0.884
10%	12.108V	5.033V	3.294V	5.015V	149.147	87.139%	0	<6.0	40.71°C	229.88V
20%	18.942A	2.982A	3.01A	1.198A	260.025	92.623%	0	<6.0	45.77°C	0.943
20%	12.096V	5.031V	3.289V	5.009V	280.815	92.623%	0	<6.0	40.92°C	229.86V
30%	29.271A	3.48A	3.515A	1.399A	389.855	93.642%	0	<6.0	46.69°C	0.954
30%	12.087V	5.029V	3.286V	5.003V	416.309	93.642%	0	<6.0	41.27°C	229.85V
40%	39.628A	3.978A	4.022A	1.601A	519.82	93.943%	0	<6.0	47.53°C	0.957
40%	12.077V	5.028V	3.282V	4.997V	553.382	93.943%	0	<6.0	41.47°C	229.83V
50%	49.673A	4.975A	5.034A	1.803A	649.96	93.808%	0	<6.0	48.65°C	0.965
50%	12.068V	5.026V	3.278V	4.991V	692.929	93.808%	0	<6.0	42.13°C	229.82V
60%	59.722A	5.974A	6.05A	2A	780.058	93.494%	697	10.0	42.79°C	0.971
60%	12.060V	5.023V	3.273V	4.985V	834.458	93.494%	697	10.0	49.85°C	229.8V
70%	69.783A	6.974A	7.069A	2.21A	910.169	93.234%	1197	24.1	43.31°C	0.968
70%	12.053V	5.02V	3.269V	4.978V	976.33	93.234%	1197	24.1	50.88°C	229.79V
80%	79.883A	7.976A	8.089A	2.313A	1039.801	92.746%	1513	30.0	43.82°C	0.981
80%	12.041V	5.017V	3.264V	4.974V	1121.065	92.746%	1513	30.0	52.02°C	229.77V
90%	90.387A	8.478A	8.59A	2.416A	1170.059	92.418%	1885	36.6	44.81°C	0.982
90%	12.032V	5.015V	3.26V	4.969V	1266.119	92.418%	1885	36.6	53.83°C	229.75V
100%	100.665A	8.98A	9.124A	3.029A	1299.666	91.761%	2304	42.0	45.31°C	0.989
100%	12.019V	5.013V	3.255V	4.953V	1416.466	91.761%	2304	42.0	55.33°C	229.74V
110%	110.868A	9.983A	10.243A	3.03A	1429.843	91.358%	2304	42.0	46.73°C	0.988
110%	12.010V	5.011V	3.251V	4.951V	1565.062	91.358%	2304	42.0	57.65°C	229.72V
CL1	0.116A	15.609A	15.694A	0A	131.333	81.729%	0	<6.0	48.33°C	0.889
CL1	12.102V	5.018V	3.288V	5.055V	160.781	81.729%	0	<6.0	42.89°C	229.88V
CL2	0.116A	24.945A	0A	0A	126.44	79.55%	0	<6.0	50.58°C	0.89
CL2	12.106V	5.013V	3.299V	5.078V	158.882	79.55%	0	<6.0	43.53°C	229.87V
CL3	0.116A	0A	25.154A	0A	83.888	74.264%	0	<6.0	52.95°C	0.809
CL3	12.098V	5.027V	3.279V	5.02V	113.147	74.264%	0	<6.0	44.85°C	229.88V
CL4	108.095A	0A	0A	0A	1299.996	92.148%	2295	42.0	45.76°C	0.989
CL4	12.026V	5.032V	3.268V	5.014V	1410.78	92.148%	2295	42.0	55.65°C	229.74V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.226A	0.496A	0.499A	0.198A	20.008	68.489%	0	<6.0	39.81°C	0.732
20W	12.114V	5.043V	3.303V	5.039V	29.256	68.489%	0	<6.0	36.76°C	114.92V
40W	2.700A	0.694A	0.7A	0.298A	40.008	77.361%	0	<6.0	40.71°C	0.843
40W	12.113V	5.041V	3.302V	5.035V	51.897	77.361%	0	<6.0	37.35°C	114.92V
60W	4.173A	0.893A	0.9A	0.398A	60.01	80.743%	0	<6.0	42.01°C	0.895
60W	12.111V	5.037V	3.299V	5.029V	74.345	80.743%	0	<6.0	38.28°C	114.92V
80W	5.645A	1.093A	1.101A	0.498A	79.974	82.75%	0	<6.0	43.59°C	0.919
80W	12.107V	5.032V	3.297V	5.023V	96.54	82.75%	0	<6.0	39.62°C	114.93V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.226A	0.496A	0.499A	0.198A	20.004	67.363%	0	<6.0	39.79°C	0.417
20W	12.114V	5.045V	3.303V	5.041V	30.008	67.363%	0	<6.0	36.68°C	229.89V
40W	2.700A	0.694A	0.7A	0.298A	40.005	76.367%	0	<6.0	41.82°C	0.587
40W	12.113V	5.043V	3.302V	5.037V	52.416	76.367%	0	<6.0	38.53°C	229.89V
60W	4.172A	0.893A	0.9A	0.398A	60.004	80.972%	0	<6.0	42.55°C	0.695
60W	12.111V	5.039V	3.299V	5.031V	74.113	80.972%	0	<6.0	39.02°C	229.89V
80W	5.642A	1.092A	1.101A	0.498A	79.959	83.483%	0	<6.0	42.99°C	0.768
80W	12.111V	5.035V	3.297V	5.025V	95.784	83.483%	0	<6.0	39.21°C	229.89V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	11.26mV	6.08mV	7.00mV	6.30mV	Pass
20% Load	9.98mV	6.49mV	6.24mV	7.27mV	Pass
30% Load	12.23mV	6.85mV	10.02mV	7.73mV	Pass
40% Load	14.84mV	7.05mV	7.00mV	7.83mV	Pass
50% Load	16.58mV	7.92mV	7.46mV	8.39mV	Pass
60% Load	19.19mV	8.84mV	8.23mV	9.37mV	Pass
70% Load	17.86mV	8.58mV	8.33mV	9.26mV	Pass
80% Load	20.98mV	9.70mV	9.41mV	9.83mV	Pass
90% Load	23.49mV	10.37mV	10.79mV	11.46mV	Pass
100% Load	28.37mV	10.84mV	11.89mV	11.99mV	Pass
110% Load	31.89mV	11.82mV	11.36mV	12.39mV	Pass
Crossload1	11.98mV	9.56mV	9.92mV	8.83mV	Pass
Crossload2	11.46mV	12.82mV	6.70mV	10.08mV	Pass
Crossload3	18.01mV	8.78mV	14.78mV	7.47mV	Pass
Crossload4	28.95mV	10.00mV	9.67mV	10.97mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.08mV	5.87mV	6.85mV	6.19mV	Pass
20% Load	10.80mV	6.54mV	6.70mV	7.68mV	Pass
30% Load	12.95mV	15.99mV	11.15mV	15.15mV	Pass
40% Load	15.38mV	7.31mV	7.52mV	7.83mV	Pass
50% Load	15.81mV	14.81mV	9.77mV	14.48mV	Pass
60% Load	16.73mV	9.19mV	7.82mV	9.26mV	Pass
70% Load	20.57mV	10.06mV	8.13mV	9.77mV	Pass
80% Load	19.70mV	9.45mV	9.36mV	10.34mV	Pass
90% Load	22.26mV	10.62mV	9.97mV	10.64mV	Pass
100% Load	29.32mV	11.02mV	11.56mV	11.06mV	Pass
110% Load	31.92mV	12.56mV	11.89mV	12.27mV	Pass
Crossload1	11.65mV	9.99mV	9.73mV	8.48mV	Pass
Crossload2	11.00mV	12.92mV	6.70mV	9.93mV	Pass
Crossload3	18.47mV	8.07mV	14.73mV	7.27mV	Pass
Crossload4	29.52mV	10.59mV	9.98mV	11.11mV	Pass

The results above are not used in the certification process

XPG Cybercore II 1300 Platinum

Top side

Power specifications label
