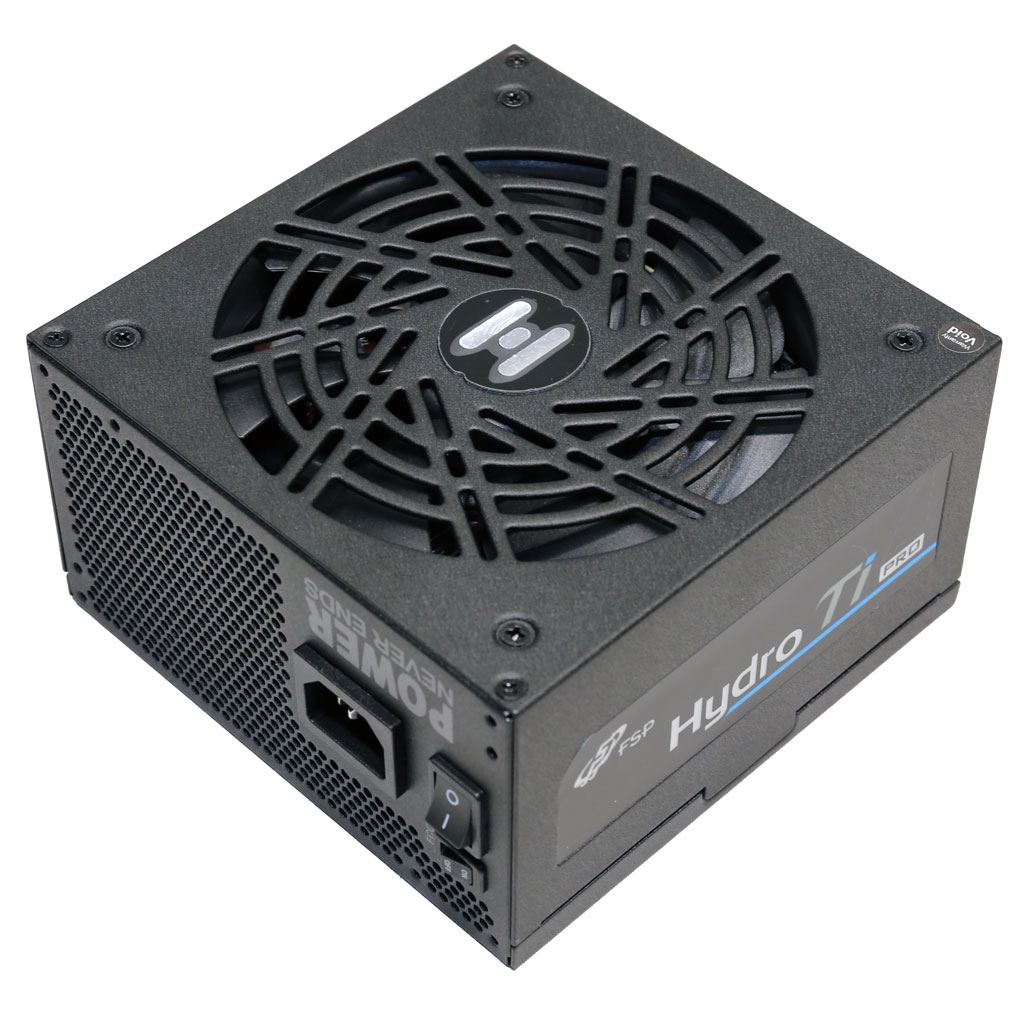

FSP Technology Hydro Ti Pro 1000W
Serial NumberS2161030025
Lab IDFS10002101
Certification ID252101
  • Test Result Report ID: 22PS2101A
  • Certificate Issue Date: Dec 19, 2022
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesHydro Ti Pro
Model NumberHTI-1000M
Serial NumberS2161030025
DUT Notes

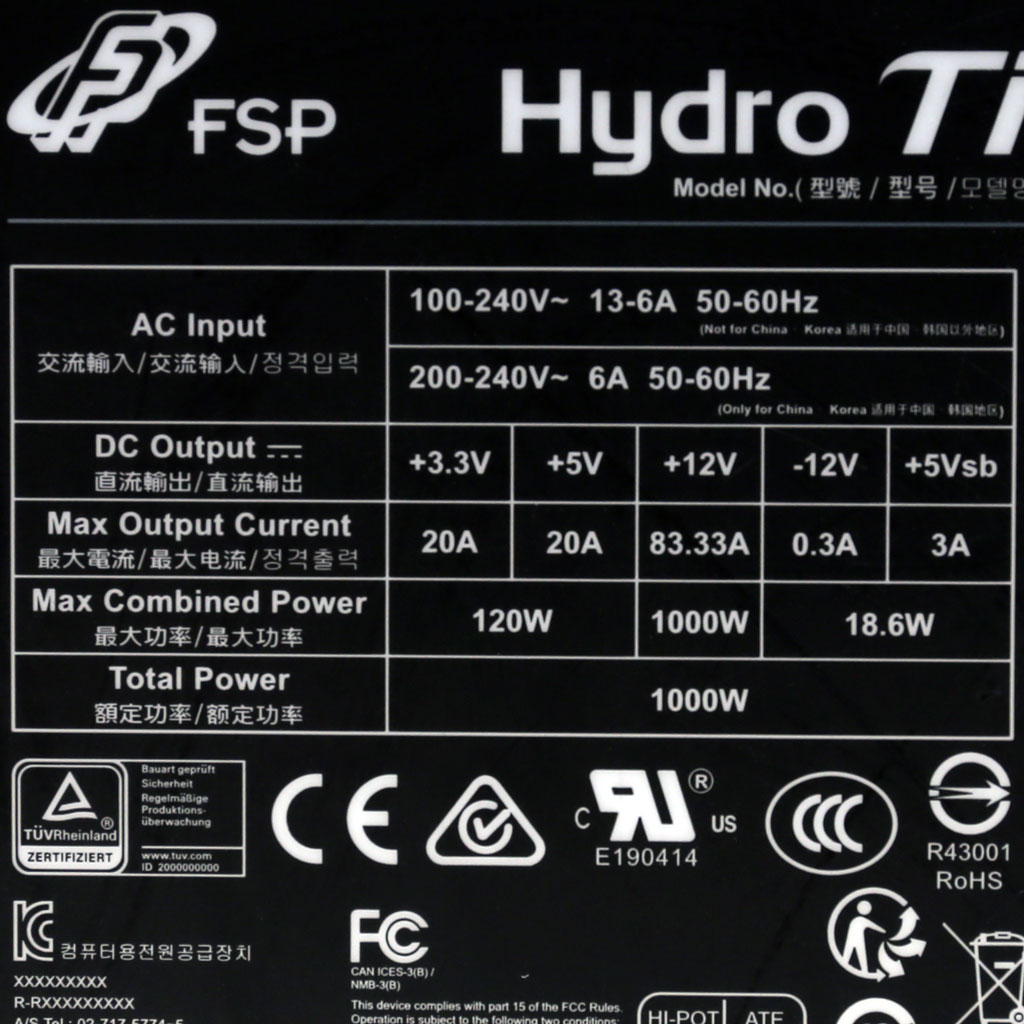

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(MGA13512XF-A25)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3330.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (650mm) 3 3 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
SATA (500mm+150mm) / 4 pin Molex (+150mm+100mm) 1 2 / 2 18AWG No
SATA (500mm+150mm) / 4 pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG No

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side
Transient Filter 2x Y caps, 2x SMD Y caps, 3x X caps, 1x CM choke, 1x DM choke, 1x MOV
Inrush Protection 1x NTC Thermistor SCK205R0 (5 Ohm) & Relay
Standby Rectifier Diodes 4x On Semiconductor S1M (1000V, 1A @ 100°C)
Bridge Rectifier MOSFETs 4x STMicroelectronics STB57N65M5 (650V, 26.5A @ 100°C, Rds(on): 0.063Ohm)
APFC MOSFETs 2x Infineon IPA60R099C7 (600V, 8A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s) 1x Nippon Chemi-Con (450V, 680uF, 2,000h @ 105°C, KMZ) & 1x Nippon Chemi-Con (450V, 330uF, 2,000h @ 105°C, KMR)
Main Switchers 4x Alpha & Omega AOTF160A60L (600V, 15A @ 100°C, Rds(on): 0.016Ohm)
Driver ICs 2x Novosense NSi6602
APFC Controller Infineon ICE2PCS02G
Resonant Controller Champion CM6901T2X
Topology Primary side: Brigdeless, APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Toshiba TPHR8504PL (40V, 150A, Rds(on): 0.85mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0901NS (30V, 94A @ 100°C, Rds(on): 1.9mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 5x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 4x Rubycon (6-10,000h @ 105°C, ZLH), 1x Rubycon (1-5,000h @ 105°C, ZL)
Polymer: 21x United Chemi-Con, 19x NIC, 4x FPCAP
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, SCP, PG)
Fan Controller APW9010
Fan Model Protechnic Electric MGA13512XF-A25 (135mm, 12V, 0.38A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x Nexperia PSMN2R0-30YLD FET (30V, 100A, Rds(on): 2Ohm), 1x P15L50N5 SBR (50V, 15A) &1x CET CEB04N7G FET (700V, 4A, Rds(on): 3.3Ohm)
Standby PWM Controller GR8837CCG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Efficiency RatingTITANIUM
Noise RatingA++
Average Efficiency (>1450 load combinations)92.235%
Average Noise Output (>1450 Load Combinations)12.65dBA
Average PF (>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load74.077%
Standby Power Consumption0.0756W
12V Ripple (Full Load)19.74mV
5V Ripple (Full Load)9.47mV
3.3V Ripple (Full Load)11.90mV
5VSB Ripple (Full Load)16.62mV
12V Load Regulation0.50%
5V Load Regulation1.34%
3.3V Load Regulation1.84%
5VSB Load Regulation4.13%
Inrush Current33.780A
Efficiency RatingTITANIUM
Noise RatingA++
Average Efficiency (>1450 load combinations)93.950%
Average Noise Output (>1450 Load Combinations)14.69dBA
Average PF (>1450 Load Combinations)0.968
Efficiency With 10W (≤500W) or 2% (>500W) Load75.276%
Standby Power Consumption0.1218W
12V Ripple (Full Load)16.82mV
5V Ripple (Full Load)9.39mV
3.3V Ripple (Full Load)12.81mV
5VSB Ripple (Full Load)16.40mV
12V Load Regulation0.58%
5V Load Regulation1.46%
3.3V Load Regulation1.94%
5VSB Load Regulation4.25%
Inrush Current66.610A
12V Transient Response (200%)11.72V
5V Transient Response (200%)5.098V
3.3V Transient Response (200%)3.272V
5VSB Transient Response (200%)5.028V
Hold-Up Time & Power Ok Signal27.10ms
AC Loss to PWR_OK Hold Up Time23.30ms
PWR_OK Inactive to DC Loss Delay3.80ms
PSU Timings: T1 (20% / 100%)51.0ms51.0ms
PSU Timings: T3 (20% / 100%)129.0ms130.0ms
OPP (28.78°C / 40.63°C)129.89%129.89%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)27.1
AC Loss to PWR_OK Hold Up Time (ms)23.3
PWR_OK Inactive to DC Loss Delay (ms)3.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.86 V 114.81 V 113.85 V 114.89 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.13 % N/A 0.24 % 2.00 % PASS
Real Power: 0.076 W 0.038 W N/A 0.108 W N/A N/A
Apparent Power: 9.472 W 8.985 W N/A 9.793 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.84 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.20 % 2.00 % PASS
Real Power: 0.122 W 0.045 W N/A 0.202 W N/A N/A
Apparent Power: 31.424 W 31.022 W N/A 31.770 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

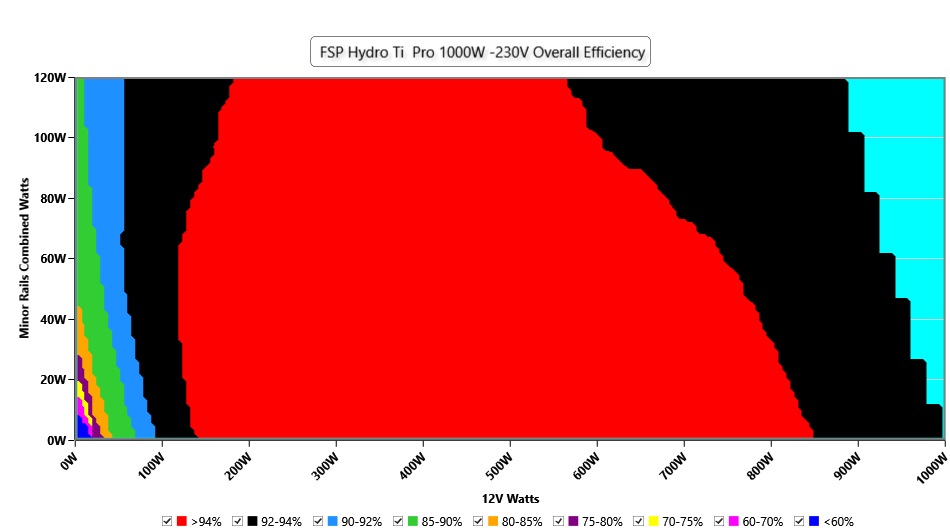

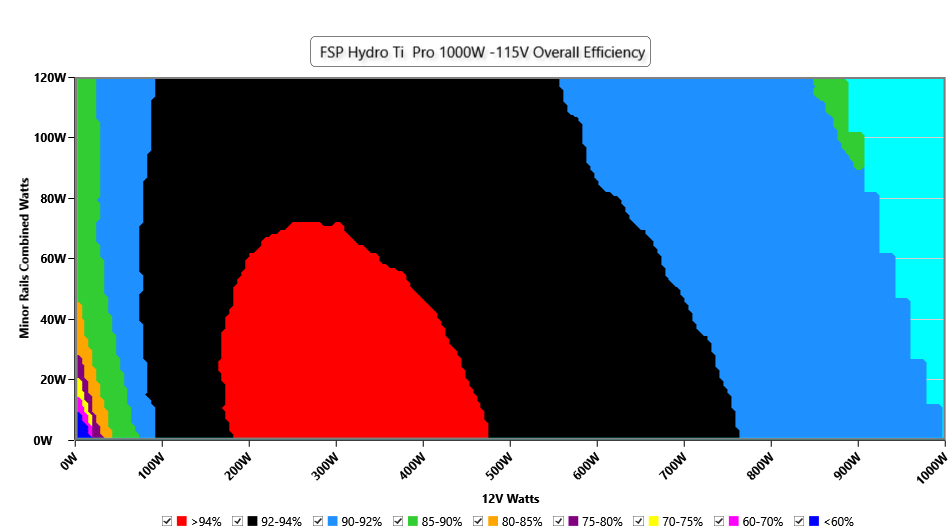

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

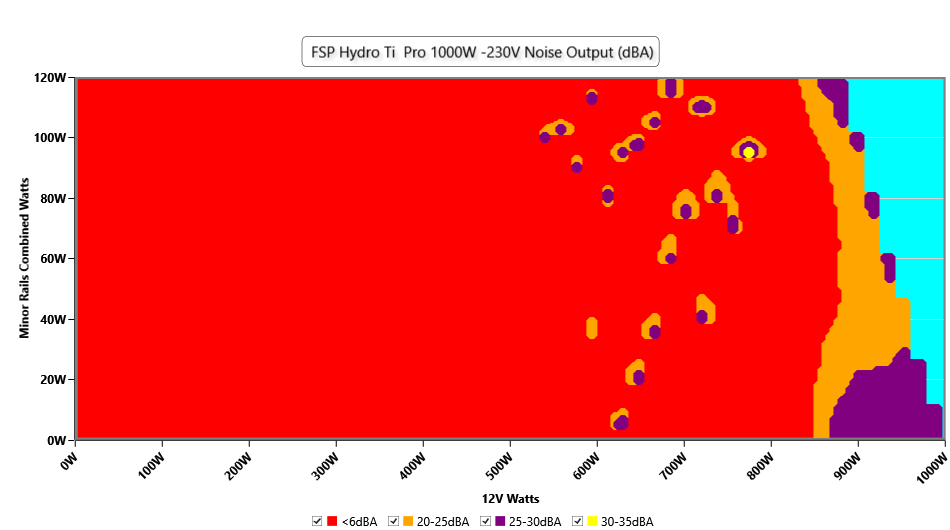

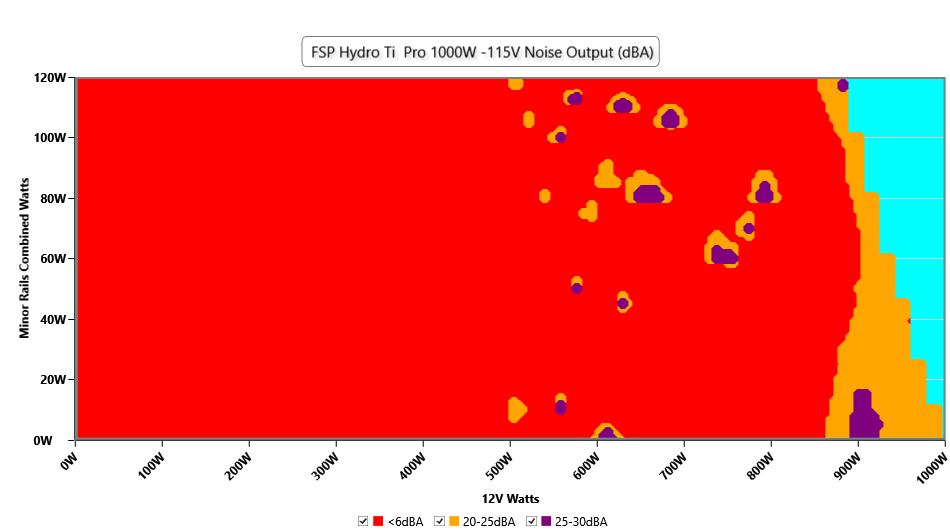

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

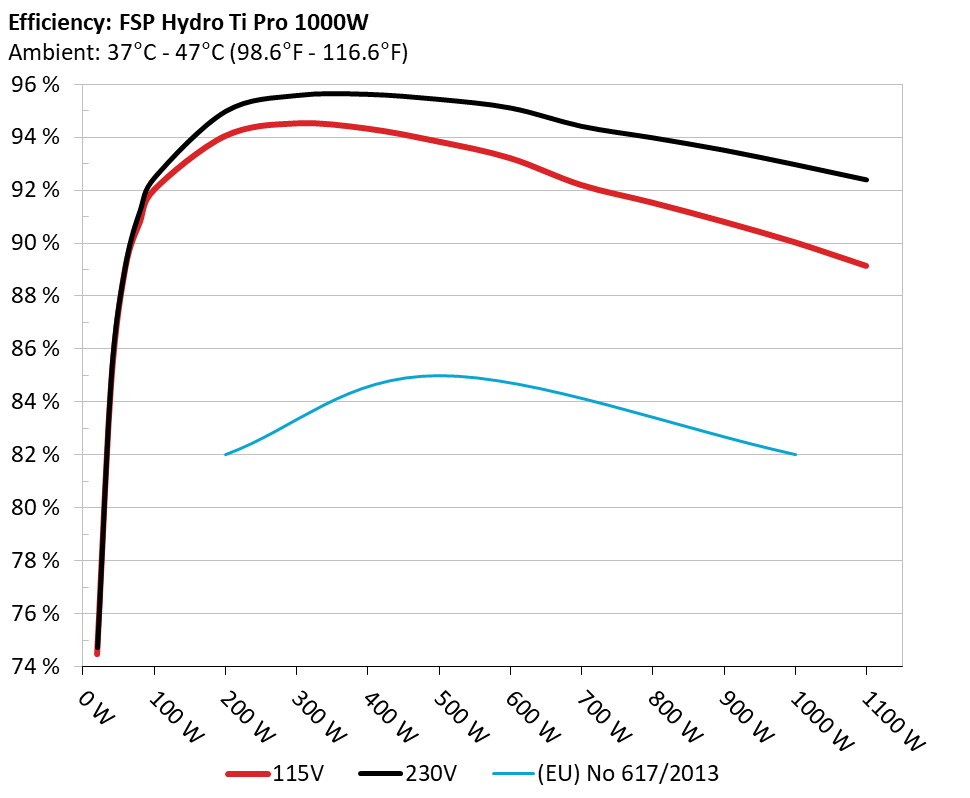

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

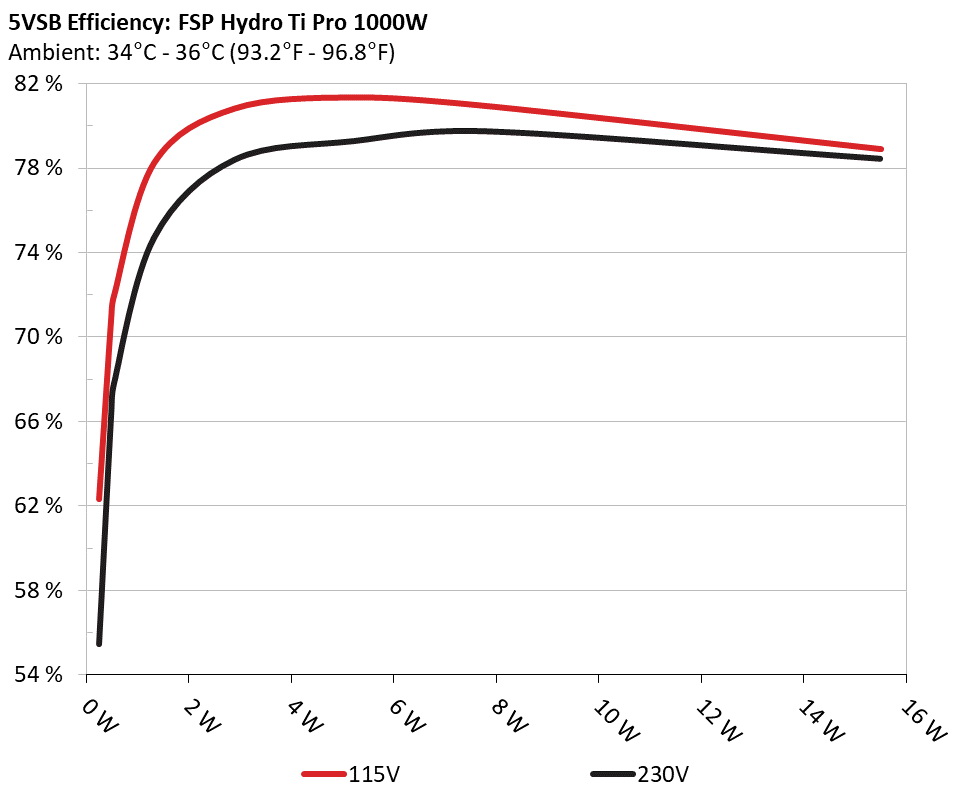

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.236W 62.809% 0.04
5.248V 0.378W 114.85V
2 0.09A 0.472W 71.385% 0.069
5.247V 0.661W 114.84V
3 0.55A 2.879W 81.334% 0.28
5.236V 3.54W 114.85V
4 1A 5.224W 81.863% 0.378
5.225V 6.381W 114.84V
5 1.5A 7.817W 81.451% 0.432
5.212V 9.596W 114.84V
6 2.999A 15.507W 79.412% 0.495
5.171V 19.528W 114.85V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.236W 55.95% 0.013
5.248V 0.423W 229.89V
2 0.09A 0.472W 66.83% 0.022
5.247V 0.706W 229.89V
3 0.55A 2.879W 78.876% 0.11
5.235V 3.647W 229.89V
4 1A 5.222W 79.766% 0.182
5.223V 6.548W 229.89V
5 1.5A 7.814W 80.224% 0.244
5.21V 9.74W 229.89V
6 2.999A 15.497W 78.928% 0.355
5.167V 19.635W 229.89V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.450A 1.923A 1.96A 0.97A 99.984 92.009% 0 <6.0 44.43°C 0.982
12.153V 5.199V 3.366V 5.151V 108.668 40.01°C 114.83V
20% 13.915A 2.89A 2.947A 1.169A 199.912 94.038% 0 <6.0 45.51°C 0.991
12.146V 5.19V 3.359V 5.134V 212.585 40.6°C 114.8V
30% 21.738A 3.376A 3.444A 1.368A 299.939 94.513% 0 <6.0 46.79°C 0.995
12.139V 5.183V 3.353V 5.118V 317.354 41.53°C 114.78V
40% 29.513A 3.864A 3.943A 1.568A 399.281 94.314% 0 <6.0 47.61°C 0.996
12.133V 5.176V 3.347V 5.102V 423.352 41.87°C 114.76V
50% 36.983A 4.836A 4.938A 1.77A 499.014 93.827% 0 <6.0 48.29°C 0.997
12.127V 5.169V 3.341V 5.085V 531.836 42.19°C 114.72V
60% 44.525A 5.811A 5.937A 1.973A 599.546 93.205% 0 <6.0 49.49°C 0.997
12.122V 5.163V 3.335V 5.069V 643.253 42.9°C 114.7V
70% 52.018A 6.791A 6.942A 2.177A 699.27 92.19% 689 <6.0 43.64°C 0.997
12.114V 5.154V 3.328V 5.05V 758.499 50.71°C 114.68V
80% 59.574A 7.773A 7.945A 2.281A 799.253 91.523% 746 19.7 43.9°C 0.997
12.109V 5.147V 3.321V 5.038V 873.288 51.95°C 114.65V
90% 67.472A 8.266A 8.443A 2.387A 899.009 90.806% 1122 34.0 44.2°C 0.996
12.103V 5.139V 3.314V 5.025V 990.03 53.23°C 114.63V
100% 75.180A 8.766A 8.974A 3.008A 999.013 90.029% 1464 41.4 45.19°C 0.996
12.096V 5.132V 3.308V 4.985V 1109.659 55.22°C 114.59V
110% 82.834A 9.758A 10.084A 3.013A 1099.649 89.136% 1803 46.8 47.35°C 0.995
12.089V 5.123V 3.3V 4.976V 1233.669 58.26°C 114.56V
CL1 0.113A 13.938A 14.241A 0A 121.247 88.879% 0 <6.0 48.99°C 0.985
12.153V 5.179V 3.348V 5.197V 136.42 43.69°C 114.81V
CL2 0.113A 19.265A 0A 0A 101.367 88.022% 0 <6.0 49.86°C 0.983
12.158V 5.191V 3.356V 5.216V 115.161 42.76°C 114.82V
CL3 0.113A 0A 19.635A 0A 67.353 83.552% 0 <6.0 51.83°C 0.971
12.156V 5.197V 3.36V 5.196V 80.611 42.65°C 114.83V
CL4 82.601A 0A 0A 0.001A 999.671 90.506% 1226 36.5 44.64°C 0.996
12.102V 5.152V 3.322V 5.151V 1104.544 55.5°C 114.59V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.448A 1.924A 1.961A 0.971A 99.991 92.48% 0 <6.0 44.42°C 0.882
12.156V 5.198V 3.365V 5.15V 108.124 40.1°C 229.89V
20% 13.914A 2.891A 2.948A 1.169A 199.934 94.986% 0 <6.0 45.23°C 0.957
12.149V 5.19V 3.359V 5.133V 210.488 40.54°C 229.87V
30% 21.735A 3.377A 3.445A 1.368A 299.973 95.586% 0 <6.0 46.86°C 0.975
12.143V 5.183V 3.353V 5.116V 313.823 41.57°C 229.86V
40% 29.516A 3.864A 3.944A 1.569A 399.408 95.627% 0 <6.0 47.55°C 0.982
12.136V 5.177V 3.347V 5.1V 417.674 41.92°C 229.85V
50% 36.984A 4.837A 4.94A 1.77A 499.133 95.438% 0 <6.0 48.59°C 0.983
12.130V 5.17V 3.34V 5.084V 522.993 42.5°C 229.84V
60% 44.523A 5.811A 5.938A 1.973A 599.633 95.114% 0 <6.0 49.57°C 0.984
12.125V 5.164V 3.334V 5.068V 630.432 42.91°C 229.83V
70% 52.007A 6.788A 6.941A 2.176A 699.327 94.422% 664 <6.0 43.3°C 0.986
12.118V 5.157V 3.328V 5.052V 740.645 50.35°C 229.81V
80% 59.579A 7.773A 7.946A 2.282A 799.294 93.987% 666 <6.0 43.41°C 0.987
12.109V 5.147V 3.32V 5.038V 850.425 51.59°C 229.8V
90% 67.475A 8.267A 8.444A 2.387A 899.032 93.523% 984 30.3 44.16°C 0.987
12.102V 5.139V 3.314V 5.025V 961.293 53.25°C 229.79V
100% 75.183A 8.767A 8.975A 3.009A 999.029 92.976% 1354 39.2 45.11°C 0.986
12.096V 5.131V 3.307V 4.984V 1074.505 55.14°C 229.78V
110% 82.836A 9.758A 10.085A 3.013A 1099.636 92.398% 1747 46.6 46.52°C 0.986
12.088V 5.122V 3.3V 4.976V 1190.12 57.45°C 229.76V
CL1 0.113A 13.942A 14.244A 0A 121.248 89.672% 0 <6.0 47.19°C 0.916
12.151V 5.177V 3.348V 5.196V 135.199 41.66°C 229.88V
CL2 0.113A 19.271A 0A 0A 101.367 88.687% 0 <6.0 49.89°C 0.892
12.158V 5.189V 3.355V 5.215V 114.296 42.83°C 229.89V
CL3 0.113A 0A 19.638A 0A 67.353 84.168% 0 <6.0 53.76°C 0.823
12.156V 5.196V 3.36V 5.195V 80.025 44.73°C 229.89V
CL4 82.586A 0A 0A 0.001A 999.634 93.435% 1184 35.5 45.17°C 0.986
12.104V 5.154V 3.323V 5.153V 1069.875 55.98°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.481A 0.49A 0.193A 19.987 74.485% 0 <6.0 40.17°C 0.857
12.156V 5.201V 3.369V 5.191V 26.833 37.1°C 114.84V
40W 2.688A 0.673A 0.686A 0.289A 39.986 84.794% 0 <6.0 41.29°C 0.935
12.155V 5.199V 3.367V 5.185V 47.156 38.01°C 114.84V
60W 4.156A 0.866A 0.882A 0.386A 59.985 89.116% 0 <6.0 42.49°C 0.963
12.153V 5.198V 3.366V 5.179V 67.31 38.72°C 114.84V
80W 5.621A 1.058A 1.079A 0.483A 79.936 90.787% 0 <6.0 43.44°C 0.976
12.152V 5.197V 3.365V 5.173V 88.046 39.43°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.48A 0.489A 0.192A 19.992 74.731% 0 <6.0 40.21°C 0.492
12.166V 5.206V 3.371V 5.196V 26.751 37.1°C 229.9V
40W 2.687A 0.673A 0.685A 0.289A 39.987 85.199% 0 <6.0 40.83°C 0.665
12.163V 5.204V 3.369V 5.189V 46.934 37.51°C 229.89V
60W 4.154A 0.865A 0.882A 0.386A 59.985 89.255% 0 <6.0 41.54°C 0.777
12.161V 5.202V 3.368V 5.182V 67.207 38.01°C 229.89V
80W 5.618A 1.058A 1.078A 0.483A 79.941 91.254% 0 <6.0 42.95°C 0.842
12.159V 5.2V 3.367V 5.176V 87.602 39.1°C 229.89V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load5.90mV4.47mV15.22mV10.68mVPass
20% Load7.72mV4.93mV14.31mV10.47mVPass
30% Load9.55mV5.03mV16.79mV11.08mVPass
40% Load11.77mV5.44mV16.48mV12.40mVPass
50% Load12.84mV5.95mV7.79mV12.19mVPass
60% Load14.41mV5.99mV8.80mV12.70mVPass
70% Load11.01mV6.96mV18.91mV13.56mVPass
80% Load11.80mV6.76mV17.59mV13.41mVPass
90% Load12.91mV7.07mV10.82mV14.17mVPass
100% Load19.74mV9.47mV11.90mV16.62mVPass
110% Load21.34mV9.35mV14.51mV16.16mVPass
Crossload19.62mV6.50mV7.71mV11.78mVPass
Crossload25.95mV6.56mV6.67mV11.33mVPass
Crossload35.06mV7.17mV15.72mV10.78mVPass
Crossload419.33mV8.32mV11.45mV16.39mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load4.98mV4.62mV4.85mV10.88mVPass
20% Load14.18mV5.39mV14.05mV14.47mVPass
30% Load9.90mV5.39mV5.91mV12.20mVPass
40% Load15.85mV5.13mV12.74mV14.82mVPass
50% Load13.62mV5.69mV16.38mV12.75mVPass
60% Load15.54mV6.45mV15.88mV15.23mVPass
70% Load13.16mV6.91mV14.81mV14.62mVPass
80% Load16.32mV6.76mV16.13mV15.74mVPass
90% Load11.14mV7.07mV11.27mV13.41mVPass
100% Load16.82mV9.39mV12.81mV16.40mVPass
110% Load18.17mV9.42mV14.10mV16.89mVPass
Crossload19.44mV7.06mV7.85mV12.59mVPass
Crossload25.29mV6.60mV6.47mV11.74mVPass
Crossload34.86mV5.54mV7.18mV10.83mVPass
Crossload416.83mV8.76mV11.98mV15.52mVPass

The results above are not used in the certification process

FSP Technology Hydro Ti Pro 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
