CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

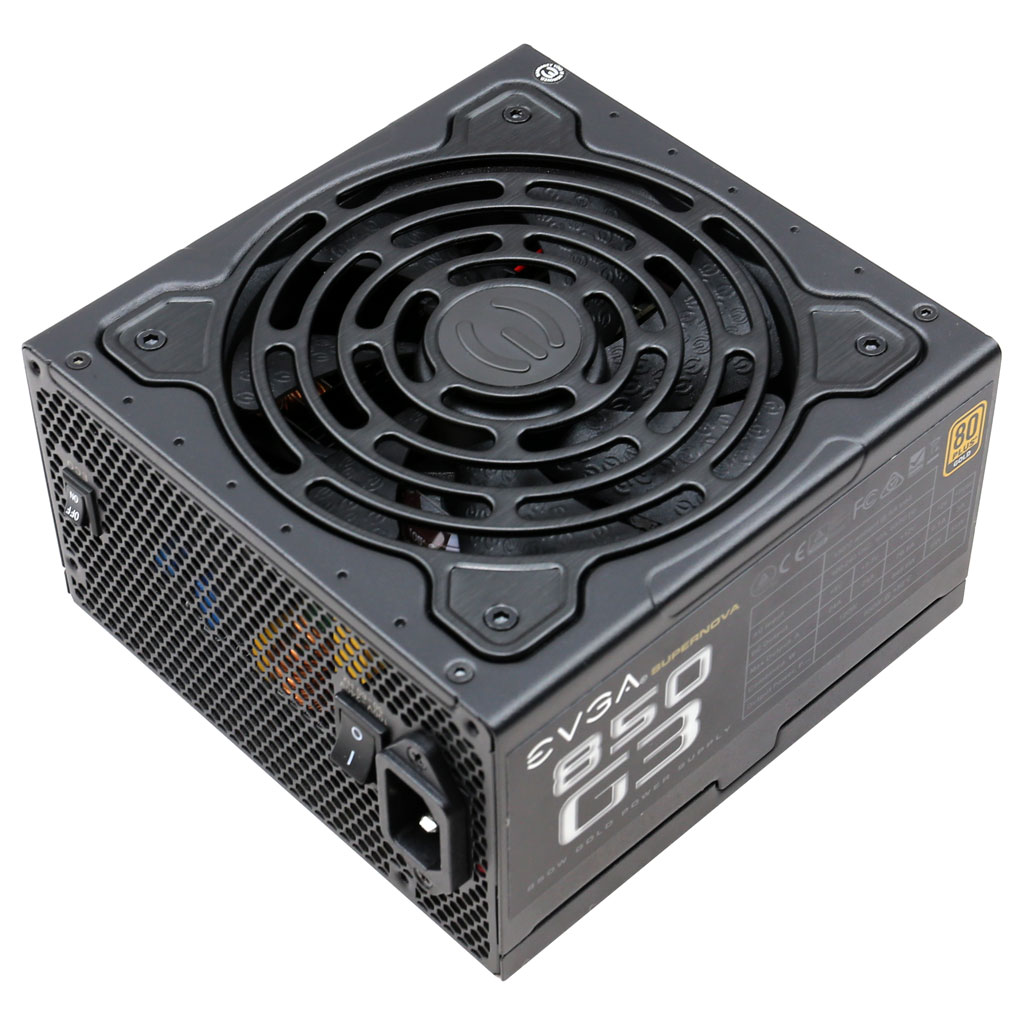

EVGA SuperNOVA 850 G3 (#2)
Serial Number1703440815899001
Lab ID212
Certification ID25212
  • Test Result Report ID: 19PS212A
  • Certificate Issue Date: Sep 11, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandEVGA
ModelSuperNOVA 850 G3 (#2)
OEM/ODMSuper Flower
Serial Number1703440815899001
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFully Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling130mm Hydraulic Dynamic Bearing Fan
(H1282412H)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab ID212
Date of receiptAug 27, 2018
Testing DateSep 7, 2018
Report Issued DateSep 11, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (700mm) 2 2 18-20AWG Yes
6+2 pin PCIe (700mm+150mm) 2 4 18-20AWG Yes
SATA (550mm+100mm+100mm) 3 12 18-20AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG No

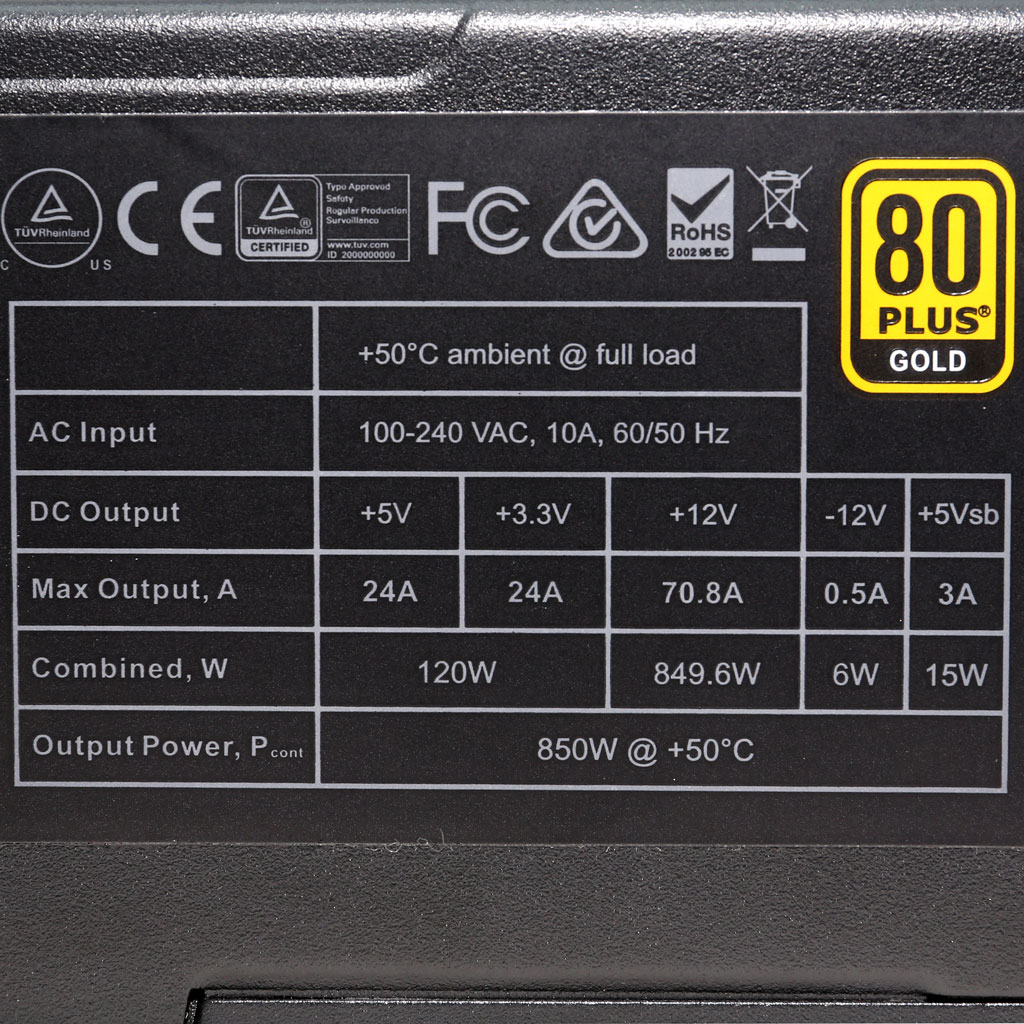

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 24 70.8 3 0.5
Watts 120 849.6 15 6
Total Max. Power (W) 850

Parts Description

General Data
Manufacturer (OEM) Super Flower
Platform Model Leadex II
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Boost Diode 1x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 680uF, 2000h @ 105°C, KMR)
Main Switchers 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Controller SF29603
PWM Controller SF201T
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP023N04N G (40V, 90A @ 100°C, 2.3mOhm)
5V & 3.3V DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: no info
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), Chemi-Con (105°C, W), Chemi-Con (1,000 @ 105°C, KRG)
Polymers: Chemi-Con
Supervisor IC SF201T (probably) & LM324ADG & LM339A
Fan Model EVGA H1282412H (12V, 0.35A, 2170 RPM, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier Mospec S10C60C
Standby PWM Controller 29604


Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)89.569%
Average Noise Output (>1450 Load Combinations)34.01dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load-
Standby Power Consumption0.1368W
Non-Accredited
12V Ripple (Full Load)12.57mV
5V Ripple (Full Load)9.33mV
3.3V Ripple (Full Load)10.42mV
5VSB Ripple (Full Load)10.75mV
12V Load Regulation0.07%
5V Load Regulation0.24%
3.3V Load Regulation0.27%
5VSB Load Regulation1.52%
Inrush Current26.848A
Accredited
Average Efficiency (>1450 load combinations)91.084%
Average Noise Output (>1450 Load Combinations)35.50dBA
Average PF (>1450 Load Combinations)0.945
Efficiency With 10W (≤500W) or 2% (>500W) Load-
Standby Power Consumption0.2319W
Non-Accredited
12V Ripple (Full Load)11.30mV
5V Ripple (Full Load)9.21mV
3.3V Ripple (Full Load)10.88mV
5VSB Ripple (Full Load)12.03mV
12V Load Regulation0.10%
5V Load Regulation0.24%
3.3V Load Regulation0.24%
5VSB Load Regulation1.54%
Inrush Current88.005A
Hold-Up Time & PWR_OK Signal19.70ms
AC Loss to PWR_OK Hold Up Time17.20ms
PWR_OK Inactive to DC Loss Delay2.50ms
OPP (0.00°C / 0.00°C)--

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)19.7
AC Loss to PWR_OK Hold Up Time (ms)17.2
PWR_OK Inactive to DC Loss Delay (ms)2.5

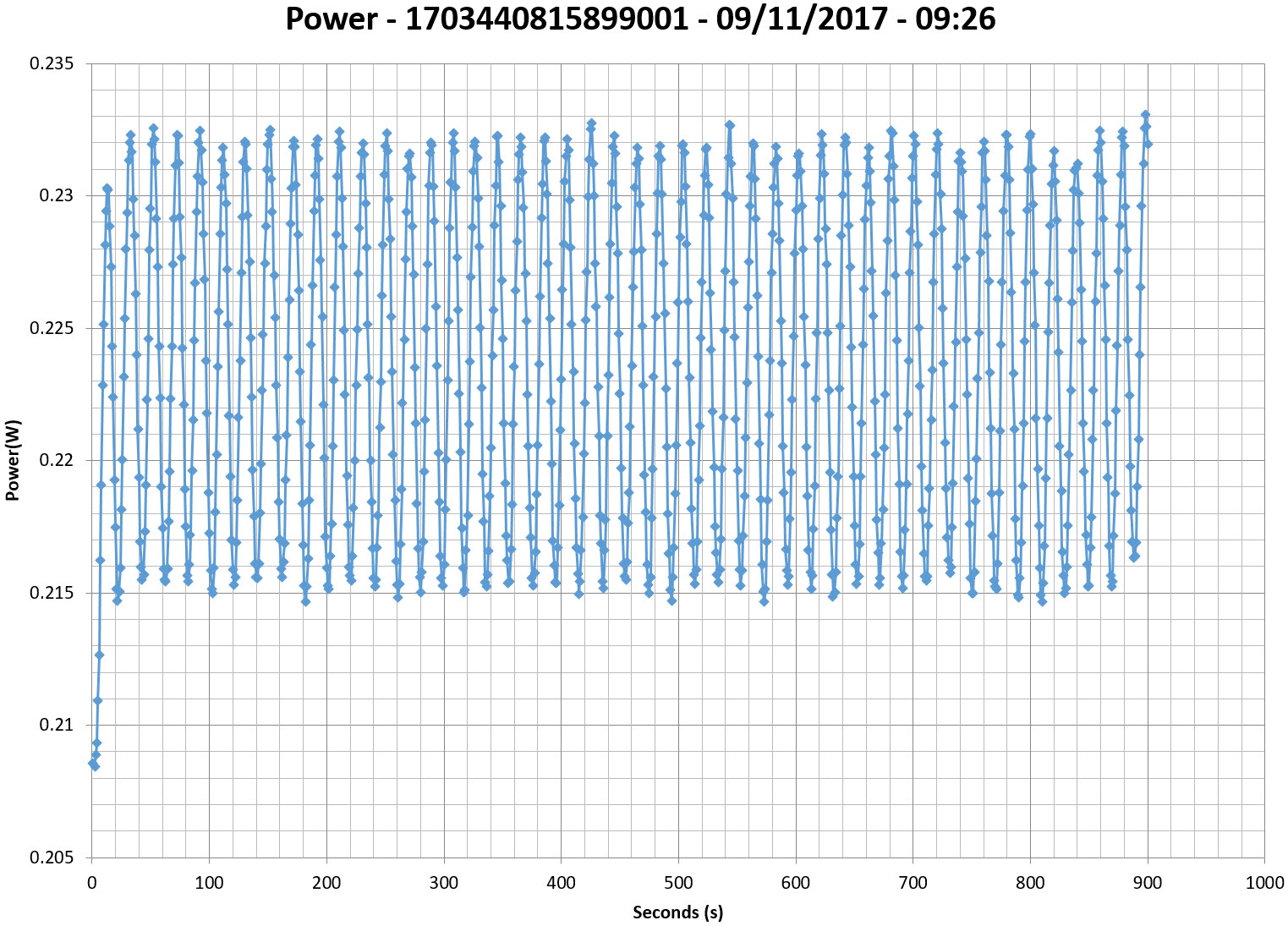

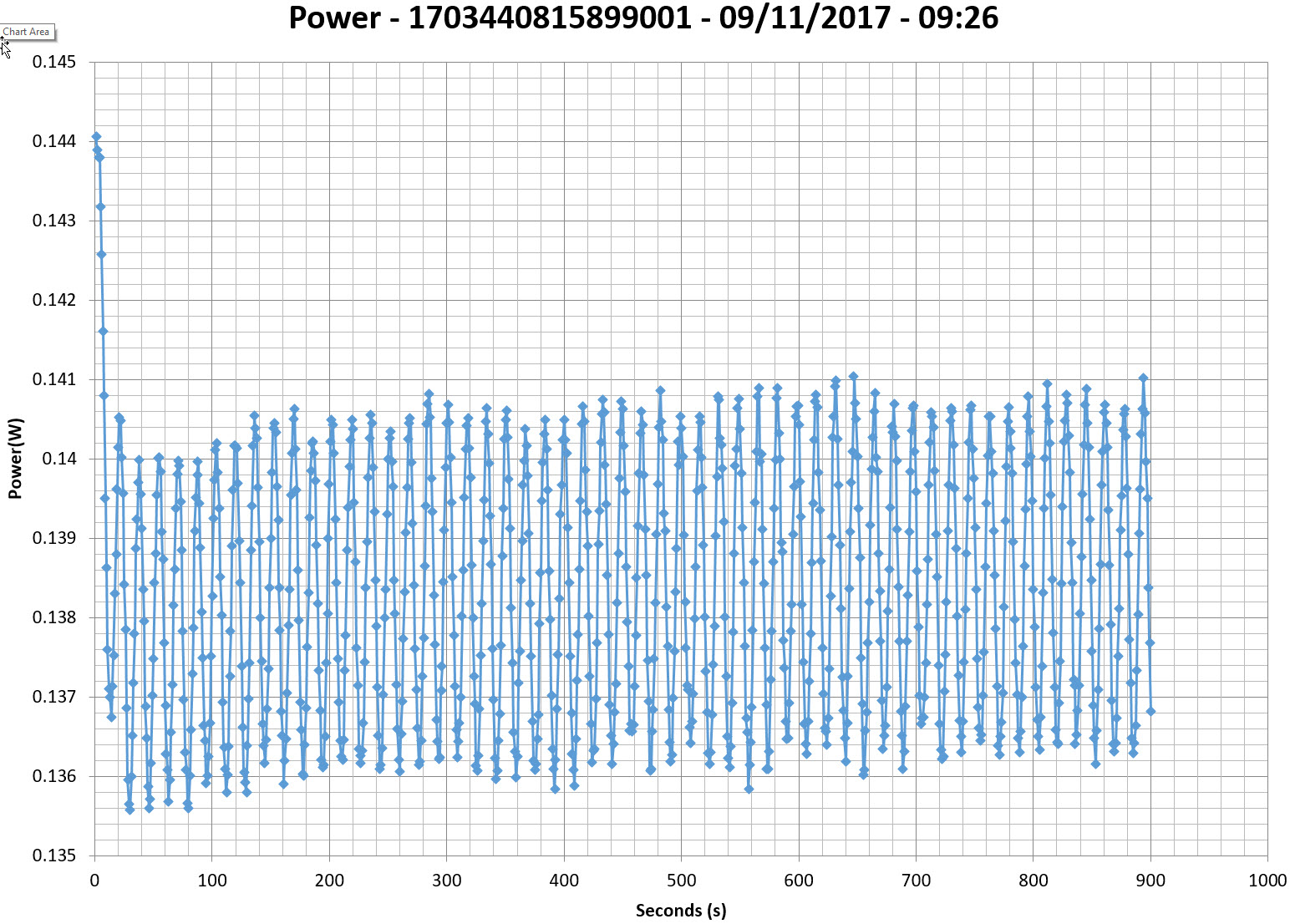

Vampire Power

Tables

Graphs

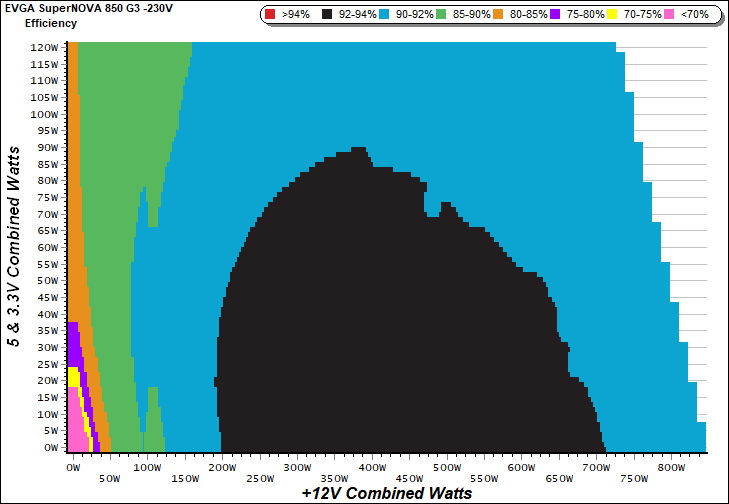

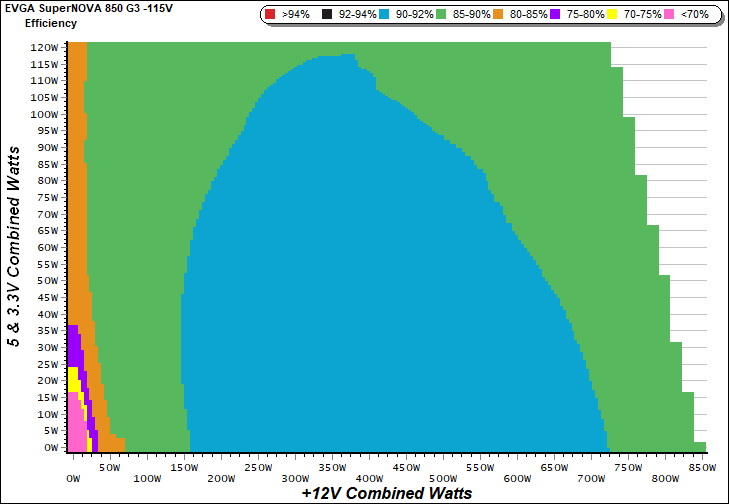

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

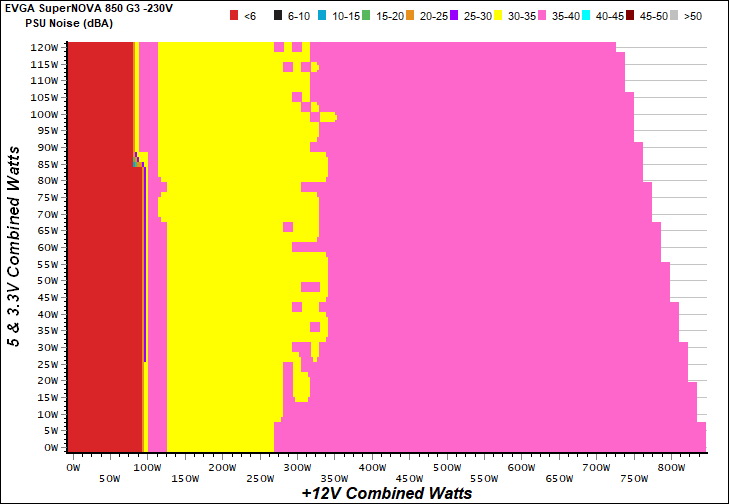

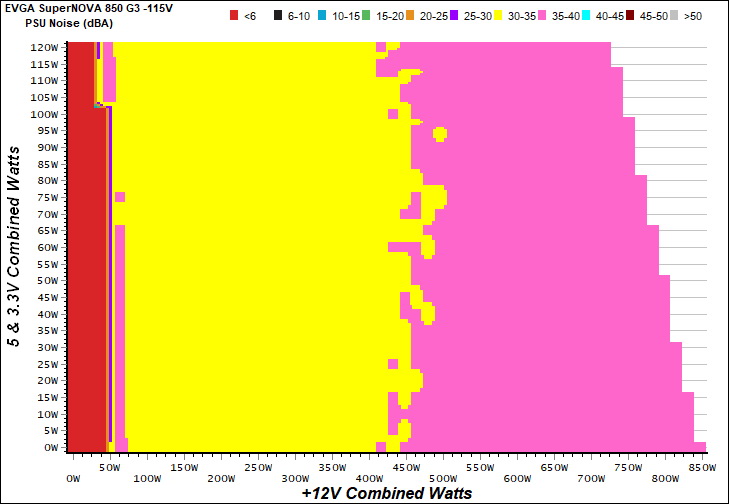

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

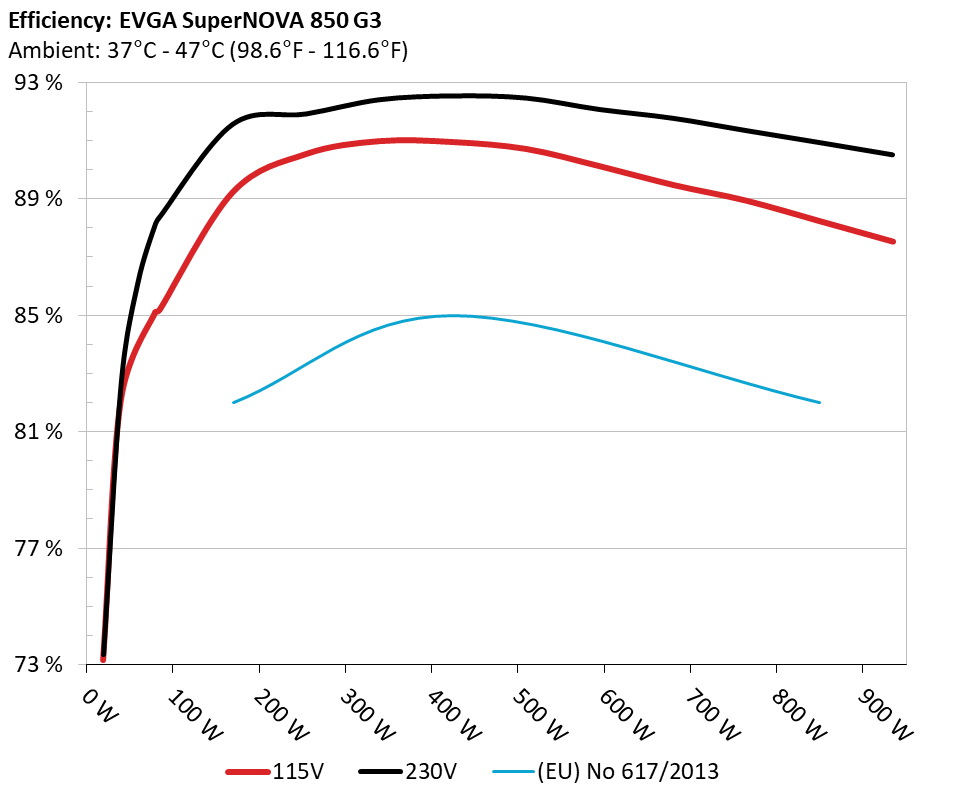

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

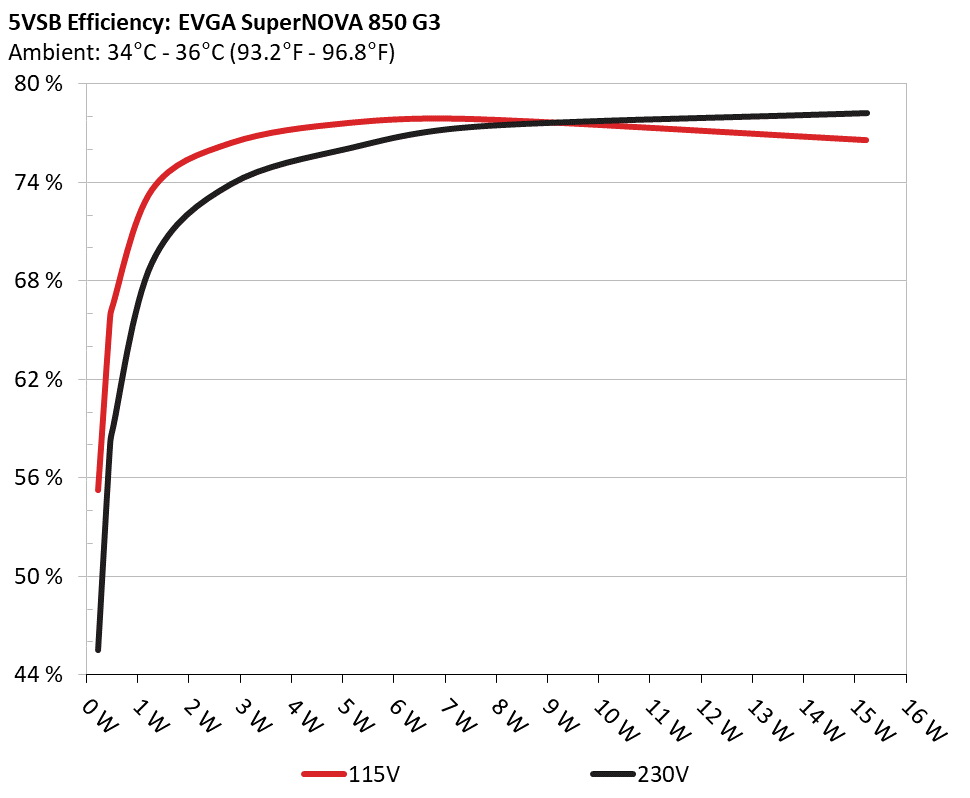

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 55.238% 0.028
5.149V 0.420 115.28V
2 0.090A 0.464 65.722% 0.048
5.147V 0.706 115.28V
3 0.550A 2.825 76.413% 0.215
5.137V 3.697 115.27V
4 1.000A 5.127 77.635% 0.316
5.127V 6.604 115.27V
5 1.500A 7.674 77.853% 0.382
5.115V 9.857 115.26V
6 3.000A 15.210 76.586% 0.470
5.070V 19.860 115.25V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 45.490% 0.011
5.149V 0.510 230.85V
2 0.090A 0.464 57.928% 0.017
5.147V 0.801 230.85V
3 0.550A 2.826 73.882% 0.080
5.137V 3.825 230.84V
4 1.000A 5.127 76.057% 0.135
5.127V 6.741 230.84V
5 1.500A 7.674 77.398% 0.186
5.115V 9.915 230.84V
6 3.000A 15.245 78.208% 0.295
5.082V 19.493 230.84V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.228A 1.998A 1.990A 0.976A 84.798 85.196% 1586 37.1 38.01°C 0.960
12.088V 5.006V 3.315V 5.126V 99.533 42.71°C 115.27V
2 11.455A 2.995A 2.986A 1.172A 169.347 89.230% 1653 38.1 38.63°C 0.979
12.086V 5.008V 3.316V 5.120V 189.788 43.43°C 115.16V
3 18.079A 3.494A 3.465A 1.369A 254.442 90.548% 1667 38.4 38.80°C 0.985
12.083V 5.009V 3.316V 5.115V 281.002 43.67°C 115.15V
4 24.705A 3.994A 3.980A 1.566A 339.665 90.991% 1688 38.7 39.53°C 0.990
12.081V 5.009V 3.316V 5.109V 373.296 44.71°C 115.02V
5 30.995A 4.990A 4.973A 1.764A 424.959 90.959% 1715 39.0 39.89°C 0.992
12.081V 5.011V 3.318V 5.103V 467.200 45.63°C 114.90V
6 37.217A 5.987A 5.965A 1.962A 509.506 90.723% 1760 39.6 40.44°C 0.994
12.083V 5.013V 3.319V 5.098V 561.609 46.38°C 114.87V
7 43.500A 6.982A 6.955A 2.161A 594.800 90.131% 1835 41.7 41.49°C 0.995
12.085V 5.014V 3.320V 5.092V 659.927 47.75°C 114.75V
8 49.789A 7.976A 7.946A 2.360A 680.155 89.486% 1902 42.4 42.77°C 0.996
12.086V 5.016V 3.322V 5.085V 760.065 49.31°C 114.71V
9 56.467A 8.474A 8.431A 2.361A 765.098 88.944% 1981 44.0 43.81°C 0.996
12.088V 5.017V 3.322V 5.084V 860.198 50.61°C 114.59V
10 62.889A 8.972A 8.941A 2.961A 849.923 88.242% 2075 45.2 45.33°C 0.996
12.088V 5.017V 3.322V 5.068V 963.176 53.02°C 114.45V
11 69.891A 8.974A 8.943A 2.962A 934.693 87.541% 2124 45.5 46.51°C 0.997
12.090V 5.016V 3.320V 5.066V 1067.725 55.13°C 114.40V
CL1 0.740A 14.004A 14.001A 0.000A 126.407 83.326% 1910 42.8 43.12°C 0.979
12.078V 5.040V 3.349V 5.147V 151.701 47.03°C 115.19V
CL2 70.847A 1.003A 1.000A 1.000A 870.033 88.690% 2019 44.6 44.45°C 0.996
12.091V 4.995V 3.298V 5.114V 980.978 51.70°C 114.42V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.233A 1.998A 1.990A 0.976A 84.855 86.456% 1668 38.3 39.68°C 0.769
12.088V 5.006V 3.314V 5.125V 98.148 44.55°C 230.99V
2 11.460A 2.996A 2.984A 1.172A 169.382 90.408% 1738 39.2 40.40°C 0.892
12.084V 5.008V 3.316V 5.119V 187.353 45.90°C 230.94V
3 18.084A 3.494A 3.467A 1.369A 254.464 91.748% 1775 40.2 41.16°C 0.939
12.081V 5.008V 3.315V 5.113V 277.352 46.82°C 230.87V
4 24.716A 3.994A 3.981A 1.567A 339.675 92.279% 1832 41.7 41.82°C 0.962
12.076V 5.009V 3.315V 5.107V 368.097 47.70°C 230.81V
5 31.009A 4.992A 4.975A 1.764A 424.975 92.370% 1869 42.1 42.11°C 0.973
12.076V 5.011V 3.316V 5.101V 460.080 48.76°C 230.74V
6 37.236A 5.987A 5.969A 1.963A 509.506 92.283% 1915 43.5 42.93°C 0.978
12.077V 5.012V 3.317V 5.095V 552.115 49.96°C 230.68V
7 43.528A 6.982A 6.960A 2.162A 594.797 91.841% 1953 43.8 43.29°C 0.981
12.077V 5.014V 3.319V 5.089V 647.636 50.88°C 230.62V
8 49.812A 7.978A 7.952A 2.361A 680.141 91.548% 1982 44.0 43.97°C 0.983
12.080V 5.015V 3.320V 5.083V 742.934 51.89°C 230.56V
9 56.493A 8.476A 8.436A 2.362A 765.073 91.052% 2047 44.6 44.54°C 0.985
12.082V 5.016V 3.320V 5.081V 840.260 52.72°C 230.49V
10 62.914A 8.974A 8.947A 2.962A 849.901 90.512% 2117 45.7 45.96°C 0.987
12.083V 5.016V 3.319V 5.065V 938.992 54.85°C 230.42V
11 69.929A 8.976A 8.951A 2.964A 934.672 90.093% 2121 45.7 47.38°C 0.989
12.083V 5.015V 3.318V 5.063V 1037.452 56.86°C 230.45V
CL1 0.144A 14.003A 14.000A 0.000A 119.171 83.712% 1938 43.4 43.87°C 0.851
12.074V 5.040V 3.347V 5.146V 142.358 51.42°C 230.94V
CL2 70.831A 1.002A 1.000A 1.000A 869.406 90.990% 2075 45.2 46.08°C 0.987
12.085V 4.994V 3.297V 5.112V 955.500 54.67°C 230.42V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.185A 0.497A 0.482A 0.194A 19.400 73.169% 0 <6.0 0.757
12.083V 5.004V 3.312V 5.146V 26.514 115.36V
2 2.446A 0.998A 0.995A 0.389A 39.841 82.085% 0 <6.0 0.882
12.081V 5.005V 3.313V 5.141V 48.536 115.33V
3 3.639A 1.497A 1.478A 0.584A 59.346 85.125% 0 <6.0 0.927
12.079V 5.005V 3.314V 5.136V 69.716 115.30V
4 4.899A 1.997A 1.990A 0.780A 79.813 84.917% 1653 38.1 0.956
12.087V 5.007V 3.315V 5.131V 93.989 115.28V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.499A 0.483A 0.194A 19.547 73.358% 0 <6.0 0.397
12.084V 5.003V 3.312V 5.145V 26.646 231.02V
2 2.455A 0.999A 0.996A 0.389A 39.957 82.737% 0 <6.0 0.565
12.081V 5.004V 3.313V 5.140V 48.294 231.02V
3 3.646A 1.499A 1.478A 0.584A 59.436 86.258% 0 <6.0 0.669
12.078V 5.005V 3.314V 5.135V 68.905 231.01V
4 4.906A 2.000A 1.992A 0.780A 79.881 86.032% 1723 39.1 0.751
12.080V 5.006V 3.315V 5.130V 92.850 231.00V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.2 mV 3.9 mV 3.6 mV 3.0 mV Pass
20% Load 7.4 mV 4.3 mV 4.5 mV 3.3 mV Pass
30% Load 8.4 mV 4.6 mV 4.8 mV 3.3 mV Pass
40% Load 8.7 mV 4.8 mV 5.4 mV 4.0 mV Pass
50% Load 9.3 mV 6.3 mV 6.4 mV 4.4 mV Pass
60% Load 10.1 mV 6.5 mV 7.5 mV 4.3 mV Pass
70% Load 10.9 mV 6.8 mV 7.9 mV 7.2 mV Pass
80% Load 11.2 mV 7.9 mV 9.5 mV 7.2 mV Pass
90% Load 11.8 mV 8.1 mV 10.3 mV 8.1 mV Pass
100% Load 12.6 mV 9.3 mV 10.4 mV 10.8 mV Pass
110% Load 13.1 mV 8.1 mV 10.8 mV 10.8 mV Pass
Crossload 1 5.7 mV 7.7 mV 9.1 mV 13.5 mV Pass
Crossload 2 11.9 mV 6.3 mV 7.4 mV 6.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 4.8 mV 4.0 mV 4.0 mV 3.3 mV Pass
20% Load 6.3 mV 4.7 mV 4.8 mV 4.0 mV Pass
30% Load 7.2 mV 5.1 mV 5.2 mV 4.4 mV Pass
40% Load 7.7 mV 5.3 mV 5.8 mV 5.0 mV Pass
50% Load 8.3 mV 6.4 mV 6.7 mV 5.3 mV Pass
60% Load 8.9 mV 6.9 mV 7.9 mV 5.7 mV Pass
70% Load 9.7 mV 8.2 mV 8.7 mV 8.7 mV Pass
80% Load 10.2 mV 8.0 mV 9.6 mV 9.0 mV Pass
90% Load 10.5 mV 9.0 mV 10.1 mV 9.5 mV Pass
100% Load 11.3 mV 9.2 mV 10.9 mV 12.0 mV Pass
110% Load 12.1 mV 8.9 mV 11.2 mV 12.8 mV Pass
Crossload 1 5.5 mV 8.1 mV 9.3 mV 14.1 mV Pass
Crossload 2 10.1 mV 7.8 mV 8.0 mV 8.0 mV Pass

The results above are not used in the certification process

EVGA SuperNOVA 850 G3 (#2)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
