Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
In Cable Capacitors
ATX connector 20+4 pin (600mm)
1
1
16-20AWG
No
4+4 pin EPS12V (650mm)
2
2
18AWG
No
6+2 pin PCIe (600mm+150mm)
2
4
16-18AWG
No
6+2 pin PCIe (600mm)
2
2
16AWG
No
12+2 pin PCIe (650mm) (600W)
1
1
16-24AWG
No
SATA (500mm+100mm+100mm)
1
3
18AWG
No
SATA (450mm+115mm+115mm+115mm)
1
4
18AWG
No
4-pin Molex (450mm+100mm+100mm)
1
3
18AWG
No
AC Power Cord (1400mm) - C13 coupler
1
1
16AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
89.353%
Average Noise Output (>1450 Load Combinations)
23.31dBA
Average PF (>1450 Load Combinations)
0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load
76.528%
Standby Power Consumption
0.0577W
12V Ripple (Full Load)
22.56mV
5V Ripple (Full Load)
16.37mV
3.3V Ripple (Full Load)
19.16mV
5VSB Ripple (Full Load)
13.76mV
12V Load Regulation
0.94%
5V Load Regulation
0.32%
3.3V Load Regulation
0.57%
5VSB Load Regulation
1.76%
Inrush Current
60.440A
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
91.324%
Average Noise Output (>1450 Load Combinations)
24.12dBA
Average PF (>1450 Load Combinations)
0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1003W
12V Ripple (Full Load)
22.42mV
5V Ripple (Full Load)
16.83mV
3.3V Ripple (Full Load)
18.56mV
5VSB Ripple (Full Load)
17.72mV
12V Load Regulation
0.93%
5V Load Regulation
0.36%
3.3V Load Regulation
0.61%
5VSB Load Regulation
1.74%
Inrush Current
64.200A
Hold-Up Time & Power Ok Signal
19.00ms
AC Loss to PWR_OK Hold Up Time
18.00ms
PWR_OK Inactive to DC Loss Delay
1.00ms
PSU Timings: T1 (20% / 100%)
47.0ms
47.0ms
PSU Timings: T3 (20% / 100%)
120.0ms
120.0ms
12V OCP (24.9°C / 35.4°C)
124.19A (124.19%), 11.915V
124.40A (124.40%), 11.903V
5V OCP (24.9°C / 35.4°C)
27.66A (138.30%), 5.007V
27.26A (136.30%), 5.01V
3.3V OCP (24.9°C / 35.4°C)
30.30A (151.50%), 3.3V
28.80A (144.00%), 3.304V
5VSB OCP (24.9°C / 35.4°C)
4.8A (160.00%), 4.944V
4.9A (163.33%), 4.948V
OPP (25.81°C / 36.18°C)
121.76%
121.76%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
19
AC Loss to PWR_OK Hold Up Time (ms)
18
PWR_OK Inactive to DC Loss Delay (ms)
1
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.89 V
114.82 V
113.85 V
114.97 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.98 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.419
1.417
1.340
1.421
1.490
PASS
Mains Voltage THD:
0.22 %
0.18 %
N/A
0.30 %
2.00 %
PASS
Real Power:
0.058 W
0.036 W
N/A
0.082 W
N/A
N/A
Apparent Power:
13.787 W
13.736 W
N/A
13.848 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
229.78 V
229.72 V
227.70 V
229.86 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.99 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.417
1.415
1.340
1.418
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.21 %
2.00 %
PASS
Real Power:
0.100 W
0.053 W
N/A
0.154 W
N/A
N/A
Apparent Power:
46.362 W
46.291 W
N/A
46.443 W
N/A
N/A
Power Factor:
0.002
N/A
N/A
N/A
N/A
N/A
Graphs

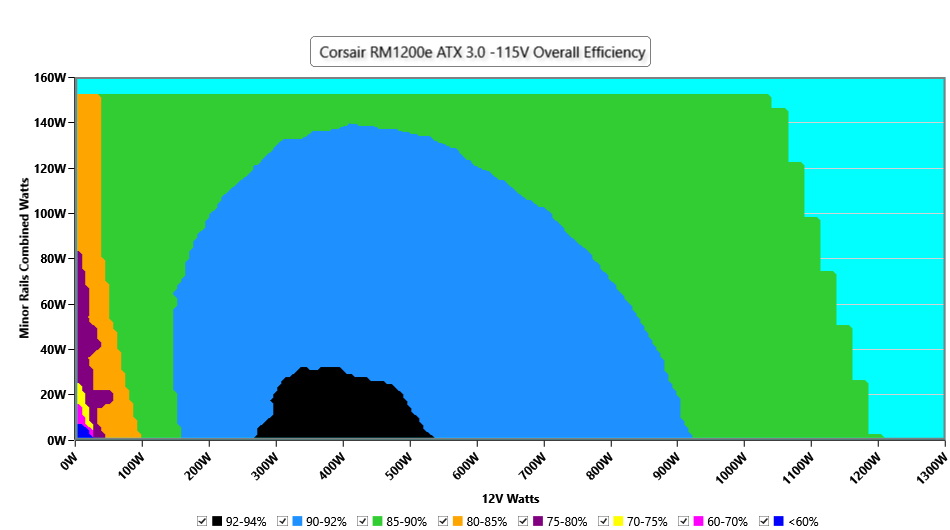

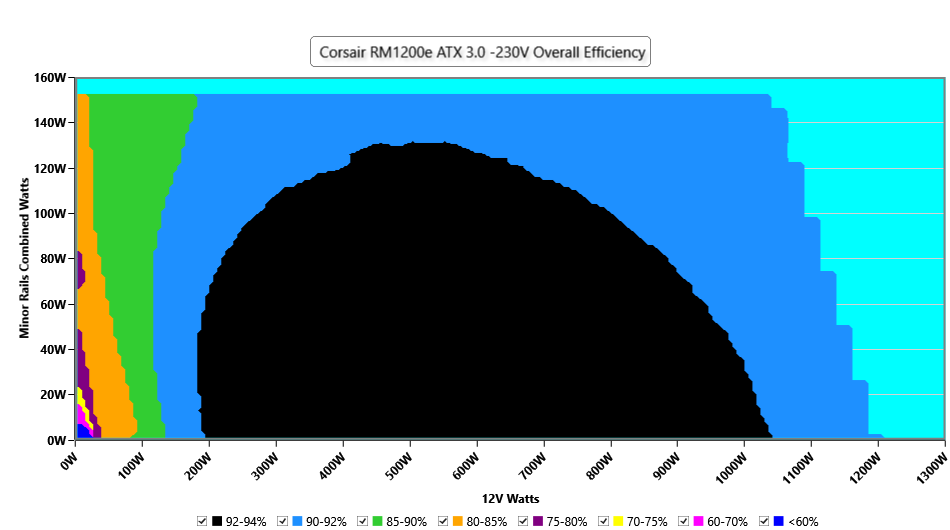

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

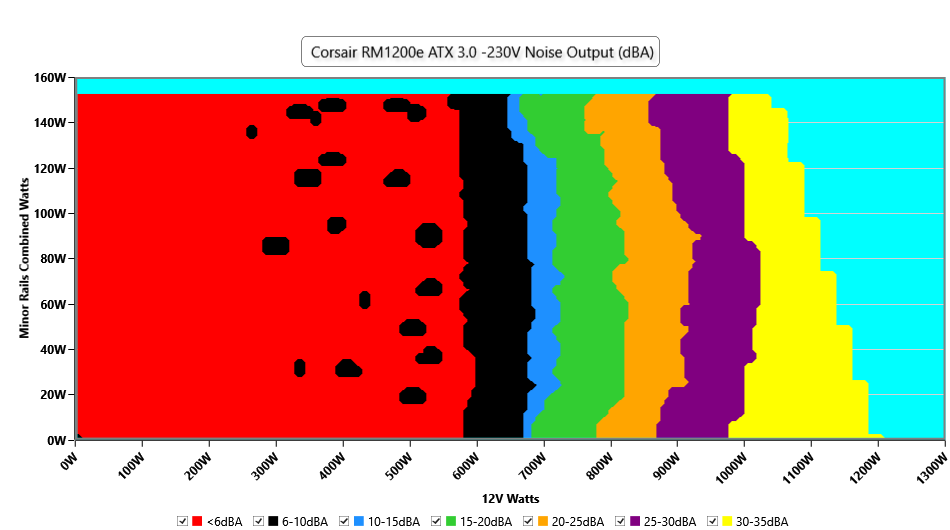

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
Indicative Performance

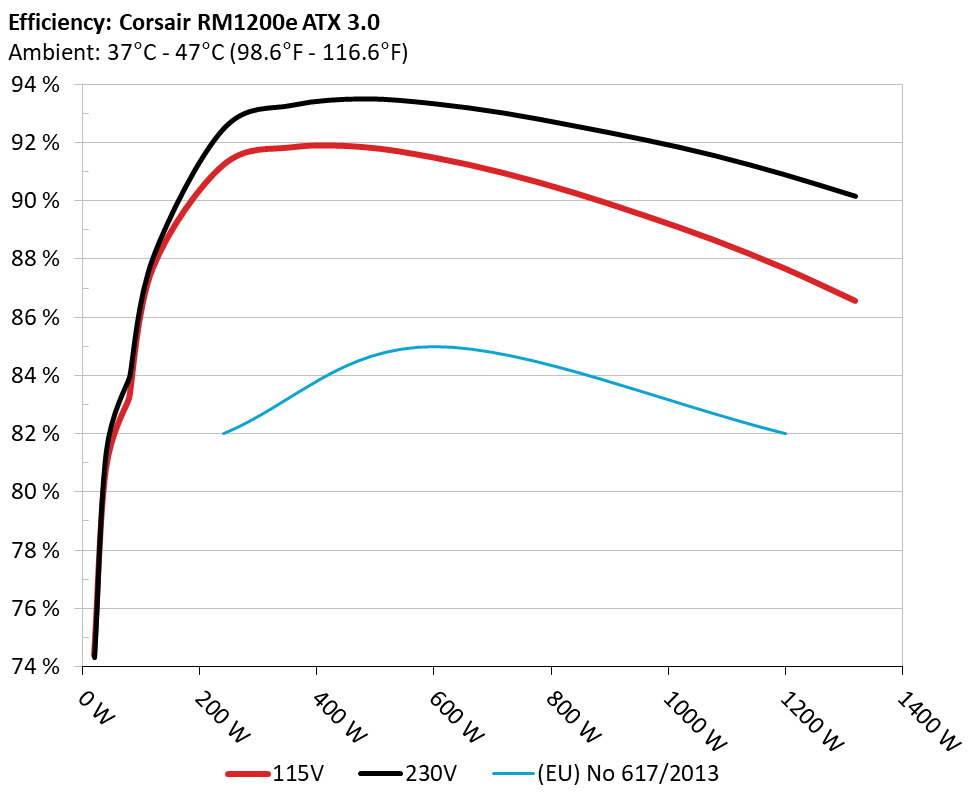

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

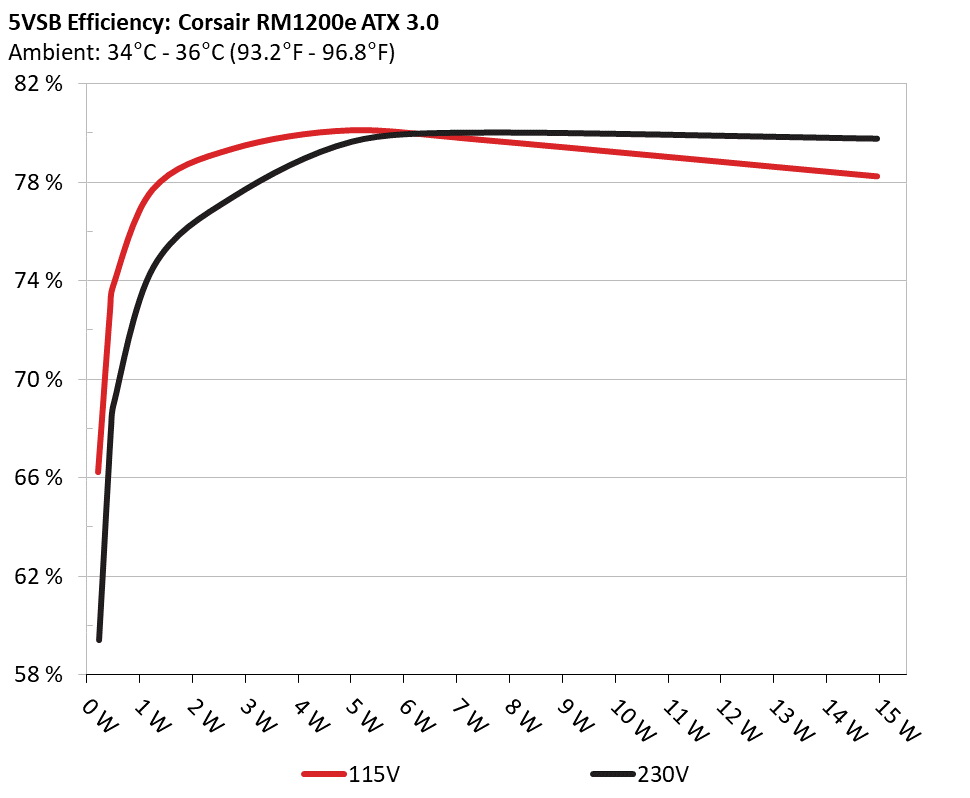

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.179A
1.99A
1.987A
0.998A
119.994
88.043%
0
<6.0
44.45°C
0.849
12.030V
5.024V
3.322V
5.012V
136.292
40.22°C
229.77V
20%
17.385A
2.987A
2.982A
1.199A
239.951
92.463%
0
<6.0
45.54°C
0.925
12.025V
5.023V
3.32V
5.006V
259.508
40.85°C
229.75V
30%
26.897A
3.485A
3.48A
1.4A
359.17
93.285%
0
<6.0
46.26°C
0.949
12.013V
5.022V
3.319V
5V
385.029
41.16°C
229.73V
40%
36.529A
3.985A
3.98A
1.602A
479.542
93.499%
368
<6.0
41.66°C
0.96
12.000V
5.02V
3.317V
4.993V
512.881
47.28°C
229.71V
50%
45.783A
4.983A
4.978A
1.805A
599.301
93.334%
468
8.9
42.2°C
0.966
11.987V
5.018V
3.315V
4.986V
642.103
48.24°C
229.69V
60%
55.118A
5.982A
5.978A
2A
719.789
93.009%
599
18.7
42.67°C
0.972
11.975V
5.016V
3.313V
4.979V
773.889
49.24°C
229.67V
70%
64.409A
6.982A
6.979A
2.213A
839.585
92.57%
789
27.1
43.05°C
0.976
11.962V
5.014V
3.311V
4.972V
906.979
50.09°C
229.65V
80%
73.779A
7.982A
7.98A
2.315A
959.552
92.093%
979
33.7
43.57°C
0.978
11.950V
5.012V
3.308V
4.967V
1041.932
51.79°C
229.62V
90%
83.506A
8.482A
8.468A
2.419A
1079.375
91.548%
1150
38.2
44.31°C
0.98
11.938V
5.01V
3.307V
4.961V
1179.024
53.38°C
229.6V
100%
93.062A
8.984A
8.987A
3.033A
1199.388
90.893%
1370
42.4
45.09°C
0.982
11.924V
5.009V
3.305V
4.947V
1319.562
55.13°C
229.57V
110%
102.578A
9.986A
10.083A
3.035A
1320.002
90.151%
1656
46.8
46.84°C
0.984
11.910V
5.007V
3.303V
4.943V
1464.2
57.74°C
229.55V
CL1
0.117A
18.032A
18.046A
0A
151.305
83.685%
454
8.0
40.44°C
0.891
12.022V
5.007V
3.303V
5.032V
180.804
45.92°C
229.76V
CL2
0.116A
19.913A
0A
0A
101.358
80.069%
452
7.8
40.12°C
0.837
12.025V
5.02V
3.32V
5.034V
126.585
47.14°C
229.77V
CL3
0.115A
0A
19.929A
0A
67.402
76.773%
347
<6.0
40.28°C
0.759
12.024V
5.022V
3.312V
5.034V
87.792
49.36°C
229.78V
CL4
100.567A
0A
0A
0A
1199.978
91.535%
1242
40.7
45.05°C
0.982
11.932V
5.022V
3.318V
5V
1310.956
55.98°C
229.58V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
20W
1.232A
0.497A
0.496A
0.199A
19.99
74.397%
0
<6.0
0.817
12.039V
5.025V
3.324V
5.033V
26.867
114.9V
40W
2.714A
0.697A
0.695A
0.298A
39.989
80.777%
0
<6.0
0.918
12.038V
5.024V
3.322V
5.031V
49.505
114.88V
60W
4.198A
0.895A
0.894A
0.398A
59.987
83.235%
0
<6.0
0.935
12.036V
5.024V
3.322V
5.025V
72.073
114.88V
80W
5.673A
1.094A
1.092A
0.497A
79.924
81.725%
0
<6.0
0.952
12.039V
5.024V
3.322V
5.028V
97.799
114.87V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
20W
1.234A
0.497A
0.496A
0.199A
19.997
74.296%
0
<6.0
0.4
12.034V
5.027V
3.325V
5.033V
26.917
229.79V
40W
2.716A
0.696A
0.695A
0.298A
39.997
81.376%
0
<6.0
0.586
12.033V
5.025V
3.324V
5.025V
49.15
229.78V
60W
4.200A
0.895A
0.894A
0.398A
59.996
83.945%
0
<6.0
0.7
12.032V
5.025V
3.323V
5.024V
71.474
229.78V
80W
5.677A
1.094A
1.092A
0.498A
79.943
83.172%
0
<6.0
0.783
12.034V
5.025V
3.323V
5.021V
96.162
229.78V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
31.60mV
8.17mV
10.69mV
6.96mV
Pass
20% Load
13.20mV
8.89mV
11.20mV
8.54mV
Pass
30% Load
11.97mV
9.04mV
12.07mV
8.13mV
Pass
40% Load
11.87mV
10.83mV
13.35mV
9.26mV
Pass
50% Load
12.79mV
11.34mV
13.81mV
11.36mV
Pass
60% Load
13.15mV
11.95mV
14.63mV
9.41mV
Pass
70% Load
13.81mV
12.36mV
15.30mV
9.72mV
Pass
80% Load
14.58mV
13.08mV
16.27mV
10.54mV
Pass
90% Load
15.96mV
15.38mV
17.50mV
11.61mV
Pass
100% Load
22.56mV
16.37mV
19.16mV
13.76mV
Pass
110% Load
24.23mV
16.90mV
20.50mV
16.46mV
Pass
Crossload1
22.80mV
12.50mV
15.65mV
7.05mV
Pass
Crossload2
18.47mV
15.43mV
13.04mV
7.98mV
Pass
Crossload3
66.25mV
9.66mV
15.70mV
9.31mV
Pass
Crossload4
21.69mV
15.21mV
17.68mV
10.57mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
36.51mV
22.48mV
17.70mV
11.61mV
Pass
20% Load
12.98mV
7.82mV
11.10mV
8.49mV
Pass
30% Load
11.66mV
8.63mV
12.48mV
7.57mV
Pass
40% Load
12.49mV
10.68mV
15.14mV
9.87mV
Pass
50% Load
12.79mV
9.81mV
14.99mV
9.46mV
Pass
60% Load
13.25mV
10.42mV
14.22mV
8.59mV
Pass
70% Load
12.38mV
10.78mV
14.07mV
8.80mV
Pass
80% Load
14.79mV
12.72mV
17.04mV
10.33mV
Pass
90% Load
15.14mV
14.26mV
17.70mV
11.10mV
Pass
100% Load
22.42mV
16.83mV
18.56mV
17.72mV
Pass
110% Load
23.24mV
18.22mV
19.46mV
17.04mV
Pass
Crossload1
21.69mV
12.80mV
14.21mV
6.89mV
Pass
Crossload2
16.73mV
14.82mV
12.53mV
7.21mV
Pass
Crossload3
66.30mV
8.99mV
15.55mV
9.82mV
Pass
Crossload4
22.45mV
13.76mV
16.08mV
10.83mV
Pass
The results above are not used in the certification process
Corsair RM1200e ATX 3.0

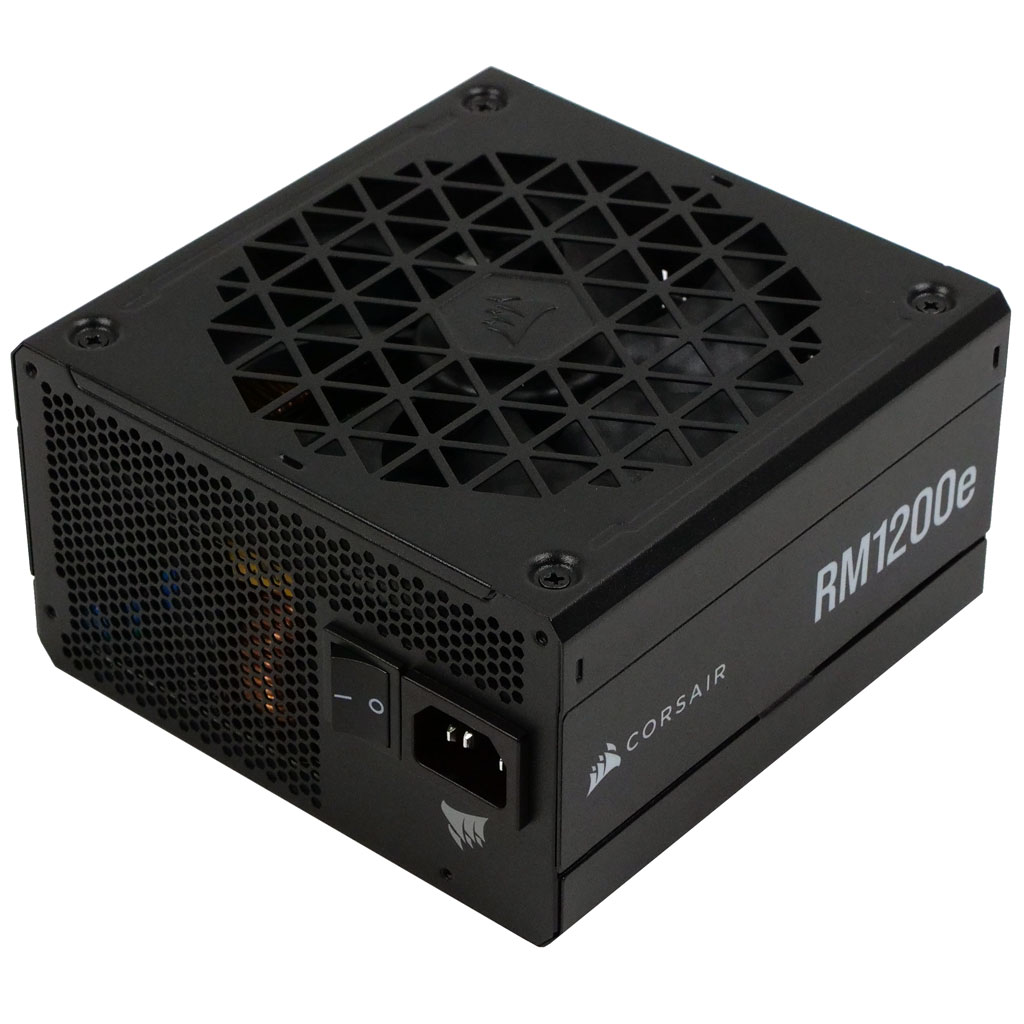

Top side

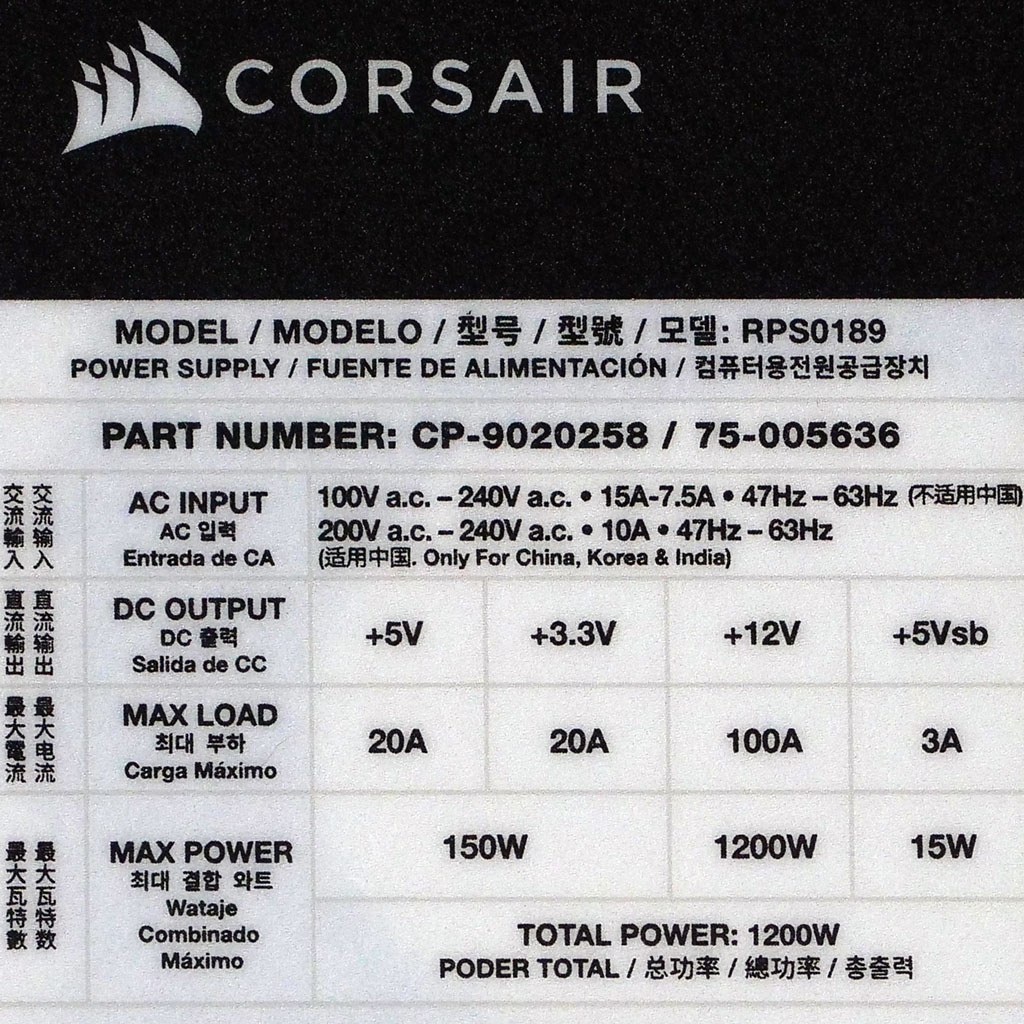

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
