CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

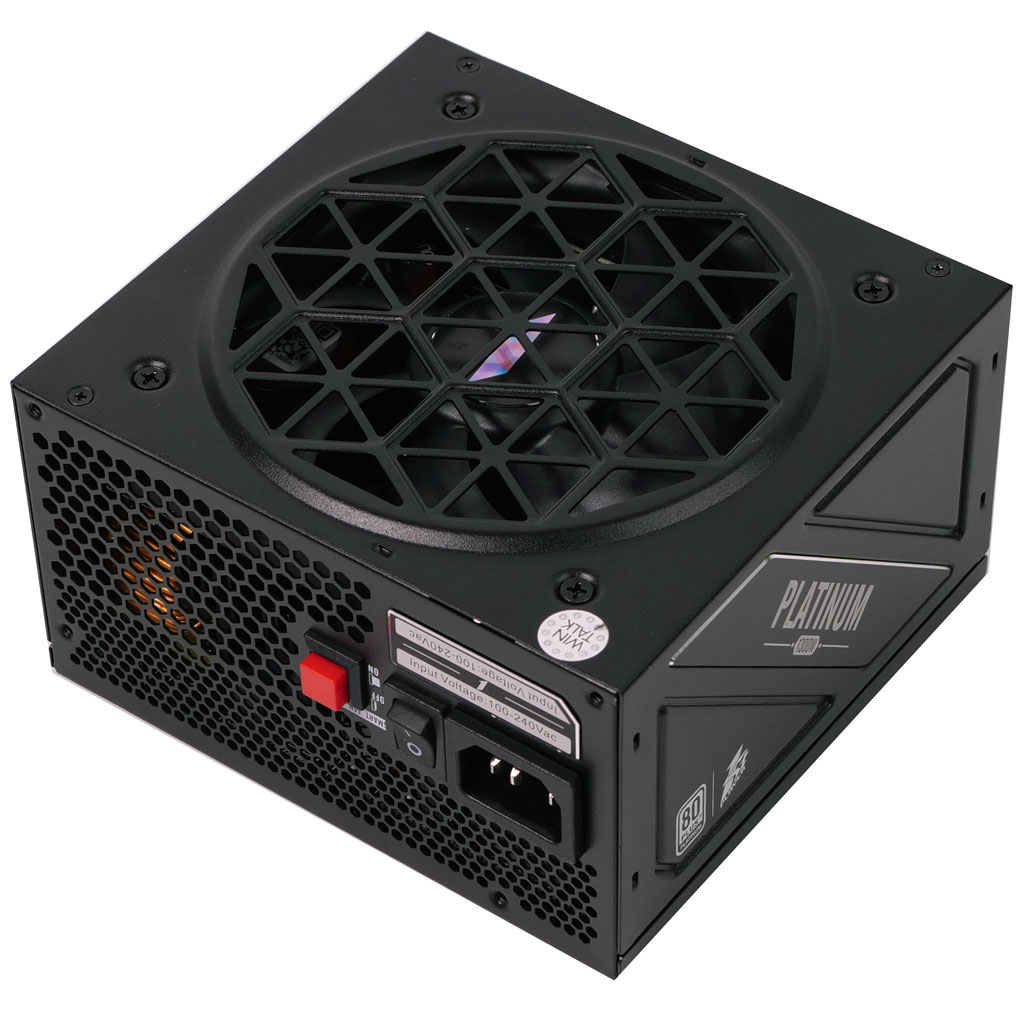

1st Player NGDP 1300W
序号230722PSNGDP-C0317
Lab ID1P13002258
Certification ID252258
  • Test Result Report ID: 23PS2258A
  • Certificate Issue Date: Oct 17, 2023
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称1st Player
制造商 (OEM)Helly Technology
系列名称NGDP
型号HA-1300BA3
序号230722PSNGDP-C0317
被测品纪录

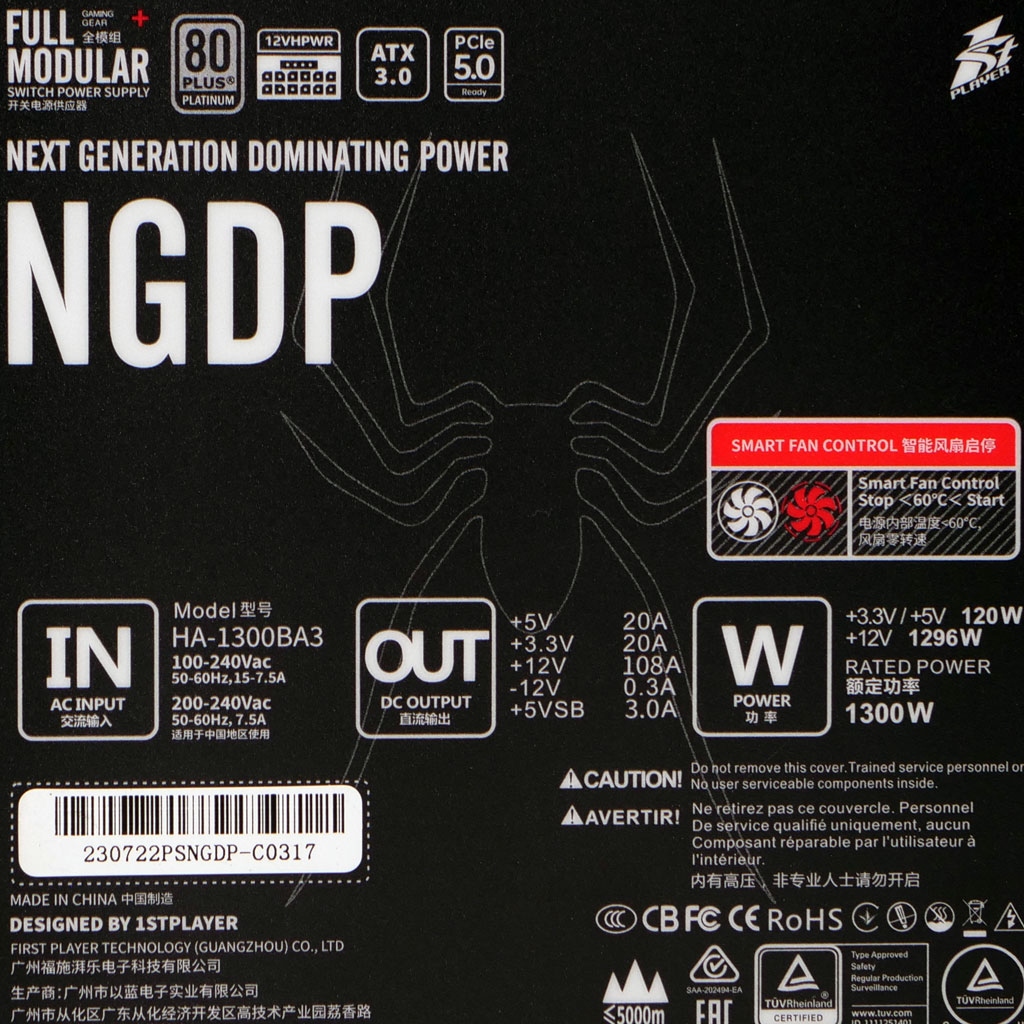

被测品规格

额定电压 (Vrms)100-240
额定电流 (Arms)15.7.5
额定频率 (Hz)50-60
额定功率 (W)1300
类别ATX12V
Dimensions (W x H x D)
散热120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
半被动运转✓ (selectable)
线材设计Fully Modular

电源规范

组3.3V5V12V5VSB-12V
最大功率安培202010830.3
瓦1201296153.6
最大总功率 (W)1300

测试设备

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

模组化线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (610mm) 1 1 16-22AWG 否
4+4 pin EPS 12V 接头 (650mm) 2 2 16AWG 否
6+2pin PCIe接头 (600mm) 4 4 16AWG 否
12+4 pin PCIe (720mm) (600W) 1 1 16-24AWG 否
4-pin Molex (450mm+145mm+145mm+145mm) 1 4 18AWG 否
SATA接头 (450mm+150mm+150mm+150mm) 3 12 18AWG 否
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Helly Technology
PCB Type Double-Sided
Primary Side
Transient Filter 2x Y caps, 2x X caps, 3x TRX Y1222M caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF73T-1 20/6 (20 Ohm) & Relay
Bridge Rectifier(s) 2x GeneSiC GBU15J (600V, 15A @ 100°C) (one of them on heatsink)
APFC MOSFETs 3x Oriental Semiconductor OSG60R099FT3 (600V, 19A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x G3S06510A (650V, 10A @ 154°C)
Bulk Cap(s) 2x Nippon Chemi-Con (400V, 680uF each or 1,360 combined, 2,000h @ 105°C, KMR)
Main Switchers 4x Oriental Semiconductor OSG60R099FT3 (600V, 19A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x G013N04G
5V & 3.3V DC-DC Converters: 2x XSEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) &
3x RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 2x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 3x Rubycon (4-10,000h @ 105°C, YXF)
Polymer: 30x
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, PG, SCP)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x 60R20S
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

效率等级PLATINUM
噪音等级Standard+
平均效率 (>1450 load combinations)90.445%
Average Noise Output (>1450 Load Combinations)37.28dBA
PF平均值 (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load76.316%
待机功率耗损0.0758W
12V Ripple (Full Load)33.86mV
5V Ripple (Full Load)18.07mV
3.3V Ripple (Full Load)27.73mV
5VSB Ripple (Full Load)23.23mV
12V Load Regulation0.33%
5V Load Regulation0.64%
3.3V Load Regulation0.90%
5VSB Load Regulation1.32%
Inrush Current11.030A
效率等级PLATINUM
噪音等级Standard+
平均效率 (>1450 load combinations)92.747%
Average Noise Output (>1450 Load Combinations)36.97dBA
PF平均值 (>1450 Load Combinations)0.971
Efficiency With 10W (≤500W) or 2% (>500W) Load77.744%
待机功率耗损0.1199W
12V Ripple (Full Load)35.12mV
5V Ripple (Full Load)18.36mV
3.3V Ripple (Full Load)26.97mV
5VSB Ripple (Full Load)22.57mV
12V Load Regulation0.34%
5V Load Regulation0.58%
3.3V Load Regulation0.87%
5VSB Load Regulation1.26%
Inrush Current17.800A
12V Transient Response (200%)11.35V
5V Transient Response (200%)4.864V
3.3V Transient Response (200%)3.214V
5VSB Transient Response (200%)4.853V
保持时间 & PG信号23.50ms
AC Loss to PWR_OK Hold Up Time21.10ms
PWR_OK Inactive to DC Loss Delay2.40ms
PSU Timings: T1 (20% / 100%)56.0ms54.0ms
PSU Timings: T3 (20% / 100%)122.0ms125.0ms
OPP (30.07°C / 41.20°C)136.24%131.32%

保持时间 & PG信号

Hold-Up Time (ms)23.5
AC Loss to PWR_OK Hold Up Time (ms)21.1
PWR_OK Inactive to DC Loss Delay (ms)2.4

待机电源

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.91 V 114.82 V 113.85 V 115.01 V 116.15 V PASS
Mains Frequency: 60.01 Hz 59.96 Hz 59.40 Hz 60.06 Hz 60.60 Hz PASS
Mains Voltage CF: 1.421 1.419 1.340 1.424 1.490 PASS
Mains Voltage THD: 0.33 % 0.25 % N/A 0.43 % 2.00 % PASS
Real Power: 0.076 W 0.069 W N/A 0.083 W N/A N/A
Apparent Power: 7.412 W 7.394 W N/A 7.433 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.75 V 227.70 V 229.98 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.20 % 0.17 % N/A 0.27 % 2.00 % PASS
Real Power: 0.120 W 0.097 W N/A 0.184 W N/A N/A
Apparent Power: 25.435 W 25.405 W N/A 25.472 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

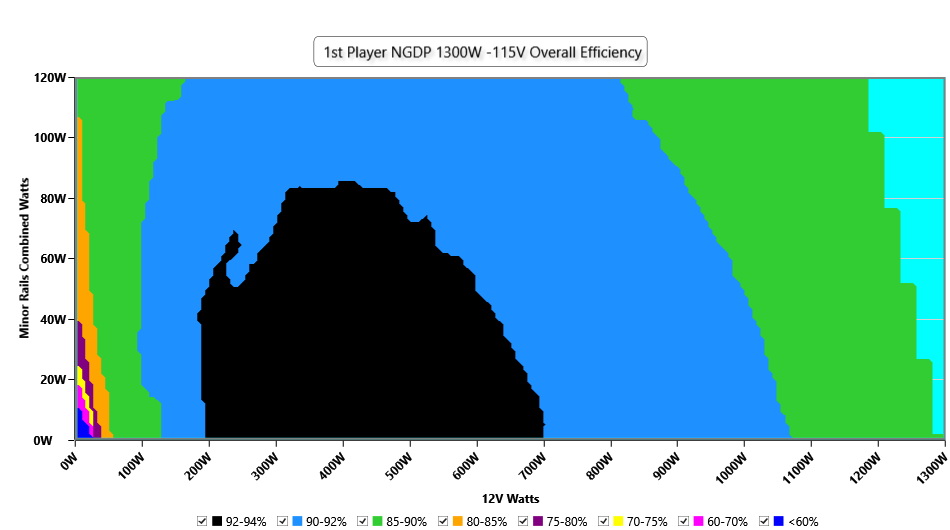

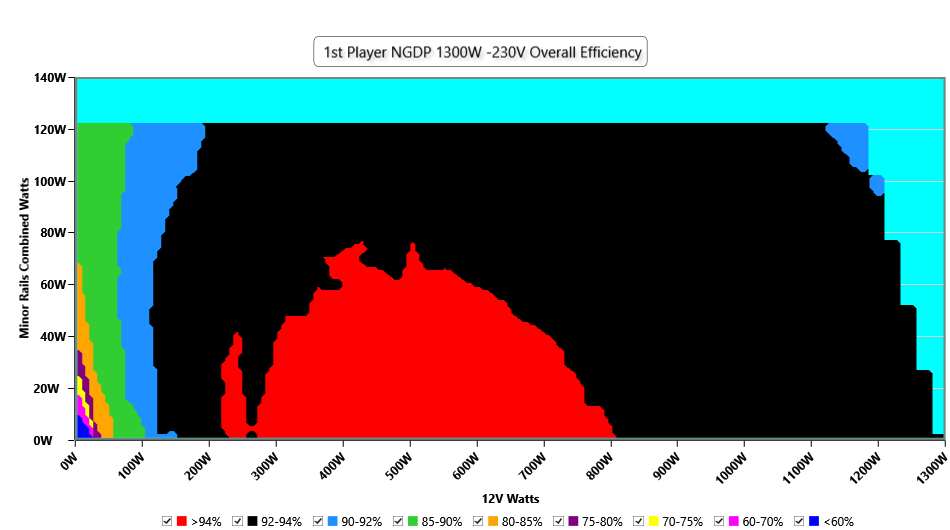

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

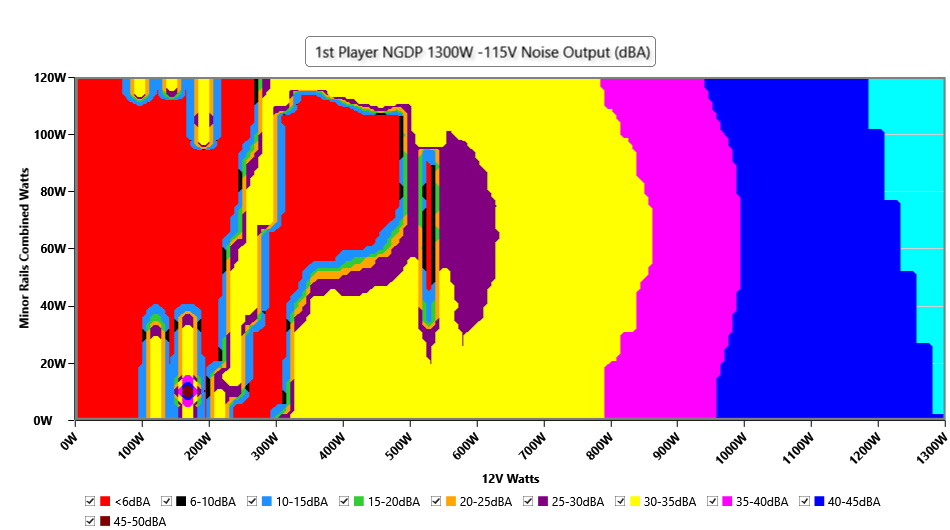

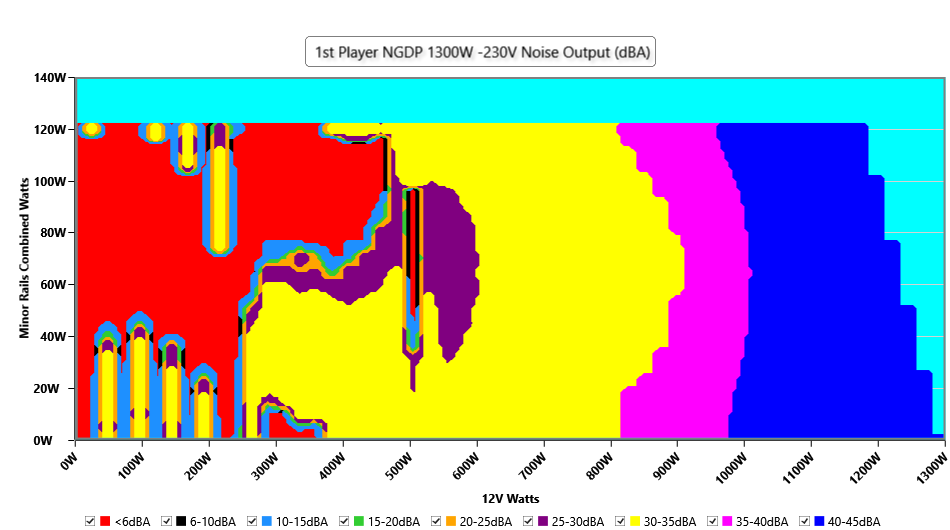

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

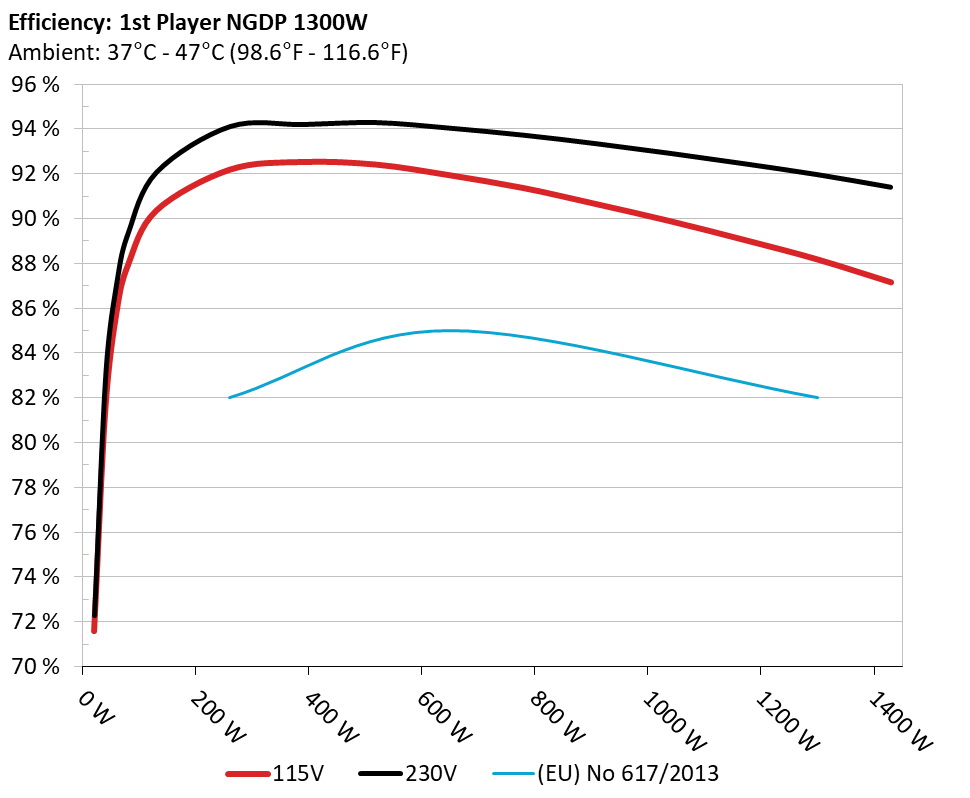

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

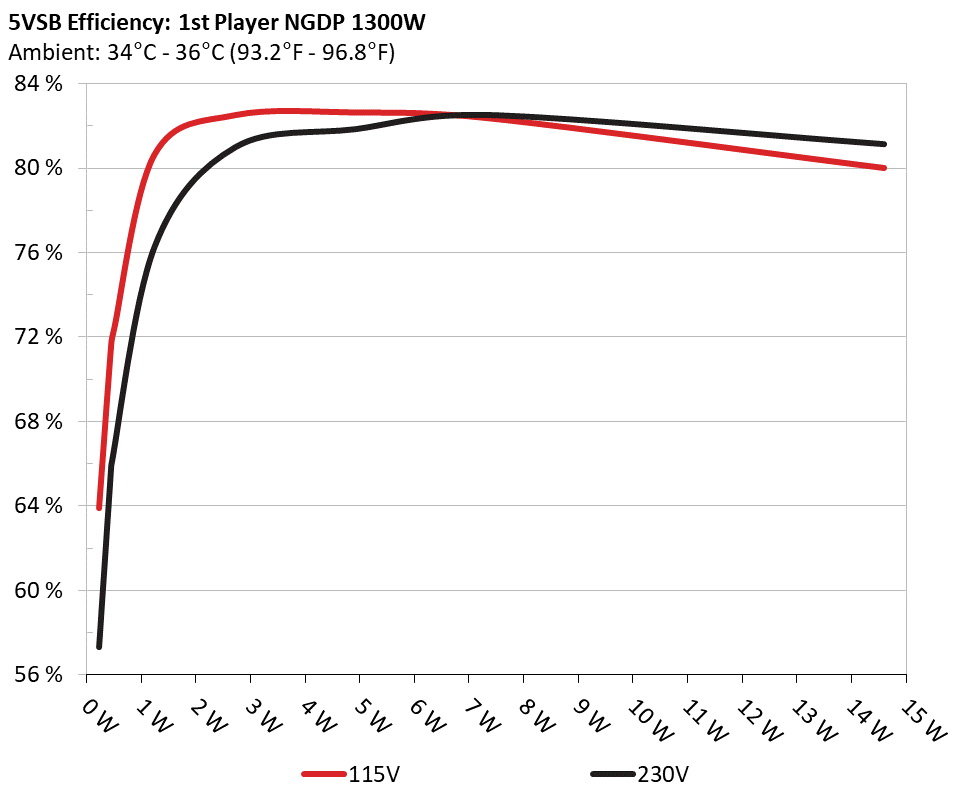

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.223W 63.882% 0.047
4.955V 0.349W 114.91V
2 0.09A 0.446W 71.676% 0.082
4.953V 0.622W 114.93V
3 0.55A 2.716W 82.534% 0.331
4.94V 3.291W 114.92V
4 1A 4.926W 82.658% 0.444
4.926V 5.959W 114.91V
5 1.5A 7.367W 82.385% 0.504
4.911V 8.942W 114.91V
6 3A 14.596W 80.025% 0.557
4.866V 18.239W 114.9V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.223W 57.293% 0.015
4.954V 0.39W 229.88V
2 0.09A 0.446W 66.039% 0.027
4.953V 0.675W 229.88V
3 0.55A 2.717W 80.994% 0.126
4.939V 3.354W 229.88V
4 1A 4.926W 81.854% 0.208
4.926V 6.018W 229.88V
5 1.5A 7.367W 82.521% 0.279
4.911V 8.928W 229.88V
6 3A 14.596W 81.14% 0.379
4.866V 17.988W 229.88V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.876A 2.004A 1.963A 1.004A 129.993 90.351% 1381 33.5 40.52°C 0.972
12.211V 4.99V 3.362V 4.98V 143.882 44.71°C 114.87V
20% 18.764A 3.009A 2.948A 1.207A 259.947 92.176% 1300 31.9 40.72°C 0.982
12.206V 4.984V 3.358V 4.973V 282.014 45.29°C 114.82V
30% 28.974A 3.513A 3.441A 1.409A 389.608 92.519% 1384 33.6 41.45°C 0.989
12.203V 4.982V 3.356V 4.967V 421.177 46.48°C 114.81V
40% 39.212A 4.016A 3.936A 1.613A 519.538 92.401% 1493 35.8 41.74°C 0.993
12.199V 4.98V 3.354V 4.961V 562.268 47.23°C 114.74V
50% 49.134A 5.024A 4.924A 1.816A 649.7 91.924% 1755 40.1 42.3°C 0.995
12.195V 4.976V 3.351V 4.957V 706.787 48.29°C 114.7V
60% 59.061A 6.033A 5.915A 2A 779.725 91.356% 1873 42.2 42.83°C 0.996
12.191V 4.973V 3.348V 4.953V 853.506 49.42°C 114.64V
70% 68.994A 7.043A 6.907A 2.223A 909.911 90.632% 1976 43.4 43.16°C 0.996
12.187V 4.97V 3.345V 4.948V 1003.97 50.21°C 114.59V
80% 78.933A 8.052A 7.9A 2.325A 1039.532 89.875% 2098 44.7 43.98°C 0.997
12.183V 4.967V 3.342V 4.946V 1156.638 52.02°C 114.54V
90% 89.273A 8.559A 8.385A 2.428A 1169.767 89.044% 2177 45.6 44.97°C 0.997
12.179V 4.965V 3.339V 4.942V 1313.697 54.03°C 114.48V
100% 99.359A 9.066A 8.9A 3.043A 1299.376 88.173% 2184 45.8 45.33°C 0.997
12.174V 4.963V 3.337V 4.929V 1473.668 55.39°C 114.43V
110% 109.384A 10.08A 9.989A 3.044A 1429.594 87.151% 2189 45.8 46.63°C 0.996
12.170V 4.96V 3.334V 4.928V 1640.369 57.56°C 114.37V
CL1 0.115A 14.551A 14.29A 0A 121.305 83.413% 1847 41.8 40.45°C 0.972
12.208V 4.961V 3.338V 5.038V 145.424 45.91°C 114.86V
CL2 0.113A 20.157A 0A 0.001A 101.343 82.843% 1432 34.7 39.18°C 0.967
12.210V 4.959V 3.355V 5.056V 122.32 46.24°C 114.87V
CL3 0.113A 0A 19.765A 0A 67.4 77.865% 1431 34.7 39.71°C 0.952
12.211V 4.984V 3.34V 4.991V 86.563 48.75°C 114.89V
CL4 106.763A 0A 0.001A 0.001A 1300.016 88.605% 2179 45.6 44.55°C 0.997
12.176V 4.983V 3.354V 4.957V 1467.186 55.53°C 114.44V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.878A 2.005A 1.964A 1.005A 130.01 92.074% 0 <6.0 44.67°C 0.922
12.212V 4.988V 3.361V 4.978V 141.203 40.44°C 229.87V
20% 18.764A 3.009A 2.948A 1.206A 259.974 94.107% 0 <6.0 45.18°C 0.96
12.208V 4.986V 3.358V 4.974V 276.24 40.56°C 229.85V
30% 28.972A 3.513A 3.442A 1.41A 389.622 94.198% 1351 33.1 41.27°C 0.972
12.204V 4.982V 3.356V 4.967V 413.619 46.39°C 229.82V
40% 39.208A 4.018A 3.937A 1.613A 519.546 94.284% 1391 33.8 41.61°C 0.978
12.200V 4.978V 3.353V 4.96V 551.043 47.18°C 229.8V
50% 49.130A 5.025A 4.925A 1.816A 649.689 94.036% 1724 39.5 42.11°C 0.981
12.196V 4.976V 3.351V 4.956V 690.92 48.2°C 229.8V
60% 59.057A 6.034A 5.915A 2A 779.734 93.724% 1832 41.5 42.74°C 0.984
12.192V 4.973V 3.347V 4.952V 831.951 49.26°C 229.75V
70% 68.989A 7.044A 6.908A 2.223A 909.904 93.338% 1950 43.4 43.25°C 0.986
12.188V 4.97V 3.345V 4.948V 974.834 50.31°C 229.73V
80% 78.930A 8.053A 7.901A 2.325A 1039.529 92.912% 2060 44.1 43.56°C 0.988
12.183V 4.966V 3.341V 4.945V 1118.827 51.57°C 229.7V
90% 89.268A 8.56A 8.385A 2.428A 1169.762 92.45% 2170 45.5 44.04°C 0.989
12.179V 4.964V 3.339V 4.941V 1265.227 53.14°C 229.68V
100% 99.346A 9.068A 8.901A 3.044A 1299.372 91.967% 2178 45.6 45.47°C 0.99
12.176V 4.962V 3.337V 4.928V 1412.867 55.52°C 229.66V
110% 109.372A 10.081A 9.99A 3.044A 1429.574 91.403% 2187 45.8 46.98°C 0.991
12.172V 4.959V 3.334V 4.927V 1564.042 57.89°C 229.64V
CL1 0.113A 14.555A 14.291A 0A 121.281 85.664% 1358 33.1 42.2°C 0.922
12.211V 4.96V 3.338V 5.035V 141.536 47.7°C 229.86V
CL2 0.113A 20.149A 0A 0.001A 101.332 84.161% 1413 35.3 43.89°C 0.909
12.210V 4.961V 3.356V 5.058V 120.4 50.95°C 229.87V
CL3 0.113A 0A 19.762A 0A 67.392 79.13% 1423 35.1 42.13°C 0.87
12.212V 4.985V 3.34V 4.992V 85.158 51.14°C 229.87V
CL4 106.754A 0A 0.001A 0.001A 1299.946 92.399% 2179 45.6 46.31°C 0.99
12.177V 4.983V 3.355V 4.957V 1406.894 57.24°C 229.66V

The results above are not used in the certification process

20-80瓦负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.216A 0.5A 0.49A 0.2A 19.997 71.589% 0 <6.0 39.69°C 0.883
12.214V 4.995V 3.367V 4.994V 27.928 36.64°C 114.9V
40W 2.676A 0.701A 0.686A 0.3A 39.996 81.53% 0 <6.0 40.91°C 0.927
12.214V 4.995V 3.367V 4.993V 49.056 37.67°C 114.9V
60W 4.137A 0.901A 0.882A 0.401A 59.995 85.868% 0 <6.0 42.27°C 0.95
12.213V 4.994V 3.365V 4.99V 69.873 38.53°C 114.89V
80W 5.594A 1.101A 1.079A 0.501A 79.936 87.923% 0 <6.0 43.3°C 0.953
12.212V 4.993V 3.365V 4.988V 90.913 39.33°C 114.88V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.216A 0.501A 0.49A 0.2A 19.997 72.282% 0 <6.0 39.79°C 0.631
12.217V 4.991V 3.366V 4.99V 27.67 36.73°C 229.9V
40W 2.676A 0.701A 0.686A 0.301A 39.999 83.096% 0 <6.0 40.99°C 0.763
12.215V 4.991V 3.365V 4.989V 48.132 37.79°C 229.89V
60W 4.136A 0.902A 0.883A 0.401A 59.999 87.226% 0 <6.0 41.69°C 0.835
12.215V 4.99V 3.364V 4.986V 68.784 38.2°C 229.88V
80W 5.594A 1.102A 1.079A 0.501A 79.949 89.38% 0 <6.0 42.97°C 0.877
12.214V 4.99V 3.364V 4.985V 89.447 39.12°C 229.88V

The results above are not used in the certification process

纹波测量

Test12V5V3.3V5VSBPass/Fail
10% Load13.10mV9.09mV10.95mV12.68mVPass
20% Load13.30mV10.42mV11.92mV13.10mVPass
30% Load12.23mV9.25mV10.95mV12.17mVPass
40% Load14.99mV11.24mV13.91mV14.17mVPass
50% Load16.22mV11.55mV15.34mV14.17mVPass
60% Load18.42mV12.72mV18.11mV16.37mVPass
70% Load18.72mV12.82mV20.46mV17.55mVPass
80% Load20.92mV15.33mV23.79mV18.41mVPass
90% Load22.92mV17.37mV25.27mV19.64mVPass
100% Load33.86mV18.07mV27.73mV23.23mVPass
110% Load36.24mV20.62mV29.53mV24.77mVPass
Crossload119.72mV12.62mV16.59mV15.42mVPass
Crossload213.66mV18.49mV12.84mV15.81mVPass
Crossload311.87mV8.12mV17.95mV11.87mVPass
Crossload433.71mV15.70mV24.17mV20.19mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.74mV8.99mV10.23mV11.66mVPass
20% Load11.46mV9.86mV11.36mV12.38mVPass
30% Load13.46mV11.04mV12.69mV13.76mVPass
40% Load14.17mV10.83mV14.58mV13.45mVPass
50% Load13.61mV10.99mV14.22mV13.61mVPass
60% Load16.58mV12.52mV18.01mV15.65mVPass
70% Load18.47mV13.08mV20.21mV16.72mVPass
80% Load19.75mV14.05mV21.99mV18.05mVPass
90% Load21.59mV14.81mV23.89mV18.31mVPass
100% Load35.12mV18.36mV26.97mV22.57mVPass
110% Load37.08mV21.07mV29.05mV25.58mVPass
Crossload120.53mV13.13mV16.68mV15.77mVPass
Crossload213.51mV19.41mV13.45mV16.27mVPass
Crossload311.51mV7.51mV17.95mV12.33mVPass
Crossload434.64mV15.73mV23.90mV19.85mVPass

The results above are not used in the certification process

1st Player NGDP 1300W

Top side
Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
