CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PCCooler YN1000
Serial Number
Lab IDPL10002281
  • Report: 23PS2281A
  • Receipt Date: Oct 23, 2023
  • Test Date: Oct 31, 2023
  • Report Date: Nov 2, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandPCCooler
Manufacturer (OEM)Andyson
SeriesYN
Model NumberP5-YN1000-G1F
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (500mm) 3 3 18AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-26AWG No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm) 3 9 / 3 20AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.144%
Average Noise Output (>1450 Load Combinations)29.40dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load77.789%
Standby Power Consumption0.0545W
12V Ripple (Full Load)15.16mV
5V Ripple (Full Load)12.13mV
3.3V Ripple (Full Load)18.43mV
5VSB Ripple (Full Load)31.92mV
12V Load Regulation0.30%
5V Load Regulation0.64%
3.3V Load Regulation1.19%
5VSB Load Regulation3.80%
Inrush Current51.610A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.316%
Average Noise Output (>1450 Load Combinations)29.48dBA
Average PF (>1450 Load Combinations)0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load78.358%
Standby Power Consumption0.1322W
12V Ripple (Full Load)15.14mV
5V Ripple (Full Load)11.54mV
3.3V Ripple (Full Load)15.20mV
5VSB Ripple (Full Load)25.92mV
12V Load Regulation0.28%
5V Load Regulation0.72%
3.3V Load Regulation1.22%
5VSB Load Regulation3.80%
Inrush Current69.640A
12V Transient Response (200%)11.27V
5V Transient Response (200%)4.921V
3.3V Transient Response (200%)3.193V
5VSB Transient Response (200%)4.868V
Hold-Up Time & Power Ok Signal23.70ms
AC Loss to PWR_OK Hold Up Time18.70ms
PWR_OK Inactive to DC Loss Delay5.00ms
PSU Timings: T1 (20% / 100%)90.0ms89.0ms
PSU Timings: T3 (20% / 100%)124.0ms127.0ms
OPP (21.86°C / 38.80°C)141.41%125.86%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.7
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.84 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.18 % 2.00 % PASS
Real Power: 0.055 W -0.002 W N/A 0.091 W N/A N/A
Apparent Power: 10.645 W 10.612 W N/A 10.687 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.96 V 229.90 V 227.70 V 229.99 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.12 % 0.10 % N/A 0.14 % 2.00 % PASS
Real Power: 0.132 W 0.087 W N/A 0.191 W N/A N/A
Apparent Power: 36.090 W 36.048 W N/A 36.142 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

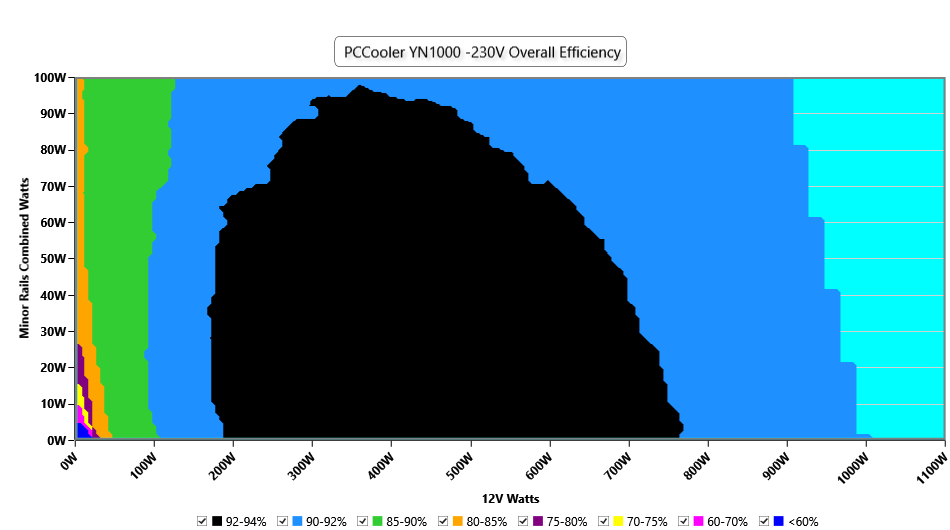

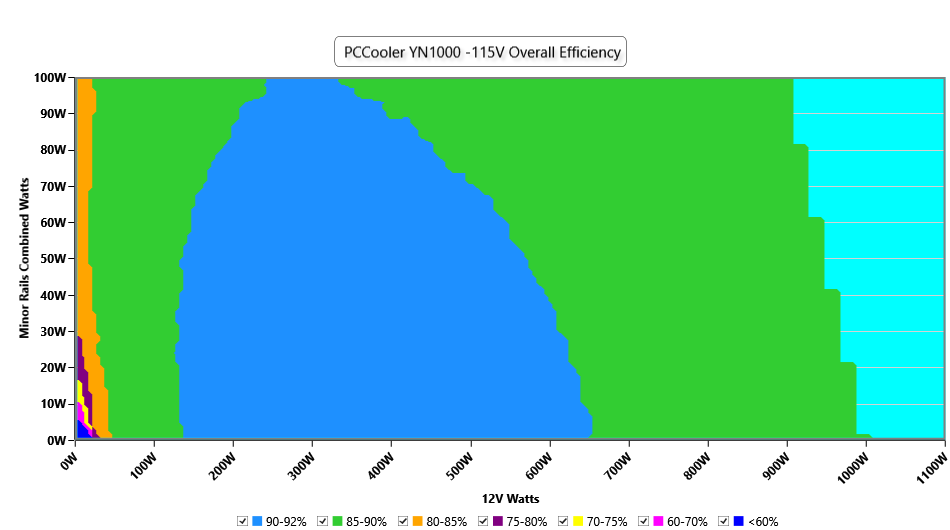

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

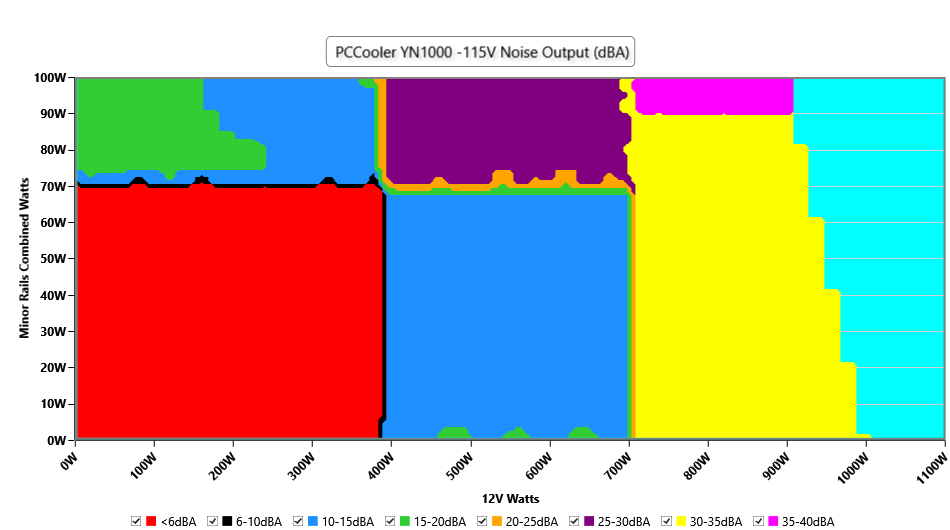

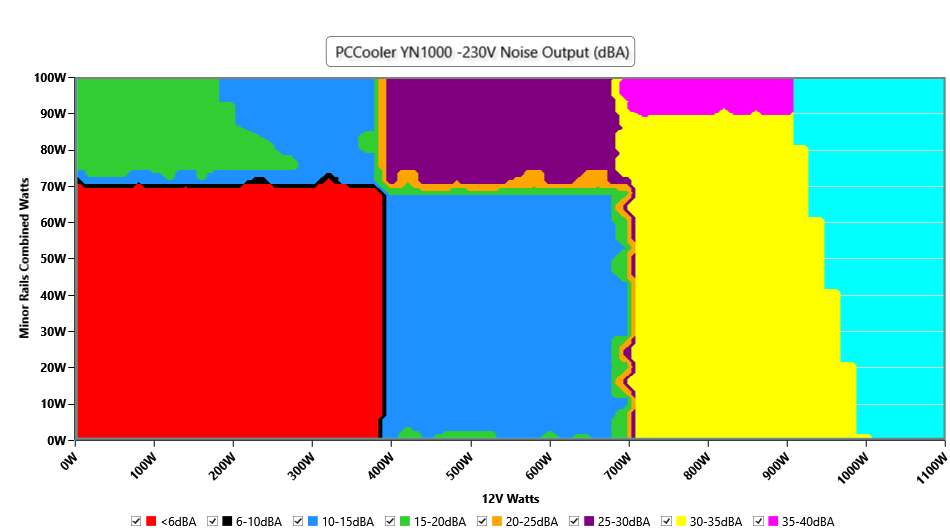

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

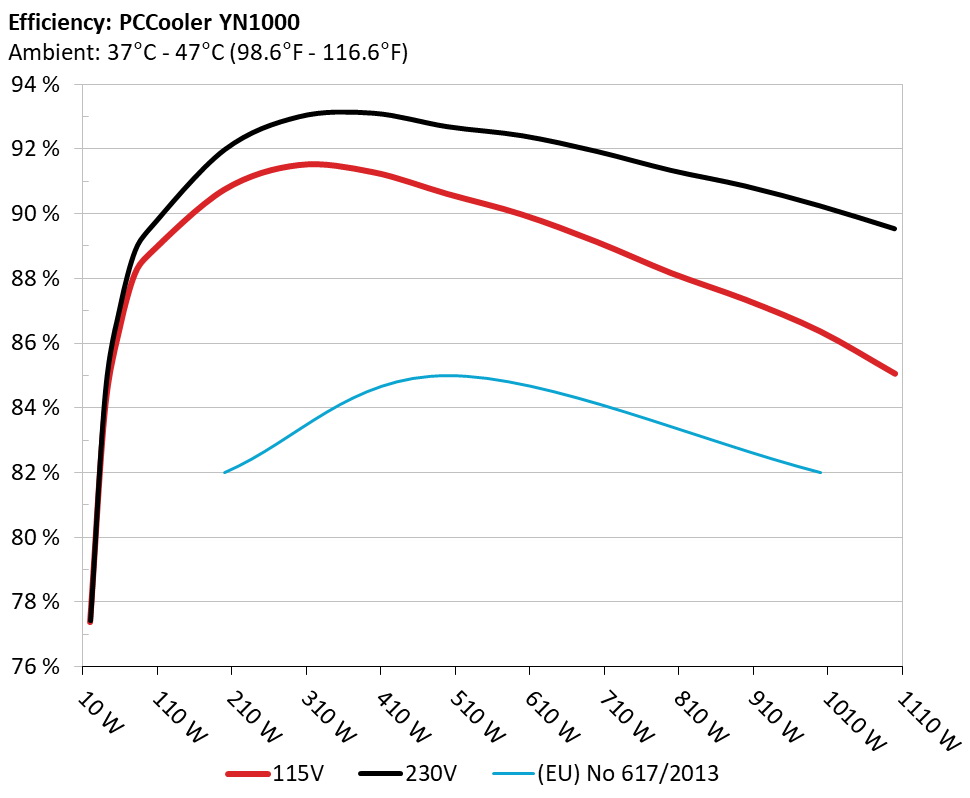

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

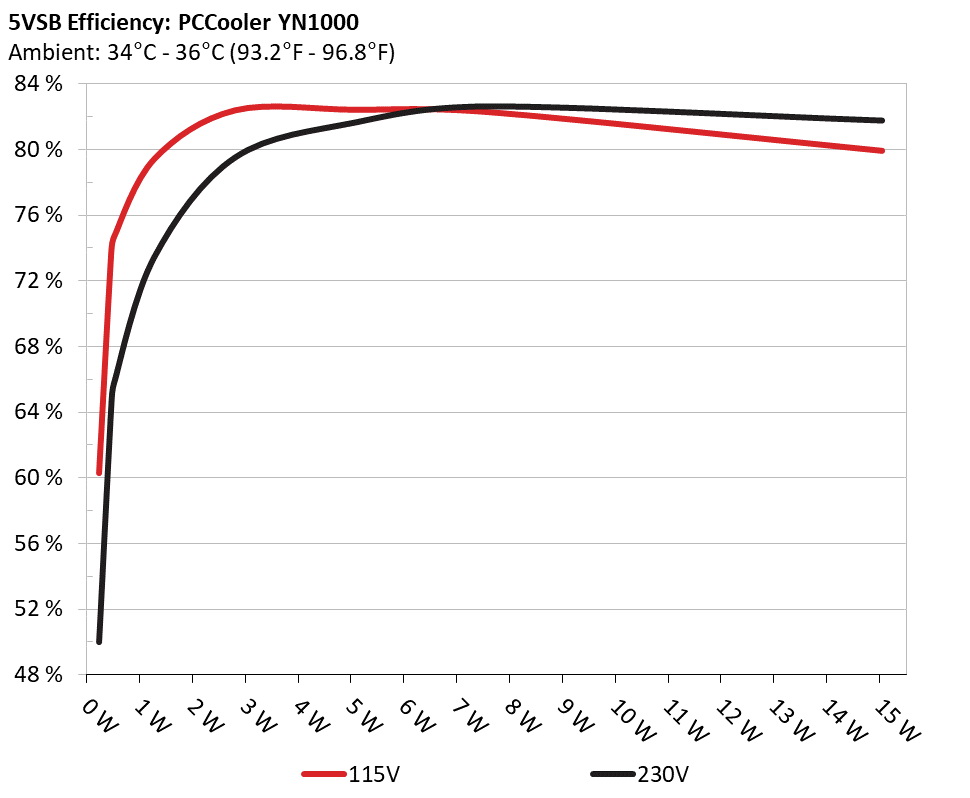

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 60.307% 0.037
5.118V 0.382W 114.87V
2 0.09A 0.46W 73.741% 0.059
5.117V 0.624W 114.88V
3 0.55A 2.805W 82.373% 0.257
5.1V 3.405W 114.88V
4 1A 5.085W 82.404% 0.357
5.085V 6.171W 114.87V
5 1.5A 7.601W 82.264% 0.407
5.067V 9.24W 114.88V
6 3A 15.043W 79.912% 0.481
5.014V 18.824W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 49.986% 0.013
5.117V 0.461W 229.95V
2 0.09A 0.461W 64.409% 0.02
5.116V 0.716W 229.94V
3 0.55A 2.805W 79.533% 0.097
5.1V 3.527W 229.95V
4 1A 5.085W 81.672% 0.161
5.085V 6.227W 229.94V
5 1.5A 7.603W 82.644% 0.215
5.068V 9.2W 229.94V
6 3A 15.049W 81.785% 0.323
5.017V 18.401W 229.94V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.507A 1.993A 1.986A 0.985A 99.979 88.772% 0 <6.0 44.38°C 0.959
12.046V 5.017V 3.323V 5.075V 112.626 40.15°C 114.84V
20% 14.009A 2.992A 2.983A 1.186A 199.92 90.75% 0 <6.0 45.37°C 0.976
12.066V 5.014V 3.319V 5.059V 220.3 40.83°C 114.8V
30% 21.860A 3.491A 3.483A 1.388A 299.963 91.511% 0 <6.0 46.34°C 0.979
12.072V 5.012V 3.316V 5.043V 327.784 41.29°C 114.77V
40% 29.683A 3.991A 3.984A 1.591A 399.455 91.291% 0 <6.0 47.18°C 0.98
12.070V 5.011V 3.313V 5.028V 437.561 41.55°C 114.73V
50% 37.196A 4.996A 4.988A 1.796A 499.185 90.619% 899 26.3 42.25°C 0.981
12.063V 5.004V 3.308V 5.012V 550.852 48.26°C 114.69V
60% 44.769A 5.999A 5.993A 2A 599.712 89.98% 897 26.3 42.81°C 0.982
12.060V 5.001V 3.304V 4.995V 666.49 49.35°C 114.66V
70% 52.270A 7.005A 7A 2.21A 699.447 89.14% 891 26.1 43.15°C 0.985
12.059V 4.997V 3.3V 4.977V 784.661 50.24°C 114.62V
80% 59.844A 8.001A 8.009A 2.316A 799.411 88.175% 1448 39.8 43.67°C 0.987
12.058V 4.992V 3.296V 4.964V 906.617 51.73°C 114.58V
90% 67.750A 8.516A 8.503A 2.423A 899.262 87.35% 1446 39.7 44.34°C 0.988
12.056V 4.99V 3.293V 4.952V 1029.497 53.39°C 114.53V
100% 75.450A 9.021A 9.029A 3.047A 999.268 86.374% 1443 39.7 45.18°C 0.989
12.056V 4.988V 3.289V 4.922V 1156.916 55.27°C 114.5V
110% 83.056A 10.027A 10.135A 3.055A 1099.895 85.066% 1440 39.7 46.51°C 0.989
12.059V 4.986V 3.285V 4.91V 1292.998 57.42°C 114.44V
CL1 0.114A 12.04A 11.992A 0A 101.276 83.713% 909 26.5 40.01°C 0.963
12.062V 5V 3.31V 5.091V 120.979 45.46°C 114.83V
CL2 0.114A 20.062A 0A 0A 101.349 81.565% 1459 39.9 41.07°C 0.964
12.056V 4.983V 3.326V 5.098V 124.257 48.09°C 114.82V
CL3 0.114A 0A 19.987A 0A 67.374 77.186% 911 26.7 40.61°C 0.953
12.046V 5.024V 3.302V 5.095V 87.293 49.62°C 114.84V
CL4 83.002A 0A 0A 0.001A 999.857 87.162% 1445 39.7 45.06°C 0.989
12.046V 5.009V 3.304V 5.032V 1147.136 55.98°C 114.5V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.507A 1.993A 1.986A 0.986A 100.003 89.556% 0 <6.0 44.52°C 0.83
12.048V 5.018V 3.323V 5.072V 111.666 40.29°C 229.92V
20% 14.009A 2.992A 2.983A 1.187A 199.957 91.985% 0 <6.0 45.31°C 0.916
12.067V 5.015V 3.319V 5.056V 217.384 40.64°C 229.91V
30% 21.860A 3.491A 3.483A 1.389A 300.01 93.006% 0 <6.0 46.63°C 0.944
12.075V 5.013V 3.316V 5.039V 322.57 41.47°C 229.89V
40% 29.690A 3.991A 3.985A 1.593A 399.62 93.116% 0 <6.0 47.51°C 0.957
12.072V 5.012V 3.313V 5.023V 429.163 41.92°C 229.88V
50% 37.195A 4.995A 4.988A 1.798A 499.318 92.699% 897 26.3 42.2°C 0.964
12.066V 5.006V 3.308V 5.007V 538.641 48.22°C 229.86V
60% 44.768A 5.999A 5.993A 2A 599.767 92.418% 895 26.2 42.89°C 0.968
12.061V 5.001V 3.304V 4.992V 648.972 49.47°C 229.84V
70% 52.267A 7.005A 6.999A 2.211A 699.443 91.935% 891 26.1 43.12°C 0.972
12.060V 4.997V 3.301V 4.975V 760.8 50.16°C 229.83V
80% 59.844A 8.001A 8.009A 2.317A 799.393 91.349% 1447 39.7 43.77°C 0.974
12.057V 4.992V 3.296V 4.963V 875.095 51.83°C 229.81V
90% 67.754A 8.516A 8.503A 2.424A 899.25 90.864% 1445 39.7 44.43°C 0.975
12.055V 4.99V 3.293V 4.95V 989.67 53.45°C 229.79V
100% 75.445A 9.02A 9.029A 3.049A 999.285 90.253% 1441 39.7 45.3°C 0.976
12.056V 4.988V 3.289V 4.92V 1107.197 55.37°C 229.78V
110% 83.060A 10.027A 10.134A 3.055A 1099.895 89.544% 1442 39.7 46.6°C 0.978
12.059V 4.986V 3.285V 4.909V 1228.333 57.52°C 229.76V
CL1 0.114A 12.038A 11.991A 0A 101.284 84.395% 906 26.5 41.54°C 0.843
12.065V 5.001V 3.311V 5.091V 120.017 47.03°C 229.93V
CL2 0.114A 20.058A 0A 0A 101.352 82.301% 1457 39.9 40.36°C 0.847
12.057V 4.984V 3.326V 5.098V 123.149 47.43°C 229.93V
CL3 0.114A 0A 19.987A 0A 67.375 77.738% 1253 35.8 41.47°C 0.778
12.046V 5.024V 3.302V 5.095V 86.671 50.52°C 229.94V
CL4 83.004A 0A 0A 0.001A 999.871 90.861% 1442 39.7 45.24°C 0.976
12.046V 5.009V 3.304V 5.032V 1100.446 56.2°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.498A 0.496A 0.196A 19.996 77.389% 0 <6.0 39.79°C 0.813
12.036V 5.019V 3.328V 5.109V 25.839 36.71°C 114.86V
40W 2.716A 0.697A 0.694A 0.294A 39.995 83.98% 0 <6.0 40.59°C 0.908
12.037V 5.019V 3.327V 5.104V 47.624 37.28°C 114.86V
60W 4.196A 0.896A 0.893A 0.392A 59.993 86.502% 0 <6.0 41.89°C 0.94
12.040V 5.019V 3.327V 5.099V 69.358 38.16°C 114.85V
80W 5.672A 1.095A 1.091A 0.491A 79.929 88.143% 0 <6.0 43.09°C 0.954
12.042V 5.02V 3.326V 5.093V 90.679 39.12°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.498A 0.496A 0.196A 20.007 77.427% 0 <6.0 39.8°C 0.448
12.041V 5.024V 3.329V 5.107V 25.843 36.72°C 229.94V
40W 2.714A 0.697A 0.694A 0.294A 40.003 84.528% 0 <6.0 40.28°C 0.621
12.042V 5.023V 3.328V 5.102V 47.323 37°C 229.94V
60W 4.196A 0.896A 0.893A 0.392A 60.002 87.16% 0 <6.0 41.95°C 0.722
12.044V 5.022V 3.327V 5.097V 68.844 38.43°C 229.93V
80W 5.672A 1.095A 1.091A 0.491A 79.95 88.869% 0 <6.0 43.05°C 0.786
12.046V 5.022V 3.326V 5.091V 89.959 39.22°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load19.69mV7.37mV8.38mV15.43mVPass
20% Load24.80mV7.21mV8.27mV15.79mVPass
30% Load9.47mV7.32mV8.38mV16.41mVPass
40% Load8.51mV9.94mV11.48mV18.17mVPass
50% Load8.71mV12.05mV13.34mV20.18mVPass
60% Load9.18mV9.38mV11.12mV23.18mVPass
70% Load9.28mV8.96mV11.79mV24.16mVPass
80% Load9.69mV9.58mV12.82mV26.02mVPass
90% Load10.11mV11.28mV13.60mV28.44mVPass
100% Load15.16mV12.13mV18.43mV31.92mVPass
110% Load15.28mV12.37mV20.20mV35.85mVPass
Crossload119.02mV10.43mV10.14mV13.10mVPass
Crossload222.94mV15.04mV10.34mV11.92mVPass
Crossload322.53mV8.29mV10.86mV11.56mVPass
Crossload414.02mV11.13mV18.49mV19.57mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.44mV6.75mV7.55mV14.04mVPass
20% Load24.54mV6.75mV7.65mV14.25mVPass
30% Load10.86mV6.65mV8.02mV14.40mVPass
40% Load16.03mV12.42mV39.41mV19.82mVPass
50% Load8.97mV11.69mV12.20mV17.34mVPass
60% Load9.13mV9.07mV11.07mV19.41mVPass
70% Load9.64mV8.96mV12.31mV22.71mVPass
80% Load10.05mV9.22mV12.88mV20.85mVPass
90% Load9.49mV11.85mV12.31mV22.25mVPass
100% Load15.14mV11.54mV15.20mV25.92mVPass
110% Load15.99mV12.63mV17.38mV28.84mVPass
Crossload119.99mV10.24mV10.89mV14.34mVPass
Crossload222.58mV15.82mV9.05mV12.29mVPass
Crossload323.00mV8.09mV10.81mV11.62mVPass
Crossload414.70mV11.02mV16.11mV18.43mVPass

The results above are not used in the certification process

PCCooler YN1000

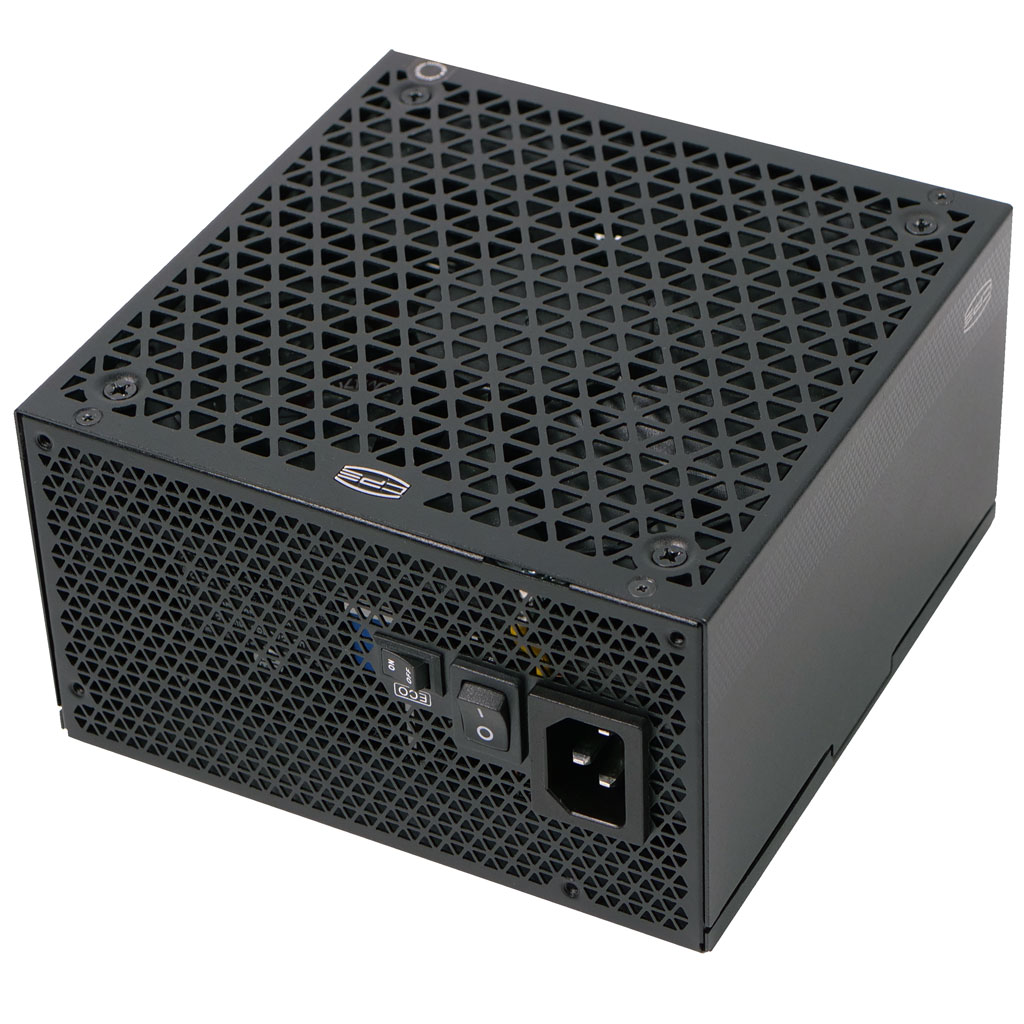

Top side

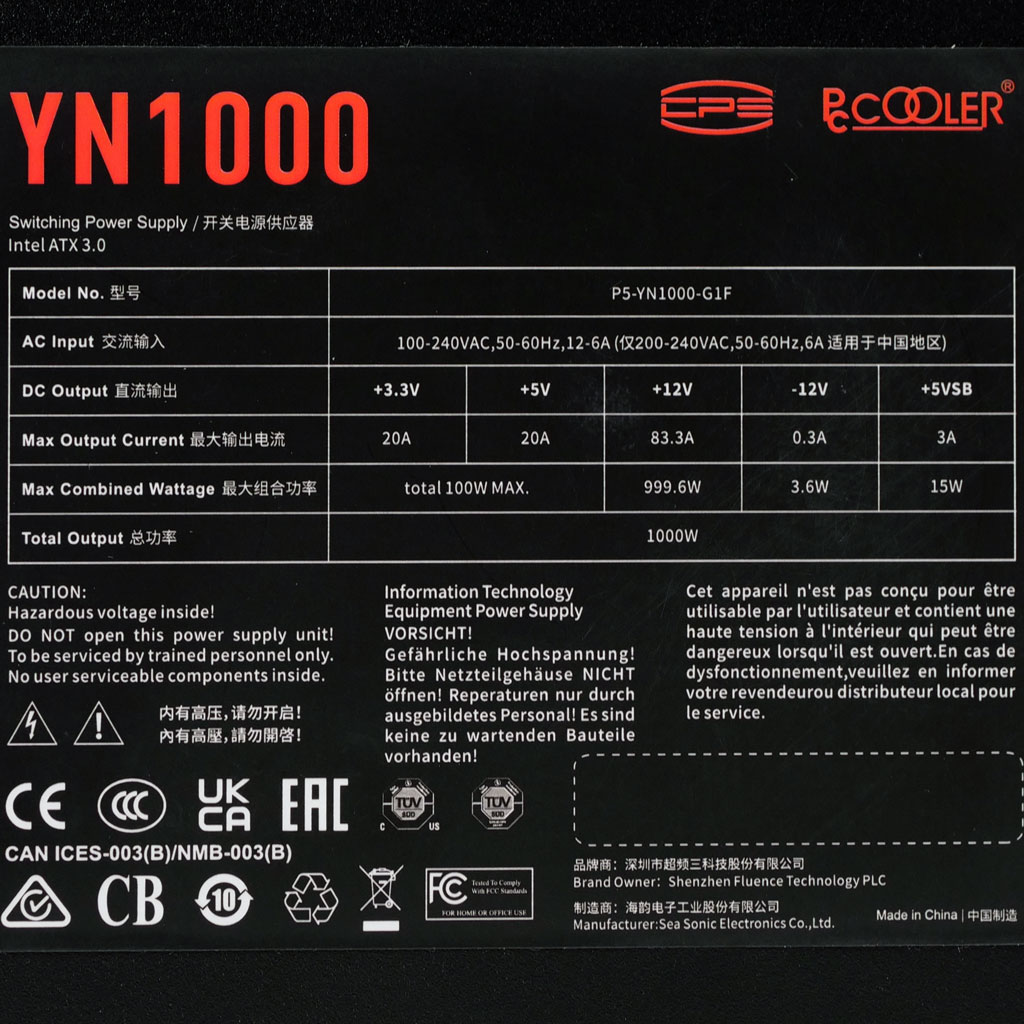

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
