CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Lian Li EDGE 1000
Serial Number
Lab IDLL10002400
  • Report: 24PS2400A
  • Receipt Date: Mar 20, 2024
  • Test Date: Mar 29, 2024
  • Report Date: Apr 1, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandLian Li
Manufacturer (OEM)Helly Technology
SeriesEDGE
Model NumberEG1000
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts120996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (400mm) 1 1 18-22AWG No
4+4 pin EPS12V (550mm) 2 2 18AWG No
6+2 pin PCIe (550mm) 3 3 18AWG No
12+4 pin PCIe (550mm) (600W) 1 1 16-26AWG No
2x SATA (400mm+100mm) 1 4 18AWG No
SATA (400mm+200mm+200mm+200mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No

Parts Description

General Data
Manufacturer (OEM) Helly Technology
PCB Type Double-Sided
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF73T-2 (20 Ohm) & Relay
Bridge Rectifier(s) 2x GBU1508 (8000V, 15A @ with heatsink)
APFC MOSFETs 3x PTA25N50 (500V, 16A @ 100°C, Rds(on): 0.28Ohm)
APFC Boost Diode 1x G3S06510A (650V, 35A @ 25°C)
Bulk Cap(s) 2x Nichicon (400V, 470uFeach or 940 both, 2000h @ 105°C, GN(M))
Main Switchers 4x Convert CS20N50FF (500V, 20A @ 100°C, Rds(on): 0.27Ohm)
APFC/Resonant Controller 1x Champion CM6901T6
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x G013N04G
5V & 3.3V DC-DC Converters: 2x XSEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) &
3x RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic:
1x Rubycon (2-10,000 @ 105°C, YXF),
2x Nippon Chemi-Con (3-6,000 @ 105°C, W),
5x Nippon Chemi-Con (2-5000 @ 105°C, KZE),
Polymer: 6x PC Caps, 23x United Chemi-Con
Supervisor IC Weltrend WT7527 (OVD, PGO , UVD)
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit
High Side Rectifier 1x 60R20S
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.150%
Average Noise Output (>1450 Load Combinations)25.06dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load68.889%
Standby Power Consumption0.0435W
12V Ripple (Full Load)30.20mV
5V Ripple (Full Load)16.69mV
3.3V Ripple (Full Load)19.24mV
5VSB Ripple (Full Load)11.31mV
12V Load Regulation0.27%
5V Load Regulation0.60%
3.3V Load Regulation1.05%
5VSB Load Regulation2.17%
Inrush Current33.160A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)91.563%
Average Noise Output (>1450 Load Combinations)24.47dBA
Average PF (>1450 Load Combinations)0.969
Efficiency With 10W (≤500W) or 2% (>500W) Load68.111%
Standby Power Consumption0.0948W
12V Ripple (Full Load)30.60mV
5V Ripple (Full Load)16.01mV
3.3V Ripple (Full Load)18.96mV
5VSB Ripple (Full Load)10.86mV
12V Load Regulation0.23%
5V Load Regulation0.54%
3.3V Load Regulation0.99%
5VSB Load Regulation2.09%
Inrush Current50.450A
12V Transient Response (200%)11.63V
5V Transient Response (200%)4.897V
3.3V Transient Response (200%)3.229V
5VSB Transient Response (200%)4.878V
Hold-Up Time & Power Ok Signal18.50ms
AC Loss to PWR_OK Hold Up Time16.10ms
PWR_OK Inactive to DC Loss Delay2.40ms
PSU Timings: T1 (20% / 100%)62.0ms62.0ms
PSU Timings: T3 (20% / 100%)121.0ms124.0ms
OPP (28.19°C / 43.07°C)132.91%128.71%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.5
AC Loss to PWR_OK Hold Up Time (ms)16.1
PWR_OK Inactive to DC Loss Delay (ms)2.4

Vampire Power

Tables

Graphs

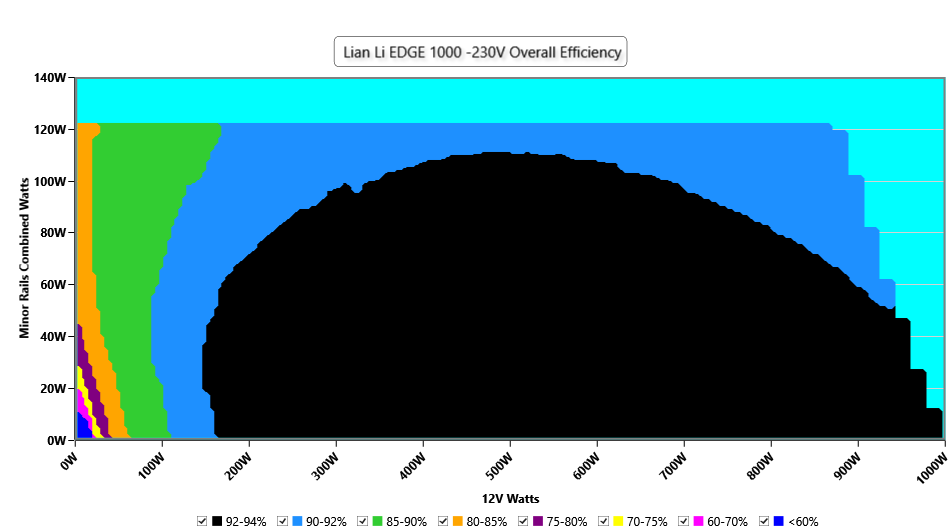

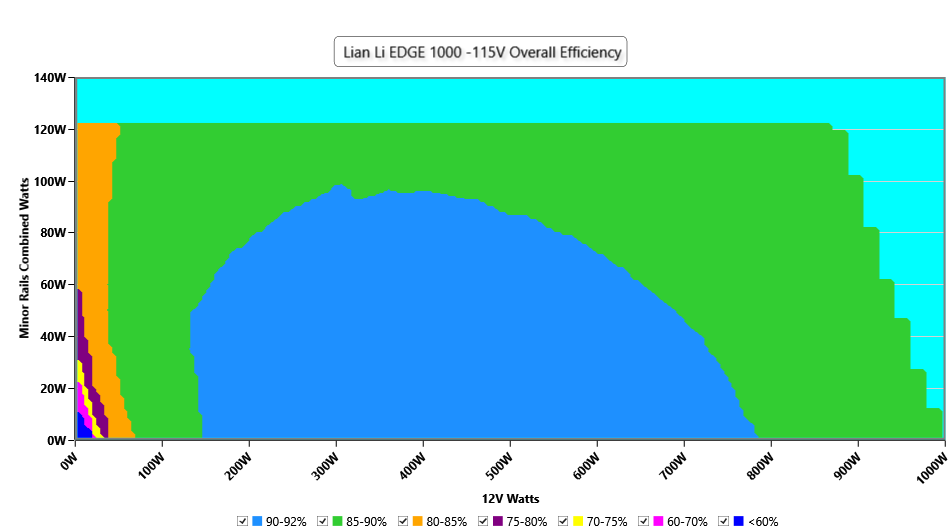

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

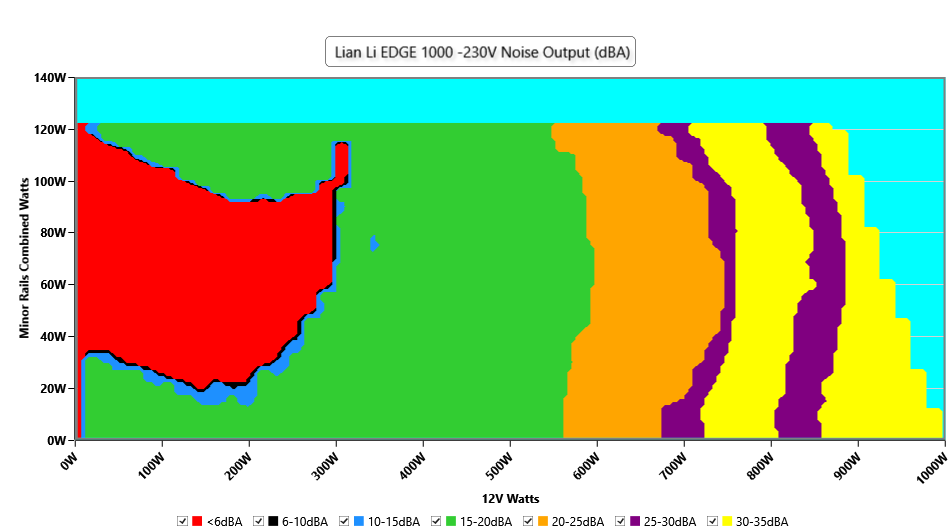

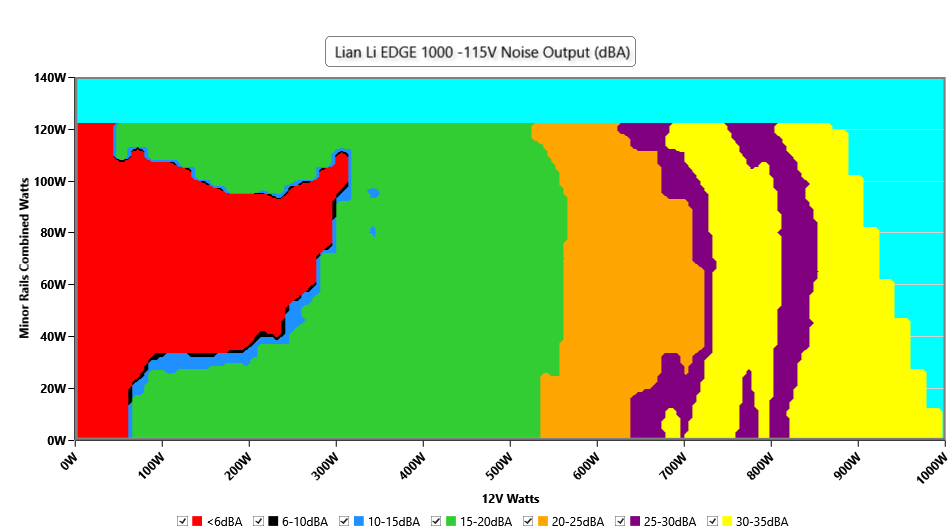

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

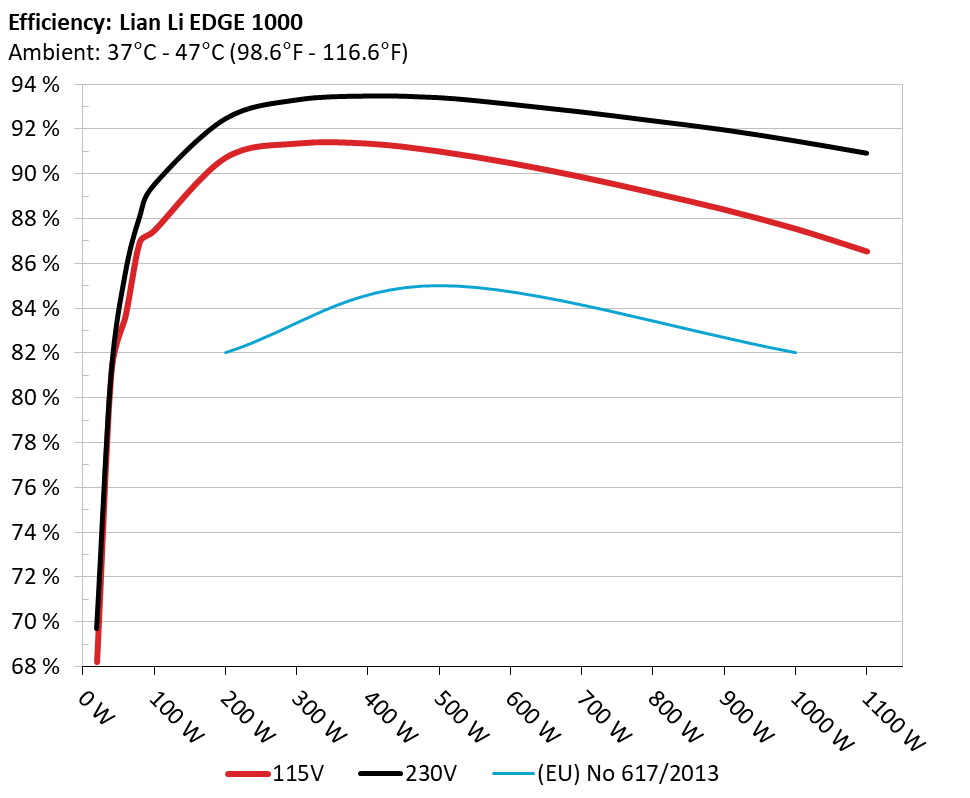

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

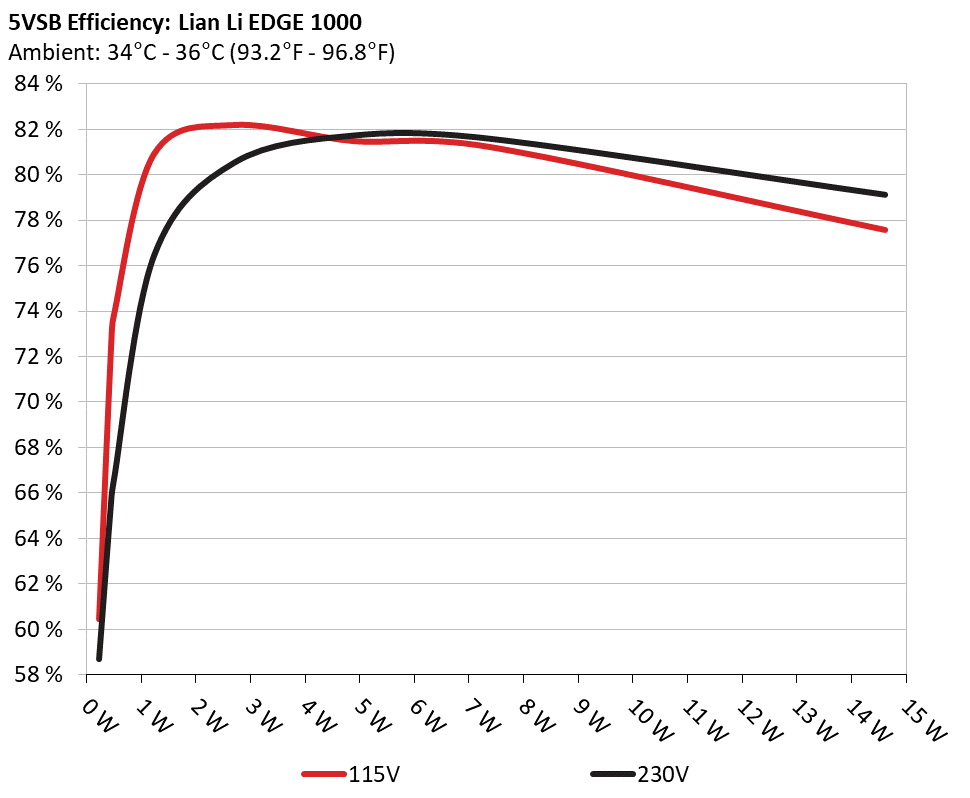

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 60.44% 0.034
4.926V 0.259W 114.88V
2 0.09A 0.443W 72.564% 0.079
4.925V 0.611W 114.88V
3 0.55A 2.704W 82.21% 0.327
4.916V 3.289W 114.88V
4 1A 4.908W 81.494% 0.445
4.908V 6.023W 114.88V
5 1.5A 7.349W 81.252% 0.51
4.899V 9.045W 114.87V
6 3A 14.614W 77.588% 0.578
4.871V 18.836W 114.88V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 58.679% 0.015
4.926V 0.378W 229.96V
2 0.09A 0.443W 65.656% 0.026
4.925V 0.675W 229.95V
3 0.55A 2.704W 80.549% 0.123
4.917V 3.357W 229.95V
4 1A 4.908W 81.743% 0.205
4.909V 6.004W 229.95V
5 1.5A 7.349W 81.603% 0.278
4.899V 9.006W 229.95V
6 3A 14.615W 79.129% 0.388
4.872V 18.47W 229.94V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.399A 2.001A 1.957A 1.007A 99.999 87.443% 953 19.0 40.32°C 0.965
12.252V 4.998V 3.372V 4.964V 114.358 44.59°C 114.84V
20% 13.802A 3.003A 2.939A 1.21A 199.952 90.694% 987 18.1 40.75°C 0.982
12.249V 4.995V 3.368V 4.959V 220.472 45.41°C 114.81V
30% 21.557A 3.506A 3.432A 1.414A 300.006 91.335% 1042 19.2 41.05°C 0.988
12.244V 4.993V 3.365V 4.95V 328.467 46.1°C 114.77V
40% 29.279A 4.008A 3.926A 1.619A 399.611 91.33% 1127 22.8 41.85°C 0.992
12.241V 4.99V 3.362V 4.941V 437.547 47.39°C 114.75V
50% 36.674A 5.013A 4.913A 1.823A 499.305 90.986% 1382 28.4 42.14°C 0.994
12.238V 4.988V 3.359V 4.937V 548.774 48.2°C 114.7V
60% 44.141A 6.02A 5.902A 2A 599.719 90.464% 1474 29.3 42.7°C 0.995
12.234V 4.985V 3.355V 4.933V 662.934 49.2°C 114.67V
70% 51.544A 7.027A 6.892A 2.233A 699.563 89.84% 1577 31.7 43.42°C 0.996
12.231V 4.982V 3.352V 4.927V 778.678 50.47°C 114.63V
80% 59.018A 8.034A 7.884A 2.334A 799.573 89.137% 1679 34.4 43.69°C 0.996
12.228V 4.979V 3.349V 4.928V 897.017 51.69°C 114.6V
90% 66.821A 8.539A 8.369A 2.437A 899.357 88.391% 1782 34.7 44.55°C 0.997
12.225V 4.977V 3.346V 4.924V 1017.485 53.52°C 114.56V
100% 74.433A 9.046A 8.885A 3.067A 999.377 87.538% 1867 36.7 45.52°C 0.997
12.222V 4.975V 3.343V 4.892V 1141.646 55.7°C 114.51V
110% 81.976A 10.056A 9.973A 3.063A 1099.978 86.524% 1875 36.9 46.75°C 0.997
12.219V 4.972V 3.339V 4.898V 1271.305 57.68°C 114.48V
CL1 0.115A 14.513A 14.21A 0A 121.302 81.189% 1457 29.3 40.17°C 0.975
12.253V 4.975V 3.357V 5.126V 149.406 41.5°C 114.83V
CL2 0.114A 20.123A 0A 0A 101.373 79.71% 1162 22.6 40.11°C 0.969
12.253V 4.968V 3.378V 5.182V 127.177 41.51°C 114.84V
CL4 81.829A 0A 0A 0A 999.949 88.478% 1722 34.3 41.55°C 0.997
12.220V 4.993V 3.355V 4.98V 1130.172 47.94°C 114.53V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.398A 1.999A 1.956A 1.006A 99.984 89.483% 1009 20.5 40.23°C 0.902
12.252V 5.001V 3.374V 4.968V 111.736 44.5°C 229.93V
20% 13.800A 3.003A 2.938A 1.209A 199.931 92.442% 1001 19.2 40.55°C 0.953
12.249V 4.996V 3.369V 4.961V 216.279 45.22°C 229.91V
30% 21.551A 3.505A 3.431A 1.414A 299.978 93.293% 1071 21.7 41.4°C 0.968
12.246V 4.994V 3.366V 4.952V 321.542 46.49°C 229.9V
40% 29.266A 4.007A 3.925A 1.619A 399.519 93.469% 1147 22.9 41.7°C 0.977
12.243V 4.991V 3.363V 4.942V 427.438 47.28°C 229.88V
50% 36.662A 5.012A 4.911A 1.823A 499.217 93.4% 1381 28.4 42.09°C 0.981
12.239V 4.988V 3.36V 4.938V 534.494 48.15°C 229.87V
60% 44.129A 6.018A 5.9A 2A 599.642 93.107% 1470 29.3 42.8°C 0.984
12.236V 4.985V 3.356V 4.934V 644.033 49.3°C 229.85V
70% 51.532A 7.026A 6.891A 2.232A 699.492 92.761% 1557 31.6 43.3°C 0.986
12.233V 4.983V 3.353V 4.928V 754.077 50.32°C 229.84V
80% 59.004A 8.032A 7.882A 2.334A 799.506 92.366% 1680 34.4 43.93°C 0.988
12.230V 4.98V 3.349V 4.928V 865.578 52.1°C 229.82V
90% 66.809A 8.538A 8.367A 2.437A 899.313 91.963% 1776 34.6 44.86°C 0.989
12.226V 4.977V 3.346V 4.924V 977.908 53.95°C 229.81V
100% 74.418A 9.044A 8.883A 3.067A 999.325 91.468% 1868 36.7 45.6°C 0.99
12.224V 4.975V 3.343V 4.892V 1092.54 55.68°C 229.79V
110% 81.963A 10.056A 9.972A 3.063A 1099.931 90.919% 1875 36.9 46.85°C 0.991
12.221V 4.972V 3.339V 4.897V 1209.784 57.76°C 229.77V
CL1 0.114A 14.509A 14.204A 0A 121.296 82.59% 1515 32.5 41.65°C 0.926
12.256V 4.976V 3.358V 5.128V 146.862 43.81°C 229.93V
CL2 0.113A 20.122A 0A 0A 101.365 81.214% 1192 23.5 41°C 0.913
12.257V 4.968V 3.378V 5.183V 124.812 42.27°C 229.93V
CL4 81.809A 0A 0A 0A 999.927 92.253% 1777 34.6 45.56°C 0.99
12.223V 4.994V 3.356V 4.981V 1083.907 47.41°C 229.79V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.5A 0.488A 0.2A 20.001 68.219% 0 <6.0 39.78°C 0.897
12.255V 5.005V 3.378V 4.998V 29.325 36.65°C 114.86V
40W 2.668A 0.699A 0.684A 0.3A 40.001 81.113% 0 <6.0 40.57°C 0.93
12.254V 5.005V 3.378V 4.995V 49.315 37.26°C 114.86V
60W 4.124A 0.9A 0.88A 0.401A 60.001 83.646% 0 <6.0 41.88°C 0.951
12.253V 5.002V 3.376V 4.989V 71.731 38.26°C 114.86V
80W 5.576A 1.1A 1.076A 0.502A 79.946 86.935% 941 16.8 39.32°C 0.96
12.253V 5.002V 3.375V 4.985V 91.963 43.25°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.5A 0.489A 0.2A 19.989 69.695% 0 <6.0 39.74°C 0.594
12.249V 5V 3.375V 4.994V 28.679 36.64°C 229.96V
40W 2.668A 0.7A 0.684A 0.3A 39.992 80.943% 0 <6.0 41.22°C 0.747
12.249V 5.002V 3.376V 4.993V 49.41 37.92°C 229.96V
60W 4.124A 0.9A 0.88A 0.401A 59.992 85.521% 0 <6.0 41.88°C 0.833
12.250V 5.002V 3.375V 4.989V 70.149 38.18°C 229.95V
80W 5.576A 1.1A 1.075A 0.501A 79.929 88.037% 0 <6.0 43.13°C 0.876
12.250V 5.002V 3.375V 4.985V 90.789 39.27°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load13.92mV11.44mV15.36mV7.64mVPass
20% Load15.00mV11.59mV15.20mV7.69mVPass
30% Load15.41mV11.64mV15.67mV7.59mVPass
40% Load15.83mV11.64mV15.31mV7.69mVPass
50% Load16.75mV14.07mV15.62mV9.09mVPass
60% Load17.22mV14.89mV16.29mV10.43mVPass
70% Load17.69mV18.29mV18.51mV13.52mVPass
80% Load20.11mV16.64mV19.14mV12.65mVPass
90% Load19.75mV16.75mV19.34mV12.23mVPass
100% Load30.20mV16.69mV19.24mV11.31mVPass
110% Load30.51mV18.19mV18.86mV12.16mVPass
Crossload120.89mV13.64mV16.82mV8.49mVPass
Crossload215.00mV13.81mV15.62mV7.90mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload430.08mV14.87mV17.50mV9.04mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.20mV11.23mV14.94mV7.79mVPass
20% Load14.13mV11.69mV14.84mV7.59mVPass
30% Load15.17mV11.59mV16.75mV7.69mVPass
40% Load17.74mV11.33mV16.44mV7.90mVPass
50% Load16.77mV13.96mV16.08mV9.45mVPass
60% Load17.08mV16.12mV17.11mV12.44mVPass
70% Load17.27mV16.18mV19.14mV12.54mVPass
80% Load18.92mV16.07mV17.94mV11.98mVPass
90% Load18.87mV17.46mV17.89mV12.75mVPass
100% Load30.60mV16.01mV18.96mV10.86mVPass
110% Load32.84mV16.69mV19.16mV10.87mVPass
Crossload123.01mV12.66mV17.67mV9.27mVPass
Crossload213.77mV13.39mV15.31mV7.64mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload430.33mV14.22mV16.84mV9.38mVPass

The results above are not used in the certification process

Lian Li EDGE 1000

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
