CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

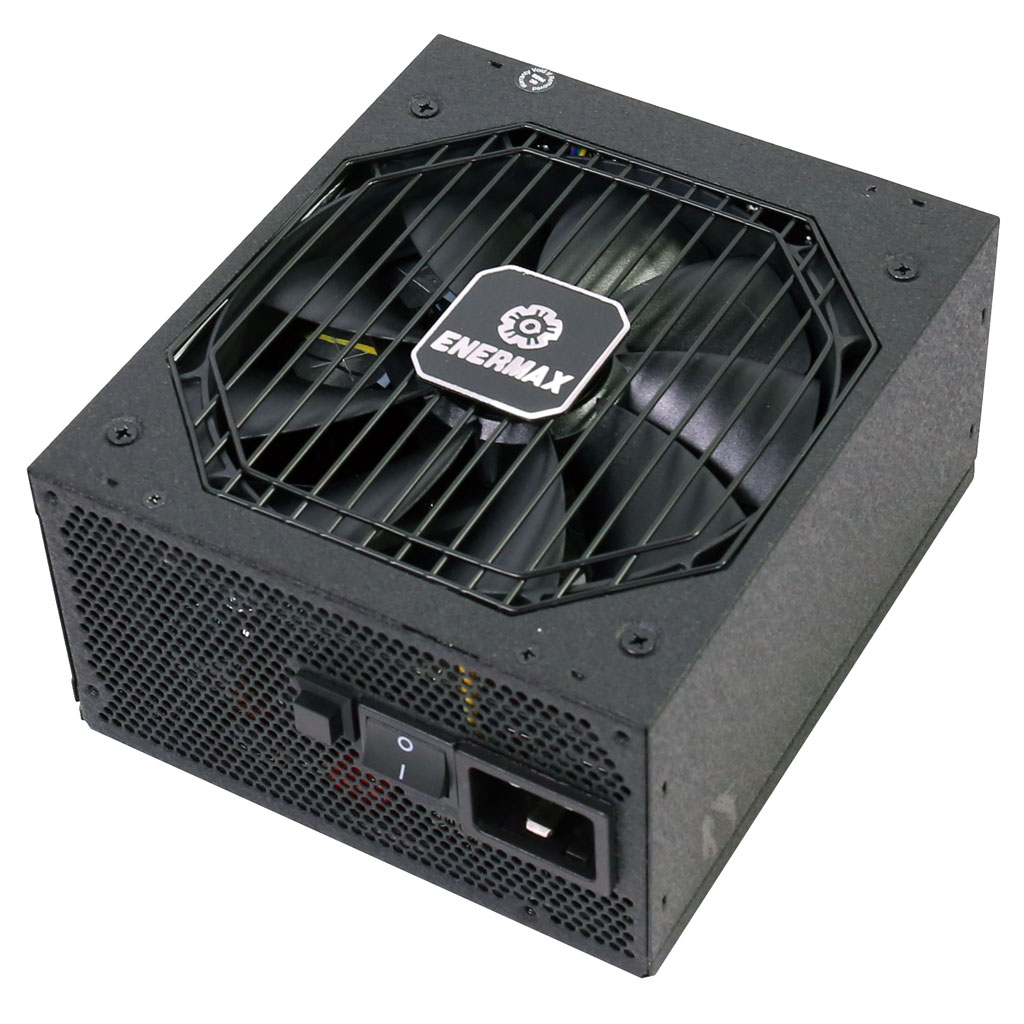

Enermax Revolution D.F.X 1650W
Serial Number23C2050030090
Lab IDEM16502407
Certification ID252407
  • Test Result Report ID: 24PS2407A
  • Certificate Issue Date: Apr 9, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandEnermax
Manufacturer (OEM)SANR
Series Revolution D.F.X
Model NumberERT1650EWT
Serial Number23C2050030090
DUT Notes

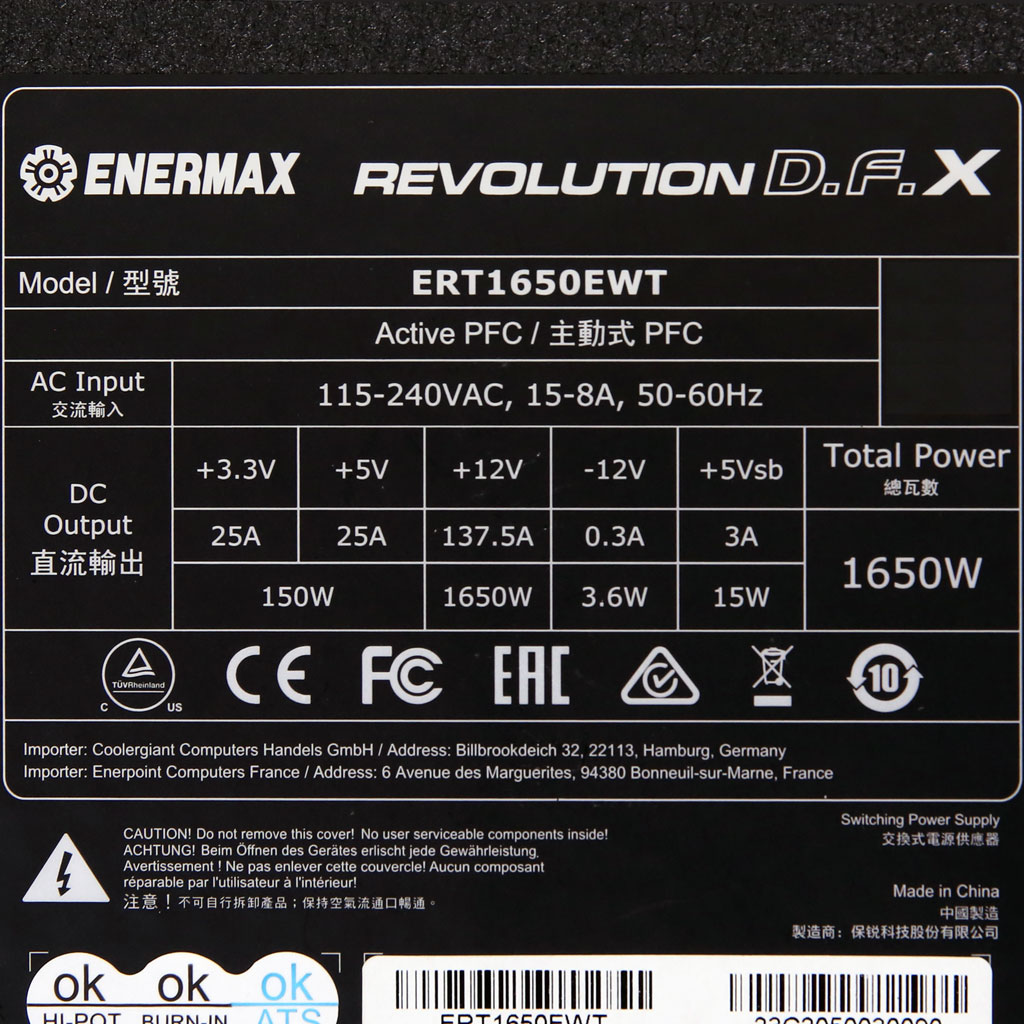

DUT Specifications

Rated Voltage (Vrms)115-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1650
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Double Ball Bearing Fan
(PFERT-14H)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525137.530.3
Watts1501650153.6
Total Max. Power (W)1650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 16-18AWG No
4+4 pin EPS12V (600mm) 1 1 16AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 1 1 18AWG No
6+2 pin PCIe (650mm+150mm) 3 6 16-18AWG No
12+4 pin PCIe (650mm) (600W) 2 2 16-26AWG No
12+2 pin PCIe (600mm) (600W) 1 1 16-26AWG No
SATA (450mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm) 2 6 18AWG No
SATA (450mm+150mm) / 4-pin Molex (+150mm) 1 2 / 1 18AWG Νο
FDD Adapter (+110mm) 1 1 20AWG No
RGB Cable (660mm+90mm) 1 2 26AWG No
AC Power Cord (1080mm) - C19 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.038%
Average Noise Output (>1450 Load Combinations)31.94dBA
Average PF (>1450 Load Combinations)0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load71.051%
Standby Power Consumption0.0605W
12V Ripple (Full Load)44.30mV
5V Ripple (Full Load)34.22mV
3.3V Ripple (Full Load)32.49mV
5VSB Ripple (Full Load)19.46mV
12V Load Regulation0.19%
5V Load Regulation0.39%
3.3V Load Regulation0.67%
5VSB Load Regulation1.76%
Inrush Current31.600A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)92.259%
Average Noise Output (>1450 Load Combinations)32.07dBA
Average PF (>1450 Load Combinations)0.962
Efficiency With 10W (≤500W) or 2% (>500W) Load70.753%
Standby Power Consumption0.1439W
12V Ripple (Full Load)44.59mV
5V Ripple (Full Load)37.45mV
3.3V Ripple (Full Load)34.15mV
5VSB Ripple (Full Load)19.02mV
12V Load Regulation0.17%
5V Load Regulation0.39%
3.3V Load Regulation0.67%
5VSB Load Regulation1.71%
Inrush Current51.120A
12V Transient Response (200%)11.14V
5V Transient Response (200%)4.963V
3.3V Transient Response (200%)3.162V
5VSB Transient Response (200%)4.819V
Hold-Up Time & Power Ok Signal23.20ms
AC Loss to PWR_OK Hold Up Time19.50ms
PWR_OK Inactive to DC Loss Delay3.70ms
PSU Timings: T1 (20% / 100%)130.0ms124.0ms
PSU Timings: T3 (20% / 100%)114.0ms114.0ms
OPP (28.10°C / 43.86°C)116.90%111.80%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.2
AC Loss to PWR_OK Hold Up Time (ms)19.5
PWR_OK Inactive to DC Loss Delay (ms)3.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.77 V 113.85 V 114.94 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.422 1.420 1.340 1.424 1.490 PASS
Mains Voltage THD: 0.15 % 0.10 % N/A 0.27 % 2.00 % PASS
Real Power: 0.061 W 0.051 W N/A 0.069 W N/A N/A
Apparent Power: 10.554 W 10.535 W N/A 10.576 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.84 V 229.74 V 227.70 V 229.96 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.420 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.26 % 2.00 % PASS
Real Power: 0.144 W 0.117 W N/A 0.182 W N/A N/A
Apparent Power: 35.707 W 35.677 W N/A 35.736 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

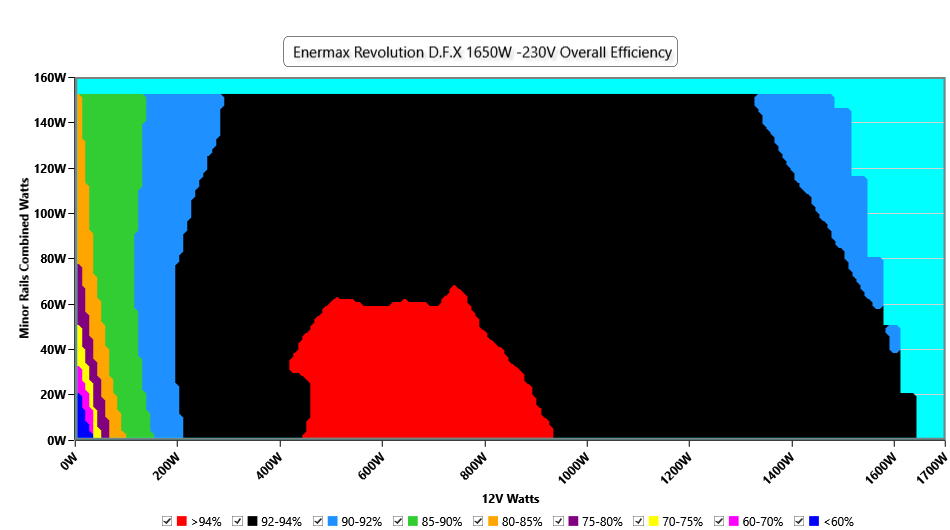

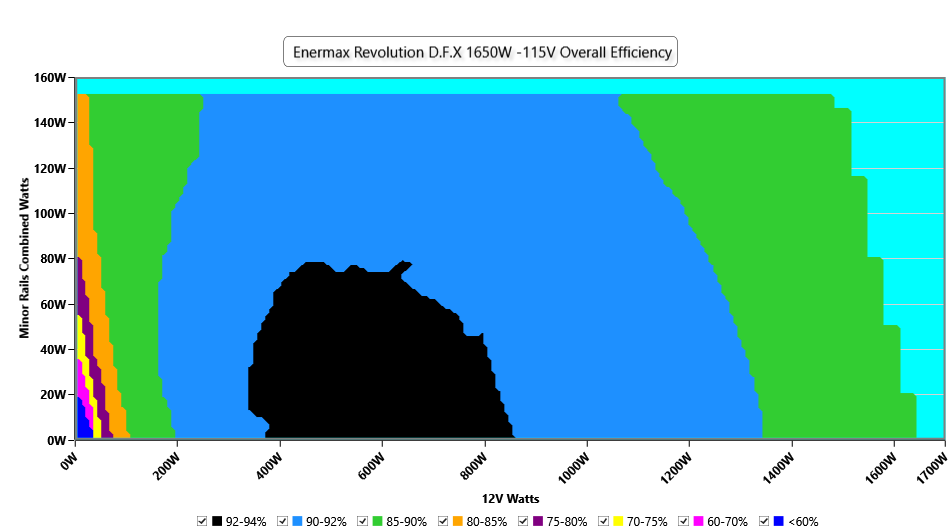

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

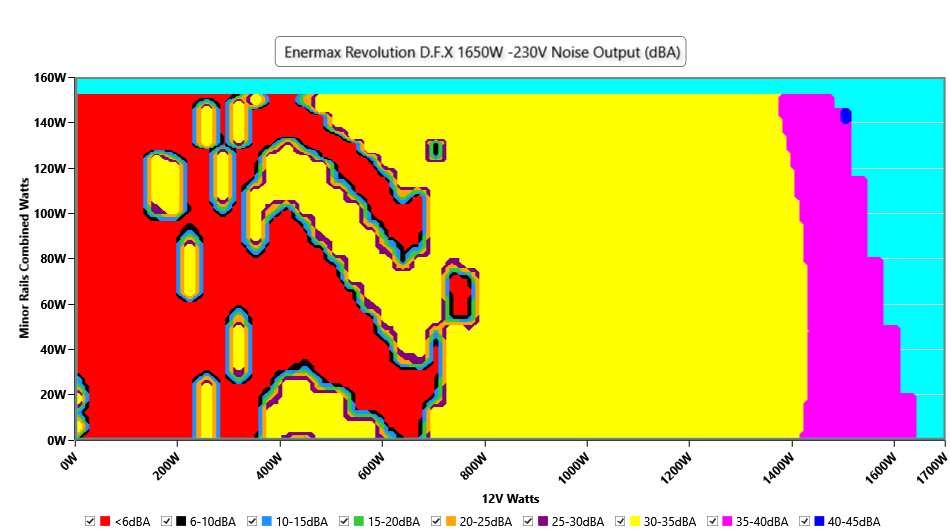

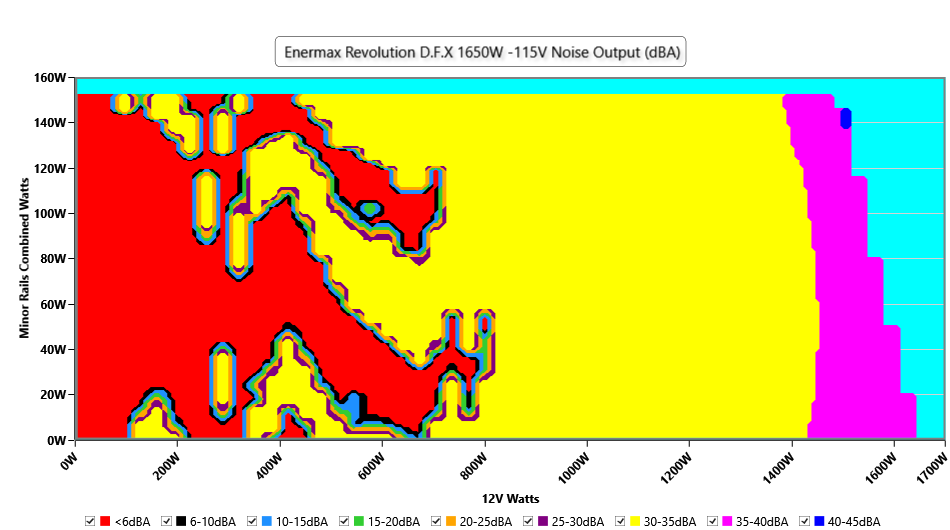

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

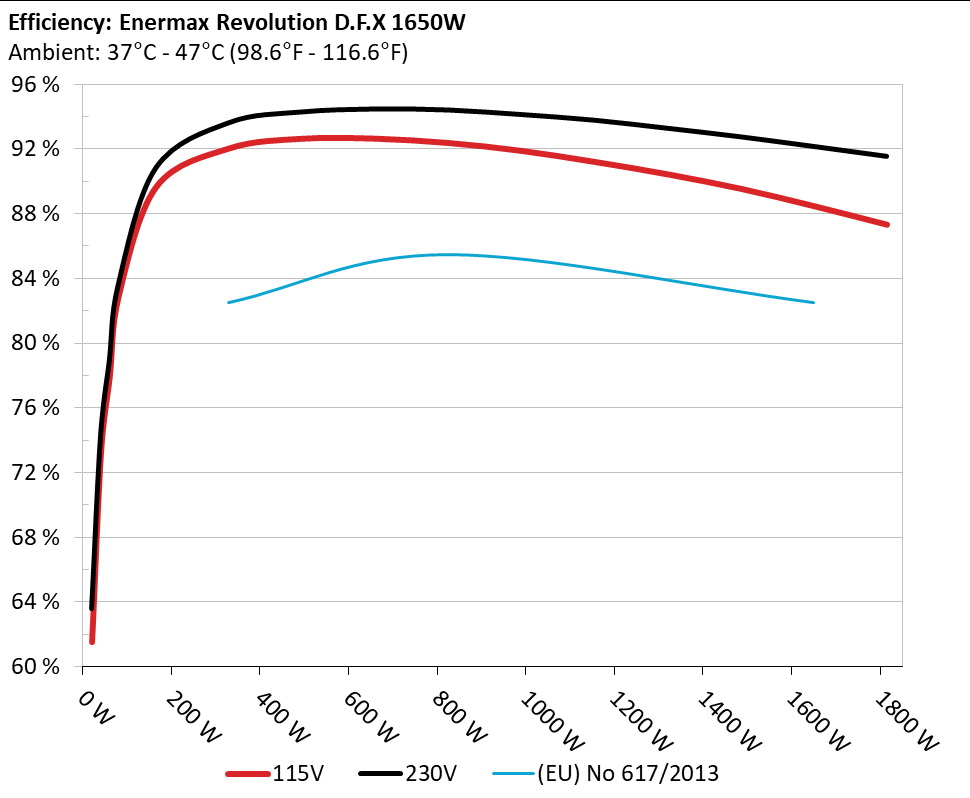

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

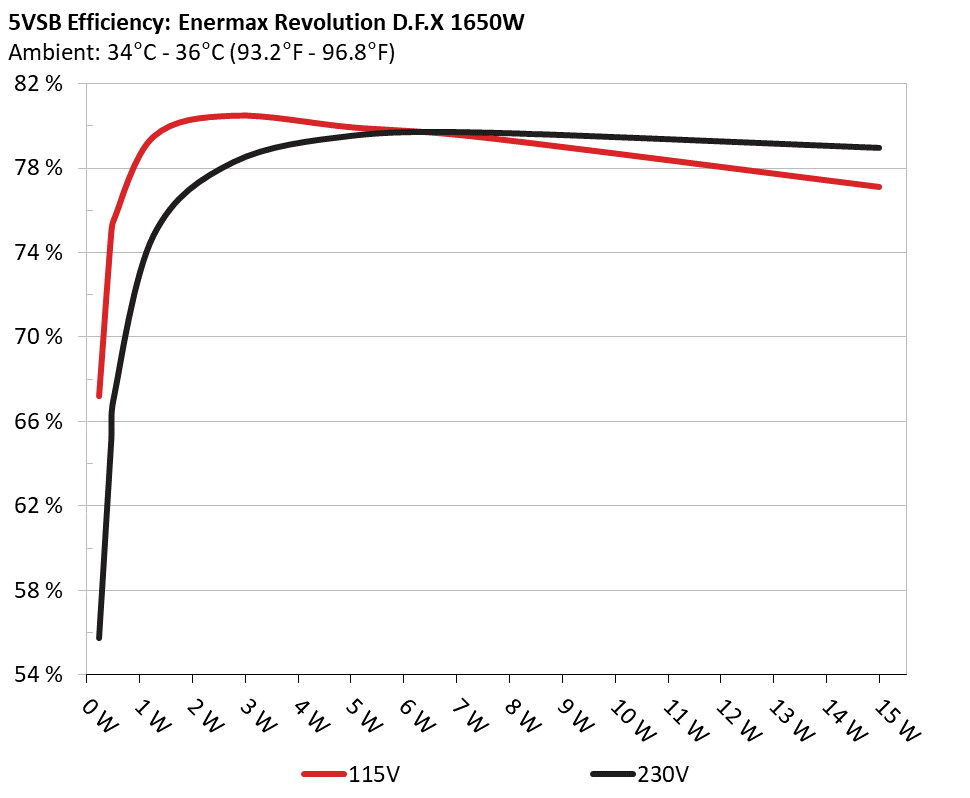

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 67.215% 0.032
5.044V 0.338W 114.86V
2 0.09A 0.454W 74.824% 0.057
5.043V 0.607W 114.86V
3 0.55A 2.77W 80.468% 0.269
5.036V 3.442W 114.85V
4 1A 5.029W 79.912% 0.39
5.029V 6.293W 114.84V
5 1.5A 7.532W 79.426% 0.463
5.021V 9.482W 114.84V
6 3A 14.99W 77.101% 0.536
4.996V 19.442W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 55.74% 0.01
5.045V 0.408W 229.85V
2 0.09A 0.454W 64.947% 0.017
5.044V 0.699W 229.84V
3 0.55A 2.77W 78.27% 0.083
5.036V 3.539W 229.85V
4 1A 5.029W 79.524% 0.143
5.029V 6.324W 229.84V
5 1.5A 7.532W 79.666% 0.202
5.021V 9.454W 229.85V
6 3A 14.992W 78.948% 0.329
4.997V 18.99W 229.84V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.995A 1.967A 2.002A 0.995A 164.963 89.163% 0 <6.0 44.36°C 0.987
11.952V 5.083V 3.297V 5.027V 185.013 40.12°C 114.79V
20% 25.036A 2.953A 3.005A 1.195A 329.976 91.547% 0 <6.0 45.21°C 0.99
11.946V 5.08V 3.295V 5.02V 360.444 40.7°C 114.73V
30% 38.398A 3.447A 3.508A 1.397A 494.416 92.141% 1222 31.9 41.08°C 0.996
11.937V 5.077V 3.293V 5.013V 536.587 46.12°C 114.68V
40% 51.842A 3.941A 4.011A 1.598A 659.622 92.144% 1224 31.9 41.54°C 0.996
11.929V 5.076V 3.291V 5.006V 715.86 47.05°C 114.62V
50% 64.905A 4.927A 5.016A 1.801A 824.972 91.881% 1227 32.0 42.12°C 0.997
11.932V 5.074V 3.29V 4.999V 897.871 48.19°C 114.57V
60% 77.898A 5.914A 6.023A 2A 989.46 91.392% 1232 32.2 42.7°C 0.997
11.935V 5.073V 3.288V 4.991V 1082.66 49.22°C 114.5V
70% 91.010A 6.901A 7.031A 2.208A 1154.822 90.71% 1235 32.2 43.14°C 0.997
11.929V 5.072V 3.286V 4.984V 1273.106 50.24°C 114.44V
80% 104.022A 7.887A 8.038A 2.311A 1319.627 89.94% 1494 39.4 43.9°C 0.998
11.937V 5.071V 3.284V 4.978V 1467.236 51.97°C 114.38V
90% 117.503A 8.382A 8.528A 2.414A 1485.051 89.045% 1826 43.7 44.24°C 0.998
11.936V 5.07V 3.283V 4.972V 1667.763 53.34°C 114.31V
100% 130.736A 8.877A 9.05A 3.027A 1649.852 87.977% 2103 47.4 45.89°C 0.998
11.933V 5.069V 3.282V 4.957V 1875.342 55.95°C 114.24V
110% 143.791A 9.866A 10.152A 3.029A 1814.476 86.834% 2257 49.6 46.76°C 0.996
11.935V 5.068V 3.28V 4.952V 2089.591 57.68°C 114.16V
CL1 0.118A 17.815A 18.186A 0A 151.31 83.366% 1238 32.3 40.89°C 0.988
11.949V 5.069V 3.277V 5.047V 181.506 46.42°C 114.78V
CL2 0.117A 24.603A 0A 0A 126.25 82.552% 1245 32.4 40.92°C 0.986
11.947V 5.075V 3.295V 5.047V 152.934 47.99°C 114.79V
CL3 0.117A 0A 25.149A 0A 83.891 75.243% 1222 31.9 40.82°C 0.97
11.943V 5.084V 3.28V 5.047V 111.495 49.91°C 114.81V
CL4 138.216A 0A 0A 0.001A 1649.603 88.667% 1923 45.5 45.43°C 0.998
11.935V 5.088V 3.3V 5.007V 1860.47 56.35°C 114.25V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.996A 1.967A 2.002A 0.995A 164.966 90.338% 0 <6.0 44.62°C 0.877
11.952V 5.083V 3.297V 5.027V 182.61 40.33°C 229.82V
20% 25.047A 2.953A 3.005A 1.195A 329.978 93.141% 1222 31.9 40.77°C 0.943
11.941V 5.079V 3.294V 5.02V 354.28 45.34°C 229.79V
30% 38.401A 3.447A 3.508A 1.397A 494.405 93.805% 1223 31.9 41.23°C 0.967
11.936V 5.076V 3.292V 5.013V 527.056 46.23°C 229.77V
40% 51.812A 3.941A 4.011A 1.598A 659.599 93.989% 1225 32.0 41.72°C 0.978
11.935V 5.075V 3.291V 5.006V 701.782 47.24°C 229.74V
50% 64.887A 4.927A 5.016A 1.801A 824.94 93.925% 1229 32.1 42.17°C 0.981
11.935V 5.074V 3.289V 4.999V 878.298 48.18°C 229.71V
60% 77.891A 5.914A 6.023A 2A 989.429 93.647% 1232 32.2 42.81°C 0.982
11.935V 5.073V 3.288V 4.991V 1056.555 49.35°C 229.68V
70% 90.955A 6.901A 7.03A 2.207A 1154.781 93.295% 1235 32.2 43.29°C 0.983
11.936V 5.072V 3.286V 4.984V 1237.768 50.37°C 229.65V
80% 104.021A 7.887A 8.038A 2.31A 1319.604 92.796% 1465 37.9 43.67°C 0.985
11.937V 5.071V 3.284V 4.978V 1422.042 51.72°C 229.63V
90% 117.497A 8.382A 8.528A 2.414A 1485.021 92.267% 1790 43.1 44.44°C 0.986
11.937V 5.07V 3.283V 4.972V 1609.484 53.47°C 229.6V
100% 130.714A 8.876A 9.049A 3.026A 1649.841 91.67% 2079 47.3 45.57°C 0.987
11.935V 5.069V 3.282V 4.958V 1799.76 55.66°C 229.57V
110% 143.792A 9.865A 10.151A 3.029A 1814.463 91.058% 2253 49.5 46.65°C 0.988
11.935V 5.068V 3.28V 4.953V 1992.645 57.59°C 229.54V
CL1 0.118A 17.814A 18.185A 0A 151.302 84.533% 1237 32.2 40.2°C 0.876
11.949V 5.069V 3.277V 5.047V 178.989 45.68°C 229.82V
CL2 0.117A 24.603A 0A 0A 126.246 83.361% 1246 32.4 40.44°C 0.854
11.946V 5.075V 3.295V 5.047V 151.447 47.54°C 229.83V
CL3 0.116A 0A 25.148A 0A 83.887 76.442% 1222 31.9 40.1°C 0.804
11.941V 5.084V 3.28V 5.047V 109.739 49.19°C 229.83V
CL4 138.233A 0A 0A 0.001A 1649.583 92.221% 1875 44.7 45.59°C 0.987
11.933V 5.088V 3.3V 5.007V 1788.739 56.54°C 229.57V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.244A 0.491A 0.499A 0.198A 20 61.04% 0 <6.0 39.65°C 0.834
11.935V 5.089V 3.304V 5.044V 32.765 36.59°C 114.84V
40W 2.738A 0.688A 0.699A 0.298A 40 72.68% 0 <6.0 40.47°C 0.915
11.938V 5.088V 3.303V 5.042V 55.037 37.17°C 114.83V
60W 4.232A 0.885A 0.9A 0.397A 60 77.466% 0 <6.0 41.79°C 0.953
11.940V 5.086V 3.301V 5.04V 77.454 38.04°C 114.83V
80W 5.720A 1.081A 1.1A 0.496A 79.944 82.387% 0 <6.0 43.01°C 0.966
11.944V 5.085V 3.3V 5.037V 97.035 39.03°C 114.82V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.244A 0.491A 0.499A 0.198A 20 63.062% 0 <6.0 39.64°C 0.444
11.931V 5.089V 3.304V 5.043V 31.715 36.59°C 229.84V
40W 2.740A 0.688A 0.699A 0.298A 40.001 73.683% 0 <6.0 40.64°C 0.612
11.935V 5.088V 3.303V 5.041V 54.29 37.4°C 229.84V
60W 4.232A 0.885A 0.9A 0.397A 60.002 78.416% 0 <6.0 41.55°C 0.727
11.938V 5.086V 3.301V 5.039V 76.518 38.06°C 229.84V
80W 5.720A 1.082A 1.1A 0.496A 79.95 83.082% 0 <6.0 43.06°C 0.775
11.942V 5.085V 3.3V 5.037V 96.23 39.2°C 229.84V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load22.55mV13.75mV14.06mV10.06mVPass
20% Load23.68mV13.39mV13.70mV9.70mVPass
30% Load20.76mV14.01mV15.08mV11.80mVPass
40% Load21.33mV13.96mV14.78mV12.11mVPass
50% Load21.33mV14.78mV15.34mV12.78mVPass
60% Load23.07mV21.14mV20.78mV13.55mVPass
70% Load24.55mV28.95mV29.34mV14.26mVPass
80% Load26.04mV31.36mV31.19mV14.67mVPass
90% Load25.06mV33.36mV32.78mV14.78mVPass
100% Load44.30mV34.22mV32.49mV19.46mVPass
110% Load47.79mV27.03mV29.79mV24.80mVPass
Crossload136.06mV17.31mV16.26mV12.05mVPass
Crossload221.58mV22.63mV14.98mV11.65mVPass
Crossload318.82mV13.39mV16.78mV11.34mVPass
Crossload444.08mV32.33mV30.73mV19.07mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load30.33mV13.14mV12.67mV9.13mVPass
20% Load30.64mV13.29mV13.65mV8.93mVPass
30% Load23.02mV13.80mV14.42mV10.11mVPass
40% Load20.31mV13.24mV13.70mV10.62mVPass
50% Load21.33mV14.98mV14.37mV12.16mVPass
60% Load23.53mV22.53mV21.34mV12.42mVPass
70% Load25.57mV30.18mV27.96mV12.88mVPass
80% Load27.42mV31.77mV31.81mV14.11mVPass
90% Load28.29mV32.90mV33.25mV14.93mVPass
100% Load44.59mV37.45mV34.15mV19.02mVPass
110% Load46.55mV32.85mV33.77mV19.02mVPass
Crossload142.30mV17.98mV16.07mV12.19mVPass
Crossload228.39mV22.07mV15.60mV11.59mVPass
Crossload327.27mV13.86mV17.55mV12.47mVPass
Crossload445.92mV39.83mV30.94mV18.38mVPass

The results above are not used in the certification process

Enermax Revolution D.F.X 1650W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
