CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

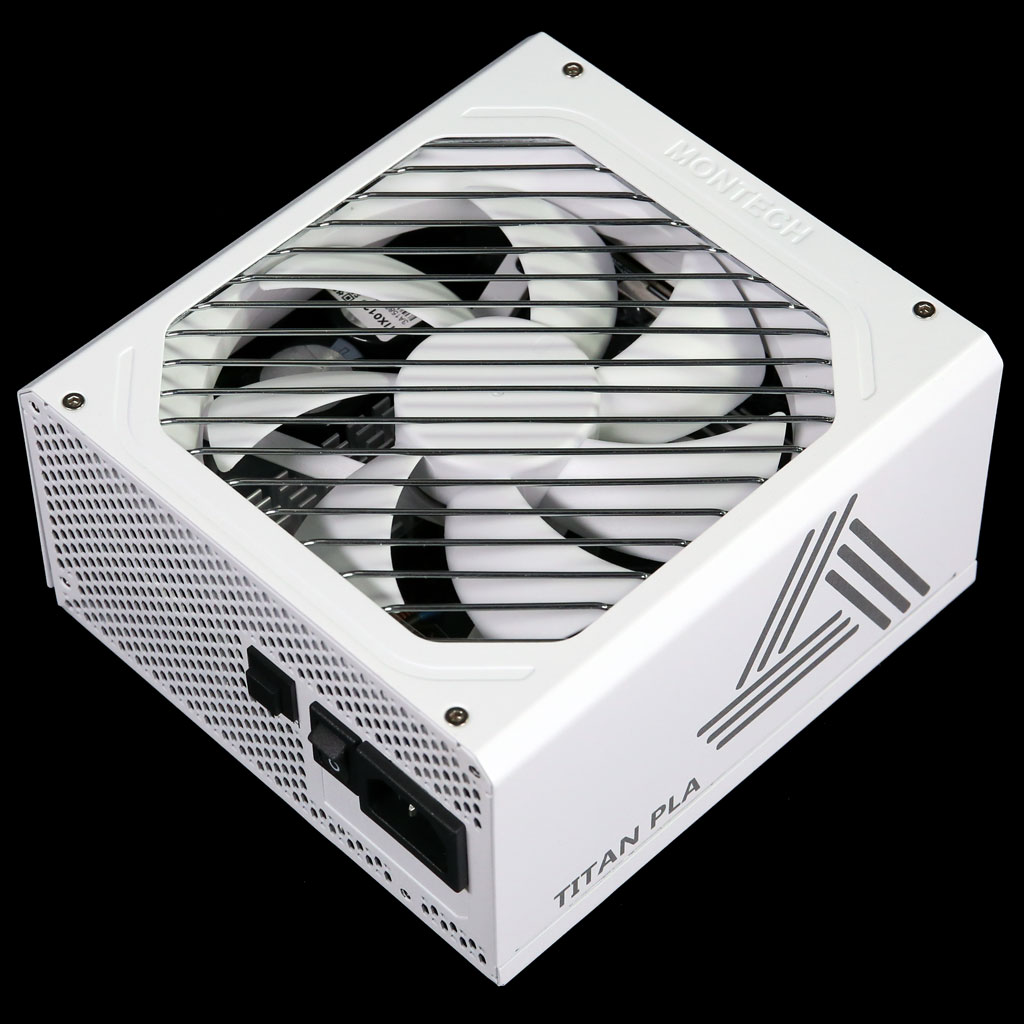

Montech Titan PLA 1200W White
序号
Lab IDMT12002423
Certification ID252423
  • Test Result Report ID: 24PS2423A
  • Certificate Issue Date: Apr 26, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称Montech
制造商 (OEM)Seasonic
系列名称Titan PLA White
型号TIX0126
序号
被测品纪录

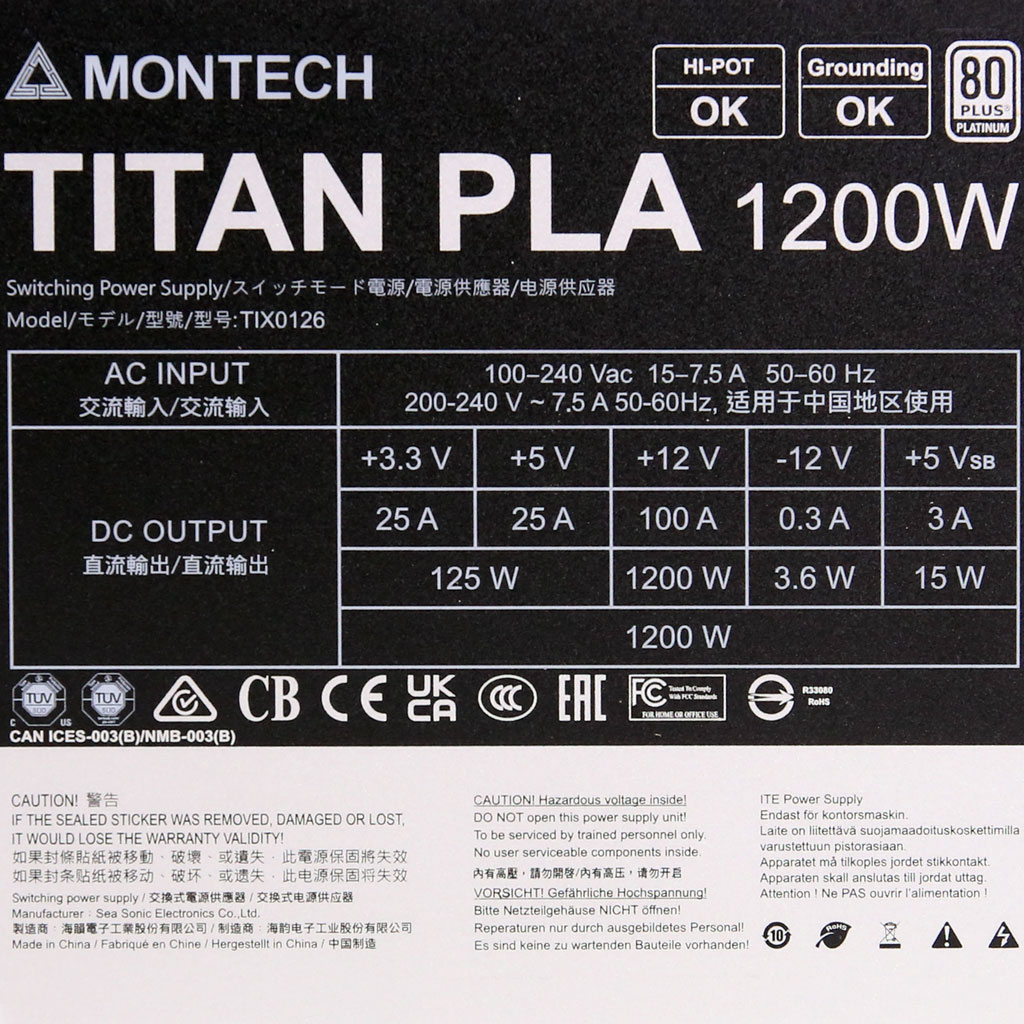

被测品规格

额定电压 (Vrms)100-240
额定电流 (Arms)15-7.5
额定频率 (Hz)50-60
额定功率 (W)1200
类别ATX12V
Dimensions (W x H x D)
散热135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
半被动运转✓ (selectable)
线材设计Fully Modular

电源规范

组3.3V5V12V5VSB-12V
最大功率安培252510030.3
瓦1251200153.6
最大总功率 (W)1200

测试设备

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

模组化线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (615mm) 1 1 16-18AWG 否
4+4 pin EPS 12V 接头 (710mm) 2 2 16AWG 否
6+2pin PCIe接头 (760mm) 3 3 16-18AWG 否
12+4 pin PCIe (760mm) (600W) 1 1 16-28AWG 否
SATA接头 3.3 (515mm+160mm) 1 2 18AWG 否
SATA接头 (510mm+160mm+160mm+160mm) 2 8 18AWG 否
4-pin Molex (510mm+160mm+160mm+160mm) 1 4 18AWG Νο

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 5D-20 (5 Ohm) & Relay
Bridge Rectifier(s) 2x Vishay GBUE2560 (600V, 25A @ 140°C)
APFC MOSFETs 2x Toshiba TK31E60W (600V, 30.8A @ 25°C, Rds(on): 0.088Ohm)
APFC Boost Diode 1x Cree C6D10065 (650V, 10A @ 155°C)
Bulk Cap(s) 1x Rubycon (420V, 470uF, 3,000h @ 105°C, MXE) &
1x Rubycon (420V, 680uF, 3,000h @ 105°C, MXK)
Main Switchers 4x Infineon IPW60R120P7 (650V, 16A @ 100°C, Rds(on): 0.12Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VAC
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 3x Nichicon (2-5,000h @ 105°C, HD),
9x Nippon Chemi-Con (5-6,000h @ 105°C, KZH),
4x Rubycon (3-6,000h @ 105°C, YXG),
Polymer: 31x FPCAP
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller Nuvoton M031
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x
Standby PWM Controller Excelliance MOS EM85690

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

效率等级PLATINUM
噪音等级A-
平均效率 (>1450 load combinations)89.506%
Average Noise Output (>1450 Load Combinations)27.37dBA
PF平均值 (>1450 Load Combinations)0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load80.433%
待机功率耗损0.0665W
12V Ripple (Full Load)23.65mV
5V Ripple (Full Load)18.17mV
3.3V Ripple (Full Load)22.02mV
5VSB Ripple (Full Load)31.69mV
12V Load Regulation1.06%
5V Load Regulation0.70%
3.3V Load Regulation1.06%
5VSB Load Regulation2.42%
Inrush Current33.660A
效率等级PLATINUM
噪音等级A-
平均效率 (>1450 load combinations)91.665%
Average Noise Output (>1450 Load Combinations)27.24dBA
PF平均值 (>1450 Load Combinations)0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load78.202%
待机功率耗损0.1392W
12V Ripple (Full Load)25.22mV
5V Ripple (Full Load)20.06mV
3.3V Ripple (Full Load)21.77mV
5VSB Ripple (Full Load)33.06mV
12V Load Regulation1.04%
5V Load Regulation0.68%
3.3V Load Regulation1.09%
5VSB Load Regulation2.42%
Inrush Current64.600A
12V Transient Response (200%)11.42V
5V Transient Response (200%)4.906V
3.3V Transient Response (200%)3.136V
5VSB Transient Response (200%)4.889V
保持时间 & PG信号26.60ms
AC Loss to PWR_OK Hold Up Time22.10ms
PWR_OK Inactive to DC Loss Delay4.50ms
PSU Timings: T1 (20% / 100%)71.0ms72.0ms
PSU Timings: T3 (20% / 100%)124.0ms126.0ms
OPP (28.52°C / 42.86°C)135.76%128.76%

保持时间 & PG信号

Hold-Up Time (ms)26.6
AC Loss to PWR_OK Hold Up Time (ms)22.1
PWR_OK Inactive to DC Loss Delay (ms)4.5

待机电源

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.02 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.066 W 0.054 W N/A 0.084 W N/A N/A
Apparent Power: 10.627 W 10.493 W N/A 10.781 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.92 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.139 W 0.113 W N/A 0.206 W N/A N/A
Apparent Power: 35.182 W 34.909 W N/A 35.505 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

转换效率图表

资讯

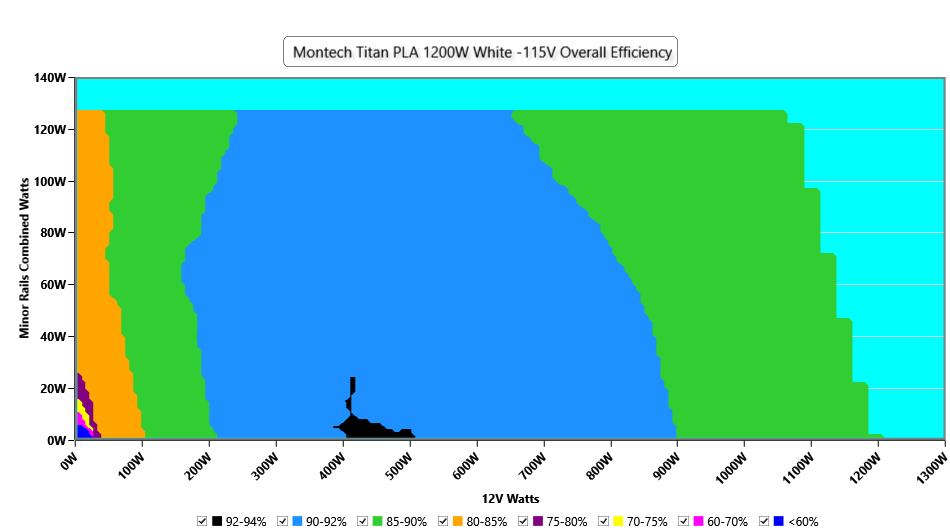

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

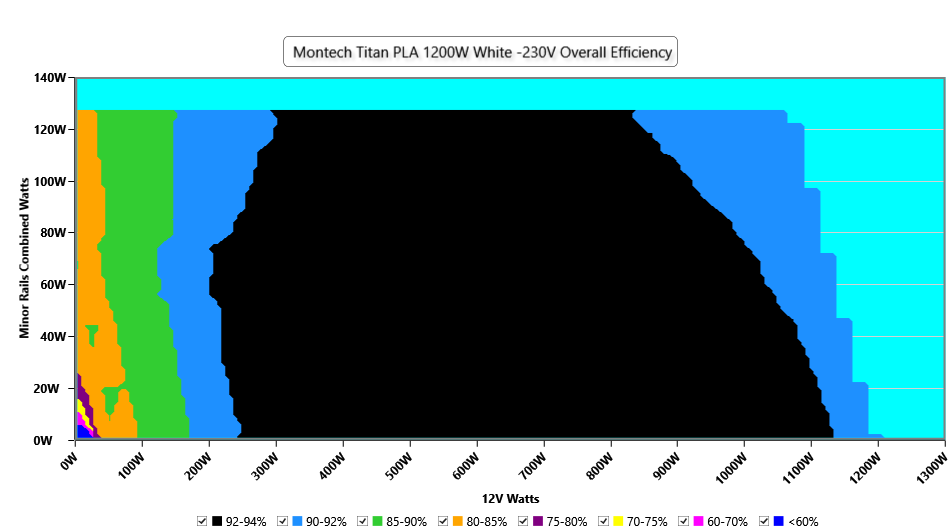

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

噪音值图表

资讯

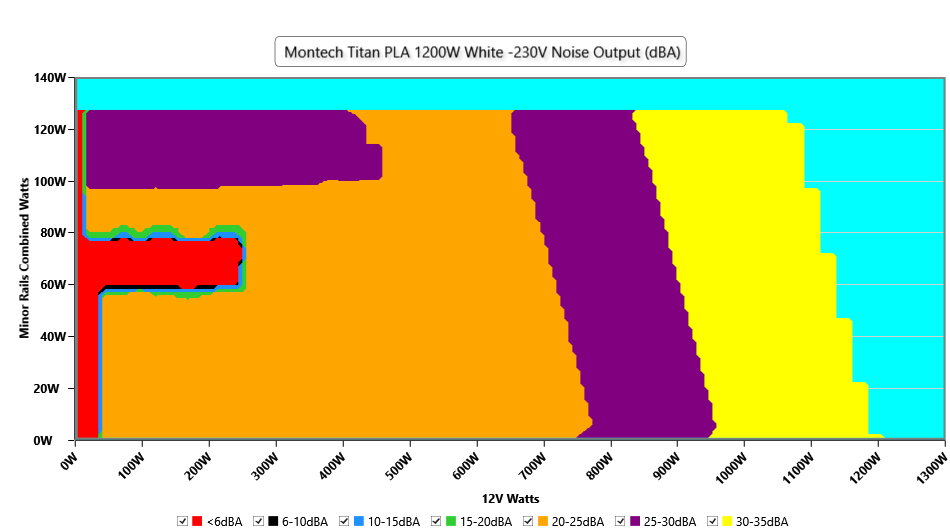

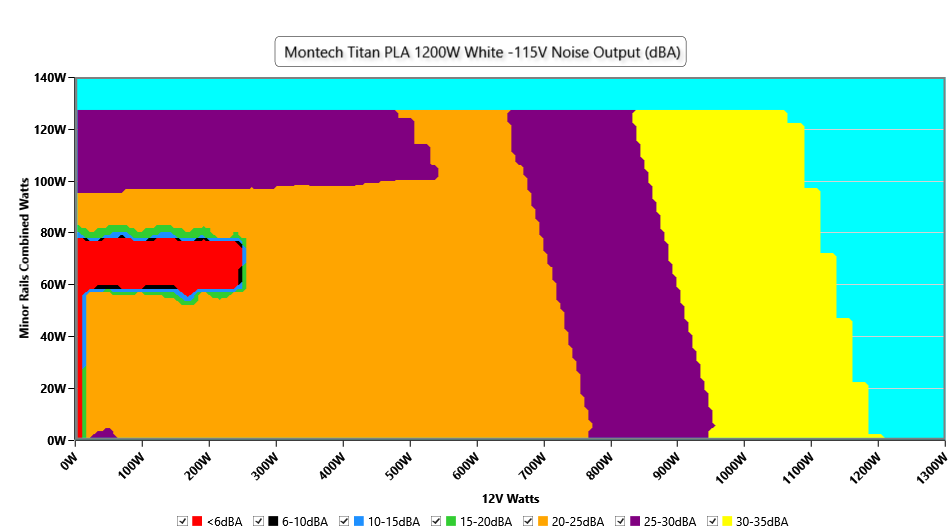

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

高环温电源转换效率

资讯

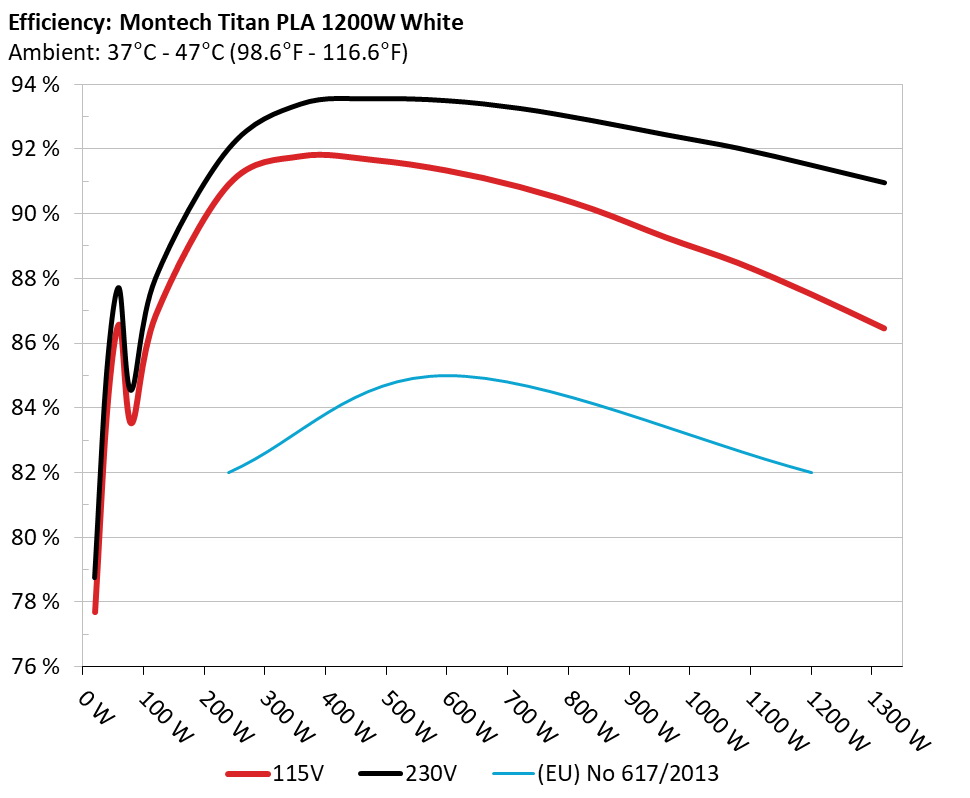

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.231W 60.266% 0.017
5.129V 0.173W 114.86V
2 0.09A 0.462W 73.29% 0.06
5.127V 0.631W 114.87V
3 0.55A 2.815W 81.142% 0.26
5.118V 3.469W 114.86V
4 1A 5.108W 81.644% 0.351
5.108V 6.257W 114.87V
5 1.5A 7.647W 81.222% 0.408
5.098V 9.415W 114.86V
6 3A 15.198W 79.848% 0.482
5.066V 19.034W 114.86V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.231W 54.096% 0.012
5.129V 0.428W 229.94V
2 0.09A 0.462W 64.253% 0.021
5.128V 0.719W 229.94V
3 0.55A 2.815W 78.733% 0.099
5.117V 3.576W 229.94V
4 1A 5.109W 80.631% 0.164
5.108V 6.336W 229.94V
5 1.5A 7.648W 81.242% 0.217
5.098V 9.415W 229.94V
6 3.001A 15.202W 80.981% 0.326
5.067V 18.774W 229.94V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.047A 1.989A 1.984A 0.98A 119.975 86.863% 0 <6.0 44.31°C 0.956
12.224V 5.028V 3.326V 5.104V 138.127 40.11°C 114.83V
20% 17.094A 2.985A 2.98A 1.178A 239.919 90.906% 0 <6.0 45.44°C 0.972
12.228V 5.025V 3.322V 5.094V 263.919 40.92°C 114.79V
30% 26.450A 3.485A 3.479A 1.377A 359.073 91.784% 0 <6.0 46.21°C 0.978
12.213V 5.022V 3.319V 5.084V 391.211 41.14°C 114.76V
40% 35.897A 3.985A 3.981A 1.577A 479.464 91.667% 943 23.4 41.61°C 0.979
12.208V 5.019V 3.316V 5.074V 523.049 47.12°C 114.72V
50% 44.961A 4.984A 4.983A 1.778A 599.293 91.342% 935 23.2 42.38°C 0.98
12.206V 5.017V 3.312V 5.062V 656.094 48.45°C 114.68V
60% 54.053A 5.985A 5.986A 1.98A 719.819 90.834% 929 23.1 42.86°C 0.983
12.211V 5.013V 3.308V 5.052V 792.458 49.38°C 114.63V
70% 63.084A 6.987A 6.99A 2.182A 839.455 90.152% 1020 26.0 43.3°C 0.985
12.212V 5.01V 3.305V 5.041V 931.159 50.32°C 114.59V
80% 72.151A 7.989A 7.996A 2.285A 959.446 89.28% 1121 29.2 43.98°C 0.988
12.219V 5.006V 3.301V 5.032V 1074.645 52.01°C 114.55V
90% 81.529A 8.494A 8.489A 2.389A 1079.275 88.486% 1220 31.6 44.63°C 0.99
12.226V 5.003V 3.298V 5.023V 1219.711 53.67°C 114.5V
100% 90.703A 8.999A 9.014A 2.998A 1199.309 87.521% 1316 34.1 45.61°C 0.992
12.233V 5V 3.295V 5.004V 1370.312 55.7°C 114.44V
110% 99.784A 10.006A 10.118A 3.002A 1319.935 86.462% 1619 39.6 46.75°C 0.993
12.242V 4.996V 3.291V 4.997V 1526.609 57.63°C 114.4V
CL1 0.113A 15.041A 14.959A 0.001A 126.296 82.31% 989 25.1 41.39°C 0.966
12.273V 5.006V 3.316V 5.117V 153.443 56.74°C 114.81V
CL2 0.113A 24.968A 0A 0.001A 126.253 80.627% 1166 30.3 40.63°C 0.965
12.261V 5.001V 3.326V 5.122V 156.587 51.99°C 114.82V
CL3 0.113A 0A 24.888A 0.001A 83.885 74.574% 1166 30.3 40.58°C 0.955
12.246V 5.024V 3.315V 5.117V 112.485 49.16°C 114.83V
CL4 98.213A 0A 0A 0A 1199.885 88.173% 1317 34.1 45.88°C 0.99
12.217V 5.015V 3.304V 5.073V 1360.841 61.76°C 114.46V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 8.039A 1.989A 1.984A 0.979A 119.974 87.986% 0 <6.0 44.58°C 0.88
12.237V 5.027V 3.326V 5.105V 136.358 40.34°C 229.93V
20% 17.079A 2.986A 2.98A 1.178A 239.919 91.986% 0 <6.0 45.18°C 0.935
12.239V 5.023V 3.322V 5.095V 260.828 40.55°C 229.91V
30% 26.428A 3.486A 3.48A 1.377A 359.074 93.377% 0 <6.0 46.2°C 0.955
12.222V 5.02V 3.319V 5.085V 384.536 41.12°C 229.89V
40% 35.903A 3.985A 3.982A 1.577A 479.47 93.539% 939 23.3 41.74°C 0.964
12.207V 5.02V 3.315V 5.074V 512.588 47.28°C 229.88V
50% 44.946A 4.984A 4.982A 1.778A 599.201 93.481% 933 23.1 42.11°C 0.969
12.207V 5.016V 3.312V 5.063V 640.984 48.16°C 229.86V
60% 54.041A 5.985A 5.985A 1.98A 719.739 93.242% 927 22.9 42.62°C 0.973
12.211V 5.013V 3.308V 5.052V 771.898 49.23°C 229.84V
70% 63.062A 6.988A 6.99A 2.182A 839.472 92.863% 1015 25.8 43.05°C 0.977
12.216V 5.01V 3.305V 5.041V 903.991 50.08°C 229.82V
80% 72.137A 7.99A 7.996A 2.285A 959.448 92.431% 1118 29 43.77°C 0.979
12.221V 5.006V 3.301V 5.032V 1038.012 51.82°C 229.8V
90% 81.544A 8.494A 8.489A 2.389A 1079.276 92.012% 1217 31.4 44.12°C 0.98
12.223V 5.003V 3.298V 5.024V 1172.985 53.16°C 229.78V
100% 90.730A 8.999A 9.014A 2.997A 1199.288 91.49% 1304 33.8 45.98°C 0.982
12.230V 5V 3.294V 5.005V 1310.844 55.94°C 229.76V
110% 99.795A 10.007A 10.118A 3.001A 1319.931 90.946% 1676 40.6 46.65°C 0.984
12.241V 4.996V 3.291V 4.998V 1451.338 57.52°C 229.75V
CL1 0.113A 15.031A 14.957A 0.001A 126.289 83.256% 986 25.0 40.06°C 0.892
12.234V 5.01V 3.316V 5.116V 151.685 44.12°C 229.93V
CL2 0.113A 24.959A 0A 0.001A 126.245 81.396% 1162 30.3 40.68°C 0.894
12.239V 5.003V 3.325V 5.121V 155.11 44.9°C 229.92V
CL3 0.113A 0A 24.882A 0.001A 83.885 75.293% 1163 30.3 40.26°C 0.852
12.233V 5.025V 3.316V 5.117V 111.413 44.22°C 229.93V
CL4 98.294A 0A 0A 0A 1199.895 91.958% 1313 34.0 45.43°C 0.981
12.207V 5.015V 3.303V 5.072V 1304.83 53.62°C 229.74V

The results above are not used in the certification process

20-80瓦负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.226A 0.497A 0.495A 0.195A 19.998 77.689% 0 <6.0 39.96°C 0.853
12.105V 5.035V 3.33V 5.125V 25.741 36.87°C 114.86V
40W 2.698A 0.695A 0.694A 0.293A 39.998 83.965% 0 <6.0 40.83°C 0.914
12.113V 5.033V 3.329V 5.122V 47.638 37.47°C 114.85V
60W 4.168A 0.894A 0.892A 0.391A 59.995 86.577% 0 <6.0 42.03°C 0.938
12.121V 5.032V 3.328V 5.119V 69.298 38.31°C 114.85V
80W 5.589A 1.093A 1.091A 0.489A 79.929 83.529% 0 <6.0 43.34°C 0.942
12.222V 5.031V 3.328V 5.117V 95.692 39.37°C 114.84V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.226A 0.497A 0.496A 0.195A 19.999 78.751% 0 <6.0 40.08°C 0.493
12.113V 5.034V 3.33V 5.126V 25.396 36.99°C 229.94V
40W 2.696A 0.696A 0.694A 0.293A 39.996 85.146% 0 <6.0 40.89°C 0.677
12.122V 5.032V 3.329V 5.123V 46.973 37.6°C 229.94V
60W 4.165A 0.894A 0.892A 0.391A 59.994 87.706% 0 <6.0 41.94°C 0.769
12.131V 5.03V 3.328V 5.12V 68.403 38.47°C 229.93V
80W 5.583A 1.093A 1.091A 0.489A 79.928 84.534% 0 <6.0 42.74°C 0.829
12.231V 5.03V 3.328V 5.117V 94.55 39.14°C 229.93V

The results above are not used in the certification process

纹波测量

Test12V5V3.3V5VSBPass/Fail
10% Load13.25mV14.22mV15.10mV19.36mVPass
20% Load26.67mV12.98mV13.81mV16.26mVPass
30% Load18.82mV12.83mV13.70mV16.21mVPass
40% Load17.12mV13.81mV15.15mV30.20mVPass
50% Load17.27mV14.06mV15.31mV30.09mVPass
60% Load17.07mV14.07mV15.41mV30.30mVPass
70% Load25.26mV20.25mV25.24mV29.32mVPass
80% Load15.78mV15.92mV19.75mV28.64mVPass
90% Load16.60mV17.88mV22.08mV29.37mVPass
100% Load23.65mV18.17mV22.02mV31.69mVPass
110% Load24.85mV17.42mV20.47mV32.86mVPass
Crossload113.72mV16.18mV19.34mV35.66mVPass
Crossload216.65mV25.60mV18.20mV34.84mVPass
Crossload315.21mV15.61mV19.03mV34.17mVPass
Crossload424.00mV16.11mV18.07mV31.81mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.87mV14.11mV15.82mV19.31mVPass
20% Load30.44mV13.29mV14.17mV17.04mVPass
30% Load19.25mV13.19mV13.91mV15.12mVPass
40% Load17.96mV13.65mV15.20mV30.51mVPass
50% Load17.80mV14.48mV15.51mV30.30mVPass
60% Load16.91mV14.17mV16.14mV30.09mVPass
70% Load16.24mV14.84mV15.77mV29.68mVPass
80% Load15.67mV16.39mV20.89mV29.37mVPass
90% Load16.35mV17.00mV21.41mV28.86mVPass
100% Load25.22mV20.06mV21.77mV33.06mVPass
110% Load27.41mV18.88mV20.84mV33.10mVPass
Crossload114.61mV16.48mV19.06mV35.64mVPass
Crossload217.63mV26.69mV21.10mV35.00mVPass
Crossload314.95mV16.28mV19.29mV35.56mVPass
Crossload425.44mV17.06mV20.23mV33.34mVPass

The results above are not used in the certification process

Montech Titan PLA 1200W White

Top side
Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
