CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Husky FN650
序号
Lab IDHY65002431
Certification ID252431
  • Test Result Report ID: 24PS2431A
  • Certificate Issue Date: May 2, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称Husky
制造商 (OEM)Kinpower
系列名称FN
型号FN650
序号
被测品纪录

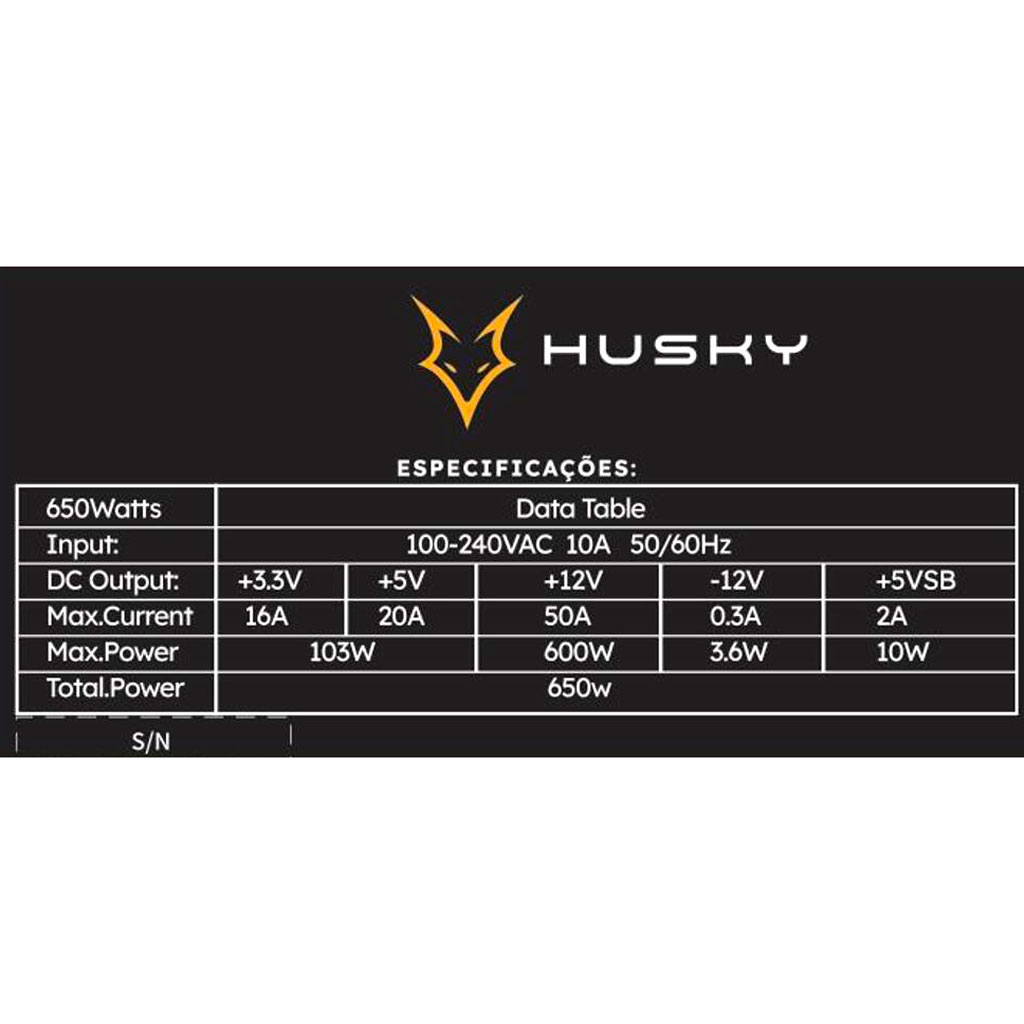

被测品规格

额定电压 (Vrms)100-240
额定电流 (Arms)10
额定频率 (Hz)50-60
额定功率 (W)650
类别ATX12V
Dimensions (W x H x D)
散热120mm Rifle Bearing Fan
(EFS-12E12H)
半被动运转✗
线材设计Fixed cables

电源规范

组 3.3V 5V 12V 5VSB -12V
最大功率 安培 16 20 50 2 0.3
瓦 103 600 10 3.6
最大总功率 (W) 650

测试设备

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

直出线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (490mm) 1 1 18-24AWG 否
4+4 pin EPS 12V 接头 (570mm) 1 1 18AWG 否
6+2pin PCIe接头 (520mm+150mm) 1 2 18AWG 否
SATA接头 (380mm+155mm+155mm) 2 6 18AWG 否
4-pin Molex (390mm+150mm+150mm) 1 3 18AWG 否

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

效率等级BRONZE
噪音等级Standard+
平均效率 (>1450 load combinations)84.041%
Average Noise Output (>1450 Load Combinations)39.63dBA
PF平均值 (>1450 Load Combinations)0.975
Efficiency With 10W (≤500W) or 2% (>500W) Load69.785%
待机功率耗损0.0671W
12V Ripple (Full Load)36.28mV
5V Ripple (Full Load)44.64mV
3.3V Ripple (Full Load)58.36mV
5VSB Ripple (Full Load)27.11mV
12V Load Regulation1.67%
5V Load Regulation4.66%
3.3V Load Regulation6.58%
5VSB Load Regulation5.10%
Inrush Current50.340A
效率等级BRONZE
噪音等级Standard+
平均效率 (>1450 load combinations)86.307%
Average Noise Output (>1450 Load Combinations)39.81dBA
PF平均值 (>1450 Load Combinations)0.920
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
待机功率耗损0.1592W
12V Ripple (Full Load)36.67mV
5V Ripple (Full Load)43.55mV
3.3V Ripple (Full Load)57.77mV
5VSB Ripple (Full Load)27.54mV
12V Load Regulation1.61%
5V Load Regulation4.63%
3.3V Load Regulation6.51%
5VSB Load Regulation4.99%
Inrush Current67.740A
保持时间 & PG信号17.00ms
AC Loss to PWR_OK Hold Up Time13.60ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)23.0ms23.0ms
PSU Timings: T3 (20% / 100%)115.0ms116.0ms
OPP (26.44°C / 41.23°C)125.17%118.84%

保持时间 & PG信号

Hold-Up Time (ms) 17.0
AC Loss to PWR_OK Hold Up Time  (ms) 13.6
PWR_OK Inactive to DC Loss Delay (ms) 3.4

待机电源

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.067 W 0.019 W N/A 0.091 W N/A N/A
Apparent Power: 6.817 W 6.715 W N/A 6.934 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.90 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.159 W 0.142 W N/A 0.193 W N/A N/A
Apparent Power: 22.738 W 22.468 W N/A 23.031 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs

转换效率图表

资讯

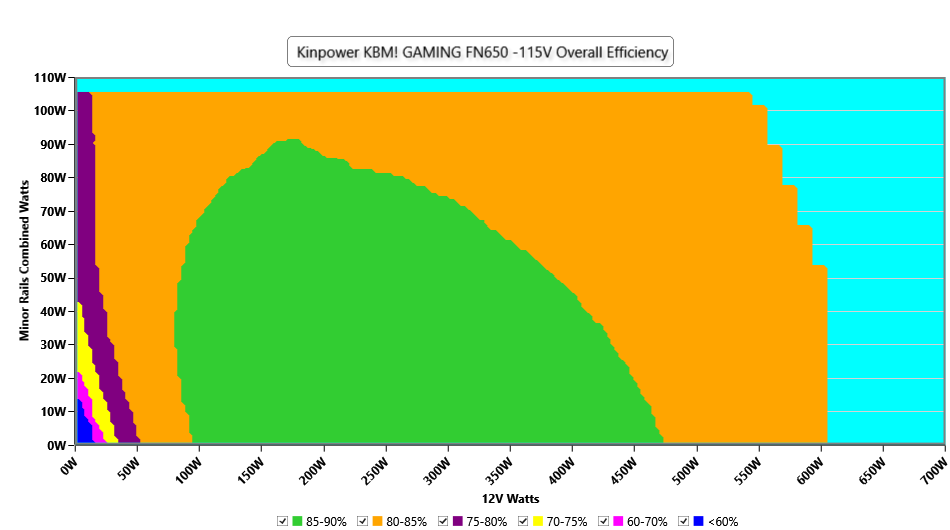

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

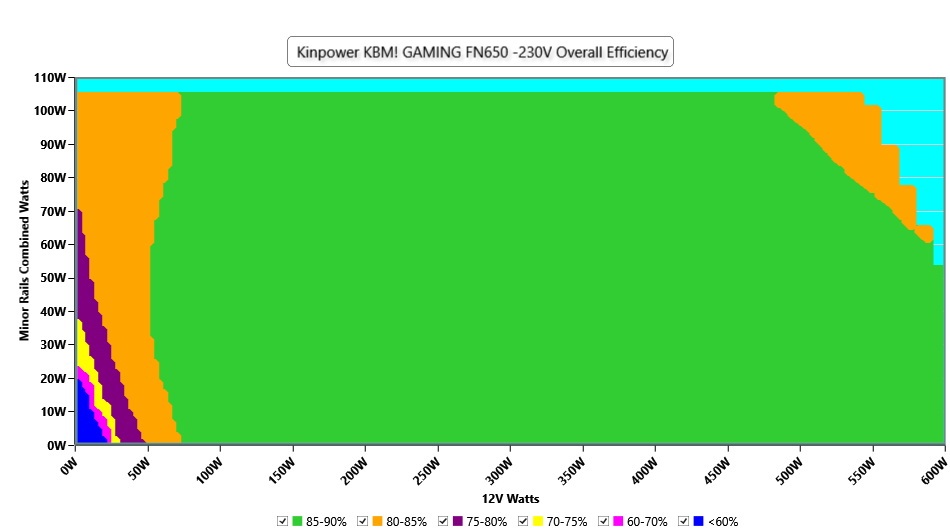

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

噪音值图表

资讯

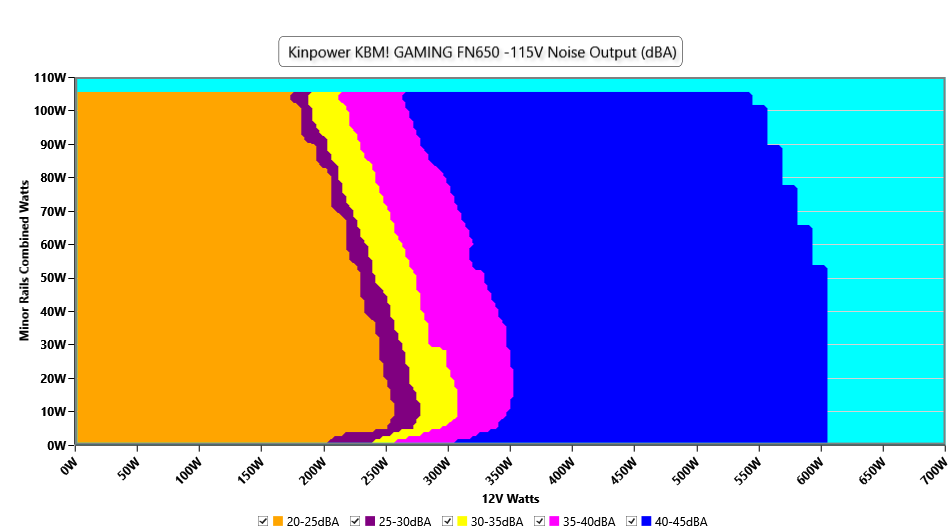

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

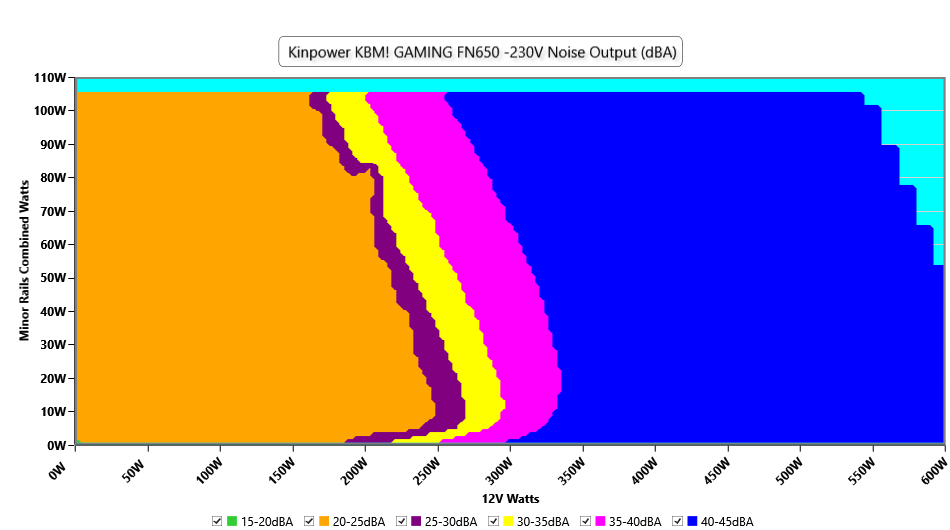

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

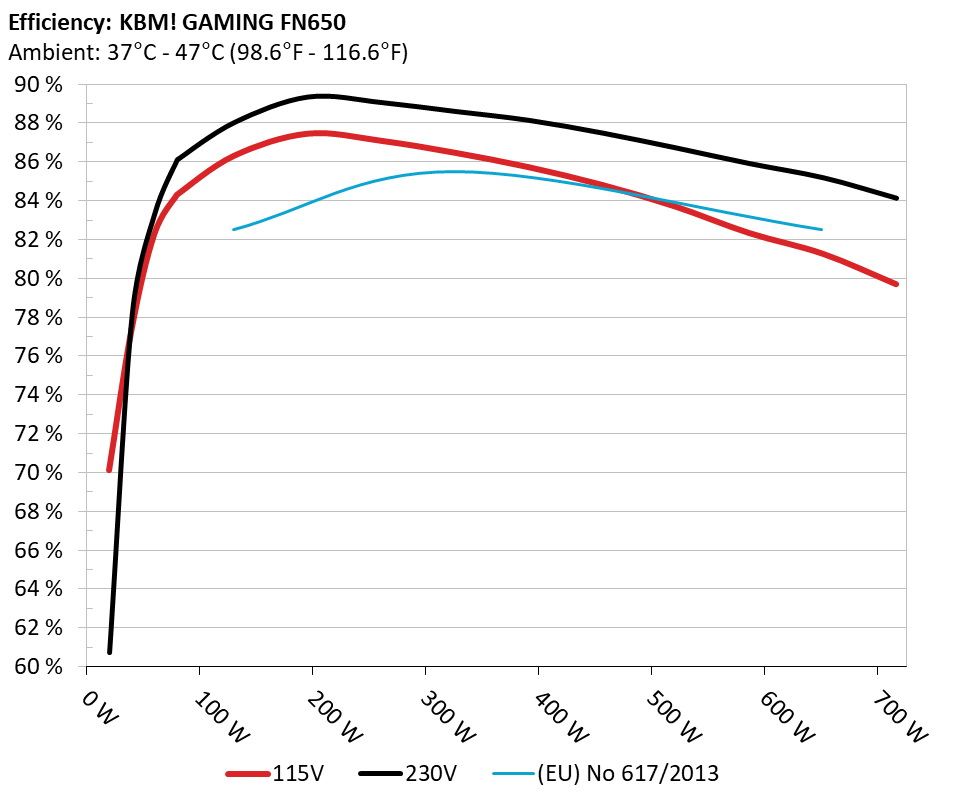

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5Vsb转换效率

资讯

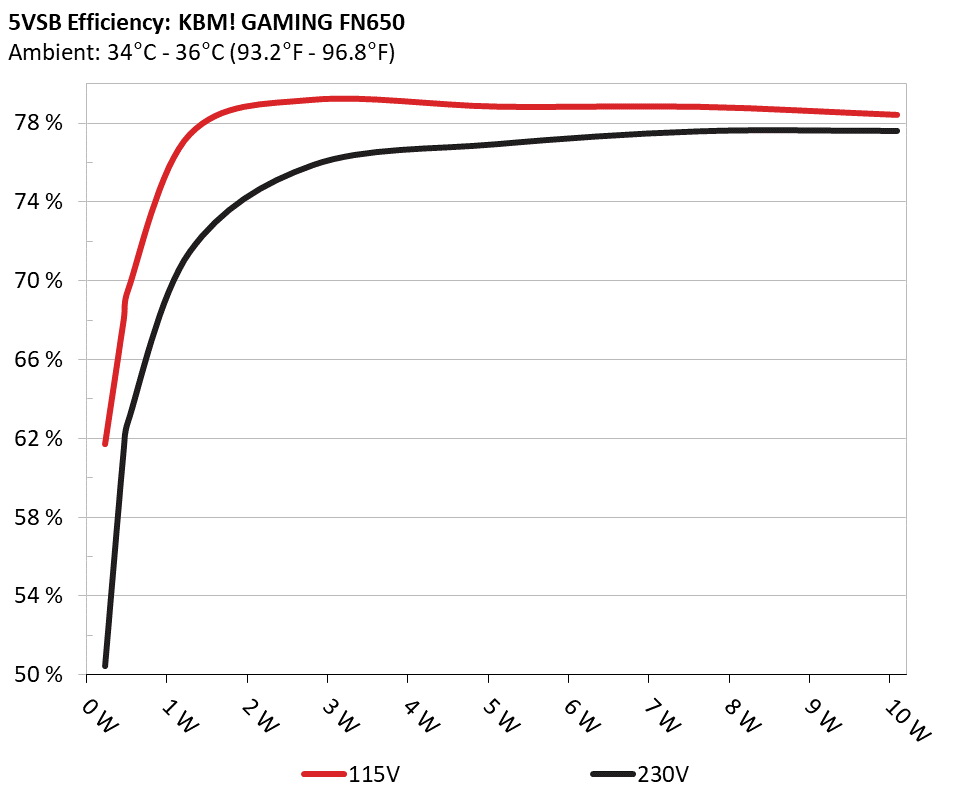

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.232W 61.698% 0.052
5.164V 0.376W 114.88V
2 0.09A 0.465W 68.065% 0.092
5.162V 0.683W 114.87V
3 0.55A 2.824W 79.203% 0.32
5.134V 3.566W 114.87V
4 1A 5.108W 78.855% 0.404
5.108V 6.478W 114.87V
5 1.5A 7.617W 78.846% 0.44
5.077V 9.66W 114.86V
6 2A 10.093W 78.436% 0.465
5.046V 12.868W 114.86V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.232W 50.43% 0.019
5.163V 0.461W 229.94V
2 0.09A 0.465W 61.476% 0.031
5.16V 0.757W 229.94V
3 0.55A 2.823W 75.877% 0.14
5.133V 3.721W 229.94V
4 1A 5.106W 76.935% 0.22
5.106V 6.636W 229.94V
5 1.5A 7.614W 77.586% 0.281
5.076V 9.814W 229.94V
6 2A 10.091W 77.606% 0.316
5.045V 13.003W 229.94V

Protection Features

Protection Features
OCP (Cold @ 28°C) 12V: >71.4A (>142.8%),

Supplementary Tests (For Reference)

10-110%负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 3.626A 1.969A 1.991A 0.983A 65.206 81.655% 917 20.5 40.39°C 0.928
12.025V 5.08V 3.316V 5.088V 79.853 44.63°C 114.85V
20% 8.283A 2.967A 3.004A 1.185A 130.347 85.815% 916 20.5 40.54°C 0.952
12.006V 5.057V 3.296V 5.064V 151.893 45.14°C 114.83V
30% 13.309A 3.474A 3.524A 1.389A 195.593 86.958% 921 20.6 41.34°C 0.97
11.987V 5.039V 3.278V 5.041V 224.928 46.35°C 114.8V
40% 18.353A 3.985A 4.049A 1.595A 260.842 86.589% 1566 37.4 41.76°C 0.978
11.967V 5.021V 3.261V 5.017V 301.243 46.76°C 114.78V
50% 23.060A 5.003A 5.092A 1.803A 326.004 85.974% 1914 43.0 42.03°C 0.982
11.947V 4.999V 3.241V 4.993V 379.188 47.58°C 114.76V
60% 27.775A 6.033A 6.153A 2A 391.007 85.235% 1915 43.1 42.94°C 0.984
11.926V 4.974V 3.218V 4.968V 458.737 49.06°C 114.73V
70% 32.528A 7.076A 7.23A 2.227A 456.37 84.319% 1915 43.1 43.11°C 0.985
11.905V 4.948V 3.196V 4.94V 541.239 50.13°C 114.71V
80% 37.301A 8.129A 8.325A 2.338A 521.187 83.205% 1914 43.0 43.8°C 0.986
11.884V 4.921V 3.171V 4.92V 626.387 51.97°C 114.68V
90% 42.495A 8.684A 8.896A 2.451A 586.607 81.84% 1913 43.0 44.25°C 0.985
11.863V 4.894V 3.147V 4.898V 716.772 53.41°C 114.65V
100% 47.908A 9.229A 9.491A 2A 651.824 80.772% 1915 43.1 45.69°C 0.986
11.841V 4.876V 3.129V 4.92V 807.006 55.84°C 114.63V
110% 52.731A 10.312A 10.725A 2A 716.383 79.211% 1915 43.1 46.53°C 0.986
11.820V 4.849V 3.105V 4.908V 904.414 57.43°C 114.61V
CL1 0.116A 12.48A 12.622A 0A 104.295 79.036% 927 20.6 40.2°C 0.938
12.015V 4.968V 3.24V 5.124V 131.962 45.91°C 114.81V
CL2 0.115A 20.338A 0A 0A 101.352 77.68% 908 20.4 40.79°C 0.94
12.023V 4.915V 3.279V 5.133V 130.482 48.47°C 114.82V
CL3 0.115A 0A 16.263A 0A 54.186 72.456% 916 20.5 40.2°C 0.922
12.025V 5.061V 3.247V 5.136V 74.774 49.38°C 114.84V
CL4 55.022A 0.001A 0.003A 0.001A 651.935 81.715% 1923 43.4 45.7°C 0.987
11.848V 4.964V 3.185V 5.076V 797.827 55.98°C 114.63V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 3.626A 1.969A 1.991A 0.983A 65.201 82.972% 911 20.4 40.46°C 0.741
12.027V 5.079V 3.315V 5.089V 78.582 44.6°C 229.94V
20% 8.281A 2.966A 3.003A 1.184A 130.333 87.546% 910 20.4 40.86°C 0.864
12.007V 5.058V 3.296V 5.066V 148.872 45.37°C 229.92V
30% 13.305A 3.473A 3.523A 1.388A 195.57 88.863% 925 20.6 41.3°C 0.906
11.989V 5.039V 3.279V 5.043V 220.08 46.38°C 229.91V
40% 18.346A 3.983A 4.047A 1.594A 260.808 88.575% 1480 35.9 41.77°C 0.928
11.969V 5.022V 3.262V 5.021V 294.448 47.3°C 229.9V
50% 23.051A 5.001A 5.09A 1.801A 325.958 88.12% 1906 42.9 42.2°C 0.941
11.950V 5V 3.242V 4.997V 369.905 48.28°C 229.89V
60% 27.757A 6.03A 6.149A 2A 390.877 87.662% 1916 43.1 42.89°C 0.949
11.929V 4.976V 3.22V 4.972V 445.89 49.46°C 229.88V
70% 32.510A 7.073A 7.226A 2.225A 456.256 87.006% 1914 43.0 43.01°C 0.953
11.908V 4.95V 3.197V 4.945V 524.395 50.02°C 229.87V
80% 37.283A 8.125A 8.319A 2.336A 521.089 86.242% 1912 43.0 43.79°C 0.957
11.887V 4.923V 3.173V 4.924V 604.217 51.97°C 229.86V
90% 42.471A 8.675A 8.886A 2.447A 586.483 85.432% 1914 43.0 44.14°C 0.96
11.867V 4.899V 3.151V 4.905V 686.494 53.22°C 229.84V
100% 47.882A 9.217A 9.474A 2A 651.71 84.702% 1912 43.0 45.59°C 0.964
11.845V 4.882V 3.135V 4.926V 769.419 55.67°C 229.83V
110% 52.702A 10.3A 10.708A 2A 716.281 83.65% 1913 43.0 46.55°C 0.967
11.824V 4.854V 3.11V 4.915V 856.271 57.41°C 229.82V
CL1 0.115A 12.471A 12.613A 0A 104.283 80.757% 924 20.6 40.61°C 0.84
12.016V 4.971V 3.242V 5.125V 129.137 45.9°C 229.93V
CL2 0.115A 20.353A 0A 0A 101.347 79.094% 908 20.4 42.37°C 0.841
12.023V 4.911V 3.281V 5.133V 128.143 49.45°C 229.93V
CL3 0.115A 0A 16.262A 0A 54.183 73.378% 916 20.5 41.28°C 0.733
12.026V 5.058V 3.247V 5.136V 73.846 50.35°C 229.94V
CL4 55.021A 0.001A 0.003A 0.001A 651.973 85.423% 1918 43.2 44.42°C 0.963
11.849V 4.962V 3.187V 5.076V 763.229 55.28°C 229.83V

The results above are not used in the certification process

20-80瓦负载测试

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.234A 0.49A 0.495A 0.194A 19.999 69.639% 913 20.5 36.65°C 0.8
12.038V 5.103V 3.335V 5.148V 28.717 39.77°C 114.87V
40W 2.717A 0.687A 0.694A 0.292A 40 76.923% 913 20.5 37°C 0.872
12.032V 5.097V 3.33V 5.139V 52.001 40.4°C 114.86V
60W 4.202A 0.884A 0.893A 0.39A 60.001 81.796% 914 20.5 38.15°C 0.923
12.026V 5.092V 3.324V 5.13V 73.353 41.91°C 114.85V
80W 5.684A 1.082A 1.094A 0.488A 79.95 83.815% 915 20.5 39.78°C 0.932
12.020V 5.085V 3.319V 5.12V 95.388 43.69°C 114.84V

The results above are not used in the certification process

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.233A 0.489A 0.494A 0.194A 19.991 60.248% 901 20.3 36.52°C 0.456
12.036V 5.108V 3.339V 5.15V 28.003 39.7°C 229.94V
40W 2.716A 0.686A 0.693A 0.292A 39.992 77.643% 904 20.3 37.51°C 0.628
12.031V 5.101V 3.332V 5.14V 51.51 40.85°C 229.94V
60W 4.201A 0.884A 0.893A 0.39A 59.993 82.854% 908 20.4 38.49°C 0.722
12.027V 5.092V 3.324V 5.13V 72.409 41.93°C 229.93V
80W 5.681A 1.082A 1.094A 0.488A 79.93 85.63% 909 20.4 39.98°C 0.783
12.022V 5.085V 3.318V 5.121V 93.344 43.78°C 229.93V

The results above are not used in the certification process

纹波测量

Test12V5V3.3V5VSBPass/Fail
10% Load17.53mV18.85mV23.74mV18.32mVPass
20% Load20.00mV19.73mV27.72mV19.56mVPass
30% Load21.03mV21.17mV29.42mV19.97mVPass
40% Load21.50mV23.96mV32.94mV21.89mVPass
50% Load22.84mV25.35mV35.47mV22.45mVPass
60% Load23.56mV28.28mV40.28mV22.30mVPass
70% Load24.70mV31.99mV44.16mV23.33mVPass
80% Load26.55mV36.47mV48.19mV25.14mVPass
90% Load28.56mV35.75mV48.71mV23.38mVPass
100% Load36.28mV44.64mV58.36mV27.11mVPass
110% Load39.46mV48.96mV63.44mV28.97mVPass
Crossload130.76mV37.12mV47.52mV17.87mVPass
Crossload228.25mV37.71mV53.78mV14.40mVPass
Crossload319.49mV23.29mV33.15mV13.37mVPass
Crossload440.18mV30.15mV43.04mV19.05mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load18.20mV18.65mV22.60mV17.70mVPass
20% Load19.28mV20.61mV26.99mV20.18mVPass
30% Load21.96mV22.36mV29.84mV19.82mVPass
40% Load22.38mV23.03mV31.54mV21.21mVPass
50% Load22.48mV25.76mV36.56mV23.02mVPass
60% Load24.28mV29.21mV40.08mV22.66mVPass
70% Load26.29mV34.52mV43.33mV24.98mVPass
80% Load26.76mV35.91mV49.39mV25.55mVPass
90% Load29.90mV38.28mV51.87mV24.88mVPass
100% Load36.67mV43.55mV57.77mV27.54mVPass
110% Load39.94mV45.60mV65.95mV28.16mVPass
Crossload126.44mV37.69mV45.89mV17.76mVPass
Crossload223.66mV34.47mV54.40mV13.01mVPass
Crossload322.89mV24.73mV34.80mV14.66mVPass
Crossload438.74mV28.94mV41.99mV18.54mVPass

The results above are not used in the certification process

Husky FN650

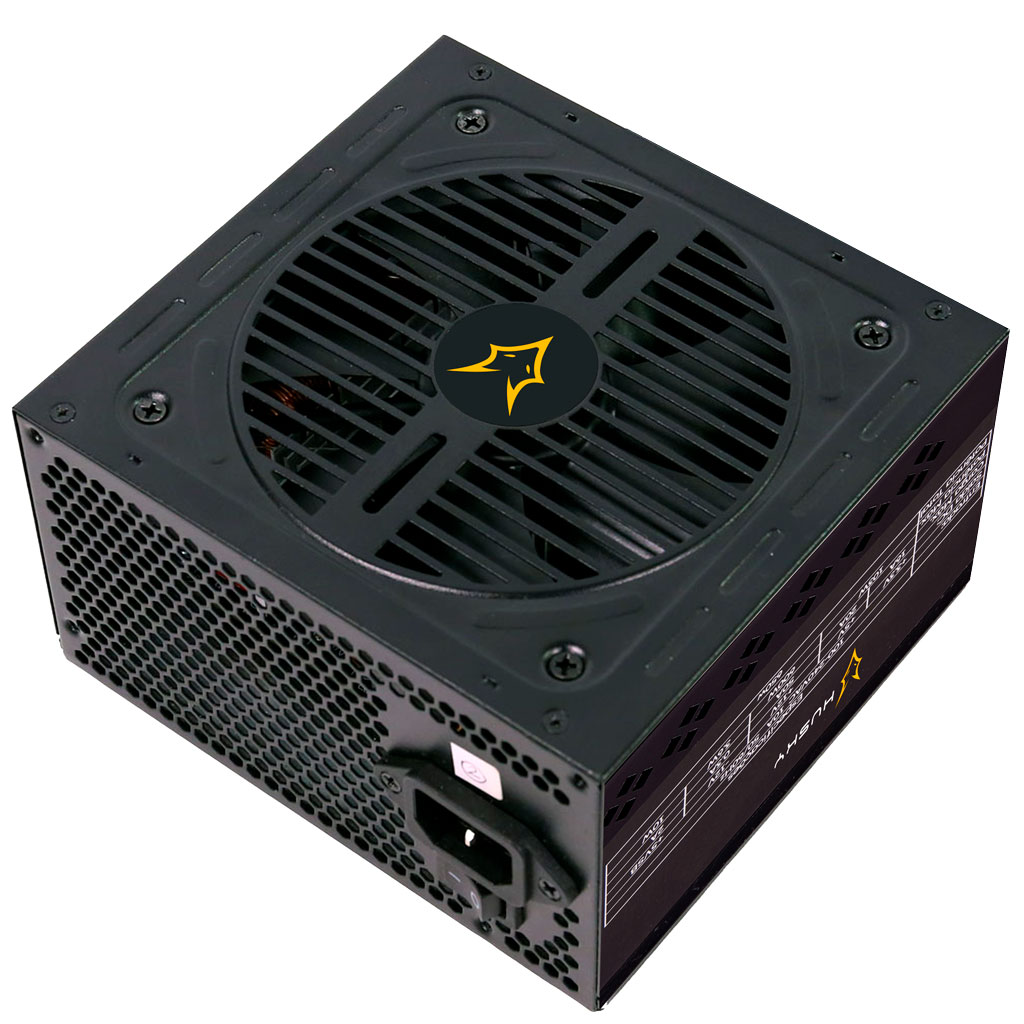

Top side
Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
