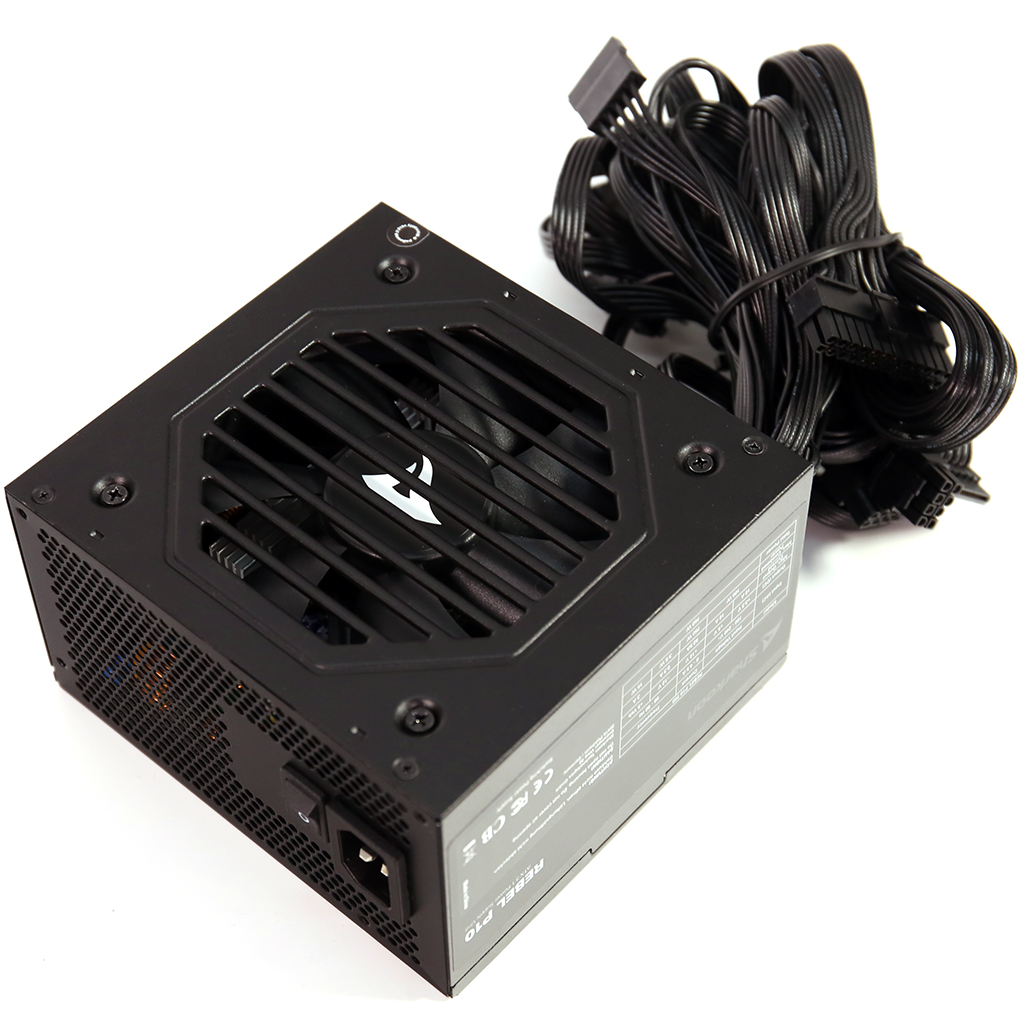

Sharkoon Rebel P10 750
Serial Number
Lab IDSK75002587
Certification ID252587
  • Test Result Report ID: 24PS2587A
  • Certificate Issue Date: Nov 14, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSharkoon
ModelRebel P10 750
OEM/ODMAndyson
Serial Number
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)4.5-9
Rated Frequency (Hz)50-60
Rated Power (W)750
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Sleeve Bearing Fan (S1202512L)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDSK75002587
Date of receiptNov 29, 2024
Testing DateNov 11, 2024
Report Issued DateNov 14, 2024
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (545mm) 1 1 18-22AWG No
4+4 pin EPS12V (635mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 2 4 18AWG No
SATA (465mm+120mm+120mm) 1 3 18AWG No
SATA (460mm+120mm) / 4-pin Molex (+120mm) 1 2 / 1 18AWG No

Protection Features(Manufacturer)

Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓
Inrush Current Protection ✓
Fan Failure Protection ✗

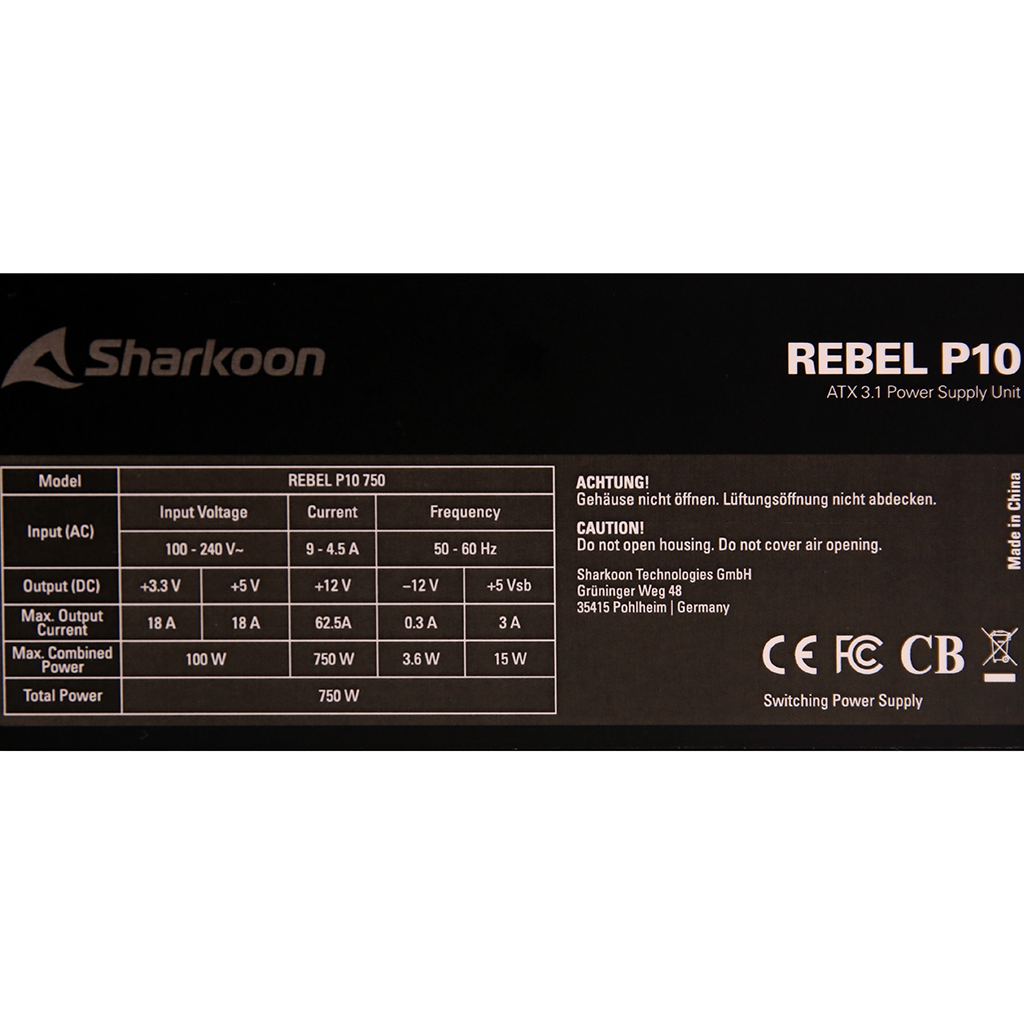

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181862.530.3
Watts100750153.6
Total Max. Power (W)750

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)84.979%
Average Noise Output (>1450 Load Combinations)35.42dBA
Average PF (>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load64.916%
Standby Power Consumption0.0689W
Non-Accredited
12V Ripple (Full Load)51.62mV
5V Ripple (Full Load)38.24mV
3.3V Ripple (Full Load)29.91mV
5VSB Ripple (Full Load)38.29mV
12V Load Regulation0.76%
5V Load Regulation1.42%
3.3V Load Regulation3.91%
5VSB Load Regulation3.76%
Inrush Current33.770A
Accredited
Average Efficiency (>1450 load combinations)87.508%
Average Noise Output (>1450 Load Combinations)36.03dBA
Average PF (>1450 Load Combinations)0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load0.001%
Standby Power Consumption0.1730W
Non-Accredited
12V Ripple (Full Load)62.01mV
5V Ripple (Full Load)33.37mV
3.3V Ripple (Full Load)23.63mV
5VSB Ripple (Full Load)35.64mV
12V Load Regulation0.73%
5V Load Regulation1.42%
3.3V Load Regulation3.94%
5VSB Load Regulation3.76%
Inrush Current65.900A
12V Transient Response (150%)11.91V
5V Transient Response (150%)5.000V
3.3V Transient Response (150%)3.216V
5VSB Transient Response (150%)4.950V
Hold-Up Time & PWR_OK Signal17.40ms
AC Loss to PWR_OK Hold Up Time15.70ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)26.0ms27.0ms
PSU Timings: T3 (20% / 100%)121.0ms120.0ms
12V OCP (30.5°C / 42.0°C)86.60A (138.56%), 12.255V78.40A (125.44%), 12.252V
5V OCP (30.5°C / 42.0°C)22.2A (123.33%), 5.095V21.1A (117.22%), 5.107V
3.3V OCP (30.5°C / 42.0°C)22.3A (123.89%), 3.331V20.8A (115.56%), 3.332V
5VSB OCP (30.5°C / 42.0°C)4.8A (160.00%), 4.963V4.6A (153.33%), 4.944V
OPP (31.40°C / 43.92°C)142.49%118.94%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)17.4
AC Loss to PWR_OK Hold Up Time (ms)15.7
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.83 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.08 % N/A 0.29 % 2.00 % PASS
Real Power: 0.069 W 0.020 W N/A 0.100 W N/A N/A
Apparent Power: 7.746 W 7.731 W N/A 7.767 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.99 V 229.91 V 227.70 V 230.05 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.19 % 2.00 % PASS
Real Power: 0.173 W 0.139 W N/A 0.221 W N/A N/A
Apparent Power: 26.517 W 26.478 W N/A 26.563 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

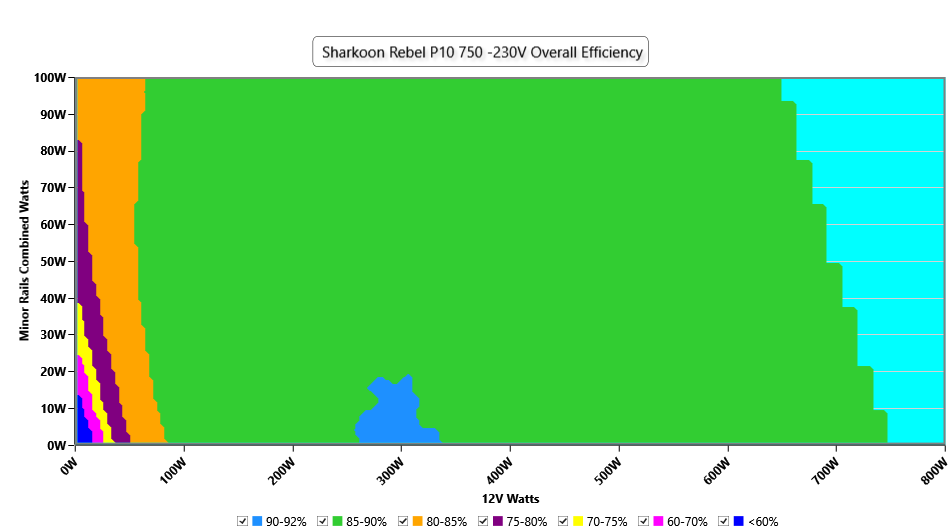

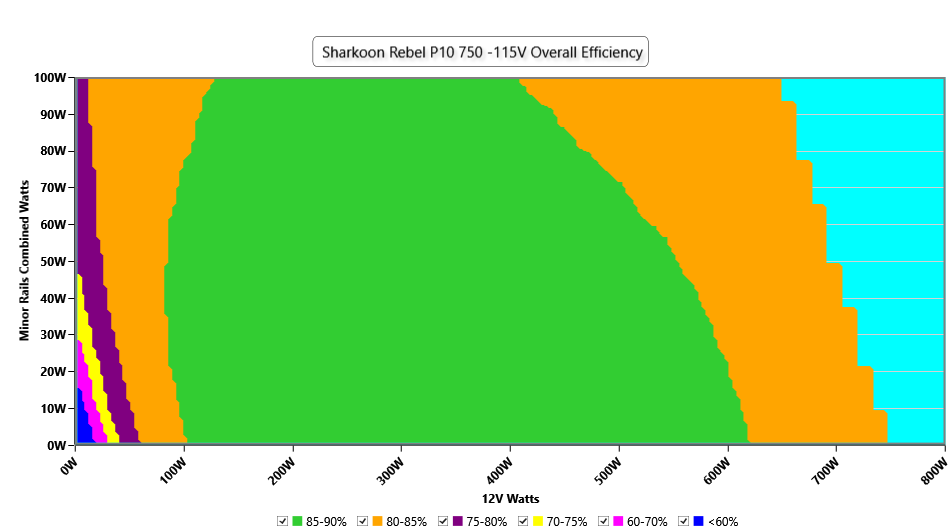

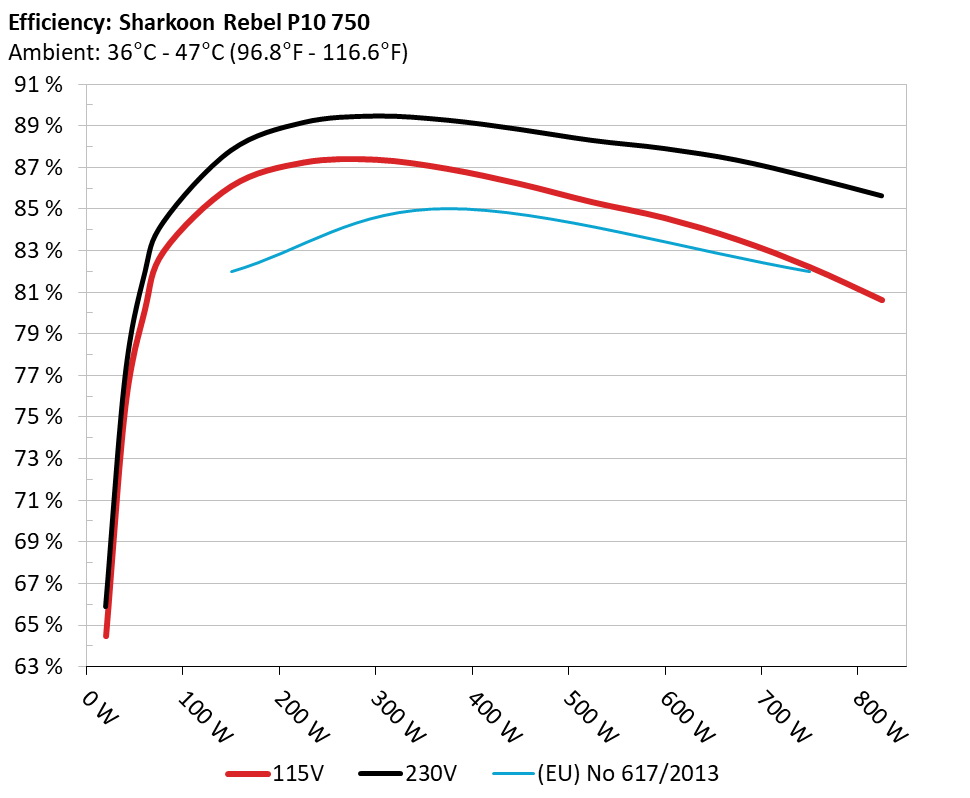

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

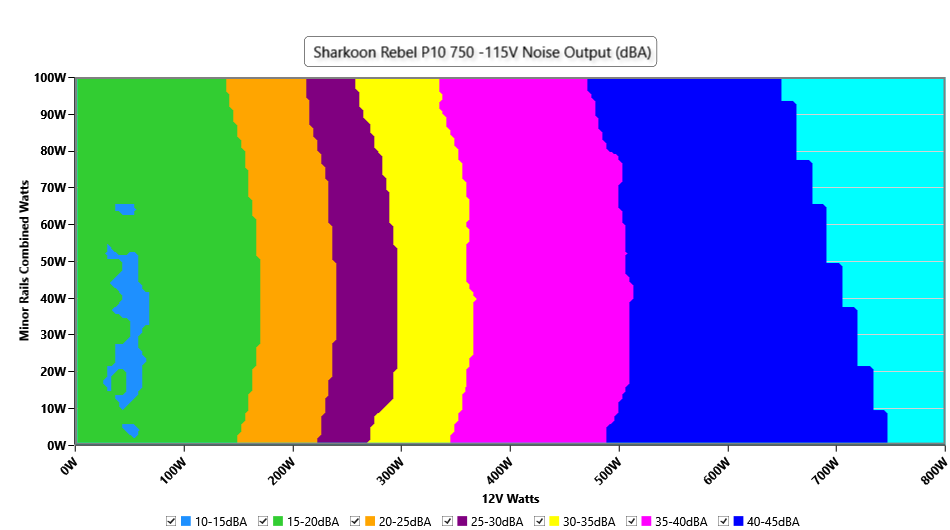

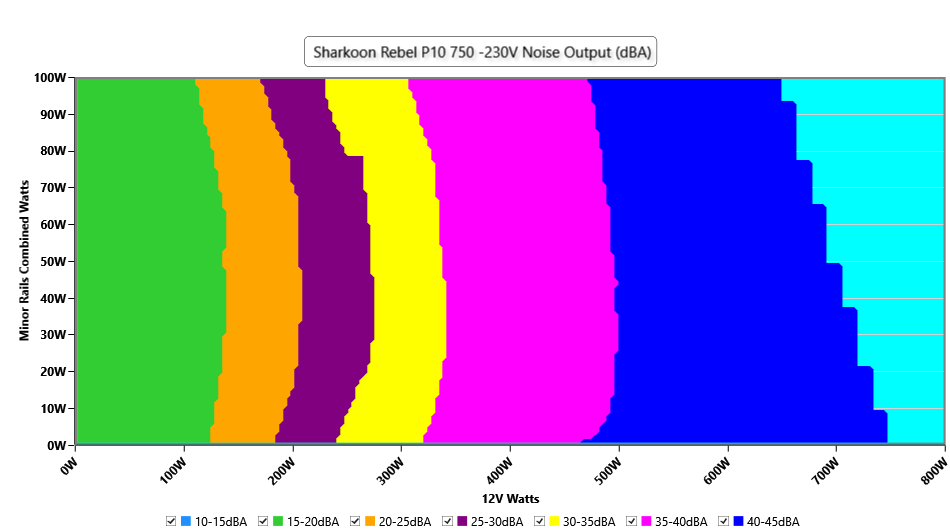

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

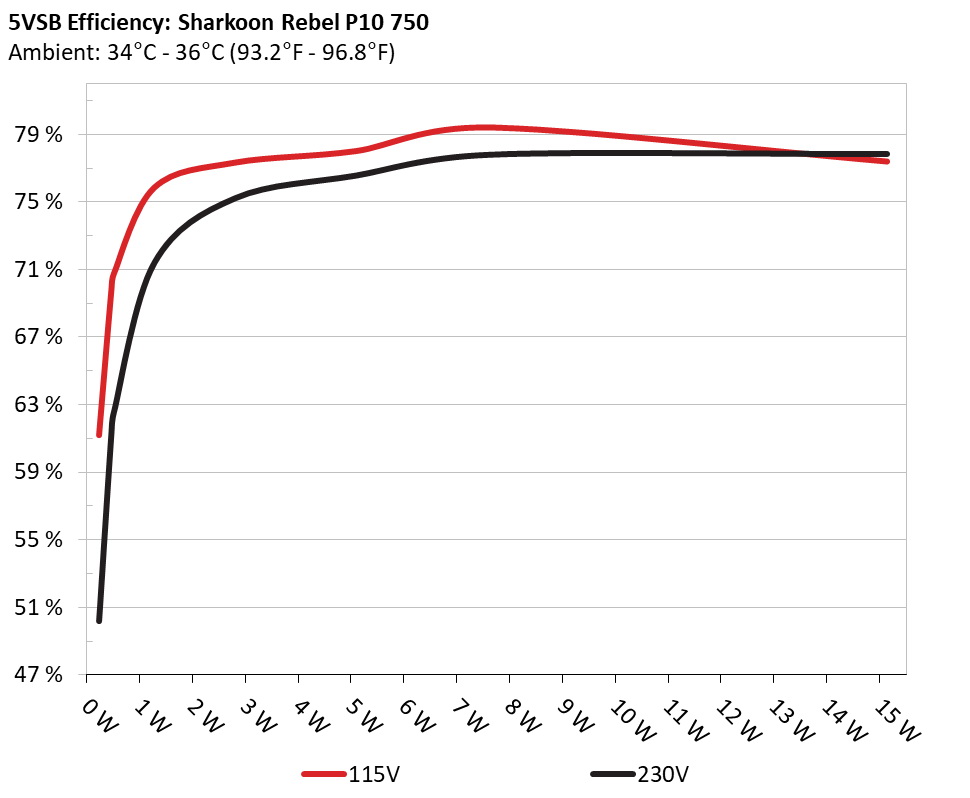

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 61.22% 0.048
5.117V 0.376W 114.88V
2 0.09A 0.46W 69.712% 0.083
5.115V 0.66W 114.88V
3 0.55A 2.808W 77.331% 0.305
5.105V 3.631W 114.87V
4 1A 5.095W 78.01% 0.369
5.094V 6.531W 114.87V
5 1.5A 7.625W 79.405% 0.412
5.083V 9.603W 114.87V
6 3.001A 15.144W 77.395% 0.47
5.047V 19.567W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 50.161% 0.017
5.117V 0.459W 229.95V
2 0.09A 0.461W 61.203% 0.028
5.115V 0.754W 229.94V
3 0.55A 2.808W 75.214% 0.13
5.105V 3.734W 229.94V
4 1A 5.095W 76.554% 0.206
5.094V 6.656W 229.94V
5 1.5A 7.625W 77.786% 0.242
5.082V 9.803W 229.95V
6 3.001A 15.143W 77.829% 0.34
5.047V 19.457W 229.94V

Protection Features

OCP (Normal @ 30.5°C)12V: 86.60A (138.56%), 12.255V
5V: 22.2A (123.33%), 5.095V
3.3V: 22.3A (123.89%), 3.331V
5VSB: 4.8A (160.00%), 4.963V
OCP (Hot @ 42.0°C)12V: 78.40A (125.44%), 12.252V
5V: 21.1A (117.22%), 5.107V
3.3V: 20.8A (115.56%), 3.332V
5VSB: 4.6A (153.33%), 4.944V
OPP (Normal @ 31.4°C)1068.71W (142.49%)
OPP (Hot @ 43.9°C)892.09W (118.94%)
OTP✓ (126°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.328A 1.951A 1.962A 0.984A 75.001 81.571% 1055 25 40.35°C 0.945
12.336V 5.127V 3.364V 5.083V 91.949 41.54°C 114.85V
20% 9.656A 2.931A 2.954A 1.184A 149.932 86.086% 1251 30.8 40.87°C 0.974
12.328V 5.118V 3.351V 5.067V 174.17 42.45°C 114.83V
30% 15.330A 3.424A 3.457A 1.386A 224.933 87.224% 1424 34.3 41.15°C 0.98
12.320V 5.111V 3.341V 5.052V 257.88 43.08°C 114.8V
40% 21.021A 3.92A 3.965A 1.589A 300.024 87.361% 1596 37 41.93°C 0.985
12.312V 5.103V 3.33V 5.036V 343.428 44.18°C 114.78V
50% 26.330A 4.907A 4.976A 1.793A 374.462 86.918% 1762 39.4 42.18°C 0.988
12.304V 5.096V 3.316V 5.019V 430.812 45.11°C 114.75V
60% 31.687A 5.898A 5.995A 1.999A 449.376 86.195% 1928 41.8 42.81°C 0.989
12.294V 5.088V 3.303V 5.002V 521.358 46.59°C 114.72V
70% 37.052A 6.892A 7.024A 2.207A 524.294 85.323% 2038 43 43.44°C 0.99
12.285V 5.08V 3.289V 4.985V 614.484 47.84°C 114.69V
80% 42.494A 7.886A 8.06A 2.314A 599.485 84.56% 2082 43.5 43.8°C 0.992
12.274V 5.072V 3.275V 4.969V 708.95 49.25°C 114.66V
90% 48.276A 8.391A 8.581A 2.422A 674.527 83.526% 2104 43.6 44.43°C 0.994
12.263V 5.065V 3.263V 4.954V 807.565 51.38°C 114.63V
100% 53.875A 8.896A 9.139A 3.046A 749.745 82.204% 2108 43.6 45.86°C 0.994
12.251V 5.058V 3.25V 4.926V 912.063 54.3°C 114.6V
110% 59.353A 9.901A 10.297A 3.055A 824.772 80.617% 2112 43.6 46.07°C 0.996
12.240V 5.05V 3.233V 4.91V 1023.075 56.41°C 114.56V
CL1 0.114A 11.772A 11.984A 0A 101.294 77.447% 1699 39 41.22°C 0.963
12.322V 5.114V 3.312V 5.083V 130.794 44.77°C 114.84V
CL2 0.112A 17.58A 0A 0.001A 91.394 76.918% 1444 34.5 40.34°C 0.957
12.333V 5.119V 3.345V 5.095V 118.819 42.99°C 114.84V
CL3 0.112A 0A 17.9A 0A 60.782 70.782% 1354 32.5 41.79°C 0.94
12.331V 5.112V 3.318V 5.091V 85.873 44.17°C 114.86V
CL4 61.112A 0A 0A 0.001A 749.549 83.515% 2117 43.8 46.64°C 0.994
12.265V 5.074V 3.299V 5.022V 897.51 53.47°C 114.6V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.330A 1.951A 1.962A 0.984A 75.007 82.935% 1091 25.9 40.07°C 0.844
12.335V 5.127V 3.363V 5.083V 90.441 41.49°C 229.94V
20% 9.656A 2.931A 2.955A 1.184A 149.948 87.811% 1263 31.3 40.73°C 0.92
12.328V 5.118V 3.35V 5.067V 170.764 42.12°C 229.92V
30% 15.331A 3.425A 3.459A 1.386A 224.951 89.15% 1443 34.5 41.06°C 0.948
12.321V 5.11V 3.34V 5.051V 252.328 42.89°C 229.91V
40% 21.020A 3.92A 3.966A 1.589A 300.044 89.463% 1626 37.4 41.89°C 0.962
12.314V 5.103V 3.329V 5.036V 335.383 44.1°C 229.9V
50% 26.328A 4.908A 4.977A 1.793A 374.519 89.264% 1784 39.8 42.48°C 0.968
12.306V 5.095V 3.315V 5.02V 419.567 45.03°C 229.88V
60% 31.682A 5.899A 5.998A 1.999A 449.435 88.819% 1954 42.2 42.86°C 0.973
12.298V 5.087V 3.301V 5.002V 506.008 47.04°C 229.87V
70% 37.045A 6.893A 7.027A 2.207A 524.353 88.295% 2046 43.1 43.41°C 0.976
12.289V 5.079V 3.288V 4.985V 593.861 47.34°C 229.86V
80% 42.484A 7.887A 8.065A 2.314A 599.551 87.901% 2087 43.6 43.6°C 0.979
12.279V 5.071V 3.273V 4.969V 682.139 49.02°C 229.85V
90% 48.260A 8.393A 8.585A 2.422A 674.571 87.345% 2106 43.6 44.52°C 0.982
12.268V 5.064V 3.261V 4.954V 772.305 49.89°C 229.83V
100% 53.851A 8.899A 9.143A 3.046A 749.778 86.53% 2113 43.6 45.66°C 0.984
12.257V 5.057V 3.248V 4.926V 866.487 52.03°C 229.82V
110% 59.314A 9.905A 10.299A 3.054A 824.785 85.63% 2116 43.7 46.83°C 0.985
12.248V 5.048V 3.233V 4.912V 963.187 53.65°C 229.81V
CL1 0.114A 11.775A 11.986A 0A 101.297 79.261% 1671 38.4 40.36°C 0.895
12.324V 5.112V 3.312V 5.083V 127.805 43.82°C 229.94V
CL2 0.112A 17.582A 0A 0.001A 91.396 78.527% 1451 34.7 40.51°C 0.882
12.333V 5.119V 3.345V 5.094V 116.388 43.06°C 229.93V
CL3 0.112A 0A 17.907A 0A 60.785 72.152% 1322 32.1 40.81°C 0.833
12.330V 5.112V 3.317V 5.091V 84.247 42.67°C 229.94V
CL4 61.083A 0A 0A 0.001A 749.585 87.58% 2119 43.8 46.95°C 0.984
12.271V 5.072V 3.298V 5.022V 855.882 52.01°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.202A 0.487A 0.489A 0.196A 20 64.481% 799 16.4 36.13°C 0.864
12.345V 5.13V 3.377V 5.111V 31.015 36.26°C 114.87V
40W 2.648A 0.682A 0.685A 0.294A 39.999 75.502% 814 17.1 37.18°C 0.905
12.342V 5.129V 3.374V 5.106V 52.976 38.42°C 114.86V
60W 4.096A 0.878A 0.881A 0.392A 59.998 80.102% 873 19.1 38.09°C 0.934
12.339V 5.128V 3.371V 5.101V 74.902 39.67°C 114.86V
80W 5.537A 1.073A 1.078A 0.491A 79.94 82.969% 1013 23.8 39.69°C 0.948
12.337V 5.127V 3.368V 5.096V 96.347 40.91°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.202A 0.488A 0.489A 0.196A 20.002 65.883% 800 16.4 36.66°C 0.631
12.347V 5.127V 3.376V 5.111V 30.362 37.42°C 229.94V
40W 2.648A 0.682A 0.685A 0.294A 40.002 76.89% 818 16.4 37.48°C 0.739
12.342V 5.129V 3.374V 5.106V 52.026 38.63°C 229.94V
60W 4.096A 0.878A 0.881A 0.392A 60.002 81.818% 881 17.3 38.15°C 0.809
12.339V 5.129V 3.371V 5.101V 73.337 39.43°C 229.94V
80W 5.538A 1.073A 1.078A 0.491A 79.948 84.37% 1022 19.3 39.47°C 0.85
12.336V 5.127V 3.368V 5.095V 94.763 40.77°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.41mV18.39mV12.77mV21.16mVPass
20% Load15.98mV20.30mV13.86mV22.45mVPass
30% Load16.71mV20.97mV14.53mV23.22mVPass
40% Load15.62mV22.41mV15.82mV24.98mVPass
50% Load20.05mV25.55mV17.37mV25.24mVPass
60% Load21.19mV26.38mV19.96mV26.17mVPass
70% Load23.66mV30.24mV21.30mV28.80mVPass
80% Load27.79mV29.57mV23.48mV31.07mVPass
90% Load33.56mV31.22mV28.34mV32.67mVPass
100% Load51.62mV38.24mV29.91mV38.29mVPass
110% Load59.34mV38.77mV32.45mV41.49mVPass
Crossload119.88mV29.04mV23.62mV21.03mVPass
Crossload215.98mV34.21mV21.72mV21.16mVPass
Crossload316.09mV20.87mV22.70mV16.16mVPass
Crossload447.60mV27.08mV24.76mV34.67mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.01mV18.03mV12.05mV19.82mVPass
20% Load12.68mV19.01mV12.77mV20.34mVPass
30% Load13.87mV19.27mV13.14mV20.44mVPass
40% Load14.74mV20.71mV13.96mV20.44mVPass
50% Load18.05mV22.67mV14.38mV20.29mVPass
60% Load17.27mV22.51mV15.72mV21.16mVPass
70% Load19.85mV24.73mV15.98mV21.94mVPass
80% Load27.22mV26.94mV19.13mV25.34mVPass
90% Load36.04mV27.67mV20.32mV26.33mVPass
100% Load62.01mV33.37mV23.63mV35.64mVPass
110% Load85.69mV38.11mV27.49mV37.28mVPass
Crossload118.94mV31.71mV24.98mV18.88mVPass
Crossload216.24mV31.99mV20.01mV20.03mVPass
Crossload315.98mV20.45mV21.51mV13.99mVPass
Crossload452.44mV23.40mV18.43mV29.50mVPass

The results above are not used in the certification process
