Sharkoon Rebel P10 650
Serial Number
Lab IDSK65002588
Certification ID252588
  • Test Result Report ID: 24PS2588A
  • Certificate Issue Date: Nov 14, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSharkoon
ModelRebel P10 650
OEM/ODMAndyson
Serial Number
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)4-8
Rated Frequency (Hz)50-60
Rated Power (W)650
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Sleeve Bearing Fan (S1202512L)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDSK65002588
Date of receiptNov 29, 2024
Testing DateNov 13, 2024
Report Issued DateNov 14, 2024
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (545mm) 1 1 18-22AWG No
4+4 pin EPS12V (630mm) 2 2 18AWG No
6+2 pin PCIe (570mm+150mm) 1 2 18AWG No
SATA (465mm+120mm+120mm) 1 3 18AWG No
SATA (460mm+120mm) / 4-pin Molex (+120mm) 1 2 / 1 18AWG No

Protection Features(Manufacturer)

Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓
Inrush Current Protection ✓
Fan Failure Protection ✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181854.130.3
Watts100650153.6
Total Max. Power (W)650

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)84.550%
Average Noise Output (>1450 Load Combinations)31.12dBA
Average PF (>1450 Load Combinations)0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load60.291%
Standby Power Consumption0.0792W
Non-Accredited
12V Ripple (Full Load)49.28mV
5V Ripple (Full Load)39.04mV
3.3V Ripple (Full Load)24.78mV
5VSB Ripple (Full Load)30.63mV
12V Load Regulation0.61%
5V Load Regulation1.44%
3.3V Load Regulation4.04%
5VSB Load Regulation3.80%
Inrush Current32.950A
Accredited
Average Efficiency (>1450 load combinations)87.305%
Average Noise Output (>1450 Load Combinations)30.64dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load0.001%
Standby Power Consumption0.1649W
Non-Accredited
12V Ripple (Full Load)48.66mV
5V Ripple (Full Load)36.76mV
3.3V Ripple (Full Load)24.72mV
5VSB Ripple (Full Load)25.92mV
12V Load Regulation0.59%
5V Load Regulation1.52%
3.3V Load Regulation4.07%
5VSB Load Regulation3.80%
Inrush Current65.690A
12V Transient Response (150%)11.85V
5V Transient Response (150%)4.955V
3.3V Transient Response (150%)3.210V
5VSB Transient Response (150%)4.944V
Hold-Up Time & PWR_OK Signal15.40ms
AC Loss to PWR_OK Hold Up Time14.00ms
PWR_OK Inactive to DC Loss Delay1.40ms
PSU Timings: T1 (20% / 100%)28.0ms28.0ms
PSU Timings: T3 (20% / 100%)123.0ms122.0ms
12V OCP (30.5°C / 43.3°C)72.60A (134.20%), 12.186V63.80A (117.93%), 12.189V
5V OCP (30.5°C / 43.3°C)22.3A (123.89%), 5.066V20.9A (116.11%), 5.081V
3.3V OCP (30.5°C / 43.3°C)21.5A (119.44%), 3.323V20.4A (113.33%), 3.32V
5VSB OCP (30.5°C / 43.3°C)4.7A (156.67%), 4.96V4.6A (153.33%), 4.969V
OPP (31.58°C / 43.94°C)132.65%115.31%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)15.4
AC Loss to PWR_OK Hold Up Time (ms)14
PWR_OK Inactive to DC Loss Delay (ms)1.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.079 W 0.005 W N/A 0.118 W N/A N/A
Apparent Power: 7.670 W 7.437 W N/A 7.943 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.92 V 227.70 V 231.09 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.165 W 0.123 W N/A 0.231 W N/A N/A
Apparent Power: 25.297 W 24.945 W N/A 25.676 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

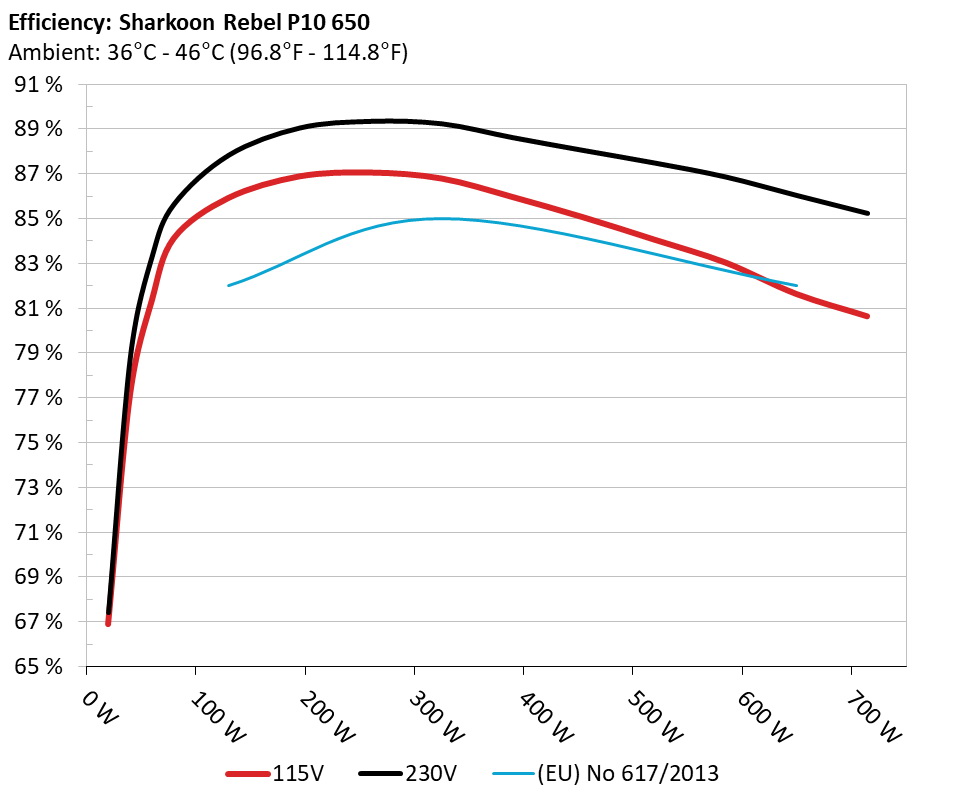

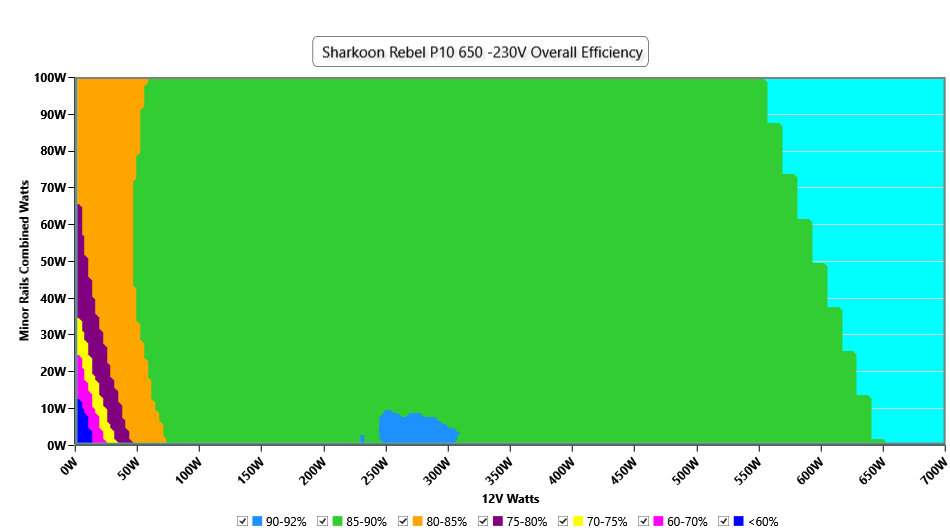

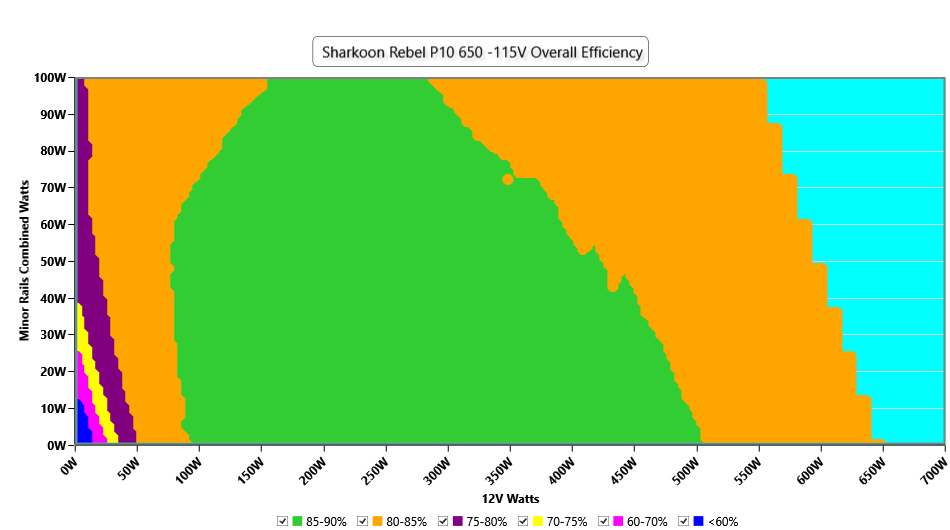

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

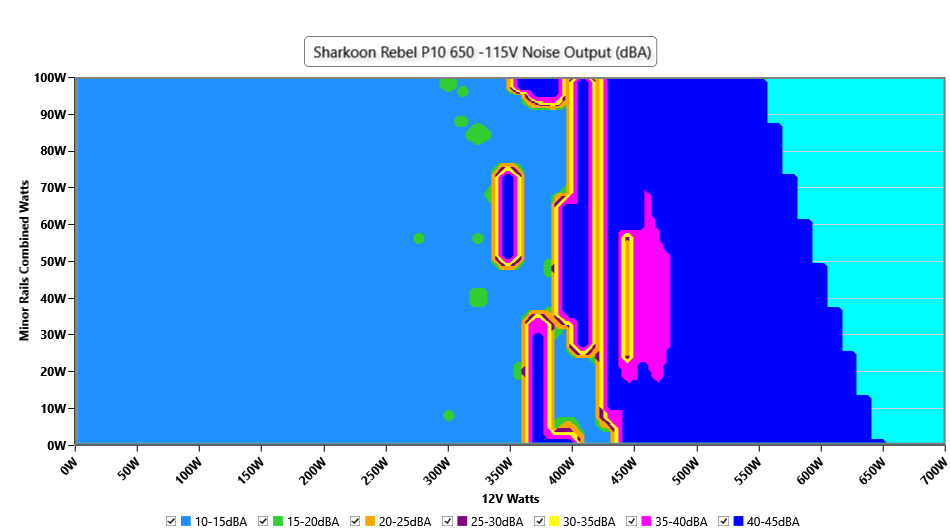

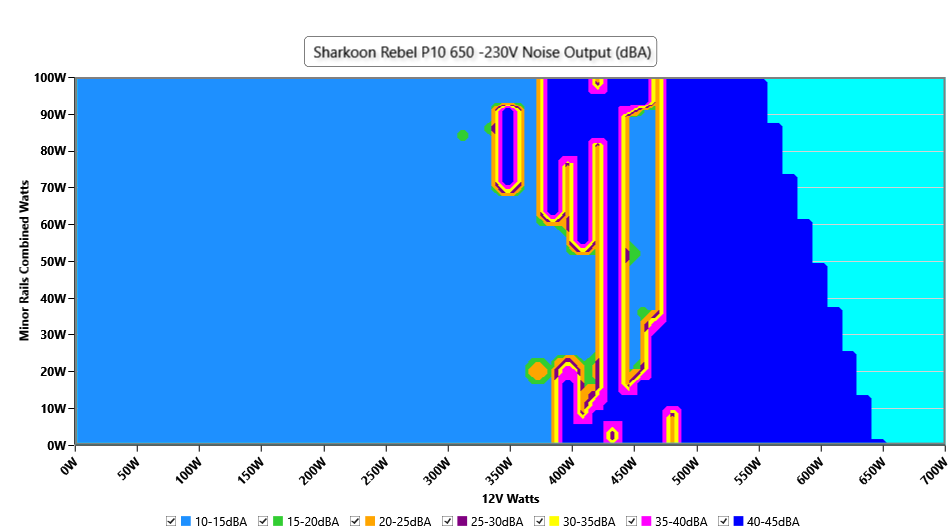

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

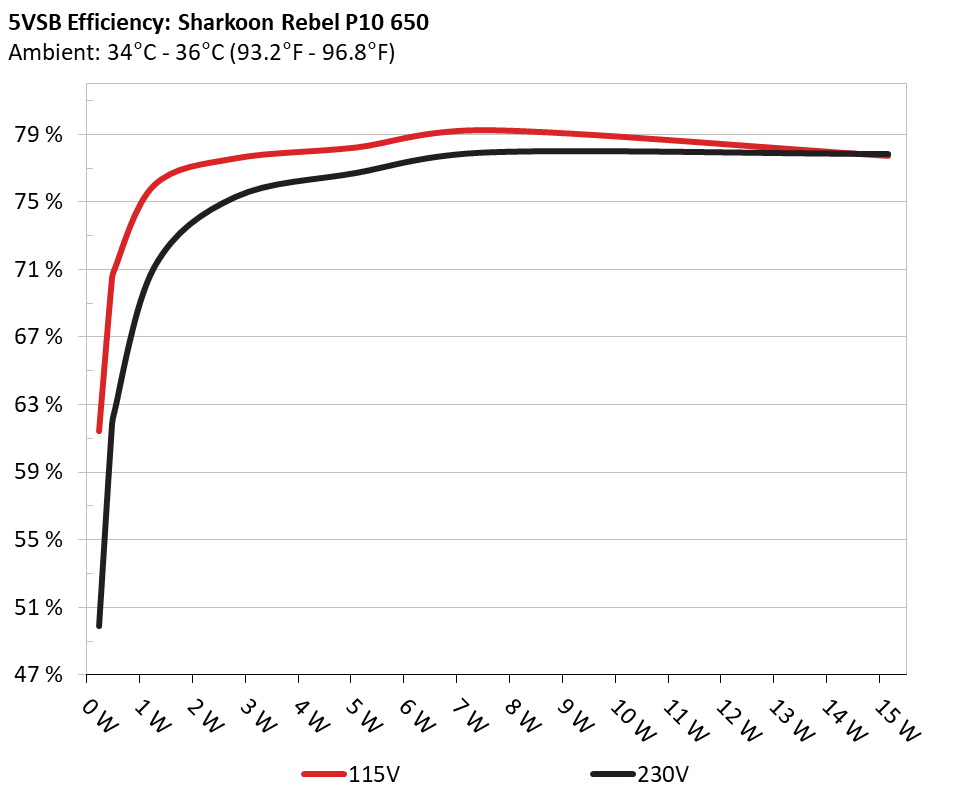

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 61.453% 0.048
5.114V 0.374W 114.89V
2 0.09A 0.46W 70.032% 0.082
5.113V 0.657W 114.88V
3 0.55A 2.807W 77.612% 0.303
5.103V 3.617W 114.87V
4 1A 5.094W 78.258% 0.367
5.094V 6.51W 114.87V
5 1.5A 7.625W 79.281% 0.411
5.083V 9.618W 114.87V
6 3A 15.153W 77.76% 0.467
5.05V 19.487W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 49.87% 0.017
5.115V 0.462W 229.94V
2 0.09A 0.46W 61.141% 0.028
5.113V 0.753W 229.95V
3 0.55A 2.807W 75.294% 0.13
5.103V 3.729W 229.94V
4 1A 5.094W 76.719% 0.206
5.094V 6.639W 229.94V
5 1.5A 7.625W 77.943% 0.242
5.083V 9.784W 229.94V
6 3.001A 15.152W 77.839% 0.341
5.05V 19.466W 229.94V

Protection Features

OCP (Normal @ 30.5°C)12V: 72.60A (134.20%), 12.186V
5V: 22.3A (123.89%), 5.066V
3.3V: 21.5A (119.44%), 3.323V
5VSB: 4.7A (156.67%), 4.96V
OCP (Hot @ 43.3°C)12V: 63.80A (117.93%), 12.189V
5V: 20.9A (116.11%), 5.081V
3.3V: 20.4A (113.33%), 3.32V
5VSB: 4.6A (153.33%), 4.969V
OPP (Normal @ 31.6°C)862.24W (132.65%)
OPP (Hot @ 43.9°C)749.50W (115.31%)
OTP✓ (125°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.547A 1.966A 1.964A 0.984A 65.009 81.107% 708 12.9 40.2°C 0.912
12.238V 5.088V 3.361V 5.08V 80.149 41.08°C 114.86V
20% 8.098A 2.953A 2.957A 1.185A 129.951 85.931% 711 12.9 40.95°C 0.953
12.231V 5.08V 3.348V 5.063V 151.229 42.38°C 114.83V
30% 12.999A 3.449A 3.462A 1.387A 194.956 86.896% 716 13.2 41.4°C 0.971
12.224V 5.074V 3.336V 5.048V 224.356 43.75°C 114.82V
40% 17.913A 3.946A 3.971A 1.59A 260.044 87.068% 714 13.1 41.81°C 0.981
12.217V 5.07V 3.324V 5.032V 298.67 44.35°C 114.79V
50% 22.487A 4.938A 4.987A 1.795A 325.046 86.802% 717 13.2 42.03°C 0.985
12.208V 5.064V 3.309V 5.015V 374.468 45.72°C 114.76V
60% 27.019A 5.935A 6.012A 2A 389.446 85.986% 1879 41 42.95°C 0.989
12.200V 5.056V 3.294V 4.997V 452.924 47.16°C 114.74V
70% 31.622A 6.947A 7.037A 2.209A 454.767 85.07% 1874 40.9 43.37°C 0.991
12.196V 5.039V 3.283V 4.98V 534.584 47.07°C 114.71V
80% 36.236A 7.951A 8.076A 2.317A 519.573 84.078% 1893 41.2 43.54°C 0.992
12.189V 5.031V 3.269V 4.964V 617.975 48.05°C 114.69V
90% 41.251A 8.459A 8.597A 2.425A 584.962 83.049% 1909 41.4 44.76°C 0.993
12.181V 5.024V 3.257V 4.95V 704.359 50.38°C 114.66V
100% 46.016A 8.969A 9.159A 3.049A 649.786 81.648% 1910 41.4 45.15°C 0.993
12.171V 5.017V 3.243V 4.921V 795.85 52.47°C 114.64V
110% 50.647A 9.995A 10.303A 3.057A 714.411 80.657% 1915 41.5 45.11°C 0.994
12.165V 5.003V 3.232V 4.909V 885.755 52.1°C 114.61V
CL1 0.115A 11.864A 11.99A 0A 101.299 78.592% 733 13.8 41.78°C 0.946
12.229V 5.074V 3.311V 5.076V 128.888 45.72°C 114.84V
CL2 0.114A 17.703A 0A 0.001A 91.397 77.685% 863 18.5 40.74°C 0.939
12.234V 5.084V 3.334V 5.088V 117.65 43.6°C 114.84V
CL3 0.113A 0A 17.875A 0A 60.788 72.203% 718 13.2 41.85°C 0.915
12.232V 5.079V 3.323V 5.086V 84.19 43.98°C 114.85V
CL4 53.343A 0A 0A 0.002A 649.623 83.135% 1920 41.7 44.65°C 0.993
12.178V 5.034V 3.29V 5.019V 781.421 51.44°C 114.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.548A 1.966A 1.964A 0.984A 65.011 83.149% 707 12.9 40.4°C 0.796
12.237V 5.088V 3.361V 5.08V 78.186 41.35°C 229.94V
20% 8.099A 2.953A 2.958A 1.185A 129.952 87.844% 709 12.9 40.95°C 0.893
12.230V 5.08V 3.347V 5.063V 147.936 42.52°C 229.93V
30% 12.999A 3.45A 3.463A 1.387A 194.957 89.06% 712 12.9 41.12°C 0.931
12.223V 5.074V 3.336V 5.048V 218.903 43.23°C 229.92V
40% 17.914A 3.947A 3.972A 1.59A 260.046 89.357% 714 13.1 41.72°C 0.951
12.216V 5.069V 3.324V 5.032V 291.019 43.98°C 229.9V
50% 22.486A 4.94A 4.987A 1.795A 325.046 89.247% 718 13.2 42.4°C 0.963
12.209V 5.062V 3.309V 5.014V 364.209 45.69°C 229.89V
60% 27.015A 5.942A 6.008A 2A 389.45 88.633% 1886 41 42.77°C 0.97
12.202V 5.05V 3.296V 4.997V 439.394 45.98°C 229.88V
70% 31.619A 6.95A 7.035A 2.21A 454.769 88.056% 1871 40.8 43.05°C 0.973
12.197V 5.038V 3.284V 4.98V 516.454 46.02°C 229.87V
80% 36.233A 7.955A 8.073A 2.317A 519.567 87.498% 1895 41.2 43.96°C 0.976
12.189V 5.028V 3.27V 4.964V 593.801 47.34°C 229.86V
90% 41.249A 8.463A 8.597A 2.425A 584.967 86.868% 1910 41.4 44.52°C 0.98
12.181V 5.022V 3.257V 4.949V 673.396 48.91°C 229.85V
100% 46.013A 8.973A 9.16A 3.049A 649.791 86.045% 1916 41.5 45.74°C 0.983
12.172V 5.015V 3.242V 4.921V 755.18 51.05°C 229.84V
110% 50.648A 9.995A 10.307A 3.057A 714.419 85.248% 1920 41.7 46.23°C 0.986
12.164V 5.003V 3.23V 4.907V 838.052 51.4°C 229.83V
CL1 0.115A 11.874A 11.983A 0A 101.299 80.411% 1574 37 40.93°C 0.876
12.229V 5.07V 3.313V 5.076V 125.978 44.46°C 229.93V
CL2 0.114A 17.712A 0A 0.001A 91.397 79.833% 737 13.8 40.86°C 0.861
12.235V 5.081V 3.336V 5.088V 114.487 43.19°C 229.93V
CL3 0.113A 0A 17.877A 0A 60.788 74.039% 718 13.2 40.28°C 0.806
12.231V 5.079V 3.322V 5.085V 82.102 42.34°C 229.94V
CL4 53.340A 0A 0A 0.001A 649.624 87.193% 1915 41.5 45.51°C 0.982
12.178V 5.032V 3.29V 5.019V 745.046 49.64°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.491A 0.489A 0.196A 20.007 66.918% 700 12.7 36.07°C 0.816
12.245V 5.089V 3.374V 5.108V 29.898 36.48°C 114.87V
40W 2.670A 0.688A 0.685A 0.294A 40.006 77.136% 708 12.7 37.27°C 0.873
12.243V 5.088V 3.371V 5.103V 51.866 37.63°C 114.87V
60W 4.128A 0.885A 0.882A 0.392A 60.006 81.362% 701 12.9 38.1°C 0.905
12.241V 5.086V 3.367V 5.097V 73.752 38.75°C 114.86V
80W 5.583A 1.082A 1.079A 0.491A 79.957 84.124% 704 12.7 39.26°C 0.92
12.238V 5.086V 3.363V 5.091V 95.047 39.76°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.491A 0.489A 0.196A 20.009 67.412% 701 12.7 36.65°C 0.538
12.244V 5.091V 3.374V 5.108V 29.684 37.8°C 229.95V
40W 2.671A 0.688A 0.685A 0.294A 40.008 78.846% 702 12.7 37.6°C 0.699
12.242V 5.089V 3.371V 5.102V 50.741 38.58°C 229.94V
60W 4.129A 0.885A 0.882A 0.392A 60.007 83.341% 702 12.7 38.4°C 0.778
12.240V 5.087V 3.367V 5.097V 72.001 39.38°C 229.94V
80W 5.584A 1.082A 1.079A 0.491A 79.959 85.656% 702 12.7 39.2°C 0.827
12.238V 5.086V 3.364V 5.091V 93.347 40.19°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load11.44mV16.59mV11.17mV18.74mVPass
20% Load13.56mV19.11mV13.65mV20.18mVPass
30% Load15.98mV20.50mV13.81mV20.03mVPass
40% Load19.18mV22.31mV14.22mV20.91mVPass
50% Load21.14mV24.47mV15.10mV21.47mVPass
60% Load26.86mV26.74mV16.39mV22.46mVPass
70% Load26.76mV26.84mV18.72mV22.71mVPass
80% Load30.32mV29.62mV21.30mV24.10mVPass
90% Load38.51mV34.67mV21.62mV25.35mVPass
100% Load49.28mV39.04mV24.78mV30.63mVPass
110% Load57.21mV42.02mV26.57mV32.48mVPass
Crossload119.72mV31.58mV22.93mV19.88mVPass
Crossload219.54mV35.76mV19.14mV21.01mVPass
Crossload315.26mV19.53mV23.01mV15.12mVPass
Crossload449.63mV23.61mV17.43mV27.66mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.14mV17.47mV11.94mV17.81mVPass
20% Load13.10mV18.85mV13.75mV18.58mVPass
30% Load15.72mV21.23mV13.03mV20.18mVPass
40% Load16.81mV22.31mV13.96mV19.05mVPass
50% Load19.13mV23.29mV15.05mV20.80mVPass
60% Load24.49mV25.97mV16.50mV20.08mVPass
70% Load26.04mV26.33mV17.43mV20.39mVPass
80% Load29.85mV29.93mV21.36mV20.75mVPass
90% Load36.04mV33.74mV20.89mV22.14mVPass
100% Load48.66mV36.76mV24.72mV25.92mVPass
110% Load55.43mV39.59mV25.60mV27.31mVPass
Crossload117.93mV31.37mV23.55mV18.79mVPass
Crossload217.22mV35.08mV18.82mV19.46mVPass
Crossload314.80mV19.58mV23.58mV14.19mVPass
Crossload450.45mV24.17mV18.13mV23.00mVPass

The results above are not used in the certification process

Sharkoon Rebel P10 650

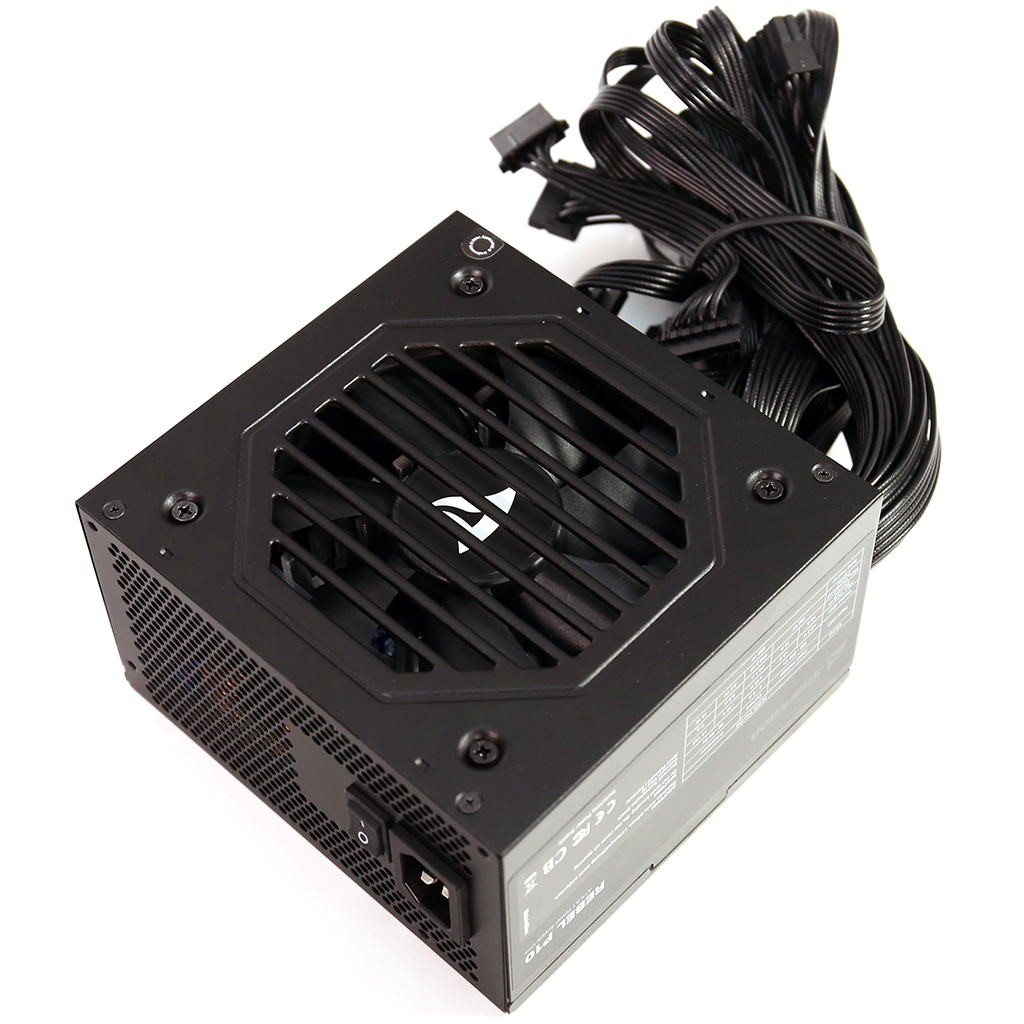

Top side
Top side

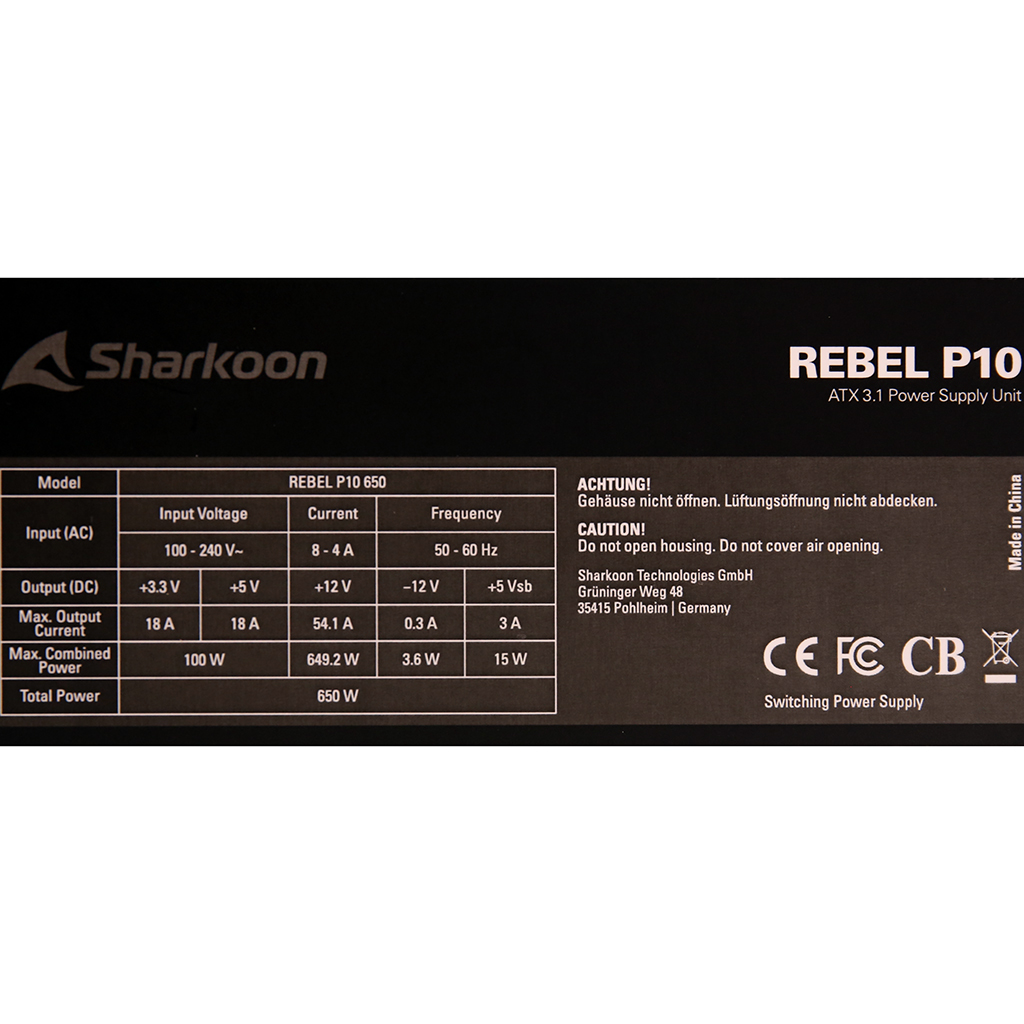

Power specifications label
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure. THETA rates cooler performance on AMD AM5 and Intel LGA1851 outside ISO 17065 and accreditation scope
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
