be quiet! Power Zone 2 850W

Serial Number007EUS4341000003

Lab IDBQ85002679

Certification ID252679

Test Result Report ID: 24PS2679A
Certificate Issue Date: Dec 19, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

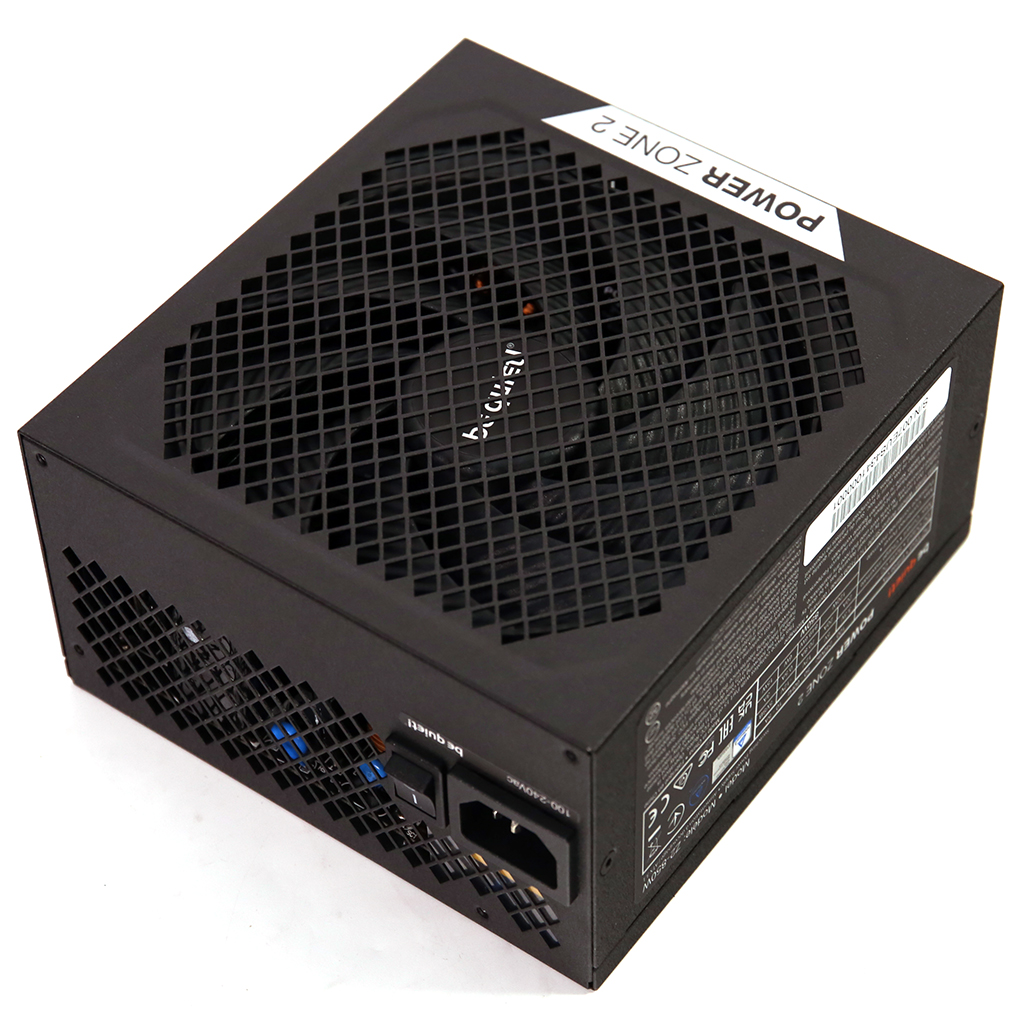

Product Identification Details
Brand	be quiet!
Model	Power Zone 2 850W
OEM/ODM	FSP
Serial Number	007EUS4341000003
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	5-10
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	140mm Rifle Bearing Fan (Pure Wings 3, BQ PUW3-14025-HR)
Semi-Passive Operation	✓
Cybenetics Testing Information
Lab ID	BQ85002679
Date of receipt	Dec 6, 2024
Testing Date	Dec 13, 2024
Report Issued Date	Dec 19, 2024
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (590mm)	1	1	16-22AWG	No
4+4 pin EPS12V (700mm)	1	1	16AWG	No
8 pin EPS12V (700mm)	1	1	16AWG	No
2x 6+2 pin PCIe (600mm)	1	2	16-18AWG	No
6+2 pin PCIe (600mm)	1	1	16AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-26AWG	No
SATA (550mm+150mm+150mm+155mm)	1	4	18AWG	No
SATA (500mm+150mm+150) / 4-pin Molex (+150mm)	1	3/1	18AWG	No
AC Power Cord (1350mm) - C13 coupler	1	1	18AWG	-

Protection Features(Manufacturer)

Over Voltage Protection	✓
Under Voltage Protection	✓
Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓

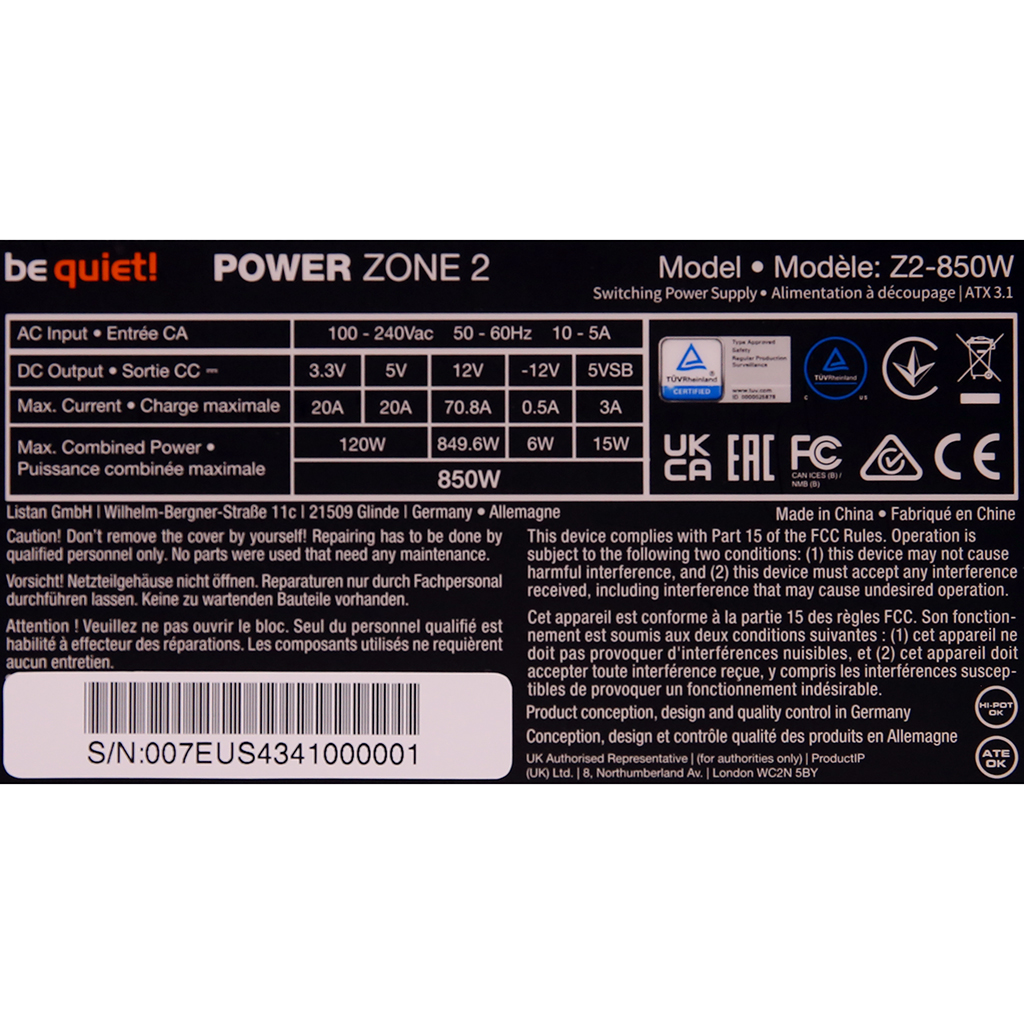

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	70.8	3	0.5
Max. Power	Watts	120		850	15	6
Total Max. Power (W)		850

Parts Description

General Data
Manufacturer (OEM)	FSP
PCB Type	Single-Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor SCK 202R0 (2 ohm) & Relay
Bridge Rectifier(s)	2x GBJ25V08 (800V, 25A @ 25°C)
APFC MOSFETs	2x Magnachip MMFT65R090RTH (650V, 22A @ 100°C, Rds(on): 0.090Ohm)
APFC Boost Diode	1x ROHM SCS308AM (650V, 8A @ 105°C)
Bulk Cap(s)	1x Elite (420V, 330uF, 2,000h @ 105°C, PL) 1x Elite (420V, 270uF, 3,000h @ 105°C, PK)
Main Switchers	2x Magnachip MMFT65R115RTH (650V, 19A @ 100°C, Rds(on): 0.115Ohm)
IC Driver	Novosense NSi6602
Resonant Controller	Champion CM6901X
APFC Controller	Champion CM6500UNX
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	4x Toshiba TPHR8504PL (40V, 150A @ 25°C, Rds(on): 0.85mOhm)
5V & 3.3V	DC-DC Converters: 4x Magnachip MDU1513 (30V, 70.4A @ 70°C, Rds(on): 4.6mOhm) PWM Controller(s): UPI-semi uP3861P
Filtering Capacitors	Electrolytic: 5x Elite (3-5,000h @105°C, EJ) 5x Elite (2-5,000h @105°C, ED) 4x Elite (3-6,000h @105°C, EV) Polymer: 13x Apaq, 7x Elite (CS)
Supervisor IC	Weltrend WT7527RA (OCP, OVP, UVP, SCP,PG)
Fan Controller	Grenergy GR8031
Fan Model	Pure Wings 3, BQPUW3-14025-HR (140mm, 12V, 0.42A, Rifle Bearing Fan)
5VSB
Rectifier	MPS MP9989 & 1x CET CEF03N8 (800V, 2A @ 100°C, Rds(on): 4.8Ohm)
Standby PWM Controller	MPS MP9989

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	90.402%
Average Noise Output (>1450 Load Combinations)	19.84dBA
Average PF (>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	70.088%
Standby Power Consumption	0.0424W
Non-Accredited
12V Ripple (Full Load)	49.84mV
5V Ripple (Full Load)	14.74mV
3.3V Ripple (Full Load)	17.66mV
5VSB Ripple (Full Load)	15.71mV
12V Load Regulation	0.72%
5V Load Regulation	0.95%
3.3V Load Regulation	1.45%
5VSB Load Regulation	2.83%
Inrush Current	81.930A

Accredited
Average Efficiency (>1450 load combinations)	92.438%
Average Noise Output (>1450 Load Combinations)	19.31dBA
Average PF (>1450 Load Combinations)	0.960
Efficiency With 10W (≤500W) or 2% (>500W) Load	69.282%
Standby Power Consumption	0.1028W
Non-Accredited
12V Ripple (Full Load)	51.69mV
5V Ripple (Full Load)	16.29mV
3.3V Ripple (Full Load)	17.29mV
5VSB Ripple (Full Load)	15.69mV
12V Load Regulation	0.75%
5V Load Regulation	0.95%
3.3V Load Regulation	1.39%
5VSB Load Regulation	2.81%
Inrush Current	161.700A
12V Transient Response (200%)	11.55V
5V Transient Response (200%)	4.995V
3.3V Transient Response (200%)	3.206V
5VSB Transient Response (200%)	4.841V
Hold-Up Time & PWR_OK Signal	18.60ms
AC Loss to PWR_OK Hold Up Time	17.20ms
PWR_OK Inactive to DC Loss Delay	1.40ms
PSU Timings: T1 (20% / 100%)	69.0ms	69.0ms
PSU Timings: T3 (20% / 100%)	121.0ms	121.0ms
12V OCP (24.3°C / 40.0°C)	93.60A (132.20%), 12.165V	89.20A (125.99%), 12.165V
5V OCP (24.3°C / 40.0°C)	29.7A (148.50%), 5.06V	29.5A (147.50%), 5.056V
3.3V OCP (24.3°C / 40.0°C)	28.1A (140.50%), 3.312V	28.1A (140.50%), 3.314V
5VSB OCP (24.3°C / 40.0°C)	4.8A (160.00%), 4.898V	4.7A (156.67%), 4.898V
OPP (25.77°C / 41.46°C)	145.02%	135.61%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	18.6
AC Loss to PWR_OK Hold Up Time (ms)	17.2
PWR_OK Inactive to DC Loss Delay (ms)	1.4

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.03 V	115.01 V	113.85 V	115.08 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.042 W	-0.009 W	N/A	0.088 W	N/A	N/A
Apparent Power:	8.531 W	8.359 W	N/A	8.717 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.00 V	230.89 V	227.70 V	231.05 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.25 %	2.00 %	PASS
Real Power:	0.103 W	0.052 W	N/A	0.169 W	N/A	N/A
Apparent Power:	28.898 W	28.443 W	N/A	29.393 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

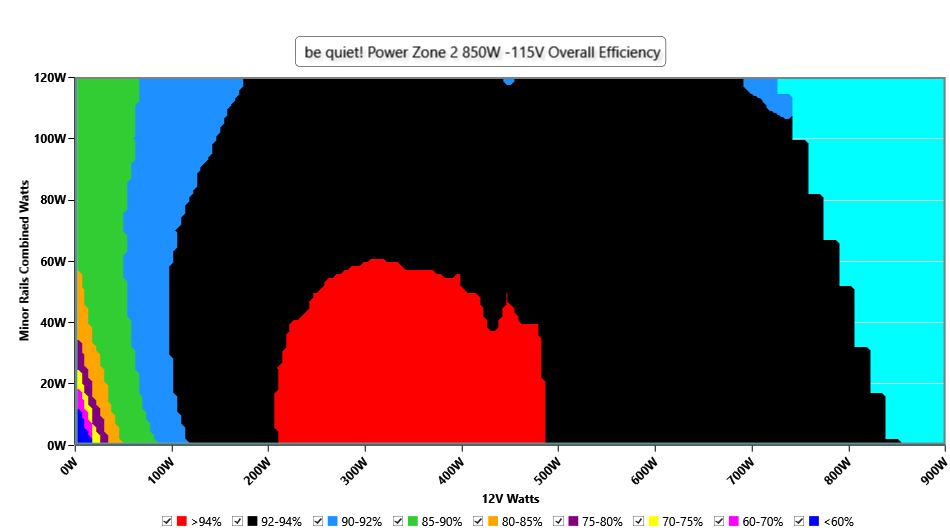

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

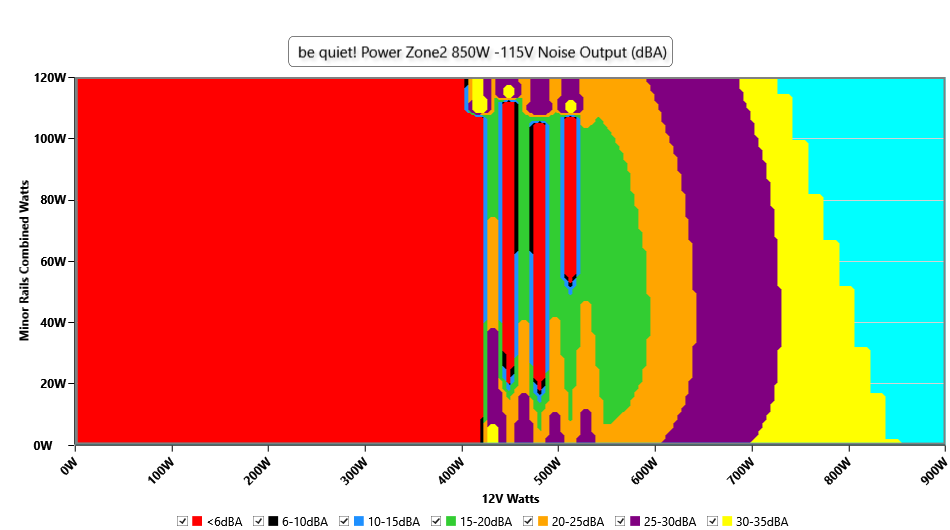

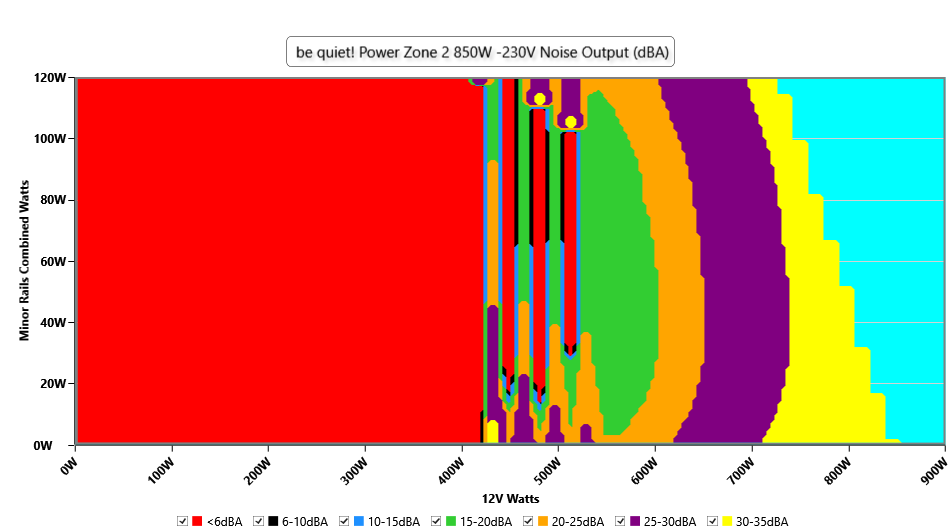

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

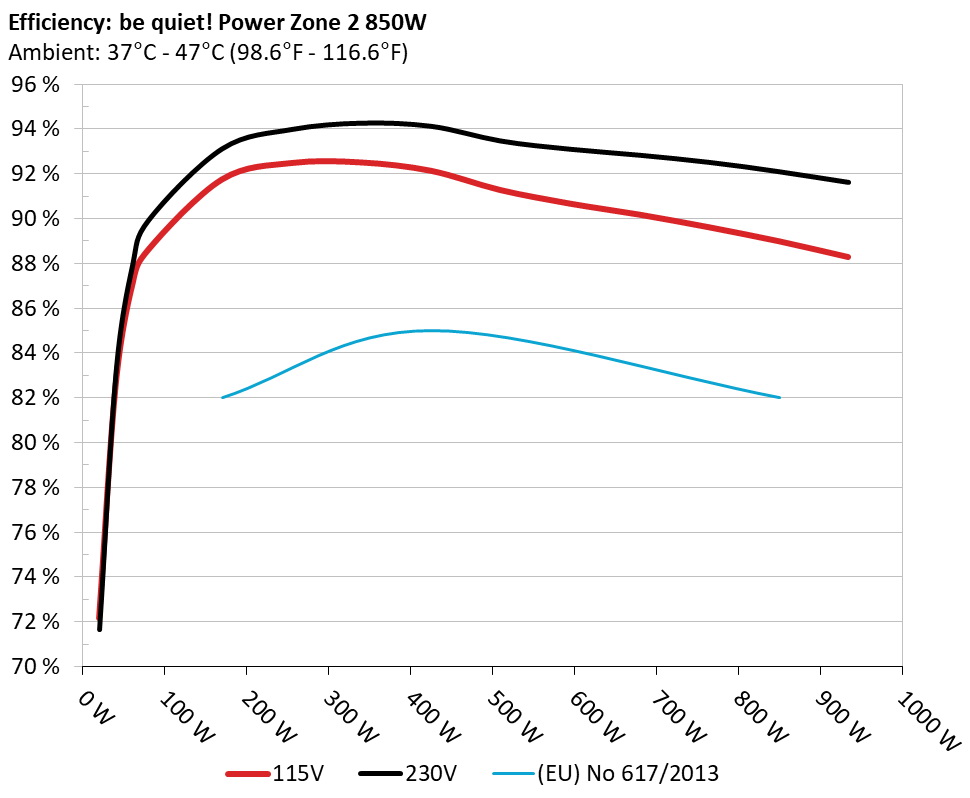

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

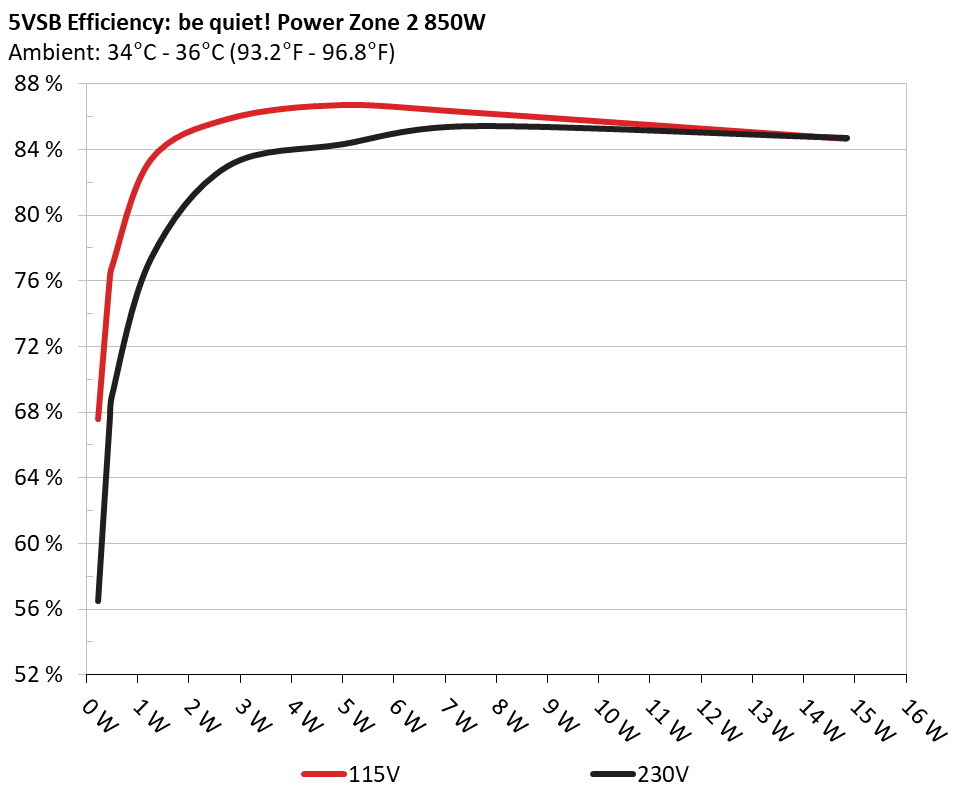

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	67.567%	0.039
1	5.021V	0.334W	67.567%	114.93V
2	0.09A	0.452W	76.08%	0.067
2	5.02V	0.594W	76.08%	114.93V
3	0.55A	2.754W	85.843%	0.264
3	5.008V	3.208W	85.843%	114.93V
4	1A	4.996W	86.698%	0.33
4	4.996V	5.763W	86.698%	114.91V
5	1.5A	7.476W	86.25%	0.377
5	4.984V	8.668W	86.25%	114.91V
6	3A	14.833W	84.64%	0.439
6	4.945V	17.525W	84.64%	114.9V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	56.473%	0.014
1	5.022V	0.404W	56.473%	229.89V
2	0.09A	0.452W	67.428%	0.023
2	5.021V	0.673W	67.428%	229.89V
3	0.55A	2.755W	82.982%	0.107
3	5.009V	3.321W	82.982%	229.89V
4	1A	4.997W	84.325%	0.175
4	4.997V	5.926W	84.325%	229.89V
5	1.5A	7.477W	85.425%	0.212
5	4.984V	8.751W	85.425%	229.89V
6	3A	14.839W	84.707%	0.31
6	4.947V	17.518W	84.707%	229.89V

Protection Features

OCP (Normal @ 24.3°C)	12V: 93.60A (132.20%), 12.165V 5V: 29.7A (148.50%), 5.06V 3.3V: 28.1A (140.50%), 3.312V 5VSB: 4.8A (160.00%), 4.898V
OCP (Hot @ 40.0°C)	12V: 89.20A (125.99%), 12.165V 5V: 29.5A (147.50%), 5.056V 3.3V: 28.1A (140.50%), 3.314V 5VSB: 4.7A (156.67%), 4.898V
OPP (Normal @ 25.8°C)	1232.66W (145.02%)
OPP (Hot @ 41.5°C)	1152.66W (135.61%)
OTP	✓ (142°C @ Secondary Side)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.182A	1.964A	1.971A	1.002A	85.005	88.678%	0	<6.0	48.93°C	0.957
10%	12.237V	5.092V	3.348V	4.993V	95.858	88.678%	0	<6.0	40.05°C	114.88V
20%	11.370A	2.949A	2.962A	1.205A	169.947	91.755%	0	<6.0	49.28°C	0.972
20%	12.229V	5.087V	3.343V	4.981V	185.218	91.755%	0	<6.0	40.53°C	114.86V
30%	17.913A	3.443A	3.46A	1.409A	254.957	92.49%	0	<6.0	52.15°C	0.978
30%	12.220V	5.083V	3.339V	4.969V	275.659	92.49%	0	<6.0	41.46°C	114.84V
40%	24.474A	3.938A	3.959A	1.614A	340.05	92.515%	0	<6.0	52.95°C	0.983
40%	12.211V	5.078V	3.334V	4.958V	367.564	92.515%	0	<6.0	41.74°C	114.8V
50%	30.684A	4.928A	4.957A	1.82A	424.875	92.142%	0	<6.0	55.84°C	0.987
50%	12.201V	5.073V	3.329V	4.946V	461.112	92.142%	0	<6.0	42.33°C	114.78V
60%	36.877A	5.921A	5.959A	2A	509.273	91.287%	0	<6.0	57.43°C	0.99
60%	12.191V	5.068V	3.323V	4.936V	557.884	91.287%	0	<6.0	42.66°C	114.74V
70%	43.138A	6.913A	6.962A	2.234A	594.704	90.676%	1035	26.7	43.05°C	0.992
70%	12.184V	5.063V	3.319V	4.923V	655.857	90.676%	1035	26.7	47.84°C	114.71V
80%	49.412A	7.906A	7.967A	2.341A	679.526	90.183%	1180	30.6	43.73°C	0.993
80%	12.176V	5.058V	3.314V	4.913V	753.5	90.183%	1180	30.6	48.49°C	114.67V
90%	56.091A	8.407A	8.461A	2.447A	764.954	89.617%	1344	33.9	44.72°C	0.993
90%	12.167V	5.054V	3.309V	4.904V	853.588	89.617%	1344	33.9	48.71°C	114.65V
100%	62.516A	8.91A	8.988A	3.073A	849.763	88.994%	1497	36.9	45.1°C	0.994
100%	12.158V	5.05V	3.304V	4.881V	954.861	88.994%	1497	36.9	49.79°C	114.61V
110%	68.820A	9.911A	10.085A	3.078A	934.33	88.29%	1643	39.3	46.53°C	0.994
110%	12.149V	5.044V	3.302V	4.874V	1058.255	88.29%	1643	39.3	50.99°C	114.57V
CL1	0.115A	14.255A	14.367A	0A	121.294	85.775%	0	<6.0	46.72°C	0.97
CL1	12.227V	5.064V	3.32V	5.007V	141.41	85.775%	0	<6.0	40.17°C	114.87V
CL2	0.113A	19.728A	0A	0A	101.343	84.309%	0	<6.0	48.17°C	0.967
CL2	12.233V	5.067V	3.334V	5.014V	120.208	84.309%	0	<6.0	40.89°C	114.87V
CL3	0.113A	0A	19.876A	0A	67.397	78.999%	0	<6.0	47.36°C	0.955
CL3	12.232V	5.072V	3.321V	5.014V	85.312	78.999%	0	<6.0	40.68°C	114.89V
CL4	69.842A	0A	0A	0A	849.521	89.535%	1509	37.2	45.09°C	0.994
CL4	12.164V	5.067V	3.326V	4.971V	948.817	89.535%	1509	37.2	49.27°C	114.61V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.180A	1.964A	1.972A	1.002A	85.001	89.891%	0	<6.0	49.08°C	0.877
10%	12.239V	5.092V	3.347V	4.992V	94.557	89.891%	0	<6.0	40.03°C	229.87V
20%	11.369A	2.949A	2.962A	1.205A	169.939	93.114%	0	<6.0	50.4°C	0.937
20%	12.230V	5.087V	3.342V	4.981V	182.508	93.114%	0	<6.0	40.53°C	229.86V
30%	17.913A	3.443A	3.46A	1.409A	254.95	93.974%	0	<6.0	50.67°C	0.958
30%	12.221V	5.083V	3.338V	4.969V	271.299	93.974%	0	<6.0	41.07°C	229.84V
40%	24.472A	3.939A	3.96A	1.614A	340.044	94.254%	0	<6.0	52.47°C	0.968
40%	12.212V	5.078V	3.334V	4.958V	360.774	94.254%	0	<6.0	41.78°C	229.83V
50%	30.682A	4.928A	4.959A	1.82A	424.87	94.113%	0	<6.0	52.76°C	0.971
50%	12.202V	5.073V	3.328V	4.946V	451.449	94.113%	0	<6.0	42.07°C	229.82V
60%	36.876A	5.921A	5.961A	2A	509.27	93.46%	0	<6.0	53.03°C	0.977
60%	12.192V	5.067V	3.322V	4.936V	544.908	93.46%	0	<6.0	42.52°C	229.8V
70%	43.139A	6.914A	6.964A	2.234A	594.71	93.09%	1039	26.7	43.41°C	0.98
70%	12.184V	5.063V	3.318V	4.923V	638.861	93.09%	1039	26.7	52.51°C	229.79V
80%	49.414A	7.907A	7.971A	2.341A	679.536	92.822%	1177	30.4	43.93°C	0.981
80%	12.175V	5.058V	3.312V	4.913V	732.088	92.822%	1177	30.4	52.31°C	229.77V
90%	56.094A	8.408A	8.465A	2.447A	764.967	92.503%	1334	33.8	44.13°C	0.983
90%	12.167V	5.054V	3.308V	4.904V	826.969	92.503%	1334	33.8	52.41°C	229.76V
100%	62.520A	8.911A	8.983A	3.074A	849.779	92.087%	1491	36.7	45.13°C	0.984
100%	12.157V	5.049V	3.306V	4.881V	922.802	92.087%	1491	36.7	53.6°C	229.74V
110%	68.826A	9.912A	10.09A	3.078A	934.363	91.611%	1639	39.3	46.25°C	0.985
110%	12.148V	5.044V	3.3V	4.874V	1019.919	91.611%	1639	39.3	55.07°C	229.73V
CL1	0.115A	14.255A	14.366A	0A	121.297	86.771%	0	<6.0	45.33°C	0.921
CL1	12.227V	5.064V	3.321V	5.007V	139.789	86.771%	0	<6.0	40.16°C	229.86V
CL2	0.114A	19.73A	0A	0A	101.361	85.246%	0	<6.0	46.01°C	0.906
CL2	12.233V	5.067V	3.334V	5.014V	118.903	85.246%	0	<6.0	40.75°C	229.87V
CL3	0.113A	0A	19.874A	0A	67.401	80.294%	0	<6.0	45.57°C	0.86
CL3	12.231V	5.073V	3.321V	5.013V	83.942	80.294%	0	<6.0	40.28°C	229.87V
CL4	69.849A	0A	0A	0A	849.55	92.581%	1501	37	45°C	0.984
CL4	12.163V	5.067V	3.326V	4.971V	917.627	92.581%	1501	37	53.83°C	229.74V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.214A	0.49A	0.492A	0.199A	20.008	72.158%	0	<6.0	44.95°C	0.911
20W	12.246V	5.098V	3.352V	5.019V	27.729	72.158%	0	<6.0	36.78°C	114.9V
40W	2.670A	0.687A	0.689A	0.299A	40.004	82.514%	0	<6.0	45.54°C	0.928
40W	12.243V	5.096V	3.351V	5.015V	48.482	82.514%	0	<6.0	37.35°C	114.9V
60W	4.128A	0.883A	0.887A	0.399A	60.002	86.978%	0	<6.0	46.29°C	0.948
60W	12.241V	5.095V	3.35V	5.011V	68.985	86.978%	0	<6.0	38.04°C	114.88V
80W	5.582A	1.08A	1.084A	0.499A	79.949	88.612%	0	<6.0	48.81°C	0.956
80W	12.239V	5.094V	3.349V	5.007V	90.223	88.612%	0	<6.0	39.38°C	114.89V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.212A	0.49A	0.492A	0.199A	19.994	71.651%	0	<6.0	44.64°C	0.557
20W	12.248V	5.097V	3.352V	5.018V	27.908	71.651%	0	<6.0	36.9°C	229.89V
40W	2.669A	0.687A	0.689A	0.299A	39.994	83.105%	0	<6.0	45.84°C	0.739
40W	12.246V	5.096V	3.351V	5.014V	48.125	83.105%	0	<6.0	37.08°C	229.88V
60W	4.126A	0.883A	0.887A	0.399A	59.995	87.859%	0	<6.0	46.99°C	0.82
60W	12.243V	5.095V	3.349V	5.01V	68.285	87.859%	0	<6.0	38.05°C	229.88V
80W	5.580A	1.08A	1.084A	0.499A	79.939	89.922%	0	<6.0	48.04°C	0.867
80W	12.241V	5.094V	3.348V	5.006V	88.897	89.922%	0	<6.0	39.09°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.03mV	12.46mV	12.84mV	11.87mV	Pass
20% Load	25.36mV	13.44mV	13.25mV	13.20mV	Pass
30% Load	27.66mV	12.37mV	12.63mV	11.66mV	Pass
40% Load	29.45mV	12.77mV	13.15mV	11.87mV	Pass
50% Load	30.12mV	13.79mV	15.14mV	13.04mV	Pass
60% Load	32.37mV	12.77mV	14.17mV	12.12mV	Pass
70% Load	32.11mV	12.92mV	14.89mV	13.14mV	Pass
80% Load	34.82mV	13.74mV	15.86mV	14.01mV	Pass
90% Load	33.90mV	14.41mV	15.24mV	13.45mV	Pass
100% Load	49.84mV	14.74mV	17.66mV	15.71mV	Pass
110% Load	52.41mV	17.17mV	19.79mV	17.81mV	Pass
Crossload1	36.36mV	15.90mV	20.57mV	14.42mV	Pass
Crossload2	21.78mV	16.61mV	16.06mV	13.35mV	Pass
Crossload3	20.47mV	12.72mV	19.79mV	13.14mV	Pass
Crossload4	49.33mV	13.78mV	14.09mV	15.06mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.73mV	13.49mV	12.94mV	11.76mV	Pass
20% Load	28.43mV	12.67mV	12.89mV	11.56mV	Pass
30% Load	30.48mV	13.39mV	13.10mV	12.48mV	Pass
40% Load	32.06mV	13.18mV	13.35mV	12.28mV	Pass
50% Load	34.32mV	13.54mV	13.71mV	12.53mV	Pass
60% Load	35.33mV	13.33mV	13.91mV	13.15mV	Pass
70% Load	34.72mV	13.13mV	14.48mV	13.61mV	Pass
80% Load	36.31mV	15.68mV	15.96mV	14.07mV	Pass
90% Load	37.13mV	14.30mV	15.14mV	14.47mV	Pass
100% Load	51.69mV	16.29mV	17.29mV	15.69mV	Pass
110% Load	55.30mV	15.38mV	18.01mV	15.84mV	Pass
Crossload1	37.79mV	15.97mV	19.11mV	13.94mV	Pass
Crossload2	25.31mV	17.06mV	15.04mV	12.79mV	Pass
Crossload3	19.54mV	13.49mV	20.87mV	12.69mV	Pass
Crossload4	50.89mV	13.85mV	13.46mV	13.67mV	Pass

The results above are not used in the certification process

be quiet! Power Zone 2 850W

Top side

Power specifications label
