Cybenetics Test - Corsair HX1200i (ATX v3.1) (#2)

Corsair HX1200i (ATX v3.1) (#2)

Serial NumberAAR2A451M04C8Z

Lab IDCR12002733

Certification ID252733

Test Result Report ID: 25PS2733A
Certificate Issue Date: Feb 7, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Corsair
Manufacturer (OEM)	CWT
Series	HXi
Model Number	RPS0202
Serial Number	AAR2A451M04C8Z
DUT Notes	The unit has a -12V rail but the ATX connector is not wired to it.

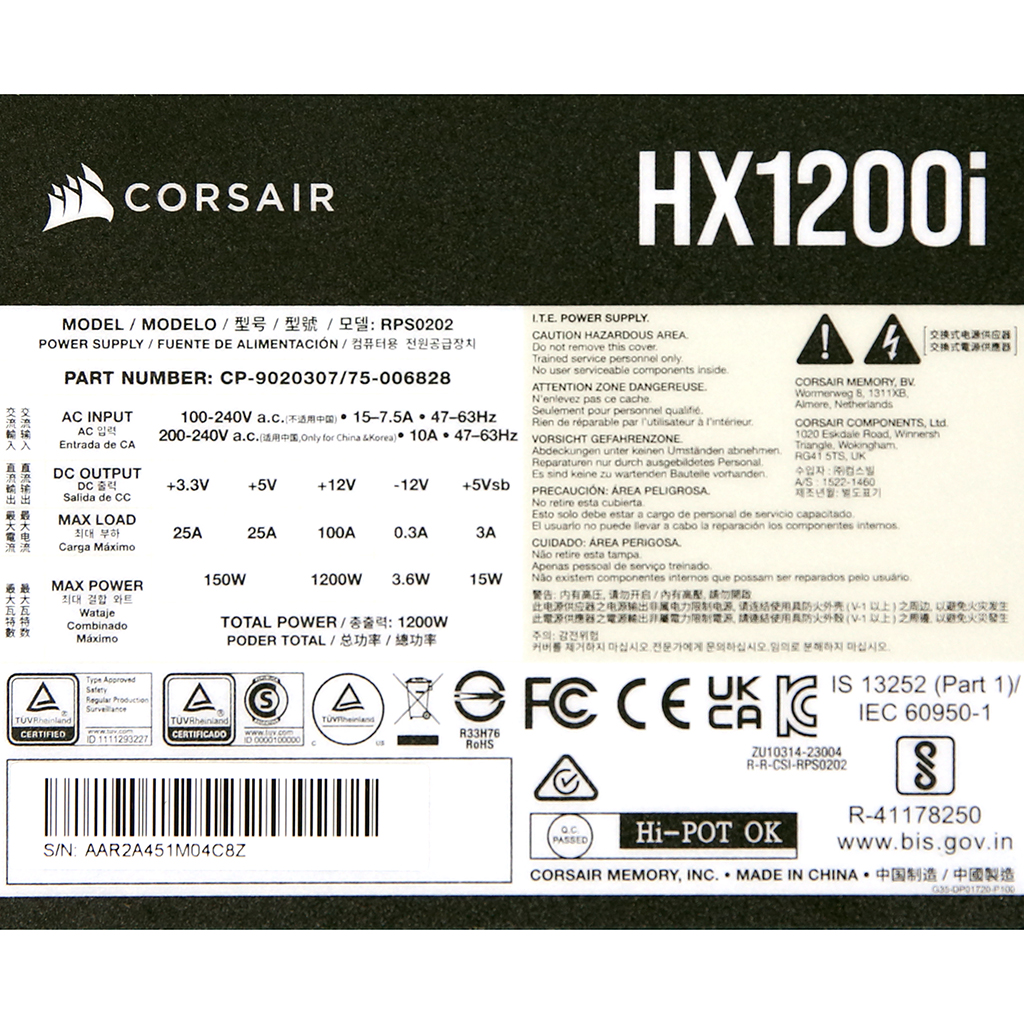

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	7.5-15
Rated Frequency (Hz)	47-63
Rated Power (W)	1200
Type	ATX12V
Dimensions (W x H x D)
Cooling	140mm Fluid Dynamic Bearing Fan (NR140P)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	100	3	0.3
Max. Power	Watts	150		1200	15	3.6
Total Max. Power (W)		1200

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (610mm)	1	1	16-20AWG	No
4+4 pin EPS12V (650mm)	2	2	18AWG	No
6+2 pin PCIe (650mm)	5	5	16-18AWG	No
12+2 pin PCIe (650mm) (600W)	2	2	16-24AWG	No
SATA (505mm+110mm+110mm+110mm)	2	8	18AWG	No
4-pin Molex (550mm+100mm+100mm)	2	6	18AWG	No
AC Power Cord (1365mm) - C13 coupler	1	1	16AWG	-
USB 2.0 (525mm)	1	1	-	-

Parts Description

General Data
Manufacturer (OEM)	CWT
PCB Type	Double-Sided
Primary Side
Transient Filter	6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	2x NTC Thermistor SCK-075 (7 Ohm) & Relay
Bridge Rectifier(s)	2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs	2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode	2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Driver IC(s)	1x Texas Instruments UCC27324-Q1
Bulk Cap(s)	1x Nippon Chemi-Con (420V, 560uF, 2,000h @ 105°C, KMR) 2x Nippon Chemi-Con (420V, 470uF, 2,000h @ 105°C, KMZ)
Main Switchers	4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)
Driver IC(s)	2x Texas Instruments UCC27324-Q1
Digital Controllers	2x Texas Instruments UCD3138A & Sync Power SPN5001 (no load cosumption)
MCU	Microchip PIC32MM0064GPM036
Topology	Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	8x Vishay SiR626DP (60V, 100A @ 70°C, Rds(on): 1.7mOhm)
5V & 3.3V	DC-DC Converters: 8x Ubiq QM3054M (30V, 57A @ 100°C, 5.5mΩ) PWM Controller: uPI-Semi uP3861P
Filtering Capacitors	Electrolytic: 4x Nichicon (4,000h @ 105°C, HD), 4x Rubycon (4-10,000h @ 105°C, YXF), 6x Rubycon (6-10,000h @ 105°C, ZLH), 2x Rubycon (4-10,000h @ 105°C, YXJ) Polymer: 8x Nippon Chemi-Con, 37x FPCAP
Supervisor IC	Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Controller	Microchip PIC32MM0064GPM036
Fan Model	Corsair NR140P (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier	1x Silan SVF4N65RD (650V, 2.5A @ 100°C, Rds(on): 2.7 Ohm) FET & 1x PS1045L SBR (45V, 10A)
Standby PWM Controller	On Bright OB5282CP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A+
Average Efficiency (>1450 load combinations)	89.959%
Average Noise Output (>1450 Load Combinations)	19.80dBA
Average PF (>1450 Load Combinations)	0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.230%
Standby Power Consumption	0.0268W
12V Ripple (Full Load)	30.60mV
5V Ripple (Full Load)	17.41mV
3.3V Ripple (Full Load)	18.34mV
5VSB Ripple (Full Load)	11.53mV
12V Load Regulation	0.34%
5V Load Regulation	0.40%
3.3V Load Regulation	0.51%
5VSB Load Regulation	1.20%
Inrush Current	12.170A

Efficiency Rating	PLATINUM
Noise Rating	A+
Average Efficiency (>1450 load combinations)	91.776%
Average Noise Output (>1450 Load Combinations)	19.88dBA
Average PF (>1450 Load Combinations)	0.959
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.955%
Standby Power Consumption	0.0977W
12V Ripple (Full Load)	31.84mV
5V Ripple (Full Load)	17.78mV
3.3V Ripple (Full Load)	17.39mV
5VSB Ripple (Full Load)	10.98mV
12V Load Regulation	0.38%
5V Load Regulation	0.42%
3.3V Load Regulation	0.57%
5VSB Load Regulation	1.26%
Inrush Current	24.700A
12V Transient Response (200%)	11.11V
5V Transient Response (200%)	4.897V
3.3V Transient Response (200%)	3.143V
5VSB Transient Response (200%)	4.868V
Hold-Up Time & Power Ok Signal	25.60ms
AC Loss to PWR_OK Hold Up Time	21.60ms
PWR_OK Inactive to DC Loss Delay	4.00ms
PSU Timings: T1 (20% / 100%)	84.0ms	65.0ms
PSU Timings: T3 (20% / 100%)	136.0ms	135.0ms
12V OCP (27.2°C / 41.3°C)	124.60A (124.60%), 12.009V	123.00A (123.00%), 12.020V
5V OCP (27.2°C / 41.3°C)	34.7A (138.80%), 5.031V	34.6A (138.40%), 5.034V
3.3V OCP (27.2°C / 41.3°C)	34.6A (138.40%), 3.33V	34.6A (138.40%), 3.331V
5VSB OCP (27.2°C / 41.3°C)	5.5A (183.33%), 4.881V	5.5A (183.33%), 4.874V
OPP (27.90°C / 42.08°C)	121.23%	121.23%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	25.6
AC Loss to PWR_OK Hold Up Time (ms)	21.6
PWR_OK Inactive to DC Loss Delay (ms)	4

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.85 V	114.80 V	113.85 V	114.90 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.98 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.421	1.419	1.340	1.424	1.490	PASS
Mains Voltage THD:	0.15 %	0.10 %	N/A	0.28 %	2.00 %	PASS
Real Power:	0.027 W	0.024 W	N/A	0.029 W	N/A	N/A
Apparent Power:	14.548 W	14.527 W	N/A	14.567 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.87 V	229.78 V	227.70 V	229.94 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.419	1.418	1.340	1.421	1.490	PASS
Mains Voltage THD:	0.14 %	0.10 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.098 W	0.071 W	N/A	0.122 W	N/A	N/A
Apparent Power:	48.803 W	48.757 W	N/A	48.846 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

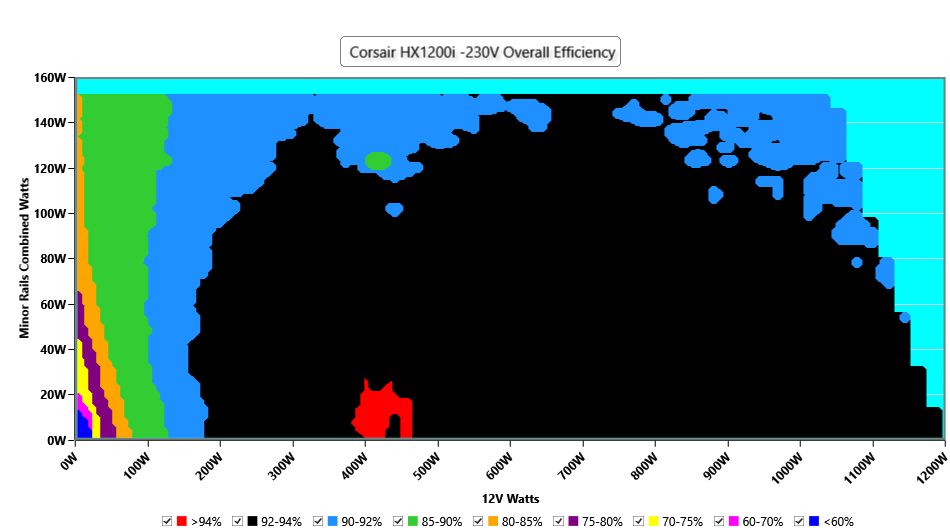

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

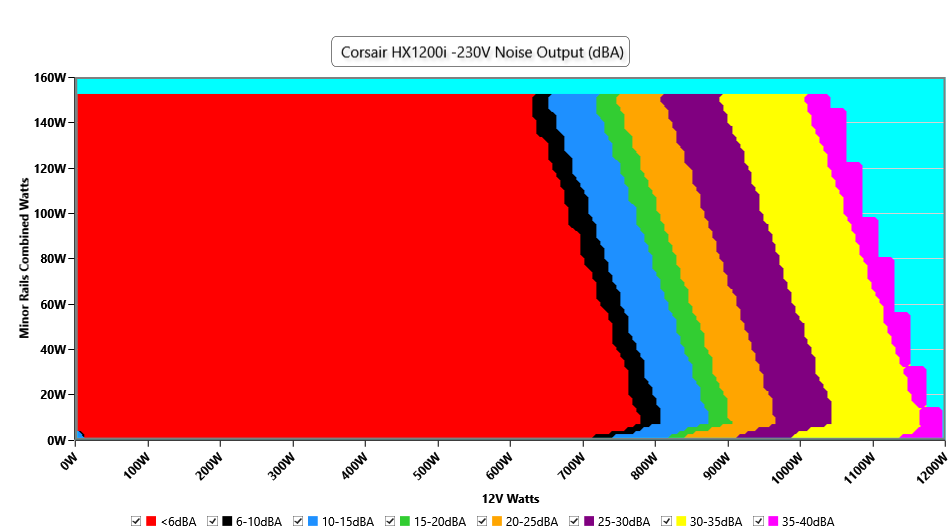

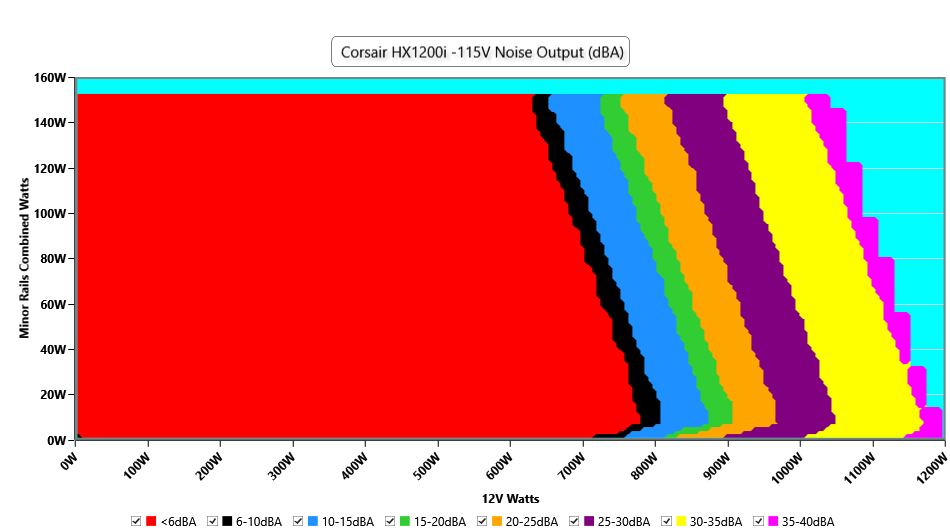

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

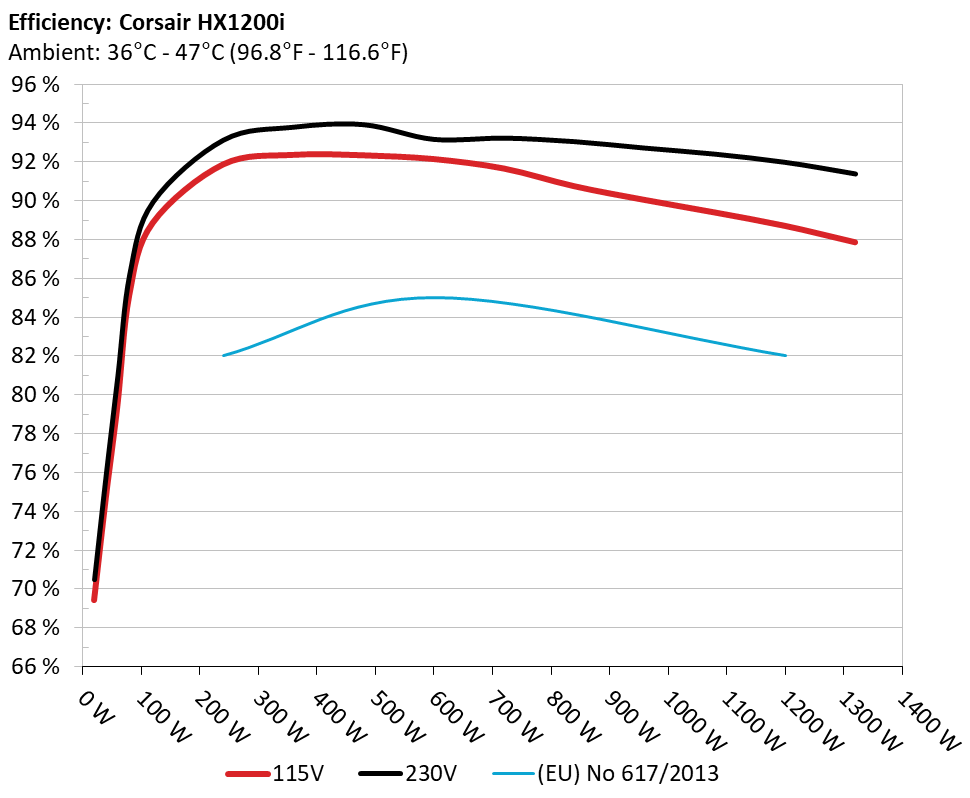

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

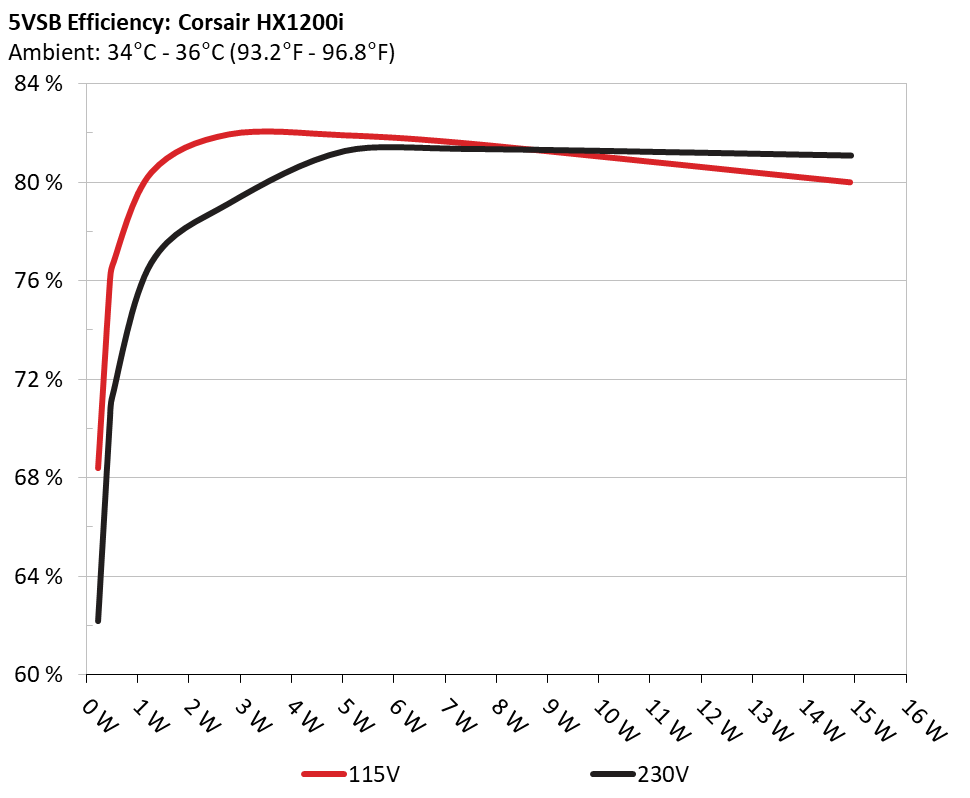

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	68.392%	0.023
1	5.072V	0.332W	68.392%	114.85V
2	0.09A	0.456W	75.898%	0.041
2	5.071V	0.601W	75.898%	114.85V
3	0.55A	2.781W	81.948%	0.208
3	5.055V	3.393W	81.948%	114.84V
4	1A	5.04W	81.911%	0.323
4	5.039V	6.153W	81.911%	114.84V
5	1.5A	7.535W	81.561%	0.406
5	5.022V	9.238W	81.561%	114.85V
6	3.001A	14.914W	80%	0.52
6	4.971V	18.642W	80%	114.84V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	62.185%	0.007
1	5.073V	0.365W	62.185%	229.84V
2	0.09A	0.456W	70.277%	0.013
2	5.071V	0.649W	70.277%	229.84V
3	0.55A	2.781W	79.161%	0.07
3	5.056V	3.513W	79.161%	229.83V
4	1A	5.04W	81.29%	0.12
4	5.04V	6.2W	81.29%	229.83V
5	1.5A	7.536W	81.372%	0.173
5	5.023V	9.261W	81.372%	229.83V
6	3A	14.918W	81.105%	0.295
6	4.973V	18.394W	81.105%	229.83V

Protection Features

OCP (Normal @ 27.2°C)	12V: 124.60A (124.60%), 12.009V 5V: 34.7A (138.80%), 5.031V 3.3V: 34.6A (138.40%), 3.33V 5VSB: 5.5A (183.33%), 4.881V
OCP (Hot @ 41.3°C)	12V: 123.00A (123.00%), 12.020V 5V: 34.6A (138.40%), 5.034V 3.3V: 34.6A (138.40%), 3.331V 5VSB: 5.5A (183.33%), 4.874V
OPP (Normal @ 27.9°C)	1454.72W (121.23%)
OPP (Hot @ 42.1°C)	1454.74W (121.23%)
OTP	✓ (112°C @ Secondary Side)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✓
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.152A	1.974A	1.971A	0.989A	119.997	88.875%	0	<6.0	48.05°C	0.985
10%	12.070V	5.066V	3.349V	5.055V	135.073	88.875%	0	<6.0	40.03°C	114.82V
20%	17.326A	2.962A	2.958A	1.188A	239.957	91.886%	0	<6.0	50.48°C	0.992
20%	12.066V	5.063V	3.347V	5.05V	261.117	91.886%	0	<6.0	40.73°C	114.76V
30%	26.786A	3.457A	3.452A	1.388A	359.164	92.381%	0	<6.0	52.26°C	0.994
30%	12.063V	5.062V	3.346V	5.045V	388.71	92.381%	0	<6.0	41.23°C	114.72V
40%	36.347A	3.952A	3.947A	1.588A	479.531	92.36%	0	<6.0	54.34°C	0.998
40%	12.059V	5.06V	3.345V	5.039V	519.2	92.36%	0	<6.0	41.81°C	114.69V
50%	45.526A	4.943A	4.936A	1.788A	599.318	92.168%	0	<6.0	58.15°C	0.998
50%	12.055V	5.058V	3.343V	5.035V	650.241	92.168%	0	<6.0	42.22°C	114.64V
60%	54.767A	5.934A	5.926A	1.988A	719.837	91.68%	395	<6.0	42.68°C	0.999
60%	12.051V	5.056V	3.341V	5.03V	785.207	91.68%	395	<6.0	57.49°C	114.6V
70%	63.949A	6.926A	6.919A	2.189A	839.551	90.77%	610	13.1	43.23°C	0.999
70%	12.048V	5.054V	3.339V	5.025V	924.919	90.77%	610	13.1	56.36°C	114.56V
80%	73.220A	7.918A	7.912A	2.29A	959.531	90.066%	837	24.6	43.96°C	0.998
80%	12.042V	5.051V	3.336V	5.022V	1065.37	90.066%	837	24.6	56.36°C	114.51V
90%	82.825A	8.416A	8.396A	2.392A	1079.352	89.419%	1065	31.9	44.04°C	0.998
90%	12.036V	5.049V	3.335V	5.017V	1207.094	89.419%	1065	31.9	56.26°C	114.48V
100%	92.242A	8.915A	8.911A	2.998A	1199.302	88.731%	1226	36.3	45.69°C	0.998
100%	12.029V	5.047V	3.333V	5.005V	1351.659	88.731%	1226	36.3	56.23°C	114.42V
110%	101.589A	9.911A	9.997A	2.999A	1319.977	87.879%	1580	42.7	46.84°C	0.998
110%	12.025V	5.045V	3.331V	5.002V	1502.132	87.879%	1580	42.7	57.74°C	114.36V
CL1	0.115A	17.895A	17.867A	0A	151.27	84.126%	394	<6.0	43.51°C	0.988
CL1	12.065V	5.046V	3.336V	5.106V	179.812	84.126%	394	<6.0	51.37°C	114.79V
CL2	0.115A	24.759A	0A	0A	126.233	82.589%	780	21.9	42.78°C	0.989
CL2	12.067V	5.043V	3.341V	5.117V	152.841	82.589%	780	21.9	48.65°C	114.81V
CL3	0.115A	0A	24.705A	0A	83.881	76.682%	761	20.8	41.91°C	0.978
CL3	12.065V	5.061V	3.339V	5.071V	109.388	76.682%	761	20.8	47.13°C	114.82V
CL4	99.714A	0A	0A	0A	1199.922	89.162%	1225	36.3	44.58°C	0.998
CL4	12.033V	5.057V	3.341V	5.032V	1345.763	89.162%	1225	36.3	53.29°C	114.44V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.150A	1.974A	1.97A	0.989A	120.006	89.954%	0	<6.0	51.3°C	0.768
10%	12.073V	5.067V	3.35V	5.056V	133.397	89.954%	0	<6.0	40.07°C	229.81V
20%	17.322A	2.962A	2.957A	1.188A	239.968	93.143%	0	<6.0	49.99°C	0.94
20%	12.069V	5.064V	3.348V	5.051V	257.646	93.143%	0	<6.0	40.8°C	229.8V
30%	26.783A	3.457A	3.451A	1.388A	359.186	93.81%	0	<6.0	52.86°C	0.961
30%	12.065V	5.063V	3.347V	5.046V	382.889	93.81%	0	<6.0	41.28°C	229.77V
40%	36.345A	3.952A	3.946A	1.588A	479.565	93.942%	0	<6.0	53.88°C	0.972
40%	12.061V	5.061V	3.346V	5.04V	510.547	93.942%	0	<6.0	41.72°C	229.75V
50%	45.525A	4.942A	4.935A	1.788A	599.338	93.185%	0	<6.0	55.29°C	0.983
50%	12.056V	5.059V	3.344V	5.035V	643.168	93.185%	0	<6.0	42.39°C	229.73V
60%	54.757A	5.933A	5.925A	1.988A	719.848	93.248%	571	10.1	42.96°C	0.986
60%	12.054V	5.057V	3.342V	5.03V	771.96	93.248%	571	10.1	52.05°C	229.71V
70%	63.952A	6.926A	6.919A	2.189A	839.582	93.068%	709	18.2	43.17°C	0.988
70%	12.047V	5.054V	3.339V	5.026V	902.132	93.068%	709	18.2	51.71°C	229.68V
80%	73.227A	7.918A	7.911A	2.29A	959.585	92.737%	918	27.6	43.92°C	0.989
80%	12.041V	5.052V	3.337V	5.022V	1034.502	92.737%	918	27.6	52.09°C	229.67V
90%	82.831A	8.416A	8.395A	2.392A	1079.386	92.423%	1128	33.3	44.44°C	0.991
90%	12.035V	5.05V	3.335V	5.018V	1167.67	92.423%	1128	33.3	52.44°C	229.65V
100%	92.244A	8.915A	8.91A	2.998A	1199.448	92.003%	1391	39.1	45.24°C	0.992
100%	12.030V	5.048V	3.333V	5.004V	1303.538	92.003%	1391	39.1	52.91°C	229.63V
110%	101.587A	9.911A	9.997A	2.999A	1320.038	91.404%	1747	44.8	45.55°C	0.993
110%	12.026V	5.045V	3.331V	5.002V	1443.956	91.404%	1747	44.8	53.35°C	229.61V
CL1	0.117A	17.896A	17.867A	0A	151.301	85.044%	395	<6.0	42.45°C	0.886
CL1	12.064V	5.046V	3.335V	5.107V	177.92	85.044%	395	<6.0	51.99°C	229.8V
CL2	0.115A	24.763A	0A	0A	126.234	83.531%	782	22	42.71°C	0.748
CL2	12.068V	5.042V	3.341V	5.117V	151.118	83.531%	782	22	49.34°C	229.81V
CL3	0.116A	0A	24.707A	0A	83.894	77.839%	765	21	41.69°C	0.698
CL3	12.068V	5.06V	3.339V	5.072V	107.79	77.839%	765	21	52.6°C	229.82V
CL4	99.697A	0A	0A	0A	1199.958	92.408%	1232	36.6	45.5°C	0.992
CL4	12.036V	5.057V	3.34V	5.032V	1298.597	92.408%	1232	36.6	51.96°C	229.63V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.494A	0.493A	0.197A	20	69.436%	0	<6.0	39.04°C	0.799
20W	12.064V	5.065V	3.347V	5.065V	28.809	69.436%	0	<6.0	36.02°C	114.83V
40W	2.708A	0.691A	0.69A	0.296A	40.001	74.712%	0	<6.0	42.16°C	0.879
40W	12.068V	5.066V	3.348V	5.064V	53.543	74.712%	0	<6.0	37.75°C	114.82V
60W	4.186A	0.888A	0.887A	0.395A	60.002	79.516%	0	<6.0	44.61°C	0.964
60W	12.070V	5.067V	3.349V	5.063V	75.457	79.516%	0	<6.0	38.52°C	114.82V
80W	5.660A	1.085A	1.084A	0.494A	79.946	85.147%	0	<6.0	46.14°C	0.977
80W	12.071V	5.067V	3.35V	5.062V	93.9	85.147%	0	<6.0	39.55°C	114.81V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.231A	0.493A	0.493A	0.197A	20.015	70.488%	0	<6.0	43.74°C	0.408
20W	12.076V	5.068V	3.35V	5.067V	28.394	70.488%	0	<6.0	36.59°C	229.83V
40W	2.708A	0.691A	0.689A	0.296A	40.01	75.926%	0	<6.0	44.35°C	0.571
40W	12.076V	5.069V	3.351V	5.066V	52.703	75.926%	0	<6.0	37.17°C	229.83V
60W	4.184A	0.888A	0.886A	0.395A	60.007	81.03%	0	<6.0	47.91°C	0.649
60W	12.076V	5.069V	3.352V	5.065V	74.056	81.03%	0	<6.0	38.68°C	229.82V
80W	5.658A	1.085A	1.083A	0.494A	79.957	86.195%	0	<6.0	48.51°C	0.694
80W	12.075V	5.068V	3.352V	5.063V	92.751	86.195%	0	<6.0	39.3°C	229.82V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	16.16mV	12.88mV	12.67mV	8.01mV	Pass
20% Load	22.86mV	19.71mV	18.52mV	11.24mV	Pass
30% Load	19.85mV	16.83mV	16.57mV	10.57mV	Pass
40% Load	19.39mV	17.04mV	16.11mV	10.52mV	Pass
50% Load	21.23mV	16.73mV	16.01mV	10.06mV	Pass
60% Load	19.59mV	16.27mV	15.96mV	10.01mV	Pass
70% Load	19.79mV	16.11mV	15.55mV	10.78mV	Pass
80% Load	25.93mV	18.12mV	18.47mV	10.88mV	Pass
90% Load	22.30mV	18.06mV	17.75mV	11.19mV	Pass
100% Load	30.60mV	17.41mV	18.34mV	11.53mV	Pass
110% Load	29.15mV	17.64mV	19.26mV	11.47mV	Pass
Crossload1	21.91mV	19.61mV	19.67mV	10.69mV	Pass
Crossload2	21.12mV	22.53mV	16.47mV	10.21mV	Pass
Crossload3	19.90mV	16.11mV	20.01mV	10.57mV	Pass
Crossload4	28.46mV	15.82mV	16.32mV	10.43mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.18mV	15.45mV	14.62mV	10.06mV	Pass
20% Load	16.57mV	14.68mV	13.80mV	8.72mV	Pass
30% Load	19.79mV	15.75mV	16.62mV	9.60mV	Pass
40% Load	18.41mV	14.83mV	14.52mV	9.23mV	Pass
50% Load	20.31mV	15.96mV	16.21mV	9.80mV	Pass
60% Load	20.61mV	16.37mV	16.32mV	9.29mV	Pass
70% Load	18.26mV	13.09mV	13.34mV	8.67mV	Pass
80% Load	19.28mV	16.32mV	14.83mV	9.90mV	Pass
90% Load	20.41mV	15.19mV	15.90mV	10.11mV	Pass
100% Load	31.84mV	17.78mV	17.39mV	10.98mV	Pass
110% Load	30.06mV	19.33mV	18.13mV	12.30mV	Pass
Crossload1	22.56mV	20.41mV	19.08mV	10.55mV	Pass
Crossload2	20.51mV	23.04mV	15.65mV	10.47mV	Pass
Crossload3	19.49mV	14.98mV	19.80mV	10.62mV	Pass
Crossload4	27.29mV	16.22mV	16.83mV	10.27mV	Pass

The results above are not used in the certification process

Corsair HX1200i (ATX v3.1) (#2)

Top side

Power specifications label
