Cybenetics Test - SilverStone Triton 1000Rz

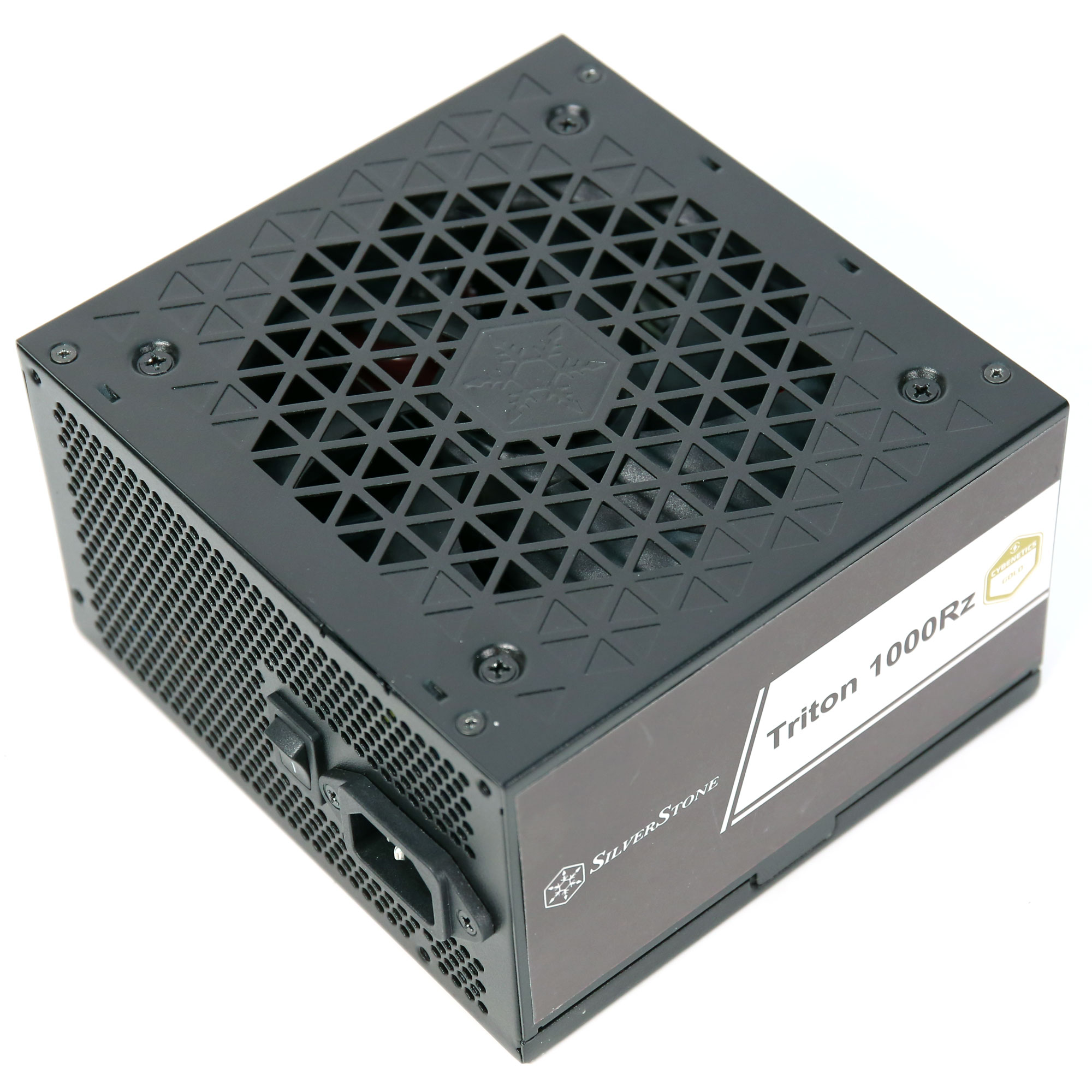

SilverStone Triton 1000Rz

Serial Number-

Lab IDSL10002760

Certification ID252760

Test Result Report ID: 25PS2760A
Certificate Issue Date: Mar 10, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	SilverStone
Hersteller (OEM)	CWT
Series	Triton Rz
Model Number	SST-AX1000MCGD-C
Serial Number	-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	12
Rated Frequency (Hz)	47-63
Rated Power (W)	1000
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Fluid Dynamic Bearing Fan (CWT12025H12F-9)
Semi-Passive Operation
Cable Design	Fully Modular

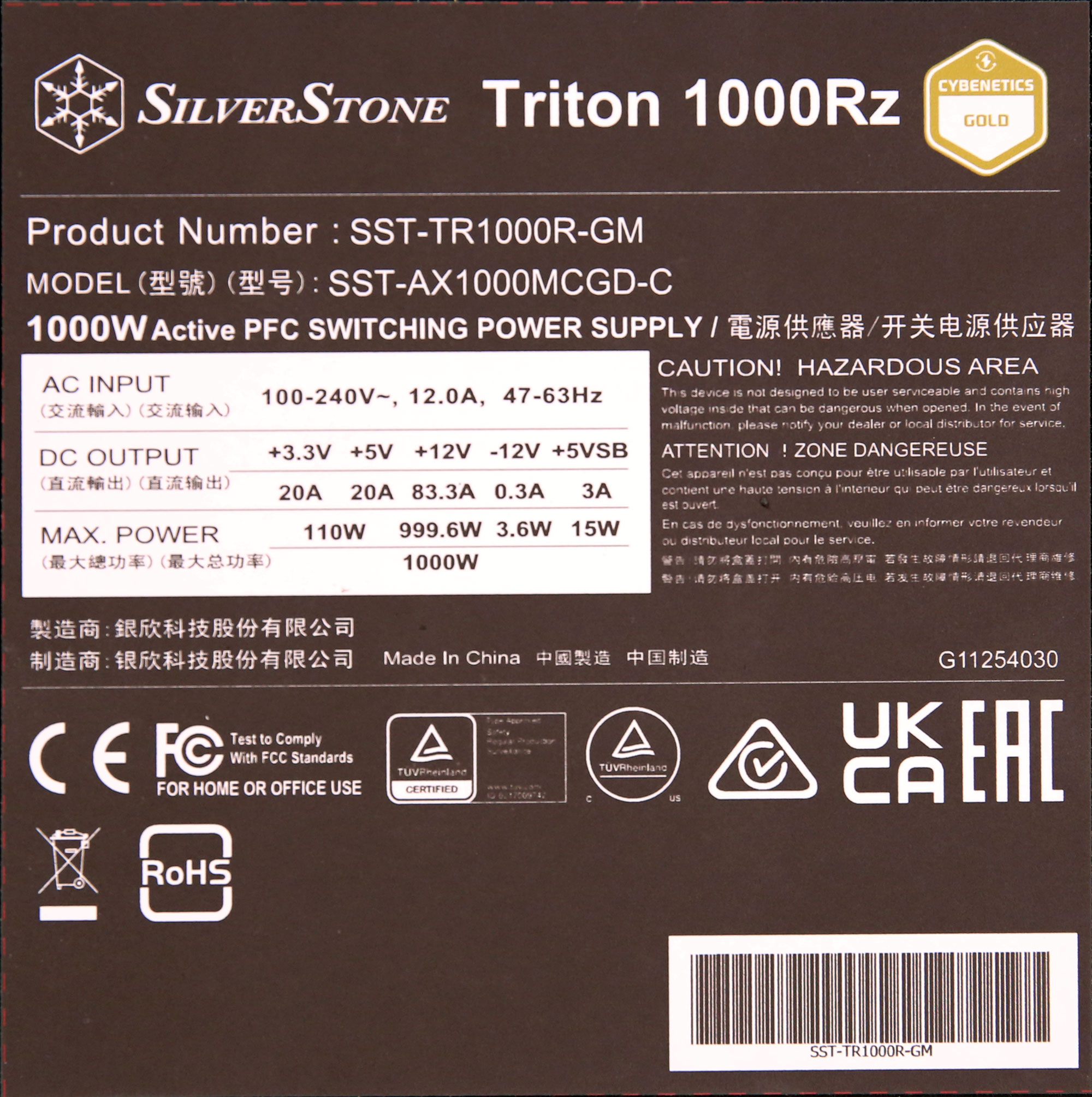

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	83.3	3	0.3
Max. Power	Watts	110		999.6	15	3.6
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (590mm)	1	1	18AWG	No
4+4 pin EPS12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (600mm+150mm)	2	4	18AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-24AWG	No
SATA (600mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex (600mm+150mm+150mm+150mm)	1	4	18AWG	No

Parts Description

`General Data`
Manufacturer (OEM)	CWT
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Power Integrations CAP200DG (discharge IC)
Inrush Protection	1x NTC Thermistor SCK-056 (5 ohm) & Relay
Bridge Rectifier(s)	2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs	2x WayOn WML53N60C4 (600V, 26A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode	1x CRMicro CRX10D065G2 (650V, 10A @ 161°C)
Bulk Cap(s)	1x Nippon Chemi-con (400V, 680uF, 2,000h @ 105°C, KMR)
Main Switchers	4x WayOn WML26N65F2 (650V, 10.5A @ 100°C, Rds(on): 0.21Ohm) & 1x Sync Power Corp SPN5003 (For no load consumption)
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
`Secondary Side`
+12V MOSFETs	8x IPS FTG014N04SA
5V & 3.3V	DC-DC Converters: 4x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 1.7mOhm) PWM Controller(s): no info
Filtering Capacitors	Electrolytic: 2x Nippon Chemi-Con (105°C, W) 1x Nippon Chemi-con (2-5,000h @105°C, KZE) 3x Nichicon (5-6,000h @ 105°C, HV) 5x Rubycon (4-10,000h @105°C, YXJ) 1x Rubycon (4-10,000h @105°C, YXF) 2x Rubycon (10,000h @105°C, YXM) 1x Rubycon (3-6,000h @105°C, YXG) Polymer: 6x Apaq, 9x Chemic-con, 2x Elite, 8x
Supervisor IC	IN1S429I-DCG
Fan Controller	STMicroelectronics ST69345
Fan Model	CWT12025H12F-9 (120mm, 12V, 0.24A, Fluid Dynamic Bearing Fan)
`5VSB`
Rectifier	ES3JBF (600V, 3A)
Standby PWM Controller	Power Integrations TNY290PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Wirkungsgrad	GOLD
Lautstärkeklasse	Standard++
Average Efficiency (>1450 load combinations)	88.113%
Average Noise Output (>1450 Load Combinations)	33.14dBA
Average PF (>1450 Load Combinations)	0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load	63.904%
Standby Power Consumption	0.0436W
12V Ripple (Full Load)	32.21mV
5V Ripple (Full Load)	16.54mV
3.3V Ripple (Full Load)	24.54mV
5VSB Ripple (Full Load)	26.27mV
12V Load Regulation	0.76%
5V Load Regulation	0.78%
3.3V Load Regulation	1.18%
5VSB Load Regulation	4.39%
Inrush Current	44.030A

Wirkungsgrad	GOLD
Lautstärkeklasse	Standard++
Average Efficiency (>1450 load combinations)	90.265%
Average Noise Output (>1450 Load Combinations)	32.63dBA
Average PF (>1450 Load Combinations)	0.937
Efficiency With 10W (≤500W) or 2% (>500W) Load	43.171%
Standby Power Consumption	0.1226W
12V Ripple (Full Load)	31.65mV
5V Ripple (Full Load)	16.65mV
3.3V Ripple (Full Load)	24.01mV
5VSB Ripple (Full Load)	26.18mV
12V Load Regulation	0.73%
5V Load Regulation	0.78%
3.3V Load Regulation	1.30%
5VSB Load Regulation	4.39%
Inrush Current	82.800A
12V Transient Response (200%)	11.33V
5V Transient Response (200%)	4.895V
3.3V Transient Response (200%)	3.232V
5VSB Transient Response (200%)	4.882V
Hold-Up Time & Power Ok Signal	14.80ms
AC Loss to PWR_OK Hold Up Time	13.60ms
PWR_OK Inactive to DC Loss Delay	1.20ms
PSU Timings: T1 (20% / 100%)	25.0ms	24.0ms
PSU Timings: T3 (20% / 100%)	128.0ms	129.0ms
12V OCP (31.6°C / 42.5°C)	103.60A (124.37%), 11.948V	97.30A (116.81%), 11.976V
5V OCP (31.6°C / 42.5°C)	24.5A (122.50%), 4.997V	24.4A (122.00%), 5.006V
3.3V OCP (31.6°C / 42.5°C)	24.4A (122.00%), 3.35V	24.2A (121.00%), 3.354V
5VSB OCP (31.6°C / 42.5°C)	4.1A (136.67%), 4.969V	4.2A (140.00%), 4.963V
OPP (29.44°C / 42.08°C)	124.02%	116.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	14.8
AC Loss to PWR_OK Hold Up Time (ms)	13.6
PWR_OK Inactive to DC Loss Delay (ms)	1.2

Stromverbrauch im Ruhezustand

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.84 V	114.78 V	113.85 V	114.88 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.98 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.420	1.419	1.340	1.423	1.490	PASS
Mains Voltage THD:	0.14 %	0.10 %	N/A	0.25 %	2.00 %	PASS
Real Power:	0.044 W	0.014 W	N/A	0.065 W	N/A	N/A
Apparent Power:	9.871 W	9.852 W	N/A	9.893 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.86 V	229.78 V	227.70 V	229.92 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.419	1.417	1.340	1.420	1.490	PASS
Mains Voltage THD:	0.16 %	0.13 %	N/A	0.20 %	2.00 %	PASS
Real Power:	0.123 W	0.102 W	N/A	0.147 W	N/A	N/A
Apparent Power:	33.277 W	33.243 W	N/A	33.308 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Graphs

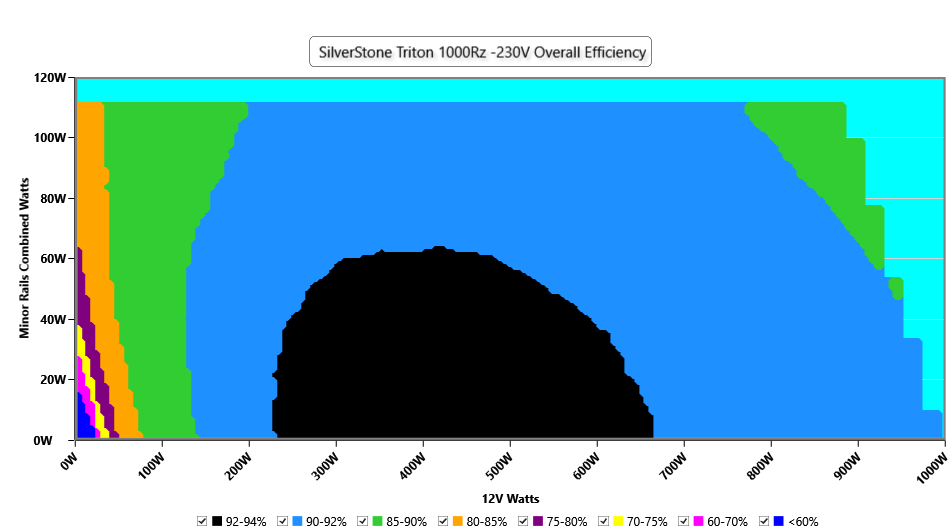

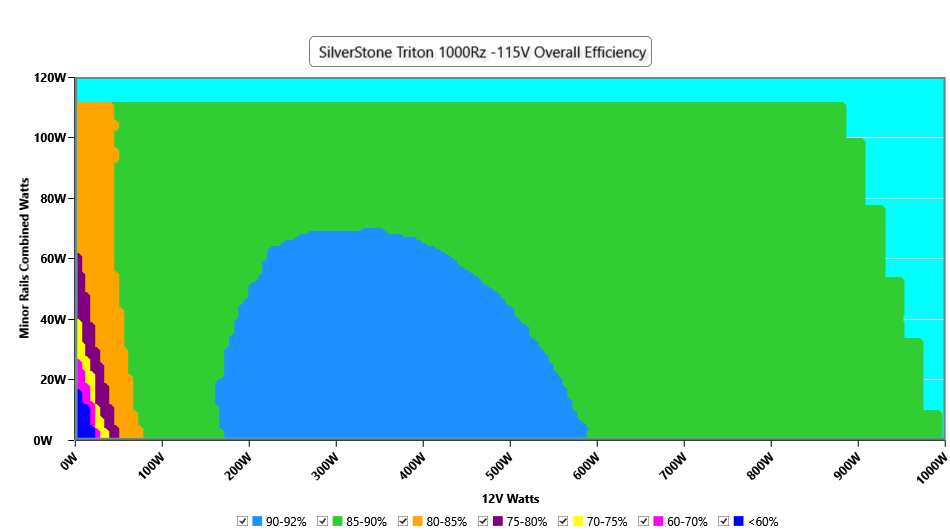

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

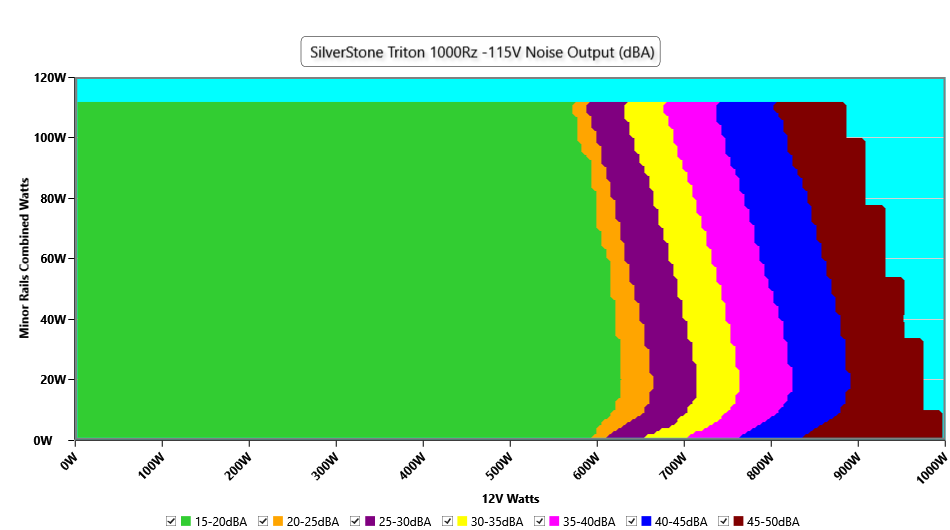

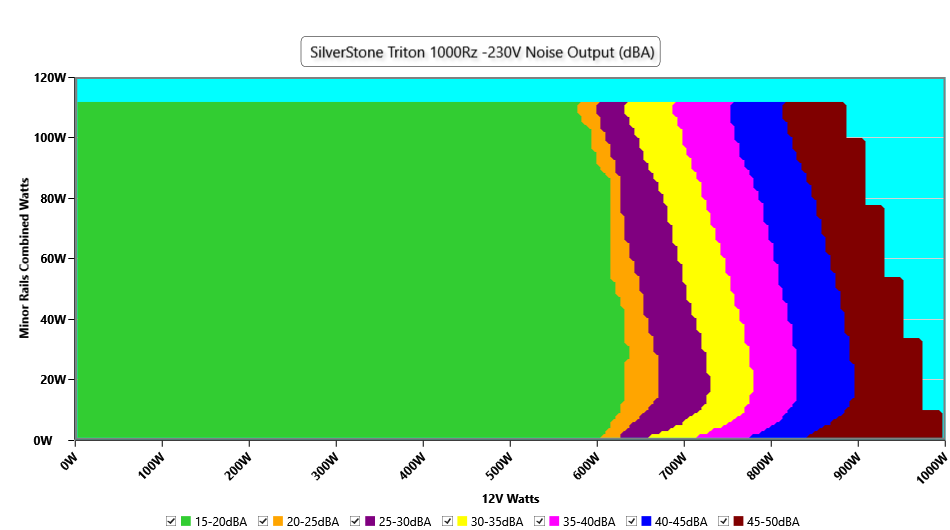

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

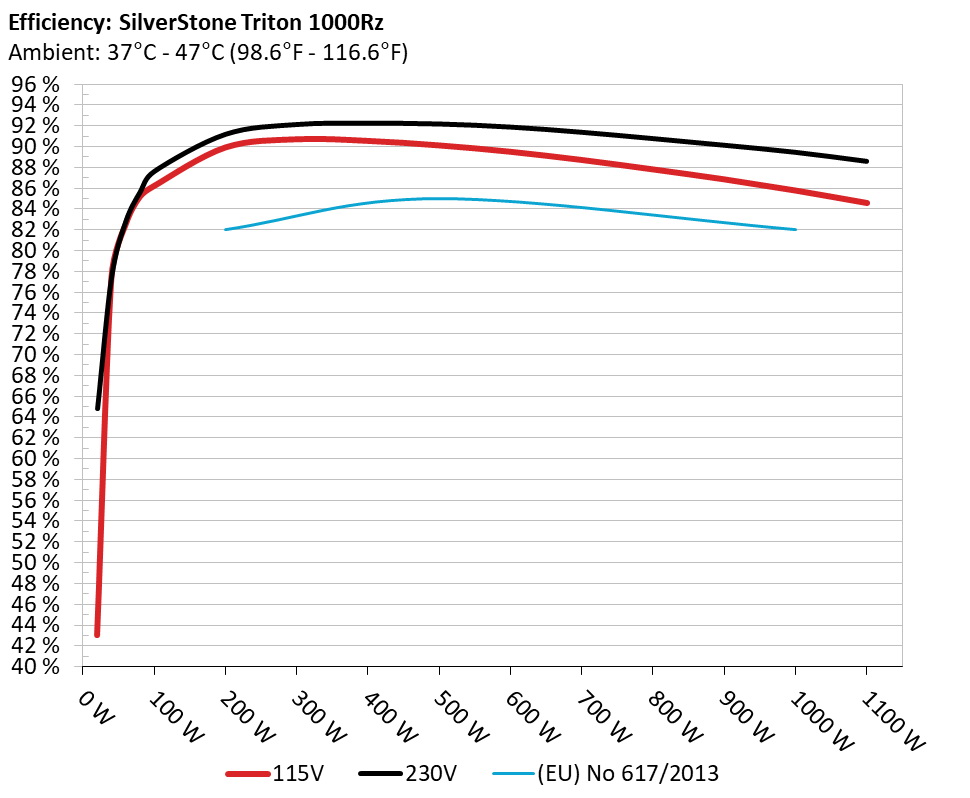

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

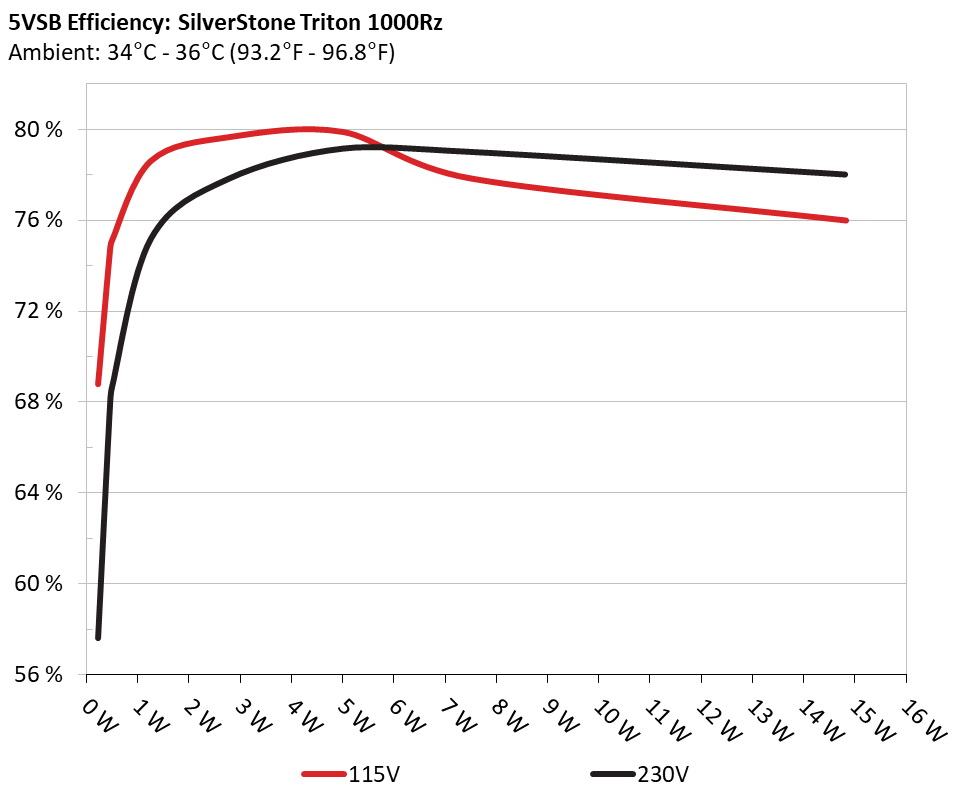

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	68.799%	0.033
1	5.048V	0.33W	68.799%	114.83V
2	0.09A	0.454W	74.565%	0.061
2	5.046V	0.609W	74.565%	114.83V
3	0.55A	2.767W	79.66%	0.266
3	5.03V	3.473W	79.66%	114.83V
4	1A	5.014W	79.892%	0.35
4	5.014V	6.276W	79.892%	114.83V
5	1.5A	7.492W	77.852%	0.409
5	4.994V	9.623W	77.852%	114.84V
6	3A	14.821W	75.998%	0.478
6	4.94V	19.502W	75.998%	114.83V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	57.622%	0.012
1	5.047V	0.394W	57.622%	229.83V
2	0.09A	0.454W	67.597%	0.02
2	5.046V	0.672W	67.597%	229.83V
3	0.55A	2.767W	77.8%	0.102
3	5.03V	3.556W	77.8%	229.82V
4	1A	5.014W	79.136%	0.169
4	5.013V	6.336W	79.136%	229.82V
5	1.5A	7.494W	78.99%	0.214
5	4.995V	9.487W	78.99%	229.82V
6	3A	14.814W	77.997%	0.325
6	4.938V	18.993W	77.997%	229.82V

Protection Features

OCP (Normal @ 31.6°C)	12V: 103.60A (124.37%), 11.948V 5V: 24.5A (122.50%), 4.997V 3.3V: 24.4A (122.00%), 3.35V 5VSB: 4.1A (136.67%), 4.969V
OCP (Hot @ 42.5°C)	12V: 97.30A (116.81%), 11.976V 5V: 24.4A (122.00%), 5.006V 3.3V: 24.2A (121.00%), 3.354V 5VSB: 4.2A (140.00%), 4.963V
OPP (Normal @ 29.4°C)	1240.25W (124.02%)
OPP (Hot @ 42.1°C)	1160.03W (116.00%)
OTP	✓ (150°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.522A	1.999A	1.971A	1A	99.988	86.258%	798	19.5	40.34°C	0.965
10%	12.018V	5.003V	3.349V	5V	115.92	86.258%	798	19.5	42.23°C	114.79V
20%	14.076A	3.001A	2.96A	1.204A	199.936	89.958%	799	19.5	40.82°C	0.976
20%	12.009V	4.998V	3.345V	4.982V	222.252	89.958%	799	19.5	44.41°C	114.77V
30%	21.996A	3.503A	3.456A	1.41A	299.986	90.745%	800	19.6	41.06°C	0.977
30%	11.999V	4.995V	3.342V	4.964V	330.582	90.745%	800	19.6	45.85°C	114.73V
40%	29.889A	4.006A	3.95A	1.618A	399.516	90.592%	799	19.5	41.55°C	0.975
40%	11.988V	4.992V	3.342V	4.945V	441.009	90.592%	799	19.5	48.39°C	114.7V
50%	37.460A	5.011A	4.943A	1.827A	499.253	90.158%	800	19.6	42.29°C	0.976
50%	11.980V	4.989V	3.339V	4.926V	553.755	90.158%	800	19.6	52.63°C	114.67V
60%	45.108A	6.018A	5.937A	2A	599.637	89.543%	800	19.6	42.55°C	0.979
60%	11.972V	4.986V	3.336V	4.908V	669.664	89.543%	800	19.6	57.34°C	114.63V
70%	52.701A	7.027A	6.937A	2.25A	699.532	88.757%	1199	32.4	43.01°C	0.981
70%	11.962V	4.982V	3.33V	4.888V	788.143	88.757%	1199	32.4	57.87°C	114.6V
80%	60.381A	8.037A	7.939A	2.36A	799.556	87.849%	1699	42.2	43.82°C	0.983
80%	11.952V	4.976V	3.325V	4.874V	910.152	87.849%	1699	42.2	56.03°C	114.56V
90%	68.410A	8.546A	8.434A	2.469A	899.336	86.895%	2198	48.3	44.15°C	0.984
90%	11.941V	4.973V	3.32V	4.86V	1034.97	86.895%	2198	48.3	54.76°C	114.53V
100%	76.246A	9.056A	8.962A	3.109A	999.356	85.819%	2196	48.3	45.14°C	0.986
100%	11.931V	4.969V	3.314V	4.826V	1164.487	85.819%	2196	48.3	56.47°C	114.48V
110%	84.017A	10.07A	10.063A	3.117A	1099.978	84.619%	2194	48.3	46.62°C	0.988
110%	11.922V	4.965V	3.309V	4.812V	1299.915	84.619%	2194	48.3	61.78°C	114.43V
CL1	0.117A	13.271A	13.114A	0A	111.3	81.688%	806	19.8	42.29°C	0.971
CL1	12.019V	4.988V	3.332V	5.022V	136.254	81.688%	806	19.8	55.95°C	114.8V
CL2	0.115A	20.034A	0A	0A	101.345	79.839%	805	19.8	40.48°C	0.968
CL2	12.025V	4.989V	3.346V	5.028V	126.938	79.839%	805	19.8	52.77°C	114.8V
CL3	0.115A	0A	19.812A	0A	67.383	74.107%	803	19.7	40.01°C	0.962
CL3	12.018V	5V	3.331V	5.029V	90.925	74.107%	803	19.7	49.81°C	114.81V
CL4	83.739A	0A	0A	0.001A	999.973	86.613%	2191	48.3	44°C	0.986
CL4	11.942V	4.985V	3.328V	4.953V	1154.576	86.613%	2191	48.3	53.2°C	114.49V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.522A	1.999A	1.971A	1A	99.989	87.209%	801	19.6	40.45°C	0.842
10%	12.019V	5.003V	3.348V	5.002V	114.658	87.209%	801	19.6	42.71°C	229.82V
20%	14.076A	3.001A	2.961A	1.204A	199.938	91.214%	801	19.6	40.89°C	0.915
20%	12.009V	4.998V	3.343V	4.984V	219.196	91.214%	801	19.6	43.25°C	229.8V
30%	21.998A	3.504A	3.459A	1.41A	299.991	92.153%	800	19.6	41.14°C	0.939
30%	11.998V	4.994V	3.34V	4.967V	325.541	92.153%	800	19.6	44.55°C	229.78V
40%	29.893A	4.008A	3.957A	1.616A	399.478	92.271%	797	19.4	41.88°C	0.947
40%	11.985V	4.99V	3.336V	4.951V	432.94	92.271%	797	19.4	42.72°C	229.76V
50%	37.455A	5.012A	4.952A	1.826A	499.266	92.197%	800	19.6	42.27°C	0.953
50%	11.981V	4.988V	3.332V	4.93V	541.517	92.197%	800	19.6	50.23°C	229.75V
60%	45.102A	6.019A	5.949A	2A	599.64	91.906%	800	19.6	42.93°C	0.956
60%	11.973V	4.985V	3.329V	4.912V	652.443	91.906%	800	19.6	53.51°C	229.73V
70%	52.696A	7.028A	6.95A	2.249A	699.539	91.408%	1164	31.8	43.32°C	0.959
70%	11.963V	4.981V	3.324V	4.892V	765.3	91.408%	1164	31.8	53.49°C	229.71V
80%	60.376A	8.039A	7.952A	2.358A	799.573	90.796%	1740	42.5	43.66°C	0.962
80%	11.953V	4.976V	3.319V	4.877V	880.623	90.796%	1740	42.5	53.1°C	229.7V
90%	68.390A	8.547A	8.442A	2.468A	899.342	90.159%	2198	48.3	44.5°C	0.963
90%	11.945V	4.972V	3.317V	4.862V	997.51	90.159%	2198	48.3	52.02°C	229.67V
100%	76.227A	9.057A	8.972A	3.108A	999.375	89.481%	2199	48.3	45.73°C	0.965
100%	11.934V	4.969V	3.31V	4.827V	1116.854	89.481%	2199	48.3	52.79°C	229.66V
110%	83.999A	10.072A	10.082A	3.117A	1100.015	88.61%	2203	48.3	46°C	0.966
110%	11.925V	4.964V	3.303V	4.813V	1241.413	88.61%	2203	48.3	56.13°C	229.65V
CL1	0.117A	13.274A	13.145A	0A	111.306	82.055%	807	19.9	41.43°C	0.868
CL1	12.021V	4.987V	3.324V	5.022V	135.653	82.055%	807	19.9	55.99°C	229.81V
CL2	0.116A	20.04A	0A	0A	101.353	80.194%	807	19.9	41.46°C	0.858
CL2	12.029V	4.988V	3.345V	5.028V	126.383	80.194%	807	19.9	55.34°C	229.81V
CL3	0.115A	0A	19.873A	0A	67.383	74.034%	804	19.7	41.63°C	0.802
CL3	12.023V	5V	3.321V	5.029V	91.016	74.034%	804	19.7	52.43°C	229.81V
CL4	83.709A	0A	0A	0.001A	999.943	90.348%	2197	48.3	45.1°C	0.965
CL4	11.945V	4.986V	3.329V	4.953V	1106.776	90.348%	2197	48.3	52.24°C	229.66V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.238A	0.499A	0.492A	0.199A	20.013	43.072%	796	19.4	36.85°C	0.925
20W	12.014V	5.008V	3.353V	5.038V	46.465	43.072%	796	19.4	51.7°C	114.83V
40W	2.722A	0.699A	0.689A	0.298A	39.998	77.353%	796	19.4	37.34°C	0.938
40W	12.012V	5.007V	3.352V	5.033V	51.713	77.353%	796	19.4	41.14°C	114.83V
60W	4.204A	0.899A	0.886A	0.398A	59.998	82.564%	796	19.4	38.34°C	0.946
60W	12.020V	5.006V	3.351V	5.027V	72.669	82.564%	796	19.4	40.78°C	114.81V
80W	5.682A	1.099A	1.083A	0.498A	79.937	85.217%	797	19.4	39.76°C	0.963
80W	12.021V	5.005V	3.351V	5.021V	93.82	85.217%	797	19.4	41.19°C	114.81V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.236A	0.499A	0.492A	0.198A	19.995	64.794%	793	19.3	36.91°C	0.498
20W	12.012V	5.008V	3.353V	5.039V	30.863	64.794%	793	19.3	37.67°C	229.85V
40W	2.721A	0.699A	0.689A	0.298A	39.996	77.577%	796	19.4	37.2°C	0.673
40W	12.012V	5.007V	3.352V	5.034V	51.556	77.577%	796	19.4	38.31°C	229.83V
60W	4.204A	0.899A	0.886A	0.398A	59.996	82.858%	798	19.5	38.92°C	0.755
60W	12.020V	5.005V	3.35V	5.028V	72.405	82.858%	798	19.5	39.56°C	229.83V
80W	5.682A	1.099A	1.084A	0.498A	79.934	85.654%	800	19.6	39.23°C	0.807
80W	12.021V	5.005V	3.35V	5.022V	93.32	85.654%	800	19.6	41.2°C	229.82V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	20.46mV	11.85mV	13.08mV	10.21mV	Pass
20% Load	19.85mV	11.91mV	14.77mV	10.78mV	Pass
30% Load	19.75mV	13.91mV	14.52mV	11.44mV	Pass
40% Load	22.97mV	14.63mV	17.29mV	13.80mV	Pass
50% Load	22.61mV	14.63mV	18.73mV	18.22mV	Pass
60% Load	21.43mV	17.40mV	18.93mV	18.99mV	Pass
70% Load	21.48mV	15.55mV	19.60mV	24.88mV	Pass
80% Load	21.02mV	16.37mV	23.86mV	22.22mV	Pass
90% Load	22.15mV	16.68mV	22.21mV	24.73mV	Pass
100% Load	32.21mV	16.54mV	24.54mV	26.27mV	Pass
110% Load	34.76mV	17.61mV	26.92mV	28.35mV	Pass
Crossload1	38.10mV	15.91mV	18.89mV	11.65mV	Pass
Crossload2	26.54mV	20.12mV	19.44mV	13.50mV	Pass
Crossload3	33.76mV	14.63mV	18.32mV	11.19mV	Pass
Crossload4	30.39mV	15.88mV	22.64mV	18.87mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	22.35mV	13.86mV	15.13mV	11.85mV	Pass
20% Load	21.84mV	14.01mV	16.01mV	11.70mV	Pass
30% Load	22.92mV	14.83mV	17.29mV	12.52mV	Pass
40% Load	22.92mV	14.27mV	17.39mV	14.42mV	Pass
50% Load	22.61mV	14.58mV	17.65mV	18.16mV	Pass
60% Load	22.09mV	14.58mV	18.42mV	20.42mV	Pass
70% Load	23.88mV	14.63mV	19.14mV	25.81mV	Pass
80% Load	22.10mV	16.11mV	20.68mV	22.88mV	Pass
90% Load	23.12mV	17.04mV	22.01mV	22.93mV	Pass
100% Load	31.65mV	16.65mV	24.01mV	26.18mV	Pass
110% Load	34.61mV	18.26mV	26.21mV	28.28mV	Pass
Crossload1	37.31mV	15.97mV	19.51mV	11.81mV	Pass
Crossload2	26.70mV	22.28mV	20.73mV	14.37mV	Pass
Crossload3	32.58mV	14.98mV	17.65mV	10.93mV	Pass
Crossload4	29.45mV	15.90mV	22.51mV	18.45mV	Pass

The results above are not used in the certification process

SilverStone Triton 1000Rz

Top side

Power specifications label
