CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology MEGA TI 1350
Serial NumberS4441000021
Lab IDFS13502798
  • Report: 25PS2798A
  • Receipt Date: Apr 15, 2025
  • Test Date: Apr 30, 2025
  • Report Date: May 5, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesMega Ti
Model NumberPPA13F0203
Serial NumberS4441000021
DUT NotesBoth samples failed to start with full load at 90V, as required by the ATX specification, subsequently, they cannot get ATX v3.1 certification. Very relaxed fan profile. Voltage drop in 5VSB OCP testing.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-15
Rated Frequency (Hz)50-60
Rated Power (W)1350
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan (PLA13525S12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020112.540.3
Watts1201350203.6
Total Max. Power (W)1350

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (650mm) 6 6 16AWG No
12+4 pin PCIe (700mm) (600W) 2 2 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm+100mm) 1 2 / 2 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 3x NTC Thermistor SCK-2R515 (2.5 Ohm @ 25°C) & Relay
Rectifier FETs

4x CET CEL68N60SF (600V, 43A @ 100°C, Rds(on): 37mOhm)
APFC MOSFETs

4x Infineon IPA60R120C7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
APFC Boost Diode

2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s)

3x Rubycon (450V, 470uF each or 1,410uF combined, 2-3,000h @ 105°C, MXH)
Main Switchers

4x Champion CMS6036B
Gate Drivers

2x Texas Instruments UCC21520
APFC Controller

Texas Instrument UCC28070
Resonant Controller

Champion CM6901T2X
Topology

Primary side: Bridgeless PFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Champion CMR009N04NS
5V & 3.3V DC-DC Converters: 6x Infineon BSC0902NS (30V, 67A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): UPI-semi uP3861P
Filtering Capacitors

Electrolytic: 4x Rubycon (4-10,000 @ 105°C, YXJ) 2x Nippon Chemi-con (4-10,000h @ 105°C, KY) 1x FKD (@105) Polymer: 42x Chemic-con, 1x FPCAP
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP,PG)
Fan Controller APW9010
Fan Model Power Logic PLA13525S12M (135mm, 12V, 0.40A, Hydro Dynamic Bearing Fan)
5VSB
Rectifier

Secos SSD61N06S-C (60V, 40A @ 100°C, Rds(on): 9mOhm)
Standby PWM Controller

Power Integrations INN3166C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingTITANIUM
Noise RatingA++
Average Efficiency (>1450 load combinations)91.410%
Average Noise Output (>1450 Load Combinations)14.02dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load65.426%
Standby Power Consumption0.0394W
12V Ripple (Full Load)30.15mV
5V Ripple (Full Load)18.60mV
3.3V Ripple (Full Load)25.24mV
5VSB Ripple (Full Load)18.26mV
12V Load Regulation0.32%
5V Load Regulation0.28%
3.3V Load Regulation0.39%
5VSB Load Regulation2.07%
Inrush Current26.800A
Efficiency RatingTITANIUM
Noise RatingA++
Average Efficiency (>1450 load combinations)93.190%
Average Noise Output (>1450 Load Combinations)13.19dBA
Average PF (>1450 Load Combinations)0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load65.910%
Standby Power Consumption0.1362W
12V Ripple (Full Load)28.39mV
5V Ripple (Full Load)19.67mV
3.3V Ripple (Full Load)26.06mV
5VSB Ripple (Full Load)20.41mV
12V Load Regulation0.31%
5V Load Regulation0.28%
3.3V Load Regulation0.39%
5VSB Load Regulation2.13%
Inrush Current42.530A
12V Transient Response (200%)11.49V
5V Transient Response (200%)4.975V
3.3V Transient Response (200%)3.215V
5VSB Transient Response (200%)4.919V
Hold-Up Time & Power Ok Signal26.60ms
AC Loss to PWR_OK Hold Up Time22.20ms
PWR_OK Inactive to DC Loss Delay4.40ms
PSU Timings: T1 (20% / 100%)122.0ms142.0ms
PSU Timings: T3 (20% / 100%)120.0ms121.0ms
12V OCP (30.0°C / 45.4°C)125.40A (111.47%), 12.038V125.30A (111.38%), 12.046V
5V OCP (30.0°C / 45.4°C)25.7A (128.50%), 5.03V24.6A (123.00%), 5.026V
3.3V OCP (30.0°C / 45.4°C)27.3A (136.50%), 3.333V26.5A (132.50%), 3.33V
5VSB OCP (30.0°C / 45.4°C)5A (125.00%), 4.826V*4.9A (122.50%), 4.909V*
OPP (31.60°C / 41.38°C)117.46%116.20%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.6
AC Loss to PWR_OK Hold Up Time (ms)22.2
PWR_OK Inactive to DC Loss Delay (ms)4.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.02 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.19 % 2.00 % PASS
Real Power: 0.039 W -0.216 W N/A 0.302 W N/A N/A
Apparent Power: 10.147 W 10.049 W N/A 10.420 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.91 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.136 W -0.714 W N/A 1.114 W N/A N/A
Apparent Power: 34.331 W 34.073 W N/A 35.346 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

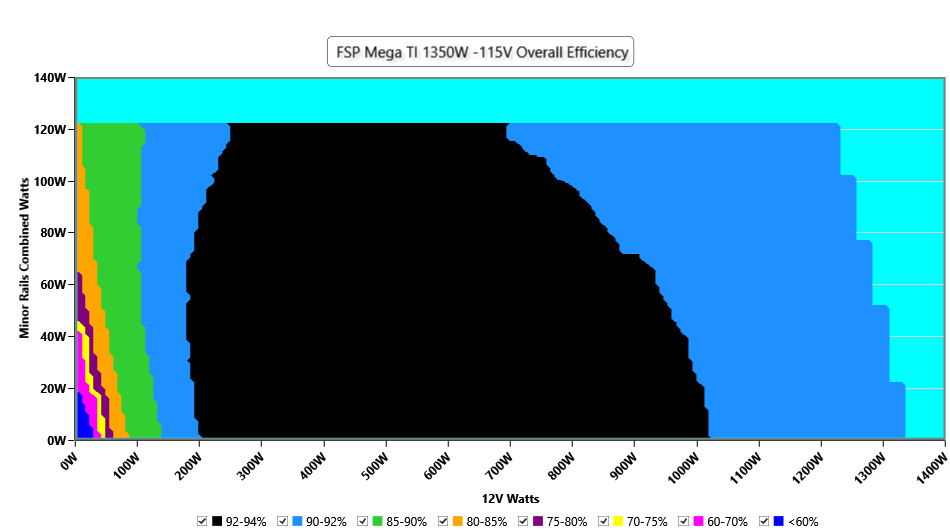

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

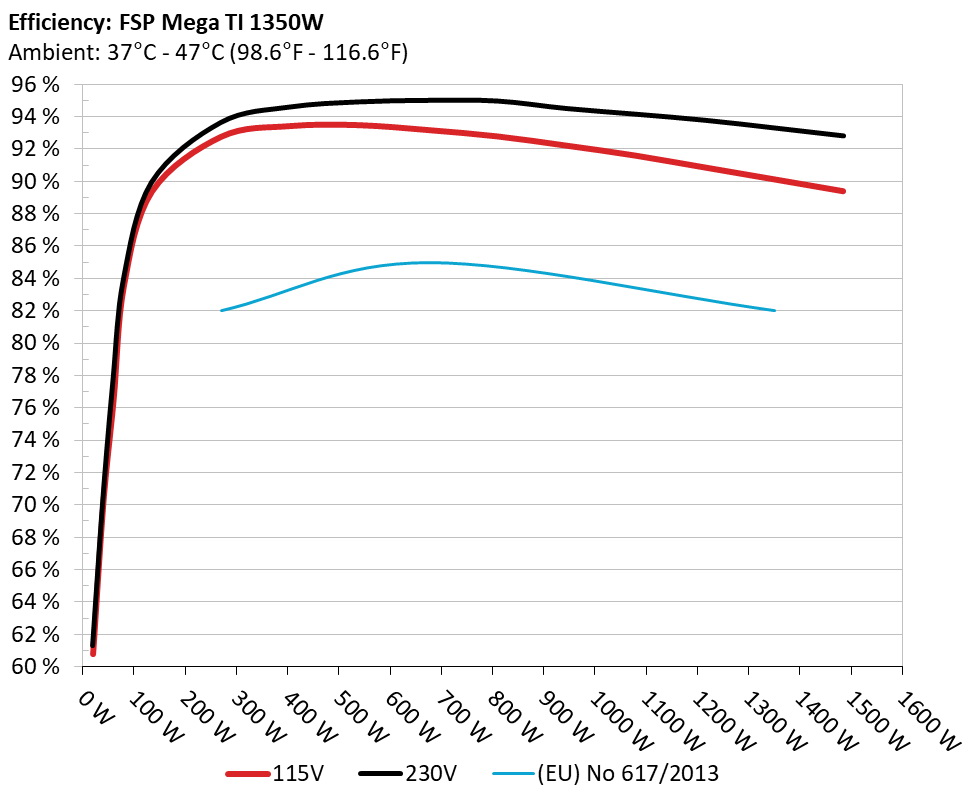

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

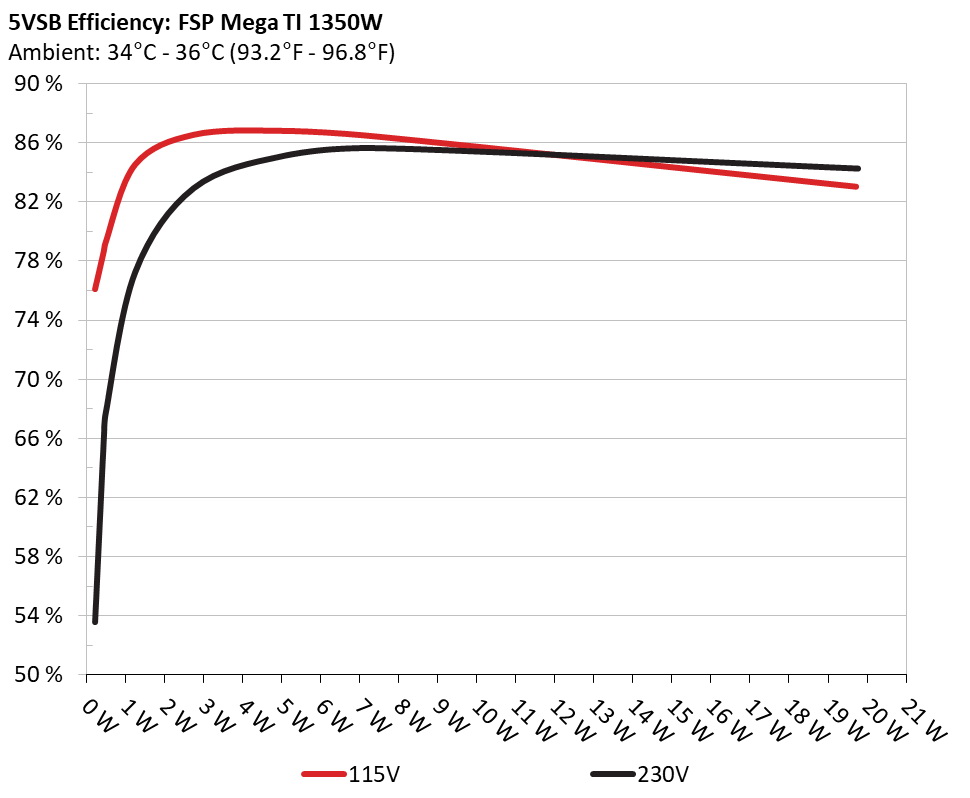

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 76.096% 0.029
5.02V 0.301W 114.87V
2 0.09A 0.451W 78.68% 0.055
5.006V 0.574W 114.83V
3 0.55A 2.754W 86.581% 0.251
5.006V 3.182W 114.83V
4 1A 5.009W 86.848% 0.358
5.008V 5.771W 114.83V
5 1.5A 7.507W 86.442% 0.417
5.003V 8.688W 114.83V
6 4.001A 19.707W 83.055% 0.534
4.926V 23.729W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 53.543% 0.012
5.035V 0.442W 229.83V
2 0.09A 0.453W 66.131% 0.02
5.026V 0.681W 229.83V
3 0.55A 2.755W 82.941% 0.093
5.009V 3.325W 229.81V
4 1A 5.01W 85.099% 0.156
5.009V 5.89W 229.82V
5 1.5A 7.509W 85.649% 0.215
5.005V 8.767W 229.81V
6 4.001A 19.773W 84.269% 0.371
4.943V 23.465W 229.81V

Protection Features

OCP (Normal @ 30.0°C)12V: 125.40A (111.47%), 12.038V
5V: 25.7A (128.50%), 5.03V
3.3V: 27.3A (136.50%), 3.333V
5VSB: 5A (125.00%), 4.826V*
* Voltage drop (2.778V @5.5A)
OCP (Hot @ 45.4°C)12V: 125.30A (111.38%), 12.046V
5V: 24.6A (123.00%), 5.026V
3.3V: 26.5A (132.50%), 3.33V
5VSB: 4.9A (122.50%), 4.909V*
* Voltage drop (2.792V @5.5A)
OPP (Normal @ 31.6°C)1585.75W (117.46%)
OPP (Hot @ 41.4°C)1568.73W (116.20%)
OTP✓ (130°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✗
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.385A 1.984A 1.979A 1.002A 134.976 89.364% 0 <6.0 47.82°C 0.972
12.080V 5.039V 3.336V 4.989V 151.041 40.18°C 114.79V
20% 19.799A 2.975A 2.968A 1.204A 269.985 92.752% 0 <6.0 48.06°C 0.974
12.076V 5.042V 3.336V 4.983V 291.086 40.64°C 114.75V
30% 30.551A 3.472A 3.464A 1.408A 404.863 93.415% 0 <6.0 49.81°C 0.974
12.072V 5.041V 3.335V 4.974V 433.4 41.33°C 114.7V
40% 41.299A 3.97A 3.961A 1.612A 539.648 93.471% 0 <6.0 49.97°C 0.983
12.069V 5.039V 3.333V 4.964V 577.399 41.98°C 114.66V
50% 51.725A 4.965A 4.953A 1.816A 674.599 93.168% 649 18 42.35°C 0.987
12.066V 5.036V 3.331V 4.956V 724.067 51.33°C 114.61V
60% 62.163A 5.959A 5.946A 2A 809.421 92.778% 646 17.8 42.78°C 0.991
12.060V 5.035V 3.331V 4.95V 872.427 48.83°C 114.57V
70% 72.611A 6.955A 6.94A 2.224A 944.42 92.209% 649 18 43.03°C 0.993
12.055V 5.034V 3.329V 4.947V 1024.221 49.78°C 114.51V
80% 83.111A 7.951A 7.933A 2.329A 1079.599 91.588% 668 18.2 43.85°C 0.995
12.052V 5.031V 3.328V 4.939V 1178.763 51.5°C 114.47V
90% 93.959A 8.451A 8.417A 2.432A 1214.646 90.86% 950 29.3 44.43°C 0.996
12.049V 5.029V 3.326V 4.935V 1336.828 50.39°C 114.41V
100% 104.223A 8.95A 8.931A 4.091A 1350.055 90.126% 1373 38.9 45.52°C 0.997
12.045V 5.028V 3.325V 4.89V 1497.97 47.97°C 114.36V
110% 114.751A 9.949A 10.017A 4.095A 1485.04 89.391% 1918 48 46.8°C 0.997
12.041V 5.026V 3.324V 4.885V 1661.288 48.04°C 114.3V
CL1 0.116A 14.353A 14.313A 0A 121.305 84.485% 0 <6.0 47.66°C 0.973
12.081V 5.03V 3.332V 4.984V 143.582 42.18°C 114.78V
CL2 0.116A 19.878A 0A 0A 101.366 81.88% 0 <6.0 48.96°C 0.973
12.084V 5.029V 3.33V 4.985V 123.801 40.97°C 114.8V
CL3 0.115A 0A 19.82A 0A 67.388 75.088% 0 <6.0 48.51°C 0.966
12.083V 5.024V 3.33V 4.982V 89.746 39.99°C 114.81V
CL4 112.051A 0A 0A 0A 1349.583 90.721% 1130 33.7 44.73°C 0.997
12.044V 5.03V 3.328V 4.957V 1487.632 45.77°C 114.37V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.386A 1.984A 1.979A 1.002A 134.974 89.937% 0 <6.0 43.69°C 0.935
12.079V 5.039V 3.336V 4.989V 150.074 40.92°C 229.8V
20% 19.800A 2.975A 2.968A 1.204A 269.982 93.634% 0 <6.0 44.47°C 0.966
12.074V 5.042V 3.336V 4.983V 288.34 40.64°C 229.78V
30% 30.552A 3.472A 3.464A 1.407A 404.844 94.591% 0 <6.0 45.3°C 0.964
12.071V 5.041V 3.335V 4.976V 427.996 41.29°C 229.76V
40% 41.302A 3.969A 3.961A 1.611A 539.605 94.908% 0 <6.0 45.82°C 0.966
12.067V 5.039V 3.333V 4.967V 568.557 41.61°C 229.74V
50% 51.747A 4.963A 4.952A 1.812A 674.548 95.001% 0 <6.0 45.43°C 0.97
12.060V 5.038V 3.332V 4.967V 710.072 42.11°C 229.74V
60% 62.190A 5.957A 5.944A 2A 809.314 94.962% 0 <6.0 45.17°C 0.974
12.053V 5.037V 3.331V 4.962V 852.249 42.8°C 229.71V
70% 72.611A 6.954A 6.94A 2.222A 944.333 94.499% 641 17.5 43.1°C 0.978
12.054V 5.033V 3.329V 4.95V 999.285 48.19°C 229.68V
80% 83.109A 7.95A 7.933A 2.328A 1079.53 94.148% 647 17.9 43.91°C 0.981
12.052V 5.031V 3.327V 4.941V 1146.634 47.31°C 229.66V
90% 93.964A 8.45A 8.417A 2.431A 1214.604 93.774% 868 26.1 44.88°C 0.984
12.048V 5.029V 3.326V 4.937V 1295.257 47.2°C 229.64V
100% 104.226A 8.95A 8.932A 4.095A 1350.037 93.297% 1344 38.2 45.1°C 0.987
12.044V 5.028V 3.325V 4.885V 1447.026 47.34°C 229.61V
110% 114.744A 9.949A 10.018A 4.1A 1485.034 92.807% 1920 48.1 46.74°C 0.989
12.042V 5.025V 3.324V 4.879V 1600.122 48.54°C 229.58V
CL1 0.117A 14.351A 14.313A 0A 121.309 85.019% 0 <6.0 49.04°C 0.932
12.083V 5.031V 3.332V 4.984V 142.685 42.97°C 229.81V
CL2 0.116A 19.877A 0A 0A 101.355 82.525% 0 <6.0 49.77°C 0.918
12.084V 5.029V 3.329V 4.985V 122.819 41.54°C 229.81V
CL3 0.115A 0A 19.824A 0A 67.386 75.85% 0 <6.0 48.84°C 0.874
12.085V 5.023V 3.329V 4.982V 88.84 40.04°C 229.82V
CL4 112.033A 0A 0A 0A 1349.548 93.698% 1222 35.7 43.8°C 0.987
12.046V 5.029V 3.327V 4.956V 1440.316 47.02°C 229.61V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.496A 0.494A 0.2A 20.013 60.772% 0 <6.0 43.05°C 0.913
12.073V 5.042V 3.338V 4.991V 32.932 36.73°C 114.83V
40W 2.708A 0.694A 0.692A 0.301A 40.01 70.088% 0 <6.0 45.03°C 0.952
12.074V 5.041V 3.338V 4.989V 57.089 37.32°C 114.82V
60W 4.184A 0.893A 0.89A 0.401A 60.008 76.47% 0 <6.0 45.2°C 0.961
12.077V 5.041V 3.337V 4.988V 78.472 38.39°C 114.82V
80W 5.654A 1.091A 1.088A 0.501A 79.958 83.492% 0 <6.0 46.73°C 0.967
12.083V 5.04V 3.337V 4.986V 95.769 39.33°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.496A 0.494A 0.2A 20.003 61.297% 0 <6.0 44°C 0.591
12.072V 5.042V 3.338V 4.988V 32.633 36.59°C 229.82V
40W 2.708A 0.694A 0.692A 0.301A 40.005 70.371% 0 <6.0 43°C 0.777
12.073V 5.041V 3.338V 4.988V 56.849 37.93°C 229.82V
60W 4.184A 0.893A 0.89A 0.401A 60.006 77.823% 0 <6.0 42.73°C 0.847
12.078V 5.041V 3.338V 4.987V 77.106 38.58°C 229.82V
80W 5.656A 1.091A 1.088A 0.501A 79.955 83.912% 0 <6.0 43.74°C 0.885
12.081V 5.04V 3.337V 4.986V 95.285 39.93°C 229.82V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.03mV13.39mV12.98mV11.39mVPass
20% Load17.39mV12.06mV12.88mV10.88mVPass
30% Load18.36mV14.68mV16.88mV10.78mVPass
40% Load13.71mV12.93mV17.75mV8.98mVPass
50% Load17.70mV17.96mV20.16mV11.19mVPass
60% Load16.37mV15.04mV15.65mV15.34mVPass
70% Load17.54mV18.48mV28.73mV14.26mVPass
80% Load17.65mV21.20mV32.47mV17.24mVPass
90% Load17.39mV18.48mV28.32mV18.37mVPass
100% Load30.15mV18.60mV25.24mV18.26mVPass
110% Load28.36mV18.44mV20.75mV20.08mVPass
Crossload124.48mV13.66mV15.63mV9.23mVPass
Crossload223.48mV16.01mV13.96mV8.42mVPass
Crossload320.77mV12.83mV16.36mV8.36mVPass
Crossload427.56mV17.27mV20.49mV11.28mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.50mV12.83mV13.03mV12.16mVPass
20% Load16.77mV13.50mV13.85mV10.72mVPass
30% Load18.72mV14.32mV18.31mV10.11mVPass
40% Load17.03mV14.68mV20.42mV11.08mVPass
50% Load15.70mV13.75mV17.18mV10.26mVPass
60% Load19.54mV15.75mV15.75mV14.88mVPass
70% Load17.39mV18.47mV27.75mV14.73mVPass
80% Load18.46mV20.68mV32.68mV15.65mVPass
90% Load18.31mV20.17mV31.14mV16.52mVPass
100% Load28.39mV19.67mV26.06mV20.41mVPass
110% Load29.12mV19.04mV21.89mV19.61mVPass
Crossload125.57mV15.40mV17.44mV9.63mVPass
Crossload226.60mV17.40mV14.47mV9.24mVPass
Crossload318.41mV14.16mV18.98mV9.34mVPass
Crossload427.55mV18.74mV22.23mV11.35mVPass

The results above are not used in the certification process

FSP Technology MEGA TI 1350

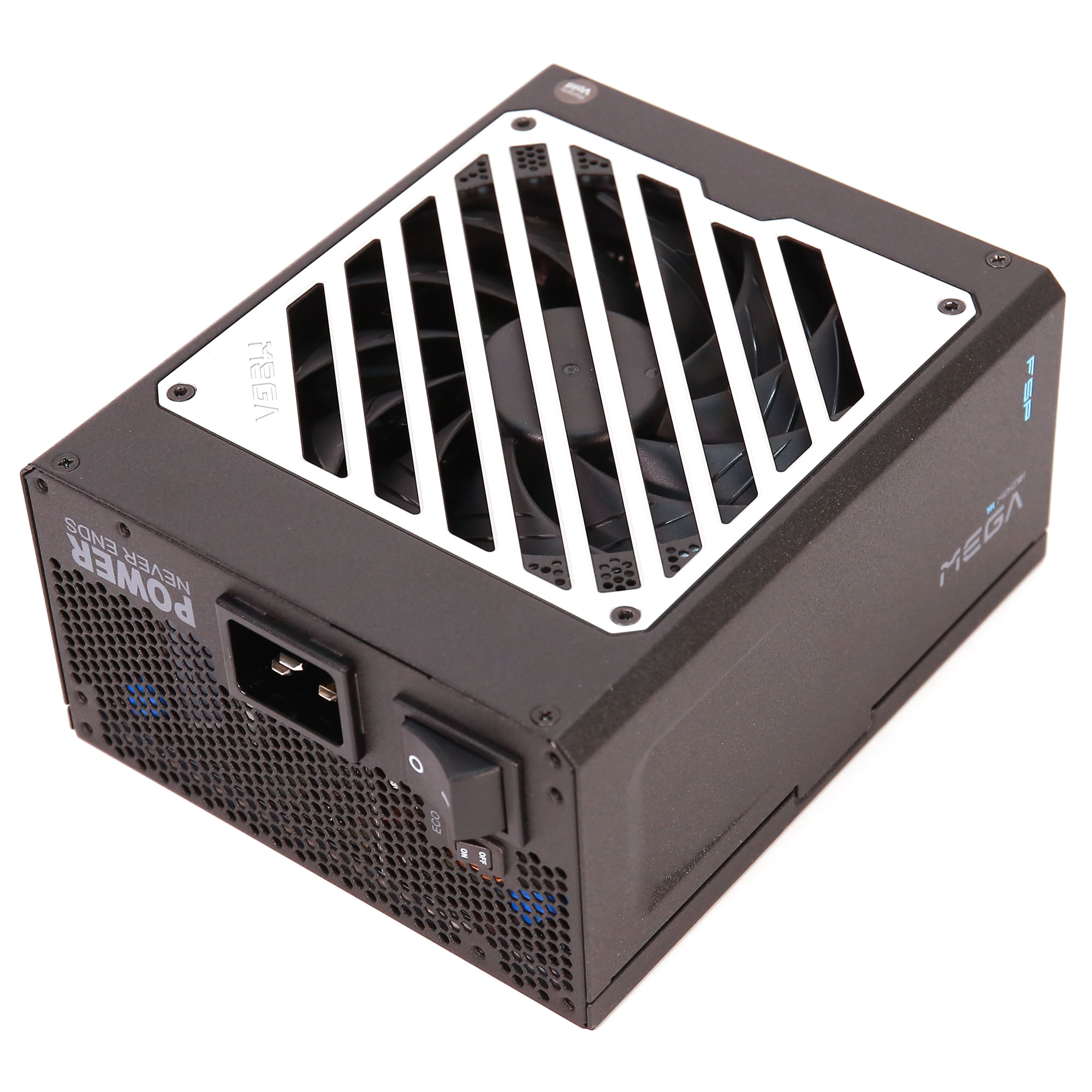

Top side

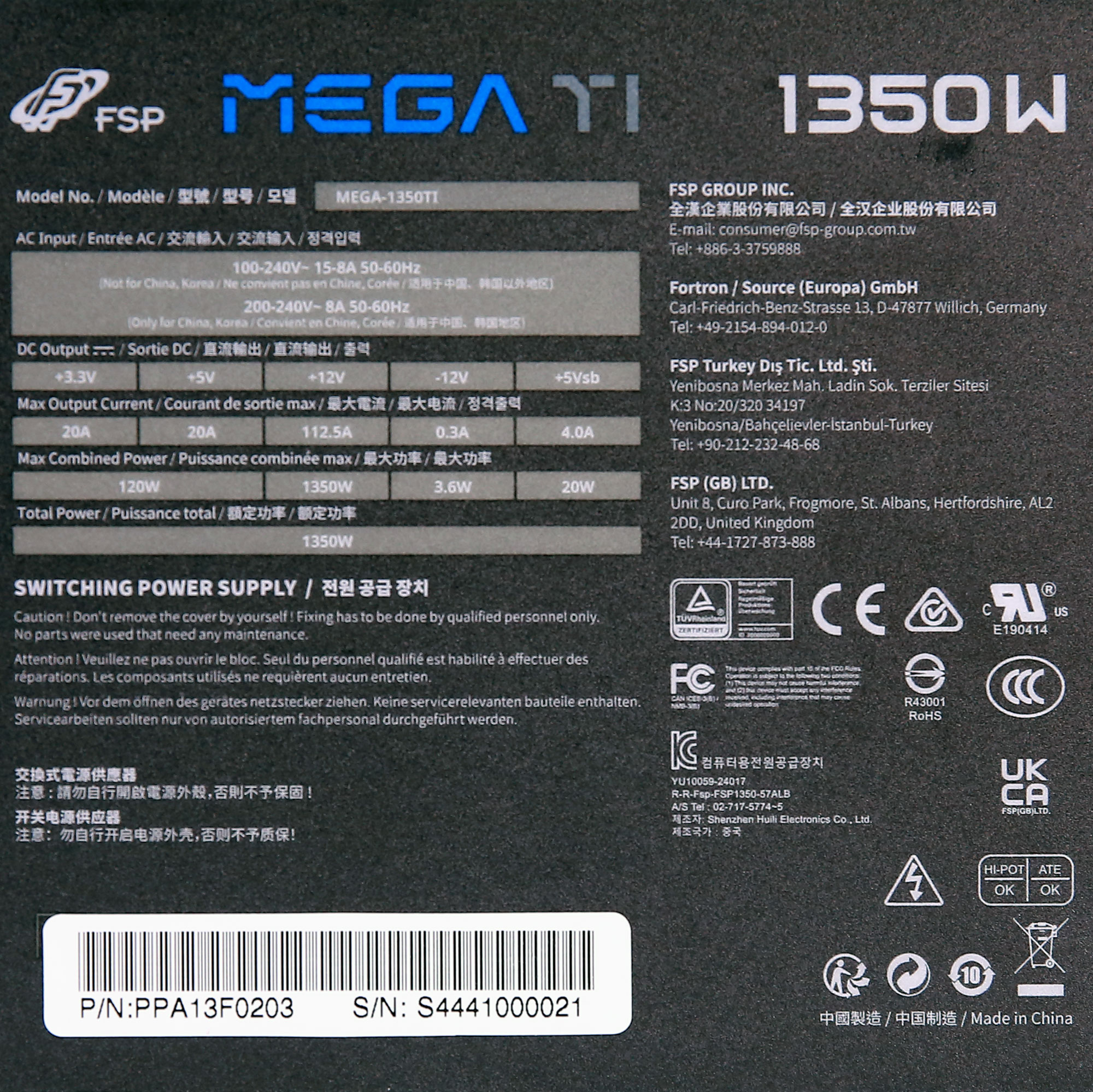

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
