CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

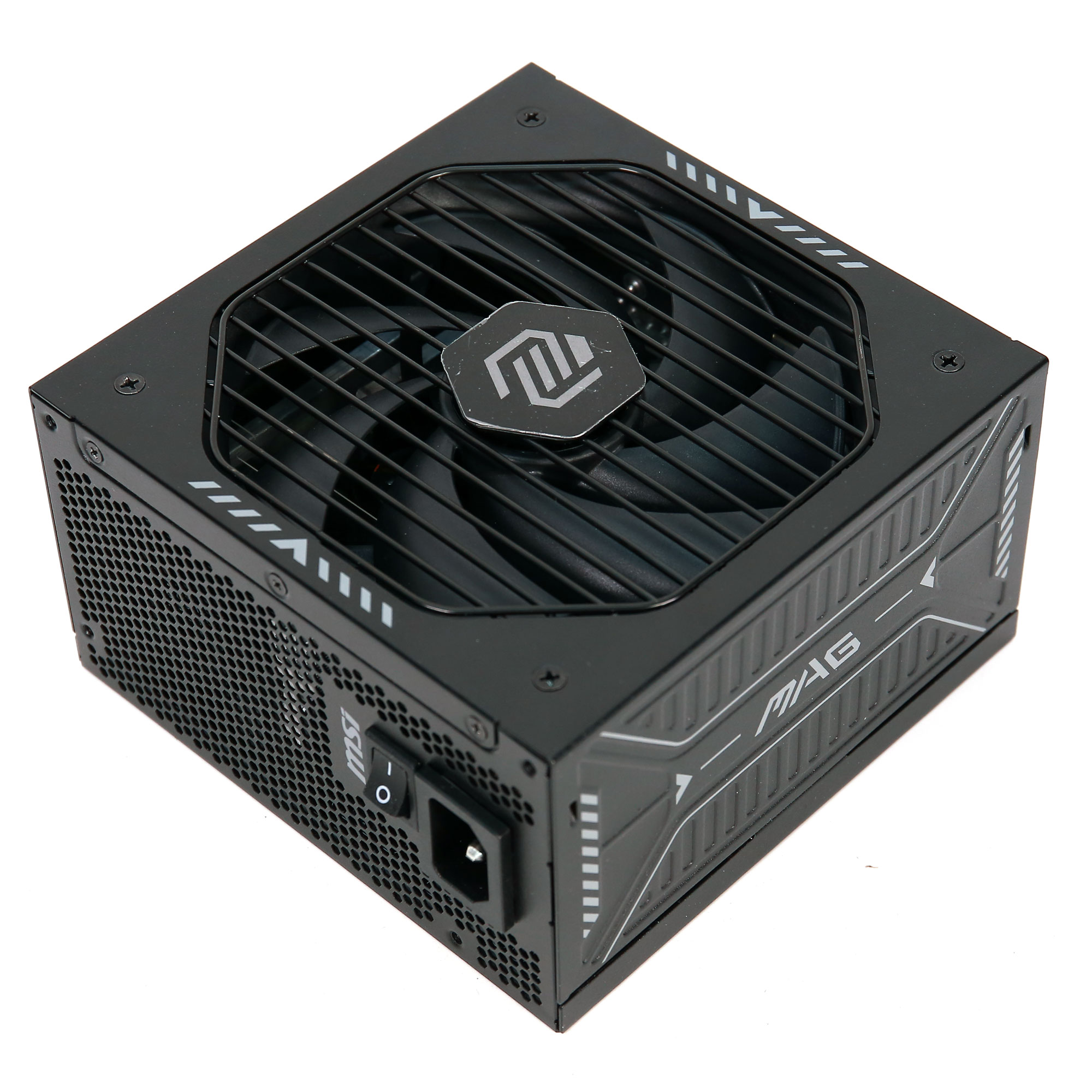

MSI MAG A1000GLS PCIE5
Serial Number-
Lab IDMS10002805
Certification ID252805
  • Test Result Report ID: 25PS2805A
  • Certificate Issue Date: May 8, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandMSI
Manufacturer (OEM)CWT
SeriesMAG
Model NumberMS-7ZPIX
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (ZFF132512H)
Semi-Passive Operation✗
Cable DesignFully Modular

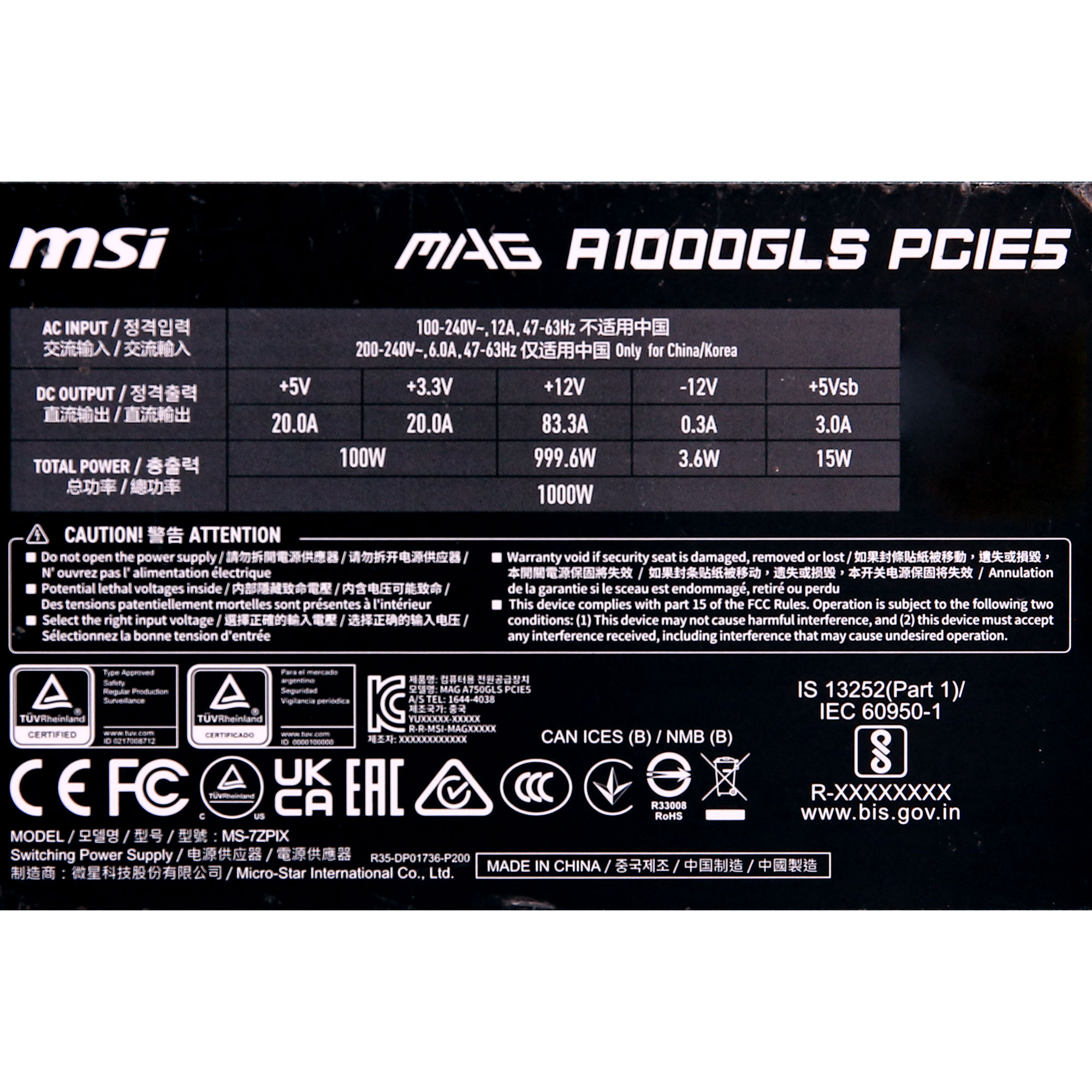

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts1001000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
8 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 2 2 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 3 6 / 3 / 3 18-20AWG No
AC Power Cord (1390mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK207R0 (7 Ohm @25°C) & Relay
Bridge Rectifier(s)
2x GBJL2510 (1000V, 25A @ 100°C)
APFC MOSFETs
2x STMicroelectronics STFW40N60M2 (650V, 22A @ 100°C, Rds(on): 0.088Ohm)
APFC Boost Diode
1x CRMicro CRXI10D065G2 (650V, 10A @ 161°C)
Bulk Cap(s)
1x Teapo (420V, 680uF @ 105°C, TD(M))
Main Switchers
2x STMicroelectronics STW33N60DM2 (650V, 15.5A @ 100°C, Rds(on): 130mOhm)
APFC  Controller
Champion CM6500UNX & 1x Sync Power SPN5003 (For no load consumption)
Resonant Controller
Champion CM6901X
Topology
Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x InPower Semiconductor FTG014N04SA (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
Filtering Capacitors Electrolytic: 8x ChengX (2-3,000h @ 105°C, GR) Polymer: 3x Teapo (FP), 9x BIOSTAR, 19x unknown brand
Fan Controller Nuvoton MS51FB9AE
Fan Model ZIC ZFF132512H (135mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier
1x Dongke Semiconductor DK5V45R10S (45V, 10A)
Standby PWM Controller
On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.593%
Average Noise Output (>1450 Load Combinations)25.70dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load71.353%
Standby Power Consumption0.0183W
12V Ripple (Full Load)33.70mV
5V Ripple (Full Load)20.03mV
3.3V Ripple (Full Load)21.68mV
5VSB Ripple (Full Load)27.64mV
12V Load Regulation0.89%
5V Load Regulation0.58%
3.3V Load Regulation1.22%
5VSB Load Regulation1.72%
Inrush CurrentToo low to detect
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)91.452%
Average Noise Output (>1450 Load Combinations)24.19dBA
Average PF (>1450 Load Combinations)0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load67.394%
Standby Power Consumption0.0921W
12V Ripple (Full Load)36.21mV
5V Ripple (Full Load)21.43mV
3.3V Ripple (Full Load)22.67mV
5VSB Ripple (Full Load)28.94mV
12V Load Regulation0.91%
5V Load Regulation0.58%
3.3V Load Regulation1.19%
5VSB Load Regulation1.62%
Inrush CurrentToo low to detect
12V Transient Response (200%)11.26V
5V Transient Response (200%)4.926V
3.3V Transient Response (200%)3.194V
5VSB Transient Response (200%)4.842V
Hold-Up Time & Power Ok Signal19.40ms
AC Loss to PWR_OK Hold Up Time17.00ms
PWR_OK Inactive to DC Loss Delay2.40ms
PSU Timings: T1 (20% / 100%)53.0ms53.0ms
PSU Timings: T3 (20% / 100%)121.0ms121.0ms
12V OCP (30.6°C / 44.3°C)106.40A (127.73%), 12.050V97.40A (116.93%), 12.061V
5V OCP (30.6°C / 44.3°C)30.8A (154.00%), 5.014V31A (155.00%), 5.018V
3.3V OCP (30.6°C / 44.3°C)29.6A (148.00%), 3.275V31A (155.00%), 3.278V
5VSB OCP (30.6°C / 44.3°C)5.5A (183.33%), 4.971V5.5A (183.33%), 4.979V
OPP (31.76°C / 42.25°C)127.11%125.36%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.4
AC Loss to PWR_OK Hold Up Time (ms)17
PWR_OK Inactive to DC Loss Delay (ms)2.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.018 W -0.001 W N/A 0.038 W N/A N/A
Apparent Power: 12.608 W 12.550 W N/A 12.672 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.89 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.28 % 2.00 % PASS
Real Power: 0.092 W 0.055 W N/A 0.137 W N/A N/A
Apparent Power: 43.192 W 42.980 W N/A 43.434 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

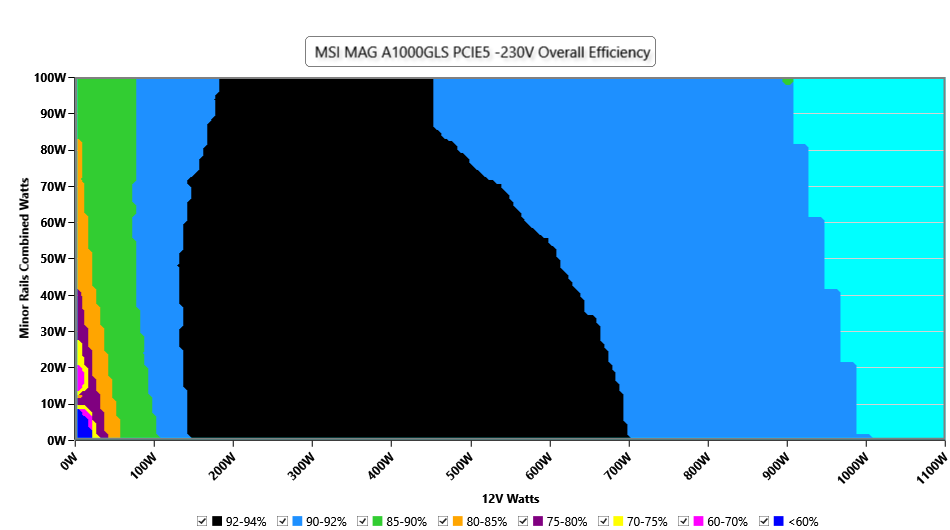

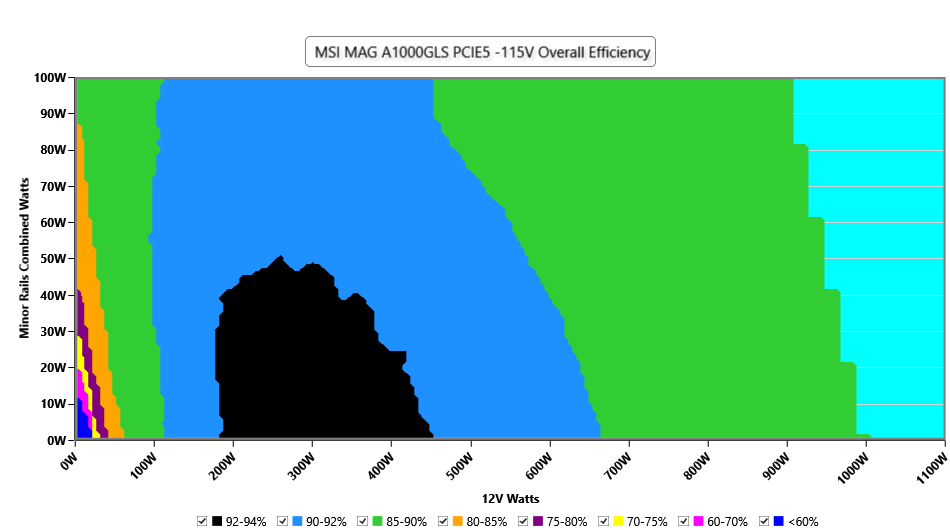

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

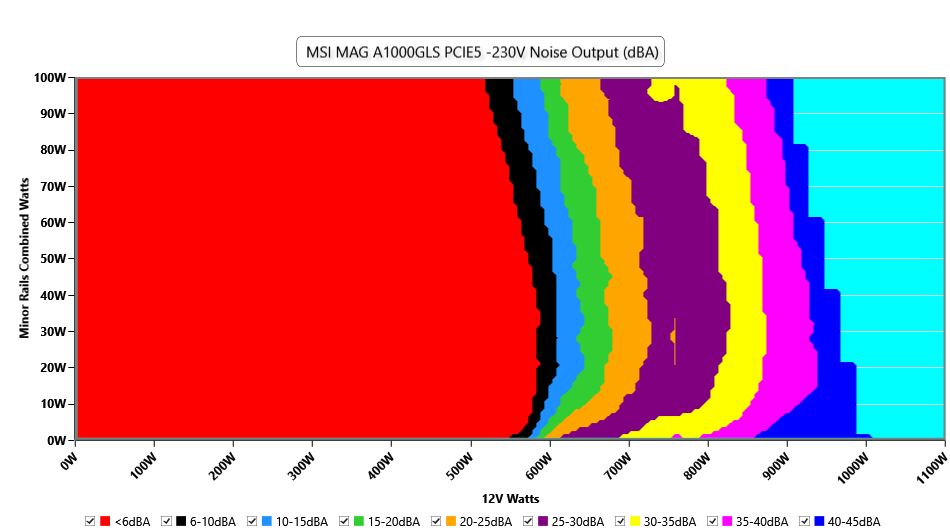

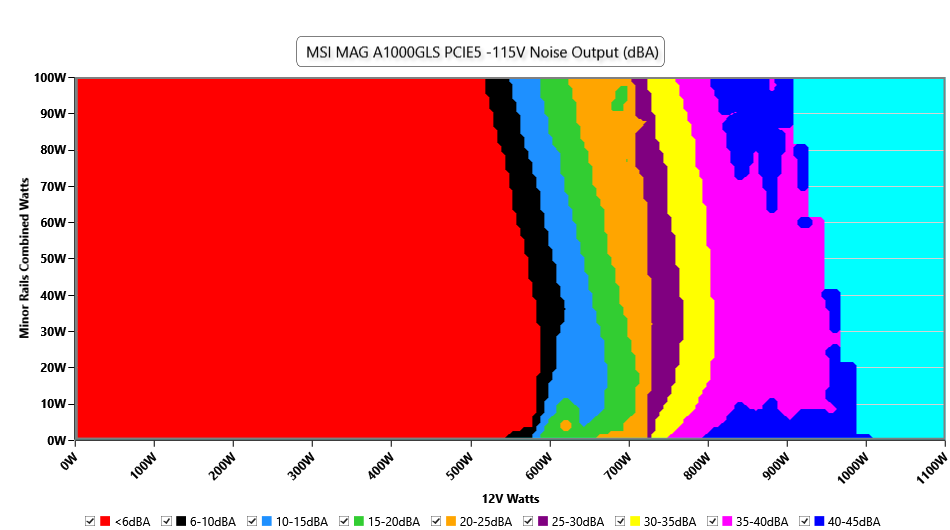

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

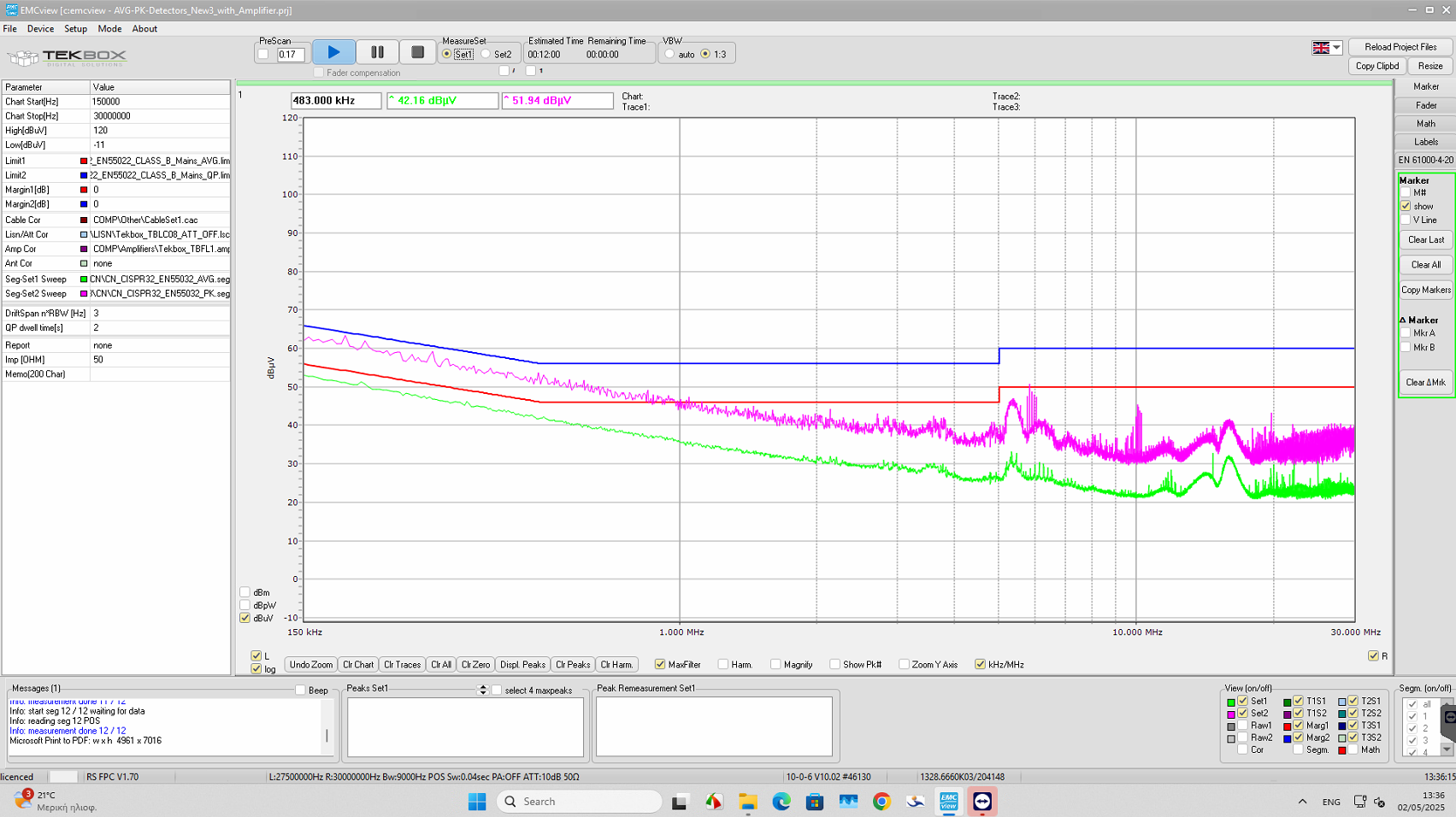

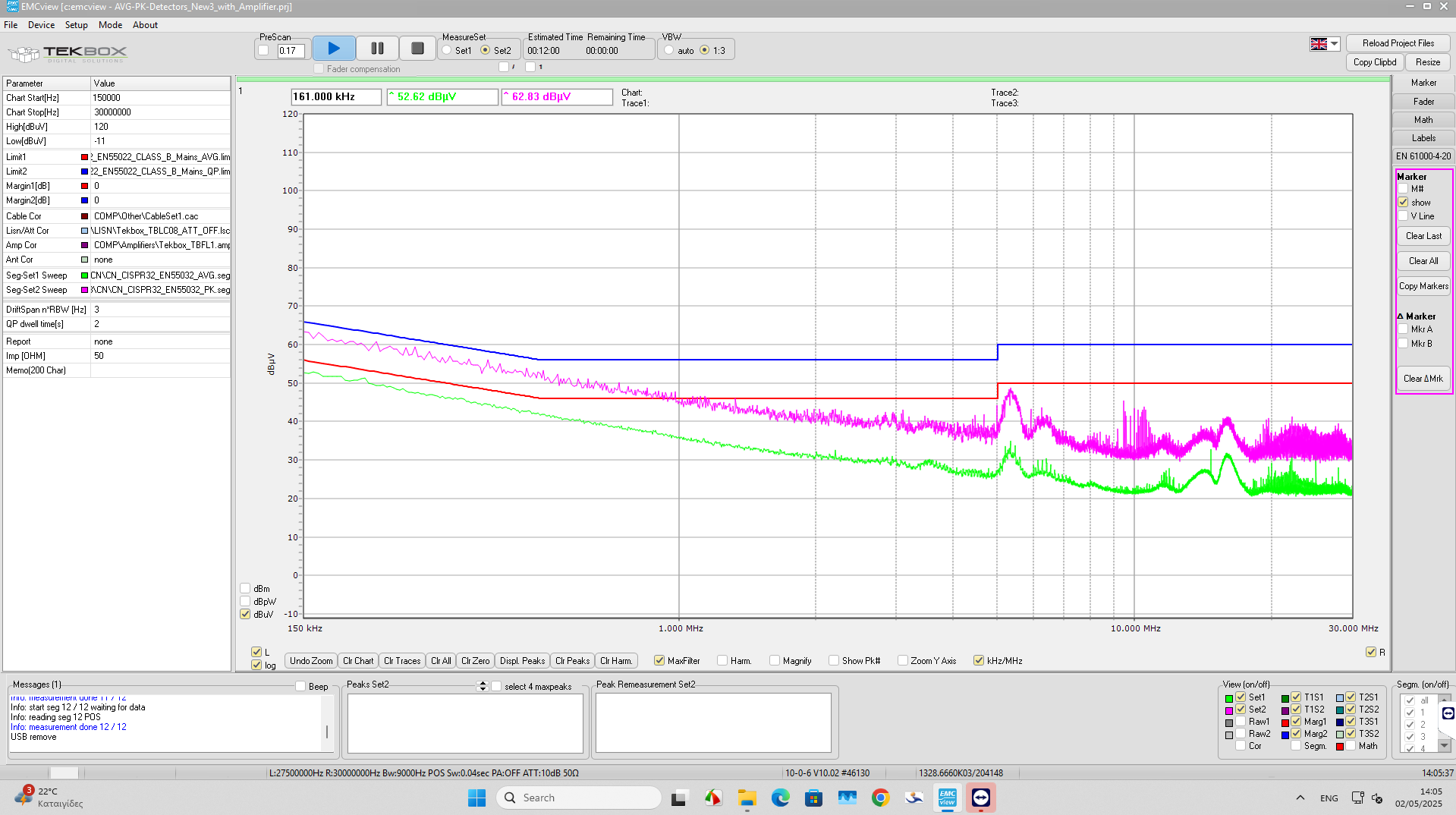

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

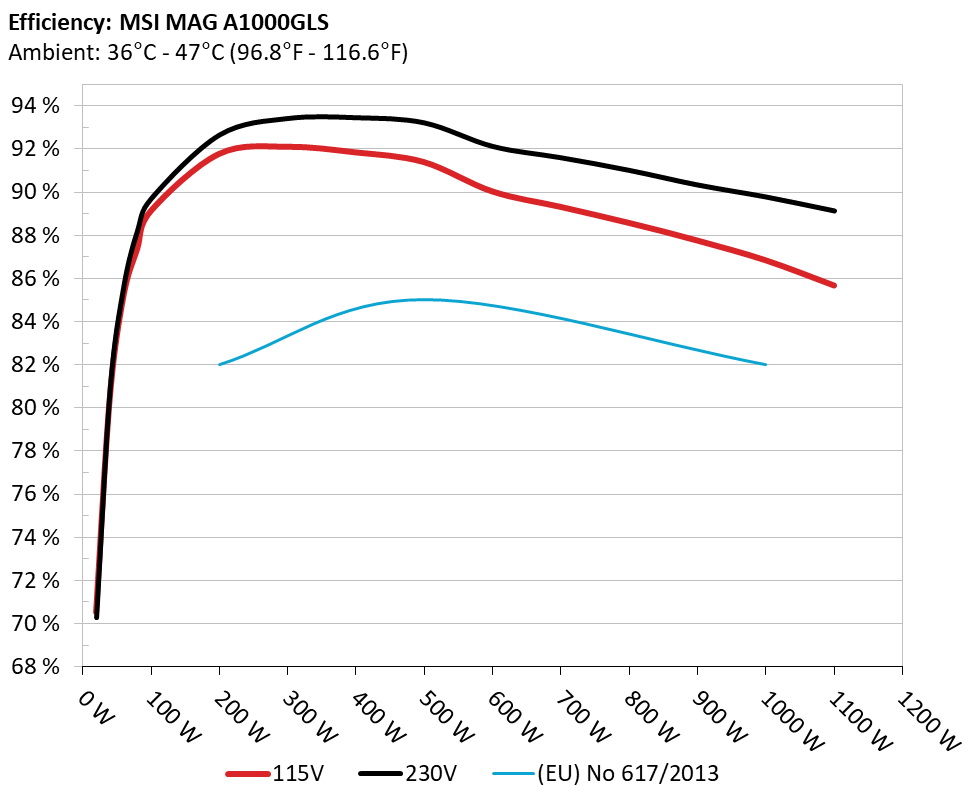

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

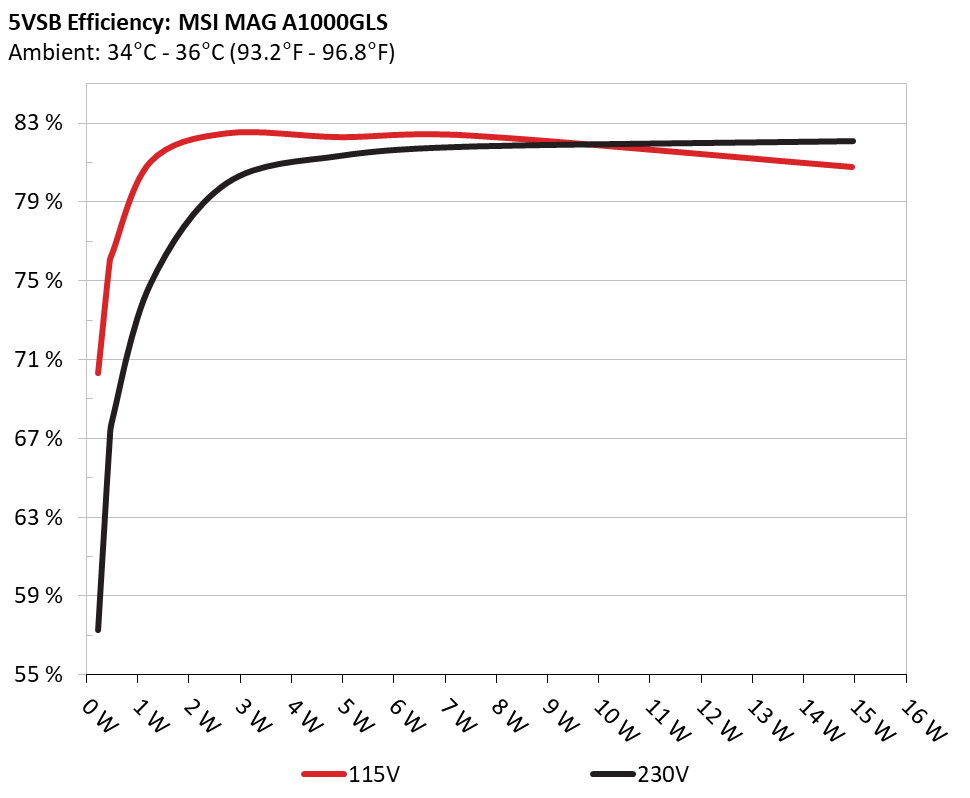

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 70.306% 0.026
4.971V 0.319W 115.07V
2 0.09A 0.448W 75.931% 0.047
4.971V 0.59W 115.07V
3 0.55A 2.735W 82.481% 0.225
4.973V 3.317W 115.07V
4 1A 4.976W 82.283% 0.334
4.975V 6.047W 115.06V
5 1.5A 7.467W 82.37% 0.398
4.977V 9.064W 115.06V
6 3.001A 14.953W 80.771% 0.487
4.984V 18.513W 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 57.293% 0.009
4.971V 0.391W 230.28V
2 0.09A 0.447W 66.801% 0.016
4.972V 0.67W 230.26V
3 0.55A 2.735W 79.961% 0.081
4.974V 3.42W 230.24V
4 1A 4.976W 81.356% 0.138
4.976V 6.116W 230.24V
5 1.5A 7.469W 81.814% 0.193
4.979V 9.13W 230.24V
6 3A 14.963W 82.093% 0.308
4.988V 18.229W 230.23V

Protection Features

OCP (Normal @ 30.6°C)12V: 106.40A (127.73%), 12.050V
5V: 30.8A (154.00%), 5.014V
3.3V: 29.6A (148.00%), 3.275V
5VSB: 5.5A (183.33%), 4.971V
OCP (Hot @ 44.3°C)12V: 97.40A (116.93%), 12.061V
5V: 31A (155.00%), 5.018V
3.3V: 31A (155.00%), 3.278V
5VSB: 5.5A (183.33%), 4.979V
OPP (Normal @ 31.8°C)1271.09W (127.11%)
OPP (Hot @ 42.3°C)1253.59W (125.36%)
OTP✓ (110°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.464A 1.978A 1.986A 1.007A 99.996 89.122% 417 <6.0 40.35°C 0.978
12.127V 5.056V 3.323V 4.965V 112.202 42.8°C 115.03V
20% 13.952A 2.969A 2.983A 1.21A 199.947 91.772% 418 <6.0 40.68°C 0.988
12.116V 5.053V 3.318V 4.957V 217.875 45.04°C 115V
30% 21.804A 3.465A 3.484A 1.414A 300.001 92.101% 431 <6.0 41.48°C 0.979
12.105V 5.051V 3.315V 4.95V 325.731 47.77°C 114.95V
40% 29.633A 3.962A 3.987A 1.619A 399.583 91.842% 432 <6.0 41.67°C 0.981
12.094V 5.048V 3.311V 4.942V 435.076 50.87°C 114.91V
50% 37.142A 4.956A 4.99A 1.824A 499.3 91.394% 433 <6.0 42.11°C 0.984
12.083V 5.046V 3.307V 4.934V 546.315 54.7°C 114.87V
60% 44.705A 5.951A 5.996A 2A 599.661 90.033% 488 <6.0 42.67°C 0.989
12.079V 5.043V 3.303V 4.923V 666.048 57°C 114.84V
70% 52.245A 6.947A 7.003A 2.239A 699.548 89.315% 780 15.7 43.09°C 0.991
12.067V 5.04V 3.299V 4.913V 783.234 54.83°C 114.8V
80% 59.866A 7.942A 8.012A 2.345A 799.549 88.576% 1040 25.1 43.97°C 0.992
12.054V 5.036V 3.295V 4.904V 902.667 56.71°C 114.76V
90% 67.833A 8.443A 8.508A 2.452A 899.334 87.761% 1265 31.6 44.9°C 0.993
12.042V 5.034V 3.291V 4.894V 1024.755 59.55°C 114.71V
100% 75.619A 8.944A 9.036A 3.071A 999.349 86.845% 1956 43.8 46.25°C 0.993
12.030V 5.031V 3.287V 4.885V 1150.723 62.63°C 114.67V
110% 83.352A 9.944A 10.143A 3.075A 1099.947 85.673% 2251 47.4 47.18°C 0.994
12.017V 5.028V 3.283V 4.878V 1283.891 62.51°C 114.62V
CL1 0.116A 11.941A 12.004A 0A 101.301 84.797% 439 <6.0 41.71°C 0.978
12.125V 5.041V 3.307V 4.944V 119.48 57.81°C 115.03V
CL2 0.115A 19.874A 0A 0A 101.393 84.066% 437 <6.0 41.63°C 0.978
12.129V 5.032V 3.318V 4.952V 120.608 55.89°C 115.03V
CL3 0.114A 0A 20.031A 0A 67.386 78.718% 434 <6.0 40°C 0.965
12.126V 5.051V 3.295V 4.948V 85.607 52.94°C 115.04V
CL4 83.107A 0A 0A 0.001A 999.997 87.164% 2262 47.5 43.39°C 0.993
12.032V 5.045V 3.301V 4.894V 1147.27 55.51°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.466A 1.978A 1.986A 1.007A 100.01 89.33% 415 <6.0 40°C 0.839
12.126V 5.056V 3.323V 4.965V 111.948 44.29°C 230.18V
20% 13.954A 2.969A 2.983A 1.21A 199.967 92.668% 415 <6.0 40.86°C 0.925
12.115V 5.053V 3.319V 4.958V 215.786 45.56°C 230.17V
30% 21.809A 3.466A 3.484A 1.414A 300.023 93.431% 416 <6.0 41.38°C 0.95
12.104V 5.051V 3.315V 4.95V 321.119 46.96°C 230.16V
40% 29.640A 3.962A 3.986A 1.619A 399.637 93.468% 417 <6.0 41.61°C 0.959
12.092V 5.049V 3.312V 4.943V 427.563 49.15°C 230.14V
50% 37.152A 4.956A 4.989A 1.824A 499.352 93.232% 419 <6.0 42.21°C 0.965
12.081V 5.046V 3.308V 4.934V 535.605 51.72°C 230.12V
60% 44.717A 5.951A 5.995A 2A 599.721 92.136% 902 20.4 42.65°C 0.975
12.077V 5.043V 3.303V 4.924V 650.91 53.72°C 230.1V
70% 52.258A 6.947A 7.002A 2.239A 699.602 91.613% 1396 34.1 43.46°C 0.977
12.064V 5.04V 3.3V 4.914V 763.646 53.4°C 230.08V
80% 59.881A 7.943A 8.01A 2.345A 799.592 91.027% 1835 42 43.87°C 0.979
12.052V 5.036V 3.296V 4.906V 878.411 52.98°C 230.06V
90% 67.852A 8.443A 8.505A 2.451A 899.38 90.352% 2259 47.5 44.91°C 0.981
12.040V 5.034V 3.292V 4.898V 995.418 54.71°C 230.04V
100% 75.636A 8.945A 9.033A 3.069A 999.392 89.794% 2253 47.4 45.56°C 0.982
12.028V 5.031V 3.288V 4.889V 1112.985 57.38°C 230.02V
110% 83.369A 9.945A 10.14A 3.076A 1099.996 89.146% 2246 47.3 46.68°C 0.982
12.015V 5.028V 3.284V 4.878V 1233.922 57.75°C 230V
CL1 0.116A 11.942A 12.001A 0A 101.308 85.461% 437 <6.0 42.16°C 0.853
12.124V 5.041V 3.308V 4.943V 118.556 55.68°C 230.18V
CL2 0.116A 19.873A 0A 0A 101.398 84.583% 433 <6.0 40.2°C 0.854
12.128V 5.032V 3.319V 4.952V 119.879 52.9°C 230.17V
CL3 0.114A 0A 20.016A 0A 67.385 79.532% 430 <6.0 42°C 0.771
12.126V 5.051V 3.297V 4.948V 84.727 52.51°C 230.19V
CL4 83.087A 0A 0A 0.001A 999.896 90.465% 2258 47.5 42.57°C 0.982
12.034V 5.045V 3.301V 4.895V 1105.294 52.33°C 230.06V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.494A 0.496A 0.2A 19.995 70.539% 401 <6.0 36.44°C 0.814
12.137V 5.06V 3.327V 4.969V 28.349 41.32°C 115.07V
40W 2.694A 0.692A 0.694A 0.302A 40.001 80.454% 408 <6.0 37.73°C 0.919
12.134V 5.059V 3.326V 4.968V 49.719 39.61°C 115.06V
60W 4.166A 0.89A 0.893A 0.403A 60 85.2% 412 <6.0 38.28°C 0.958
12.132V 5.058V 3.325V 4.967V 70.419 40.11°C 115.05V
80W 5.632A 1.088A 1.092A 0.503A 79.944 87.359% 415 <6.0 39.52°C 0.967
12.129V 5.058V 3.325V 4.966V 91.51 41.41°C 115.04V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.494A 0.496A 0.2A 19.998 70.281% 417 <6.0 36.85°C 0.416
12.137V 5.06V 3.327V 4.968V 28.451 44.56°C 230.2V
40W 2.694A 0.692A 0.695A 0.302A 40.004 80.911% 414 <6.0 37.19°C 0.598
12.134V 5.059V 3.326V 4.968V 49.438 43.24°C 230.2V
60W 4.166A 0.89A 0.893A 0.403A 60.005 85.664% 414 <6.0 38.05°C 0.71
12.131V 5.058V 3.325V 4.967V 70.043 43.67°C 230.19V
80W 5.634A 1.088A 1.092A 0.504A 79.955 88.226% 413 <6.0 39.81°C 0.787
12.129V 5.058V 3.325V 4.965V 90.622 43.58°C 230.19V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.69mV13.24mV13.24mV10.74mVPass
20% Load21.55mV14.01mV13.86mV11.72mVPass
30% Load25.47mV14.01mV13.96mV11.77mVPass
40% Load27.38mV13.96mV15.41mV13.06mVPass
50% Load30.01mV14.84mV16.60mV14.55mVPass
60% Load28.41mV17.31mV20.43mV15.49mVPass
70% Load29.39mV15.35mV18.10mV18.89mVPass
80% Load29.85mV16.07mV19.34mV20.29mVPass
90% Load31.97mV19.42mV20.74mV21.94mVPass
100% Load33.70mV20.03mV21.68mV27.64mVPass
110% Load35.97mV20.95mV24.14mV28.04mVPass
Crossload116.72mV13.62mV13.75mV13.32mVPass
Crossload217.37mV15.15mV13.39mV13.06mVPass
Crossload316.45mV13.65mV14.89mV13.53mVPass
Crossload435.64mV18.10mV20.58mV18.18mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.91mV13.29mV14.07mV10.48mVPass
20% Load22.48mV15.04mV14.94mV11.82mVPass
30% Load24.95mV15.25mV15.56mV12.49mVPass
40% Load28.25mV15.25mV16.39mV13.32mVPass
50% Load30.26mV16.85mV17.38mV14.81mVPass
60% Load28.41mV17.88mV20.79mV15.07mVPass
70% Load30.06mV16.28mV18.92mV18.12mVPass
80% Load31.24mV16.79mV20.37mV20.39mVPass
90% Load32.22mV21.59mV22.24mV21.88mVPass
100% Load36.21mV21.43mV22.67mV28.94mVPass
110% Load37.46mV21.04mV23.56mV28.59mVPass
Crossload118.33mV14.44mV15.25mV13.84mVPass
Crossload218.41mV15.61mV15.05mV14.14mVPass
Crossload317.73mV15.77mV17.07mV14.92mVPass
Crossload434.35mV18.01mV21.12mV19.16mVPass

The results above are not used in the certification process

MSI MAG A1000GLS PCIE5

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
