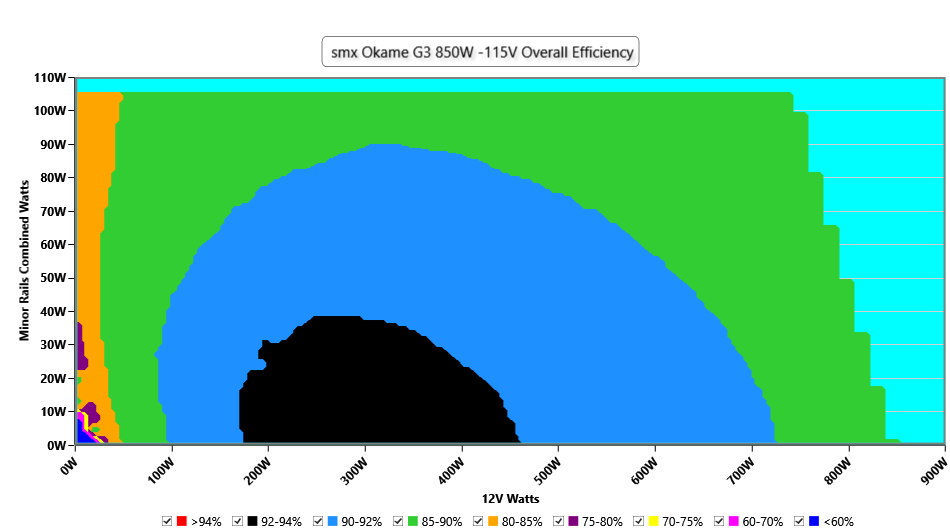

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
230V
INFO

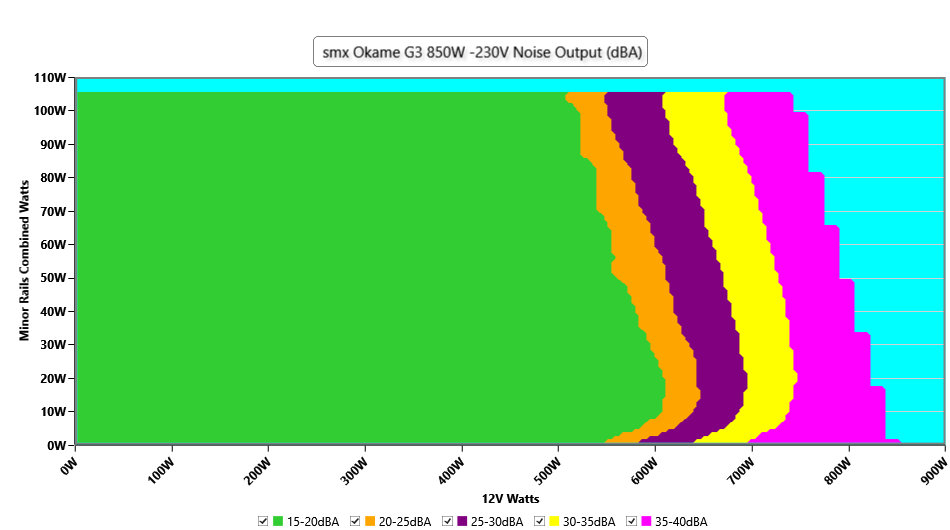

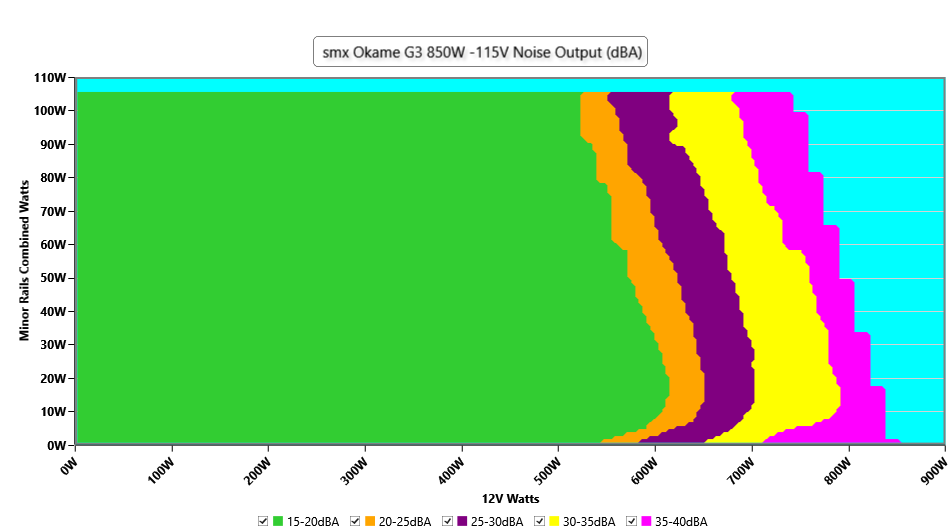

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

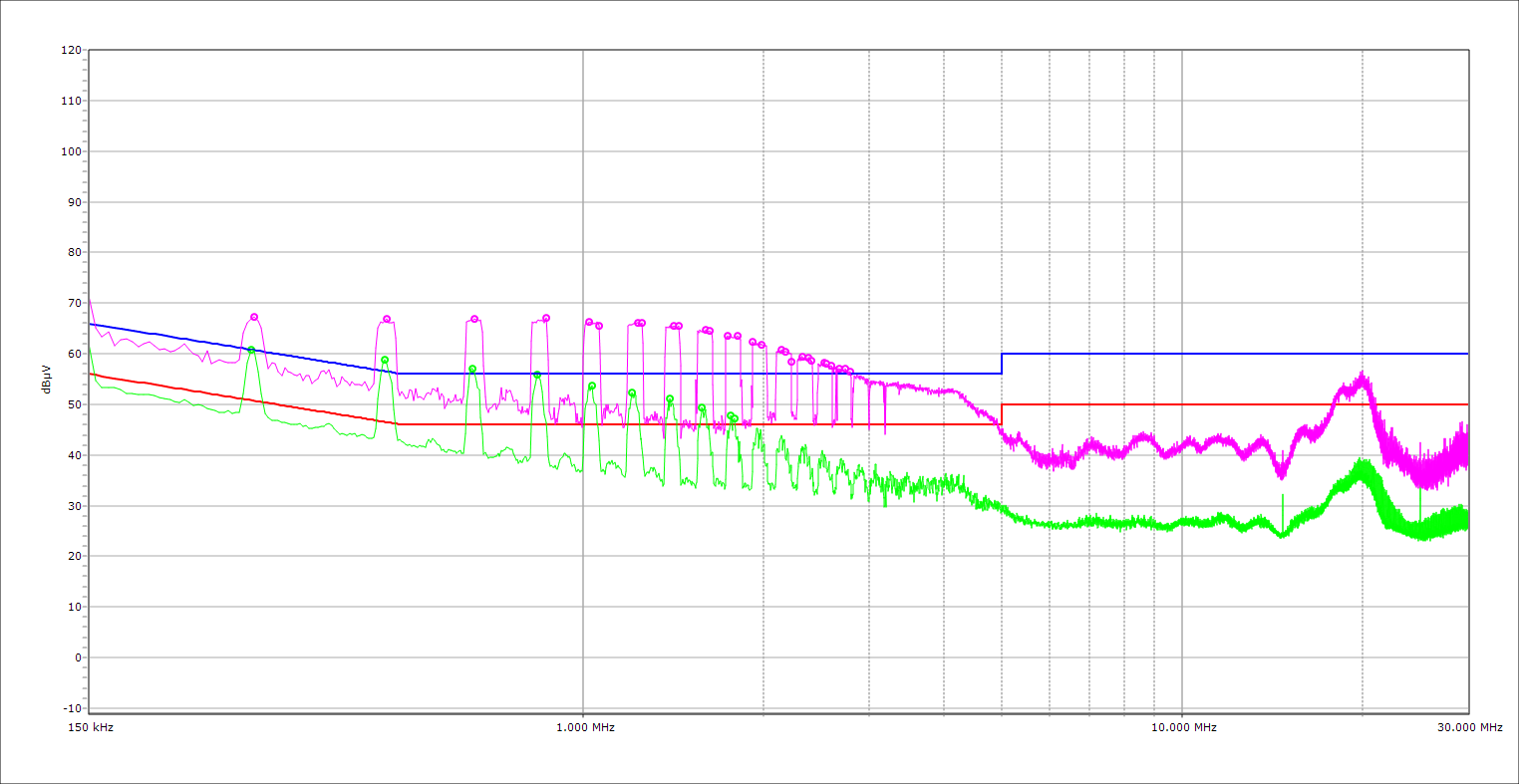

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance
Efficiency under high ambient temperature
INFO

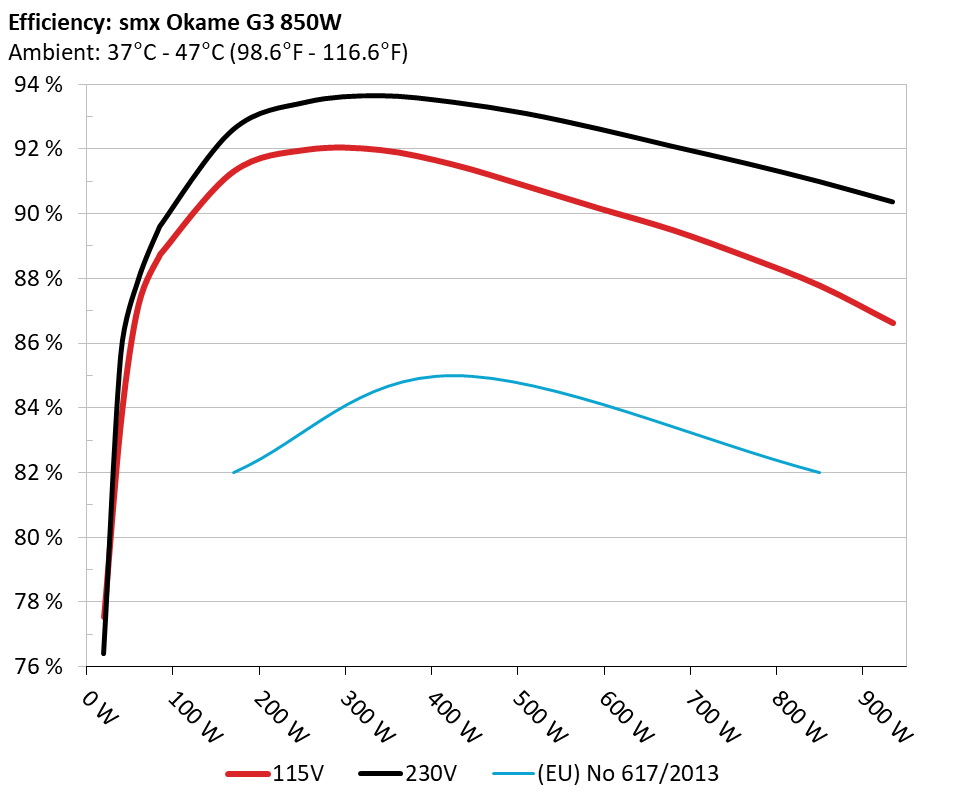

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB Efficiency
INFO

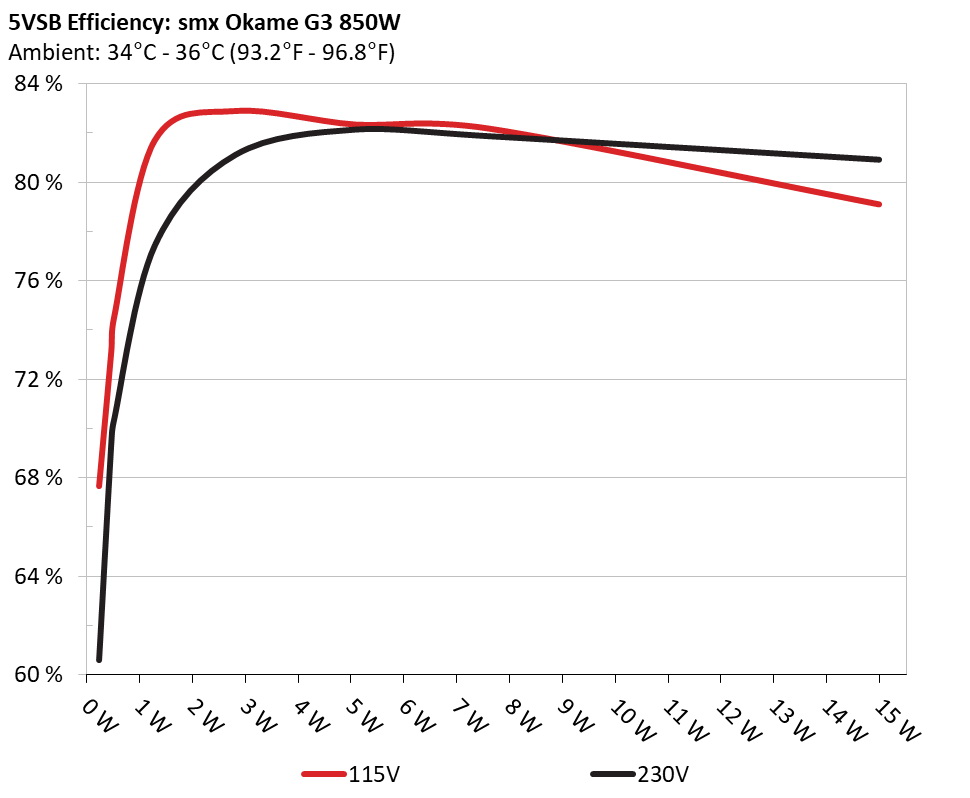

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✗
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.229A
1.979A
1.988A
0.985A
85.004
89.619%
716
14.6
40.16°C
0.82
12.125V
5.054V
3.32V
5.079V
94.85
41.82°C
230.08V
20%
11.478A
2.972A
2.986A
1.186A
169.963
92.61%
721
15.3
40.73°C
0.924
12.115V
5.049V
3.316V
5.059V
183.528
41.49°C
230.08V
30%
18.087A
3.471A
3.487A
1.389A
254.977
93.463%
725
15.9
41.01°C
0.954
12.104V
5.043V
3.312V
5.04V
272.806
44.75°C
230.06V
40%
24.714A
3.97A
3.99A
1.594A
340.071
93.663%
726
16.2
41.62°C
0.967
12.092V
5.039V
3.309V
5.02V
363.08
47.03°C
230.05V
50%
31.011A
4.968A
4.995A
1.802A
425.134
93.461%
725
15.9
42.17°C
0.975
12.080V
5.034V
3.304V
4.997V
454.878
50.34°C
230.04V
60%
37.273A
5.965A
5.999A
2.001A
509.594
93.111%
899
22.4
42.53°C
0.979
12.068V
5.031V
3.301V
4.976V
547.299
50.93°C
230.03V
70%
43.614A
6.961A
7.005A
2.221A
594.945
92.628%
1187
29.5
43.11°C
0.982
12.056V
5.03V
3.298V
4.955V
642.293
50.39°C
230.02V
80%
49.973A
7.961A
8.013A
2.329A
679.79
92.092%
1680
39.3
43.58°C
0.984
12.044V
5.025V
3.295V
4.939V
738.162
52.92°C
230.01V
90%
56.742A
8.467A
8.508A
2.438A
765.227
91.567%
1848
42.7
44.74°C
0.985
12.031V
5.021V
3.291V
4.923V
835.7
55.56°C
230V
100%
63.258A
8.972A
9.035A
3.075A
850.034
91.003%
1842
42.6
45.72°C
0.987
12.019V
5.016V
3.287V
4.878V
934.07
57.18°C
229.99V
110%
69.661A
9.976A
10.142A
3.082A
934.646
90.377%
1845
42.7
46.05°C
0.988
12.006V
5.012V
3.283V
4.868V
1034.161
59.47°C
229.97V
CL1
0.116A
12.373A
12.428A
0A
104.317
82.789%
725
15.9
41.51°C
0.887
12.112V
5.011V
3.291V
5.116V
126.001
54.08°C
230.07V
CL2
0.116A
20.092A
0A
0A
101.405
81.178%
725
15.9
41.5°C
0.886
12.117V
4.977V
3.308V
5.122V
124.919
50.85°C
230.07V
CL3
0.115A
0A
20.178A
0A
67.398
72.402%
723
15.7
40.13°C
0.831
12.117V
5.018V
3.271V
5.12V
93.091
48.39°C
230.08V
CL4
70.630A
0A
0A
0.006A
849.768
92.057%
1854
42.8
45.08°C
0.986
12.031V
5.034V
3.3V
5.063V
923.097
55.54°C
229.99V
The results above are not used in the certification process
Light Load Tests 230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.224A
0.494A
0.496A
0.195A
20.006
76.404%
716
14.6
36.27°C
0.489
12.136V
5.058V
3.324V
5.129V
26.185
37.92°C
230.08V
40W
2.694A
0.692A
0.695A
0.293A
40.004
85.666%
719
14.9
37.47°C
0.654
12.133V
5.056V
3.323V
5.122V
47.04
39.97°C
230.08V
60W
4.166A
0.891A
0.894A
0.391A
60.002
87.948%
720
15.3
38.33°C
0.735
12.131V
5.053V
3.321V
5.115V
68.226
40.85°C
230.09V
80W
5.634A
1.089A
1.093A
0.49A
79.964
89.923%
722
15.7
39.18°C
0.809
12.128V
5.052V
3.32V
5.107V
88.926
41.01°C
230.09V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
9.8 mV
7.9 mV
5.6 mV
9.9 mV
Pass
20% Load
10.9 mV
9.3 mV
6.9 mV
13.5 mV
Pass
30% Load
12.5 mV
10.2 mV
7.4 mV
16.5 mV
Pass
40% Load
12.4 mV
11.3 mV
7.8 mV
21.0 mV
Pass
50% Load
13.5 mV
12.3 mV
9.2 mV
23.0 mV
Pass
60% Load
14.6 mV
14.5 mV
10.0 mV
28.5 mV
Pass
70% Load
16.1 mV
16.9 mV
13.5 mV
31.7 mV
Pass
80% Load
17.1 mV
17.4 mV
19.3 mV
34.1 mV
Pass
90% Load
17.9 mV
19.1 mV
19.3 mV
37.6 mV
Pass
100% Load
26.5 mV
16.2 mV
15.4 mV
41.3 mV
Pass
110% Load
26.0 mV
15.8 mV
17.0 mV
43.4 mV
Pass
Crossload 1
15.7 mV
10.5 mV
14.8 mV
9.6 mV
Pass
Crossload 2
10.5 mV
11.1 mV
6.7 mV
8.8 mV
Pass
Crossload 3
10.8 mV
21.6 mV
15.9 mV
8.6 mV
Pass
Crossload 4
26.3 mV
13.3 mV
9.2 mV
34.4 mV
Pass
The results above are not used in the certification process
SMX Okame G3 850W

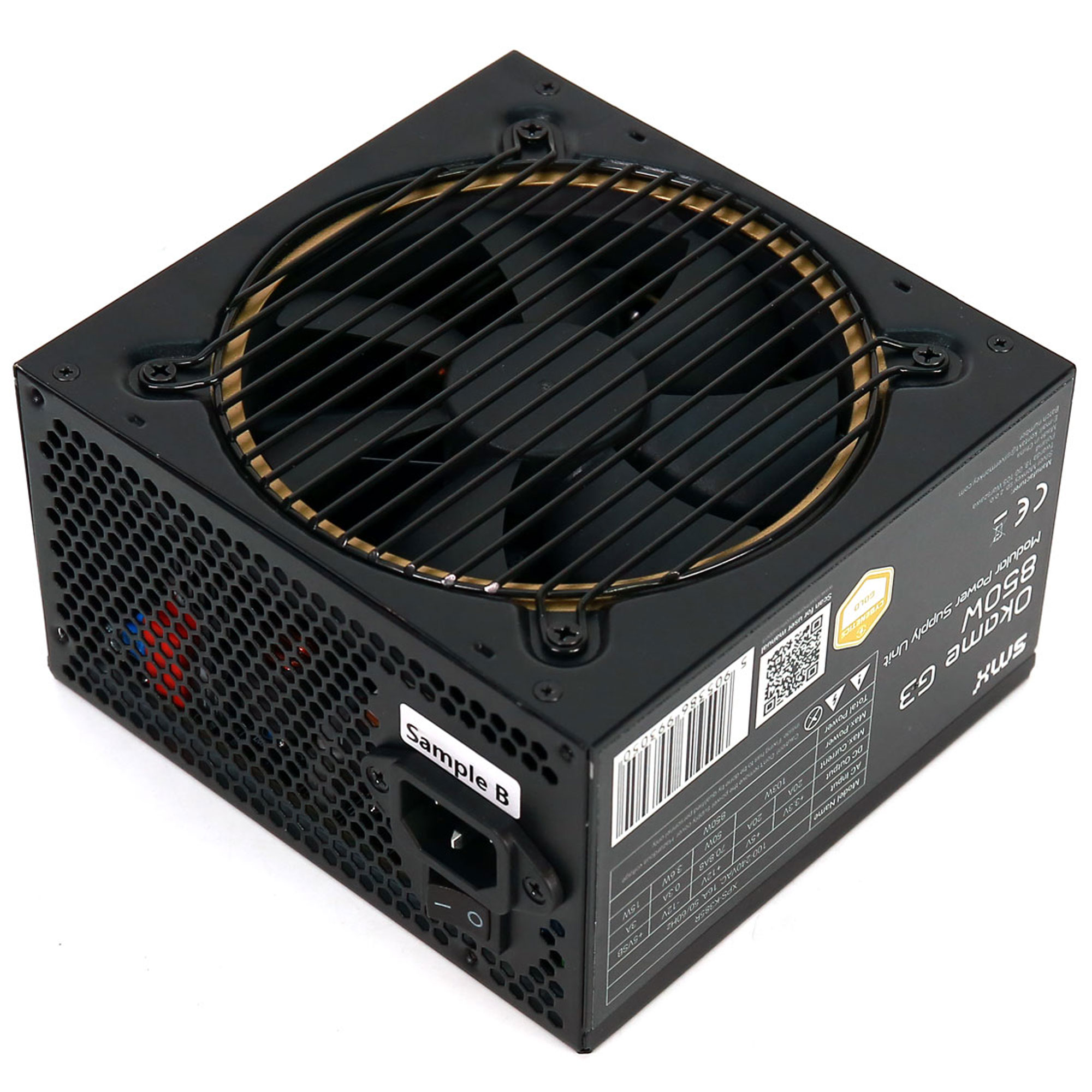

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
