Cybenetics Test - be quiet! Pure Power 13 M 750W

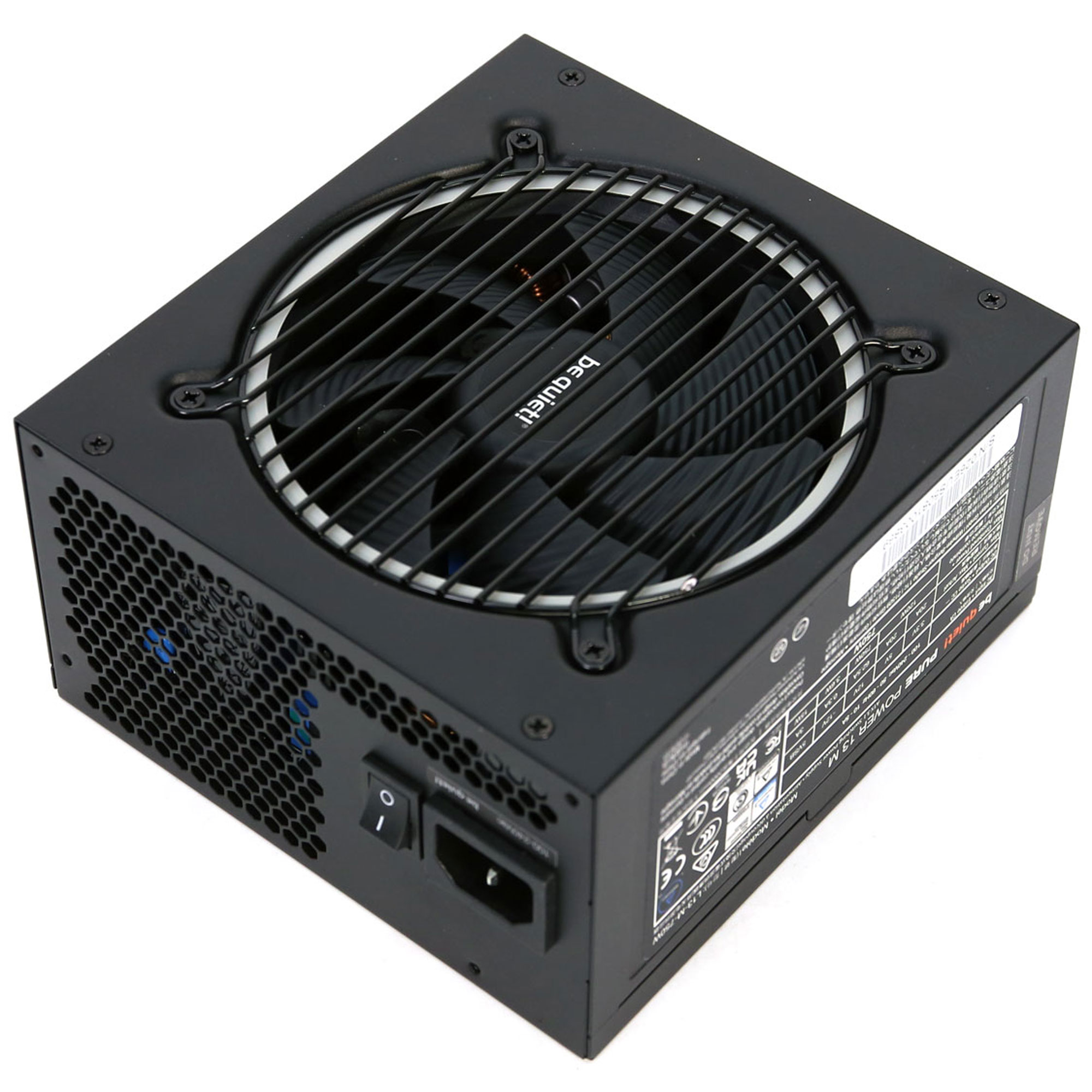

be quiet! Pure Power 13 M 750W

Serial Number026EUS5081003869

Lab IDBQ75002844

Certification ID252844

Test Result Report ID: 25PS2844A
Certificate Issue Date: Jun 17, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	be quiet!
Manufacturer (OEM)	FSP
Series	Pure Power
Model Number	L13-M-750W
Serial Number	026EUS5081003869
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	5-10
Rated Frequency (Hz)	50-60
Rated Power (W)	750
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Rifle Bearing Fan (BQ QF2-12025-HS)
Semi-Passive Operation	✓
Cable Design	Fully Modular

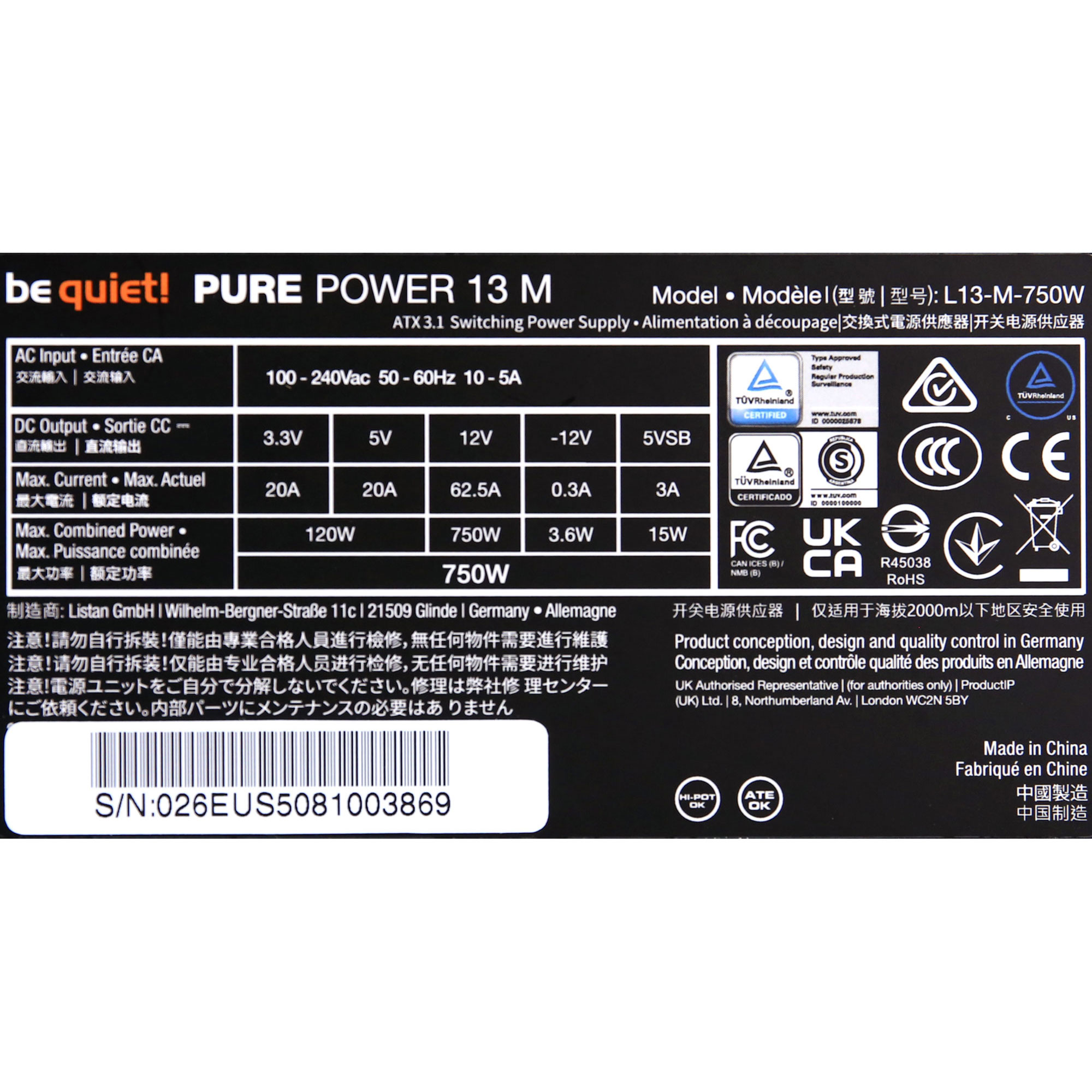

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	62.5	3	0.3
Max. Power	Watts	120		750	15	3.6
Total Max. Power (W)		750

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (550mm)	1	1	18-22AWG	No
4+4 pin EPS12V (650mm)	1	1	16AWG	No
8 pin EPS12V (650mm)	1	1	16AWG	No
2x 6+2 pin PCIe (600mm)	2	2	16-18AWG	No
6+2 pin PCIe (500mm+150mm)	1	2	16-18AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-28AWG	No
SATA (500mm+150mm+150mm+150mm)	1	4	18AWG	No
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm)	1	2 / 2	18AWG	No
AC Power Cord (1350mm) - C13 Coupler	1	1	18AWG	-

Parts Description

	General Data
Manufacturer (OEM)	FSP
PCB Type	Double-Sided
	-Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	2x Yangjie GBJ1508 (800V, 15A @ 87°C)
APFC MOSFETs	2x Toshiba TK20A60W (600V, 20A @ 25°C, Rds(on): 0.155Ohm)
APFC Boost Diode	1x DSC06C065 (650V, 6A @ 25°C)
Bulk Cap(s)	2x Elite (420V, 330uF each or 660uF combined, 2000h @ 105°C, PL(M))
Main Switchers	2x STMicroelectronics STF24N60DM2 (650V, 11A @ 25°C, Rds(on): 0.200Ohm)
IC Driver	Novosense NSI6602
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
	Secondary Side
+12V MOSFETs	6x Secos SPR170N04SV-C (40V, 94A @ 100°C, Rds(on): 1.8mOhm)
5V & 3.3V	DC-DC Converters: 4x Nexperia PSMN3RO-30YLD (30V, 100A @ 25°C, Rds(on): 3.1mOhm) PWM Controller(s): ANPEC APW7159C
Filtering Capacitors	Electrolytic: 3x Elite (2,000 @ 105°C, EL) 2x Elite (2-5,000 @ 105°C, ED) 1x Elite (4-10,000 @ 105°C, EY) 2x Elite (3-6,000 @ 105°C, EV) Polymer: 19x Apaq, 8 Elite (CS), 9x Biostar
Supervisor IC	IN1S4241-SDG (OCP, OVP, UVP, SCP, PG)
Fan Controller	Grenergy GR8031
Fan Model	BQ QF2-12025-MS (120mm, 12V, 0.20A, Rifle Bearing Fan)
	5VSB Circuit
Synchronous Rectification Driver	Leadtrend LD8926AA13 Synchronous Rectification IC

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	90.774%
Average Noise Output (>1450 Load Combinations)	6.51dBA
Average PF (>1450 Load Combinations)	0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.120%
Standby Power Consumption	0.0553W
12V Ripple (Full Load)	28.26mV
5V Ripple (Full Load)	15.25mV
3.3V Ripple (Full Load)	16.17mV
5VSB Ripple (Full Load)	20.10mV
12V Load Regulation	0.39%
5V Load Regulation	0.82%
3.3V Load Regulation	1.25%
5VSB Load Regulation	2.10%
Inrush Current	32.290A

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	92.770%
Average Noise Output (>1450 Load Combinations)	6.21dBA
Average PF (>1450 Load Combinations)	0.953
Efficiency With 10W (≤500W) or 2% (>500W) Load	74.024%
Standby Power Consumption	0.1252W
12V Ripple (Full Load)	29.33mV
5V Ripple (Full Load)	14.93mV
3.3V Ripple (Full Load)	17.04mV
5VSB Ripple (Full Load)	20.81mV
12V Load Regulation	0.40%
5V Load Regulation	0.82%
3.3V Load Regulation	1.22%
5VSB Load Regulation	2.12%
Inrush Current	64.080A
12V Transient Response (200%)	11.75V
5V Transient Response (200%)	4.914V
3.3V Transient Response (200%)	3.189V
5VSB Transient Response (200%)	5.001V
Hold-Up Time & Power Ok Signal	18.80ms
AC Loss to PWR_OK Hold Up Time	15.90ms
PWR_OK Inactive to DC Loss Delay	2.90ms
PSU Timings: T1 (20% / 100%)	68.0ms	67.0ms
PSU Timings: T3 (20% / 100%)	128.0ms	128.0ms
12V OCP (29.9°C / 41.7°C)	72.80A (116.48%), 12.047V	71.00A (113.60%), 12.053V
5V OCP (29.9°C / 41.7°C)	27.5A (137.50%), 4.988V	28.1A (140.50%), 4.988V
3.3V OCP (29.9°C / 41.7°C)	29.2A (146.00%), 3.317V	29.3A (146.50%), 3.315V
5VSB OCP (29.9°C / 41.7°C)	4.4A (146.67%), 4.996V	4.4A (146.67%), 4.993V
OPP (30.43°C / 40.66°C)	120.21%	116.88%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	18.8
AC Loss to PWR_OK Hold Up Time (ms)	15.9
PWR_OK Inactive to DC Loss Delay (ms)	2.9

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.07 V	115.03 V	113.85 V	115.11 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.055 W	0.035 W	N/A	0.083 W	N/A	N/A
Apparent Power:	10.015 W	9.963 W	N/A	10.069 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.01 V	230.90 V	227.70 V	231.08 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.28 %	2.00 %	PASS
Real Power:	0.125 W	0.084 W	N/A	0.194 W	N/A	N/A
Apparent Power:	34.372 W	34.155 W	N/A	34.590 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Graphs

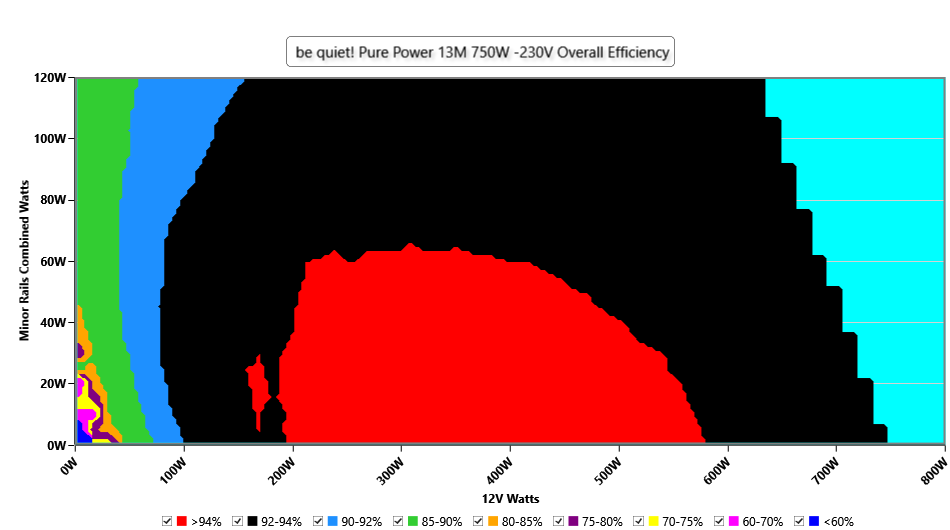

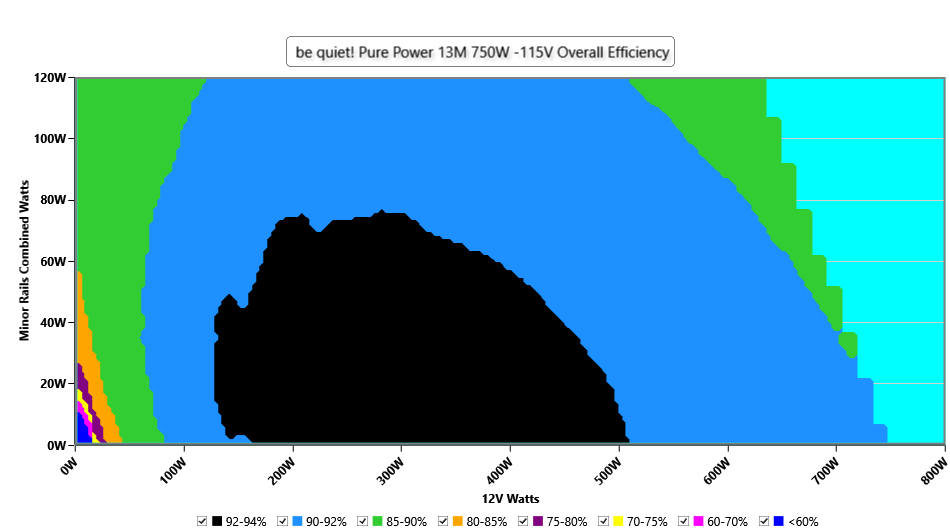

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

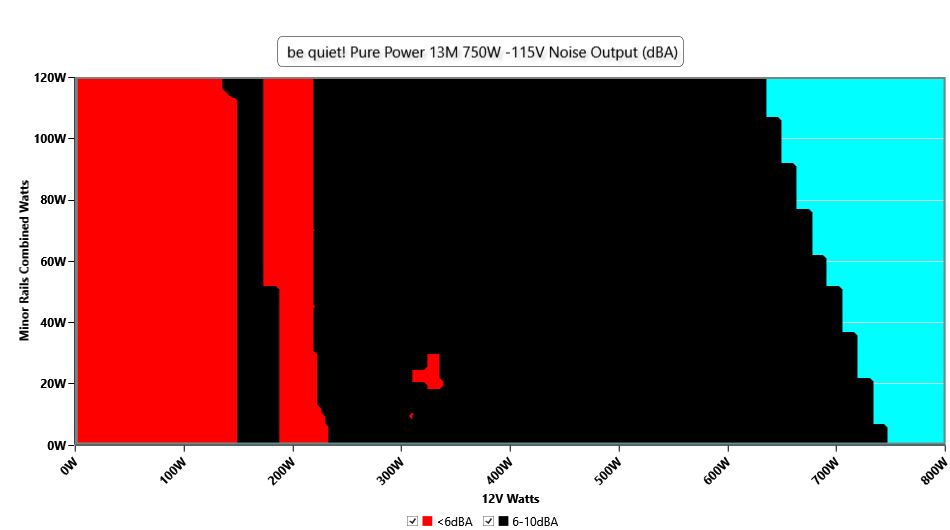

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

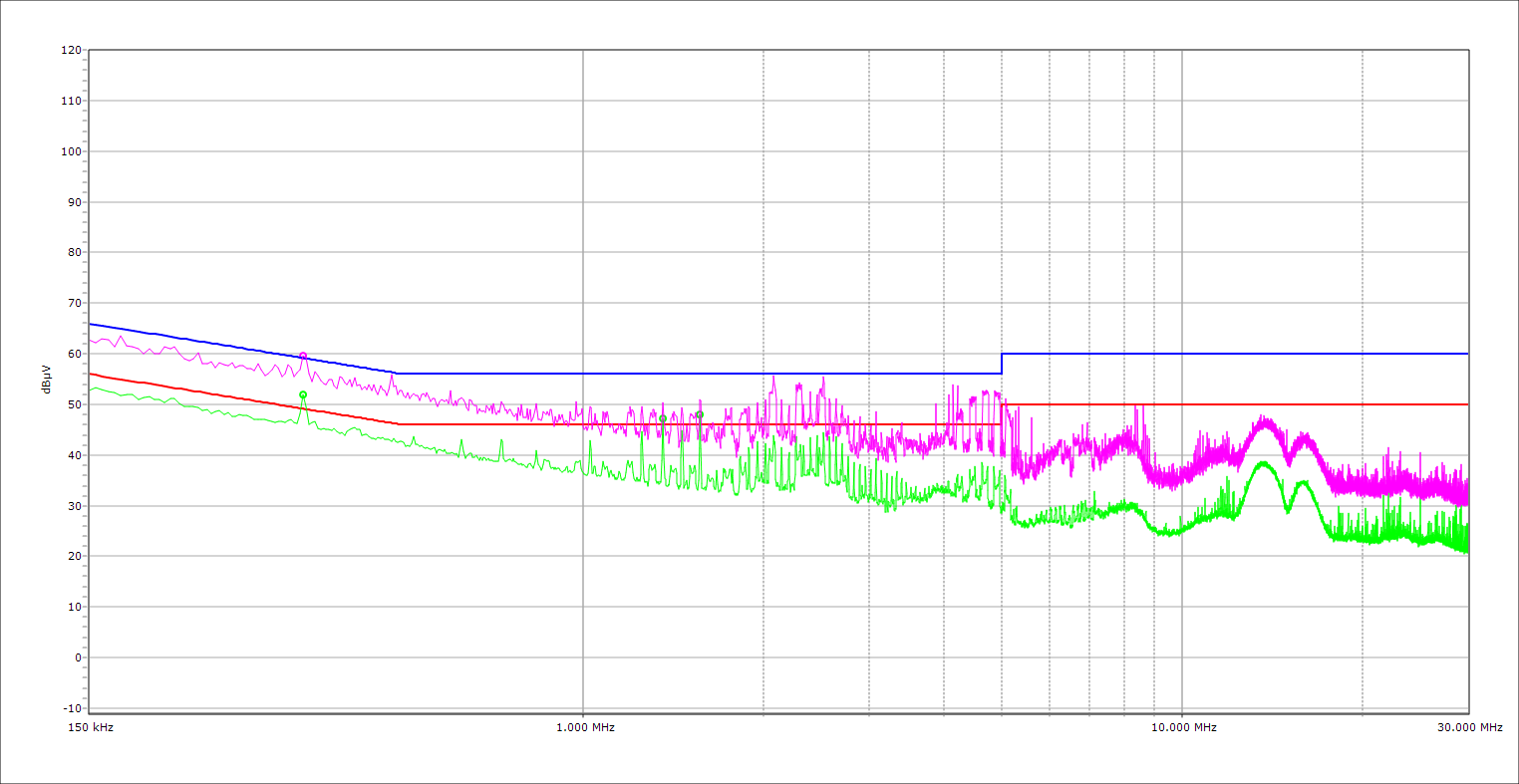

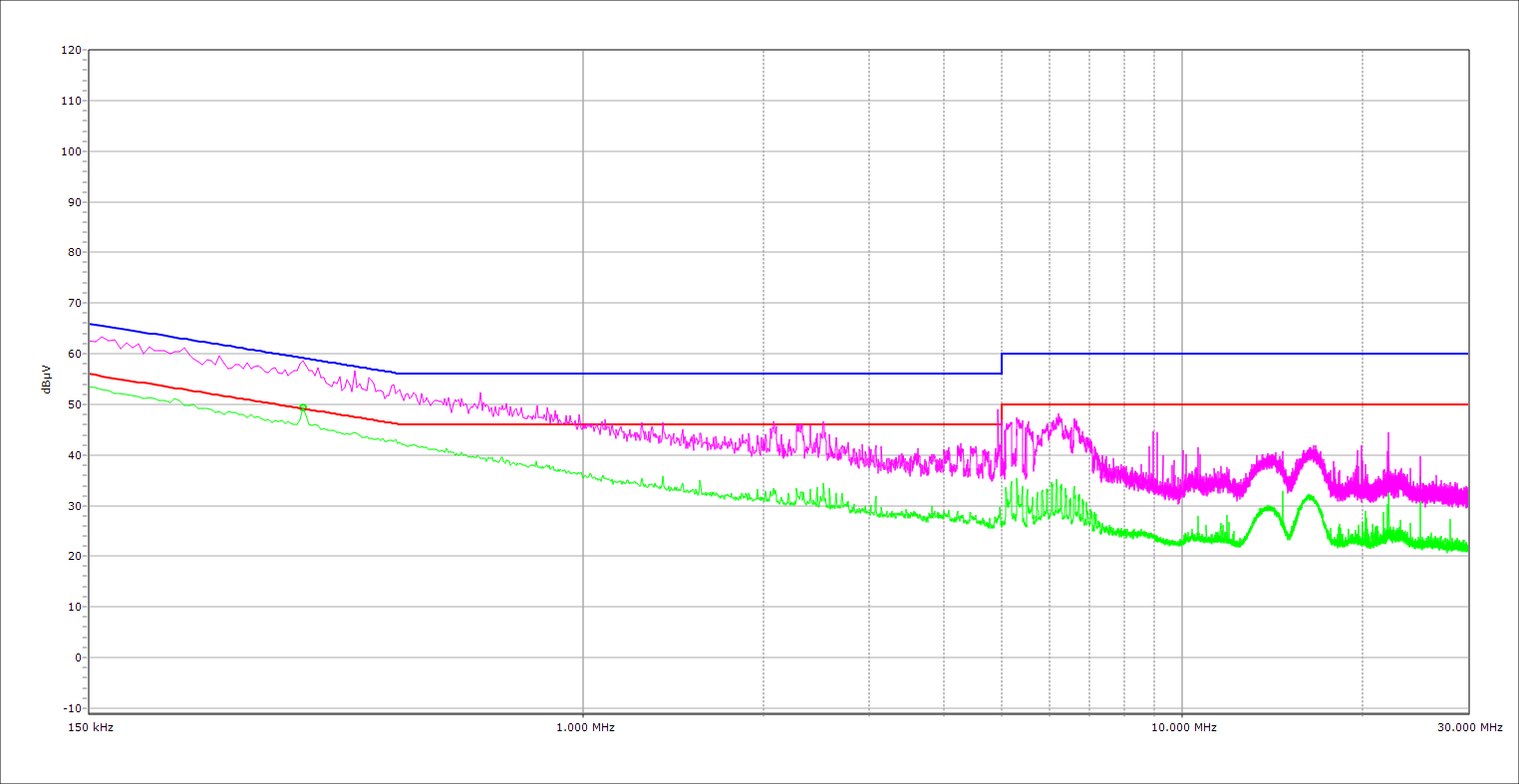

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

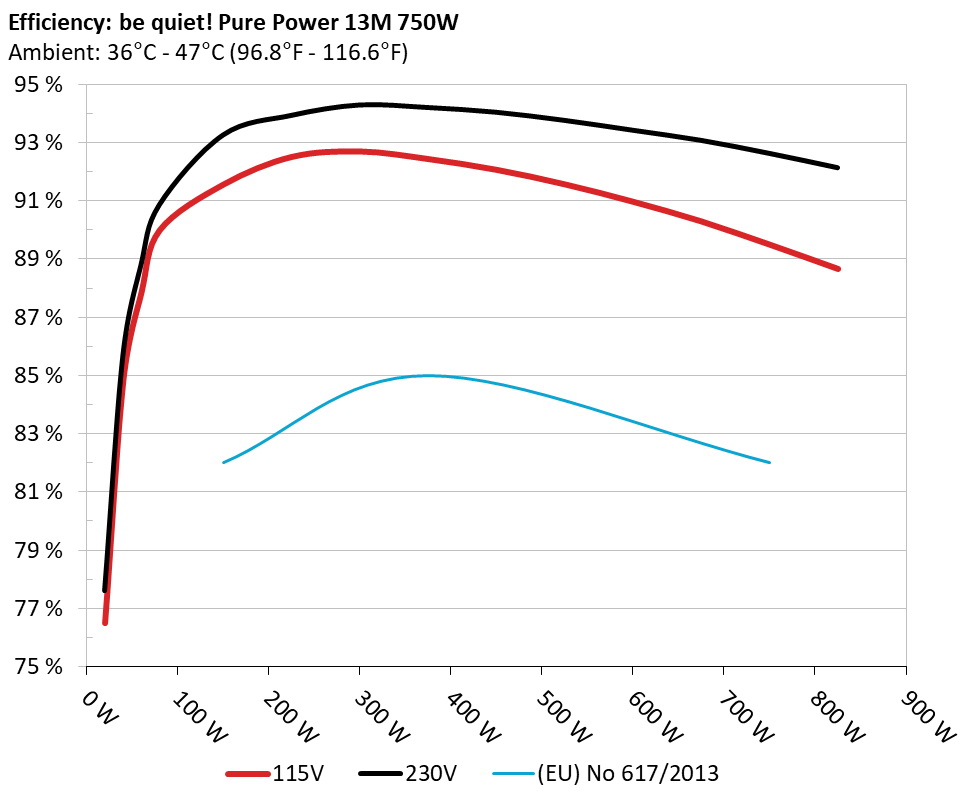

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

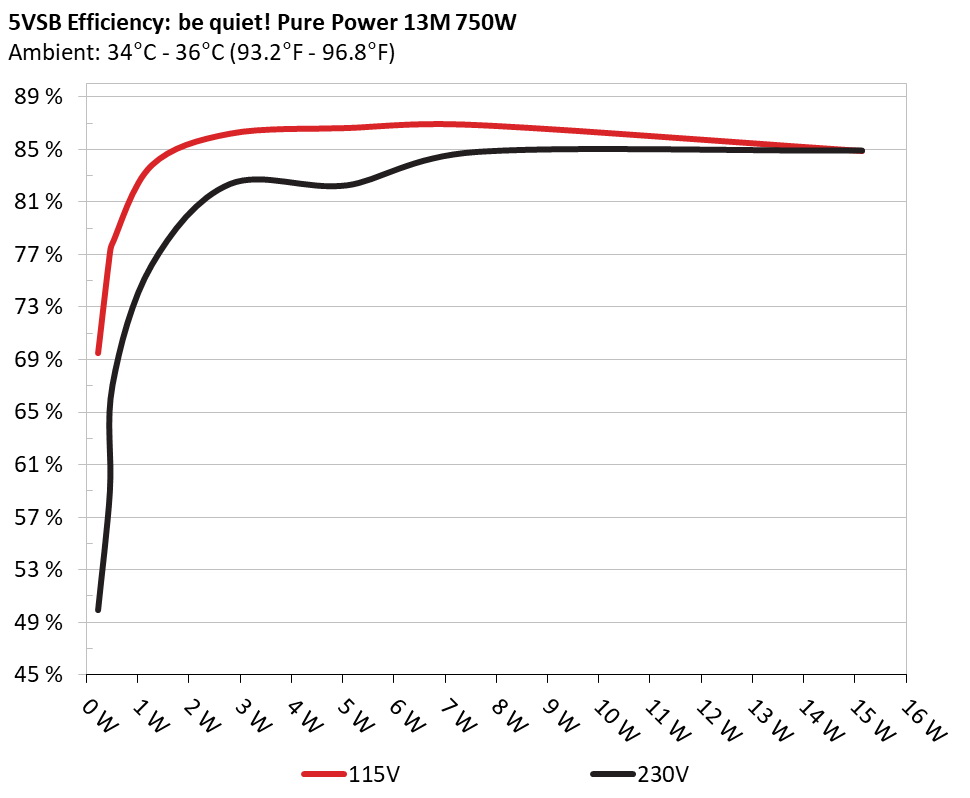

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	69.527%	0.032
1	5.108V	0.331W	69.527%	114.92V
2	0.09A	0.46W	77.139%	0.057
2	5.107V	0.596W	77.139%	114.93V
3	0.55A	2.803W	86.233%	0.255
3	5.097V	3.25W	86.233%	114.92V
4	1A	5.088W	86.661%	0.361
4	5.087V	5.871W	86.661%	114.91V
5	1.5A	7.616W	86.89%	0.408
5	5.077V	8.765W	86.89%	114.92V
6	3A	15.135W	84.912%	0.486
6	5.045V	17.825W	84.912%	114.91V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	49.93%	0.012
1	5.106V	0.43W	49.93%	229.75V
2	0.09A	0.46W	58.974%	0.019
2	5.105V	0.696W	58.974%	229.83V
3	0.55A	2.803W	82.39%	0.094
3	5.096V	3.403W	82.39%	229.9V
4	1A	5.087W	82.291%	0.139
4	5.087V	5.97W	82.291%	230.4V
5	1.5A	7.615W	84.834%	0.202
5	5.076V	8.981W	84.834%	229.9V
6	3A	15.134W	84.936%	0.311
6	5.045V	17.819W	84.936%	229.9V

Protection Features

OCP (Normal @ 29.9°C)	12V: 72.80A (116.48%), 12.047V 5V: 27.5A (137.50%), 4.988V 3.3V: 29.2A (146.00%), 3.317V 5VSB: 4.4A (146.67%), 4.996V
OCP (Hot @ 41.7°C)	12V: 71.00A (113.60%), 12.053V 5V: 28.1A (140.50%), 4.988V 3.3V: 29.3A (146.50%), 3.315V 5VSB: 4.4A (146.67%), 4.993V
OPP (Normal @ 30.4°C)	901.60W (120.21%)
OPP (Hot @ 40.7°C)	876.59W (116.88%)
OTP	✓ (143°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.372A	1.993A	1.995A	0.984A	75.003	88.619%	650	7.1	40.16°C	0.974
10%	12.214V	5.017V	3.309V	5.082V	84.636	88.619%	650	7.1	43.68°C	114.88V
20%	9.752A	2.994A	2.998A	1.183A	149.941	91.551%	653	7.1	40.9°C	0.981
20%	12.207V	5.01V	3.303V	5.073V	163.778	91.551%	653	7.1	44.4°C	114.87V
30%	15.481A	3.495A	3.501A	1.382A	224.943	92.5%	654	7.1	41.27°C	0.99
30%	12.201V	5.007V	3.299V	5.064V	243.183	92.5%	654	7.1	44.75°C	114.83V
40%	21.223A	3.998A	4.006A	1.582A	300.031	92.686%	656	7.1	41.7°C	0.993
40%	12.196V	5.003V	3.295V	5.056V	323.709	92.686%	656	7.1	45.49°C	114.81V
50%	26.577A	5.002A	5.015A	1.783A	374.462	92.429%	659	7.3	42.01°C	0.995
50%	12.189V	4.998V	3.291V	5.047V	405.132	92.429%	659	7.3	46.32°C	114.78V
60%	31.973A	6.008A	6.026A	1.985A	449.362	92.06%	658	7.3	42.81°C	0.996
60%	12.184V	4.994V	3.286V	5.038V	488.118	92.06%	658	7.3	47.75°C	114.76V
70%	37.377A	7.016A	7.041A	2.187A	524.282	91.561%	656	7.1	40.57°C	0.997
70%	12.178V	4.989V	3.281V	5.029V	572.601	91.561%	656	7.1	50.49°C	114.73V
80%	42.835A	8.022A	8.055A	2.291A	599.477	90.963%	660	7.4	43.69°C	0.998
80%	12.177V	4.985V	3.278V	5.021V	659.034	90.963%	660	7.4	54.98°C	114.7V
90%	48.626A	8.527A	8.549A	2.394A	674.502	90.286%	666	7.9	44.24°C	0.998
90%	12.175V	4.983V	3.275V	5.013V	747.075	90.286%	666	7.9	57.97°C	114.68V
100%	54.226A	9.035A	9.077A	3.003A	749.704	89.487%	882	17.2	45.21°C	0.998
100%	12.171V	4.98V	3.272V	4.996V	837.784	89.487%	882	17.2	59.67°C	114.64V
110%	59.707A	10.048A	10.192A	3.007A	824.73	88.652%	1075	23.7	47.1°C	0.998
110%	12.166V	4.975V	3.267V	4.989V	930.3	88.652%	1075	23.7	61.27°C	114.61V
CL1	0.115A	14.465A	14.531A	0A	121.288	85.828%	670	8.3	41.5°C	0.978
CL1	12.214V	4.99V	3.283V	5.088V	141.316	85.828%	670	8.3	50.55°C	114.86V
CL2	0.113A	19.988A	0A	0A	101.343	84.343%	665	7.8	40.01°C	0.976
CL2	12.214V	5.001V	3.304V	5.093V	120.156	84.343%	665	7.8	47.54°C	114.87V
CL3	0.113A	0A	20.056A	0A	67.395	80.005%	663	7.6	40.43°C	0.973
CL3	12.215V	5.009V	3.291V	5.095V	84.241	80.005%	663	7.6	46°C	114.88V
CL4	61.571A	0A	0A	0A	749.532	90.371%	670	8.3	45.61°C	0.998
CL4	12.173V	5.003V	3.296V	5.055V	829.405	90.371%	670	8.3	57.97°C	114.65V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.372A	1.993A	1.994A	0.984A	75.014	90.082%	0	<6.0	46.89°C	0.782
10%	12.218V	5.018V	3.31V	5.082V	83.275	90.082%	0	<6.0	40.14°C	229.88V
20%	9.748A	2.993A	2.996A	1.183A	149.973	93.262%	0	<6.0	48.7°C	0.916
20%	12.214V	5.013V	3.305V	5.072V	160.808	93.262%	0	<6.0	40.64°C	229.86V
30%	15.480A	3.495A	3.501A	1.383A	224.976	93.936%	657	7.1	41.46°C	0.953
30%	12.204V	5.008V	3.3V	5.063V	239.498	93.936%	657	7.1	44.01°C	229.85V
40%	21.227A	3.998A	4.006A	1.583A	300.056	94.294%	658	7.3	41.79°C	0.966
40%	12.195V	5.003V	3.295V	5.055V	318.213	94.294%	658	7.3	44.49°C	229.83V
50%	26.582A	5.002A	5.015A	1.784A	374.553	94.207%	659	7.3	42.2°C	0.975
50%	12.191V	4.998V	3.291V	5.046V	397.586	94.207%	659	7.3	45.38°C	229.82V
60%	31.975A	6.009A	6.026A	1.986A	449.468	94.046%	661	7.4	42.99°C	0.979
60%	12.186V	4.994V	3.286V	5.037V	477.923	94.046%	661	7.4	47.06°C	229.81V
70%	37.374A	7.016A	7.04A	2.189A	524.402	93.766%	663	7.6	43.33°C	0.982
70%	12.182V	4.99V	3.282V	5.027V	559.268	93.766%	663	7.6	48.56°C	229.8V
80%	42.838A	8.022A	8.055A	2.291A	599.573	93.427%	667	7.9	43.75°C	0.984
80%	12.178V	4.985V	3.278V	5.019V	641.756	93.427%	667	7.9	50.62°C	229.78V
90%	48.633A	8.528A	8.55A	2.394A	674.546	93.078%	670	8.3	44.26°C	0.987
90%	12.174V	4.983V	3.275V	5.012V	724.71	93.078%	670	8.3	52.63°C	229.77V
100%	54.235A	9.036A	9.078A	3.003A	749.716	92.631%	877	17	45.87°C	0.989
100%	12.169V	4.979V	3.272V	4.995V	809.356	92.631%	877	17	54.47°C	229.76V
110%	59.715A	10.049A	10.193A	3.007A	824.726	92.137%	1053	23.2	46.57°C	0.99
110%	12.165V	4.974V	3.267V	4.989V	895.117	92.137%	1053	23.2	55.39°C	229.74V
CL1	0.115A	14.467A	14.533A	0A	121.288	87.105%	669	8.1	41.13°C	0.896
CL1	12.210V	4.99V	3.282V	5.088V	139.244	87.105%	669	8.1	48.12°C	229.86V
CL2	0.113A	19.99A	0A	0A	101.342	85.549%	666	7.9	40.57°C	0.868
CL2	12.212V	5V	3.303V	5.093V	118.461	85.549%	666	7.9	46.36°C	229.87V
CL3	0.113A	0A	20.073A	0A	67.394	80.967%	661	7.4	40.46°C	0.782
CL3	12.210V	5.006V	3.288V	5.095V	83.238	80.967%	661	7.4	44.06°C	229.87V
CL4	61.584A	0A	0A	0A	749.546	93.35%	669	8.1	45.24°C	0.988
CL4	12.171V	5.001V	3.294V	5.055V	802.945	93.35%	669	8.1	51.77°C	229.76V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.216A	0.498A	0.498A	0.196A	20.004	76.486%	0	<6.0	39.69°C	0.79
20W	12.215V	5.021V	3.313V	5.101V	26.155	76.486%	0	<6.0	36.33°C	114.9V
40W	2.676A	0.697A	0.697A	0.294A	40.002	84.801%	0	<6.0	42.6°C	0.92
40W	12.218V	5.021V	3.313V	5.098V	47.173	84.801%	0	<6.0	37.63°C	114.89V
60W	4.136A	0.896A	0.897A	0.393A	60.001	87.84%	0	<6.0	43.53°C	0.959
60W	12.218V	5.02V	3.312V	5.094V	68.307	87.84%	0	<6.0	38.87°C	114.89V
80W	5.591A	1.096A	1.096A	0.491A	79.945	89.979%	0	<6.0	46.21°C	0.98
80W	12.219V	5.02V	3.312V	5.091V	88.848	89.979%	0	<6.0	39.06°C	114.88V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.216A	0.498A	0.498A	0.196A	20.007	77.598%	0	<6.0	37.08°C	0.397
20W	12.210V	5.02V	3.312V	5.101V	25.781	77.598%	0	<6.0	36.43°C	229.89V
40W	2.678A	0.697A	0.698A	0.294A	40.008	85.668%	0	<6.0	43.08°C	0.585
40W	12.212V	5.02V	3.312V	5.098V	46.699	85.668%	0	<6.0	37.15°C	229.88V
60W	4.138A	0.897A	0.897A	0.393A	60.008	88.802%	0	<6.0	44.73°C	0.716
60W	12.213V	5.019V	3.311V	5.094V	67.575	88.802%	0	<6.0	38.08°C	229.88V
80W	5.594A	1.096A	1.097A	0.491A	79.965	90.855%	0	<6.0	45.85°C	0.797
80W	12.214V	5.019V	3.311V	5.091V	88.013	90.855%	0	<6.0	39.17°C	229.87V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	26.35mV	16.04mV	16.42mV	15.34mV	Pass
20% Load	25.68mV	15.48mV	16.37mV	17.03mV	Pass
30% Load	24.50mV	15.79mV	16.52mV	15.76mV	Pass
40% Load	24.10mV	15.68mV	17.14mV	16.27mV	Pass
50% Load	25.17mV	15.02mV	16.68mV	17.04mV	Pass
60% Load	26.60mV	15.02mV	16.68mV	20.20mV	Pass
70% Load	26.96mV	15.69mV	15.96mV	22.25mV	Pass
80% Load	27.93mV	16.86mV	18.62mV	22.87mV	Pass
90% Load	28.29mV	15.38mV	17.91mV	24.76mV	Pass
100% Load	28.26mV	15.25mV	16.17mV	20.10mV	Pass
110% Load	29.81mV	14.67mV	17.26mV	19.90mV	Pass
Crossload1	26.12mV	16.29mV	17.32mV	16.51mV	Pass
Crossload2	28.50mV	18.49mV	29.31mV	19.08mV	Pass
Crossload3	26.50mV	15.68mV	18.83mV	17.49mV	Pass
Crossload4	30.77mV	14.45mV	16.13mV	16.97mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	35.20mV	16.86mV	22.66mV	16.47mV	Pass
20% Load	26.30mV	15.48mV	17.49mV	16.47mV	Pass
30% Load	25.22mV	15.63mV	16.98mV	16.16mV	Pass
40% Load	25.12mV	16.25mV	16.57mV	15.81mV	Pass
50% Load	25.58mV	16.14mV	17.04mV	17.85mV	Pass
60% Load	27.42mV	17.83mV	16.73mV	21.23mV	Pass
70% Load	27.52mV	15.89mV	16.57mV	21.28mV	Pass
80% Load	28.75mV	15.99mV	17.50mV	24.04mV	Pass
90% Load	30.03mV	16.20mV	18.47mV	25.22mV	Pass
100% Load	29.33mV	14.93mV	17.04mV	20.81mV	Pass
110% Load	30.01mV	15.86mV	16.54mV	21.24mV	Pass
Crossload1	25.89mV	14.85mV	16.17mV	16.05mV	Pass
Crossload2	28.70mV	19.16mV	16.98mV	17.80mV	Pass
Crossload3	26.19mV	17.78mV	18.37mV	17.60mV	Pass
Crossload4	29.30mV	14.90mV	15.68mV	17.06mV	Pass

The results above are not used in the certification process

be quiet! Pure Power 13 M 750W

Top side

Power specifications label
