CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

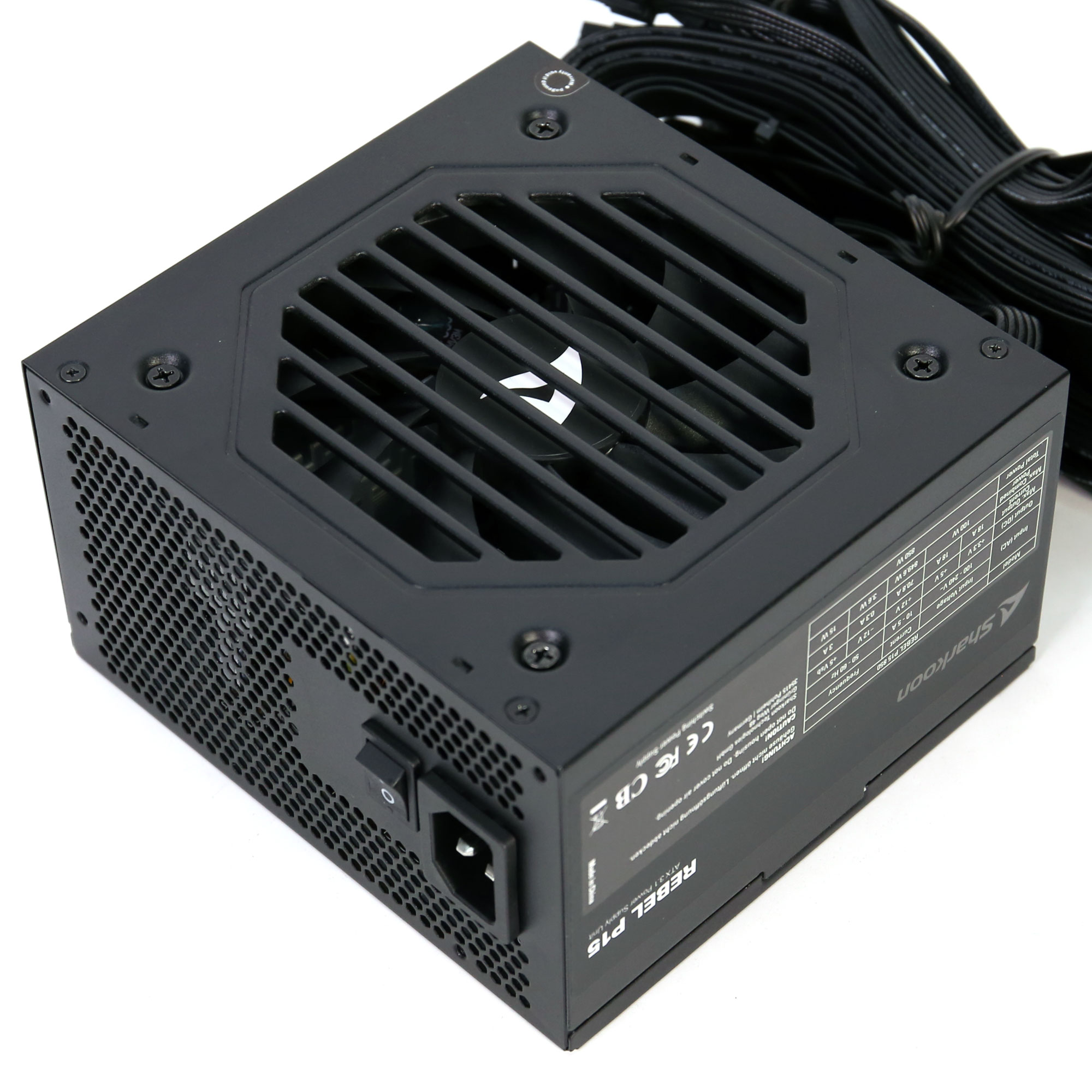

Sharkoon Rebel P15 850W
Serial Number-
Lab IDSK85002854
Certification ID252854
  • Test Result Report ID: 25PS2854A
  • Certificate Issue Date: Jun 26, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSharkoon
Manufacturer (OEM)Andyson
SeriesRebel P15
Model NumberRebel P15 850
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5-10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan (PY-1225H12S)
Semi-Passive Operation✗
Cable DesignFixed cables

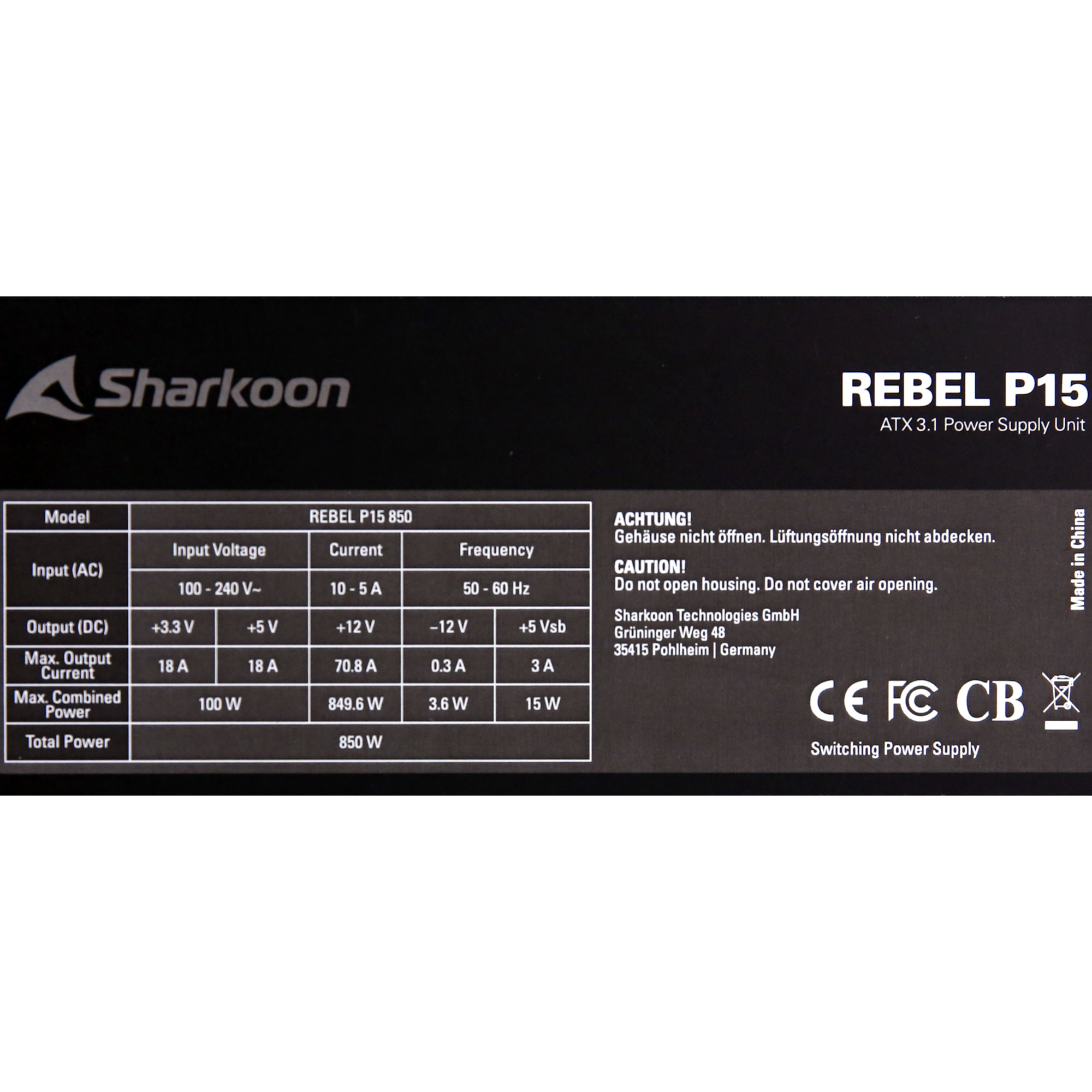

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181870.830.3
Watts100849.6153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (560mm) 1 1 18-22AWG No
4+4 pin EPS12V (675mm+145mm) 1 2 18AWG No
6+2 pin PCIe (530mm+150mm) 2 4 18AWG No
12+4 pin PCIe (615mm) (600W) 1 1 16-26AWG No
SATA (530mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
AC Power Cord (1070mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-056 (5 Ohm) & Relay
Bridge Rectifier(s)

2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs

2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Boost Diode

1x Global Power Technology Co. G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s)

1x Nippon Chemi-Con (400V, 680uF, 2000h @ 105°C, KMW)
Main Switchers

2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Controller

Champion CM6500UNX & CM03X (Remove Phantom Power)
Resonant Controller Champion CM6901T6X
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 4x Way-On WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors

Electrolytic: 9x CS (3,000 @ 105°C, WE) 5x CS (2,000 @ 105°C, WR) Polymer: 4x Polycap, 3x Teapo
Supervisor IC Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP)
Fan Model POWERYEAR PY-1225H12S (120mm, 12V, 0.35A, Sleeve Bearing Fan)
5VSB/12VSB Circuit
Rectifier

1x PingWei PS1045L SBR (45V, 10A)
Standby PWM Controller Esthome EST.2508

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)88.403%
Average Noise Output (>1450 Load Combinations)35.82dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load62.437%
Standby Power Consumption0.0698W
12V Ripple (Full Load)49.22mV
5V Ripple (Full Load)21.88mV
3.3V Ripple (Full Load)22.07mV
5VSB Ripple (Full Load)24.02mV
12V Load Regulation1.10%
5V Load Regulation2.51%
3.3V Load Regulation3.34%
5VSB Load Regulation3.37%
Inrush Current33.240A
Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.494%
Average Noise Output (>1450 Load Combinations)35.95dBA
Average PF (>1450 Load Combinations)0.938
Efficiency With 10W (≤500W) or 2% (>500W) Load57.190%
Standby Power Consumption0.1067W
12V Ripple (Full Load)50.60mV
5V Ripple (Full Load)24.80mV
3.3V Ripple (Full Load)22.27mV
5VSB Ripple (Full Load)21.13mV
12V Load Regulation1.11%
5V Load Regulation2.53%
3.3V Load Regulation3.31%
5VSB Load Regulation3.35%
Inrush Current66.800A
12V Transient Response (200%)11.31V
5V Transient Response (200%)4.945V
3.3V Transient Response (200%)3.203V
5VSB Transient Response (200%)4.948V
Hold-Up Time & Power Ok Signal14.60ms
AC Loss to PWR_OK Hold Up Time12.90ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)58.0ms56.0ms
PSU Timings: T3 (20% / 100%)120.0ms120.0ms
12V OCP (28.5°C / 42.1°C)95.20A (134.46%), 12.097V93.60A (132.20%), 12.097V
5V OCP (28.5°C / 42.1°C)23.1A (128.33%), 5.089V23.2A (128.89%), 5.088V
3.3V OCP (28.5°C / 42.1°C)21.7A (120.56%), 3.379V21.2A (117.78%), 3.377V
5VSB OCP (28.5°C / 42.1°C)4.2A (140.00%), 4.961V4.2A (140.00%), 4.959V
OPP (29.10°C / 42.50°C)133.25%130.02%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.6
AC Loss to PWR_OK Hold Up Time (ms)12.9
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.03 V 113.85 V 115.14 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.415 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.20 % 2.00 % PASS
Real Power: 0.070 W -0.007 W N/A 0.110 W N/A N/A
Apparent Power: 8.708 W 8.207 W N/A 9.275 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.91 V 227.70 V 231.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.107 W 0.066 W N/A 0.158 W N/A N/A
Apparent Power: 27.777 W 27.030 W N/A 28.595 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

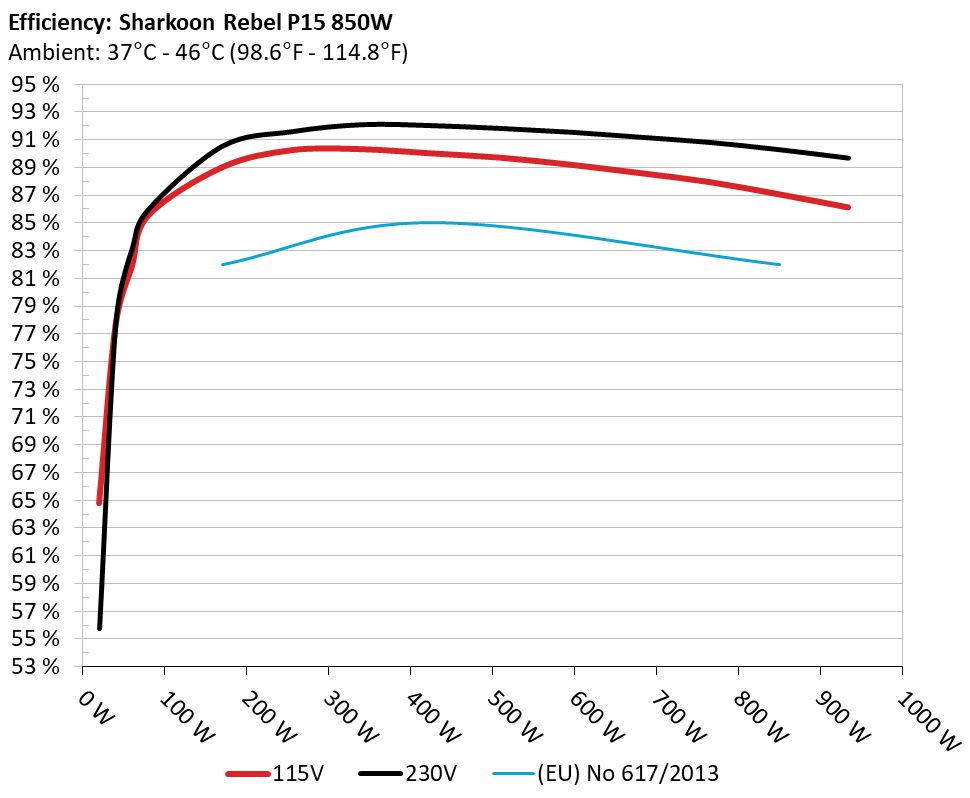

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

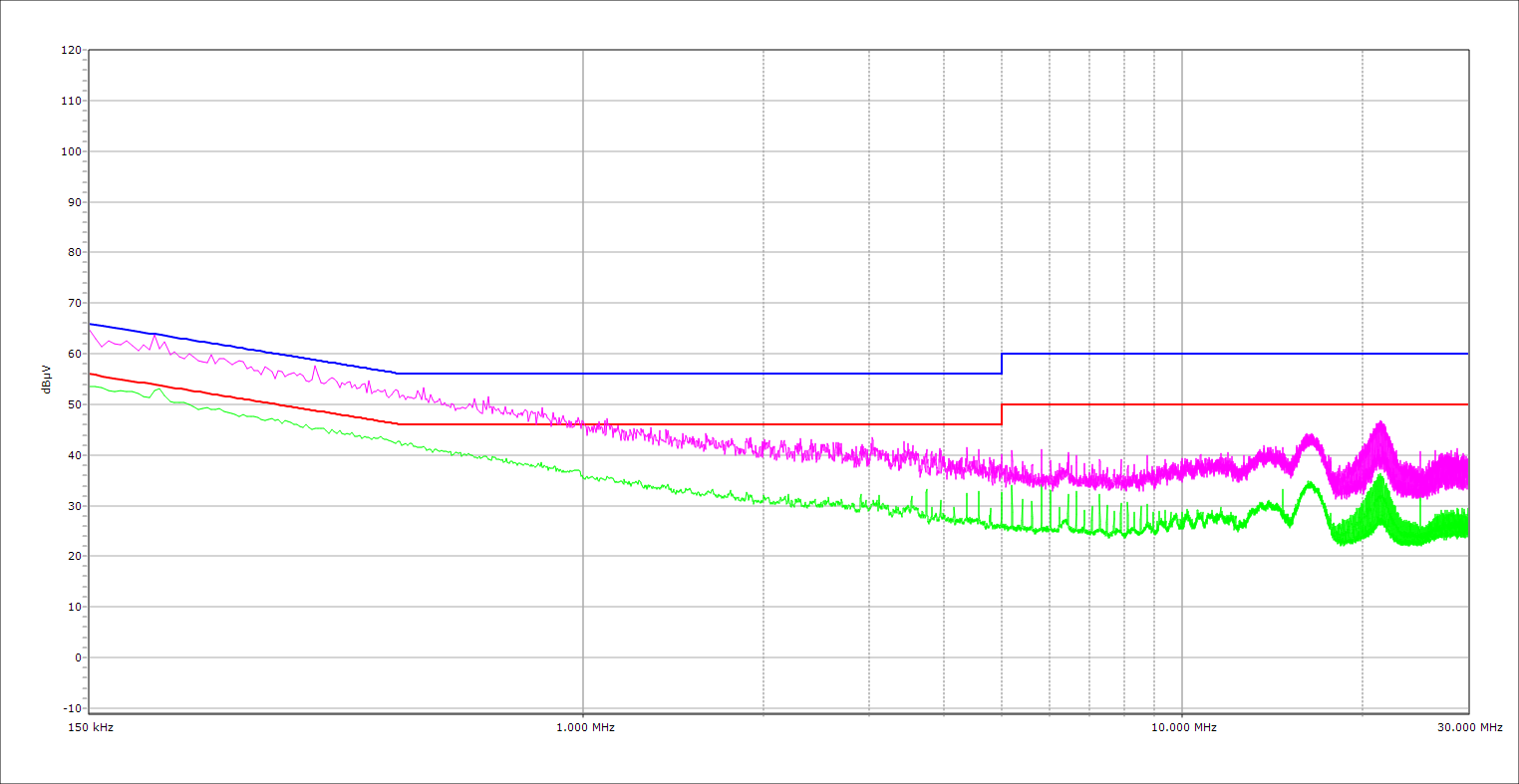

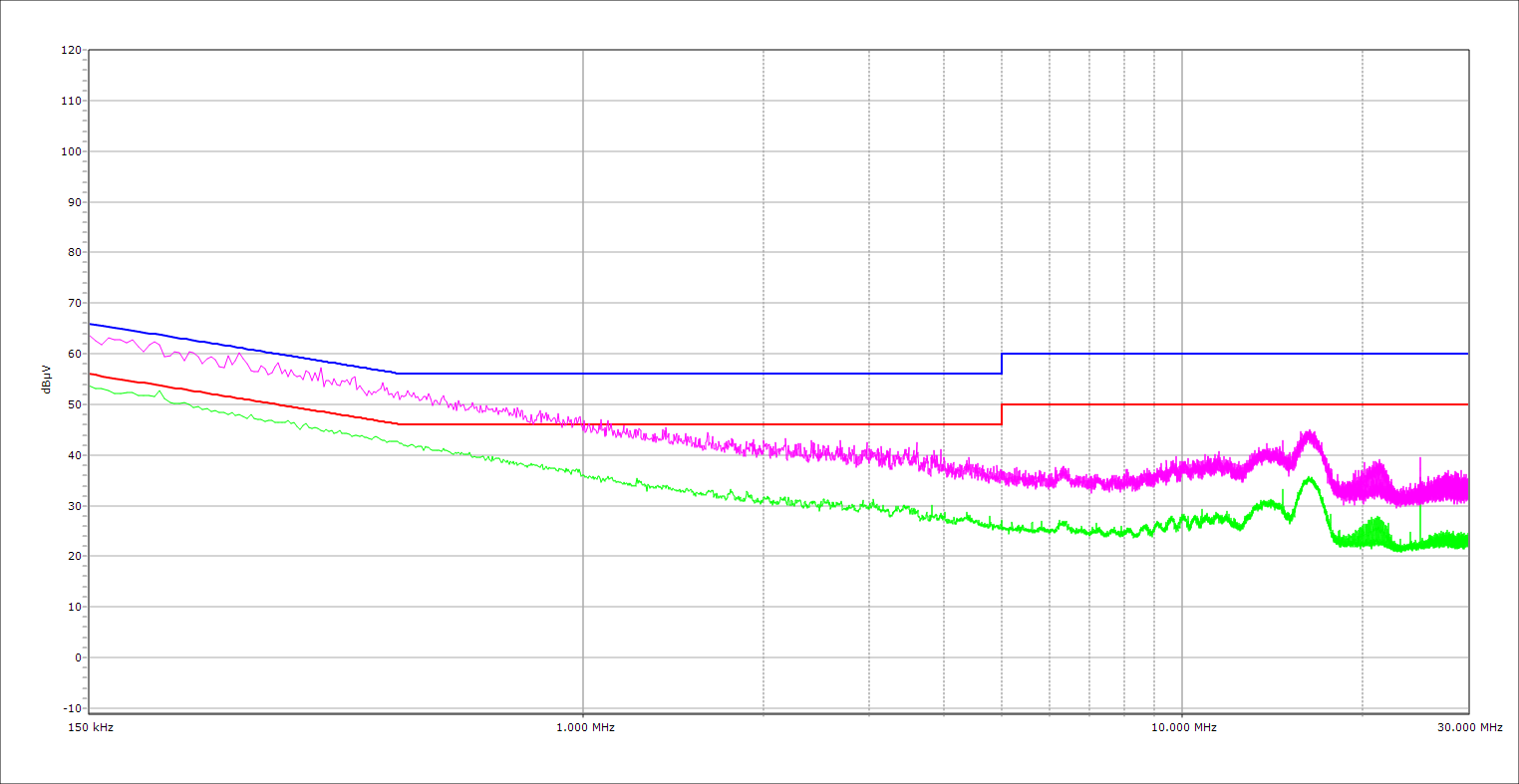

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

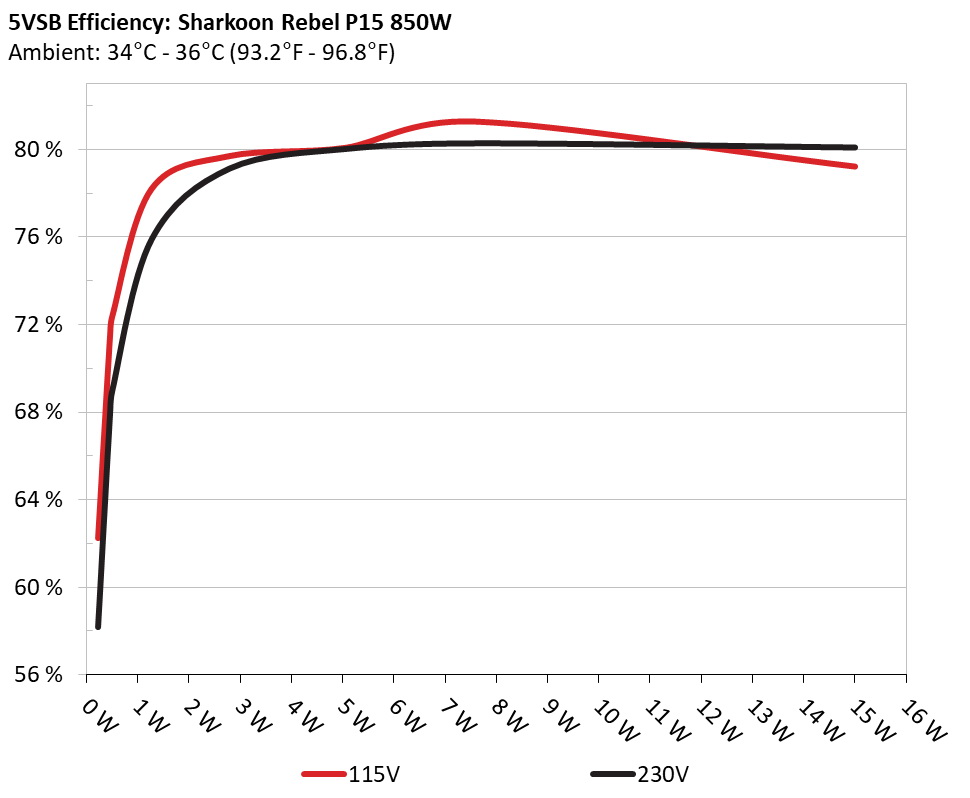

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 62.249% 0.046
5.096V 0.369W 115.04V
2 0.09A 0.459W 71.375% 0.079
5.094V 0.643W 115.05V
3 0.55A 2.794W 79.702% 0.304
5.08V 3.506W 115.04V
4 1A 5.067W 80.08% 0.392
5.066V 6.327W 115.05V
5 1.5A 7.575W 81.277% 0.432
5.049V 9.32W 115.06V
6 3.001A 15.001W 79.222% 0.491
4.999V 18.935W 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 58.186% 0.015
5.097V 0.394W 230.24V
2 0.09A 0.459W 67.791% 0.026
5.095V 0.677W 230.24V
3 0.55A 2.794W 79.131% 0.127
5.08V 3.531W 230.24V
4 1A 5.066W 80.03% 0.204
5.066V 6.33W 230.24V
5 1.5A 7.576W 80.283% 0.266
5.05V 9.436W 230.24V
6 3A 15.002W 80.096% 0.361
5V 18.731W 230.23V

Protection Features

OCP (Normal @ 28.5°C)12V: 95.20A (134.46%), 12.097V
5V: 23.1A (128.33%), 5.089V
3.3V: 21.7A (120.56%), 3.379V
5VSB: 4.2A (140.00%), 4.961V
OCP (Hot @ 42.1°C)12V: 93.60A (132.20%), 12.097V
5V: 23.2A (128.89%), 5.088V
3.3V: 21.2A (117.78%), 3.377V
5VSB: 4.2A (140.00%), 4.959V
OPP (Normal @ 29.1°C)1132.66W (133.25%)
OPP (Hot @ 42.5°C)1105.15W (130.02%)
OTP✓ (157°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.195A 1.951A 1.941A 0.989A 85.01 85.361% 920 22.2 40.24°C 0.988
12.206V 5.126V 3.4V 5.055V 99.595 43.78°C 115.02V
20% 11.401A 2.933A 2.922A 1.19A 169.953 88.976% 920 22.2 40.56°C 0.96
12.196V 5.114V 3.389V 5.041V 191.008 46.01°C 115V
30% 17.946A 3.43A 3.418A 1.392A 254.956 90.217% 932 22.6 41.48°C 0.972
12.197V 5.103V 3.379V 5.028V 282.604 48.66°C 114.98V
40% 24.523A 3.928A 3.921A 1.595A 340.038 90.287% 1417 35.3 41.89°C 0.98
12.186V 5.092V 3.367V 5.015V 376.616 48.07°C 114.95V
50% 30.776A 4.922A 4.919A 1.8A 424.864 89.992% 1721 40.2 42.44°C 0.985
12.164V 5.08V 3.355V 5V 472.103 48.49°C 114.93V
60% 36.981A 5.921A 5.924A 2A 509.351 89.68% 1947 44.1 42.74°C 0.988
12.157V 5.067V 3.343V 4.986V 567.968 49.36°C 114.9V
70% 43.283A 6.927A 6.937A 2.213A 594.691 89.176% 2076 45.6 43.21°C 0.99
12.143V 5.054V 3.33V 4.971V 666.872 51.16°C 114.87V
80% 49.607A 7.937A 7.956A 2.319A 679.538 88.573% 2077 45.6 43.44°C 0.991
12.128V 5.039V 3.318V 4.959V 767.206 53.19°C 114.83V
90% 56.349A 8.455A 8.466A 2.425A 764.942 87.922% 2076 45.6 44.38°C 0.992
12.111V 5.026V 3.307V 4.948V 870.025 55.77°C 114.8V
100% 62.844A 8.978A 9.011A 3.05A 849.764 87.041% 2077 45.6 45.28°C 0.993
12.095V 5.012V 3.296V 4.919V 976.279 59.46°C 114.77V
110% 69.222A 10.006A 10.14A 3.055A 934.334 86.092% 2072 45.6 46.05°C 0.994
12.078V 4.996V 3.284V 4.91V 1085.273 63.17°C 114.73V
CL1 0.115A 11.813A 11.738A 0A 101.293 80.51% 1686 40.1 41.54°C 0.97
12.199V 5.096V 3.382V 5.07V 125.819 46.66°C 115.04V
CL2 0.113A 17.637A 0A 0A 91.39 80.035% 1337 33.6 40.46°C 0.978
12.209V 5.103V 3.395V 5.078V 114.188 44.57°C 115.04V
CL3 0.113A 0A 17.528A 0A 60.782 73.308% 1066 26.7 40.76°C 0.968
12.208V 5.113V 3.389V 5.074V 82.911 44.32°C 115.06V
CL4 70.161A 0A 0A 0.001A 849.507 88.088% 2091 45.7 45.08°C 0.993
12.109V 5.047V 3.316V 5.029V 964.394 56.4°C 114.78V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.190A 1.951A 1.941A 0.989A 85.005 85.901% 924 22.2 40.03°C 0.848
12.217V 5.127V 3.4V 5.055V 98.959 43.76°C 230.23V
20% 11.390A 2.933A 2.921A 1.19A 169.944 90.503% 928 22.3 40.6°C 0.917
12.207V 5.114V 3.389V 5.041V 187.779 45.18°C 230.22V
30% 17.948A 3.43A 3.419A 1.392A 254.954 91.552% 1257 31.8 41.36°C 0.939
12.196V 5.103V 3.379V 5.028V 278.483 45.23°C 230.21V
40% 24.526A 3.928A 3.921A 1.596A 340.041 92.057% 1468 36 41.58°C 0.947
12.184V 5.092V 3.367V 5.014V 369.378 45.68°C 230.2V
50% 30.760A 4.923A 4.919A 1.8A 424.885 91.986% 1670 40 42.16°C 0.955
12.171V 5.079V 3.355V 5V 461.907 45.68°C 230.19V
60% 36.985A 5.922A 5.924A 2A 509.374 91.783% 1956 44.2 42.84°C 0.96
12.156V 5.067V 3.343V 4.986V 554.982 47°C 230.17V
70% 43.291A 6.928A 6.938A 2.213A 594.706 91.515% 2071 45.6 43.23°C 0.962
12.141V 5.053V 3.33V 4.971V 649.849 48.93°C 230.17V
80% 49.622A 7.937A 7.957A 2.319A 679.546 91.154% 2074 45.6 43.55°C 0.965
12.125V 5.039V 3.318V 4.959V 745.496 49.73°C 230.15V
90% 56.356A 8.456A 8.467A 2.425A 764.96 90.777% 2073 45.6 44.61°C 0.968
12.110V 5.026V 3.307V 4.949V 842.681 51.79°C 230.14V
100% 62.849A 8.978A 9.012A 3.049A 849.776 90.254% 2073 45.6 45.32°C 0.971
12.093V 5.012V 3.296V 4.92V 941.536 54.38°C 230.13V
110% 69.247A 10.008A 10.142A 3.055A 934.333 89.647% 2071 45.6 46.42°C 0.973
12.074V 4.996V 3.283V 4.911V 1042.227 57.04°C 230.11V
CL1 0.115A 11.819A 11.736A 0A 101.296 81.255% 1696 40.2 42.18°C 0.887
12.200V 5.093V 3.383V 5.069V 124.665 46.29°C 230.24V
CL2 0.113A 17.64A 0A 0A 91.39 80.971% 1316 33.1 40.1°C 0.873
12.210V 5.102V 3.395V 5.077V 112.868 44.23°C 230.25V
CL3 0.113A 0A 17.529A 0A 60.782 74.075% 1144 28.9 42.2°C 0.809
12.206V 5.113V 3.389V 5.074V 82.051 44.6°C 230.25V
CL4 70.172A 0A 0A 0.001A 849.523 91.158% 2088 45.7 44.24°C 0.97
12.107V 5.046V 3.315V 5.03V 931.926 52.05°C 230.14V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.487A 0.484A 0.197A 20.012 64.762% 909 22.4 36.94°C 0.88
12.227V 5.138V 3.406V 5.085V 30.901 39.27°C 115.04V
40W 2.676A 0.682A 0.679A 0.295A 40.011 77.579% 915 22.2 37.57°C 0.952
12.223V 5.135V 3.404V 5.08V 51.577 40.04°C 115.03V
60W 4.136A 0.877A 0.873A 0.394A 60.011 81.838% 918 22.2 38.9°C 0.962
12.220V 5.132V 3.402V 5.076V 73.333 41.99°C 115.02V
80W 5.594A 1.073A 1.068A 0.493A 79.967 85.507% 919 22.3 39.23°C 0.984
12.216V 5.129V 3.4V 5.071V 93.521 42.72°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.486A 0.485A 0.197A 20.001 55.759% 905 22.3 36.6°C 0.54
12.227V 5.139V 3.405V 5.085V 30.302 36.9°C 230.25V
40W 2.674A 0.681A 0.679A 0.295A 40.001 77.845% 911 22.3 37.1°C 0.691
12.225V 5.137V 3.404V 5.081V 51.384 39.13°C 230.24V
60W 4.134A 0.877A 0.873A 0.394A 60.001 83.151% 916 22.2 38.39°C 0.779
12.222V 5.133V 3.402V 5.076V 72.161 40.88°C 230.24V
80W 5.590A 1.072A 1.067A 0.493A 79.945 85.955% 919 22.3 39.31°C 0.834
12.219V 5.131V 3.401V 5.071V 93.009 42.06°C 230.24V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.23mV11.80mV13.44mV10.32mVPass
20% Load18.67mV12.11mV13.91mV11.15mVPass
30% Load21.96mV13.14mV14.58mV12.34mVPass
40% Load24.34mV12.93mV15.25mV13.47mVPass
50% Load25.26mV14.27mV16.29mV24.62mVPass
60% Load28.67mV15.51mV16.60mV14.76mVPass
70% Load31.60mV17.26mV17.79mV16.78mVPass
80% Load34.54mV19.68mV19.34mV18.53mVPass
90% Load39.70mV21.53mV21.00mV20.55mVPass
100% Load49.22mV21.88mV22.07mV24.02mVPass
110% Load57.75mV25.09mV24.09mV25.67mVPass
Crossload119.45mV22.55mV20.40mV10.18mVPass
Crossload218.20mV18.39mV16.91mV10.43mVPass
Crossload316.96mV26.02mV21.61mV9.50mVPass
Crossload447.59mV14.83mV17.89mV25.35mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.70mV13.14mV14.84mV11.56mVPass
20% Load20.42mV13.91mV15.46mV12.59mVPass
30% Load22.79mV13.24mV14.33mV12.70mVPass
40% Load25.68mV15.30mV15.77mV13.63mVPass
50% Load25.00mV13.34mV15.26mV20.44mVPass
60% Load29.03mV16.59mV17.32mV14.04mVPass
70% Load32.94mV18.65mV18.51mV15.85mVPass
80% Load37.17mV21.02mV21.05mV17.65mVPass
90% Load43.72mV24.01mV21.25mV19.67mVPass
100% Load50.60mV24.80mV22.27mV21.13mVPass
110% Load60.52mV26.18mV24.87mV23.36mVPass
Crossload119.22mV24.93mV21.19mV10.20mVPass
Crossload218.25mV18.86mV17.94mV10.37mVPass
Crossload317.68mV26.74mV21.82mV9.55mVPass
Crossload448.56mV15.07mV16.89mV20.66mVPass

The results above are not used in the certification process

Sharkoon Rebel P15 850W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
