Cybenetics Test - Micronics Wizmax G 850W

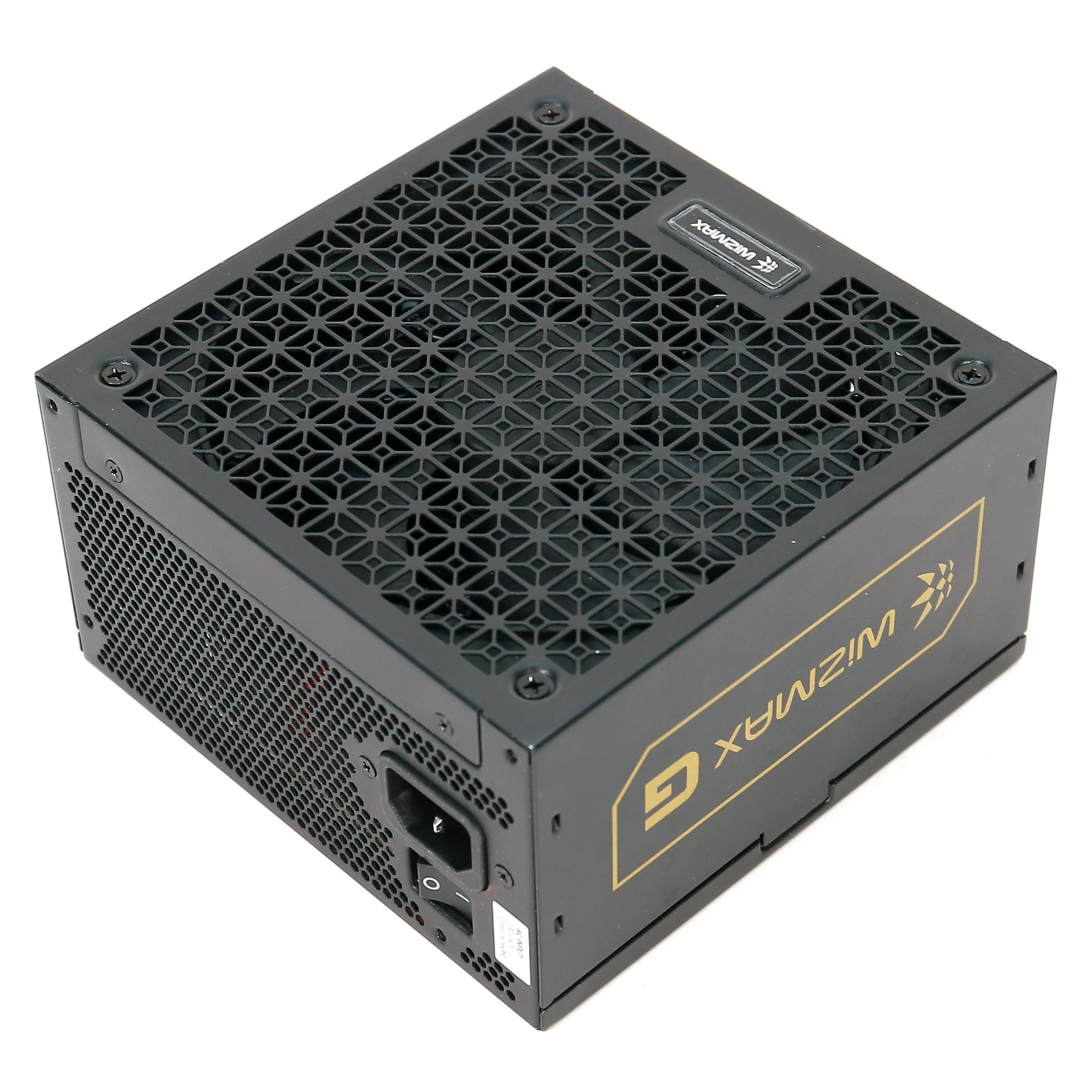

Micronics Wizmax G 850W

序号2P030102109

Lab IDMI85002860

Certification ID252860

Test Result Report ID: 25PS2860A
Certificate Issue Date: Jun 23, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称	Micronics
制造商 (OEM)	Great Wall
系列名称	Wizmax G
型号	MWMG850GDF14F
序号	2P030102109
被测品纪录

被测品规格

额定电压 (Vrms)	100-240
额定电流 (Arms)	6-10
额定频率 (Hz)	50-60
额定功率 (W)	850
类别	ATX12V
Dimensions (W x H x D)
散热	140mm Fluid Dynamic Bearing Fan (HA1425M12F-Z)
半被动运转	✓
线材设计	Fully Modular

电源规范

组		3.3V	5V	12V	5VSB	-12V
最大功率	安培	25	25	70.8	3	0.8
最大功率	瓦	130		850	15	9.6
最大总功率 (W)		850

测试设备

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

线材与接头

模组化线材
描述	线材数量	总连接器数量	Gauge	In Cable Capacitors
ATX 接头 20+4 pin (610mm)	1	1	16-18AWG	否
4+4 pin EPS 12V 接头 (700mm)	2	2	18AWG	否
6+2pin PCIe接头 (675mm)	1	1	18AWG	否
2x 6+2pin PCIe接头 (675mm)	1	2	18AWG	否
12+4 pin PCIe (675mm) (600W)	1	1	16-24AWG	否
SATA接头 (400mm+120mm+120mm+120mm)	2	8	18AWG	否
4-pin Molex (400mm+120mm+120mm+120mm)	1	4	18AWG	否

Parts Description

`General Data`
Manufacturer (OEM)	Great Wall
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor SCK-056 (5 Ohm) & Relay
Bridge Rectifier(s)	2x LRC GBU15K (800V, 15A @ 100°C)
APFC MOSFETs	2x Infineon IPW60R120P7 (650V, 16A @ 100°C, Rds(on): 0.120Ohm)
APFC Boost Diode	1x CREE C6D08065A (650V, 8A @ 155°C)
Bulk Cap(s)	2x Nichicon (420V, 390uF each or 780uF combined, 3000h @ 105°C, GN(M))
Main Switchers	2x Rohm R6035VNX3 (600V, 35A @ 25°C, Rds(on): 0.119Ohm)
APFC Controller	1x Champion CM6500UNX & 1x Champion CM03X (reduce the no-load consumption)
Resonant Controller	Champion CM6901T6X
IC Driver	1x Texas Instrument UCC21520A
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	4x XSEMI XP4NA1R4CMT-A (45V, 39A @ 70°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: 4x DMTH3004LK3 (30V, 75A @ 70°C, Rds(on): 4mOhm) PWM Controller(s): Anpec APW7159C
Filtering Capacitors	Electrolytic: 8x Nippon Chemi-Con (2-5,000h @105°C, KZE) 2x Rubycon (2-10,000 @ 105°C, YXF) 1x Rubycon (4-10,000h @105°C, YXJ) 1x Rubycon (3-6,000h @105°C, YXG) 1x Rubycon (2-10,000 @ 105°C, ZLH) Polymer: 21x FPCAP, 9x Nippon Chemi-Con
Supervisor IC	1NIS4291-SCG
Fan Model	Hong Hua HA1425M12F-Z (140mm, 12V, 0.36A , Fluid Dynamic Bearing Fan)
`5VSB`
Rectifier	Panjit SVM1045V (45V, 10A)
Standby PWM Controller	Power Integrations TNY278PN

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)	30-32 / 86-89.6
符合ErP Lot3/6规范	✓
符合(EU) No 617/2013规范	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

效率等级	PLATINUM
噪音等级	A
平均效率 (>1450 load combinations)	89.368%
Average Noise Output (>1450 Load Combinations)	20.48dBA
PF平均值 (>1450 Load Combinations)	0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load	65.768%
待机功率耗损	0.0690W
12V Ripple (Full Load)	24.08mV
5V Ripple (Full Load)	11.02mV
3.3V Ripple (Full Load)	9.82mV
5VSB Ripple (Full Load)	16.73mV
12V Load Regulation	0.61%
5V Load Regulation	0.38%
3.3V Load Regulation	0.61%
5VSB Load Regulation	3.60%
Inrush Current	Too low to detect

效率等级	PLATINUM
噪音等级	A+
平均效率 (>1450 load combinations)	91.336%
Average Noise Output (>1450 Load Combinations)	19.12dBA
PF平均值 (>1450 Load Combinations)	0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load	66.897%
待机功率耗损	0.1294W
12V Ripple (Full Load)	24.06mV
5V Ripple (Full Load)	10.24mV
3.3V Ripple (Full Load)	9.34mV
5VSB Ripple (Full Load)	16.57mV
12V Load Regulation	0.65%
5V Load Regulation	0.36%
3.3V Load Regulation	0.61%
5VSB Load Regulation	3.60%
Inrush Current	Too low to detect
12V Transient Response (200%)	11.54V
5V Transient Response (200%)	4.900V
3.3V Transient Response (200%)	3.205V
5VSB Transient Response (200%)	4.978V
保持时间 & PG信号	21.60ms
AC Loss to PWR_OK Hold Up Time	18.00ms
PWR_OK Inactive to DC Loss Delay	3.60ms
PSU Timings: T1 (20% / 100%)	50.0ms	51.0ms
PSU Timings: T3 (20% / 100%)	114.0ms	114.0ms
12V OCP (29.4°C / 44.4°C)	89.80A (126.84%), 12.048V	87.40A (123.45%), 12.067V
5V OCP (29.4°C / 44.4°C)	31.8A (127.20%), 4.984V	31.6A (126.40%), 4.983V
3.3V OCP (29.4°C / 44.4°C)	34.3A (137.20%), 3.276V	34.1A (136.40%), 3.277V
5VSB OCP (29.4°C / 44.4°C)	5.5A (183.33%), 4.924V	5.4A (180.00%), 4.924V
OPP (28.99°C / 43.44°C)	124.95%	122.24%

保持时间 & PG信号

Hold-Up Time (ms)	21.6
AC Loss to PWR_OK Hold Up Time (ms)	18
PWR_OK Inactive to DC Loss Delay (ms)	3.6

待机电源

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.08 V	115.04 V	113.85 V	115.13 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.069 W	0.046 W	N/A	0.095 W	N/A	N/A
Apparent Power:	11.255 W	11.173 W	N/A	11.338 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.03 V	230.92 V	227.70 V	231.10 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.25 %	2.00 %	PASS
Real Power:	0.129 W	0.079 W	N/A	0.206 W	N/A	N/A
Apparent Power:	38.489 W	38.215 W	N/A	38.774 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

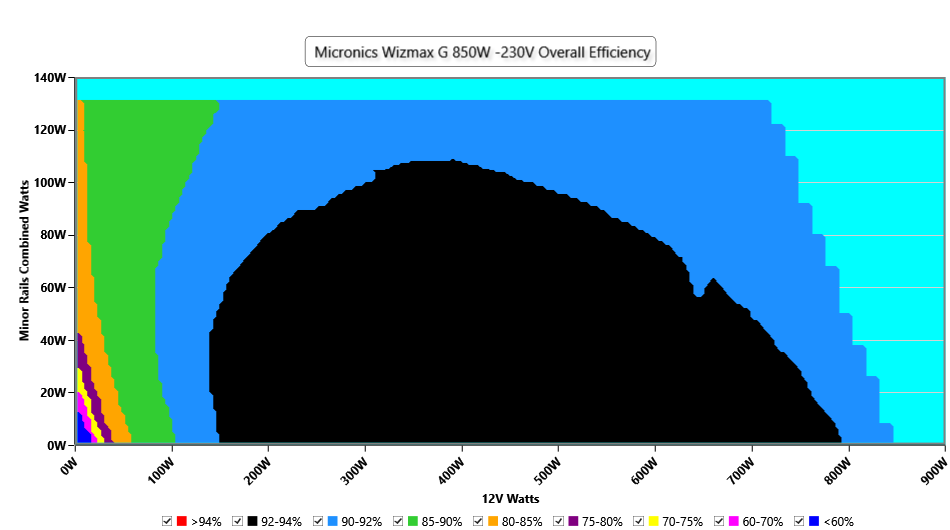

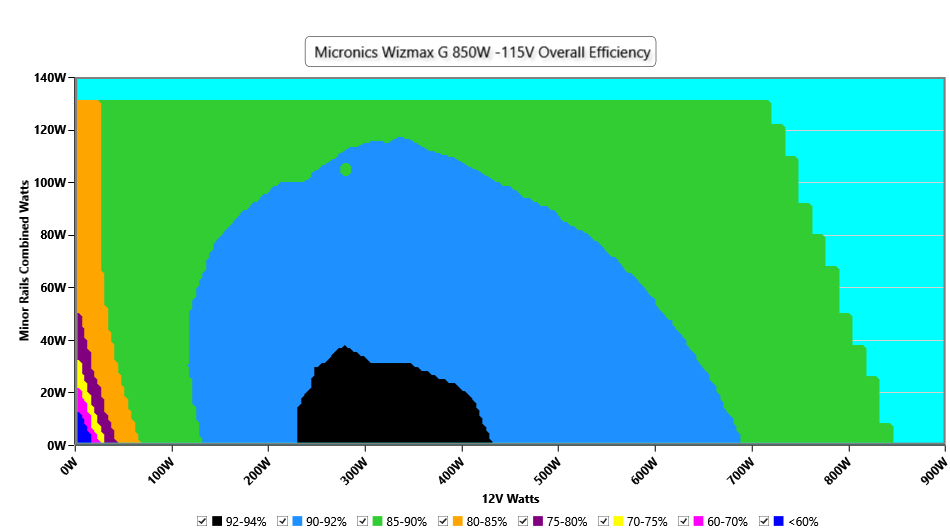

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

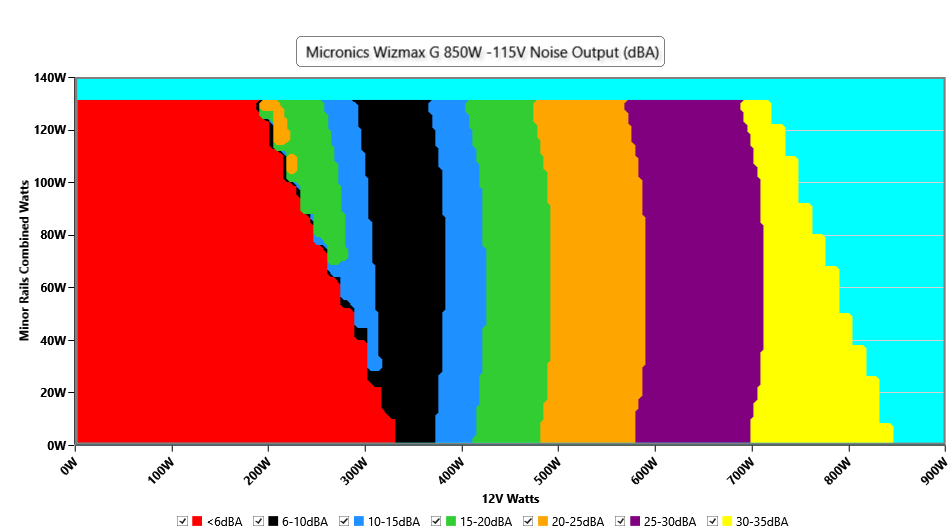

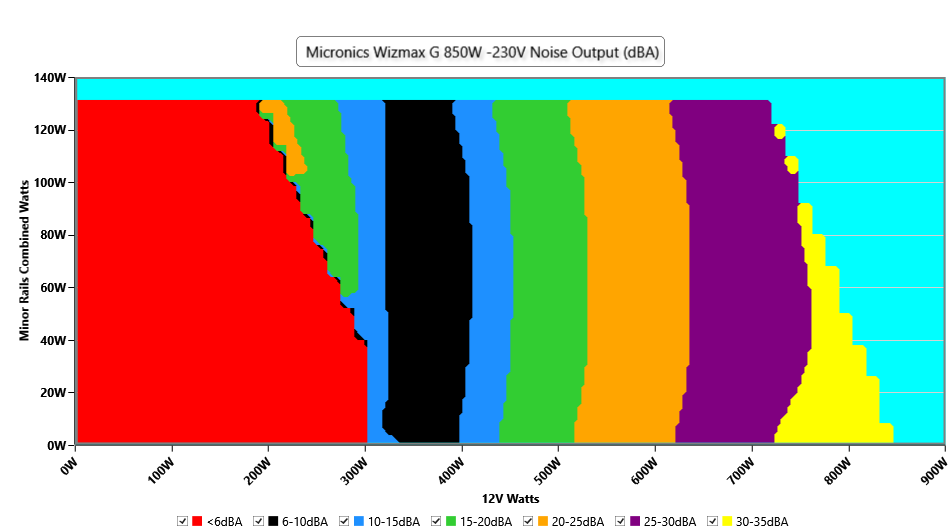

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

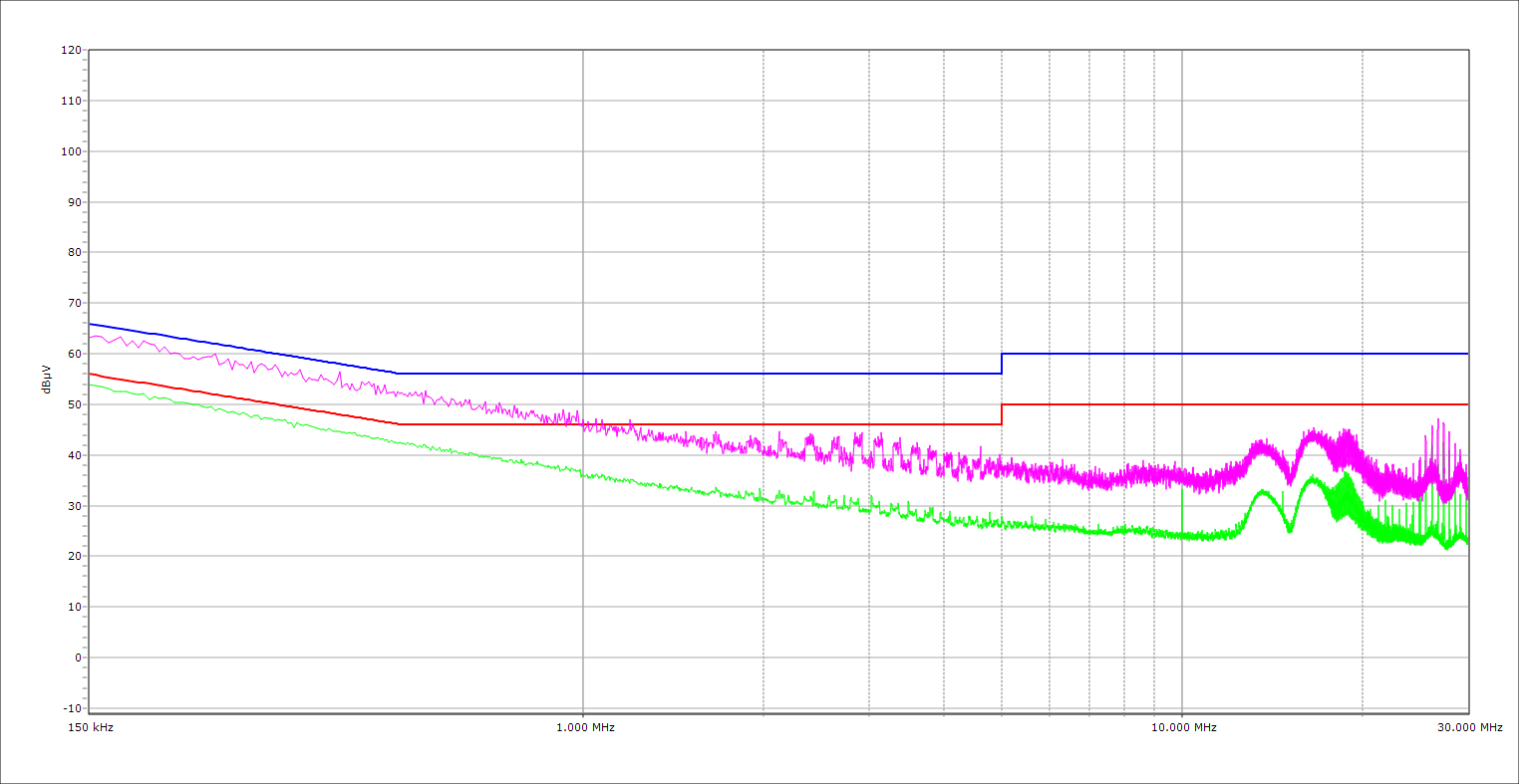

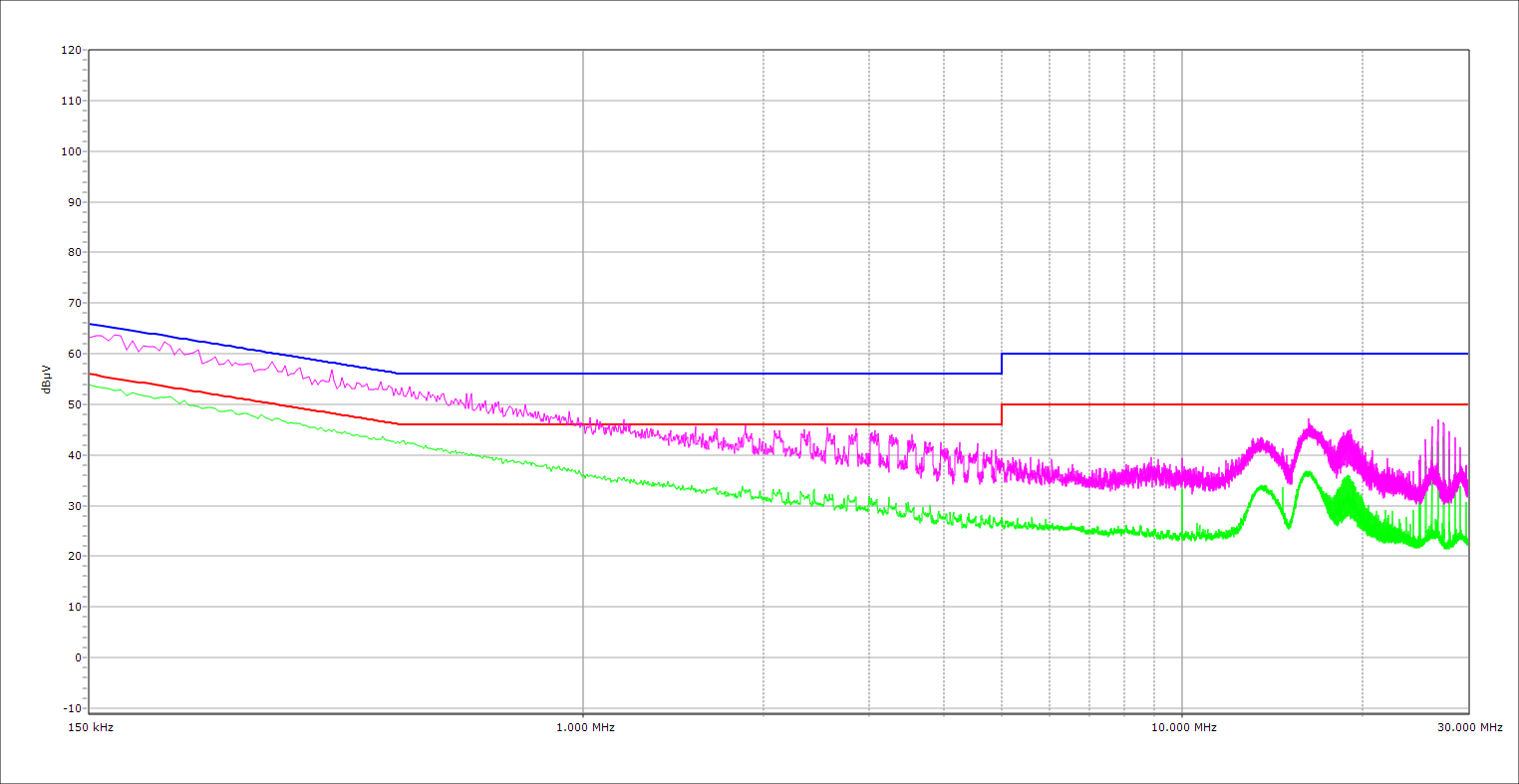

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

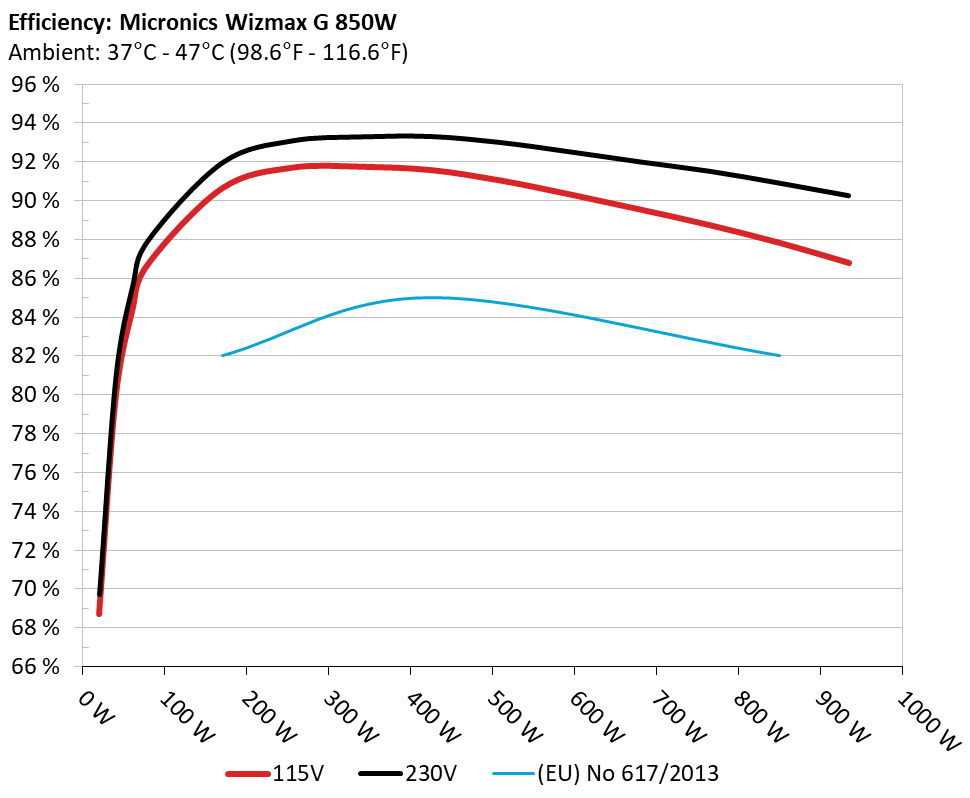

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

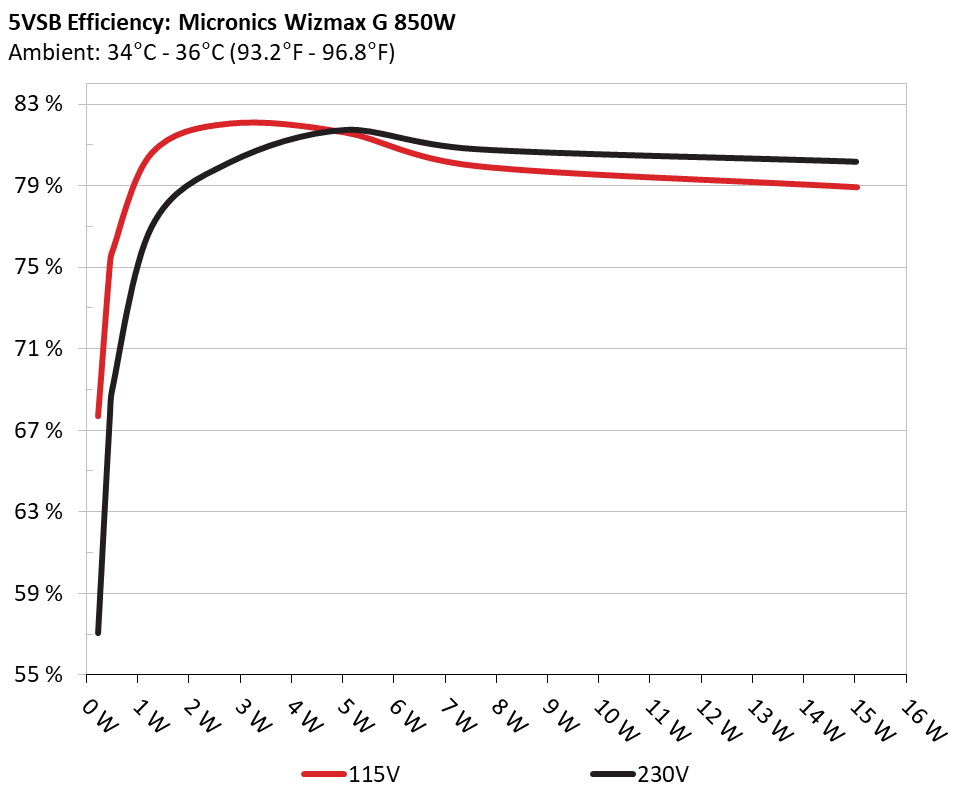

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 #	5VSB	DC/AC (瓦)	效率	PF/AC 电压
1	0.045A	0.23W	67.713%	0.031
1	5.105V	0.34W	67.713%	114.96V
2	0.09A	0.459W	75.122%	0.055
2	5.103V	0.611W	75.122%	114.96V
3	0.55A	2.799W	82.04%	0.246
3	5.088V	3.412W	82.04%	114.96V
4	1A	5.075W	81.593%	0.346
4	5.074V	6.22W	81.593%	114.95V
5	1.5A	7.59W	79.965%	0.402
5	5.059V	9.491W	79.965%	114.95V
6	3A	15.033W	78.92%	0.475
6	5.011V	19.049W	78.92%	114.95V

测试 #	5VSB	DC/AC (瓦)	效率	PF/AC 电压
1	0.045A	0.23W	57.055%	0.011
1	5.106V	0.404W	57.055%	230.05V
2	0.09A	0.459W	67.649%	0.019
2	5.104V	0.68W	67.649%	230.05V
3	0.55A	2.8W	80.13%	0.092
3	5.089V	3.495W	80.13%	230.05V
4	1A	5.076W	81.728%	0.153
4	5.074V	6.212W	81.728%	230.06V
5	1.5A	7.59W	80.788%	0.211
5	5.059V	9.397W	80.788%	230.06V
6	3A	15.031W	80.165%	0.315
6	5.01V	18.752W	80.165%	230.05V

Protection Features

OCP (Normal @ 29.4°C)	12V: 89.80A (126.84%), 12.048V 5V: 31.8A (127.20%), 4.984V 3.3V: 34.3A (137.20%), 3.276V 5VSB: 5.5A (183.33%), 4.924V
OCP (Hot @ 44.4°C)	12V: 87.40A (123.45%), 12.067V 5V: 31.6A (126.40%), 4.983V 3.3V: 34.1A (136.40%), 3.277V 5VSB: 5.4A (180.00%), 4.924V
OPP (Normal @ 29.0°C)	1062.06W (124.95%)
OPP (Hot @ 43.4°C)	1039.06W (122.24%)
OTP	✓ (65°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

10-110%负载测试

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
10%	5.230A	1.997A	2.002A	0.987A	85.005	86.618%	0	<6.0	48.21°C	0.98
10%	12.123V	5.008V	3.296V	5.067V	98.138	86.618%	0	<6.0	40.3°C	114.92V
20%	11.480A	2.997A	3.005A	1.188A	169.97	90.616%	0	<6.0	49.91°C	0.979
20%	12.113V	5.006V	3.294V	5.053V	187.571	90.616%	0	<6.0	40.87°C	114.9V
30%	18.083A	3.497A	3.508A	1.39A	254.98	91.677%	0	<6.0	50.59°C	0.986
30%	12.106V	5.005V	3.293V	5.038V	278.129	91.677%	0	<6.0	41.06°C	114.88V
40%	24.708A	3.999A	4.012A	1.593A	340.074	91.728%	731	19.2	41.76°C	0.99
40%	12.096V	5.003V	3.291V	5.023V	370.743	91.728%	731	19.2	45.92°C	114.85V
50%	30.994A	5.001A	5.019A	1.798A	425.075	91.555%	778	21.3	42.48°C	0.993
50%	12.085V	5V	3.288V	5.008V	464.281	91.555%	778	21.3	46.53°C	114.83V
60%	37.246A	6.004A	6.027A	2.001A	509.602	91.022%	866	25	42.82°C	0.995
60%	12.076V	4.998V	3.286V	4.992V	559.864	91.022%	866	25	47.56°C	114.81V
70%	43.570A	7.008A	7.036A	2.211A	594.952	90.299%	986	28.8	43.09°C	0.996
70%	12.069V	4.996V	3.284V	4.976V	658.873	90.299%	986	28.8	48.15°C	114.79V
80%	49.905A	8.01A	8.044A	2.317A	679.785	89.529%	1111	32.1	43.58°C	0.996
80%	12.061V	4.994V	3.282V	4.963V	759.295	89.529%	1111	32.1	49.34°C	114.76V
90%	56.628A	8.513A	8.536A	2.424A	765.22	88.72%	1248	35.4	44.78°C	0.997
90%	12.056V	4.993V	3.28V	4.951V	862.515	88.72%	1248	35.4	51.28°C	114.74V
100%	63.105A	9.017A	9.059A	3.048A	850.022	87.811%	1354	37.6	45.49°C	0.997
100%	12.049V	4.991V	3.278V	4.922V	968.011	87.811%	1354	37.6	52.39°C	114.72V
110%	69.451A	10.021A	10.163A	3.055A	934.602	86.78%	1490	40.1	46.51°C	0.997
110%	12.042V	4.99V	3.276V	4.911V	1076.981	86.78%	1490	40.1	54.67°C	114.7V
CL1	0.115A	15.669A	15.69A	0A	131.305	82.725%	0	<6.0	50.53°C	0.98
CL1	12.138V	4.997V	3.288V	5.08V	158.725	82.725%	0	<6.0	40.06°C	114.91V
CL2	0.115A	25.039A	0A	0A	126.391	80.726%	0	<6.0	50.77°C	0.979
CL2	12.138V	4.992V	3.3V	5.087V	156.569	80.726%	0	<6.0	41.07°C	114.91V
CL3	0.115A	0A	25.12A	0A	83.892	74.516%	0	<6.0	50.01°C	0.982
CL3	12.143V	5.012V	3.284V	5.085V	112.582	74.516%	0	<6.0	40.81°C	114.93V
CL4	70.480A	0A	0A	0.001A	849.697	88.517%	1353	37.6	45.95°C	0.997
CL4	12.056V	5.007V	3.289V	5.032V	959.933	88.517%	1353	37.6	52.81°C	114.73V

The results above are not used in the certification process

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
10%	5.229A	1.997A	2.002A	0.987A	85.005	87.918%	0	<6.0	49.68°C	0.867
10%	12.125V	5.01V	3.297V	5.068V	96.686	87.918%	0	<6.0	40.14°C	230.05V
20%	11.478A	2.996A	3.005A	1.188A	169.972	91.964%	0	<6.0	48.41°C	0.94
20%	12.115V	5.008V	3.295V	5.053V	184.822	91.964%	0	<6.0	40.98°C	230.04V
30%	18.081A	3.497A	3.508A	1.39A	254.986	93.091%	0	<6.0	48.71°C	0.961
30%	12.108V	5.006V	3.293V	5.039V	273.911	93.091%	0	<6.0	41.11°C	230.02V
40%	24.709A	3.998A	4.012A	1.593A	340.078	93.298%	737	19.5	41.85°C	0.971
40%	12.096V	5.004V	3.291V	5.023V	364.51	93.298%	737	19.5	46.18°C	230.02V
50%	30.996A	5A	5.019A	1.798A	425.063	93.314%	774	21.2	42.22°C	0.977
50%	12.084V	5.001V	3.288V	5.008V	455.518	93.314%	774	21.2	47.08°C	230.01V
60%	37.249A	6.003A	6.027A	2.001A	509.585	93.009%	860	24.8	42.96°C	0.982
60%	12.075V	4.999V	3.286V	4.992V	547.885	93.009%	860	24.8	47.53°C	230V
70%	43.574A	7.006A	7.035A	2.211A	594.926	92.524%	994	29	43.22°C	0.984
70%	12.067V	4.997V	3.284V	4.976V	642.994	92.524%	994	29	48.32°C	229.99V
80%	49.903A	8.008A	8.044A	2.317A	679.766	92.011%	1118	32.3	43.7°C	0.986
80%	12.061V	4.996V	3.282V	4.964V	738.786	92.011%	1118	32.3	49.05°C	229.98V
90%	56.640A	8.512A	8.536A	2.424A	765.201	91.526%	1253	35.6	44.68°C	0.988
90%	12.053V	4.994V	3.28V	4.951V	836.047	91.526%	1253	35.6	50.93°C	229.97V
100%	63.110A	9.014A	9.058A	3.048A	850.01	90.917%	1368	37.9	45.19°C	0.989
100%	12.047V	4.993V	3.278V	4.922V	934.928	90.917%	1368	37.9	51.47°C	229.95V
110%	69.484A	10.019A	10.163A	3.054A	934.597	90.27%	1481	40	46.21°C	0.991
110%	12.037V	4.991V	3.276V	4.912V	1035.342	90.27%	1481	40	53.37°C	229.94V
CL1	0.116A	15.668A	15.692A	0A	131.306	84.144%	0	<6.0	47.49°C	0.927
CL1	12.137V	4.998V	3.288V	5.08V	156.053	84.144%	0	<6.0	40.4°C	230.04V
CL2	0.115A	25.037A	0A	0A	126.397	81.929%	0	<6.0	47.09°C	0.926
CL2	12.136V	4.993V	3.3V	5.086V	154.28	81.929%	0	<6.0	40.14°C	230.04V
CL3	0.115A	0A	25.119A	0A	83.893	75.787%	0	<6.0	47.06°C	0.888
CL3	12.143V	5.013V	3.284V	5.085V	110.699	75.787%	0	<6.0	40.37°C	230.05V
CL4	70.494A	0A	0A	0.001A	849.736	91.627%	1344	37.3	45.15°C	0.989
CL4	12.055V	5.007V	3.289V	5.032V	927.384	91.627%	1344	37.3	51.6°C	229.95V

The results above are not used in the certification process

20-80瓦负载测试

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
20W	1.226A	0.499A	0.5A	0.196A	20.006	68.711%	0	<6.0	43.64°C	0.892
20W	12.122V	5.01V	3.298V	5.099V	29.116	68.711%	0	<6.0	36.87°C	114.95V
40W	2.698A	0.699A	0.7A	0.295A	40.004	79.789%	0	<6.0	44.46°C	0.945
40W	12.121V	5.01V	3.298V	5.094V	50.138	79.789%	0	<6.0	37.42°C	114.94V
60W	4.169A	0.898A	0.901A	0.393A	60.003	84.253%	0	<6.0	45.67°C	0.966
60W	12.121V	5.01V	3.298V	5.089V	71.217	84.253%	0	<6.0	38.33°C	114.93V
80W	5.638A	1.098A	1.101A	0.492A	79.966	86.732%	0	<6.0	47.21°C	0.978
80W	12.120V	5.01V	3.298V	5.084V	92.201	86.732%	0	<6.0	39.39°C	114.93V

The results above are not used in the certification process

测试	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
20W	1.226A	0.499A	0.5A	0.196A	20.008	69.718%	0	<6.0	43.74°C	0.534
20W	12.122V	5.011V	3.298V	5.099V	28.698	69.718%	0	<6.0	36.97°C	230.05V
40W	2.697A	0.699A	0.7A	0.295A	40.005	80.905%	0	<6.0	43.33°C	0.707
40W	12.122V	5.011V	3.298V	5.094V	49.447	80.905%	0	<6.0	37.36°C	230.05V
60W	4.168A	0.898A	0.901A	0.393A	60.004	85.521%	0	<6.0	45.66°C	0.798
60W	12.122V	5.011V	3.298V	5.089V	70.163	85.521%	0	<6.0	38.69°C	230.04V
80W	5.638A	1.098A	1.101A	0.492A	79.97	87.993%	0	<6.0	46.35°C	0.855
80W	12.121V	5.011V	3.298V	5.084V	90.877	87.993%	0	<6.0	39.36°C	230.04V

The results above are not used in the certification process

纹波测量

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	11.60mV	6.94mV	4.88mV	7.75mV	Pass
20% Load	11.35mV	7.09mV	5.24mV	10.19mV	Pass
30% Load	12.57mV	7.70mV	5.65mV	9.47mV	Pass
40% Load	13.38mV	8.26mV	5.24mV	10.34mV	Pass
50% Load	13.74mV	8.01mV	5.54mV	10.95mV	Pass
60% Load	15.52mV	8.21mV	5.49mV	11.26mV	Pass
70% Load	16.18mV	8.52mV	5.49mV	13.50mV	Pass
80% Load	18.62mV	8.72mV	8.24mV	13.55mV	Pass
90% Load	19.18mV	9.13mV	8.85mV	13.81mV	Pass
100% Load	24.08mV	11.02mV	9.82mV	16.73mV	Pass
110% Load	25.67mV	10.59mV	9.79mV	18.14mV	Pass
Crossload1	16.22mV	8.45mV	10.18mV	8.56mV	Pass
Crossload2	12.06mV	7.91mV	4.73mV	7.69mV	Pass
Crossload3	11.40mV	7.19mV	10.53mV	7.59mV	Pass
Crossload4	24.61mV	9.74mV	6.27mV	12.66mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	11.50mV	7.35mV	4.88mV	7.59mV	Pass
20% Load	11.29mV	8.01mV	5.55mV	10.09mV	Pass
30% Load	11.19mV	7.45mV	5.29mV	9.68mV	Pass
40% Load	13.23mV	8.31mV	5.44mV	10.19mV	Pass
50% Load	13.89mV	8.16mV	5.65mV	11.21mV	Pass
60% Load	16.69mV	8.16mV	5.44mV	11.51mV	Pass
70% Load	16.33mV	8.37mV	5.44mV	14.32mV	Pass
80% Load	17.30mV	8.93mV	8.60mV	13.60mV	Pass
90% Load	19.79mV	9.18mV	8.70mV	14.32mV	Pass
100% Load	24.06mV	10.24mV	9.34mV	16.57mV	Pass
110% Load	26.81mV	10.76mV	9.80mV	17.87mV	Pass
Crossload1	16.96mV	8.99mV	9.56mV	8.22mV	Pass
Crossload2	9.72mV	6.53mV	4.27mV	6.93mV	Pass
Crossload3	11.96mV	6.58mV	10.63mV	7.39mV	Pass
Crossload4	25.97mV	10.15mV	6.42mV	12.90mV	Pass

The results above are not used in the certification process

Micronics Wizmax G 850W

Top side

Power specifications label

General Information

被测品资讯

被测品规格

电源规范

测试设备

线材与接头

Parts Description

Test Results

Temperature & Compliance Info

Performance Summary

保持时间 & PG信号

待机电源

Tables

Graphs

转换效率图表

资讯

资讯

噪音值图表

资讯

资讯

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

高环温电源转换效率

资讯

5Vsb转换效率

资讯

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

20-80瓦负载测试

纹波测量

Micronics Wizmax G 850W

输入电压时的5Vsb 效率 (ErP Lot3/6 & CEC)
