Modecom Volcano HEX 750W

Serial Number005250310000297

Lab IDMO75002866

Certification ID252866

Test Result Report ID: 25PS2866A
Certificate Issue Date: Jun 30, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Modecom
Model	Volcano HEX 750W
OEM/ODM	Jiumeng
Serial Number	005250310000297
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	6-12
Rated Frequency (Hz)	47-63
Rated Power (W)	750
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	140mm Rifle Bearing Fan (HA1425M12-Z)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	MO75002866
Date of receipt	May 20, 2025
Testing Date	Jun 26, 2025
Report Issued Date	Jun 30, 2025
DUT Notes	Inrush current was retested and updated on November 6, 2025.
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	18AWG	No
4+4 pin EPS12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (555mm+150mm)	2	4	18AWG	No
12+4 pin PCIe (560mm) (600W)	1	1	16-26AWG	No
SATA (500mm+145mm+145mm)	2	6	18AWG	No
4-pin Molex (500mm+150mm+150mm) / FDD (+150mm)	1	3 / 1	18-22AWG	No
AC Power Cord (1370mm) - C13 coupler	1	1	18AWG	-

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	62.5	3	0.3
Max. Power	Watts	100		750	15	3.6
Total Max. Power (W)		750

Parts Description

General Data
Manufacturer (OEM)	Huizhou Jiumeng Electronics Technology Co., Ltd
PCB Type	Double-Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor MF73T-1 10/7 (10 Ohm) & Relay
Bridge Rectifier(s)	2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETs	2x Sanrise Tech SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)
APFC Boost Diode	1x Sanan SDS065J004C3 (650V, 4A @ 155°C)
Bulk Cap(s)	1x Nichicon (450V, 560uF, 2000h @ 105°C, GM(M))
Main Switchers	2x Lonten LSD55R140GF (550V, 6.3A @ 100°C, Rds(on): 0.14Ohm)
APFC Controller	Aplus Tek AT6108ZSP8
Resonant Controller	EGmicro EG6599S
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs	4x Maple Semi SLM160N04G
5V & 3.3V	DC-DC Converters: 4x Advanced Power AP4024GEMT (30V, 60A @ 25°C, Rds(on): 4.5mOhm) PWM Controller(s): ANPEC APW7159C
Filtering Capacitors	Electrolytic: 6x Rubycon (4-10,000h @105°C, YXS) 3x Rubycon (6-10,000h @105°C, ZLH) 2x Rubycon (2-10,000 @ 105°C, YXF) Polymer: 17x FPCAP
Supervisor IC	Grenergy GR8313F (OVP, UVP, PG)
Fan Model	Hong Hua HA1425M12F-Z (140mm, 12V, 0.36A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier	SB1045L (45V, 10A)
Standby PWM Controller	Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	88.987%
Average Noise Output (>1450 Load Combinations)	19.67dBA
Average PF (>1450 Load Combinations)	0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load	67.876%
Standby Power Consumption	0.0375W
Non-Accredited
12V Ripple (Full Load)	35.92mV
5V Ripple (Full Load)	22.30mV
3.3V Ripple (Full Load)	24.35mV
5VSB Ripple (Full Load)	26.20mV
12V Load Regulation	1.19%
5V Load Regulation	0.38%
3.3V Load Regulation	0.94%
5VSB Load Regulation	3.29%
Inrush Current	18.440A

Accredited
Average Efficiency (>1450 load combinations)	90.913%
Average Noise Output (>1450 Load Combinations)	19.61dBA
Average PF (>1450 Load Combinations)	0.935
Efficiency With 10W (≤500W) or 2% (>500W) Load	68.694%
Standby Power Consumption	0.0770W
Non-Accredited
12V Ripple (Full Load)	36.55mV
5V Ripple (Full Load)	21.80mV
3.3V Ripple (Full Load)	23.86mV
5VSB Ripple (Full Load)	24.58mV
12V Load Regulation	1.19%
5V Load Regulation	0.28%
3.3V Load Regulation	0.91%
5VSB Load Regulation	3.32%
Inrush Current	52.600A
12V Transient Response (200%)	11.32V
5V Transient Response (200%)	4.926V
3.3V Transient Response (200%)	3.220V
5VSB Transient Response (200%)	4.968V
Hold-Up Time & PWR_OK Signal	17.70ms
AC Loss to PWR_OK Hold Up Time	14.70ms
PWR_OK Inactive to DC Loss Delay	3.00ms
PSU Timings: T1 (20% / 100%)	85.0ms	80.0ms
PSU Timings: T3 (20% / 100%)	121.0ms	122.0ms
12V OCP (31.9°C / 43.7°C)	87.40A (139.84%), 11.867V	74.40A (119.04%), 11.883V
5V OCP (31.9°C / 43.7°C)	23.4A (117.00%), 5.011V	22.6A (113.00%), 5.016V
3.3V OCP (31.9°C / 43.7°C)	23.5A (117.50%), 3.272V	22.5A (112.50%), 3.269V
5VSB OCP (31.9°C / 43.7°C)	4.9A (163.33%), 4.975V	5A (166.67%), 4.967V
OPP (30.14°C / 43.38°C)	132.89%	116.14%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	17.7
AC Loss to PWR_OK Hold Up Time (ms)	14.7
PWR_OK Inactive to DC Loss Delay (ms)	3

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.08 V	115.04 V	113.85 V	115.13 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.037 W	0.017 W	N/A	0.059 W	N/A	N/A
Apparent Power:	10.076 W	10.017 W	N/A	10.132 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.04 V	230.93 V	227.70 V	231.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.077 W	0.036 W	N/A	0.132 W	N/A	N/A
Apparent Power:	34.599 W	34.276 W	N/A	34.870 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

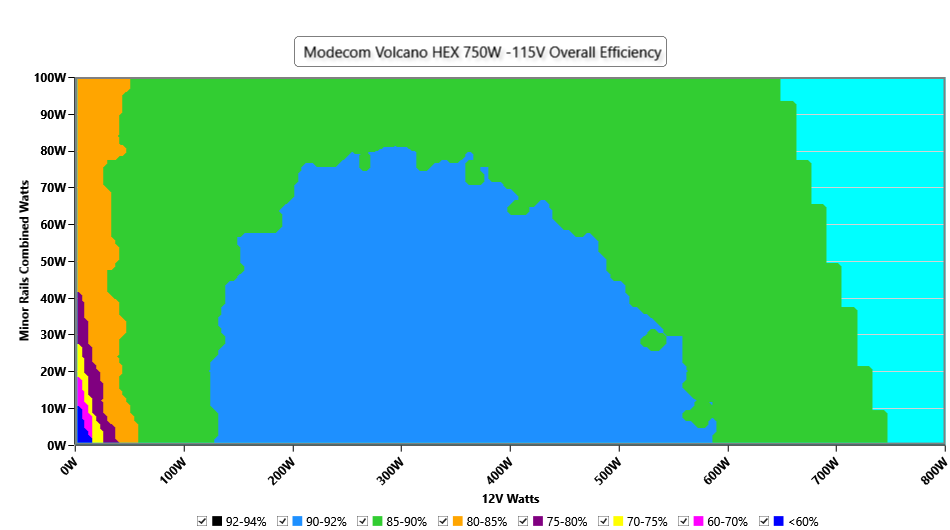

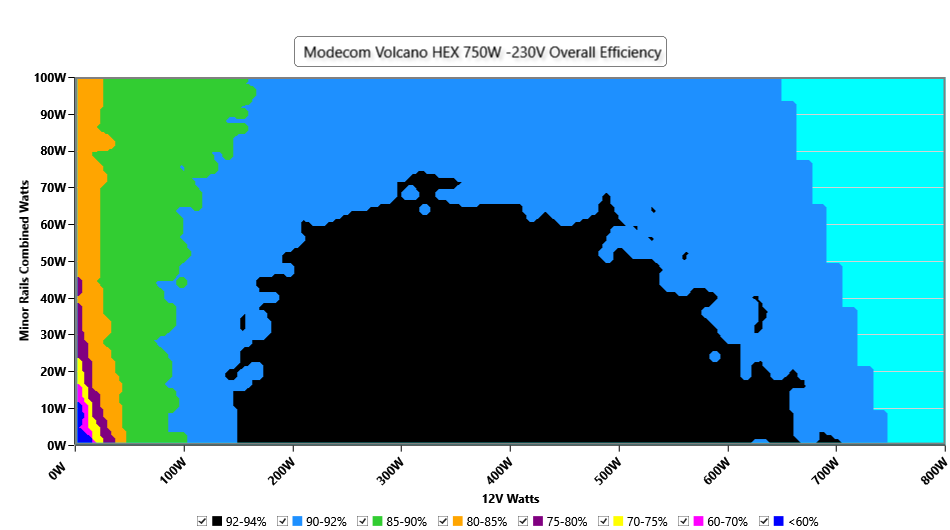

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

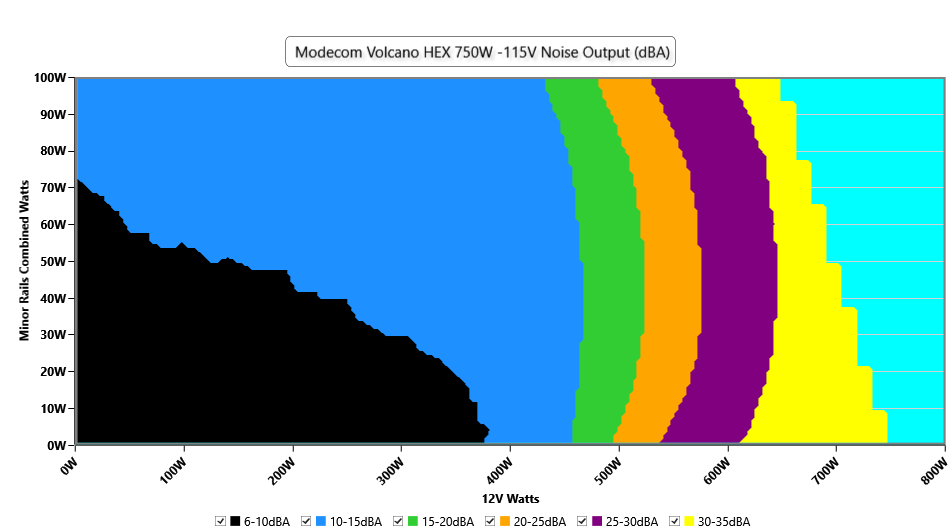

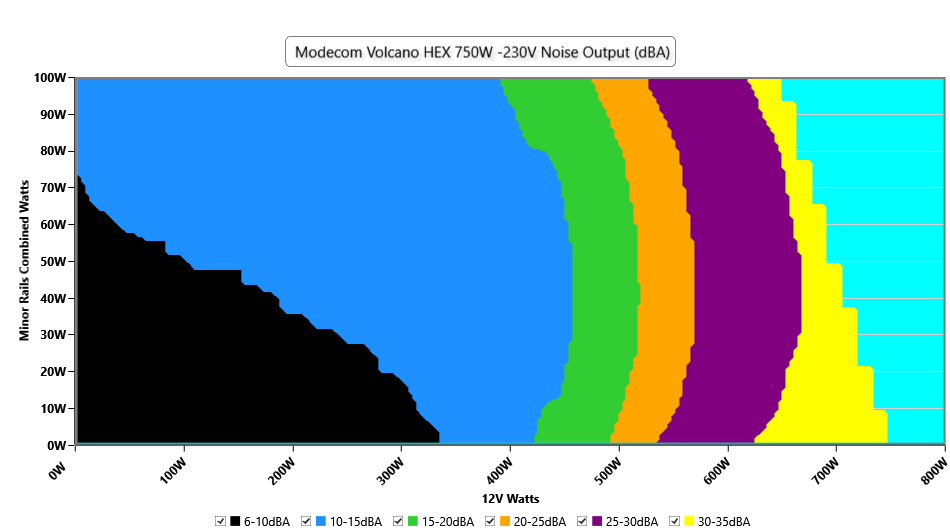

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Noise under high ambient temperature (indicative)

115V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	559 RPM · 10.6 dB(A) · 30.8 °C	580 RPM · 12.3 dB(A) · 40.3 °C	+1.7 dB(A)
20%	566 RPM · 11.5 dB(A) · 30.1 °C	585 RPM · 12.5 dB(A) · 40.6 °C	+1.0 dB(A)
50%	579 RPM · 12.3 dB(A) · 30.9 °C	609 RPM · 13.7 dB(A) · 42.3 °C	+1.4 dB(A)
100%	985 RPM · 30.1 dB(A) · 30.6 °C	1219 RPM · 36.1 dB(A) · 45.0 °C	+6.0 dB(A)

230V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	559 RPM · 10.6 dB(A) · 30.8 °C	582 RPM · 12.4 dB(A) · 40.4 °C	+1.8 dB(A)
20%	567 RPM · 11.6 dB(A) · 30.9 °C	587 RPM · 12.7 dB(A) · 40.5 °C	+1.1 dB(A)
50%	580 RPM · 12.3 dB(A) · 30.7 °C	605 RPM · 13.4 dB(A) · 42.1 °C	+1.1 dB(A)
100%	1004 RPM · 30.8 dB(A) · 30.9 °C	1259 RPM · 36.9 dB(A) · 46.0 °C	+6.1 dB(A)

INFO

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

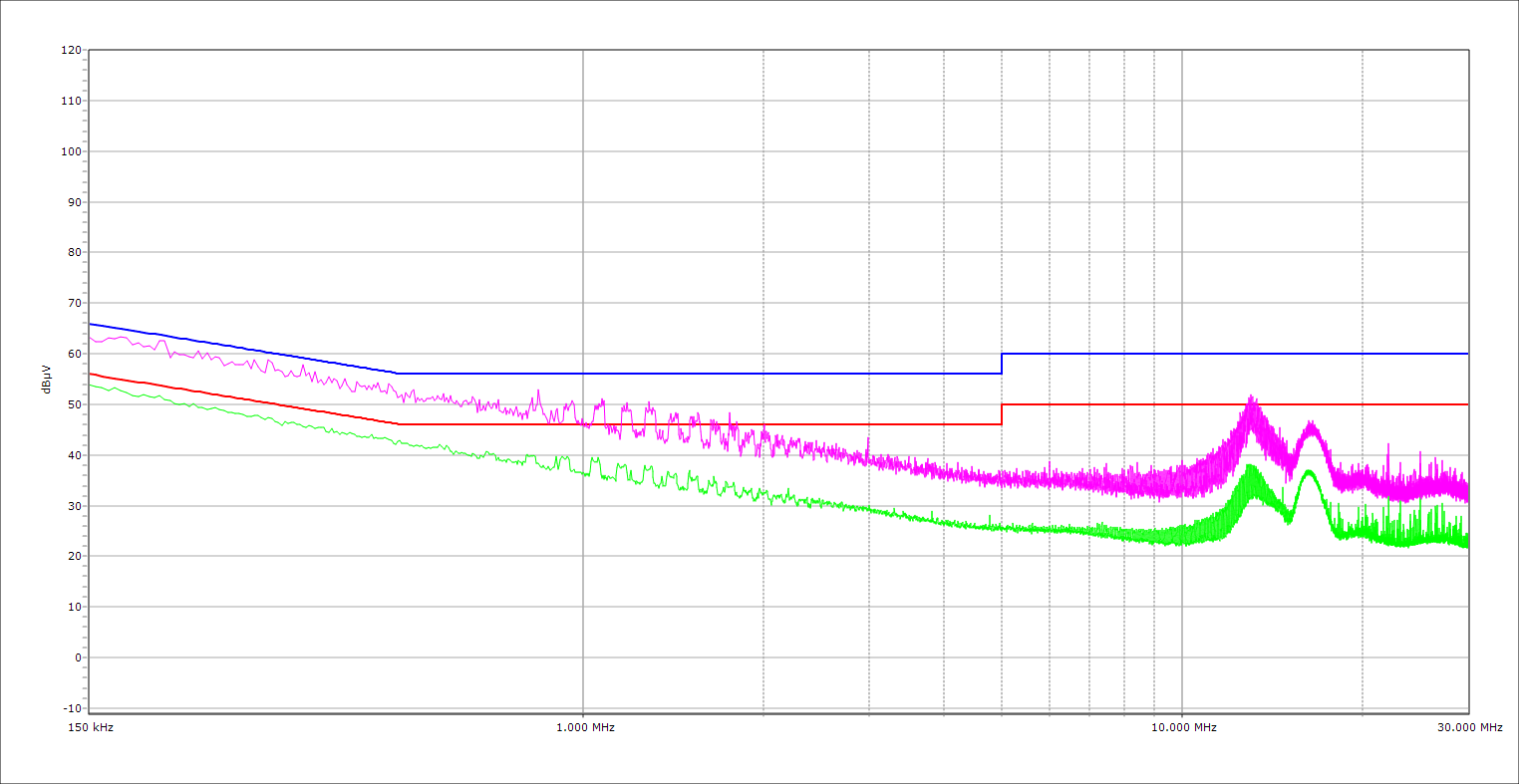

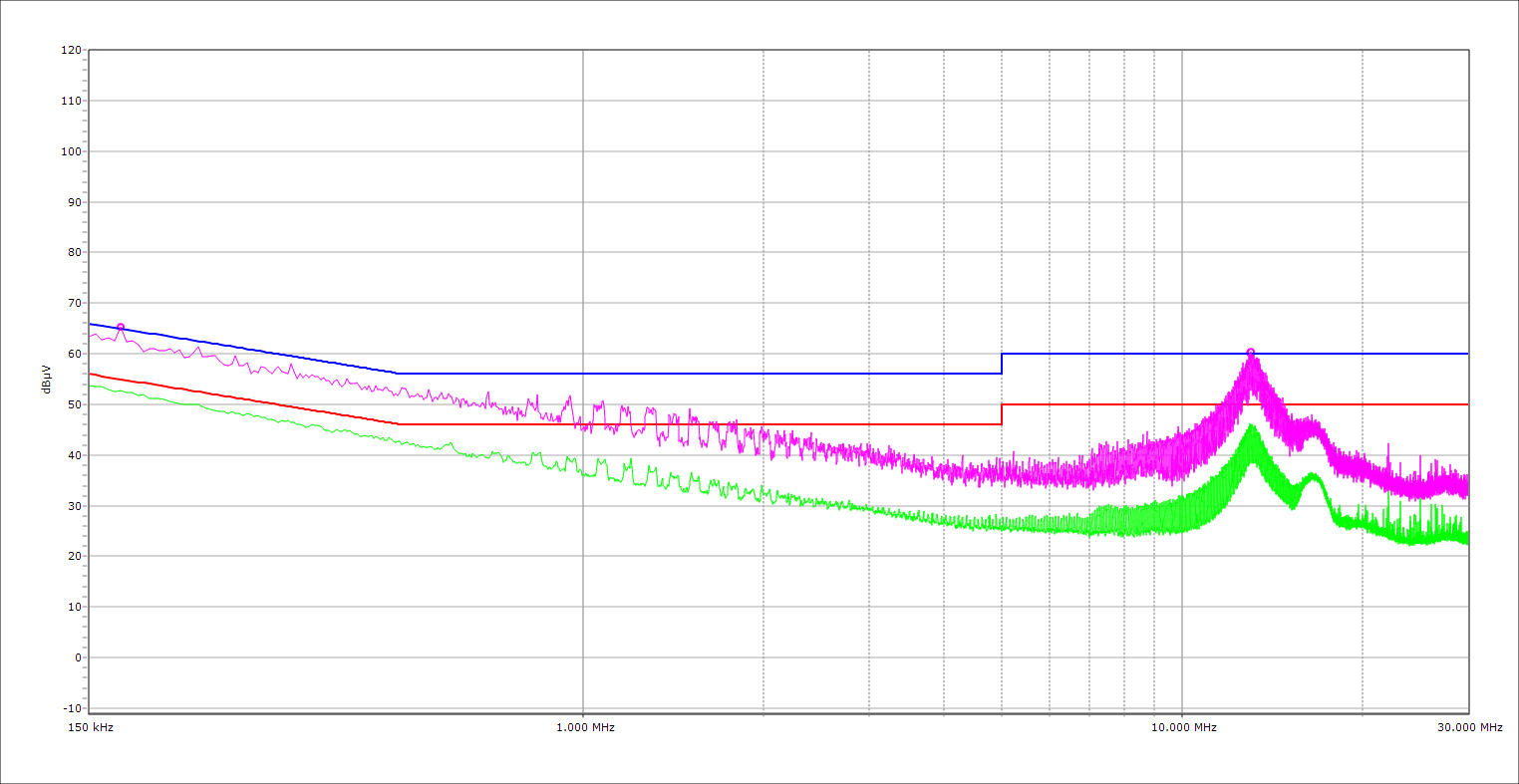

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

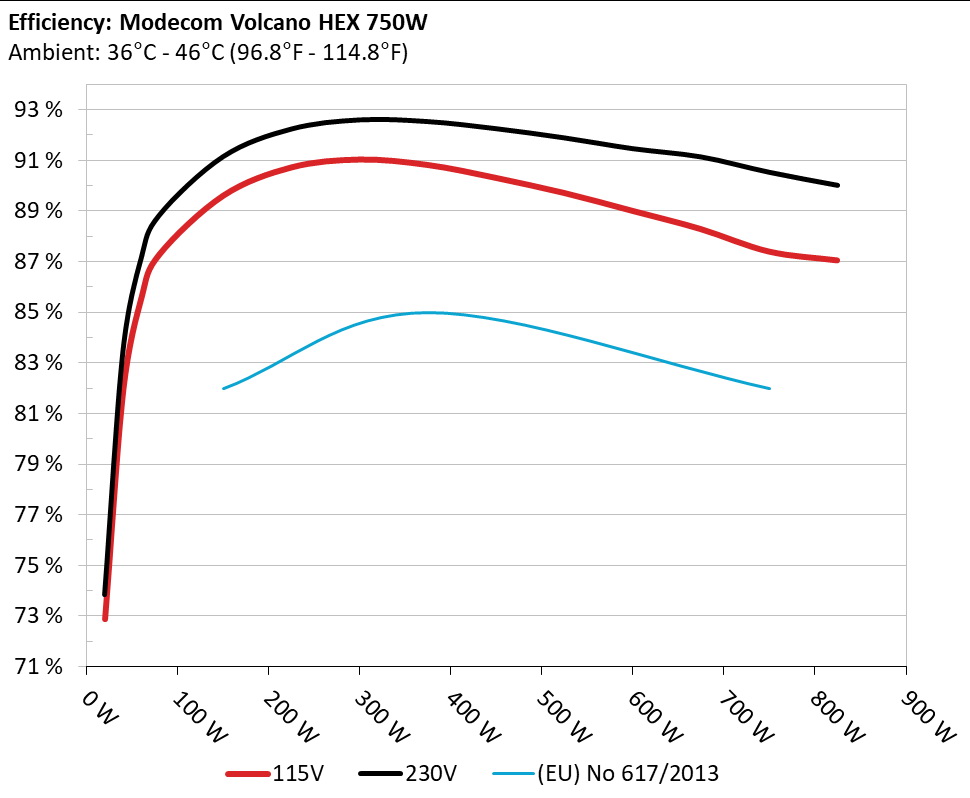

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

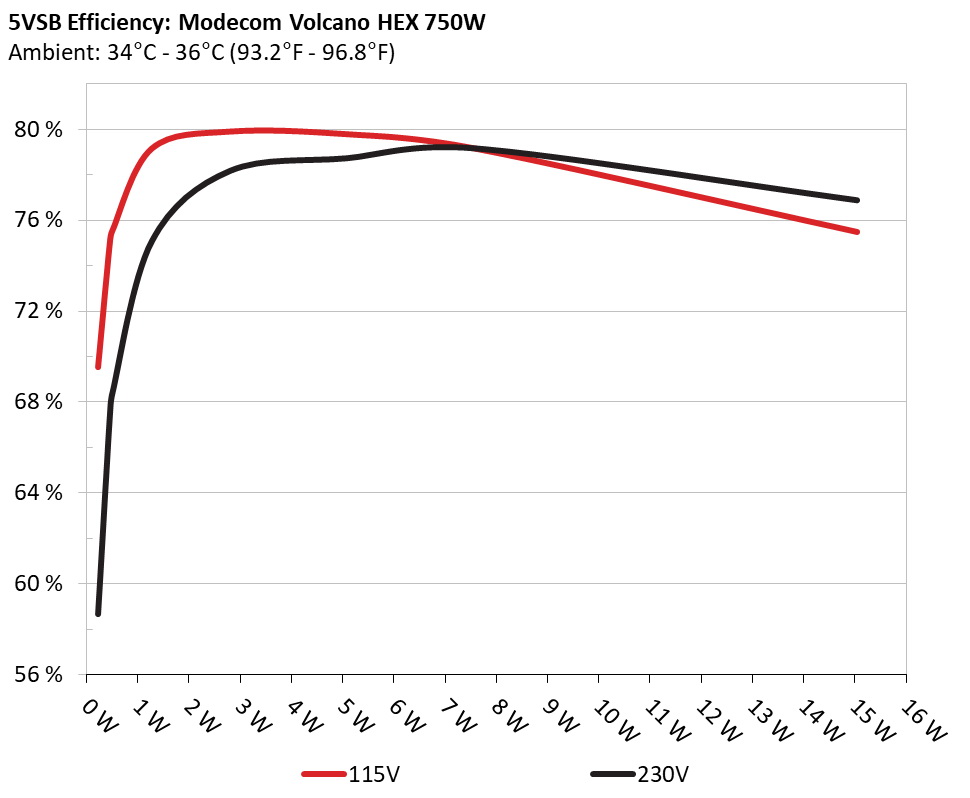

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	69.538%	0.032
1	5.117V	0.331W	69.538%	114.93V
2	0.09A	0.461W	75.045%	0.058
2	5.116V	0.614W	75.045%	114.94V
3	0.55A	2.805W	79.895%	0.27
3	5.099V	3.511W	79.895%	114.93V
4	1A	5.084W	79.78%	0.38
4	5.084V	6.372W	79.78%	114.92V
5	1.5A	7.601W	79.141%	0.427
5	5.066V	9.604W	79.141%	114.92V
6	3A	15.037W	75.483%	0.507
6	5.012V	19.922W	75.483%	114.91V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	58.686%	0.011
1	5.116V	0.391W	58.686%	229.9V
2	0.09A	0.461W	67.456%	0.019
2	5.115V	0.684W	67.456%	229.9V
3	0.55A	2.805W	78.173%	0.099
3	5.099V	3.588W	78.173%	229.89V
4	1A	5.084W	78.729%	0.167
4	5.083V	6.458W	78.729%	229.89V
5	1.5A	7.6W	79.158%	0.229
5	5.066V	9.602W	79.158%	229.89V
6	3A	15.039W	76.882%	0.327
6	5.013V	19.562W	76.882%	229.89V

Protection Features

OCP (Normal @ 31.9°C)	12V: 87.40A (139.84%), 11.867V 5V: 23.4A (117.00%), 5.011V 3.3V: 23.5A (117.50%), 3.272V 5VSB: 4.9A (163.33%), 4.975V
OCP (Hot @ 43.7°C)	12V: 74.40A (119.04%), 11.883V 5V: 22.6A (113.00%), 5.016V 3.3V: 22.5A (112.50%), 3.269V 5VSB: 5A (166.67%), 4.967V
OPP (Normal @ 30.1°C)	996.67W (132.89%)
OPP (Hot @ 43.4°C)	871.05W (116.14%)
OTP	✓ (89°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.454A	1.997A	1.99A	0.984A	75.003	85.889%	580	12.3	40.34°C	0.967
10%	11.990V	5.007V	3.316V	5.081V	87.327	85.889%	580	12.3	41.16°C	114.89V
20%	9.941A	2.997A	2.988A	1.184A	149.941	89.586%	585	12.5	40.57°C	0.971
20%	11.975V	5.005V	3.313V	5.067V	167.39	89.586%	585	12.5	42.53°C	114.87V
30%	15.793A	3.497A	3.488A	1.385A	224.945	90.701%	590	12.7	41.33°C	0.988
30%	11.961V	5.004V	3.311V	5.054V	247.991	90.701%	590	12.7	44.55°C	114.84V
40%	21.665A	3.998A	3.989A	1.587A	300.032	91.01%	595	12.8	41.62°C	0.995
40%	11.947V	5.003V	3.309V	5.04V	329.647	91.01%	595	12.8	46.25°C	114.81V
50%	27.148A	5A	4.991A	1.791A	374.458	90.799%	609	13.7	42.26°C	0.997
50%	11.933V	5.001V	3.306V	5.026V	412.426	90.799%	609	13.7	49.11°C	114.79V
60%	32.689A	6.002A	5.996A	1.996A	449.368	90.287%	725	20.4	42.74°C	0.999
60%	11.918V	4.999V	3.302V	5.012V	497.734	90.287%	725	20.4	51.52°C	114.76V
70%	38.242A	7.006A	7.002A	2.201A	524.29	89.694%	896	27.2	43.08°C	0.999
70%	11.902V	4.997V	3.299V	4.997V	584.581	89.694%	896	27.2	52.7°C	114.74V
80%	43.873A	8.008A	8.009A	2.307A	599.482	88.988%	1073	32.5	43.79°C	0.999
80%	11.889V	4.994V	3.296V	4.985V	673.652	88.988%	1073	32.5	54.96°C	114.7V
90%	49.859A	8.51A	8.5A	2.413A	674.517	88.27%	1194	35.6	44.47°C	0.999
90%	11.874V	4.993V	3.294V	4.974V	764.174	88.27%	1194	35.6	57.21°C	114.67V
100%	55.654A	9.014A	9.028A	3.032A	749.74	87.378%	1219	36.1	45.04°C	0.999
100%	11.860V	4.991V	3.29V	4.947V	858.031	87.378%	1219	36.1	58.81°C	114.66V
110%	61.300A	10.014A	10.123A	3.036A	824.682	87.03%	1043	31.8	45.58°C	0.999
110%	11.850V	4.992V	3.29V	4.941V	947.818	87.03%	1043	31.8	54.2°C	114.63V
CL1	0.116A	12.057A	12.07A	0A	101.284	81.632%	635	15.7	40.92°C	0.984
CL1	11.971V	4.992V	3.289V	5.094V	124.066	81.632%	635	15.7	47.81°C	114.88V
CL2	0.116A	20.014A	0A	0A	101.333	80.287%	650	16.2	40.95°C	0.982
CL2	11.976V	4.994V	3.309V	5.098V	126.228	80.287%	650	16.2	47.06°C	114.87V
CL3	0.115A	0A	20.153A	0A	67.393	73.819%	603	13.3	40.72°C	0.968
CL3	11.979V	5.007V	3.275V	5.098V	91.298	73.819%	603	13.3	45.34°C	114.89V
CL4	63.133A	0A	0A	0A	749.532	88.718%	1201	35.6	45.63°C	0.999
CL4	11.872V	5.008V	3.313V	5.046V	844.865	88.718%	1201	35.6	55.59°C	114.65V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.454A	1.997A	1.99A	0.984A	75.006	87.447%	582	12.4	40.38°C	0.792
10%	11.991V	5.009V	3.316V	5.081V	85.769	87.447%	582	12.4	41.67°C	229.88V
20%	9.941A	2.996A	2.989A	1.184A	149.952	91.148%	587	12.7	40.51°C	0.904
20%	11.976V	5.007V	3.313V	5.067V	164.49	91.148%	587	12.7	42.45°C	229.86V
30%	15.791A	3.496A	3.489A	1.385A	224.955	92.24%	590	12.7	41.22°C	0.934
30%	11.962V	5.006V	3.311V	5.053V	243.876	92.24%	590	12.7	43.2°C	229.85V
40%	21.661A	3.996A	3.989A	1.588A	300.048	92.601%	595	12.8	41.7°C	0.949
40%	11.949V	5.005V	3.309V	5.04V	324.023	92.601%	595	12.8	44.34°C	229.84V
50%	27.144A	4.997A	4.992A	1.791A	374.482	92.536%	605	13.4	42.06°C	0.957
50%	11.935V	5.004V	3.306V	5.025V	404.654	92.536%	605	13.4	45.34°C	229.83V
60%	32.682A	5.998A	5.997A	1.996A	449.396	92.257%	705	19.2	42.54°C	0.966
60%	11.921V	5.002V	3.302V	5.011V	487.098	92.257%	705	19.2	47.59°C	229.81V
70%	38.238A	7.001A	7.005A	2.202A	524.33	91.894%	909	27.6	43.17°C	0.97
70%	11.905V	5.001V	3.298V	4.996V	570.581	91.894%	909	27.6	49.06°C	229.8V
80%	43.868A	8.001A	8.012A	2.307A	599.522	91.468%	1057	32.3	43.66°C	0.974
80%	11.891V	4.998V	3.295V	4.984V	655.459	91.468%	1057	32.3	49.68°C	229.79V
90%	49.842A	8.503A	8.502A	2.413A	674.527	91.142%	1153	34.7	44.61°C	0.978
90%	11.878V	4.997V	3.293V	4.973V	740.127	91.142%	1153	34.7	50.95°C	229.77V
100%	55.639A	9.005A	9.025A	3.033A	749.737	90.533%	1259	36.9	45.98°C	0.982
100%	11.863V	4.996V	3.291V	4.946V	828.147	90.533%	1259	36.9	52.66°C	229.75V
110%	61.308A	10.01A	10.129A	3.038A	824.764	90.02%	1229	36.4	46.17°C	0.986
110%	11.850V	4.994V	3.288V	4.937V	916.025	90.02%	1229	36.4	52.36°C	229.75V
CL1	0.117A	12.041A	12.073A	0A	101.29	83.115%	637	15.9	40.77°C	0.86
CL1	11.972V	4.999V	3.289V	5.094V	121.865	83.115%	637	15.9	46.42°C	229.87V
CL2	0.116A	19.982A	0A	0A	101.341	81.804%	649	16.1	41.07°C	0.862
CL2	11.976V	5.002V	3.308V	5.098V	123.877	81.804%	649	16.1	45.46°C	229.87V
CL3	0.116A	0A	20.164A	0A	67.4	75.072%	605	13.4	40.34°C	0.803
CL3	11.978V	5.007V	3.274V	5.098V	89.787	75.072%	605	13.4	44.44°C	229.87V
CL4	63.126A	0A	0A	0A	749.567	91.736%	1202	35.6	45.44°C	0.982
CL4	11.874V	5.008V	3.312V	5.046V	817.045	91.736%	1202	35.6	50.07°C	229.76V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.238A	0.499A	0.497A	0.196A	20.012	72.866%	571	12.3	36.36°C	0.759
20W	12.001V	5.01V	3.321V	5.11V	27.473	72.866%	571	12.3	40.3°C	114.91V
40W	2.726A	0.699A	0.696A	0.294A	40.005	81.894%	574	12	37.6°C	0.832
40W	11.997V	5.01V	3.32V	5.105V	48.841	81.894%	574	12	40.06°C	114.93V
60W	4.214A	0.898A	0.895A	0.392A	60.002	85.56%	574	12	38.1°C	0.958
60W	11.993V	5.009V	3.319V	5.1V	70.142	85.56%	574	12	39.8°C	114.89V
80W	5.698A	1.098A	1.094A	0.491A	79.948	87.275%	576	12.2	39.22°C	0.968
80W	11.990V	5.009V	3.319V	5.096V	91.609	87.275%	576	12.2	40.52°C	114.89V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.238A	0.499A	0.497A	0.196A	20.003	73.866%	565	11.4	36.92°C	0.386
20W	12.004V	5.009V	3.321V	5.11V	27.079	73.866%	565	11.4	37.91°C	229.88V
40W	2.724A	0.699A	0.696A	0.294A	40.003	83.437%	569	12	37.6°C	0.48
40W	12.000V	5.01V	3.32V	5.105V	47.948	83.437%	569	12	37.32°C	229.88V
60W	4.212A	0.898A	0.895A	0.392A	60.003	87.119%	572	12.3	38.05°C	0.53
60W	11.996V	5.01V	3.32V	5.1V	68.869	87.119%	572	12.3	37.92°C	229.89V
80W	5.697A	1.098A	1.094A	0.491A	79.952	88.835%	574	12	39.48°C	0.803
80W	11.992V	5.01V	3.319V	5.096V	90	88.835%	574	12	39.12°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	26.40mV	18.70mV	19.13mV	18.72mV	Pass
20% Load	27.22mV	19.82mV	18.98mV	17.80mV	Pass
30% Load	27.63mV	19.62mV	20.21mV	18.16mV	Pass
40% Load	30.19mV	20.28mV	20.26mV	20.26mV	Pass
50% Load	28.50mV	21.45mV	21.18mV	21.12mV	Pass
60% Load	30.08mV	20.95mV	22.30mV	21.18mV	Pass
70% Load	32.13mV	21.61mV	22.66mV	22.41mV	Pass
80% Load	35.55mV	24.47mV	23.99mV	22.51mV	Pass
90% Load	38.78mV	23.29mV	26.91mV	23.73mV	Pass
100% Load	35.92mV	22.30mV	24.35mV	26.20mV	Pass
110% Load	36.08mV	22.96mV	25.51mV	25.79mV	Pass
Crossload1	26.31mV	17.76mV	19.58mV	16.64mV	Pass
Crossload2	27.47mV	22.73mV	19.59mV	17.80mV	Pass
Crossload3	26.35mV	20.28mV	22.30mV	18.41mV	Pass
Crossload4	36.57mV	21.29mV	23.82mV	24.16mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	28.44mV	20.18mV	19.08mV	18.21mV	Pass
20% Load	30.49mV	20.38mV	19.23mV	19.23mV	Pass
30% Load	29.88mV	19.87mV	20.97mV	19.44mV	Pass
40% Load	30.75mV	20.23mV	21.54mV	20.26mV	Pass
50% Load	30.08mV	21.05mV	21.85mV	20.31mV	Pass
60% Load	31.72mV	21.61mV	22.25mV	20.15mV	Pass
70% Load	33.82mV	21.97mV	22.56mV	23.02mV	Pass
80% Load	36.73mV	22.99mV	24.20mV	23.27mV	Pass
90% Load	39.29mV	26.41mV	25.68mV	24.45mV	Pass
100% Load	36.55mV	21.80mV	23.86mV	24.58mV	Pass
110% Load	38.11mV	22.48mV	26.76mV	26.00mV	Pass
Crossload1	27.78mV	18.19mV	20.26mV	16.79mV	Pass
Crossload2	29.72mV	21.97mV	19.75mV	17.80mV	Pass
Crossload3	29.11mV	19.57mV	22.30mV	18.41mV	Pass
Crossload4	36.49mV	24.32mV	23.93mV	22.89mV	Pass

The results above are not used in the certification process

Modecom Volcano HEX 750W

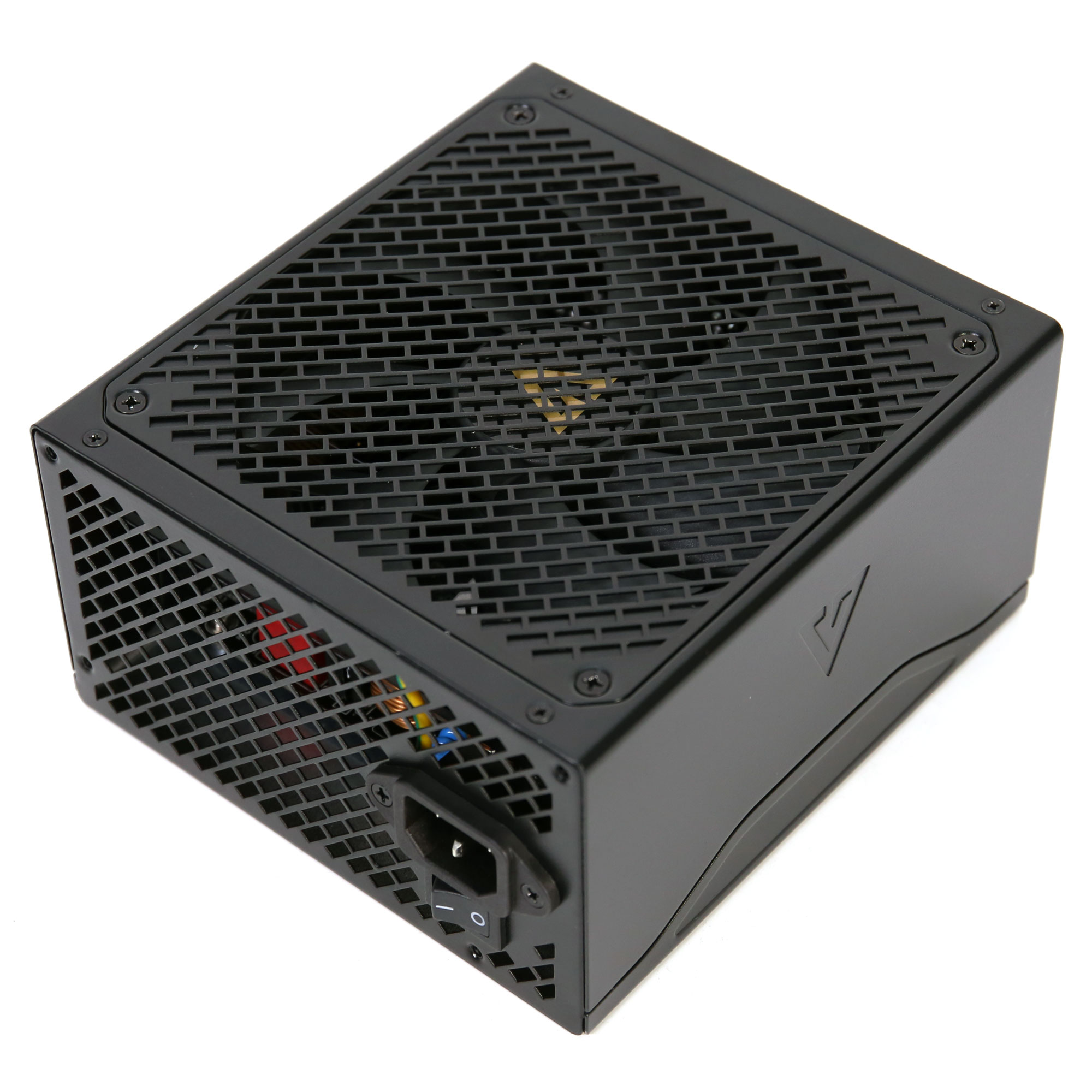

Top side

Power specifications label
