PCCooler YT1000
Serial Number-
Lab IDPL10002869
Certification ID252869
  • Test Result Report ID: 25PS2869A
  • Certificate Issue Date: Jul 2, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandPCCooler
Manufacturer (OEM)Andyson
SeriesYT
Model NumberP5-YT1000-P1F
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (600mm) 3 3 18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (445mm+150mm+150mm) / 4-pin Molex (+150mm) 3 9 / 3 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK205R0 (5 ohm) & Relay
Bridge Rectifier(s)
2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs
2x Way-on WML53N60C4 (600V, 26A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode
Global Power Technology G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s)
2x Nippon Chemi-Con (420V, 470uF each or 940uF combined, 2000h @ 105°C, KMQ)
Main Switchers
4x Way-On WML26N60F2 (650V, 10.5A @ 100°C, Rds(on): 0.21Ohm)
APFC  Controller
Champion CM6500UNX
Resonant Controller
Champion CU6901VPA
Topology
Primary side: APFC, Full-Bridge & LLC Resonant converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Ping Wei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 6 x Way-On WMB050N03LG4 (30V, 41A @ 100°C, Rds(on): 5.4mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
7x Rubycon (4-10,000h @105°C, YXS)
3x Rubycon (6-10,000h @105°C, ZLH)
2x Rubycon (4-10,000h @105°C, YXJ)
Nippon Chemi-Con (10,000h @105°C, LE)
Teapo (3,000h @105°C, SC)
Polymer:
30x Polycap, 1x FPCAP
Supervisor IC Weltrend WT7527 (OCP, OTP, OVP, UVP, SCP, PG)
Fan Controller / Micro Controller Weltrend WT51F104
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50, Fluid Dynamic Bearing Fan)
5VSB
Rectifier
PJ335M
Standby PWM Controller
Excelliance MOS EMB8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.926%
Average Noise Output (>1450 Load Combinations)26.87dBA
Average PF (>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load78.572%
Standby Power Consumption0.0732W
12V Ripple (Full Load)16.68mV
5V Ripple (Full Load)11.98mV
3.3V Ripple (Full Load)15.62mV
5VSB Ripple (Full Load)17.71mV
12V Load Regulation0.88%
5V Load Regulation0.54%
3.3V Load Regulation0.71%
5VSB Load Regulation3.40%
Inrush Current36.620A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.620%
Average Noise Output (>1450 Load Combinations)26.93dBA
Average PF (>1450 Load Combinations)0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load81.711%
Standby Power Consumption0.1409W
12V Ripple (Full Load)16.70mV
5V Ripple (Full Load)11.75mV
3.3V Ripple (Full Load)15.79mV
5VSB Ripple (Full Load)15.63mV
12V Load Regulation0.88%
5V Load Regulation0.56%
3.3V Load Regulation0.71%
5VSB Load Regulation3.38%
Inrush Current69.120A
12V Transient Response (200%)11.44V
5V Transient Response (200%)4.900V
3.3V Transient Response (200%)3.292V
5VSB Transient Response (200%)4.973V
Hold-Up Time & Power Ok Signal26.10ms
AC Loss to PWR_OK Hold Up Time21.10ms
PWR_OK Inactive to DC Loss Delay5.00ms
PSU Timings: T1 (20% / 100%)97.0ms98.0ms
PSU Timings: T3 (20% / 100%)124.0ms123.0ms
12V OCP (30.6°C / 44.9°C)112.00A (134.45%), 12.127V112.60A (135.17%), 12.130V
5V OCP (30.6°C / 44.9°C)30.8A (154.00%), 4.971V30.8A (154.00%), 4.971V
3.3V OCP (30.6°C / 44.9°C)29.5A (147.50%), 3.364V29.5A (147.50%), 3.364V
5VSB OCP (30.6°C / 44.9°C)6.2A (206.67%), 4.925V6.2A (206.67%), 4.914V
OPP (29.24°C / 43.04°C)135.00%119.85%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.1
AC Loss to PWR_OK Hold Up Time (ms)21.1
PWR_OK Inactive to DC Loss Delay (ms)5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.94 V 114.93 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.91 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.073 W 0.066 W N/A 0.091 W N/A N/A
Apparent Power: 9.845 W 9.837 W N/A 9.862 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.04 V 230.04 V 227.70 V 230.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.141 W 0.122 W N/A 0.216 W N/A N/A
Apparent Power: 32.872 W 32.859 W N/A 32.883 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

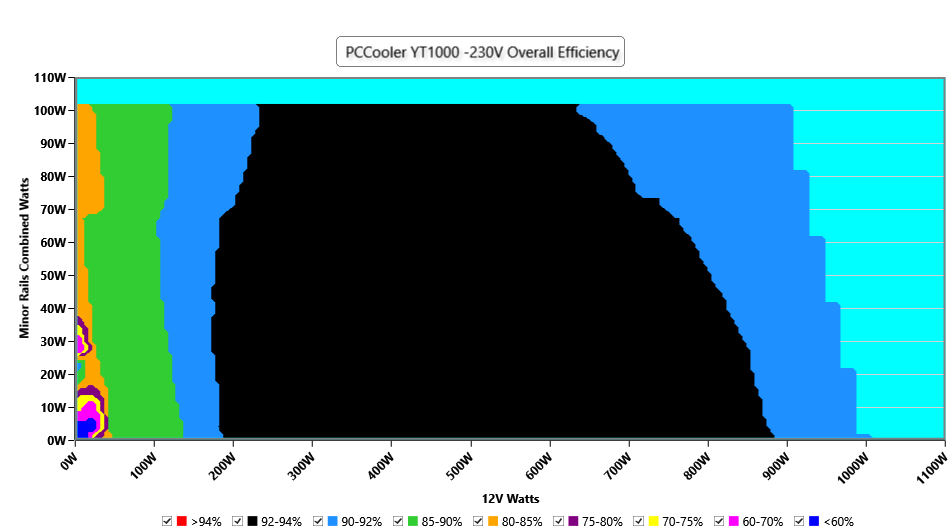

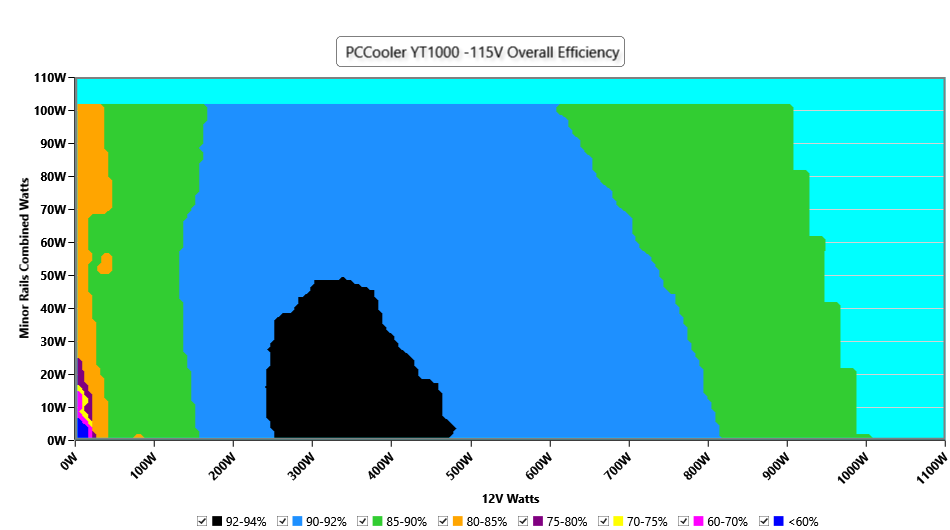

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

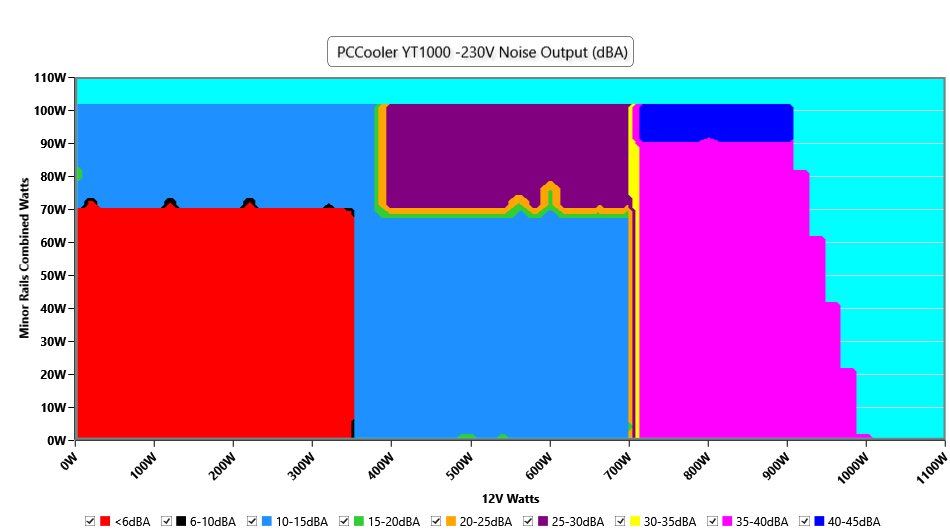

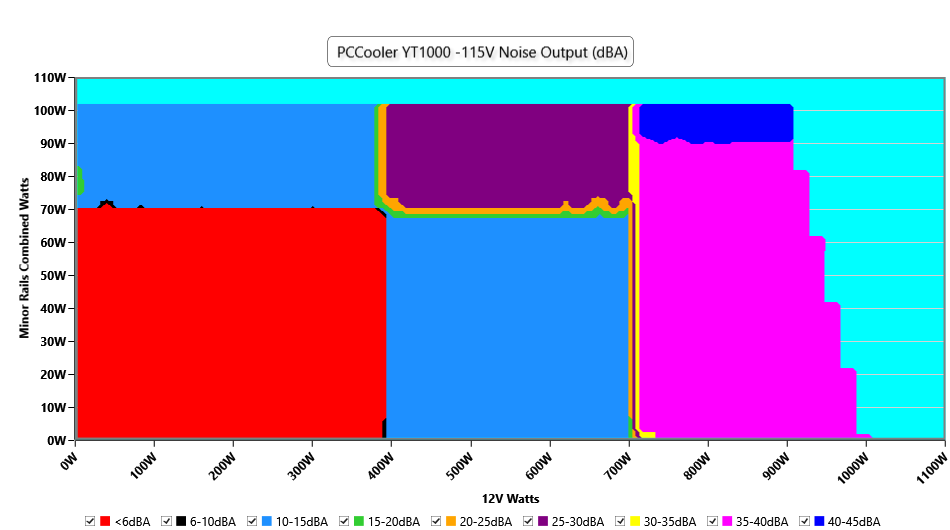

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

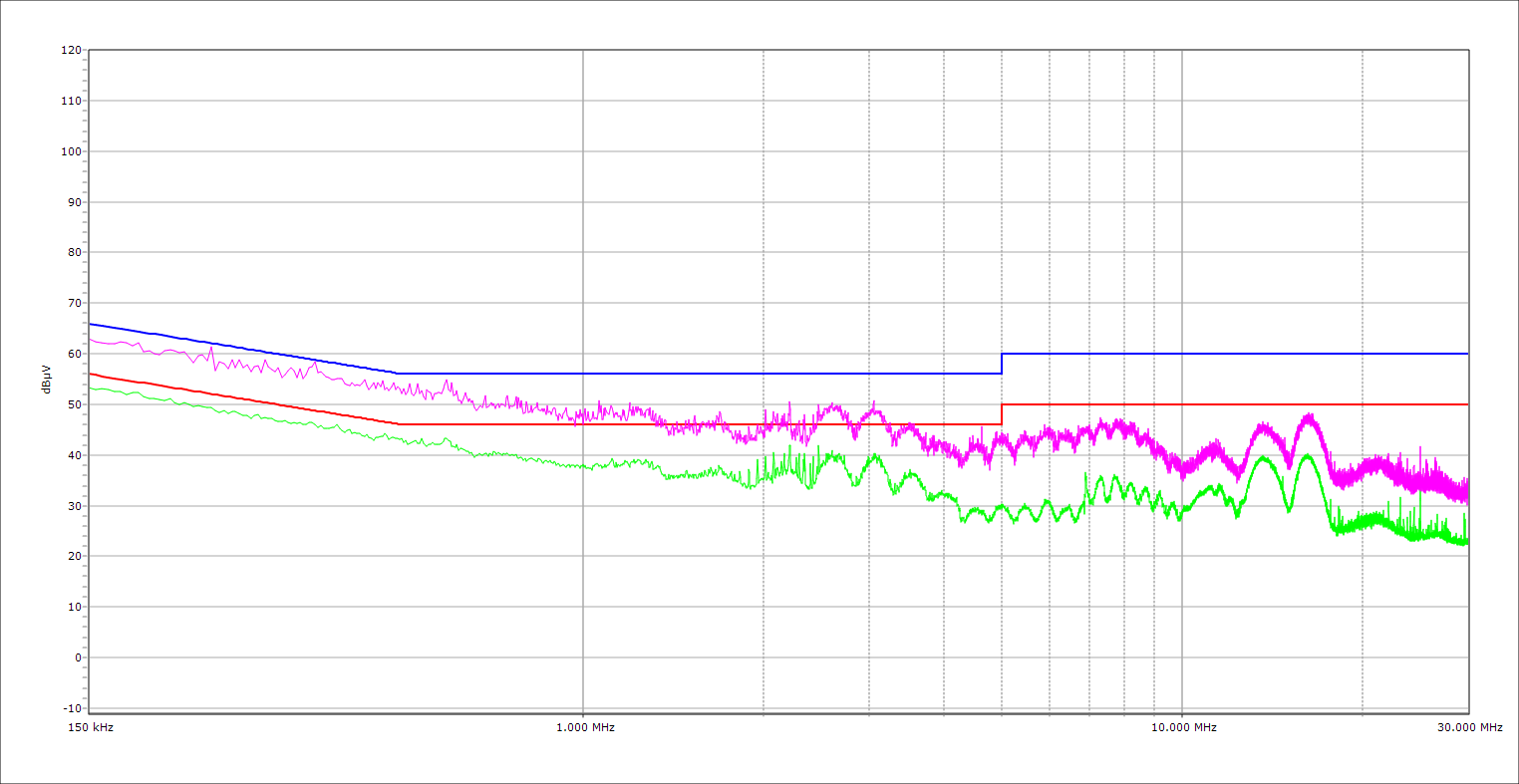

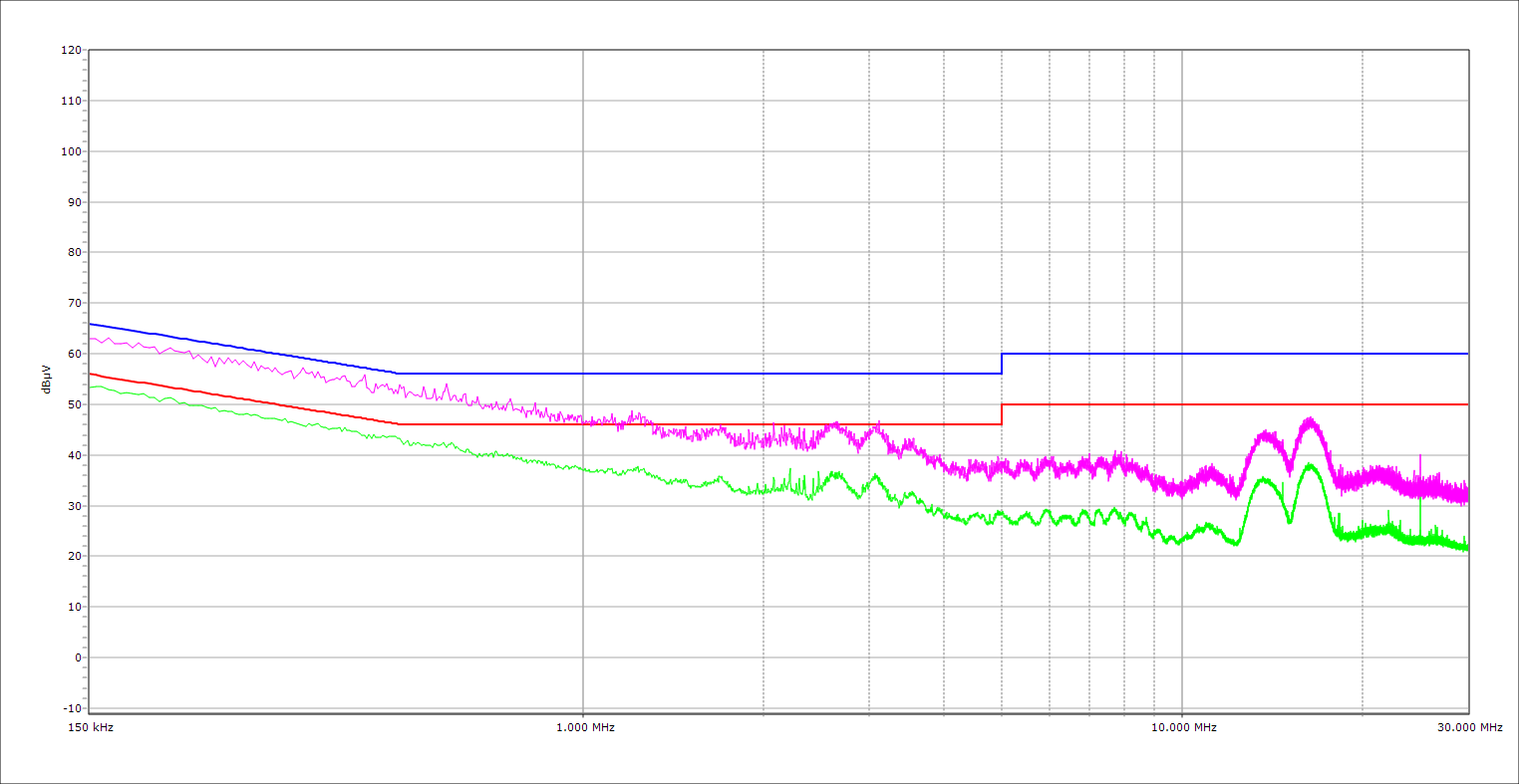

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

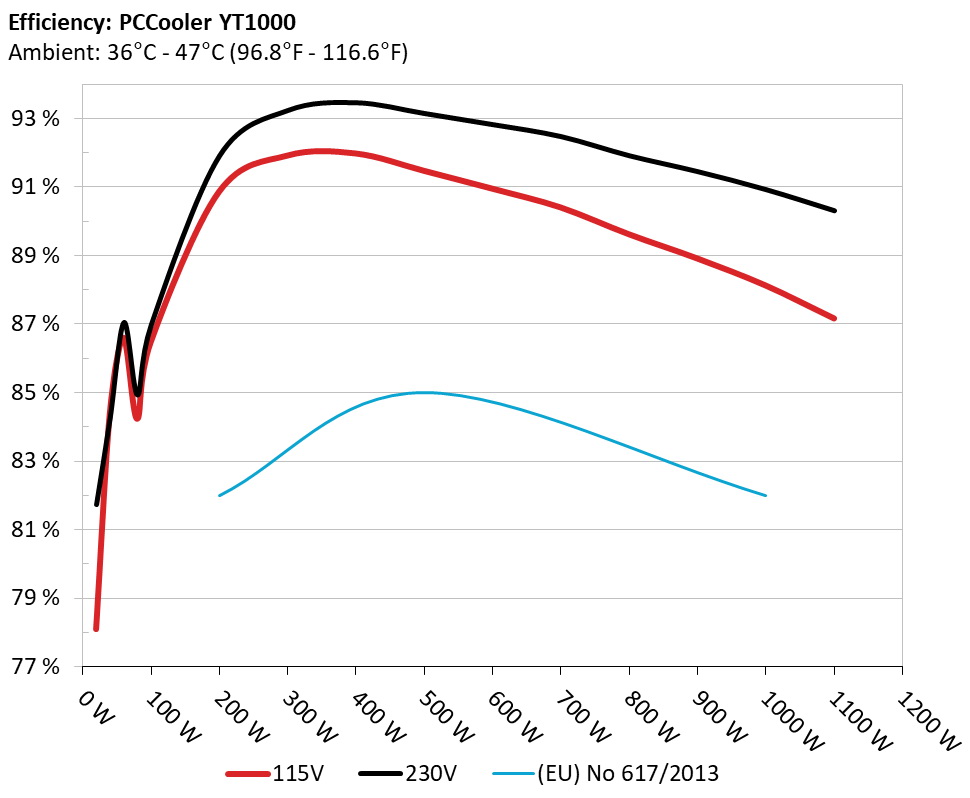

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

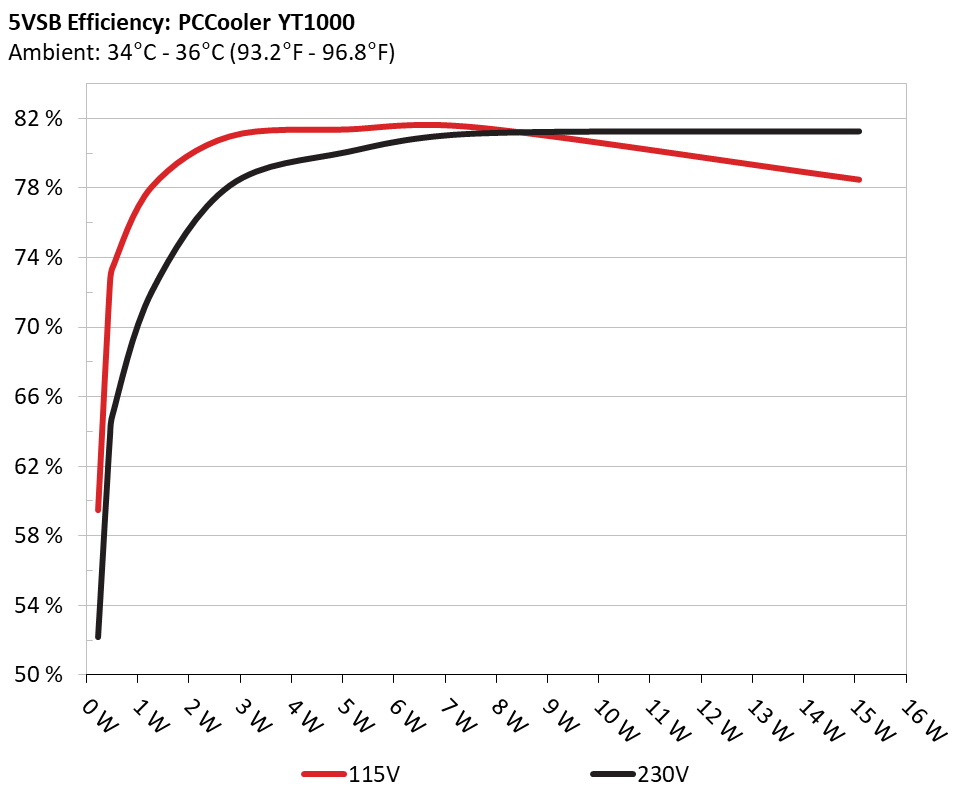

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 59.469% 0.039
5.118V 0.387W 114.94V
2 0.09A 0.461W 72.515% 0.063
5.118V 0.636W 114.92V
3 0.55A 2.808W 80.956% 0.269
5.104V 3.468W 114.9V
4 1A 5.091W 81.346% 0.368
5.089V 6.259W 114.9V
5 1.501A 7.613W 81.464% 0.419
5.074V 9.345W 114.9V
6 3.001A 15.079W 78.461% 0.489
5.025V 19.22W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 52.154% 0.015
5.118V 0.478W 230.05V
2 0.09A 0.461W 63.696% 0.022
5.117V 0.725W 230.07V
3 0.55A 2.808W 78.167% 0.104
5.104V 3.593W 230.06V
4 1A 5.091W 80.086% 0.171
5.089V 6.356W 230.06V
5 1.5A 7.612W 81.145% 0.229
5.074V 9.381W 230.06V
6 3A 15.081W 81.271% 0.332
5.026V 18.56W 230.06V

Protection Features

OCP (Normal @ 30.6°C)12V: 112.00A (134.45%), 12.127V
5V: 30.8A (154.00%), 4.971V
3.3V: 29.5A (147.50%), 3.364V
5VSB: 6.2A (206.67%), 4.925V
OCP (Hot @ 44.9°C)12V: 112.60A (135.17%), 12.130V
5V: 30.8A (154.00%), 4.971V
3.3V: 29.5A (147.50%), 3.364V
5VSB: 6.2A (206.67%), 4.914V
OPP (Normal @ 29.2°C)1349.98W (135.00%)
OPP (Hot @ 43.0°C)1198.47W (119.85%)
OTP✓ (142°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.460A 1.996A 1.952A 0.985A 100.022 86.486% 0 <6.0 46.94°C 0.972
12.139V 5.011V 3.381V 5.076V 115.649 40.47°C 114.92V
20% 13.930A 2.996A 2.93A 1.186A 199.982 90.873% 0 <6.0 47.83°C 0.986
12.137V 5.009V 3.379V 5.062V 220.069 40.82°C 114.89V
30% 21.782A 3.496A 3.42A 1.387A 300.043 91.929% 0 <6.0 50.69°C 0.986
12.119V 5.007V 3.377V 5.047V 326.384 41.26°C 114.87V
40% 29.600A 3.997A 3.911A 1.59A 399.864 91.991% 0 <6.0 53.38°C 0.987
12.117V 5.005V 3.375V 5.033V 434.676 41.7°C 114.83V
50% 37.073A 5A 4.894A 1.794A 499.613 91.484% 928 27.7 42.29°C 0.985
12.114V 5.002V 3.373V 5.019V 546.119 62.44°C 114.79V
60% 44.617A 6.003A 5.877A 1.999A 600.124 90.96% 925 27.6 42.9°C 0.986
12.110V 5V 3.37V 5.005V 659.771 64.65°C 114.76V
70% 52.086A 7.008A 6.862A 2.204A 699.832 90.415% 921 27.5 43.33°C 0.986
12.109V 4.997V 3.367V 4.991V 774.017 66.14°C 114.73V
80% 59.630A 8.014A 7.847A 2.309A 799.877 89.63% 1519 43.2 43.69°C 0.988
12.108V 4.992V 3.364V 4.981V 892.421 65.59°C 114.71V
90% 67.500A 8.518A 8.328A 2.415A 899.678 88.926% 1515 42.7 44.75°C 0.988
12.107V 4.99V 3.362V 4.97V 1011.723 70.1°C 114.67V
100% 75.154A 9.022A 8.839A 3.036A 999.694 88.137% 1512 42.4 45.91°C 0.989
12.109V 4.988V 3.36V 4.942V 1134.257 74.93°C 114.64V
110% 82.720A 10.029A 9.918A 3.042A 1100.317 87.172% 1509 42.3 46.52°C 0.99
12.113V 4.986V 3.358V 4.933V 1262.23 81.09°C 114.6V
CL1 0.116A 12.049A 11.761A 0A 101.32 82.209% 928 27.7 41.98°C 0.975
12.167V 4.997V 3.376V 5.093V 123.246 62°C 114.91V
CL2 0.115A 20.048A 0A 0A 101.406 80.027% 1524 43.4 40.37°C 0.977
12.154V 4.988V 3.383V 5.099V 126.72 52.93°C 114.91V
CL3 0.116A 0A 19.575A 0A 67.399 77.415% 1239 36.8 40.69°C 0.961
12.047V 5.013V 3.372V 5.099V 87.06 49.83°C 114.92V
CL4 82.689A 0A 0A 0A 1000.178 88.788% 1509 42.3 45.69°C 0.989
12.096V 5.004V 3.369V 5.05V 1126.487 70.69°C 114.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.458A 1.996A 1.952A 0.985A 100.02 86.977% 0 <6.0 47.2°C 0.819
12.141V 5.011V 3.382V 5.075V 115 40.05°C 230.05V
20% 13.929A 2.996A 2.93A 1.186A 199.979 91.91% 0 <6.0 47.99°C 0.919
12.138V 5.008V 3.379V 5.061V 217.58 40.76°C 230.04V
30% 21.781A 3.496A 3.42A 1.387A 300.038 93.232% 0 <6.0 48.34°C 0.949
12.120V 5.007V 3.377V 5.047V 321.816 41.02°C 230.03V
40% 29.594A 3.997A 3.911A 1.59A 399.787 93.459% 0 <6.0 50.21°C 0.962
12.117V 5.005V 3.375V 5.032V 427.768 41.78°C 230.01V
50% 37.065A 4.999A 4.893A 1.794A 499.506 93.146% 927 27.7 42.38°C 0.968
12.113V 5.002V 3.372V 5.019V 536.258 58.24°C 230V
60% 44.614A 6.003A 5.877A 1.998A 600.041 92.821% 925 27.6 42.87°C 0.972
12.109V 4.999V 3.37V 5.005V 646.453 59.52°C 229.99V
70% 52.086A 7.008A 6.862A 2.204A 699.786 92.473% 921 27.5 43.16°C 0.974
12.109V 4.996V 3.367V 4.991V 756.745 62.45°C 229.97V
80% 59.629A 8.013A 7.847A 2.309A 799.833 91.913% 1519 43.2 43.53°C 0.976
12.107V 4.992V 3.364V 4.981V 870.203 61.28°C 229.96V
90% 67.503A 8.518A 8.328A 2.415A 899.621 91.452% 1515 42.7 44.16°C 0.978
12.106V 4.99V 3.362V 4.97V 983.713 64.14°C 229.94V
100% 75.162A 9.022A 8.839A 3.035A 999.65 90.928% 1514 42.5 45.86°C 0.979
12.107V 4.988V 3.36V 4.943V 1099.383 68.78°C 229.93V
110% 82.733A 10.028A 9.918A 3.041A 1100.265 90.309% 1510 42.3 46.33°C 0.98
12.111V 4.986V 3.357V 4.934V 1218.338 73.54°C 229.91V
CL1 0.115A 12.048A 11.761A 0A 101.312 82.904% 934 27.9 40.31°C 0.836
12.163V 4.997V 3.375V 5.094V 122.203 57.04°C 230.04V
CL2 0.115A 20.046A 0A 0A 101.402 80.783% 1525 43.5 40.86°C 0.839
12.152V 4.989V 3.383V 5.1V 125.52 52.22°C 230.04V
CL3 0.116A 0A 19.574A 0A 67.395 78.05% 1532 44 40.15°C 0.744
12.048V 5.013V 3.372V 5.099V 86.371 49.71°C 230.04V
CL4 82.699A 0A 0A 0A 1000.125 91.527% 1511 42.4 45.44°C 0.979
12.093V 5.004V 3.368V 5.051V 1092.711 63.8°C 229.93V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.499A 0.488A 0.196A 20.008 78.098% 0 <6.0 41.93°C 0.719
12.033V 5.015V 3.384V 5.11V 25.617 36.6°C 114.95V
40W 2.717A 0.698A 0.683A 0.294A 40.004 84.389% 0 <6.0 43.37°C 0.883
12.033V 5.015V 3.384V 5.105V 47.405 37.6°C 114.94V
60W 4.199A 0.898A 0.878A 0.392A 60.003 86.609% 0 <6.0 43.23°C 0.938
12.034V 5.014V 3.384V 5.1V 69.279 38.08°C 114.94V
80W 5.632A 1.098A 1.073A 0.491A 79.969 84.24% 0 <6.0 46.25°C 0.964
12.133V 5.013V 3.382V 5.095V 94.932 39.63°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.499A 0.488A 0.196A 20.006 81.742% 0 <6.0 39.63°C 0.39
12.035V 5.016V 3.384V 5.11V 25.151 36.43°C 230.06V
40W 2.716A 0.698A 0.683A 0.294A 40.004 84.281% 0 <6.0 43.42°C 0.552
12.035V 5.015V 3.384V 5.105V 47.467 37.89°C 230.06V
60W 4.198A 0.898A 0.878A 0.392A 60.003 87.051% 0 <6.0 43.39°C 0.674
12.035V 5.014V 3.383V 5.1V 68.931 38.38°C 230.05V
80W 5.632A 1.098A 1.073A 0.491A 79.968 84.939% 0 <6.0 45.97°C 0.765
12.134V 5.012V 3.382V 5.095V 94.148 39.27°C 230.05V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.43mV7.65mV6.20mV12.63mVPass
20% Load8.95mV8.77mV7.43mV12.58mVPass
30% Load11.29mV8.26mV7.32mV12.84mVPass
40% Load11.09mV10.92mV9.71mV13.50mVPass
50% Load11.50mV9.08mV8.29mV13.25mVPass
60% Load11.80mV9.74mV9.31mV15.03mVPass
70% Load11.96mV11.07mV10.22mV15.79mVPass
80% Load12.88mV10.81mV13.93mV16.97mVPass
90% Load12.41mV10.86mV14.44mV17.42mVPass
100% Load16.68mV11.98mV15.62mV17.71mVPass
110% Load17.52mV12.65mV17.40mV24.26mVPass
Crossload110.48mV9.30mV11.80mV8.91mVPass
Crossload210.74mV8.42mV7.07mV8.00mVPass
Crossload320.40mV9.03mV12.77mV7.85mVPass
Crossload416.31mV11.42mV11.95mV10.81mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.02mV8.42mV6.66mV12.28mVPass
20% Load9.87mV8.57mV7.68mV12.28mVPass
30% Load10.48mV8.26mV7.63mV13.04mVPass
40% Load10.28mV10.81mV9.05mV12.84mVPass
50% Load10.94mV9.28mV8.90mV13.25mVPass
60% Load11.19mV9.79mV9.16mV13.60mVPass
70% Load12.37mV10.76mV10.58mV13.86mVPass
80% Load12.26mV10.97mV13.89mV13.91mVPass
90% Load13.43mV10.86mV14.40mV14.06mVPass
100% Load16.70mV11.75mV15.79mV15.63mVPass
110% Load18.01mV12.14mV17.10mV16.90mVPass
Crossload111.31mV9.15mV12.04mV8.92mVPass
Crossload29.46mV8.77mV7.02mV8.46mVPass
Crossload321.12mV8.73mV13.63mV8.00mVPass
Crossload416.57mV11.31mV11.58mV10.98mVPass

The results above are not used in the certification process

PCCooler YT1000

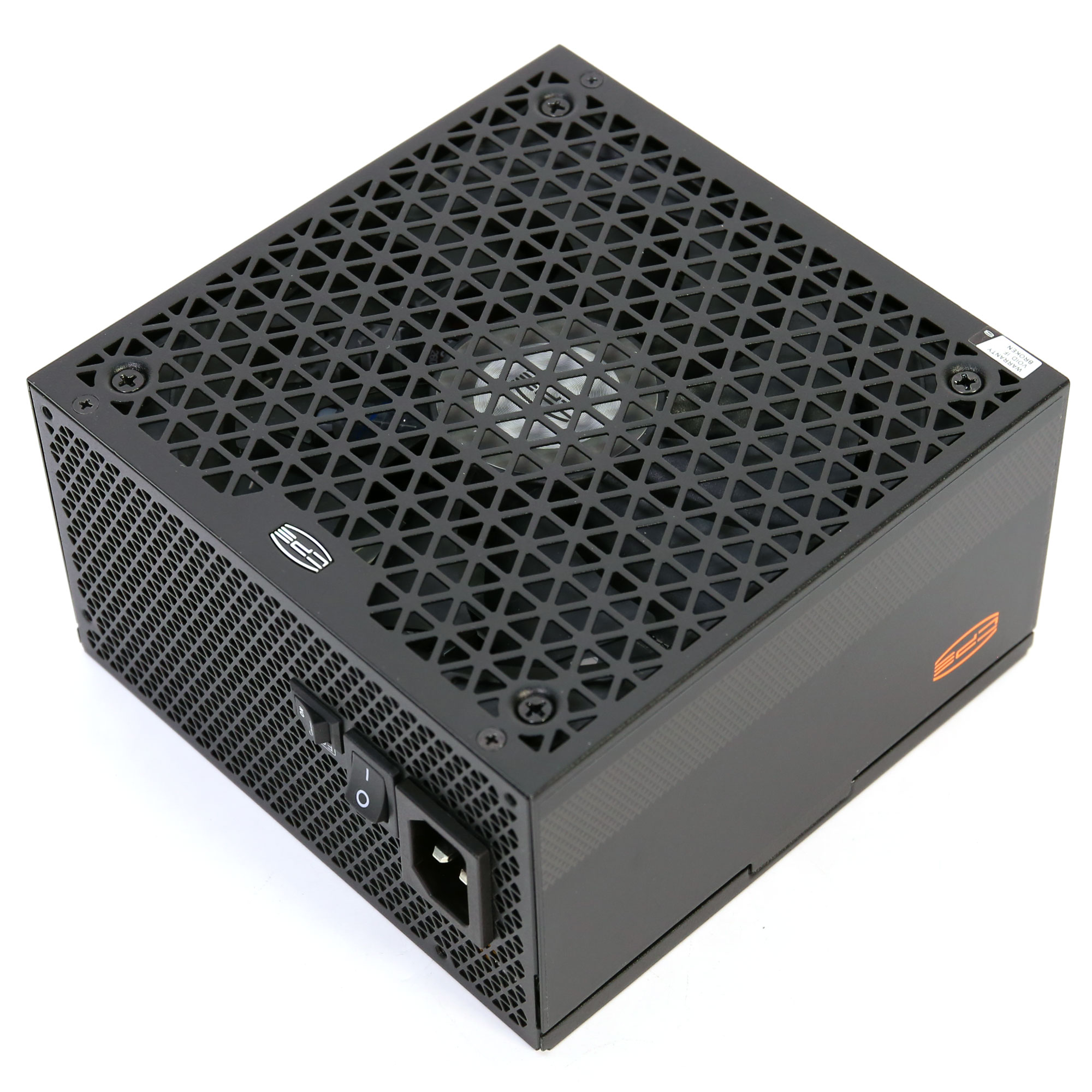

Top side

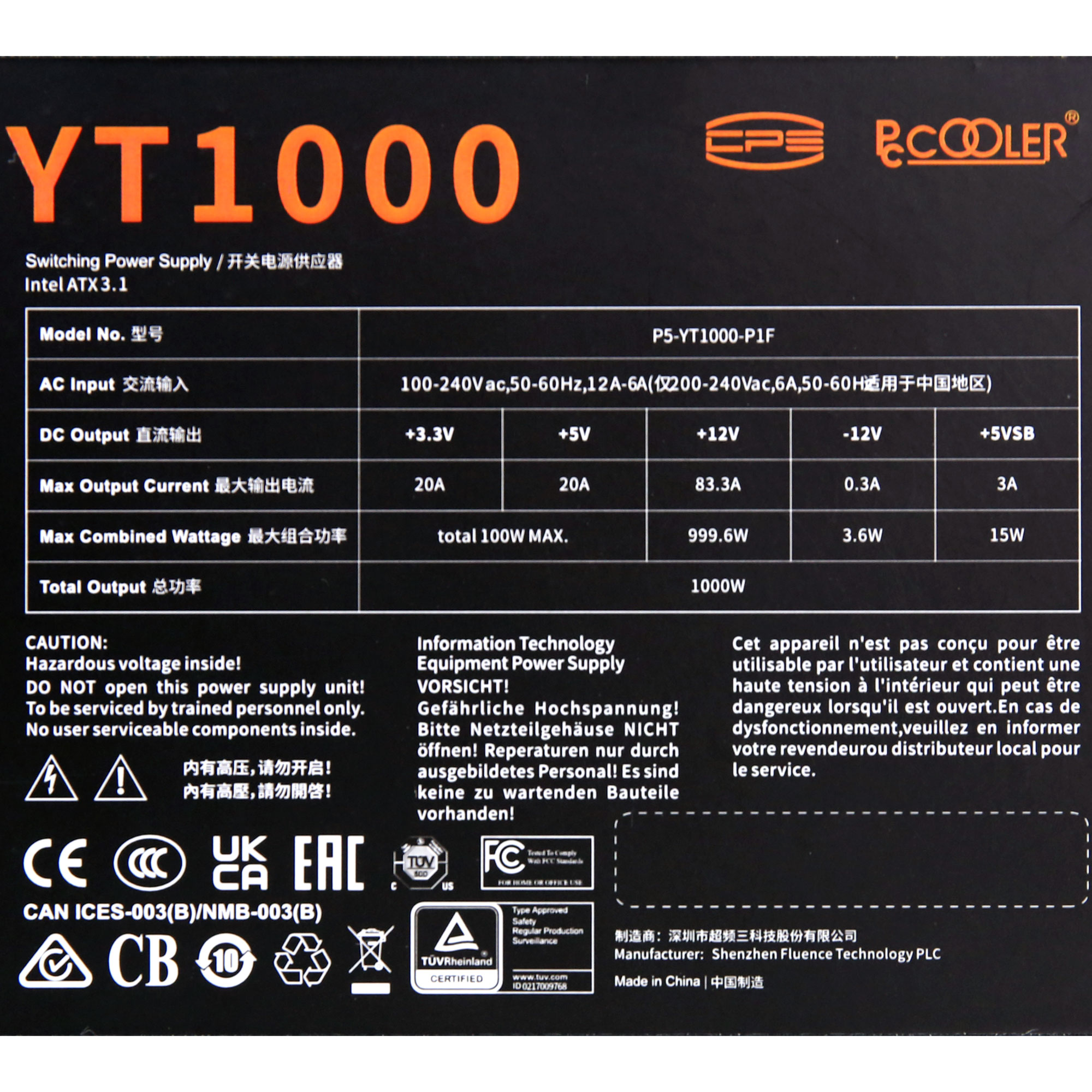

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
