CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Corsair RM1000x Shift (ATX v3.1)
Serial NumberA9H2D5183001EI
Lab IDCR10002873
Certification ID252873
  • Test Result Report ID: 25PS2873A
  • Certificate Issue Date: Jul 10, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Manufacturer (OEM)Great Wall
SeriesRMx Shift
Model NumberRPS0222
Serial NumberA9H2D5183001EI
Fan Report LinkCorsair NR140HP
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Fluid Dynamic Bearing Fan (NR140HP)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330
Watts1201000150
Total Max. Power (W)1000

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (610mm) 1 1 16-20AWG No
4+4 pin ATX12V (650mm) 2 2 18AWG No
6+2 pin PCIe (650mm) 2 2 18AWG No
2x 6+2 pin PCIe (650mm) 2 2 18AWG No
12+2 pin PCIe (655mm) (600W) 1 1 16-24AWG No
SATA (505mm+105mm+105mm) 4 12 18AWG No
4-pin Molex (405mm+105mm+105mm+105mm) 1 4 18AWG No

Parts Description

General Data
Manufacturer (OEM) Great Wall
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK205R0 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)
2x GBU2510 (1000V, 25A @ 90°C)
APFC MOSFETs
2x Infineon IPW60R060P7 (650V, 30A @ 100°C, Rds(on): 0.060Ohm)
APFC Boost Diode
1x ROHM SCS310AH (650V, 10A @ 135°C)
Bulk Cap(s)
1x Rubycon (420V, 470uF, 3000h @ 105°C, MXK)
1x Nichicon (420V, 390uF, 3000h @ 105°C, GN)
Main Switchers
2x ROHM R6035VNX3 (600V, 35A @ 25°C, Rds(on): 0.119Ohm)

PFC/LLC Combo Controller

MPS HR1280
Topology Primary side: Semi-Digital, APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x On-Semi NTMFS5C430NL (40V, 140A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x DMT3004LPS (30V, 17A @ 70°C, Rds(on): 3.8mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
8x Nichicon (10,000h @ 105°C, HW(M))
1x Nichicon (6,000 @ 105°C, HV(M))
1x Rubycon (4-10,000 @ 105°C, YXF)
1x Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
31x FPCAP
Supervisor IC IN1S3151-SAG
IC Driver MPS MP6924B
MCU STMicroelectronics STM32C011F6P3
Fan Model Corsair NR140HP (140mm, 12V, 0.33A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier (Low Side)
1x DMT10H009LPS (100V, 8A @ 70°C, Rds(on): 8mOhm)
Standby PWM Controller Power Integrations TNY288GG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)89.891%
Average Noise Output (>1450 Load Combinations)20.11dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load74.859%
Standby Power Consumption0.0280W
12V Ripple (Full Load)21.97mV
5V Ripple (Full Load)10.75mV
3.3V Ripple (Full Load)11.40mV
5VSB Ripple (Full Load)15.75mV
12V Load Regulation0.81%
5V Load Regulation0.36%
3.3V Load Regulation0.51%
5VSB Load Regulation1.85%
Inrush Current34.160A
Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)91.777%
Average Noise Output (>1450 Load Combinations)19.55dBA
Average PF (>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load78.420%
Standby Power Consumption0.0756W
12V Ripple (Full Load)23.25mV
5V Ripple (Full Load)10.85mV
3.3V Ripple (Full Load)10.59mV
5VSB Ripple (Full Load)16.32mV
12V Load Regulation0.81%
5V Load Regulation0.36%
3.3V Load Regulation0.51%
5VSB Load Regulation1.96%
Inrush Current69.530A
12V Transient Response (200%)11.40V
5V Transient Response (200%)4.858V
3.3V Transient Response (200%)3.184V
5VSB Transient Response (200%)4.849V
Hold-Up Time & Power Ok Signal24.80ms
AC Loss to PWR_OK Hold Up Time21.30ms
PWR_OK Inactive to DC Loss Delay3.50ms
PSU Timings: T1 (20% / 100%)74.0ms63.0ms
PSU Timings: T3 (20% / 100%)121.0ms121.0ms
12V OCP (28.5°C / 42.6°C)100.60A (120.77%), 12.046V99.80A (119.81%), 12.046V
5V OCP (28.5°C / 42.6°C)30.2A (151.00%), 4.985V30A (150.00%), 4.987V
3.3V OCP (28.5°C / 42.6°C)29.7A (148.50%), 3.297V29.6A (148.00%), 3.3V
5VSB OCP (28.5°C / 42.6°C)5.1A (170.00%), 4.994V5.1A (170.00%), 4.996V
OPP (28.94°C / 45.20°C)119.54%117.13%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.8
AC Loss to PWR_OK Hold Up Time (ms)21.3
PWR_OK Inactive to DC Loss Delay (ms)3.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.09 V 115.03 V 113.85 V 115.13 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.415 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.20 % 2.00 % PASS
Real Power: 0.028 W -0.010 W N/A 0.062 W N/A N/A
Apparent Power: 7.952 W 7.669 W N/A 8.271 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.04 V 230.94 V 227.70 V 231.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.076 W 0.037 W N/A 0.148 W N/A N/A
Apparent Power: 25.982 W 25.546 W N/A 26.447 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

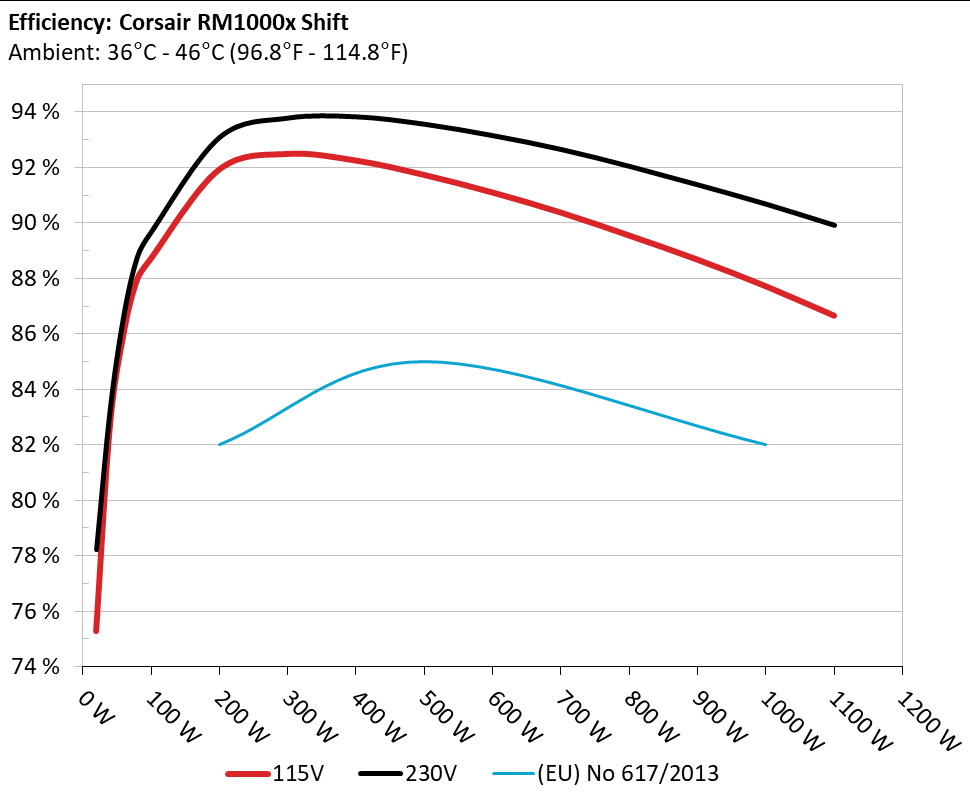

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

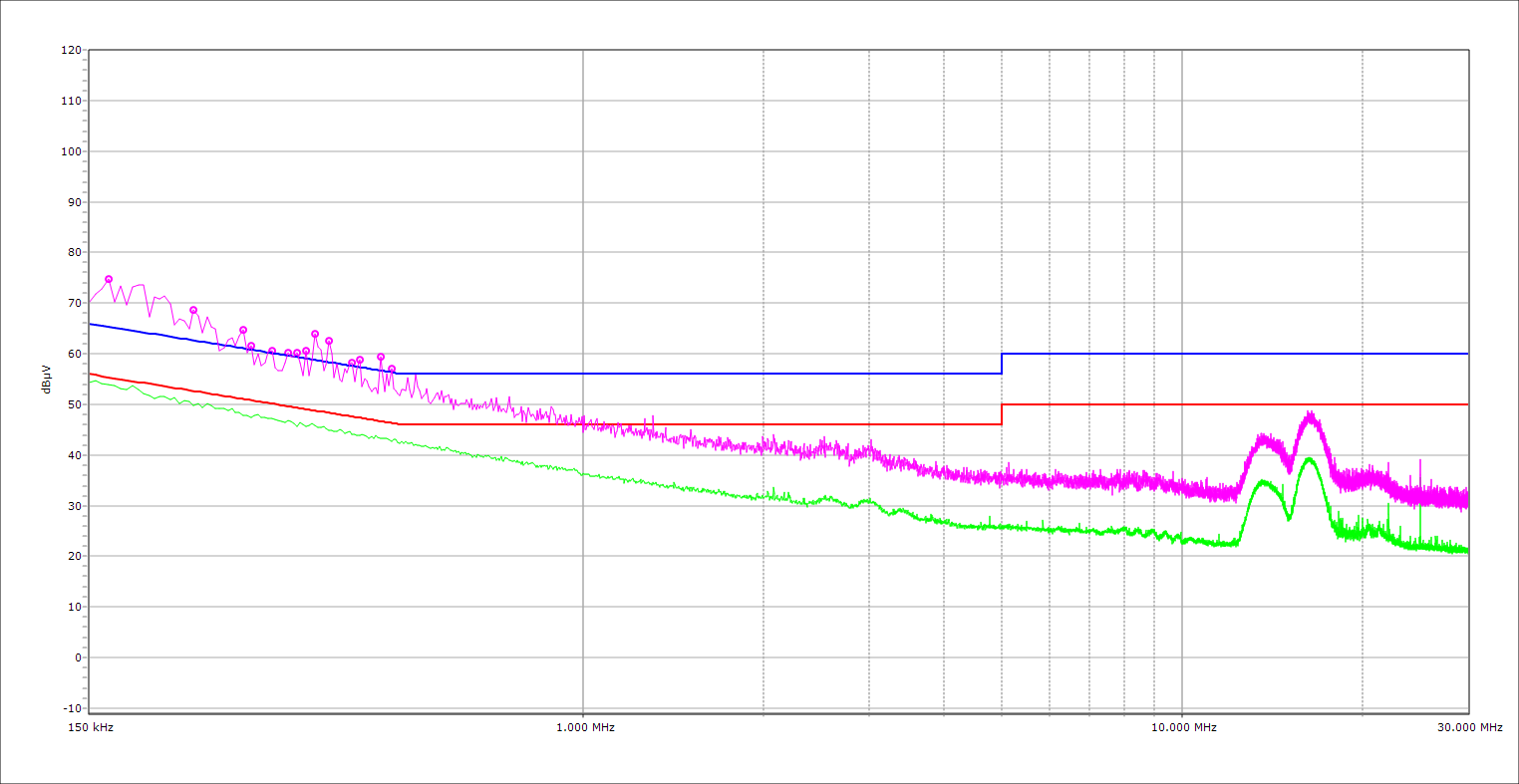

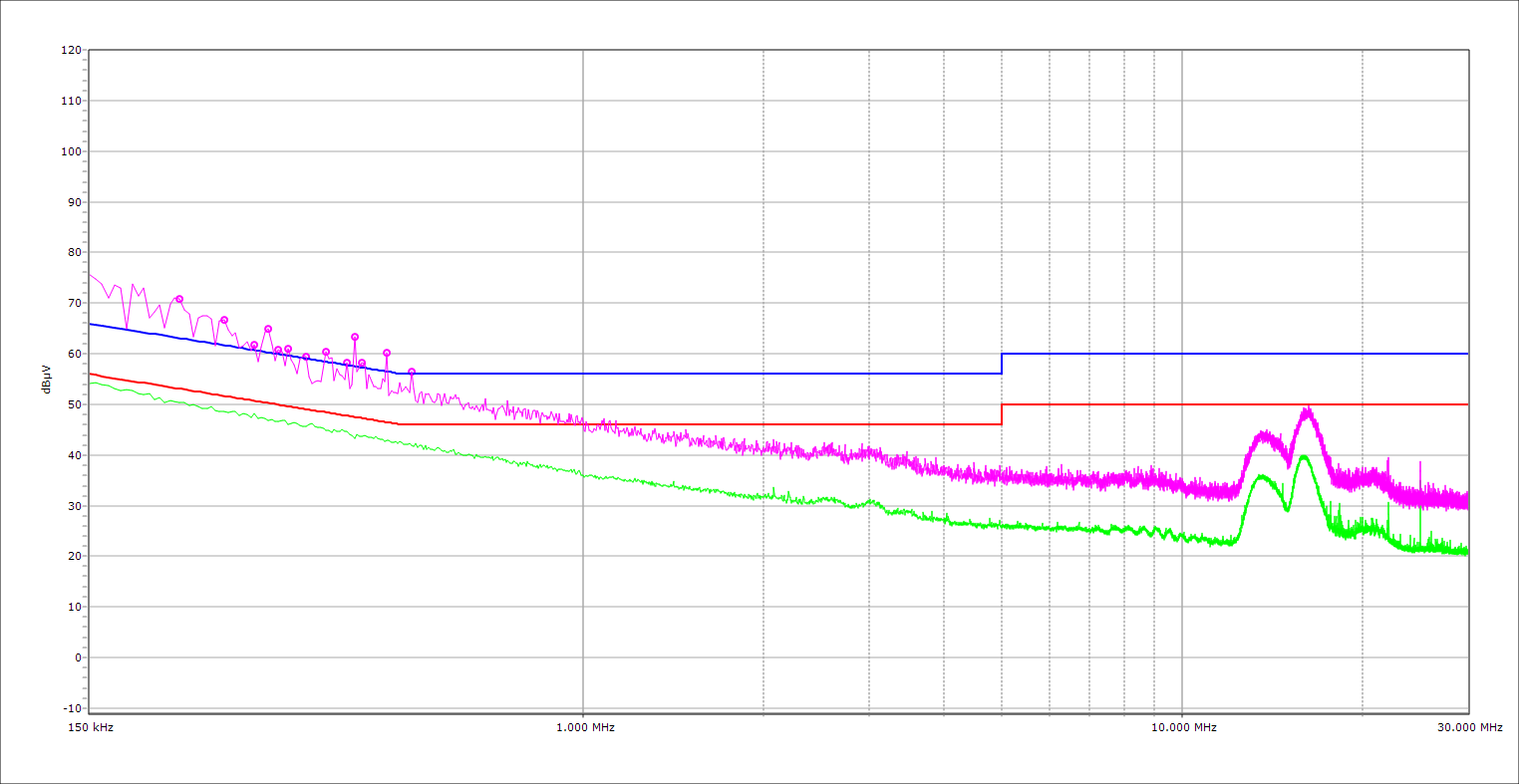

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

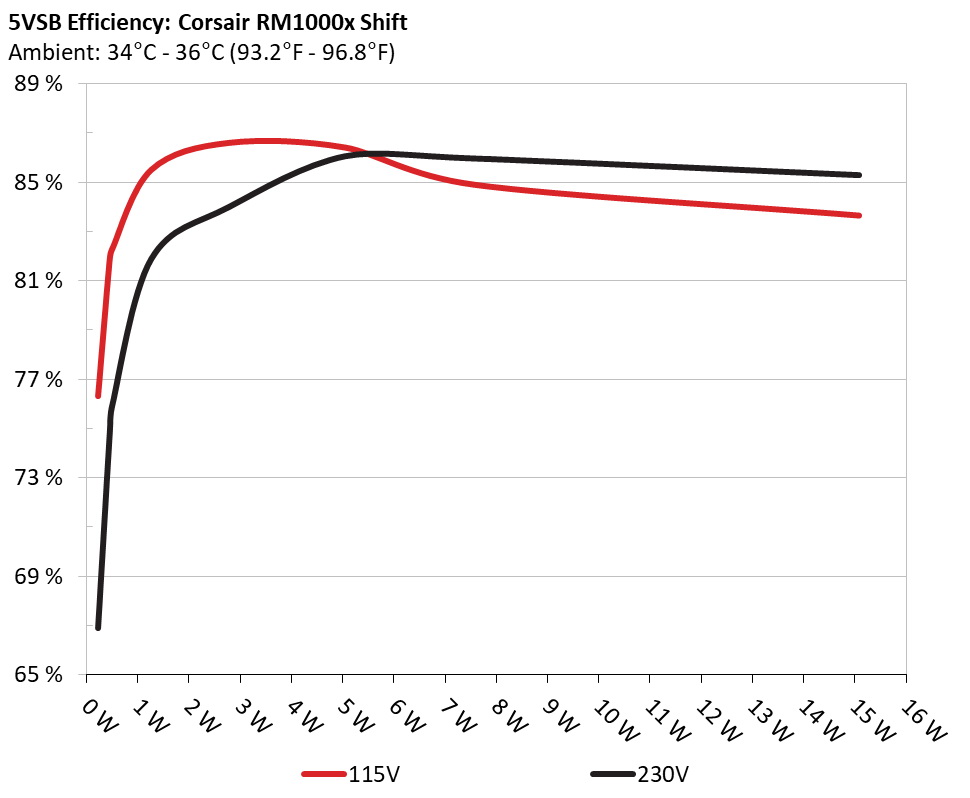

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 76.318% 0.04
5.062V 0.299W 114.95V
2 0.09A 0.456W 81.886% 0.073
5.062V 0.557W 114.96V
3 0.55A 2.782W 86.596% 0.295
5.056V 3.213W 114.97V
4 1A 5.053W 86.405% 0.382
5.051V 5.848W 114.97V
5 1.5A 7.57W 84.899% 0.426
5.046V 8.916W 114.96V
6 3A 15.085W 83.646% 0.485
5.028V 18.034W 114.96V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 66.908% 0.014
5.062V 0.343W 229.97V
2 0.09A 0.456W 74.811% 0.025
5.062V 0.61W 230V
3 0.55A 2.782W 83.983% 0.124
5.057V 3.313W 229.98V
4 1A 5.053W 86.043% 0.198
5.051V 5.873W 229.97V
5 1.501A 7.571W 85.951% 0.258
5.046V 8.81W 229.97V
6 3.001A 15.087W 85.277% 0.353
5.028V 17.69W 229.97V

Protection Features

OCP (Normal @ 28.5°C)12V: 100.60A (120.77%), 12.046V
5V: 30.2A (151.00%), 4.985V
3.3V: 29.7A (148.50%), 3.297V
5VSB: 5.1A (170.00%), 4.994V
OCP (Hot @ 42.6°C)12V: 99.80A (119.81%), 12.046V
5V: 30A (150.00%), 4.987V
3.3V: 29.6A (148.00%), 3.3V
5VSB: 5.1A (170.00%), 4.996V
OPP (Normal @ 28.9°C)1195.43W (119.54%)
OPP (Hot @ 45.2°C)1171.32W (117.13%)
OTP✓ (76°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.486A 2.006A 1.99A 0.991A 100.022 88.724% 0 <6.0 48.72°C 0.948
12.091V 4.986V 3.317V 5.045V 111.605 40.1°C 113.8V
20% 13.994A 3.01A 2.987A 1.191A 199.979 91.937% 0 <6.0 49.05°C 0.97
12.081V 4.984V 3.315V 5.037V 216.134 40.58°C 114.3V
30% 21.866A 3.513A 3.486A 1.392A 300.037 92.503% 0 <6.0 53.22°C 0.98
12.073V 4.983V 3.314V 5.029V 322.065 41.16°C 114.24V
40% 29.732A 4.016A 3.985A 1.594A 399.832 92.266% 0 <6.0 54.07°C 0.991
12.062V 4.982V 3.313V 5.02V 433.398 41.8°C 114.88V
50% 37.266A 5.022A 4.985A 1.796A 499.639 91.751% 419 <6.0 42.3°C 0.996
12.052V 4.98V 3.311V 5.012V 544.512 57.36°C 114.82V
60% 44.872A 6.029A 5.986A 1.999A 600.176 91.113% 419 <6.0 42.83°C 0.997
12.042V 4.978V 3.308V 5.003V 658.148 59.3°C 114.71V
70% 52.422A 7.037A 6.988A 2.203A 699.9 90.392% 617 15.1 43.19°C 0.997
12.033V 4.976V 3.307V 4.995V 774.39 58.95°C 114.78V
80% 60.050A 8.044A 7.99A 2.306A 799.901 89.565% 758 22.3 43.74°C 0.998
12.023V 4.974V 3.304V 4.987V 893.136 60.22°C 114.76V
90% 68.025A 8.549A 8.477A 2.41A 899.684 88.697% 956 29.8 44.92°C 0.998
12.013V 4.972V 3.303V 4.981V 1014.396 61.1°C 114.73V
100% 75.812A 9.055A 8.996A 3.02A 999.699 87.739% 1193 36.2 45.11°C 0.998
12.003V 4.97V 3.301V 4.967V 1139.431 61.69°C 114.7V
110% 83.547A 10.064A 10.092A 3.024A 1100.313 86.671% 1523 42.1 46.42°C 0.998
11.993V 4.968V 3.299V 4.961V 1269.581 62.59°C 114.68V
CL1 0.116A 14.508A 14.406A 0A 121.313 83.182% 416 <6.0 40.29°C 0.961
12.078V 4.977V 3.311V 5.044V 145.741 56.32°C 114.93V
CL2 0.116A 20.096A 0A 0A 101.4 81.681% 1058 32.7 41.79°C 0.954
12.090V 4.976V 3.319V 5.051V 123.62 47.27°C 114.92V
CL3 0.116A 0A 19.961A 0A 67.395 76.59% 741 21.7 41.04°C 0.939
12.090V 4.985V 3.306V 5.051V 87.762 47.07°C 114.67V
CL4 83.245A 0A 0A 0A 1000.155 88.45% 1165 35.4 45.74°C 0.998
12.014V 4.979V 3.308V 5.012V 1130.757 56.63°C 114.72V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.488A 2.007A 1.991A 0.992A 100.047 89.679% 0 <6.0 48.93°C 0.898
12.091V 4.985V 3.316V 5.045V 111.6 40.1°C 229.96V
20% 13.998A 3.011A 2.988A 1.192A 200.017 93.096% 0 <6.0 49.42°C 0.938
12.081V 4.984V 3.315V 5.037V 214.856 40.73°C 229.94V
30% 21.870A 3.514A 3.487A 1.392A 300.086 93.797% 0 <6.0 49.99°C 0.955
12.072V 4.983V 3.313V 5.029V 319.952 41.11°C 229.93V
40% 29.745A 4.017A 3.986A 1.594A 399.979 93.843% 0 <6.0 52.13°C 0.964
12.061V 4.981V 3.312V 5.021V 426.212 41.58°C 229.92V
50% 37.269A 5.023A 4.986A 1.796A 499.715 93.578% 417 <6.0 42.16°C 0.97
12.052V 4.979V 3.31V 5.011V 534.01 53.15°C 229.91V
60% 44.876A 6.03A 5.987A 2A 600.228 93.165% 418 <6.0 42.78°C 0.975
12.043V 4.977V 3.308V 4.981V 644.299 55.19°C 229.9V
70% 52.427A 7.038A 6.989A 2.209A 700.009 92.667% 601 14.1 43.14°C 0.98
12.033V 4.975V 3.306V 4.982V 754.761 55.49°C 229.71V
80% 60.061A 8.046A 7.991A 2.308A 800.05 92.056% 748 22 43.82°C 0.983
12.023V 4.973V 3.304V 4.984V 869.056 56.02°C 229.86V
90% 68.038A 8.552A 8.479A 2.41A 899.857 91.392% 968 30.2 44.62°C 0.986
12.014V 4.971V 3.303V 4.981V 984.588 56.79°C 229.85V
100% 75.829A 9.058A 8.999A 3.027A 999.867 90.694% 1167 35.4 45.2°C 0.988
12.003V 4.97V 3.301V 4.957V 1102.455 57.79°C 229.84V
110% 83.567A 10.067A 10.095A 3.025A 1100.484 89.928% 1478 41.8 46.34°C 0.99
11.992V 4.968V 3.299V 4.96V 1223.719 59.17°C 229.82V
CL1 0.118A 14.511A 14.409A 0A 121.332 84.177% 416 <6.0 40.97°C 0.918
12.076V 4.976V 3.311V 5.038V 144.147 55.98°C 229.94V
CL2 0.116A 20.097A 0A 0A 101.411 82.886% 1064 32.8 41.2°C 0.905
12.086V 4.976V 3.32V 5.05V 122.324 48.45°C 229.97V
CL3 0.116A 0A 19.962A 0A 67.402 77.438% 741 21.7 40.04°C 0.868
12.089V 4.985V 3.306V 5.049V 87.081 47.02°C 230.02V
CL4 83.250A 0A 0A 0A 1000.185 91.403% 1165 35.4 45.57°C 0.987
12.014V 4.979V 3.307V 5.012V 1094.33 53.23°C 229.93V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.501A 0.497A 0.198A 20.009 75.297% 0 <6.0 44.95°C 0.817
12.100V 4.988V 3.318V 5.059V 26.67 37.28°C 114.95V
40W 2.702A 0.702A 0.696A 0.297A 40.006 82.642% 0 <6.0 43.24°C 0.901
12.098V 4.988V 3.318V 5.057V 48.433 37.3°C 114.94V
60W 4.178A 0.903A 0.895A 0.396A 60.004 86.008% 0 <6.0 47.03°C 0.928
12.096V 4.987V 3.318V 5.055V 69.772 38.29°C 114.94V
80W 5.650A 1.103A 1.094A 0.495A 79.968 87.973% 0 <6.0 47.22°C 0.941
12.094V 4.987V 3.317V 5.053V 90.904 39.49°C 114.94V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.501A 0.497A 0.2A 20.01 78.219% 0 <6.0 42.08°C 0.47
12.101V 4.988V 3.318V 4.99V 25.164 36.07°C 229.96V
40W 2.703A 0.702A 0.696A 0.299A 40.012 83.287% 0 <6.0 43.96°C 0.647
12.098V 4.988V 3.318V 5.026V 48.081 37.19°C 229.97V
60W 4.178A 0.903A 0.895A 0.396A 60.012 86.683% 0 <6.0 45.69°C 0.83
12.095V 4.987V 3.318V 5.054V 69.192 38.25°C 229.96V
80W 5.652A 1.104A 1.095A 0.495A 79.991 88.8% 0 <6.0 46.91°C 0.875
12.093V 4.987V 3.317V 5.052V 90.056 39.21°C 229.96V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.60mV8.87mV4.93mV8.25mVPass
20% Load10.38mV8.57mV6.05mV8.40mVPass
30% Load10.84mV10.51mV11.44mV8.66mVPass
40% Load11.19mV11.53mV13.83mV8.61mVPass
50% Load10.33mV9.49mV7.38mV8.15mVPass
60% Load11.14mV9.23mV5.95mV8.81mVPass
70% Load12.52mV8.98mV6.71mV9.73mVPass
80% Load12.87mV10.56mV9.46mV9.38mVPass
90% Load13.74mV10.25mV9.16mV10.50mVPass
100% Load21.97mV10.75mV11.40mV15.75mVPass
110% Load24.46mV10.99mV10.50mV16.00mVPass
Crossload116.39mV10.94mV9.99mV8.32mVPass
Crossload214.60mV8.41mV4.22mV6.67mVPass
Crossload313.94mV11.58mV10.12mV9.43mVPass
Crossload421.66mV9.86mV7.97mV8.31mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.28mV8.82mV4.53mV8.05mVPass
20% Load10.89mV8.37mV5.95mV7.95mVPass
30% Load11.04mV9.23mV7.17mV8.30mVPass
40% Load10.68mV9.90mV8.75mV8.46mVPass
50% Load11.91mV9.03mV6.41mV8.76mVPass
60% Load12.01mV9.34mV6.31mV9.32mVPass
70% Load12.57mV9.64mV6.26mV9.78mVPass
80% Load13.48mV10.76mV9.36mV10.03mVPass
90% Load13.99mV10.00mV8.95mV10.50mVPass
100% Load23.25mV10.85mV10.59mV16.32mVPass
110% Load26.06mV11.03mV10.71mV16.64mVPass
Crossload117.97mV11.22mV9.77mV9.17mVPass
Crossload215.98mV10.15mV5.14mV7.95mVPass
Crossload314.15mV11.27mV10.22mV8.81mVPass
Crossload423.56mV9.64mV8.25mV8.79mVPass

The results above are not used in the certification process

Corsair RM1000x Shift (ATX v3.1)

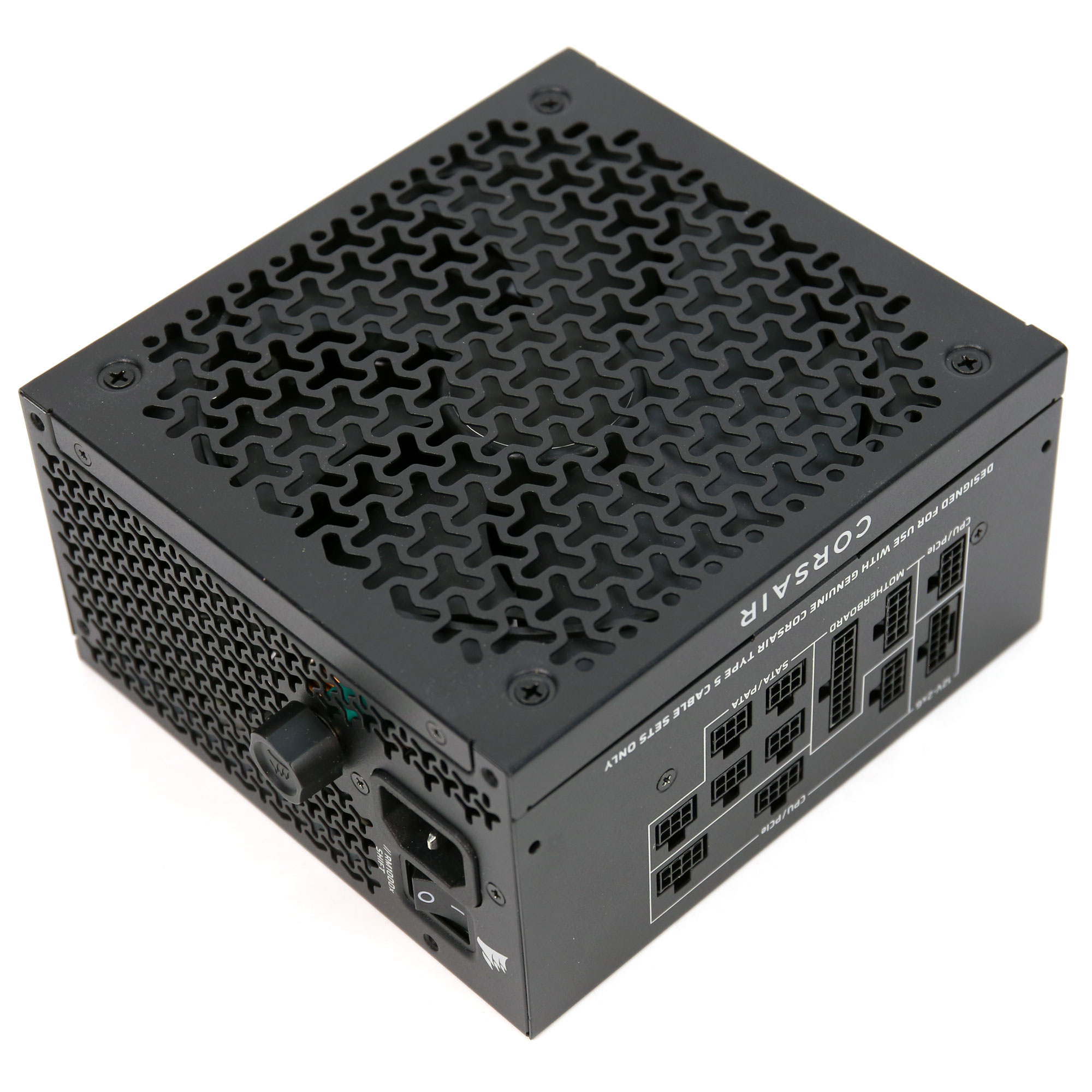

Top side

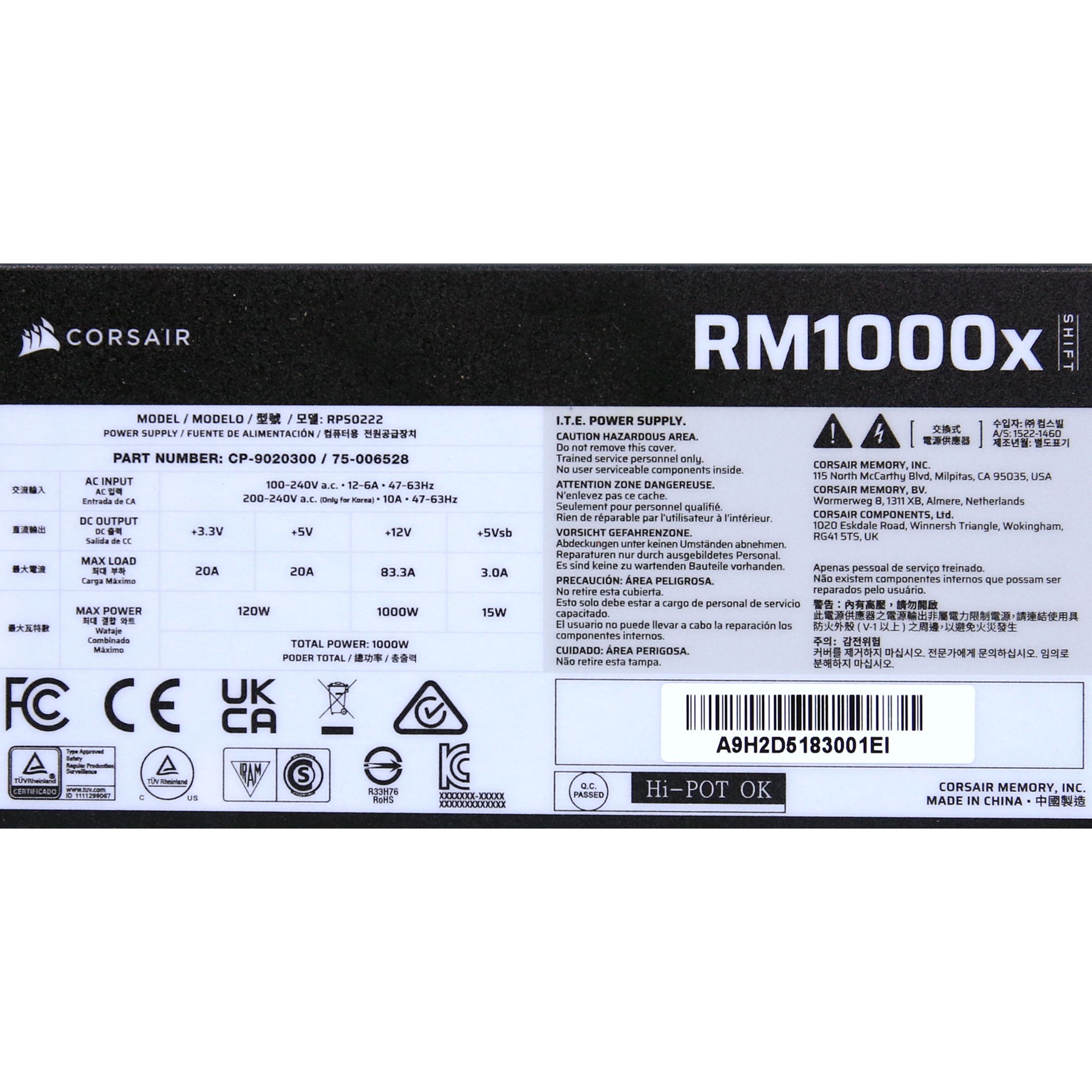

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
