CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Super Flower Zillion 1000W
Serial Number-
Lab IDSF10002951
Certification ID252951
  • Test Result Report ID: 25PS2951A
  • Certificate Issue Date: Sep 9, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesZillion
Model NumberSF-1000Z12FP
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)

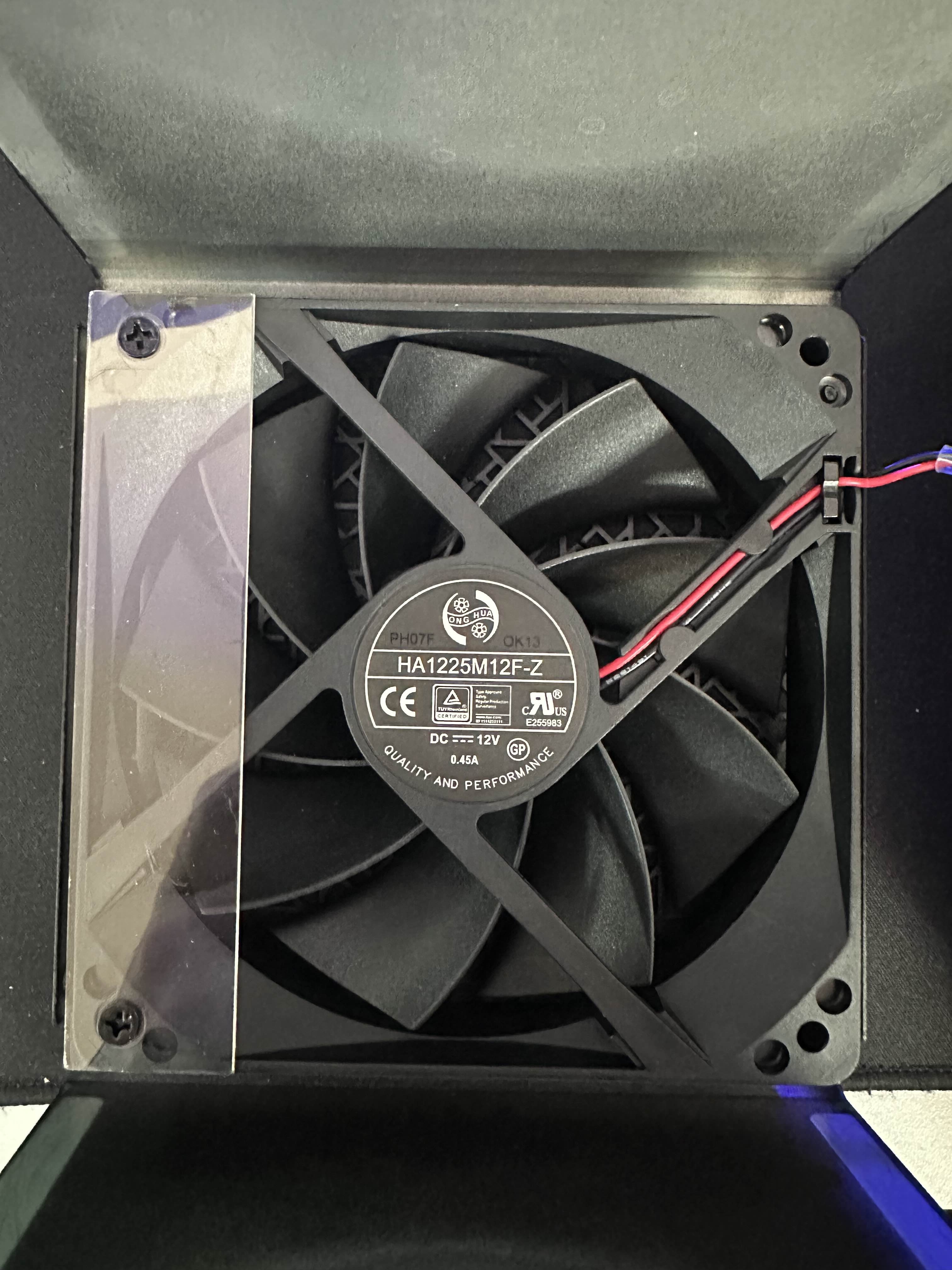

Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-20AWG Tinned Copper
4+4 pin ATX12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 1 2 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 1 1 16AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG Tinned Copper
AC Power Cord (1380mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided

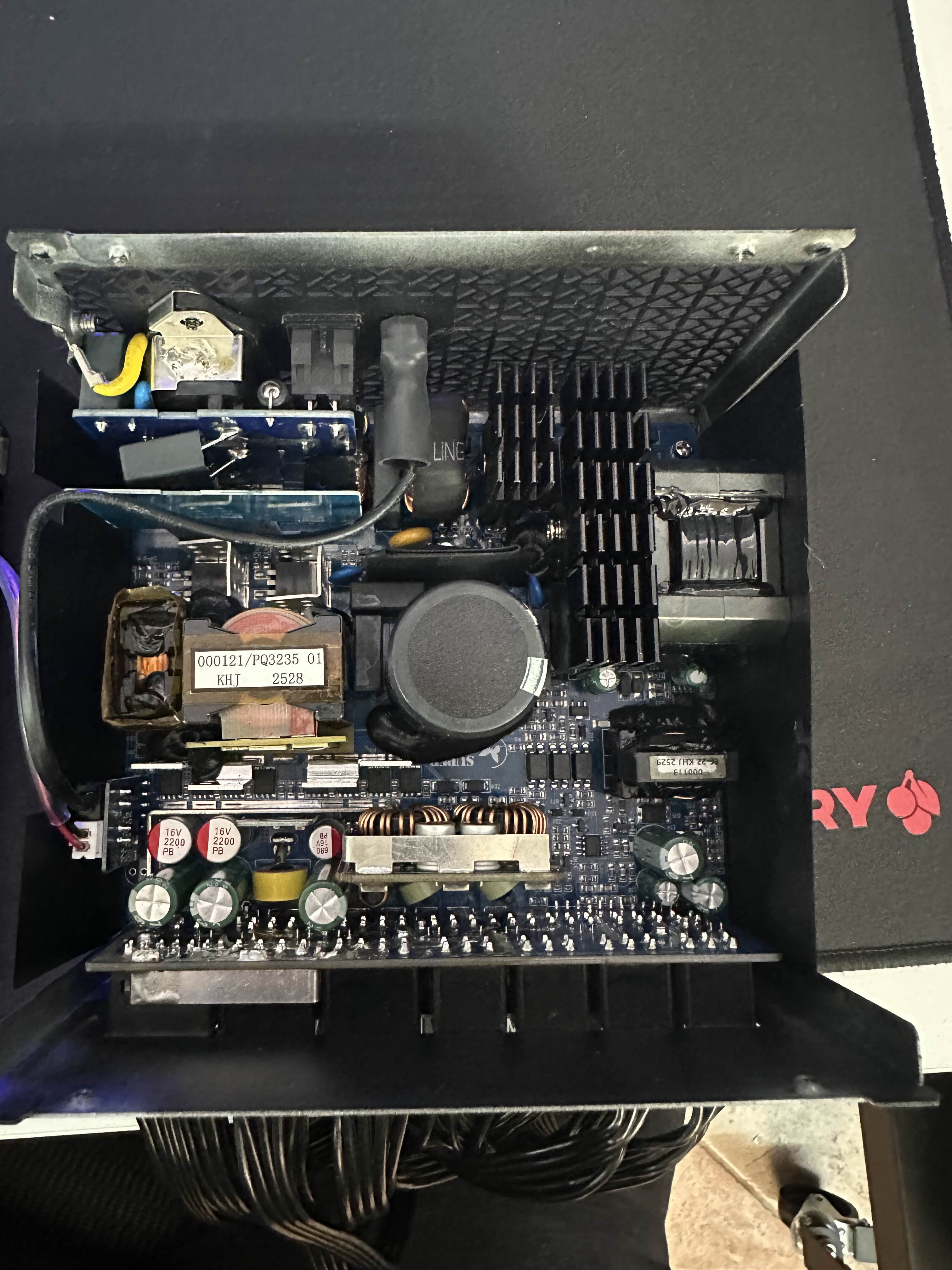

Primary Side
Transient Filter 2x Y caps, 3x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Rectifier MOSFETs
2x Kanghonh PBU1506L (600V, 15A @ 100°C)
APFC MOSFETs
Oriental Semi OSG60R030HT3ZF (600V, 50.6A @ 100°C, Rds(on): 30mOhm)
APFC Boost Diode
Global Power G4S06510HT (650V, 10A @ 134.5°C)
Bulk Cap(s)
TK (420V, 820uF, 2000h @ 105°C, LW)
Main Switchers
2x Sanrise Tech SRC60R068BS (600V, 21.5A @ 125°C, Rds(on): 68mOhm)

APFC Controller

Infineon ICE2PCS01
Resonant Controller
MPS HR1213
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x NKBC PAS40N015CH
5V & 3.3V DC-DC Converters: 4x Maplesemi SLM100N03G
PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
10x TK (@ 105°C, SZ)
Polymer:
11x NJcon, 4x CapXon, 4x ChengX (ZF), 3x ChengX (PB)
Supervisor IC UTC8313F
Fan Model Hong Hua HA1225M12F-Z (125mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier (High Side)
Dongke DK5V60R10V (60V, 10mOhm)
Standby PWM Controller
Esthome EST.3017MS

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.231%
Average Noise Output (>1450 Load Combinations)25.05dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load66.750%
Standby Power Consumption0.0101W
12V Ripple (Full Load)46.95mV
5V Ripple (Full Load)24.55mV
3.3V Ripple (Full Load)25.47mV
5VSB Ripple (Full Load)15.14mV
12V Load Regulation0.52%
5V Load Regulation1.32%
3.3V Load Regulation2.42%
5VSB Load Regulation2.78%
Inrush Current34.210A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.951%
Average Noise Output (>1450 Load Combinations)25.58dBA
Average PF (>1450 Load Combinations)0.937
Efficiency With 10W (≤500W) or 2% (>500W) Load67.679%
Standby Power Consumption0.0758W
12V Ripple (Full Load)42.63mV
5V Ripple (Full Load)23.14mV
3.3V Ripple (Full Load)25.07mV
5VSB Ripple (Full Load)16.37mV
12V Load Regulation0.53%
5V Load Regulation0.95%
3.3V Load Regulation2.23%
5VSB Load Regulation2.76%
Inrush Current68.690A
12V Transient Response (200%)11.38V
5V Transient Response (200%)4.878V
3.3V Transient Response (200%)3.160V
5VSB Transient Response (200%)4.970V
Hold-Up Time & Power Ok Signal23.30ms
AC Loss to PWR_OK Hold Up Time21.40ms
PWR_OK Inactive to DC Loss Delay1.90ms
PSU Timings: T1 (20% / 100%)118.0ms117.0ms
PSU Timings: T3 (20% / 100%)109.0ms109.0ms
12V OCP (29.8°C / 44.1°C)108.90A (130.73%), 12.120V101.70A (122.09%), 12.120V
5V OCP (29.8°C / 44.1°C)29.6A (148.00%), 4.917V27.3A (136.50%), 4.908V
3.3V OCP (29.8°C / 44.1°C)26A (130.00%), 3.224V25.5A (127.50%), 3.229V
5VSB OCP (29.8°C / 44.1°C)4.7A (156.67%), 4.979V4.6A (153.33%), 4.98V
OPP (29.78°C / 43.84°C)129.51%121.06%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.3
AC Loss to PWR_OK Hold Up Time (ms)21.4
PWR_OK Inactive to DC Loss Delay (ms)1.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.84 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.19 % 2.00 % PASS
Real Power: 0.010 W -0.005 W N/A 0.026 W N/A N/A
Apparent Power: 12.204 W 12.169 W N/A 12.245 W N/A N/A
Power Factor: 0.000 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.92 V 229.85 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.12 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.076 W 0.033 W N/A 0.229 W N/A N/A
Apparent Power: 41.373 W 41.324 W N/A 41.430 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

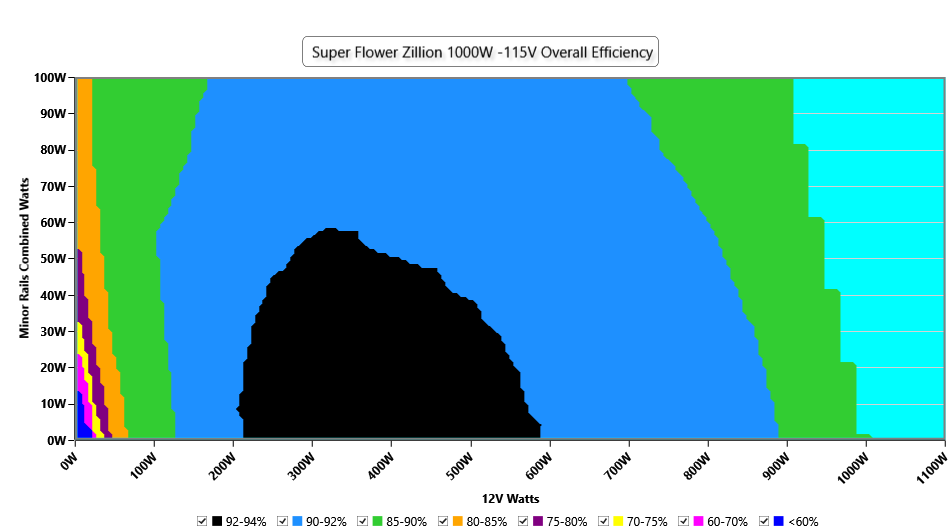

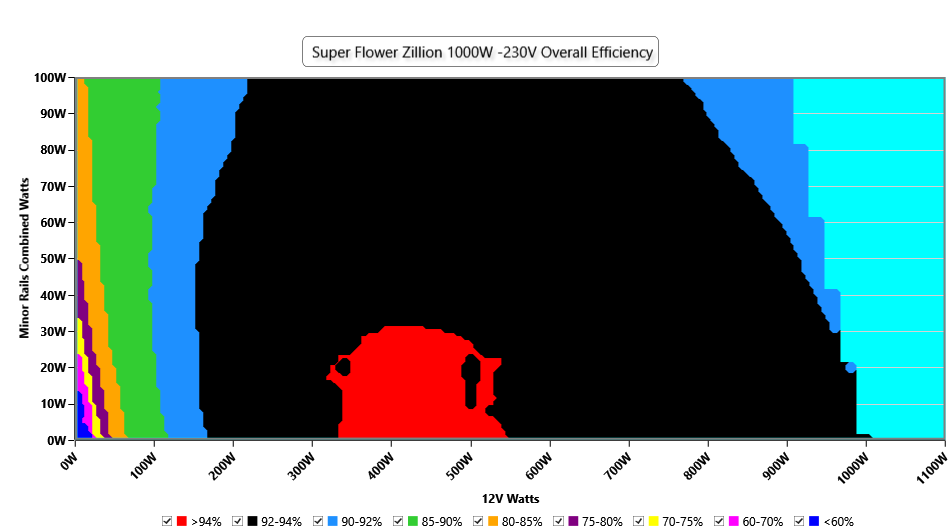

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

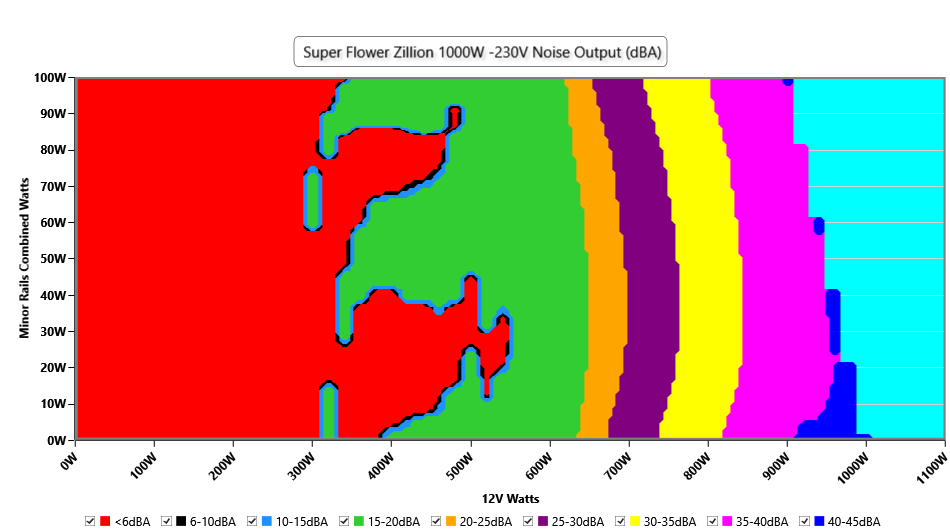

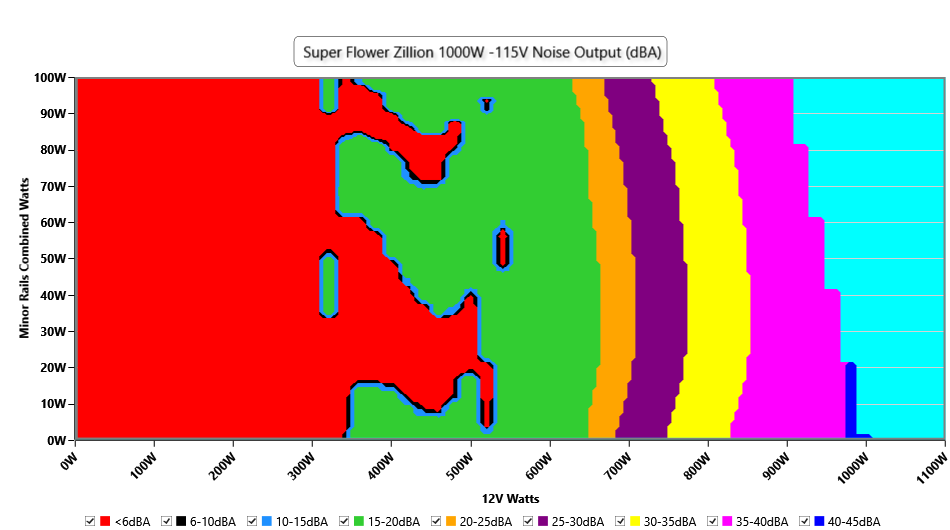

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

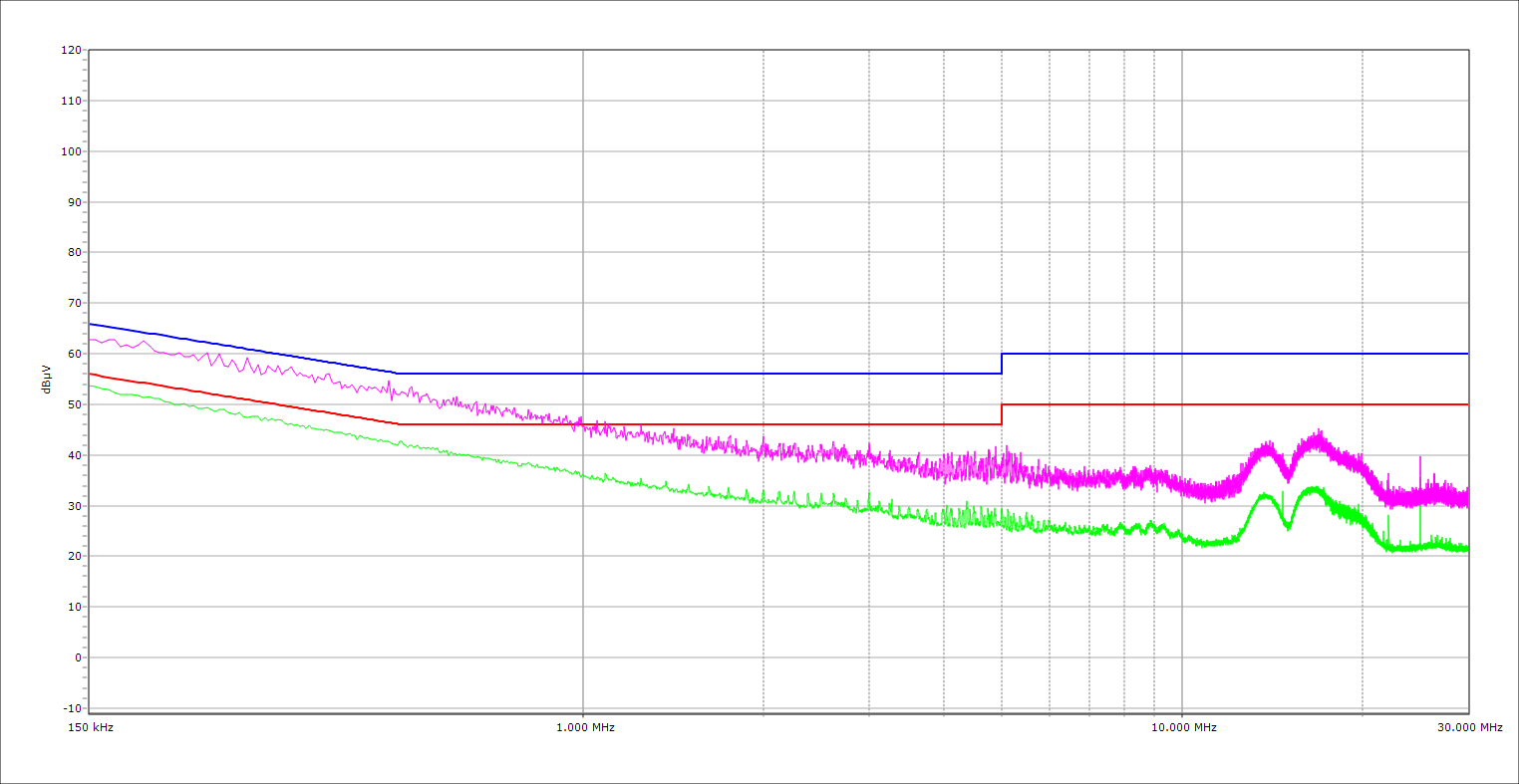

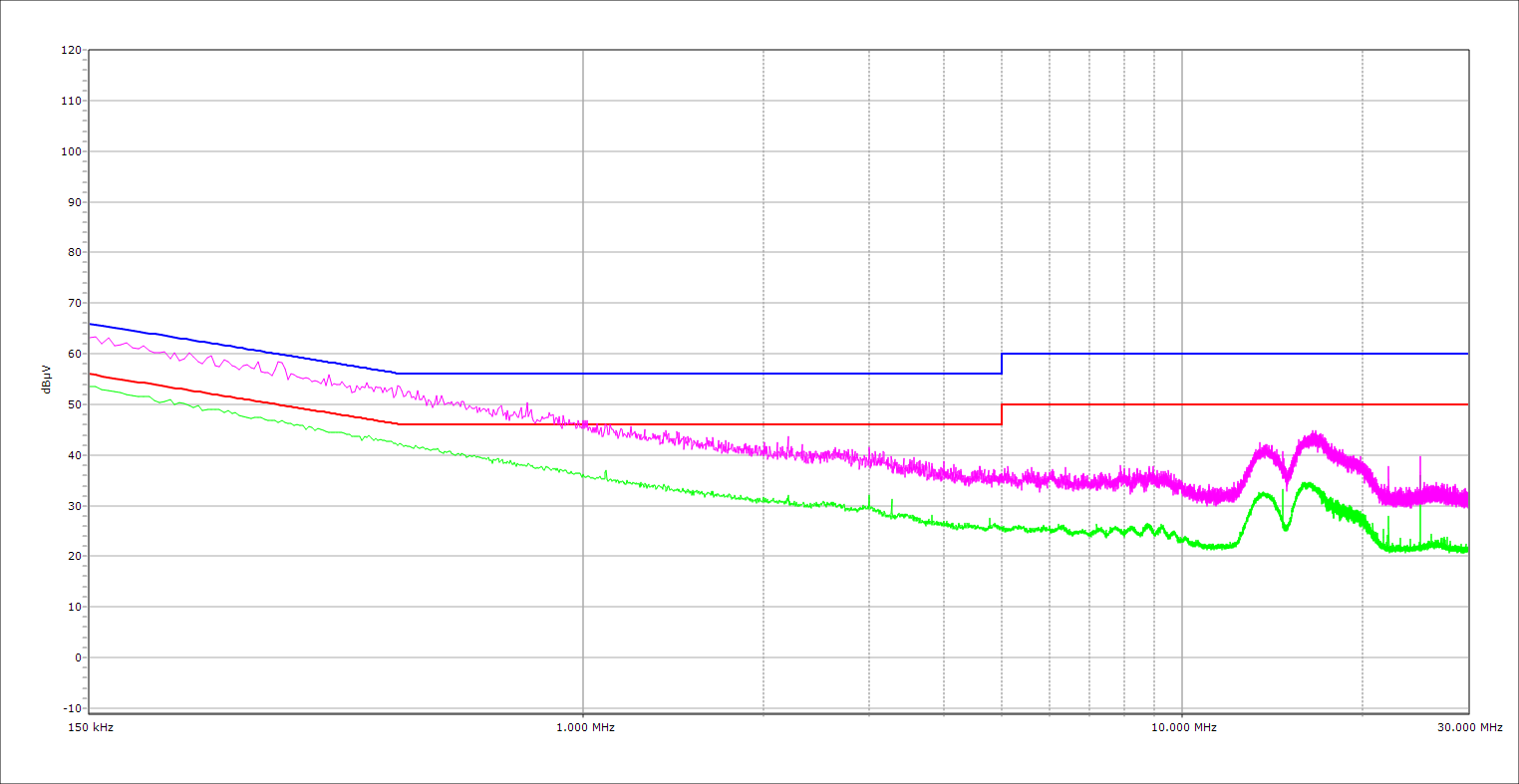

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

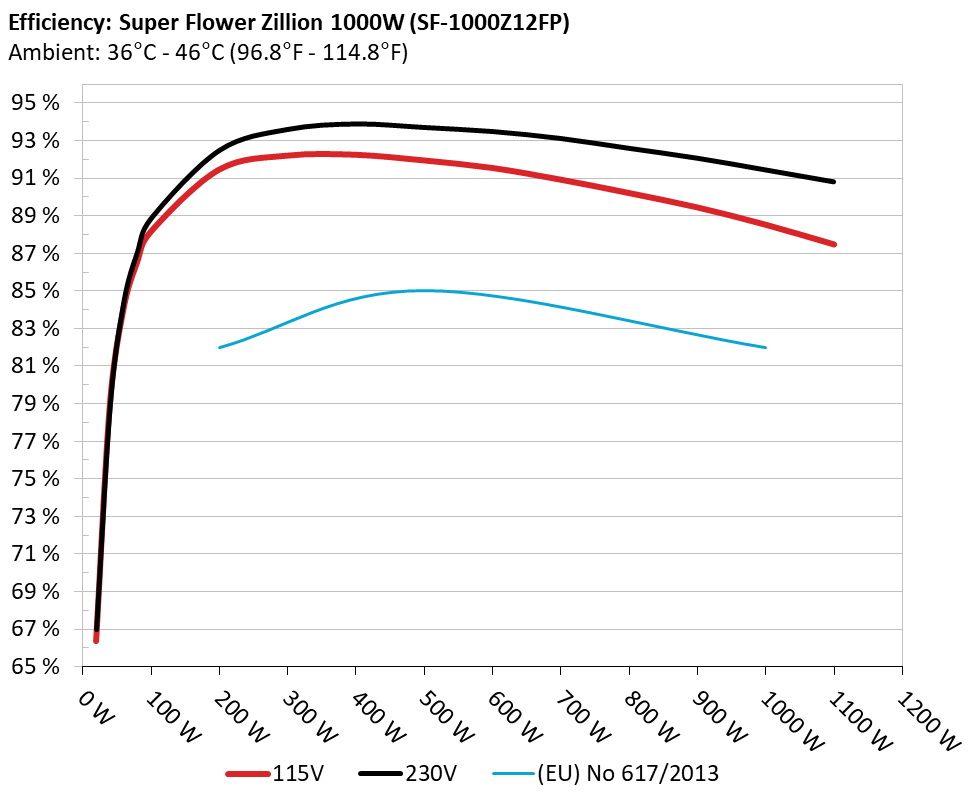

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

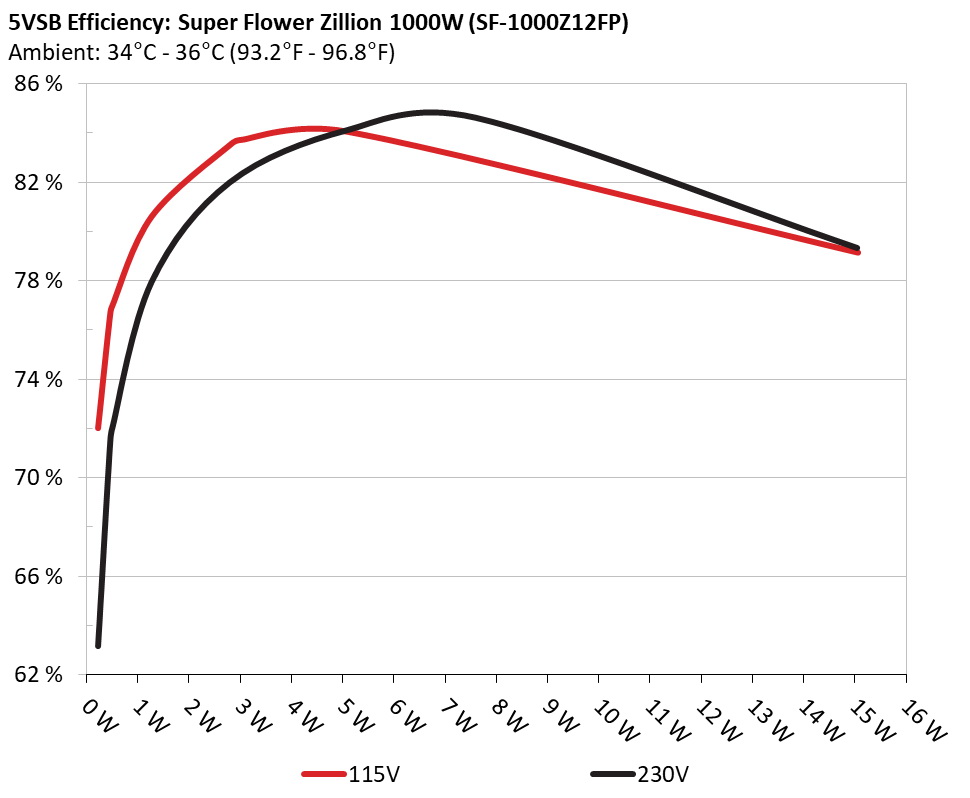

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 72.024% 0.028
5.106V 0.319W 115.04V
2 0.09A 0.46W 76.547% 0.051
5.105V 0.601W 115.04V
3 0.55A 2.8W 83.522% 0.22
5.091V 3.352W 115.04V
4 1A 5.078W 84.072% 0.296
5.078V 6.04W 115.04V
5 0.6A 3.054W 83.743% 0.231
5.09V 3.647W 115.03V
6 3A 15.054W 79.155% 0.409
5.018V 19.018W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 63.17% 0.01
5.107V 0.364W 229.99V
2 0.09A 0.459W 71.217% 0.017
5.105V 0.645W 229.99V
3 0.55A 2.799W 81.998% 0.085
5.091V 3.413W 229.99V
4 1A 5.076W 84.112% 0.139
5.078V 6.036W 229.98V
5 1.5A 7.596W 84.629% 0.184
5.065V 8.975W 229.99V
6 2.999A 15.051W 79.341% 0.281
5.019V 18.97W 229.99V

Protection Features

OCP (Normal @ 29.8°C)12V: 108.90A (130.73%), 12.120V
5V: 29.6A (148.00%), 4.917V
3.3V: 26A (130.00%), 3.224V
5VSB: 4.7A (156.67%), 4.979V
OCP (Hot @ 44.1°C)12V: 101.70A (122.09%), 12.120V
5V: 27.3A (136.50%), 4.908V
3.3V: 25.5A (127.50%), 3.229V
5VSB: 4.6A (153.33%), 4.98V
OPP (Normal @ 29.8°C)1295.09W (129.51%)
OPP (Hot @ 43.8°C)1210.61W (121.06%)
OTP✓ (121°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.442A 2.003A 1.982A 0.985A 99.996 88.161% 0 <6.0 49.4°C 0.921
12.169V 4.993V 3.33V 5.076V 113.424 40.35°C 115.01V
20% 13.899A 3.009A 2.981A 1.185A 199.949 91.468% 0 <6.0 51.24°C 0.969
12.162V 4.986V 3.321V 5.064V 218.602 40.61°C 114.97V
30% 21.713A 3.514A 3.484A 1.385A 300.001 92.214% 0 <6.0 54.4°C 0.983
12.156V 4.98V 3.315V 5.053V 325.336 41.29°C 114.94V
40% 29.496A 4.02A 3.99A 1.587A 399.567 92.26% 836 18.4 41.6°C 0.989
12.149V 4.975V 3.309V 5.042V 433.094 56.3°C 114.91V
50% 36.954A 5.03A 4.998A 1.79A 499.283 91.962% 832 18.5 42.38°C 0.992
12.144V 4.971V 3.302V 5.03V 542.924 52.51°C 114.87V
60% 44.489A 6.045A 6.014A 1.993A 599.837 91.557% 913 21.3 42.96°C 0.993
12.138V 4.964V 3.293V 5.018V 655.147 53.86°C 114.83V
70% 51.969A 7.063A 7.038A 2.198A 699.6 90.935% 1268 30.7 43.42°C 0.994
12.132V 4.956V 3.283V 5.006V 769.352 53.9°C 114.79V
80% 59.520A 8.081A 8.066A 2.302A 799.596 90.223% 1602 38 43.65°C 0.995
12.126V 4.949V 3.273V 4.996V 886.245 54.2°C 114.75V
90% 67.408A 8.596A 8.572A 2.406A 899.382 89.462% 1911 42.1 44.8°C 0.995
12.119V 4.943V 3.267V 4.987V 1005.323 54.27°C 114.71V
100% 75.108A 9.111A 9.112A 3.022A 999.372 88.54% 1919 42.2 45.46°C 0.995
12.112V 4.938V 3.26V 4.964V 1128.725 56.61°C 114.67V
110% 82.750A 10.144A 10.253A 3.026A 1099.977 87.484% 1924 42.4 46.16°C 0.994
12.105V 4.928V 3.248V 4.957V 1257.347 59.65°C 114.63V
CL1 0.115A 12.181A 12.181A 0A 101.3 82.715% 839 18.6 41.55°C 0.926
12.165V 4.941V 3.259V 5.094V 122.473 47.91°C 115V
CL2 0.115A 20.354A 0A 0A 101.338 82.195% 0 <6.0 45.3°C 0.925
12.166V 4.91V 3.322V 5.096V 123.291 40.62°C 115V
CL3 0.114A 0A 20.531A 0A 67.398 74.708% 0 <6.0 48.89°C 0.899
12.164V 4.966V 3.215V 5.096V 90.216 40.69°C 115.01V
CL4 82.521A 0A 0A 0A 999.946 89.249% 1917 42.1 45.83°C 0.995
12.118V 4.973V 3.31V 5.054V 1120.413 55.86°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.444A 2A 1.981A 0.985A 100.021 88.515% 0 <6.0 44.4°C 0.786
12.170V 5V 3.333V 5.075V 112.999 40.4°C 229.98V
20% 13.900A 3.003A 2.978A 1.185A 199.986 92.455% 0 <6.0 45.91°C 0.891
12.164V 4.995V 3.325V 5.063V 216.309 40.66°C 229.97V
30% 21.715A 3.507A 3.481A 1.386A 300.054 93.571% 0 <6.0 49.17°C 0.934
12.158V 4.991V 3.319V 5.052V 320.666 41.03°C 229.95V
40% 29.502A 4.012A 3.985A 1.587A 399.708 93.862% 0 <6.0 52.36°C 0.957
12.151V 4.986V 3.313V 5.041V 425.846 41.67°C 229.93V
50% 36.961A 5.019A 4.993A 1.79A 499.408 93.677% 838 18.5 42.16°C 0.968
12.145V 4.982V 3.305V 5.029V 533.119 52.68°C 229.91V
60% 44.488A 6.027A 6.004A 1.994A 599.906 93.461% 937 23.6 42.92°C 0.975
12.140V 4.979V 3.299V 5.017V 641.881 49.55°C 229.89V
70% 51.955A 7.038A 7.021A 2.198A 699.588 93.093% 1258 31.1 43.22°C 0.978
12.135V 4.974V 3.291V 5.006V 751.493 50.07°C 229.88V
80% 59.498A 8.048A 8.044A 2.302A 799.579 92.57% 1586 37.7 43.93°C 0.979
12.130V 4.969V 3.282V 4.996V 863.76 50.65°C 229.86V
90% 67.380A 8.557A 8.546A 2.406A 899.367 92.046% 1903 42 44.74°C 0.98
12.124V 4.966V 3.277V 4.987V 977.083 50.51°C 229.84V
100% 75.074A 9.067A 9.083A 3.022A 999.36 91.425% 1923 42.3 45.38°C 0.98
12.117V 4.962V 3.27V 4.964V 1093.097 51.77°C 229.82V
110% 82.711A 10.086A 10.217A 3.026A 1099.98 90.786% 1928 42.7 46.34°C 0.98
12.110V 4.956V 3.259V 4.957V 1211.617 53.55°C 229.8V
CL1 0.116A 12.103A 12.14A 0A 101.302 83.103% 843 18.8 41.7°C 0.801
12.165V 4.973V 3.271V 5.094V 121.899 48.69°C 229.98V
CL2 0.115A 20.207A 0A 0A 101.341 82.682% 0 <6.0 41.67°C 0.801
12.166V 4.946V 3.321V 5.096V 122.568 39.61°C 229.98V
CL3 0.114A 0A 20.522A 0A 67.399 74.941% 0 <6.0 41.73°C 0.738
12.164V 4.969V 3.216V 5.096V 89.939 37.63°C 229.98V
CL4 82.501A 0A 0A 0A 999.947 92.106% 1919 42.2 45.41°C 0.98
12.120V 4.975V 3.31V 5.053V 1085.646 50.39°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.5A 0.494A 0.196A 20.002 66.352% 0 <6.0 43.57°C 0.762
12.174V 5.003V 3.339V 5.102V 30.146 36.03°C 115.03V
40W 2.686A 0.7A 0.692A 0.294A 40 78.883% 0 <6.0 45.19°C 0.842
12.173V 5.001V 3.337V 5.098V 50.71 37.39°C 115.03V
60W 4.152A 0.9A 0.89A 0.393A 59.999 84.048% 0 <6.0 46.19°C 0.881
12.172V 5V 3.337V 5.094V 71.385 38.22°C 115.02V
80W 5.614A 1.1A 1.088A 0.491A 79.947 86.527% 0 <6.0 48.46°C 0.901
12.171V 4.998V 3.335V 5.09V 92.394 39.44°C 115.02V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.499A 0.494A 0.196A 20.001 66.953% 0 <6.0 38.41°C 0.441
12.181V 5.009V 3.343V 5.101V 29.873 36.11°C 229.98V
40W 2.685A 0.699A 0.692A 0.294A 40.004 78.883% 0 <6.0 38.7°C 0.581
12.176V 5.007V 3.34V 5.097V 50.715 37.88°C 229.99V
60W 4.150A 0.899A 0.889A 0.393A 60.005 84.385% 0 <6.0 39.55°C 0.678
12.174V 5.006V 3.34V 5.093V 71.108 38.15°C 229.98V
80W 5.614A 1.099A 1.088A 0.491A 79.963 87.048% 0 <6.0 42.29°C 0.741
12.172V 5.004V 3.338V 5.09V 91.863 39.2°C 229.98V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load18.83mV17.11mV18.16mV19.13mVPass
20% Load18.52mV16.30mV18.16mV18.72mVPass
30% Load21.64mV17.52mV19.08mV18.82mVPass
40% Load24.87mV18.39mV20.31mV18.72mVPass
50% Load28.19mV19.42mV21.13mV18.05mVPass
60% Load30.70mV21.41mV21.79mV18.67mVPass
70% Load32.59mV21.10mV22.10mV16.63mVPass
80% Load36.73mV23.71mV26.50mV18.21mVPass
90% Load42.10mV26.62mV26.70mV18.21mVPass
100% Load46.95mV24.55mV25.47mV15.14mVPass
110% Load54.71mV25.22mV25.93mV15.38mVPass
Crossload117.64mV18.00mV18.66mV18.00mVPass
Crossload220.98mV26.82mV20.10mV19.54mVPass
Crossload319.49mV17.52mV22.15mV18.93mVPass
Crossload445.43mV21.70mV23.77mV18.33mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.29mV17.98mV17.18mV20.15mVPass
20% Load19.24mV18.44mV18.67mV22.00mVPass
30% Load21.49mV17.78mV18.98mV19.64mVPass
40% Load24.66mV18.34mV20.62mV19.03mVPass
50% Load26.50mV19.67mV23.12mV18.36mVPass
60% Load28.19mV20.69mV21.74mV18.98mVPass
70% Load29.83mV21.46mV23.17mV19.18mVPass
80% Load33.10mV23.60mV24.30mV19.18mVPass
90% Load37.60mV25.49mV25.58mV18.26mVPass
100% Load42.63mV23.14mV25.07mV16.37mVPass
110% Load45.75mV24.89mV27.01mV16.64mVPass
Crossload118.11mV17.16mV18.56mV18.50mVPass
Crossload221.44mV25.29mV20.00mV19.23mVPass
Crossload320.31mV17.93mV24.35mV20.10mVPass
Crossload440.27mV22.82mV23.51mV18.17mVPass

The results above are not used in the certification process

Super Flower Zillion 1000W

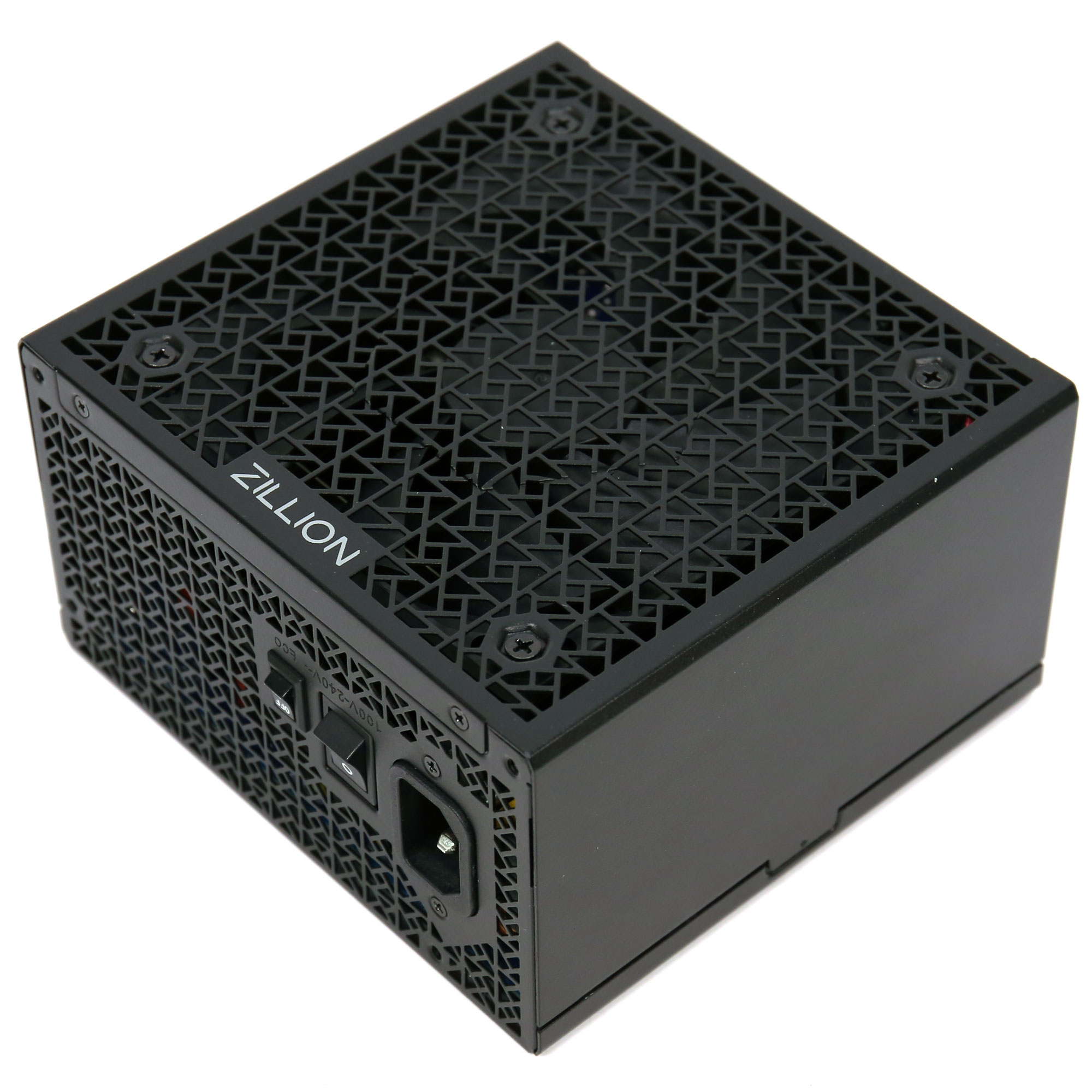

Top side
Power specifications label
Third Photo
Fourth Photo
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
