GREEN MEDEL EDGE 1650W
Serial Number-
Lab IDGE16502991
Certification ID252991
  • Test Result Report ID: 25PS2991A
  • Certificate Issue Date: Oct 8, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandGREEN MEDEL
Manufacturer (OEM)High Power
SeriesEDGE
Model NumberGP1650B-EDGE
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)115-240
Rated Current (Arms)10-16
Rated Frequency (Hz)50-60
Rated Power (W)1650
TypeATX12V
Dimensions (W x H x D)

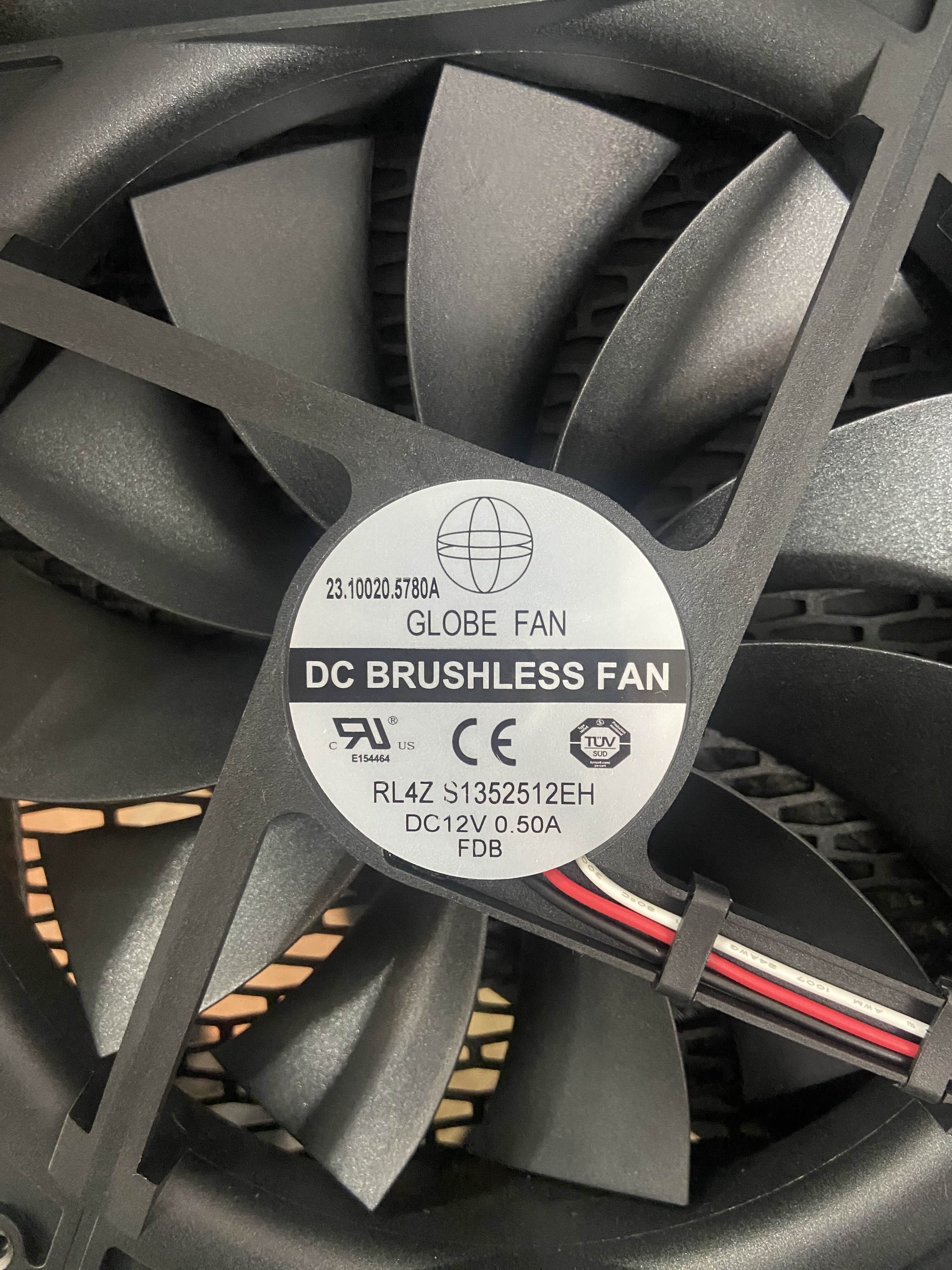

Cooling135mm Fluid Dynamic Bearing Fan (S1352512EH)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2222137.530.5
Watts1201650156
Total Max. Power (W)1650

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16AWG Tinned Copper
4+4 pin ATX12V (700mm) 3 3 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 4 8 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 2 2 16AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 2 2 16-24AWG Tinned Copper
SATA (550mm+150mm+150mm+150mm) 4 16 18AWG Tinned Copper
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
AC Power Cord (1350mm) - C19 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
PCB Type Double-Sided

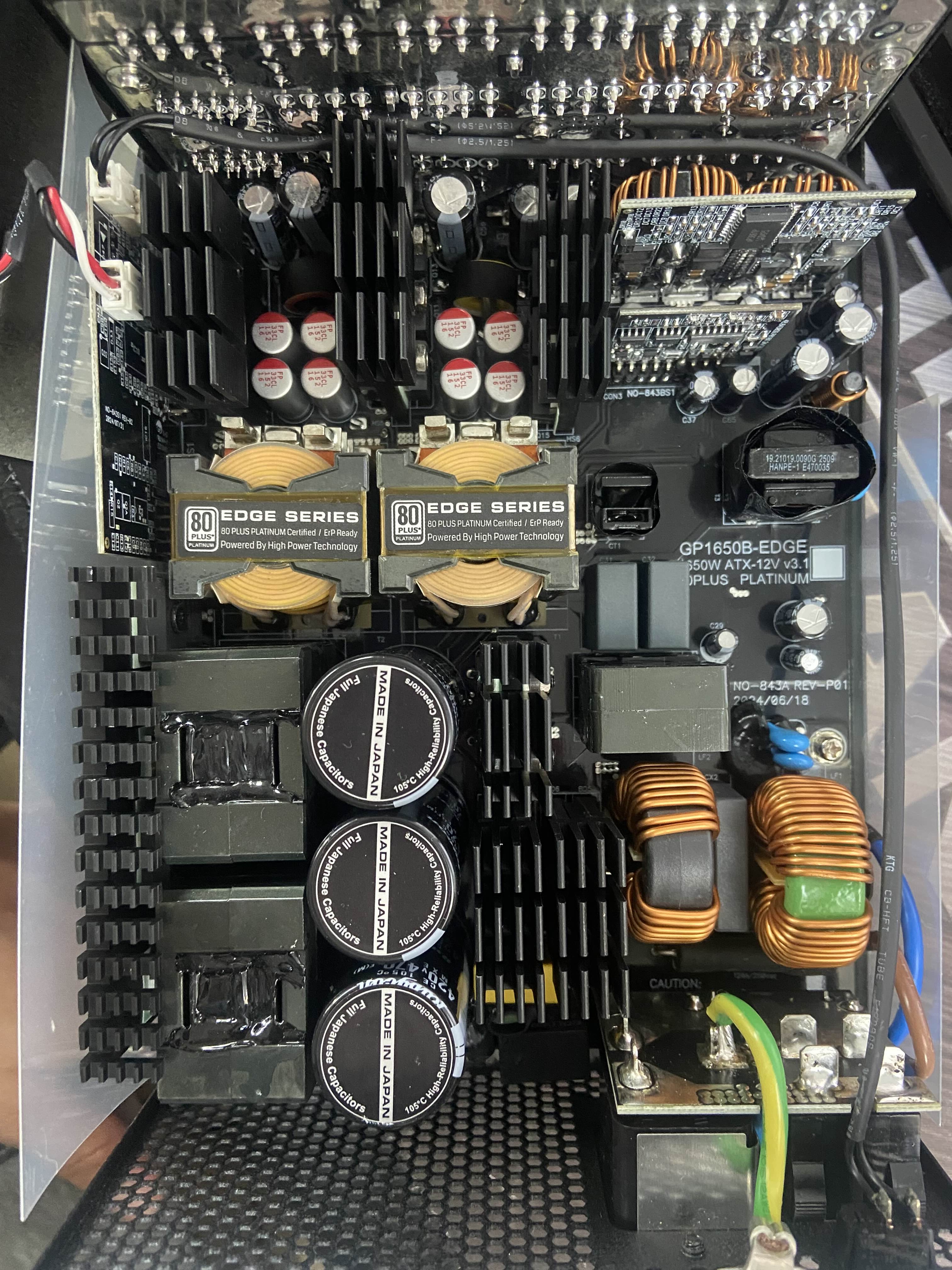

Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-057 (5 Ohm @ 25°C) & Relay
Bridge Rectifier
4x HY Group EGBJ250612
APFC MOSFETs
2x CRMicro CRXQ45M065G2Z
APFC Boost Diode
2x CREE C3D10060A (600V, 14.5A @ 135°C)
Bulk Cap(s)
2x Rubycon (420V, 470uF each or 940uF combined, 2000h @ 105°C, MXE)
Rubycon (420V, 560uF, 3000h @ 105°C, MXT)
Main Switchers
4x Sanrise Tech SRC60R068BS (600V, 21.5A @ 100°C, Rds(on): 68mOhm)

APFC Controller

ATK AT6201ZSPF
Resonant Controller
Champion CM6901X
IC Driver 3x Infineon 2EDN752x
Topology Primary side:  Interleaved PFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 12x CRMicro CRST020N06N4Z (60V, 136A @ 100°C, Rds(on): 2.3mOhm)
5V & 3.3V DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): uPI-Semi uP3861P
Filtering Capacitors

Electrolytic:
7x Rubycon (6-10,000h @105°C, ZLH)
6x Rubycon (3-6,000h @105°C, YXG)
2x Rubycon (4-10,000h @105°C, YXJ)
Polymer:
33x FPCAP
Supervisor IC Weltrend WT7527RA
MCU / Fan Controller Geehy 32S030F6P6
Fan Model Globe Fan RL4Z B1352512EH (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Wuxi Group TMD5N70H (700V, 5A @ 25°C, Rds(on): 2.4Ohm)
Standby PWM Controller
Voltatech SI8016HSP8

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.872%
Average Noise Output (>1450 Load Combinations)32.68dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load75.850%
Standby Power Consumption0.0701W
12V Ripple (Full Load)27.31mV
5V Ripple (Full Load)18.04mV
3.3V Ripple (Full Load)18.58mV
5VSB Ripple (Full Load)13.45mV
12V Load Regulation1.27%
5V Load Regulation0.34%
3.3V Load Regulation0.09%
5VSB Load Regulation2.68%
Inrush Current34.700A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)92.896%
Average Noise Output (>1450 Load Combinations)32.98dBA
Average PF (>1450 Load Combinations)0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load76.361%
Standby Power Consumption0.1334W
12V Ripple (Full Load)27.75mV
5V Ripple (Full Load)18.40mV
3.3V Ripple (Full Load)18.64mV
5VSB Ripple (Full Load)12.65mV
12V Load Regulation1.28%
5V Load Regulation0.34%
3.3V Load Regulation0.09%
5VSB Load Regulation2.68%
Inrush Current64.440A
12V Transient Response (200%)11.60V
5V Transient Response (200%)4.951V
3.3V Transient Response (200%)3.246V
5VSB Transient Response (200%)4.932V
Hold-Up Time & Power Ok Signal21.10ms
AC Loss to PWR_OK Hold Up Time18.60ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)109.0ms112.0ms
PSU Timings: T3 (20% / 100%)120.0ms123.0ms
12V OCP (29.1°C / 43.0°C)165.40A (120.29%), 11.886V164.60A (119.71%), 11.911V
5V OCP (29.1°C / 43.0°C)29.5A (134.09%), 5.031V29.4A (133.64%), 5.028V
3.3V OCP (29.1°C / 43.0°C)29.7A (135.00%), 3.307V29.695A (134.98%), 3.305V
5VSB OCP (29.1°C / 43.0°C)4.7A (156.67%), 4.971V4.7A (156.67%), 4.964V
OPP (26.81°C / 43.13°C)118.83%118.83%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.1
AC Loss to PWR_OK Hold Up Time (ms)18.6
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 114.97 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.070 W -0.005 W N/A 0.126 W N/A N/A
Apparent Power: 8.985 W 8.964 W N/A 9.007 W N/A N/A
Power Factor: 0.012 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.97 V 227.70 V 230.01 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.133 W 0.087 W N/A 0.219 W N/A N/A
Apparent Power: 29.298 W 29.261 W N/A 29.335 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

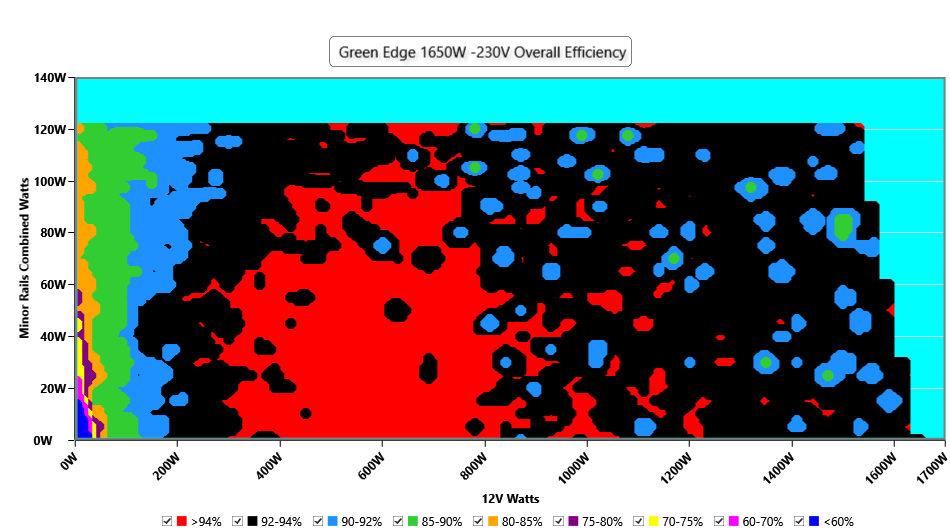

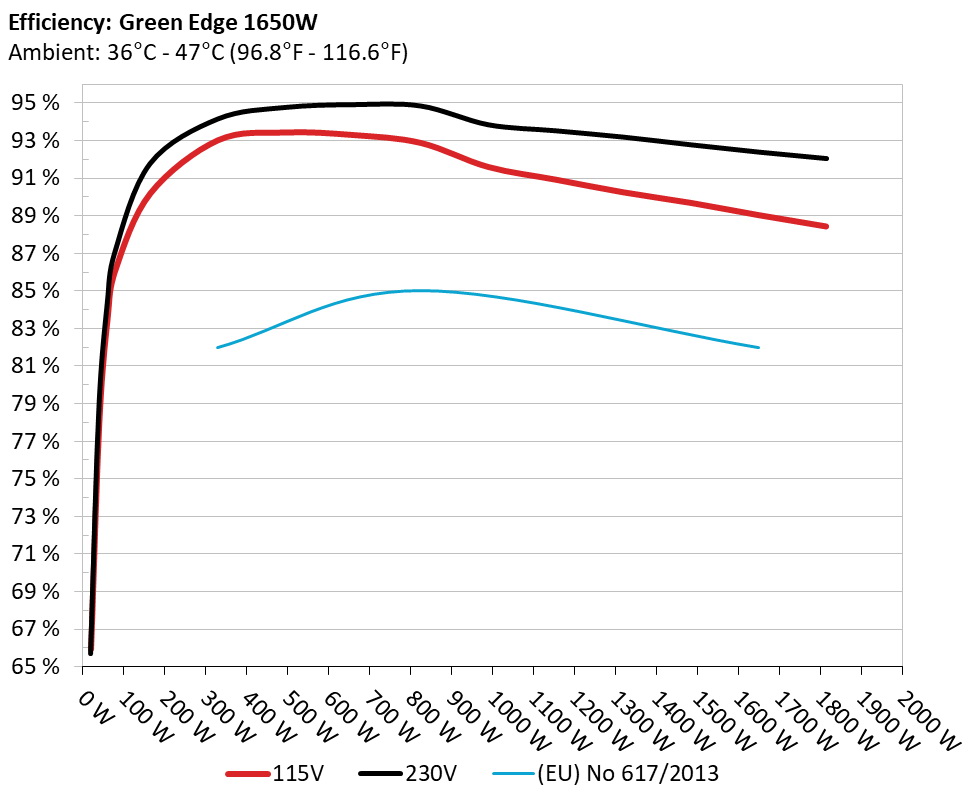

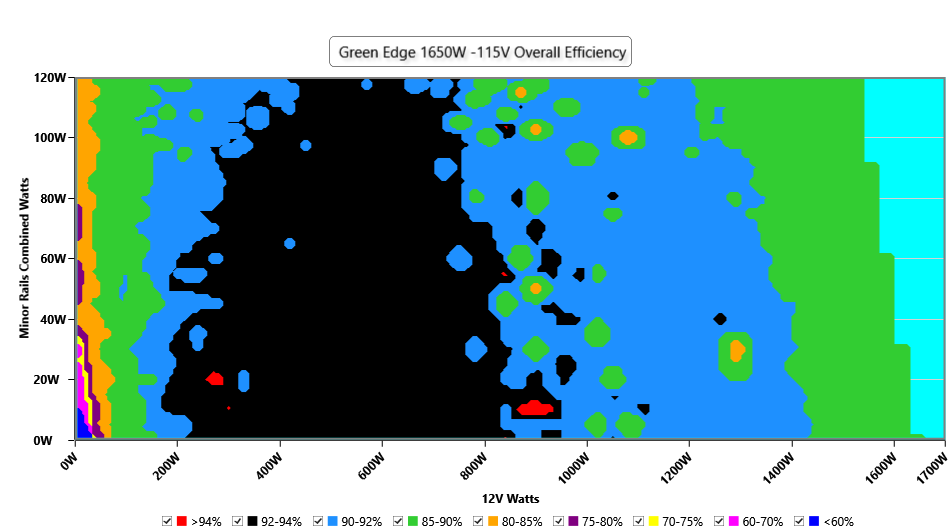

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

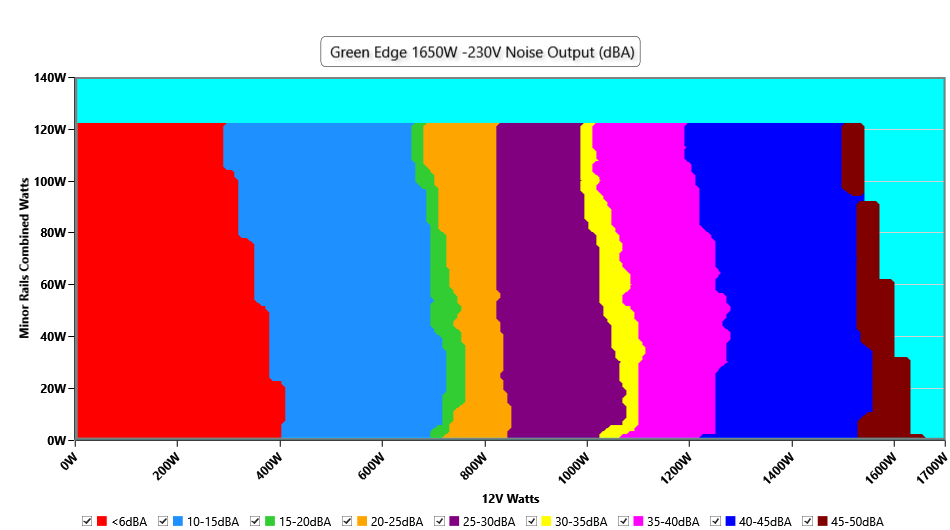

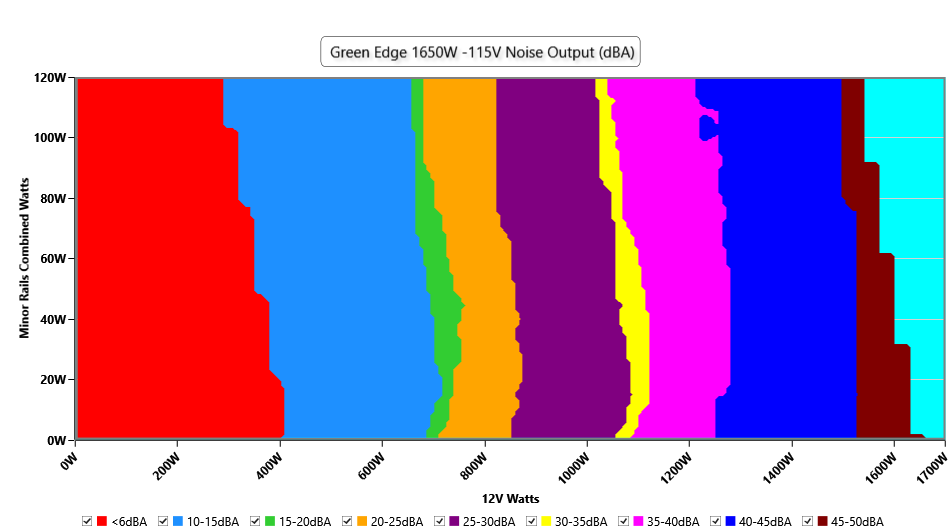

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

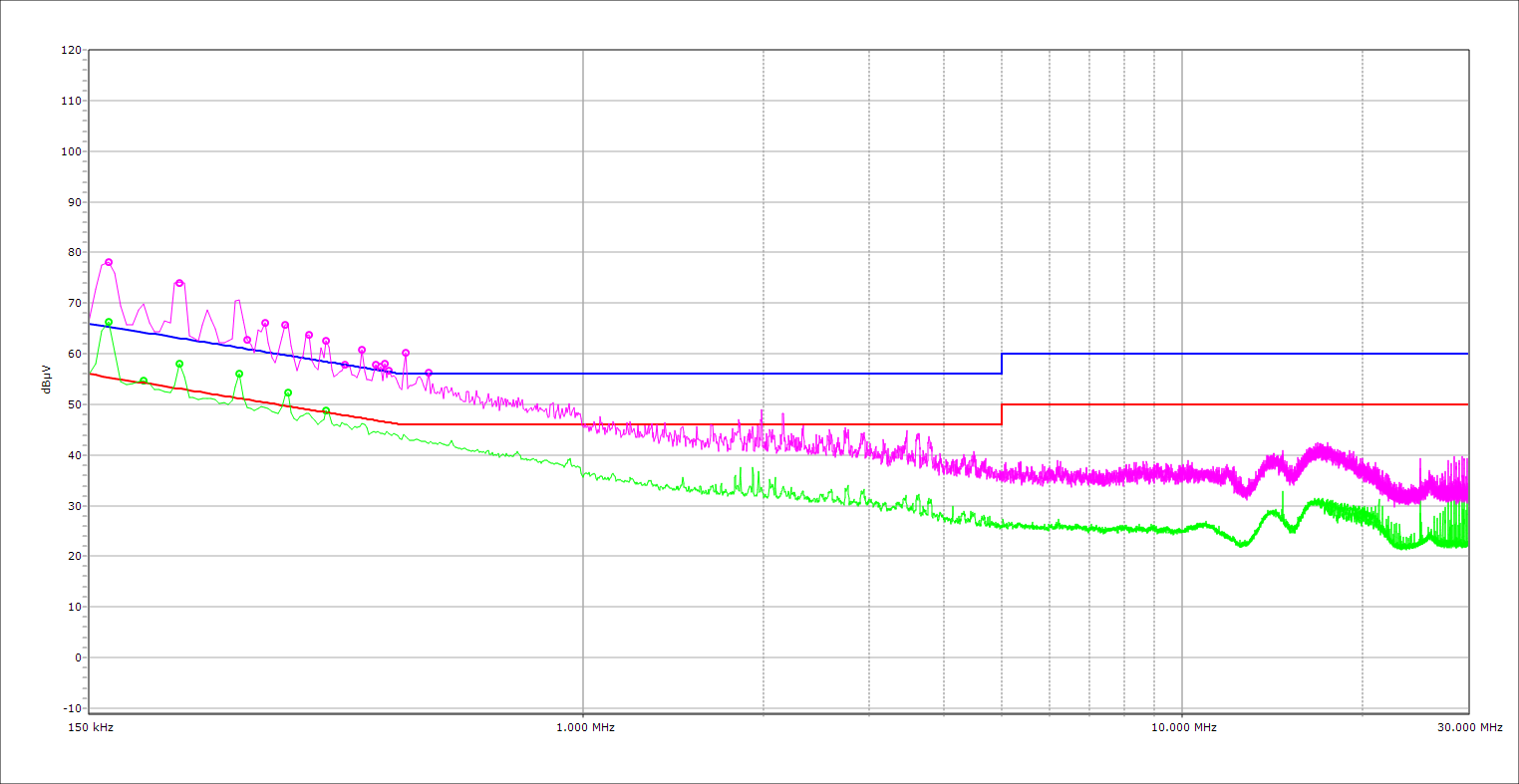

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

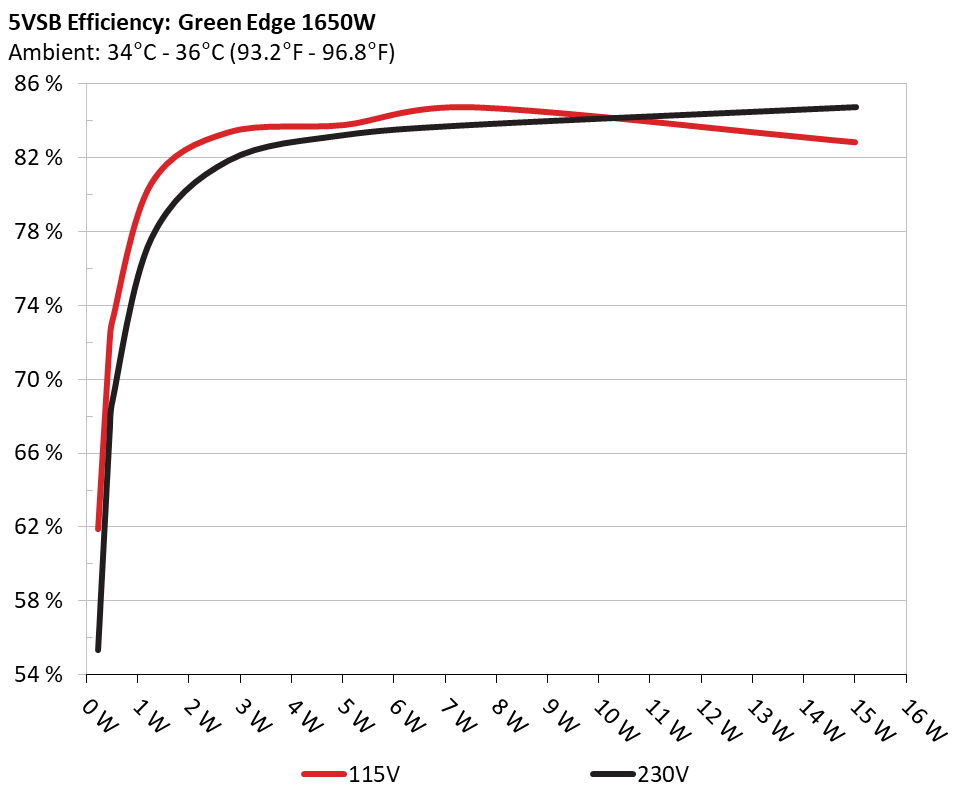

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 61.89% 0.04
5.056V 0.368W 114.87V
2 0.09A 0.455W 72.097% 0.067
5.056V 0.631W 114.86V
3 0.55A 2.777W 83.386% 0.28
5.048V 3.33W 114.87V
4 1A 5.04W 83.783% 0.389
5.04V 6.016W 114.87V
5 1.5A 7.547W 84.74% 0.435
5.031V 8.906W 114.87V
6 3A 15.012W 82.85% 0.526
5.004V 18.12W 114.88V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 55.354% 0.013
5.057V 0.412W 229.91V
2 0.09A 0.455W 67.219% 0.021
5.056V 0.677W 229.9V
3 0.55A 2.776W 81.869% 0.103
5.047V 3.391W 229.88V
4 1A 5.04W 83.247% 0.173
5.039V 6.054W 229.89V
5 1.5A 7.547W 83.798% 0.236
5.03V 9.005W 229.88V
6 3A 15.013W 84.756% 0.329
5.004V 17.713W 229.88V

Protection Features

OCP (Normal @ 29.1°C)12V: 165.40A (120.29%), 11.886V
5V: 29.5A (134.09%), 5.031V
3.3V: 29.7A (135.00%), 3.307V
5VSB: 4.7A (156.67%), 4.971V
OCP (Hot @ 43.0°C)12V: 164.60A (119.71%), 11.911V
5V: 29.4A (133.64%), 5.028V
3.3V: 29.695A (134.98%), 3.305V
5VSB: 4.7A (156.67%), 4.964V
OPP (Normal @ 26.8°C)1960.74W (118.83%)
OPP (Hot @ 43.1°C)1960.76W (118.83%)
OTP✓ (135°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✗
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.884A 2.002A 2A 0.995A 164.968 90.211% 0 <6.0 46.85°C 0.95
12.064V 4.995V 3.301V 5.027V 182.02 40.47°C 114.5V
20% 24.811A 3.004A 3A 1.197A 329.981 93.027% 0 <6.0 47.42°C 0.996
12.054V 4.993V 3.3V 5.015V 354.676 40.84°C 114.79V
30% 38.144A 3.505A 3.5A 1.399A 494.414 93.44% 446 14.2 41.18°C 0.996
12.017V 4.993V 3.3V 5.004V 529.191 43.86°C 114.75V
40% 51.539A 4.007A 4A 1.602A 659.604 93.308% 611 23.1 41.52°C 0.997
11.999V 4.992V 3.3V 4.994V 706.933 45.06°C 114.71V
50% 64.627A 5.009A 5A 1.807A 824.959 92.886% 827 25.9 42.17°C 0.995
11.983V 4.991V 3.3V 4.982V 887.383 46.01°C 114.57V
60% 77.654A 6.013A 6.001A 2A 989.379 91.61% 1132 36.6 41.96°C 0.995
11.972V 4.989V 3.3V 4.97V 1070.935 45.1°C 113.71V
70% 90.776A 7.019A 7.001A 2.219A 1154.781 90.931% 1524 42.8 43.44°C 0.994
11.960V 4.987V 3.3V 4.957V 1266.87 46.07°C 114.29V
80% 103.944A 8.024A 8A 2.325A 1319.58 90.261% 1804 46.5 43.66°C 0.993
11.946V 4.985V 3.3V 4.947V 1453.158 46.36°C 113.85V
90% 117.553A 8.529A 8.486A 2.431A 1484.995 89.693% 1928 48.3 44.89°C 0.992
11.931V 4.983V 3.299V 4.937V 1655.608 47.86°C 114.4V
100% 130.915A 9.034A 9.002A 3.051A 1649.805 89.047% 1927 48.3 45.62°C 0.992
11.917V 4.981V 3.299V 4.918V 1852.762 49.19°C 114.34V
110% 144.154A 10.042A 10.094A 3.056A 1814.42 88.444% 1924 48.3 46.59°C 0.992
11.905V 4.978V 3.298V 4.909V 2011.521 50.6°C 112.43V
CL1 0.117A 14.48A 14.447A 0A 121.307 83.924% 451 14.8 41.71°C 0.945
12.044V 4.986V 3.301V 5.037V 144.154 50.98°C 114.6V
CL2 0.116A 21.898A 0A 0A 111.302 82.499% 449 14.6 40.86°C 0.945
12.049V 5.019V 3.28V 5.041V 134.935 48.86°C 114.87V
CL3 0.115A 0A 21.955A 0A 73.984 77.381% 448 14.4 40.48°C 0.935
12.048V 4.972V 3.306V 5.041V 95.61 47.21°C 114.86V
CL4 138.402A 0A 0A 0A 1649.554 89.376% 1939 48.4 45°C 0.992
11.918V 4.983V 3.287V 4.981V 1845.662 47.98°C 114.34V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.882A 2.003A 2A 0.995A 164.963 91.775% 0 <6.0 46.44°C 0.907
12.066V 4.992V 3.301V 5.026V 179.761 40.45°C 229.86V
20% 24.809A 3.005A 3A 1.197A 329.971 94.149% 0 <6.0 46.51°C 0.973
12.055V 4.991V 3.3V 5.015V 350.403 40.58°C 229.83V
30% 38.131A 3.507A 3.5A 1.399A 494.376 94.764% 448 14.4 41.16°C 0.987
12.020V 4.99V 3.3V 5.004V 521.668 43.76°C 229.81V
40% 51.540A 4.008A 4A 1.602A 659.572 94.913% 613 23.2 41.66°C 0.993
11.998V 4.99V 3.3V 4.994V 694.913 44.2°C 229.78V
50% 64.617A 5.012A 5A 1.807A 824.929 94.842% 892 29.2 42.45°C 0.995
11.985V 4.988V 3.3V 4.982V 869.927 44.96°C 229.76V
60% 77.653A 6.017A 6.001A 2A 989.382 93.845% 1154 37 42.57°C 0.998
11.972V 4.987V 3.3V 4.97V 1054.543 44.34°C 229.73V
70% 90.796A 7.023A 7.002A 2.219A 1154.807 93.522% 1528 42.9 43.08°C 0.998
11.957V 4.985V 3.3V 4.958V 1234.891 44.74°C 229.7V
80% 103.985A 8.028A 8.001A 2.325A 1319.629 93.185% 1816 46.6 43.68°C 0.998
11.941V 4.982V 3.3V 4.948V 1416.194 45.47°C 229.67V
90% 117.568A 8.534A 8.487A 2.431A 1485.022 92.772% 1939 48.4 44.52°C 0.998
11.929V 4.98V 3.299V 4.937V 1600.775 46.51°C 229.64V
100% 130.927A 9.039A 9.003A 3.051A 1649.831 92.388% 1933 48.4 45.82°C 0.998
11.916V 4.978V 3.299V 4.918V 1785.682 48.1°C 229.61V
110% 144.169A 10.048A 10.096A 3.056A 1814.438 92.045% 1934 48.4 46.53°C 0.998
11.904V 4.976V 3.298V 4.909V 1971.224 49.32°C 229.58V
CL1 0.117A 14.49A 14.449A 0A 121.313 85.035% 452 14.8 41.33°C 0.881
12.042V 4.983V 3.301V 5.037V 142.687 48.6°C 229.86V
CL2 0.116A 21.91A 0A 0A 111.309 83.79% 450 14.7 41.28°C 0.871
12.046V 5.016V 3.28V 5.041V 132.839 47.49°C 229.87V
CL3 0.115A 0A 21.955A 0A 73.987 78.259% 448 14.4 40.53°C 0.813
12.047V 4.97V 3.306V 5.041V 94.586 46.19°C 229.87V
CL4 138.415A 0A 0A 0A 1649.559 92.821% 1949 48.4 45.13°C 0.998
11.917V 4.98V 3.287V 4.981V 1777.264 47.22°C 229.61V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.501A 0.5A 0.198A 20.002 65.963% 0 <6.0 41.03°C 0.84
12.057V 4.993V 3.298V 5.05V 30.405 36.03°C 114.86V
40W 2.710A 0.7A 0.7A 0.297A 40.004 78.009% 0 <6.0 43.43°C 0.902
12.068V 4.997V 3.301V 5.046V 51.342 37.57°C 114.86V
60W 4.188A 0.9A 0.9A 0.397A 60.004 83.485% 0 <6.0 43.96°C 0.923
12.068V 4.998V 3.301V 5.043V 71.941 38.28°C 114.85V
80W 5.661A 1.101A 1.1A 0.496A 79.951 86.158% 0 <6.0 45.78°C 0.933
12.068V 4.997V 3.301V 5.04V 92.849 39.26°C 114.86V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.501A 0.5A 0.198A 20.004 65.687% 0 <6.0 40.24°C 0.505
12.055V 4.991V 3.298V 5.05V 30.452 36.79°C 229.88V
40W 2.709A 0.701A 0.7A 0.297A 40.003 78.687% 0 <6.0 41.49°C 0.653
12.068V 4.994V 3.301V 5.046V 50.891 37.64°C 229.89V
60W 4.188A 0.901A 0.9A 0.397A 60.003 84.219% 0 <6.0 42.4°C 0.747
12.068V 4.995V 3.301V 5.043V 71.271 38.28°C 229.88V
80W 5.661A 1.101A 1.1A 0.496A 79.949 87.118% 0 <6.0 44.03°C 0.805
12.068V 4.995V 3.301V 5.04V 91.799 39.44°C 229.87V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load21.48mV20.22mV18.67mV13.34mVPass
20% Load22.35mV17.55mV16.52mV11.08mVPass
30% Load24.09mV17.04mV16.52mV11.19mVPass
40% Load25.83mV17.96mV17.34mV11.49mVPass
50% Load25.88mV17.60mV16.78mV11.49mVPass
60% Load26.03mV18.42mV18.11mV12.52mVPass
70% Load25.52mV19.14mV18.83mV12.72mVPass
80% Load26.24mV19.35mV18.73mV12.88mVPass
90% Load27.36mV18.01mV18.98mV12.62mVPass
100% Load27.31mV18.04mV18.58mV13.45mVPass
110% Load27.17mV18.69mV19.36mV14.10mVPass
Crossload122.42mV18.82mV19.10mV11.95mVPass
Crossload221.74mV22.84mV20.37mV12.62mVPass
Crossload320.40mV19.81mV20.01mV12.62mVPass
Crossload427.21mV18.21mV17.93mV12.12mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load21.02mV16.73mV16.06mV10.93mVPass
20% Load23.47mV17.09mV16.42mV10.83mVPass
30% Load24.81mV17.14mV16.01mV10.88mVPass
40% Load25.57mV17.71mV16.68mV11.70mVPass
50% Load26.54mV17.19mV17.65mV11.44mVPass
60% Load26.34mV18.48mV16.21mV11.49mVPass
70% Load25.83mV17.71mV17.55mV11.70mVPass
80% Load25.93mV17.81mV18.57mV11.96mVPass
90% Load26.44mV18.22mV19.45mV12.57mVPass
100% Load27.75mV18.40mV18.64mV12.65mVPass
110% Load28.37mV19.06mV18.82mV13.18mVPass
Crossload120.59mV17.32mV18.31mV11.07mVPass
Crossload223.17mV22.38mV19.39mV11.75mVPass
Crossload320.61mV18.27mV19.60mV11.85mVPass
Crossload426.72mV17.03mV17.23mV11.65mVPass

The results above are not used in the certification process

GREEN MEDEL EDGE 1650W

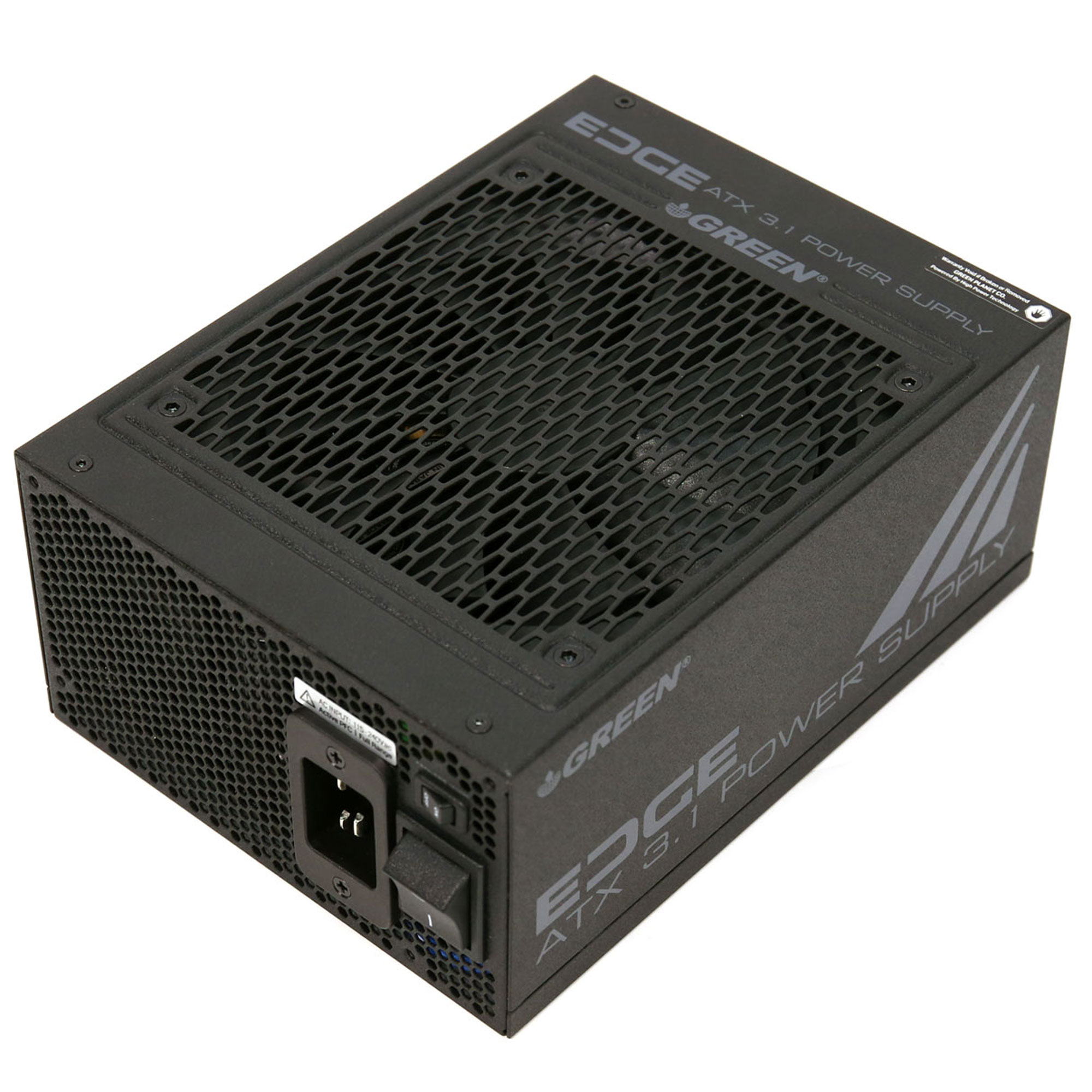

Top side

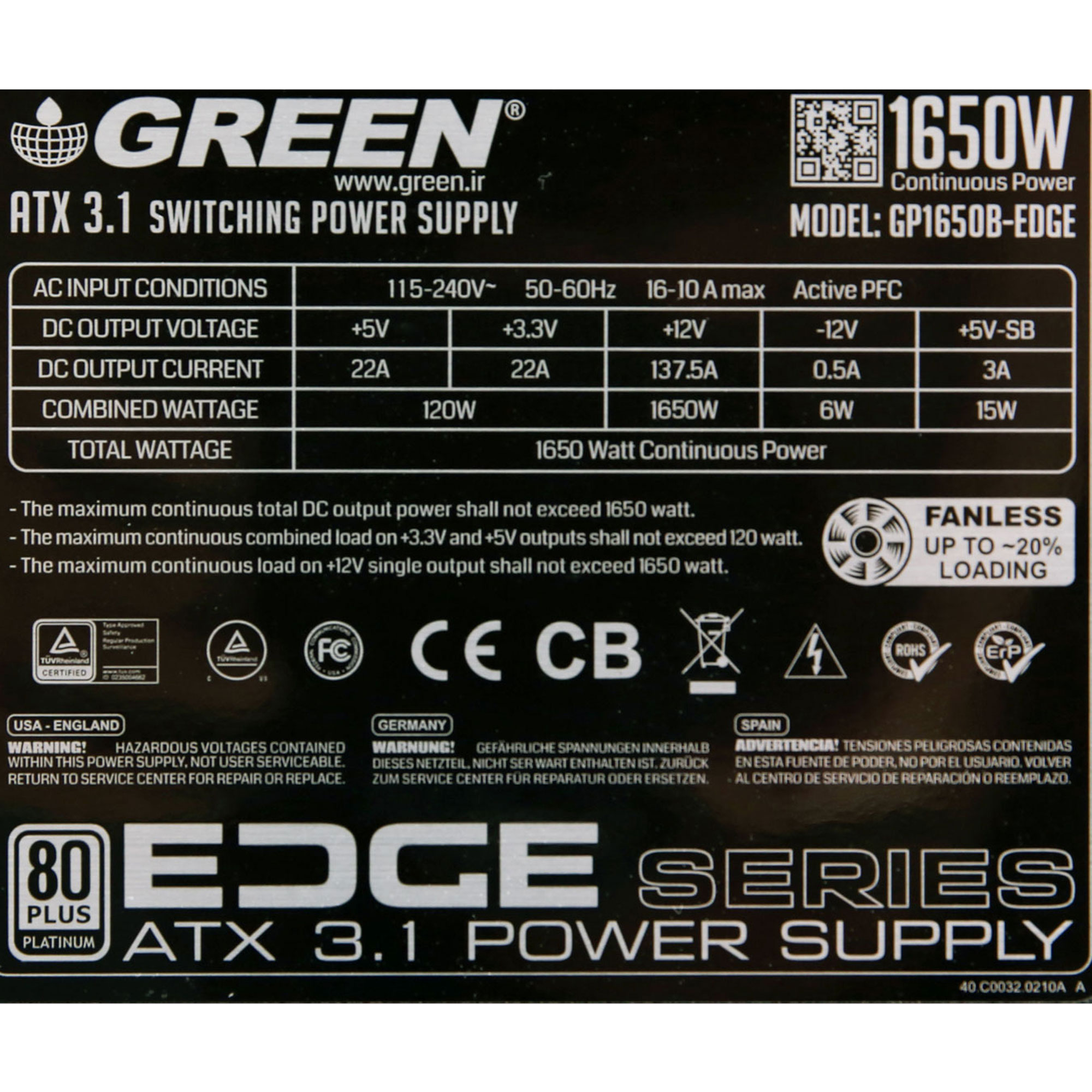

Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
