Super Flower Leadex ATX3+ 2200W (#2)
Serial NumberS2509199013
Lab IDSF22003003
Certification ID253003
  • Test Result Report ID: 25PS3003A
  • Certificate Issue Date: Oct 24, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex
Model NumberSF-2200F14HP
Serial NumberS2509199013
DUT Notes

DUT Specifications

Rated Voltage (Vrms)200-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)2200
TypeATX12V
Dimensions (W x H x D)150 x 85 x 205mm
Cooling140mm Double Ball Bearing Fan (ZFB142512D)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020183.330.5
Watts1002199.6156
Total Max. Power (W)2200

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (590mm) 1 1 16-20AWG Yes
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (700mm) 6 6 16AWG No
12+4 pin PCIe (700mm) (600W) 2 2 16-26AWG No
SATA (550mm+110mm+110mm+110mm) 4 16 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
AC Power Cord (1660mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 8x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-254R7 (4.7 Ohm) & Relay
Bridge Rectifier
Shindengen U30K80R (800V, 30A @ 97°C)
APFC MOSFETs
8x Infineon FETs
APFC Boost Diode
8x Infineon IDL08G65C5 (650V, 8A @ 125°C)
Bulk Cap(s)
2x Nippon Chemi-Con (450V, 680uF each or 1,360uF, 2,000h @ 105°C, KMZ)
Nippon Chemi-Con (450V, 560uF, 2,000h @ 105°C, KMZ)
Main Switchers
4x Infineon IPB60R055CFD7 (650V, 24A @ 100°C, Rds(on): 0.055Ohm)

APFC Controller

Onsemi NCP1654 &
Sync Power SPN5003 (reducing no load consumption)
Resonant Controller
STMicroelectronics MZHR416
Topology Primary side: Bridgeless PFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 20x Infineon BSC014N04LS (40V, 145A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters:  4x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
6x Nippon Chemi-Con (@ 105°C, W)
2x Nippon Chemi-Con (1-2,000h @105°C, KMG)
3x Rubycon (6-10,000h @105°C, ZLH)
9x CapXon (2-5,000h @105°C, KF)
Polymer:
41x Nippon Chemi-Con
Supervisor IC JTC113
Fan Model ZIC ZFB142512D (140mm, 12V, 0.65A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
 PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller
29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Efficiency RatingTITANIUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)93.449%
Average Noise Output (>1450 Load Combinations)33.79dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load77.356%
Standby Power Consumption0.1090W
12V Ripple (Full Load)26.38mV
5V Ripple (Full Load)22.63mV
3.3V Ripple (Full Load)19.81mV
5VSB Ripple (Full Load)16.24mV
12V Load Regulation0.56%
5V Load Regulation0.30%
3.3V Load Regulation0.64%
5VSB Load Regulation2.65%
Inrush CurrentToo low to detect
12V Transient Response (200%)11.71V
5V Transient Response (200%)4.978V
3.3V Transient Response (200%)3.254V
5VSB Transient Response (200%)4.961V
Hold-Up Time & Power Ok Signal27.10ms
AC Loss to PWR_OK Hold Up Time20.00ms
PWR_OK Inactive to DC Loss Delay7.10ms
PSU Timings: T1 (20% / 100%)91.0ms92.0ms
PSU Timings: T3 (20% / 100%)123.0ms124.0ms
12V OCP (29.2°C / 43.7°C)226.20A (123.40%), 12.043V226.80A (123.73%), 12.037V
5V OCP (29.2°C / 43.7°C)28.8A (144.00%), 5.024V28.3A (141.50%), 5.025V
3.3V OCP (29.2°C / 43.7°C)27.3A (136.50%), 3.32V26.4A (132.00%), 3.322V
5VSB OCP (29.2°C / 43.7°C)4.8A (160.00%), 4.967V4.8A (160.00%), 4.973V
OPP (28.13°C / 43.85°C)120.50%120.50%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)27.1
AC Loss to PWR_OK Hold Up Time (ms)20
PWR_OK Inactive to DC Loss Delay (ms)7.1

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.93 V 227.70 V 230.05 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.109 W 0.038 W N/A 0.162 W N/A N/A
Apparent Power: 56.012 W 55.954 W N/A 56.068 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs 230V

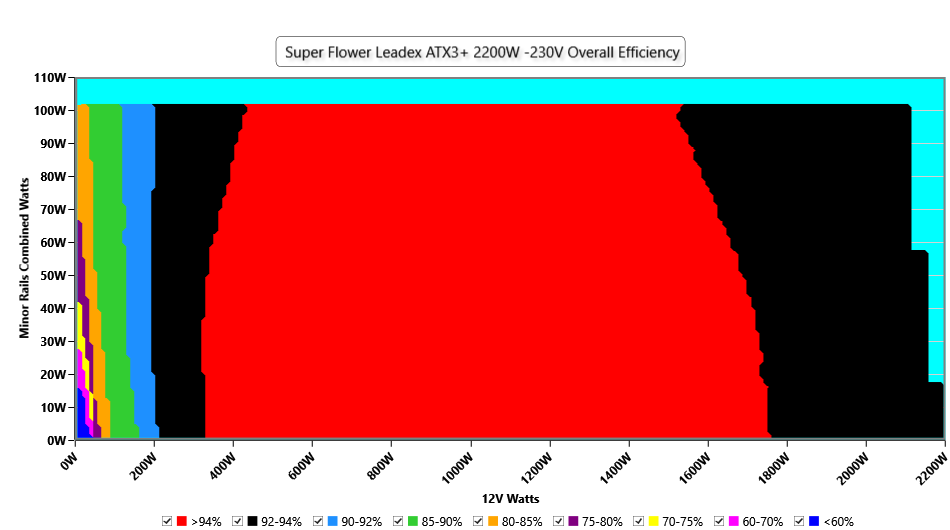

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

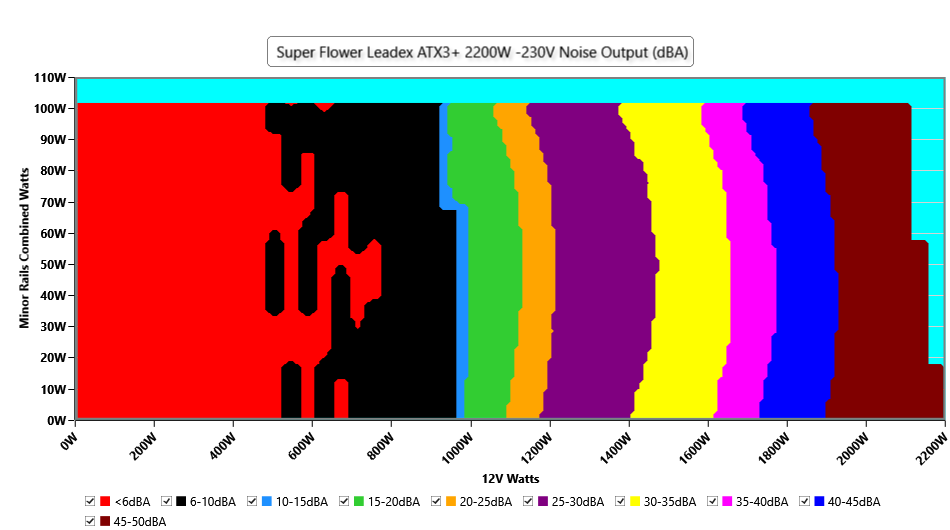

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

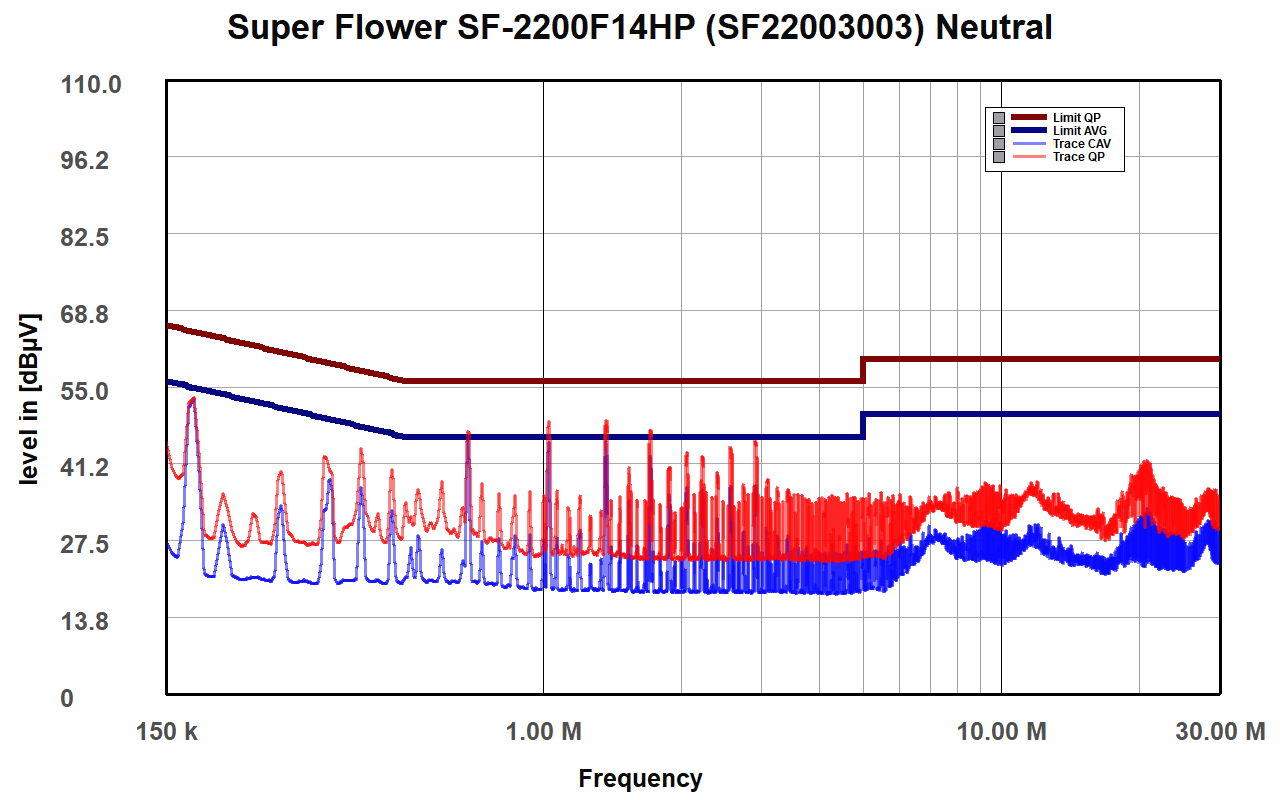

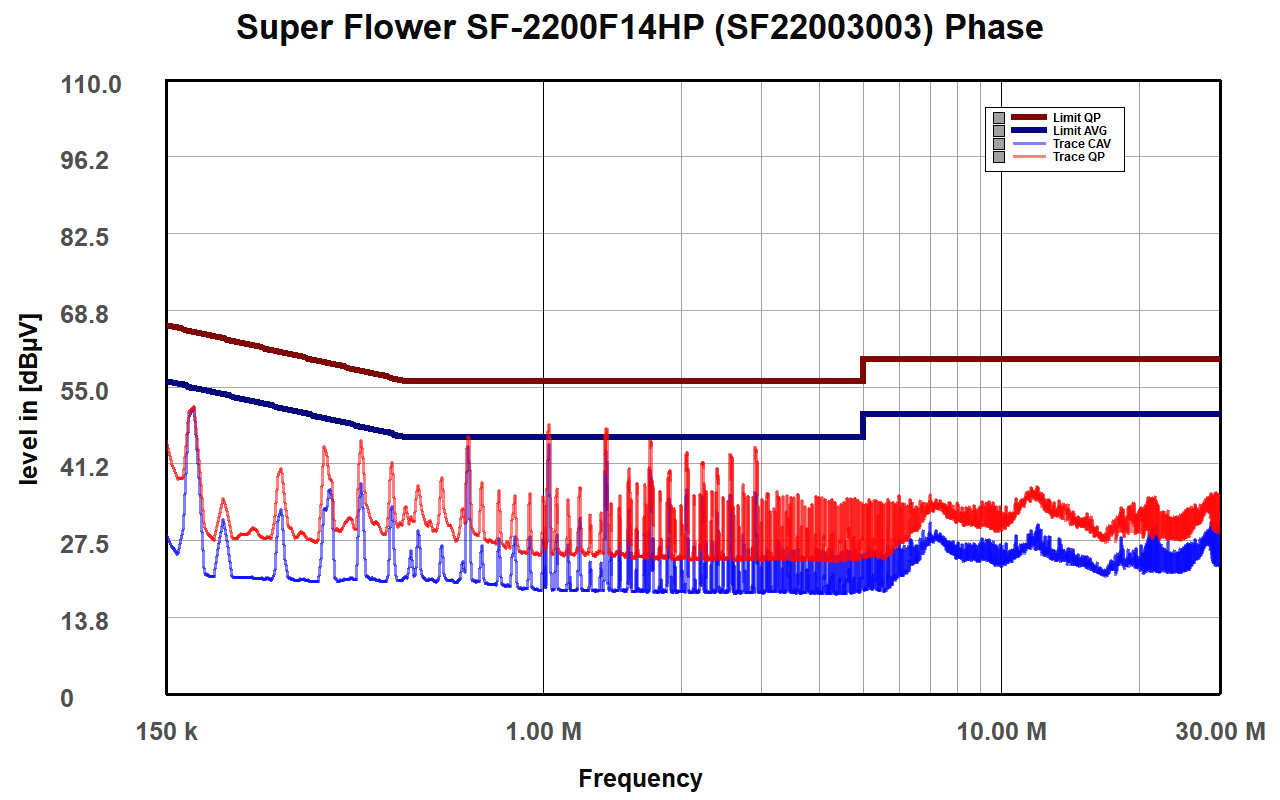

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

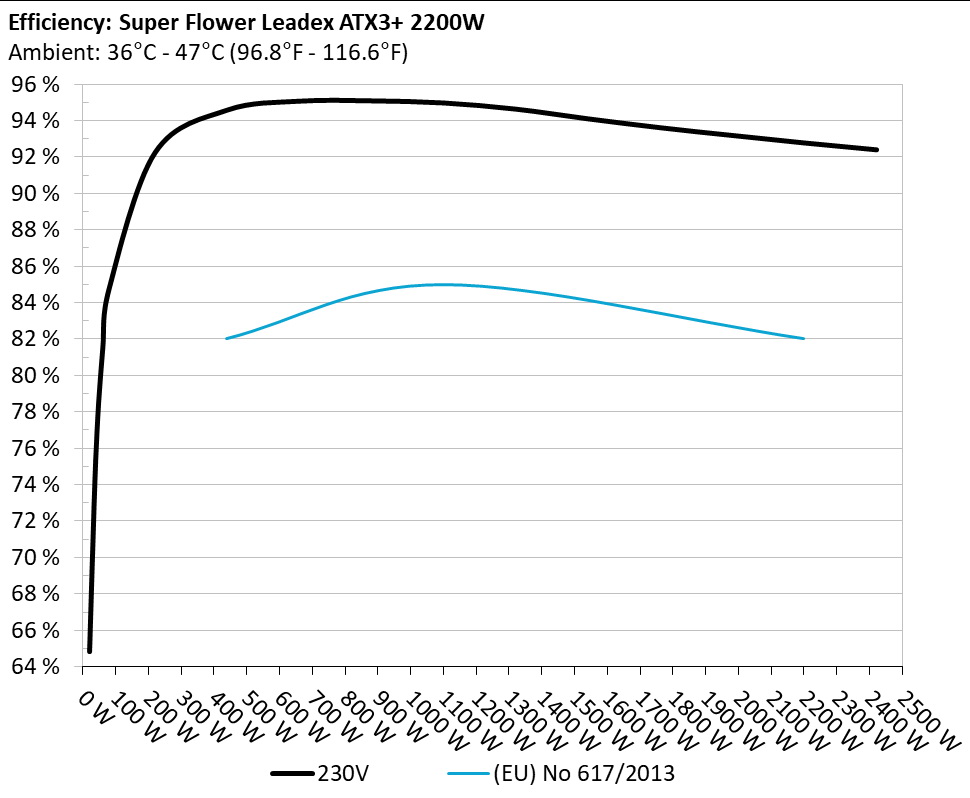

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

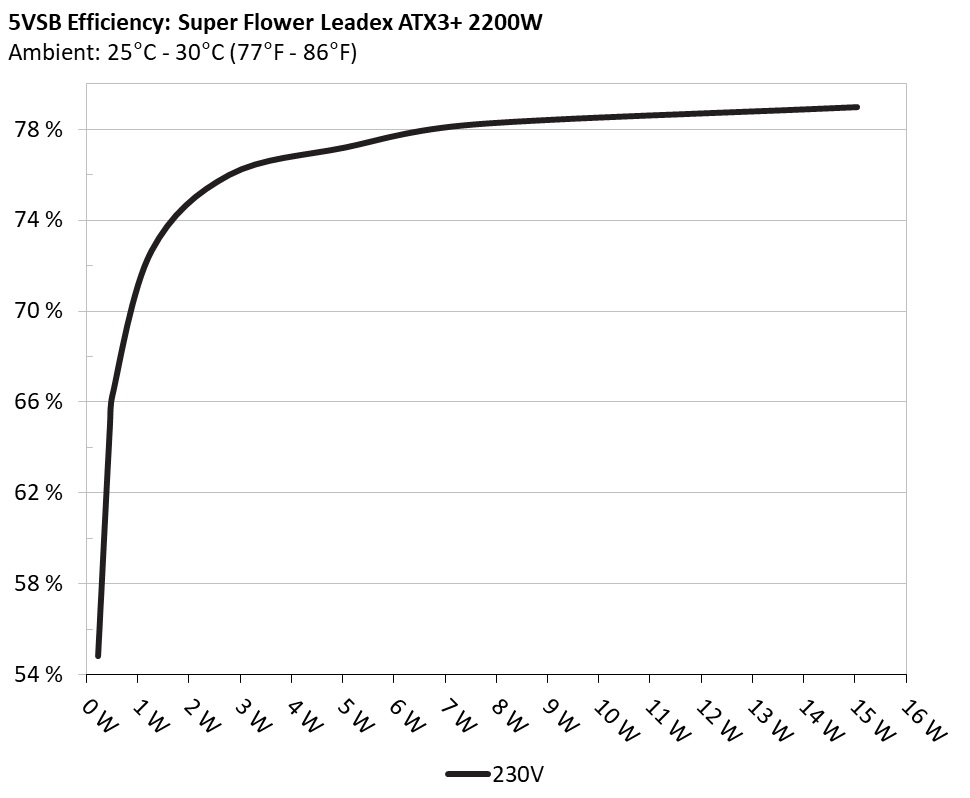

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 54.84% 0.007
5.077V 0.418W 229.89V
2 0.09A 0.457W 64.872% 0.012
5.076V 0.706W 229.89V
3 0.55A 2.787W 76.001% 0.063
5.067V 3.668W 229.89V
4 1A 5.059W 77.211% 0.11
5.059V 6.552W 229.89V
5 1.5A 7.574W 78.221% 0.156
5.049V 9.684W 229.89V
6 3A 15.047W 78.982% 0.264
5.015V 19.053W 229.9V

Protection Features

OCP (Normal @ 29.2°C)12V: 226.20A (123.40%), 12.043V
5V: 28.8A (144.00%), 5.024V
3.3V: 27.3A (136.50%), 3.32V
5VSB: 4.8A (160.00%), 4.967V
OCP (Hot @ 43.7°C)12V: 226.80A (123.73%), 12.037V
5V: 28.3A (141.50%), 5.025V
3.3V: 26.4A (132.00%), 3.322V
5VSB: 4.8A (160.00%), 4.973V
OPP (Normal @ 28.1°C)2651.06W (120.50%)
OPP (Hot @ 43.9°C)2651.08W (120.50%)
OTP✓ (90°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 180V)✓
UVP (No Damage @ 170V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 16.388A 1.99A 1.991A 0.991A 219.996 92.245% 0 <6.0 47.86°C 0.907
12.106V 5.024V 3.315V 5.048V 238.491 40.04°C 229.86V
20% 33.783A 2.986A 2.988A 1.191A 439.566 94.568% 0 <6.0 44.4°C 0.948
12.097V 5.023V 3.313V 5.037V 464.816 40.86°C 229.82V
30% 51.549A 3.485A 3.489A 1.393A 659.17 95.059% 476 12.3 41.16°C 0.973
12.088V 5.021V 3.31V 5.027V 693.432 48.75°C 229.79V
40% 69.412A 3.984A 3.99A 1.595A 879.531 95.077% 682 21.8 41.98°C 0.982
12.078V 5.02V 3.308V 5.016V 925.069 50.35°C 229.75V
50% 86.901A 4.982A 4.991A 1.799A 1099.304 94.964% 882 28.9 42.18°C 0.987
12.069V 5.018V 3.306V 5.004V 1157.597 50.49°C 229.71V
60% 104.467A 5.98A 5.993A 2A 1319.838 94.623% 1204 38.1 42.79°C 0.989
12.062V 5.017V 3.304V 4.992V 1394.847 50.67°C 229.68V
70% 121.942A 6.98A 6.997A 2.208A 1539.594 94.094% 1628 46.3 43.15°C 0.99
12.059V 5.015V 3.302V 4.982V 1636.231 50.13°C 229.64V
80% 139.502A 7.978A 8A 2.314A 1759.586 93.604% 1817 48.5 43.96°C 0.991
12.055V 5.013V 3.299V 4.97V 1879.825 50.93°C 229.59V
90% 157.410A 8.479A 8.489A 2.419A 1979.387 93.179% 2001 51 44.96°C 0.992
12.051V 5.012V 3.298V 4.961V 2124.288 52.17°C 229.56V
100% 175.134A 8.979A 9.008A 3.037A 2199.389 92.77% 2160 52.3 45.44°C 0.992
12.046V 5.012V 3.297V 4.94V 2370.806 53.78°C 229.52V
110% 192.804A 9.979A 10.106A 3.042A 2419.994 92.393% 2193 52.2 46.75°C 0.993
12.042V 5.01V 3.295V 4.932V 2619.267 54.48°C 229.47V
CL1 0.116A 12.003A 12.008A 0A 101.31 80.704% 822 25.3 40.43°C 0.825
12.111V 5.015V 3.306V 5.07V 125.578 49.88°C 229.87V
CL2 0.116A 19.916A 0A 0A 101.347 81.152% 601 16.8 40.53°C 0.824
12.111V 5.018V 3.305V 5.071V 124.887 49.12°C 229.87V
CL3 0.114A 0A 19.906A 0A 67.383 75.644% 475 9.9 40.59°C 0.758
12.113V 5.025V 3.315V 5.071V 89.076 48.11°C 229.88V
CL4 182.697A 0A 0A 0A 2199.956 93.175% 2052 52.5 45.99°C 0.993
12.041V 5.022V 3.306V 5.003V 2361.11 52.28°C 229.52V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.497A 0.497A 0.197A 20.007 64.854% 0 <6.0 37.62°C 0.406
12.112V 5.027V 3.318V 5.071V 31.149 36.33°C 229.88V
40W 2.699A 0.696A 0.696A 0.296A 40.003 75.899% 0 <6.0 40.13°C 0.615
12.113V 5.026V 3.317V 5.068V 52.708 37.06°C 229.88V
60W 4.172A 0.895A 0.895A 0.395A 60.001 81.449% 0 <6.0 40.58°C 0.712
12.112V 5.026V 3.317V 5.065V 73.667 38.05°C 229.88V
80W 5.641A 1.094A 1.094A 0.494A 79.94 84.792% 0 <6.0 45.04°C 0.77
12.110V 5.025V 3.316V 5.062V 94.275 39.02°C 229.88V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load22.81mV20.53mV18.98mV13.03mVPass
20% Load27.00mV20.83mV18.63mV12.67mVPass
30% Load28.13mV20.58mV18.73mV14.01mVPass
40% Load26.29mV20.17mV18.57mV14.83mVPass
50% Load27.11mV22.02mV19.86mV16.88mVPass
60% Load26.59mV21.66mV18.83mV12.88mVPass
70% Load25.93mV25.86mV27.34mV12.88mVPass
80% Load25.42mV26.64mV19.96mV14.37mVPass
90% Load26.03mV22.48mV20.62mV23.09mVPass
100% Load26.38mV22.63mV19.81mV16.24mVPass
110% Load24.84mV20.50mV20.92mV17.03mVPass
Crossload120.35mV17.30mV17.61mV33.24mVPass
Crossload223.63mV22.58mV17.91mV32.79mVPass
Crossload322.86mV19.61mV19.34mV33.71mVPass
Crossload426.04mV19.01mV17.23mV23.60mVPass

The results above are not used in the certification process

Super Flower Leadex ATX3+ 2200W (#2)

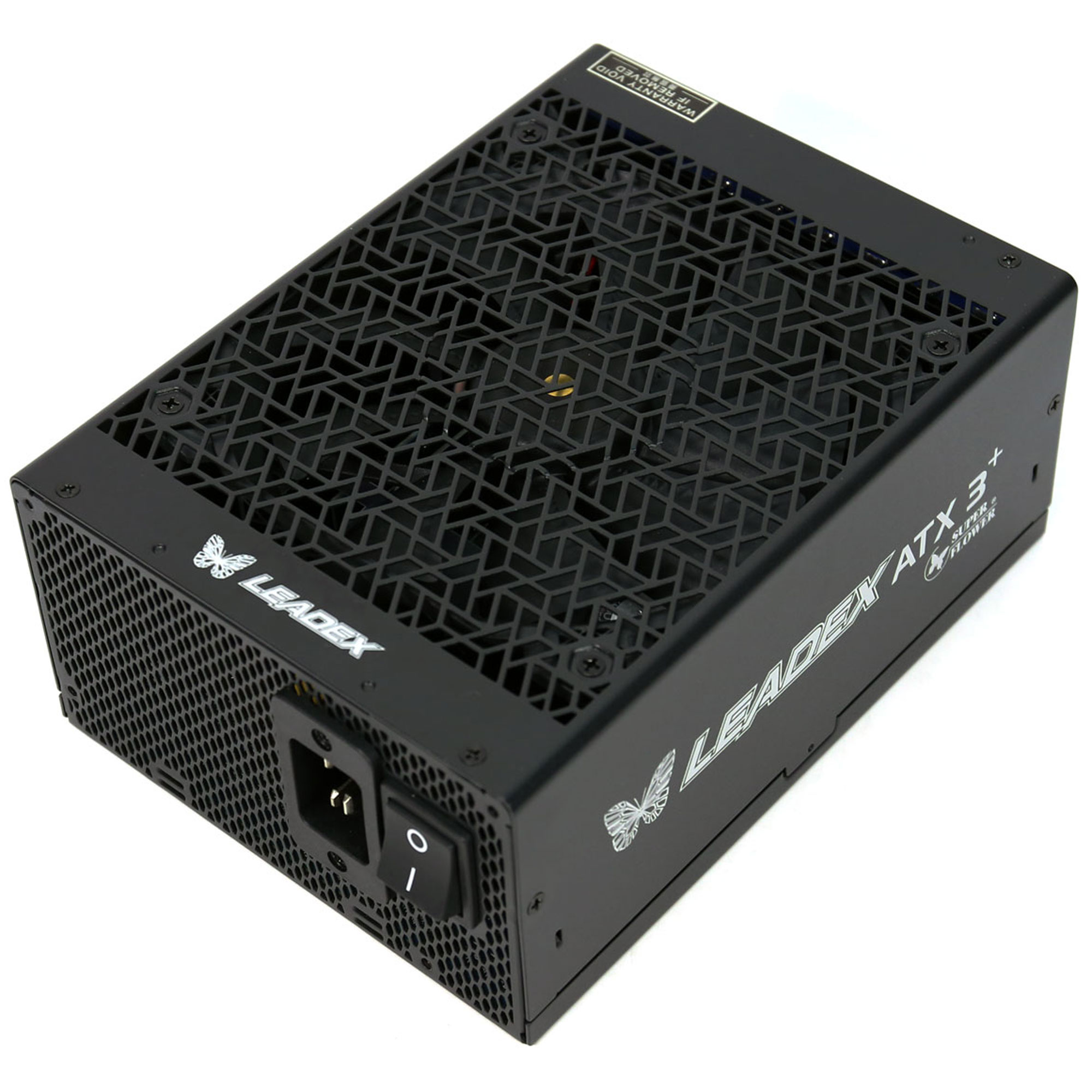

Top side

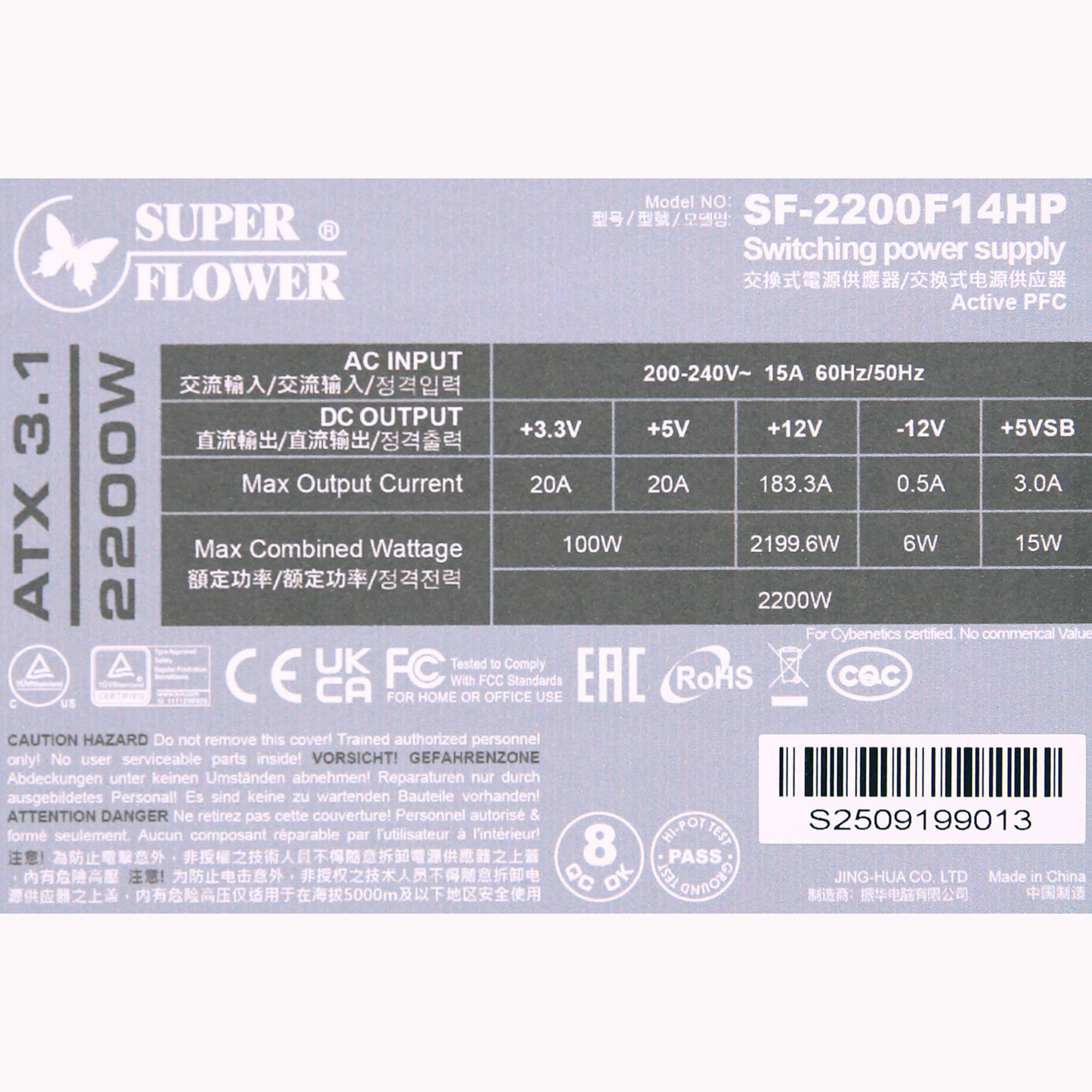

Power specifications label

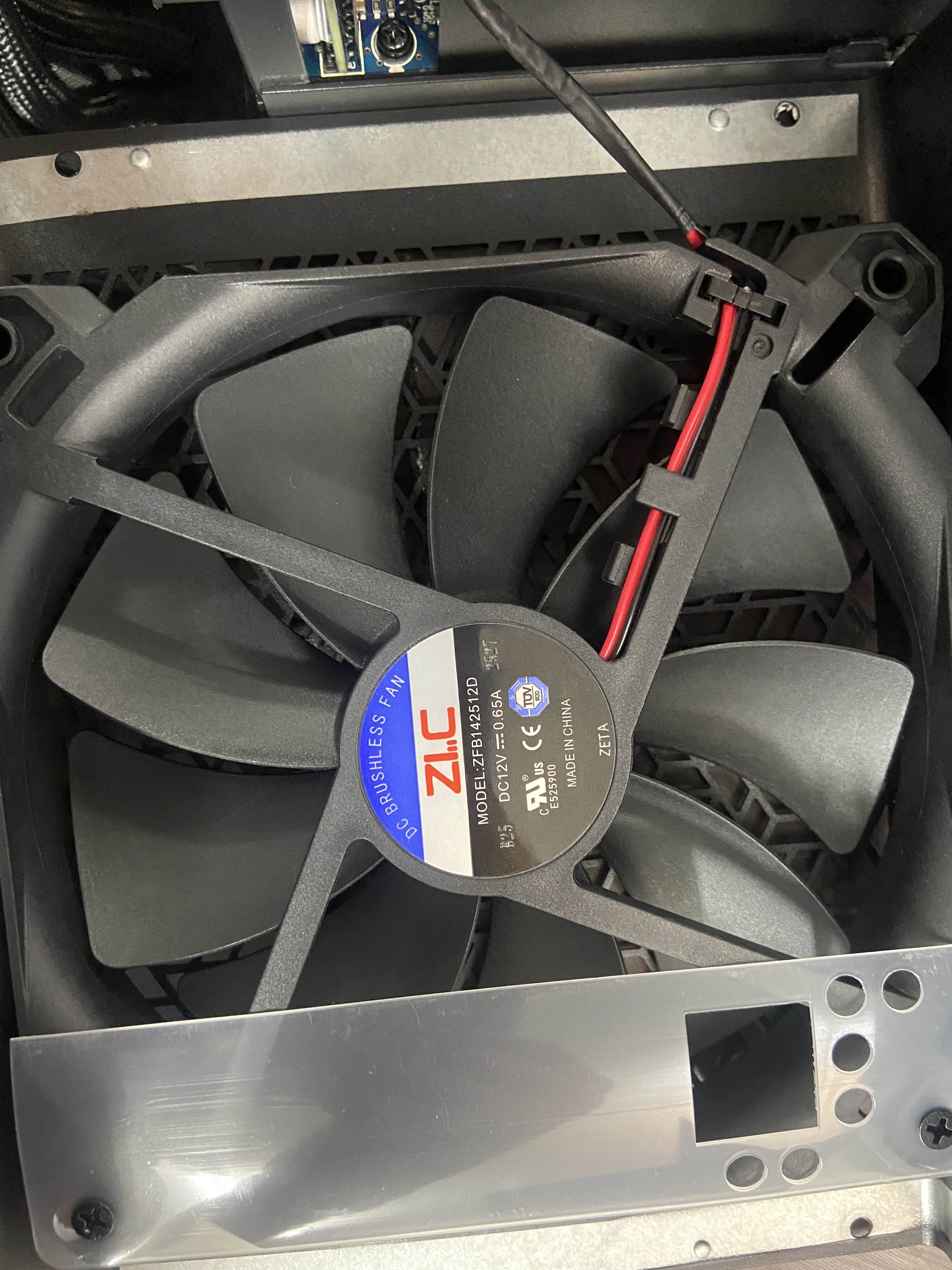

Fan

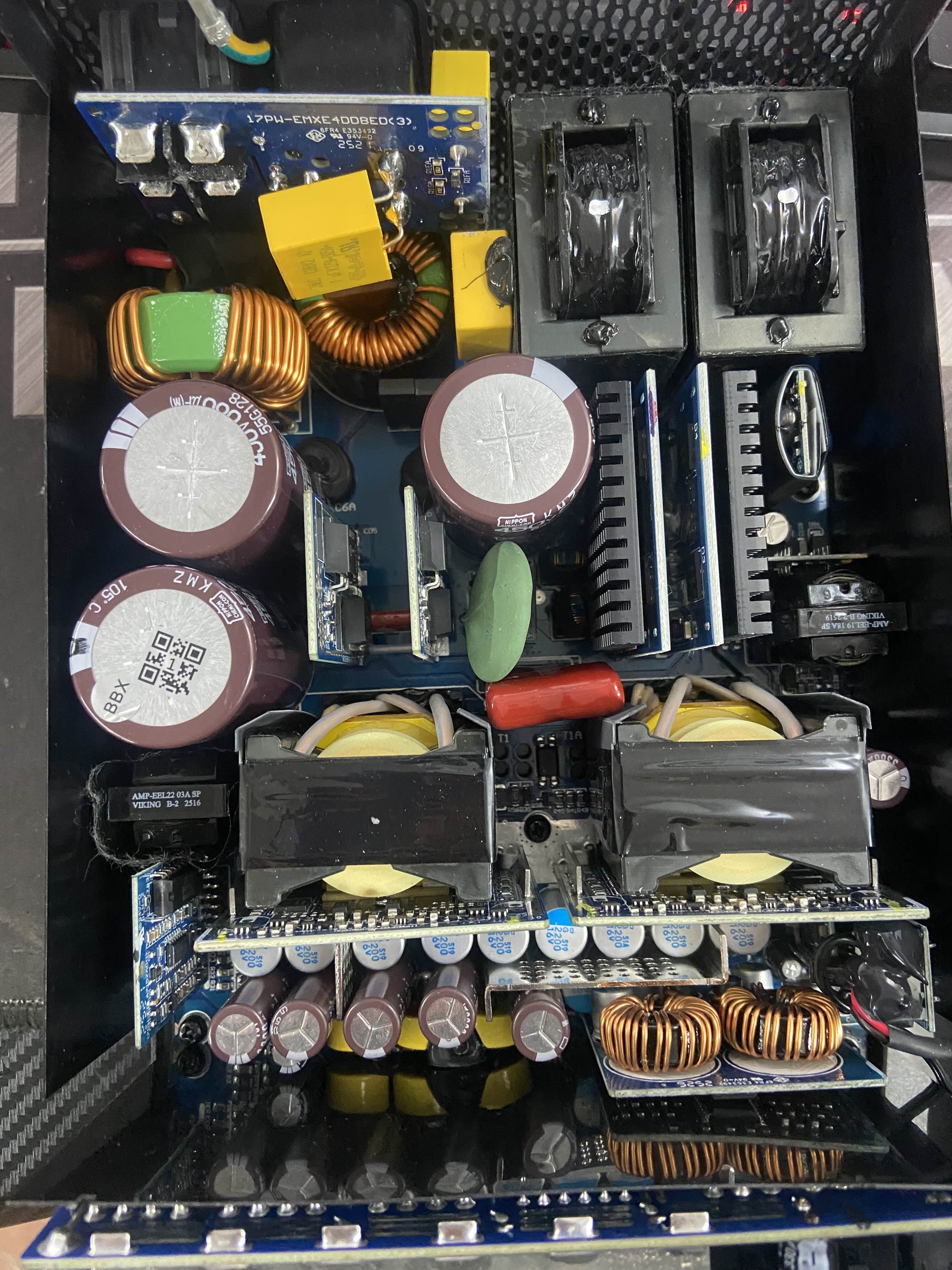

PSU Internals
