Cybenetics Test - Corsair HX1500i Shift (ATX v3.1)

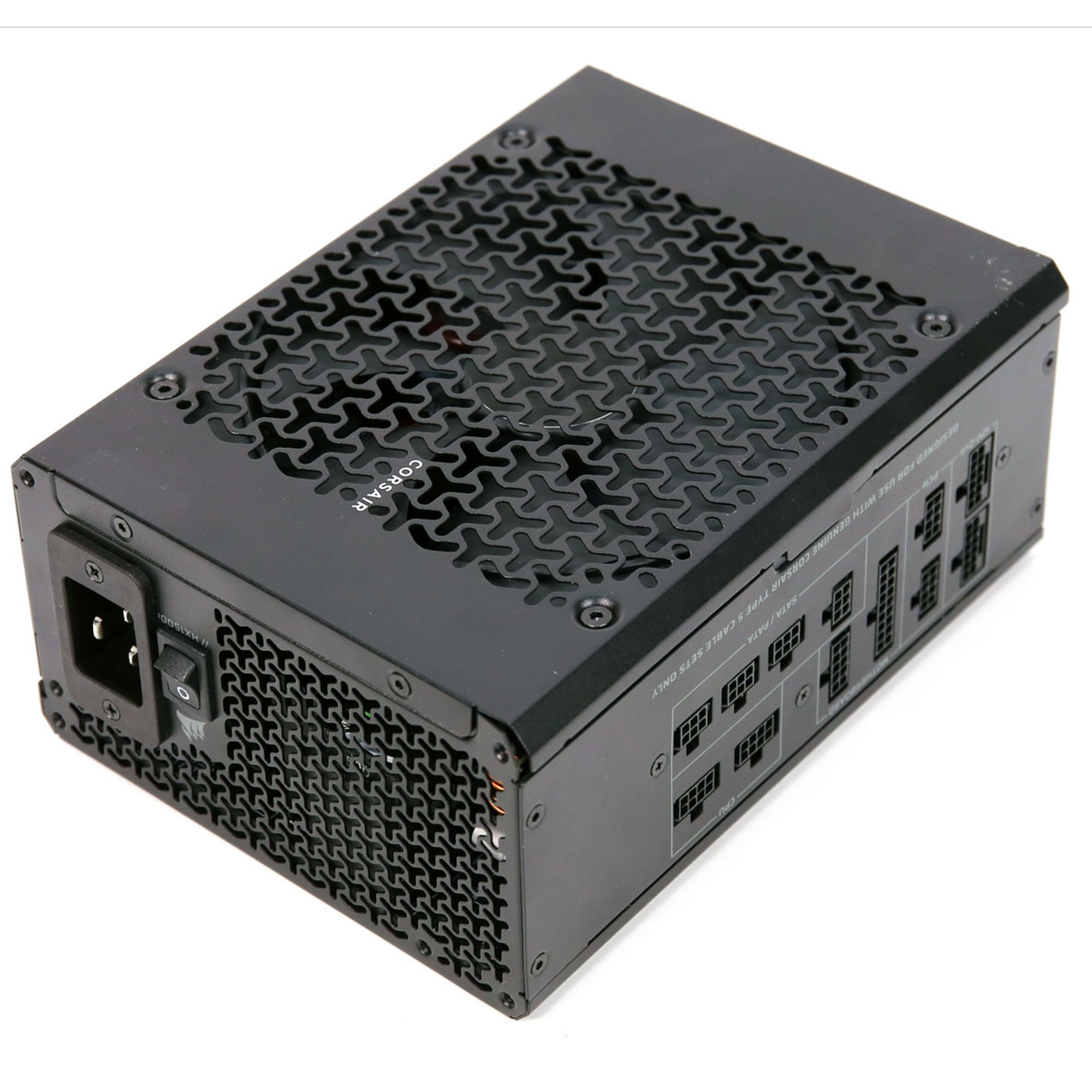

Corsair HX1500i Shift (ATX v3.1)

Serial NumberA646A508G0RZSY

Lab IDCR15003006

Certification ID253006

Test Result Report ID: 25PS3006A
Certificate Issue Date: Oct 17, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

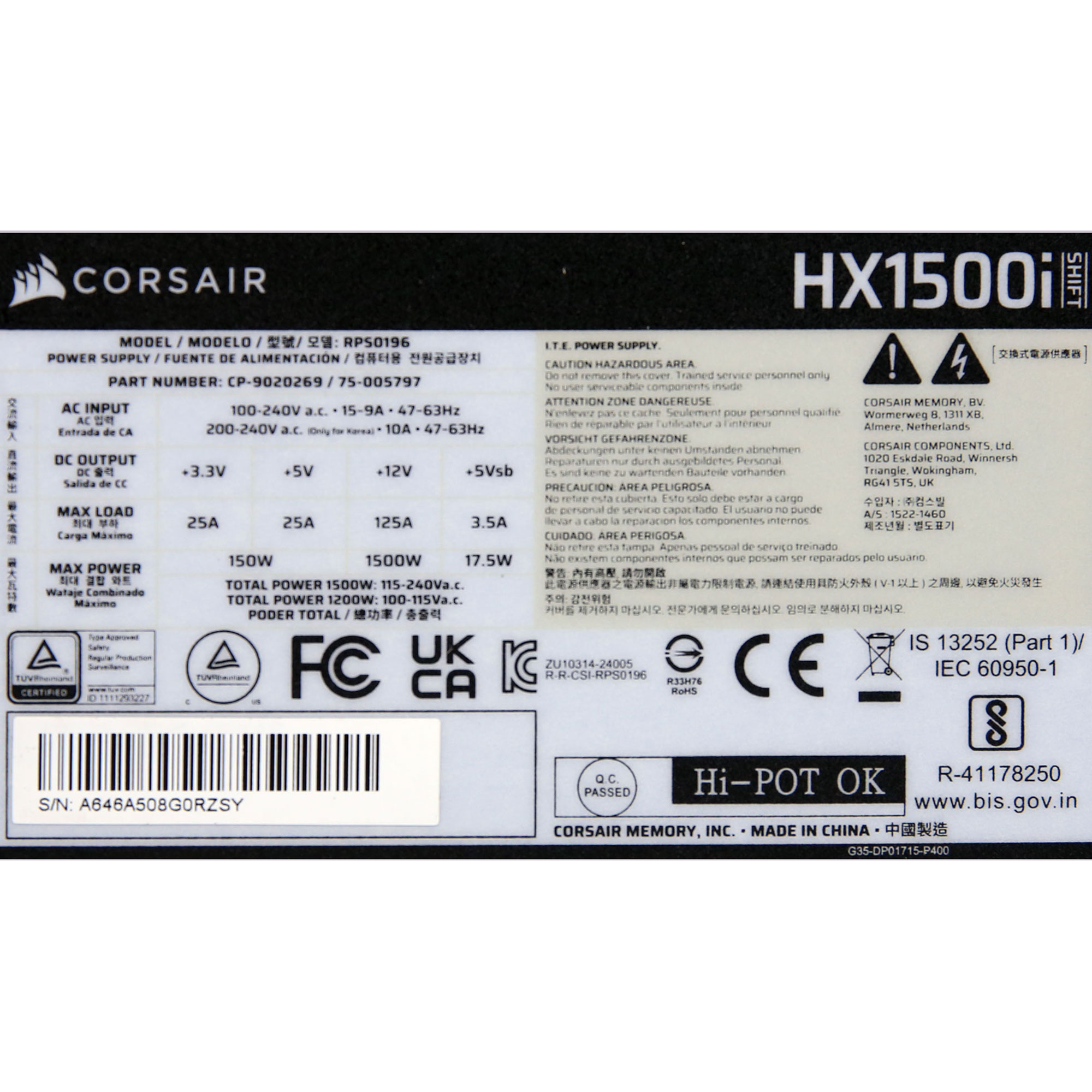

Brand	Corsair
Hersteller (OEM)	Channel Well Technology
Series	HXi Shift
Model Number	RPS0196
Serial Number	A646A508G0RZSY
Fan Report Link	Corsair NR140HP
DUT Notes	The 90V test was carried out at 1200W.

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	9-15
Rated Frequency (Hz)	47-63
Rated Power (W)	1500
Type	ATX12V
Dimensions (W x H x D)
Cooling	140mm Fluid Dynamic Bearing Fan (NR140HP)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	125	3.5	0
Max. Power	Watts	150		1500	17.5	0
Total Max. Power (W)		1500

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (610mm)	1	1	16-20AWG	No
4+4 pin EPS12V (650mm)	2	2	18AWG	No
6+2 pin PCIe (650mm)	2	2	16-18AWG	No
2x 6+2 pin PCIe (650mm)	2	4	16AWG	No
12+2 pin PCIe (650mm) (600W)	2	2	16-24AWG	No
SATA (455mm+110mm+110mm+110mm)	2	8	18AWG	No
4-pin Molex (455mm+100mm+100mm+100mm)	2	8	18AWG	No
AC Power Cord (1400mm) - C19 coupler	1	1	16AWG	-
iQue cable (90 deg. connector) (200mm)	1	1	-	-
iQue cable (straight connector) (600mm)	1	1	-	-
USB 2.0 (530mm)	1	1	-	-

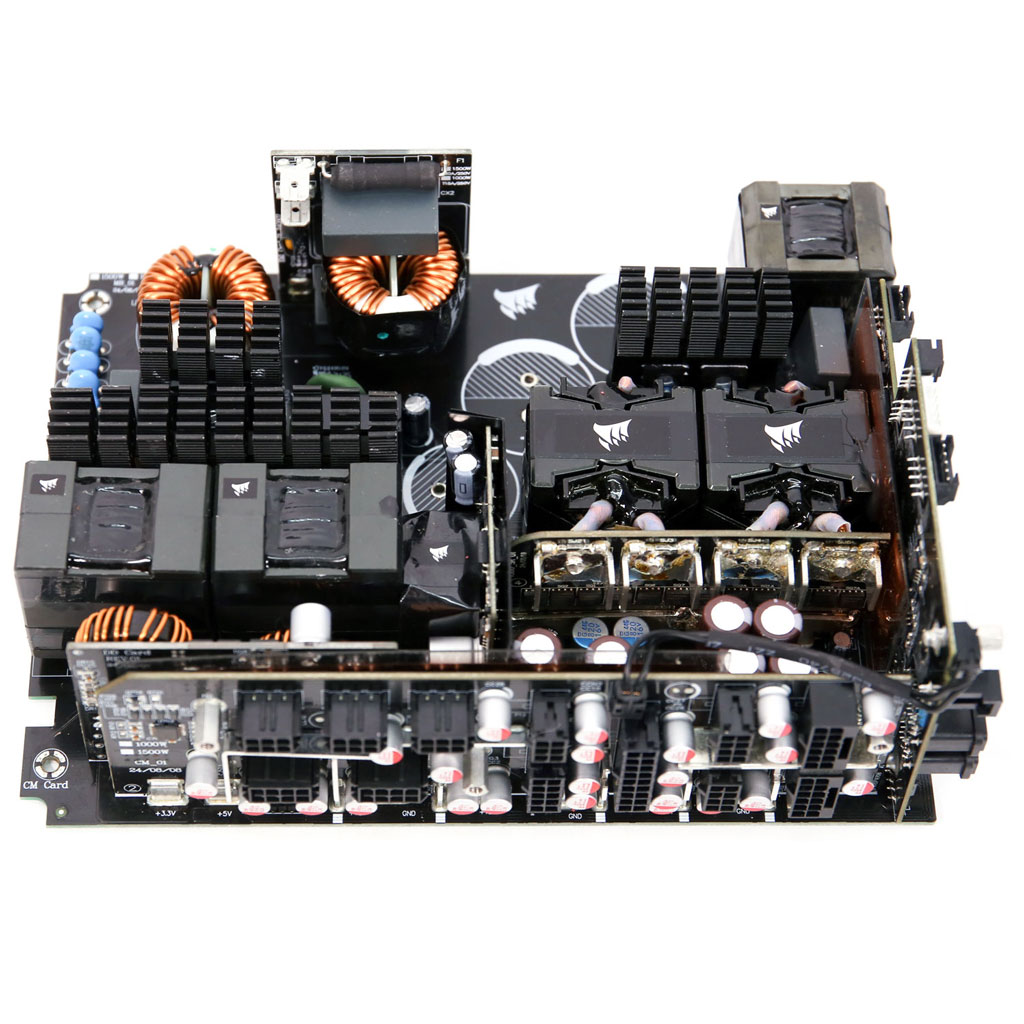

Parts Description

`General Data`
Manufacturer (OEM)	CWT
PCB Type	Double-Sided
`Primary Side`
Transient Filter	6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	2x NTC Thermistor SCK-075 (7 Ohm) & Relay
Bridge Rectifier	2x ShinDengen LL25XB60 (600V, 25A @ 113°C)
APFC MOSFETs	2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode	2x Infineon IDH10G65C6 (650V, 10A @ 145°C)
Bulk Cap(s)	Nippon Chemi-Con (420V, 560uF, 2,000h @ 105°C, KMR) Rubycon (420V, 680uF, 2000h @ 105°C, MXE) Rubycon (420V, 470uF, 2000h @ 105°C, MXE)
APFC Cut-Off	Sync Power SPN5003 (reducing no load consumption)
Main Switchers	4x Alpha & Omega AOTF29S50 (600V, 18A @ 100°C, Rds(on): 0.15Ohm)
Digital Controllers	2x Texas Instruments UCD3138A
MCU	Microchip PIC32MM0064GPM036
IC Driver	2x Silicon Labs Si8233BD
Topology	Primary side: Digital, Interleaved PFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	12 x Infineon BSC014N06NS (40V, 182A @ 100°C, Rds(on): 1.45mOhm)
5V & 3.3V	DC-DC Converters: 6x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors	Electrolytic: 6x Nippon Chemi-Con (@ 105°C, W) 2x Rubycon (6-10,000h @ 105°C, ZLH) Rubycon (4-10,000h @ 105°C, YXF) Nichicon (5-6,000 @ 105°C, HV(M)) Polymer: 7x Nippon Chemi-con, 29x FPCAP
Supervisor IC	Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Controller / Micro Controller	Microchip PIC32MM0064GPM036
Fan Model	Corsair NR140P (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Synchronous Rectification IC	Leadtrend LD8926AA1
Standby PWM Controller	On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Wirkungsgrad	PLATINUM
Lautstärkeklasse	A+
Average Efficiency (>1450 load combinations)	89.455%
Average Noise Output (>1450 Load Combinations)	19.36dBA
Average PF (>1450 Load Combinations)	0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load	72.504%
Standby Power Consumption	0.0149W
12V Ripple (Full Load)	33.10mV
5V Ripple (Full Load)	18.62mV
3.3V Ripple (Full Load)	17.78mV
5VSB Ripple (Full Load)	28.26mV
12V Load Regulation	0.78%
5V Load Regulation	0.40%
3.3V Load Regulation	0.76%
5VSB Load Regulation	1.55%
Inrush Current	12.730A

Wirkungsgrad	PLATINUM
Lautstärkeklasse	A+
Average Efficiency (>1450 load combinations)	91.480%
Average Noise Output (>1450 Load Combinations)	19.37dBA
Average PF (>1450 Load Combinations)	0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.258%
Standby Power Consumption	0.0713W
12V Ripple (Full Load)	31.83mV
5V Ripple (Full Load)	19.02mV
3.3V Ripple (Full Load)	19.61mV
5VSB Ripple (Full Load)	30.64mV
12V Load Regulation	0.74%
5V Load Regulation	0.38%
3.3V Load Regulation	0.70%
5VSB Load Regulation	1.49%
Inrush Current	23.280A
12V Transient Response (200%)	11.25V
5V Transient Response (200%)	4.906V
3.3V Transient Response (200%)	3.187V
5VSB Transient Response (200%)	4.764V
Hold-Up Time & Power Ok Signal	27.00ms
AC Loss to PWR_OK Hold Up Time	23.00ms
PWR_OK Inactive to DC Loss Delay	4.00ms
PSU Timings: T1 (20% / 100%)	69.0ms	69.0ms
PSU Timings: T3 (20% / 100%)	131.0ms	129.0ms
12V OCP (26.9°C / 43.0°C)	153.40A (122.72%), 12.005V	152.80A (122.24%), 11.997V
5V OCP (26.9°C / 43.0°C)	34A (136.00%), 5.048V	34.3A (137.20%), 5.042V
3.3V OCP (26.9°C / 43.0°C)	34.3A (137.20%), 3.295V	34.3A (137.20%), 3.289V
5VSB OCP (26.9°C / 43.0°C)	4.7A (134.29%), 4.99V	4.5A (128.57%), 4.98V
OPP (26.41°C / 42.85°C)	124.87%	124.87%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	27
AC Loss to PWR_OK Hold Up Time (ms)	23
PWR_OK Inactive to DC Loss Delay (ms)	4

Stromverbrauch im Ruhezustand

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.87 V	114.83 V	113.85 V	114.91 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.97 Hz	59.40 Hz	60.03 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.14 %	0.11 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.015 W	-0.004 W	N/A	0.034 W	N/A	N/A
Apparent Power:	13.085 W	13.053 W	N/A	13.126 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.88 V	229.83 V	227.70 V	229.92 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.12 %	0.10 %	N/A	0.14 %	2.00 %	PASS
Real Power:	0.071 W	0.031 W	N/A	0.115 W	N/A	N/A
Apparent Power:	44.700 W	44.652 W	N/A	44.753 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

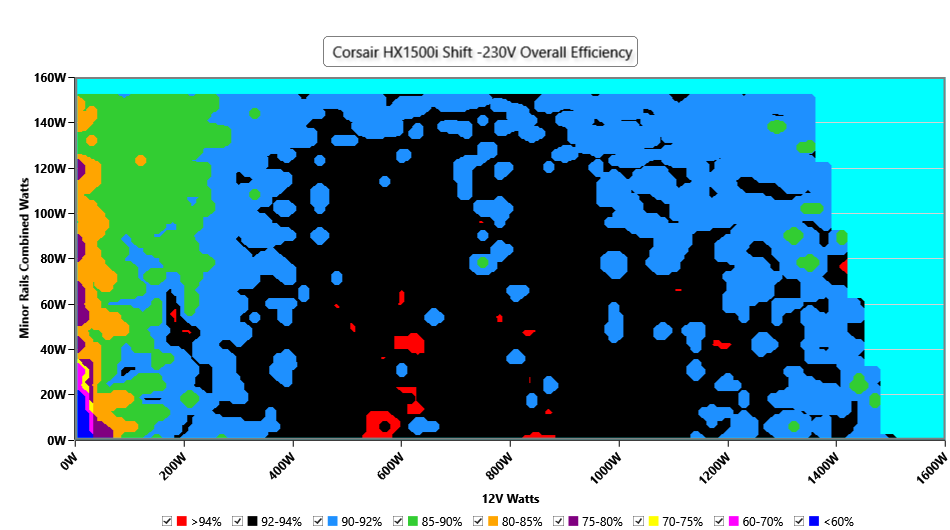

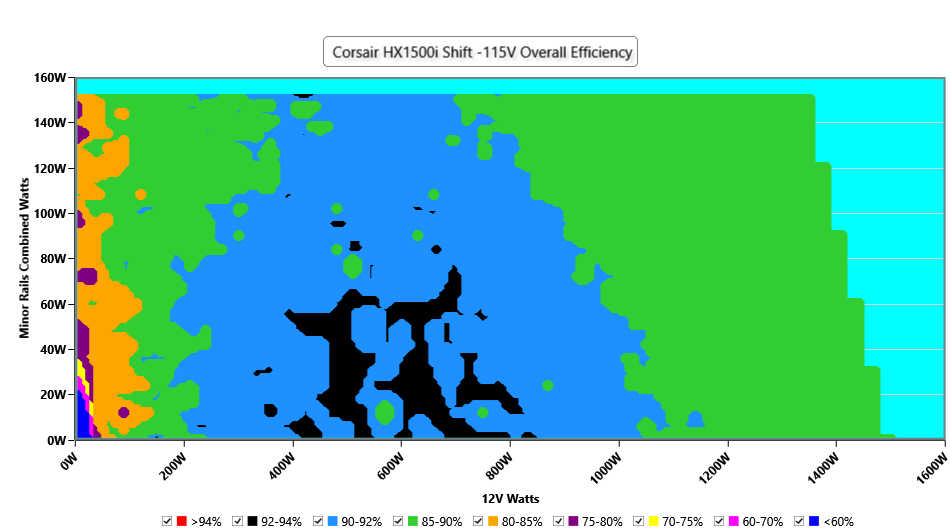

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

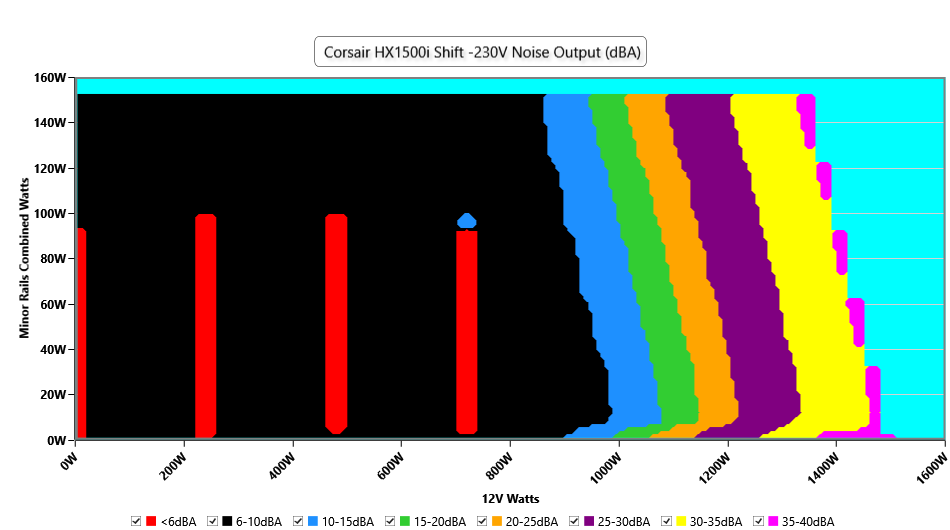

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

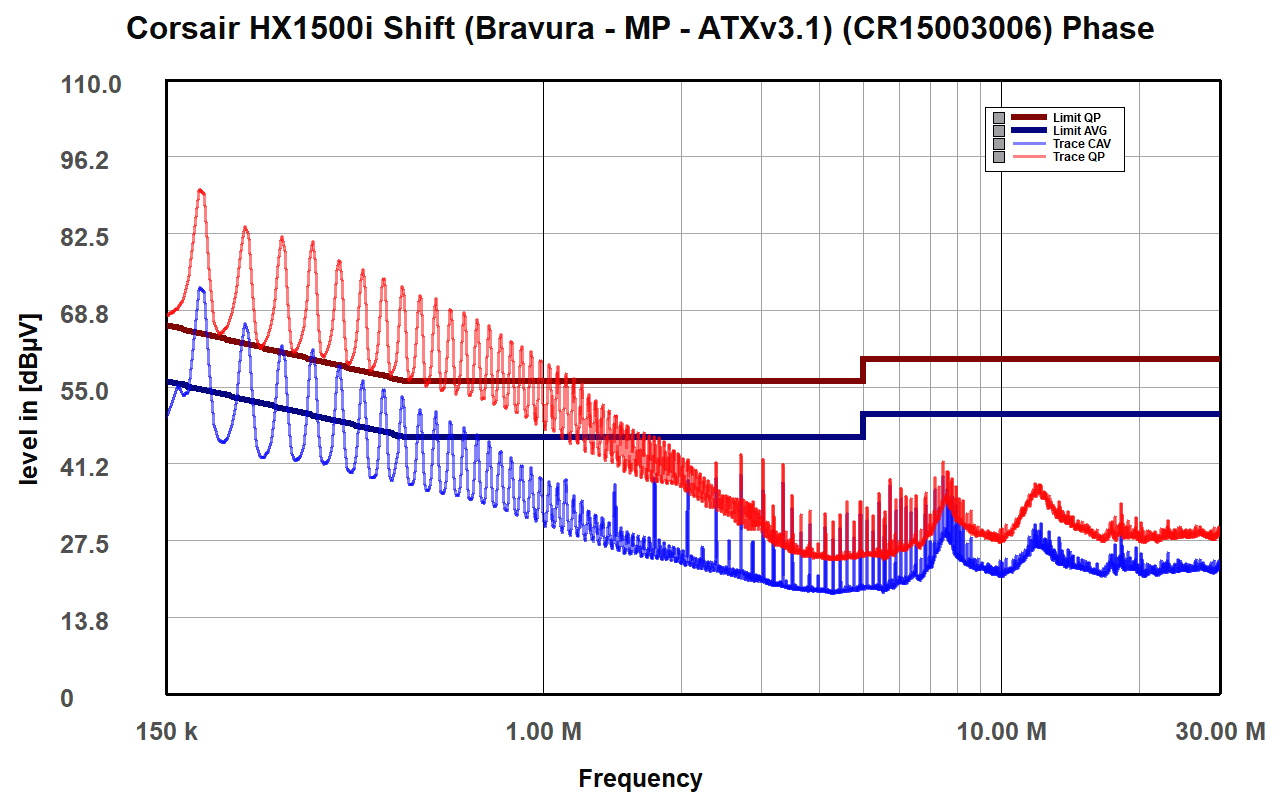

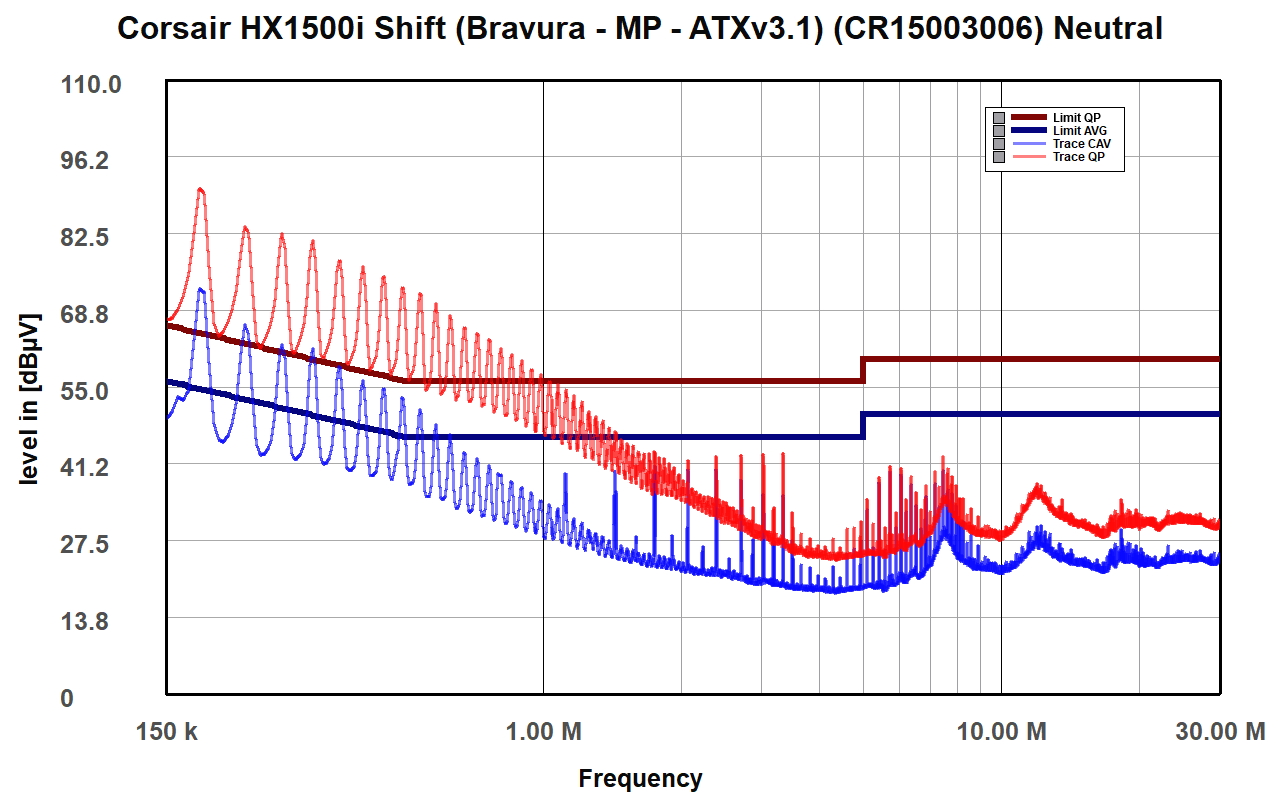

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

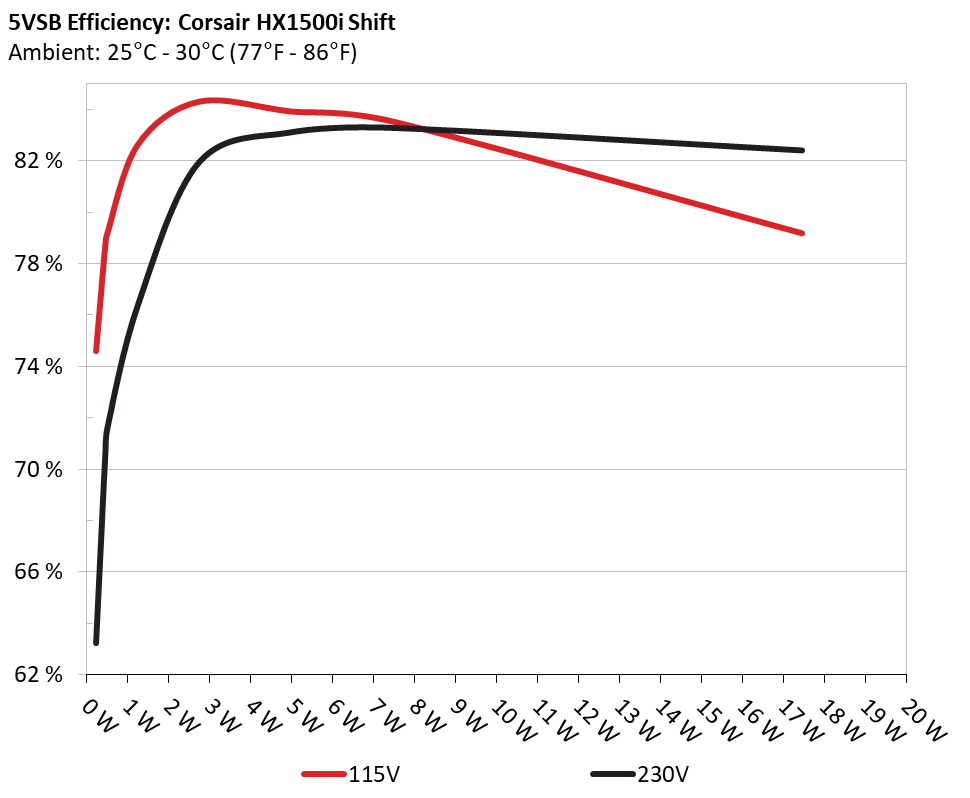

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.224W	74.595%	0.024
1	4.98V	0.3W	74.595%	114.88V
2	0.09A	0.448W	78.693%	0.045
2	4.98V	0.569W	78.693%	114.88V
3	0.55A	2.74W	84.297%	0.228
3	4.981V	3.25W	84.297%	114.87V
4	1A	4.983W	83.916%	0.348
4	4.983V	5.938W	83.916%	114.86V
5	1.5A	7.477W	83.521%	0.43
5	4.984V	8.952W	83.521%	114.87V
6	3.5A	17.461W	79.177%	0.553
6	4.988V	22.053W	79.177%	114.86V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.224W	63.253%	0.008
1	4.982V	0.355W	63.253%	229.89V
2	0.09A	0.448W	70.55%	0.014
2	4.982V	0.636W	70.55%	229.89V
3	0.55A	2.741W	81.95%	0.074
3	4.983V	3.345W	81.95%	229.89V
4	1A	4.984W	83.109%	0.128
4	4.984V	5.998W	83.109%	229.89V
5	1.5A	7.477W	83.277%	0.182
5	4.984V	8.979W	83.277%	229.89V
6	3.501A	17.454W	82.404%	0.334
6	4.986V	21.181W	82.404%	229.89V

Protection Features

OCP (Normal @ 26.9°C)	12V: 153.40A (122.72%), 12.005V 5V: 34A (136.00%), 5.048V 3.3V: 34.3A (137.20%), 3.295V 5VSB: 4.7A (134.29%), 4.99V
OCP (Hot @ 43.0°C)	12V: 152.80A (122.24%), 11.997V 5V: 34.3A (137.20%), 5.042V 3.3V: 34.3A (137.20%), 3.289V 5VSB: 4.5A (128.57%), 4.98V
OPP (Normal @ 26.4°C)	1873.10W (124.87%)
OPP (Hot @ 42.9°C)	1873.11W (124.87%)
OTP	✓ (85°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓
PWR_OK	Proper Operation
UVP (1200W @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✗
NLO	✓
Fan Failure Protection	✓
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	10.636A	1.983A	1.995A	1.005A	150.01	87.99%	0	<6.0	53.23°C	0.926
10%	12.073V	5.044V	3.309V	4.978V	170.712	87.99%	0	<6.0	40.22°C	114.82V
20%	22.304A	2.975A	2.995A	1.208A	299.983	91.069%	0	<6.0	55.79°C	0.995
20%	12.064V	5.042V	3.306V	4.97V	329.387	91.069%	0	<6.0	40.9°C	114.77V
30%	34.310A	3.472A	3.496A	1.411A	449.644	91.811%	0	<6.0	57.82°C	0.998
30%	12.054V	5.04V	3.304V	4.962V	489.926	91.811%	0	<6.0	41.4°C	114.73V
40%	46.365A	3.97A	3.999A	1.615A	599.64	92.297%	0	<6.0	61.47°C	0.998
40%	12.044V	5.039V	3.302V	4.953V	650.162	92.297%	0	<6.0	41.79°C	114.67V
50%	58.112A	4.964A	5.003A	1.821A	749.773	91.989%	0	<6.0	65.64°C	0.999
50%	12.033V	5.037V	3.298V	4.944V	815.148	91.989%	0	<6.0	42.46°C	114.62V
60%	69.866A	5.961A	6.009A	2A	899.763	90.788%	472	7	42.53°C	0.998
60%	12.025V	5.034V	3.295V	4.939V	991.129	90.788%	472	7	58.43°C	114.57V
70%	81.636A	6.958A	7.017A	2.231A	1050.006	89.938%	558	10.8	43.45°C	0.998
70%	12.015V	5.031V	3.293V	4.932V	1167.443	89.938%	558	10.8	59.09°C	114.5V
80%	93.430A	7.954A	8.024A	2.336A	1199.628	89.213%	799	24	43.63°C	0.998
80%	12.006V	5.029V	3.29V	4.924V	1344.814	89.213%	799	24	58.54°C	114.45V
90%	105.640A	8.454A	8.515A	2.442A	1349.849	88.396%	1152	35.1	44.44°C	0.998
90%	11.997V	5.027V	3.288V	4.916V	1527.067	88.396%	1152	35.1	58.25°C	114.38V
100%	117.394A	8.956A	9.038A	3.566A	1499.536	87.497%	1540	42.7	45.91°C	0.998
100%	11.988V	5.025V	3.286V	4.908V	1713.862	87.497%	1540	42.7	57.81°C	114.31V
110%	129.301A	9.955A	10.14A	3.572A	1649.705	86.492%	1816	50.2	46.24°C	0.997
110%	11.979V	5.022V	3.284V	4.9V	1908.733	86.492%	1816	50.2	58.75°C	114.23V
CL1	0.117A	17.957A	18.139A	0A	151.305	82.235%	791	23.6	40.17°C	0.94
CL1	12.059V	5.028V	3.285V	4.969V	184.289	82.235%	791	23.6	50.6°C	114.8V
CL2	0.116A	24.745A	0A	0A	126.244	81.395%	741	21.5	41.02°C	0.929
CL2	12.066V	5.045V	3.282V	4.975V	155.531	81.395%	741	21.5	48.09°C	114.82V
CL3	0.116A	0A	25.049A	0A	83.888	74.592%	762	22.4	40.07°C	0.904
CL3	12.067V	5.021V	3.293V	4.974V	112.55	74.592%	762	22.4	45.9°C	114.83V
CL4	125.011A	0A	0A	0A	1499.968	88.212%	1174	35.6	45.59°C	0.998
CL4	11.999V	5.032V	3.292V	4.916V	1700.489	88.212%	1174	35.6	55.85°C	114.32V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	10.639A	1.982A	1.995A	1.005A	150.006	89.342%	0	<6.0	59.02°C	0.742
10%	12.069V	5.045V	3.309V	4.977V	168.171	89.342%	0	<6.0	40.41°C	229.86V
20%	22.307A	2.975A	2.994A	1.208A	299.963	91.27%	0	<6.0	61.99°C	0.864
20%	12.062V	5.043V	3.306V	4.968V	328.875	91.27%	0	<6.0	40.89°C	229.84V
30%	34.311A	3.471A	3.496A	1.411A	449.559	92.846%	0	<6.0	65.26°C	0.96
30%	12.052V	5.041V	3.304V	4.961V	484.104	92.846%	0	<6.0	41.23°C	229.82V
40%	46.362A	3.969A	3.998A	1.615A	599.541	93.712%	0	<6.0	68.35°C	0.974
40%	12.043V	5.039V	3.302V	4.953V	639.801	93.712%	0	<6.0	41.79°C	229.79V
50%	58.097A	4.963A	5.002A	1.821A	749.665	93.129%	0	<6.0	73.59°C	0.982
50%	12.034V	5.037V	3.299V	4.943V	804.961	93.129%	0	<6.0	42.01°C	229.77V
60%	69.857A	5.959A	6.007A	2A	899.656	92.96%	474	7.1	42.53°C	0.984
60%	12.025V	5.035V	3.296V	4.94V	967.806	92.96%	474	7.1	52.48°C	229.75V
70%	81.623A	6.955A	7.013A	2.23A	1049.916	92.679%	798	23.9	43.44°C	0.99
70%	12.016V	5.033V	3.294V	4.933V	1132.852	92.679%	798	23.9	52.19°C	229.72V
80%	93.408A	7.95A	8.019A	2.335A	1199.538	92.307%	800	24	43.79°C	0.988
80%	12.008V	5.031V	3.292V	4.926V	1299.821	92.307%	800	24	51.92°C	229.69V
90%	105.612A	8.451A	8.51A	2.44A	1349.778	91.938%	1149	35.1	44.11°C	0.989
90%	11.999V	5.029V	3.29V	4.919V	1468.551	91.938%	1149	35.1	51.31°C	229.67V
100%	117.352A	8.951A	9.031A	3.563A	1499.477	91.299%	1522	42.5	45.16°C	0.99
100%	11.992V	5.027V	3.288V	4.911V	1642.54	91.299%	1522	42.5	51.38°C	229.64V
110%	129.248A	9.95A	10.133A	3.569A	1649.662	90.825%	1836	50.7	46.01°C	0.99
110%	11.984V	5.025V	3.286V	4.903V	1816.71	90.825%	1836	50.7	51.16°C	229.62V
CL1	0.116A	17.952A	18.14A	0A	151.284	83.266%	469	7	40.29°C	0.755
CL1	12.060V	5.029V	3.285V	4.969V	181.981	83.266%	469	7	49.14°C	229.87V
CL2	0.115A	24.746A	0A	0A	126.231	81.849%	742	21.5	40.59°C	0.697
CL2	12.066V	5.045V	3.282V	4.975V	154.262	81.849%	742	21.5	46.63°C	229.87V
CL3	0.114A	0A	25.042A	0A	83.879	75.95%	763	22.5	41.44°C	0.64
CL3	12.069V	5.023V	3.294V	4.975V	110.602	75.95%	763	22.5	45.38°C	229.87V
CL4	124.973A	0A	0A	0A	1499.899	91.92%	1178	35.7	45.09°C	0.99
CL4	12.002V	5.034V	3.293V	4.918V	1631.358	91.92%	1178	35.7	49.57°C	229.64V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.496A	0.499A	0.2A	19.998	50.677%	0	<6.0	48.42°C	0.765
20W	12.081V	5.045V	3.307V	4.983V	39.499	50.677%	0	<6.0	36.8°C	114.86V
40W	2.706A	0.694A	0.698A	0.301A	40.003	77.617%	0	<6.0	47.94°C	0.785
40W	12.081V	5.045V	3.308V	4.984V	51.565	77.617%	0	<6.0	37.46°C	114.86V
60W	4.184A	0.892A	0.897A	0.401A	60.003	82.709%	0	<6.0	50.83°C	0.82
60W	12.079V	5.045V	3.311V	4.983V	72.608	82.709%	0	<6.0	38.53°C	114.86V
80W	5.657A	1.09A	1.096A	0.502A	79.951	85.259%	0	<6.0	52.86°C	0.846
80W	12.078V	5.045V	3.311V	4.982V	93.844	85.259%	0	<6.0	39.93°C	114.85V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.495A	0.499A	0.2A	19.99	51.326%	0	<6.0	55.65°C	0.449
20W	12.080V	5.046V	3.308V	4.983V	38.996	51.326%	0	<6.0	36.03°C	229.89V
40W	2.706A	0.694A	0.698A	0.301A	39.998	78.383%	0	<6.0	57.22°C	0.498
40W	12.078V	5.046V	3.309V	4.984V	51.211	78.383%	0	<6.0	37.87°C	229.89V
60W	4.184A	0.892A	0.897A	0.401A	60	74.966%	0	<6.0	56.48°C	0.57
60W	12.076V	5.046V	3.311V	4.983V	72.313	74.966%	0	<6.0	38.43°C	229.88V
80W	5.658A	1.09A	1.096A	0.502A	79.946	82.567%	0	<6.0	57.08°C	0.641
80W	12.074V	5.046V	3.311V	4.981V	93.634	82.567%	0	<6.0	39.14°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	21.79mV	18.94mV	17.60mV	12.21mV	Pass
20% Load	22.14mV	18.89mV	17.04mV	12.62mV	Pass
30% Load	22.50mV	19.81mV	18.88mV	13.34mV	Pass
40% Load	24.30mV	18.99mV	17.80mV	14.52mV	Pass
50% Load	30.59mV	24.84mV	22.88mV	15.39mV	Pass
60% Load	25.93mV	20.48mV	18.77mV	14.78mV	Pass
70% Load	28.34mV	19.09mV	18.37mV	15.24mV	Pass
80% Load	29.31mV	21.14mV	20.78mV	16.37mV	Pass
90% Load	31.25mV	21.04mV	20.78mV	17.44mV	Pass
100% Load	33.10mV	18.62mV	17.78mV	28.26mV	Pass
110% Load	36.40mV	18.02mV	17.49mV	27.00mV	Pass
Crossload1	24.08mV	19.65mV	16.98mV	12.08mV	Pass
Crossload2	34.17mV	29.30mV	25.45mV	12.62mV	Pass
Crossload3	20.10mV	18.73mV	18.83mV	11.44mV	Pass
Crossload4	33.12mV	18.96mV	17.90mV	12.99mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	22.50mV	20.53mV	18.11mV	12.78mV	Pass
20% Load	29.00mV	21.20mV	19.24mV	14.57mV	Pass
30% Load	23.88mV	20.63mV	19.60mV	14.47mV	Pass
40% Load	24.91mV	19.97mV	18.93mV	15.85mV	Pass
50% Load	26.03mV	20.78mV	18.98mV	16.42mV	Pass
60% Load	26.90mV	21.09mV	19.65mV	15.96mV	Pass
70% Load	29.72mV	22.12mV	20.16mV	17.29mV	Pass
80% Load	32.73mV	21.50mV	20.98mV	18.42mV	Pass
90% Load	33.75mV	27.25mV	24.27mV	20.78mV	Pass
100% Load	31.83mV	19.02mV	19.61mV	30.64mV	Pass
110% Load	32.70mV	20.90mV	21.31mV	30.58mV	Pass
Crossload1	22.01mV	23.36mV	19.19mV	12.63mV	Pass
Crossload2	24.24mV	25.30mV	19.55mV	13.90mV	Pass
Crossload3	31.76mV	19.86mV	21.60mV	12.72mV	Pass
Crossload4	31.61mV	18.64mV	18.80mV	12.64mV	Pass

The results above are not used in the certification process

Corsair HX1500i Shift (ATX v3.1)

Top side

Power specifications label

In Top Photo

Fan Photo
