CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Endorfy Vero L6 650W
Serial NumberEY7A0152508009047
Lab IDEY65003010
Certification ID253010
  • Test Result Report ID: 25PS3010A
  • Certificate Issue Date: Oct 31, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandEndorfy
Manufacturer (OEM)Jiumeng
SeriesVero L6
Model NumberEY7A015
Serial NumberEY7A0152508009047
DUT Notes

DUT Specifications

Rated Voltage (Vrms)200-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Fluid Dynamic Bearing Fan (Stratus 10-1111 0.25A)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430
Watts100648150
Total Max. Power (W)650

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (575mm) 1 1 18-20AWG Copper
4+4 pin EPS12V (685mm+145mm) 1 2 18AWG Copper
6+2 pin PCIe (575mm+145mm) 1 2 18AWG Copper
12+4 pin PCIe (615mm) (450W) 1 1 16-26AWG Tinned Copper
SATA (510mm+150mm+150mm) 1 3 18AWG Copper
SATA (510mm+150mm) / 4-pin Molex (+150mm) 1 2 / 1 18AWG Copper
Modular Cables
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Jiumeng
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72 3D-20 (3 Ohm @ 25°C)
Bridge Rectifier
GBU1506 (600V, 3.2A @ 100°C) without heat sink
APFC MOSFETs
SI-Trend SI20N50F
APFC Boost Diode
SI-Trend SI8U600F (600V, 8A @ 100°C)
Bulk Cap(s)
Teapo (400V, 390uF, 105°C, TD(M))
Main Switchers
2x SI-Trend SI20N50F

PFC/PWM Controller

Champion CM6800UBX
Topology Primary side: APFC, Double Forward
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 4x Oriental Semiconductor SFS130N06P (60V, 130A @ 25°C, Rds(on): 3.5mOhm)
5V & 3.3V DC-DC Converters: 4x Rectron Semiconductor RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
8x Teapo (1-3,000 @ 105°C, SC)
2x Teapo (2,000 @ 105°C, SH)
Polymer:
4x Teapo (FG)
Supervisor IC GRENERGY GR8329E (OVP, UVP, OCP )
Fan Model Endorfy Stratus 10-1111 (120mm, 12V, 0.25A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PingWei PS860L (60V, 8A)
Standby PWM Controller
Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Efficiency RatingSILVER
Noise RatingStandard++
Average Efficiency (>1450 load combinations)87.837%
Average Noise Output (>1450 Load Combinations)31.11dBA
Average PF (>1450 Load Combinations)0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load64.979%
Standby Power Consumption0.1463W
12V Ripple (Full Load)36.00mV
5V Ripple (Full Load)17.28mV
3.3V Ripple (Full Load)20.96mV
5VSB Ripple (Full Load)21.30mV
12V Load Regulation0.51%
5V Load Regulation0.70%
3.3V Load Regulation0.92%
5VSB Load Regulation3.57%
Inrush Current77.620A
12V Transient Response (200%)11.39V
5V Transient Response (200%)4.965V
3.3V Transient Response (200%)3.220V
5VSB Transient Response (200%)5.054V
Hold-Up Time & Power Ok Signal17.20ms
AC Loss to PWR_OK Hold Up Time15.20ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)50.0ms52.0ms
PSU Timings: T3 (20% / 100%)124.0ms124.0ms
12V OCP (29.2°C / 44.6°C)74.20A (137.41%), 12.108V72.60A (134.44%), 12.105V
5V OCP (29.2°C / 44.6°C)24.2A (121.00%), 5.006V23.9A (119.50%), 5.007V
3.3V OCP (29.2°C / 44.6°C)25.3A (126.50%), 3.277V25.2A (126.00%), 3.278V
5VSB OCP (29.2°C / 44.6°C)3.9A (130.00%), 4.933V3.9A (130.00%), 4.927V
OPP (30.76°C / 43.42°C)143.83%132.85%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.2
AC Loss to PWR_OK Hold Up Time (ms)15.2
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables 230V

Detailed Results Average Min Limit Min Max Limit Max Result Mains Voltage RMS: 230.05 V 230.01 V 227.70 V 230.20 V 232.30 V PASS Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS Real Power: 0.146 W 0.103 W N/A 0.195 W N/A N/A Apparent Power: 21.804 W 21.764 W N/A 21.848 W N/A N/A Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs 230V

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

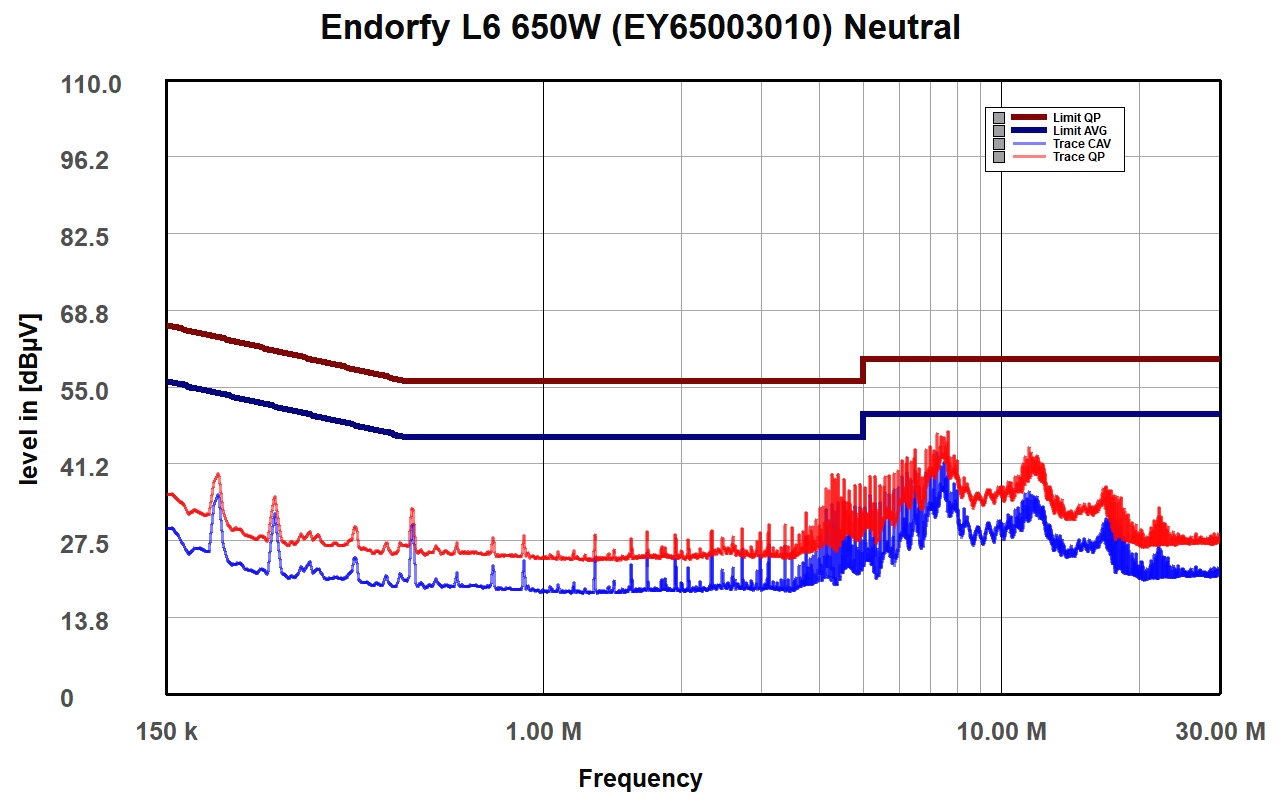

NEUTRAL

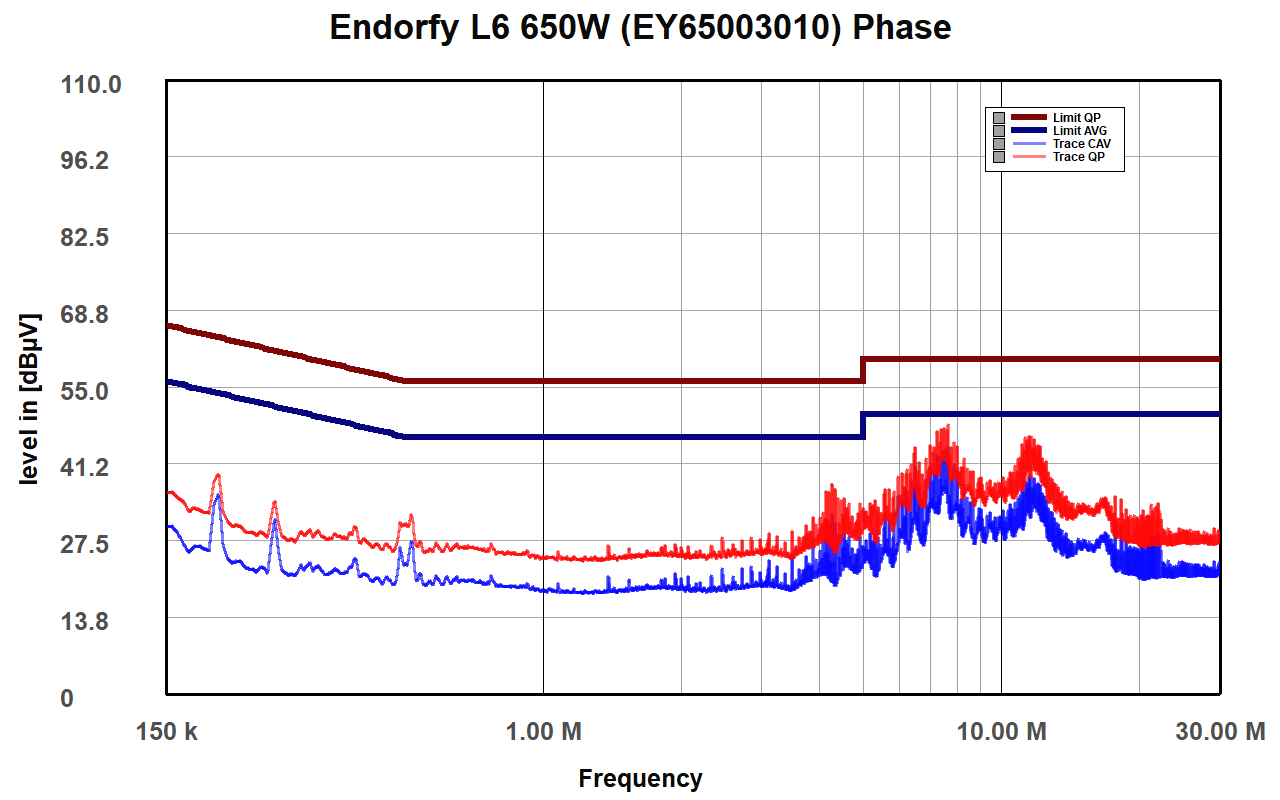

PHASE

Indicative Performance

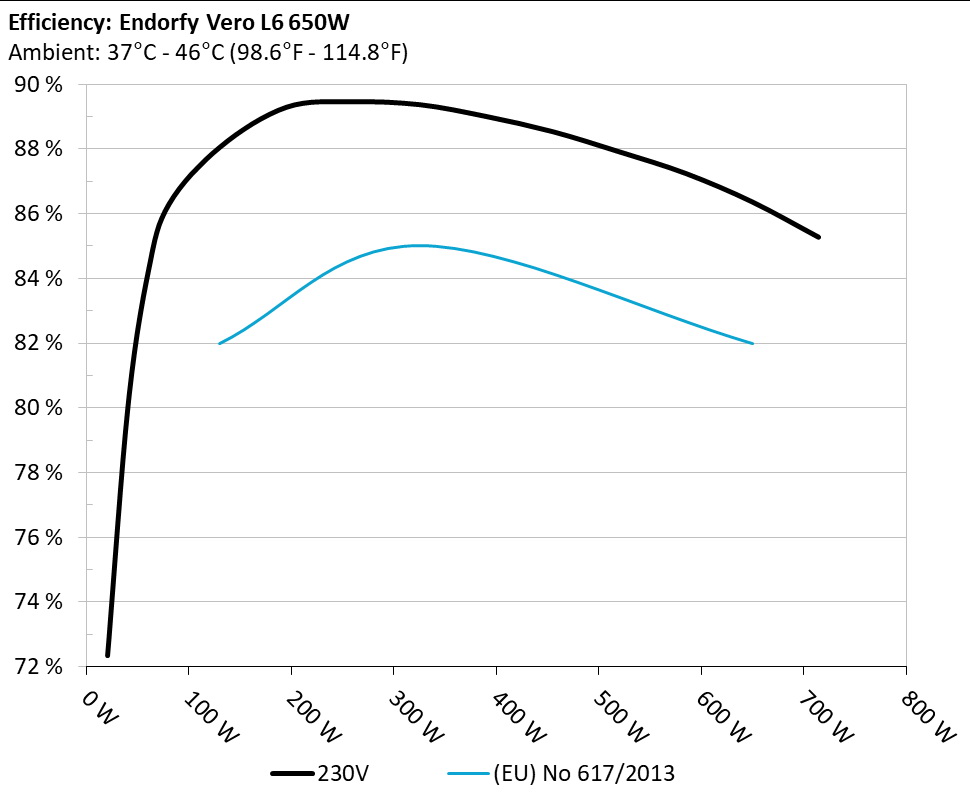

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

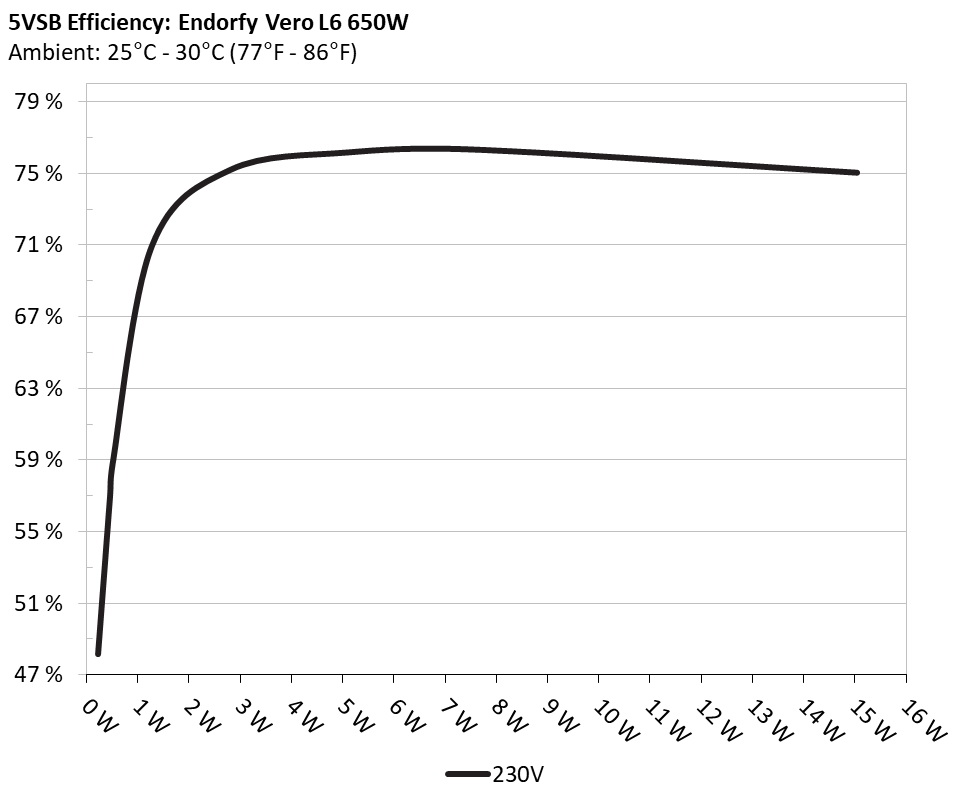

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 48.178% 0.023
5.142V 0.481W 230.06V
2 0.09A 0.463W 56.951% 0.038
5.14V 0.813W 230.05V
3 0.55A 2.818W 75.21% 0.156
5.121V 3.747W 230.01V
4 1A 5.104W 76.176% 0.236
5.102V 6.7W 230.02V
5 1.5A 7.623W 76.327% 0.288
5.081V 9.989W 230.04V
6 3.001A 15.047W 75.046% 0.367
5.015V 20.049W 230.05V

Protection Features

OCP (Normal @ 29.2°C)12V: 74.20A (137.41%), 12.108V
5V: 24.2A (121.00%), 5.006V
3.3V: 25.3A (126.50%), 3.277V
5VSB: 3.9A (130.00%), 4.933V
OCP (Hot @ 44.6°C)12V: 72.60A (134.44%), 12.105V
5V: 23.9A (119.50%), 5.007V
3.3V: 25.2A (126.00%), 3.278V
5VSB: 3.9A (130.00%), 4.927V
OPP (Normal @ 30.8°C)934.88W (143.83%)
OPP (Hot @ 43.4°C)863.51W (132.85%)
OTP✓ (103°C @ Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 180V)✓
UVP (No Damage @ 170V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.581A 1.982A 2.001A 0.982A 65.015 83.459% 911 18.6 40.48°C 0.872
12.122V 5.048V 3.298V 5.093V 77.901 44.98°C 230V
20% 8.177A 2.975A 3.005A 1.181A 129.98 88.053% 1177 26.5 40.99°C 0.938
12.116V 5.044V 3.295V 5.08V 147.614 45.37°C 229.99V
30% 13.124A 3.473A 3.509A 1.382A 194.993 89.282% 1352 30.4 41.11°C 0.964
12.110V 5.041V 3.292V 5.067V 218.401 45.49°C 229.98V
40% 18.083A 3.971A 4.014A 1.583A 260.09 89.447% 1567 34.5 41.6°C 0.973
12.104V 5.038V 3.289V 5.054V 290.775 46.53°C 229.98V
50% 22.696A 4.968A 5.022A 1.786A 325.094 89.359% 1682 36.3 42.21°C 0.98
12.098V 5.034V 3.286V 5.04V 363.805 47.23°C 229.97V
60% 27.281A 5.966A 6.032A 1.991A 389.704 88.997% 1761 37.7 42.75°C 0.983
12.092V 5.031V 3.283V 5.025V 437.883 48.18°C 229.97V
70% 31.924A 6.965A 7.044A 2.196A 454.951 88.526% 1797 38.1 43.23°C 0.985
12.086V 5.027V 3.28V 5.011V 513.916 49.57°C 230V
80% 36.577A 7.963A 8.056A 2.3A 519.722 87.907% 1806 38.3 43.75°C 0.987
12.079V 5.023V 3.277V 5.001V 591.214 51.75°C 230.01V
90% 41.635A 8.467A 8.551A 2.405A 585.133 87.233% 1811 38.4 44.92°C 0.989
12.072V 5.02V 3.274V 4.991V 670.768 54.54°C 230.01V
100% 46.441A 8.969A 9.077A 3.028A 649.971 86.355% 1813 38.4 45.46°C 0.99
12.064V 5.018V 3.272V 4.956V 752.675 57.28°C 230.01V
110% 51.125A 9.973A 10.186A 3.032A 714.609 85.268% 1819 38.4 46.07°C 0.992
12.055V 5.014V 3.269V 4.949V 838.076 61.76°C 230V
CL1 0.116A 11.97A 12.069A 0A 101.306 81.631% 1449 32.4 40.98°C 0.929
12.119V 5.03V 3.289V 5.129V 124.101 46.83°C 230.07V
CL2 0.115A 19.929A 0A 0A 101.399 80.258% 1262 28.8 40.99°C 0.93
12.123V 5.018V 3.301V 5.134V 126.342 46.71°C 230.06V
CL3 0.115A 0A 20.097A 0A 67.394 74.639% 1092 24.2 40.91°C 0.894
12.121V 5.052V 3.284V 5.13V 90.292 46.05°C 230.07V
CL4 53.863A 0A 0A 0.001A 649.742 87.058% 1815 38.4 45.53°C 0.99
12.063V 5.038V 3.282V 5.111V 746.331 55.57°C 230.01V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.495A 0.5A 0.195A 20.012 72.35% 615 <6.0 36.89°C 0.62
12.126V 5.053V 3.302V 5.133V 27.661 40.05°C 230V
40W 2.697A 0.693A 0.7A 0.293A 40.01 80.066% 627 6.4 37.89°C 0.781
12.124V 5.052V 3.3V 5.127V 49.967 41.94°C 230V
60W 4.169A 0.891A 0.9A 0.391A 60.008 84.251% 640 7.6 38.27°C 0.856
12.122V 5.05V 3.299V 5.121V 71.226 42.94°C 230V
80W 5.639A 1.09A 1.101A 0.489A 79.981 86.288% 828 15.4 39.45°C 0.895
12.120V 5.049V 3.298V 5.116V 92.659 43.9°C 230V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load9.62mV11.33mV8.29mV8.30mVPass
20% Load12.62mV11.99mV8.90mV8.66mVPass
30% Load16.28mV11.94mV9.20mV9.93mVPass
40% Load14.76mV12.70mV9.41mV11.11mVPass
50% Load17.25mV12.70mV10.07mV13.04mVPass
60% Load20.35mV13.42mV10.58mV15.44mVPass
70% Load21.22mV14.08mV11.60mV17.07mVPass
80% Load26.97mV14.89mV19.02mV18.75mVPass
90% Load33.07mV16.27mV19.79mV20.38mVPass
100% Load36.00mV17.28mV20.96mV21.30mVPass
110% Load41.86mV18.45mV22.78mV22.30mVPass
Crossload111.07mV17.22mV20.04mV9.18mVPass
Crossload213.33mV25.30mV9.16mV8.05mVPass
Crossload313.43mV12.50mV28.53mV10.70mVPass
Crossload438.98mV13.30mV12.36mV13.25mVPass

The results above are not used in the certification process

Endorfy Vero L6 650W

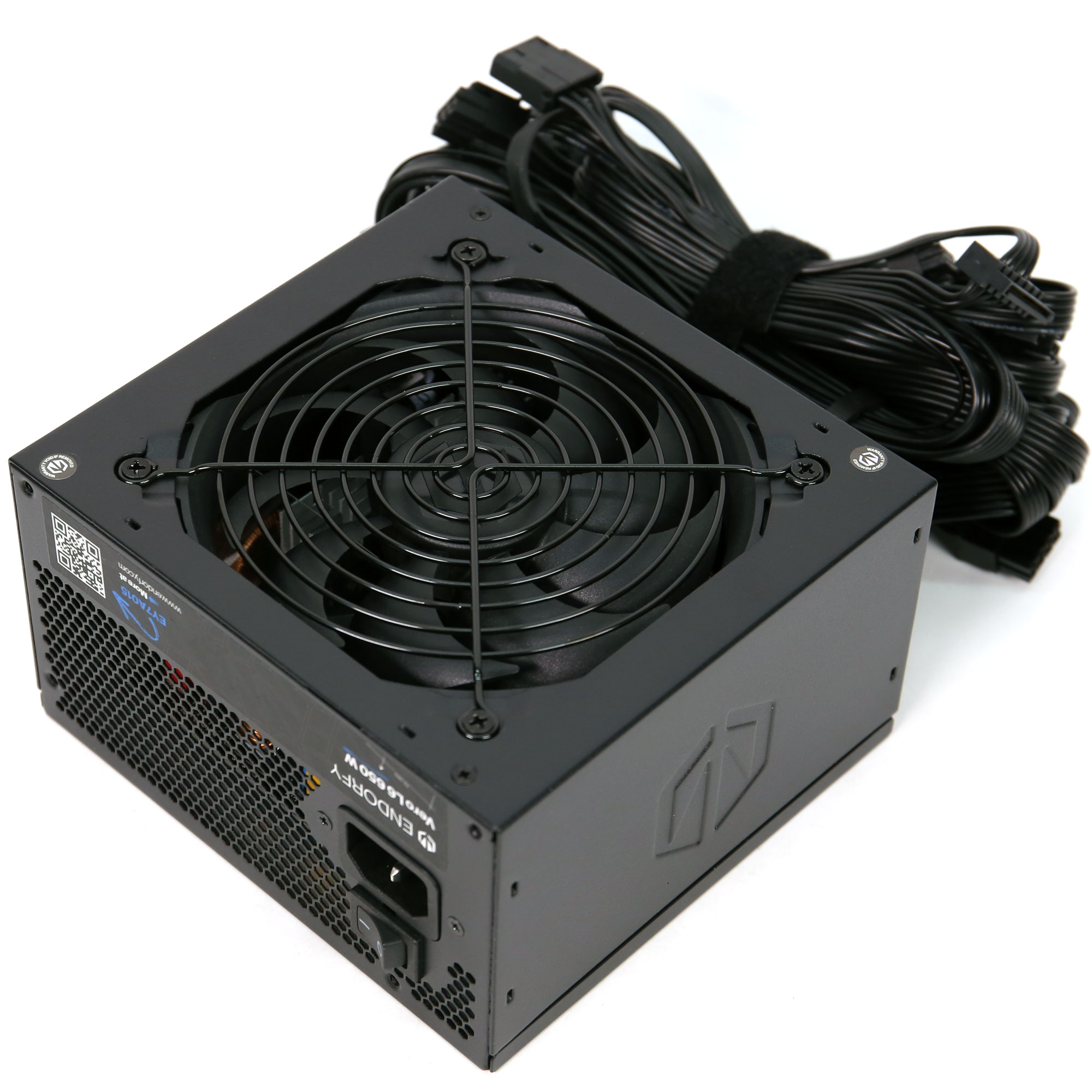

Top side

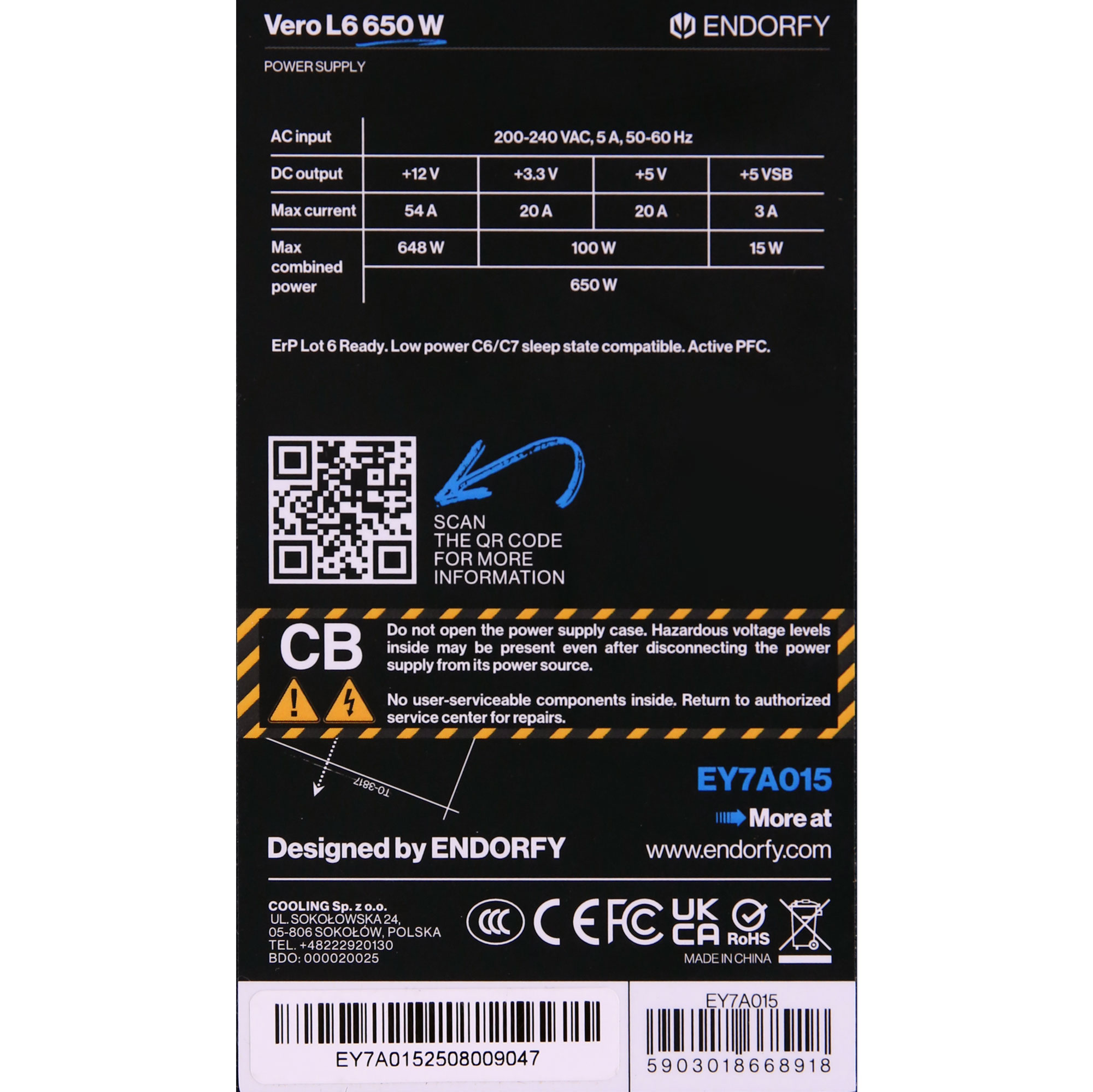

Power specifications label

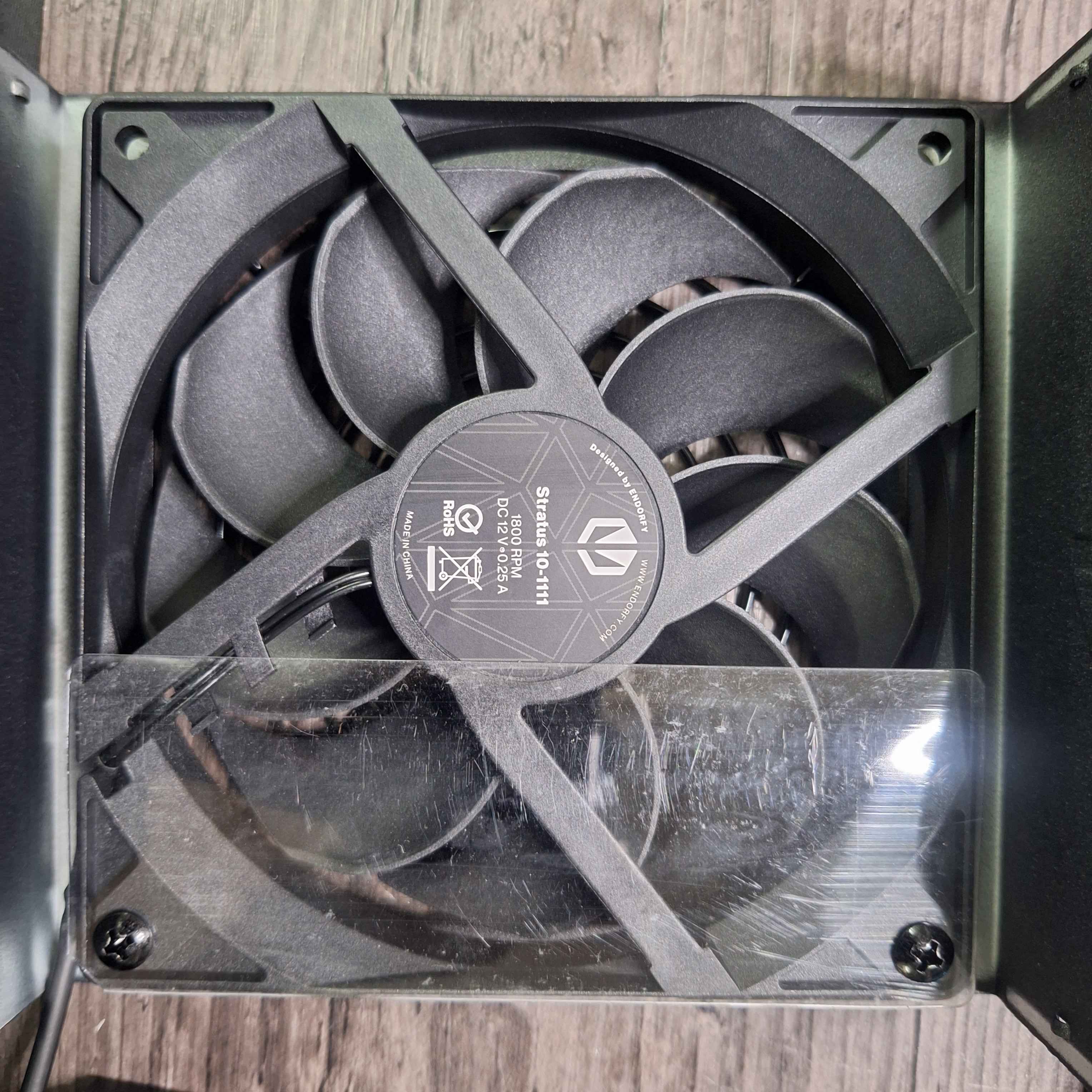

Fan

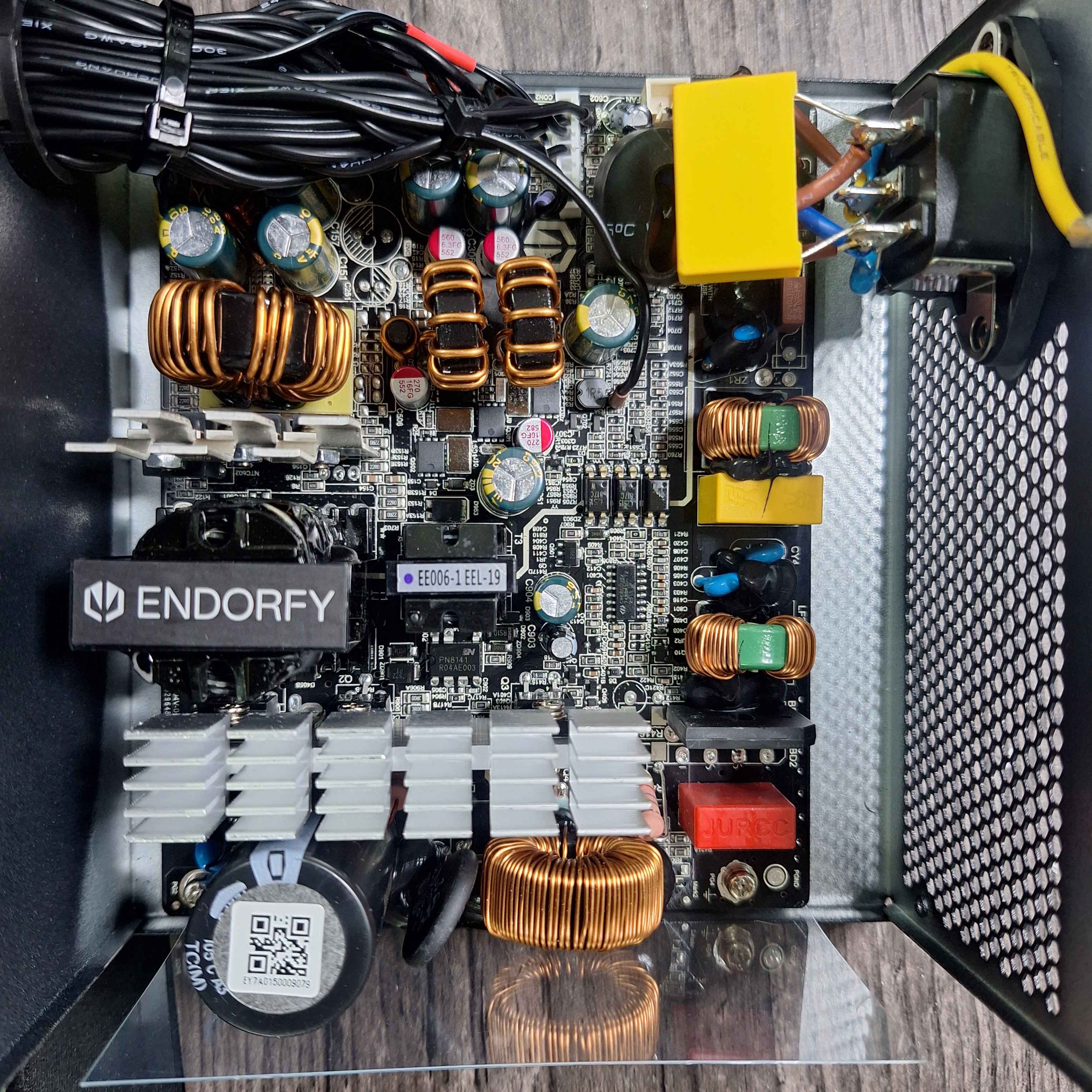

PSU Internals
