Electrolytic: no info Polymer: 19x Nippon Chemi-Con
Supervisor IC
1x

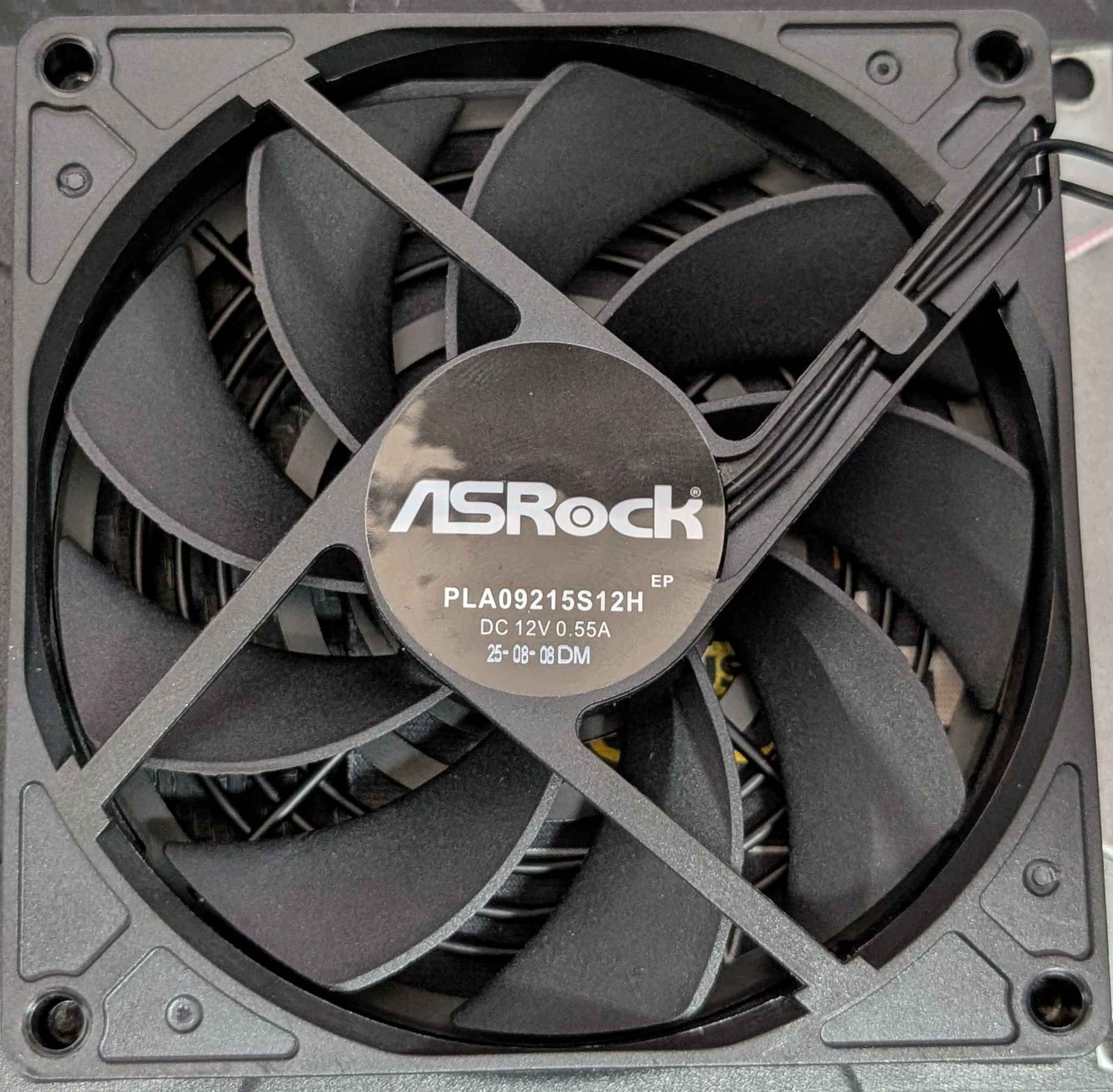

Fan Model
Power Logic PLA09215S12H (87mm, 12V, 0.55A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
no info
Standby PWM Controller
1x
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
90.206%
Average Noise Output (>1450 Load Combinations)
21.18dBA
Average PF (>1450 Load Combinations)
0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load
74.478%
Standby Power Consumption
0.0653W
12V Ripple (Full Load)
53.35mV
5V Ripple (Full Load)
18.36mV
3.3V Ripple (Full Load)
20.33mV
5VSB Ripple (Full Load)
25.51mV
12V Load Regulation
1.18%
5V Load Regulation
0.41%
3.3V Load Regulation
0.64%
5VSB Load Regulation
3.08%
Inrush Current
32.490A
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
91.988%
Average Noise Output (>1450 Load Combinations)
20.62dBA
Average PF (>1450 Load Combinations)
0.938
Efficiency With 10W (≤500W) or 2% (>500W) Load
61.943%
Standby Power Consumption
0.1548W
12V Ripple (Full Load)
48.06mV
5V Ripple (Full Load)
18.16mV
3.3V Ripple (Full Load)
19.48mV
5VSB Ripple (Full Load)
23.61mV
12V Load Regulation
0.81%
5V Load Regulation
0.41%
3.3V Load Regulation
0.67%
5VSB Load Regulation
3.20%
Inrush Current
81.880A
12V Transient Response (200%)
11.61V
5V Transient Response (200%)
5.106V
3.3V Transient Response (200%)
3.215V
5VSB Transient Response (200%)
4.913V
Hold-Up Time & Power Ok Signal
18.10ms
AC Loss to PWR_OK Hold Up Time
15.60ms
PWR_OK Inactive to DC Loss Delay
2.50ms
PSU Timings: T1 (20% / 100%)
54.0ms
52.0ms
PSU Timings: T3 (20% / 100%)
111.0ms
109.0ms
12V OCP (26.9°C / 43.1°C)
103.20A (123.74%), 12.055V
97.40A (116.79%), 12.064V
5V OCP (26.9°C / 43.1°C)
23.2A (116.00%), 5.177V
23A (115.00%), 5.178V
3.3V OCP (26.9°C / 43.1°C)
23.8A (119.00%), 3.299V
24A (120.00%), 3.298V
5VSB OCP (26.9°C / 43.1°C)
3.5A (116.67%), 4.765V *High Ripple (68.85mV)
3.5A (116.67%), 4.756V *High Ripple (61.33mV)
OPP (27.84°C / 39.78°C)
133.01%
120.70%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
18.1
AC Loss to PWR_OK Hold Up Time (ms)
15.6
PWR_OK Inactive to DC Loss Delay (ms)
2.5
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.00 V
114.97 V
113.85 V
115.06 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.417
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.065 W
0.013 W
N/A
0.099 W
N/A
N/A
Apparent Power:
12.284 W
12.262 W
N/A
12.312 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.00 V
229.98 V
227.70 V
230.02 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.155 W
0.110 W
N/A
0.247 W
N/A
N/A
Apparent Power:
40.489 W
40.450 W
N/A
40.529 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs

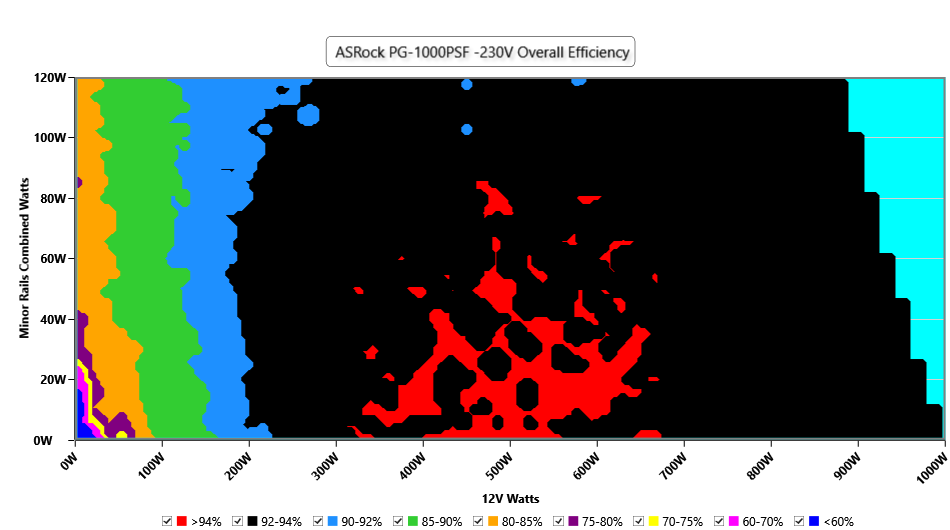

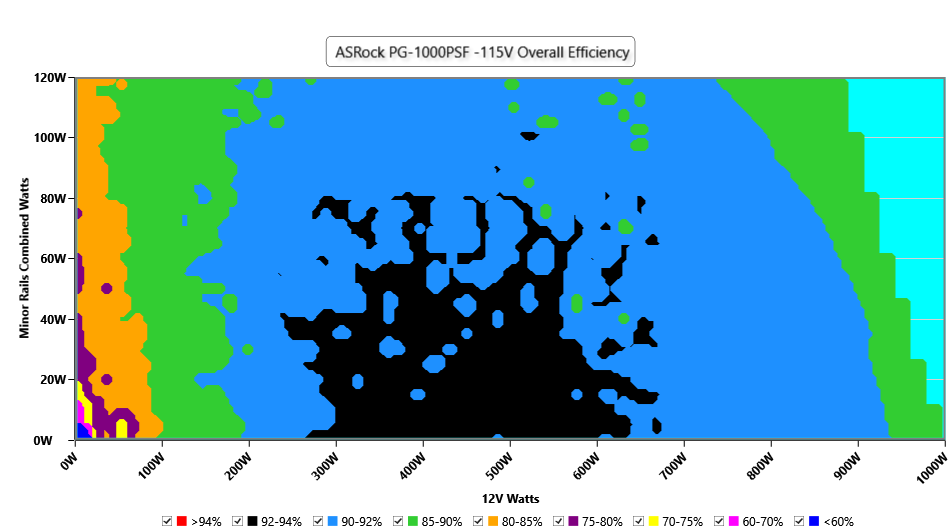

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

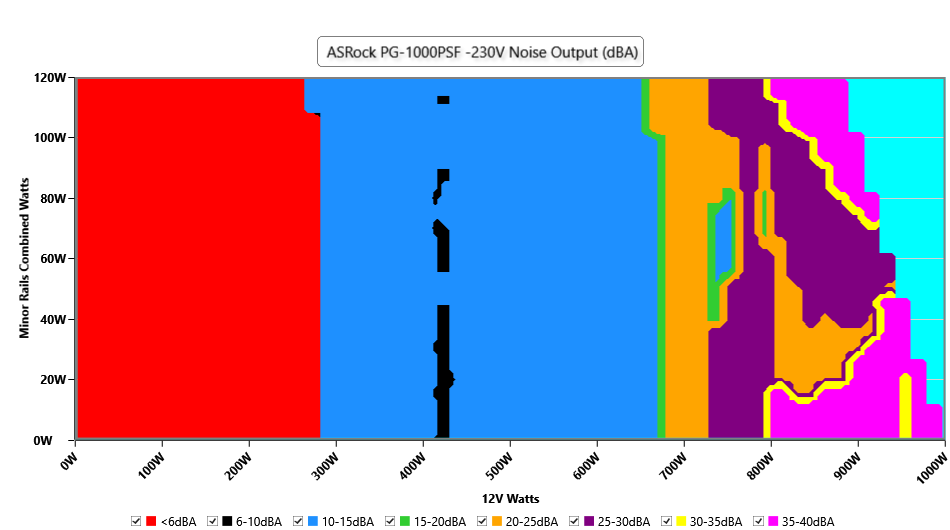

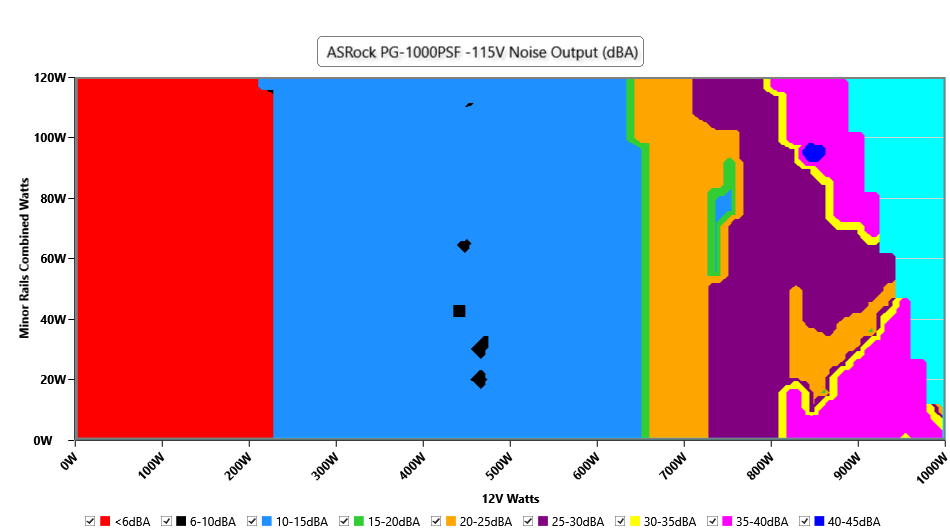

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

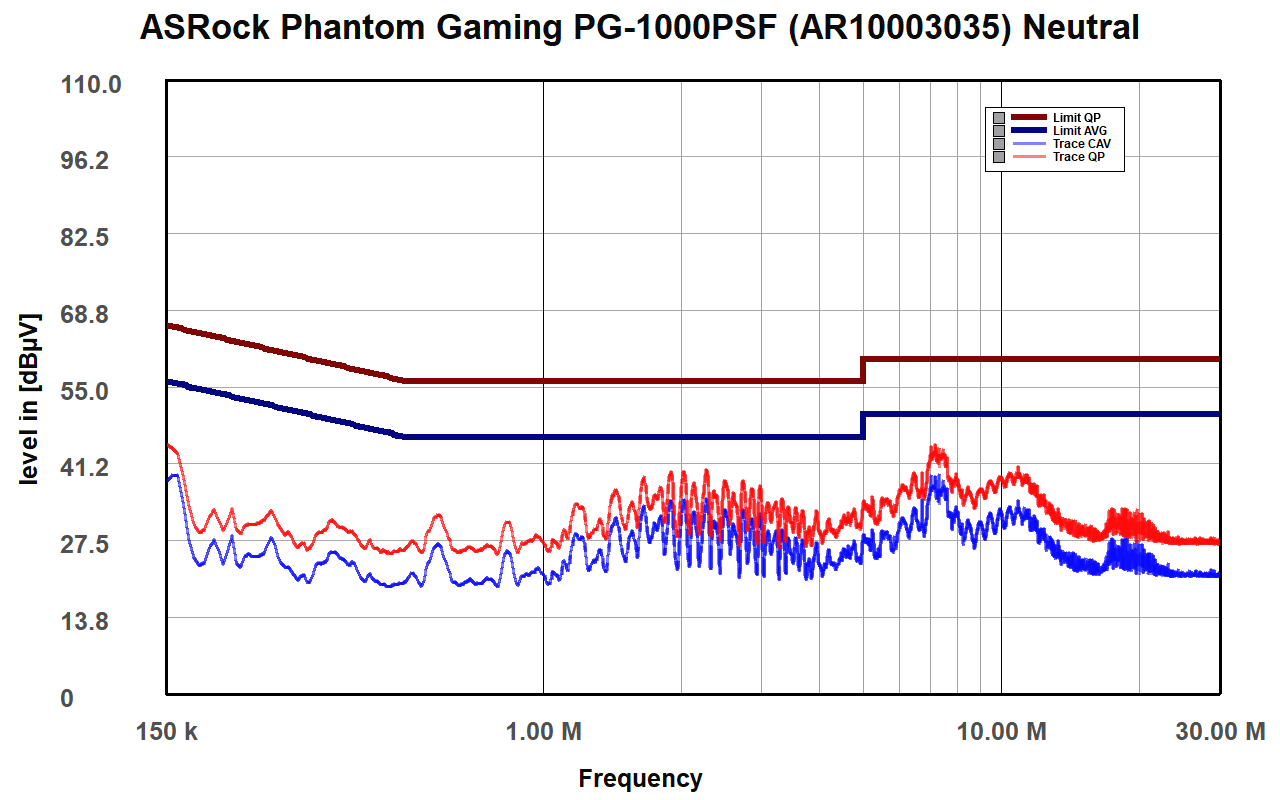

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

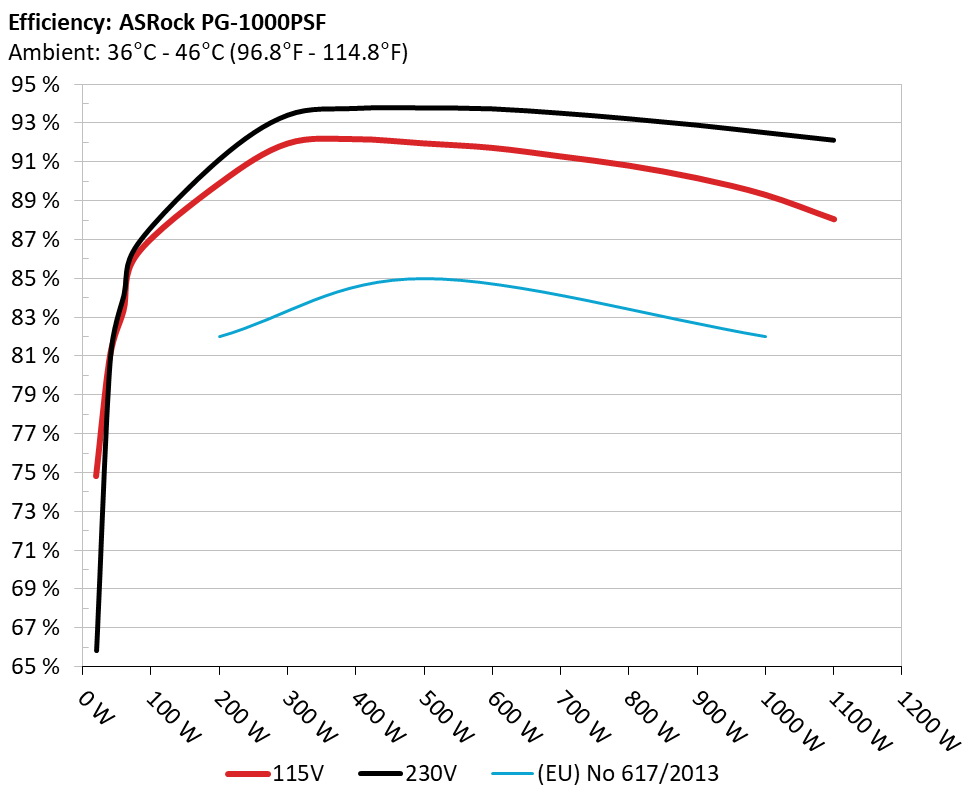

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

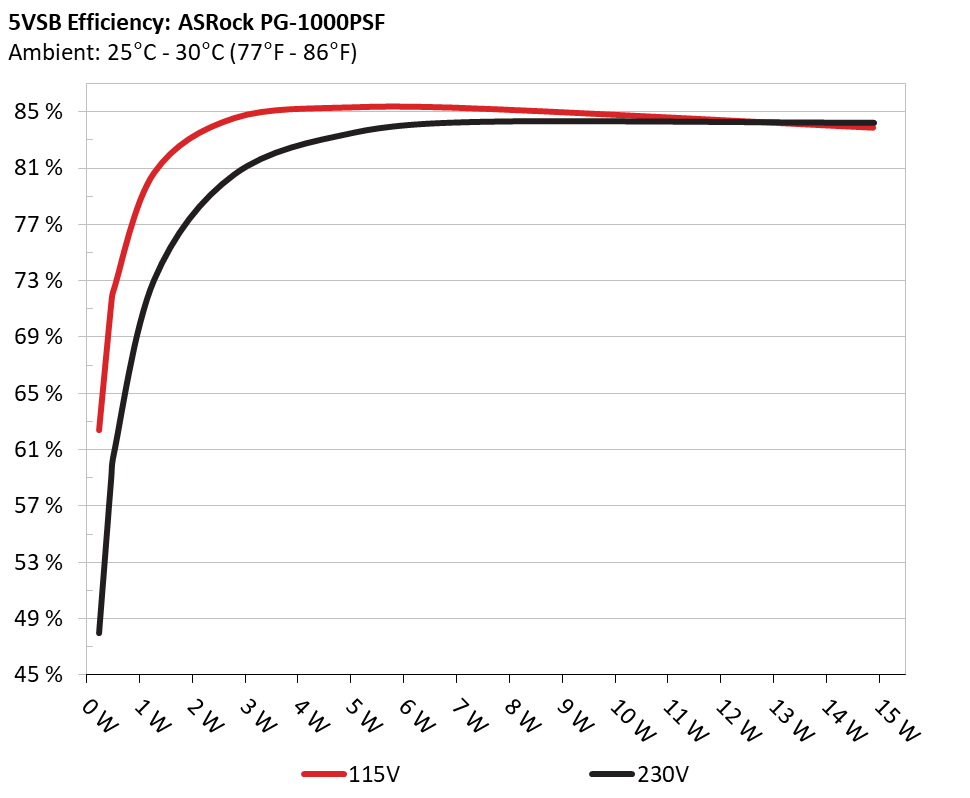

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.488A
1.925A
1.99A
1A
100
84.724%
0
<6.0
44.31°C
0.973
12.083V
5.195V
3.316V
4.998V
118.019
40.25°C
115V
20%
13.984A
2.889A
2.988A
1.206A
199.946
89.89%
0
<6.0
46.57°C
0.974
12.089V
5.192V
3.313V
4.974V
222.42
40.88°C
114.97V
30%
21.822A
3.371A
3.488A
1.411A
299.997
91.955%
0
<6.0
47.72°C
0.974
12.096V
5.191V
3.312V
4.96V
326.231
41.17°C
114.94V
40%
29.638A
3.854A
3.988A
1.617A
399.533
92.18%
0
<6.0
51.81°C
0.98
12.090V
5.189V
3.31V
4.946V
433.425
41.66°C
114.91V
50%
37.122A
4.819A
4.989A
1.824A
499.246
91.966%
1130
11.9
42.35°C
0.985
12.088V
5.188V
3.308V
4.934V
542.83
66.04°C
114.87V
60%
44.690A
5.787A
5.991A
2A
599.637
91.734%
1126
11.7
42.64°C
0.985
12.082V
5.185V
3.305V
4.932V
653.696
67.37°C
114.83V
70%
52.196A
6.755A
6.995A
2.238A
699.499
91.294%
1834
28.1
43.32°C
0.986
12.077V
5.182V
3.303V
4.915V
766.192
60.74°C
114.8V
80%
59.784A
7.721A
7.998A
2.341A
799.497
90.819%
1830
28
43.82°C
0.986
12.070V
5.179V
3.301V
4.912V
880.48
58.76°C
114.76V
90%
67.715A
8.207A
8.487A
2.444A
899.307
90.174%
2498
37.9
44.11°C
0.985
12.063V
5.177V
3.299V
4.91V
997.305
60.07°C
114.73V
100%
75.451A
8.694A
9.008A
3.076A
999.317
89.314%
3039
43.1
45.28°C
0.982
12.056V
5.175V
3.297V
4.877V
1118.894
62.2°C
114.69V
110%
83.113A
9.665A
10.107A
3.077A
1099.919
88.055%
3263
45.8
46.07°C
0.972
12.051V
5.172V
3.295V
4.875V
1249.126
65.48°C
114.65V
CL1
0.116A
13.939A
14.452A
0A
121.291
82.632%
1124
11.7
40.89°C
0.979
12.090V
5.179V
3.301V
5.039V
146.807
55.88°C
115V
CL2
0.115A
19.302A
0A
0A
101.376
80.69%
1112
11.4
40.1°C
0.972
12.088V
5.18V
3.311V
5.043V
125.619
51.52°C
115.01V
CL3
0.114A
0A
19.992A
0A
67.395
75.936%
1105
10.8
40.57°C
0.96
12.093V
5.194V
3.302V
5.044V
88.885
49.52°C
115.02V
CL4
82.916A
0A
0A
0A
999.89
90.258%
3046
43.1
45.05°C
0.986
12.059V
5.19V
3.308V
5.021V
1107.82
61.72°C
114.69V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.488A
1.925A
1.99A
1A
100.002
85.59%
0
<6.0
41.41°C
0.846
12.084V
5.195V
3.316V
5V
116.855
40.11°C
229.98V
20%
13.982A
2.889A
2.988A
1.206A
199.957
91.108%
0
<6.0
43.53°C
0.926
12.091V
5.192V
3.313V
4.977V
219.488
40.53°C
229.96V
30%
21.823A
3.372A
3.488A
1.411A
300.017
93.387%
0
<6.0
44.84°C
0.946
12.096V
5.191V
3.312V
4.963V
321.213
41.1°C
229.95V
40%
29.640A
3.854A
3.989A
1.617A
399.595
93.734%
0
<6.0
45.05°C
0.954
12.092V
5.19V
3.31V
4.949V
426.299
41.64°C
229.93V
50%
37.127A
4.82A
4.99A
1.822A
499.313
93.758%
1125
11.7
42.16°C
0.958
12.088V
5.187V
3.307V
4.941V
532.587
53.81°C
229.91V
60%
44.700A
5.788A
5.992A
2A
599.705
93.71%
1119
11.6
42.63°C
0.96
12.081V
5.184V
3.305V
4.935V
639.946
55.02°C
229.9V
70%
52.207A
6.756A
6.996A
2.237A
699.566
93.49%
1469
20.9
43.18°C
0.962
12.076V
5.182V
3.303V
4.918V
748.314
55.96°C
229.88V
80%
59.792A
7.722A
8A
2.341A
799.563
93.204%
1828
28
43.86°C
0.965
12.069V
5.179V
3.3V
4.913V
857.89
53.45°C
229.86V
90%
67.720A
8.208A
8.489A
2.445A
899.373
92.874%
2495
37.9
44.65°C
0.968
12.063V
5.177V
3.298V
4.909V
968.386
55.54°C
229.84V
100%
75.460A
8.695A
9.01A
3.077A
999.384
92.489%
3030
43.1
45.77°C
0.968
12.056V
5.175V
3.296V
4.876V
1080.545
54.5°C
229.83V
110%
83.124A
9.666A
10.11A
3.078A
1099.97
92.099%
3249
45.7
46.19°C
0.969
12.050V
5.172V
3.294V
4.874V
1194.338
54.69°C
229.81V
CL1
0.116A
13.94A
14.456A
0A
121.302
83.585%
1124
11.7
40.76°C
0.871
12.092V
5.179V
3.3V
5.04V
145.133
51.73°C
229.98V
CL2
0.116A
19.301A
0A
0A
101.382
81.752%
1111
11.2
40.09°C
0.84
12.088V
5.18V
3.311V
5.044V
124.035
50.28°C
229.98V
CL3
0.116A
0A
19.997A
0A
67.405
76.295%
1105
10.8
40.68°C
0.769
12.092V
5.193V
3.301V
5.044V
88.304
47.97°C
229.99V
CL4
82.928A
0A
0A
0A
999.951
93.088%
3038
43.1
45.16°C
0.967
12.058V
5.189V
3.307V
5.022V
1074.202
54.47°C
229.83V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.481A
0.497A
0.199A
20.01
74.815%
0
<6.0
39.11°C
0.786
12.075V
5.196V
3.318V
5.027V
26.871
36.61°C
115.03V
40W
2.696A
0.674A
0.696A
0.299A
40.007
80.935%
0
<6.0
41.13°C
0.916
12.127V
5.196V
3.318V
5.023V
49.462
37.3°C
115.03V
60W
4.142A
0.866A
0.895A
0.398A
60.005
83.342%
0
<6.0
42.43°C
0.954
12.198V
5.196V
3.317V
5.021V
72.097
38.75°C
115.02V
80W
5.654A
1.059A
1.094A
0.498A
79.954
86.252%
0
<6.0
43.87°C
0.962
12.083V
5.196V
3.317V
5.016V
92.806
39.14°C
115.01V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.481A
0.497A
0.199A
20.003
65.838%
0
<6.0
38.06°C
0.393
12.077V
5.196V
3.318V
5.032V
26.408
36.04°C
229.99V
40W
2.694A
0.674A
0.696A
0.298A
39.999
80.79%
0
<6.0
37.54°C
0.591
12.132V
5.195V
3.318V
5.032V
49.538
37.08°C
229.99V
60W
4.158A
0.866A
0.895A
0.398A
59.999
84.116%
0
<6.0
38.44°C
0.724
12.153V
5.195V
3.317V
5.028V
71.335
38.71°C
229.99V
80W
5.652A
1.059A
1.094A
0.498A
79.946
86.734%
0
<6.0
40.21°C
0.798
12.089V
5.195V
3.317V
5.022V
92.154
39.11°C
229.98V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
39.80mV
18.90mV
18.57mV
25.27mV
Pass
20% Load
37.76mV
19.62mV
19.44mV
29.21mV
Pass
30% Load
65.74mV
19.97mV
19.59mV
25.47mV
Pass
40% Load
47.83mV
22.07mV
20.97mV
26.09mV
Pass
50% Load
48.09mV
20.74mV
24.61mV
28.34mV
Pass
60% Load
46.30mV
21.87mV
24.25mV
33.45mV
Pass
70% Load
47.53mV
20.74mV
20.97mV
29.36mV
Pass
80% Load
48.40mV
20.13mV
20.26mV
26.24mV
Pass
90% Load
49.98mV
23.45mV
21.49mV
26.44mV
Pass
100% Load
53.35mV
18.36mV
20.33mV
25.51mV
Pass
110% Load
52.61mV
20.44mV
21.50mV
26.65mV
Pass
Crossload1
36.40mV
18.56mV
18.83mV
19.19mV
Pass
Crossload2
30.23mV
22.33mV
21.18mV
20.56mV
Pass
Crossload3
30.03mV
21.15mV
21.23mV
21.18mV
Pass
Crossload4
49.15mV
19.23mV
20.79mV
19.39mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
39.29mV
19.52mV
19.39mV
25.17mV
Pass
20% Load
44.82mV
18.70mV
18.31mV
27.16mV
Pass
30% Load
45.79mV
19.77mV
19.64mV
24.70mV
Pass
40% Load
45.33mV
20.13mV
19.70mV
23.48mV
Pass
50% Load
45.89mV
21.10mV
22.41mV
27.31mV
Pass
60% Load
45.33mV
19.97mV
22.46mV
35.81mV
Pass
70% Load
44.92mV
20.90mV
21.02mV
27.16mV
Pass
80% Load
47.27mV
19.62mV
21.28mV
24.96mV
Pass
90% Load
49.01mV
18.34mV
19.13mV
25.53mV
Pass
100% Load
48.06mV
18.16mV
19.48mV
23.61mV
Pass
110% Load
50.20mV
18.76mV
18.29mV
24.31mV
Pass
Crossload1
36.29mV
17.99mV
17.38mV
16.88mV
Pass
Crossload2
31.36mV
22.12mV
18.77mV
17.65mV
Pass
Crossload3
25.89mV
19.00mV
18.77mV
17.18mV
Pass
Crossload4
47.99mV
17.10mV
18.15mV
17.03mV
Pass
The results above are not used in the certification process
ASRock Phantom Gaming PG-1000PSF

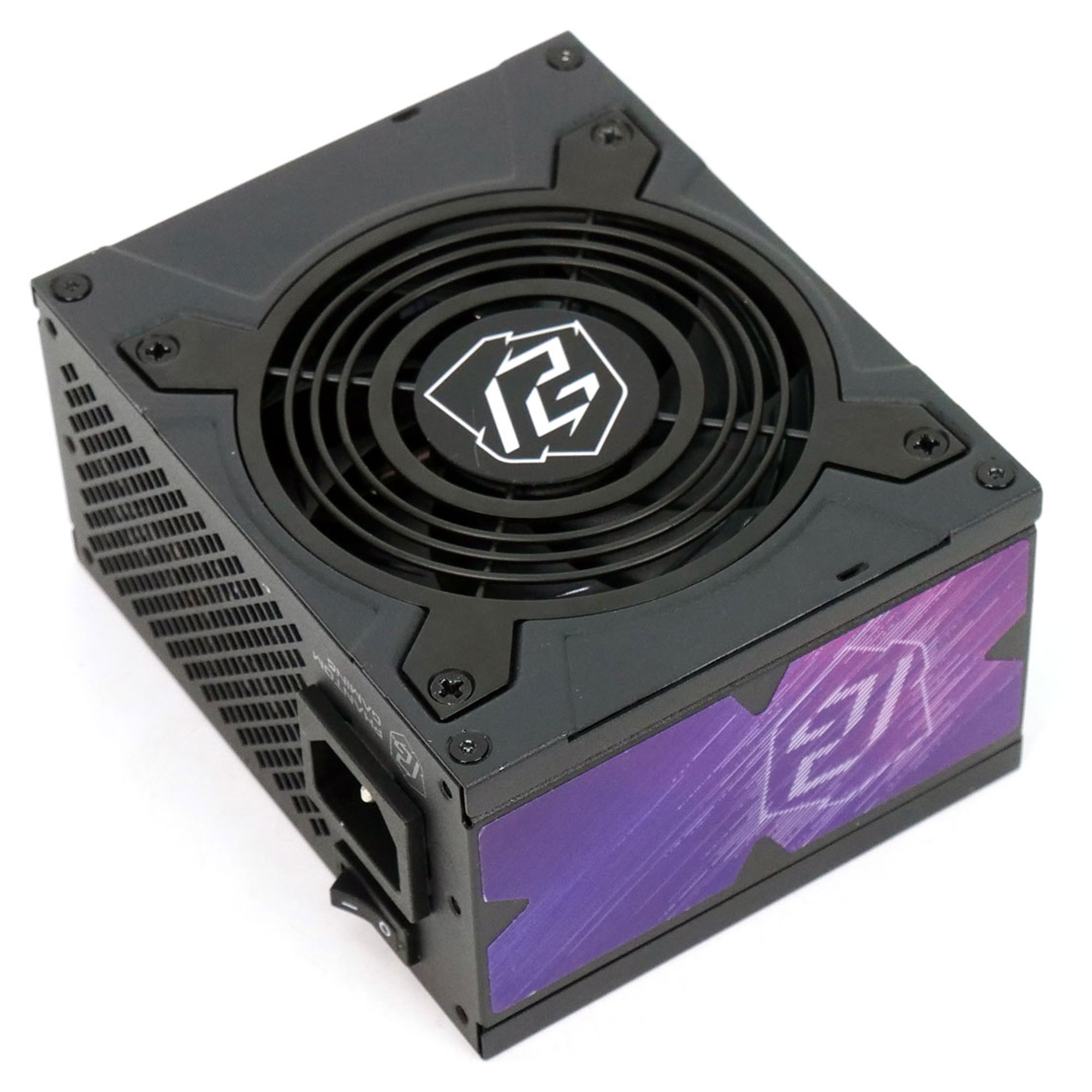

Top side

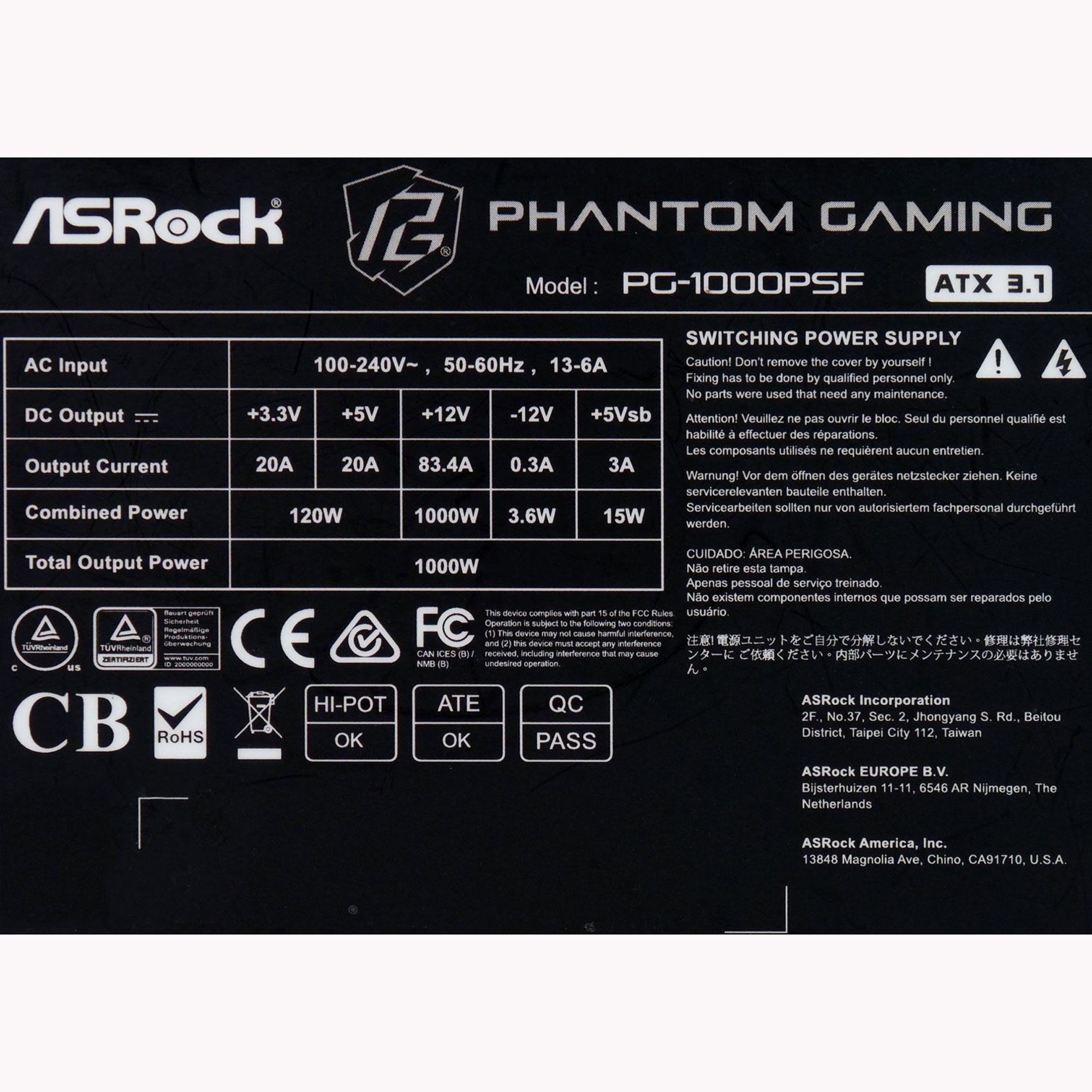

Power specifications label
Fan

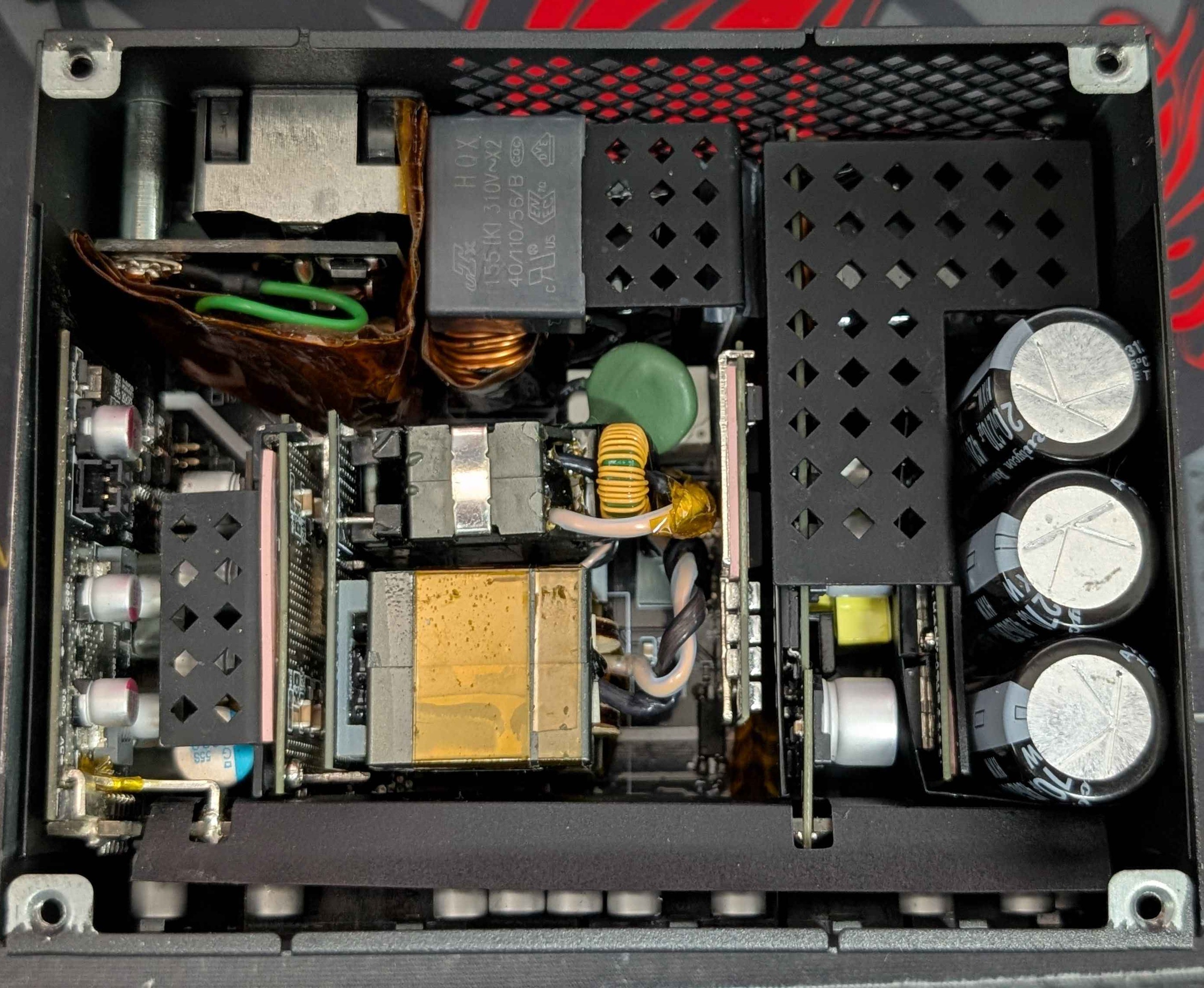

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
