Gigabyte GP-AE850PM PG5 / PG5 ICE

Serial Number-

Lab IDGB85003057

Certification ID253057

Test Result Report ID: 25PS3057A
Certificate Issue Date: Dec 8, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Gigabyte
Manufacturer (OEM)	XIAMEN CASTEC ELECTRONIC INDUSTRY
Series	Aorus
Model Number	GP-AE850PM PG5
Serial Number	-
DUT Notes	The results apply to the ICE models too, as they are identical. Some protection features need adjustment.

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	6-12
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Type	ATX12V
Dimensions (W x H x D)	150 x 85 x 140mm

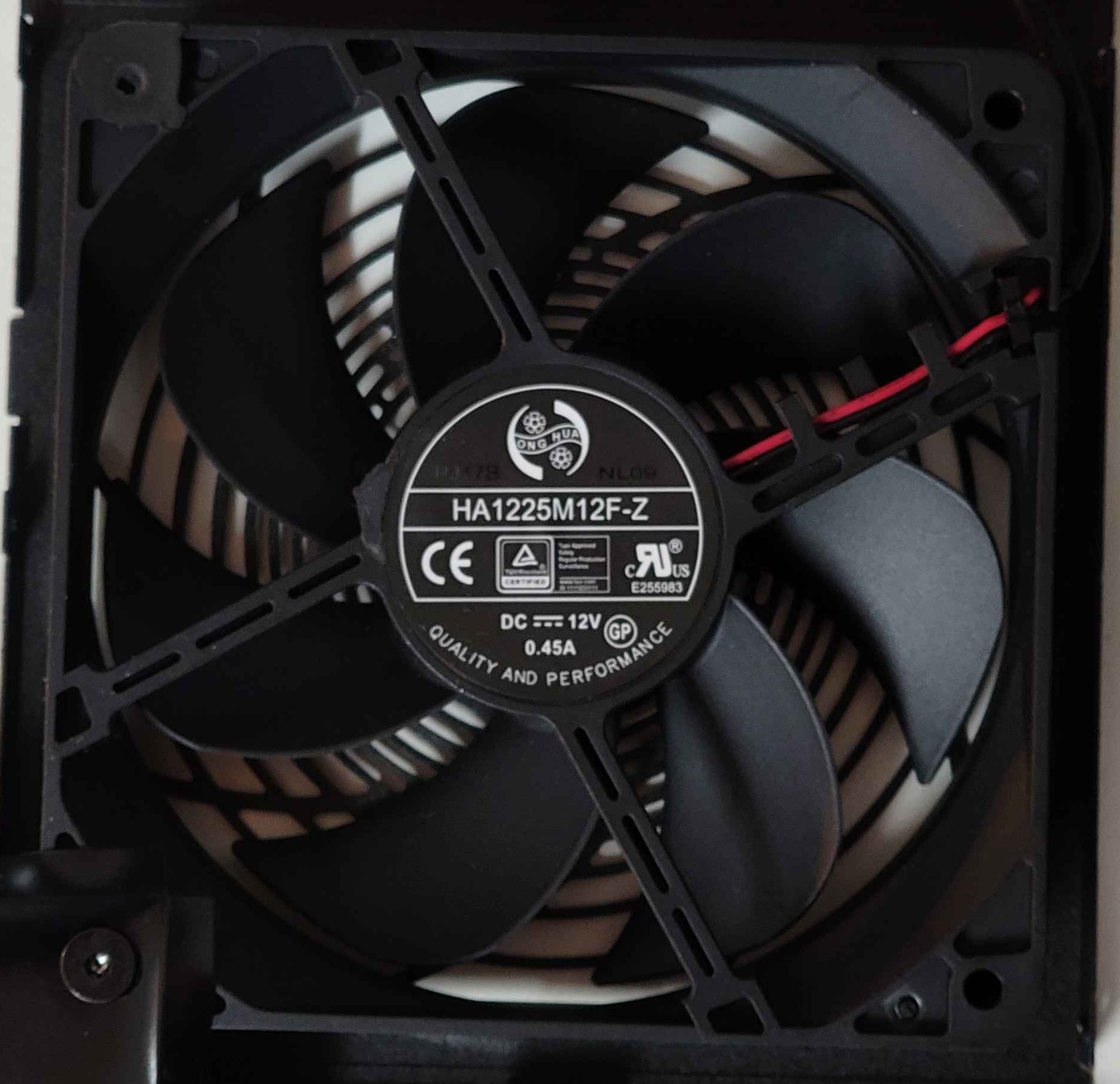

Cooling	120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	70.8	3	0.3
Max. Power	Watts	125		849.6	15	3.6
Total Max. Power (W)		850

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (645mm)	1	1	16AWG	Tinned Copper
4+4 pin EPS12V (700mm)	2	2	16AWG	Tinned Copper
6+2 pin PCIe (750mm)	2	2	16AWG	Tinned Copper
6+2 pin PCIe (650mm+150mm)	2	4	16AWG	Tinned Copper
12+4 pin PCIe (700mm) (600W)	1	1	16-26AWG	Tinned Copper
SATA (600mm+150mm+150mm+150mm)	2	8	18AWG	Tinned Copper
4-pin Molex (500mm+145mm+145mm+150mm)	1	4	18AWG	Tinned Copper
AC Power Cord (1370mm) - C13 coupler	1	1	18AWG	-

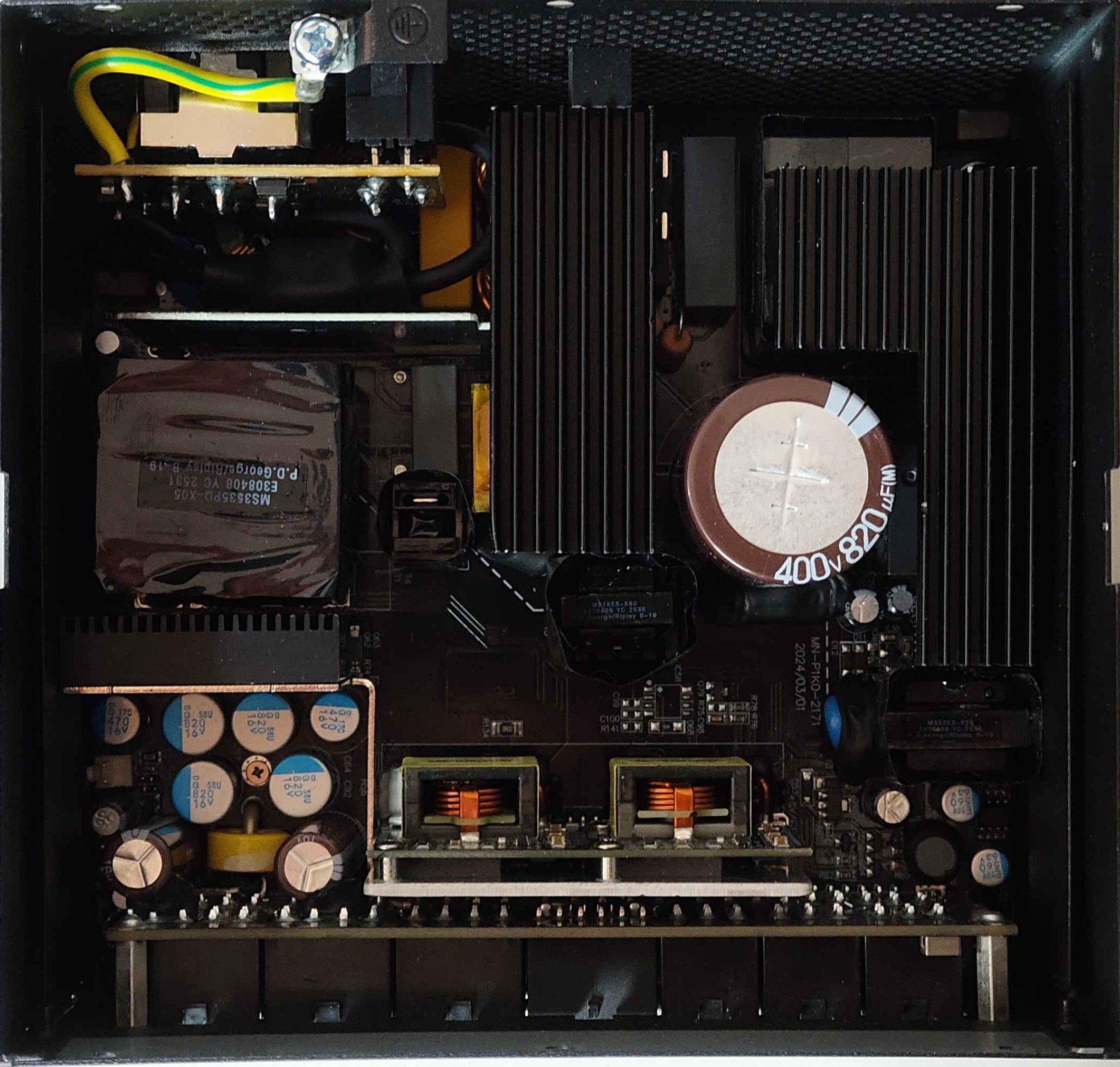

Parts Description

j

`General Data`
Manufacturer (OEM)	Xiamen Castec Electronic Industry
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x LII Semi LN9901 (X caps discharge IC)
Inrush Protection	NTC Thermistor NTC 5D-15 (5 Ohm @ 25°C) & Relay
Bridge Rectifier	2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs	2x Infineon IPP60R099P7 (600V, 31A @ 25°C, Rds(on): 0.099Ohm)
APFC Boost Diode	STMicroelectronics STPSC10H065 (650V, 10A @ 135°C)
Bulk Cap(s)	Nippon Chemi-Con (400V, 820uF, 2000h @ 105°C, KMW)
Main Switchers	4x Infineon IPP60R180P7 (600V, 18A @ 25°C, Rds(on): 0.180Ohm)
APFC Controller	Champion CM6500UNX & Champion CM03X (reducing no load consumption)
Resonant Controller	Champion CU6901VACN
Topology	Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	4x Nexperia PSMN1R4-40YLD (40V, 240A @ 25°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: no info PWM Controller(s): 2x UPI-Semi uP9303
Filtering Capacitors	Electrolytic: 2x Nippon Chemi-Con (@ 105°C, W) Nippon Chemi-Con (6-10,000h @ 105°C, KY) 4x Rubycon (4-10,000 @ 105°C, YXJ) Rubycon (6-10,000 @ 105°C, ZLH) Rubycon (4-10,000 @ 105°C, YXF) Polymer: 32x Nippon Chemi-Con
Supervisor IC	Weltrend WT7502R (OVP, UVP, OCP, PG)
Fan Model	Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Rectifier	Dongke DK5V60R15VP (60V, 15mOhm)
Standby PWM Controller	Dongke DK025G (650V, 800mOhm)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	89.980%
Average Noise Output (>1450 Load Combinations)	12.66dBA
Average PF (>1450 Load Combinations)	0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load	68.235%
Standby Power Consumption	0.0319W
12V Ripple (Full Load)	26.19mV
5V Ripple (Full Load)	20.45mV
3.3V Ripple (Full Load)	13.45mV
5VSB Ripple (Full Load)	28.96mV
12V Load Regulation	0.25%
5V Load Regulation	0.64%
3.3V Load Regulation	1.03%
5VSB Load Regulation	1.77%
Inrush Current	Too low to detect

Efficiency Rating	PLATINUM
Noise Rating	A++
Average Efficiency (>1450 load combinations)	91.926%
Average Noise Output (>1450 Load Combinations)	12.90dBA
Average PF (>1450 Load Combinations)	0.959
Efficiency With 10W (≤500W) or 2% (>500W) Load	69.202%
Standby Power Consumption	0.0479W
12V Ripple (Full Load)	28.36mV
5V Ripple (Full Load)	13.45mV
3.3V Ripple (Full Load)	12.78mV
5VSB Ripple (Full Load)	24.98mV
12V Load Regulation	0.24%
5V Load Regulation	0.62%
3.3V Load Regulation	1.03%
5VSB Load Regulation	1.77%
Inrush Current	Too low to detect
12V Transient Response (200%)	11.56V
5V Transient Response (200%)	4.955V
3.3V Transient Response (200%)	3.241V
5VSB Transient Response (200%)	4.983V
Hold-Up Time & Power Ok Signal	20.20ms
AC Loss to PWR_OK Hold Up Time	16.50ms
PWR_OK Inactive to DC Loss Delay	3.70ms
PSU Timings: T1 (20% / 100%)	70.0ms	69.0ms
PSU Timings: T3 (20% / 100%)	127.0ms	128.0ms
12V OCP (28.6°C / 43.5°C)	92.80A (131.07%), 12.069V	91.60A (129.38%), 12.077V
5V OCP (28.6°C / 43.5°C)	31.5A (126.00%), 4.982V	30.1A (120.40%), 4.829V *Voltage Drop(4.623V @ 30.4A)
3.3V OCP (28.6°C / 43.5°C)	31.7A (126.80%), 3.292V	30.6A (122.40%), 3.289V
5VSB OCP (28.6°C / 43.5°C)	4.1A (136.67%), 4.985V *High Ripple (103.64mV)	3.8A (126.67%), 4.988V *High Ripple (103.64mV)
OPP (28.80°C / 43.40°C)	129.25%	126.91%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	20.2
AC Loss to PWR_OK Hold Up Time (ms)	16.5
PWR_OK Inactive to DC Loss Delay (ms)	3.7

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.01 V	115.00 V	113.85 V	115.05 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.032 W	0.015 W	N/A	0.052 W	N/A	N/A
Apparent Power:	8.832 W	8.807 W	N/A	8.857 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.01 V	230.01 V	227.70 V	230.05 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.048 W	0.014 W	N/A	0.100 W	N/A	N/A
Apparent Power:	28.733 W	28.693 W	N/A	28.767 W	N/A	N/A
Power Factor:	0.001	N/A	N/A	N/A	N/A	N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

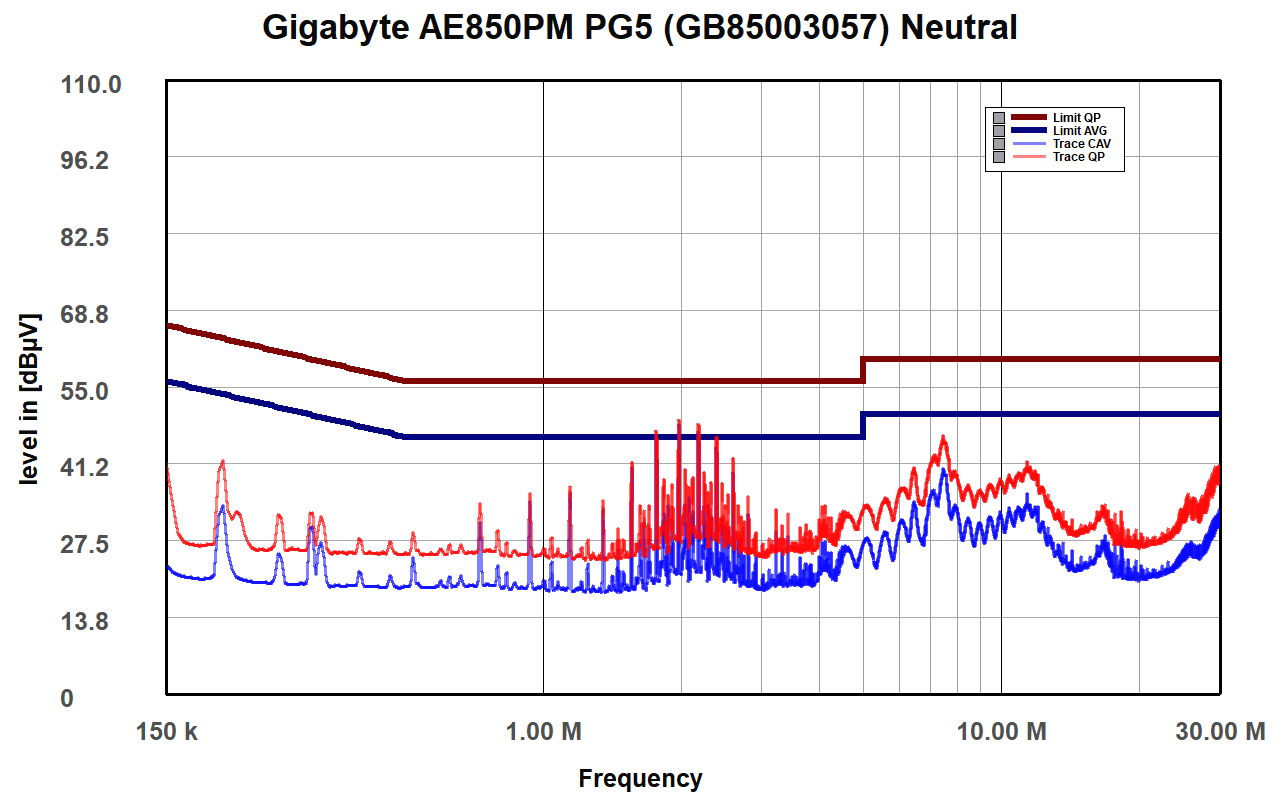

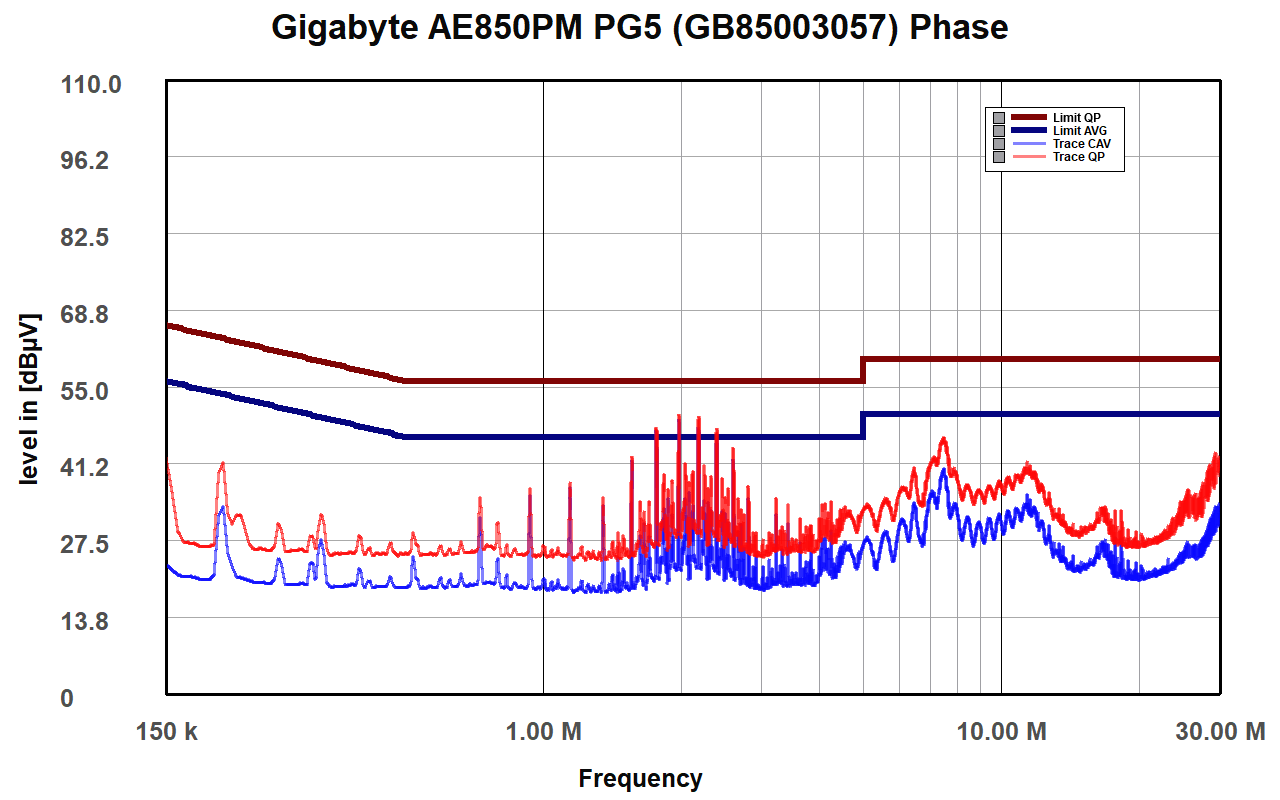

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

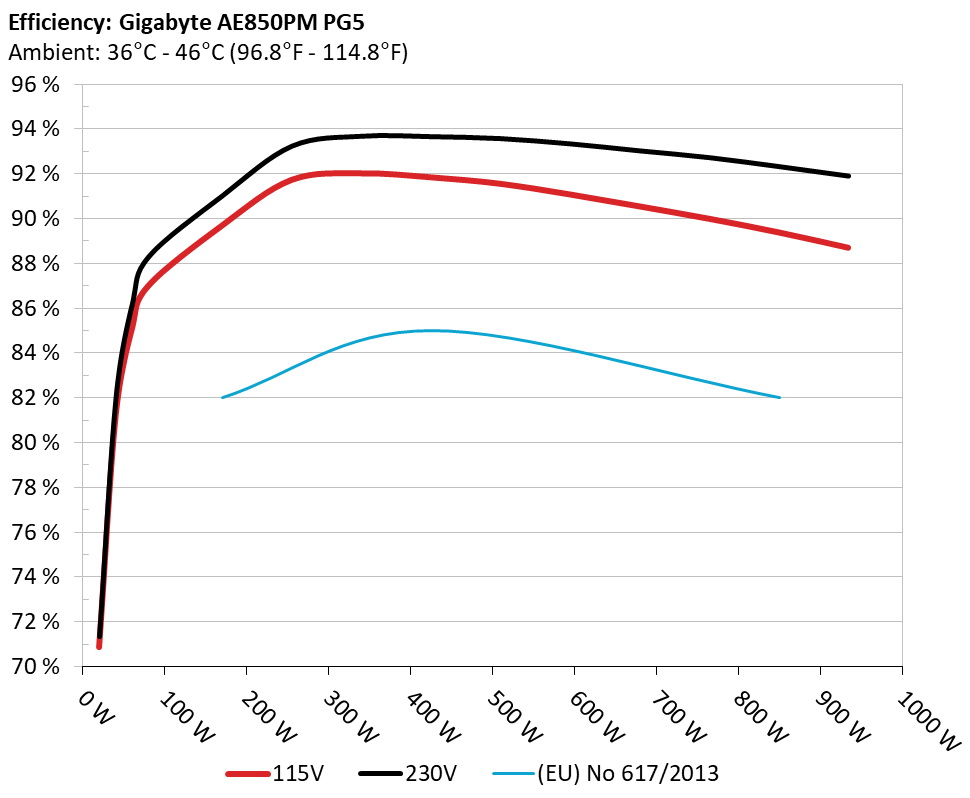

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

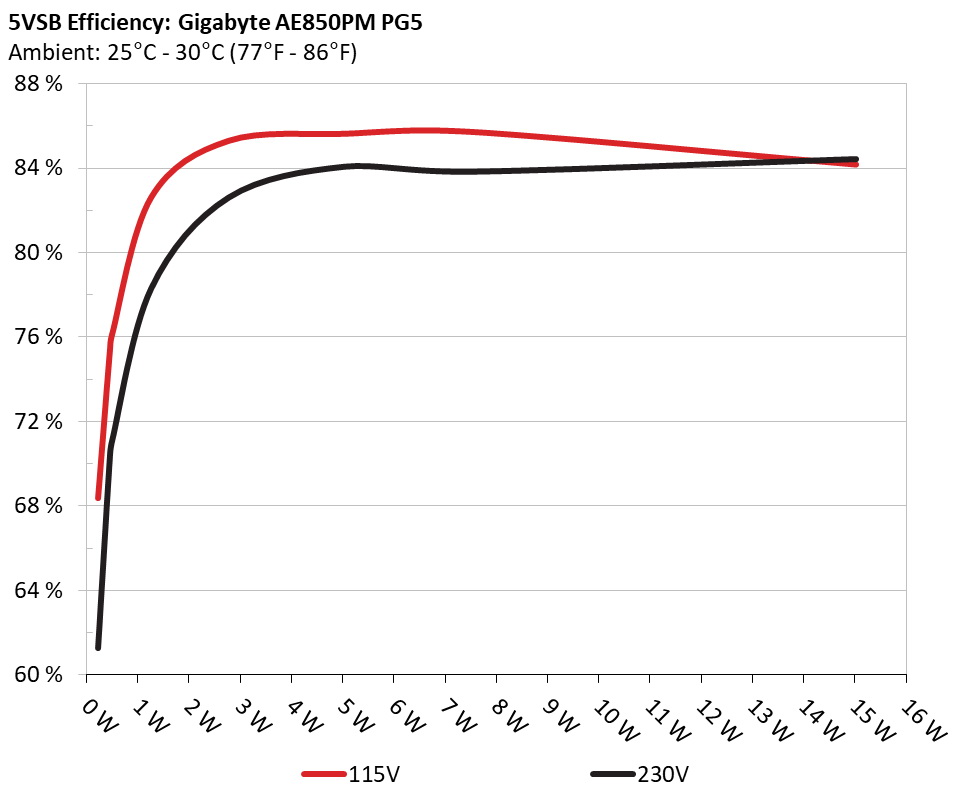

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	68.378%	0.038
1	5.056V	0.334W	68.378%	115.08V
2	0.09A	0.455W	75.287%	0.069
2	5.055V	0.605W	75.287%	115.08V
3	0.55A	2.776W	85.32%	0.276
3	5.048V	3.253W	85.32%	115.08V
4	1A	5.04W	85.653%	0.37
4	5.04V	5.885W	85.653%	115.08V
5	1.5A	7.548W	85.737%	0.415
5	5.032V	8.805W	85.737%	115.07V
6	3A	15.02W	84.193%	0.477
6	5.006V	17.84W	84.193%	115.07V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.228W	61.269%	0.013
1	5.056V	0.372W	61.269%	230.25V
2	0.09A	0.455W	70.213%	0.023
2	5.055V	0.648W	70.213%	230.24V
3	0.55A	2.776W	82.602%	0.112
3	5.048V	3.36W	82.602%	230.22V
4	1A	5.04W	84.065%	0.182
4	5.04V	5.995W	84.065%	230.21V
5	1.5A	7.548W	83.829%	0.244
5	5.031V	9.004W	83.829%	230.21V
6	3A	15.02W	84.421%	0.34
6	5.006V	17.795W	84.421%	230.21V

Protection Features

OCP (Normal @ 28.6°C)	12V: 92.80A (131.07%), 12.069V 5V: 31.5A (126.00%), 4.982V 3.3V: 31.7A (126.80%), 3.292V 5VSB: 4.1A (136.67%), 4.985V *High Ripple (103.64mV)
OCP (Hot @ 43.5°C)	12V: 91.60A (129.38%), 12.077V 5V: 30.1A (120.40%), 4.829V Voltage Drop(4.623V @ 30.4A) 3.3V: 30.6A (122.40%), 3.289V 5VSB: 3.8A (126.67%), 4.988V High Ripple (103.64mV)
OPP (Normal @ 28.8°C)	1098.61W (129.25%)
OPP (Hot @ 43.4°C)	1078.70W (126.91%)
OTP	✓ (110°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.242A	1.985A	1.986A	0.993A	85.011	86.886%	0	<6.0	52.91°C	0.964
10%	12.095V	5.039V	3.324V	5.035V	97.843	86.886%	0	<6.0	40.27°C	115.04V
20%	11.500A	2.981A	2.982A	1.194A	169.961	89.707%	0	<6.0	54.15°C	0.981
20%	12.092V	5.033V	3.32V	5.027V	189.464	89.707%	0	<6.0	40.87°C	115V
30%	18.111A	3.482A	3.482A	1.395A	254.974	91.75%	0	<6.0	55.62°C	0.987
30%	12.087V	5.027V	3.317V	5.02V	277.907	91.75%	0	<6.0	41.24°C	114.97V
40%	24.730A	3.985A	3.984A	1.596A	340.069	92.041%	0	<6.0	58.71°C	0.989
40%	12.085V	5.021V	3.314V	5.012V	369.475	92.041%	0	<6.0	41.78°C	114.94V
50%	30.991A	4.985A	4.985A	1.799A	424.929	91.864%	605	6.9	42.03°C	0.991
50%	12.081V	5.017V	3.31V	5.005V	462.564	91.864%	605	6.9	66.75°C	114.91V
60%	37.228A	5.985A	5.988A	2A	509.455	91.577%	628	7.5	42.75°C	0.991
60%	12.078V	5.014V	3.307V	4.997V	556.314	91.577%	628	7.5	69.98°C	114.87V
70%	43.530A	6.985A	6.993A	2.205A	594.764	91.098%	1031	22.6	43.43°C	0.992
70%	12.075V	5.012V	3.304V	4.989V	652.884	91.098%	1031	22.6	72.66°C	114.84V
80%	49.841A	7.984A	7.998A	2.308A	679.576	90.565%	1369	31.1	43.77°C	0.993
80%	12.072V	5.01V	3.3V	4.984V	750.38	90.565%	1369	31.1	72.48°C	114.81V
90%	56.549A	8.486A	8.49A	2.411A	764.991	90.01%	0	<6.0	44.86°C	0.994
90%	12.069V	5.009V	3.298V	4.978V	849.898	90.01%	0	<6.0	72.7°C	114.77V
100%	62.995A	8.988A	9.014A	3.023A	849.785	89.403%	0	<6.0	45.87°C	0.994
100%	12.065V	5.007V	3.294V	4.964V	950.524	89.403%	0	<6.0	72.94°C	114.74V
110%	69.307A	9.991A	10.117A	3.025A	934.321	88.721%	0	<6.0	46.28°C	0.995
110%	12.063V	5.004V	3.291V	4.96V	1053.092	88.721%	0	<6.0	74.81°C	114.71V
CL1	0.116A	15.032A	14.984A	0A	126.296	82.043%	192	<6.0	51.02°C	0.979
CL1	12.098V	5.009V	3.31V	5.042V	153.939	82.043%	192	<6.0	40.79°C	115.02V
CL2	0.116A	25.148A	0A	0A	126.258	80.144%	0	<6.0	56.69°C	0.98
CL2	12.104V	4.967V	3.321V	5.048V	157.544	80.144%	0	<6.0	40.54°C	115.02V
CL3	0.114A	0A	25.069A	0A	83.88	77.086%	0	<6.0	60.98°C	0.97
CL3	12.102V	5.012V	3.29V	5.04V	108.814	77.086%	0	<6.0	39.88°C	115.03V
CL4	70.401A	0A	0A	0A	849.522	89.969%	1788	39.2	46.66°C	0.994
CL4	12.067V	5.018V	3.307V	5.022V	944.237	89.969%	1788	39.2	73.33°C	114.75V

The results above are not used in the certification process

est	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.242A	1.985A	1.986A	0.993A	85.008	88.108%	0	<6.0	47.15°C	0.855
10%	12.095V	5.038V	3.324V	5.035V	96.481	88.108%	0	<6.0	40.31°C	230.22V
20%	11.498A	2.982A	2.982A	1.194A	169.951	91.016%	0	<6.0	48°C	0.928
20%	12.092V	5.032V	3.32V	5.027V	186.727	91.016%	0	<6.0	40.67°C	230.21V
30%	18.110A	3.483A	3.482A	1.395A	254.96	93.234%	0	<6.0	49.8°C	0.953
30%	12.088V	5.026V	3.317V	5.02V	273.464	93.234%	0	<6.0	41.24°C	230.2V
40%	24.727A	3.985A	3.983A	1.596A	340.048	93.676%	0	<6.0	51.03°C	0.966
40%	12.086V	5.02V	3.314V	5.012V	363.004	93.676%	0	<6.0	41.86°C	230.19V
50%	30.984A	4.984A	4.984A	1.798A	424.861	93.657%	605	6.9	42.37°C	0.973
50%	12.081V	5.017V	3.311V	5.005V	453.633	93.657%	605	6.9	58.05°C	230.18V
60%	37.223A	5.983A	5.987A	2A	509.389	93.568%	612	7	42.65°C	0.978
60%	12.078V	5.016V	3.308V	4.998V	544.405	93.568%	612	7	59.5°C	230.17V
70%	43.525A	6.983A	6.992A	2.205A	594.697	93.336%	852	16.3	43.45°C	0.981
70%	12.075V	5.013V	3.304V	4.99V	637.157	93.336%	852	16.3	62.28°C	230.15V
80%	49.835A	7.982A	7.997A	2.307A	679.513	93.024%	1180	26.3	43.21°C	0.983
80%	12.072V	5.011V	3.301V	4.984V	730.474	93.024%	1180	26.3	62.39°C	230.14V
90%	56.547A	8.484A	8.488A	2.41A	764.933	92.72%	1483	33.3	44.67°C	0.985
90%	12.069V	5.009V	3.298V	4.979V	824.988	92.72%	1483	33.3	62.29°C	230.12V
100%	62.991A	8.987A	9.013A	3.022A	849.74	92.32%	1838	40.2	45.61°C	0.986
100%	12.066V	5.007V	3.295V	4.964V	920.428	92.32%	1838	40.2	63.19°C	230.1V
110%	69.302A	9.99A	10.114A	3.024A	934.31	91.898%	1973	42	46.28°C	0.987
110%	12.064V	5.005V	3.292V	4.96V	1016.681	91.898%	1973	42	64.91°C	230.09V
CL1	0.114A	15.028A	14.978A	0A	126.278	83.639%	0	<6.0	56.8°C	0.909
CL1	12.092V	5.01V	3.311V	5.043V	150.981	83.639%	0	<6.0	41.17°C	230.24V
CL2	0.114A	25.011A	0A	0A	126.243	81.665%	0	<6.0	50.04°C	0.911
CL2	12.098V	4.992V	3.323V	5.049V	154.586	81.665%	0	<6.0	40.36°C	230.24V
CL3	0.114A	0A	25.041A	0A	83.875	78.246%	0	<6.0	45.13°C	0.87
CL3	12.095V	5.015V	3.294V	5.041V	107.195	78.246%	0	<6.0	41.12°C	230.25V
CL4	70.379A	0A	0A	0A	849.462	92.971%	1702	37.9	45.7°C	0.986
CL4	12.070V	5.016V	3.304V	5.022V	913.694	92.971%	1702	37.9	60.09°C	230.11V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.497A	0.496A	0.198A	20.005	70.878%	0	<6.0	50.26°C	0.875
20W	12.095V	5.029V	3.328V	5.052V	28.225	70.878%	0	<6.0	36.28°C	115.07V
40W	2.703A	0.696A	0.694A	0.297A	40.005	81.163%	0	<6.0	49.56°C	0.929
40W	12.095V	5.028V	3.327V	5.049V	49.293	81.163%	0	<6.0	37.14°C	115.06V
60W	4.178A	0.895A	0.893A	0.396A	60.005	85.103%	0	<6.0	50.93°C	0.949
60W	12.094V	5.027V	3.326V	5.047V	70.512	85.103%	0	<6.0	38.28°C	115.05V
80W	5.649A	1.094A	1.092A	0.496A	79.956	87.008%	0	<6.0	52.85°C	0.962
80W	12.094V	5.027V	3.325V	5.044V	91.891	87.008%	0	<6.0	39.49°C	115.04V

The results above are not used in the certification process

Τest	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.497A	0.496A	0.198A	20.003	71.352%	0	<6.0	40.1°C	0.573
20W	12.095V	5.03V	3.329V	5.052V	28.036	71.352%	0	<6.0	36.24°C	230.22V
40W	2.704A	0.696A	0.694A	0.297A	40.004	81.991%	0	<6.0	41.25°C	0.721
40W	12.094V	5.029V	3.327V	5.049V	48.789	81.991%	0	<6.0	37.46°C	230.22V
60W	4.178A	0.895A	0.893A	0.396A	60.004	86.189%	0	<6.0	43.27°C	0.799
60W	12.094V	5.028V	3.326V	5.047V	69.621	86.189%	0	<6.0	38.74°C	230.22V
80W	5.649A	1.094A	1.092A	0.496A	79.952	88.292%	0	<6.0	45.48°C	0.845
80W	12.094V	5.027V	3.325V	5.044V	90.555	88.292%	0	<6.0	39.14°C	230.22V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	13.61mV	10.97mV	9.15mV	7.90mV	Pass
20% Load	30.01mV	12.57mV	9.67mV	8.15mV	Pass
30% Load	22.43mV	12.26mV	9.78mV	11.25mV	Pass
40% Load	24.54mV	13.14mV	9.78mV	9.03mV	Pass
50% Load	27.07mV	13.34mV	11.01mV	8.93mV	Pass
60% Load	27.99mV	13.09mV	10.70mV	13.93mV	Pass
70% Load	28.51mV	12.62mV	11.01mV	15.23mV	Pass
80% Load	28.25mV	13.65mV	11.94mV	18.94mV	Pass
90% Load	28.15mV	13.86mV	13.50mV	28.44mV	Pass
100% Load	26.19mV	20.45mV	13.45mV	28.96mV	Pass
110% Load	26.91mV	11.23mV	13.34mV	31.07mV	Pass
Crossload1	21.07mV	15.97mV	13.06mV	13.97mV	Pass
Crossload2	23.87mV	21.79mV	11.94mV	13.94mV	Pass
Crossload3	14.28mV	22.41mV	16.29mV	14.92mV	Pass
Crossload4	26.92mV	10.45mV	10.69mV	20.72mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	16.03mV	11.90mV	11.64mV	9.24mV	Pass
20% Load	33.05mV	13.86mV	11.79mV	9.91mV	Pass
30% Load	25.16mV	13.45mV	11.90mV	11.61mV	Pass
40% Load	27.27mV	14.11mV	12.36mV	10.79mV	Pass
50% Load	29.95mV	14.58mV	12.46mV	15.07mV	Pass
60% Load	32.64mV	15.15mV	12.82mV	10.48mV	Pass
70% Load	31.24mV	14.27mV	12.72mV	24.26mV	Pass
80% Load	31.66mV	15.09mV	14.48mV	25.39mV	Pass
90% Load	31.40mV	15.66mV	13.96mV	25.03mV	Pass
100% Load	28.36mV	13.45mV	12.78mV	24.98mV	Pass
110% Load	27.79mV	12.98mV	13.75mV	25.86mV	Pass
Crossload1	27.06mV	18.41mV	15.51mV	15.61mV	Pass
Crossload2	24.08mV	23.95mV	13.39mV	16.16mV	Pass
Crossload3	16.35mV	23.39mV	17.84mV	17.04mV	Pass
Crossload4	31.09mV	11.45mV	12.27mV	15.42mV	Pass

The results above are not used in the certification process

Gigabyte GP-AE850PM PG5 / PG5 ICE

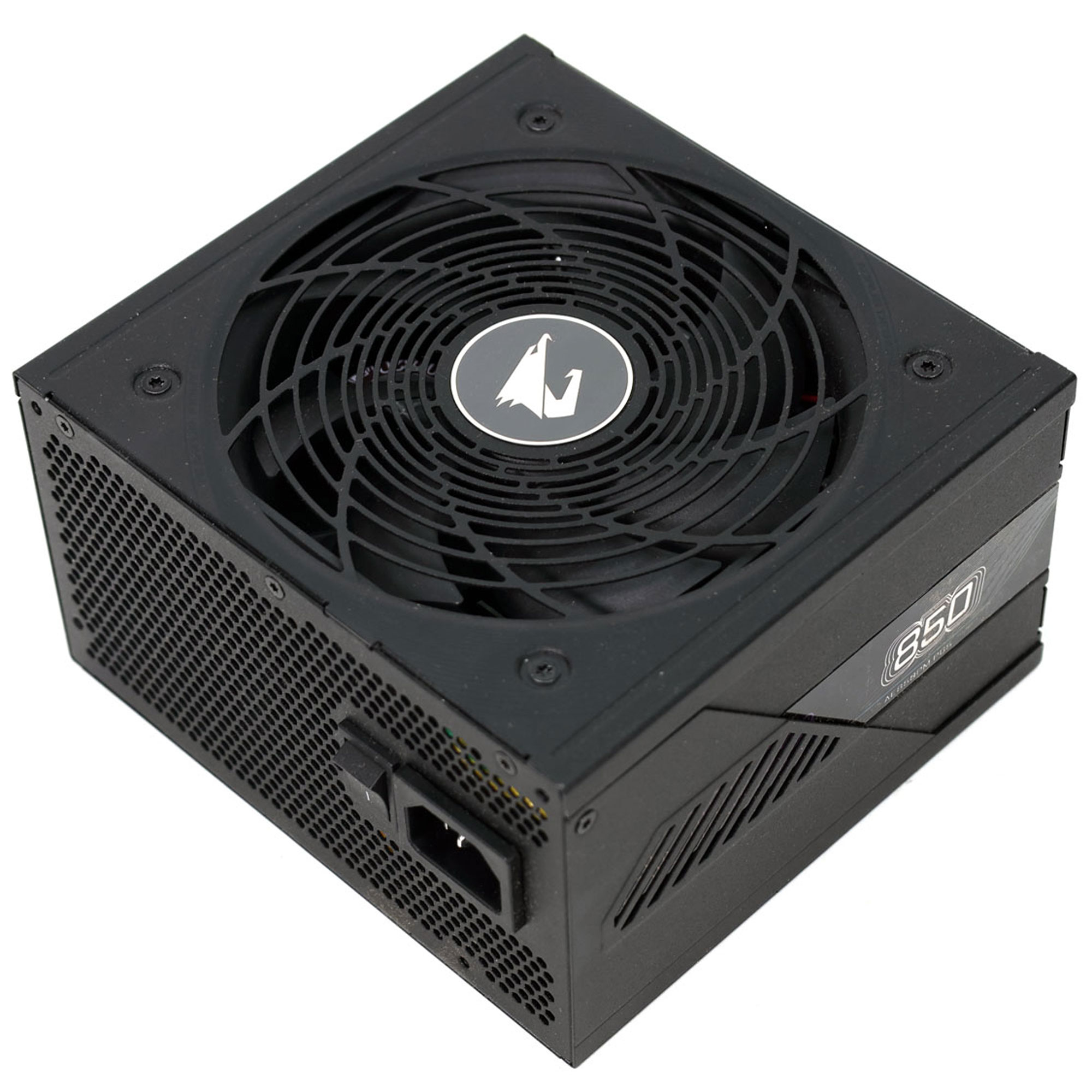

Top side

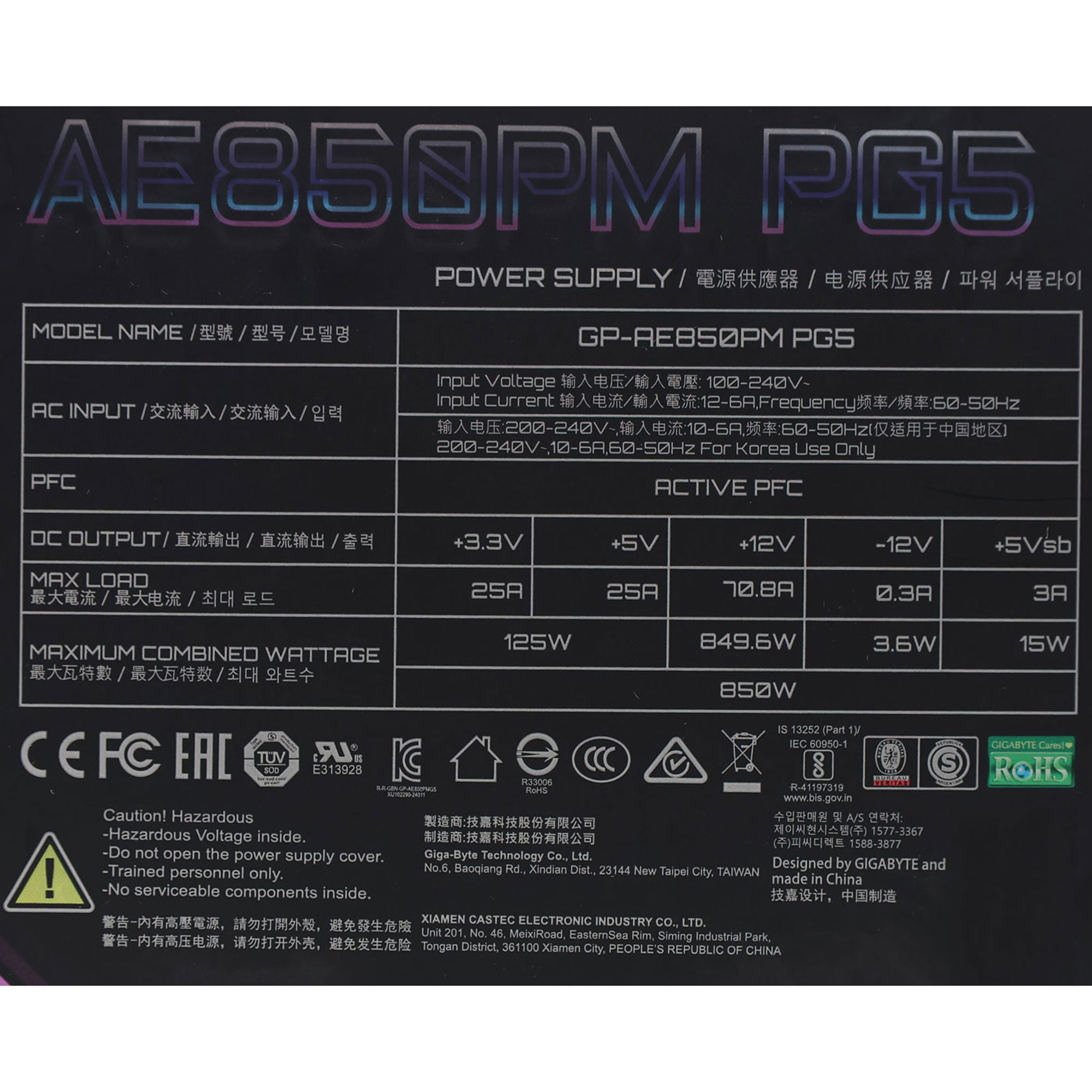

Power specifications label

Fan

PSU Internals
