1st Player NGDP 1200W
Serial Number251018PSNGDP-M0702
Lab ID1P12003069
Certification ID253069
  • Test Result Report ID: 25PS3069A
  • Certificate Issue Date: Dec 19, 2025
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand1st Player
Manufacturer (OEM)Helly Technology
SeriesNGDP
Model NumberHA-1200BA4
Serial Number251018PSNGDP-M0702
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm

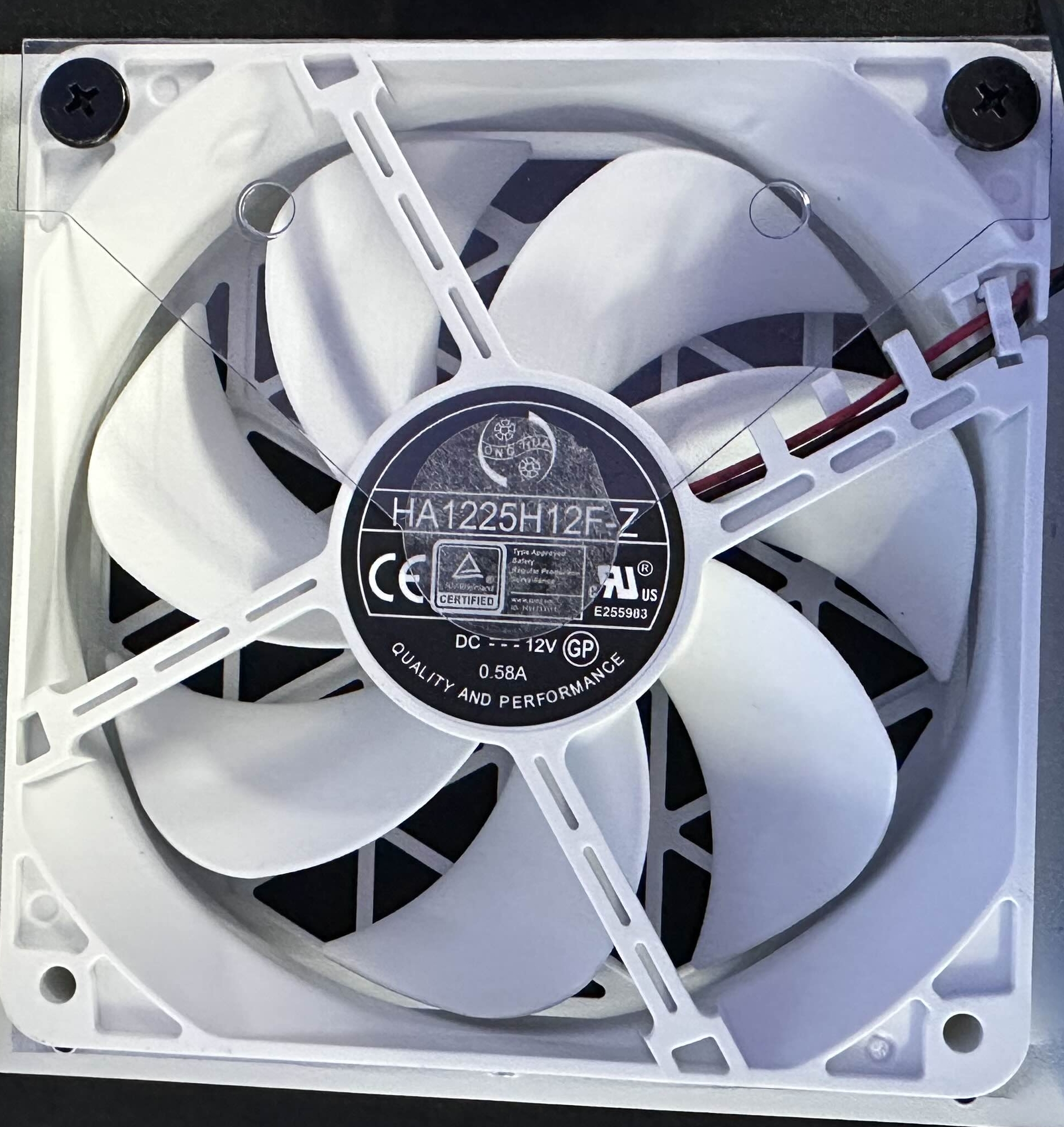

Cooling120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (610mm) 1 1 16-18AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (750mm) 4 4 16-18AWG Tinned Copper
12+4 pin PCIe (720mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (405mm+155mm+155mm+155mm) 2 8 18AWG Copper
4-pin Molex (410mm+155mm+155mm+155mm) 1 4 18AWG Copper
AC Power Cord (1400mm) - C13 coupler 1 1 14AWG -

Parts Description

General Data
Manufacturer (OEM) Helly Technology
PCB Type Double-Sided

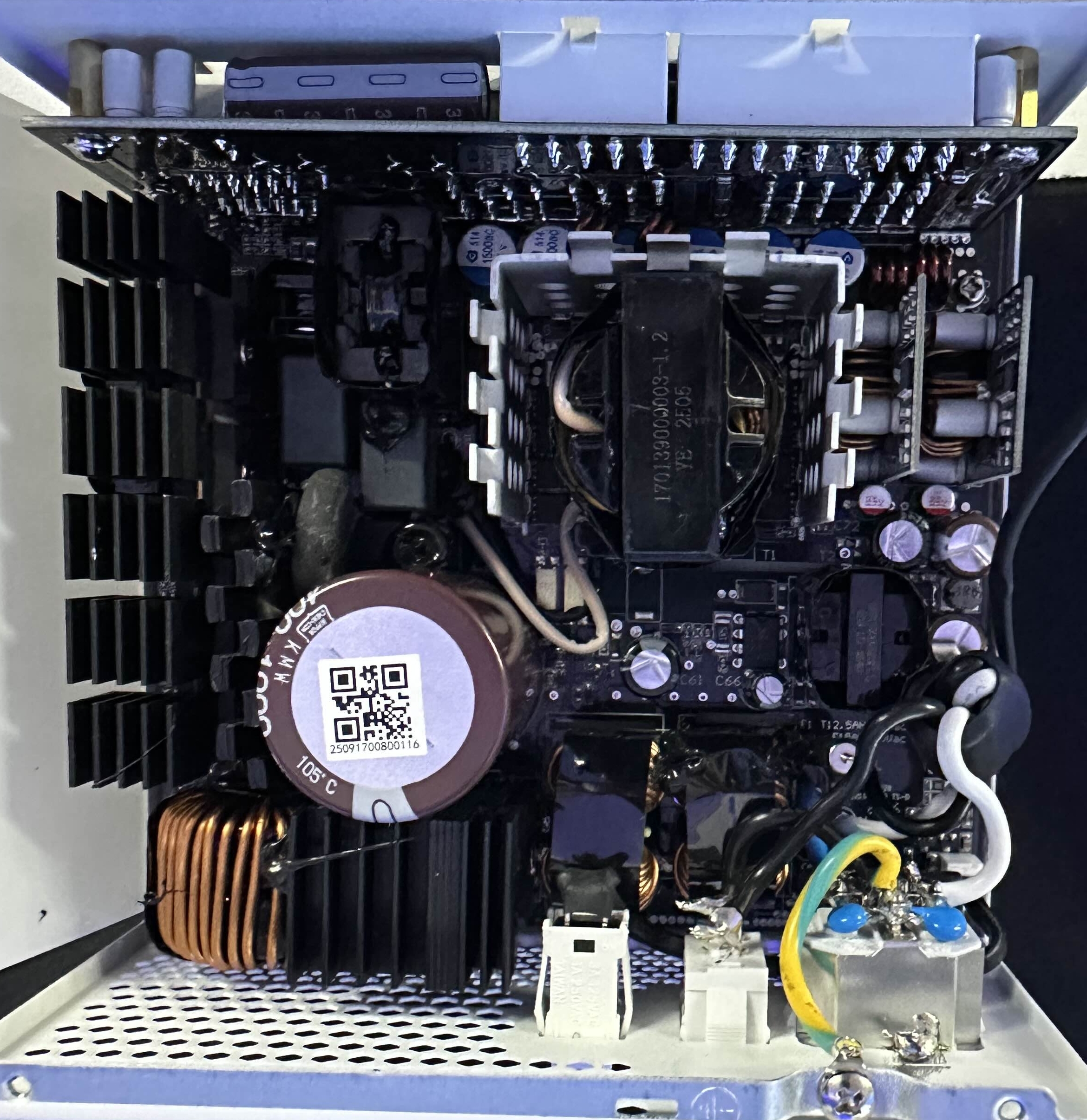

Primary Side
Transient Filter 2 x Y caps, 2x X caps, 2x TRX Y1222M caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF73T-2 20/7 (20 Ohm) & Relay
Bridge Rectifier
2x
APFC MOSFETs
2x Oriental Semiconductor OSG60R070HF (600V, 47A @ 25°C, Rds(on): 0.070Ohm)
APFC Boost Diode
Sanan Semiconductor SDS065J010C3 (650V, 30A @ 25°C)
Bulk Cap(s)
Nippon Chemi-Con (400V, 1,000uF, 2000h @ 105°C, KMW)
Main Switchers
2x Convert Semi CS45N50FW (500V, 45A @ 25°C, Rds(on): 100mOhm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Huayi HYG011N04LS1C2 (40V, 265A @ 25°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 2x KS3212T
2x KS3214T
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors

Electrolytic:
2x Nippon Chemi-Con (2-5,000h @ 105°C, KZE)
Nippon Chemi-Con (@ 105°C, W)
3x Rubycon (4-10,000 @ 105°C, YXF)
Rubycon (4-10,000 @ 105°C, YXJ)
Polymer:
6x Beryl (BC), 27x Chengx (PC)
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, PG, SCP)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Dongke Semiconductor DK5V60R20S (60V, 20mOhm)
Standby PWM Controller
Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)89.579%
Average Noise Output (>1450 Load Combinations)31.40dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load72.998%
Standby Power Consumption0.0556W
12V Ripple (Full Load)32.18mV
5V Ripple (Full Load)24.08mV
3.3V Ripple (Full Load)24.13mV
5VSB Ripple (Full Load)19.16mV
12V Load Regulation0.17%
5V Load Regulation0.97%
3.3V Load Regulation0.57%
5VSB Load Regulation3.95%
Inrush CurrentToo low to detect
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.761%
Average Noise Output (>1450 Load Combinations)30.67dBA
Average PF (>1450 Load Combinations)0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load73.354%
Standby Power Consumption0.1754W
12V Ripple (Full Load)30.97mV
5V Ripple (Full Load)16.63mV
3.3V Ripple (Full Load)18.67mV
5VSB Ripple (Full Load)17.48mV
12V Load Regulation0.19%
5V Load Regulation1.01%
3.3V Load Regulation0.81%
5VSB Load Regulation3.95%
Inrush CurrentToo low to detect
12V Transient Response (200%)11.27V
5V Transient Response (200%)4.845V
3.3V Transient Response (200%)3.195V
5VSB Transient Response (200%)4.924V
Hold-Up Time & Power Ok Signal19.90ms
AC Loss to PWR_OK Hold Up Time17.10ms
PWR_OK Inactive to DC Loss Delay2.80ms
PSU Timings: T1 (20% / 100%)62.0ms61.0ms
PSU Timings: T3 (20% / 100%)123.0ms123.0ms
12V OCP (29.5°C / 44.6°C)130.80A (130.80%), 12.096V124.00A (124.00%), 12.108V
5V OCP (29.5°C / 44.6°C)26.8A (134.00%), 4.954V26.8A (134.00%), 4.957V
3.3V OCP (29.5°C / 44.6°C)28.2A (141.00%), 3.369V28A (140.00%), 3.371V
5VSB OCP (29.5°C / 44.6°C)3.9A (130.00%), 5.013V3.9A (130.00%), 5.007V
OPP (29.13°C / 45.62°C)138.00%125.09%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.9
AC Loss to PWR_OK Hold Up Time (ms)17.1
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.02 V 115.00 V 113.85 V 115.04 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.056 W 0.036 W N/A 0.076 W N/A N/A
Apparent Power: 6.699 W 6.678 W N/A 6.720 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.07 V 230.04 V 227.70 V 230.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.175 W 0.083 W N/A 0.344 W N/A N/A
Apparent Power: 21.393 W 21.353 W N/A 21.441 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

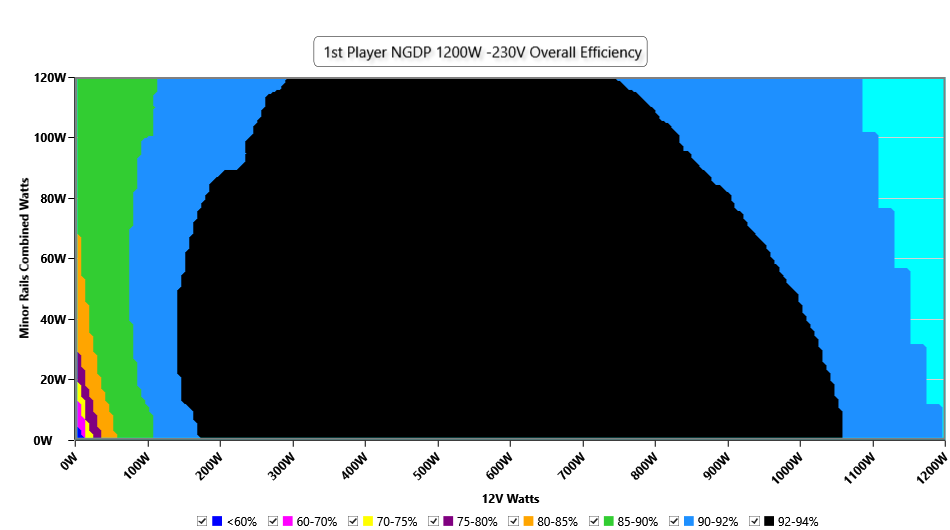

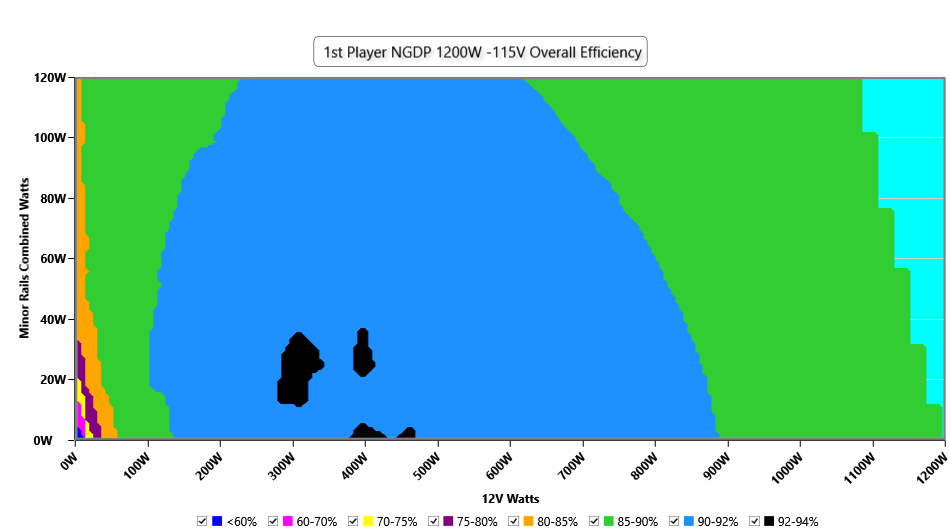

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

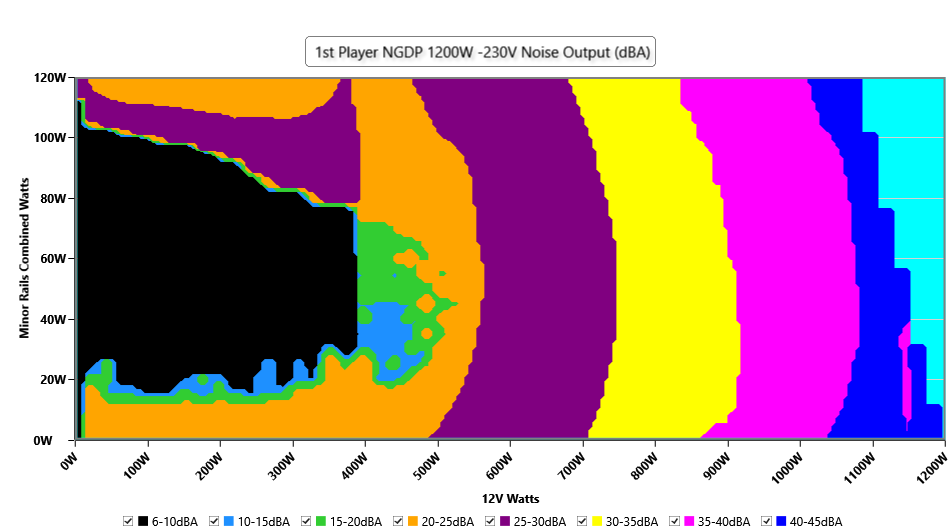

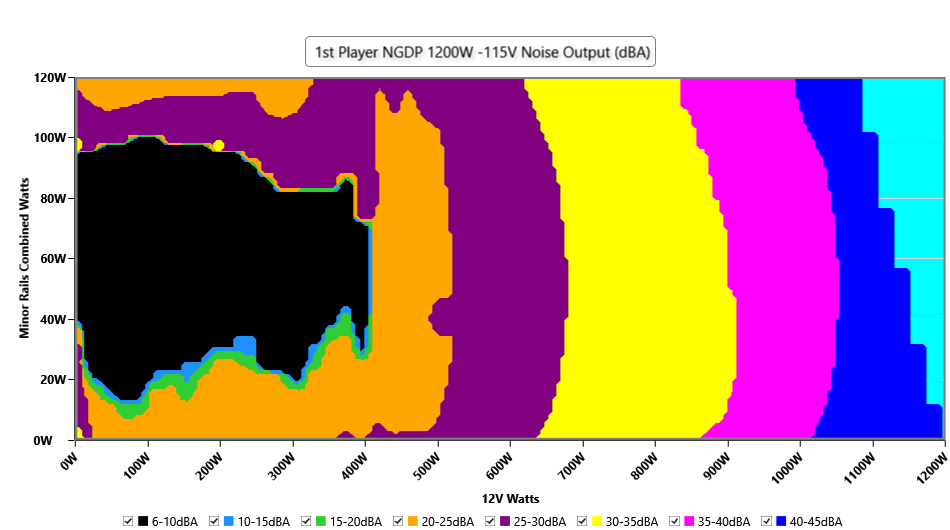

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

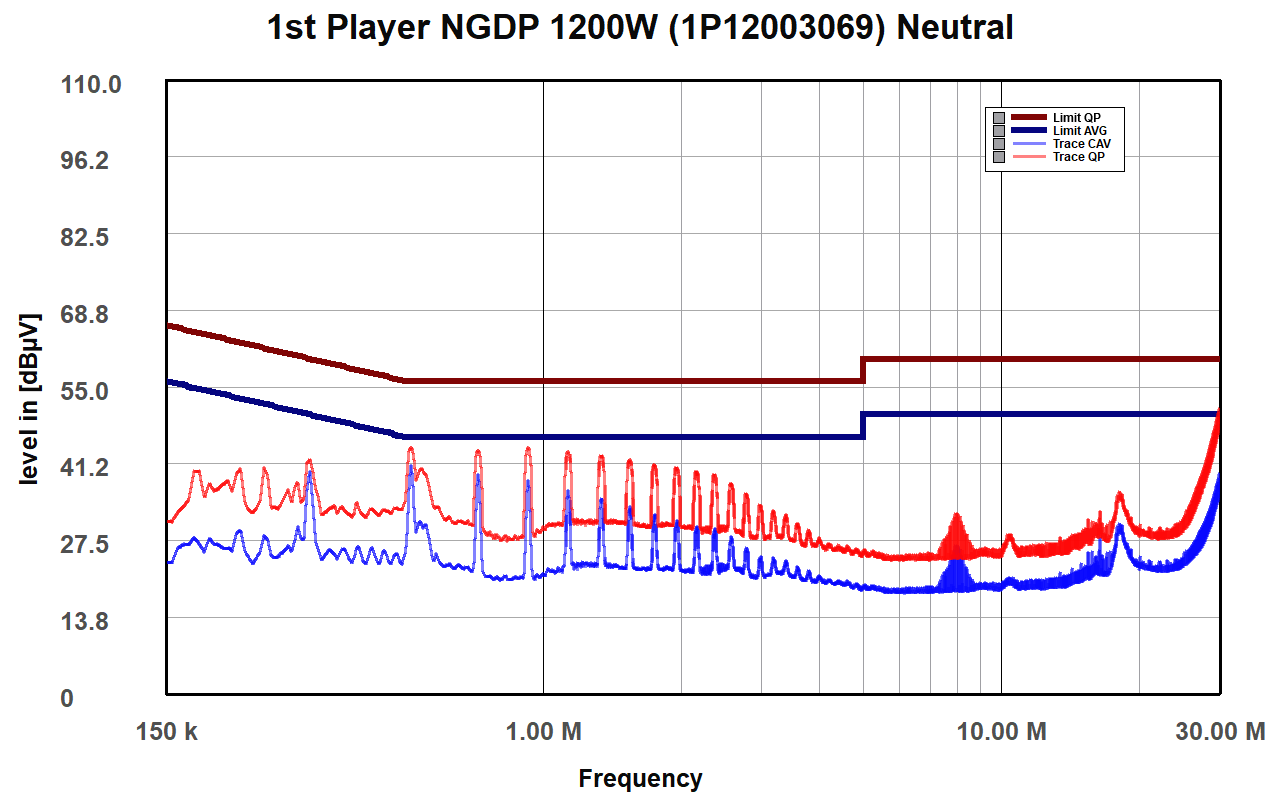

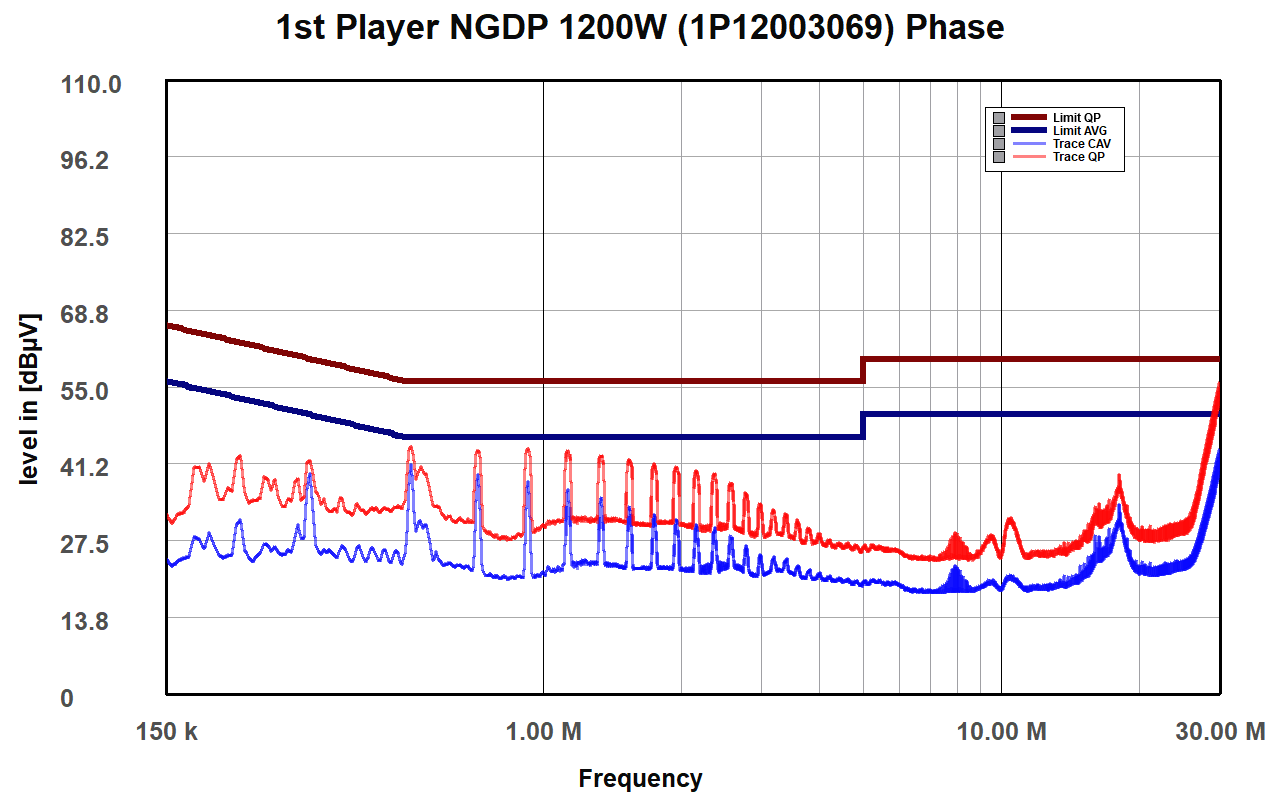

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

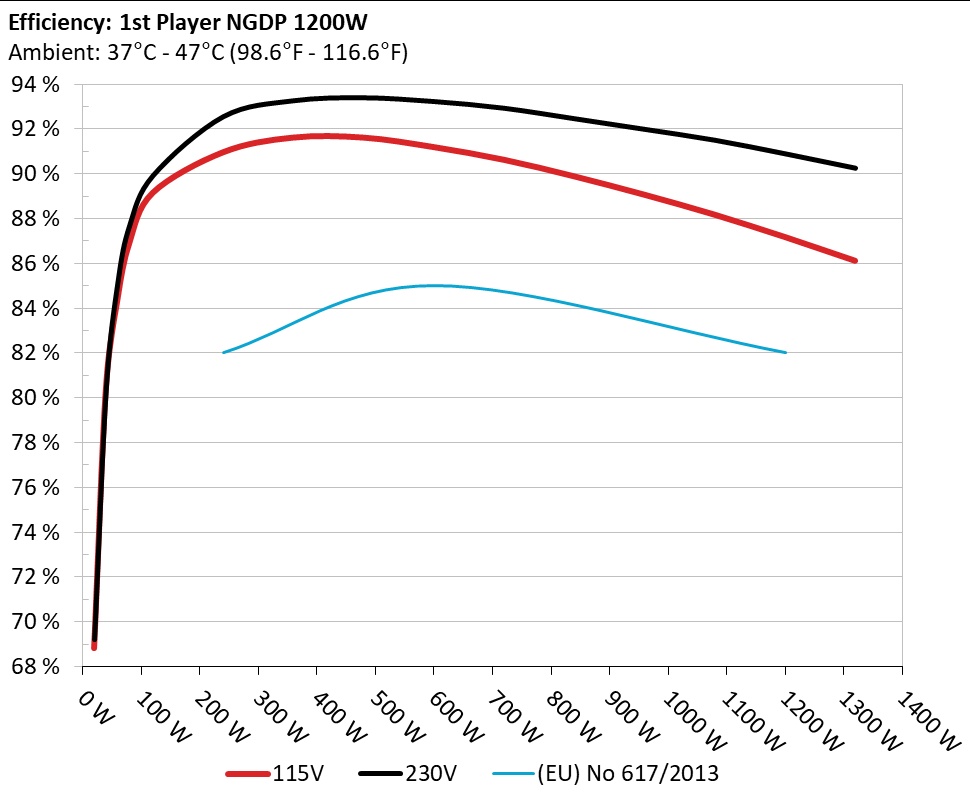

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

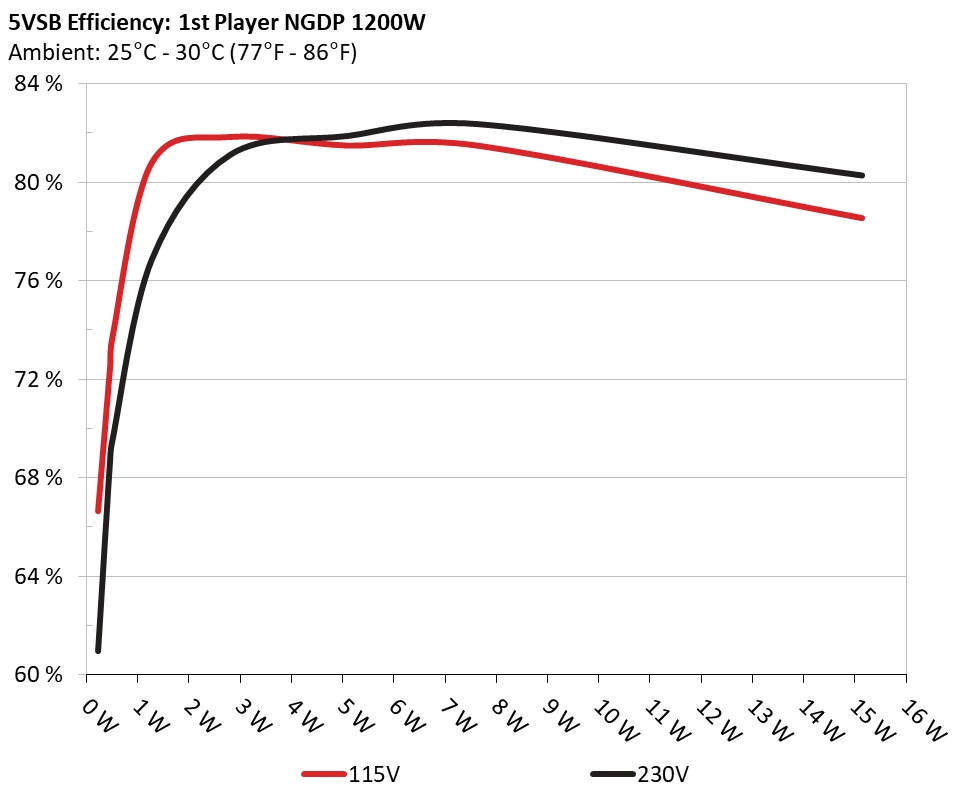

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 66.649% 0.053
5.142V 0.347W 115.12V
2 0.09A 0.463W 72.464% 0.096
5.14V 0.639W 115.1V
3 0.55A 2.819W 81.854% 0.365
5.126V 3.444W 115.09V
4 1A 5.112W 81.503% 0.472
5.112V 6.272W 115.09V
5 1.5A 7.645W 81.499% 0.527
5.096V 9.38W 115.08V
6 3A 15.148W 78.557% 0.589
5.049V 19.283W 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 60.971% 0.018
5.142V 0.381W 230.27V
2 0.09A 0.463W 68.624% 0.032
5.14V 0.675W 230.28V
3 0.55A 2.819W 81.14% 0.154
5.126V 3.474W 230.27V
4 1A 5.112W 81.897% 0.245
5.112V 6.242W 230.27V
5 1.5A 7.645W 82.376% 0.317
5.096V 9.281W 230.27V
6 3A 15.148W 80.292% 0.432
5.049V 18.866W 230.27V

Protection Features

OCP (Normal @ 29.5°C)12V: 130.80A (130.80%), 12.096V
5V: 26.8A (134.00%), 4.954V
3.3V: 28.2A (141.00%), 3.369V
5VSB: 3.9A (130.00%), 5.013V
OCP (Hot @ 44.6°C)12V: 124.00A (124.00%), 12.108V
5V: 26.8A (134.00%), 4.957V
3.3V: 28A (140.00%), 3.371V
5VSB: 3.9A (130.00%), 5.007V
OPP (Normal @ 29.1°C)1656.04W (138.00%)
OPP (Hot @ 45.6°C)1501.05W (125.09%)
OTP✓ (130°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.104A 2.003A 1.967A 0.98A 119.983 89.168% 0 <6.0 41.26°C 0.974
12.141V 4.993V 3.356V 5.101V 134.559 40.37°C 115.06V
20% 17.222A 3.009A 2.953A 1.18A 239.939 90.98% 996 24 40.72°C 0.985
12.138V 4.986V 3.352V 5.084V 263.728 44.13°C 115.02V
30% 26.625A 3.514A 3.449A 1.381A 359.145 91.635% 1040 24.8 41.06°C 0.991
12.134V 4.981V 3.348V 5.068V 391.925 45.52°C 114.98V
40% 36.129A 4.02A 3.946A 1.584A 479.527 91.637% 1155 28.5 41.92°C 0.994
12.132V 4.976V 3.345V 5.052V 523.291 48.53°C 114.94V
50% 45.235A 5.029A 4.934A 1.788A 599.264 91.215% 1353 33 42.16°C 0.995
12.131V 4.972V 3.344V 5.034V 656.984 51.74°C 114.9V
60% 54.411A 6.041A 5.923A 1.993A 719.797 90.648% 1660 38.4 42.77°C 0.995
12.130V 4.967V 3.343V 5.017V 794.048 54.27°C 114.85V
70% 63.529A 7.056A 6.91A 2.2A 839.525 89.91% 1801 40.8 43.24°C 0.996
12.127V 4.961V 3.343V 4.999V 933.737 57.16°C 114.81V
80% 72.712A 8.07A 7.896A 2.307A 959.503 89.09% 1977 43 43.66°C 0.996
12.125V 4.956V 3.343V 4.985V 1077.013 60.55°C 114.76V
90% 82.224A 8.582A 8.382A 2.414A 1079.312 88.2% 2139 44.7 44.53°C 0.996
12.123V 4.952V 3.34V 4.972V 1223.716 64.41°C 114.72V
100% 91.543A 9.094A 8.899A 3.037A 1199.329 87.206% 2144 44.8 45.98°C 0.992
12.121V 4.948V 3.337V 4.94V 1375.288 70.88°C 114.68V
110% 100.819A 10.117A 9.983A 3.044A 1319.937 86.139% 2145 44.8 46.33°C 0.982
12.117V 4.942V 3.335V 4.929V 1532.348 74.94°C 114.73V
CL1 0.116A 14.524A 14.027A 0A 121.301 83.501% 1385 33.3 41.09°C 0.972
12.144V 4.971V 3.4V 5.111V 145.27 54.36°C 115.05V
CL2 0.115A 20.115A 0A 0A 101.373 81.449% 1197 29.2 40.36°C 0.974
12.145V 4.97V 3.347V 5.123V 124.463 49.21°C 115.05V
CL3 0.114A 0A 19.35A 0A 67.386 78.321% 1162 28.6 40.28°C 0.965
12.140V 4.991V 3.411V 5.119V 86.042 45.57°C 115.06V
CL4 99.026A 0A 0A 0A 1199.901 87.999% 2143 44.7 45.9°C 0.996
12.117V 4.964V 3.307V 5.058V 1363.55 66.11°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.104A 2.004A 1.967A 0.98A 119.994 89.924% 1079 26.2 40.3°C 0.927
12.142V 4.991V 3.355V 5.1V 133.442 43.61°C 230.29V
20% 17.223A 3.01A 2.955A 1.181A 239.953 92.554% 1038 24.8 40.51°C 0.969
12.138V 4.984V 3.351V 5.082V 259.255 43.48°C 230.27V
30% 26.629A 3.515A 3.451A 1.382A 359.185 93.263% 1090 26.8 41.35°C 0.979
12.135V 4.979V 3.347V 5.067V 385.134 43.82°C 230.24V
40% 36.130A 4.021A 3.948A 1.584A 479.561 93.397% 1183 28.9 41.92°C 0.984
12.133V 4.975V 3.344V 5.05V 513.467 45.38°C 230.23V
50% 45.241A 5.032A 4.938A 1.788A 599.292 93.232% 1324 32.1 42.47°C 0.987
12.130V 4.97V 3.341V 5.033V 642.795 47.8°C 230.2V
60% 54.416A 6.044A 5.93A 1.994A 719.818 92.931% 1651 38.4 42.75°C 0.988
12.129V 4.965V 3.34V 5.016V 774.57 49.98°C 230.18V
70% 63.532A 7.059A 6.923A 2.201A 839.539 92.464% 1775 40.2 43.26°C 0.989
12.126V 4.96V 3.337V 4.998V 907.957 51.69°C 230.17V
80% 72.717A 8.074A 7.916A 2.308A 959.513 91.991% 1930 42.2 43.68°C 0.99
12.124V 4.953V 3.335V 4.984V 1043.045 53.61°C 230.15V
90% 82.230A 8.587A 8.404A 2.414A 1079.312 91.504% 2110 44.7 44.47°C 0.991
12.122V 4.949V 3.332V 4.971V 1179.539 55.75°C 230.13V
100% 91.549A 9.1A 8.923A 3.037A 1199.328 90.9% 2141 44.7 45.95°C 0.992
12.121V 4.945V 3.328V 4.939V 1319.384 58.85°C 230.11V
110% 100.803A 10.122A 10.007A 3.044A 1319.934 90.255% 2149 44.8 46.65°C 0.993
12.119V 4.939V 3.327V 4.927V 1462.456 62.85°C 230.09V
CL1 0.115A 14.534A 14.073A 0A 121.295 84.745% 1293 31.6 40.96°C 0.935
12.141V 4.968V 3.389V 5.112V 143.131 48.41°C 230.28V
CL2 0.114A 20.133A 0A 0A 101.368 82.767% 1143 28.1 40.62°C 0.919
12.143V 4.966V 3.347V 5.123V 122.474 45.23°C 230.29V
CL3 0.114A 0A 19.379A 0A 67.383 78.675% 1140 28 38.73°C 0.872
12.139V 4.99V 3.406V 5.119V 85.646 43.49°C 230.29V
CL4 99.008A 0A 0A 0A 1199.89 91.446% 2145 44.8 45.24°C 0.992
12.119V 4.963V 3.306V 5.057V 1312.136 57.3°C 230.11V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.5A 0.492A 0.195A 19.998 68.851% 0 <6.0 38.98°C 0.865
12.142V 4.996V 3.355V 5.135V 29.049 36.67°C 115.1V
40W 2.692A 0.701A 0.689A 0.292A 39.996 80.395% 0 <6.0 39.81°C 0.93
12.142V 4.996V 3.355V 5.13V 49.75 37.17°C 115.09V
60W 4.162A 0.901A 0.885A 0.39A 59.995 84.44% 0 <6.0 39.08°C 0.947
12.142V 4.996V 3.355V 5.126V 71.05 38.78°C 115.08V
80W 5.626A 1.101A 1.082A 0.488A 79.933 86.913% 0 <6.0 39.03°C 0.962
12.142V 4.995V 3.355V 5.121V 91.967 39.05°C 115.07V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.501A 0.492A 0.195A 20.007 69.213% 0 <6.0 39.86°C 0.55
12.144V 4.995V 3.354V 5.134V 28.911 36.68°C 230.29V
40W 2.694A 0.701A 0.689A 0.292A 40 80.406% 0 <6.0 38.88°C 0.74
12.136V 4.992V 3.35V 5.13V 49.748 37.95°C 230.29V
60W 4.162A 0.901A 0.886A 0.39A 60.001 85.172% 0 <6.0 38.19°C 0.834
12.139V 4.993V 3.352V 5.125V 70.448 38.09°C 230.29V
80W 5.627A 1.102A 1.082A 0.488A 79.943 87.69% 0 <6.0 40.1°C 0.882
12.140V 4.993V 3.353V 5.12V 91.165 39.23°C 230.29V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load22.38mV13.34mV13.14mV13.06mVPass
20% Load21.24mV13.24mV13.86mV12.91mVPass
30% Load21.66mV13.08mV13.50mV13.11mVPass
40% Load22.58mV13.45mV13.81mV14.04mVPass
50% Load22.94mV13.60mV14.89mV14.19mVPass
60% Load25.00mV14.11mV15.36mV14.97mVPass
70% Load25.68mV14.89mV15.72mV15.69mVPass
80% Load27.94mV15.15mV16.81mV15.80mVPass
90% Load32.02mV23.55mV25.91mV18.89mVPass
100% Load32.18mV24.08mV24.13mV19.16mVPass
110% Load33.62mV25.96mV29.74mV21.33mVPass
Crossload121.97mV15.78mV16.36mV33.14mVPass
Crossload222.79mV17.62mV13.29mV34.94mVPass
Crossload321.50mV12.88mV14.74mV34.74mVPass
Crossload430.13mV13.78mV16.80mV33.52mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load23.30mV13.81mV14.38mV12.75mVPass
20% Load22.27mV14.27mV14.12mV12.59mVPass
30% Load22.53mV13.91mV14.58mV13.21mVPass
40% Load23.10mV14.27mV14.69mV14.09mVPass
50% Load23.98mV14.94mV15.62mV14.35mVPass
60% Load25.21mV15.15mV15.87mV14.66mVPass
70% Load26.61mV15.04mV16.03mV14.61mVPass
80% Load28.46mV16.38mV17.43mV14.76mVPass
90% Load30.42mV16.28mV18.41mV15.17mVPass
100% Load30.97mV16.63mV18.67mV17.48mVPass
110% Load32.56mV17.37mV19.71mV17.33mVPass
Crossload121.76mV16.60mV16.93mV33.55mVPass
Crossload223.15mV18.19mV14.43mV34.27mVPass
Crossload321.45mV13.75mV15.62mV34.89mVPass
Crossload430.73mV15.10mV15.98mV32.55mVPass

The results above are not used in the certification process

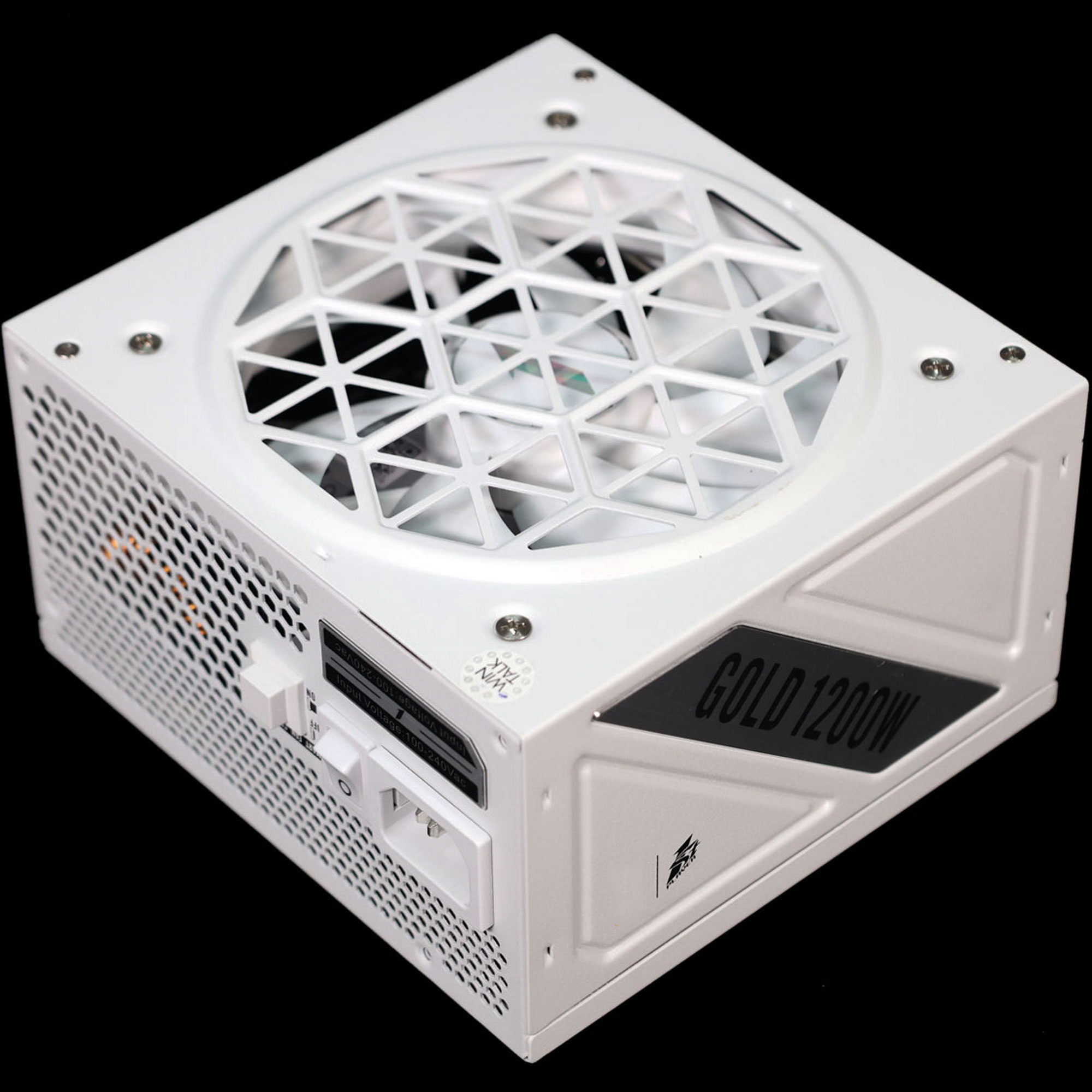

1st Player NGDP 1200W

Top side

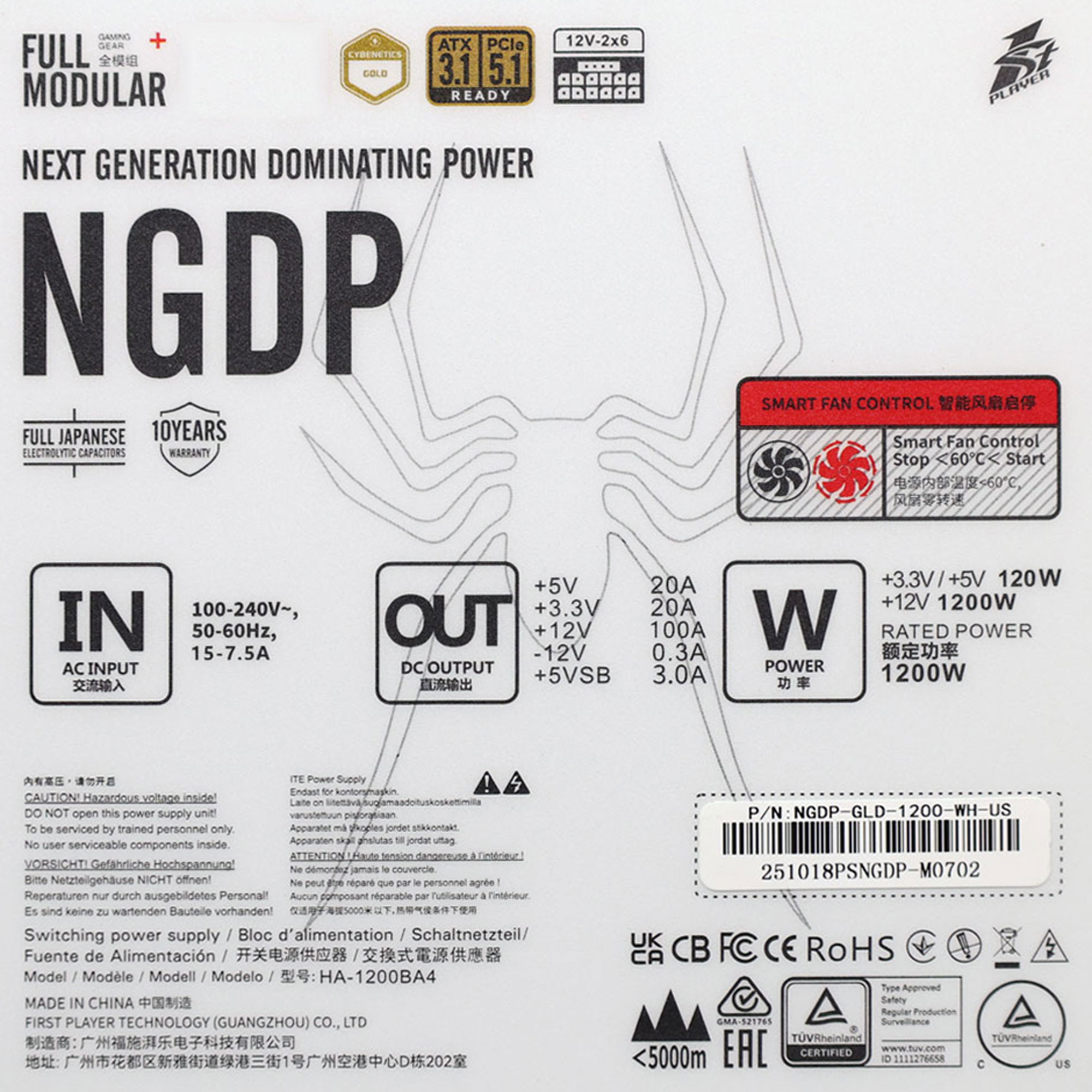

Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
