Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (350mm)
1
1
16-22AWG
Tinned Copper
4+4 pin EPS12V (500mm)
2
2
16AWG
Tinned Copper
6+2 pin PCIe (350mm+160mm)
2
4
16-18AWG
Tinned Copper
12+4 pin PCIe (500mm) (600W)
1
1
16-24AWG
Tinned Copper
SATA (500mm+155mm+155mm+155mm)
1
4
18AWG
Tinned Copper
SATA (500mm+155mm) / 4-pin Molex (+155mm+155mm)
1
2 / 2
18AWG
Tinned Copper
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
90.288%
Average Noise Output (>1450 Load Combinations)
20.23dBA
Average PF (>1450 Load Combinations)
0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load
75.793%
Standby Power Consumption
0.0905W
12V Ripple (Full Load)
39.51mV
5V Ripple (Full Load)
19.81mV
3.3V Ripple (Full Load)
11.13mV
5VSB Ripple (Full Load)
18.73mV
12V Load Regulation
1.08%
5V Load Regulation
0.34%
3.3V Load Regulation
0.73%
5VSB Load Regulation
3.45%
Inrush Current
25.550A
Efficiency Rating
PLATINUM
Noise Rating
A
Average Efficiency (>1450 load combinations)
92.021%
Average Noise Output (>1450 Load Combinations)
20.02dBA
Average PF (>1450 Load Combinations)
0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load
74.914%
Standby Power Consumption
0.1717W
12V Ripple (Full Load)
44.47mV
5V Ripple (Full Load)
20.50mV
3.3V Ripple (Full Load)
13.36mV
5VSB Ripple (Full Load)
22.86mV
12V Load Regulation
0.74%
5V Load Regulation
0.36%
3.3V Load Regulation
0.85%
5VSB Load Regulation
3.48%
Inrush Current
59.220A
12V Transient Response (200%)
11.60V
5V Transient Response (200%)
4.940V
3.3V Transient Response (200%)
3.203V
5VSB Transient Response (200%)
4.921V
Hold-Up Time & Power Ok Signal
22.10ms
AC Loss to PWR_OK Hold Up Time
19.40ms
PWR_OK Inactive to DC Loss Delay
2.70ms
PSU Timings: T1 (20% / 100%)
51.0ms
50.0ms
PSU Timings: T3 (20% / 100%)
111.0ms
110.0ms
12V OCP (29.7°C / 43.5°C)
105.00A (126.05%), 12.015V
103.20A (123.89%), 12.018V
5V OCP (29.7°C / 43.5°C)
22.4A (112.00%), 4.999V
22.4A (112.00%), 4.999V
3.3V OCP (29.7°C / 43.5°C)
23.6A (118.00%), 3.305V
23.3A (116.50%), 3.306V
5VSB OCP (29.7°C / 43.5°C)
3.6A (120.00%), 4.775V
3.6A (120.00%), 4.764V *High Ripple (59.72mV)
OPP (29.58°C / 41.01°C)
134.31%
129.50%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
22.1
AC Loss to PWR_OK Hold Up Time (ms)
19.4
PWR_OK Inactive to DC Loss Delay (ms)
2.7
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.06 V
115.03 V
113.85 V
115.07 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
60.00 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.11 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.090 W
0.067 W
N/A
0.118 W
N/A
N/A
Apparent Power:
12.388 W
12.369 W
N/A
12.406 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.12 V
230.08 V
227.70 V
230.13 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.14 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.172 W
0.129 W
N/A
0.263 W
N/A
N/A
Apparent Power:
40.724 W
40.676 W
N/A
40.775 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs
Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

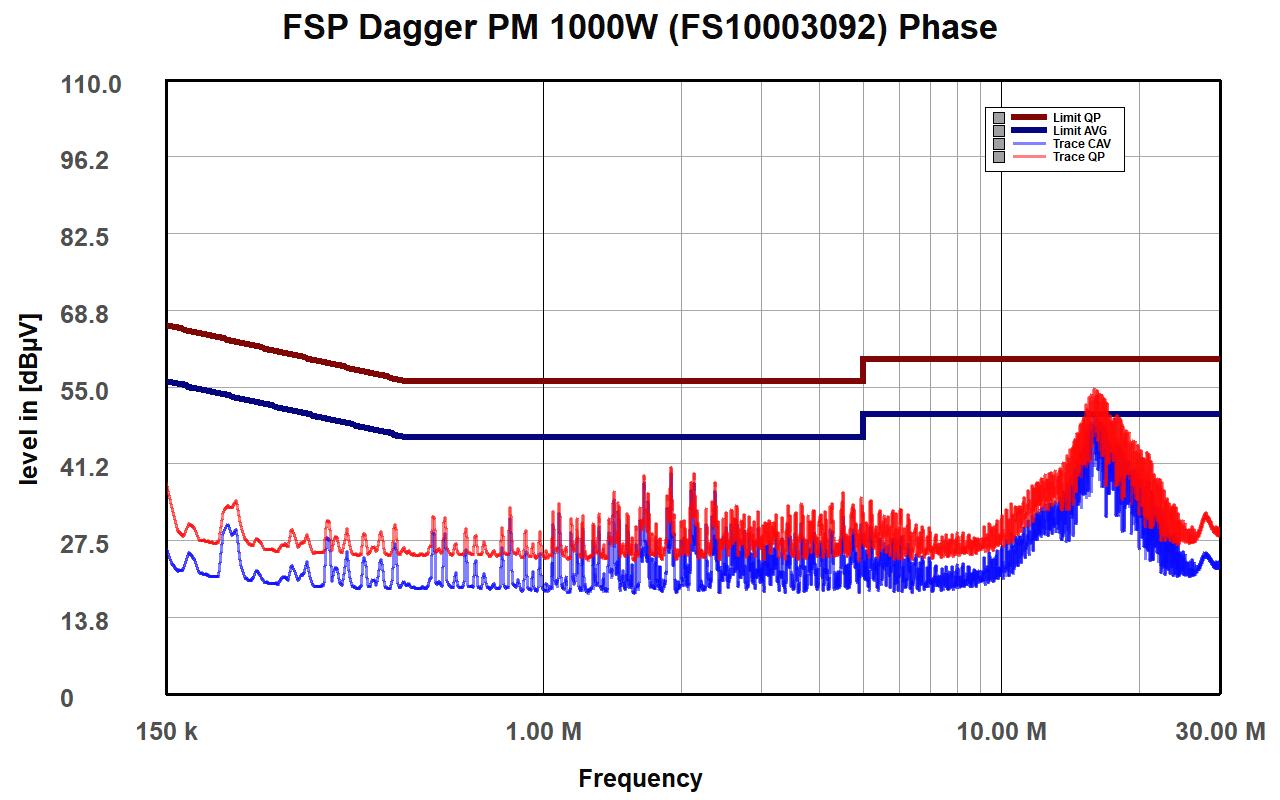

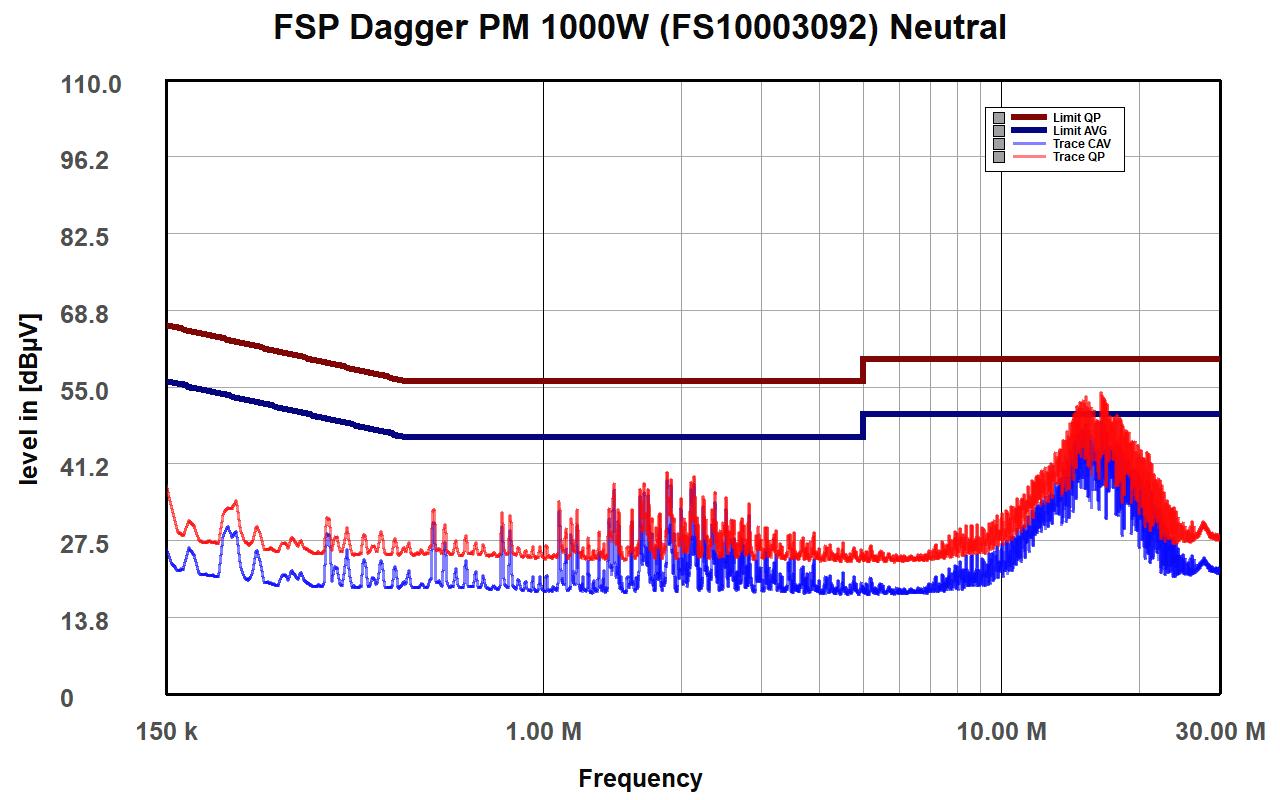

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

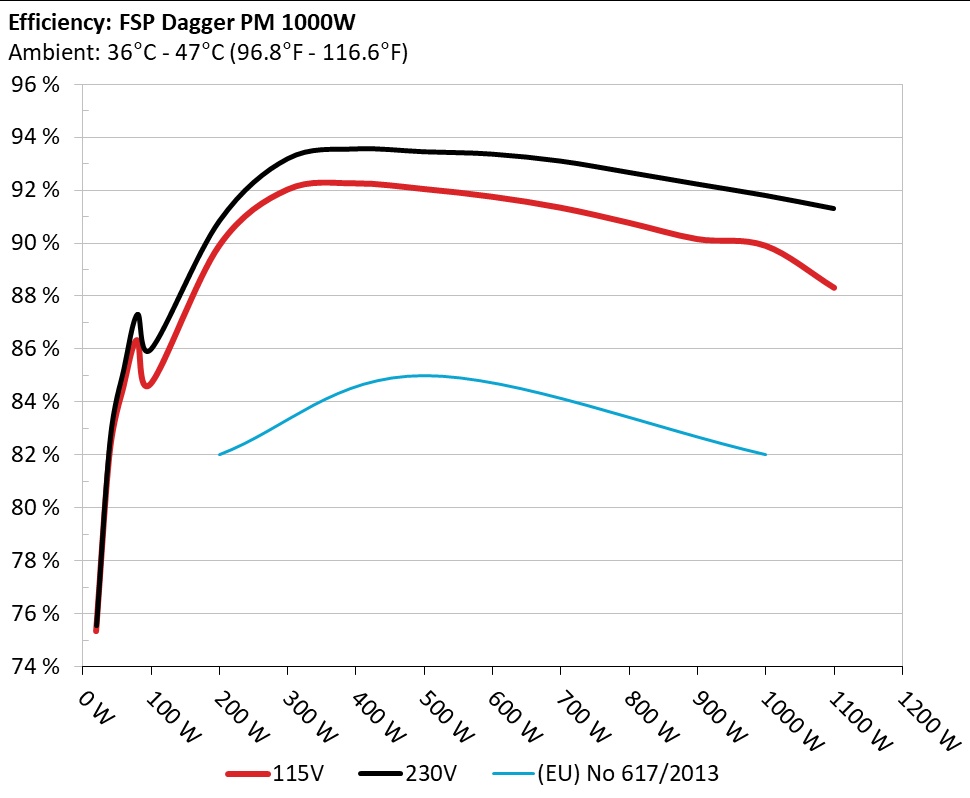

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

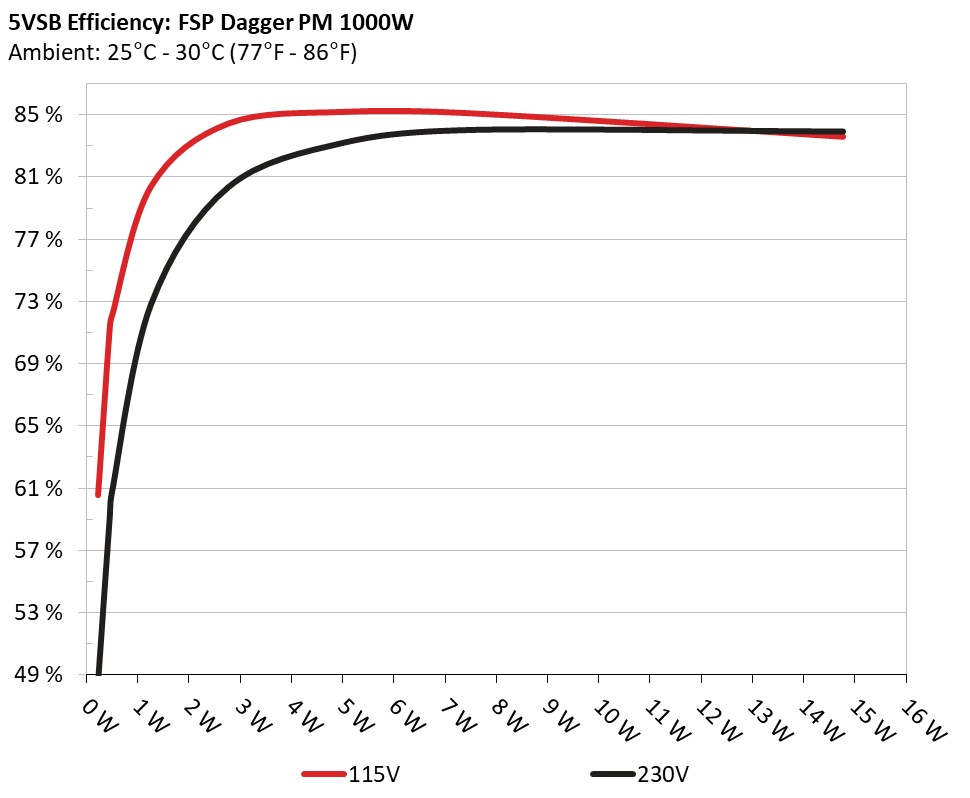

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓

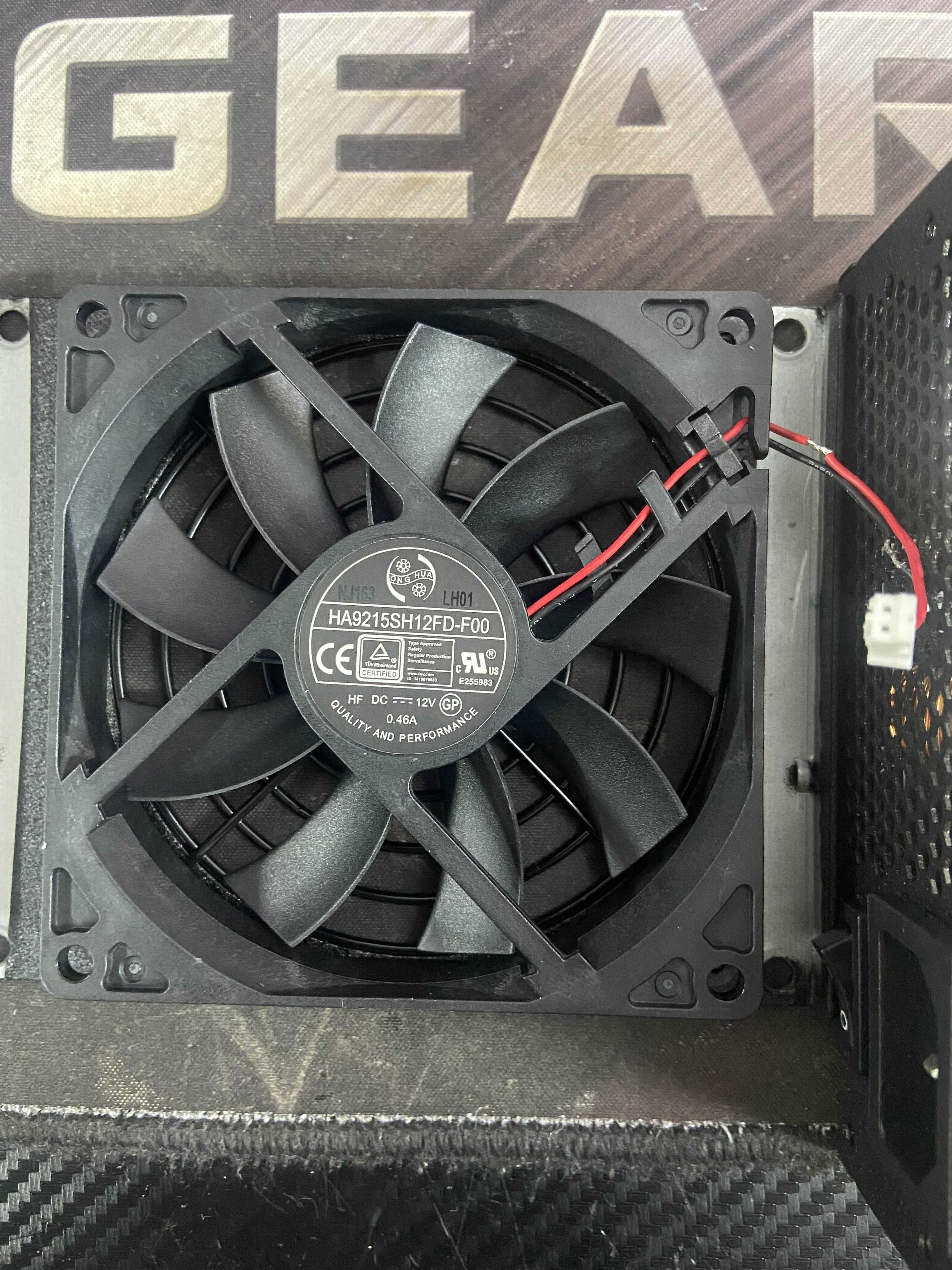

Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.450A
1.993A
1.986A
0.998A
99.997
84.696%
0
<6.0
41.11°C
0.974
12.153V
5.018V
3.324V
5.011V
118.049
40.45°C
115.06V
20%
13.897A
2.991A
2.981A
1.203A
199.946
89.91%
0
<6.0
41.11°C
0.975
12.164V
5.016V
3.321V
4.99V
222.367
40.67°C
115.02V
30%
21.682A
3.49A
3.481A
1.408A
299.999
92.037%
0
<6.0
42.68°C
0.974
12.173V
5.015V
3.319V
4.971V
325.98
41.11°C
114.99V
40%
29.443A
3.989A
3.981A
1.614A
399.546
92.271%
0
<6.0
42.94°C
0.981
12.170V
5.014V
3.316V
4.958V
433.013
41.91°C
114.96V
50%
36.869A
4.988A
4.98A
1.82A
499.277
92.059%
1159
16.7
42.15°C
0.987
12.172V
5.013V
3.314V
4.945V
542.378
53.3°C
114.93V
60%
44.384A
5.989A
5.981A
2A
599.68
91.765%
1155
16.7
42.73°C
0.986
12.166V
5.011V
3.311V
4.941V
653.515
51.86°C
114.88V
70%
51.837A
6.99A
6.983A
2.236A
699.524
91.352%
1153
16.7
43.24°C
0.987
12.161V
5.009V
3.308V
4.919V
765.728
52.31°C
114.85V
80%
59.357A
7.989A
7.986A
2.341A
799.516
90.781%
1820
32.3
43.75°C
0.987
12.157V
5.006V
3.305V
4.913V
880.682
50.4°C
114.81V
90%
67.237A
8.491A
8.477A
2.446A
899.3
90.165%
1938
34.7
43.46°C
0.988
12.149V
5.005V
3.303V
4.906V
997.351
49.67°C
114.77V
100%
75.028A
8.995A
8.997A
3.081A
999.178
89.916%
2604
42.7
45.16°C
0.987
12.122V
5.002V
3.301V
4.868V
1111.249
52.02°C
114.73V
110%
83.274A
10.018A
10.132A
3.072A
1099.826
88.325%
3159
47.7
46.92°C
0.983
12.027V
4.99V
3.286V
4.884V
1245.229
48.54°C
114.69V
CL1
0.115A
12.022A
11.967A
0A
101.287
81.922%
0
<6.0
41.83°C
0.974
12.177V
5.007V
3.317V
5.036V
123.823
40.99°C
115.06V
CL2
0.114A
19.998A
0A
0A
101.373
79.447%
1157
16.7
42.43°C
0.977
12.187V
5V
3.323V
5.041V
127.597
48.12°C
115.06V
CL3
0.113A
0A
19.921A
0A
67.38
77.038%
1150
16.6
41.32°C
0.955
12.190V
5.019V
3.313V
5.041V
87.584
45.41°C
115.07V
CL4
82.379A
0A
0A
0A
999.883
90.203%
2605
42.7
45.25°C
0.987
12.137V
5.015V
3.307V
5.02V
1108.497
51.74°C
114.72V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.488A
1.996A
1.991A
0.995A
99.993
85.766%
0
<6.0
47.81°C
0.846
12.082V
5.011V
3.316V
5.027V
116.591
40.13°C
230.28V
20%
13.986A
2.995A
2.989A
1.196A
199.941
90.842%
0
<6.0
47.94°C
0.923
12.086V
5.008V
3.312V
5.015V
220.107
40.59°C
230.26V
30%
21.832A
3.495A
3.49A
1.402A
299.988
93.198%
0
<6.0
50.91°C
0.941
12.089V
5.007V
3.31V
4.993V
321.892
41.16°C
230.25V
40%
29.655A
3.996A
3.991A
1.607A
399.528
93.567%
0
<6.0
52.55°C
0.947
12.083V
5.006V
3.307V
4.979V
427.004
41.83°C
230.24V
50%
37.153A
4.997A
4.994A
1.812A
499.23
93.46%
1160
16.7
42.45°C
0.952
12.078V
5.004V
3.304V
4.968V
534.146
46.82°C
230.22V
60%
44.737A
6A
5.998A
2A
599.668
93.37%
1165
16.9
42.67°C
0.952
12.069V
5.001V
3.301V
4.959V
642.204
45.82°C
230.21V
70%
52.259A
7.003A
7.005A
2.228A
699.482
93.107%
1169
17
43.44°C
0.956
12.062V
4.999V
3.298V
4.938V
751.189
46.04°C
230.19V
80%
59.860A
8.005A
8.012A
2.333A
799.487
92.679%
1958
35.1
43.64°C
0.958
12.055V
4.996V
3.295V
4.93V
862.589
46.22°C
230.17V
90%
67.813A
8.508A
8.504A
2.439A
899.293
92.241%
2643
43.4
44.34°C
0.961
12.045V
4.995V
3.292V
4.921V
974.935
45.61°C
230.15V
100%
75.572A
9.012A
9.028A
3.072A
999.303
91.811%
2639
43.3
45.45°C
0.962
12.037V
4.993V
3.289V
4.884V
1088.433
45.63°C
230.13V
110%
83.271A
10.018A
10.132A
3.075A
1099.9
91.316%
3449
51.5
46.84°C
0.963
12.028V
4.99V
3.286V
4.879V
1204.504
44.76°C
230.12V
CL1
0.116A
12.042A
12.005A
0A
101.293
82.124%
1194
18.1
40.87°C
0.834
12.086V
4.999V
3.306V
5.056V
123.365
43.75°C
230.28V
CL2
0.115A
20.023A
0A
0A
101.368
80.769%
1176
17.3
40.84°C
0.836
12.086V
4.993V
3.317V
5.06V
125.606
42.38°C
230.28V
CL3
0.115A
0A
19.991A
0A
67.381
77.578%
1162
16.8
40.73°C
0.763
12.050V
5.012V
3.301V
5.056V
86.947
40.87°C
230.28V
CL4
83.043A
0A
0A
0A
999.874
92.598%
2646
43.4
45.45°C
0.961
12.040V
5.005V
3.299V
5.029V
1079.804
47.89°C
230.13V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.234A
0.498A
0.496A
0.199A
20
75.342%
0
<6.0
38.81°C
0.825
12.043V
5.018V
3.325V
5.036V
26.698
36.07°C
115.09V
40W
2.704A
0.698A
0.695A
0.298A
40
82.137%
0
<6.0
38.98°C
0.923
12.087V
5.018V
3.325V
5.034V
48.869
37.41°C
115.08V
60W
4.164A
0.897A
0.893A
0.398A
60
84.591%
0
<6.0
39.34°C
0.953
12.134V
5.019V
3.325V
5.03V
70.998
38.49°C
115.07V
80W
5.636A
1.096A
1.092A
0.497A
79.945
86.347%
0
<6.0
40.62°C
0.963
12.123V
5.019V
3.324V
5.027V
92.538
39.16°C
115.06V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.238A
0.499A
0.497A
0.198A
20.001
75.55%
0
<6.0
38.31°C
0.389
12.000V
5.01V
3.317V
5.054V
26.298
36.71°C
230.29V
40W
2.714A
0.699A
0.697A
0.297A
40
82.611%
0
<6.0
40.65°C
0.592
12.042V
5.01V
3.317V
5.051V
48.532
37.31°C
230.29V
60W
4.186A
0.898A
0.895A
0.396A
59.999
85.247%
0
<6.0
41.2°C
0.724
12.073V
5.011V
3.317V
5.047V
70.384
38.32°C
230.28V
80W
5.672A
1.098A
1.094A
0.496A
79.941
87.316%
0
<6.0
42.45°C
0.801
12.043V
5.011V
3.316V
5.045V
91.61
39.24°C
230.28V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
42.59mV
11.80mV
9.77mV
20.44mV
Pass
20% Load
33.77mV
11.59mV
10.39mV
22.50mV
Pass
30% Load
55.27mV
13.34mV
11.27mV
20.39mV
Pass
40% Load
35.52mV
14.94mV
10.34mV
19.92mV
Pass
50% Load
34.34mV
16.38mV
10.60mV
21.52mV
Pass
60% Load
34.18mV
20.45mV
17.07mV
26.94mV
Pass
70% Load
36.40mV
18.91mV
15.41mV
25.24mV
Pass
80% Load
38.00mV
19.89mV
13.55mV
23.18mV
Pass
90% Load
38.51mV
18.65mV
11.38mV
20.80mV
Pass
100% Load
39.51mV
19.81mV
11.13mV
18.73mV
Pass
110% Load
44.9mV
22.94mV
15.9mV
23.94mV
Pass
Crossload1
38.93mV
12.80mV
10.93mV
7.68mV
Pass
Crossload2
42.89mV
14.79mV
10.14mV
8.88mV
Pass
Crossload3
42.26mV
14.84mV
11.32mV
8.36mV
Pass
Crossload4
38.88mV
18.45mV
10.29mV
9.97mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
34.18mV
13.14mV
11.12mV
19.72mV
Pass
20% Load
37.17mV
12.37mV
11.17mV
19.93mV
Pass
30% Load
45.83mV
14.58mV
11.69mV
23.33mV
Pass
40% Load
38.72mV
15.20mV
12.20mV
21.63mV
Pass
50% Load
39.18mV
18.55mV
16.70mV
21.78mV
Pass
60% Load
38.57mV
19.01mV
15.31mV
25.70mV
Pass
70% Load
38.41mV
19.42mV
12.62mV
30.76mV
Pass
80% Load
39.91mV
18.65mV
12.98mV
27.31mV
Pass
90% Load
43.77mV
19.99mV
13.08mV
25.34mV
Pass
100% Load
44.47mV
20.50mV
13.36mV
22.86mV
Pass
110% Load
44.73mV
21.20mV
14.09mV
22.99mV
Pass
Crossload1
24.60mV
13.95mV
12.10mV
8.48mV
Pass
Crossload2
37.33mV
15.71mV
12.26mV
9.55mV
Pass
Crossload3
20.73mV
15.20mV
13.14mV
9.09mV
Pass
Crossload4
44.24mV
20.74mV
13.14mV
12.48mV
Pass
The results above are not used in the certification process
FSP Technology DAGGER PM 1000W
Top side
Power specifications label
Fan

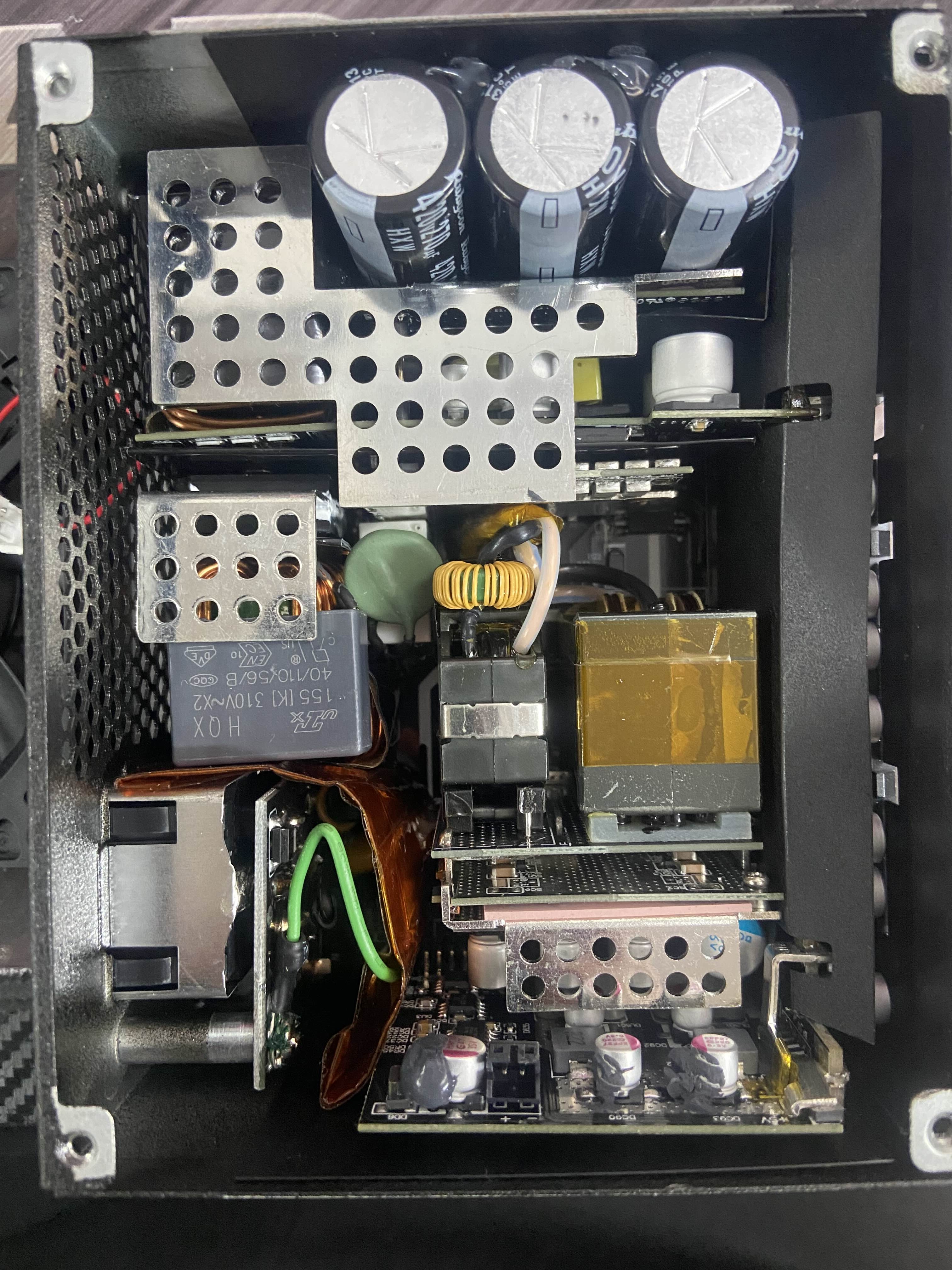

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
