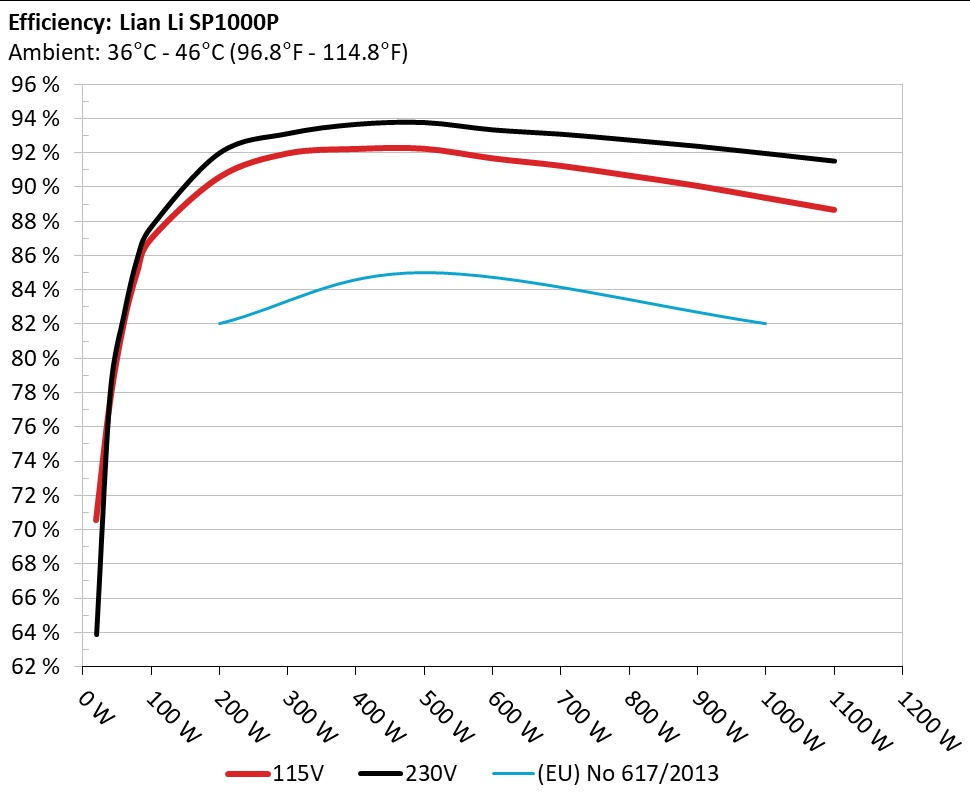

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

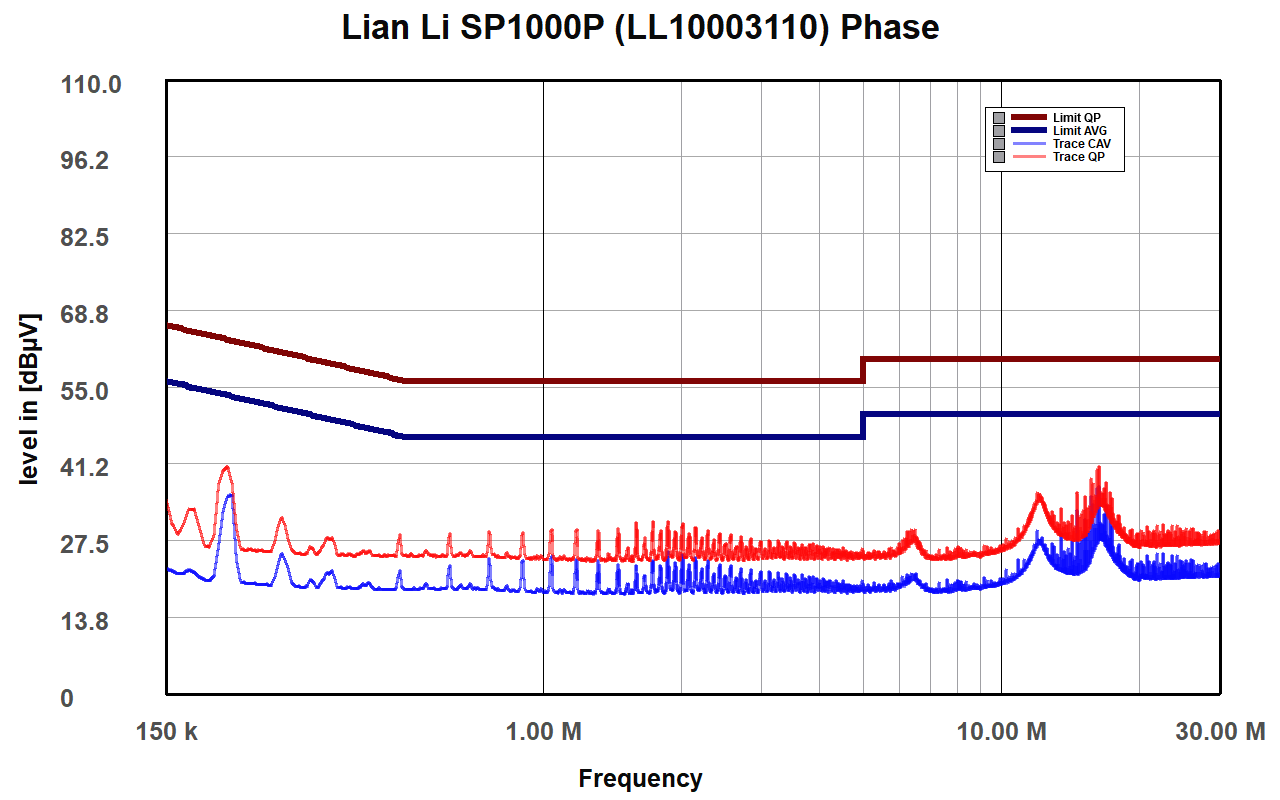

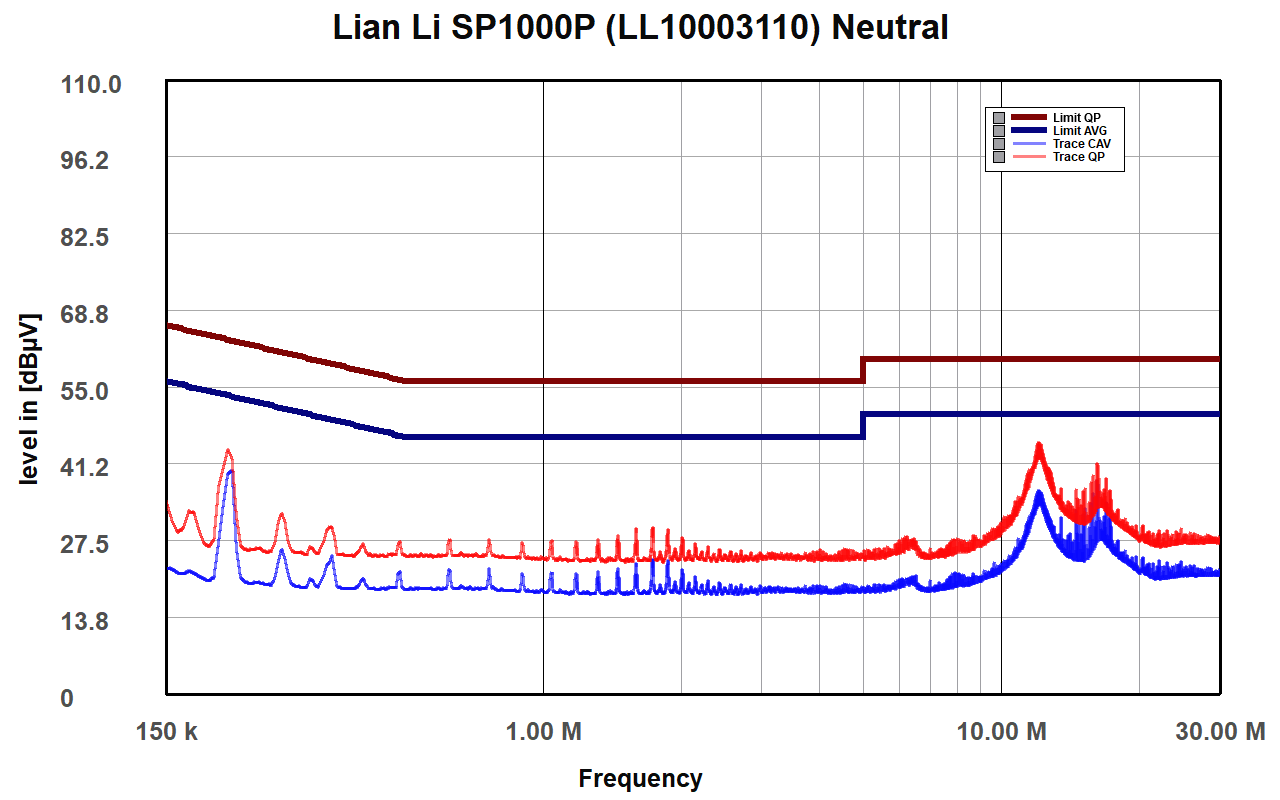

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance
Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

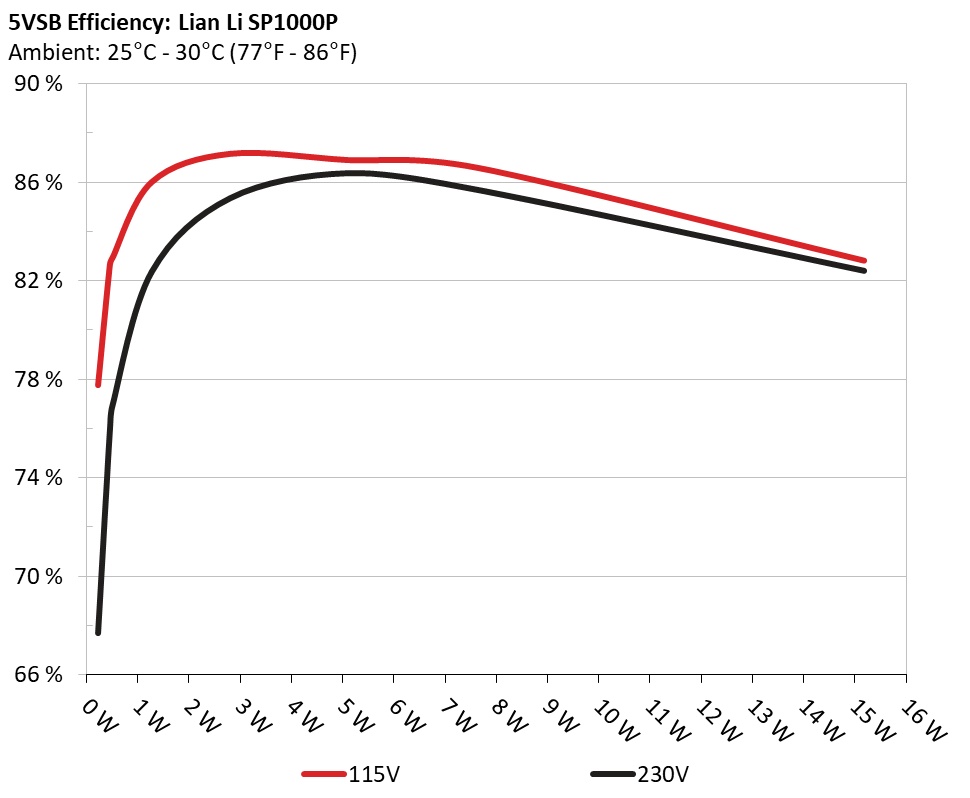

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.524A
2.002A
1.972A
0.982A
100.037
86.941%
0
<6.0
42.33°C
0.979
12.022V
4.997V
3.348V
5.096V
115.062
40.25°C
114.9V
20%
14.076A
3.006A
2.961A
1.18A
200.003
90.549%
0
<6.0
41.99°C
0.987
12.013V
4.992V
3.344V
5.086V
219.653
40.75°C
114.34V
30%
21.996A
3.509A
3.458A
1.379A
300.067
91.939%
0
<6.0
42.74°C
0.992
12.003V
4.989V
3.341V
5.076V
326.372
41.28°C
114.86V
40%
29.908A
4.013A
3.957A
1.579A
399.904
92.199%
1420
30.3
41.66°C
0.993
11.993V
4.985V
3.337V
5.067V
433.744
46.01°C
114.83V
50%
37.476A
5.021A
4.952A
1.78A
499.61
92.216%
1422
30.3
42.38°C
0.994
11.983V
4.981V
3.332V
5.057V
541.776
47.6°C
114.81V
60%
45.131A
6.03A
5.95A
1.982A
600.164
91.656%
1431
30.5
42.94°C
0.994
11.973V
4.977V
3.329V
5.046V
654.78
48.76°C
114.78V
70%
52.733A
7.041A
6.95A
2.185A
699.902
91.218%
1593
33.8
43.08°C
0.994
11.961V
4.973V
3.325V
5.036V
767.284
50.01°C
114.75V
80%
60.414A
8.053A
7.952A
2.288A
799.933
90.651%
2027
41.1
43.87°C
0.994
11.951V
4.968V
3.32V
5.028V
882.44
50.64°C
114.73V
90%
68.444A
8.562A
8.443A
2.391A
899.731
90.054%
2484
45.7
44.44°C
0.994
11.940V
4.965V
3.316V
5.019V
999.106
52.65°C
114.7V
100%
76.291A
9.073A
8.967A
3A
999.756
89.355%
2902
48.9
45.72°C
0.994
11.929V
4.961V
3.312V
5.001V
1118.871
53.49°C
114.66V
110%
84.079A
10.09A
10.069A
3.004A
1100.378
88.651%
3094
50.6
46.27°C
0.994
11.918V
4.956V
3.307V
4.994V
1241.257
54.68°C
114.63V
CL1
0.118A
12.092A
11.899A
0A
101.326
81.593%
1480
31.6
40.44°C
0.981
12.012V
4.979V
3.336V
5.108V
124.193
47.17°C
114.9V
CL2
0.117A
20.105A
0A
0A
101.41
81.378%
1450
30.9
42.86°C
0.981
12.018V
4.974V
3.35V
5.111V
124.616
46.91°C
114.91V
CL3
0.117A
0A
19.845A
0A
67.405
76.017%
1438
30.7
41.93°C
0.949
12.018V
4.992V
3.326V
5.11V
88.668
45.57°C
114.92V
CL4
83.791A
0A
0A
0A
1000.25
90.048%
2537
46.6
45.58°C
0.994
11.937V
4.977V
3.324V
5.068V
1110.791
52.44°C
114.67V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.524A
2.002A
1.971A
0.982A
100.038
87.689%
0
<6.0
48.23°C
0.84
12.022V
4.996V
3.349V
5.096V
114.087
40.11°C
230.02V
20%
14.077A
3.006A
2.959A
1.18A
200.003
92.009%
0
<6.0
48.44°C
0.938
12.012V
4.992V
3.346V
5.086V
217.38
40.61°C
230.02V
30%
21.996A
3.509A
3.456A
1.379A
300.067
93.145%
1421
30.3
41.03°C
0.96
12.002V
4.989V
3.343V
5.076V
322.156
45.72°C
230.01V
40%
29.907A
4.013A
3.955A
1.579A
399.894
93.683%
1416
30.3
41.63°C
0.974
11.994V
4.985V
3.338V
5.067V
426.854
45.34°C
229.99V
50%
37.476A
5.021A
4.949A
1.78A
499.614
93.79%
1415
30.3
42.06°C
0.976
11.984V
4.981V
3.334V
5.057V
532.693
46.02°C
229.98V
60%
45.130A
6.03A
5.945A
1.982A
600.17
93.363%
1430
30.5
42.79°C
0.979
11.973V
4.977V
3.331V
5.047V
642.833
47.83°C
229.96V
70%
52.732A
7.042A
6.943A
2.185A
699.905
93.111%
1619
34.3
43.33°C
0.979
11.962V
4.973V
3.328V
5.036V
751.687
49.16°C
229.95V
80%
60.416A
8.054A
7.943A
2.288A
799.938
92.767%
2037
41.5
43.92°C
0.979
11.951V
4.968V
3.324V
5.028V
862.312
50.01°C
229.94V
90%
68.446A
8.563A
8.433A
2.391A
899.738
92.406%
2446
45.8
44.67°C
0.98
11.940V
4.964V
3.321V
5.02V
973.681
50.98°C
229.92V
100%
76.291A
9.074A
8.955A
3A
999.778
91.984%
2834
48.8
45.89°C
0.98
11.929V
4.961V
3.317V
5.001V
1086.901
52.22°C
229.91V
110%
84.080A
10.091A
10.053A
3.004A
1100.385
91.538%
3096
50.6
46.2°C
0.979
11.918V
4.956V
3.313V
4.995V
1202.104
53.43°C
229.9V
CL1
0.118A
12.092A
11.874A
0A
101.325
82.64%
1470
31.3
41.57°C
0.854
12.013V
4.979V
3.343V
5.108V
122.62
48.52°C
230.02V
CL2
0.117A
20.106A
0A
0A
101.409
82.397%
1441
30.9
40.37°C
0.854
12.019V
4.974V
3.349V
5.111V
123.077
45.14°C
230.02V
CL3
0.117A
0A
19.81A
0A
67.404
76.816%
1434
30.6
42°C
0.773
12.019V
4.992V
3.331V
5.11V
87.75
45.78°C
230.02V
CL4
83.798A
0A
0A
0A
1000.242
92.67%
2486
45.7
46.57°C
0.98
11.936V
4.976V
3.324V
5.068V
1079.357
51.97°C
229.92V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.236A
0.5A
0.492A
0.195A
20.015
70.566%
0
<6.0
40.2°C
0.814
12.033V
5.001V
3.352V
5.116V
28.363
36.99°C
114.92V
40W
2.718A
0.7A
0.689A
0.294A
40.01
77.359%
0
<6.0
44.5°C
0.908
12.030V
5V
3.351V
5.113V
51.723
37.11°C
114.92V
60W
4.202A
0.901A
0.887A
0.392A
60.009
81.942%
0
<6.0
43.9°C
0.944
12.027V
4.999V
3.35V
5.11V
73.233
38.24°C
114.92V
80W
5.684A
1.101A
1.084A
0.49A
79.982
85.019%
0
<6.0
43.5°C
0.957
12.025V
4.999V
3.35V
5.107V
94.079
39.99°C
114.91V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.236A
0.5A
0.492A
0.195A
20.017
63.888%
0
<6.0
38.37°C
0.469
12.032V
5.001V
3.352V
5.116V
31.331
36.34°C
230.03V
40W
2.718A
0.7A
0.689A
0.294A
40.012
78.008%
0
<6.0
43.19°C
0.626
12.030V
5V
3.351V
5.113V
51.292
37.97°C
230.03V
60W
4.202A
0.901A
0.886A
0.392A
60.009
82.535%
0
<6.0
43.9°C
0.72
12.028V
4.999V
3.351V
5.11V
72.707
38.69°C
230.03V
80W
5.684A
1.101A
1.084A
0.49A
79.984
85.907%
0
<6.0
43.54°C
0.791
12.026V
4.999V
3.351V
5.107V
93.107
39.35°C
230.03V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
11.40mV
10.35mV
6.92mV
10.80mV
Pass
20% Load
14.25mV
10.92mV
6.61mV
11.00mV
Pass
30% Load
14.04mV
11.02mV
6.92mV
11.97mV
Pass
40% Load
16.43mV
11.48mV
7.17mV
11.62mV
Pass
50% Load
17.51mV
11.32mV
7.58mV
11.56mV
Pass
60% Load
19.23mV
12.14mV
9.51mV
12.07mV
Pass
70% Load
22.54mV
12.65mV
10.58mV
13.14mV
Pass
80% Load
23.71mV
12.81mV
13.43mV
12.94mV
Pass
90% Load
25.80mV
13.46mV
13.83mV
13.09mV
Pass
100% Load
28.85mV
13.72mV
15.11mV
13.45mV
Pass
110% Load
30.48mV
14.54mV
14.70mV
14.16mV
Pass
Crossload1
12.98mV
13.37mV
12.51mV
14.42mV
Pass
Crossload2
16.53mV
16.02mV
8.04mV
15.28mV
Pass
Crossload3
16.18mV
11.89mV
17.70mV
15.54mV
Pass
Crossload4
26.20mV
11.99mV
8.39mV
14.87mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.37mV
11.02mV
6.31mV
11.11mV
Pass
20% Load
14.76mV
11.07mV
6.71mV
11.00mV
Pass
30% Load
13.74mV
11.63mV
7.02mV
11.77mV
Pass
40% Load
15.67mV
11.17mV
6.87mV
11.57mV
Pass
50% Load
16.69mV
11.33mV
7.27mV
11.31mV
Pass
60% Load
17.96mV
12.09mV
9.76mV
11.97mV
Pass
70% Load
20.96mV
12.60mV
11.14mV
12.58mV
Pass
80% Load
22.24mV
12.75mV
14.39mV
12.69mV
Pass
90% Load
24.53mV
13.37mV
14.90mV
13.04mV
Pass
100% Load
27.63mV
14.23mV
14.95mV
12.89mV
Pass
110% Load
31.45mV
15.31mV
15.71mV
13.65mV
Pass
Crossload1
13.28mV
13.11mV
11.90mV
14.11mV
Pass
Crossload2
16.08mV
16.78mV
8.04mV
14.77mV
Pass
Crossload3
16.69mV
12.09mV
17.70mV
15.49mV
Pass
Crossload4
25.34mV
12.50mV
9.61mV
15.08mV
Pass
The results above are not used in the certification process
Lian Li SP1000P
Top side
Power specifications label

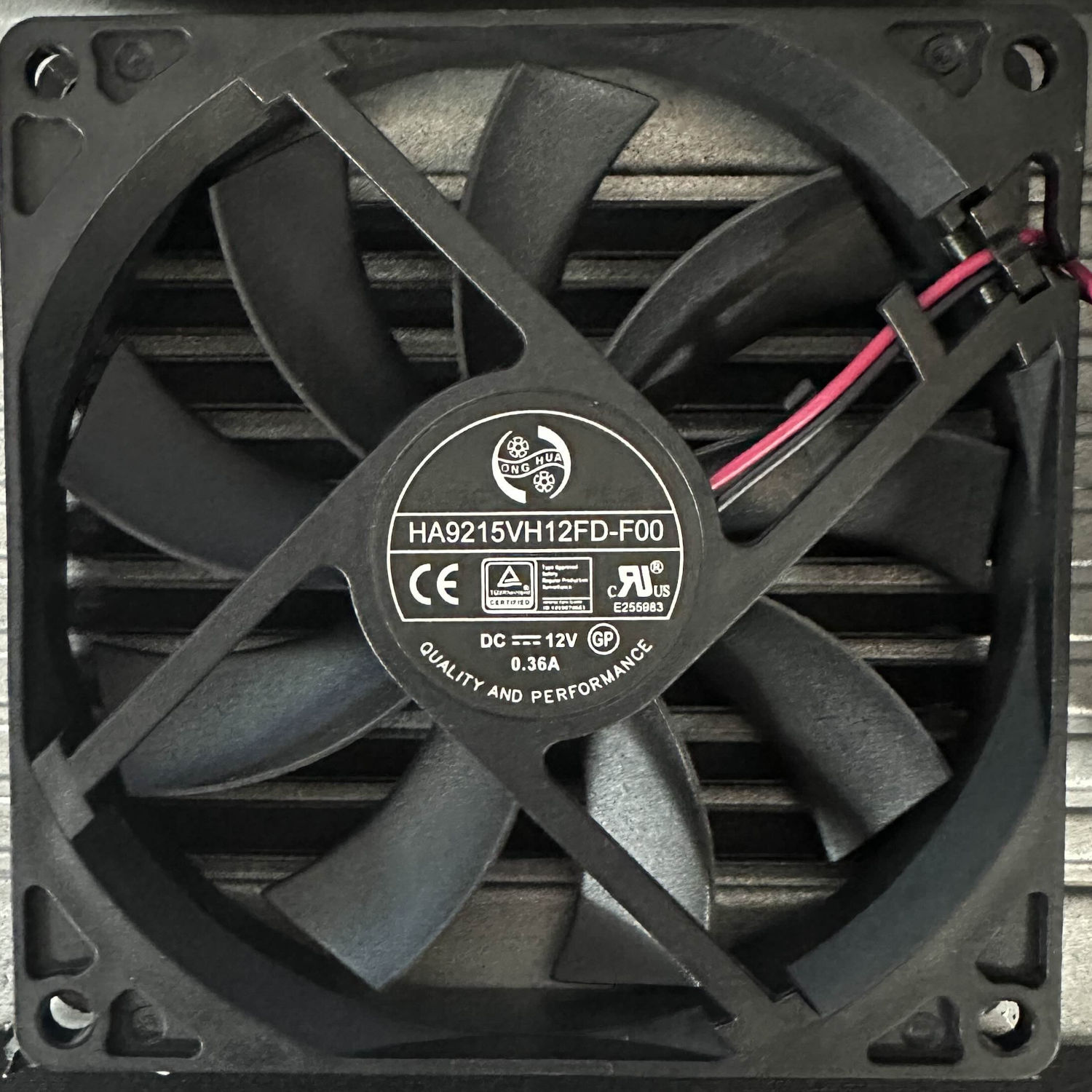

Fan

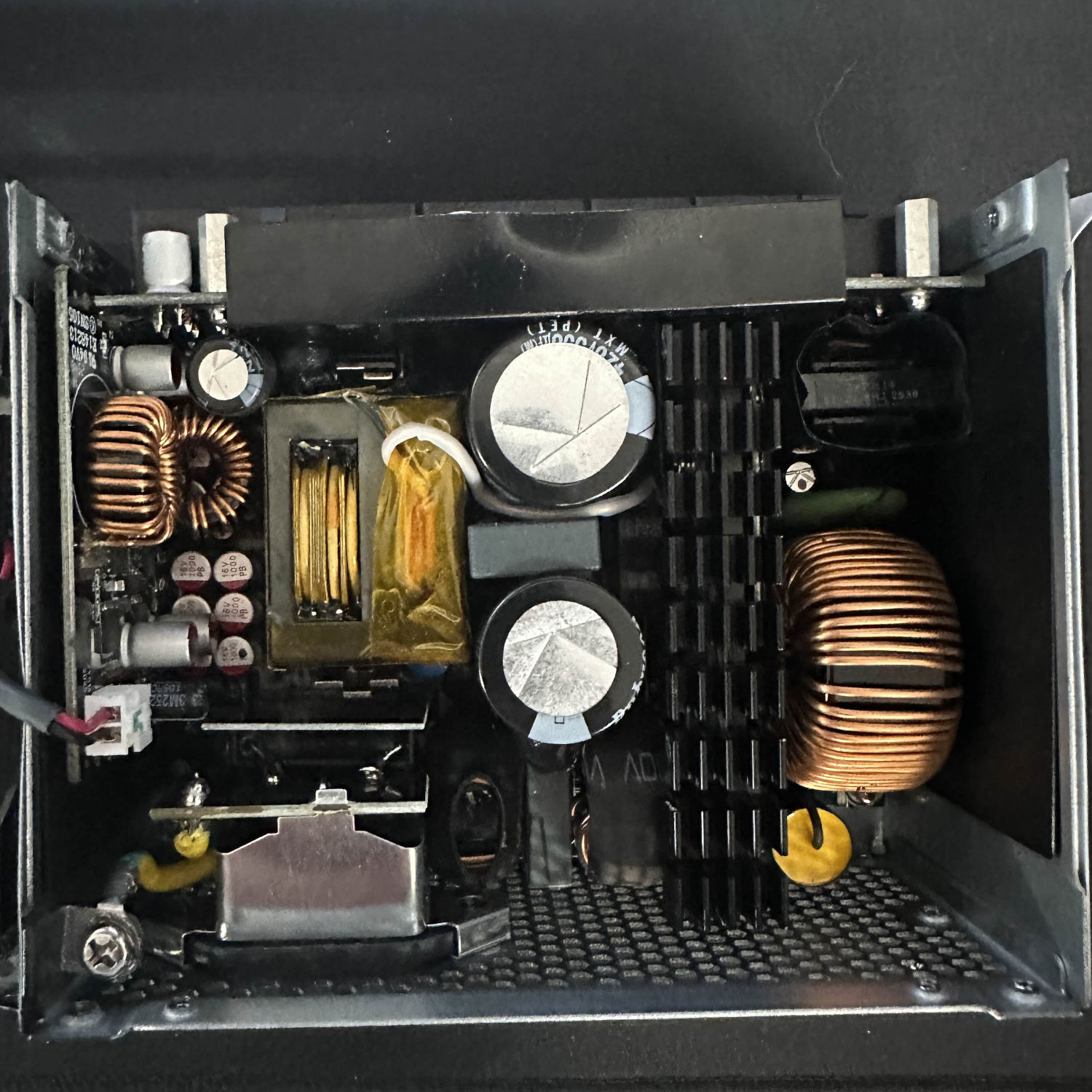

PSU Internals
