Cybenetics Test - MSI MAG A1000PLS PCIE5

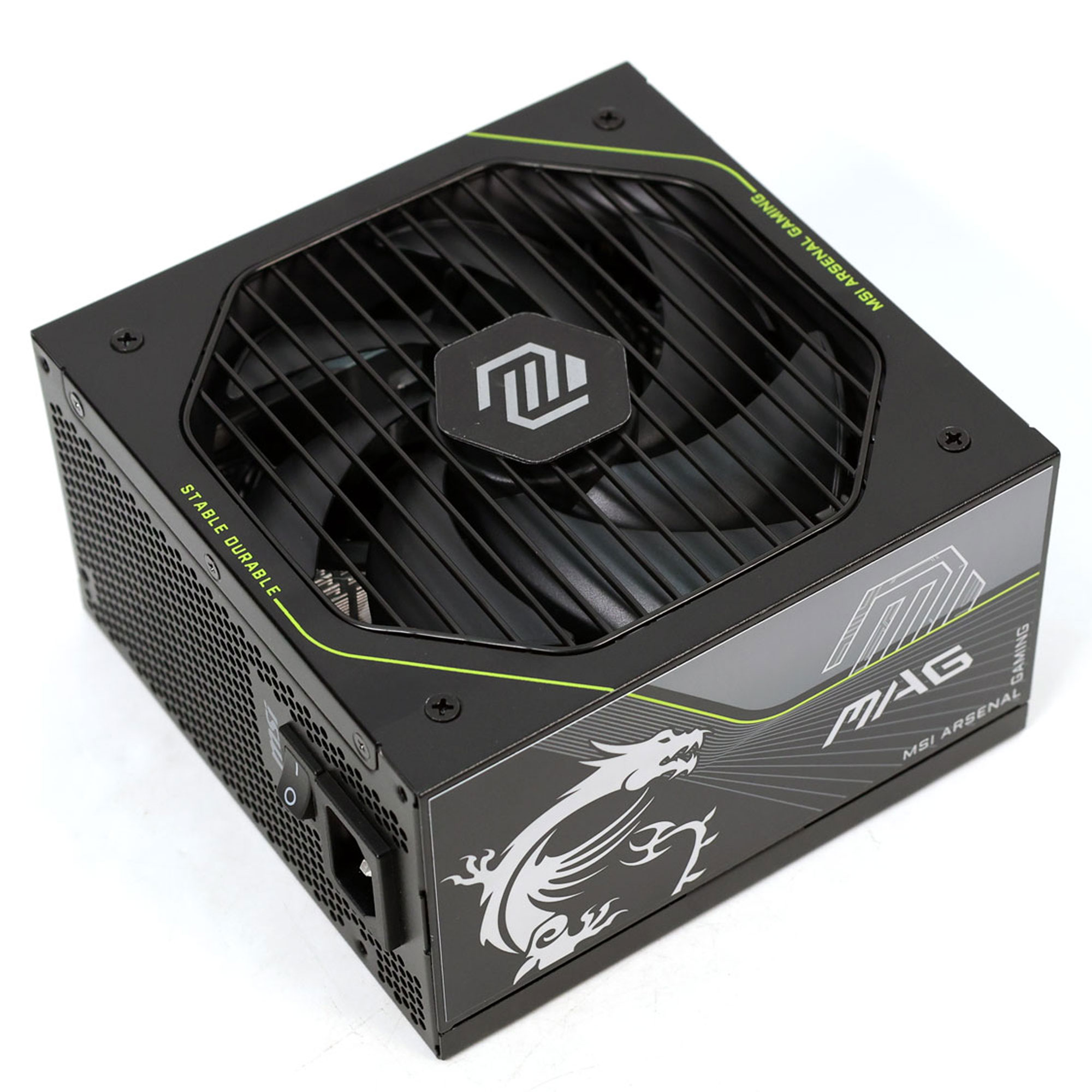

MSI MAG A1000PLS PCIE5

Serial Number-

Lab IDMS10003121

Certification ID263121

Test Result Report ID: 26PS3121A
Certificate Issue Date: Feb 20, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	MSI
Manufacturer (OEM)	CWT
Series	MAG
Model Number	MS-7ZPNY
Serial Number	-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15
Rated Frequency (Hz)	50-60
Rated Power (W)	1000
Type	ATX12V
Dimensions (W x H x D)	150 x 85 x 150mm
Cooling	135mm Hydro Dynamic Bearing Fan (PLA13525S12H)
Semi-Passive Operation	✗
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	83.3	3	0
Max. Power	Watts	100		999.6	15	0
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

`Modular Cables`
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (600mm)	1	1	18-22AWG	Tinned Copper
4+4 pin EPS12V (650mm)	2	2	18AWG	Tinned Copper
8 pin EPS12V (650mm)	1	1	18AWG	Tinned Copper
6+2 pin PCIe (600mm+150mm)	1	2	18AWG	Tinned Copper
6+2 pin PCIe (600mm)	2	2	18AWG	Tinned Copper
12+4 pin PCIe (600mm) (600W)	1	1	16-24AWG	Tinned Copper
SATA (500mm+150mm+150mm)	2	6	18AWG	Tinned Copper
4-pin Molex (500mm+150mm+150mm)	1	3	18AWG	Tinned Copper

Parts Description

`General Data`
Manufacturer (OEM)	CWT
PCB Type	Double-Sided

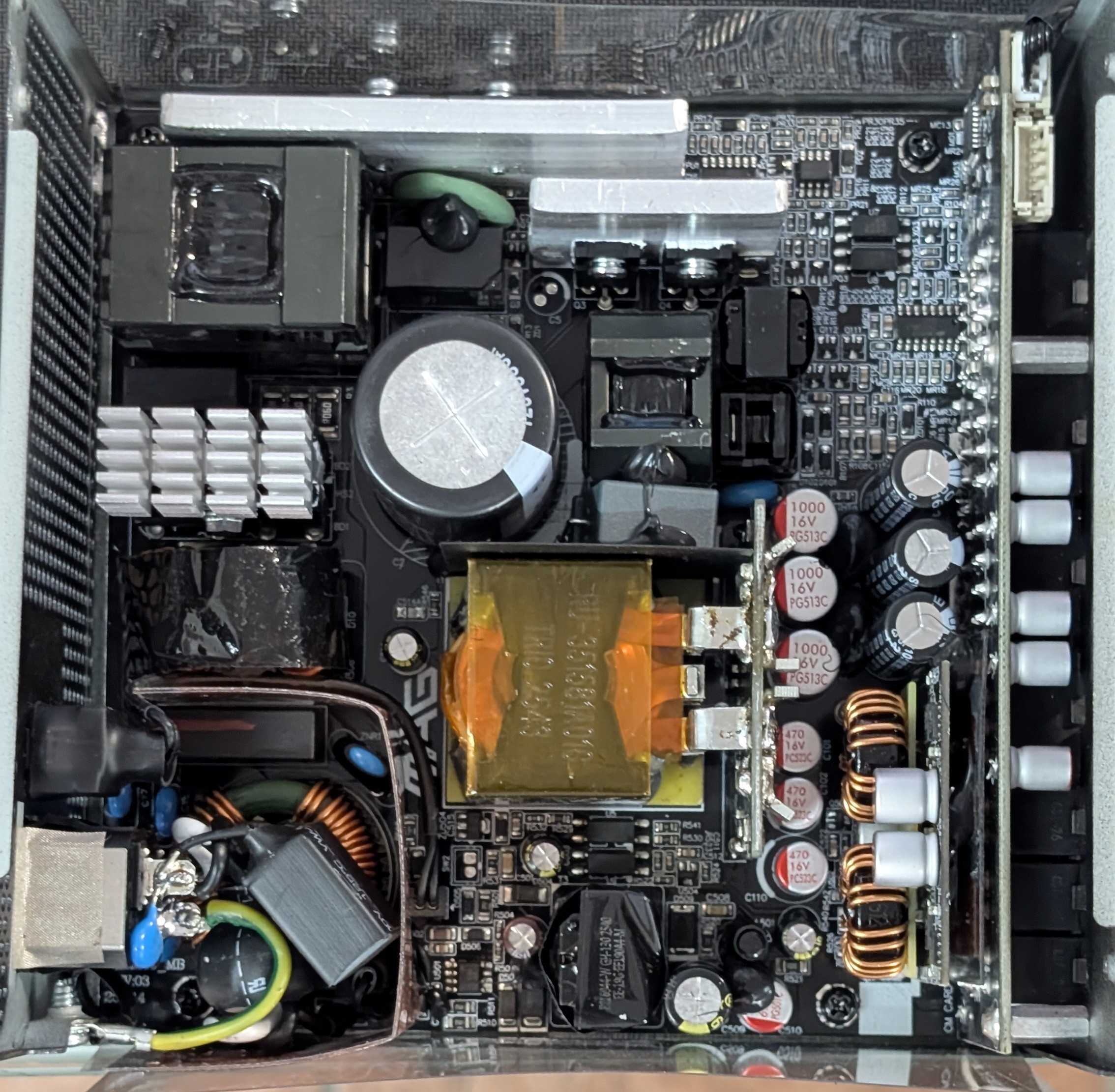

`Primary Side`
Transient Filter	6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK207R0 (7 Ohm @ 25°C) & Relay
Bridge Rectifier	2x WeEn WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs	2x CRmicro CRJQ99N65G2BF (650V, 20A @ 100°C, Rds(on): 0.90Ohm)
APFC Boost Diode	1x CRMicro CRXI10D065G2 (650V, 10A @ 161°C)
Bulk Cap(s)	1x TEAPO (420V,680uF, 2000h @ 105°C, GG)
Main Switchers	2x STMicroelectronics STW43N60DM2 (600V, 21A @ 100°C, Rds(on): 0.93Ohm)
APFC Controller	Champion CM6500UNX & Sync Power SPN5003 (reducing no load consumption)
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x C009N04ES
5V & 3.3V	DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
Filtering Capacitors	Electrolytic: 3x (105℃ TEAPO) 4700uF/16V 1x (105℃ CHENGX) 2200uF/16V A 1x (105℃ CHENGX) 100uF/35V AL 2x (105℃ CHENGX) 100uF/25V GR 2x (105℃ ELITE) 47uF/50V EY Polymer: 13x (105℃ ELITE) 16V 12x (105℃ TEAPO) 16V 8x (105℃ ELITE) 6.3V
Fan Controller / Micro Controller	Nuvoton MS51PC0AE

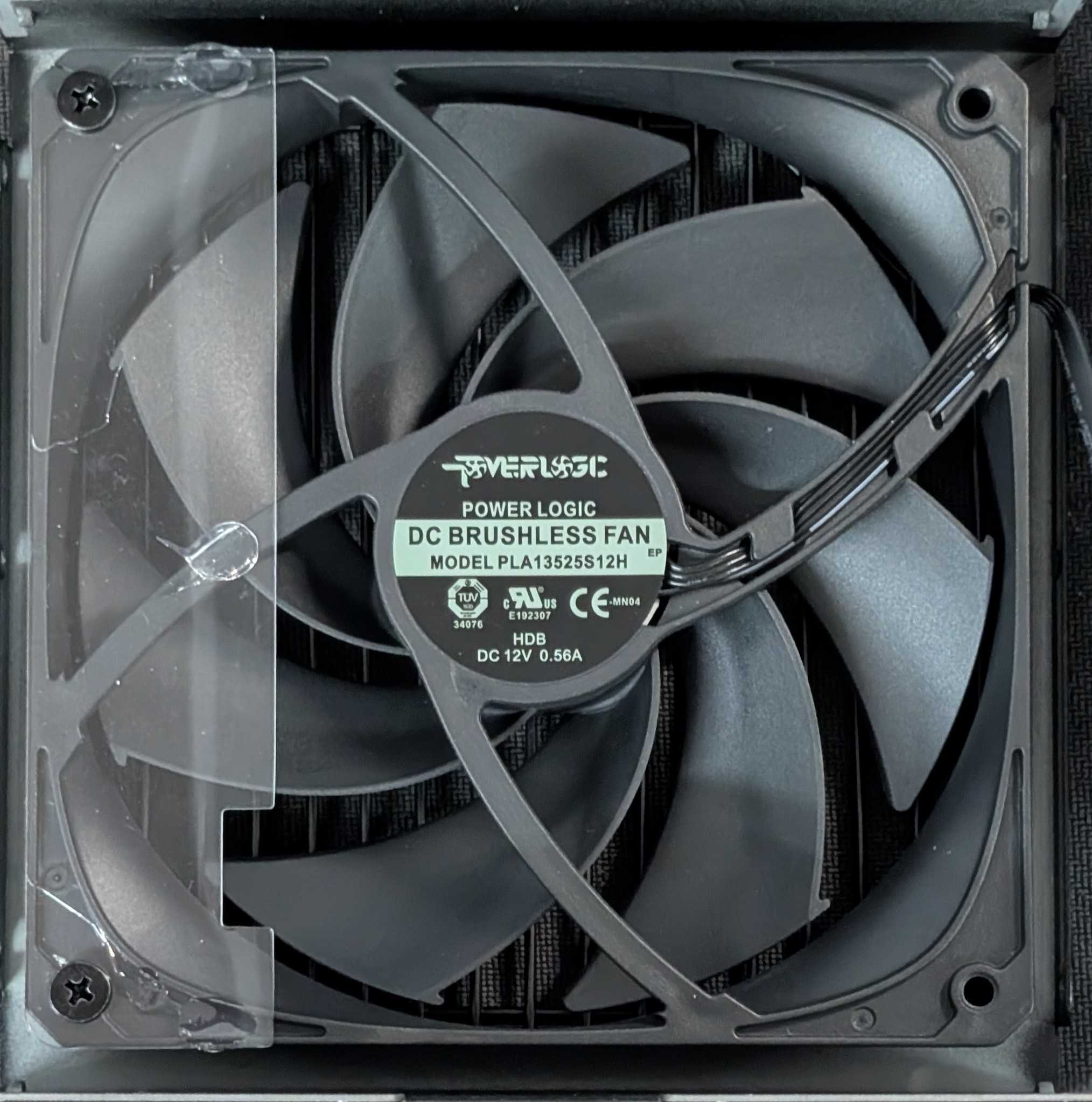

Fan Model	Power Logic PLA13525S12H (135mm, 12V, 0.56A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Rectifier	Dongke DK5V45R10V (45V, 10mOhm)
Standby PWM Controller	On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	A+
Average Efficiency (>1450 load combinations)	90.379%
Average Noise Output (>1450 Load Combinations)	17.93dBA
Average PF (>1450 Load Combinations)	0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.912%
Standby Power Consumption	0.0860W
12V Ripple (Full Load)	36.78mV
5V Ripple (Full Load)	19.63mV
3.3V Ripple (Full Load)	20.03mV
5VSB Ripple (Full Load)	19.93mV
12V Load Regulation	1.24%
5V Load Regulation	0.50%
3.3V Load Regulation	0.90%
5VSB Load Regulation	1.73%
Inrush Current	25.470A

Efficiency Rating	PLATINUM
Noise Rating	A+
Average Efficiency (>1450 load combinations)	92.206%
Average Noise Output (>1450 Load Combinations)	19.24dBA
Average PF (>1450 Load Combinations)	0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.515%
Standby Power Consumption	0.1479W
12V Ripple (Full Load)	38.14mV
5V Ripple (Full Load)	21.80mV
3.3V Ripple (Full Load)	21.15mV
5VSB Ripple (Full Load)	20.62mV
12V Load Regulation	1.09%
5V Load Regulation	0.54%
3.3V Load Regulation	1.08%
5VSB Load Regulation	1.83%
Inrush Current	48.630A
12V Transient Response (200%)	11.36V
5V Transient Response (200%)	4.872V
3.3V Transient Response (200%)	3.236V
5VSB Transient Response (200%)	4.877V
Hold-Up Time & Power Ok Signal	21.80ms
AC Loss to PWR_OK Hold Up Time	18.80ms
PWR_OK Inactive to DC Loss Delay	3.00ms
PSU Timings: T1 (20% / 100%)	47.0ms	47.0ms
PSU Timings: T3 (20% / 100%)	122.0ms	123.0ms
12V OCP (29.0°C / 44.2°C)	106.80A (128.21%), 12.028V	107.80A (129.41%), 12.023V
5V OCP (29.0°C / 44.2°C)	32.4A (162.00%), 4.976V	32.4A (162.00%), 4.975V
3.3V OCP (29.0°C / 44.2°C)	30.1A (150.50%), 3.358V	30.2A (151.00%), 3.359V
5VSB OCP (29.0°C / 44.2°C)	5.2A (173.33%), 4.977V	5.2A (173.33%), 4.965V
OPP (30.51°C / 44.04°C)	129.26%	127.11%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	21.8
AC Loss to PWR_OK Hold Up Time (ms)	18.8
PWR_OK Inactive to DC Loss Delay (ms)	3

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.01 V	114.99 V	113.85 V	115.04 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.086 W	0.061 W	N/A	0.114 W	N/A	N/A
Apparent Power:	12.550 W	12.529 W	N/A	12.570 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.06 V	230.04 V	227.70 V	230.08 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.148 W	0.105 W	N/A	0.227 W	N/A	N/A
Apparent Power:	41.469 W	41.436 W	N/A	41.502 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

Efficiency Graph

INFO

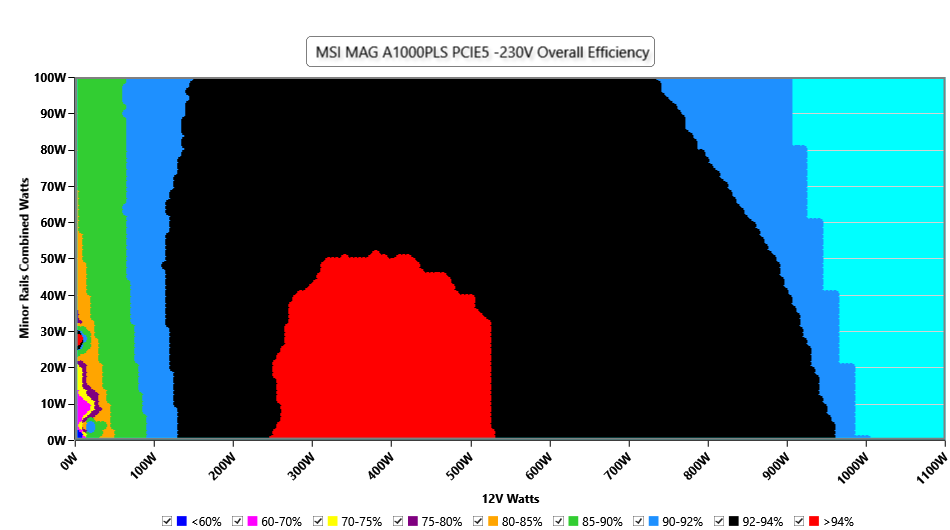

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

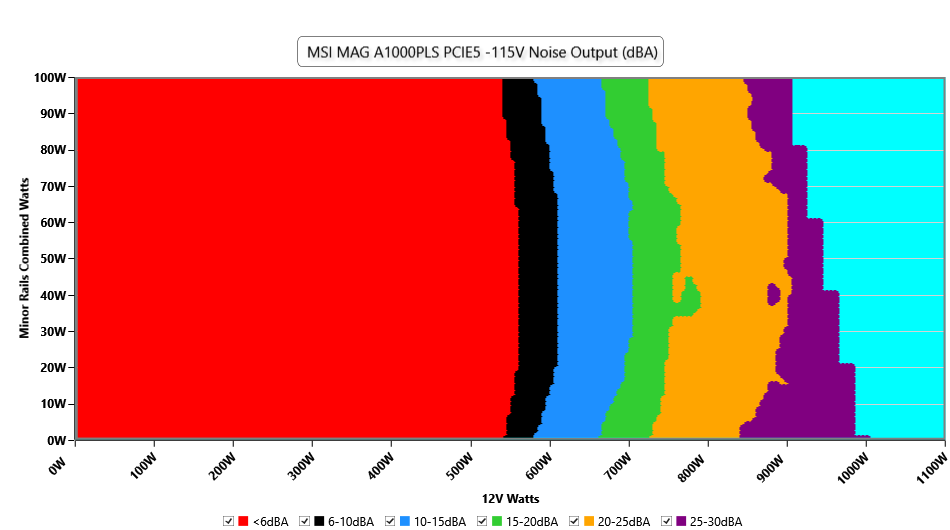

Noise Graph

INFO

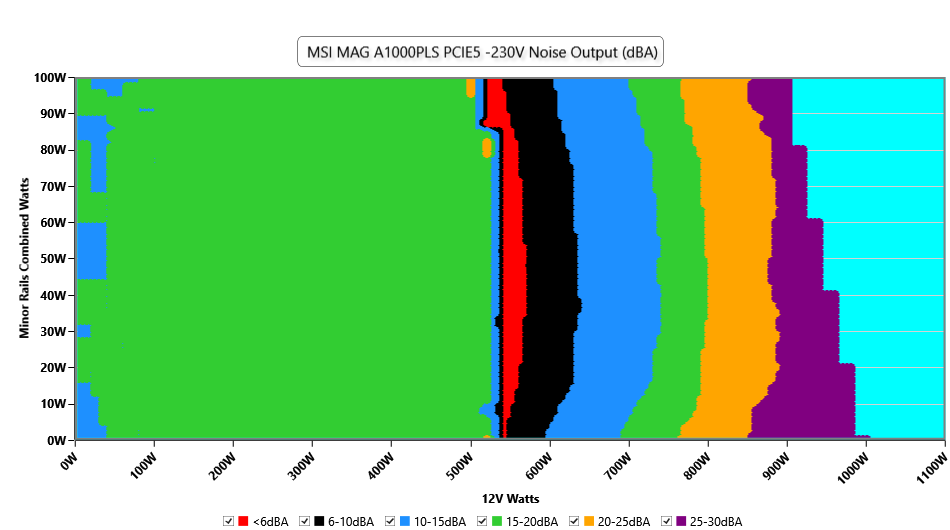

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

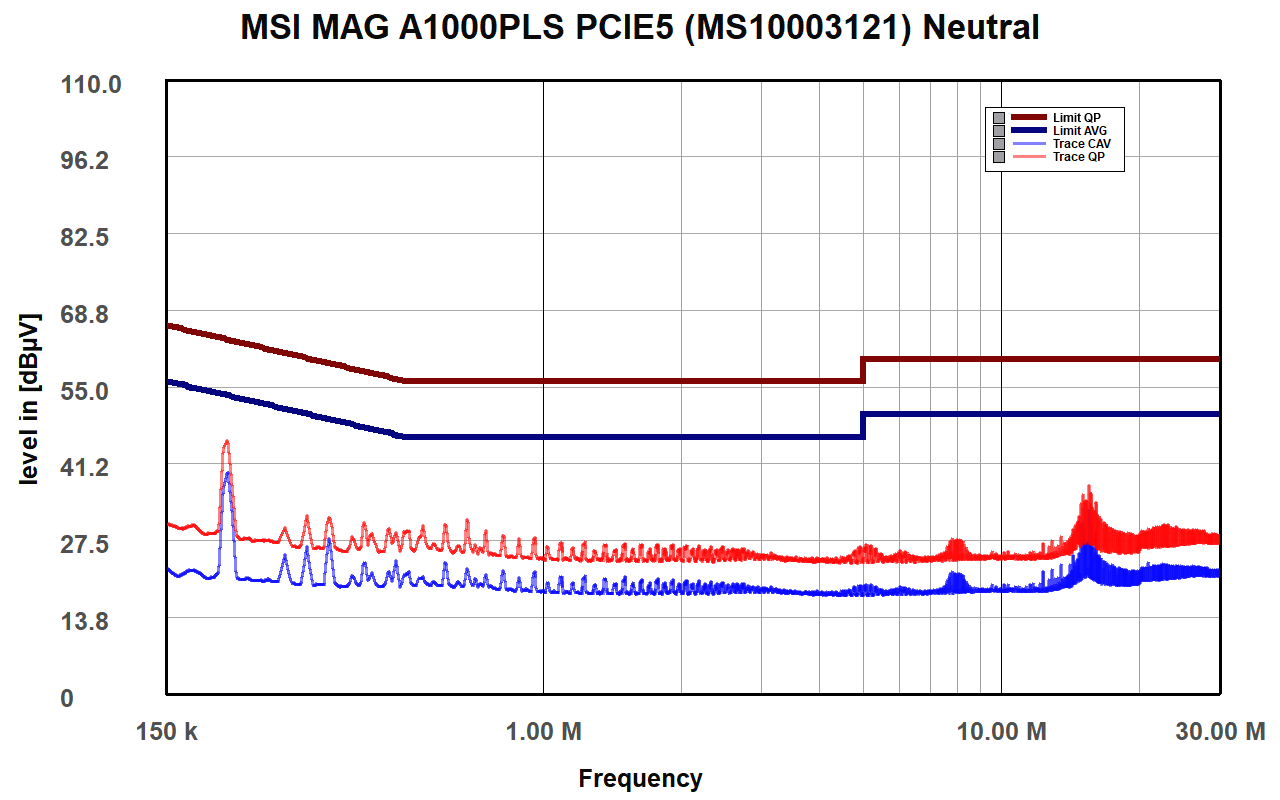

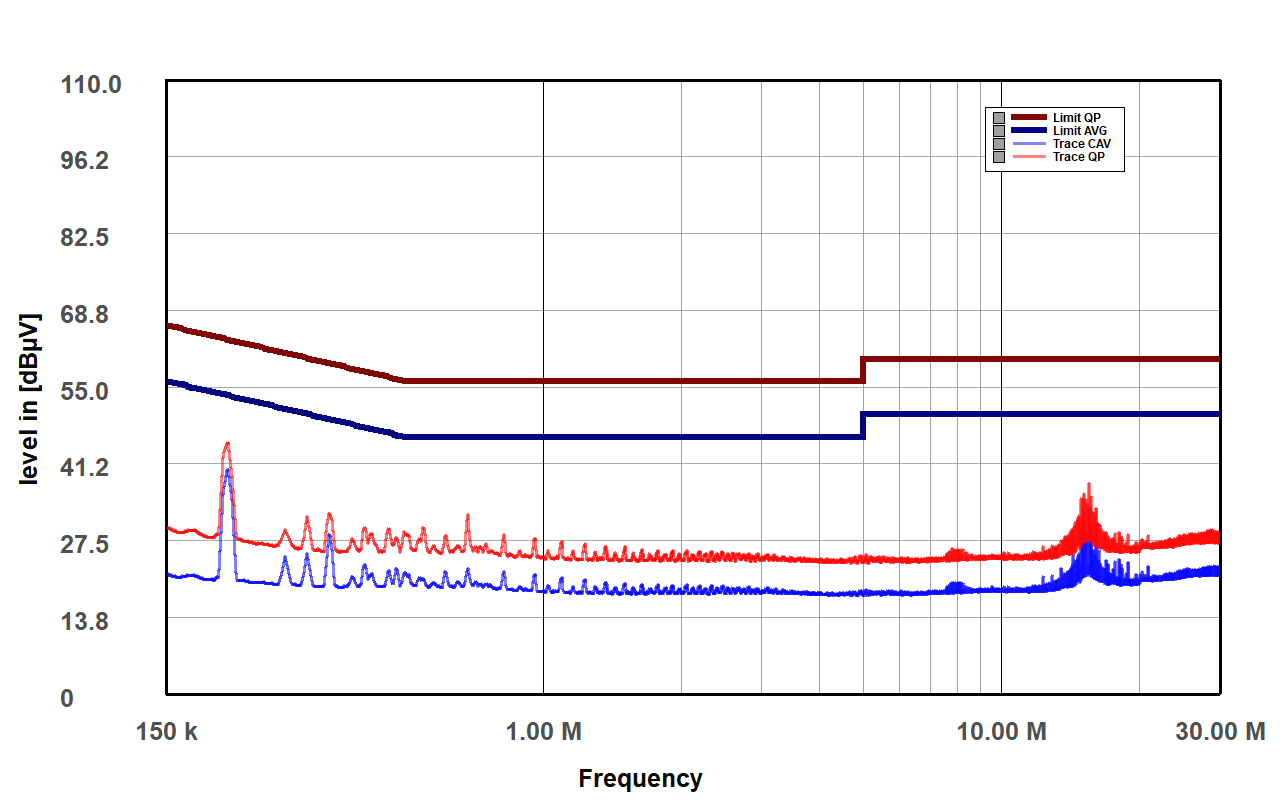

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

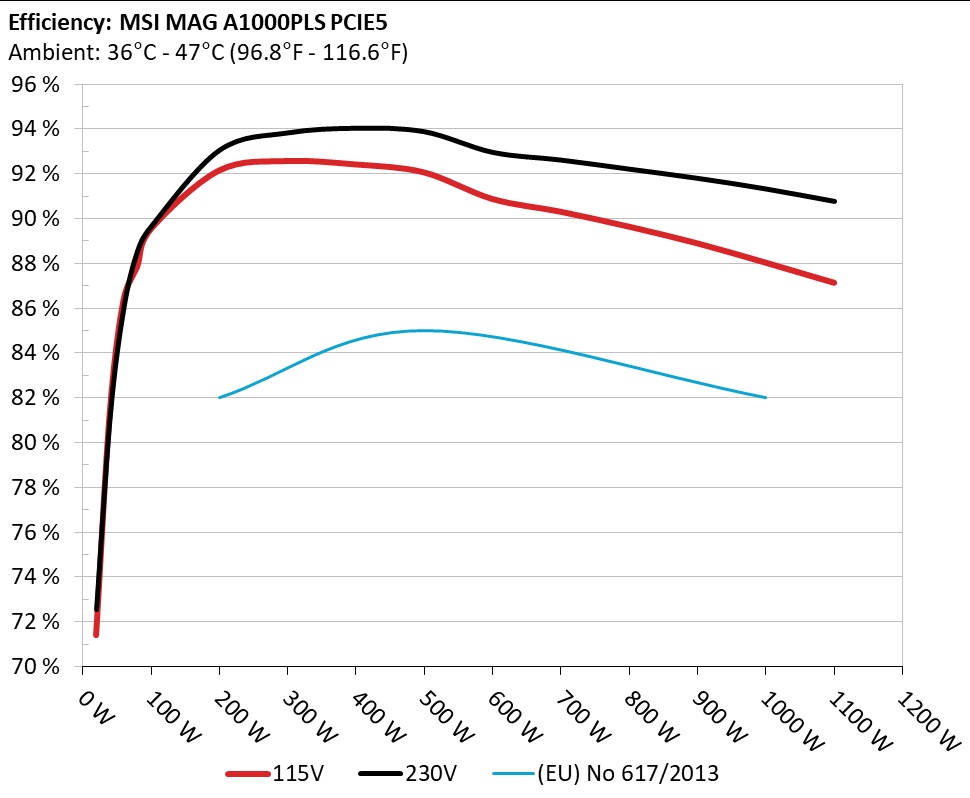

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

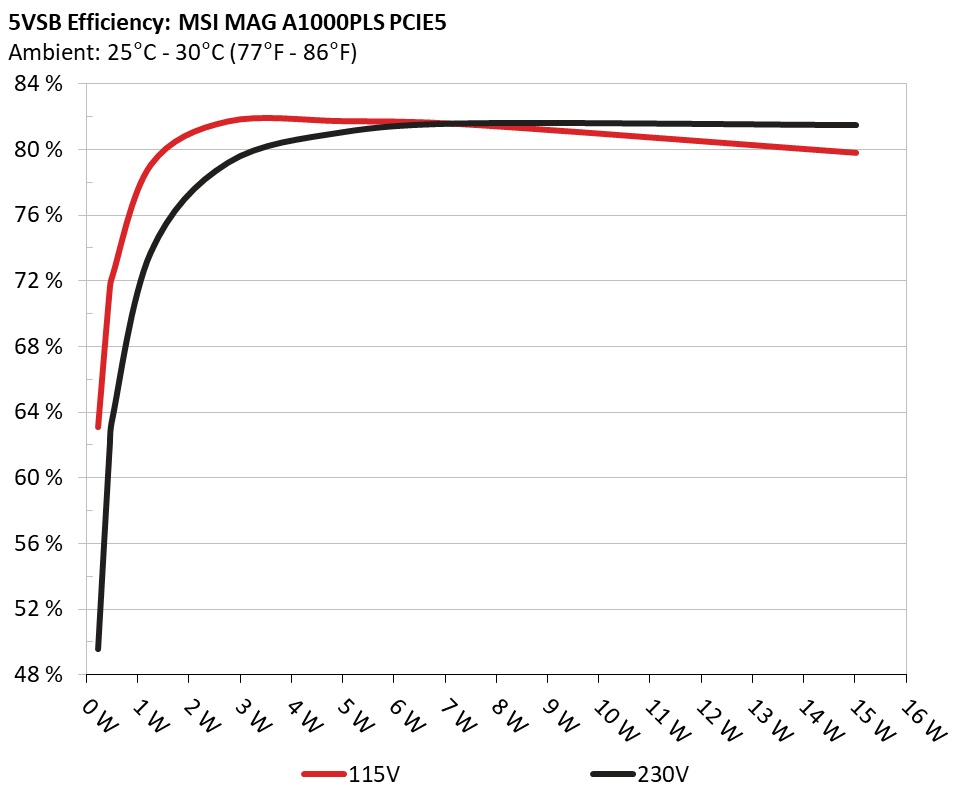

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	63.065%	0.029
1	5.016V	0.359W	63.065%	115.05V
2	0.09A	0.452W	71.452%	0.051
2	5.016V	0.633W	71.452%	115.04V
3	0.55A	2.759W	81.732%	0.213
3	5.015V	3.376W	81.732%	115.04V
4	1A	5.015W	81.75%	0.294
4	5.015V	6.135W	81.75%	115.04V
5	1.5A	7.522W	81.531%	0.342
5	5.014V	9.226W	81.531%	115.04V
6	3A	15.028W	79.818%	0.419
6	5.009V	18.827W	79.818%	115.04V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	49.591%	0.011
1	5.017V	0.456W	49.591%	230.05V
2	0.09A	0.452W	61.894%	0.018
2	5.017V	0.731W	61.894%	229.99V
3	0.55A	2.759W	79.197%	0.082
3	5.016V	3.484W	79.197%	230V
4	1A	5.016W	81.068%	0.135
4	5.016V	6.19W	81.068%	230V
5	1.5A	7.524W	81.605%	0.183
5	5.015V	9.219W	81.605%	230V
6	3A	15.031W	81.495%	0.275
6	5.01V	18.444W	81.495%	230V

Protection Features

OCP (Normal @ 29.0°C)	12V: 106.80A (128.21%), 12.028V 5V: 32.4A (162.00%), 4.976V 3.3V: 30.1A (150.50%), 3.358V 5VSB: 5.2A (173.33%), 4.977V
OCP (Hot @ 44.2°C)	12V: 107.80A (129.41%), 12.023V 5V: 32.4A (162.00%), 4.975V 3.3V: 30.2A (151.00%), 3.359V 5VSB: 5.2A (173.33%), 4.965V
OPP (Normal @ 30.5°C)	1292.61W (129.26%)
OPP (Hot @ 44.0°C)	1271.13W (127.11%)
OTP	✓ (150°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✓
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.484A	1.984A	1.966A	0.999A	100.005	89.539%	862	17.6	40.41°C	0.971
10%	12.092V	5.04V	3.357V	5.004V	111.692	89.539%	862	17.6	44.63°C	115.01V
20%	13.995A	2.978A	2.952A	1.201A	199.956	92.159%	866	17.7	40.93°C	0.987
20%	12.080V	5.038V	3.354V	4.996V	216.967	92.159%	866	17.7	44.58°C	114.98V
30%	21.873A	3.476A	3.447A	1.403A	300.01	92.581%	860	17.5	41.07°C	0.978
30%	12.068V	5.035V	3.351V	4.989V	324.045	92.581%	860	17.5	45.46°C	114.94V
40%	29.728A	3.974A	3.942A	1.606A	399.587	92.43%	872	17.8	41.57°C	0.979
40%	12.055V	5.033V	3.349V	4.981V	432.31	92.43%	872	17.8	46.59°C	114.9V
50%	37.270A	4.97A	4.933A	1.81A	499.298	92.079%	968	21.7	42.17°C	0.982
50%	12.041V	5.031V	3.345V	4.972V	542.253	92.079%	968	21.7	48.47°C	114.87V
60%	44.871A	5.967A	5.925A	2A	599.746	90.889%	846	16.6	42.92°C	0.987
60%	12.035V	5.028V	3.342V	4.963V	659.864	90.889%	846	16.6	49.2°C	114.83V
70%	52.453A	6.965A	6.92A	2.221A	699.542	90.319%	1103	25.8	43.18°C	0.989
70%	12.019V	5.026V	3.339V	4.954V	774.522	90.319%	1103	25.8	49.4°C	114.8V
80%	60.146A	7.962A	7.915A	2.326A	799.553	89.654%	1178	27.8	43.69°C	0.99
80%	11.998V	5.023V	3.335V	4.945V	891.821	89.654%	1178	27.8	50.44°C	114.76V
90%	68.218A	8.464A	8.402A	2.431A	899.352	88.911%	1210	28.7	44.15°C	0.991
90%	11.975V	5.02V	3.333V	4.936V	1011.512	88.911%	1210	28.7	52.1°C	114.71V
100%	76.108A	8.967A	8.921A	3.046A	999.36	88.048%	1250	29.8	45.75°C	0.992
100%	11.953V	5.017V	3.329V	4.924V	1135.015	88.048%	1250	29.8	54.92°C	114.67V
110%	83.872A	9.97A	10.014A	3.053A	1099.964	87.147%	1547	36.1	46.25°C	0.992
110%	11.944V	5.014V	3.325V	4.914V	1262.184	87.147%	1547	36.1	56.53°C	114.63V
CL1	0.116A	11.956A	11.877A	0A	101.301	85.812%	813	15.4	40.6°C	0.975
CL1	12.086V	5.034V	3.343V	4.992V	118.051	85.812%	813	15.4	48.32°C	115.01V
CL2	0.116A	19.834A	0A	0A	101.353	84.838%	935	23.3	41.83°C	0.975
CL2	12.090V	5.04V	3.349V	4.998V	119.466	84.838%	935	23.3	46.92°C	115V
CL3	0.115A	0A	19.789A	0A	67.4	79.04%	874	17.9	40.23°C	0.959
CL3	12.091V	5.023V	3.336V	4.998V	85.272	79.04%	874	17.9	47.84°C	115.02V
CL4	83.593A	0A	0A	0A	999.934	88.626%	1222	29.1	45.24°C	0.992
CL4	11.962V	5.02V	3.34V	4.944V	1128.262	88.626%	1222	29.1	52.92°C	114.68V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.484A	1.983A	1.967A	0.999A	100.011	89.64%	856	17.1	40.3°C	0.818
10%	12.093V	5.042V	3.356V	5.005V	111.568	89.64%	856	17.1	43.71°C	230V
20%	13.996A	2.977A	2.954A	1.201A	199.967	93.04%	858	17.3	40.65°C	0.917
20%	12.080V	5.04V	3.352V	4.996V	214.927	93.04%	858	17.3	43.91°C	229.98V
30%	21.876A	3.475A	3.449A	1.403A	300.026	93.816%	860	17.5	41.25°C	0.944
30%	12.066V	5.037V	3.349V	4.989V	319.802	93.816%	860	17.5	45.2°C	229.96V
40%	29.736A	3.973A	3.946A	1.607A	399.624	94.02%	862	17.6	41.65°C	0.954
40%	12.053V	5.034V	3.346V	4.981V	425.041	94.02%	862	17.6	46.2°C	229.95V
50%	37.278A	4.969A	4.938A	1.811A	499.332	93.869%	962	21.1	42.12°C	0.96
50%	12.040V	5.032V	3.342V	4.972V	531.944	93.869%	962	21.1	47.23°C	229.93V
60%	44.877A	5.966A	5.933A	2.001A	599.788	92.947%	835	16.1	42.51°C	0.972
60%	12.034V	5.029V	3.338V	4.962V	645.302	92.947%	835	16.1	47.39°C	229.91V
70%	52.456A	6.964A	6.93A	2.221A	699.584	92.604%	1082	25.1	43.12°C	0.974
70%	12.019V	5.027V	3.334V	4.953V	755.457	92.604%	1082	25.1	48.41°C	229.89V
80%	60.124A	7.961A	7.928A	2.326A	799.598	92.198%	1180	27.9	43.85°C	0.976
80%	12.004V	5.024V	3.33V	4.944V	867.256	92.198%	1180	27.9	49.76°C	229.87V
90%	68.142A	8.463A	8.416A	2.432A	899.371	91.791%	1212	28.8	44.55°C	0.978
90%	11.989V	5.021V	3.327V	4.935V	979.801	91.791%	1212	28.8	50.95°C	229.85V
100%	75.976A	8.966A	8.936A	3.047A	999.381	91.317%	1243	29.7	45.97°C	0.979
100%	11.974V	5.018V	3.324V	4.923V	1094.415	91.317%	1243	29.7	52.28°C	229.83V
110%	83.775A	9.968A	10.031A	3.053A	1100.013	90.762%	1468	34.9	46.94°C	0.98
110%	11.957V	5.015V	3.32V	4.914V	1211.979	90.762%	1468	34.9	53.51°C	229.82V
CL1	0.116A	11.945A	11.886A	0A	101.304	85.912%	718	11.8	40.35°C	0.833
CL1	12.087V	5.039V	3.34V	4.993V	117.919	85.912%	718	11.8	47.61°C	229.99V
CL2	0.116A	19.816A	0A	0A	101.359	84.963%	964	21.3	40.87°C	0.834
CL2	12.090V	5.044V	3.347V	4.998V	119.3	84.963%	964	21.3	48.11°C	229.99V
CL3	0.116A	0A	19.821A	0A	67.404	79.386%	874	17.9	40.84°C	0.746
CL3	12.091V	5.023V	3.33V	4.998V	84.921	79.386%	874	17.9	47.25°C	230.01V
CL4	83.478A	0A	0A	0A	999.961	91.845%	1222	29.1	45.41°C	0.978
CL4	11.979V	5.02V	3.337V	4.944V	1088.749	91.845%	1222	29.1	50.72°C	229.83V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.496A	0.491A	0.2A	20.013	71.412%	996	22.3	36.75°C	0.775
20W	12.102V	5.042V	3.359V	5.009V	28.024	71.412%	996	22.3	45.87°C	115.04V
40W	2.702A	0.694A	0.688A	0.299A	40.007	81.346%	869	17.8	37.09°C	0.9
40W	12.100V	5.042V	3.359V	5.009V	49.182	81.346%	869	17.8	44.27°C	115.03V
60W	4.178A	0.893A	0.884A	0.399A	60.004	86.359%	865	17.7	38.72°C	0.946
60W	12.097V	5.041V	3.359V	5.008V	69.481	86.359%	865	17.7	44.62°C	115.02V
80W	5.649A	1.091A	1.081A	0.499A	79.953	87.857%	864	17.7	39.12°C	0.962
80W	12.095V	5.041V	3.358V	5.007V	91.005	87.857%	864	17.7	44.96°C	115.01V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.496A	0.491A	0.2A	20.004	72.563%	844	16.5	36.23°C	0.417
20W	12.104V	5.045V	3.36V	5.013V	27.624	72.563%	844	16.5	38.99°C	230.01V
40W	2.702A	0.694A	0.688A	0.299A	40.004	81.19%	845	16.5	37.18°C	0.574
40W	12.101V	5.045V	3.359V	5.012V	49.272	81.19%	845	16.5	39.04°C	230.01V
60W	4.177A	0.892A	0.884A	0.399A	60.003	86.019%	846	16.6	38.07°C	0.684
60W	12.098V	5.044V	3.359V	5.01V	69.755	86.019%	846	16.6	39.31°C	230V
80W	5.648A	1.09A	1.081A	0.499A	79.957	88.535%	848	16.8	39.33°C	0.761
80W	12.096V	5.043V	3.358V	5.008V	90.311	88.535%	848	16.8	41.15°C	230V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	24.20mV	19.62mV	18.52mV	19.18mV	Pass
20% Load	28.50mV	19.00mV	18.21mV	19.28mV	Pass
30% Load	31.06mV	21.20mV	19.59mV	19.90mV	Pass
40% Load	32.90mV	19.92mV	19.85mV	18.52mV	Pass
50% Load	37.35mV	20.49mV	19.64mV	19.18mV	Pass
60% Load	36.07mV	20.64mV	20.92mV	19.39mV	Pass
70% Load	35.35mV	20.69mV	21.54mV	19.39mV	Pass
80% Load	36.27mV	21.71mV	21.54mV	20.00mV	Pass
90% Load	38.52mV	19.93mV	20.82mV	20.66mV	Pass
100% Load	36.78mV	19.63mV	20.03mV	19.93mV	Pass
110% Load	38.50mV	21.48mV	24.71mV	20.10mV	Pass
Crossload1	25.02mV	18.23mV	18.67mV	20.00mV	Pass
Crossload2	24.76mV	22.17mV	18.57mV	20.97mV	Pass
Crossload3	24.56mV	19.31mV	20.82mV	20.92mV	Pass
Crossload4	38.15mV	19.60mV	21.89mV	21.06mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	25.07mV	20.39mV	19.28mV	19.28mV	Pass
20% Load	28.55mV	20.03mV	19.44mV	20.41mV	Pass
30% Load	33.51mV	19.11mV	19.03mV	18.41mV	Pass
40% Load	34.17mV	19.41mV	19.64mV	19.28mV	Pass
50% Load	35.66mV	20.54mV	19.80mV	19.18mV	Pass
60% Load	36.17mV	19.87mV	20.87mV	18.62mV	Pass
70% Load	37.45mV	19.67mV	20.21mV	20.51mV	Pass
80% Load	36.07mV	21.10mV	21.69mV	19.90mV	Pass
90% Load	38.73mV	20.69mV	22.25mV	20.20mV	Pass
100% Load	38.14mV	21.80mV	21.15mV	20.62mV	Pass
110% Load	38.21mV	21.32mV	23.67mV	20.31mV	Pass
Crossload1	23.91mV	19.08mV	20.19mV	21.87mV	Pass
Crossload2	25.63mV	21.25mV	20.46mV	21.33mV	Pass
Crossload3	22.25mV	18.65mV	20.56mV	22.15mV	Pass
Crossload4	37.85mV	19.71mV	21.24mV	21.00mV	Pass

The results above are not used in the certification process

MSI MAG A1000PLS PCIE5

Top side

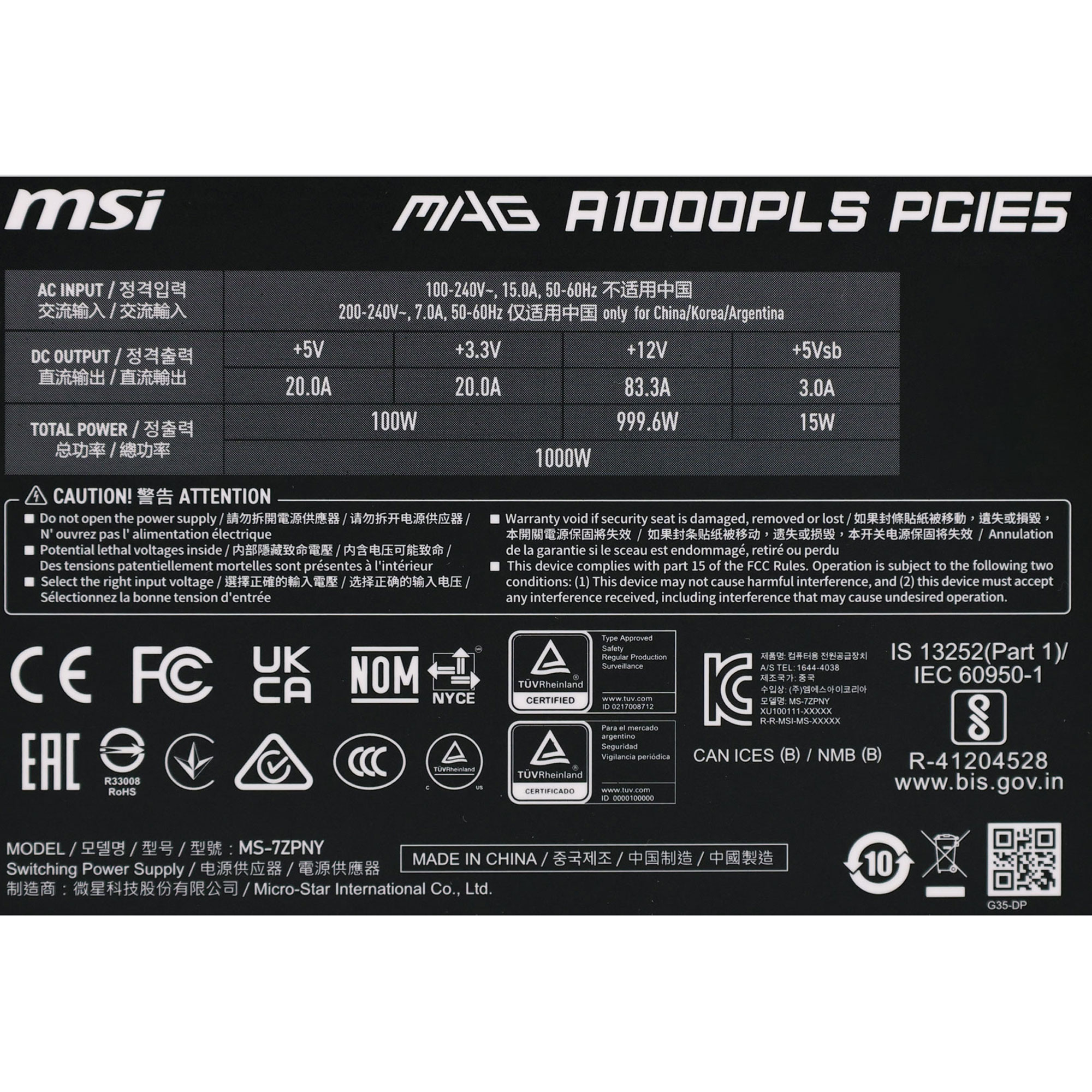

Power specifications label

Third Photo

Fourth Photo
