Sharkoon Rebel P20 Gen2 1000
Serial Number-
Lab IDSK10003137
Certification ID263137
  • Test Result Report ID: 26PS3137A
  • Certificate Issue Date: Jan 26, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSharkoon
Manufacturer (OEM)Andyson
SeriesRebel P20 Gen2
Model NumberRebel P20 Gen 2 1000
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Sleeve Bearing Fan (PY-1225H12S)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181883.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG Tinned Copper

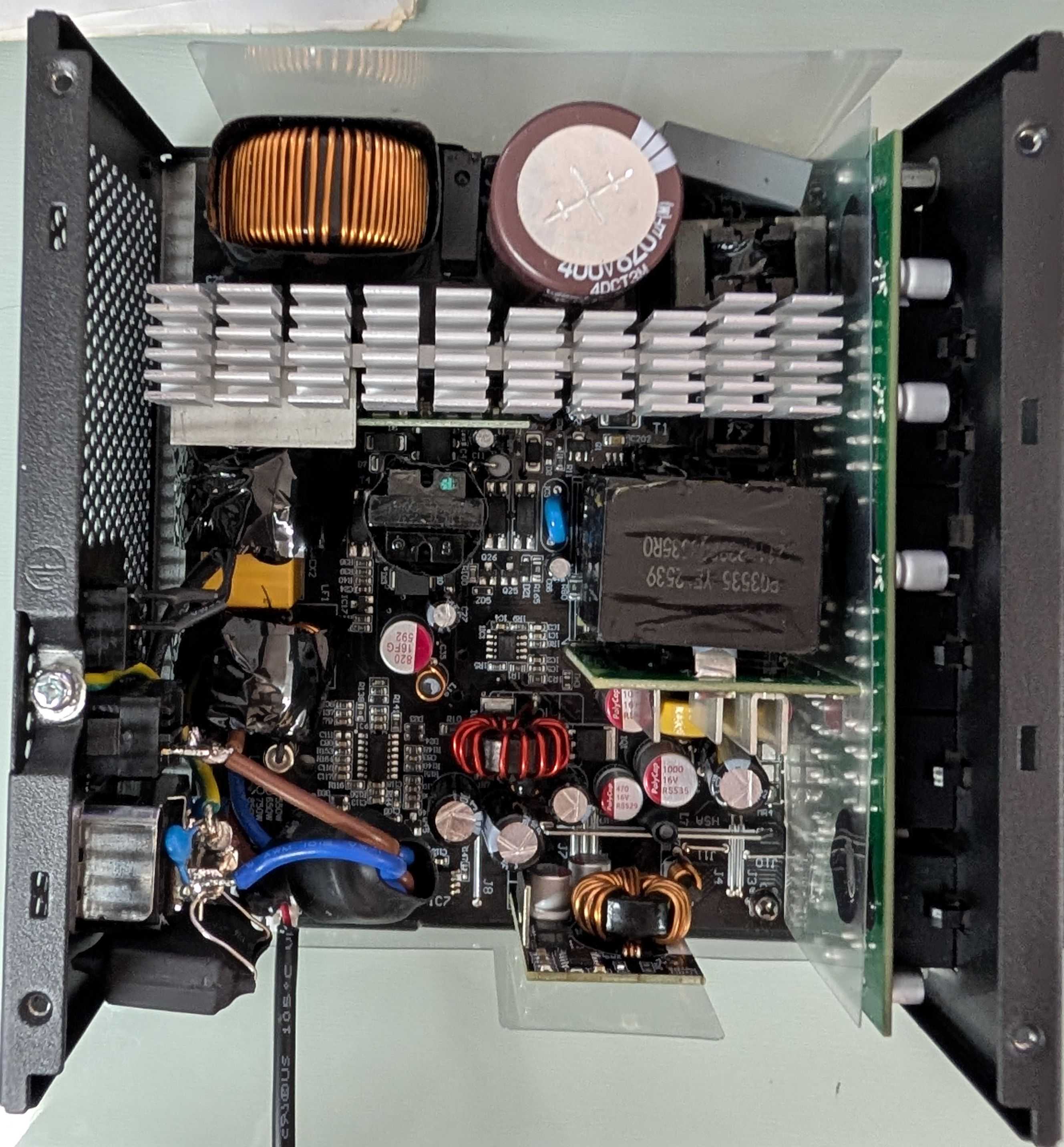

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x  GBU2510 (700V, 25A @ 100°C)
APFC MOSFETs 2x Perfect PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Boost Diode 1x Global Power Technology G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s) 2x Nippon Chemi-Con (400V, 820uF, 2000h @ 105°C, KMQ )
Main Switchers 2x Perfect PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Controller Champion  CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Perfect PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 2x Wayon WMB150N03TS   (30V, 95A @ 100°C, Rds(on): 2.3 mOhm)
PWM Controller(s): ANPEC APW7164
Filtering Capacitors

Electrolytic:
2x Rubycon (6000-10000 @ 105°C, ZLH ),
1x Rubycon (3000-6000 @ 105°C, YXS ),
8x Rubycon (4000-10,000 @ 105°C, YXJ ),
Polymer:
15x Polycap, 5x FPCAP

Supervisor IC EST.7630FS (OCP, OTP, OVP, UVP, SCP, PG )
Fan Power Transistor NXP PBSS5350X

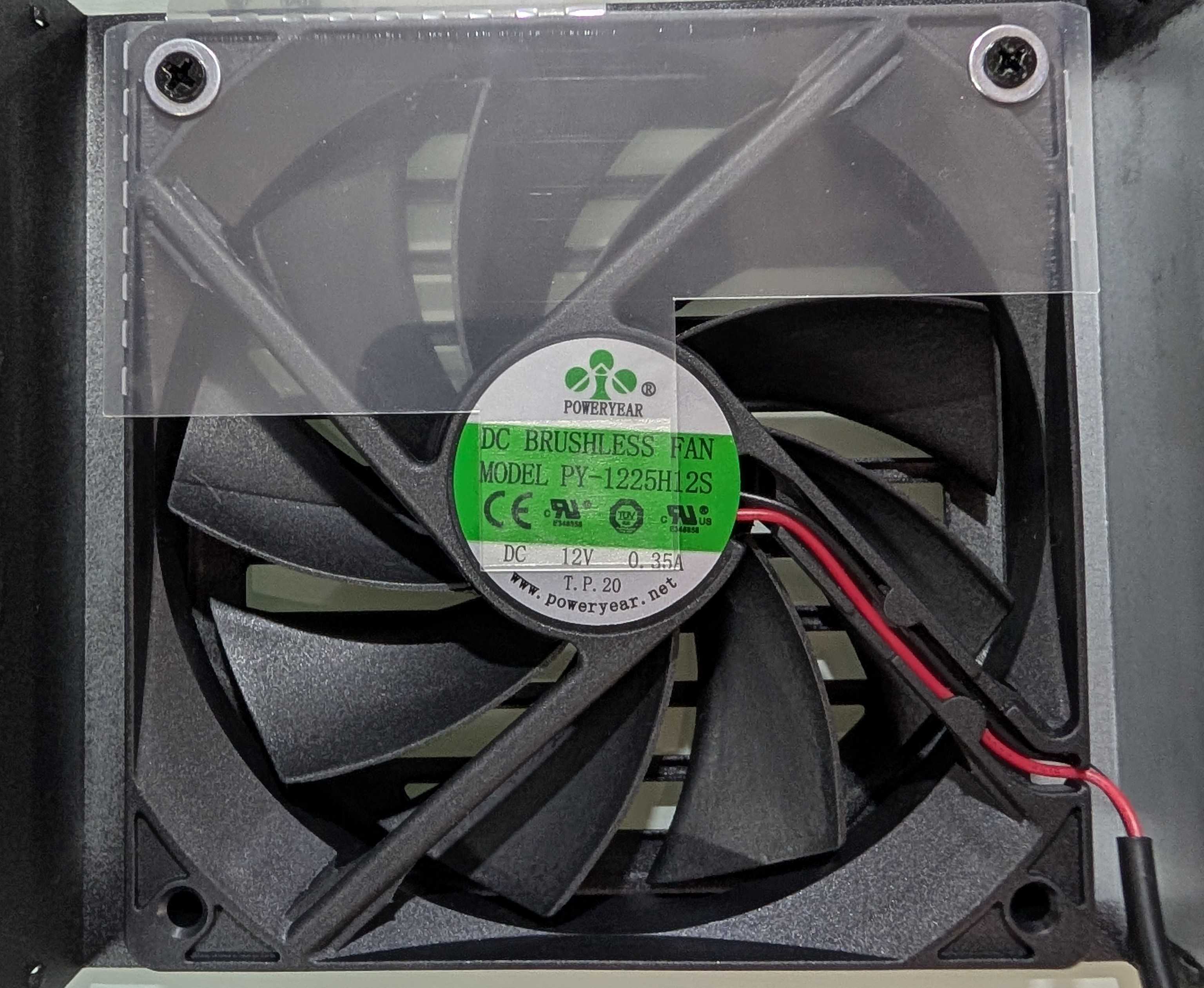

Fan Model POWERYEAR PY-1225H12S (120mm, 12V, 0.35A)
5VSB/12VSB Circuit
Rectifier Vishay SS10P60L
Standby PWM Controller Sanken Electric  STR-A6069H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)88.349%
Average Noise Output (>1450 Load Combinations)39.26dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load65.051%
Standby Power Consumption0.1004W
12V Ripple (Full Load)32.01mV
5V Ripple (Full Load)14.68mV
3.3V Ripple (Full Load)11.11mV
5VSB Ripple (Full Load)26.76mV
12V Load Regulation1.22%
5V Load Regulation2.82%
3.3V Load Regulation4.08%
5VSB Load Regulation5.84%
Inrush Current22.320A
Efficiency RatingGOLD
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.624%
Average Noise Output (>1450 Load Combinations)39.27dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load65.779%
Standby Power Consumption0.1458W
12V Ripple (Full Load)35.68mV
5V Ripple (Full Load)13.87mV
3.3V Ripple (Full Load)11.52mV
5VSB Ripple (Full Load)20.93mV
12V Load Regulation1.23%
5V Load Regulation2.84%
3.3V Load Regulation4.08%
5VSB Load Regulation5.76%
Inrush Current50.980A
12V Transient Response (200%)11.67V
5V Transient Response (200%)4.892V
3.3V Transient Response (200%)3.256V
5VSB Transient Response (200%)5.004V
Hold-Up Time & Power Ok Signal17.70ms
AC Loss to PWR_OK Hold Up Time15.70ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)56.0ms53.0ms
PSU Timings: T3 (20% / 100%)110.0ms111.0ms
12V OCP (30.0°C / 43.2°C)114.20A (137.09%), 12.099V105.80A (127.01%), 12.109V
5V OCP (30.0°C / 43.2°C)22A (122.22%), 5.004V23.9A (132.78%), 5.001V
3.3V OCP (30.0°C / 43.2°C)22.7A (126.11%), 3.369V22.2A (123.33%), 3.377V
5VSB OCP (30.0°C / 43.2°C)4.7A (156.67%), 4.957V4.6A (153.33%), 4.953V
OPP (28.21°C / 41.48°C)139.17%126.16%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.7
AC Loss to PWR_OK Hold Up Time (ms)15.7
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.100 W -0.007 W N/A 0.162 W N/A N/A
Apparent Power: 8.149 W 8.122 W N/A 8.175 W N/A N/A
Power Factor: 0.014 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.08 V 230.09 V 227.70 V 230.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.146 W 0.101 W N/A 0.196 W N/A N/A
Apparent Power: 26.400 W 26.363 W N/A 26.433 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

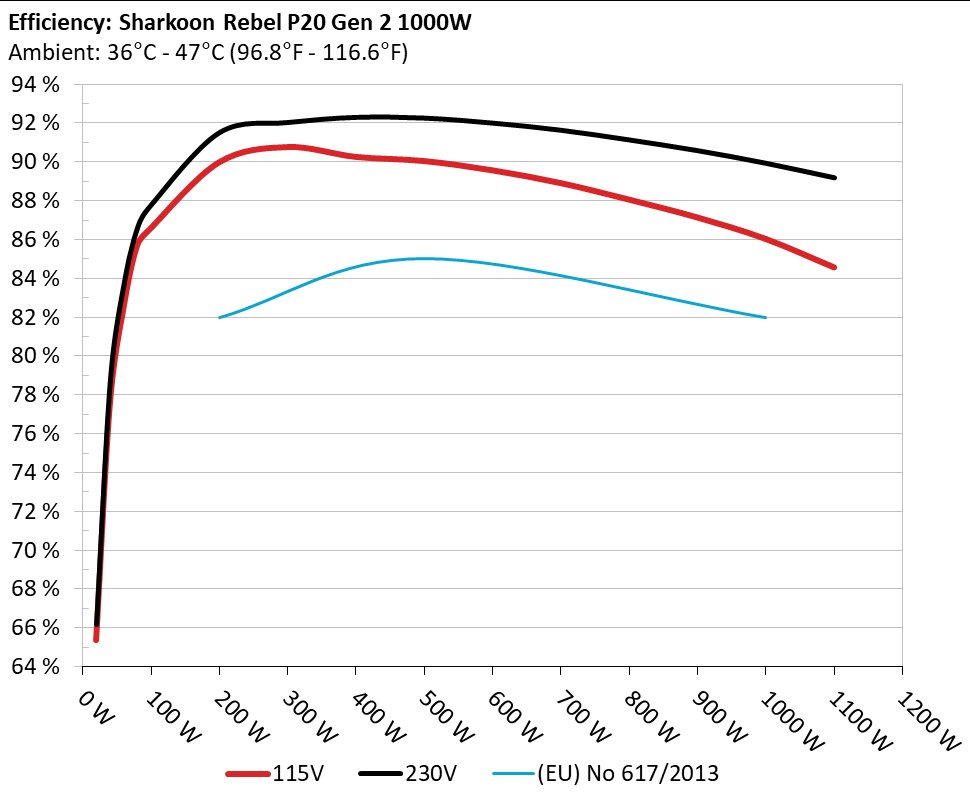

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

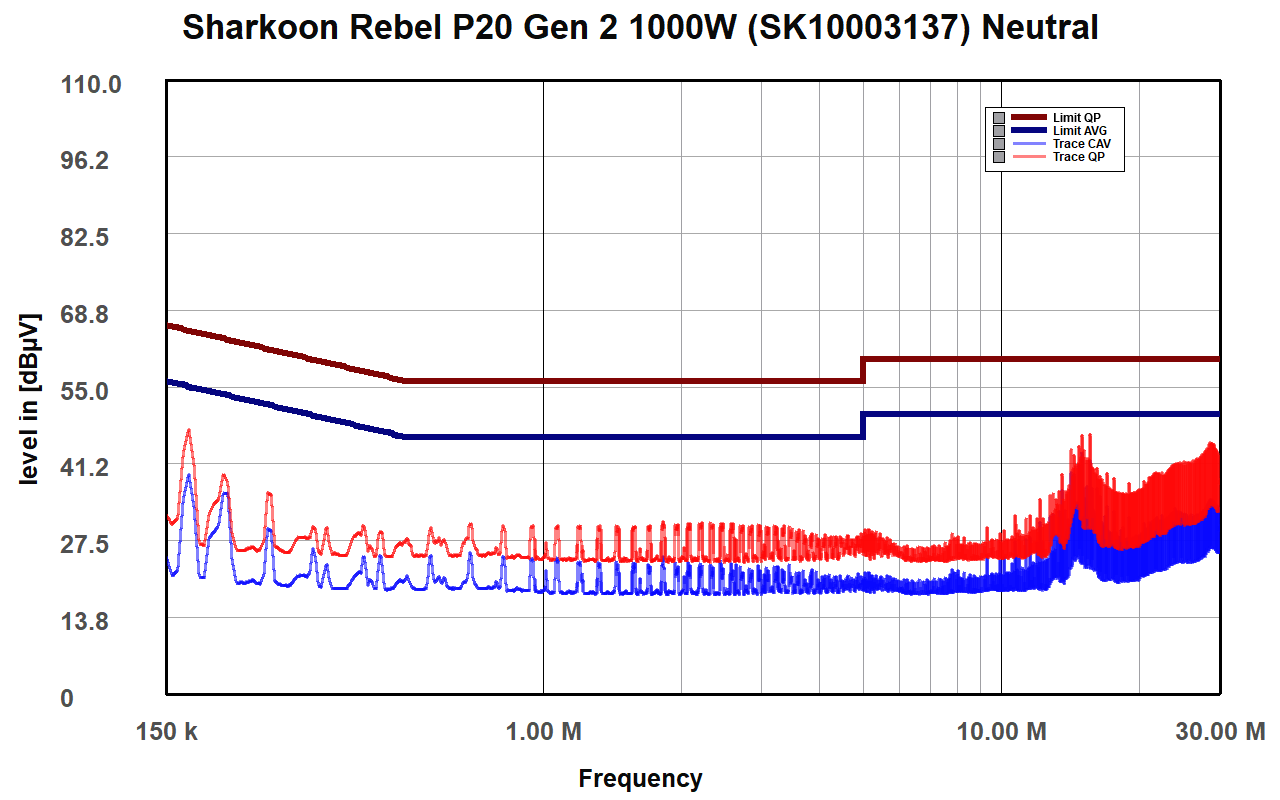

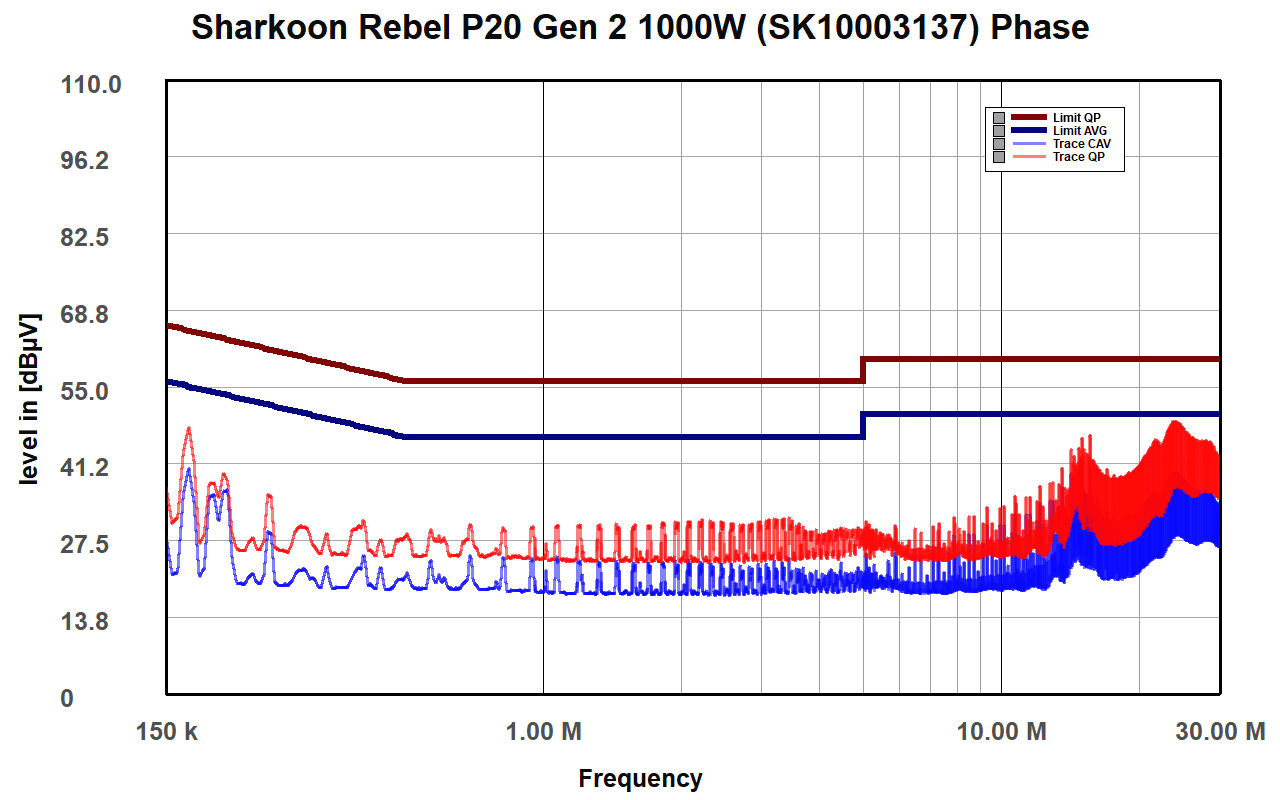

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

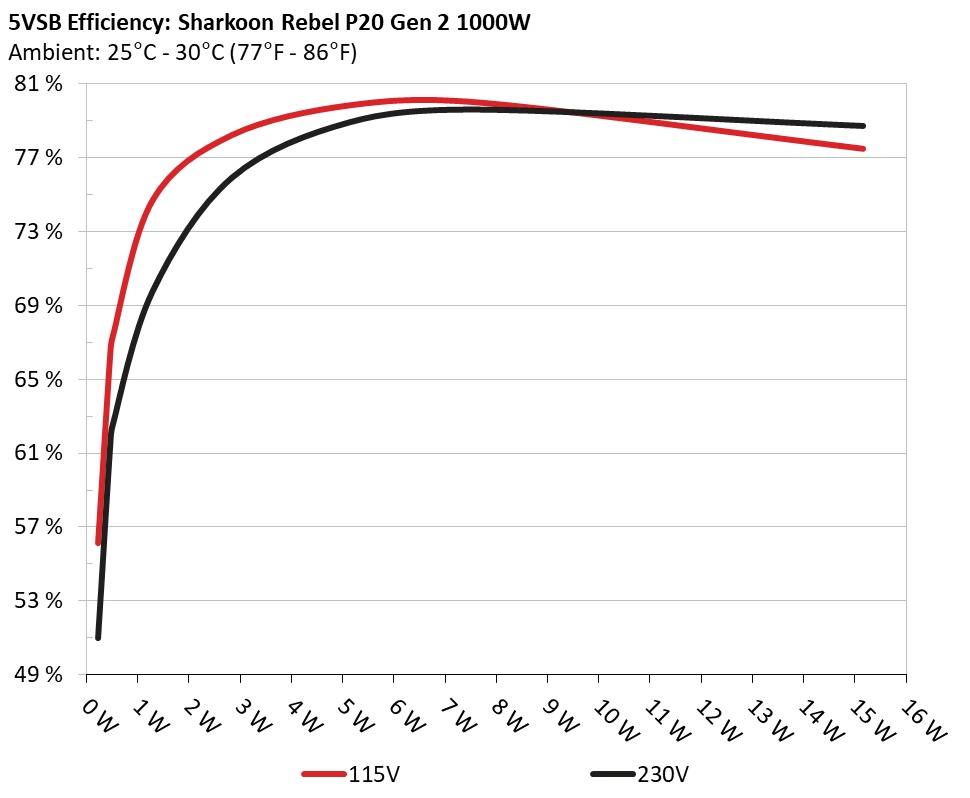

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 56.13% 0.053
5.198V 0.417W 114.99V
2 0.09A 0.468W 66.222% 0.088
5.196V 0.707W 114.99V
3 0.55A 2.846W 78.197% 0.317
5.174V 3.639W 114.98V
4 1A 5.154W 79.813% 0.404
5.152V 6.457W 114.98V
5 1.5A 7.694W 79.955% 0.447
5.128V 9.623W 114.97V
6 3A 15.162W 77.463% 0.504
5.053V 19.573W 114.97V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 50.964% 0.018
5.198V 0.46W 230.1V
2 0.09A 0.468W 61.294% 0.029
5.196V 0.763W 230.1V
3 0.55A 2.846W 75.933% 0.134
5.173V 3.748W 230.11V
4 1A 5.153W 78.948% 0.21
5.152V 6.528W 230.1V
5 1.5A 7.693W 79.624% 0.272
5.127V 9.662W 230.11V
6 3.001A 15.161W 78.739% 0.369
5.053V 19.255W 230.1V

Protection Features

OCP (Normal @ 30.0°C)12V: 114.20A (137.09%), 12.099V
5V: 22A (122.22%), 5.004V
3.3V: 22.7A (126.11%), 3.369V
5VSB: 4.7A (156.67%), 4.957V
OCP (Hot @ 43.2°C)12V: 105.80A (127.01%), 12.109V
5V: 23.9A (132.78%), 5.001V
3.3V: 22.2A (123.33%), 3.377V
5VSB: 4.6A (153.33%), 4.953V
OPP (Normal @ 28.2°C)1391.65W (139.17%)
OPP (Hot @ 41.5°C)1261.57W (126.16%)
OTP✓ (82°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.404A 1.977A 1.936A 0.975A 100.032 86.592% 0 <6.0 48.78°C 0.961
12.246V 5.061V 3.409V 5.131V 115.523 40.35°C 114.92V
20% 13.820A 2.973A 2.915A 1.175A 199.994 89.987% 0 <6.0 53.1°C 0.96
12.235V 5.047V 3.396V 5.107V 222.245 40.79°C 114.9V
30% 21.600A 3.477A 3.413A 1.377A 300.055 90.773% 1983 48.8 41.06°C 0.976
12.223V 5.034V 3.384V 5.083V 330.554 55.35°C 114.87V
40% 29.381A 3.984A 3.916A 1.581A 399.909 90.269% 1879 46 41.88°C 0.981
12.208V 5.022V 3.372V 5.062V 443.024 49.93°C 114.85V
50% 36.837A 4.994A 4.913A 1.787A 499.625 90.055% 1887 45.9 42.42°C 0.984
12.192V 5.008V 3.359V 5.038V 554.801 48.6°C 114.83V
60% 44.381A 6.011A 5.92A 1.995A 600.178 89.576% 1940 47.8 42.67°C 0.986
12.175V 4.993V 3.345V 5.014V 670.019 48.05°C 114.8V
70% 51.878A 7.034A 6.936A 2.205A 699.924 88.92% 1954 48.3 43.03°C 0.988
12.160V 4.978V 3.331V 4.989V 787.141 51.65°C 114.77V
80% 59.463A 8.062A 7.962A 2.316A 799.949 88.069% 1955 48.3 43.61°C 0.99
12.142V 4.963V 3.316V 4.966V 908.323 53.57°C 114.74V
90% 67.395A 8.588A 8.481A 2.426A 899.743 87.153% 1953 48.2 44.87°C 0.991
12.126V 4.95V 3.302V 4.947V 1032.374 55.33°C 114.72V
100% 75.157A 9.121A 9.037A 3.063A 999.768 86.049% 1953 48.2 45.37°C 0.991
12.109V 4.935V 3.287V 4.897V 1161.868 57.88°C 114.69V
110% 82.889A 10.168A 10.184A 3.075A 1100.394 84.576% 1951 48.2 46.04°C 0.992
12.089V 4.918V 3.27V 4.879V 1301.078 61°C 114.68V
CL1 0.116A 11.983A 11.725A 0A 101.326 78.474% 1922 47.2 42.72°C 0.954
12.231V 5.025V 3.386V 5.158V 129.119 48.66°C 114.92V
CL2 0.115A 17.916A 0A 0A 91.415 78.437% 1233 34.5 40.29°C 0.958
12.237V 5.024V 3.399V 5.169V 116.546 45.83°C 114.92V
CL3 0.115A 0A 17.524A 0A 60.806 70.415% 1477 38.4 40.11°C 0.981
12.234V 5.052V 3.39V 5.154V 86.357 44.03°C 114.93V
CL4 82.499A 0A 0A 0A 1000.276 87.283% 1965 48.5 45.16°C 0.992
12.125V 4.971V 3.311V 5.083V 1146.019 53.49°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.405A 1.977A 1.936A 0.975A 100.033 87.798% 0 <6.0 57.46°C 0.876
12.243V 5.061V 3.409V 5.131V 113.934 40.27°C 230.05V
20% 13.822A 2.973A 2.915A 1.175A 199.991 91.529% 0 <6.0 57.87°C 0.925
12.232V 5.046V 3.396V 5.107V 218.502 40.37°C 230.04V
30% 21.602A 3.477A 3.413A 1.377A 300.05 92.049% 1954 48.3 41.29°C 0.937
12.221V 5.034V 3.384V 5.084V 325.972 54.06°C 230.04V
40% 29.384A 3.984A 3.915A 1.581A 399.878 92.313% 1670 42 41.88°C 0.945
12.206V 5.022V 3.372V 5.063V 433.177 48.52°C 230.03V
50% 36.840A 4.994A 4.913A 1.786A 499.59 92.275% 1848 46.3 42.23°C 0.952
12.190V 5.008V 3.359V 5.039V 541.412 48.24°C 230.02V
60% 44.385A 6.01A 5.92A 1.995A 600.14 92.018% 1935 47.6 42.65°C 0.956
12.173V 4.993V 3.345V 5.015V 652.192 47.45°C 230V
70% 51.879A 7.032A 6.936A 2.205A 699.896 91.649% 1951 48.2 43.44°C 0.96
12.158V 4.979V 3.331V 4.991V 763.669 47.47°C 229.99V
80% 59.470A 8.06A 7.962A 2.315A 799.931 91.151% 1958 48.4 43.97°C 0.964
12.141V 4.963V 3.316V 4.97V 877.59 52.45°C 229.98V
90% 67.414A 8.588A 8.481A 2.425A 899.727 90.6% 1954 48.3 44.59°C 0.968
12.123V 4.949V 3.302V 4.949V 993.075 54.4°C 229.96V
100% 75.178A 9.121A 9.037A 3.062A 999.759 89.949% 1953 48.2 45.43°C 0.972
12.106V 4.934V 3.287V 4.9V 1111.48 55.76°C 229.95V
110% 82.877A 10.167A 10.183A 3.073A 1100.386 89.198% 1952 48.2 46.57°C 0.974
12.091V 4.918V 3.27V 4.882V 1233.651 57.87°C 229.94V
CL1 0.116A 11.982A 11.725A 0A 101.326 79.83% 1885 45.8 41.26°C 0.885
12.231V 5.025V 3.386V 5.158V 126.936 47.17°C 230.05V
CL2 0.115A 17.915A 0A 0A 91.414 79.79% 1099 30.4 40.19°C 0.875
12.235V 5.024V 3.399V 5.17V 114.567 46.01°C 230.05V
CL3 0.115A 0A 17.521A 0A 60.804 70.849% 1602 40.8 40.25°C 0.835
12.234V 5.053V 3.39V 5.169V 85.822 45.67°C 230.06V
CL4 82.500A 0A 0A 0A 1000.247 90.972% 1965 48.5 44.58°C 0.971
12.124V 4.972V 3.311V 5.085V 1099.509 53.49°C 229.97V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.493A 0.482A 0.193A 20.011 65.379% 0 <6.0 40.13°C 0.891
12.257V 5.074V 3.421V 5.183V 30.605 36.56°C 114.95V
40W 2.668A 0.69A 0.676A 0.29A 40.009 77.477% 0 <6.0 43.38°C 0.943
12.253V 5.072V 3.419V 5.175V 51.638 37.02°C 114.95V
60W 4.125A 0.888A 0.87A 0.387A 60.008 82.492% 0 <6.0 48.22°C 0.961
12.251V 5.069V 3.416V 5.168V 72.745 38.56°C 114.95V
80W 5.580A 1.086A 1.064A 0.485A 79.977 85.7% 0 <6.0 50.01°C 0.978
12.249V 5.066V 3.413V 5.16V 93.322 39.52°C 114.94V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.493A 0.482A 0.193A 20.011 66.174% 0 <6.0 57.22°C 0.577
12.255V 5.074V 3.421V 5.182V 30.241 36.12°C 230.1V
40W 2.669A 0.69A 0.676A 0.29A 40.008 78.685% 0 <6.0 53.86°C 0.712
12.251V 5.072V 3.419V 5.175V 50.845 37.37°C 230.08V
60W 4.126A 0.888A 0.87A 0.387A 60.008 83.675% 0 <6.0 50.31°C 0.798
12.248V 5.069V 3.416V 5.168V 71.712 38.5°C 230.07V
80W 5.581A 1.086A 1.064A 0.485A 79.979 86.624% 0 <6.0 47.07°C 0.847
12.247V 5.066V 3.414V 5.16V 92.328 39.12°C 230.06V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load13.99mV9.69mV5.24mV9.88mVPass
20% Load15.83mV10.10mV5.70mV10.65mVPass
30% Load17.04mV9.85mV5.75mV10.65mVPass
40% Load18.37mV10.51mV5.75mV11.92mVPass
50% Load18.93mV10.82mV6.05mV13.25mVPass
60% Load21.07mV11.32mV6.36mV14.37mVPass
70% Load21.88mV11.84mV6.61mV16.25mVPass
80% Load23.56mV12.96mV10.73mV17.78mVPass
90% Load28.39mV14.13mV11.44mV21.29mVPass
100% Load32.01mV14.68mV11.11mV26.76mVPass
110% Load43.49mV15.66mV11.95mV28.97mVPass
Crossload113.90mV12.93mV10.91mV16.69mVPass
Crossload213.59mV10.35mV5.14mV17.73mVPass
Crossload313.28mV13.01mV11.80mV17.07mVPass
Crossload431.73mV10.93mV6.67mV23.81mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.09mV9.49mV5.14mV9.48mVPass
20% Load15.72mV9.49mV5.54mV10.34mVPass
30% Load17.51mV9.69mV5.95mV10.90mVPass
40% Load18.16mV10.15mV5.95mV11.31mVPass
50% Load19.24mV11.88mV6.15mV12.38mVPass
60% Load19.79mV11.33mV6.05mV12.74mVPass
70% Load23.36mV37.24mV33.87mV15.03mVPass
80% Load24.98mV12.55mV10.93mV15.84mVPass
90% Load29.87mV13.62mV11.34mV17.83mVPass
100% Load35.68mV13.87mV11.52mV20.93mVPass
110% Load44.97mV16.53mV12.01mV21.05mVPass
Crossload114.54mV15.54mV11.09mV17.18mVPass
Crossload214.04mV10.56mV5.29mV16.86mVPass
Crossload313.48mV12.70mV11.95mV16.76mVPass
Crossload436.18mV10.61mV6.56mV19.85mVPass

The results above are not used in the certification process

Sharkoon Rebel P20 Gen2 1000

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
