Iron Pride Creator 1000W
Serial Number-
Lab IDIP10003144
Certification ID263144
  • Test Result Report ID: 26PS3144A
  • Certificate Issue Date: Feb 25, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandIron Pride
Manufacturer (OEM)Lemon ET
SeriesCreator
Model NumberGX1000W
Serial Number-
DUT NotesSome protection features need adjustment.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Fan 2000RPM (No other information)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts120999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 3 6 16-18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
4-pin Molex(500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

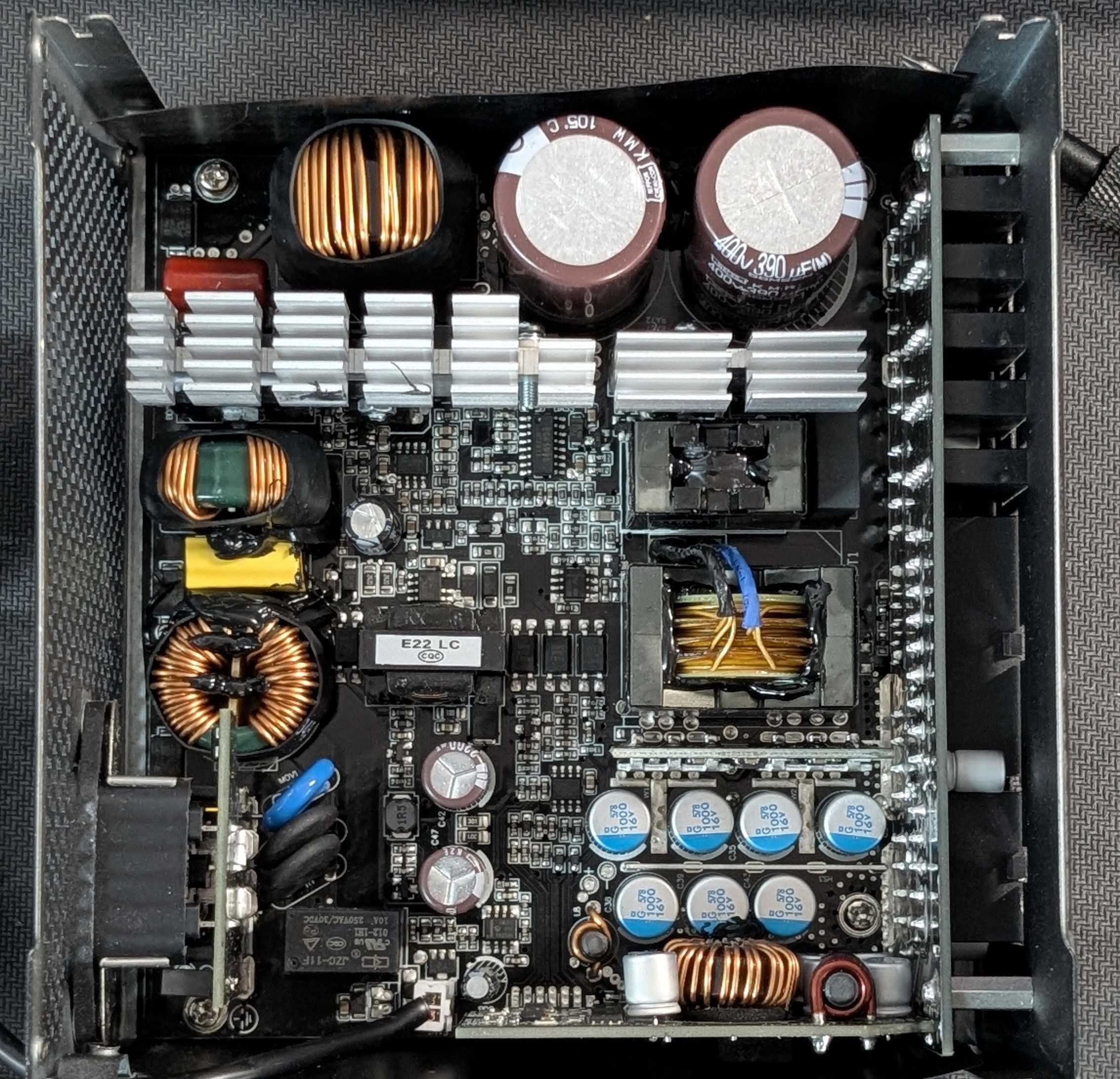

Parts Description

General Data
Manufacturer (OEM) Lemon ET
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor NTC 8D-15 (8 Ohm @ 25°C) & Relay
Bridge Rectifier 2x GBU1510 (1000V, 15A @ 25°C)
APFC MOSFETs 2x Wuhan Xinyuan Semiconductor CWS60R099B (600V, 25A @ 100°C, Rds(on): 90mOhm)
APFC Boost Diode Reasunos Semiconductor Technology RSS10065A (650V, 10A @ 154°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2000h @ 105°C, KMW )
1x Nippon Chemi-Con (400V, 390uF, 2000h @ 105°C, KMW )

Main Switchers 2x Wuhan Xinyuan Semiconductor CWS60R099B (600V, 25A @ 100°C, Rds(on): 90mOhm)

APFC Controller

Safety-Chip Micro SC3654

Resonant Controller Meraki Integrated MK1620
IC Driver Electronic Giant EG6599S
Topology Primary Side: APFC, Half-Bridge & LLC Resonant Converter
Secondary Side: [12V] Synchronous Rectification & [Minor Rails] DC-DC Converters
Secondary Side
+12V MOSFETs 6x Reasunos Semiconductor Technology RS40N150UG (40V, 150A @ 100°C Rds(on): 2mOhm)
5V & 3.3V DC-DC Converters: 2x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, Rds(on): 9.5mOhm)
2x Excelliance MOS EMB06N03HR (30V, 60A @ 100°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Excelliance MOS EM5301
Filtering Capacitors

Electrolytic:
2x Nippon Chemi-Con (2~5,000h @ 105°C, KZE )
1x Rubycon (4~10,000h @ 105°C, YXJ )
Polymer:
24x Nippon Chemi-Con

Supervisor IC Jiangsu Deep-Pool Microelectronics NDP2450KC
Fan Controller / Micro Controller Texas Instruments LM393

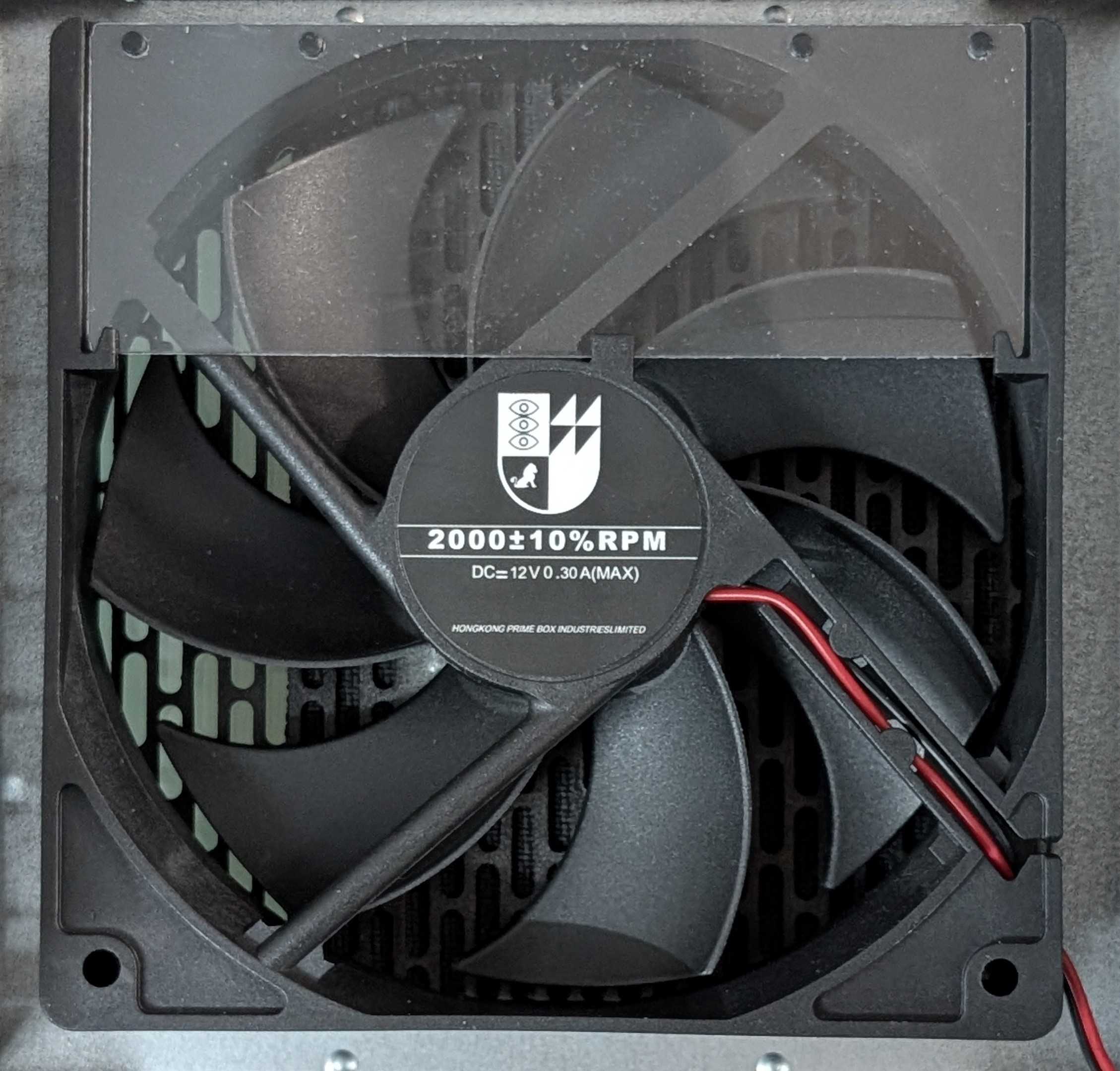

Fan Model HongKong Prime Box Industries Limited 12025 (120mm, 12V, 0.30A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier DongKe Semiconductor DK5V45R20 (45V, 20mOhm)
Standby PWM Controller SP3622S SOP-7

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.507%
Average Noise Output (>1450 Load Combinations)34.62dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load74.524%
Standby Power Consumption0.0624W
12V Ripple (Full Load)59.33mV
5V Ripple (Full Load)32.52mV
3.3V Ripple (Full Load)34.77mV
5VSB Ripple (Full Load)16.54mV
12V Load Regulation1.19%
5V Load Regulation4.16%
3.3V Load Regulation6.80%
5VSB Load Regulation9.68%
Inrush Current10.790A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.423%
Average Noise Output (>1450 Load Combinations)34.64dBA
Average PF (>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load74.864%
Standby Power Consumption0.1744W
12V Ripple (Full Load)53.57mV
5V Ripple (Full Load)18.49mV
3.3V Ripple (Full Load)22.67mV
5VSB Ripple (Full Load)14.32mV
12V Load Regulation0.95%
5V Load Regulation4.45%
3.3V Load Regulation7.34%
5VSB Load Regulation10.07%
Inrush Current21.870A
12V Transient Response (200%)11.38V
5V Transient Response (200%)4.816V
3.3V Transient Response (200%)3.059V
5VSB Transient Response (200%)4.829V
Hold-Up Time & Power Ok Signal19.10ms
AC Loss to PWR_OK Hold Up Time15.80ms
PWR_OK Inactive to DC Loss Delay3.30ms
PSU Timings: T1 (20% / 100%)10.0ms10.0ms
PSU Timings: T3 (20% / 100%)131.0ms180.0ms
12V OCP (30.6°C / 43.2°C)108.20A (129.89%), 12.050V96.40A (115.73%), 12.063V
5V OCP (30.6°C / 43.2°C)Didn't StartDidn't Start
3.3V OCP (30.6°C / 43.2°C)26.5A (132.50%), 3.249V25.4A (127.00%), 3.244V
5VSB OCP (30.6°C / 43.2°C)3.6A (120.00%), 4.757V *Voltage Drop (4.639V@5.3A)4.8A (160.00%), 4.756V *Voltage Drop (4.726V@5.2A)
OPP (29.99°C / 43.34°C)127.01%114.40%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.1
AC Loss to PWR_OK Hold Up Time (ms)15.8
PWR_OK Inactive to DC Loss Delay (ms)3.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.02 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.062 W -0.004 W N/A 0.094 W N/A N/A
Apparent Power: 6.639 W 6.619 W N/A 6.661 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.12 V 230.08 V 227.70 V 230.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.174 W 0.121 W N/A 0.258 W N/A N/A
Apparent Power: 21.186 W 21.150 W N/A 21.224 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs

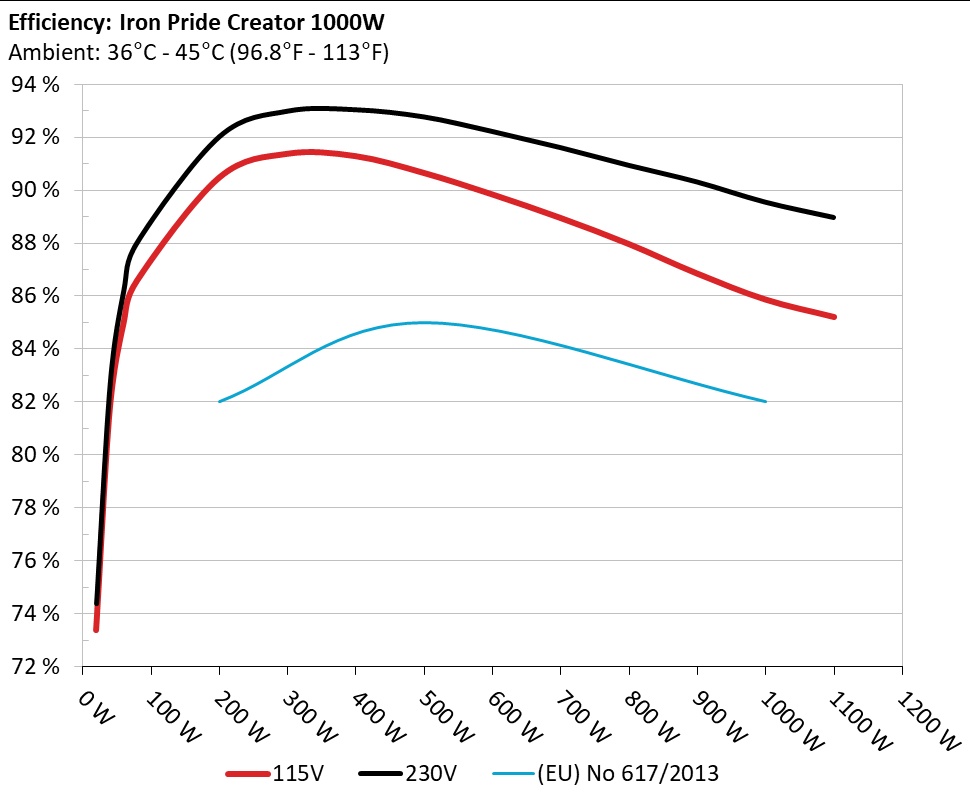

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

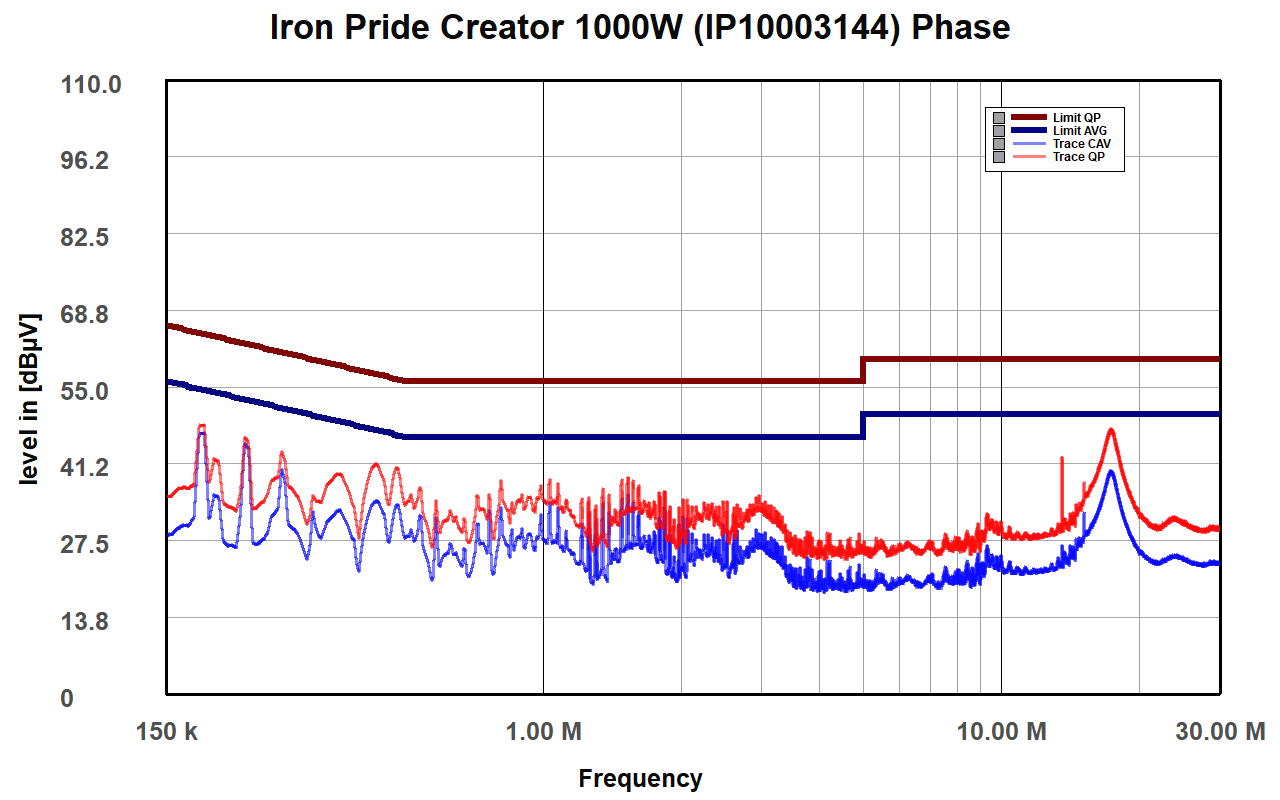

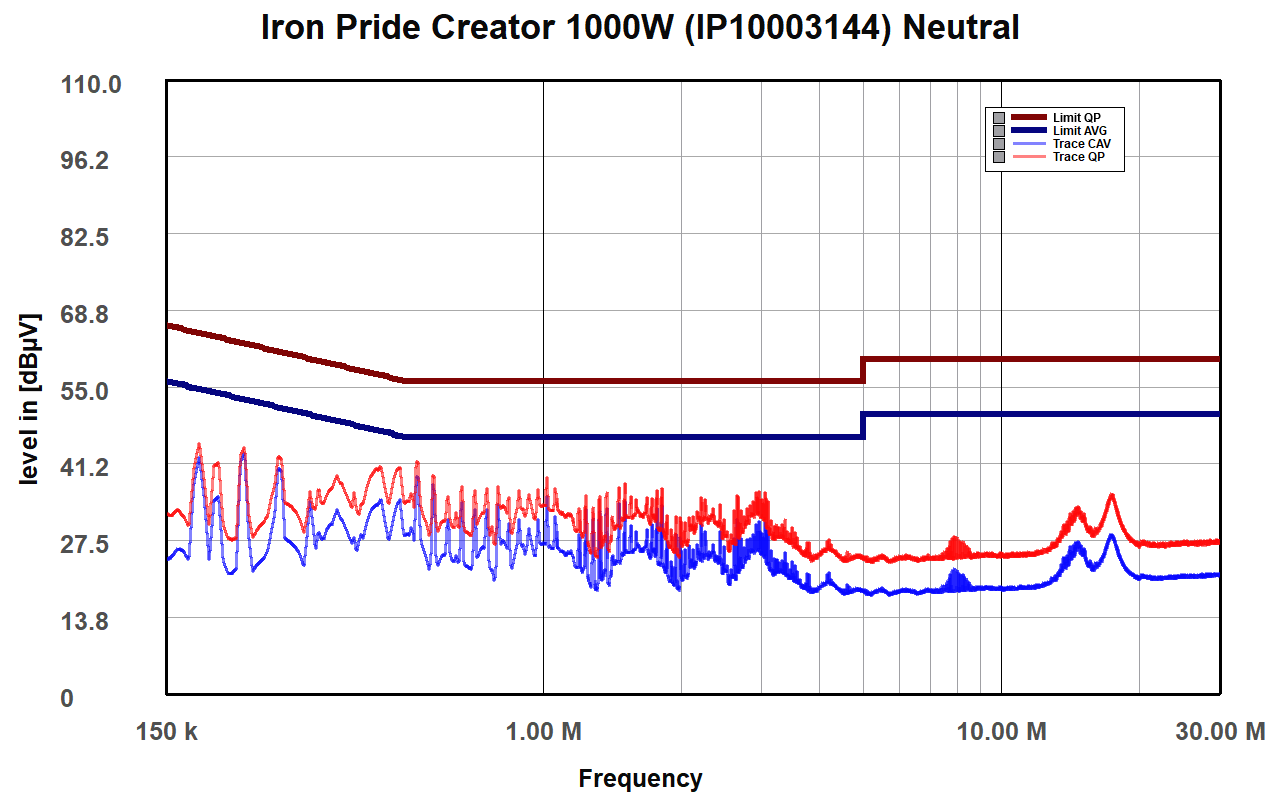

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

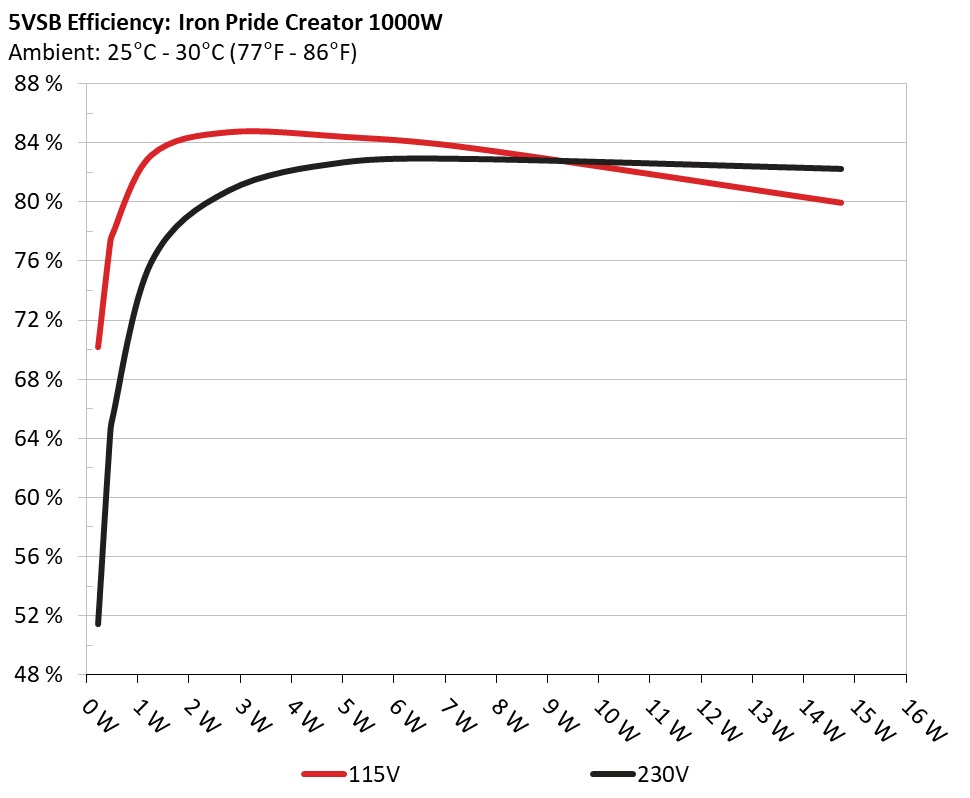

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 70.205% 0.05
5.093V 0.327W 115.1V
2 0.09A 0.458W 77.06% 0.088
5.091V 0.595W 115.1V
3 0.55A 2.784W 84.697% 0.316
5.062V 3.289W 115.09V
4 1A 5.035W 84.383% 0.397
5.035V 5.967W 115.08V
5 1.5A 7.507W 83.63% 0.434
5.004V 8.977W 115.08V
6 3A 14.737W 79.943% 0.494
4.912V 18.435W 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 51.458% 0.021
5.093V 0.447W 230.26V
2 0.09A 0.458W 63.953% 0.034
5.09V 0.721W 230.26V
3 0.55A 2.784W 80.771% 0.147
5.062V 3.449W 230.26V
4 1A 5.035W 82.676% 0.225
5.035V 6.089W 230.26V
5 1.5A 7.507W 82.896% 0.283
5.004V 9.058W 230.26V
6 3.001A 14.737W 82.225% 0.367
4.912V 17.958W 230.25V

Protection Features

OCP (Normal @ 30.6°C)12V: 108.20A (129.89%), 12.050V
5V: Didn't Start
3.3V: 26.5A (132.50%), 3.249V
5VSB: 3.6A (120.00%), 4.757V *Voltage Drop (4.639V@5.3A)
OCP (Hot @ 43.2°C)12V: 96.40A (115.73%), 12.063V
5V: Didn't Start
3.3V: 25.4A (127.00%), 3.244V
5VSB: 4.8A (160.00%), 4.756V *Voltage Drop (4.726V@5.2A)
OPP (Normal @ 30.0°C)1270.06W (127.01%)
OPP (Hot @ 43.3°C)1143.99W (114.40%)
OTP✓ (164°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.480A 1.085A 1.976A 1.001A 95.499 86.712% 836 17.8 40.08°C 0.982
12.098V 5.069V 3.341V 4.994V 110.133 47.79°C 115.06V
20% 13.989A 2.972A 2.983A 1.21A 199.952 90.464% 841 17.8 40.54°C 0.978
12.084V 5.047V 3.319V 4.957V 221.031 49.58°C 115.02V
30% 21.870A 3.48A 3.5A 1.422A 300.007 91.369% 845 18.2 41.12°C 0.976
12.069V 5.029V 3.3V 4.922V 328.348 51.7°C 114.98V
40% 29.729A 3.993A 4.024A 1.637A 399.586 91.28% 1083 24.9 41.93°C 0.982
12.055V 5.01V 3.281V 4.886V 437.757 53.91°C 114.94V
50% 37.272A 5.012A 5.065A 1.857A 499.301 90.647% 1594 36.1 42.36°C 0.987
12.041V 4.989V 3.258V 4.848V 550.818 56.27°C 114.9V
60% 44.903A 6.04A 6.12A 2A 599.454 89.834% 1966 41.7 42.86°C 0.991
12.026V 4.968V 3.235V 4.815V 667.284 57.38°C 114.87V
70% 52.488A 7.079A 7.192A 2.308A 699.549 88.945% 1964 41.7 43.37°C 0.993
12.011V 4.946V 3.212V 4.767V 786.495 59.36°C 114.83V
80% 60.170A 8.127A 8.281A 2.429A 799.554 87.957% 1965 41.7 43.68°C 0.995
11.994V 4.922V 3.188V 4.735V 909.032 61.42°C 114.79V
90% 68.208A 8.676A 8.847A 2.552A 899.323 86.845% 1967 41.7 44.14°C 0.995
11.976V 4.898V 3.164V 4.702V 1035.547 64.38°C 114.76V
100% 76.043A 9.214A 9.437A 3.242A 999.318 85.863% 1976 41.9 44.62°C 0.993
11.962V 4.884V 3.147V 4.627V 1163.837 62.77°C 114.75V
110% 83.788A 10.243A 10.622A 3.251A 1099.88 85.2% 1972 41.9 42.2°C 0.995
11.954V 4.881V 3.134V 4.614V 1290.943 49.36°C 114.69V
CL1 0.116A 14.48A 14.589A 0A 121.297 77.651% 995 22.3 40.54°C 0.994
12.088V 4.986V 3.269V 5.037V 156.211 49.59°C 115.05V
CL3 0.116A 0A 20.111A 0A 67.396 72.039% 831 17.6 43.58°C 0.976
12.094V 5.035V 3.281V 5.054V 93.557 48.67°C 115.07V
CL4 83.510A 0A 0A 0.001A 999.916 87.105% 1971 41.9 44.8°C 0.996
11.974V 4.934V 3.197V 4.934V 1147.948 51.5°C 114.73V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.481A 1.973A 1.976A 1.001A 99.999 88.347% 945 20.6 40.26°C 0.89
12.097V 5.069V 3.339V 4.993V 113.188 42.35°C 230.27V
20% 13.987A 2.971A 2.984A 1.211A 199.951 92.007% 951 20.6 40.78°C 0.899
12.086V 5.049V 3.318V 4.957V 217.322 43.33°C 230.24V
30% 21.862A 3.479A 3.502A 1.423A 300.002 92.971% 976 21.6 41.22°C 0.924
12.074V 5.03V 3.299V 4.921V 322.68 43.98°C 230.22V
40% 29.709A 3.992A 4.027A 1.638A 399.576 93.025% 1013 22.7 41.64°C 0.946
12.063V 5.011V 3.278V 4.885V 429.536 45.5°C 230.21V
50% 37.240A 5.012A 5.07A 1.858A 499.283 92.754% 1020 22.5 42.28°C 0.963
12.051V 4.989V 3.255V 4.846V 538.287 46.83°C 230.19V
60% 44.854A 6.041A 6.128A 2A 599.429 92.205% 1457 32.9 42.85°C 0.975
12.039V 4.967V 3.232V 4.812V 650.109 47.04°C 230.18V
70% 52.419A 7.078A 7.201A 2.309A 699.532 91.596% 1809 38.9 43.13°C 0.98
12.027V 4.946V 3.208V 4.764V 763.708 47.04°C 230.16V
80% 60.062A 8.124A 8.292A 2.431A 799.54 90.927% 1966 41.7 43.72°C 0.985
12.015V 4.923V 3.184V 4.731V 879.327 48.18°C 230.14V
90% 68.055A 8.674A 8.862A 2.555A 899.311 90.302% 1968 41.7 44.5°C 0.988
12.003V 4.899V 3.159V 4.697V 995.891 50.06°C 230.12V
100% 75.861A 9.235A 9.481A 3.254A 999.323 89.539% 1971 41.9 45.47°C 0.989
11.991V 4.873V 3.132V 4.61V 1116.081 52.36°C 230.11V
110% 83.641A 10.295A 10.694A 3.266A 1099.928 88.959% 1985 42 46.6°C 0.99
11.976V 4.856V 3.113V 4.593V 1236.41 51.64°C 230.08V
CL1 0.116A 14.471A 14.588A 0A 121.297 79.486% 831 17.6 40.03°C 0.901
12.094V 4.989V 3.269V 5.035V 152.617 47.4°C 230.27V
CL4 83.333A 0A 0A 0.001A 999.924 90.656% 1975 41.9 45.91°C 0.989
11.999V 4.926V 3.188V 4.923V 1102.994 50.53°C 230.11V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.227A 0.491A 0.491A 0.197A 20.002 73.369% 829 17.4 36.38°C 0.883
12.104V 5.087V 3.361V 5.075V 27.264 42.34°C 115.1V
40W 2.702A 0.689A 0.688A 0.296A 40.001 81.718% 831 17.6 37°C 0.946
12.102V 5.083V 3.356V 5.064V 48.952 42.89°C 115.09V
60W 4.176A 0.886A 0.886A 0.396A 60.001 84.947% 832 17.6 38.45°C 0.97
12.098V 5.079V 3.352V 5.052V 70.633 44.54°C 115.08V
80W 5.646A 1.084A 1.084A 0.496A 79.946 86.576% 835 17.8 39.66°C 0.977
12.098V 5.074V 3.347V 5.04V 92.339 46.39°C 115.07V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.227A 0.491A 0.491A 0.197A 20.004 74.382% 820 16.4 36.51°C 0.61
12.105V 5.09V 3.362V 5.074V 26.893 37.91°C 230.29V
40W 2.702A 0.688A 0.688A 0.296A 40.002 82.691% 832 17.6 37.58°C 0.761
12.101V 5.086V 3.357V 5.063V 48.378 38.74°C 230.28V
60W 4.177A 0.886A 0.886A 0.396A 60.001 86.204% 843 18 38.9°C 0.832
12.098V 5.081V 3.353V 5.051V 69.602 40.11°C 230.28V
80W 5.649A 1.084A 1.084A 0.496A 79.947 88.028% 840 17.6 39.37°C 0.869
12.094V 5.077V 3.348V 5.039V 90.82 41.24°C 230.27V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load29.13mV13.60mV14.33mV8.77mVPass
20% Load44.60mV14.27mV13.39mV8.36mVPass
30% Load37.84mV14.22mV14.69mV8.98mVPass
40% Load38.05mV15.10mV14.53mV9.55mVPass
50% Load40.78mV14.73mV15.88mV10.48mVPass
60% Load41.81mV15.87mV16.34mV11.72mVPass
70% Load43.77mV17.52mV18.56mV13.26mVPass
80% Load50.58mV25.14mV25.80mV14.76mVPass
90% Load55.84mV33.59mV38.83mV17.40mVPass
100% Load59.33mV32.52mV34.77mV16.54mVPass
110% Load60.99mV33.69mV39.80mV18.02mVPass
Crossload147.42mV18.95mV21.47mV9.56mVPass
Crossload20.00mV0.00mV0.00mV0.00mVPass
Crossload328.67mV15.81mV23.58mV10.63mVPass
Crossload457.72mV27.51mV30.66mV17.88mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load33.82mV13.96mV14.12mV9.81mVPass
20% Load50.83mV14.79mV14.07mV9.40mVPass
30% Load43.88mV14.53mV14.22mV9.91mVPass
40% Load42.12mV15.40mV16.65mV11.00mVPass
50% Load43.05mV20.04mV20.89mV11.51mVPass
60% Load44.24mV15.61mV17.48mV12.23mVPass
70% Load45.52mV16.54mV19.65mV13.11mVPass
80% Load48.77mV18.13mV20.94mV14.30mVPass
90% Load52.38mV19.27mV21.77mV14.45mVPass
100% Load53.57mV18.49mV22.67mV14.32mVPass
110% Load58.36mV19.84mV24.60mV14.12mVPass
Crossload150.32mV17.22mV19.50mV10.29mVPass
Crossload20.00mV0.00mV0.00mV0.00mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload452.12mV15.02mV19.47mV14.76mVPass

The results above are not used in the certification process

Iron Pride Creator 1000W

Top side
Power specifications label
Third Photo
Fourth Photo
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
