Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (600mm)
1
1
16AWG
Tinned Copper
4+4 pin EPS12V (700mm)
2
2
16AWG
Tinned Copper
2x 6+2 pin PCIe (550mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (550mm)
3
3
16AWG
Tinned Copper
12+4 pin PCIe (600mm) (600W)
1
1
16-24AWG
Tinned Copper
SATA (450mm+155mm+155mm+155mm)
2
8
18AWG
Tinned Copper
4-pin Molex (450mm+150mm+150mm+150mm)
1
4
18AWG
Tinned Copper
AC Power Cord (1410mm) - C13 coupler
1
1
16AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
90.470%
Average Noise Output (>1450 Load Combinations)
31.60dBA
Average PF (>1450 Load Combinations)
0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load
74.181%
Standby Power Consumption
0.0400W
12V Ripple (Full Load)
32.13mV
5V Ripple (Full Load)
34.94mV
3.3V Ripple (Full Load)
28.70mV
5VSB Ripple (Full Load)
20.41mV
12V Load Regulation
0.43%
5V Load Regulation
0.36%
3.3V Load Regulation
1.03%
5VSB Load Regulation
2.12%
Inrush Current
26.580A
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
92.326%
Average Noise Output (>1450 Load Combinations)
31.25dBA
Average PF (>1450 Load Combinations)
0.965
Efficiency With 10W (≤500W) or 2% (>500W) Load
73.601%
Standby Power Consumption
0.1059W
12V Ripple (Full Load)
31.51mV
5V Ripple (Full Load)
34.49mV
3.3V Ripple (Full Load)
33.81mV
5VSB Ripple (Full Load)
19.85mV
12V Load Regulation
0.43%
5V Load Regulation
0.28%
3.3V Load Regulation
1.03%
5VSB Load Regulation
2.12%
Inrush Current
51.940A
12V Transient Response (200%)
11.39V
5V Transient Response (200%)
4.932V
3.3V Transient Response (200%)
3.226V
5VSB Transient Response (200%)
4.993V
Hold-Up Time & Power Ok Signal
20.40ms
AC Loss to PWR_OK Hold Up Time
18.10ms
PWR_OK Inactive to DC Loss Delay
2.30ms
PSU Timings: T1 (20% / 100%)
100.0ms
102.0ms
PSU Timings: T3 (20% / 100%)
135.0ms
136.0ms
12V OCP (28.8°C / 42.3°C)
119.40A (119.40%), 12.033V
117.20A (117.20%), 12.030V
5V OCP (28.8°C / 42.3°C)
24A (120.00%), 5.031V
23.3A (116.50%), 5.032V
3.3V OCP (28.8°C / 42.3°C)
23.3A (116.50%), 3.305V
23.1A (115.50%), 3.308V
5VSB OCP (28.8°C / 42.3°C)
4.2A (140.00%), 5.031V
4.2A (140.00%), 5.031V
OPP (28.04°C / 41.59°C)
119.63%
117.50%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
20.4
AC Loss to PWR_OK Hold Up Time (ms)
18.1
PWR_OK Inactive to DC Loss Delay (ms)
2.3
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.06 V
115.05 V
113.85 V
115.09 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
60.00 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.11 %
N/A
0.15 %
2.00 %
PASS
Real Power:
0.040 W
-0.008 W
N/A
0.073 W
N/A
N/A
Apparent Power:
10.370 W
10.345 W
N/A
10.392 W
N/A
N/A
Power Factor:
0.005
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.15 V
230.12 V
227.70 V
230.16 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.14 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.106 W
0.060 W
N/A
0.205 W
N/A
N/A
Apparent Power:
33.951 W
33.912 W
N/A
33.990 W
N/A
N/A
Power Factor:
0.003
N/A
N/A
N/A
N/A
N/A
Graphs

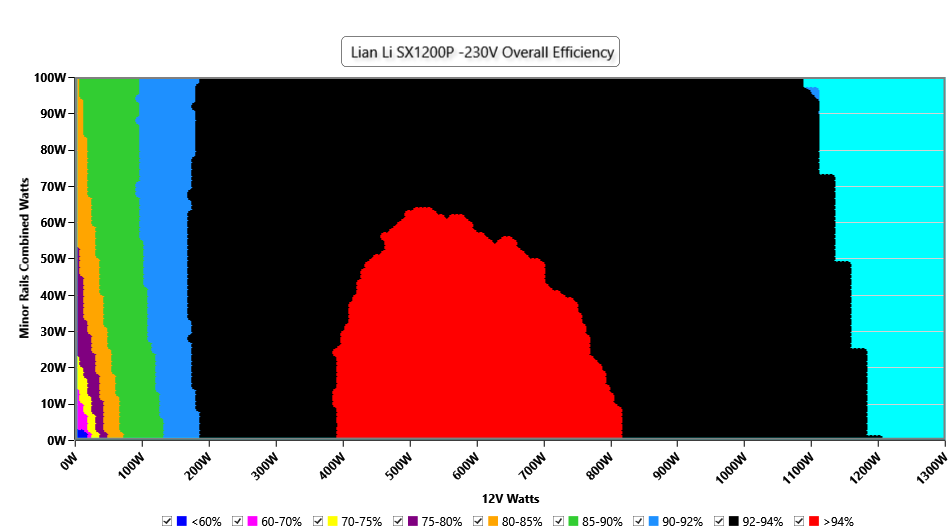

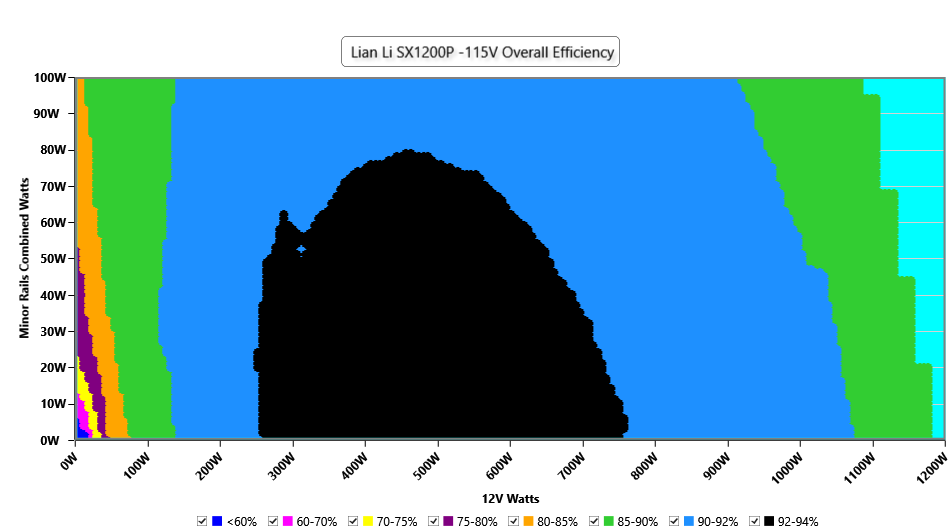

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

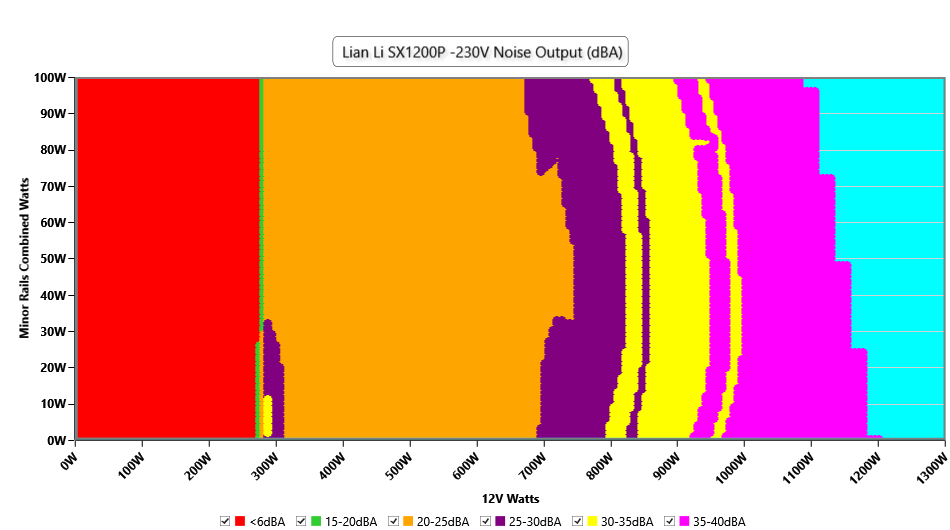

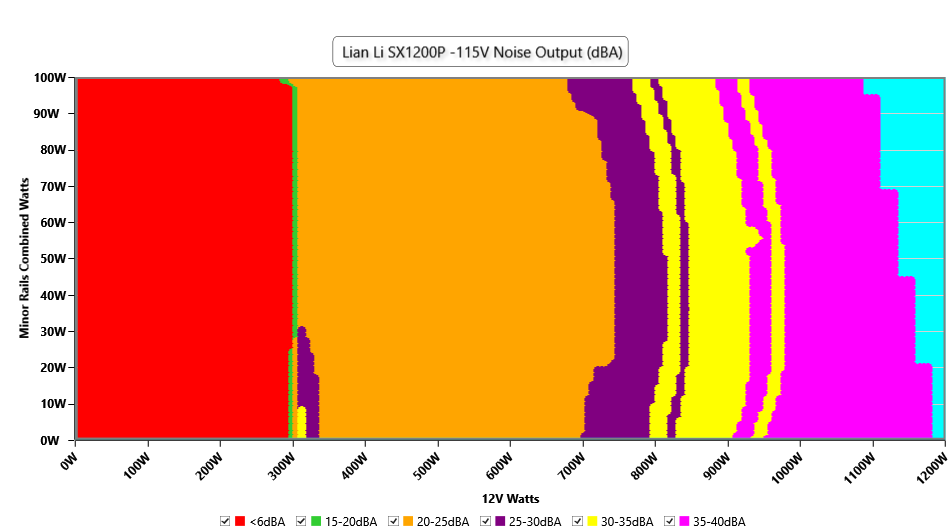

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

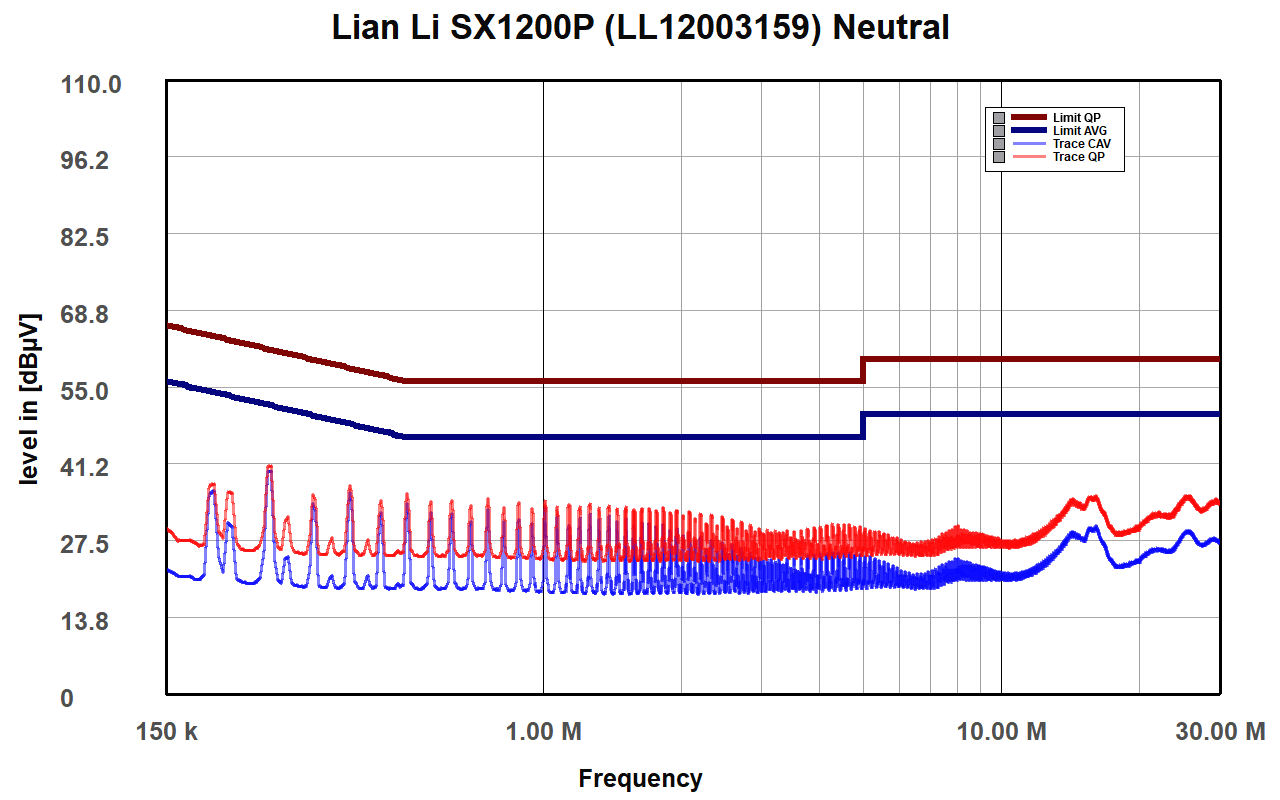

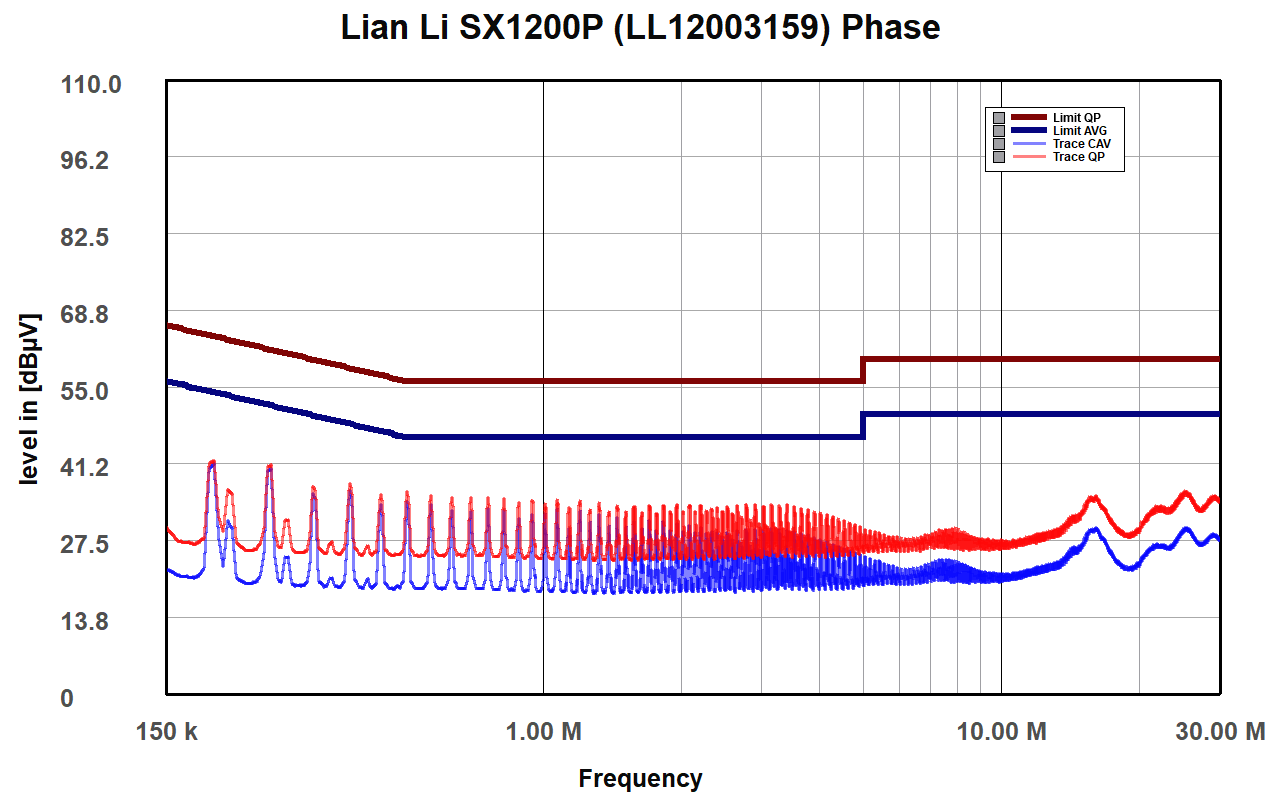

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

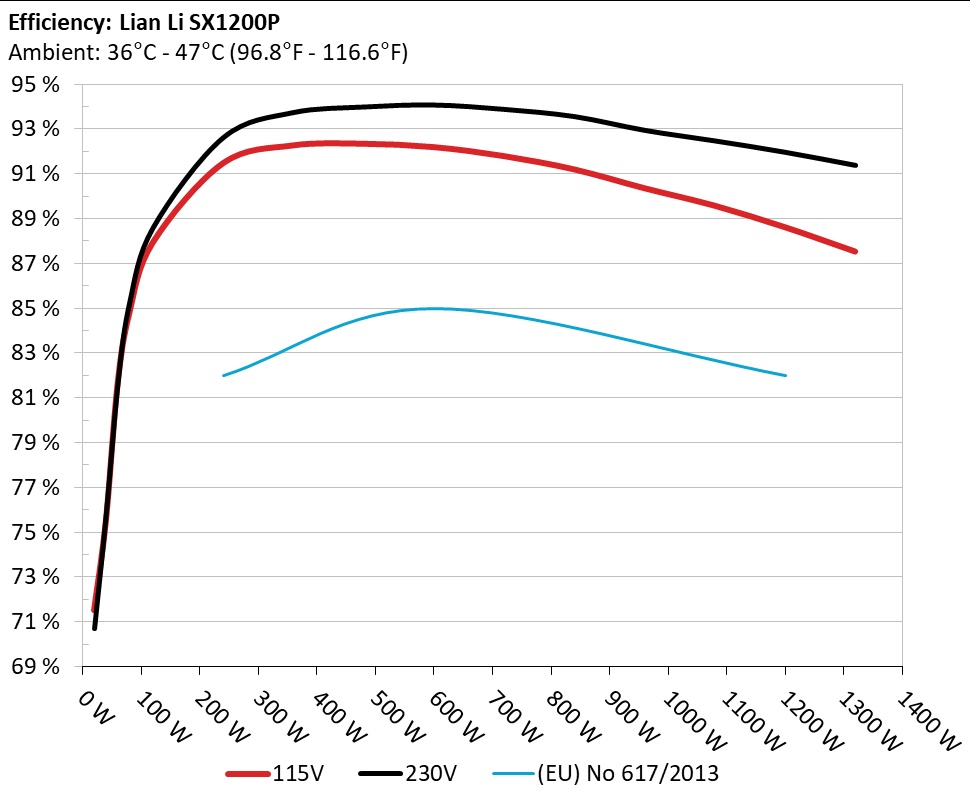

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

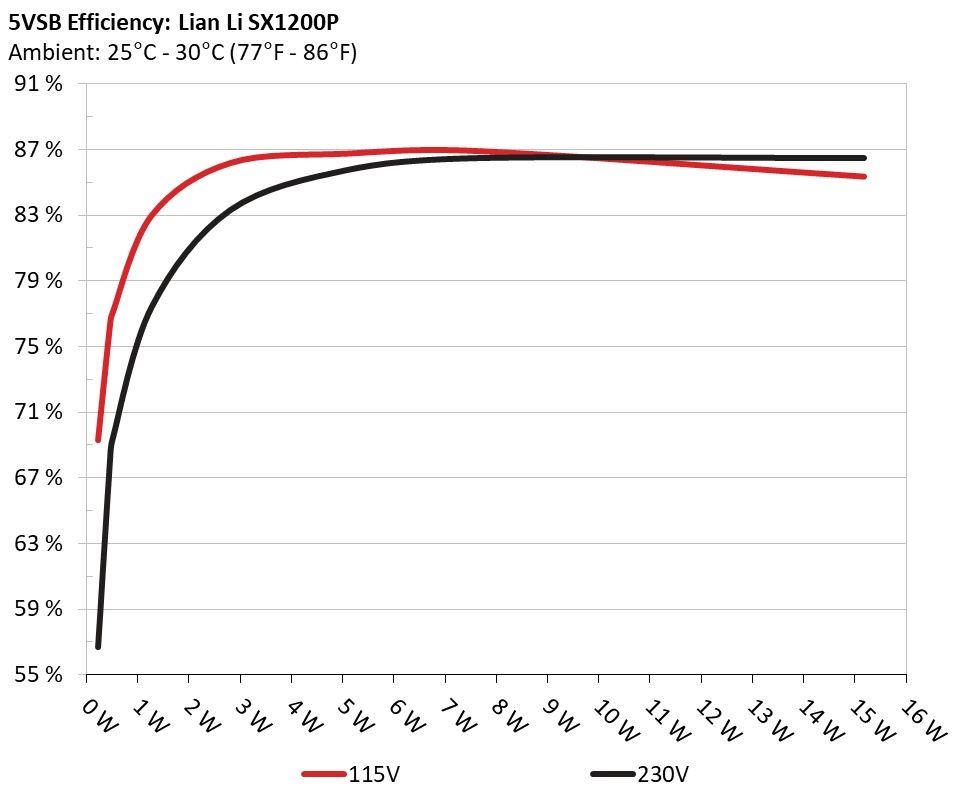

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.157A
1.99A
1.974A
0.982A
119.986
87.926%
0
<6.0
49.84°C
0.98
12.062V
5.026V
3.343V
5.092V
136.463
40.42°C
115.07V
20%
17.338A
2.986A
2.964A
1.18A
239.945
91.47%
0
<6.0
50.94°C
0.991
12.057V
5.025V
3.34V
5.083V
262.32
40.75°C
115.03V
30%
26.808A
3.484A
3.462A
1.379A
359.135
92.267%
839
22.9
41.41°C
0.993
12.051V
5.024V
3.337V
5.075V
389.23
61.08°C
114.99V
40%
36.383A
3.984A
3.96A
1.579A
479.504
92.341%
849
22.9
41.74°C
0.995
12.047V
5.021V
3.333V
5.066V
519.277
56.63°C
114.94V
50%
45.569A
4.983A
4.956A
1.78A
599.265
92.192%
1003
25.6
42.17°C
0.995
12.042V
5.018V
3.329V
5.056V
650.02
57.54°C
114.9V
60%
54.829A
5.982A
5.954A
1.981A
719.787
91.791%
1203
30.9
42.9°C
0.995
12.037V
5.016V
3.326V
5.047V
784.155
58.22°C
114.85V
70%
64.028A
6.982A
6.954A
2.184A
839.514
91.201%
1384
34.9
43.15°C
0.995
12.032V
5.014V
3.322V
5.038V
920.511
58.94°C
114.8V
80%
73.304A
7.98A
7.954A
2.286A
959.5
90.363%
1616
38.2
43.53°C
0.996
12.027V
5.012V
3.319V
5.03V
1061.838
58.4°C
114.75V
90%
82.914A
8.483A
8.445A
2.389A
1079.3
89.584%
1826
42.6
44.84°C
0.996
12.022V
5.01V
3.315V
5.023V
1204.791
59.67°C
114.7V
100%
92.344A
8.984A
8.966A
2.997A
1199.33
88.627%
1929
42.8
45.72°C
0.996
12.016V
5.009V
3.312V
5.005V
1353.236
62.73°C
114.65V
110%
101.716A
9.985A
10.063A
3.001A
1319.927
87.536%
1931
42.8
46.04°C
0.996
12.010V
5.007V
3.309V
4.999V
1507.861
66.45°C
114.6V
CL1
0.116A
11.987A
11.893A
0A
101.294
82.767%
811
24.1
40.85°C
0.975
12.060V
5.022V
3.338V
5.106V
122.388
48.28°C
115.07V
CL2
0.115A
19.912A
0A
0A
101.379
82.053%
817
21.8
41.17°C
0.976
12.063V
5.022V
3.346V
5.111V
123.555
49.43°C
115.07V
CL3
0.115A
0A
19.793A
0A
67.379
76.108%
815
25
41.1°C
0.966
12.060V
5.029V
3.334V
5.106V
88.532
48.92°C
115.08V
CL4
99.827A
0A
0A
0A
1199.896
89.15%
1934
42.8
45.57°C
0.996
12.020V
5.015V
3.319V
5.072V
1345.938
63.62°C
114.66V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.158A
1.99A
1.974A
0.982A
119.993
88.608%
0
<6.0
50.79°C
0.881
12.061V
5.027V
3.343V
5.092V
135.424
40.19°C
230.3V
20%
17.340A
2.985A
2.964A
1.18A
239.955
92.635%
0
<6.0
52.05°C
0.953
12.056V
5.026V
3.34V
5.083V
259.033
40.51°C
230.28V
30%
26.812A
3.483A
3.461A
1.379A
359.169
93.75%
985
26.4
41.36°C
0.977
12.051V
5.025V
3.337V
5.075V
383.115
56.23°C
230.26V
40%
36.387A
3.983A
3.96A
1.579A
479.54
94.001%
839
22.9
41.9°C
0.983
12.047V
5.022V
3.333V
5.066V
510.147
52.03°C
230.24V
50%
45.571A
4.981A
4.956A
1.78A
599.289
94.089%
984
26.4
42.22°C
0.988
12.042V
5.02V
3.33V
5.056V
636.934
53.26°C
230.22V
60%
54.831A
5.979A
5.953A
1.982A
719.803
93.896%
1165
29.3
42.91°C
0.988
12.037V
5.019V
3.326V
5.047V
766.605
52.98°C
230.19V
70%
64.029A
6.978A
6.953A
2.184A
839.527
93.574%
1349
33.7
43.17°C
0.988
12.032V
5.017V
3.323V
5.038V
897.18
53.69°C
230.17V
80%
73.305A
7.975A
7.954A
2.286A
959.508
92.961%
1612
38.2
43.71°C
0.987
12.027V
5.015V
3.319V
5.03V
1032.155
53.25°C
230.15V
90%
82.915A
8.476A
8.444A
2.389A
1079.31
92.49%
1804
41.4
44.04°C
0.987
12.022V
5.014V
3.316V
5.023V
1166.953
53.48°C
230.12V
100%
92.343A
8.976A
8.966A
2.997A
1199.333
91.982%
1929
42.8
45.9°C
0.986
12.016V
5.013V
3.312V
5.005V
1303.874
56.67°C
230.1V
110%
101.715A
9.979A
10.063A
3.001A
1319.93
91.395%
1935
42.8
46.61°C
0.986
12.010V
5.01V
3.309V
4.999V
1444.203
58.42°C
230.08V
CL1
0.116A
11.978A
11.893A
0A
101.301
82.849%
844
22.9
40.03°C
0.865
12.059V
5.025V
3.338V
5.107V
122.276
49.64°C
230.29V
CL2
0.116A
19.892A
0A
0A
101.386
82.472%
825
21.8
40.74°C
0.866
12.062V
5.027V
3.346V
5.111V
122.933
48.81°C
230.29V
CL3
0.115A
0A
19.794A
0A
67.382
76.529%
809
24.1
40.66°C
0.794
12.059V
5.029V
3.334V
5.106V
88.047
46.25°C
230.3V
CL4
99.821A
0A
0A
0A
1199.875
92.43%
1936
42.8
45.28°C
0.986
12.020V
5.015V
3.319V
5.071V
1298.143
54.95°C
230.11V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.497A
0.493A
0.196A
19.998
71.547%
0
<6.0
43.26°C
0.82
12.068V
5.027V
3.346V
5.111V
27.954
36.42°C
115.11V
40W
2.709A
0.696A
0.691A
0.294A
39.998
75.514%
0
<6.0
45.44°C
0.93
12.066V
5.027V
3.345V
5.109V
52.966
37.88°C
115.1V
60W
4.188A
0.895A
0.888A
0.392A
59.998
81.597%
0
<6.0
47.41°C
0.953
12.065V
5.027V
3.345V
5.106V
73.528
38.62°C
115.09V
80W
5.662A
1.094A
1.085A
0.49A
79.939
84.769%
0
<6.0
47.87°C
0.97
12.064V
5.027V
3.344V
5.104V
94.302
39.36°C
115.09V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.497A
0.493A
0.196A
20
70.714%
0
<6.0
44.33°C
0.457
12.067V
5.026V
3.346V
5.111V
28.282
36.15°C
230.3V
40W
2.710A
0.696A
0.691A
0.294A
39.999
75.839%
0
<6.0
43.75°C
0.651
12.066V
5.026V
3.345V
5.109V
52.742
37.11°C
230.3V
60W
4.188A
0.895A
0.888A
0.392A
59.999
81.661%
0
<6.0
48.31°C
0.742
12.065V
5.026V
3.345V
5.106V
73.475
38.98°C
230.3V
80W
5.663A
1.094A
1.085A
0.49A
79.943
85.262%
0
<6.0
46.97°C
0.81
12.063V
5.027V
3.344V
5.104V
93.762
39.01°C
230.3V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
18.06mV
23.15mV
20.36mV
16.42mV
Pass
20% Load
20.31mV
22.53mV
19.59mV
17.08mV
Pass
30% Load
20.31mV
21.77mV
19.54mV
17.39mV
Pass
40% Load
20.51mV
20.33mV
18.11mV
18.36mV
Pass
50% Load
23.99mV
20.03mV
19.03mV
16.73mV
Pass
60% Load
23.64mV
22.79mV
19.44mV
18.16mV
Pass
70% Load
24.25mV
33.82mV
27.73mV
20.67mV
Pass
80% Load
27.27mV
45.57mV
33.66mV
20.20mV
Pass
90% Load
28.80mV
38.37mV
36.01mV
19.13mV
Pass
100% Load
32.13mV
34.94mV
28.70mV
20.41mV
Pass
110% Load
35.61mV
31.01mV
27.21mV
20.77mV
Pass
Crossload1
24.56mV
37.14mV
24.96mV
21.53mV
Pass
Crossload2
22.67mV
30.40mV
21.38mV
20.92mV
Pass
Crossload3
23.07mV
22.99mV
20.82mV
20.72mV
Pass
Crossload4
29.42mV
29.12mV
26.24mV
20.61mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
18.88mV
22.79mV
18.82mV
16.88mV
Pass
20% Load
19.29mV
24.57mV
21.23mV
17.03mV
Pass
30% Load
21.95mV
22.84mV
20.77mV
19.69mV
Pass
40% Load
20.92mV
22.38mV
19.34mV
18.46mV
Pass
50% Load
22.56mV
21.87mV
19.64mV
18.31mV
Pass
60% Load
24.40mV
21.76mV
21.23mV
18.16mV
Pass
70% Load
23.64mV
40.06mV
29.62mV
18.88mV
Pass
80% Load
27.06mV
46.24mV
35.14mV
18.82mV
Pass
90% Load
29.93mV
43.22mV
36.37mV
20.31mV
Pass
100% Load
31.51mV
34.49mV
33.81mV
19.85mV
Pass
110% Load
33.46mV
28.20mV
27.11mV
20.77mV
Pass
Crossload1
23.64mV
39.75mV
25.32mV
20.36mV
Pass
Crossload2
23.58mV
32.34mV
20.92mV
19.85mV
Pass
Crossload3
24.66mV
22.17mV
20.77mV
21.23mV
Pass
Crossload4
31.16mV
32.34mV
27.73mV
21.79mV
Pass
The results above are not used in the certification process

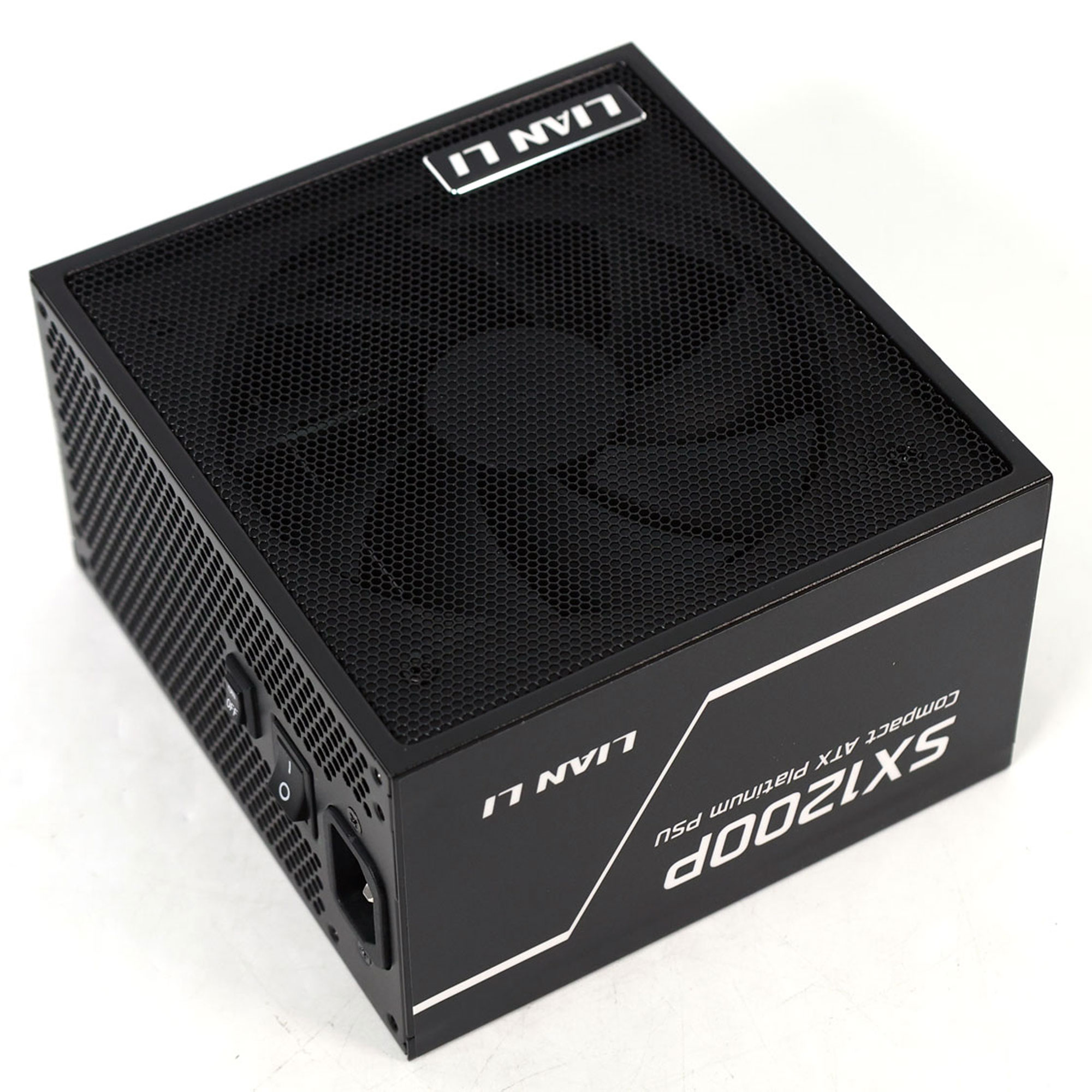

Lian Li SX1200P
Top side

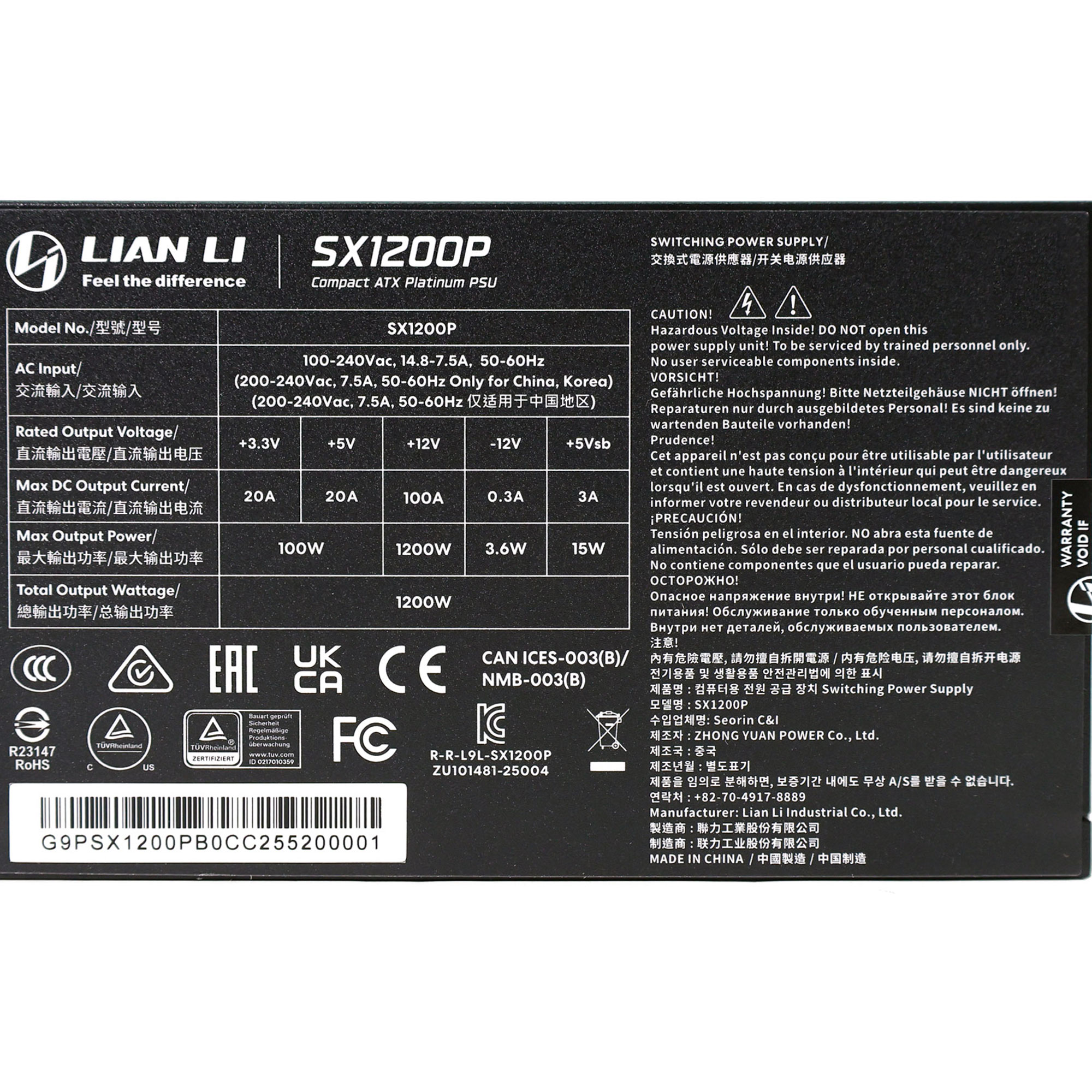

Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
