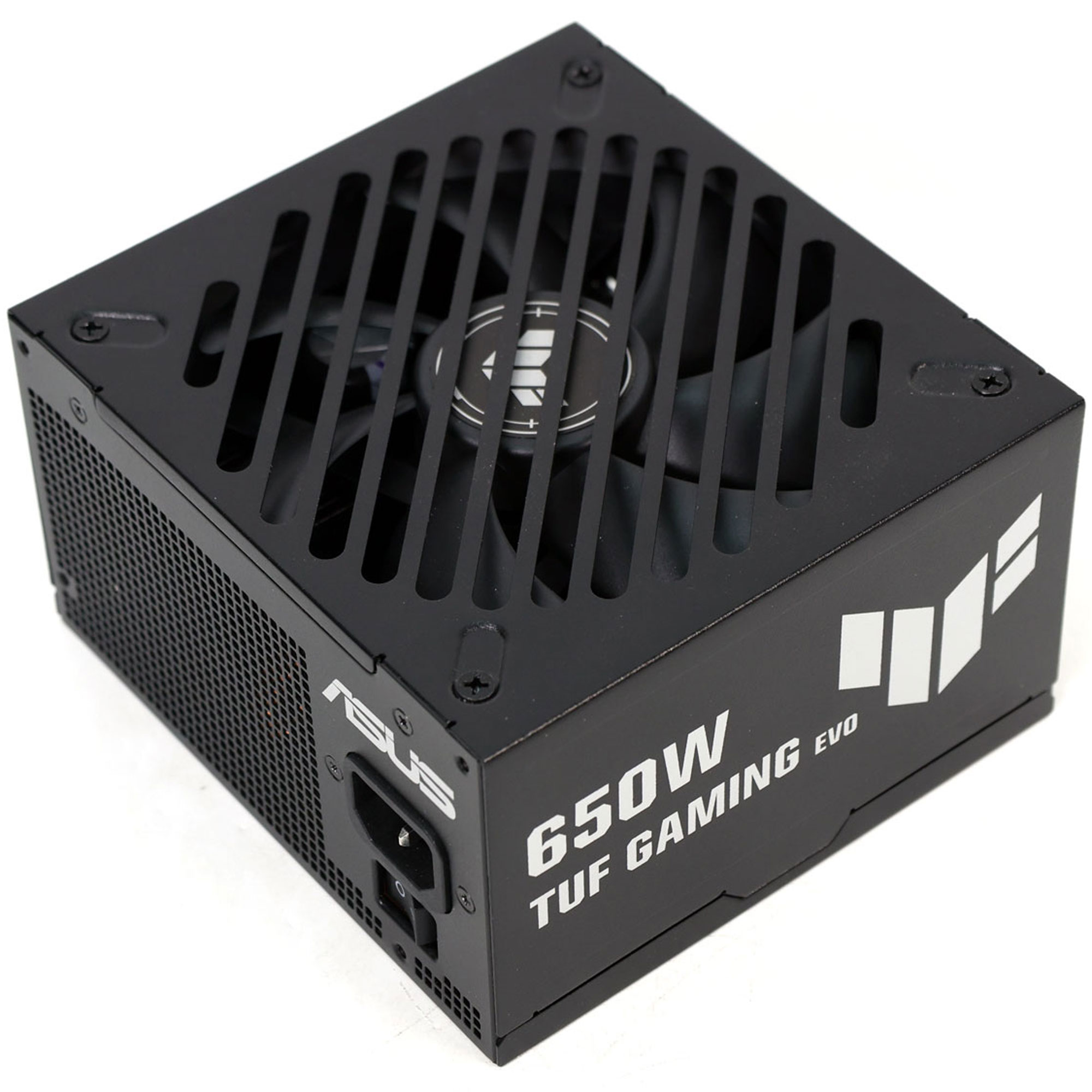

Asus TUF Gaming 650W Gold EVO
Serial Number2P114194529
Lab IDAS65003164
Certification ID263164
  • Test Result Report ID: 26PS3164A
  • Certificate Issue Date: Feb 6, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Great Wall
SeriesTUF GAMING EVO
Model NumberTUF-GAMING-650G-EVO
Serial Number2P114194529
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-10
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)150 x 85 x 150mm

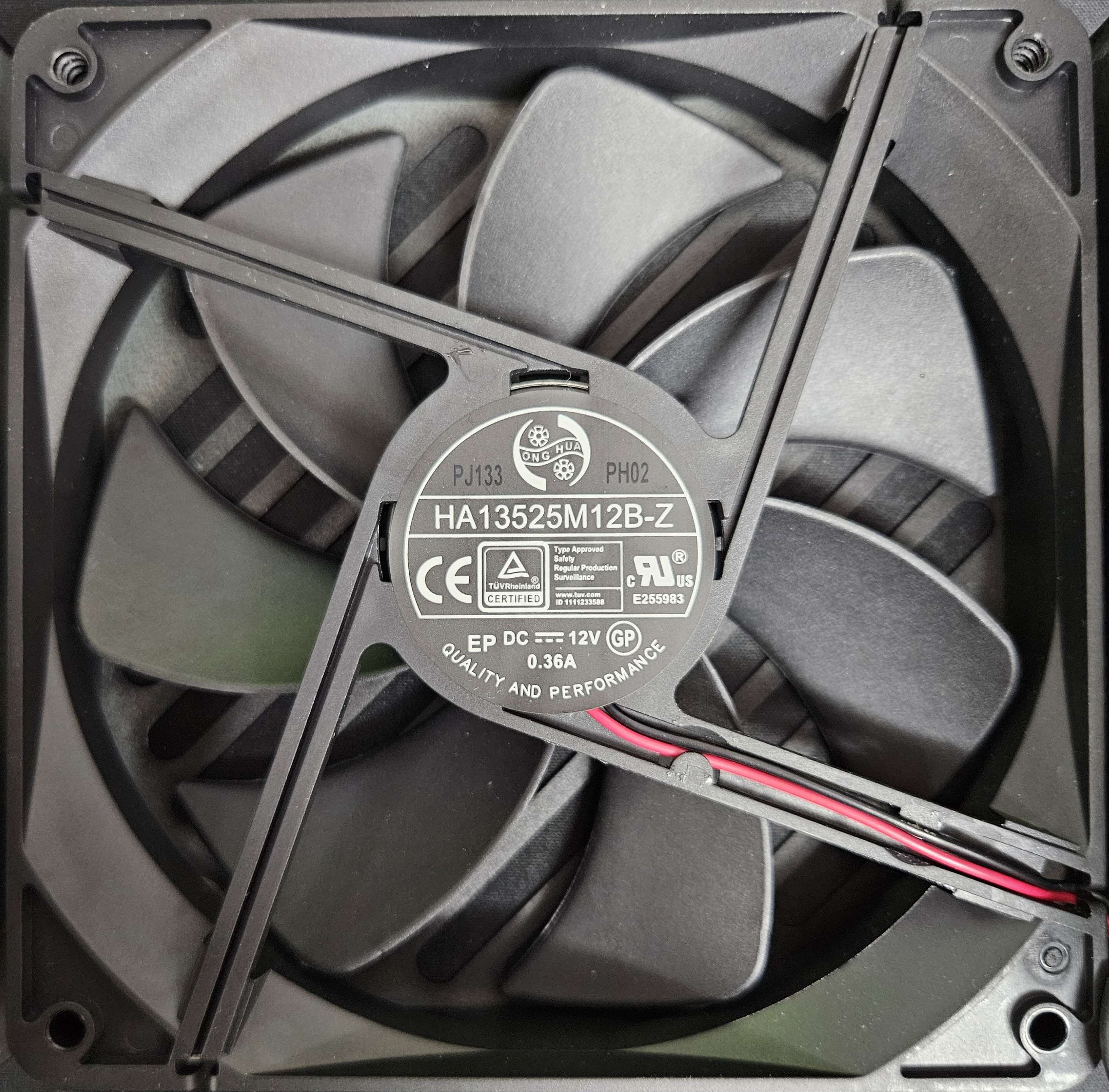

Cooling135mm Ball Bearing Fan (HA13525M12B-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.1630.3
Watts110650153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (500mm) 1 1 18AWG Tinned Copper
4+4 pin EPS12V (650mm+100mm) 1 2 18AWG Tinned Copper
6+2 pin PCIe (500mm) 1 1 18AWG Tinned Copper
12+4 pin PCIe (500mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (400mm+115mm) / 4-pin Molex (+115mm) 2 4 / 2 18AWG Tinned Copper

Parts Description

General Data
Manufacturer (OEM) Great Wall
PCB Type Double-Sided

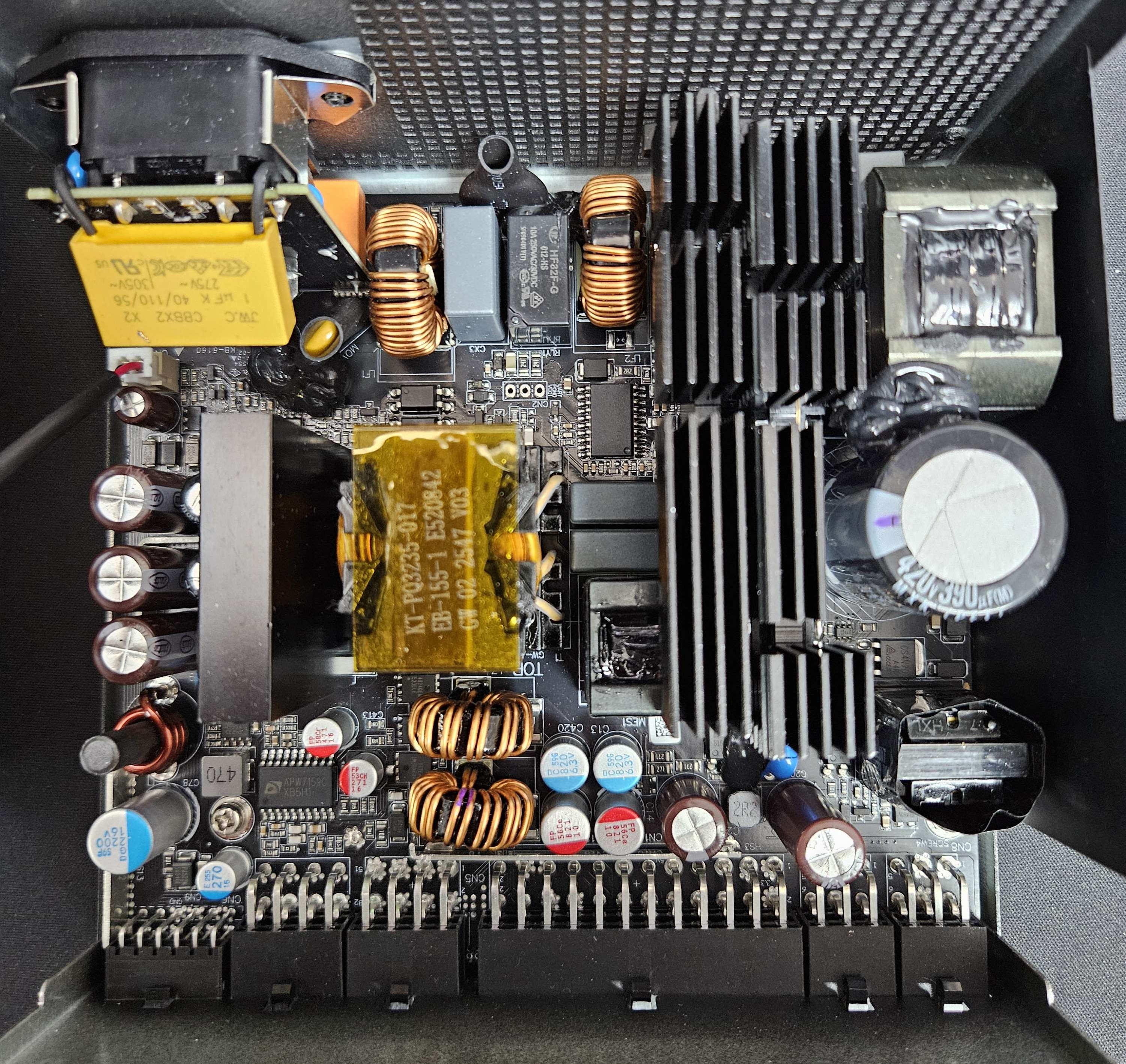

Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-056 (5 Ohm @ 20°C) & Relay
Bridge Rectifier
1x LRC GBU20K (800V, 20A @ 100°C)
APFC MOSFETs
1x CRMICRO CRJQ69N60G2 (600V, 25A @ 100°C, Rds(on): 73mOhm)
APFC Boost Diode
1x SMC S3D06065I (650V, 36A @ 125°C)
Bulk Cap(s)
1x Rubycon (420V, 390uF, 3,000h @ 105°C, MXK)
Main Switchers
2x STMicroelectronics STF33N60DM2 (600V, 15.5A @ 100°C, Rds(on): 0.130hm)
Combo APFC/Resonant Controller
MPS HR1280
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4x ONSEMI NTMFS5C430NL (40V, 140A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x AP4024GEMT-HF (30V, 60A @ 25°C, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
4x Elite (5000 @ 105°C, EJ)
1x Elite (4000 @ 105°C, EK)
1x Elite (3000 @ 105°C, ED)
1x Lelon (3000 @ 105°C, RXJ)
1x Rubycon (6000 @ 105°C, ZLH)
Polymer:
4x FPCap, 2x Elite, 3x Nippon Chemi-Con
Supervision Circuitry BCD AS358M dual operational amplifier
Fan Control Circuit Regulator NDP NDP5201KC
Fan Model Hong Hua HA13525M12B-Z (135mm, 12V, 0.36A, Dual Ball Bearing Fan)
5VSB Circuit
Rectifier
CS4N70(700V, 3.2A @ 100°C, Rds(on): 2.8mOhm)
Diodes Incorporated SDT8A60VP5 (60V, 8A)
Standby PWM Controller
Lendtrend LD5537E1

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.772%
Average Noise Output (>1450 Load Combinations)34.40dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load71.009%
Standby Power Consumption0.0465W
12V Ripple (Full Load)30.21mV
5V Ripple (Full Load)26.29mV
3.3V Ripple (Full Load)22.19mV
5VSB Ripple (Full Load)13.50mV
12V Load Regulation1.24%
5V Load Regulation1.33%
3.3V Load Regulation2.62%
5VSB Load Regulation2.76%
Inrush Current16.780A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.134%
Average Noise Output (>1450 Load Combinations)33.53dBA
Average PF (>1450 Load Combinations)0.962
Efficiency With 10W (≤500W) or 2% (>500W) Load73.364%
Standby Power Consumption0.1491W
12V Ripple (Full Load)29.24mV
5V Ripple (Full Load)27.75mV
3.3V Ripple (Full Load)22.27mV
5VSB Ripple (Full Load)13.90mV
12V Load Regulation1.25%
5V Load Regulation1.27%
3.3V Load Regulation3.16%
5VSB Load Regulation2.74%
Inrush Current40.300A
12V Transient Response (200%)11.48V
5V Transient Response (200%)4.997V
3.3V Transient Response (200%)3.181V
5VSB Transient Response (200%)5.077V
Hold-Up Time & Power Ok Signal19.20ms
AC Loss to PWR_OK Hold Up Time17.50ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)64.0ms61.0ms
PSU Timings: T3 (20% / 100%)125.0ms125.0ms
12V OCP (27.8°C / 43.2°C)70.00A (129.25%), 11.987V67.80A (125.18%), 11.987V
5V OCP (27.8°C / 43.2°C)28A (140.00%), 5.078V27.1A (135.50%), 5.082V
3.3V OCP (27.8°C / 43.2°C)27.9A (139.50%), 3.248V27.1A (135.50%), 3.262V
5VSB OCP (27.8°C / 43.2°C)4.1A (136.67%), 5.073V4.1A (136.67%), 5.073V
OPP (27.83°C / 41.65°C)127.24%123.99%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.2
AC Loss to PWR_OK Hold Up Time (ms)17.5
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.047 W 0.014 W N/A 0.076 W N/A N/A
Apparent Power: 13.522 W 13.503 W N/A 13.544 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.12 V 230.09 V 227.70 V 230.14 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.149 W 0.113 W N/A 0.191 W N/A N/A
Apparent Power: 44.669 W 44.637 W N/A 44.702 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

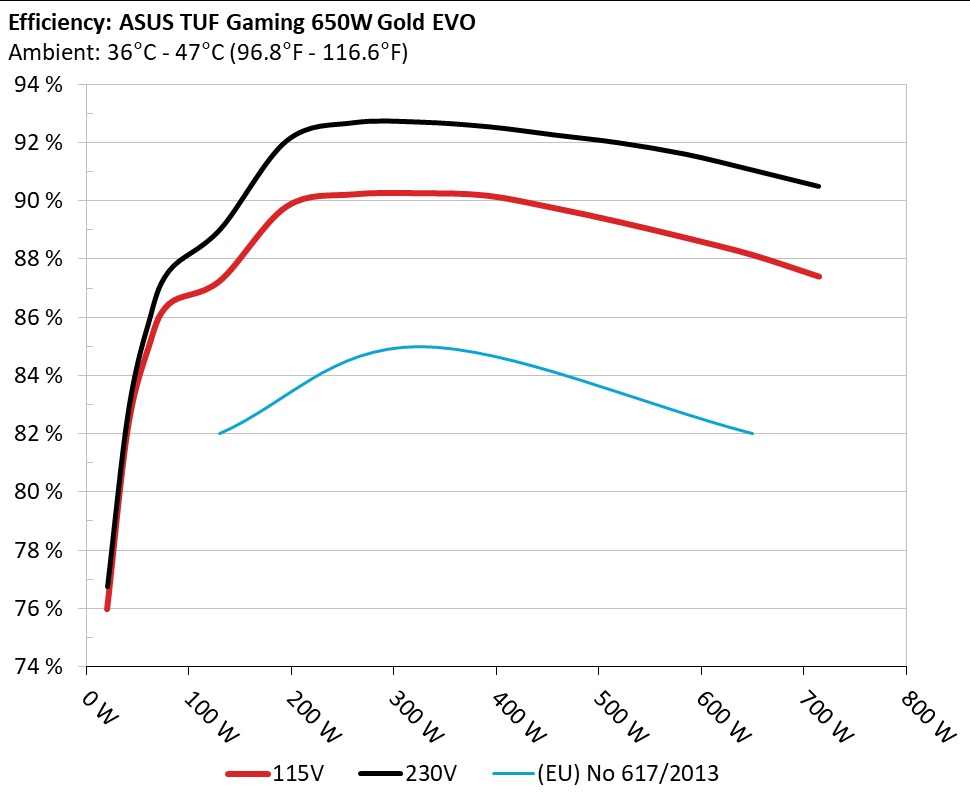

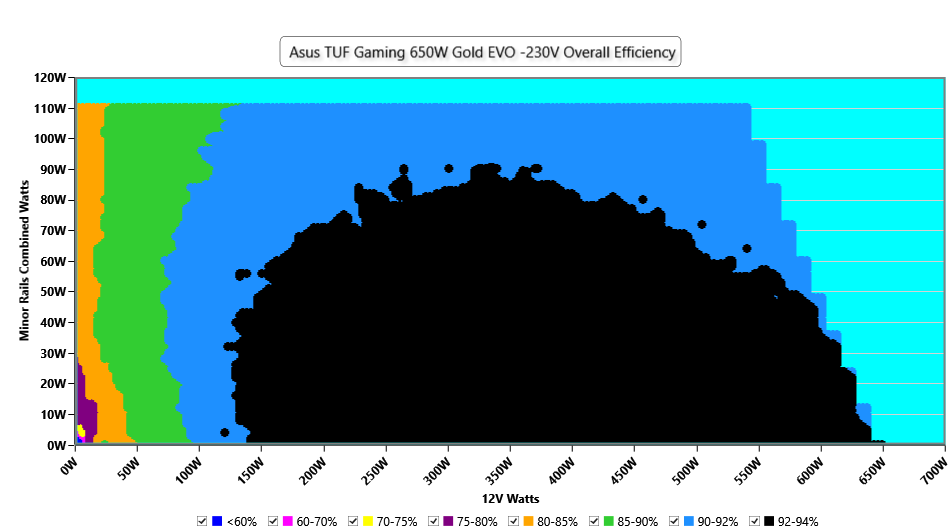

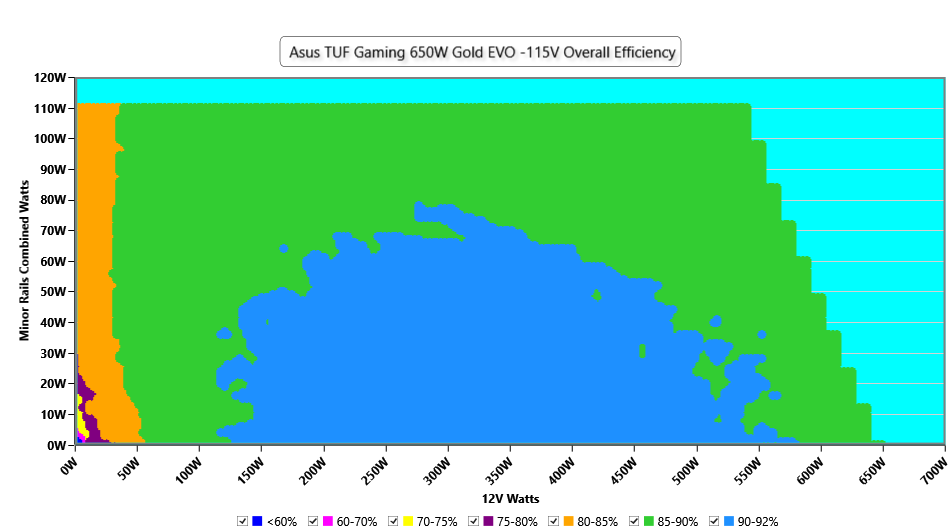

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

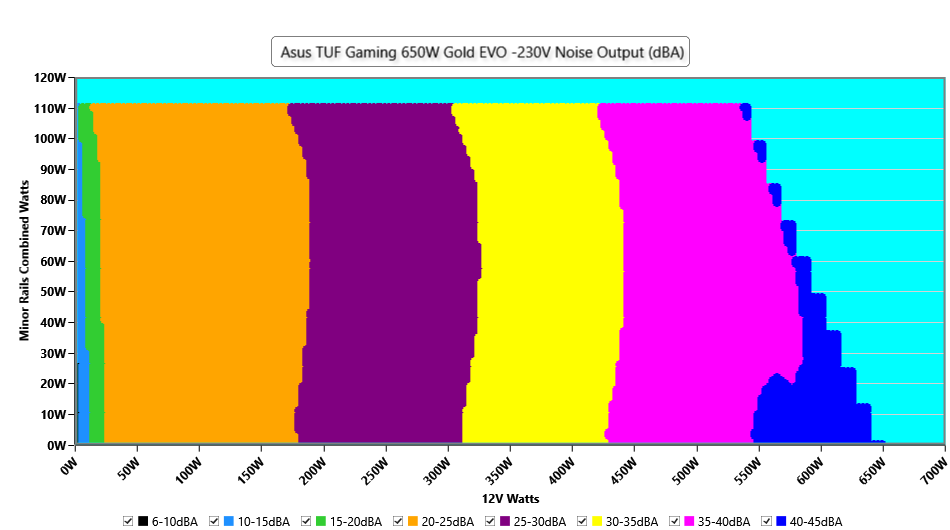

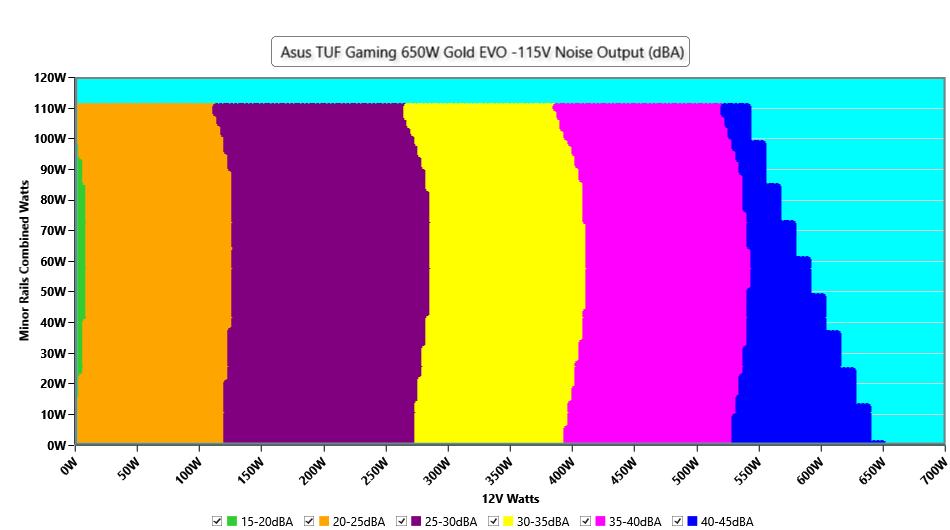

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

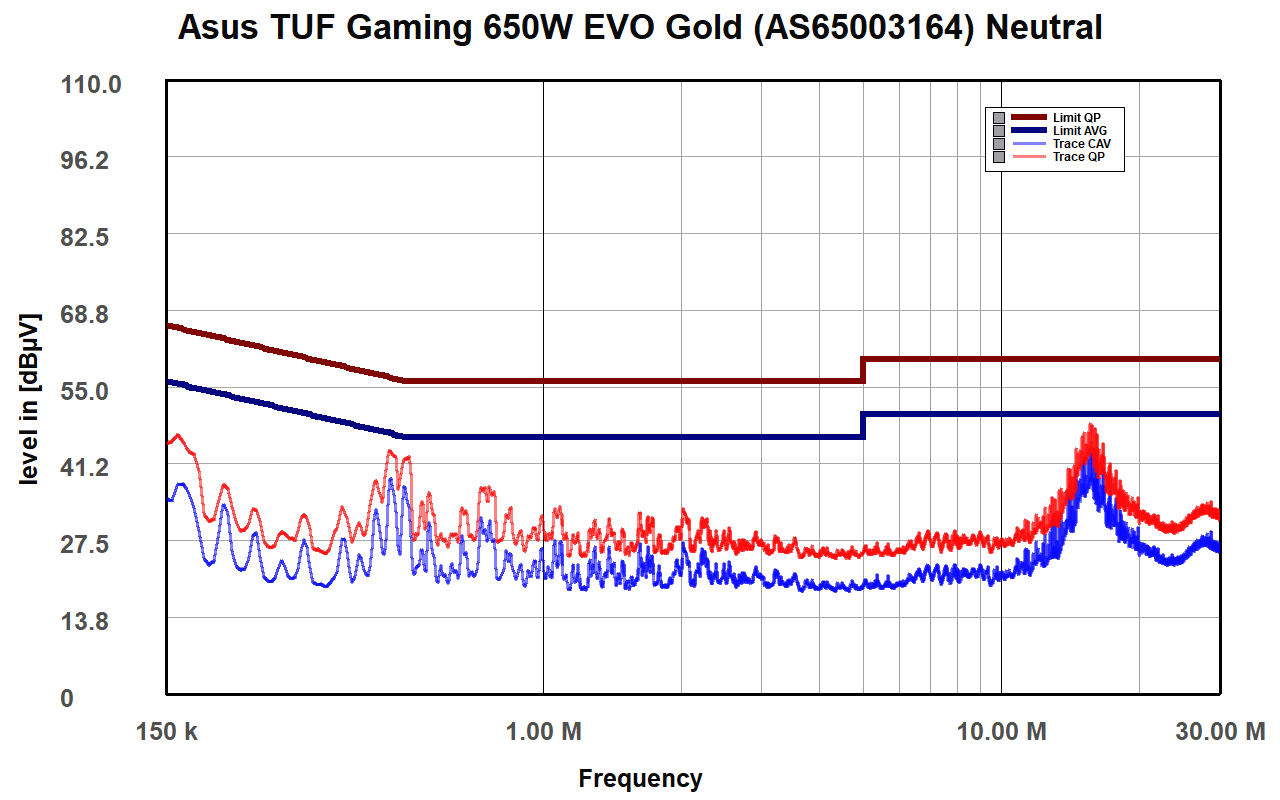

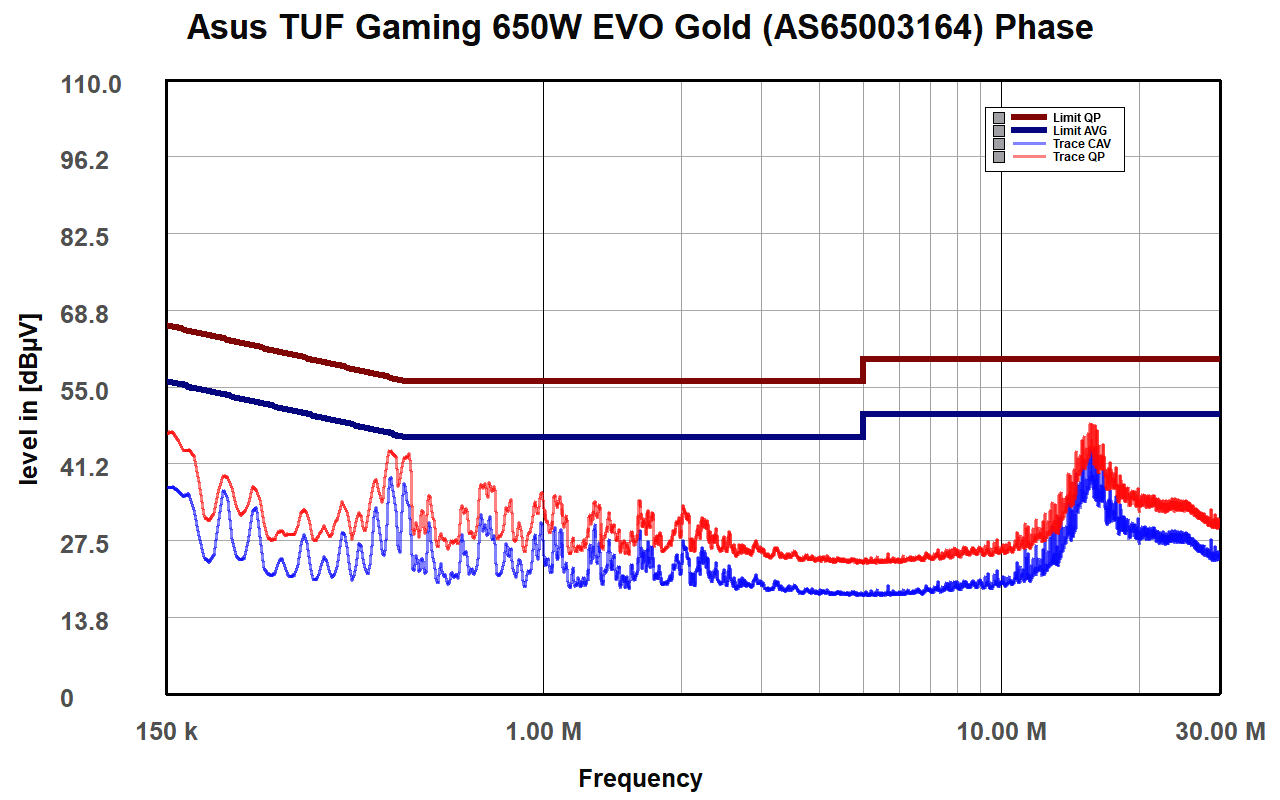

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

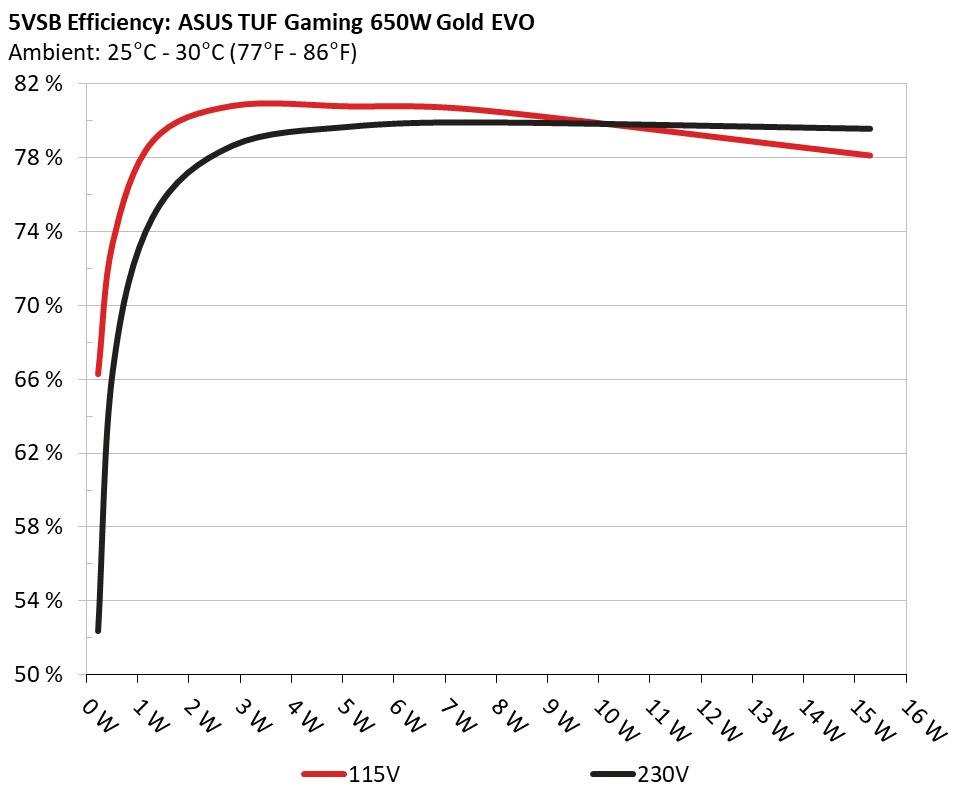

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234W 66.294% 0.027
5.185V 0.353W 114.94V
2 0.09A 0.467W 73.249% 0.048
5.183V 0.638W 114.94V
3 0.55A 2.844W 80.801% 0.222
5.169V 3.519W 114.95V
4 1A 5.158W 80.775% 0.325
5.156V 6.385W 114.94V
5 1.5A 7.714W 80.57% 0.387
5.141V 9.575W 114.94V
6 3.001A 15.294W 78.121% 0.475
5.097V 19.575W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 52.384% 0.01
5.184V 0.447W 230.04V
2 0.09A 0.467W 64.712% 0.016
5.183V 0.723W 230.05V
3 0.55A 2.844W 78.63% 0.079
5.169V 3.619W 230.05V
4 1A 5.158W 79.67% 0.135
5.156V 6.471W 230.05V
5 1.5A 7.714W 79.902% 0.188
5.141V 9.659W 230.05V
6 3.001A 15.295W 79.557% 0.298
5.098V 19.226W 230.05V

Protection Features

OCP (Normal @ 27.8°C)12V: 70.00A (129.25%), 11.987V
5V: 28A (140.00%), 5.078V
3.3V: 27.9A (139.50%), 3.248V
5VSB: 4.1A (136.67%), 5.073V
OCP (Hot @ 43.2°C)12V: 67.80A (125.18%), 11.987V
5V: 27.1A (135.50%), 5.082V
3.3V: 27.1A (135.50%), 3.262V
5VSB: 4.1A (136.67%), 5.073V
OPP (Normal @ 27.8°C)827.03W (127.24%)
OPP (Hot @ 41.6°C)805.93W (123.99%)
OTP✓ (93°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.576A 1.956A 1.995A 0.971A 65.012 84.334% 1116 35.4 40.33°C 0.923
12.139V 5.113V 3.309V 5.152V 77.085 43.44°C 114.93V
20% 8.171A 2.939A 3.001A 1.168A 129.97 87.249% 1200 37.9 40.69°C 0.956
12.124V 5.106V 3.299V 5.139V 148.826 45.54°C 114.83V
30% 13.126A 3.433A 3.509A 1.366A 194.979 89.802% 1198 37.9 41.26°C 0.973
12.108V 5.099V 3.292V 5.128V 217.144 45.34°C 114.91V
40% 18.100A 3.928A 4.02A 1.564A 260.072 90.224% 1285 40 41.81°C 0.98
12.092V 5.093V 3.284V 5.116V 288.242 48.1°C 114.91V
50% 22.734A 4.917A 5.039A 1.764A 325.075 90.263% 1357 41.3 42.43°C 0.988
12.077V 5.086V 3.275V 5.103V 360.134 48.64°C 114.89V
60% 27.348A 5.909A 6.065A 1.965A 389.662 90.185% 1384 41.7 42.58°C 0.992
12.061V 5.079V 3.265V 5.09V 432.076 49.14°C 114.86V
70% 32.034A 6.904A 7.097A 2.167A 454.986 89.763% 1454 43.4 43.11°C 0.995
12.045V 5.071V 3.256V 5.077V 506.857 50.41°C 114.85V
80% 36.732A 7.9A 8.133A 2.27A 519.789 89.273% 1525 44.7 43.63°C 0.996
12.030V 5.064V 3.246V 5.067V 582.238 52.57°C 114.84V
90% 41.846A 8.405A 8.646A 2.373A 585.22 88.726% 1577 46.6 44.15°C 0.997
12.013V 5.057V 3.239V 5.057V 659.556 53.33°C 114.82V
100% 46.707A 8.911A 9.195A 2.98A 650.062 88.139% 1628 46.1 45.67°C 0.997
11.997V 5.051V 3.23V 5.034V 737.552 55.87°C 114.81V
110% 51.454A 9.916A 10.34A 2.985A 714.704 87.397% 1691 46.7 46.79°C 0.998
11.979V 5.043V 3.22V 5.026V 817.739 58.57°C 114.79V
CL1 0.116A 13.005A 13.381A 0A 111.316 81.621% 1403 42 40.97°C 0.954
12.127V 5.091V 3.266V 5.159V 136.141 49.32°C 114.74V
CL2 0.115A 19.63A 0A 0A 101.406 80.262% 1321 40.4 40.91°C 0.952
12.136V 5.094V 3.306V 5.167V 126.121 47.53°C 114.74V
CL3 0.115A 0.001A 20.261A 0A 67.404 74.01% 1281 40 42.1°C 0.934
12.134V 5.104V 3.257V 5.165V 91.09 47.79°C 114.92V
CL4 54.171A 0A 0A 0A 649.861 89.186% 1607 46.6 45.65°C 0.997
11.996V 5.07V 3.265V 5.128V 728.729 54.15°C 114.79V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.576A 1.957A 1.995A 0.971A 65.015 85.191% 1094 34.9 40.5°C 0.816
12.139V 5.113V 3.308V 5.152V 76.322 41.99°C 230.03V
20% 8.172A 2.939A 3.002A 1.168A 129.978 89.005% 1165 37.6 40.58°C 0.93
12.123V 5.105V 3.299V 5.139V 146.03 43.36°C 230.02V
30% 13.127A 3.433A 3.51A 1.366A 194.987 92.053% 1197 37.9 41.33°C 0.96
12.107V 5.099V 3.291V 5.127V 211.842 44.89°C 230.01V
40% 18.102A 3.929A 4.021A 1.564A 260.08 92.672% 1227 38.4 41.65°C 0.973
12.091V 5.092V 3.283V 5.116V 280.653 44.46°C 230.01V
50% 22.739A 4.918A 5.041A 1.764A 325.08 92.694% 1322 40.4 42.43°C 0.98
12.075V 5.085V 3.273V 5.103V 350.714 47.21°C 230.01V
60% 27.529A 6.001A 6A 2.001A 392.185 92.535% 1364 41.3 42.78°C 0.985
12.058V 5.077V 3.264V 5.089V 423.819 46.64°C 230V
70% 32.171A 7.002A 7A 2.201A 456.855 92.252% 1463 43.4 43.09°C 0.988
12.042V 5.07V 3.254V 5.076V 495.205 50.32°C 230V
80% 36.725A 7.899A 8.175A 2.269A 519.782 91.982% 1426 42.9 43.95°C 0.99
12.032V 5.065V 3.23V 5.069V 565.058 46.39°C 229.98V
90% 41.842A 8.401A 8.691A 2.372A 585.238 91.588% 1542 45.9 44.8°C 0.991
12.015V 5.06V 3.222V 5.059V 639.007 48.11°C 229.98V
100% 46.708A 8.906A 9.243A 2.979A 650.096 91.048% 1622 46.5 45.59°C 0.993
11.997V 5.054V 3.213V 5.036V 714.012 50.71°C 229.96V
110% 51.458A 9.909A 10.394A 2.984A 714.753 90.486% 1672 46.2 46.69°C 0.995
11.979V 5.047V 3.204V 5.028V 789.897 51.5°C 229.96V
CL1 0.116A 13.005A 13.446A 0A 111.321 83.386% 1360 41.3 40.74°C 0.92
12.130V 5.091V 3.25V 5.159V 133.495 45.26°C 230.03V
CL2 0.116A 19.629A 0A 0A 101.409 81.74% 1294 40 40.62°C 0.907
12.138V 5.095V 3.306V 5.167V 124.072 44.57°C 230.03V
CL3 0.115A 0.001A 20.3A 0A 67.406 74.366% 1242 39.2 41.44°C 0.855
12.137V 5.104V 3.251V 5.165V 90.66 44.98°C 230.03V
CL4 54.181A 0A 0A 0A 649.877 92.093% 1582 46.6 45.31°C 0.992
11.994V 5.073V 3.268V 5.129V 705.643 48.98°C 229.96V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.488A 0.497A 0.193A 20.012 75.968% 797 25.3 36.39°C 0.777
12.148V 5.119V 3.317V 5.177V 26.361 38.11°C 114.94V
40W 2.692A 0.684A 0.697A 0.29A 40.008 82.13% 985 31.8 37.12°C 0.877
12.144V 5.118V 3.315V 5.173V 48.722 41.56°C 114.93V
60W 4.163A 0.88A 0.896A 0.387A 60.007 84.917% 1039 33.2 38.22°C 0.918
12.139V 5.117V 3.313V 5.169V 70.672 41.86°C 114.93V
80W 5.631A 1.076A 1.097A 0.484A 79.975 86.448% 1089 34.8 39.34°C 0.935
12.135V 5.114V 3.311V 5.165V 92.52 43.57°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.488A 0.497A 0.193A 20.012 76.736% 880 28.3 36.63°C 0.425
12.149V 5.119V 3.318V 5.178V 26.132 37.98°C 230.03V
40W 2.692A 0.684A 0.697A 0.29A 40.009 82.683% 919 29.8 37.97°C 0.654
12.145V 5.117V 3.315V 5.173V 48.387 38.77°C 230.03V
60W 4.163A 0.88A 0.897A 0.387A 60.008 85.786% 957 30.8 38.72°C 0.789
12.140V 5.115V 3.313V 5.169V 69.957 39.43°C 230.03V
80W 5.632A 1.076A 1.097A 0.484A 79.981 87.576% 1028 33.1 39.41°C 0.858
12.135V 5.113V 3.31V 5.164V 91.338 41.54°C 230.02V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load24.47mV17.95mV11.34mV9.99mVPass
20% Load36.84mV18.88mV12.05mV10.39mVPass
30% Load17.86mV18.77mV11.75mV10.70mVPass
40% Load20.25mV18.97mV12.36mV10.04mVPass
50% Load24.73mV18.92mV12.36mV10.54mVPass
60% Load26.97mV20.40mV13.07mV11.00mVPass
70% Load31.29mV20.71mV14.34mV10.24mVPass
80% Load33.43mV25.20mV20.45mV12.89mVPass
90% Load41.06mV27.85mV22.74mV13.50mVPass
100% Load30.21mV26.29mV22.19mV13.50mVPass
110% Load34.41mV28.00mV23.33mV14.12mVPass
Crossload117.26mV29.20mV23.08mV13.01mVPass
Crossload236.38mV34.68mV13.78mV11.92mVPass
Crossload332.41mV19.89mV29.70mV12.13mVPass
Crossload430.91mV16.91mV12.59mV11.70mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load24.22mV18.82mV11.29mV10.09mVPass
20% Load26.66mV19.39mV12.11mV9.93mVPass
30% Load14.20mV18.82mV11.39mV11.11mVPass
40% Load16.64mV18.31mV12.05mV10.14mVPass
50% Load18.01mV18.82mV12.05mV9.68mVPass
60% Load20.46mV19.54mV16.68mV10.39mVPass
70% Load22.18mV21.12mV17.34mV10.29mVPass
80% Load25.95mV22.24mV19.89mV12.74mVPass
90% Load30.07mV27.49mV20.60mV13.96mVPass
100% Load29.24mV27.75mV22.27mV13.90mVPass
110% Load32.24mV27.88mV23.49mV14.27mVPass
Crossload128.15mV28.92mV24.47mV13.13mVPass
Crossload234.50mV34.63mV14.39mV12.63mVPass
Crossload332.16mV18.67mV28.18mV12.28mVPass
Crossload426.62mV17.68mV12.67mV11.51mVPass

The results above are not used in the certification process

Asus TUF Gaming 650W Gold EVO

Top side

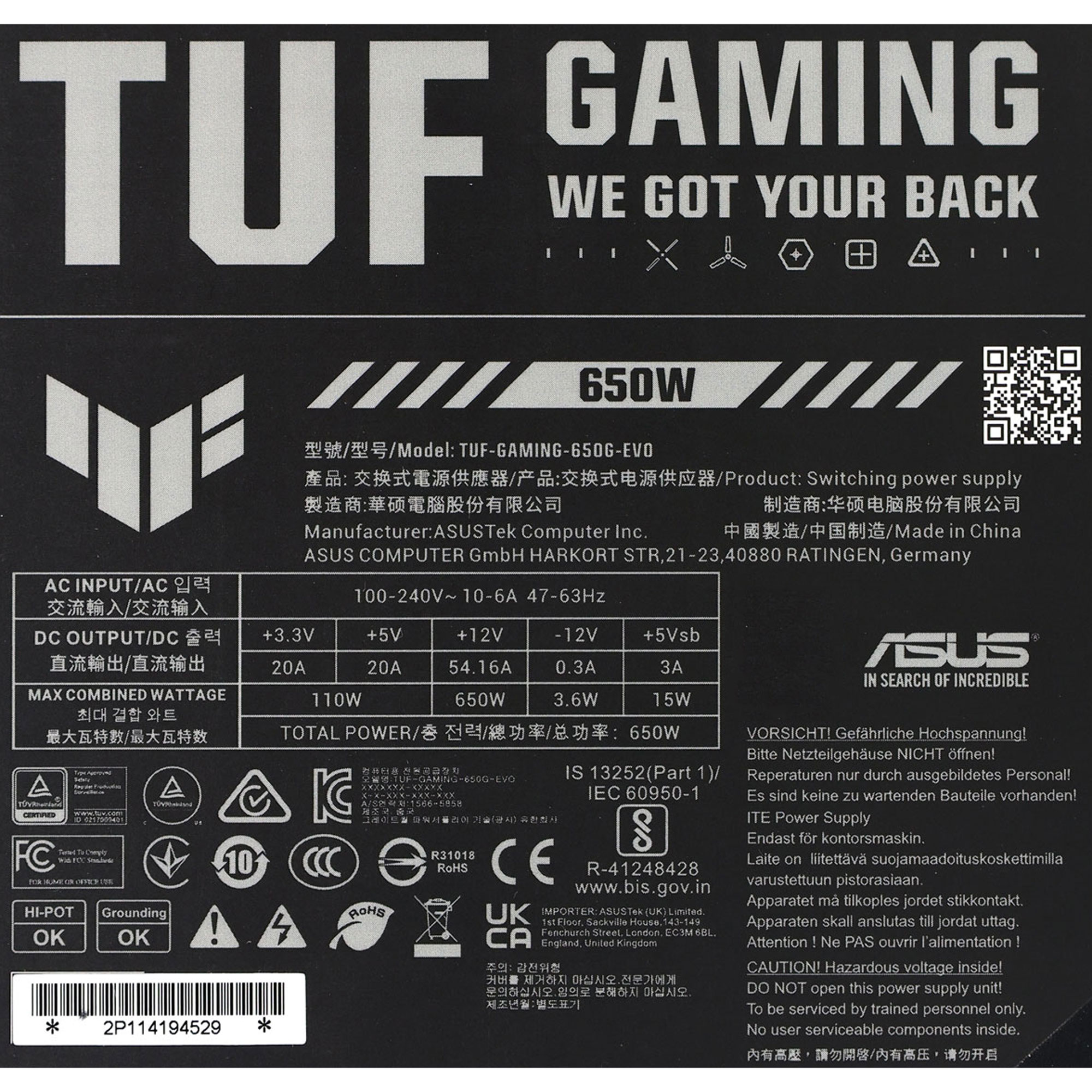

Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
