Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (600mm)
1
1
16AWG
Tinned Copper
4+4 pin EPS12V (700mm)
2
2
16AWG
Tinned Copper
2x 6+2 pin PCIe (550mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (550mm)
3
3
16AWG
Tinned Copper
12+4 pin PCIe (600mm) (600W)
1
1
16-24AWG
Tinned Copper
SATA (450mm+155mm+155mm+155mm)
2
8
18AWG
Tinned Copper
4-pin Molex (450mm+150mm+150mm+150mm)
1
4
18AWG
Tinned Copper
AC Power Cord (1410mm) - C13 coupler
1
1
16AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
90.716%
Average Noise Output (>1450 Load Combinations)
32.88dBA
Average PF (>1450 Load Combinations)
0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load
75.220%
Standby Power Consumption
0.0339W
12V Ripple (Full Load)
31.15mV
5V Ripple (Full Load)
34.50mV
3.3V Ripple (Full Load)
29.46mV
5VSB Ripple (Full Load)
15.15mV
12V Load Regulation
0.25%
5V Load Regulation
0.26%
3.3V Load Regulation
0.87%
5VSB Load Regulation
2.33%
Inrush Current
19.720A
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
92.544%
Average Noise Output (>1450 Load Combinations)
31.88dBA
Average PF (>1450 Load Combinations)
0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load
74.557%
Standby Power Consumption
0.1041W
12V Ripple (Full Load)
25.46mV
5V Ripple (Full Load)
39.50mV
3.3V Ripple (Full Load)
29.73mV
5VSB Ripple (Full Load)
14.83mV
12V Load Regulation
0.22%
5V Load Regulation
0.26%
3.3V Load Regulation
0.81%
5VSB Load Regulation
2.28%
Inrush Current
55.610A
12V Transient Response (200%)
11.47V
5V Transient Response (200%)
4.946V
3.3V Transient Response (200%)
3.261V
5VSB Transient Response (200%)
5.009V
Hold-Up Time & Power Ok Signal
19.00ms
AC Loss to PWR_OK Hold Up Time
17.30ms
PWR_OK Inactive to DC Loss Delay
1.70ms
PSU Timings: T1 (20% / 100%)
108.0ms
106.0ms
PSU Timings: T3 (20% / 100%)
116.0ms
117.0ms
12V OCP (28.1°C / 42.9°C)
96.80A (116.21%), 12.018V
95.60A (114.77%), 12.017V
5V OCP (28.1°C / 42.9°C)
23.5A (117.50%), 5.027V
23.7A (118.50%), 5.028V
3.3V OCP (28.1°C / 42.9°C)
23.7A (118.50%), 3.321V
23.6A (118.00%), 3.319V
5VSB OCP (28.1°C / 42.9°C)
4.1A (136.67%), 4.996V
4.1A (136.67%), 4.995V
OPP (28.66°C / 40.93°C)
115.10%
114.85%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
19
AC Loss to PWR_OK Hold Up Time (ms)
17.3
PWR_OK Inactive to DC Loss Delay (ms)
1.7
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.03 V
115.02 V
113.85 V
115.07 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.034 W
-0.008 W
N/A
0.072 W
N/A
N/A
Apparent Power:
9.992 W
9.967 W
N/A
10.017 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.12 V
230.09 V
227.70 V
230.14 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.14 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.104 W
0.061 W
N/A
0.147 W
N/A
N/A
Apparent Power:
32.637 W
32.603 W
N/A
32.670 W
N/A
N/A
Power Factor:
0.003
N/A
N/A
N/A
N/A
N/A
Graphs

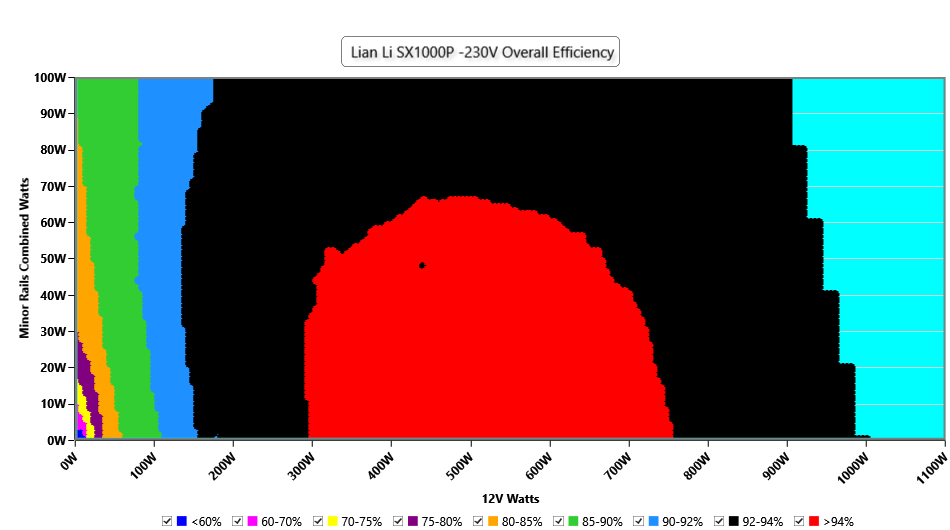

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
INFO

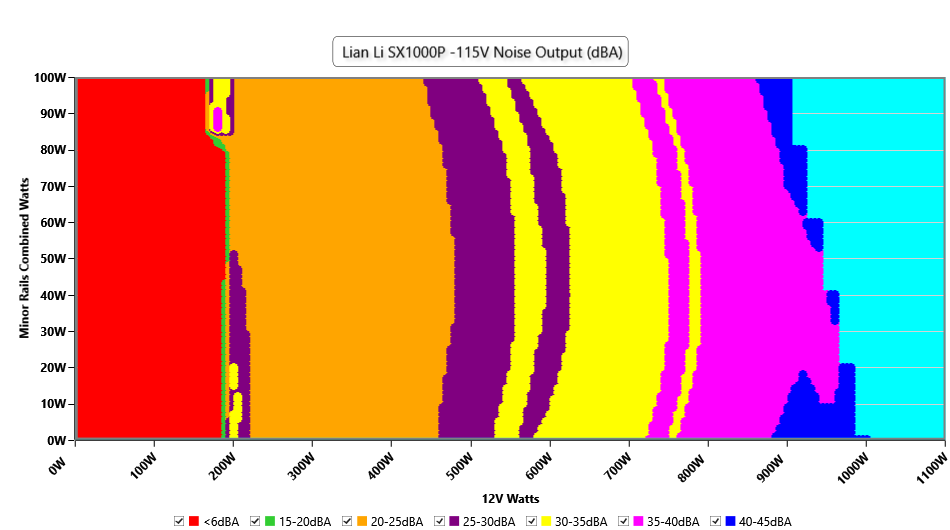

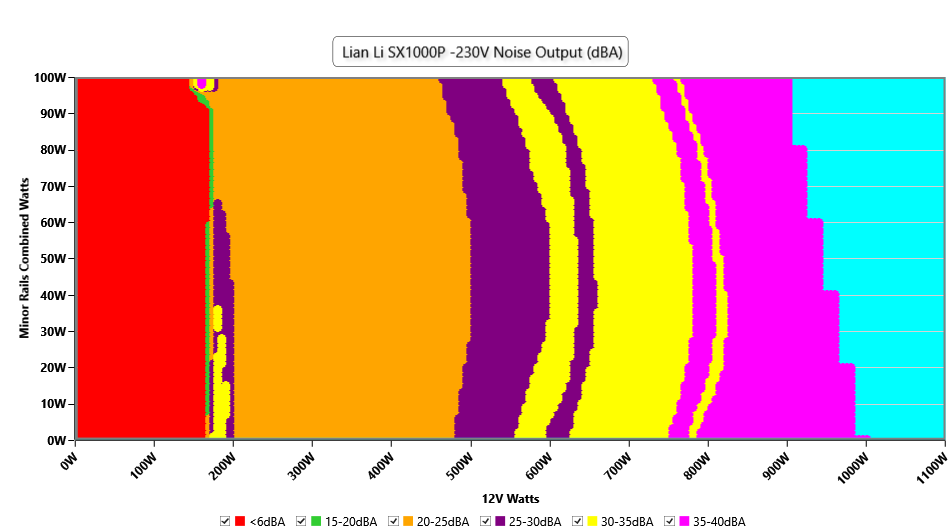

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

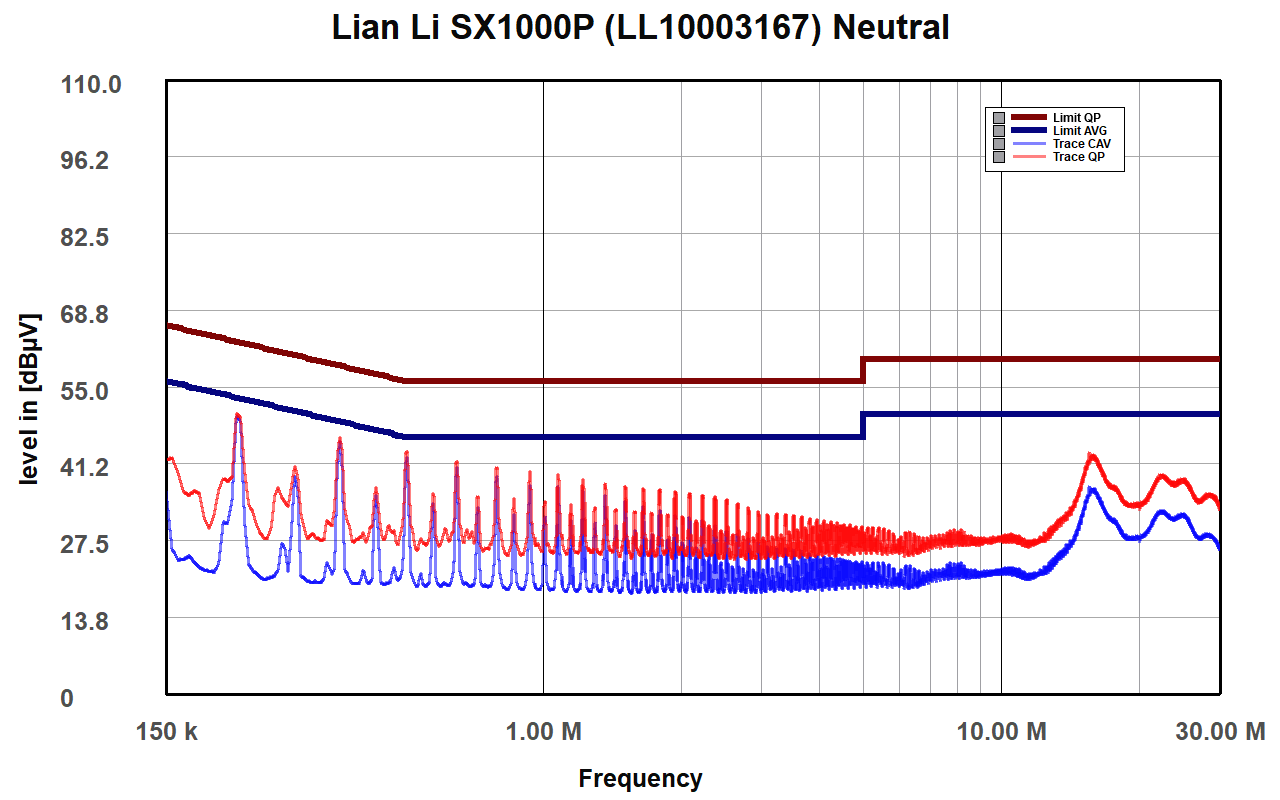

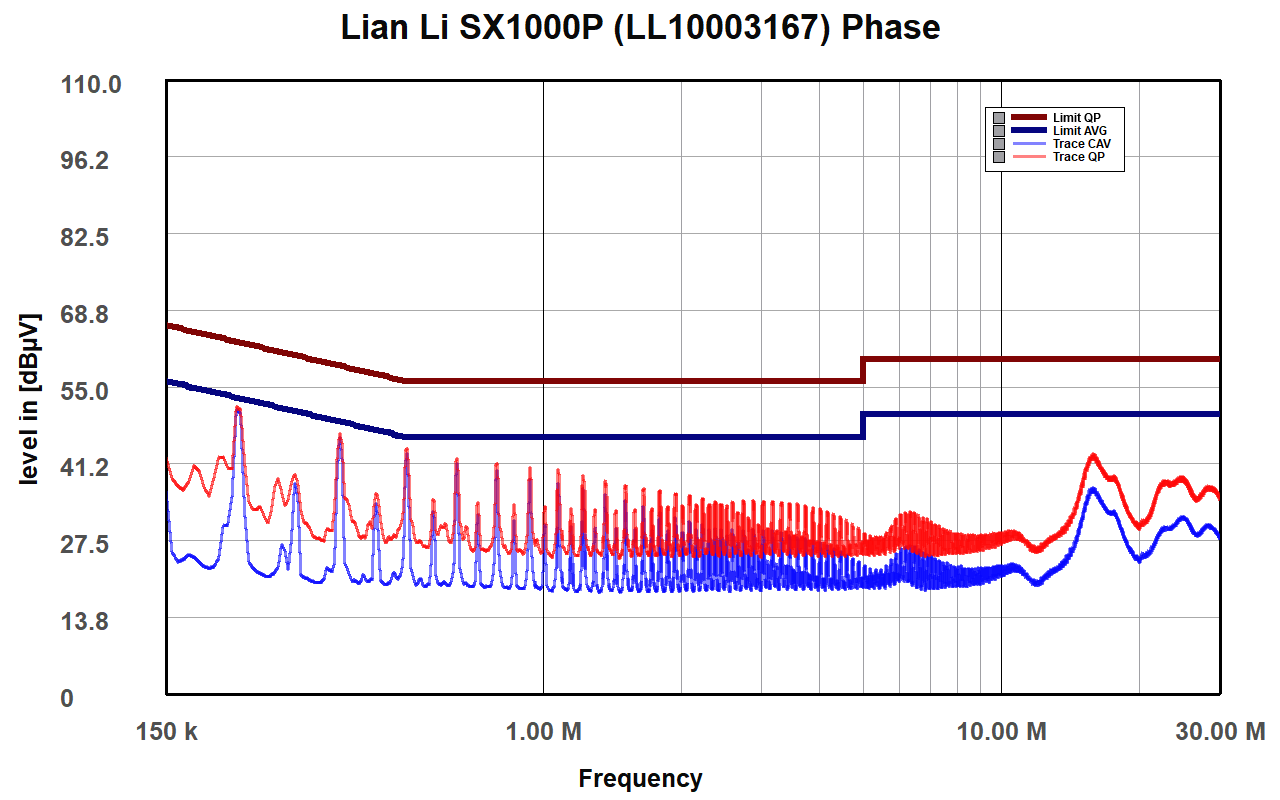

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance
Efficiency under high ambient temperature
INFO

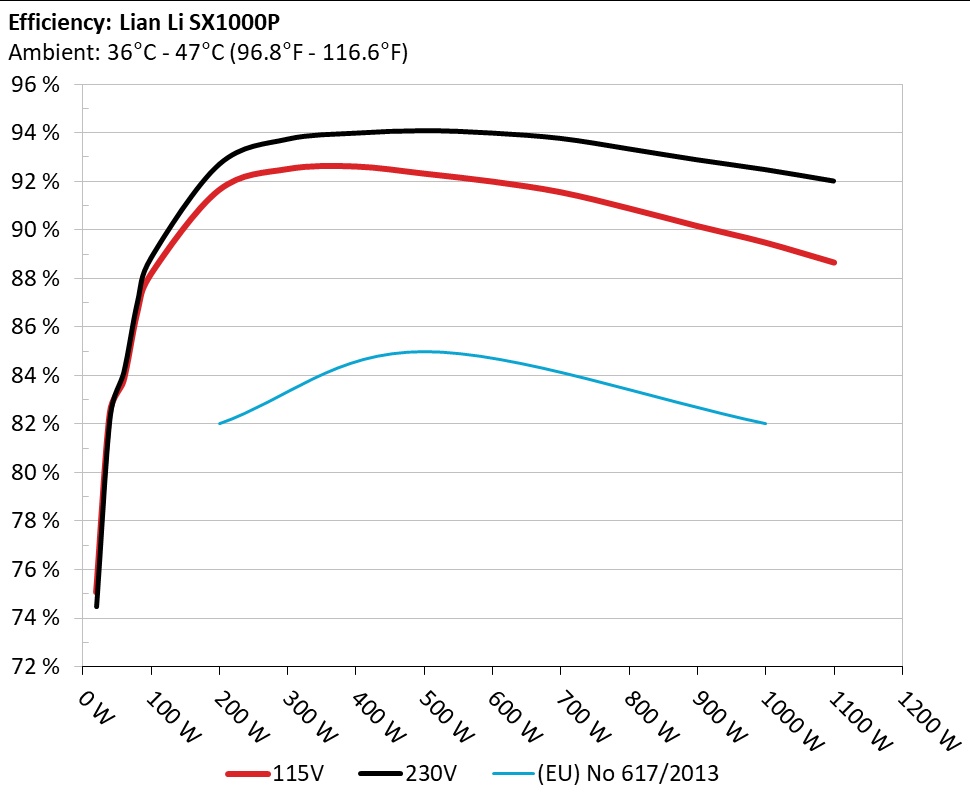

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

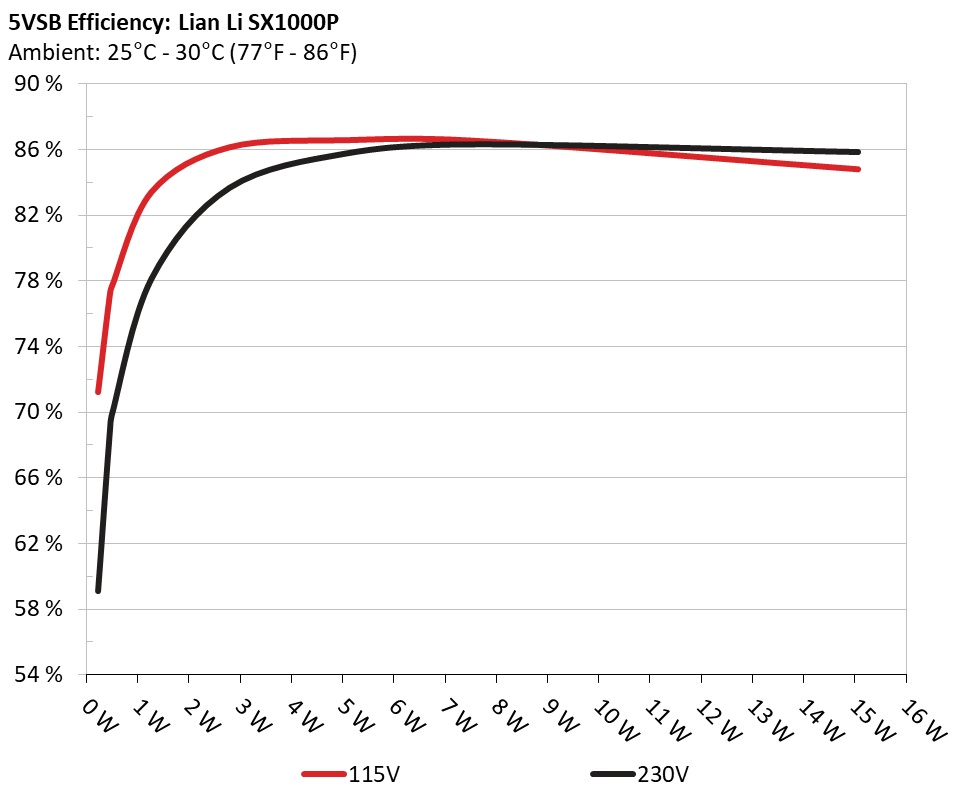

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.512A
1.99A
1.974A
0.985A
99.988
88.177%
0
<6.0
46.1°C
0.973
12.038V
5.025V
3.344V
5.073V
113.396
40.26°C
115.07V
20%
14.044A
2.986A
2.963A
1.185A
199.939
91.658%
0
<6.0
45.57°C
0.993
12.036V
5.024V
3.341V
5.064V
218.136
40.74°C
115.03V
30%
21.935A
3.484A
3.46A
1.385A
299.992
92.522%
0
<6.0
47.6°C
0.993
12.033V
5.023V
3.338V
5.055V
324.234
41.27°C
114.99V
40%
29.789A
3.983A
3.957A
1.586A
399.557
92.627%
1253
32
39.24°C
0.994
12.030V
5.023V
3.336V
5.045V
431.363
47.5°C
114.96V
50%
37.314A
4.982A
4.95A
1.788A
499.287
92.336%
1278
31.4
42.24°C
0.995
12.027V
5.019V
3.334V
5.035V
540.736
47.64°C
114.92V
60%
44.912A
5.98A
5.945A
1.99A
599.817
92.006%
1432
35.5
42.85°C
0.995
12.024V
5.018V
3.331V
5.025V
651.932
48.51°C
114.88V
70%
52.445A
6.979A
6.942A
2.194A
699.546
91.569%
1545
39.3
43.03°C
0.995
12.021V
5.016V
3.328V
5.014V
763.957
49.08°C
114.84V
80%
60.049A
7.976A
7.938A
2.297A
799.544
90.9%
1728
39.8
43.91°C
0.995
12.017V
5.015V
3.325V
5.007V
879.583
50.18°C
114.8V
90%
67.998A
8.476A
8.426A
2.401A
899.315
90.174%
1888
42.5
44.67°C
0.995
12.013V
5.014V
3.323V
4.999V
997.313
51.14°C
114.76V
100%
75.737A
8.976A
8.945A
3.014A
999.335
89.486%
1893
42.4
45.22°C
0.995
12.011V
5.013V
3.32V
4.978V
1116.766
53.05°C
114.72V
110%
83.414A
9.975A
10.037A
3.017A
1099.932
88.665%
1901
42.6
46.93°C
0.995
12.008V
5.012V
3.317V
4.973V
1240.558
55.69°C
114.67V
CL1
0.117A
11.999A
11.907A
0A
101.3
83.476%
1211
34.3
40.22°C
0.979
12.034V
5.017V
3.334V
5.093V
121.352
45.17°C
115.06V
CL2
0.116A
19.948A
0A
0A
101.385
82.682%
1130
26.2
41.32°C
0.978
12.038V
5.013V
3.346V
5.097V
122.621
45.13°C
115.06V
CL3
0.115A
0A
19.843A
0A
67.384
76.674%
1007
29.6
40.81°C
0.958
12.035V
5.028V
3.326V
5.092V
87.886
44.78°C
115.07V
CL4
83.229A
0A
0A
0A
999.981
89.92%
1851
42.9
45.2°C
0.995
12.015V
5.022V
3.329V
5.064V
1112.054
50.45°C
114.72V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
6.512A
1.99A
1.974A
0.986A
100.004
88.629%
0
<6.0
53.28°C
0.839
12.038V
5.025V
3.343V
5.073V
112.833
40.11°C
230.25V
20%
14.046A
2.986A
2.964A
1.185A
199.958
92.729%
0
<6.0
49.84°C
0.933
12.036V
5.024V
3.34V
5.064V
215.639
40.89°C
230.24V
30%
21.936A
3.484A
3.461A
1.385A
300.015
93.759%
1267
31.7
41.15°C
0.964
12.033V
5.024V
3.337V
5.054V
319.985
48.3°C
230.22V
40%
29.791A
3.984A
3.957A
1.586A
399.605
94.008%
1194
32
41.92°C
0.979
12.030V
5.021V
3.336V
5.044V
425.078
46.63°C
230.2V
50%
37.315A
4.983A
4.95A
1.788A
499.331
94.109%
1259
31.8
42.21°C
0.983
12.028V
5.019V
3.334V
5.034V
530.594
46.91°C
230.19V
60%
44.910A
5.981A
5.945A
1.991A
599.853
94.009%
1450
36.1
42.87°C
0.987
12.025V
5.017V
3.331V
5.024V
638.08
48.31°C
230.16V
70%
52.442A
6.98A
6.942A
2.194A
699.575
93.79%
1554
39.8
43.46°C
0.988
12.022V
5.016V
3.328V
5.014V
745.901
47.96°C
230.14V
80%
60.040A
7.977A
7.939A
2.297A
799.574
93.358%
1747
40
43.87°C
0.988
12.020V
5.014V
3.325V
5.007V
856.454
49.7°C
230.12V
90%
67.981A
8.476A
8.425A
2.4A
899.355
92.91%
1890
42.5
44.86°C
0.987
12.016V
5.014V
3.323V
5.001V
967.982
50.65°C
230.1V
100%
75.712A
8.976A
8.942A
3.012A
999.317
92.506%
1899
42.6
45.78°C
0.986
12.015V
5.013V
3.321V
4.981V
1080.27
53.73°C
230.11V
110%
83.381A
9.974A
10.035A
3.014A
1099.896
92.035%
1903
42.6
47.4°C
0.986
12.012V
5.012V
3.318V
4.976V
1195.082
54.95°C
230.12V
CL1
0.116A
11.998A
11.906A
0A
101.291
83.739%
1209
34.1
40.79°C
0.848
12.036V
5.017V
3.334V
5.093V
120.964
46.27°C
230.3V
CL2
0.115A
19.944A
0A
0A
101.374
82.973%
1124
26.6
40.79°C
0.849
12.039V
5.013V
3.346V
5.097V
122.178
45.54°C
230.31V
CL3
0.115A
0A
19.839A
0A
67.377
77.202%
908
28.2
40.44°C
0.793
12.035V
5.028V
3.326V
5.093V
87.273
45.46°C
230.32V
CL4
83.188A
0A
0A
0A
999.844
93.001%
1901
42.6
45.49°C
0.986
12.019V
5.023V
3.329V
5.065V
1075.089
51.78°C
230.17V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.232A
0.498A
0.493A
0.196A
19.992
75.066%
0
<6.0
54.15°C
0.804
12.041V
5.025V
3.349V
5.097V
26.633
36.28°C
115.1V
40W
2.714A
0.696A
0.69A
0.294A
39.994
82.451%
0
<6.0
45.68°C
0.911
12.041V
5.025V
3.348V
5.094V
48.507
37.65°C
115.1V
60W
4.196A
0.895A
0.887A
0.393A
59.995
83.768%
0
<6.0
45.34°C
0.947
12.040V
5.025V
3.347V
5.091V
71.622
38.52°C
115.09V
80W
5.674A
1.094A
1.085A
0.491A
79.935
86.569%
0
<6.0
45.06°C
0.96
12.039V
5.026V
3.346V
5.087V
92.336
39.32°C
115.08V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.234A
0.498A
0.493A
0.196A
20.001
74.487%
0
<6.0
39.4°C
0.47
12.041V
5.025V
3.348V
5.097V
26.852
36.88°C
230.26V
40W
2.716A
0.696A
0.69A
0.294A
40.002
82.339%
0
<6.0
38.71°C
0.623
12.040V
5.026V
3.347V
5.094V
48.583
37.99°C
230.26V
60W
4.198A
0.895A
0.887A
0.393A
60.002
84.148%
0
<6.0
45.9°C
0.737
12.039V
5.026V
3.346V
5.09V
71.305
38.6°C
230.26V
80W
5.675A
1.094A
1.085A
0.491A
79.949
87.046%
0
<6.0
46.85°C
0.804
12.039V
5.026V
3.345V
5.087V
91.846
39.14°C
230.26V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
13.66mV
14.58mV
14.32mV
11.10mV
Pass
20% Load
14.59mV
18.08mV
16.08mV
11.40mV
Pass
30% Load
15.26mV
19.37mV
17.07mV
11.46mV
Pass
40% Load
17.22mV
45.59mV
35.94mV
11.56mV
Pass
50% Load
19.28mV
36.68mV
29.01mV
12.70mV
Pass
60% Load
20.36mV
31.06mV
28.13mV
12.96mV
Pass
70% Load
23.05mV
32.82mV
27.82mV
13.42mV
Pass
80% Load
26.45mV
40.96mV
31.65mV
15.28mV
Pass
90% Load
30.47mV
31.94mV
26.89mV
15.23mV
Pass
100% Load
31.15mV
34.50mV
29.46mV
15.15mV
Pass
110% Load
33.26mV
44.70mV
36.33mV
15.62mV
Pass
Crossload1
15.44mV
26.37mV
17.64mV
12.59mV
Pass
Crossload2
16.86mV
35.70mV
19.65mV
13.16mV
Pass
Crossload3
15.21mV
22.57mV
23.27mV
13.47mV
Pass
Crossload4
28.69mV
39.49mV
33.17mV
16.88mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.06mV
14.01mV
13.14mV
10.43mV
Pass
20% Load
13.40mV
14.53mV
14.27mV
10.94mV
Pass
30% Load
14.02mV
38.48mV
30.72mV
11.00mV
Pass
40% Load
14.95mV
34.52mV
27.72mV
11.82mV
Pass
50% Load
16.24mV
36.06mV
27.87mV
12.96mV
Pass
60% Load
17.68mV
34.10mV
28.91mV
12.54mV
Pass
70% Load
17.99mV
30.50mV
27.10mV
13.83mV
Pass
80% Load
21.19mV
42.61mV
30.41mV
13.73mV
Pass
90% Load
23.10mV
28.95mV
26.11mV
15.64mV
Pass
100% Load
25.46mV
39.50mV
29.73mV
14.83mV
Pass
110% Load
27.31mV
36.44mV
30.61mV
16.01mV
Pass
Crossload1
15.66mV
27.40mV
17.71mV
12.85mV
Pass
Crossload2
17.17mV
34.57mV
19.44mV
13.52mV
Pass
Crossload3
21.55mV
22.25mV
17.53mV
13.11mV
Pass
Crossload4
23.46mV
26.99mV
27.18mV
16.09mV
Pass
The results above are not used in the certification process
Lian Li SX1000P

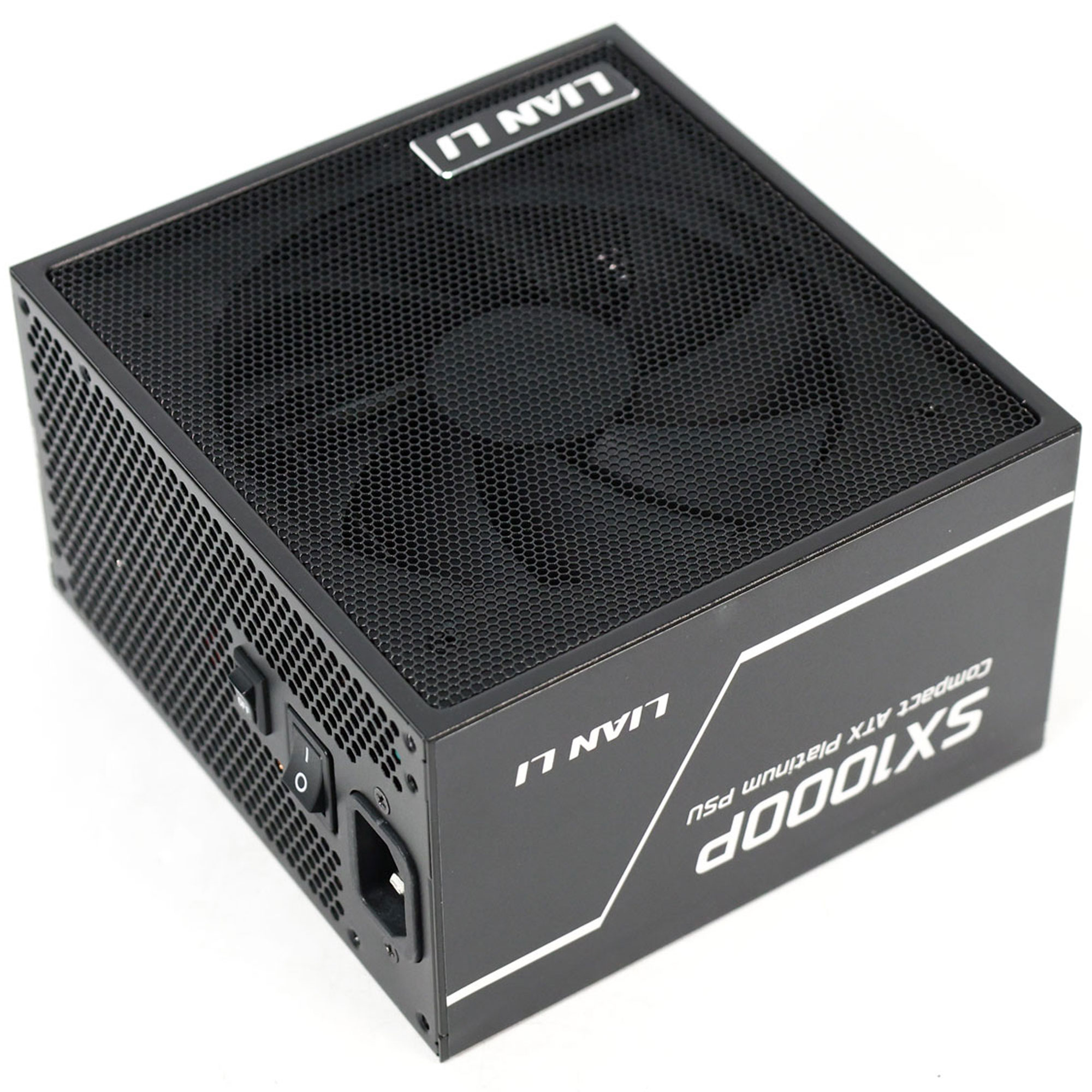

Top side

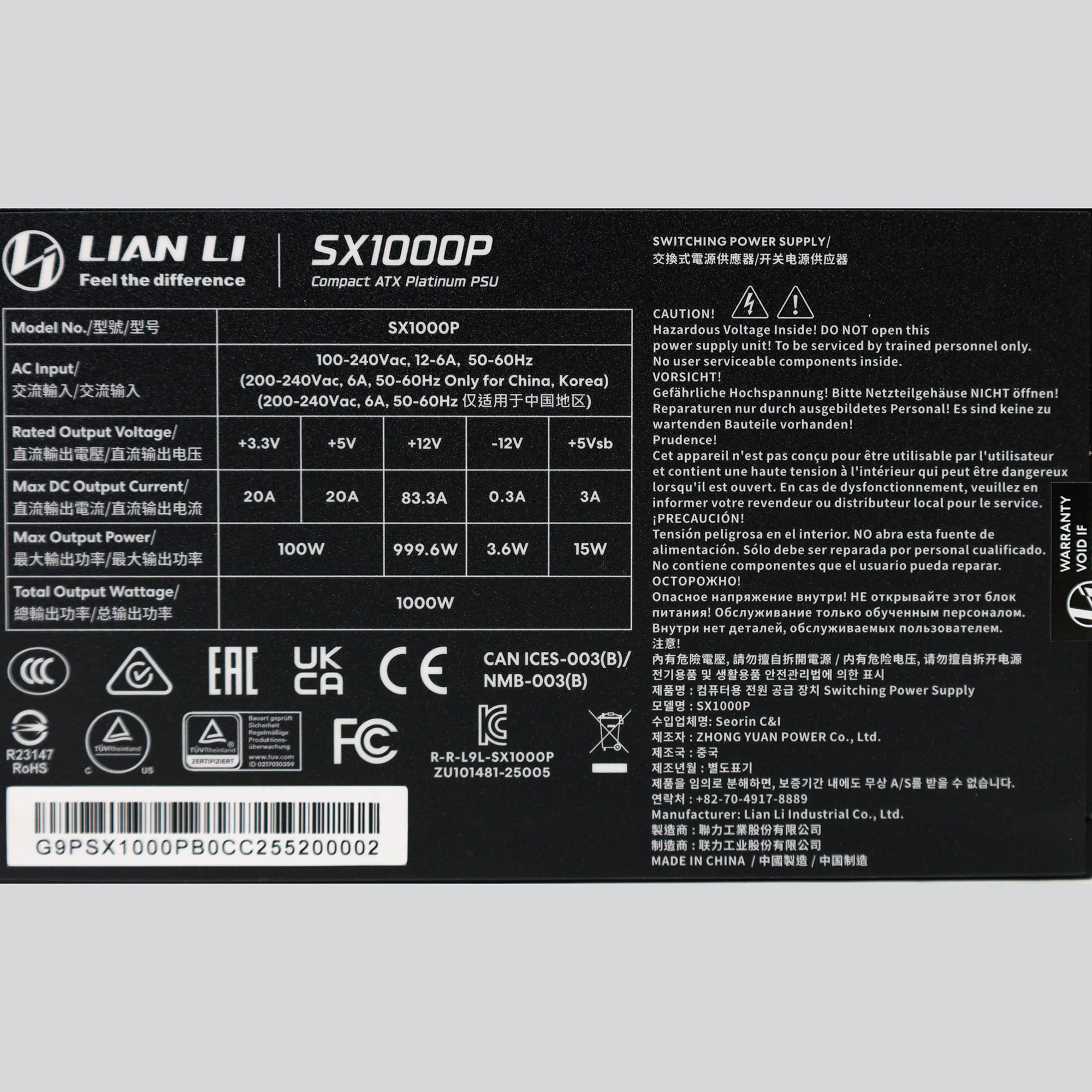

Power specifications label

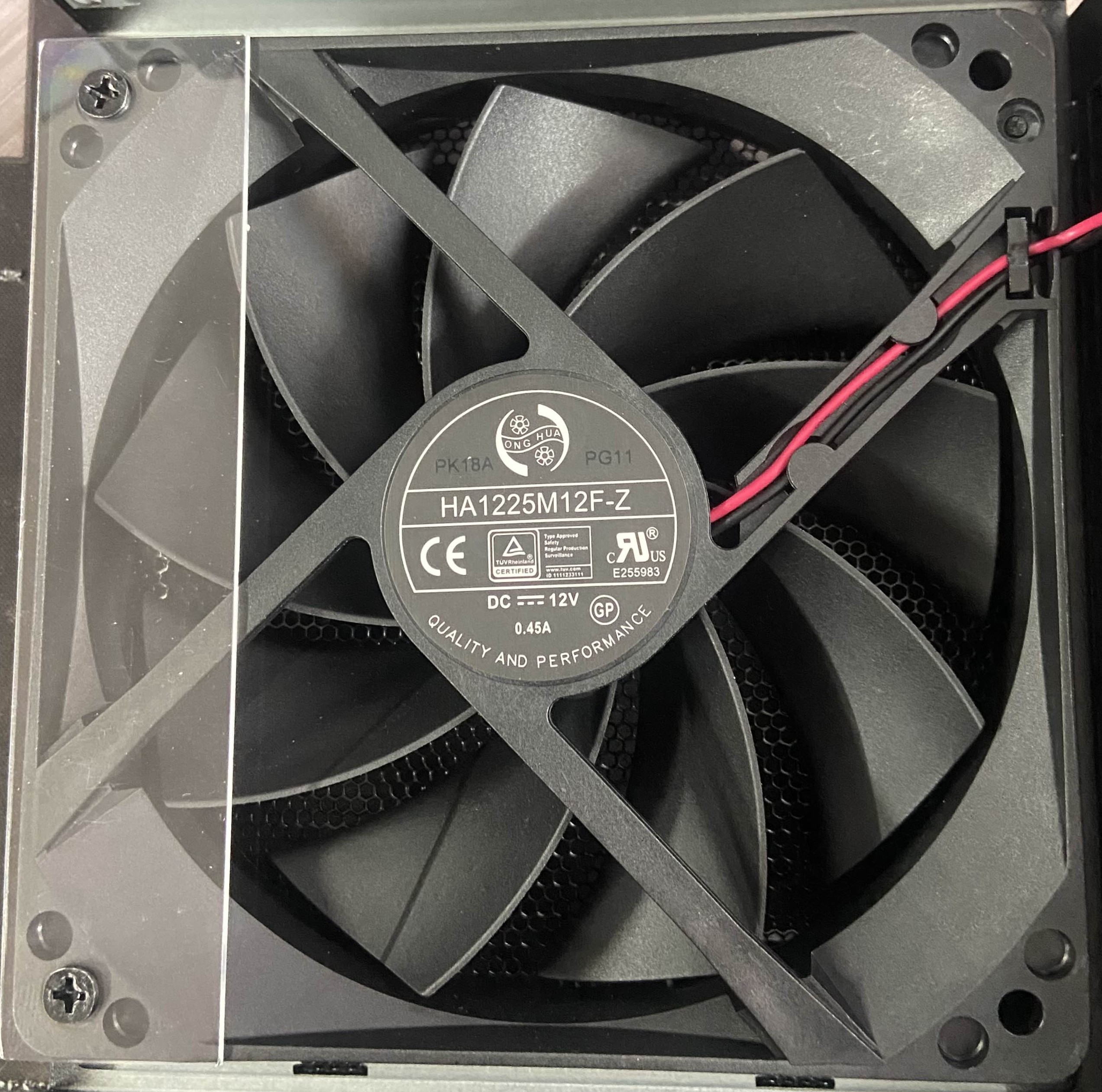

Fan

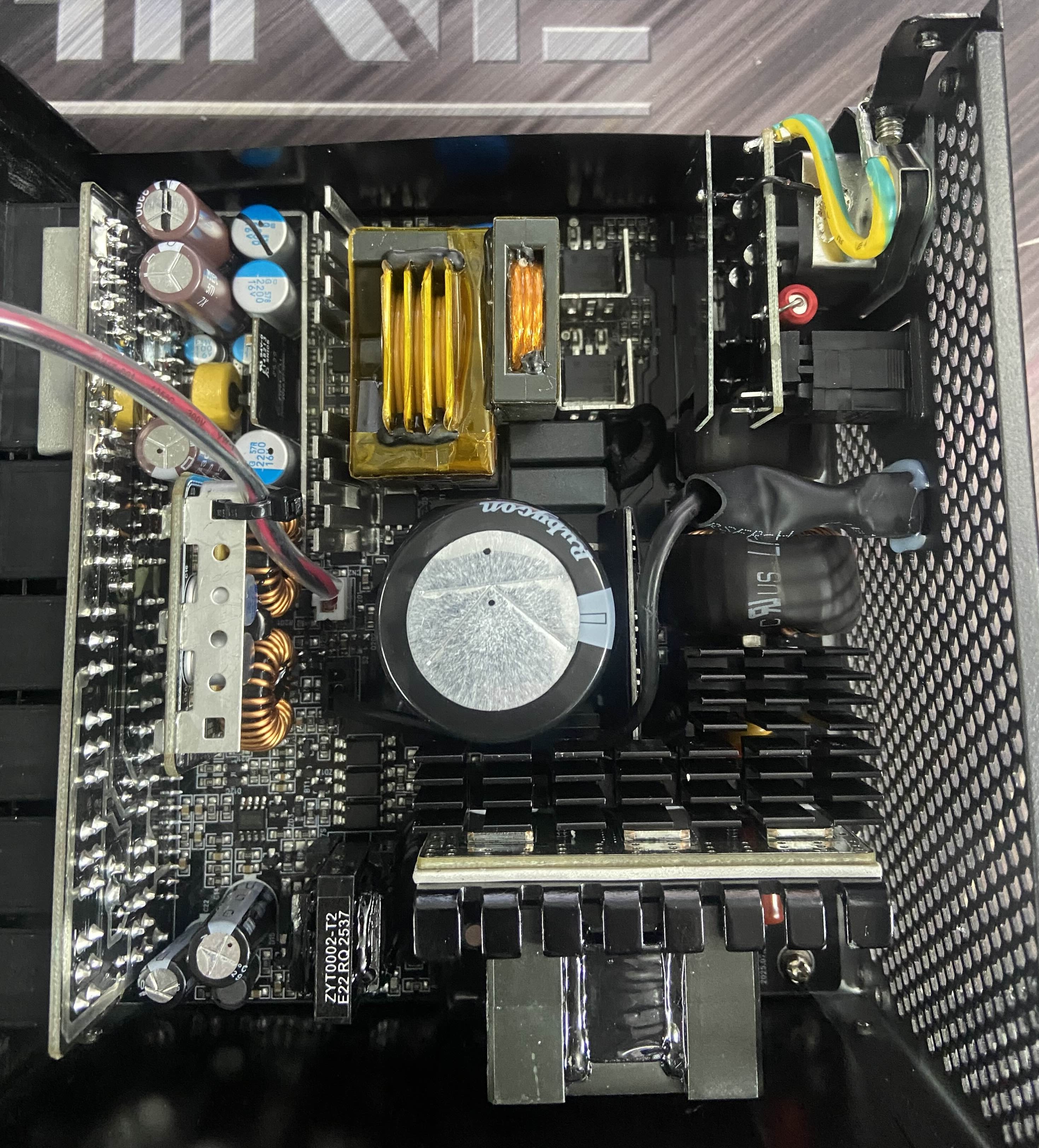

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
