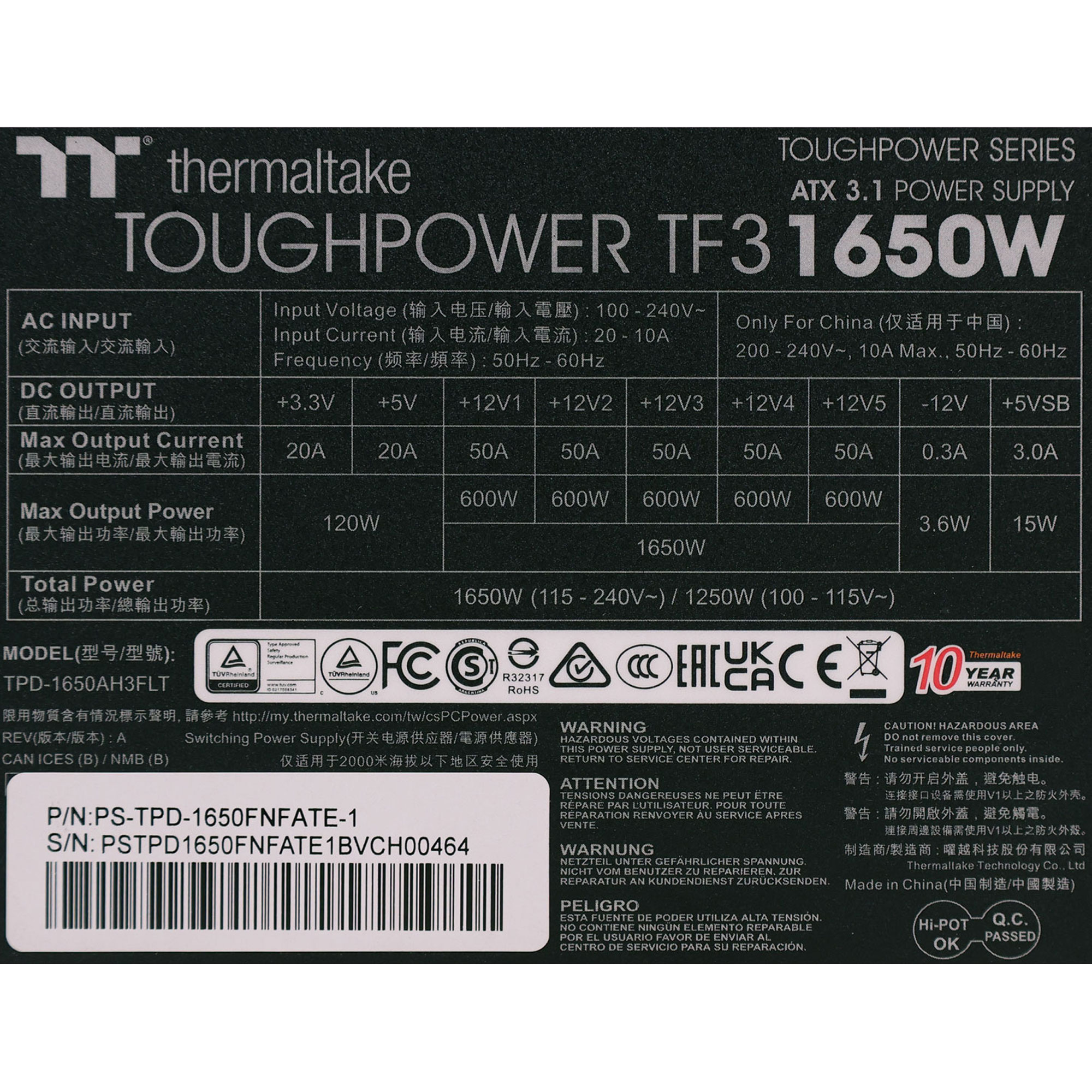

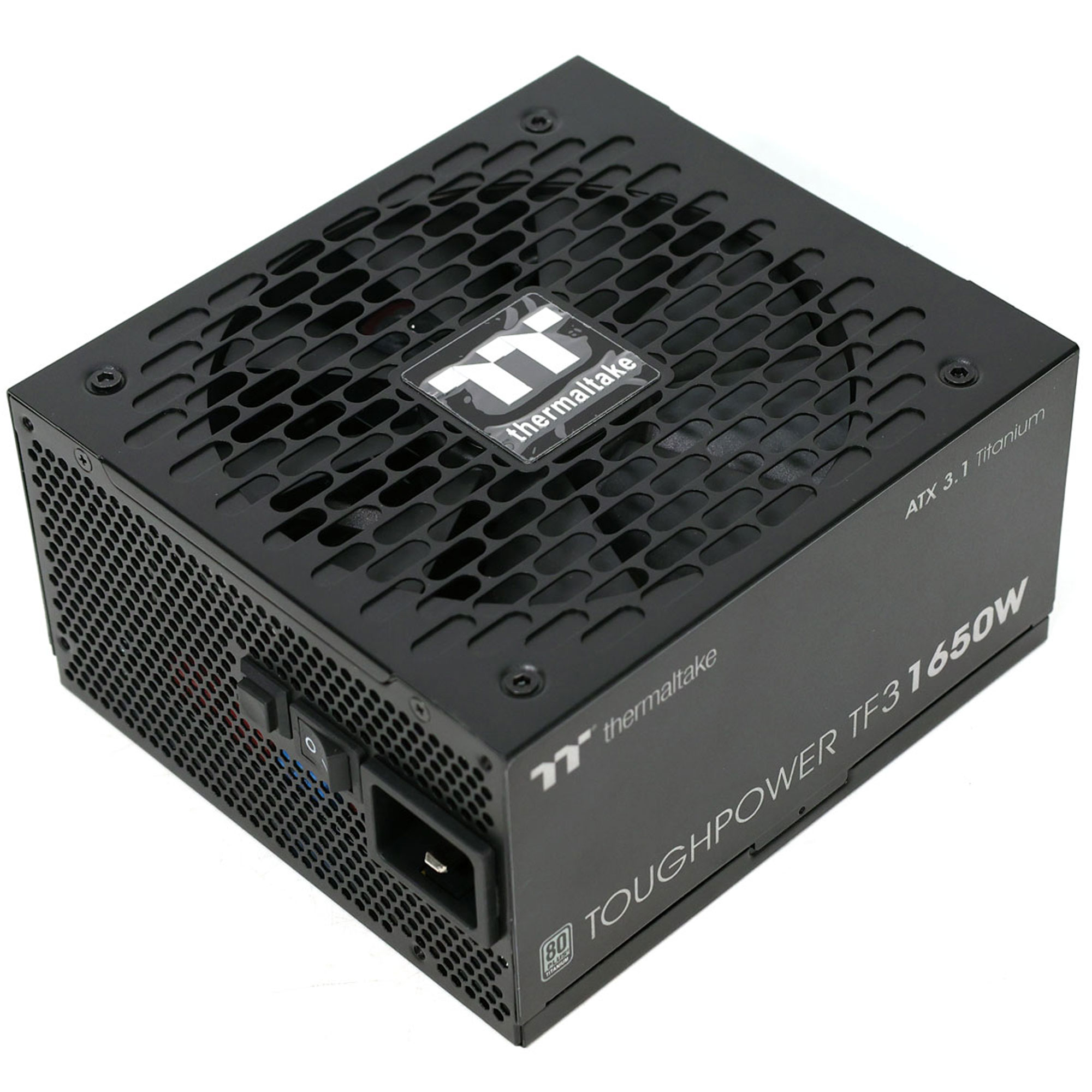

Thermaltake Toughpower TF3 1650W
Serial NumberPSTPD1650FNFATE1BVCH00463
Lab IDTT16503181
Certification ID263181
  • Test Result Report ID: 26PS3181A
  • Certificate Issue Date: Mar 2, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)CE-Link
SeriesToughpower TF3
Model NumberTPD-1650AH3FLT
Serial NumberPSTPD1650FNFATE1BVCH00463
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-20
Rated Frequency (Hz)50-60
Rated Power (W)1650
TypeATX12V
Dimensions (W x H x D)150 x 85 x 165mm

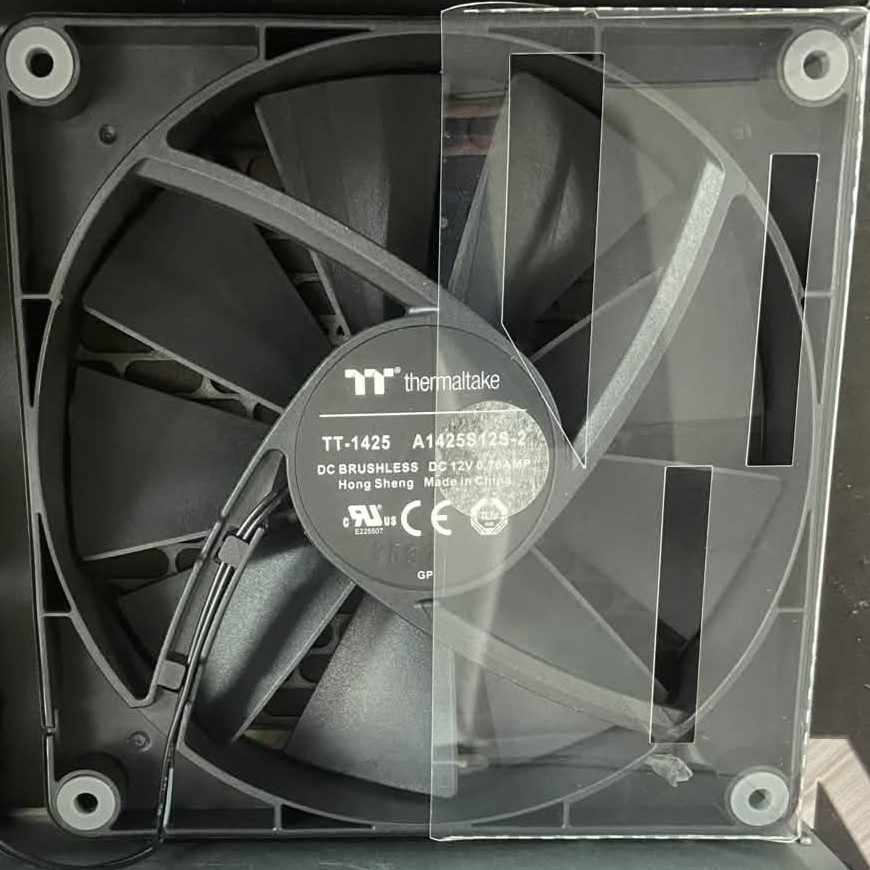

Cooling140mm Hydraulic Bearing Fan (TT-1425 A1425S12S-2)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V(1)12V(2)12V(3)12V(4)12V(5)5VSB-12V
Max. PowerAmps2020505050505030.3
Watts1201650153.6
Total Max. Power (W)1650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 24 pin (600mm) 1 1 16-22AWG Tinned Copper
4+4 pin EPS12V (750mm) 1 1 16AWG Tinned Copper
8 pin EPS12V (750mm) 1 1 16-AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 3 6 16-18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-28AWG Tinned Copper
SATA (600mm+150mm+150mm+150mm) 4 16 18AWG Tinned Copper
4-pin Molex (600mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
AC Power Cord (1360mm) - C19 coupler 1 1 16AWG -

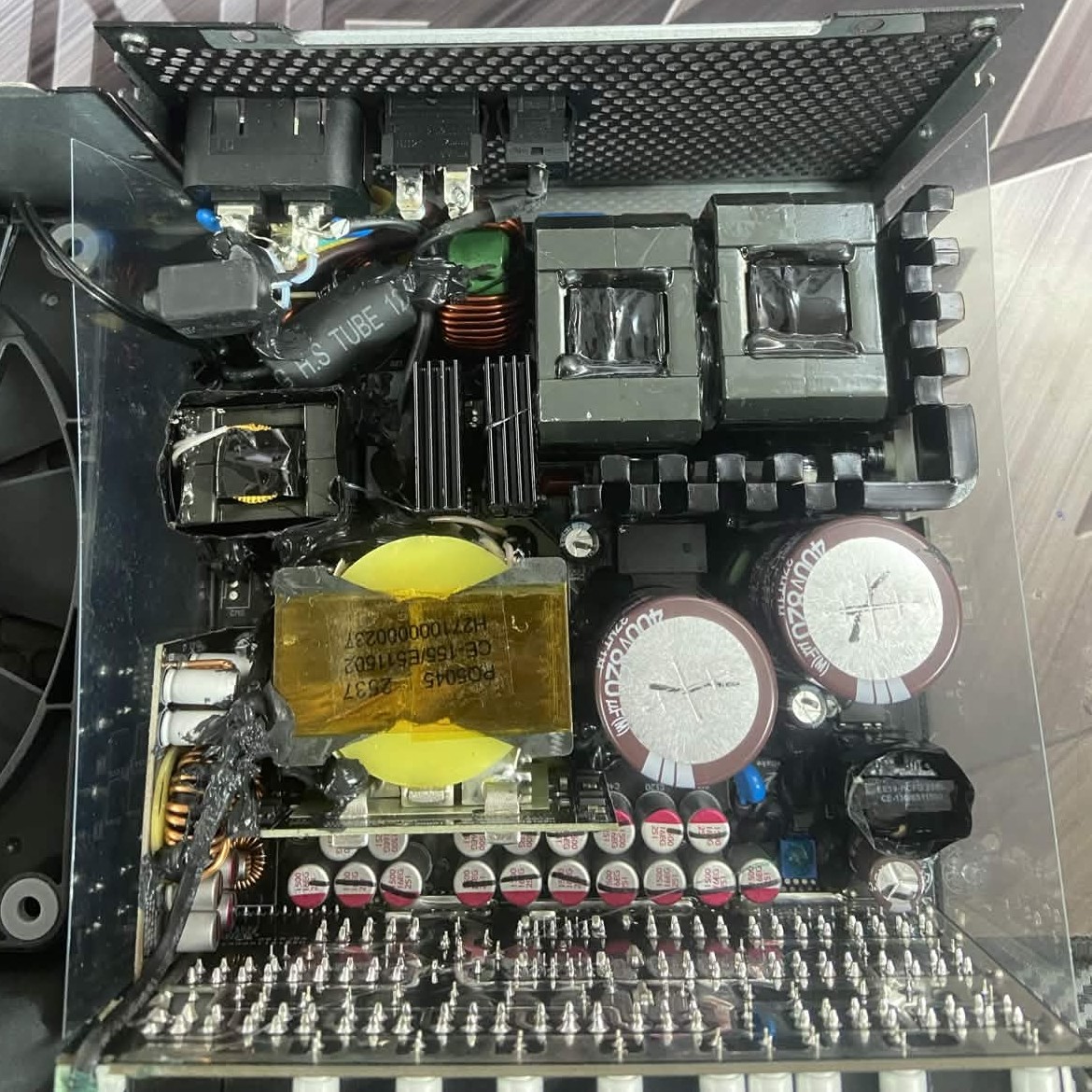

Parts Description

General Data
Manufacturer (OEM)

CE-Link
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-5D15 (5 Ohm @ 25°C) & Relay
Bridge Rectifier
6x Nexperia GS10M (1000V, 10A @ 122°C)
APFC MOSFETs
4x Lonten LSB65R070GF (650V, 30A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode
2x Global Power Technology G4S06515AT (650V, 15A @ 143°C)
Bulk Cap(s)
2x Nippon Chemi-Con (400V, 820uF, 2000h @ 105°C, KMW)
Main Switchers
4x Reactor Microelectronics RMC60R068FD (600V, 48A @ 25°C, Rds(on): 0.07Ohm)
APFC Controller
Champion CM6500UNX
1x Champion CM03AX (reduce the no-load consumption)
Resonant Controller Champion CM6901T6X
IC Driver Novosense NSI6602BD
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon BSC014N04LS (40V, 124A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x Vergiga Semiconductor VS3610GPMT (60V, 49A @ 100°C, Rds(on): 2.5mOhm)
PWM Controller(s): 1x Anpec APW7159C
Filtering Capacitors

Electrolytic:
1x Nippon Chemi-Con (2-5000h @ 105°C, KZE)
3x Rubycon (4-10,000 @ 105°C, YXJ)
2x Rubycon (6-10,000 @ 105°C, ZLH)
Polymer:
70x TEAPO
Supervisor IC Grenergy GR8329N
Fan Controller / Micro Controller Nuvoton M252SD2AE
Fan Model Thermaltake TT-1425 A1425S12S (140mm, 12V, 0.70A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Microdiode Semiconductor1SMA200A
Standby PWM Controller
Sanken Electric A6069H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Commission Regulation (EU) No 617/2013 Testing✓

Performance Summary

Efficiency RatingTITANIUM
Noise RatingStandard
Average Efficiency (>1450 load combinations)91.838%
Average Noise Output (>1450 Load Combinations)41.16dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load71.816%
Standby Power Consumption0.0517W
12V Ripple (Full Load)37.23mV
5V Ripple (Full Load)23.15mV
3.3V Ripple (Full Load)23.75mV
5VSB Ripple (Full Load)20.42mV
12V Load Regulation0.56%
5V Load Regulation1.04%
3.3V Load Regulation1.04%
5VSB Load Regulation1.31%
Inrush Current33.610A
Efficiency RatingTITANIUM
Noise RatingStandard
Average Efficiency (>1450 load combinations)93.823%
Average Noise Output (>1450 Load Combinations)40.87dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load71.374%
Standby Power Consumption0.0969W
12V Ripple (Full Load)44.24mV
5V Ripple (Full Load)22.32mV
3.3V Ripple (Full Load)26.47mV
5VSB Ripple (Full Load)20.47mV
12V Load Regulation0.55%
5V Load Regulation1.04%
3.3V Load Regulation1.01%
5VSB Load Regulation1.33%
Inrush Current65.660A
12V Transient Response (200%)11.78V
5V Transient Response (200%)4.943V
3.3V Transient Response (200%)3.234V
5VSB Transient Response (200%)4.970V
Hold-Up Time & Power Ok Signal23.50ms
AC Loss to PWR_OK Hold Up Time20.50ms
PWR_OK Inactive to DC Loss Delay3.00ms
PSU Timings: T1 (20% / 100%)101.0ms103.0ms
PSU Timings: T3 (20% / 100%)121.0ms121.0ms
12V OCP (30.4°C / 45.0°C)195.20A (141.96%), 12.078V179.20A (130.33%), 12.080V
5V OCP (30.4°C / 45.0°C)25.7A (128.50%), 4.967V25.8A (129.00%), 4.967V
3.3V OCP (30.4°C / 45.0°C)25.6A (128.00%), 3.288V25.7A (128.50%), 3.288V
5VSB OCP (30.4°C / 45.0°C)6.4A (213.33%), 4.781V6.3A (210.00%), 4.771V
OPP (29.54°C / 44.31°C)141.38%128.71%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.5
AC Loss to PWR_OK Hold Up Time (ms)20.5
PWR_OK Inactive to DC Loss Delay (ms)3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.02 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.052 W 0.003 W N/A 0.080 W N/A N/A
Apparent Power: 21.945 W 21.925 W N/A 21.966 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.06 V 230.07 V 227.70 V 230.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.097 W 0.055 W N/A 0.223 W N/A N/A
Apparent Power: 72.862 W 72.817 W N/A 72.900 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A

Graphs

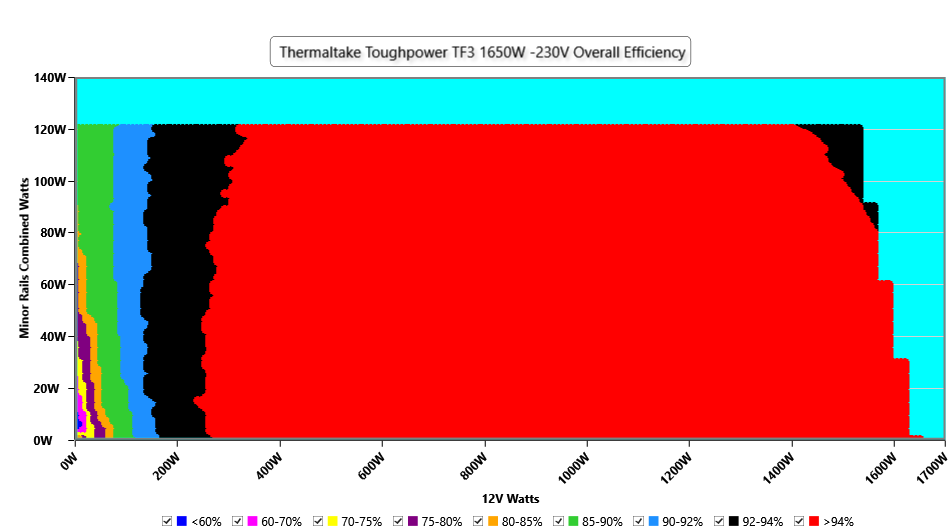

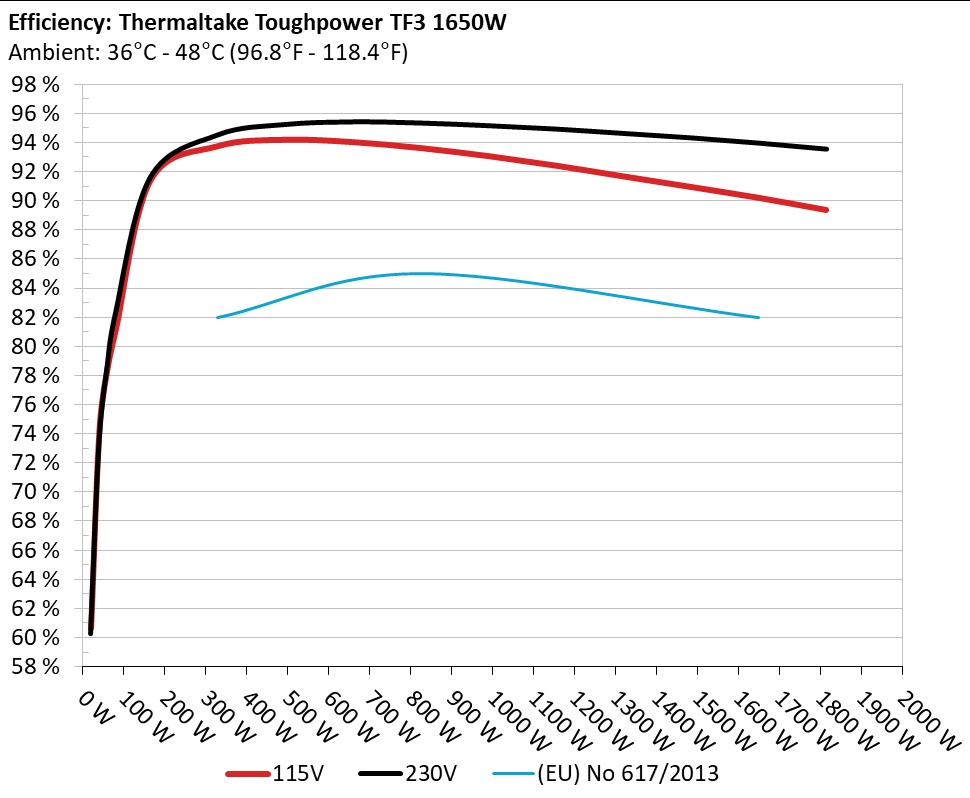

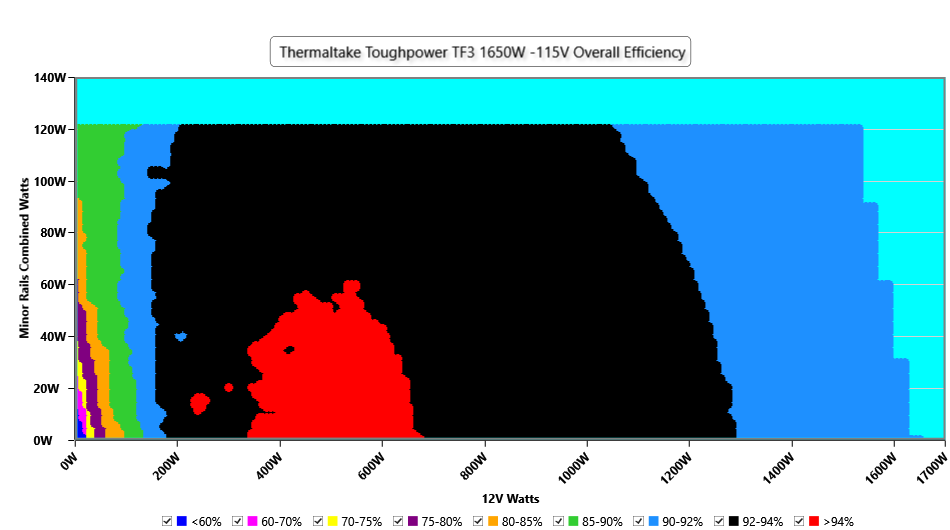

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

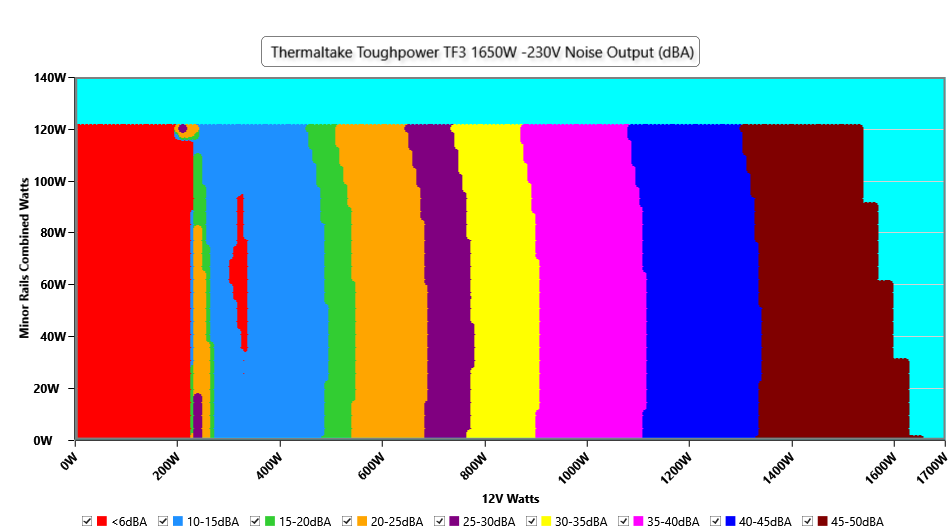

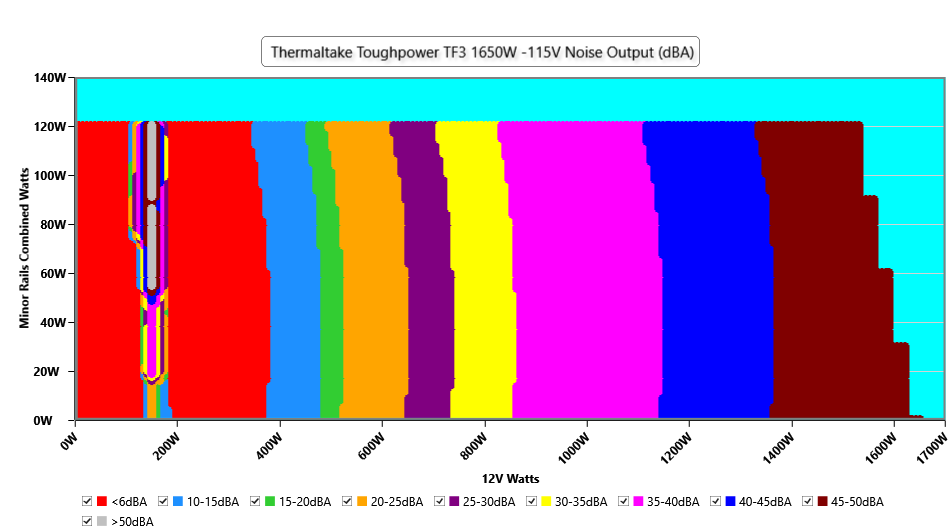

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

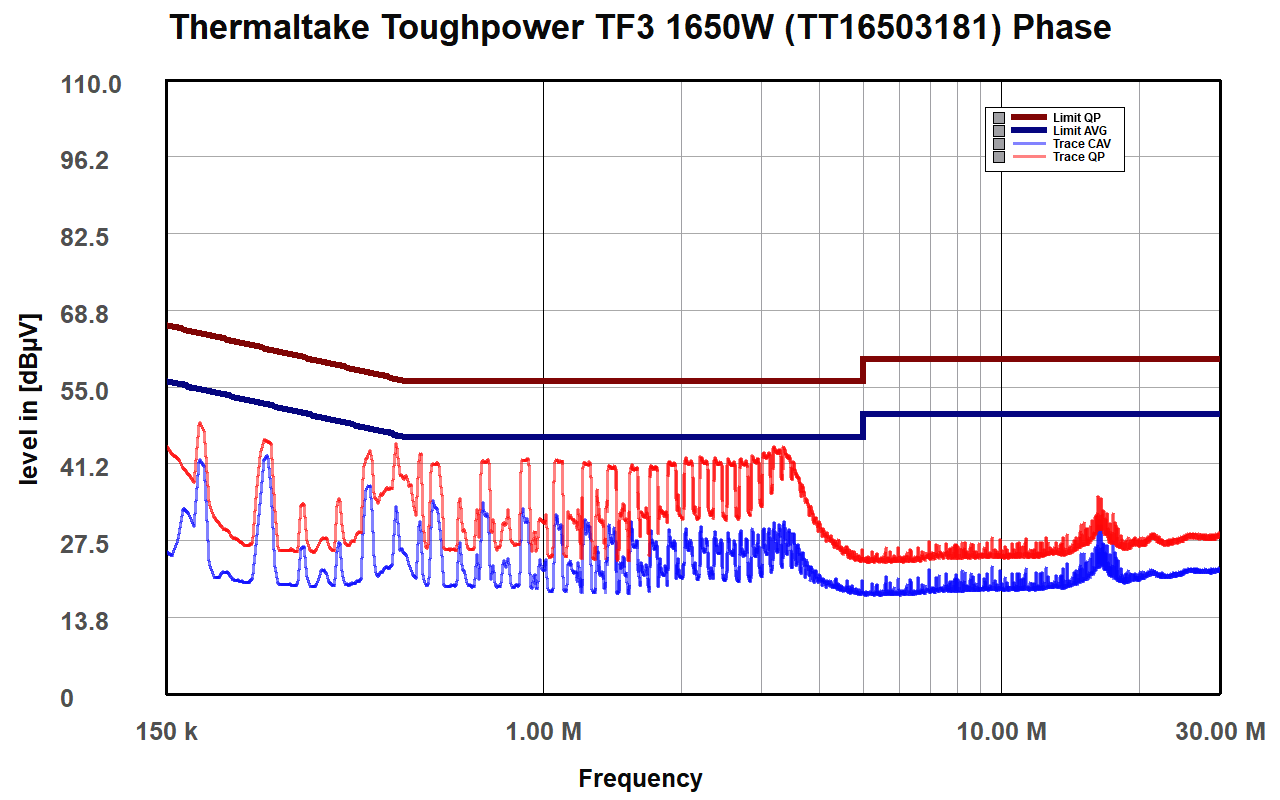

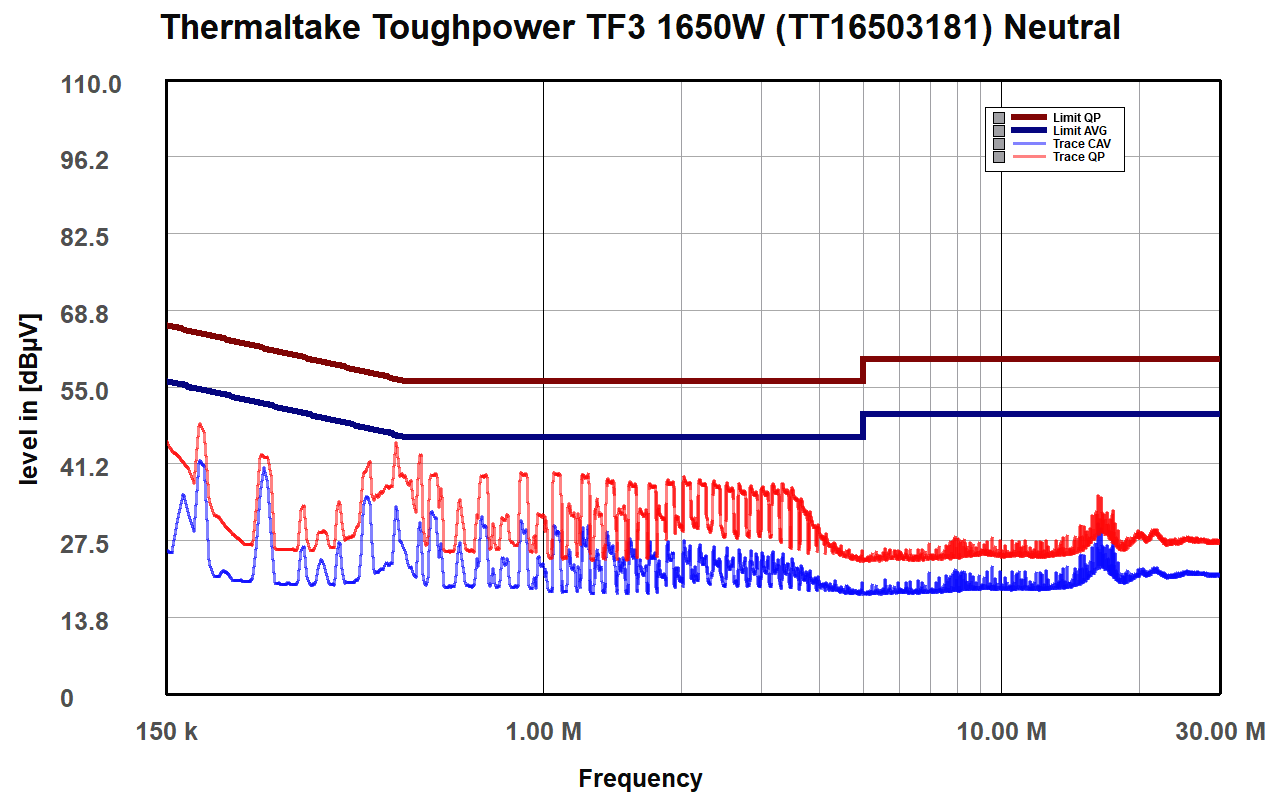

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

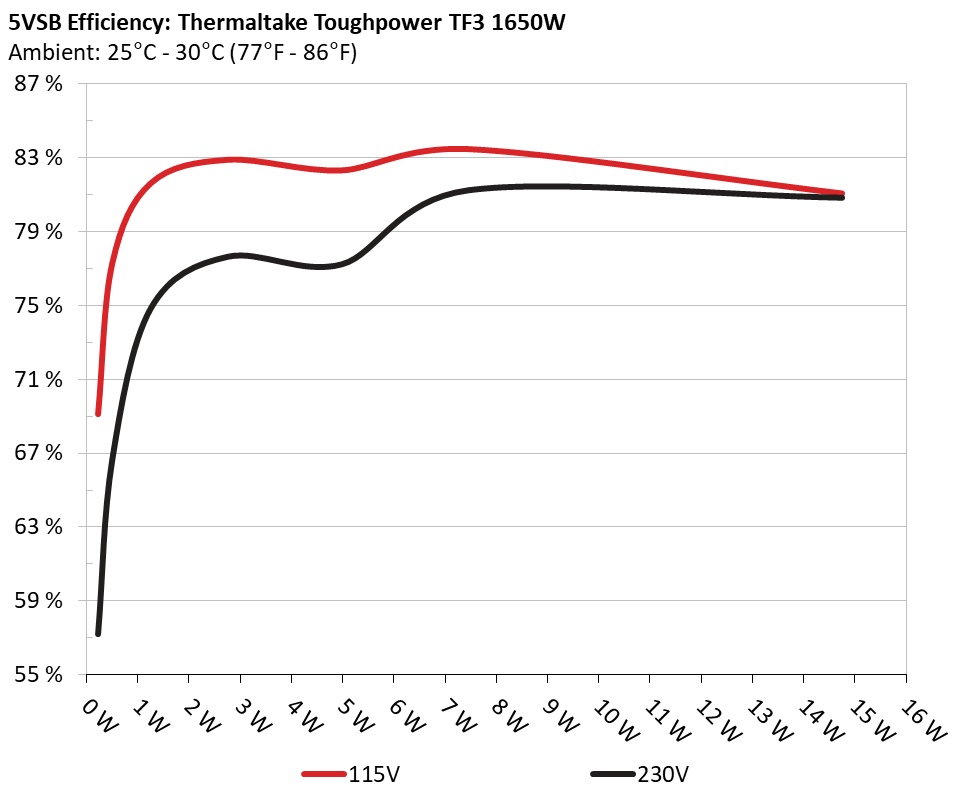

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 69.133% 0.015
5.019V 0.327W 114.9V
2 0.09A 0.452W 76.561% 0.027
5.018V 0.59W 114.9V
3 0.55A 2.751W 82.865% 0.143
5.001V 3.32W 114.89V
4 1A 4.986W 82.293% 0.237
4.985V 6.059W 114.89V
5 1.5A 7.452W 83.442% 0.31
4.967V 8.93W 114.88V
6 3A 14.741W 81.048% 0.433
4.913V 18.196W 114.88V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 57.206% 0.006
5.019V 0.397W 229.9V
2 0.09A 0.452W 67.078% 0.009
5.018V 0.674W 229.89V
3 0.55A 2.751W 77.649% 0.048
5.001V 3.542W 229.89V
4 1A 4.986W 77.244% 0.086
4.985V 6.454W 229.89V
5 1.5A 7.452W 81.254% 0.12
4.967V 9.172W 229.88V
6 3A 14.741W 80.846% 0.216
4.913V 18.234W 229.89V

Protection Features

OCP (Normal @ 30.4°C)12V: 195.20A (141.96%), 12.078V
5V: 25.7A (128.50%), 4.967V
3.3V: 25.6A (128.00%), 3.288V
5VSB: 6.4A (213.33%), 4.781V
OCP (Hot @ 45.0°C)12V: 179.20A (130.33%), 12.080V
5V: 25.8A (129.00%), 4.967V
3.3V: 25.7A (128.50%), 3.288V
5VSB: 6.3A (210.00%), 4.771V
OPP (Normal @ 29.5°C)2332.69W (141.38%)
OPP (Hot @ 44.3°C)2123.70W (128.71%)
OTP✓ (156°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.798A 1.989A 2.002A 0.996A 164.949 91.395% 502 14.5 40.4°C 0.98
12.150V 5.027V 3.296V 5.022V 180.475 43.4°C 114.98V
20% 24.624A 2.987A 3.007A 1.196A 329.951 93.752% 621 21.4 40.79°C 0.978
12.144V 5.021V 3.292V 5.017V 351.945 44.53°C 114.94V
30% 37.757A 3.488A 3.511A 1.397A 494.329 94.183% 802 29.3 41.34°C 0.985
12.138V 5.017V 3.289V 5.011V 524.862 46.05°C 114.9V
40% 50.974A 3.989A 4.016A 1.599A 659.557 94.024% 1006 35.3 41.64°C 0.986
12.131V 5.013V 3.286V 5.005V 701.471 47.85°C 114.85V
50% 63.871A 4.993A 5.026A 1.8A 824.879 93.615% 1211 40.2 42.4°C 0.987
12.124V 5.007V 3.283V 5V 881.138 49.69°C 114.79V
60% 76.722A 5.998A 6.038A 2A 989.392 93.068% 1399 43.6 42.95°C 0.988
12.117V 5.002V 3.279V 4.995V 1063.081 52.45°C 114.74V
70% 89.654A 7.006A 7.052A 2.205A 1154.759 92.414% 1571 46.6 43.1°C 0.99
12.109V 4.996V 3.276V 4.99V 1249.55 55.5°C 114.69V
80% 102.603A 8.015A 8.067A 2.307A 1319.557 91.675% 1703 48.2 43.97°C 0.992
12.101V 4.99V 3.272V 4.986V 1439.389 58.77°C 114.63V
90% 115.969A 8.523A 8.563A 2.409A 1484.987 90.945% 1803 49.9 44.48°C 0.993
12.093V 4.986V 3.269V 4.981V 1632.834 62.4°C 114.57V
100% 129.086A 9.032A 9.092A 3.019A 1649.784 90.203% 1883 50.7 45.86°C 0.995
12.085V 4.982V 3.266V 4.97V 1828.98 66.89°C 114.49V
110% 142.100A 10.046A 10.205A 3.02A 1814.406 89.371% 1894 50.7 47.28°C 0.996
12.077V 4.976V 3.263V 4.967V 2030.198 72.63°C 114.42V
CL1 0.116A 14.484A 14.538A 0A 121.311 81.86% 1398 43.6 40.92°C 0.969
12.148V 4.985V 3.281V 5.062V 148.261 59.7°C 114.99V
CL2 0.115A 20.064A 0A 0.001A 101.352 78.556% 1141 36.2 40.46°C 0.97
12.149V 4.981V 3.282V 5.074V 129.018 53.54°C 114.99V
CL3 0.114A 0A 20.051A 0A 67.386 74.208% 925 33 40.48°C 0.965
12.145V 5.021V 3.291V 5.035V 90.791 50.86°C 115V
CL4 136.466A 0A 0A 0A 1649.522 90.649% 1814 50.3 45.67°C 0.993
12.087V 5.014V 3.279V 4.996V 1819.688 60.39°C 114.49V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 11.800A 1.99A 2.003A 0.996A 164.973 91.581% 515 15.6 40.23°C 0.861
12.150V 5.026V 3.295V 5.022V 180.137 42.7°C 229.87V
20% 24.629A 2.988A 3.007A 1.196A 329.988 94.517% 643 22.8 40.54°C 0.945
12.144V 5.021V 3.292V 5.017V 349.136 43.4°C 229.84V
30% 37.766A 3.488A 3.512A 1.397A 494.42 95.233% 822 30 41.35°C 0.973
12.137V 5.017V 3.289V 5.011V 519.178 44.27°C 229.81V
40% 50.981A 3.99A 4.017A 1.599A 659.638 95.411% 1018 35.8 41.6°C 0.986
12.131V 5.013V 3.286V 5.005V 691.361 44.53°C 229.79V
50% 63.876A 4.993A 5.027A 1.8A 824.948 95.33% 1219 40.3 42.13°C 0.993
12.124V 5.007V 3.283V 5V 865.366 45.29°C 229.76V
60% 76.725A 5.999A 6.039A 2A 989.46 95.152% 1404 43.6 42.91°C 0.994
12.117V 5.002V 3.279V 4.995V 1039.767 46.44°C 229.73V
70% 89.646A 7.007A 7.053A 2.205A 1154.807 94.921% 1563 46.4 43.16°C 0.996
12.111V 4.996V 3.276V 4.99V 1216.594 47.26°C 229.7V
80% 102.591A 8.015A 8.068A 2.307A 1319.604 94.62% 1698 48.2 43.58°C 0.996
12.103V 4.99V 3.272V 4.986V 1394.628 48.44°C 229.68V
90% 115.949A 8.523A 8.565A 2.41A 1485.021 94.316% 1799 49.9 44.83°C 0.996
12.096V 4.986V 3.269V 4.981V 1574.521 49.87°C 229.65V
100% 129.069A 9.031A 9.093A 3.019A 1649.813 93.953% 1876 50.7 45.5°C 0.996
12.087V 4.982V 3.266V 4.969V 1756.001 51.33°C 229.62V
110% 142.073A 10.045A 10.206A 3.02A 1814.413 93.542% 1893 50.7 47.58°C 0.996
12.079V 4.977V 3.262V 4.967V 1939.679 53.58°C 229.59V
CL1 0.116A 14.481A 14.539A 0A 121.318 82.839% 1354 42.6 40.98°C 0.825
12.148V 4.986V 3.28V 5.062V 146.471 46.4°C 229.87V
CL2 0.116A 20.06A 0A 0.001A 101.362 81.545% 1029 36.2 40.43°C 0.793
12.151V 4.983V 3.281V 5.075V 124.304 44.6°C 229.88V
CL3 0.115A 0A 20.053A 0A 67.391 74.447% 900 32.1 41.68°C 0.71
12.145V 5.02V 3.291V 5.035V 90.527 44.55°C 229.88V
CL4 136.439A 0A 0A 0A 1649.543 94.243% 1804 49.9 45.54°C 0.996
12.090V 5.014V 3.278V 4.995V 1750.294 49.5°C 229.62V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.497A 0.5A 0.199A 19.997 60.674% 0 <6.0 41.05°C 0.822
12.150V 5.034V 3.3V 5.035V 32.956 36.17°C 115.02V
40W 2.690A 0.695A 0.7A 0.298A 39.997 74.1% 0 <6.0 41.3°C 0.922
12.149V 5.034V 3.299V 5.033V 53.978 37.27°C 115.01V
60W 4.160A 0.894A 0.9A 0.397A 59.997 78.488% 0 <6.0 43.14°C 0.943
12.148V 5.033V 3.299V 5.033V 76.445 38.31°C 115.01V
80W 5.622A 1.093A 1.1A 0.497A 79.934 81.086% 636 22.6 39.35°C 0.963
12.151V 5.032V 3.298V 5.031V 98.584 42.65°C 115V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.223A 0.497A 0.5A 0.199A 20.005 60.305% 0 <6.0 42.7°C 0.389
12.146V 5.034V 3.299V 5.035V 33.18 36.5°C 229.88V
40W 2.692A 0.695A 0.7A 0.298A 40.005 73.256% 574 19.1 37.32°C 0.553
12.145V 5.034V 3.299V 5.034V 54.619 41.87°C 229.89V
60W 4.160A 0.894A 0.9A 0.398A 60.005 78.574% 472 12.6 38.77°C 0.664
12.146V 5.032V 3.298V 5.031V 76.378 41.99°C 229.89V
80W 5.624A 1.093A 1.101A 0.497A 79.951 82.191% 521 15.9 39.27°C 0.728
12.149V 5.031V 3.298V 5.03V 97.271 42.3°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load28.69mV20.99mV21.60mV16.78mVPass
20% Load31.91mV20.79mV21.29mV17.19mVPass
30% Load37.90mV25.56mV23.70mV17.34mVPass
40% Load32.27mV21.40mV22.93mV17.55mVPass
50% Load34.63mV21.50mV23.40mV16.93mVPass
60% Load70.89mV23.51mV24.11mV18.57mVPass
70% Load34.22mV22.33mV24.52mV18.37mVPass
80% Load34.12mV22.68mV24.47mV18.58mVPass
90% Load38.77mV22.73mV25.91mV20.63mVPass
100% Load37.23mV23.15mV23.75mV20.42mVPass
110% Load40.35mV25.40mV25.75mV20.73mVPass
Crossload142.50mV21.66mV24.32mV17.80mVPass
Crossload226.29mV24.94mV23.14mV19.55mVPass
Crossload328.85mV21.45mV25.45mV16.21mVPass
Crossload437.08mV21.61mV22.68mV18.27mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load32.07mV21.04mV21.55mV16.93mVPass
20% Load70.32mV23.97mV25.50mV15.85mVPass
30% Load56.16mV20.99mV24.27mV17.14mVPass
40% Load33.45mV20.22mV21.75mV16.88mVPass
50% Load33.04mV19.76mV24.57mV16.68mVPass
60% Load32.38mV18.73mV23.50mV16.73mVPass
70% Load33.35mV20.89mV24.73mV19.03mVPass
80% Load39.23mV26.12mV25.34mV18.88mVPass
90% Load50.28mV23.15mV24.78mV20.83mVPass
100% Load44.24mV22.32mV26.47mV20.47mVPass
110% Load39.02mV22.22mV23.91mV19.29mVPass
Crossload162.55mV23.56mV25.86mV17.55mVPass
Crossload250.48mV23.66mV23.55mV18.42mVPass
Crossload323.27mV19.55mV23.40mV16.27mVPass
Crossload437.39mV20.53mV22.16mV17.19mVPass

The results above are not used in the certification process

Thermaltake Toughpower TF3 1650W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
