CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

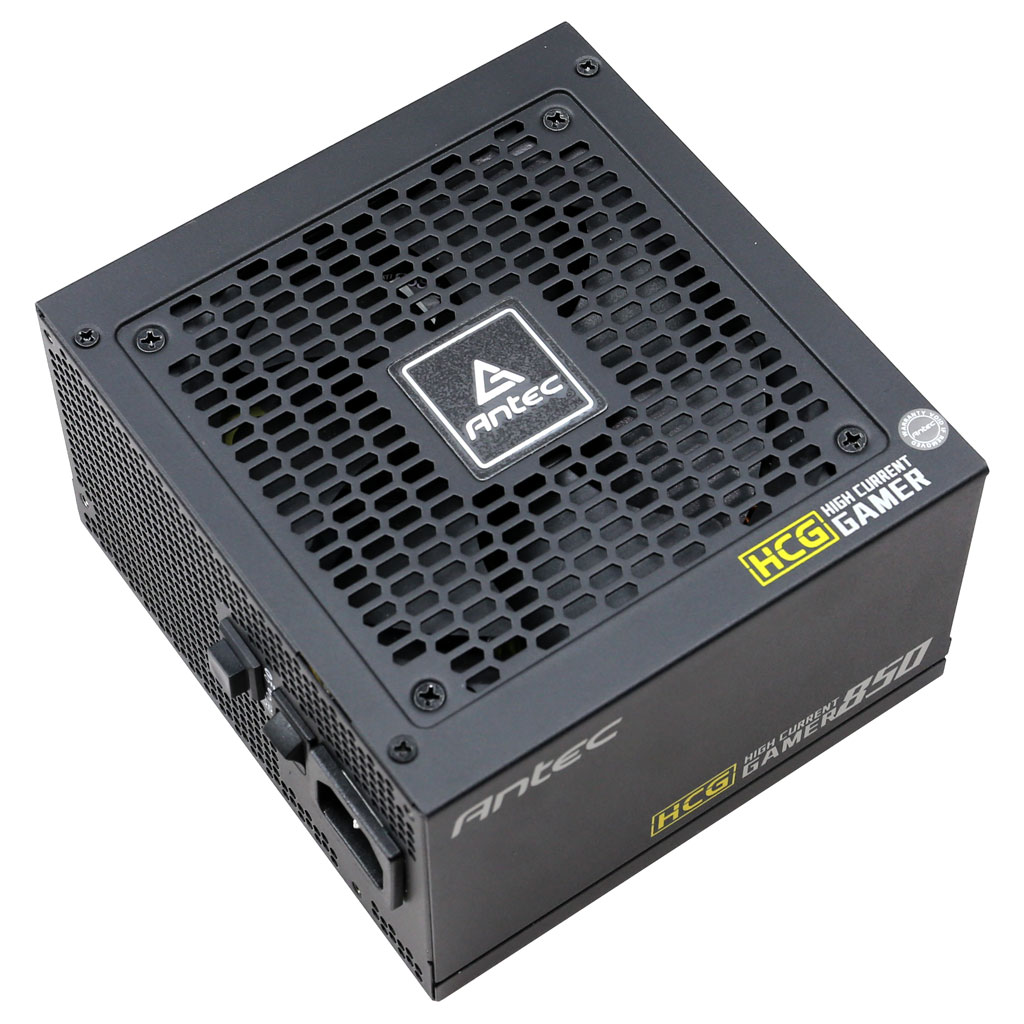

Antec HCG850 Gold
Serial NumberHCG850GSN180405125
Lab ID320
Certification ID25320
  • Test Result Report ID:
  • Certificate Issue Date: Mar 13, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandAntec
Hersteller (OEM)Seasonic
SeriesHCG Gold
Model NumberHCG850
Serial NumberHCG850GSN180405125
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

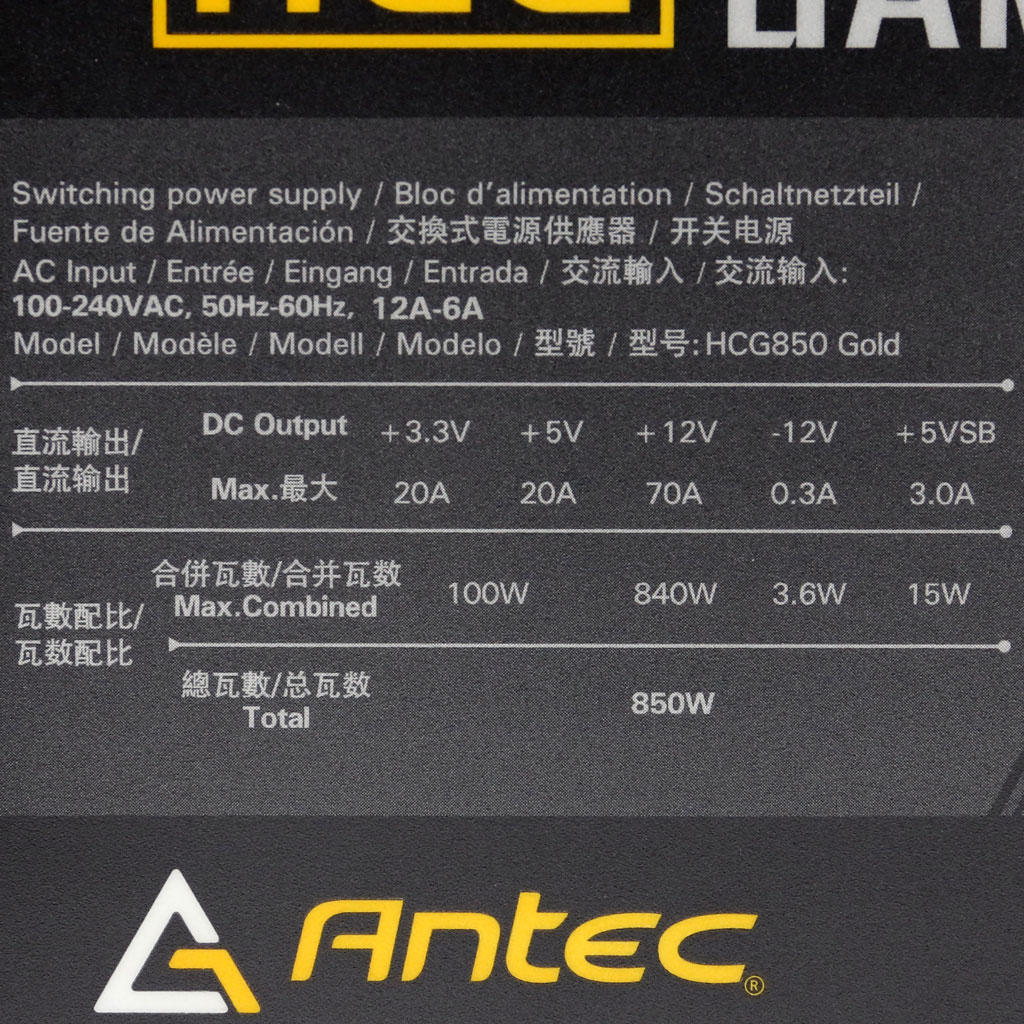

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70 3 0.3
Watts 100 840 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (660mm) 2 2 18AWG Yes
6+2 pin PCIe (680mm+80mm) 3 6 18AWG Yes
SATA (460mm+110mm+110mm+110mm) 2 8 18AWG No
SATA (460mm+110mm) 1 2 18AWG No
4 pin Molex (460mm+120mm+120mm) 1 3 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
FDD Adapter (+110mm) 1 1 22AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model FX
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1508 (800V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPW50R190CE (550V, 15.7A @ 100°C, 0.19Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06D (600V, 8A @ 125°C)
Hold-up Cap(s) 1x Nichicon (400V, 680uF, 2000h @ 105°C, GG)
Main Switchers 4x UTC GPT13N50DG (500V, 13A @ 100°C, 0.49Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN2R6-40YS (40V, 100A @ 25°C, 2.8mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: Anpec APW7159
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), 2x Nichicon (2-5,000 @ 105°C, HD), 1x Rubycon (3-6,000 @ 105°C,YXG)
Polymers: Chemi-Con, FPCAP
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, 2200 RPM, Fluid Dynamic Bearing)
5VSB Circuit
Standby PWM Controller Excelliance EM8569

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)88.639%
Average Noise Output (>1450 Load Combinations)33.35dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0429W
12V Ripple (Full Load)24.37mV
5V Ripple (Full Load)12.97mV
3.3V Ripple (Full Load)12.36mV
5VSB Ripple (Full Load)9.74mV
12V Load Regulation0.03%
5V Load Regulation0.38%
3.3V Load Regulation0.54%
5VSB Load Regulation2.34%
Inrush Current26.344A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)91.075%
Average Noise Output (>1450 Load Combinations)31.65dBA
Average PF (>1450 Load Combinations)0.947
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0705W
12V Ripple (Full Load)24.78mV
5V Ripple (Full Load)12.87mV
3.3V Ripple (Full Load)13.52mV
5VSB Ripple (Full Load)7.38mV
12V Load Regulation0.04%
5V Load Regulation0.38%
3.3V Load Regulation0.60%
5VSB Load Regulation2.36%
Inrush Current39.606A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal19.30ms
AC Loss to PWR_OK Hold Up Time15.60ms
PWR_OK Inactive to DC Loss Delay3.70ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.3
AC Loss to PWR_OK Hold Up Time (ms)15.6
PWR_OK Inactive to DC Loss Delay (ms)3.7

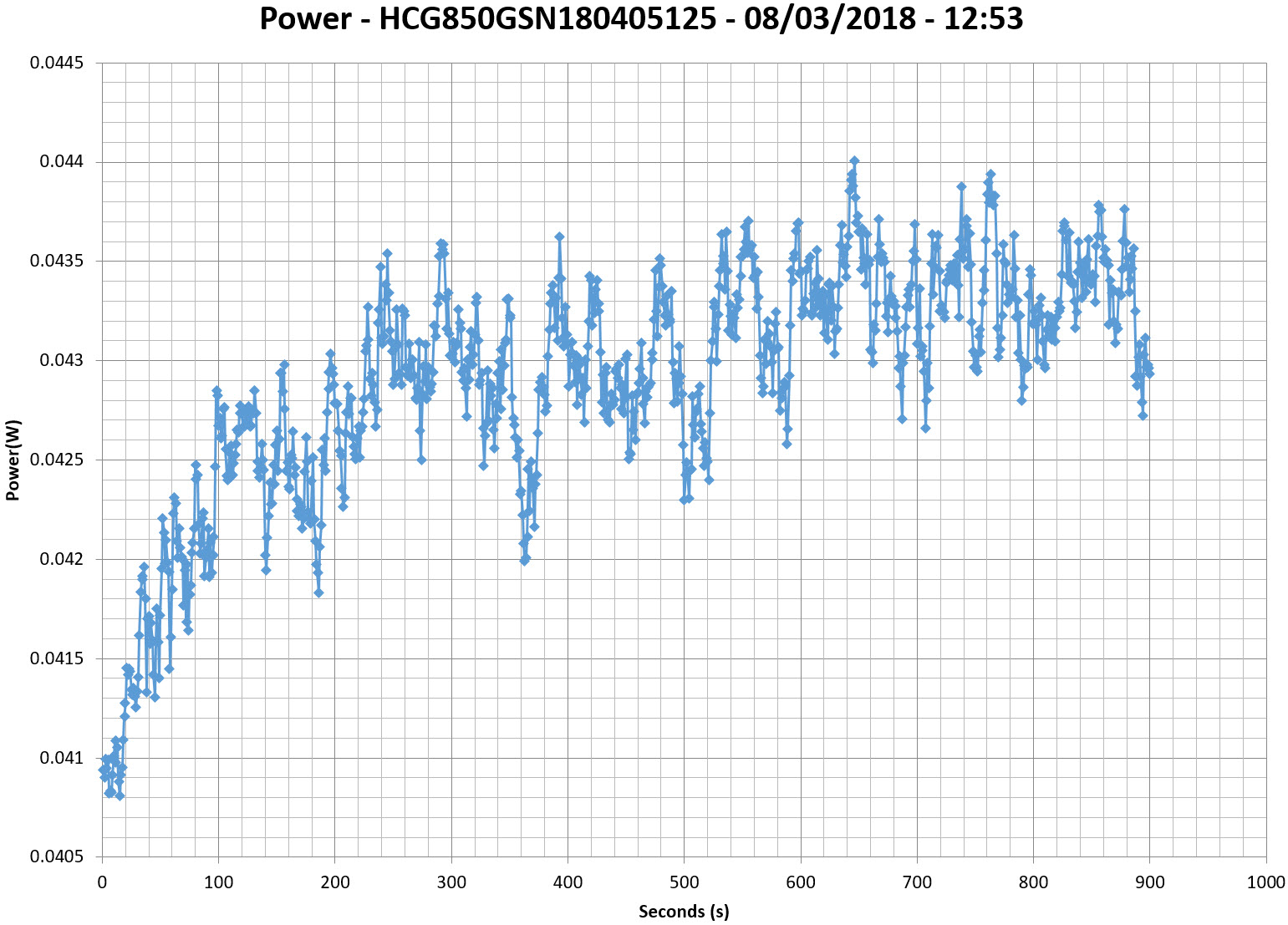

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

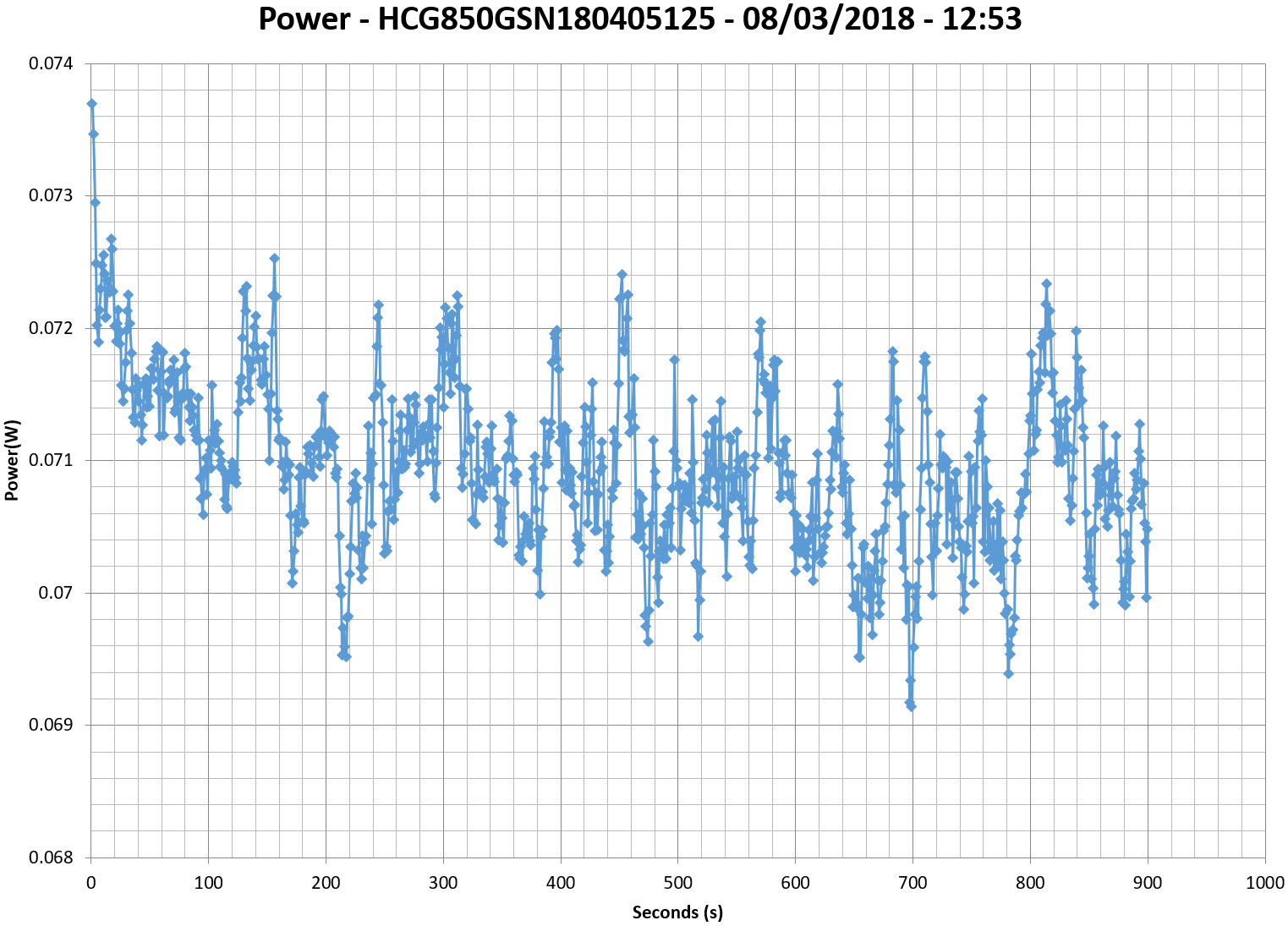

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

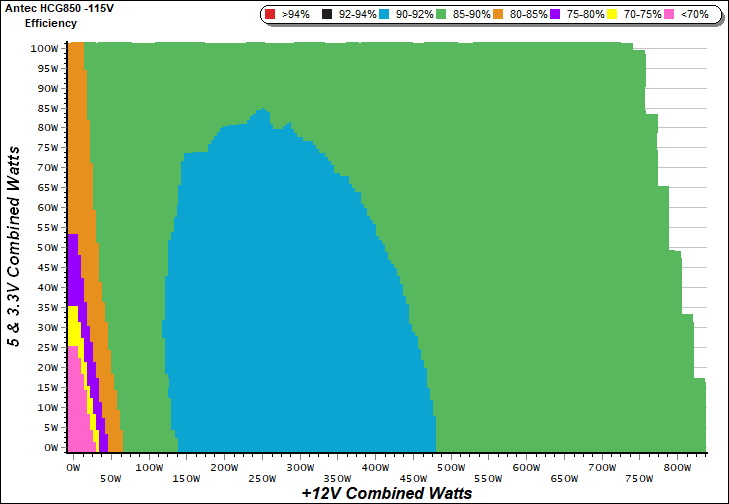

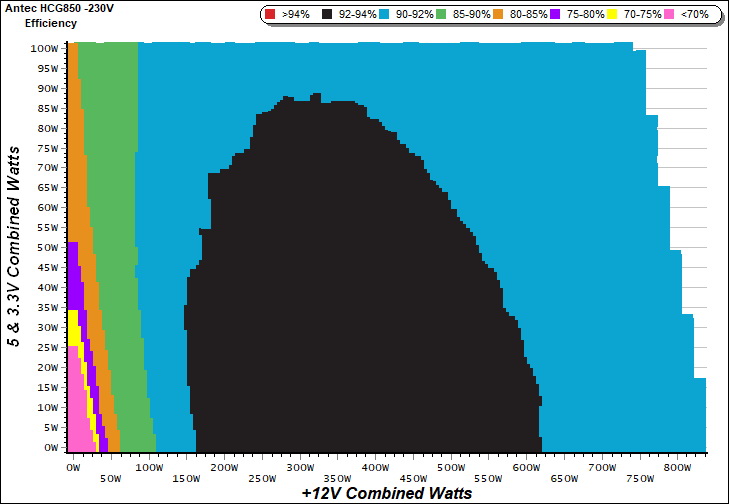

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

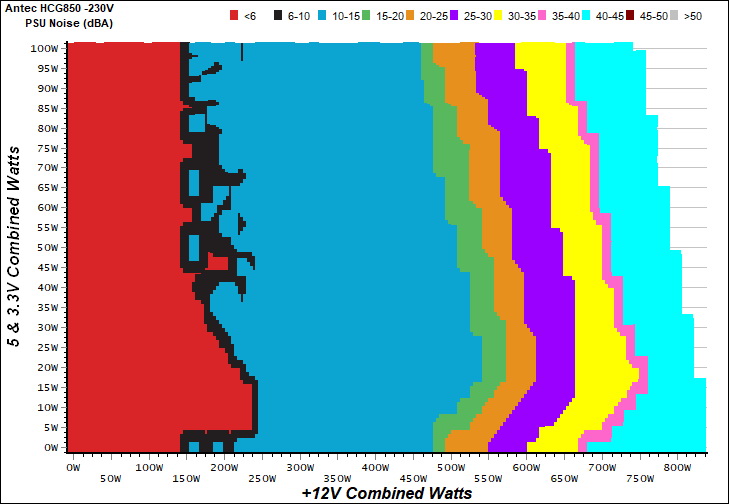

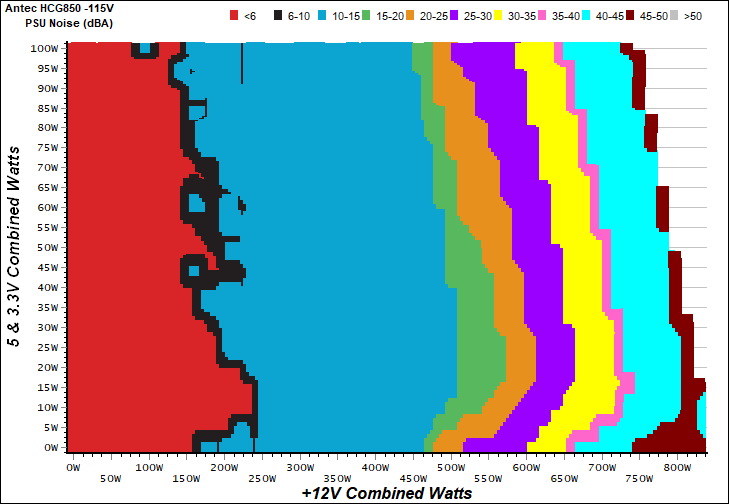

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

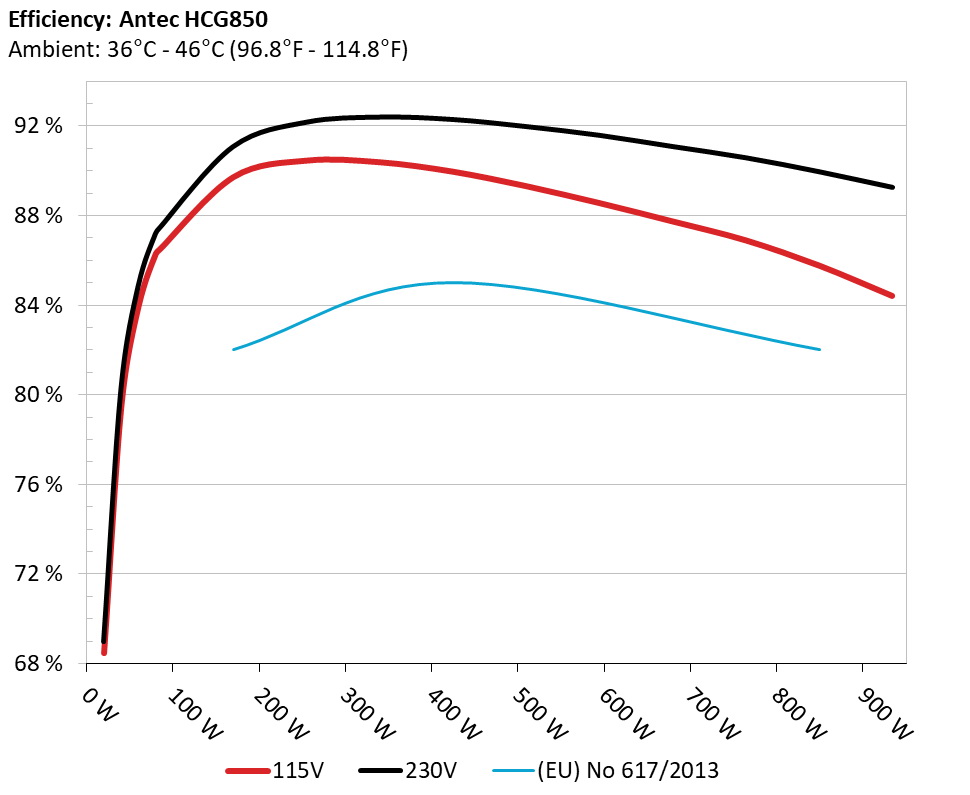

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

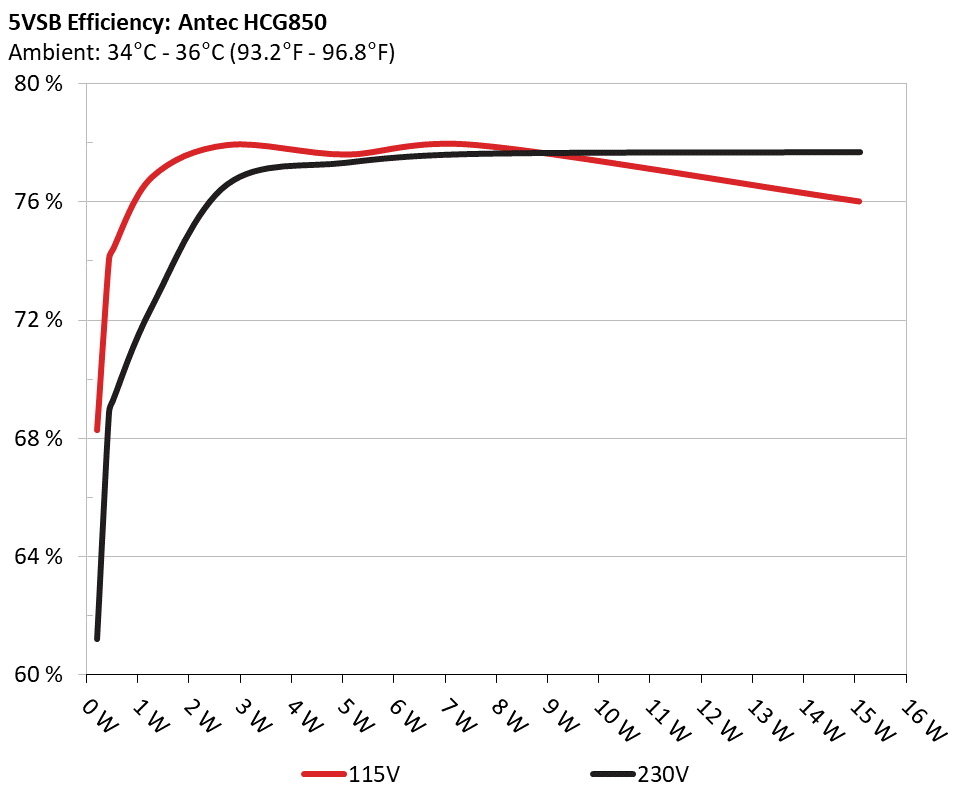

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.041A 0.211 68.285% 0.051
5.101V 0.309 115.12V
2 0.087A 0.443 74.080% 0.096
5.099V 0.598 115.12V
3 0.542A 2.758 77.932% 0.332
5.088V 3.539 115.11V
4 1.002A 5.088 77.608% 0.403
5.078V 6.556 115.11V
5 1.502A 7.610 77.931% 0.438
5.068V 9.765 115.11V
6 3.001A 15.080 76.023% 0.485
5.025V 19.836 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 61.207% 0.018
5.101V 0.348 230.28V
2 0.087A 0.445 68.885% 0.032
5.099V 0.646 230.28V
3 0.542A 2.757 76.605% 0.157
5.088V 3.599 230.31V
4 1.002A 5.088 77.337% 0.240
5.078V 6.579 230.30V
5 1.502A 7.609 77.635% 0.295
5.067V 9.801 230.29V
6 3.001A 15.109 77.693% 0.372
5.034V 19.447 230.28V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.199A 1.984A 1.976A 0.986A 84.852 86.522% 478 9.6 38.13°C 0.969
12.165V 5.048V 3.336V 5.071V 98.070 44.56°C 115.05V
2 11.414A 2.968A 2.967A 1.186A 169.719 89.731% 496 9.8 38.87°C 0.983
12.165V 5.045V 3.334V 5.061V 189.141 45.77°C 115.03V
3 17.989A 3.473A 3.475A 1.385A 254.940 90.470% 512 11.5 39.34°C 0.986
12.166V 5.042V 3.332V 5.051V 281.796 46.80°C 115.01V
4 24.544A 3.963A 3.960A 1.586A 339.758 90.397% 515 11.5 39.86°C 0.988
12.166V 5.040V 3.330V 5.041V 375.852 48.19°C 115.03V
5 30.752A 4.966A 4.953A 1.786A 424.648 89.976% 525 11.7 40.19°C 0.988
12.167V 5.038V 3.328V 5.031V 471.958 49.41°C 115.02V
6 36.975A 5.953A 5.950A 1.991A 509.639 89.328% 823 20.5 41.32°C 0.988
12.167V 5.036V 3.326V 5.020V 570.525 51.06°C 115.03V
7 43.194A 6.954A 6.945A 2.196A 594.588 88.574% 1185 30.2 42.02°C 0.989
12.166V 5.034V 3.324V 5.008V 671.293 52.26°C 115.03V
8 49.424A 7.948A 7.945A 2.400A 679.571 87.755% 1646 40.5 43.61°C 0.990
12.164V 5.032V 3.322V 4.996V 774.400 54.51°C 115.01V
9 56.066A 8.454A 8.458A 2.400A 764.513 86.908% 2053 46.0 44.65°C 0.990
12.163V 5.030V 3.320V 4.991V 879.680 56.17°C 115.03V
10 62.450A 8.953A 8.947A 3.015A 849.284 85.787% 2130 49.1 44.98°C 0.991
12.163V 5.029V 3.318V 4.973V 989.993 56.98°C 115.01V
11 69.430A 8.956A 8.952A 3.017A 934.187 84.431% 2150 49.2 46.28°C 0.992
12.163V 5.028V 3.317V 4.967V 1106.448 59.09°C 115.03V
CL1 0.100A 12.013A 12.006A 0.005A 101.864 84.708% 520 11.6 41.49°C 0.978
12.167V 5.043V 3.335V 5.087V 120.253 51.22°C 115.08V
CL2 69.958A 1.002A 1.002A 1.002A 864.308 85.962% 2140 49.1 45.97°C 0.991
12.163V 5.034V 3.323V 5.026V 1005.453 55.86°C 115.04V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.197A 1.984A 1.976A 0.986A 84.828 87.458% 575 11.0 46.35°C 0.822
12.165V 5.048V 3.336V 5.071V 96.993 38.52°C 230.28V
2 11.412A 2.970A 2.964A 1.186A 169.683 91.068% 505 11.3 38.96°C 0.914
12.164V 5.045V 3.334V 5.061V 186.325 47.51°C 230.29V
3 17.986A 3.472A 3.478A 1.385A 254.891 92.161% 512 11.5 39.37°C 0.944
12.165V 5.043V 3.332V 5.050V 276.571 48.66°C 230.29V
4 24.539A 3.964A 3.957A 1.585A 339.667 92.387% 517 11.6 40.36°C 0.958
12.165V 5.041V 3.330V 5.041V 367.655 49.86°C 230.29V
5 30.750A 4.967A 4.953A 1.786A 424.606 92.281% 527 11.8 41.57°C 0.968
12.166V 5.039V 3.329V 5.031V 460.125 51.55°C 230.27V
6 36.970A 5.954A 5.948A 1.990A 509.552 91.966% 857 22.5 42.20°C 0.973
12.166V 5.038V 3.327V 5.020V 554.065 52.73°C 230.29V
7 43.190A 6.956A 6.943A 2.195A 594.510 91.574% 1180 30.2 43.18°C 0.977
12.165V 5.036V 3.324V 5.009V 649.213 54.17°C 230.27V
8 49.411A 7.948A 7.943A 2.400A 679.416 91.074% 1636 40.1 44.58°C 0.978
12.164V 5.033V 3.322V 4.997V 746.008 55.88°C 230.28V
9 56.062A 8.454A 8.460A 2.400A 764.418 90.570% 2020 44.1 45.24°C 0.981
12.162V 5.030V 3.320V 4.992V 844.005 56.72°C 230.29V
10 62.445A 8.953A 8.949A 3.015A 849.167 89.950% 2130 49.1 45.97°C 0.982
12.162V 5.029V 3.318V 4.973V 944.039 57.65°C 230.31V
11 69.427A 8.957A 8.950A 3.015A 934.151 89.251% 2155 49.2 46.32°C 0.983
12.163V 5.028V 3.318V 4.968V 1046.657 58.47°C 230.27V
CL1 0.100A 12.014A 12.004A 0.004A 101.857 85.608% 522 11.7 42.33°C 0.868
12.168V 5.043V 3.335V 5.086V 118.981 52.75°C 230.31V
CL2 69.948A 1.000A 1.003A 1.002A 864.324 90.288% 2140 49.1 44.81°C 0.982
12.165V 5.034V 3.324V 5.028V 957.297 56.03°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.205A 0.489A 0.476A 0.196A 19.716 68.473% 0 <6.0 0.835
12.163V 5.053V 3.340V 5.092V 28.794 115.05V
2 2.429A 0.987A 0.985A 0.391A 39.802 79.515% 0 <6.0 0.924
12.164V 5.047V 3.336V 5.087V 50.056 115.05V
3 3.657A 1.474A 1.496A 0.591A 59.918 83.998% 0 <6.0 0.954
12.164V 5.048V 3.336V 5.081V 71.333 115.05V
4 4.869A 1.983A 1.976A 0.786A 79.822 86.317% 0 <6.0 0.968
12.165V 5.048V 3.336V 5.076V 92.475 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.491A 0.475A 0.196A 19.686 68.987% 0 <6.0 0.533
12.163V 5.053V 3.340V 5.093V 28.536 230.24V
2 2.425A 0.989A 0.986A 0.391A 39.770 80.270% 0 <6.0 0.664
12.164V 5.048V 3.338V 5.087V 49.545 230.26V
3 3.655A 1.476A 1.494A 0.591A 59.901 84.879% 0 <6.0 0.754
12.164V 5.049V 3.338V 5.081V 70.572 230.26V
4 4.866A 1.983A 1.974A 0.786A 79.781 87.189% 0 <6.0 0.812
12.165V 5.049V 3.336V 5.076V 91.504 230.28V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.7 mV 6.5 mV 8.8 mV 5.3 mV Pass
20% Load 13.5 mV 7.3 mV 9.3 mV 5.5 mV Pass
30% Load 15.8 mV 7.8 mV 9.6 mV 5.7 mV Pass
40% Load 17.6 mV 9.2 mV 9.7 mV 5.7 mV Pass
50% Load 18.0 mV 10.1 mV 8.7 mV 5.6 mV Pass
60% Load 15.9 mV 10.8 mV 9.8 mV 6.6 mV Pass
70% Load 16.3 mV 11.4 mV 10.8 mV 7.0 mV Pass
80% Load 17.9 mV 12.0 mV 10.9 mV 9.6 mV Pass
90% Load 20.5 mV 12.5 mV 10.6 mV 9.9 mV Pass
100% Load 24.4 mV 13.0 mV 12.4 mV 9.7 mV Pass
110% Load 26.2 mV 13.4 mV 13.4 mV 10.1 mV Pass
Crossload 1 10.5 mV 11.5 mV 9.6 mV 5.7 mV Pass
Crossload 2 24.0 mV 8.6 mV 11.0 mV 8.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.0 mV 9.6 mV 9.3 mV 16.0 mV Pass
20% Load 23.7 mV 10.5 mV 10.3 mV 17.6 mV Pass
30% Load 26.9 mV 11.5 mV 11.1 mV 19.7 mV Pass
40% Load 27.9 mV 13.2 mV 15.8 mV 19.7 mV Pass
50% Load 31.0 mV 15.0 mV 17.7 mV 20.1 mV Pass
60% Load 37.7 mV 17.3 mV 34.0 mV 21.8 mV Pass
70% Load 36.5 mV 19.7 mV 16.9 mV 32.1 mV Pass
80% Load 39.2 mV 21.4 mV 17.9 mV 27.9 mV Pass
90% Load 41.0 mV 23.9 mV 28.2 mV 30.1 mV Pass
100% Load 45.1 mV 29.9 mV 33.9 mV 28.4 mV Pass
110% Load 47.2 mV 31.7 mV 39.7 mV 30.2 mV Pass
Crossload 1 36.2 mV 17.4 mV 11.9 mV 15.1 mV Pass
Crossload 2 37.4 mV 26.8 mV 38.9 mV 33.9 mV Pass

The results above are not used in the certification process

Antec HCG850 Gold

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
