CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Gigabyte Gaming 1000GM PG5
Serial Number-
Lab IDGB10003216
Certification ID263216
  • Test Result Report ID: 26PS3216A
  • Certificate Issue Date: Mar 26, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandGigabyte
ModelGaming 1000GM PG5
OEMHEC
Serial Number-
Product Specifications
Manufacturer
Rated Voltage (Vrms)100-240
Rated Current (Arms)5-10
Rated Frequency (Hz)50-60
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)0 - 50
TypeATX12V
Cable DesignFully Modular
WarrantyNo Info
Cybenetics
Dimensions (W x H x D)150 x 85 x 150mm
Weight1.68 kg (3.70 lb)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12SF-Z)
Semi-Passive Operation✓
Cybenetics Testing Information
Lab IDGB10003216
Date of receiptFeb 13, 2026
Testing DateMar 17, 2026
Report Issued DateMar 26, 2026
Engineer NameGeorgios Theodoros Sarimpalas
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (610mm) 1 1 16-18AWG Tinned Copper
4+4 pin EPS12V (610mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (600mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

Protection Features(Manufacturer)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts1201000153.6
Total Max. Power (W)1000

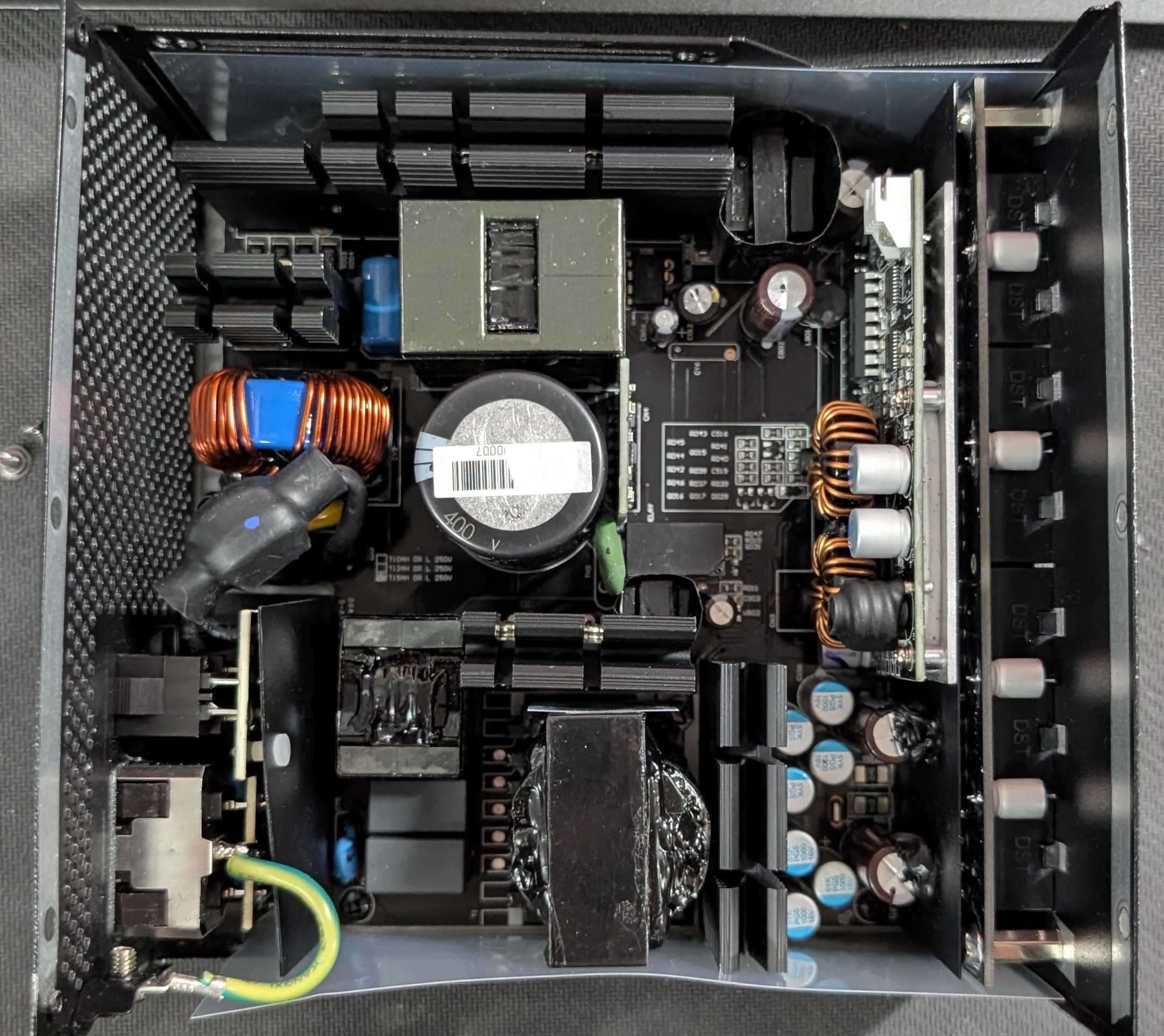

Parts Description

General Data
Manufacturer (OEM)

HEC
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor NTC 5D-15 (5 Ohm @ 25°C) & Relay
Bridge Rectifier 2x GBU15K (800V, 15A @ 100°C)
APFC MOSFETs 3x CRMicro CRJW125N60G2F (600V, 17A @ 100°C, Rds(on): 0.095Ohm)
APFC Boost Diode Sanan Semiconductor SDS065J010C3 (650V, 15A @ 135°C)
Bulk Cap(s) Toshin Kogyo (400V, 680uF, 2000h @ 105°C, LGW )
Main Switchers 2x NCE Power Semiconductor NCE65TF099F (650V, 24A @ 100°C, Rds(on): 0.89Ohm)

APFC Controller

Champion CM6500UNX &
Champion CM03AX (reducing no load consumption)

Resonant Controller Champion CU6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x
5V & 3.3V DC-DC Converters: 4x Potens Semiconductor PDC39F2BX (30V, 120A @ 100°C, Rds(on): 2.95mOhm)
PWM Controller(s): Anpec APW7159C
Filtering Capacitors

Electrolytic:
5x Toshin Kogyo (@ 105°C, LWD)
2x Toshin Kogyo (@ 105°C, LWY)
1x Toshin Kogyo (@ 105°C, UTWE)
Polymer:
29x Toshin Kogyo

Supervisor IC Weltrend  WT7527RT  (OVP, UVP, OCP, PGO, FPOB)
MCU / Fan Controller Nuvoton MS51FB9AE

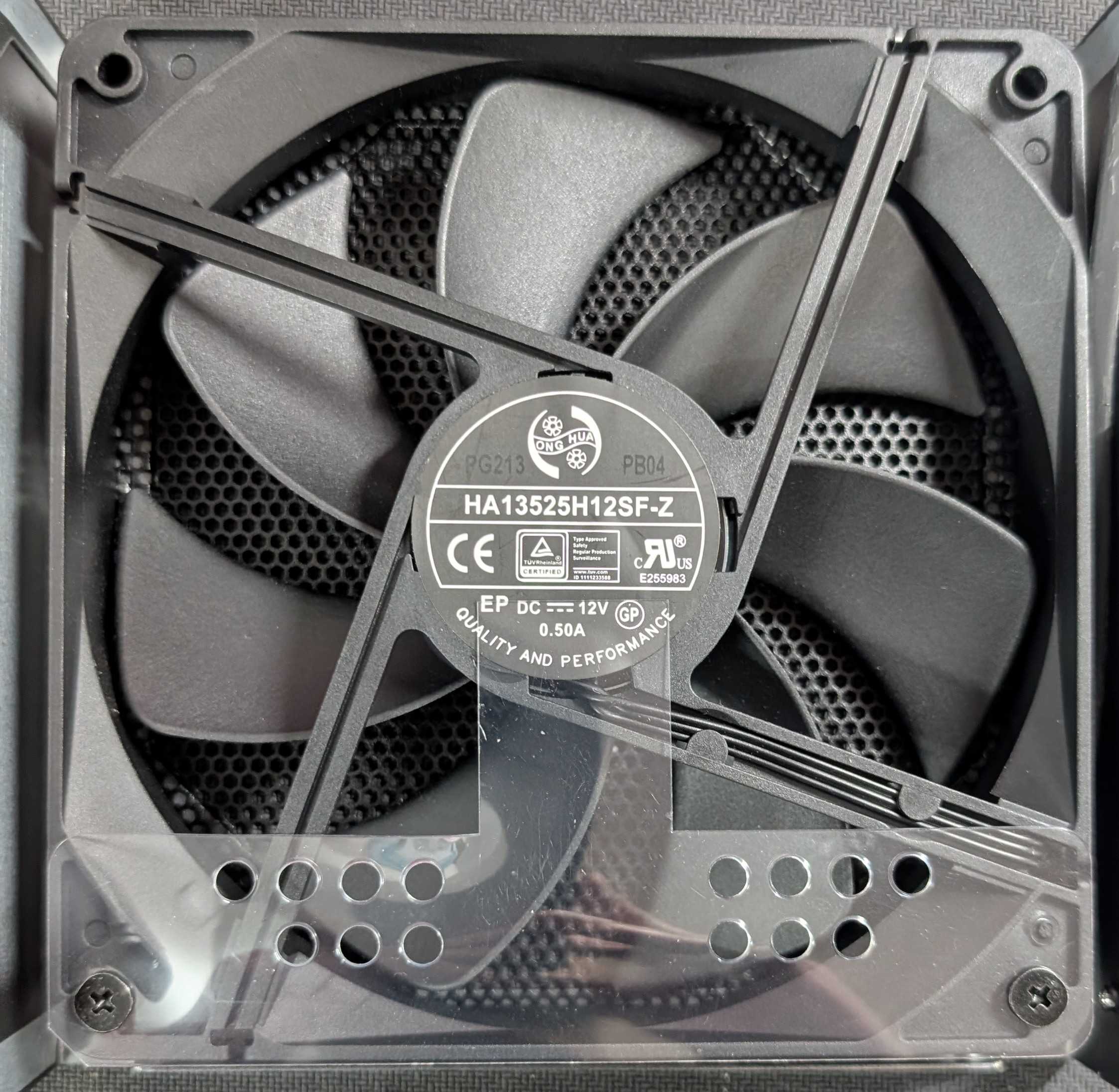

Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier Chongqing Pingwei Enterprise PS1060L (60V, 10A)
Standby PWM Controller Excelliance MOS Corporation EM8569D

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)90.249%
Average Noise Output (>1450 Load Combinations)28.56dBA
Average PF (>1450 Load Combinations)0.983
Efficiency With 10W (≤500W) or 2% (>500W) Load71.252%
Standby Power Consumption0.0407W
Non-Accredited
12V Ripple (Full Load)43.23mV
5V Ripple (Full Load)24.17mV
3.3V Ripple (Full Load)25.17mV
5VSB Ripple (Full Load)26.09mV
12V Load Regulation1.07%
5V Load Regulation0.22%
3.3V Load Regulation0.46%
5VSB Load Regulation2.38%
Inrush Current33.600A
Accredited
Average Efficiency (>1450 load combinations)92.006%
Average Noise Output (>1450 Load Combinations)28.07dBA
Average PF (>1450 Load Combinations)0.948
Efficiency With 10W (≤500W) or 2% (>500W) Load70.548%
Standby Power Consumption0.0941W
Non-Accredited
12V Ripple (Full Load)42.82mV
5V Ripple (Full Load)24.37mV
3.3V Ripple (Full Load)25.78mV
5VSB Ripple (Full Load)25.06mV
12V Load Regulation1.09%
5V Load Regulation0.20%
3.3V Load Regulation0.46%
5VSB Load Regulation2.38%
Inrush Current68.930A
12V Transient Response (200%)11.38V
5V Transient Response (200%)4.913V
3.3V Transient Response (200%)3.177V
5VSB Transient Response (200%)4.997V
Hold-Up Time & Power Ok Signal22.60ms
AC Loss to PWR_OK Hold Up Time20.10ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)50.0ms50.0ms
PSU Timings: T3 (20% / 100%)124.0ms123.0ms
12V OCP (29.5°C / 42.9°C)105.00A (126.05%), 12.081V102.40A (122.93%), 12.084V
5V OCP (29.5°C / 42.9°C)27.5A (137.50%), 5.037V27.1A (135.50%), 5.039V
3.3V OCP (29.5°C / 42.9°C)27.1A (135.50%), 3.271V26.6A (133.00%), 3.274V
5VSB OCP (29.5°C / 42.9°C)4.3A (143.33%), 5.023V4.3A (143.33%), 5.025V
OPP (29.03°C / 41.86°C)126.41%111.70%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.6
AC Loss to PWR_OK Hold Up Time (ms)20.1
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.04 V 115.02 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.041 W -0.000 W N/A 0.076 W N/A N/A
Apparent Power: 11.100 W 11.080 W N/A 11.120 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.08 V 230.07 V 227.70 V 230.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.094 W 0.055 W N/A 0.159 W N/A N/A
Apparent Power: 36.524 W 36.492 W N/A 36.563 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

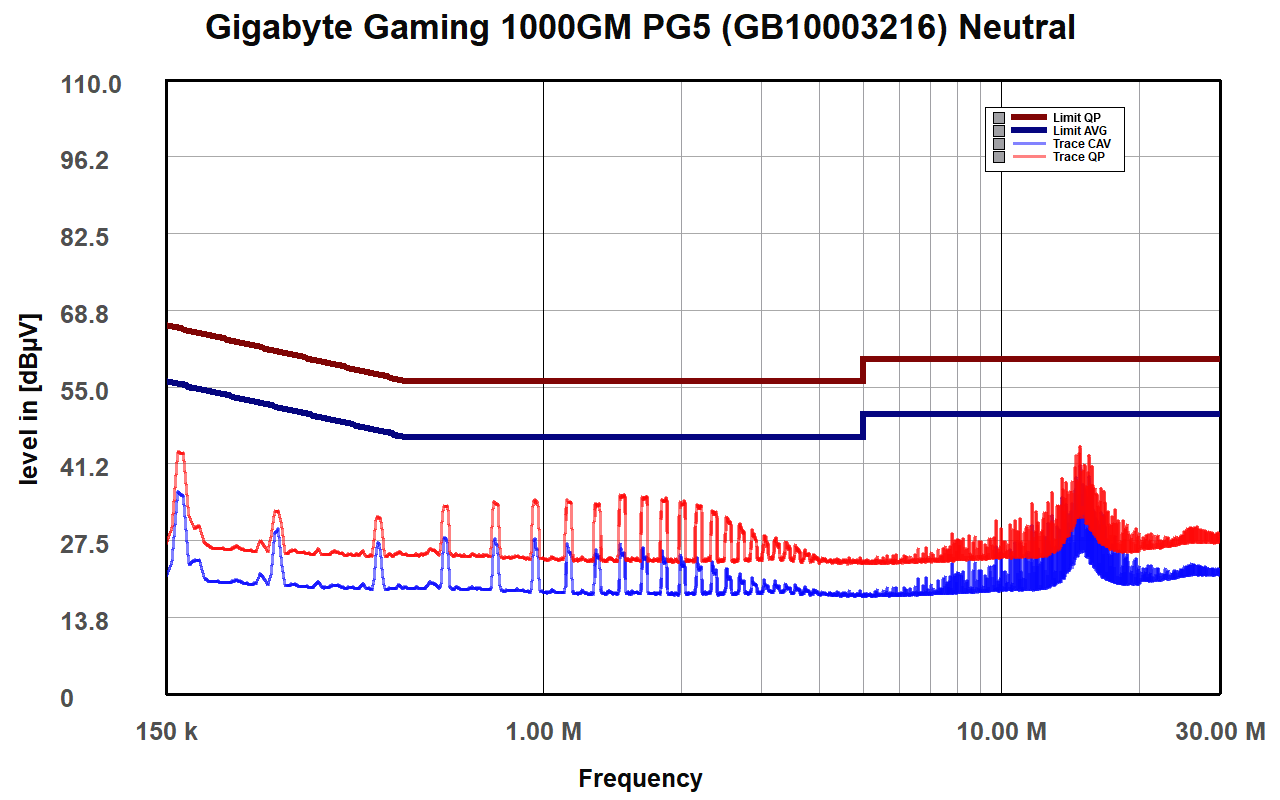

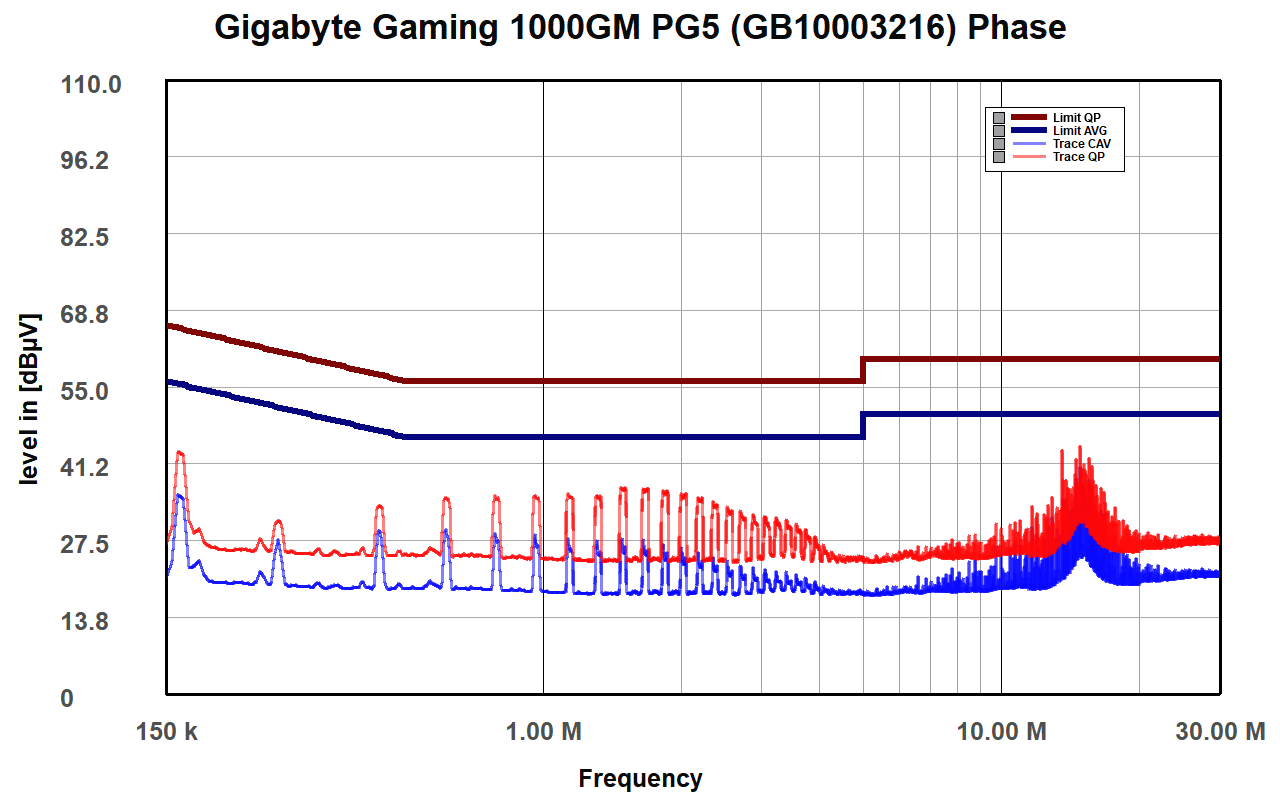

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

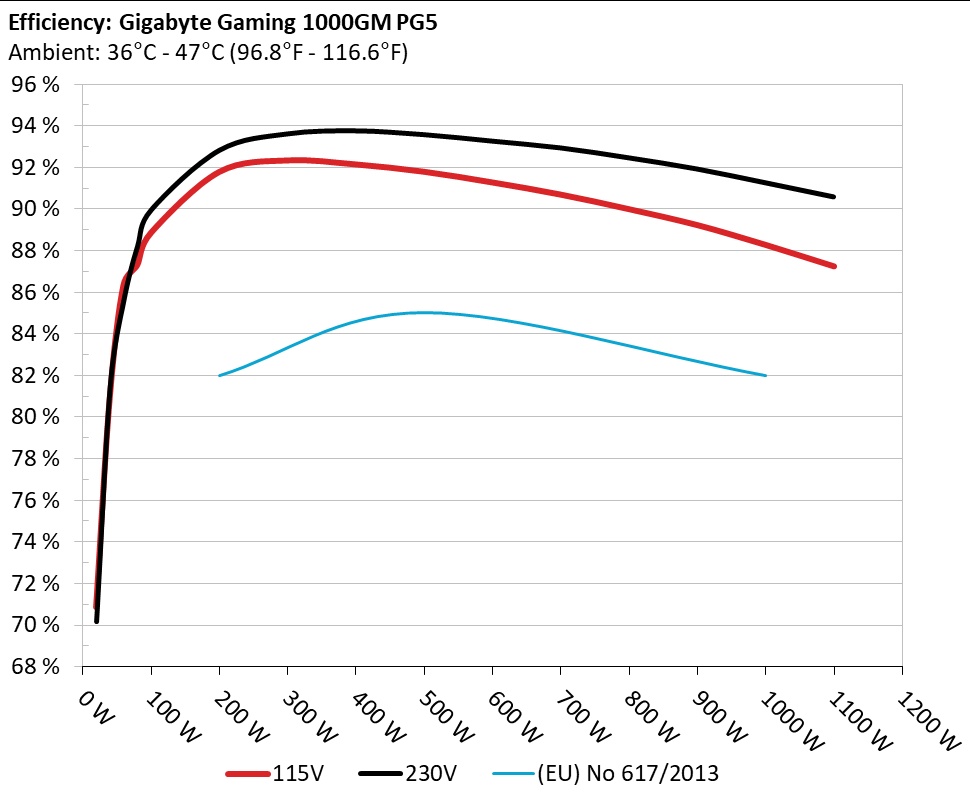

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

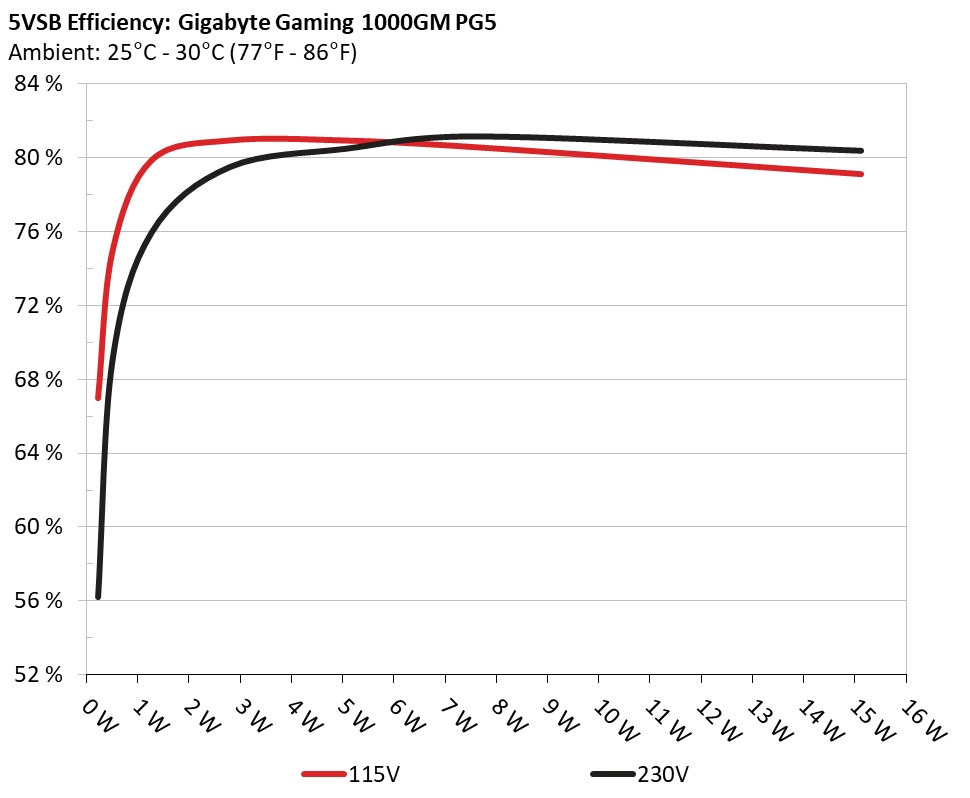

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 66.958% 0.032
5.109V 0.344W 115.04V
2 0.09A 0.46W 74.266% 0.056
5.108V 0.619W 115.04V
3 0.55A 2.803W 80.94% 0.226
5.097V 3.463W 115.04V
4 1A 5.087W 80.933% 0.294
5.087V 6.285W 115.04V
5 1.5A 7.614W 80.57% 0.333
5.076V 9.45W 115.04V
6 3A 15.124W 79.111% 0.38
5.042V 19.118W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 56.203% 0.011
5.106V 0.41W 229.98V
2 0.09A 0.459W 67.734% 0.019
5.105V 0.679W 229.98V
3 0.55A 2.802W 79.508% 0.092
5.095V 3.524W 229.99V
4 1A 5.085W 80.507% 0.149
5.085V 6.316W 229.99V
5 1.5A 7.611W 81.168% 0.196
5.074V 9.378W 229.99V
6 3A 15.12W 80.392% 0.274
5.041V 18.808W 229.99V

Protection Features

OCP (Normal @ 29.5°C)12V: 105.00A (126.05%), 12.081V
5V: 27.5A (137.50%), 5.037V
3.3V: 27.1A (135.50%), 3.271V
5VSB: 4.3A (143.33%), 5.023V
OCP (Hot @ 42.9°C)12V: 102.40A (122.93%), 12.084V
5V: 27.1A (135.50%), 5.039V
3.3V: 26.6A (133.00%), 3.274V
5VSB: 4.3A (143.33%), 5.025V
OPP (Normal @ 29.0°C)1264.08W (126.41%)
OPP (Hot @ 41.9°C)1116.98W (111.70%)
OTP✓ (160°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.440A 1.983A 2.005A 0.983A 100.008 88.852% 0 <6.0 43.04°C 0.963
12.174V 5.042V 3.291V 5.089V 112.555 40.05°C 115.01V
20% 13.902A 2.975A 3.009A 1.181A 199.965 91.789% 0 <6.0 48.69°C 0.982
12.161V 5.042V 3.29V 5.079V 217.852 40.68°C 114.98V
30% 21.728A 3.472A 3.512A 1.381A 300.024 92.347% 0 <6.0 50.58°C 0.978
12.148V 5.041V 3.289V 5.069V 324.888 41.03°C 114.94V
40% 29.533A 3.968A 4.015A 1.581A 399.611 92.157% 619 10.8 41.63°C 0.981
12.136V 5.041V 3.288V 5.06V 433.622 53.05°C 114.9V
50% 37.025A 4.962A 5.022A 1.783A 499.318 91.804% 970 24.6 42.34°C 0.984
12.122V 5.039V 3.286V 5.049V 543.897 51.77°C 114.87V
60% 44.602A 5.957A 6.03A 1.985A 599.84 91.288% 1034 26.6 42.89°C 0.987
12.108V 5.037V 3.284V 5.038V 657.085 51.85°C 114.83V
70% 52.132A 6.952A 7.04A 2.188A 699.578 90.705% 1172 30.2 43.41°C 0.99
12.094V 5.036V 3.282V 5.027V 771.272 52.52°C 114.79V
80% 59.743A 7.944A 8.049A 2.292A 799.583 90.002% 1376 34.8 43.63°C 0.992
12.080V 5.034V 3.28V 5.018V 888.408 53.29°C 114.75V
90% 67.703A 8.442A 8.54A 2.395A 899.367 89.238% 1659 39.5 44.05°C 0.993
12.066V 5.033V 3.279V 5.01V 1007.832 53.98°C 114.71V
100% 75.482A 8.941A 9.062A 3.006A 999.369 88.284% 2202 47.1 45.7°C 0.994
12.052V 5.032V 3.278V 4.991V 1131.998 55.26°C 114.67V
110% 83.213A 9.938A 10.166A 3.01A 1099.988 87.248% 2219 47.4 46.96°C 0.995
12.038V 5.031V 3.276V 4.983V 1260.757 57.59°C 114.62V
CL1 0.116A 14.331A 14.547A 0A 121.3 84.659% 1128 29.1 41.6°C 0.968
12.171V 5.037V 3.279V 5.096V 143.283 52.66°C 115V
CL2 0.115A 19.829A 0A 0A 101.356 83.631% 1456 36.1 41.06°C 0.968
12.174V 5.041V 3.291V 5.103V 121.196 48.7°C 115V
CL3 0.115A 0A 20.127A 0A 67.403 77.98% 808 19.3 40.7°C 0.956
12.174V 5.041V 3.28V 5.103V 86.436 48.14°C 115.01V
CL4 82.954A 0A 0A 0A 999.937 88.84% 1917 43.7 45.91°C 0.994
12.054V 5.037V 3.288V 5.064V 1125.556 54.47°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.438A 1.983A 2.005A 0.982A 99.988 89.57% 0 <6.0 43.95°C 0.838
12.175V 5.043V 3.292V 5.089V 111.631 40.13°C 229.98V
20% 13.898A 2.975A 3.009A 1.181A 199.937 92.838% 0 <6.0 47.91°C 0.92
12.162V 5.042V 3.29V 5.079V 215.362 40.93°C 229.96V
30% 21.724A 3.471A 3.512A 1.381A 299.986 93.627% 0 <6.0 47.86°C 0.946
12.150V 5.041V 3.289V 5.069V 320.408 41.3°C 229.95V
40% 29.522A 3.968A 4.014A 1.581A 399.521 93.773% 306 <6.0 41.68°C 0.959
12.137V 5.041V 3.288V 5.06V 426.052 47.47°C 229.93V
50% 37.015A 4.962A 5.022A 1.783A 499.247 93.591% 961 24.4 42.13°C 0.965
12.123V 5.039V 3.286V 5.049V 533.436 48.1°C 229.91V
60% 44.591A 5.957A 6.03A 1.985A 599.775 93.28% 1027 26.4 42.55°C 0.971
12.109V 5.037V 3.284V 5.038V 642.988 47.82°C 229.89V
70% 52.121A 6.951A 7.04A 2.188A 699.511 92.954% 1121 28.9 43.27°C 0.974
12.095V 5.036V 3.282V 5.027V 752.533 47.6°C 229.88V
80% 59.731A 7.944A 8.049A 2.291A 799.528 92.478% 1253 31.9 43.64°C 0.976
12.082V 5.034V 3.28V 5.018V 864.561 47.88°C 229.86V
90% 67.691A 8.442A 8.54A 2.395A 899.318 91.943% 1659 39.5 44.07°C 0.979
12.068V 5.033V 3.279V 5.01V 978.131 50.52°C 229.84V
100% 75.470A 8.939A 9.061A 3.005A 999.341 91.279% 2215 47.3 45.88°C 0.981
12.054V 5.033V 3.278V 4.991V 1094.824 51.81°C 229.82V
110% 83.204A 9.936A 10.165A 3.01A 1099.96 90.599% 2217 47.4 46.47°C 0.983
12.039V 5.031V 3.276V 4.984V 1214.106 53.44°C 229.81V
CL1 0.115A 14.329A 14.546A 0A 121.297 85.368% 1123 28.9 40.29°C 0.87
12.172V 5.038V 3.28V 5.096V 142.089 49.73°C 229.98V
CL2 0.115A 19.826A 0A 0A 101.35 84.047% 1122 28.9 41.12°C 0.849
12.175V 5.042V 3.291V 5.103V 120.588 47.2°C 229.98V
CL3 0.114A 0A 20.128A 0A 67.399 78.619% 572 8.8 40.32°C 0.785
12.175V 5.041V 3.279V 5.103V 85.728 45.95°C 229.99V
CL4 82.946A 0A 0A 0A 999.939 91.777% 1912 43.6 45.85°C 0.981
12.055V 5.036V 3.287V 5.064V 1089.531 49.55°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.496A 0.501A 0.196A 20.009 70.844% 0 <6.0 39.53°C 0.83
12.176V 5.041V 3.292V 5.11V 28.245 36.29°C 115.03V
40W 2.684A 0.694A 0.702A 0.294A 40.006 80.939% 0 <6.0 40.5°C 0.918
12.181V 5.042V 3.293V 5.108V 49.428 37.69°C 115.02V
60W 4.150A 0.892A 0.902A 0.392A 60.005 86.339% 0 <6.0 40.79°C 0.942
12.179V 5.043V 3.293V 5.105V 69.499 38.89°C 115.02V
80W 5.612A 1.091A 1.102A 0.49A 79.957 87.299% 0 <6.0 41.3°C 0.958
12.177V 5.043V 3.293V 5.101V 91.59 39.15°C 115.02V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.218A 0.496A 0.501A 0.196A 19.999 70.167% 0 <6.0 40.91°C 0.49
12.185V 5.042V 3.293V 5.11V 28.503 36.73°C 229.99V
40W 2.684A 0.694A 0.702A 0.294A 39.997 81.476% 0 <6.0 40.48°C 0.648
12.182V 5.043V 3.293V 5.107V 49.091 37.88°C 229.99V
60W 4.148A 0.892A 0.902A 0.392A 59.994 85.613% 0 <6.0 42.63°C 0.738
12.180V 5.043V 3.293V 5.104V 70.077 38.24°C 229.99V
80W 5.610A 1.09A 1.102A 0.49A 79.937 88.204% 0 <6.0 45.56°C 0.797
12.177V 5.043V 3.293V 5.101V 90.627 39.18°C 229.98V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load30.85mV22.73mV24.40mV22.35mVPass
20% Load34.58mV23.40mV22.25mV22.81mVPass
30% Load37.75mV24.22mV23.12mV23.12mVPass
40% Load37.45mV23.35mV22.56mV22.82mVPass
50% Load36.78mV22.68mV22.00mV22.61mVPass
60% Load36.68mV23.81mV22.61mV25.32mVPass
70% Load38.83mV24.63mV24.45mV24.81mVPass
80% Load40.26mV23.91mV23.94mV23.99mVPass
90% Load40.98mV25.03mV24.81mV26.04mVPass
100% Load43.23mV24.17mV25.17mV26.09mVPass
110% Load47.88mV25.49mV26.70mV25.78mVPass
Crossload130.34mV23.50mV23.28mV22.35mVPass
Crossload231.00mV25.39mV22.66mV22.92mVPass
Crossload327.47mV23.55mV25.53mV23.07mVPass
Crossload442.82mV23.76mV24.04mV24.96mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load28.09mV21.87mV21.79mV21.18mVPass
20% Load33.30mV22.07mV21.28mV21.79mVPass
30% Load34.74mV21.92mV21.38mV21.13mVPass
40% Load37.50mV22.58mV22.05mV22.51mVPass
50% Load35.66mV22.84mV22.30mV22.35mVPass
60% Load37.60mV22.28mV23.43mV23.27mVPass
70% Load37.60mV23.09mV22.30mV23.43mVPass
80% Load39.44mV22.79mV23.07mV24.76mVPass
90% Load41.13mV23.35mV24.09mV25.11mVPass
100% Load42.82mV24.37mV25.78mV25.06mVPass
110% Load45.17mV25.14mV25.32mV24.96mVPass
Crossload129.78mV23.30mV23.33mV21.59mVPass
Crossload238.06mV28.66mV31.15mV25.68mVPass
Crossload328.03mV24.63mV24.25mV22.20mVPass
Crossload442.62mV23.81mV23.43mV24.50mVPass

The results above are not used in the certification process

Gigabyte Gaming 1000GM PG5

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
