ASUS TUF Gaming 1000W Platinum (#2)

Serial Number2Q34282464

Lab IDAS10003346

Certification ID263346

Test Result Report ID: 26PS3346A
Certificate Issue Date: Jul 23, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

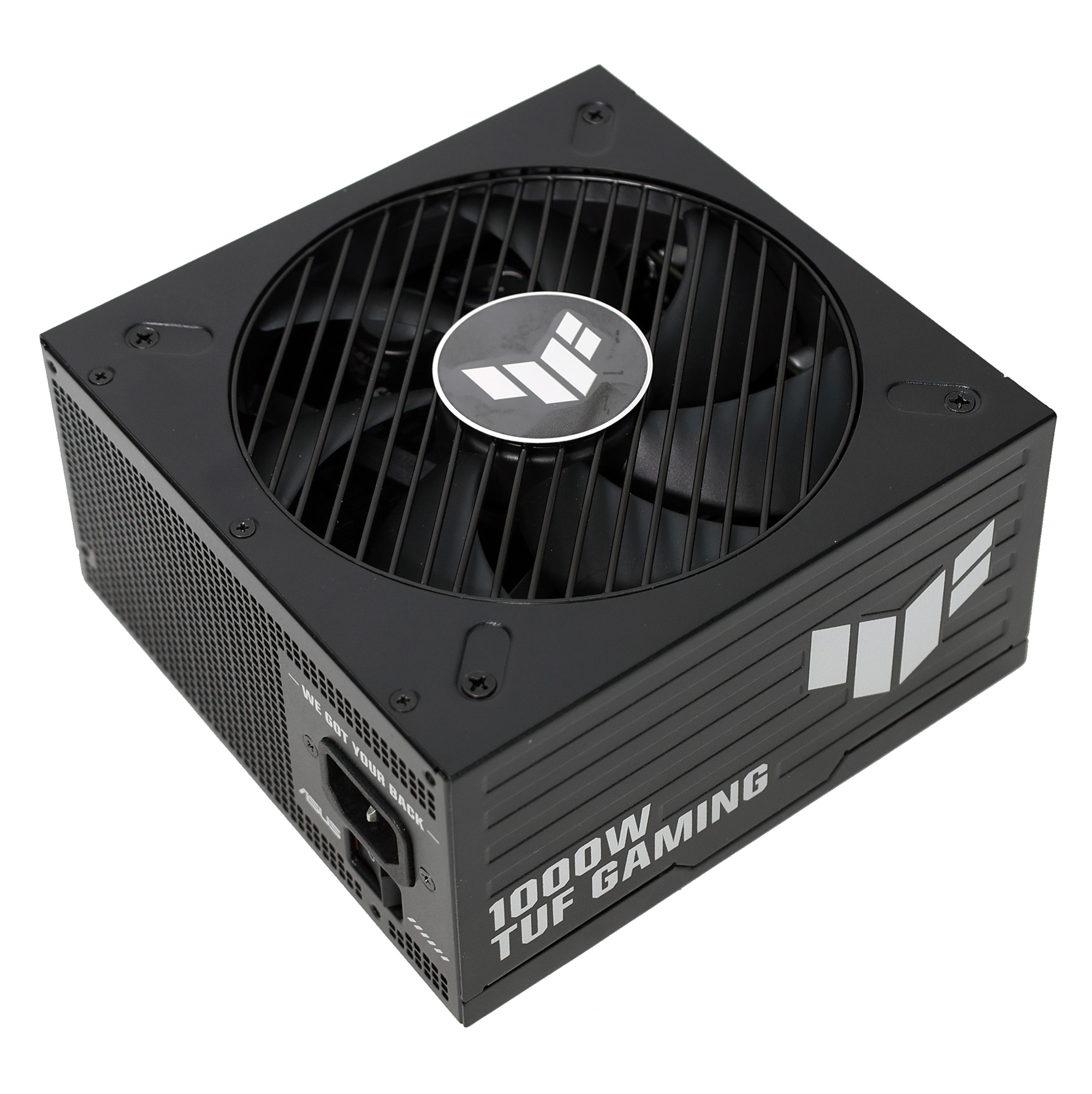

Product Identification Details
Brand	ASUS
Model	TUF Gaming 1000W Platinum (#2)
OEM/ODM	Great Wall
Serial Number	2Q34282464
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15-8
Rated Frequency (Hz)	47-63
Rated Power (W)	1000
Operating Temperature (Continuous Full Load) (°C)	0 - 50
Type	ATX12V
Cable Design	Fully Modular
Warranty	8 years
Cybenetics Measurements
Dimensions (W x H x D)	150 x 85 x 150mm
Weight	1.51 kg (3.33 lb)
Cooling	135mm Ball Bearing Fan (HA13525M12B-Z)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	AS10003346
Date of receipt	Jun 17, 2026
Testing Date	Jul 3, 2026
Report Issued Date	Jul 23, 2026
Engineer Name	Ioannis Kalyviotis
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

`Modular Cables`
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (610mm)	1	1	16-20AWG	Tinned Copper
4+4 pin EPS12V (750mm)	2	2	16AWG	Tinned Copper
6+2 pin PCIe (670mm)	3	3	16AWG	Tinned Copper
12+4 pin PCIe (670mm) (600W)	1	1	16-24AWG	Tinned Copper
SATA (400mm+150mm+150mm)	2	6	18AWG	Tinned Copper
4-pin Molex (400mm+150mm+150mm)	1	3	18AWG	Tinned Copper

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

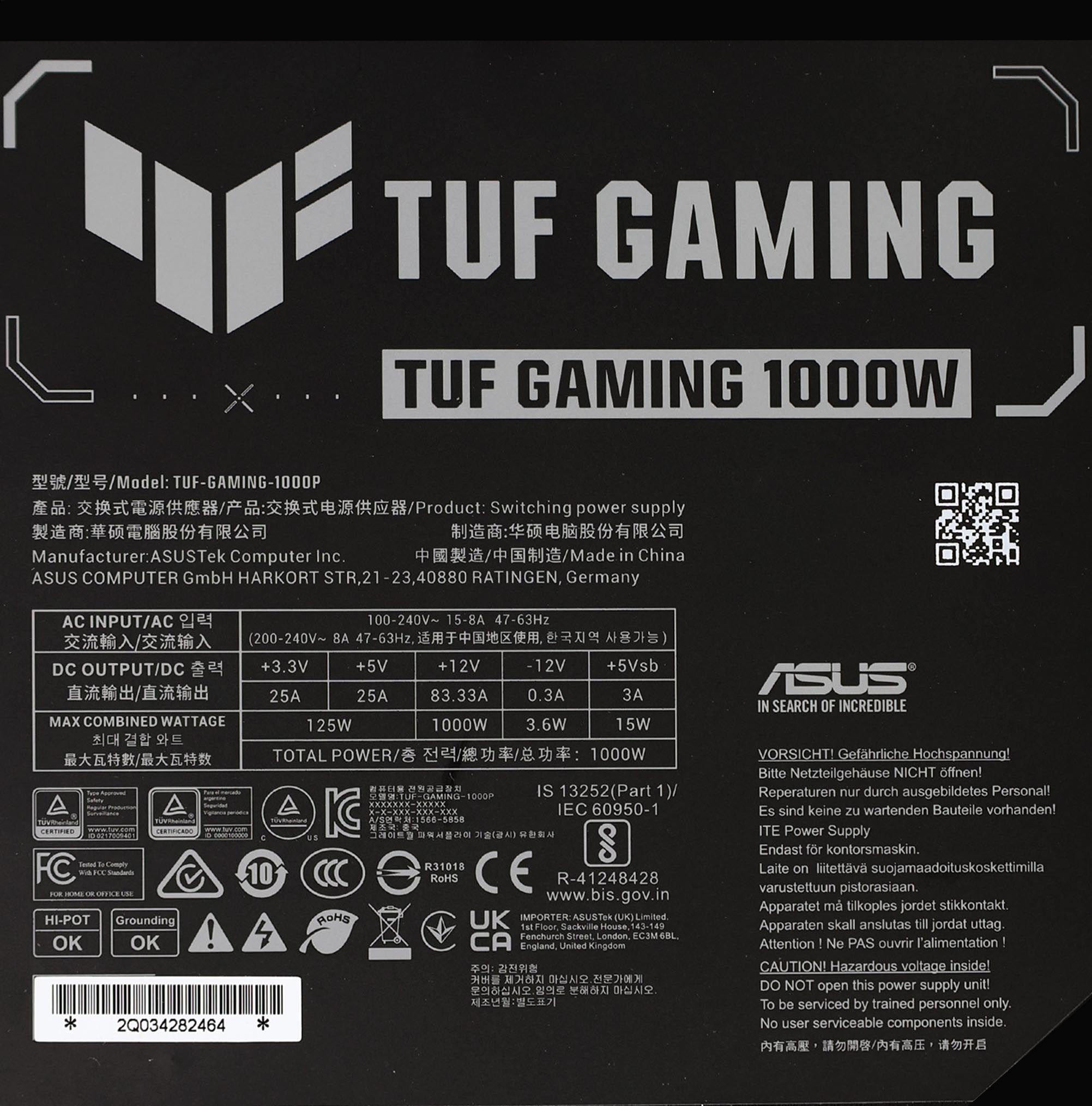

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	83.33	3	0.3
Max. Power	Watts	125		1000	15	3.6
Total Max. Power (W)		1000

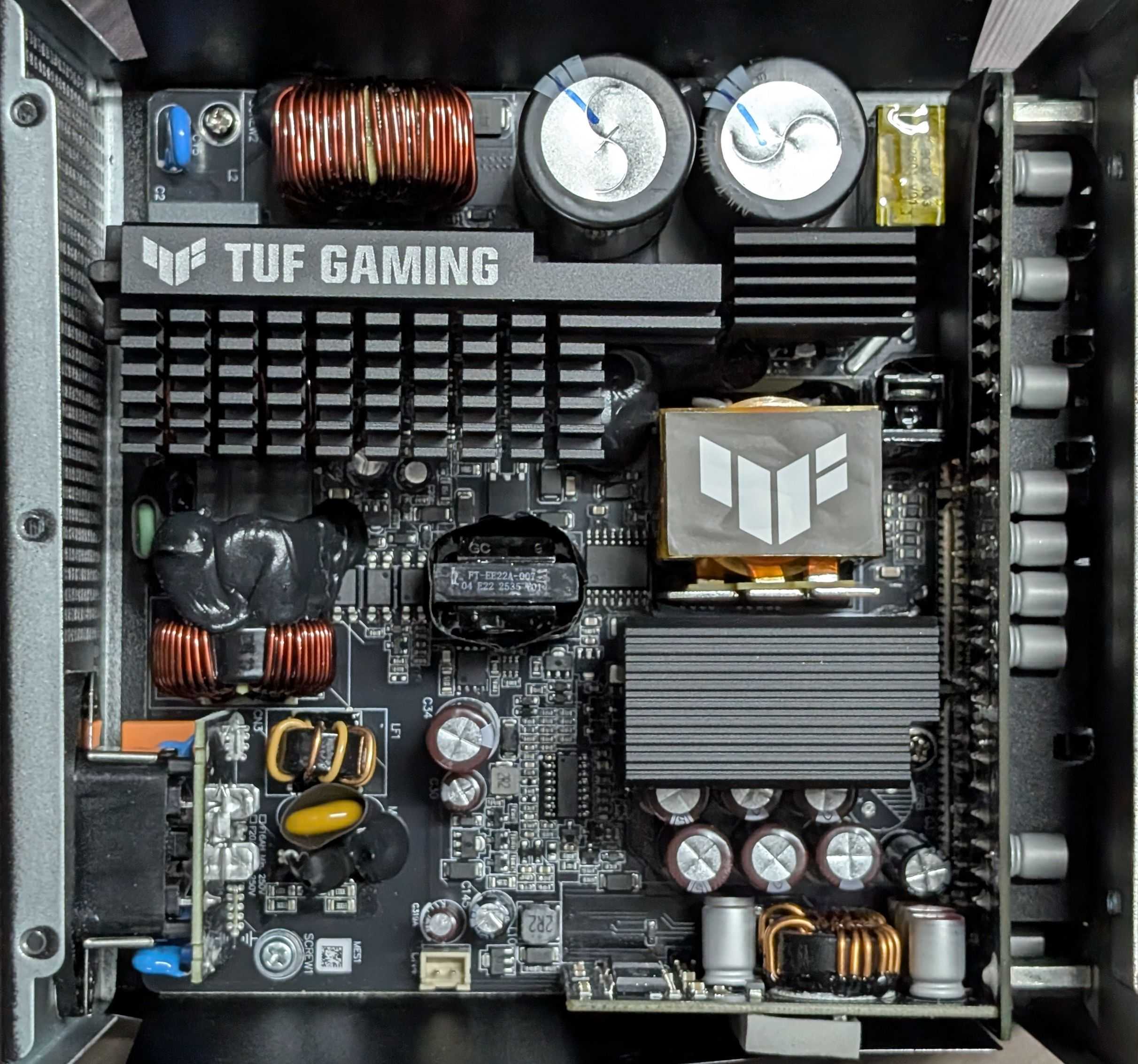

Parts Description

`General Data`
Manufacturer (OEM)	Great Wall
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	Thinking Electronic Industrial SCK205R0 (5 Ohm @ 25°C) & Relay
Bridge Rectifier	2x Diodes GBU25KH (800V, 25A @ 100°C)
APFC MOSFETs	Transphorm TP65H035G4YS (600V, 29.5A @ 100°C, Rds(on): 0.041Ohm)
APFC Boost Diode	Wolfspeed C6D10065E (650V, 10A @ 155°C)
Bulk Cap(s)	1x Elite (420V, 470uF, 2000h @ 105°C, PL) 1x Elite (450V, 270uF, 2000h @ 105°C, PL )
Main Switchers	2x Infineon IPW60R070CFD7 (650V, 20A @ 100°C, Rds(on): 0.070Ohm)
APFC Controller	Champion CM6502S & Sync Power SPN5003 (reducing no load consumption)
Resonant Controller	Champion CM6901
IC Driver	Novosence NSi6602
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x Infineon BSC010N04LS6 (40V, 201A @ 100°C, Rds(on): 1.0mOhm)
5V & 3.3V	DC-DC Converters: 4x Advanced Power Electronics AP4024GEMT-HF (30V, 20.9A @ 70°C, Rds(on): 4.5mOhm) PWM Controller(s): 2x Anpec APW7159C
Filtering Capacitors	Electrolytic: 8x Elite ( 3000~5000h @ 105°C, EJ ) 3x Elite ( 3000~6000h @ 105°C, EV ) 1x Rubycon ( 4000~10000h @ 105°C, YXJ ) 1x Lelon ( 2000~5000h @ 105°C, RXJ ) Polymer: 16x Nichicon FPCAP 14x
Supervisor IC	Weltrend WT7681P
Fan Power Switch	S8550 Transistor

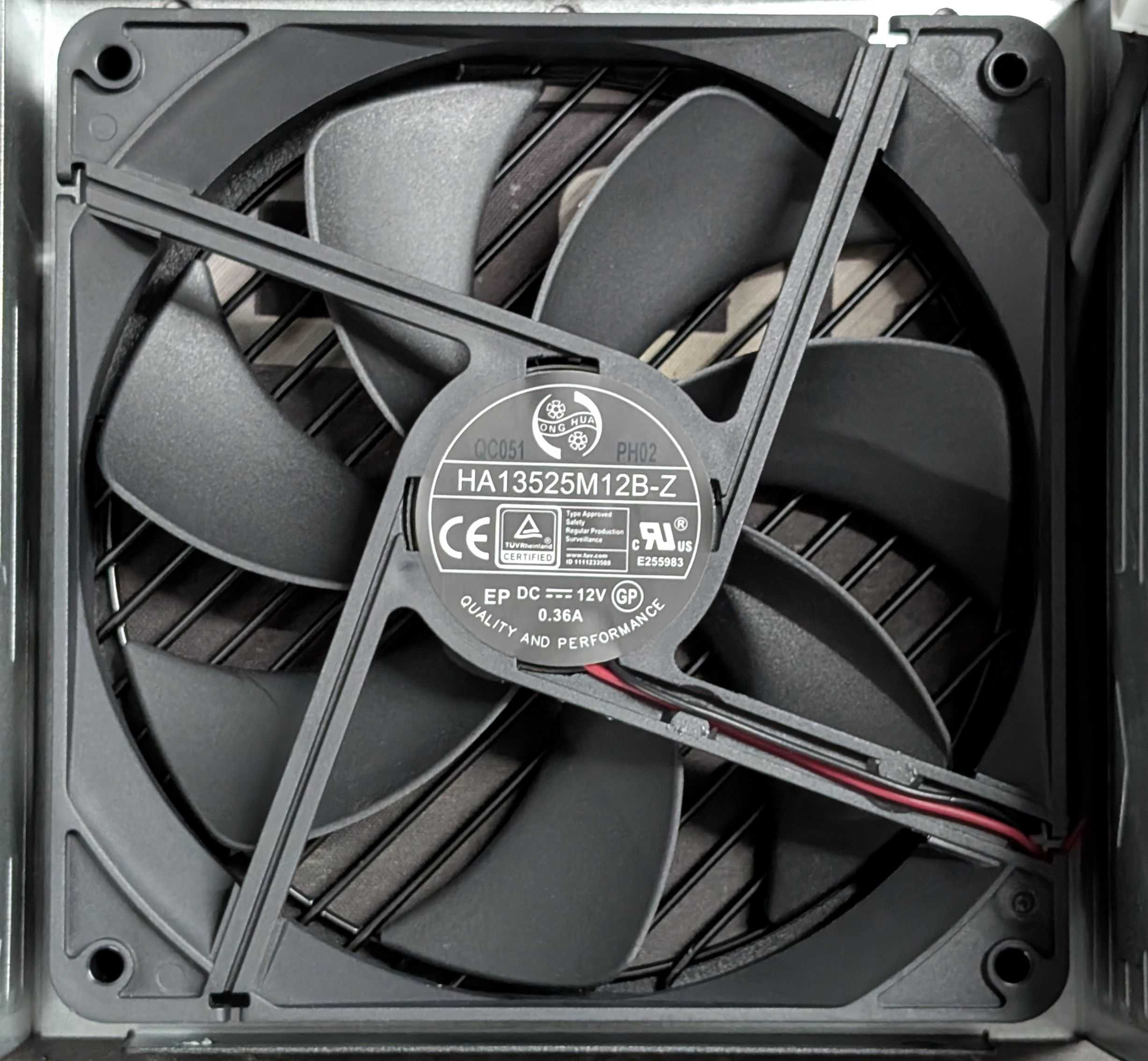

Fan Model	Hong Hua HA13525M12B-Z (135mm, 12V, 0.36A, Dual Ball Bearing)
`5VSB Circuit`
Rectifier	Pingwei NVMFS5C670NL ( 60V, 12A @ 100°C )
Standby PWM Controller	Leadtrend LD5537B1

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓
Conducted Emissions EN 55032 & CISPR 32	Passed

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	90.534%
Average Noise Output (>1450 Load Combinations)	16.57dBA
Average PF (>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.922%
Standby Power Consumption	0.0599W
Non-Accredited
12V Ripple (Full Load)	41.48mV
5V Ripple (Full Load)	23.81mV
3.3V Ripple (Full Load)	24.47mV
5VSB Ripple (Full Load)	23.19mV
12V Load Regulation	0.52%
5V Load Regulation	0.29%
3.3V Load Regulation	0.49%
5VSB Load Regulation	2.19%
Inrush Current	31.980A

Accredited
Average Efficiency (>1450 load combinations)	92.284%
Average Noise Output (>1450 Load Combinations)	16.63dBA
Average PF (>1450 Load Combinations)	0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load	63.564%
Standby Power Consumption	0.1285W
Non-Accredited
12V Ripple (Full Load)	42.19mV
5V Ripple (Full Load)	24.84mV
3.3V Ripple (Full Load)	25.91mV
5VSB Ripple (Full Load)	23.76mV
12V Load Regulation	0.52%
5V Load Regulation	0.29%
3.3V Load Regulation	0.49%
5VSB Load Regulation	2.20%
Inrush Current	82.840A
12V Transient Response (200%)	11.54V
5V Transient Response (200%)	5.034V
3.3V Transient Response (200%)	3.214V
5VSB Transient Response (200%)	5.026V
Hold-Up Time & PWR_OK Signal	15.90ms
AC Loss to PWR_OK Hold Up Time	12.90ms
PWR_OK Inactive to DC Loss Delay	3.00ms
PSU Timings: T1 (20% / 100%)	56.0ms	54.0ms
PSU Timings: T3 (20% / 100%)	125.0ms	124.0ms
12V OCP (29.0°C / 41.9°C)	107.00A (128.41%), 12.039V	104.40A (125.29%), 12.038V
5V OCP (29.0°C / 41.9°C)	34.2A (136.80%), 5.109V	32.5A (130.00%), 5.11V
3.3V OCP (29.0°C / 41.9°C)	34.1A (136.40%), 3.275V	34A (136.00%), 3.276V
5VSB OCP (29.0°C / 41.9°C)	5.9A (196.67%), 5.075V	5.6A (186.67%), 5.079V
OPP (29.76°C / 41.99°C)	127.01%	123.71%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	15.9
AC Loss to PWR_OK Hold Up Time (ms)	12.9
PWR_OK Inactive to DC Loss Delay (ms)	3

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.99 V	114.97 V	113.85 V	115.01 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.18 %	2.00 %	PASS
Real Power:	0.060 W	0.039 W	N/A	0.081 W	N/A	N/A
Apparent Power:	10.307 W	10.287 W	N/A	10.327 W	N/A	N/A
Power Factor:	0.006	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.00 V	229.97 V	227.70 V	230.01 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.129 W	0.088 W	N/A	0.174 W	N/A	N/A
Apparent Power:	33.425 W	33.393 W	N/A	33.453 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Graphs

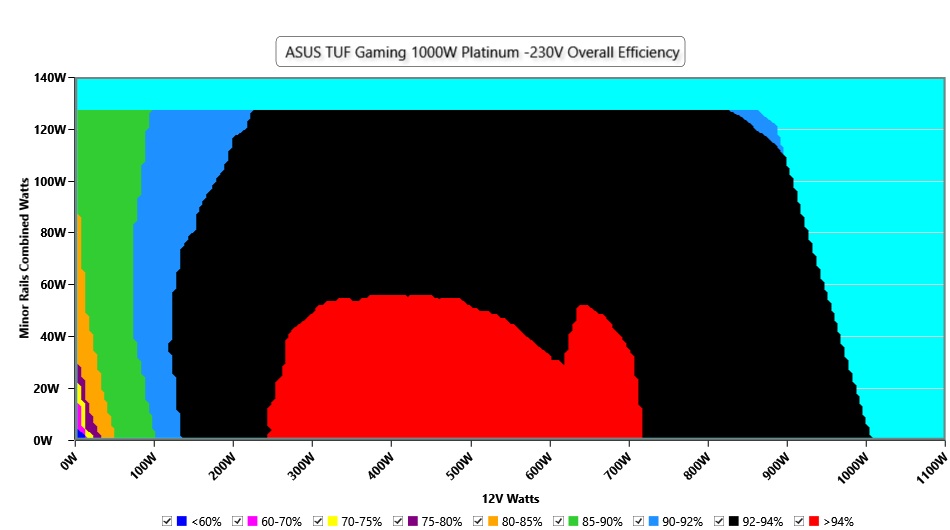

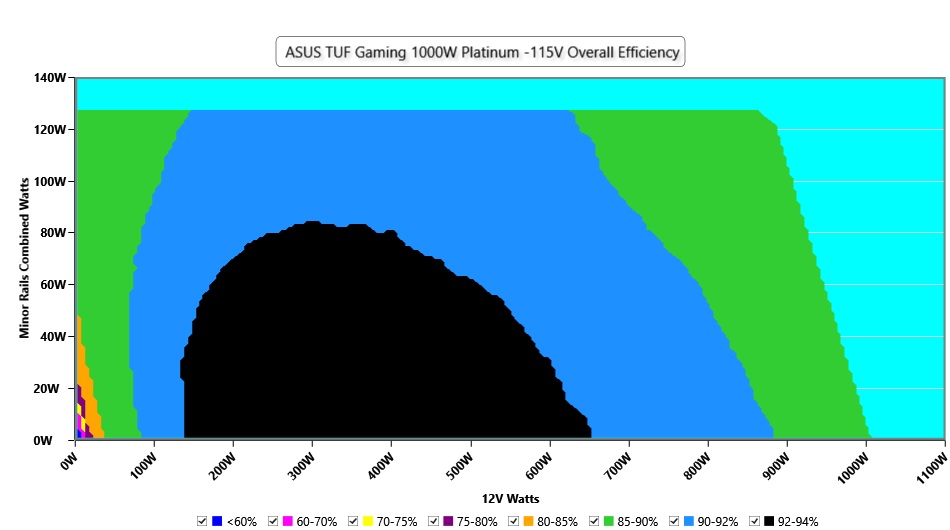

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

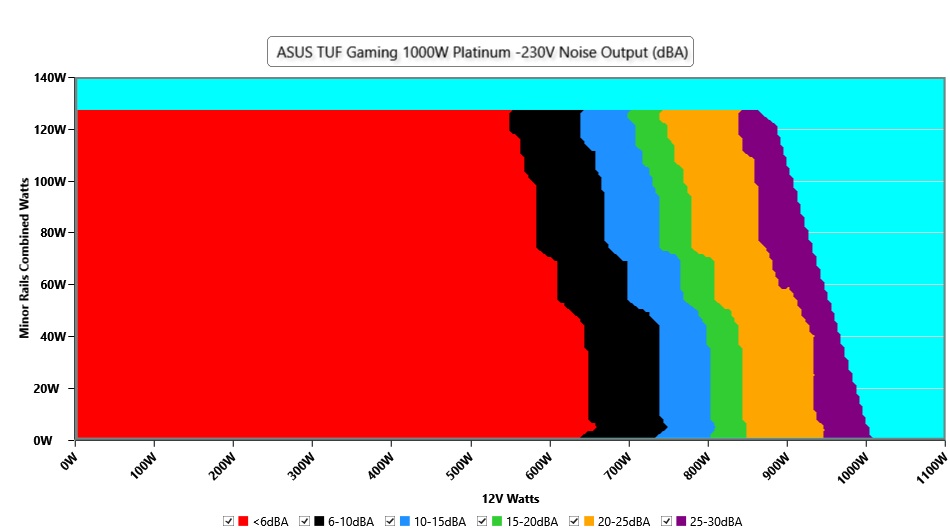

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

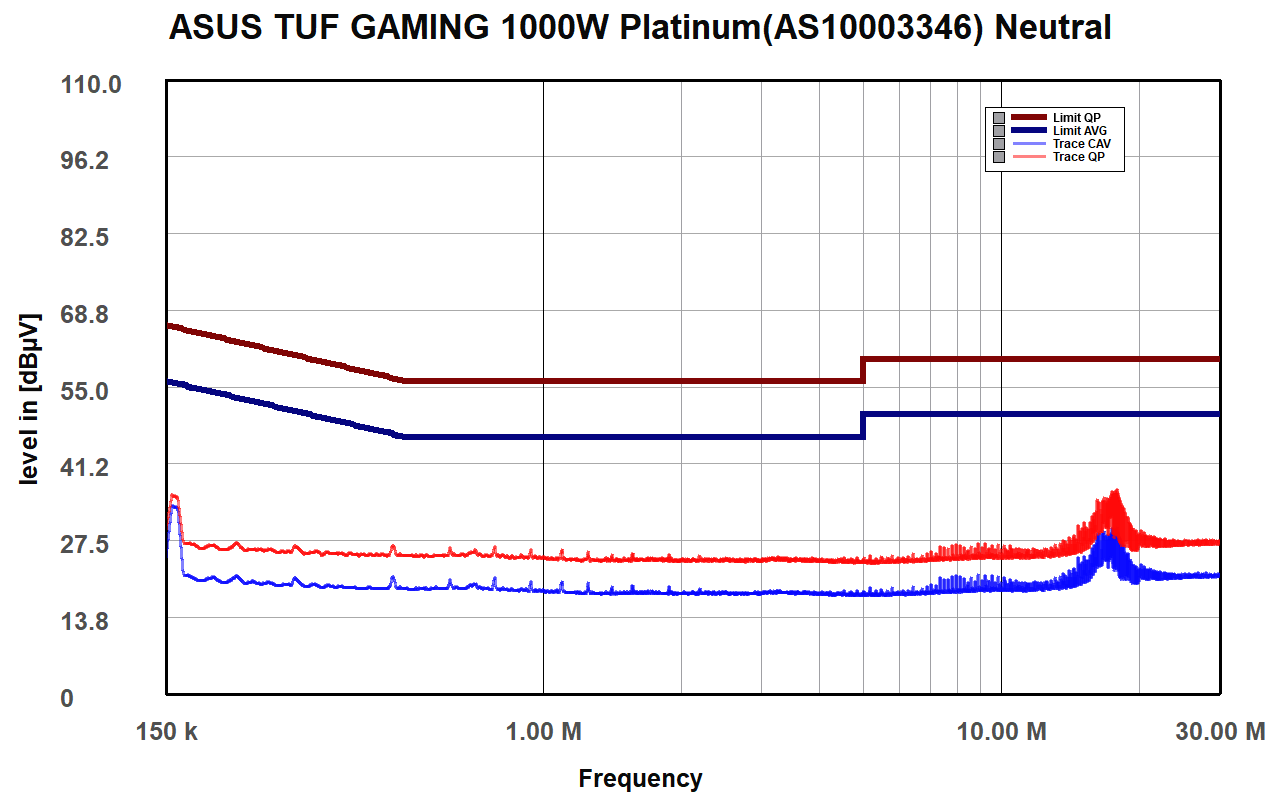

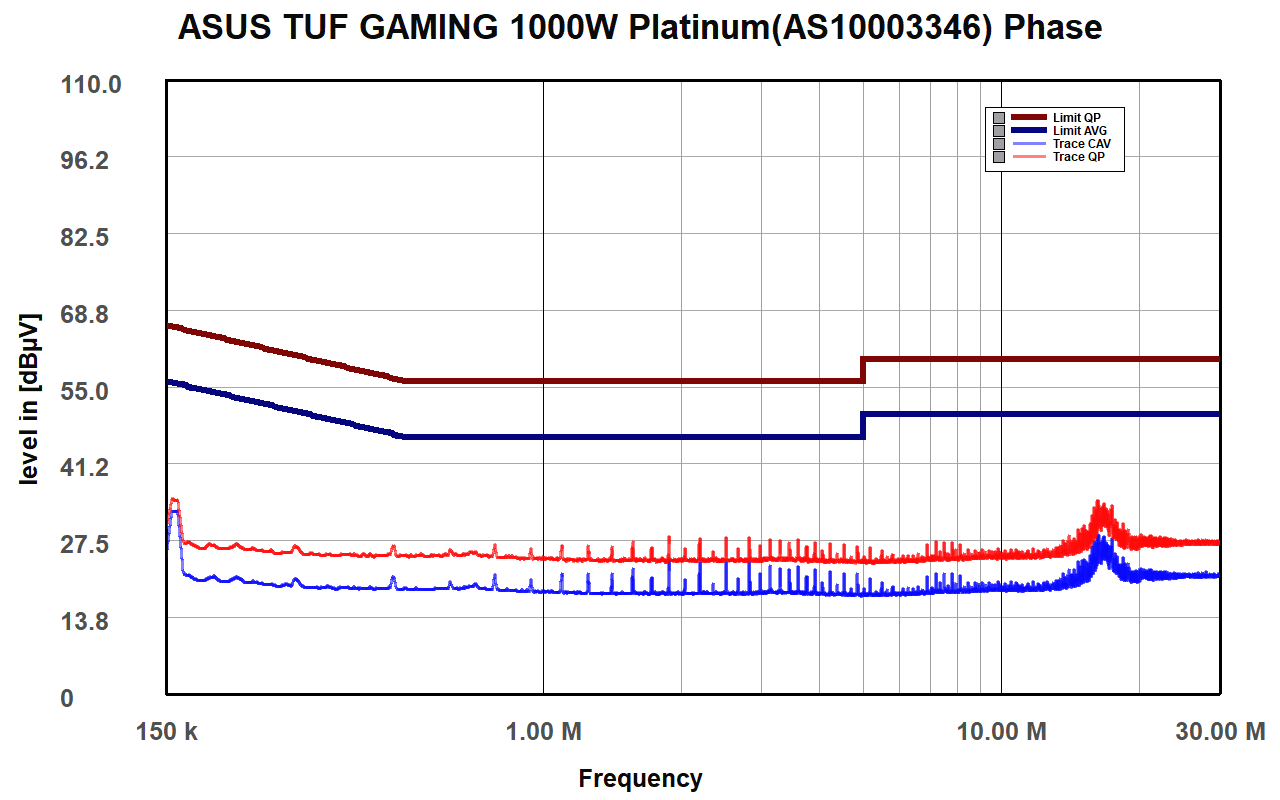

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

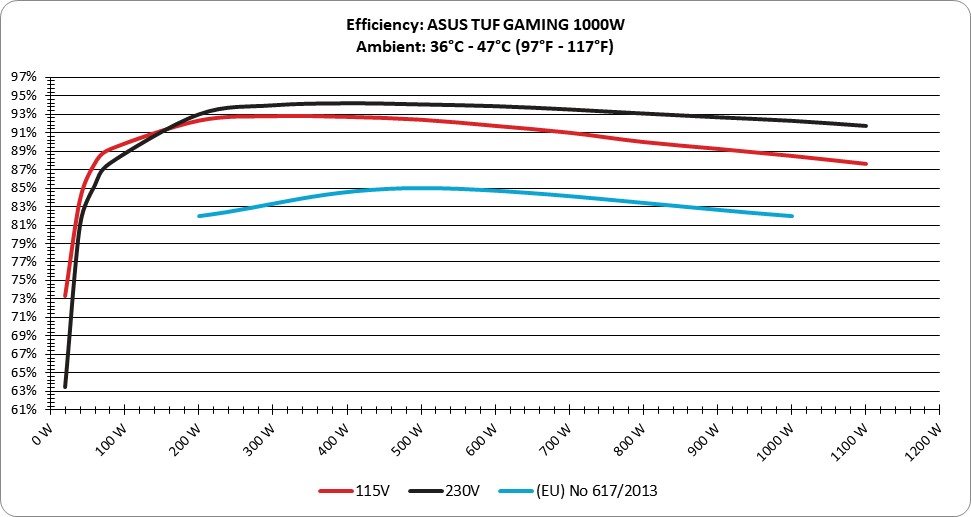

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

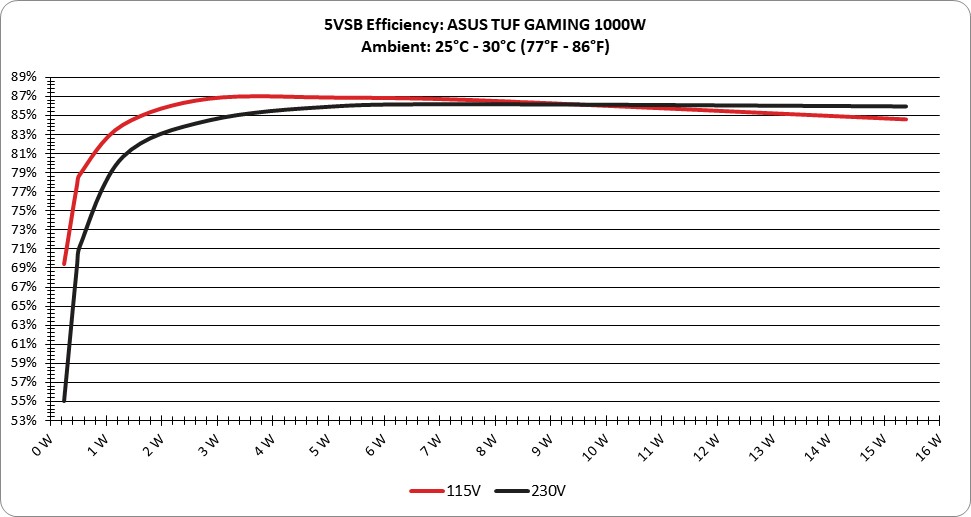

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.233W	69.444%	0.034
1	5.176V	0.335W	69.444%	114.86V
2	0.09A	0.466W	77.787%	0.059
2	5.175V	0.599W	77.787%	114.88V
3	0.55A	2.842W	86.812%	0.255
3	5.168V	3.274W	86.812%	114.87V
4	1A	5.161W	86.913%	0.354
4	5.161V	5.938W	86.913%	114.88V
5	1.5A	7.731W	86.629%	0.407
5	5.154V	8.924W	86.629%	114.88V
6	3A	15.392W	84.637%	0.485
6	5.131V	18.186W	84.637%	114.87V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.233W	55.061%	0.013
1	5.175V	0.423W	55.061%	229.88V
2	0.09A	0.466W	69.321%	0.02
2	5.174V	0.672W	69.321%	229.89V
3	0.55A	2.842W	84.486%	0.096
3	5.167V	3.364W	84.486%	229.89V
4	1A	5.16W	85.977%	0.16
4	5.16V	6.002W	85.977%	229.9V
5	1.5A	7.73W	86.172%	0.219
5	5.153V	8.97W	86.172%	229.89V
6	3A	15.39W	85.951%	0.325
6	5.13V	17.906W	85.951%	229.89V

Protection Features

OCP (Normal @ 29.0°C)	12V: 107.00A (128.41%), 12.039V 5V: 34.2A (136.80%), 5.109V 3.3V: 34.1A (136.40%), 3.275V 5VSB: 5.9A (196.67%), 5.075V
OCP (Hot @ 41.9°C)	12V: 104.40A (125.29%), 12.038V 5V: 32.5A (130.00%), 5.11V 3.3V: 34A (136.00%), 3.276V 5VSB: 5.6A (186.67%), 5.079V
OPP (Normal @ 29.8°C)	1270.11W (127.01%)
OPP (Hot @ 42.0°C)	1237.07W (123.71%)
OTP	✓ (130°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Typical Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.479A	1.95A	2.001A	0.97A	99.984	89.967%	407	7.5	40.41°C	0.959
10%	12.098V	5.128V	3.298V	5.153V	111.134	89.967%	407	7.5	43.22°C	114.85V
20%	13.979A	2.925A	3.003A	1.167A	199.931	92.331%	408	7.6	40.64°C	0.97
20%	12.091V	5.127V	3.297V	5.143V	216.536	92.331%	408	7.6	45.39°C	114.8V
30%	21.837A	3.414A	3.505A	1.364A	299.976	92.819%	409	7.6	41.39°C	0.981
30%	12.086V	5.126V	3.295V	5.133V	323.184	92.819%	409	7.6	46.95°C	114.77V
40%	29.659A	3.902A	4.007A	1.562A	399.467	92.743%	410	7.6	41.99°C	0.987
40%	12.080V	5.125V	3.294V	5.123V	430.725	92.743%	410	7.6	48.88°C	114.73V
50%	37.164A	4.88A	5.011A	1.76A	499.183	92.441%	412	7.6	42.48°C	0.99
50%	12.073V	5.123V	3.293V	5.113V	540	92.441%	412	7.6	51.73°C	114.72V
60%	44.744A	5.857A	6.016A	1.96A	599.722	91.774%	413	7.6	42.82°C	0.992
60%	12.067V	5.122V	3.291V	5.103V	653.478	91.774%	413	7.6	55.38°C	114.68V
70%	52.269A	6.836A	7.025A	2.16A	699.457	91.033%	438	8.0	43.17°C	0.993
70%	12.060V	5.12V	3.289V	5.093V	768.353	91.033%	438	8.0	59.02°C	114.63V
80%	59.866A	7.814A	8.032A	2.262A	799.459	90.029%	617	11.8	43.55°C	0.994
80%	12.053V	5.118V	3.286V	5.084V	888.004	90.029%	617	11.8	59.82°C	114.6V
90%	67.803A	8.305A	8.519A	2.365A	899.275	89.295%	857	20.7	44.82°C	0.994
90%	12.047V	5.117V	3.286V	5.075V	1007.087	89.295%	857	20.7	60.74°C	114.54V
100%	75.547A	8.795A	9.042A	2.965A	999.293	88.53%	1075	27.0	45.81°C	0.995
100%	12.041V	5.116V	3.284V	5.059V	1128.768	88.53%	1075	27.0	60.52°C	114.52V
110%	83.229A	9.776A	10.157A	2.97A	1099.889	87.666%	1288	32.3	46.35°C	0.996
110%	12.034V	5.114V	3.278V	5.052V	1254.638	87.666%	1288	32.3	61.47°C	114.46V
CL1	0.115A	14.713A	15.11A	0A	126.287	84.994%	413	7.6	40.74°C	0.963
CL1	12.095V	5.118V	3.282V	5.155V	148.583	84.994%	413	7.6	56.42°C	114.83V
CL2	0.114A	24.403A	0A	0A	126.214	82.952%	413	7.6	40.64°C	0.963
CL2	12.089V	5.116V	3.294V	5.159V	152.152	82.952%	413	7.6	53.79°C	114.82V
CL3	0.114A	0A	25.132A	0A	83.877	77.125%	434	8.0	40.5°C	0.959
CL3	12.105V	5.127V	3.282V	5.159V	108.755	77.125%	434	8.0	50.61°C	114.83V
CL4	83.023A	0A	0A	0A	999.891	89.319%	1104	27.7	45.86°C	0.995
CL4	12.044V	5.126V	3.295V	5.112V	1119.456	89.319%	1104	27.7	55.98°C	114.52V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.483A	1.949A	2A	0.971A	99.982	88.936%	410	7.6	40.49°C	0.87
10%	12.090V	5.129V	3.3V	5.151V	112.419	88.936%	410	7.6	45.79°C	229.87V
20%	13.978A	2.925A	3.002A	1.167A	199.929	93.002%	410	7.6	40.78°C	0.924
20%	12.092V	5.127V	3.298V	5.141V	214.973	93.002%	410	7.6	46.23°C	229.85V
30%	21.837A	3.414A	3.504A	1.364A	299.972	93.997%	410	7.6	41.4°C	0.948
30%	12.086V	5.126V	3.297V	5.132V	319.129	93.997%	410	7.6	47.49°C	229.83V
40%	29.660A	3.903A	4.006A	1.562A	399.475	94.214%	411	7.6	41.67°C	0.957
40%	12.079V	5.125V	3.295V	5.122V	424.008	94.214%	411	7.6	48.9°C	229.83V
50%	37.167A	4.88A	5.01A	1.761A	499.209	94.087%	413	7.6	42.35°C	0.965
50%	12.073V	5.123V	3.294V	5.112V	530.585	94.087%	413	7.6	51.53°C	229.82V
60%	44.742A	5.857A	6.015A	1.96A	599.685	93.898%	414	7.6	42.55°C	0.97
60%	12.067V	5.122V	3.292V	5.102V	638.657	93.898%	414	7.6	52.54°C	229.79V
70%	52.267A	6.836A	7.022A	2.161A	699.449	93.548%	422	7.8	43.14°C	0.973
70%	12.060V	5.12V	3.29V	5.092V	747.692	93.548%	422	7.8	55.19°C	229.78V
80%	59.864A	7.814A	8.03A	2.263A	799.467	93.105%	616	11.8	43.63°C	0.976
80%	12.053V	5.118V	3.287V	5.082V	858.675	93.105%	616	11.8	57.11°C	229.77V
90%	67.800A	8.304A	8.521A	2.365A	899.28	92.705%	857	20.7	44.38°C	0.978
90%	12.048V	5.117V	3.285V	5.074V	970.041	92.705%	857	20.7	56.68°C	229.74V
100%	75.542A	8.795A	9.04A	2.966A	999.297	92.316%	1076	27.0	45.7°C	0.98
100%	12.042V	5.116V	3.285V	5.058V	1082.473	92.316%	1076	27.0	57.08°C	229.72V
110%	83.223A	9.775A	10.142A	2.97A	1099.885	91.763%	1290	32.3	46.77°C	0.982
110%	12.035V	5.114V	3.283V	5.05V	1198.613	91.763%	1290	32.3	59.44°C	229.72V
CL1	0.114A	14.713A	15.09A	0A	126.286	86.146%	414	7.6	40.93°C	0.894
CL1	12.096V	5.118V	3.287V	5.154V	146.596	86.146%	414	7.6	56.19°C	229.87V
CL2	0.114A	24.402A	0A	0A	126.213	82.797%	413	7.6	40.15°C	0.898
CL2	12.090V	5.116V	3.298V	5.157V	152.436	82.797%	413	7.6	53.29°C	229.87V
CL3	0.114A	0A	25.125A	0A	83.877	75.341%	436	8.0	40.62°C	0.869
CL3	12.099V	5.127V	3.283V	5.157V	111.33	75.341%	436	8.0	52.72°C	229.88V
CL4	83.019A	0A	0A	0A	999.919	92.861%	1103	27.7	45.81°C	0.98
CL4	12.045V	5.126V	3.296V	5.111V	1076.796	92.861%	1103	27.7	52.83°C	229.73V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.227A	0.487A	0.5A	0.193A	20	73.366%	402	7.5	36.78°C	0.85
20W	12.104V	5.131V	3.3V	5.17V	27.26	73.366%	402	7.5	39.4°C	114.87V
40W	2.701A	0.682A	0.7A	0.29A	39.998	83.781%	403	7.5	37.65°C	0.936
40W	12.102V	5.131V	3.3V	5.168V	47.741	83.781%	403	7.5	39.61°C	114.87V
60W	4.176A	0.877A	0.9A	0.387A	59.997	87.7%	404	7.5	38.82°C	0.937
60W	12.101V	5.13V	3.3V	5.165V	68.412	87.7%	404	7.5	40.84°C	114.85V
80W	5.646A	1.072A	1.1A	0.484A	79.934	89.222%	406	7.5	39.38°C	0.953
80W	12.100V	5.13V	3.3V	5.162V	89.589	89.222%	406	7.5	42.61°C	114.86V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.226A	0.487A	0.5A	0.194A	19.996	63.457%	403	7.5	36.21°C	0.579
20W	12.105V	5.131V	3.301V	5.169V	31.511	63.457%	403	7.5	37.22°C	229.89V
40W	2.702A	0.682A	0.7A	0.29A	39.997	80.977%	405	7.5	37.48°C	0.711
40W	12.098V	5.131V	3.301V	5.166V	49.392	80.977%	405	7.5	39.43°C	229.89V
60W	4.178A	0.877A	0.899A	0.387A	59.996	85.312%	408	7.6	38.91°C	0.792
60W	12.095V	5.131V	3.301V	5.163V	70.325	85.312%	408	7.6	41.76°C	229.89V
80W	5.648A	1.072A	1.1A	0.484A	79.931	87.692%	409	7.6	39.41°C	0.841
80W	12.092V	5.13V	3.301V	5.16V	91.149	87.692%	409	7.6	44.07°C	229.87V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	29.92mV	20.73mV	19.96mV	15.39mV	Pass
20% Load	29.87mV	22.38mV	20.26mV	15.39mV	Pass
30% Load	30.24mV	24.63mV	21.65mV	16.26mV	Pass
40% Load	31.61mV	21.71mV	20.47mV	16.27mV	Pass
50% Load	33.45mV	22.53mV	20.16mV	17.04mV	Pass
60% Load	33.96mV	21.50mV	20.06mV	18.47mV	Pass
70% Load	37.48mV	23.70mV	20.74mV	19.31mV	Pass
80% Load	41.53mV	25.10mV	22.93mV	20.52mV	Pass
90% Load	44.55mV	24.74mV	24.37mV	19.19mV	Pass
100% Load	41.48mV	23.81mV	24.47mV	23.19mV	Pass
110% Load	43.01mV	23.81mV	23.50mV	23.55mV	Pass
Crossload1	30.64mV	22.37mV	20.88mV	17.55mV	Pass
Crossload2	31.20mV	25.71mV	20.73mV	16.98mV	Pass
Crossload3	32.58mV	21.14mV	40.32mV	17.50mV	Pass
Crossload4	39.43mV	25.50mV	21.96mV	20.94mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	26.65mV	20.68mV	19.29mV	15.60mV	Pass
20% Load	32.58mV	21.25mV	19.39mV	15.65mV	Pass
30% Load	35.19mV	20.99mV	19.90mV	16.37mV	Pass
40% Load	34.17mV	22.48mV	20.98mV	17.60mV	Pass
50% Load	33.86mV	21.71mV	20.22mV	17.80mV	Pass
60% Load	38.91mV	22.73mV	20.06mV	19.29mV	Pass
70% Load	35.91mV	21.61mV	20.11mV	18.67mV	Pass
80% Load	41.02mV	25.15mV	25.04mV	20.22mV	Pass
90% Load	43.17mV	23.91mV	24.93mV	20.22mV	Pass
100% Load	42.19mV	24.84mV	25.91mV	23.76mV	Pass
110% Load	44.55mV	23.76mV	25.19mV	24.99mV	Pass
Crossload1	31.45mV	22.68mV	20.26mV	17.08mV	Pass
Crossload2	36.24mV	26.58mV	20.73mV	17.04mV	Pass
Crossload3	39.33mV	20.99mV	22.57mV	16.78mV	Pass
Crossload4	38.72mV	26.28mV	22.27mV	21.75mV	Pass

The results above are not used in the certification process

ASUS TUF Gaming 1000W Platinum (#2)

Top side

Power specifications label

Fan

PSU Internals
