Cooler Master Elite Platinum 1300

Serial NumberCM1441300F25052003900281

Lab IDCM13003405

Certification ID263405

Test Result Report ID: 26PS3405A
Certificate Issue Date: Sep 9, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Cooler Master
Model	Elite Platinum 1300
OEM/ODM	XHY
Serial Number	CM1441300F25052003900281
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15-8
Rated Frequency (Hz)	50-60
Rated Power (W)	1300
Operating Temperature (Continuous Full Load) (°C)	0 - 50
Type	ATX12V
Cable Design	Fully Modular
Warranty	12 years
Cybenetics Measurements
Dimensions (W x H x D)	150 x 85 x 160 mm
Weight	1.82 kg (4.01 lb)
Cooling	140mm Fluid Dynamic Bearing Fan (EFF-14E12D)
Semi-Passive Operation	✓
Cybenetics Testing Information
Lab ID	CM13003405
Date of receipt	Aug 10, 2026
Testing Date	Aug 21, 2026
Report Issued Date	Sep 9, 2026
DUT Notes	Ripple on the 5V and 3.3V rails exceeds the ATX 3.x specification limits at full load at 115V. This is why we cannot provide ATX v3.1 compliance.
Engineer Name	Efstathios Papadopoulos
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

`Modular Cables`
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 24 pin (600mm)	1	1	16-20AWG	Tinned Copper
4+4 pin EPS12V (700mm)	1	1	16AWG	Tinned Copper
8 pin EPS12V (700mm)	1	1	16AWG	Tinned Copper
6+2 pin PCIe (600mm)	3	3	16AWG	Tinned Copper
12+4 pin PCIe (600mm) (600W)	2	2	16-24AWG	Tinned Copper
SATA (400mm+125mm+125mm+125mm)	2	8	18AWG	Tinned Copper
4-pin Molex (400mm+125mm+125mm+125mm)	1	4	18AWG	Tinned Copper
AC Power Cord (1400mm) - C13 coupler	1	1	14AWG	-

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

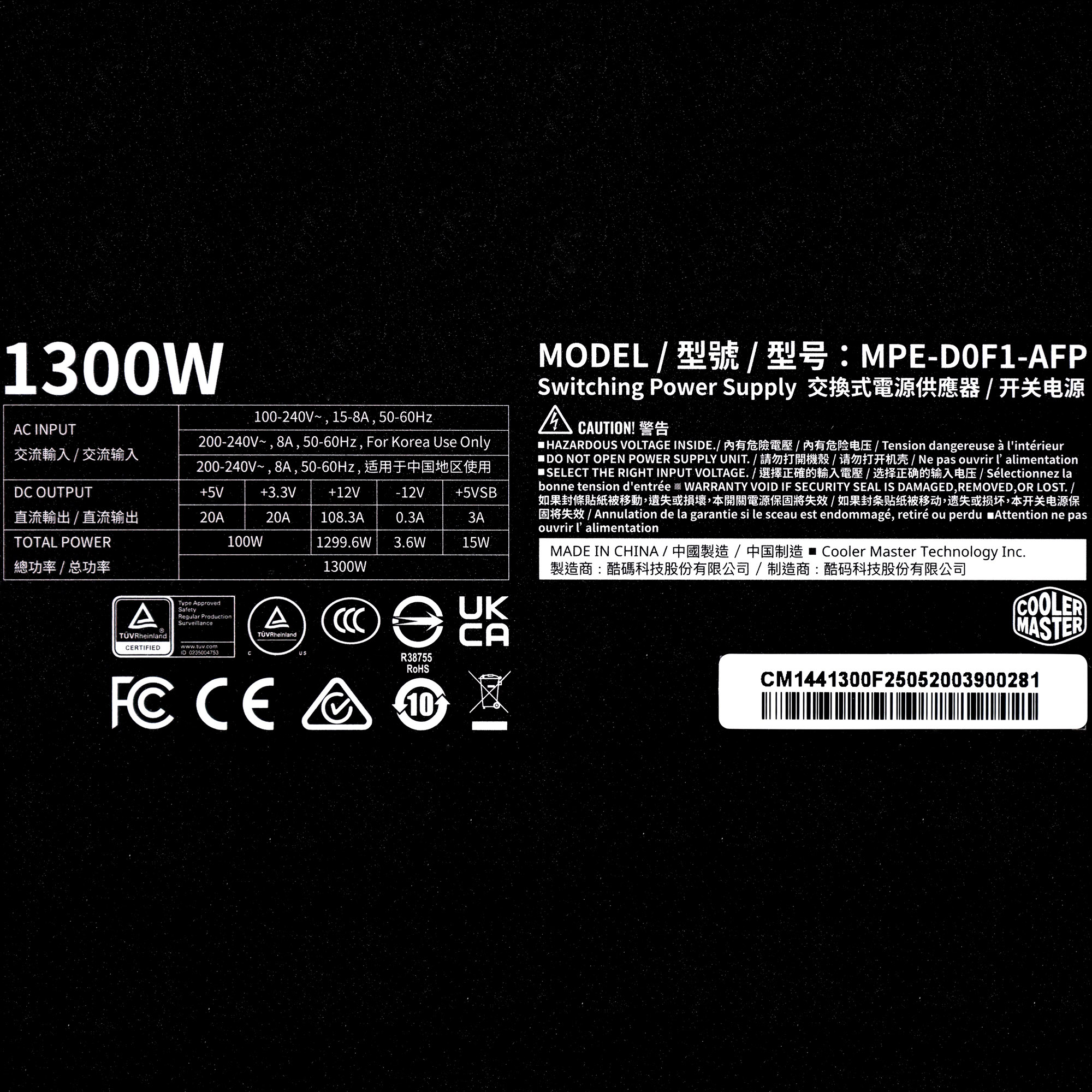

Power Specifications

Rail		3.3V	5V	12V	5VSB
Max. Power	Amps	20	20	108.3	3
Max. Power	Watts	100		1300	15
Total Max. Power (W)		1300

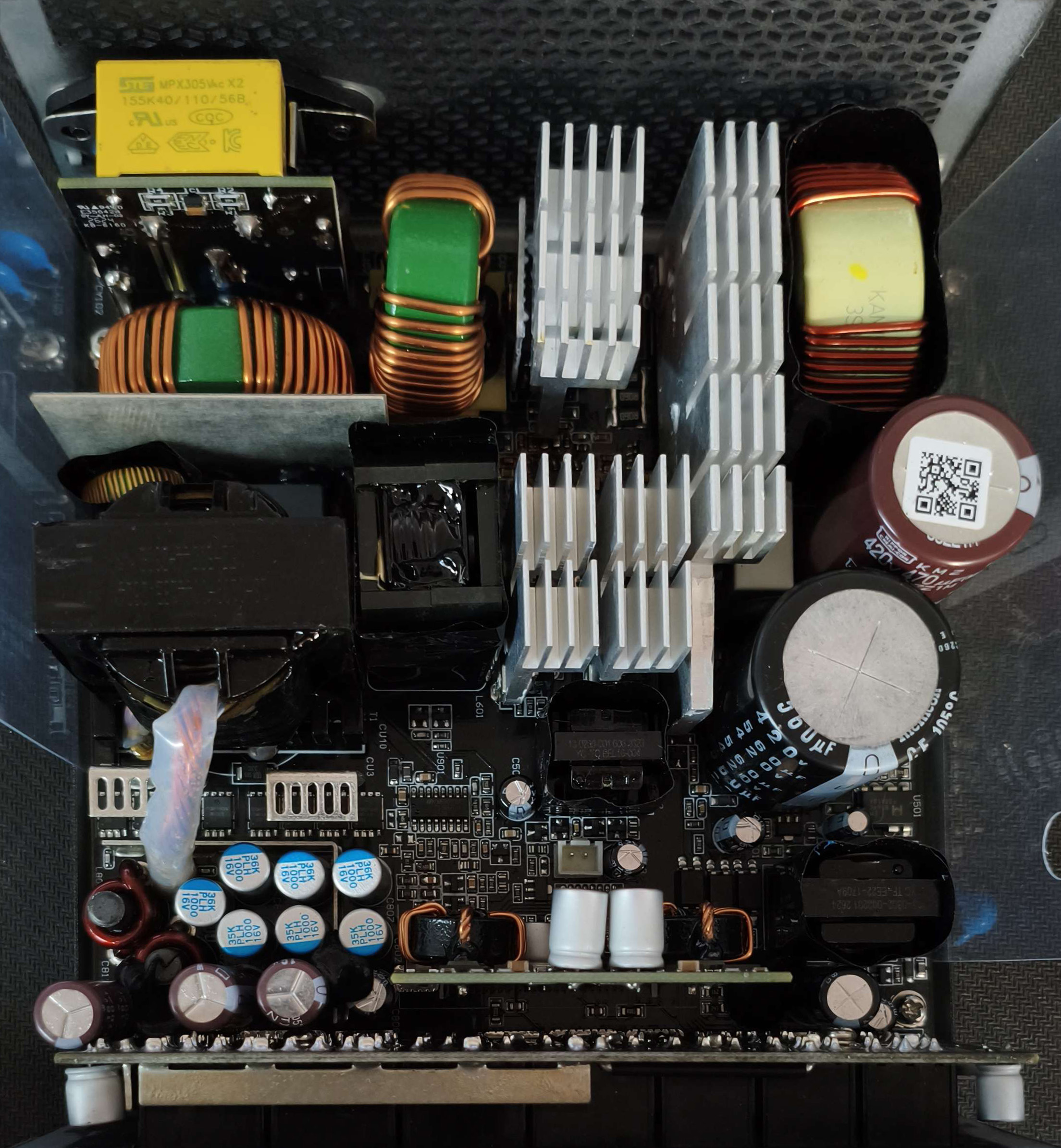

Parts Description

`General Data`
Manufacturer (OEM)	Xin Hui Yuan Technology
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor MF72 5D-15 (5.0 Ohm @ 25°C) & Relay
Bridge Rectifier	2x Yangzhou Yangjie GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs	2x CR Micro CRJQ65N65G4FZ (650V, 28A @ 100°C, Rds(on): 0.65Ohm)
APFC Boost Diode	Zhixin Microelectronics SDC08065NAS (650V, 8A @ 135°C)
Bulk Cap(s)	1x Nichicon (420V, 560uF, 2000h @ 105°C, GL ) 1x Nippon Chemi-Con (420V, 470uF, 2000h @ 105°C, KMZ )
Main Switchers	4x Ncepower NCE65TF150 (650V, @ 100°C, Rds(on): 1.5Ohm)
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CM6901T6X
Topology	Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	8x Champion CMR011N065NS (60V, 289A @ 100°C, Rds(on): 1.1mOhm)
5V & 3.3V	DC-DC Converters: 6x Champion CMR030N03LS (30V, 109A @ 100°C, Rds(on): 3.1mOhm) PWM Controller(s): UPI uP3861P
Filtering Capacitors	Electrolytic: 3x Nippon Chemi-con (@ 105°C, W) 5x Rubycon (4-10,000 @ 105°C, YXJ) 2x Rubycon (6-10,000 @ 105°C, ZLH) Polymer: 15x FPCAP 8x Toshin
Supervisor IC	IN1T7031-SDG
Fan Power Switch	B772 PNP Transistor

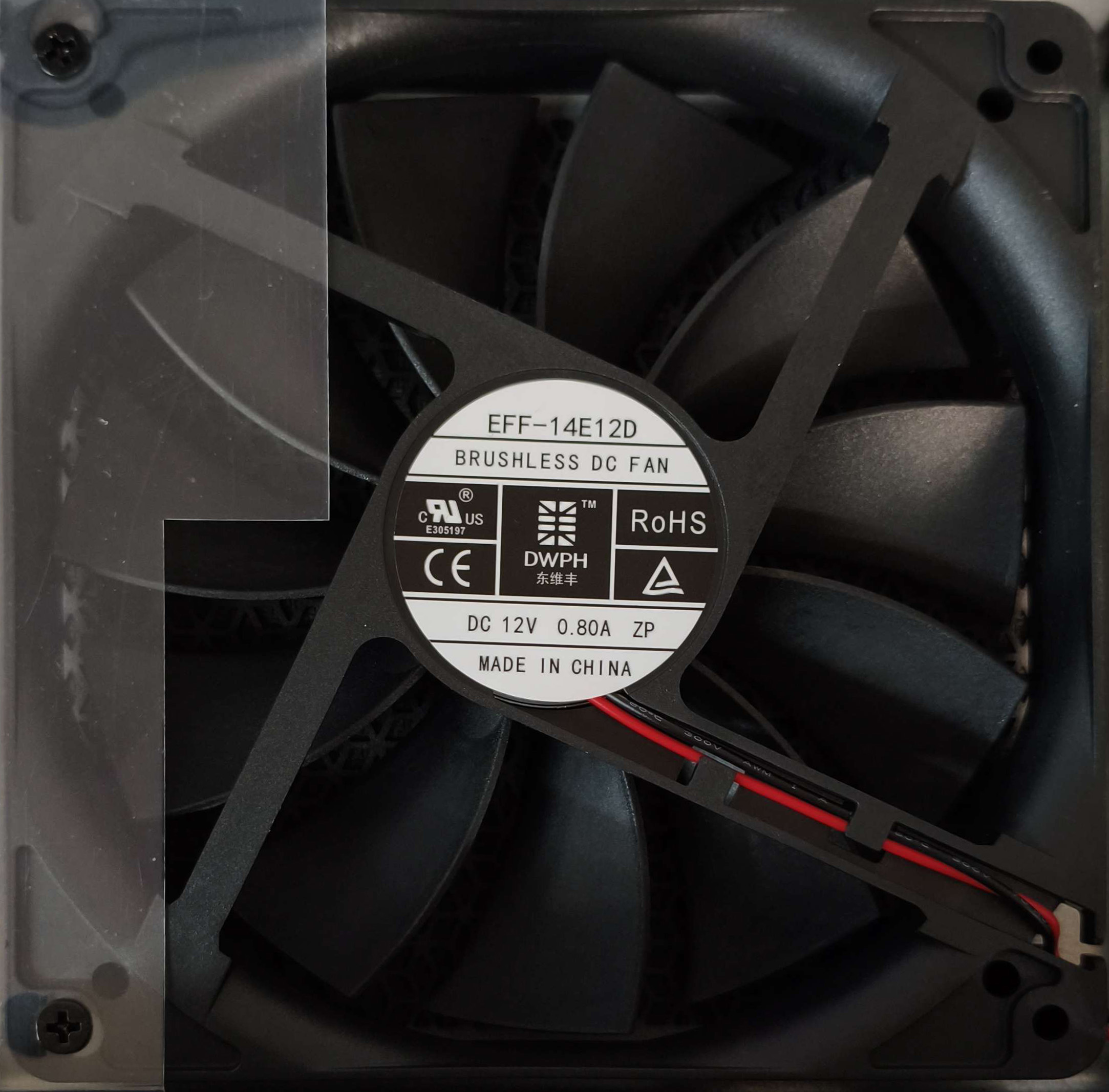

Fan Model	DWPH EFF-14E12D (120mm, 12V, 0.80A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Rectifier	Dongke DK5V60R10S (60V, 10mΩ)
Standby PWM Controller	ExcellianceMOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
Conducted Emissions EN 55032 & CISPR 32	Passed

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	89.597%
Average Noise Output (>1450 Load Combinations)	26.21dBA
Average PF (>1450 Load Combinations)	0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.641%
Standby Power Consumption	0.0349W
Non-Accredited
12V Ripple (Full Load)	60.12mV
5V Ripple (Full Load)	62.08mV
3.3V Ripple (Full Load)	59.36mV
5VSB Ripple (Full Load)	49.04mV
12V Load Regulation	0.11%
5V Load Regulation	0.72%
3.3V Load Regulation	0.86%
5VSB Load Regulation	1.77%
Inrush Current	39.990A

Accredited
Average Efficiency (>1450 load combinations)	91.774%
Average Noise Output (>1450 Load Combinations)	25.72dBA
Average PF (>1450 Load Combinations)	0.961
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.466%
Standby Power Consumption	0.0930W
Non-Accredited
12V Ripple (Full Load)	46.19mV
5V Ripple (Full Load)	36.84mV
3.3V Ripple (Full Load)	40.80mV
5VSB Ripple (Full Load)	31.85mV
12V Load Regulation	0.14%
5V Load Regulation	0.62%
3.3V Load Regulation	0.82%
5VSB Load Regulation	1.79%
Inrush Current	86.920A
12V Transient Response (200%)	11.15V
5V Transient Response (200%)	4.916V
3.3V Transient Response (200%)	3.179V
5VSB Transient Response (200%)	4.909V
Hold-Up Time & PWR_OK Signal	18.70ms
AC Loss to PWR_OK Hold Up Time	15.50ms
PWR_OK Inactive to DC Loss Delay	3.20ms
PSU Timings: T1 (20% / 100%)	72.0ms	72.0ms
PSU Timings: T3 (20% / 100%)	110.0ms	110.0ms
12V OCP (30.8°C / 41.6°C)	121.00A (111.73%), 12.121V	119.20A (110.06%), 12.129V
5V OCP (30.8°C / 41.6°C)	24.9A (124.50%), 4.967V	24.9A (124.50%), 4.966V
3.3V OCP (30.8°C / 41.6°C)	26A (130.00%), 3.275V	26A (130.00%), 3.273V
5VSB OCP (30.8°C / 41.6°C)	5.7A (190.00%), 5.03V	5.8A (193.33%), 5.028V
OPP (30.90°C / 41.28°C)	112.65%	110.38%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	18.7
AC Loss to PWR_OK Hold Up Time (ms)	15.5
PWR_OK Inactive to DC Loss Delay (ms)	3.2

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.97 V	114.94 V	113.85 V	114.99 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.035 W	-0.002 W	N/A	0.068 W	N/A	N/A
Apparent Power:	11.226 W	11.189 W	N/A	11.257 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.98 V	229.94 V	227.70 V	229.98 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.093 W	0.051 W	N/A	0.354 W	N/A	N/A
Apparent Power:	37.091 W	37.051 W	N/A	37.128 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

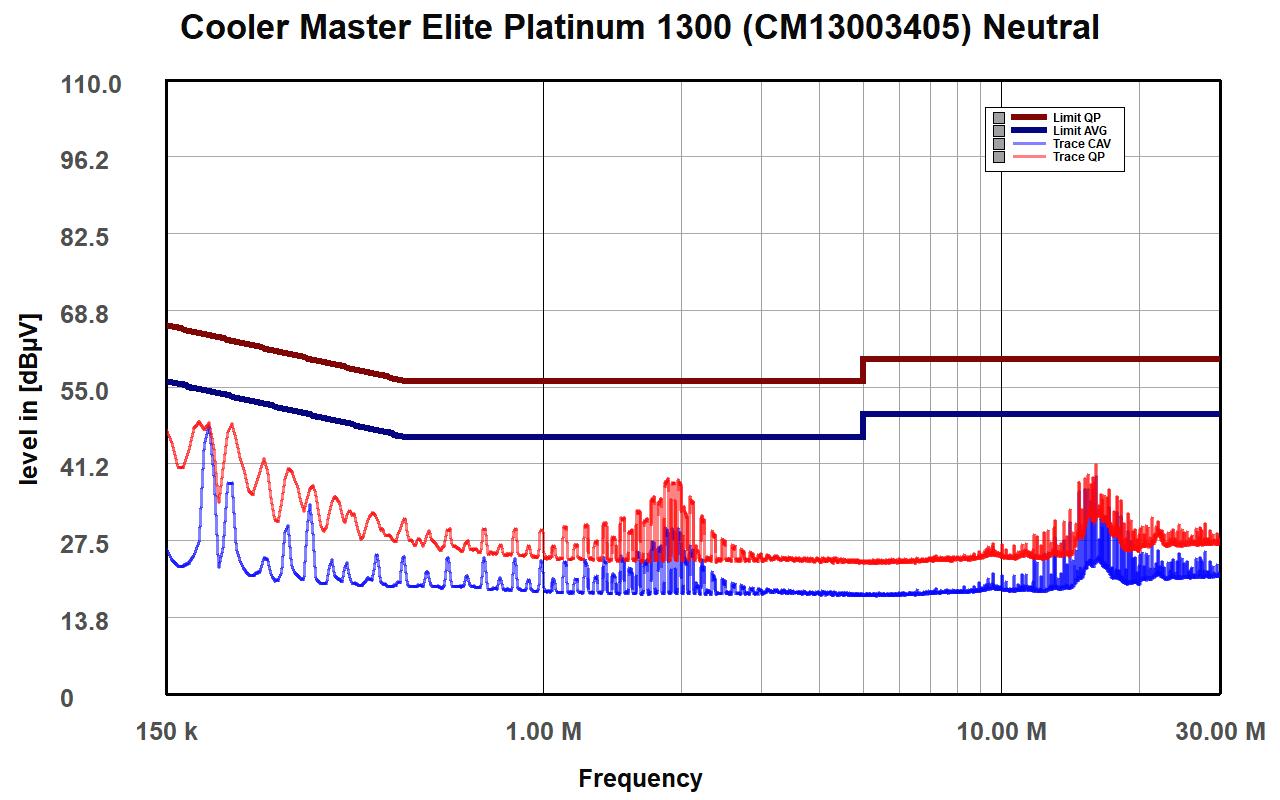

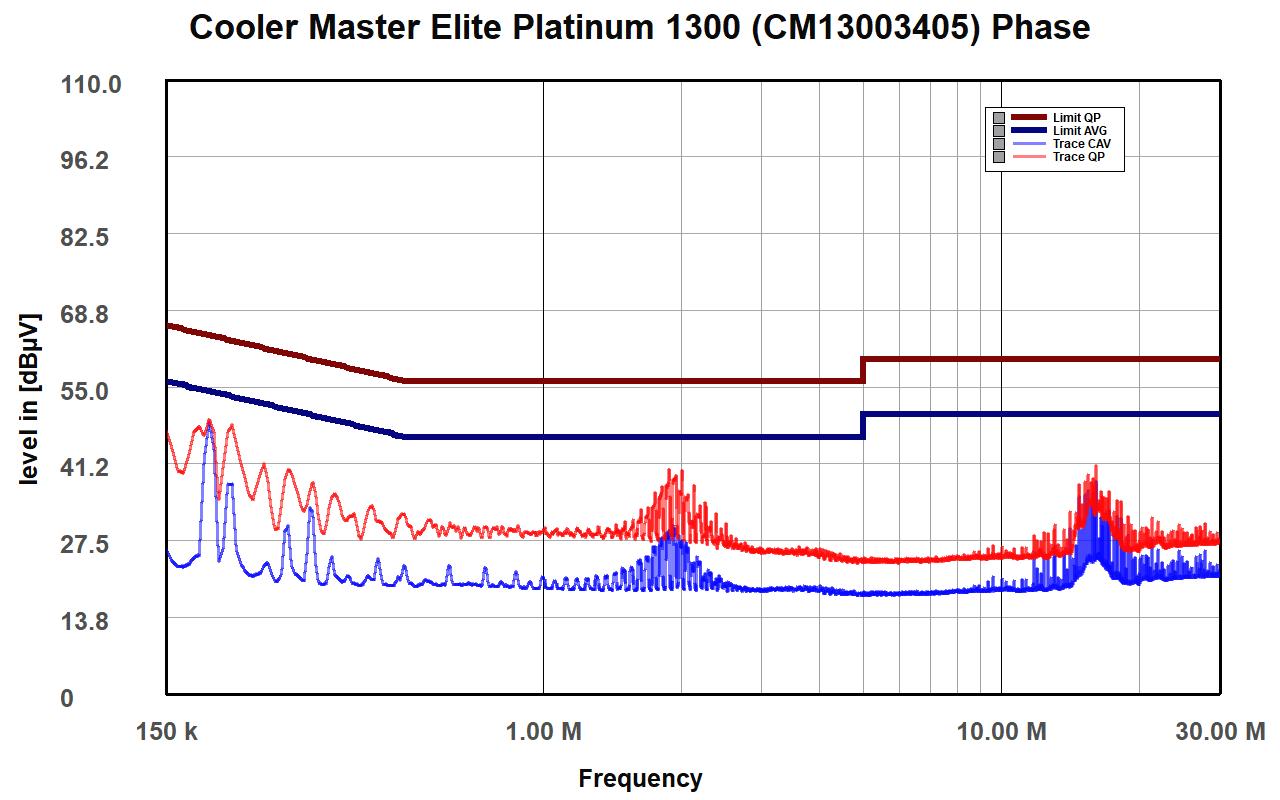

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

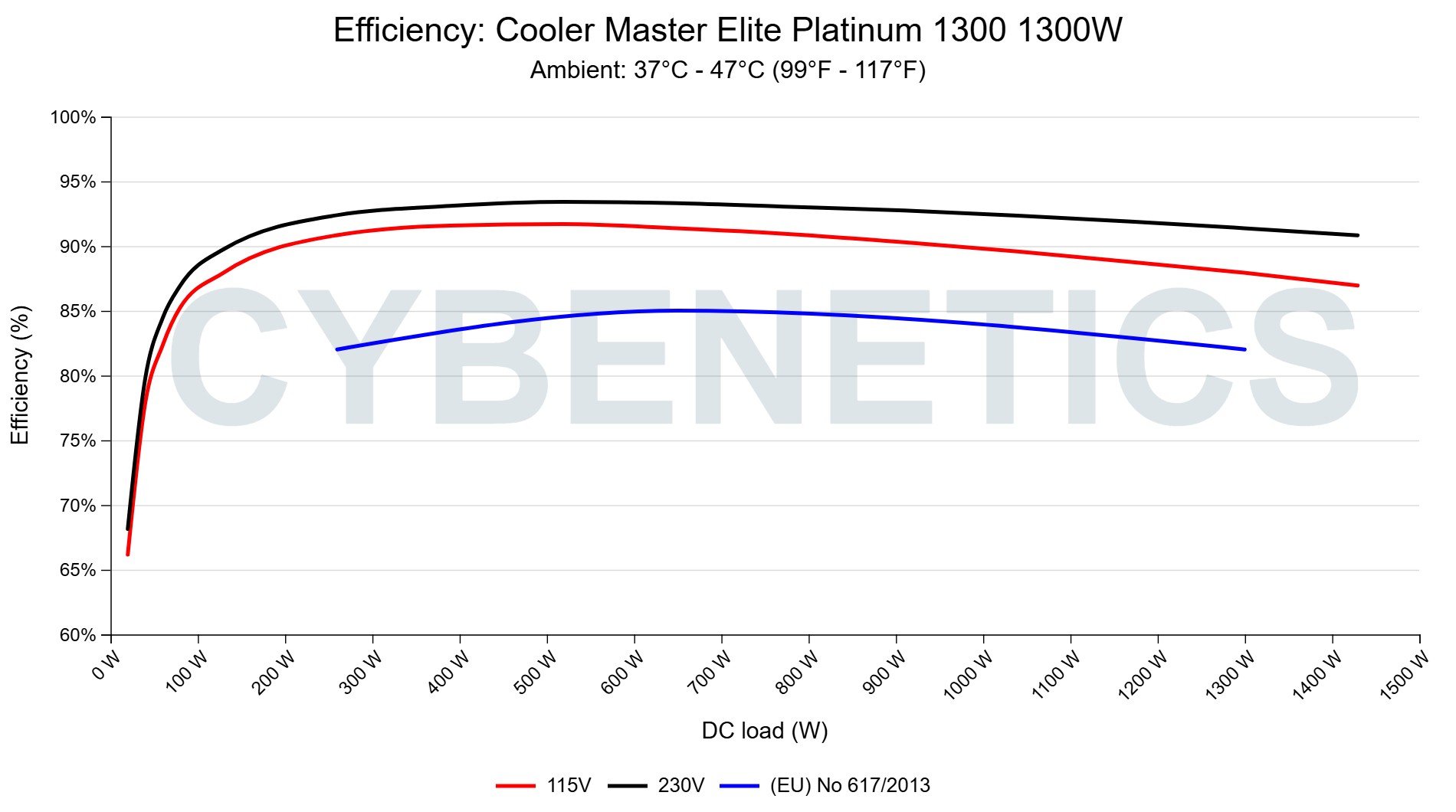

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

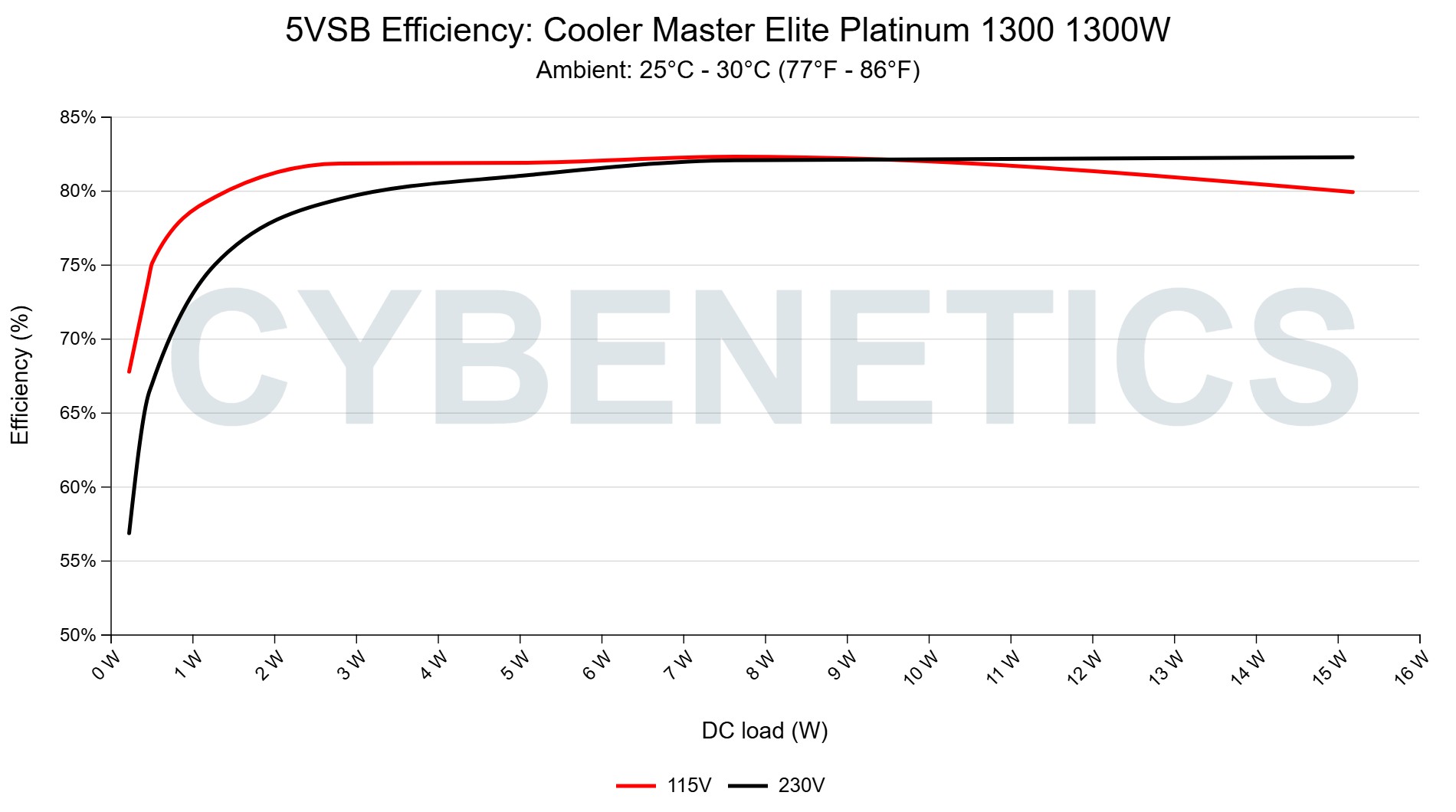

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	67.75%	0.03
1	5.111V	0.339W	67.75%	115.1V
2	0.09A	0.46W	73.82%	0.055
2	5.11V	0.623W	73.82%	115.1V
3	0.55A	2.806W	81.813%	0.246
3	5.103V	3.429W	81.813%	115.1V
4	1A	5.095W	81.871%	0.348
4	5.095V	6.223W	81.871%	115.1V
5	1.5A	7.63W	82.278%	0.402
5	5.087V	9.274W	82.278%	115.09V
6	3A	15.188W	79.888%	0.475
6	5.062V	19.012W	79.888%	115.08V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	56.834%	0.011
1	5.11V	0.404W	56.834%	230.31V
2	0.09A	0.46W	66.1%	0.019
2	5.11V	0.696W	66.1%	230.32V
3	0.55A	2.805W	79.413%	0.092
3	5.103V	3.533W	79.413%	230.32V
4	1A	5.094W	81.026%	0.154
4	5.095V	6.287W	81.026%	230.32V
5	1.5A	7.63W	82.038%	0.21
5	5.087V	9.3W	82.038%	230.32V
6	2.999A	15.187W	82.237%	0.316
6	5.063V	18.467W	82.237%	230.31V

Protection Features

OCP (Normal @ 30.8°C)	12V: 121.00A (111.73%), 12.121V 5V: 24.9A (124.50%), 4.967V 3.3V: 26A (130.00%), 3.275V 5VSB: 5.7A (190.00%), 5.03V
OCP (Hot @ 41.6°C)	12V: 119.20A (110.06%), 12.129V 5V: 24.9A (124.50%), 4.966V 3.3V: 26A (130.00%), 3.273V 5VSB: 5.8A (193.33%), 5.028V
OPP (Normal @ 30.9°C)	1464.48W (112.65%)
OPP (Hot @ 41.3°C)	1434.99W (110.38%)
OTP	✓ (158°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Accurate but short
UVP (Typical Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN 55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.947A	1.989A	2A	0.982A	129.97	87.933%	0	<6.0	57.17°C	0.978
10%	12.113V	5.026V	3.299V	5.092V	147.805	87.933%	0	<6.0	40.06°C	115.07V
20%	18.902A	2.987A	3.004A	1.18A	259.945	90.832%	0	<6.0	62.95°C	0.977
20%	12.118V	5.022V	3.295V	5.084V	286.183	90.832%	0	<6.0	40.88°C	115V
30%	29.170A	3.486A	3.508A	1.379A	389.501	91.574%	0	<6.0	65.12°C	0.983
30%	12.117V	5.019V	3.293V	5.077V	425.342	91.574%	0	<6.0	41.43°C	114.96V
40%	39.465A	3.987A	4.012A	1.578A	519.461	91.683%	0	<6.0	66.81°C	0.988
40%	12.119V	5.017V	3.29V	5.069V	566.581	91.683%	0	<6.0	42.08°C	114.92V
50%	49.441A	4.987A	5.018A	1.778A	649.598	91.356%	655	18.6	42.34°C	0.991
50%	12.118V	5.013V	3.288V	5.061V	711.06	91.356%	655	18.6	70.52°C	114.87V
60%	59.440A	5.99A	6.027A	1.979A	779.763	90.908%	652	18.6	42.57°C	0.992
60%	12.112V	5.009V	3.286V	5.054V	857.751	90.908%	652	18.6	65.71°C	114.81V
70%	69.406A	6.994A	7.038A	2.18A	909.822	90.284%	841	26.3	43.17°C	0.994
70%	12.114V	5.005V	3.282V	5.045V	1007.737	90.284%	841	26.3	66.53°C	114.77V
80%	79.395A	7.997A	8.049A	2.282A	1039.403	89.573%	1009	31.5	43.03°C	0.994
80%	12.111V	5.001V	3.28V	5.039V	1160.391	89.573%	1009	31.5	64.63°C	114.71V
90%	89.785A	8.502A	8.543A	2.384A	1169.666	88.755%	1302	37.9	44.77°C	0.995
90%	12.109V	4.998V	3.277V	5.032V	1317.861	88.755%	1302	37.9	64.41°C	114.66V
100%	99.903A	9.007A	9.07A	2.988A	1299.273	87.925%	1491	41.6	45.34°C	0.995
100%	12.107V	4.995V	3.274V	5.019V	1477.705	87.925%	1491	41.6	65.3°C	114.59V
110%	109.963A	10.015A	10.176A	2.991A	1429.487	86.942%	1710	44.9	46.95°C	0.996
110%	12.106V	4.991V	3.272V	5.014V	1644.186	86.942%	1710	44.9	67.48°C	114.54V
CL1	0.114A	12.059A	12.09A	0A	101.277	81.304%	0	<6.0	53.5°C	0.973
CL1	12.124V	4.991V	3.283V	5.101V	124.565	81.304%	0	<6.0	42.09°C	115.07V
CL2	0.113A	20.124A	0A	0A	101.348	79.31%	0	<6.0	55.59°C	0.974
CL2	12.134V	4.968V	3.28V	5.104V	127.788	79.31%	0	<6.0	40.78°C	115.07V
CL3	0.113A	0A	20.163A	0A	67.371	74.035%	0	<6.0	56.05°C	0.966
CL3	12.128V	5.013V	3.273V	5.101V	90.999	74.035%	0	<6.0	40.58°C	115.08V
CL4	107.273A	0A	0A	0.001A	1299.893	88.495%	1491	41.6	45.28°C	0.995
CL4	12.118V	5.025V	3.286V	5.067V	1468.89	88.495%	1491	41.6	65.3°C	114.6V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.950A	1.99A	2A	0.982A	129.968	89.748%	0	<6.0	61.24°C	0.895
10%	12.108V	5.025V	3.299V	5.093V	144.815	89.748%	0	<6.0	40.45°C	230.27V
20%	18.911A	2.986A	3.003A	1.18A	259.915	92.374%	0	<6.0	60.04°C	0.948
20%	12.111V	5.022V	3.296V	5.085V	281.372	92.374%	0	<6.0	40.78°C	230.25V
30%	29.173A	3.486A	3.507A	1.379A	389.493	93.088%	0	<6.0	60.88°C	0.964
30%	12.115V	5.02V	3.294V	5.077V	418.416	93.088%	0	<6.0	41.02°C	230.23V
40%	39.472A	3.986A	4.011A	1.578A	519.463	93.406%	0	<6.0	61.27°C	0.973
40%	12.116V	5.017V	3.291V	5.07V	556.133	93.406%	0	<6.0	41.68°C	230.21V
50%	49.435A	4.986A	5.018A	1.778A	649.6	93.304%	397	<6.0	42.08°C	0.977
50%	12.119V	5.014V	3.288V	5.062V	696.216	93.304%	397	<6.0	46.42°C	230.19V
60%	59.441A	5.988A	6.026A	1.979A	779.741	93.02%	654	18.6	42.87°C	0.981
60%	12.112V	5.01V	3.286V	5.053V	838.247	93.02%	654	18.6	49.4°C	230.17V
70%	69.399A	6.993A	7.037A	2.18A	909.868	92.735%	841	26.3	43.23°C	0.983
70%	12.115V	5.006V	3.283V	5.045V	981.144	92.735%	841	26.3	51.27°C	230.15V
80%	79.381A	7.995A	8.048A	2.283A	1039.461	92.339%	1010	31.5	43.58°C	0.985
80%	12.114V	5.002V	3.28V	5.038V	1125.704	92.339%	1010	31.5	52.1°C	230.12V
90%	89.761A	8.498A	8.542A	2.385A	1169.709	91.883%	1303	37.9	44.18°C	0.986
90%	12.112V	5V	3.278V	5.031V	1273.041	91.883%	1303	37.9	53.35°C	230.1V
100%	99.868A	9.003A	9.068A	2.989A	1299.304	91.365%	1551	42.3	45.32°C	0.988
100%	12.112V	4.998V	3.275V	5.018V	1422.103	91.365%	1551	42.3	54.93°C	230.08V
110%	109.914A	10.01A	10.177A	2.993A	1429.508	90.817%	1709	44.9	46.55°C	0.989
110%	12.111V	4.994V	3.272V	5.012V	1574.056	90.817%	1709	44.9	56.91°C	230.06V
CL1	0.114A	12.06A	12.105A	0A	101.28	82.655%	0	<6.0	43.33°C	0.875
CL1	12.129V	4.991V	3.279V	5.1V	122.533	82.655%	0	<6.0	41.37°C	230.3V
CL2	0.114A	20.107A	0A	0A	101.361	80.695%	0	<6.0	47.98°C	0.878
CL2	12.136V	4.972V	3.281V	5.104V	125.611	80.695%	0	<6.0	41.83°C	230.3V
CL3	0.114A	0A	20.175A	0A	67.377	75.183%	0	<6.0	47.56°C	0.828
CL3	12.131V	5.013V	3.271V	5.1V	89.618	75.183%	0	<6.0	40.41°C	230.31V
CL4	107.256A	0A	0A	0.001A	1299.914	91.892%	1434	40.9	45.39°C	0.987
CL4	12.120V	5.025V	3.286V	5.066V	1414.613	91.892%	1434	40.9	51.64°C	230.08V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.225A	0.497A	0.5A	0.196A	19.99	66.16%	0	<6.0	50.69°C	0.883
20W	12.120V	5.031V	3.302V	5.108V	30.215	66.16%	0	<6.0	36.77°C	115.11V
40W	2.697A	0.696A	0.7A	0.294A	39.989	77.87%	0	<6.0	57.19°C	0.931
40W	12.117V	5.031V	3.301V	5.106V	51.353	77.87%	0	<6.0	37.38°C	115.1V
60W	4.170A	0.894A	0.899A	0.392A	59.988	82.335%	0	<6.0	55.99°C	0.958
60W	12.117V	5.03V	3.301V	5.104V	72.859	82.335%	0	<6.0	38.52°C	115.1V
80W	5.637A	1.093A	1.099A	0.49A	79.916	85.229%	0	<6.0	57.3°C	0.966
80W	12.113V	5.029V	3.301V	5.102V	93.766	85.229%	0	<6.0	39.1°C	115.09V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.226A	0.497A	0.5A	0.196A	19.991	68.134%	0	<6.0	54.97°C	0.524
20W	12.104V	5.029V	3.302V	5.108V	29.341	68.134%	0	<6.0	36.51°C	230.29V
40W	2.701A	0.696A	0.7A	0.294A	39.991	79.756%	0	<6.0	59.46°C	0.69
40W	12.102V	5.029V	3.301V	5.106V	50.142	79.756%	0	<6.0	37.42°C	230.28V
60W	4.173A	0.895A	0.899A	0.392A	59.99	84.436%	0	<6.0	62.42°C	0.779
60W	12.108V	5.029V	3.301V	5.104V	71.049	84.436%	0	<6.0	38.67°C	230.28V
80W	5.641A	1.094A	1.099A	0.49A	79.922	86.917%	0	<6.0	62.32°C	0.833
80W	12.108V	5.028V	3.301V	5.102V	91.953	86.917%	0	<6.0	39.22°C	230.27V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	29.65mV	18.34mV	18.05mV	17.91mV	Pass
20% Load	33.10mV	18.96mV	18.67mV	17.96mV	Pass
30% Load	31.86mV	21.89mV	20.94mV	18.33mV	Pass
40% Load	31.19mV	21.43mV	20.06mV	18.99mV	Pass
50% Load	31.19mV	20.30mV	21.00mV	20.75mV	Pass
60% Load	32.53mV	21.07mV	20.89mV	21.94mV	Pass
70% Load	33.20mV	22.31mV	21.92mV	22.71mV	Pass
80% Load	35.27mV	24.47mV	24.15mV	25.14mV	Pass
90% Load	55.63mV	56.41mV	54.87mV	45.78mV	Fail
100% Load	60.12mV	62.08mV	59.36mV	49.04mV	Fail
110% Load	60.68mV	69.96mV	66.60mV	47.02mV	Fail
Crossload1	36.30mV	25.14mV	21.36mV	19.25mV	Pass
Crossload2	31.76mV	29.16mV	21.92mV	18.33mV	Pass
Crossload3	28.92mV	31.17mV	33.82mV	17.86mV	Pass
Crossload4	51.76mV	51.00mV	50.52mV	44.34mV	Fail

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	30.31mV	17.88mV	17.33mV	17.34mV	Pass
20% Load	33.30mV	20.71mV	19.03mV	18.48mV	Pass
30% Load	33.51mV	23.49mV	21.56mV	19.36mV	Pass
40% Load	32.27mV	21.53mV	20.89mV	20.85mV	Pass
50% Load	32.89mV	22.15mV	20.94mV	21.68mV	Pass
60% Load	31.60mV	22.46mV	22.60mV	22.30mV	Pass
70% Load	33.67mV	23.03mV	22.44mV	23.28mV	Pass
80% Load	34.08mV	25.55mV	23.27mV	23.90mV	Pass
90% Load	49.34mV	39.36mV	38.42mV	33.45mV	Pass
100% Load	46.19mV	36.84mV	40.80mV	31.85mV	Pass
110% Load	45.58mV	34.62mV	31.65mV	31.90mV	Pass
Crossload1	30.83mV	20.40mV	19.08mV	16.98mV	Pass
Crossload2	30.88mV	27.61mV	19.75mV	17.40mV	Pass
Crossload3	29.28mV	19.11mV	22.86mV	16.93mV	Pass
Crossload4	36.24mV	23.91mV	23.01mV	24.77mV	Pass

The results above are not used in the certification process

Cooler Master Elite Platinum 1300

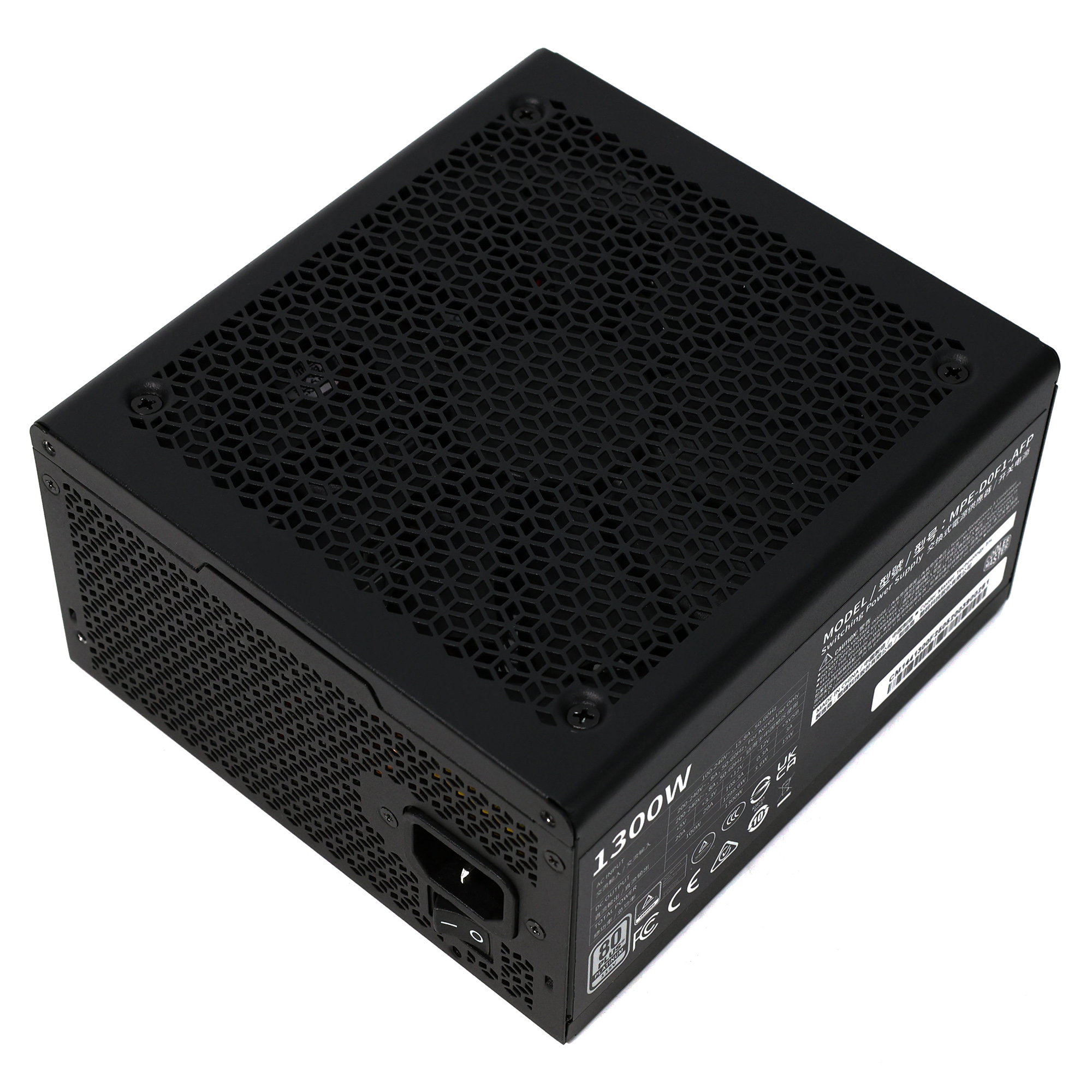

Top side

Power specifications label

Fan

PSU Internals
